FC8932, FC8832, FC8830

Wheels stuck

ݓઁሂ

Top cover or dust container not placed properly

רۆࠋࠦӧ๥໇٦ݾ

Bumper stuck

ߓԎሑᇆሂ

Robot lifted up from ﬂoor

՚ֽϴุఓᇊୃስײᆋ༏ӧచ

Colour of ﬂoor too dark

ֽϴဂ೨ขτ

Battery not inserted properly / Charging error (switch is off)

׌ԁ໇ሑݾԍ׌մ༆Ĳܵၜܵтĳ

2625

English 6 简体中文 27

Introduction

Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips oers, register your product at

www.philips.com/welcome.

General description

1 Handle of dust container lid 2 Dust container lid 3 Filter 4 Dust container 5 Top cover 6 Error code table 7 Fan 8 Bumper 9 Docking station sensor 10 Display 11 Power switch (to switch the robot on or o) 12 Front wheel 13 Side brush shafts 14 Drop-o sensors 15 Wheels 16 TriActive XL nozzle 17 Side brushes 18 Fixation blocks for dry wipes 19 Dry wipe holder 20 Dry wipes 21 Battery holder 22 Remote control 23 AA batteries for invisible wall 24 Invisible wall 25 Docking station 26 Adapter 27 Small plug

Remote control and display

Display

1 Spiral mode indicator 2 Wall-following mode indicator 3 Zigzag pattern mode indicator 4 Random mode indicator 5 Cleaning time 6 Docking icon 7 WiFi icon 8 Dustbin full indicator 9 Sound sensor 10 Mode selection button 11 Start/stop button 12 WiFi button

1110 129

234

5 6 7 8

English

Remote control (FC8932)

1 Navigation buttons and start/stop 2 Cleaning time buttons 3 Cleaning mode buttons 4 Fan speed buttons 5 Docking button

How your robot works

What your robot cleans

This robot is equipped with features that make it a suitable cleaner to help you clean the oors in your home.

The robot is especially suitable for cleaning hard oors, such as wooden, tiled or linoleum oors. It may experience problems cleaning soft oors, such as carpet or rugs. If you use the robot on a carpet or rug, please stay close by the rst time to see if the robot can deal with this type of oor. The robot also needs supervision when you use it on very dark or shiny hard oors.

How your robot cleans

Cleaning system

The robot has a 3-stage cleaning system to clean your oors eciently.

- The two side brushes help the robot clean in corners and along walls. They also help to remove dirt from the oor and move it towards the suction opening.

- The suction power of the robot picks up loose dirt and transports it through the suction opening into the dust container.

- The robot comes with a dry wipe holder that allows you to clean your hard oor even more thoroughly with dry wipes.

English

Cleaning patterns

In its auto cleaning mode, the robot uses an automatic sequence of cleaning patterns to clean each area of the room optimally. The cleaning patterns it uses are:

1 Z-pattern or zigzag pattern

2 Random pattern

3 Wall-following pattern

4 Spiral pattern In its auto cleaning mode, the robot uses these patterns in a xed

sequence:z-pattern, random pattern, wall-following pattern, and spiral pattern.

When the robot has completed this sequence of patterns, it starts moving in Z-pattern again. The robot continues to use this sequence of patterns to clean the room until the rechargeable battery runs low, or until it is switched o manually.

If the robot detects a particularly dirty area during its cleaning run, it switches to spiral mode and switches to turbo fan speed (FC8820 only) to ensure thorough dirt removal.

Note: You can also select each mode individually by pressing the appropriate button on the remote control (FC8932 only). The manually selected modes are only active for a couple of minutes. After that, the robot switches back to auto-cleaning mode.

For more details, see chapter 'Using your robot', section 'Cleaning modes'.

English

How your robot avoids height dierences

The robot has three drop-o sensors in its bottom. It uses these drop-o sensors to detect and avoid height dierences such as staircases.

Note: It is normal for the robot to move slightly over the edge of a height dierence, as its front drop-o sensor is located behind the bumper.

Caution: In some cases, the drop-o sensors may not detect a staircase or other height dierence in time. Therefore monitor the robot carefully the rst few times you use it, and when you operate it near a staircase or another height dierence. It is important that you clean the dropo sensors regularly to ensure the robot continues to detect height dierences properly (see chapter ' Cleaning and maintenance' for instructions).

Before rst use

Mounting the side brushes

1 Unpack the side brushes and place the robot upside down on a table or

on the oor.

2 Push the side brushes onto the shafts on the bottom of the robot.

Note: Make sure you attach the side brushes properly. Press them onto the shaft until you hear them lock into position with a click.

Removing the tag from the remote control

The remote control works on a CR2025 coin-shaped battery. This battery is protected with a protection tag that has to be removed before use.

1 Pull the battery protection tag out of the battery compartment of the

remote control. Now the remote control is ready for use.

English

Preparing for use

Installing the docking station

1 Insert the small plug of the adapter into the socket on the docking station

(1) and insert the adapter into the wall socket (2).

- The display of the docking station comes on.

2 Place the docking station on a horizontal, level oor against the wall.

Note: Make sure that there are no obstacles or height dierences 80 cm in front, 30 cm to the right and 100 cm to the left of the docking station.

Tip: To ensure the docking station stays rmly in the selected spot, fasten it to the wall with screws or with two strips of double-sided tape.

Charging

When charging for the rst time and when the rechargeable battery of the robot is empty, the charging time is four hours.

Your robot can be charged in two ways:

- On the docking station, either manually or automatically during use;

- By connecting the robot directly to the mains.

Charging on the docking station

1 Place the robot on the plugged-in docking station.

2 Press the power switch to switch on the robot.

100 厘米

30 厘米

80 厘米

English

3 The start/stop button starts ashing. The charging indicator will be visible

on the display during the rst 3 minutes of charging.

4 When the rechargeable battery is fully charged, the start/stop button

lights up continuously.

Charging automatically during use

1 When the robot has nished cleaning or when only 15% of the battery

power remains, it automatically searches for the docking station to recharge. When the robot searches for the docking station, the light in the start/stop button turns orange.

2 When the rechargeable battery is fully charged, the start/stop button

lights up continuously.

Note: The robot only searches for the docking station automatically when it started cleaning from the docking station.

Charging directly from the mains

1 Press the power switch to switch on the robot. 2 Insert the small plug of the adapter into the socket on the robot (1). Insert

the adapter into a wall socket (2).

3 When the robot is connected to the mains correctly, the start/stop button

starts ashing slowly. This indicates that the robot is charging.

4 When the rechargeable battery is fully charged, the start/stop button

lights up continuously.

Note: After charging, remove the small plug from the socket on the robot and remove the adapter from the wall socket. The robot does not start cleaning when it is still connected to a wall socket.

English

Preparing the room for a cleaning run

Before you start the robot on its cleaning run, make sure that you remove all loose and fragile objects from the oor. Also remove all cables, wires and cords from the oor.

Using your robot

You can also operate your robot with the remote control (FC8932 only) or with the buttons on the user interface of the robot.

Starting and stopping

1 Set the power switch on the side of the robot to the 'on' position.

2 Press the start/stop button.

- You can press the start/stop button on the robot.

- You can also press the start/stop button on the remote control (FC8932 only)

3 The start/stop button is continuously on and the robot starts cleaning.

4 The robot cleans in the auto-cleaning mode until its battery runs low.

In the auto-cleaning mode, it follows repeated sequences of Z-pattern, random, wall-following and spiral patterns.

Note: To select an individual mode, press one of the mode buttons on the remote control. See section 'Cleaning mode selection' for more details.

English

5 When the battery runs low, the start/stop button turns orange and the

robot searches for the docking station to recharge.

6 You can also press the start/stop button to interrupt or stop the cleaning

run. If you press the start/stop button again and there is still enough energy in the rechargeable battery, the robot continues cleaning in the auto-cleaning mode.

7 To make the robot return to the docking station before the rechargeable

battery runs low, press the docking button on the remote control (FC8932 only). The docking indicator on the display of the robot comes on and the robot returns to the docking station.

Note: If you did not start the robot from the docking station, it does not search for the docking station automatically when the rechargeable battery runs low. If there is still enough energy in the rechargeable battery, you can press the docking button on the remote control (FC8932 only) to make the robot return to the docking station. If the rechargeable battery is completely empty, you have to place the robot on the docking station manually.

Cleaning mode selection

Next to the auto-cleaning mode, this robot has four individual cleaning modes that can each be activated by pressing the appropriate button on the remote control.

Note: The manually selected modes are only active for a couple of minutes. After that, the robot switches back to auto-cleaning mode.

Z-pattern mode

In Z-pattern mode, the robot cleans by making Z-shaped loops through the room to clean large areas.

Random mode

In this mode, the robot cleans the room in a mixed pattern of straight and crisscross movements.

English

Wall-following mode

In this mode, the robot follows the walls of the room to give the area alongside the walls an extra clean.

Spiral mode

In this mode, the robot moves in a spiral pattern to clean a small dirty area thoroughly. In spiral mode, the fan operates at turbo speed.

Manual driving

1 Use the arrow buttons above and below and to the left and right of the

start/stop button on the remote control to navigate the robot through the room.

Note: Be careful when you drive the robot manually close to height dierences and staircases.

Note: The vacuuming function and the side brushes only work when the robot is driven forward. The left, right or back buttons are only for maneuvering the robot.

Using the cleaning time buttons (FC8932)

- Press the maximum cleaning time button to make the robot clean in auto cleaning mode until its rechargeable battery runs low. When the robot has nished cleaning, it returns to the docking station automatically if it started from the docking station. If the robot started from another point in the room, press the docking button to send it back to the docking station.

- The other cleaning time buttons allow you to let the robot operate for 60, 45 and 30 minutes respectively. When the cleaning time is nished, the robot automatically returns to the docking station when it started from the docking station. If the robot started from another point in the room, press the docking button to send it back to the docking station.

English

Clap response

The clap response is enabled when the robot enters sleep mode in the following situations:

- when it stops cleaning due to an error

- when it cannot nd its docking station in 20 minutes

If you do not see the robot, you can locate it by clapping your hands once. The robot will respond by beeping and by lighting up all icons on its display.

Using the dry wipe attachment

The dry wipe attachment is a feature that allows you to clean hard oors with dry wipes.

Note: If you use the dry wipe attachment, the robot may have trouble crossing thresholds or climbing onto rugs.

Preparing the dry wipe attachment for use

1 Turn the robot upside down and place it on the oor or on a table. 2 Place the dry wipe on a table and place the dry wipe attachment on the

wipe with its xation lugs pointing towards you.

3 Fold both ends of the dry wipe around the dry wipe attachment and

fasten the dry wipe onto the attachment by pushing the xation blocks into the recesses.

4 Insert the xation lug of the dry wipe attachment into the opening just

behind the wheel on one side of the robot and push until you hear it lock into place with a click. Then repeat these actions on the other side.

5 Turn the robot and place it on the oor on its wheels with the dry wipe

attachment touching the oor.

English

Using the robot with the dry wipe attachment

When the dry wipe attachment is attached, you can use the robot in any mode and on all hard oors. Do not use the dry wipe attachment on carpet or rugs.

Removing the dry wipe attachment

1 Remove the dry wipe attachment as soon as you have nished wiping

the oor.

2 Turn the robot upside down and place it on the oor or on a table. 3 Push one end of the dry wipe attachment towards the wheel on the

other side of the robot to release it. Then pull the attachment o the robot.

Using the invisible wall

Placing the batteries in the invisible wall

The invisible wall operates on four AA batteries. 1 Push the two release tabs at the bottom of the back cover (1) and slide

the back cover upwards and o the invisible wall (2).

2 Take four new AA batteries from the pack and insert them into the

battery compartment of the invisible wall.

Note: Make sure the + and - poles of the batteries point in the right direction.

English

3 Slide the back cover onto the invisible wall again.

Positioning the invisible wall to stop the robot

You can use the invisible wall to prevent the robot from entering a room or area that you want to keep it out of.

1 Place the unit at a point you do not want the robot to cross, e.g at an

open door to a room that is o-limits to the robot.

2 Switch on the invisible wall with the on/o slide on top of the unit.

3 Start the robot.

4 When the robot comes too close to the invisible wall, the light on the

invisible wall starts ashing and the invisible wall emits a beam of infrared light. This beam of infrared light makes the robot change its course and move away from the invisible wall.

Note: If you use the invisible wall, regularly check if the batteries still contain sucient power. You can check this by switching the virtual wall o and on again. If there is enough energy in the batteries, the LED on the invisible wall will light up briey.

English

Cleaning and maintenance

Cleaning the robot

To maintain good cleaning performance, you have to clean the drop-o sensors, the wheels, the side brushes and the suction opening from time to time.

1 Place the robot upside down on a at surface 2 Use a brush with soft bristles (e.g. a toothbrush) to remove dust or u

from the drop-o sensors.

Note: It is important that you clean the drop-o sensors regularly. If the drop-o sensors are dirty, the robot may fail to detect height dierences or staircases.

3 Use a brush with soft bristles (e.g. a toothbrush) to remove dust or u

from the front wheel and side wheels.

4 To clean the side brushes, grab them by the bristles and pull them o

their shafts.

5 Remove u, hairs and threads from the shaft and from the side brush

with a soft brush (e.g. a toothbrush) or a cloth.

6 Check the side brushes and the bottom of the robot for any sharp

objects that could damage your oor.

English

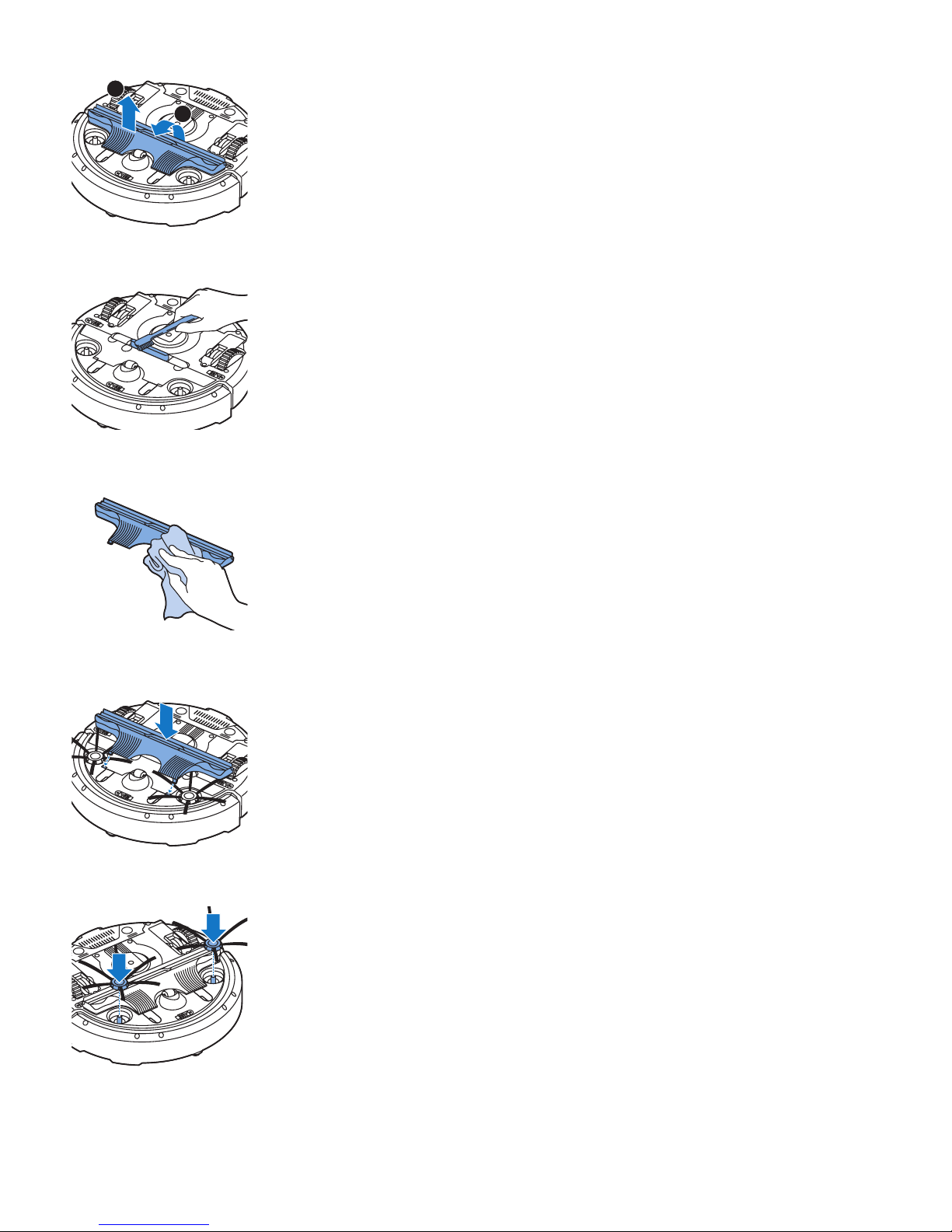

7 Undo the snap connections of the TriActive XL nozzle by inserting by

inserting your ngers at the places marked with arrows and pull the TriActive nozzle o the robot.

8 Clean the suction opening with a soft brush (e.g. a toothbrush).

9 Remove all visible dirt from the TriActive nozzle.

10 Insert the snap hooks of the TriActive nozzle into the holes in the

bottom of the robot. Push the TriActive nozzle back into position. Check if the nozzle can move a few millimeters up and down freely.

11 Push the side brushes onto the shafts on the bottom of the robot again.

English

Emptying and cleaning the dust container

Empty and clean the dust container when the dust container full indicator lights up continuously.

1 Remove the cover.

2 Pull up the handle of the dust container lid and lift the dust container out

of the dust container compartment.

Note: When you remove or reinsert the dust container, take care not to damage the blades of the fan.

3 Carefully lift the lid o the dust container and take out the lter.

4 Shake the dust container over a dustbin to empty it. Clean the lter

and the inside of the dust container with a cloth or a toothbrush with soft bristles. Also clean the suction opening in the bottom of the dust container.

Caution: Do not clean the dust container and the lter with water or in the dishwasher.

5 Put the lter back into the dust container. Then place the lid on the dust

container.

English

6 Put the dust container back into the dust container compartment (1),

fold down the handle (2), and put the top cover back on the robot.

Caution: Always make sure the lter is present inside the dust container. If you use the robot without the lter inside the dust container, the fan will be damaged.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the international warranty leaet for contact details).

Open source software

Your robot runs on open source software. Philips oers to make available upon request a complete machine-readable copy of the source code on a medium customarily used for software exchange at a charge not higher than the cost of physically transferring a copy.

This oer is valid for a period of 3 years after the date of purchase of this product. To obtain a copy of the source code, please write to:

Open Source Team, Philips Intellectual Property and Standards

P.O. Box 220, 5600 AE Eindhoven, Netherlands

Email address: open.source@philips.com

Replacement

Replacing the lter

Replace the lter if it is very dirty or damaged. You can order a new lter kit under type number FC8066. See 'Emptying and cleaning the dust container' in chapter 'Cleaning and maintenance' for instructions on how to remove the lter from the dust container and how to place it in the dust container.

Replacing the side brushes

Replace the side brushes after some time to ensure proper cleaning results.

Always replace the side brushes when you notice signs of wear or damage. We also recommend that you replace both side brushes at the same time. You can order spare side brushes as part of replacement kit FC8068. This kit also contains two lters and three dry wipes.

English

1 To replace the side brushes, grab the old side brushes by the bristles and

pull them o their shafts.

2 Push the new side brushes onto the shafts.

Replacing dry wipes

You can order new dry wipes. They are part of replacement kit FC8068. This replacement kit also contains two side brushes and two lters.

Replacing the battery of the remote control

The remote control works on a CR2025 coin-shaped battery. Replace the battery when the robot no longer responds when you press the buttons on the remote control.

1 Hold the remote control upside down. Push the release button on the

battery holder and at the same time slide the battery holder out of the remote control.

2 Remove the empty battery from the battery holder and place a new

battery in the battery holder. Then slide the battery holder back into the remote control.

English

Replacing the rechargeable battery

The rechargeable battery may only be replaced by qualied service engineers. Take the robot to an authorized Philips service center to have the battery replaced when you can no longer recharge it or when it runs out of power quickly. You can nd the contact details of the Philips Consumer Care Center in your country in the worldwide guarantee leaet.

Recycling

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an ocial collection point or a Philips service centre to have a professional remove the rechargeable battery.

- Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Warning: Only remove the rechargeable battery when you discard the appliance. Make sure the battery is completely empty when you remove it.

To remove the rechargeable battery, follow the instructions below. You can also take the robot to a Philips service center to have the rechargeable battery removed. Contact the Philips Consumer Care Center in your country for the address of a service center near you.

1 Start the robot from a place somewhere in the room and not from the

docking station.

2 Let the robot run until the rechargeable battery is empty to make sure

that the rechargeable battery is completely discharged before you remove it and dispose of it.

3 Undo the screws of the battery compartment lid and remove the lid.

English

4 Lift out the rechargeable battery and disconnect it.

5 Take the robot and the rechargeable battery to a collection point for

electrical and electronic waste.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Troubleshooting

Problem Possible cause Solution

The robot does not start cleaning when I press the start/stop button.

The rechargeable battery is empty.

Charge the rechargeable battery (see chapter 'Preparing for use').

The small plug is still inserted in the socket on the robot.

The robot does not work on mains power. It only works on its rechargeable battery. Therefore, always disconnect the adapter from the robot and the mains before use.

The power switch is not set to 'on' (I) position.

Press the power switch. Press the start/ stop button on the robot or on the remote control to start cleaning.

The warning indicator ashes quickly.

One or both wheels are stuck. Set the power switch to 'o'. Remove the

u, hair, thread or wire that is caught around the wheel suspension.

One or both side brushes are stuck.

Clean the side brushes (see chapter 'Cleaning and maintenance').

The top cover is not present or is not closed properly.

When the top cover is not present or is not closed properly, the robot does not work. Place the top cover on the robot properly.

The bumper is stuck. Press the start/stop button. Lift the robot

so that its bumper comes free. Place the robot at some distance from the obstacle and press the start/stop button to make it resume cleaning.

The robot was lifted while it was cleaning.

Press the start/stop button. Place the robot on the oor. Then press the start/ stop button to make the robot resume cleaning.

this side up

English

Problem Possible cause Solution

The robot does not clean properly.

The bristles of one or both side brushes are crooked or bent.

Soak the brush or brushes in warm water for a while. If this does not restore the bristles to their proper shape, replace the side brushes (see chapter 'Replacement').

The lter in the dust container is dirty.

Clean the lter in the dust container with a cloth or a toothbrush with soft bristles.You can also clean the lter and dust container with a regular vacuum cleaner at a low suction power setting.

If brushing or vacuuming does not help to clean the lter, replace the lter with a new one. We advise you to replace the lter at least once a year.

The suction opening in the bottom of the dust container is clogged.

Clean the suction opening (see chapter 'Cleaning and maintenance').

The front wheel is jammed with hair or other dirt.

Clean the front wheel (see chapter 'Cleaning and maintenance').

The robot is cleaning a very dark or shiny surface, which triggers the drop-o sensors. This causes the robot to move in an unusual pattern.

Press the start/stop button and then move the robot to a lighter colored piece of the oor. If the problem continues to occur on lighter colored oors, please go to www.philips.com/support or contact the Consumer Care Center in your country.

The robot is cleaning a oor that reects sunlight quite strongly. This triggers the drop-o sensors and causes the robot to move in an unusual pattern.

Close the curtains to block sunlight from entering the room. You can also start cleaning when the sunlight is less bright.

The rechargeable battery can no longer be charged or runs empty very fast.

The rechargeable battery has reached the end of its life.

Replace the rechargeable battery (see chapter 'Replacement').

The battery of the remote control runs empty too fast.

Perhaps you did not insert the correct type of battery.

For the remote control, you need a CR2025 coin-shaped battery. If the problem persists, go to www.philips.com/ support or contact the Consumer Care Center in your country.

English

Problem Possible cause Solution

The robot is moving in circles.

The robot is in spot-cleaning mode.

This is normal behavior. The spiral mode can be activated when a lot of dirt is detected on the oor for a thorough clean. It is also part of the auto cleaning mode. After approximately one minute the robot resumes its normal cleaning pattern. You can also stop the spiral mode by selecting a dierent cleaning mode on the remote control.

The robot cannot nd the docking station.

There is not enough room for the robot to navigate towards the docking station.

Try to nd another place for the docking station. See 'Installing the docking station' in chapter 'Preparing for use'.

The robot is still actively searching.

Give the robot around 20 minutes to return to the docking station.

The robot was not started from the docking station.

If you want the robot to return to the docking station after a cleaning run, start it from the docking station.

The robot beeps when it is on the docking station.

You try to charge the robot with the power switch is in o position.

Press the power switch to switch on the robot.

Error codes

Error code Possible cause Solution

E1 Wheels stuck Remove robot from the obstacle and press the

starts/stop button to resume cleaning.

E2 Top cover or dust

container not placed properly

Place the dust container in and the top cover on the robot properly. The error code disappears from the display automatically.

E3 Bumper stuck Remove the robot from the obstacle. The

error code disappears from the display automatically.

E4 Robot lifted from oor Put the robot back on the oor to make the

error code disappear.

E5 Color of oor too dark Place robot on a lighter area of the oor. Clean

the drop-o sensors.

E6 Battery not inserted

properly

Read the instructions in ‘Inserting the rechargeable battery into the robot’ in chapter ‘Before rst use’.

Charging error Check if the power switch is in ‘on’ position

when the robot is on the docking station

English

介绍

简介

感谢您的惠顾，欢迎光临飞利浦！为了让您能充分享受飞利浦提供的支持，请在 www.philips.com/welcome 上注册您的产品。

基本说明

1 集尘桶盖手柄 2 集尘桶盖 3 过滤网 4 集尘桶 5 上盖 6 错误代码表 7 风扇 8 缓冲型 9 底座传感器 10 显示屏 11 电源开关（打开或关闭吸尘器） 12 前轮 13 侧毛刷轴 14 跌落传感器 15 滚轮 16 TriActive XL 吸嘴 17 侧毛刷 18 干巾固定块 19 干巾架 20 干巾 21 电池舱 22 遥控器 23 隐形墙的 AA 电池 24 隐形墙 25 底座 26 适配器 27 小插头

遥控器和显示屏

显示屏

1 螺旋模式指示灯 2 沿墙模式指示灯 3 之字形方向图模式指示灯 4 随机模式指示灯 5 清洁时间 6 插接图标 7 WiFi 图标 8 垃圾箱已满指示灯 9 声音传感器 10 模式选择按钮 11 启动/停止按钮 12 WiFi 按钮

1110 129

234

5 6 7 8

简体中文

遥控器 (FC8932)

1 导航按钮和启动/停止 2 清洁时间按钮 3 清洁模式按钮 4 风速按钮 5 插接按钮

吸尘器如何工作

吸尘器清洁哪些物体

本吸尘器具有许多功能，是一款适合帮助您在家中清洁地板的理想清洁工具。此吸尘器尤其适合清洁硬地板，例如木制、瓷砖或油毡地板。清洁软地板时可能

会出现问题，例如地毯或地垫。如果您在地毯或地垫上使用吸尘器，请在第一次使用之前先留心观察吸尘器是否能够处理这种类型的地板。另外，当您在极暗或有光泽的坚硬地板上使用吸尘器时，需要对其加以监控。

智能自动真空吸尘器如何清洁

清洁系统

智能自动真空吸尘器具有 3 重清洁系统来高效清洁地板。

- 两个侧毛刷有助于智能自动真空吸尘器在角落中以及沿着墙壁进行清洁。它们还可帮助清除地板上的灰尘，并将其移向吸口。

- 智能自动真空吸尘器的吸力可吸入松动的污垢，然后通过吸口将污垢输送到集尘桶。

- 智能自动真空吸尘器配有干巾架，用干巾可以更彻底地清洁硬地板。

简体中文

清洁方向图

在自动清洁模式下，智能自动真空吸尘器会使用自动的清洁方向图顺序，以最适宜的方式清洁房间内的各个区域。所使用的清洁方向图包括：

1 Z 方向图或之字形方向图

2 随机方向图

3 沿墙方向图

4 螺旋方向图在自动清洁模式下，智能自动真空吸尘器以固定顺序使用这些方向图：Z 方向图、

随机方向图、沿墙方向图和螺旋方向图。如果智能自动真空吸尘器已按此顺序使用完方向图，则将重新以 Z 方向图开始移

动。智能自动真空吸尘器会继续按该顺序使用方向图来清洁房间，直至充电电池的电量不足或者将其手动关闭。

如果智能自动真空吸尘器在清洁操作时检测到特别脏的区域，其会切换至螺旋模式和强力风速（仅限 FC8820）以确保彻底清除污垢。

注意：您还可以按遥控器上的相应按钮，单独选择各个模式（仅限 FC8932）。手动选定的模式仅处于启用状态数分钟。之后，智能自动真空吸尘器会切换回自动清洁模式。

有关详细信息，请参阅“使用智能自动真空吸尘器”一章中的“清洁模式”部分。

简体中文

智能自动真空吸尘器如何避开高度差

智能自动真空吸尘器底部配有三个跌落传感器。智能自动真空吸尘器使用这些跌落传感器检测和避开楼梯等有高度差的地方。

注意：智能自动真空吸尘器轻轻移动以越过高度差的边缘是正常现象，因为正面的跌落传感器位于缓冲装置后面。

警告：在某些情况下，跌落传感器可能无法及时检测到楼梯或其他有高度差的地方。因此，在最初几次使用以及在楼梯或其他有高度差的地方附近使用时，应密切监控智能自动真空吸尘器的工作。务必定期清洁跌落传感器，以确保智能自动真空吸尘器能继续正确检测到高度差（有关说明，请参阅“清洁和保养”一章）。

首次使用之前

安装侧毛刷

1 打开侧毛刷包装，将智能自动真空吸尘器正面朝下置于桌子或地板上。 2 将侧毛刷推入智能自动真空吸尘器底部的轴上。

注意：确保您已正确安装侧毛刷。将侧毛刷按在轴上，直至您听到其咔哒一声锁定到位。

取下遥控器上的保护贴

遥控器由 CR2025 纽扣电池供电。该电池采用保护贴保护，使用前须取下。 1 抽出遥控器电池仓中的电池保护贴。遥控器就可以使用了。

简体中文

使用准备

安装底座

1 将适配器的小插头插入底座上的插座 (1)，将适配器插入电源插座 (2)。

- 底座的显示屏会亮起。

2 将底座放在靠墙的水平地板上。

注意：确保底座正面 80 厘米、右侧 30 厘米、左侧 100 厘米没有障碍物或高度差。

提示：为确保底座牢固地保持在选定位置，请用螺钉或两条双面胶带将其固定在墙上。

充电

首次充电及智能自动真空吸尘器的充电电池电量耗尽时，需充电 4 小时。智能自动真空吸尘器可使用两种方式充电：

- 使用期间在底座上手动或自动充电；

- 将智能自动真空吸尘器直接连接至电源。

在底座上充电

1 将智能自动真空吸尘器置于接电的底座上。

100 厘米

30 厘米

80 厘米

简体中文

2 按电源开关打开智能自动真空吸尘器。

3 启动/停止按钮开始闪烁。在充电的前 3 分钟内，您可以从显示屏上看到充电

指示灯。

4 当充电电池充满电时，启动/停止按钮将持续亮起。

使用期间自动充电

1 当智能自动真空吸尘器完成清洁或电池电量只剩 15% 时，它会自动搜索底座

进行充电。当智能自动真空吸尘器搜索底座时，启动/停止按钮上的指示灯将变为橙色。

2 当充电电池充满电时，启动/停止按钮将持续亮起。

注意：只有从底座开始清洁时，智能自动真空吸尘器才会自动搜索底座。

直接插电充电

1 按电源开关打开智能自动真空吸尘器。

2 将适配器的小插头插入智能自动真空吸尘器上的插座 (1)。将适配器插入电源

插座 (2)。

3 当智能自动真空吸尘器正确连接至电源时，启动/停止按钮将开始缓慢闪烁。

这表示智能自动真空吸尘器正在充电。

4 当充电电池充满电时，启动/停止按钮将持续亮起。

注意：充电后，将小插头从智能自动真空吸尘器的插座中拔出，将适配器从电源插座上拔出。如果智能自动真空吸尘器仍与电源插座相连，它不会开始清洁。

简体中文

准备房间以进行清洁操作

在启动智能自动真空吸尘器进行清洁操作之前，确保清除地板上的所有松散和易碎物体。另外，移除地板上的所有电缆、电线和绳索。

使用吸尘器

您还可以用遥控器（仅限 FC8932）或者智能自动真空吸尘器用户界面上的按钮来进行操作。

启动和停止

1 将智能自动真空吸尘器侧面的电源开关调至“开”位置。 2 按启动/停止按钮。

- 您可以按智能自动真空吸尘器上的启动/停止按钮。

- 您也可以按遥控器上的启动/停止按钮（仅限 FC8932）。

3 启动/停止按钮持续亮起，智能自动真空吸尘器开始清洁。

4 智能自动真空吸尘器以自动清洁模式进行清洁，直至电池电量不足。

在自动清洁模式下，智能自动真空吸尘器按照 Z 方向图、随机、沿墙和螺旋方向图的重复顺序进行清洁。

注意：要选择单独模式，请按遥控器上的任一模式按钮。有关详细信息，请参阅“清洁模式选择”。

简体中文

5 如果电池电量不足，启动/停止按钮将变为橙色，智能自动真空吸尘器会搜索底

座进行充电。

6 您也可以按启动/停止按钮中断或停止清洁操作。如果再次按启动/停止按钮且

充电电池仍有足够的电量，则智能自动真空吸尘器将继续以自动清洁模式进行清洁。

7 要使智能自动真空吸尘器在充电电池电量不足前返回到底座，请按遥控器上的

插接按钮（仅限 FC8932）。智能自动真空吸尘器显示屏上的插接指示灯会亮起，智能自动真空吸尘器会返回到底座。

注意：如果您未从底座启动智能自动真空吸尘器，则智能自动真空吸尘器不会在充电电池电量不足时自动搜索底座。如果充电电池仍有足够的电量，您可以按遥控器上的插接按钮（仅限 FC8932）使智能自动真空吸尘器返回到底座。如果充电电池的电量完全耗尽，则必须将智能自动真空吸尘器手动放回底座。

清洁模式选择

除了自动清洁模式，此智能自动真空吸尘器还提供四种单独清洁模式，每种模式均可通过按遥控器上的相应按钮启动。

注意：手动选定的模式仅处于启用状态数分钟。之后，智能自动真空吸尘器会切换回自动清洁模式。

Z 方向图模式

在 Z 方向图模式下，智能自动真空吸尘器将在整个房间中进行 Z 形环状运动以清洁大片区域。

随机模式

在该模式下，智能自动真空吸尘器将使用直线运动和交叉运动的混合模式清洁房间。

简体中文

沿墙模式

在该模式下，智能自动真空吸尘器将沿着房间的墙壁对墙边区域进行特别清洁。

螺旋模式

在该模式下，智能自动真空吸尘器将按照螺旋方向图移动，以彻底清洁小范围的脏污区域。在螺旋模式下，风扇会高速运转。

手动驱动

1 使用遥控器启动/停止按钮的上、下、左、右箭头按钮在房间内对智能自动真空

吸尘器进行导航。

注意：当您手动驱动智能自动真空吸尘器靠近有高度差的地方和楼梯时，请小心谨慎。

注意：吸尘功能和侧毛刷只有在智能自动真空吸尘器向前驱动时才可用。左右或后退按钮仅用于操纵智能自动真空吸尘器。

使用清洁时间按钮 (FC8932)

- 按最长清洁时间按钮以使智能自动真空吸尘器在自动清洁模式下清洁，直至充电电池电量不足为止。智能自动真空吸尘器完成清洁后，如果是从底座开始清洁，则其会自动返回到底座。如果智能自动真空吸尘器从房间内其他位置开始清洁，则需按插接按钮才能使其返回到底座。

- 按其他清洁时间按钮可使智能自动真空吸尘器分别运行 60、45 和 30 分钟。清洁时间结束后，如果智能自动真空吸尘器是从底座开始清洁，则会自动返回到底座。如果智能自动真空吸尘器从房间内其他位置开始清洁，则需按插接按钮才能使其返回到底座。

简体中文

拍手响应

在以下情况下，拍手响应会在智能自动真空吸尘器进入睡眠模式时启用：

- 当智能自动真空吸尘器因出错而停止清洁时

- 当智能自动真空吸尘器无法在 20 分钟内找到其底座时

如果您未见到智能自动真空吸尘器，则只需拍一次手即可以找到它。智能自动真空吸尘器将通过发出蜂鸣音以及点亮显示屏上的所有图标做出响应。

使用干巾附件

干巾附件是一项可以使用干巾清洁硬地板的功能。

注意：如果您使用干巾附件，则智能自动真空吸尘器可能会很难跨越门槛或爬上地毯。

干巾附件使用准备

1 将智能自动真空吸尘器翻转过来，置于地板或桌子上。 2 将干巾置于桌上，将干巾附件放在干巾上，固定凸缘朝向自己。

3 将干巾两端围绕干巾附件折起来，将固定块按入凹槽，将干巾固定在附件上。

4 将干巾附件的凸缘插入智能自动真空吸尘器一侧滚轮后面的开口并推入，

直至其“咔哒”一声锁定到位。然后，在另一侧重复这些动作。

将智能自动真空吸尘器翻转过来放在地板上，使带有干巾附件的滚轮接触地板。

简体中文

使用带干巾附件的智能自动真空吸尘器

装上干巾附件后，便可以在所有硬地板上以任何模式使用智能自动真空吸尘器。不要在地毯或小地毯上使用干巾附件。

拆卸干巾附件

1 擦净地板后便可以卸下干巾附件。 2 将智能自动真空吸尘器翻转过来，置于地板或桌子上。 3

将干巾附件的一端向智能自动真空吸尘器另一侧的滚轮方向推动即可将其释放。然后，拉出干巾附件。

使用隐形墙

将电池装入隐形墙内

隐形墙使用四节 AA 电池。

1 推动后盖底部的两个释放钮 (1)，将后盖向上滑动，从隐形墙上取下 (2)。

2 拆开四节 AA 电池的包装，将其装入隐形墙的电池仓。

注意：确保电池的 + 和 - 极方向正确。

简体中文

3 将后盖重新滑入隐形墙。

定位隐形墙以阻止智能自动真空吸尘器

您可以使用隐形墙防止智能自动真空吸尘器进入您不想让其接近的房间或区域。 1 将装置置于您不想让智能自动真空吸尘器跨越的位置，例如，如果您想禁止吸

尘器进入某房间，即可将其安装在该房间打开的房门上。

2 用隐形墙顶部的开/关滑钮将其打开。 3 启动智能自动真空吸尘器。

4 当智能自动真空吸尘器距离隐形墙过近时，隐形墙上的指示灯将开始闪烁，

同时其会发射红外光束。该红外光束可使智能自动真空吸尘器改变移动路线，远离隐形墙。

注意：如果您使用隐形墙，请定期检查电池是否仍电量充足。您可以通过关闭并再次打开虚拟墙，来检查电量情况。如果电池的电量充足，隐形墙上的 LED 会短暂亮起。

简体中文

清洁和保养

清洁智能自动真空吸尘器

为保持良好的清洁效果，您必须经常清洁跌落传感器、滚轮、侧毛刷和吸口。 1 将智能自动真空吸尘器倒置在平面上。

2 使用带柔软刷毛的毛刷（例如牙刷）清除跌落传感器上的灰尘和绒毛。

注意：务必定期清洁跌落传感器。如果跌落传感器变脏，智能自动真空吸尘器可能无法检测到高度差或楼梯。

3 使用软毛刷（例如牙刷）清除前轮和侧轮上的灰尘和绒毛。

4 要清洁侧毛刷，请抓住刷毛并将其从轴上取下。

5 使用柔软的毛刷（例如牙刷）或布清除轴和侧毛刷中的绒毛、头毛发和线头。 6

检查智能自动真空吸尘器的侧毛刷和底部是否存在可能会损坏地板的尖锐物体。

简体中文

7 将手指插入标有箭头的地方以解开 TriActive XL 吸嘴的扣合式连接，

并将 TriActive 吸嘴从智能自动真空吸尘器上拉出。

8 用软刷（例如牙刷）清洁吸口。

9 去除 TriActive 吸嘴上所有肉眼可见的灰尘。

10 将 TriActive 吸嘴的安全钩插入智能自动真空吸尘器底部的孔中。

将 TriActive 吸嘴推回原位。检查吸嘴是否可以自由上下移动几毫米。

11 再次将侧毛刷推入智能自动真空吸尘器底部的轴上。

简体中文

倒空并清洁集尘桶

集尘桶已满指示灯持续亮起时，倒空并清洁集尘桶。 1 取下盖子。

2 上拉集尘桶盖手柄，从集尘桶仓中提出集尘桶。

注意：取下或重新插入集尘桶时，小心不要损坏风扇的刀片。

3 小心地提起集尘桶的盖子并取出滤网。

4 在垃圾箱上晃动集尘桶将其倒空。用布或软毛牙刷清洁滤网和集尘桶内部。

另外清洁集尘桶底部的吸口。

警告：切勿用水或在洗碗机中清洁集尘桶和滤网。

5 将滤网放回集尘桶中。然后将盖子放在集尘桶上。

简体中文

6 将集尘桶放回集尘桶仓 (1)，折叠把手 (2)，盖好智能自动真空吸尘器的上盖。

警告：务必确保集尘桶内已放置好滤网。如果您在集尘桶内未放置滤网的情况下使用智能自动真空吸尘器，将会损坏风扇。

订购配件

要购买附件或备件，请访问 www.shop.philips.com/service 或联系您的飞利浦经销商。您还可以联系所在国家/地区的飞利浦客户服务中心（请参阅全球保修卡了解详细联系信息）。

开放源软件

您的智能自动真空吸尘器运行开放源软件。若用户有此要求，Philips 可通过常用的软件交换介质提供可用机器读取的源代码完整副本，收费不高于实际传输副本的成本。

本承诺自产品购买之日起 3 年内有效。要获得源代码的副本，请写信至： Open Source Team, Philips Intellectual Property and Standards P.O. Box 220, 5600 AE Eindhoven, Netherlands 电子邮件地址： open.source@philips.com

更换

更换过滤器

如果滤网很脏或已损坏，请进行更换。您可以订购新的滤网套件，型号为 FC8066 。有关如何从集尘桶中取出滤网以及如何将滤网放入集尘桶的说明，请参阅“清洁和保养”一章中的“倒空并清洁集尘桶”。

更换侧毛刷

一段时间后，请更换侧毛刷，以确保正常的清洁效果。发现磨损或损坏迹象时务必更换侧毛刷。另外，建议您同时更换两个侧毛刷。

您可以订购更换套件 FC8068，其中包含了备用侧毛刷。该套件还包含两个滤网和三个干巾附件。

简体中文

1 要更换侧毛刷，请抓住旧侧毛刷的刷毛将其从轴上取下。

2 将新侧毛刷推到轴上。

更换干巾

您可以订购新的干巾。更换套件 FC8068 中包含了干巾，以及两个侧毛刷和两个滤网。

更换遥控器的电池

遥控器由 CR2025 纽扣电池供电。按遥控器上的按钮，智能自动真空吸尘器不再响应时，请更换电池。

1 将遥控器翻转过来。推电池仓上的释放钮，同时将电池仓从遥控器中滑出。

2 从电池仓中取出电量耗尽的电池，装入新电池。然后将电池仓滑回遥控器。

简体中文

更换充电电池

只有具备资格的服务工程师才能更换充电电池。当充电电池无法继续充电或耗电很快时，请将吸尘器送往授权的飞利浦服务中心，以更换电池。您可以在全球保修卡上找到您所在国家/地区的飞利浦客户服务中心的详细联系信息。

回收

- 此符号表示该产品不能与一般的生活垃圾一同处理 (2012/19/EU)。

- 此符号表示该产品含有一个内置的充电电池，该电池不能与一般生活垃圾 (2006/66/EC) 一同丢弃。强烈建议您将自己的产品送到官方收集点或飞利浦服务中心，让专业人士移除充电电池。

- 遵循您的国家/地区有关分类回收电子电气产品和充电电池的规定。正确弃置产品有助于避免对环境和人类健康造成不良后果。

拆下充电电池

警告：仅在丢弃产品时取出充电电池。在取出电池时请确保电池电量已耗尽。

按照以下步骤拆下充电电池。您也可以将智能自动真空吸尘器送往 Philips 服务中心，由其拆下充电电池。您可联系所在国家/地区的 Philips 客户服务中心，获取您附近的服务中心地址。

1 启动智能自动真空吸尘器时，应将其置于房间内，不可从底座上启动智能自动

真空吸尘器。

2 让吸尘器运转，直至充电电池电量完全耗尽，以确保在您取出并弃置充电电

池前，其已完全放电。

3 拧下电池仓的螺丝，然后取下仓盖。

简体中文

4 取出充电电池并断开连接。 5 将智能自动真空吸尘器和充电电池送往电子电器垃圾回收点。

故障处理方法

本章归纳了使用本产品时最常见的一些问题。如果您无法根据以下信息解决问题，请访问 www.philips.com/support 查阅常见问题列表，或联系您所在国家/地区的客户服务中心。

故障处理方法

问题可能的原因解决方法

按启动/停止按钮时智能自动真空吸尘器无法开始清洁。

充电电池的电量已耗尽。

为充电电池充电（请参阅“使用准备”一章）。

小插头仍插在智能自动真空吸尘器上的转换插座中。

智能自动真空吸尘器接通电源不工作。它只能通过充电电池工作。因此，使用前请务必将适配器从智能自动真空吸尘器和电源上断开。

电源开关未设为“开”(I) 位置。

按电源开关。按智能自动真空吸尘器或遥控器上的启动/停止按钮开始清洁。

问题可能的原因解决方法

警告指示灯快速闪烁。一个或多个滚轮被卡住。将电源开关设为“关”。清除滚轮悬架周围吸

附的绒毛、毛发、线头或线丝。

一个或两个侧毛刷被卡住。清洁侧毛刷（请参阅“清洁和保养”一章）。

上盖不存在或未盖好。上盖不存在或未盖好时，智能自动真空吸尘器

无法工作。盖好智能自动真空吸尘器的上盖。

缓冲装置被卡住。按启动/停止按钮。提起智能自动真空吸尘器

以释放其缓冲装置。将智能自动真空吸尘器放置在远离障碍物的地方，按启动/停止按钮使其继续清洁。

清洁时智能自动真空吸尘器被提起。

按启动/停止按钮。将智能自动真空吸尘器置于地板上。然后按启动/停止按钮使智能自动真空吸尘器继续清洁。

this side up

简体中文

问题可能的原因解决方法

智能自动真空吸尘器无法正确清洁。

一个或两个侧毛刷的刷毛已变形或弯曲。

将毛刷在温水中浸泡一会儿。如果这样做不能使刷毛复原，则更换侧毛刷（请参阅“更换”一章）。

集尘桶中的滤网变脏。用布或软毛牙刷清洁集尘桶中的滤网。您还可

以在低吸力设置下使用普通真空吸尘器清洁滤网和集尘桶。

如果刷洗或吸尘无助于清洁滤网，请用新滤网更换。我们建议您至少每年更换一次滤网。

集尘桶底部吸口被堵塞。清洁吸口（请参阅“清洁和保养”一章）。

前轮被毛发或其他污垢卡住。清洁前轮（见“清洁和保养”一章）。

智能自动真空吸尘器在清洁颜色极深或有光泽的地面时会触发跌落传感器。这将导致智能自动真空吸尘器沿异常的方向图移动。

按启动/关闭按钮，然后将智能自动真空吸尘器移至颜色较浅的地板。如果在颜色较浅的地板上问题仍然存在，请访问 www.philips.com/ support 或联系您所在国家/地区的客户服务中心。

智能自动真空吸尘器正在清洁强烈反射太阳光的地板。这可能会触发跌落传感器，导致智能自动真空吸尘器沿异常的方向图移动。

关闭窗帘，阻止太阳光射入房间。您还可以在阳光不那么明亮时开始清洁。

充电电池无法充电或耗电极快。

充电电池达到了其寿命的终点。更换充电电池（请参阅“更换”一章）。

遥控器的电池耗电太快。可能是您没有插入正确类型的

电池。

遥控器必须使用 CR2025 纽扣电池。如果问题仍然存在，请访问 www.philips.com/ support 或联系您所在国家/地区的客户服务中心。

智能自动真空吸尘器在绕圈运动。

智能自动真空吸尘器处于局部清洁模式。

这属于正常现象。在地板上检测到大量灰尘时，可能会激活螺旋模式以进行彻底清洁。这也是自动清洁模式的一部分。大约一分钟后，智能自动真空吸尘器恢复正常清洁模式。您还可以通过在遥控器上选择其他清洁模式来停止螺旋模式。

智能自动真空吸尘器无法找到底座。

没有足够的空间供智能自动真空吸尘器导航到底座。

请尝试将底座放置到其他地方。请参阅“使用准备”一章中的“安装底座”。

智能自动真空吸尘器仍在不断搜索。

给智能自动真空吸尘器约 20 分钟时间让其返回到底座。

智能自动真空吸尘器不是从底座启动的。

如果您希望智能自动真空吸尘器在清洁操作之后返回到底座，请从底座启动智能自动真空吸尘器。

当智能自动真空吸尘器位于底座上时，会发出蜂鸣声。

您尝试在电源开关处于关闭位置时对智能自动真空吸尘器充电。

按电源开关打开智能自动真空吸尘器。

简体中文

错误代码

错误代码可能的原因解决方法

E1 滚轮卡住将智能自动真空吸尘器从障碍物处移开，

按启动/停止按钮使其继续清洁。

E2 顶盖或集尘桶未放好放入集尘桶并盖好智能自动真空吸尘器的上盖。

错误代码会从显示屏上自动消失。

E3 缓冲装置卡住将智能自动真空吸尘器从障碍物处移开。

错误代码会从显示屏上自动消失。

E4 从地板提起了智能自动真

空吸尘器

将智能自动真空吸尘器放在地板上以使错误代码消失。

E5 地板颜色太深将智能自动真空吸尘器置于地板的浅色区。

清洁跌落传感器。

E6 电池未装好阅读“首次使用之前”一章中“将充电电池装入智

能自动真空吸尘器”中的说明。

充电错误当智能自动真空吸尘器在底座上时，检查电源开关

是否处于“开”位置。

简体中文

错误代码

错误代码可能的原因解决方法

E1 滚轮卡住将智能自动真空吸尘器从障碍物处移开，

按启动/停止按钮使其继续清洁。

E2 顶盖或集尘桶未放好放入集尘桶并盖好智能自动真空吸尘器的上盖。

错误代码会从显示屏上自动消失。

E3 缓冲装置卡住将智能自动真空吸尘器从障碍物处移开。

错误代码会从显示屏上自动消失。

E4 从地板提起了智能自动真

空吸尘器

将智能自动真空吸尘器放在地板上以使错误代码消失。

E5 地板颜色太深将智能自动真空吸尘器置于地板的浅色区。

清洁跌落传感器。

E6 电池未装好阅读“首次使用之前”一章中“将充电电池装入智

能自动真空吸尘器”中的说明。

充电错误当智能自动真空吸尘器在底座上时，检查电源开关

是否处于“开”位置。

FC8932, FC8832, FC8830

>75% recycled paper >75% papier recyclé

www.philips.com

4222.003.4233.2

Philips FC8932, FC8830, FC8832 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
