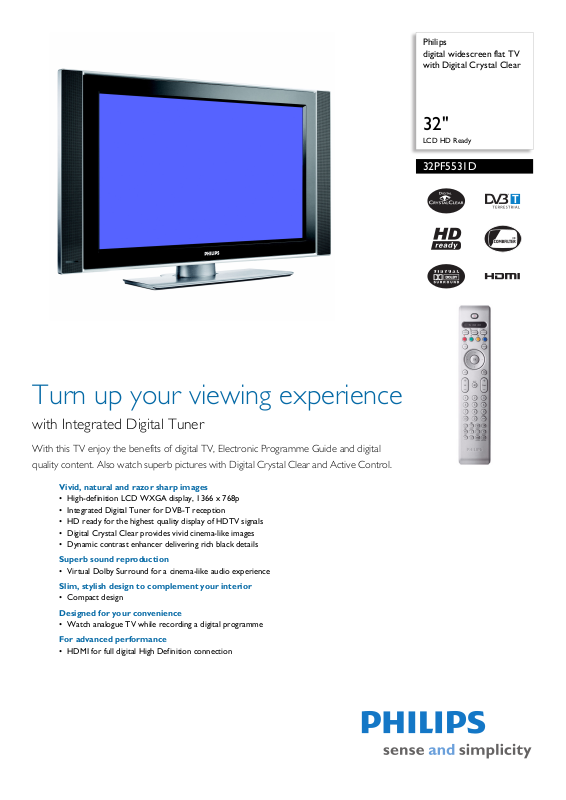

Philips 32PF5531D User Manual
Philips
digital widescreen flat TV
with Digital Crystal Clear
32"
LCD HD Ready
32PF5531D
Turn up your viewing experience
with Integrated Digital Tuner
With this TV enjoy the benefits of digital TV, Electronic Programme Guide and digital
quality content. Also watch superb pictures with Digital Crystal Clear and Active Control.
Vivid, natural and razor sharp images
• High-definition LCD WXGA display, 1366 x 768p
• Integrated Digital Tuner for DVB-T reception
• HD ready for the highest quality display of HDTV signals
• Digital Crystal Clear provides vivid cinema-like images
• Dynamic contrast enhancer delivering rich black details
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
Slim, stylish design to complement your interior
• Compact design
Designed for your convenience
• Watch analogue TV while recording a digital programme
For advanced performance
• HDMI for full digital High Definition connection
Digital widescreen flat TV with Digital Crystal Clear
32" LCD HD Ready
Specifications
32PF5531D/10
Picture/Display
• Aspect ratio: 16:9
• Brightness: 500 cd/m²
• Contrast ratio (typical): 800:1
• Diagonal screen size: 32 inch / 80 cm
• Picture enhancement: Digital Crystal Clear,
Contrast Plus, Progressive Scan, 3D Combfilter,
3/2 - 2/2 motion pull down, Digital Noise
Reduction, Jagged Line Suppression, Pulse Killer
Chip, Active Control, Colour Temperature
Adjustment, Sharpness Adjustment
• Screen enhancement: Anti-Reflection coated
screen
• Panel resolution: 1366 x 768p
• Response time (typical): 8 ms
• Viewing angle: 176º (H) / 176º (V)
• Dynamic screen contrast: 1600:1
• Display screen type: LCD WXGA Active Matrix
TFT
Supported Display Resolution
• Computer formats
Resolution Refresh rate
640 x 480 60, 67, 72, 75Hz
800 x 600 56, 60, 72, 75Hz
1024 x 768 60, 70, 75Hz
720 x 400 70Hz
• Video Formats
Resolution Refresh rate
640 x 480i 1Fh
640 x 480p 2Fh
720 x 576i 1Fh
720 x 576p 2Fh
1280 x 720p 3Fh
1920 x 1080i 2Fh
Sound
• Sound Enhancement: Dynamic Bass Enhancement
• Sound System: Virtual Dolby Surround, Stereo
• Output power (RMS): 2 x 15 W
• Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic
Tuning System (ATS), Autostore, Fine Tuning,
Plug & Play, Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL),
Program List, Smart Picture Control, Smart Sound
Control, Side Control, Watch analogue/record
digital, Easy toggle Dig/Analogue modes
• Remote control type: RC4343/01
• Teletext enhancements: Program information
Line
• Picture in Picture: Picture in graphics, Twin page
text
• Remote Control: DVD, TV, Aux
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Clock: Sleep Timer, Wake up Clock
• Teletext: Smart Text
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, SECAM B/G,
SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 100
• DVB: DVB Terrestrial *
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: CVBS in/out, S-video in, Audio L/R,
RGB out
• Other connections: Common Interface, S/PDIF
out (coaxial)
• Front / Side connections: CVBS in, Headphone
out, S-video in, Audio L/R in
• Ext 5: HDMI
• Ext 4: YPbPr
• Ext 6: HDMI
• Number of Scarts: 2
Power
• Power consumption: 125w W
• Standby power consumption: < 1 W
• Ambient temperature: 5 °C to 40 °C
• Mains power: 110 - 240V, 50/60Hz
• Power supply: AC 90-240
Dimensions
• Product weight: 18.9 kg
• Weight incl. Packaging: 22 kg
• Dimensions (with base) (W x H x D):
924
x 550 x 222 mm
• Colour cabinet: Black
• Box dimensions (W x H x D):
1000
x 690 x 240 mm
• Set dimensions (W x H x D):
924
x 507 x 119 mm
• VESA wall mount compatible: 200 x 100 mm
Accessories
• Included Accessories: Power cord, Quick start
guide, Registration card, Remote Control, User
Manual, Batteries for remote control, Table top
stand, Warranty certificate
• Optional accessories: Floor stand
Loudspeakers
• Built-in speakers: 2
•
