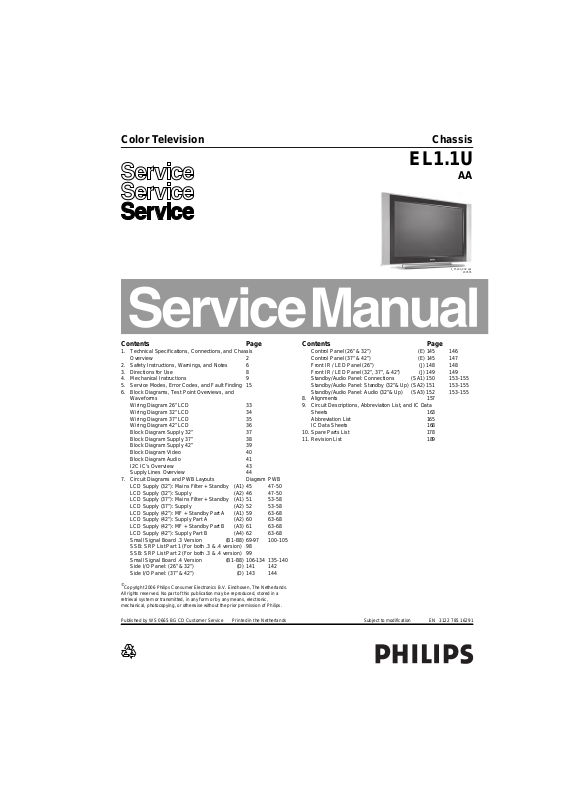

Page 1
Color Television Chassis
EL1.1U
AA
F_15400_000.eps
200505
Contents Page Contents Page
1. Technical Specifications, Connections, and Chassis
Overview 2
2. Safety Instructions, Warnings, and Notes 6
3. Directions for Use 8
4. Mechanical Instructions 9
5. Service Modes, Error Codes, and Fault Finding 15
6. Block Diagrams, Test Point Overviews, and
Waveforms

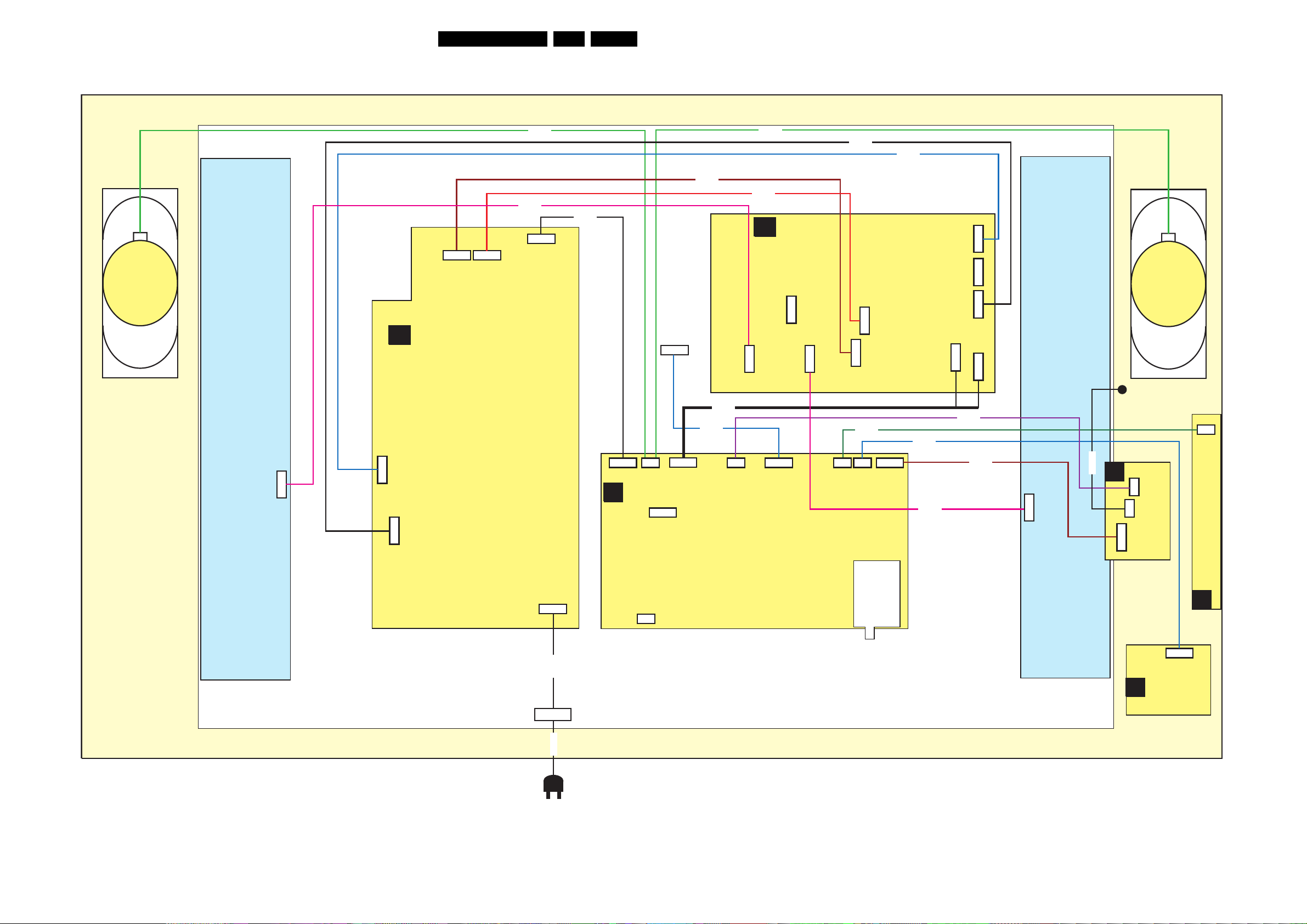

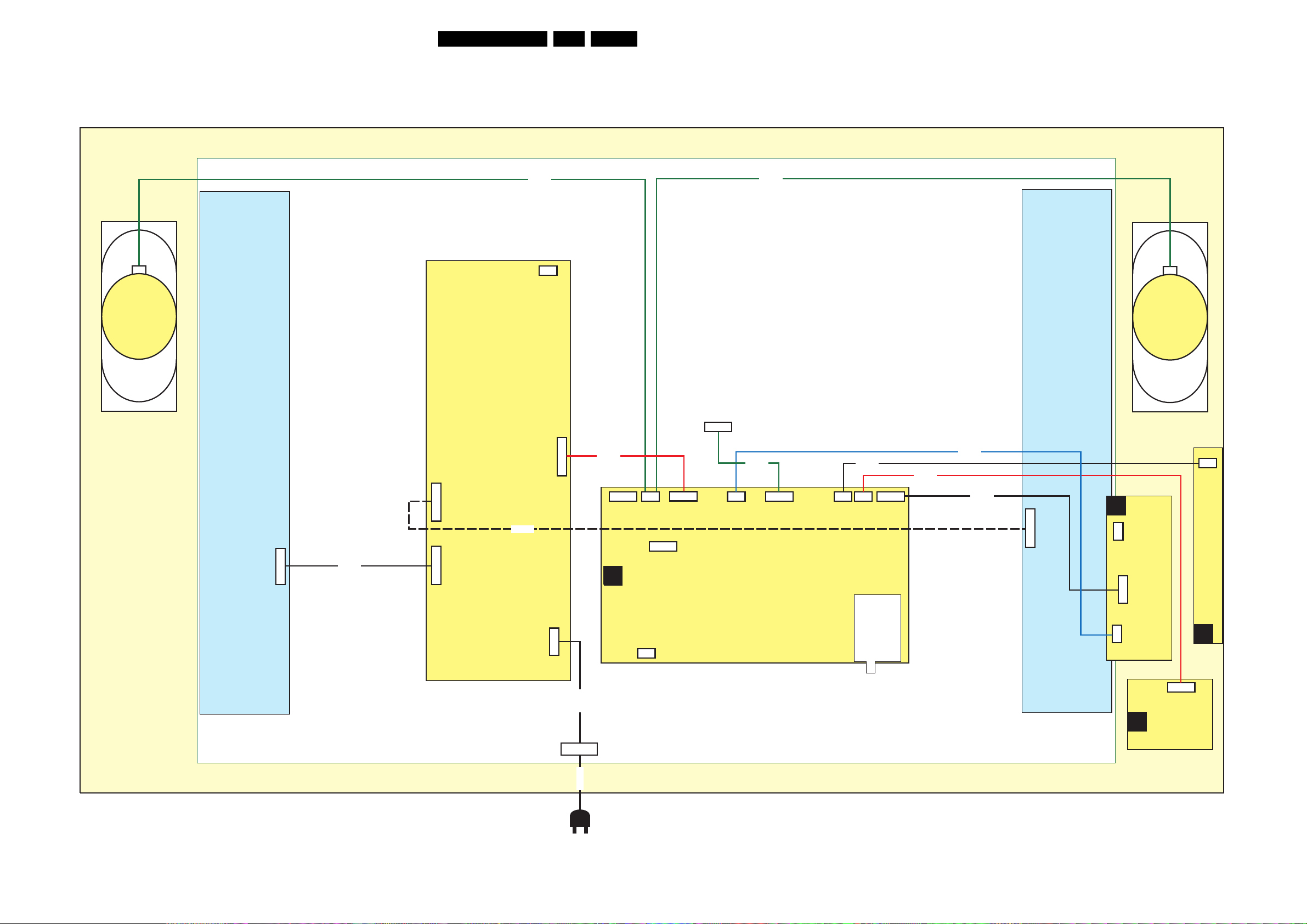

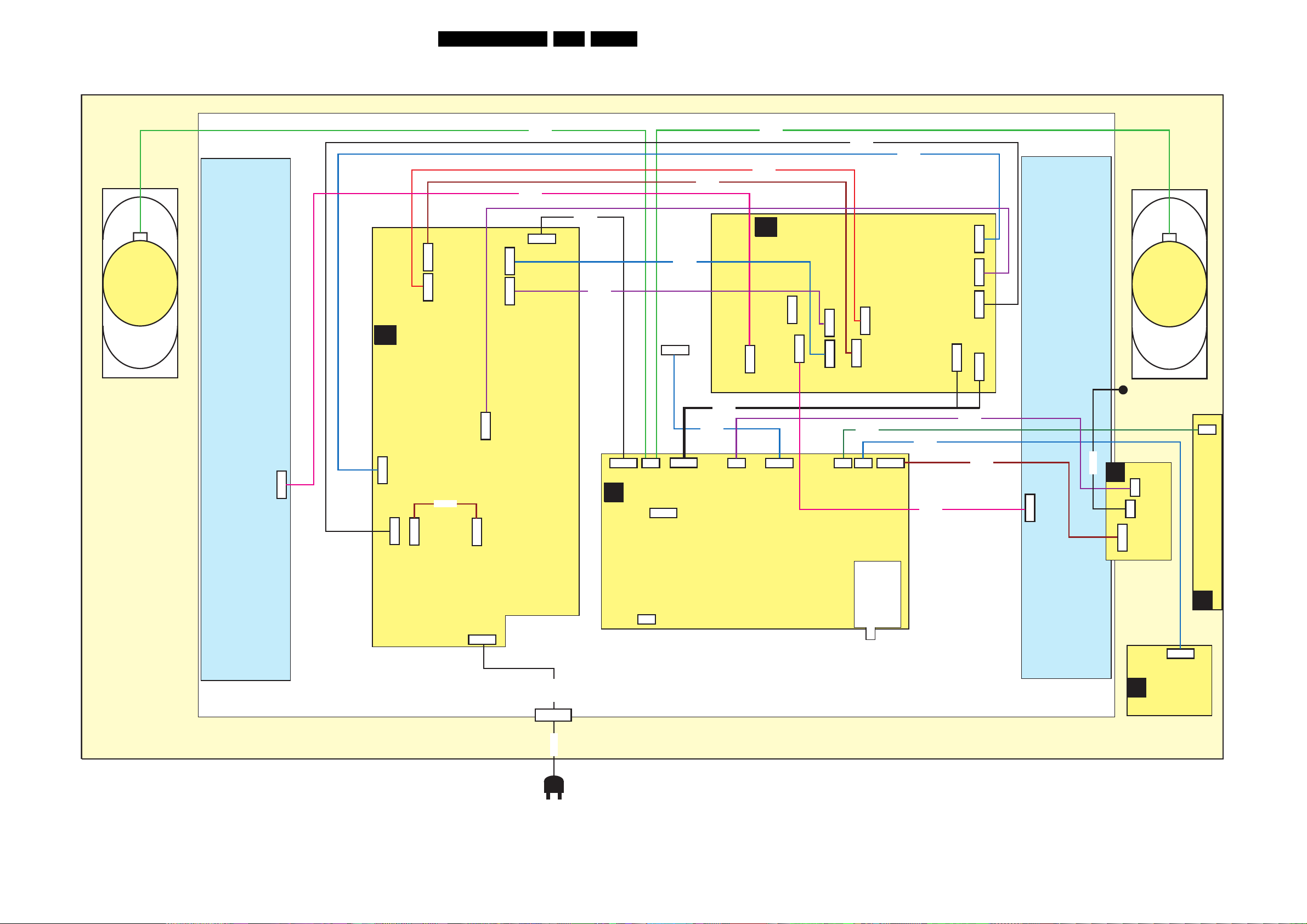

Wiring Diagram 26” LCD 33
Wiring Diagram 32” LCD 34
Wiring Diagram 37” LCD 35
Wiring Diagram 42” LCD 36

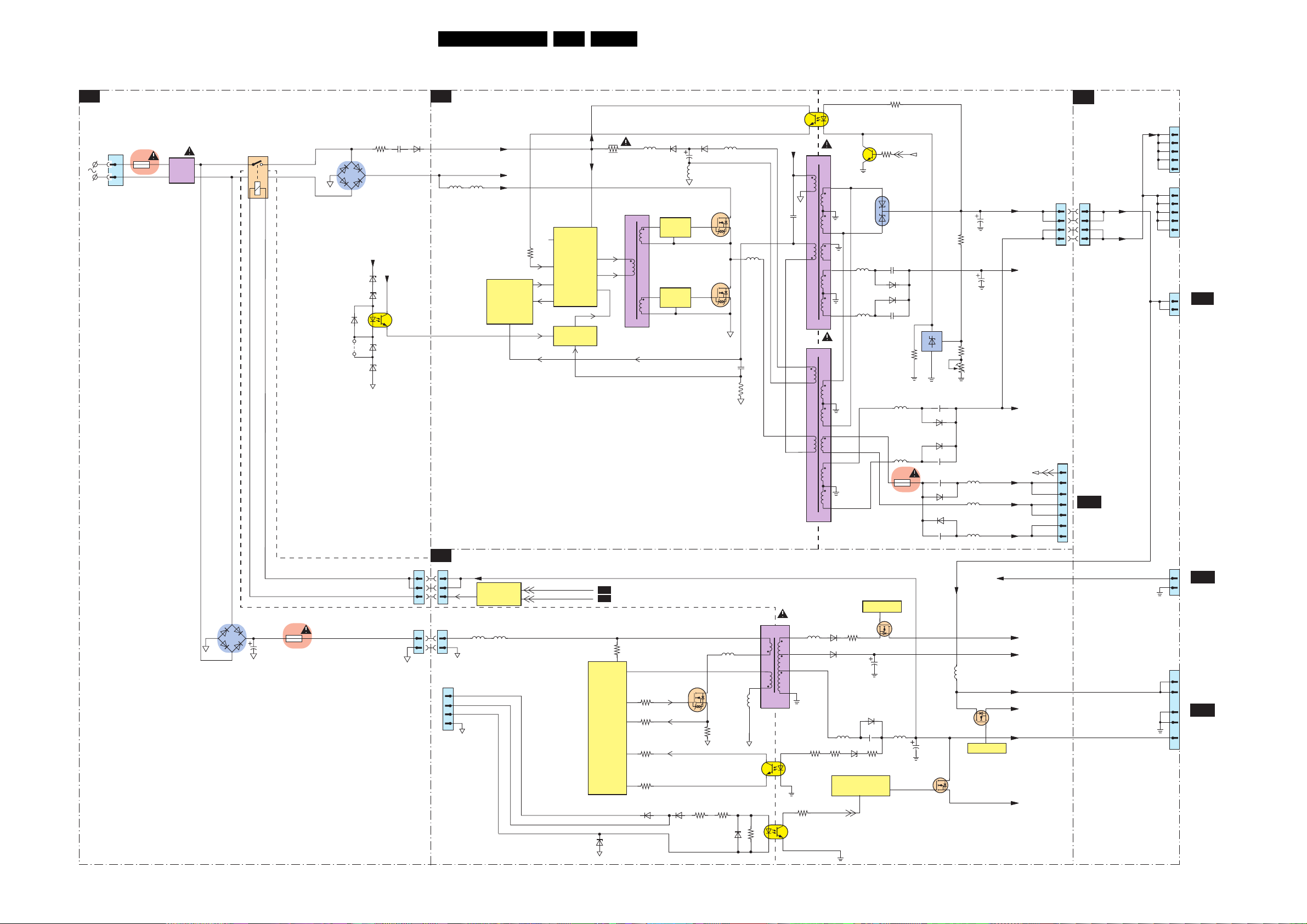

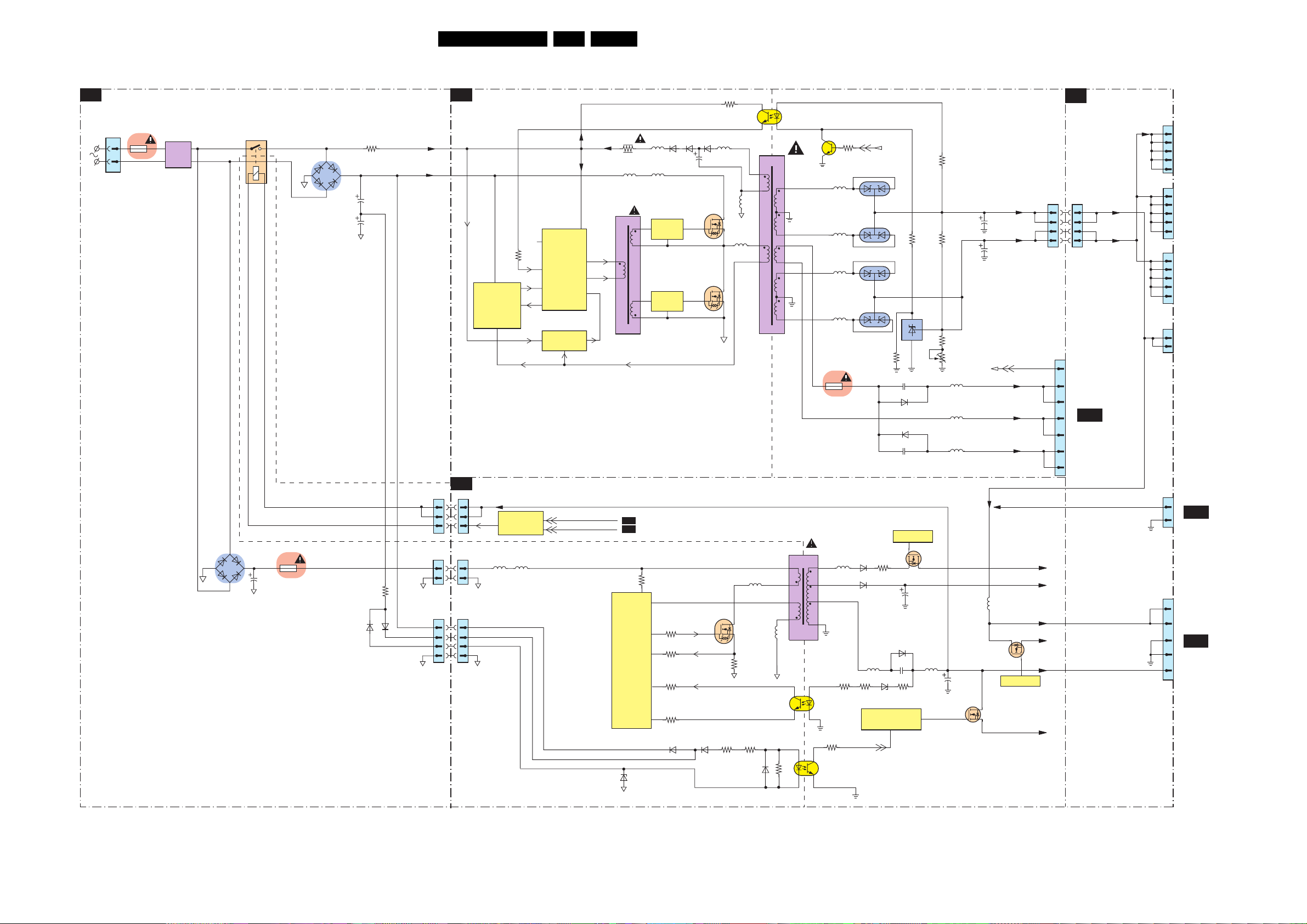

Block Diagram Supply 32” 37
Block Diagram Supply 37” 38
Block Diagram Supply 42” 39

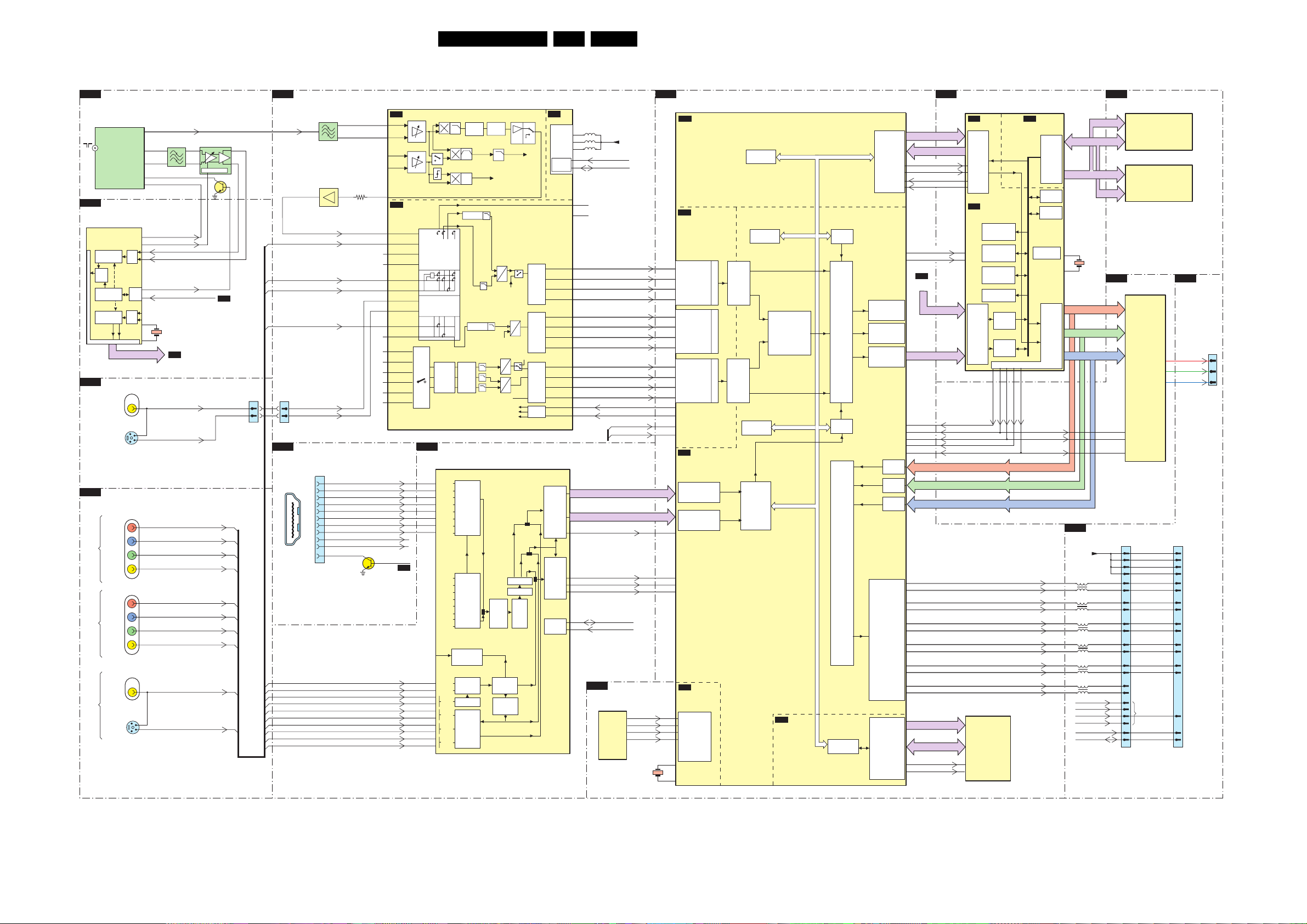

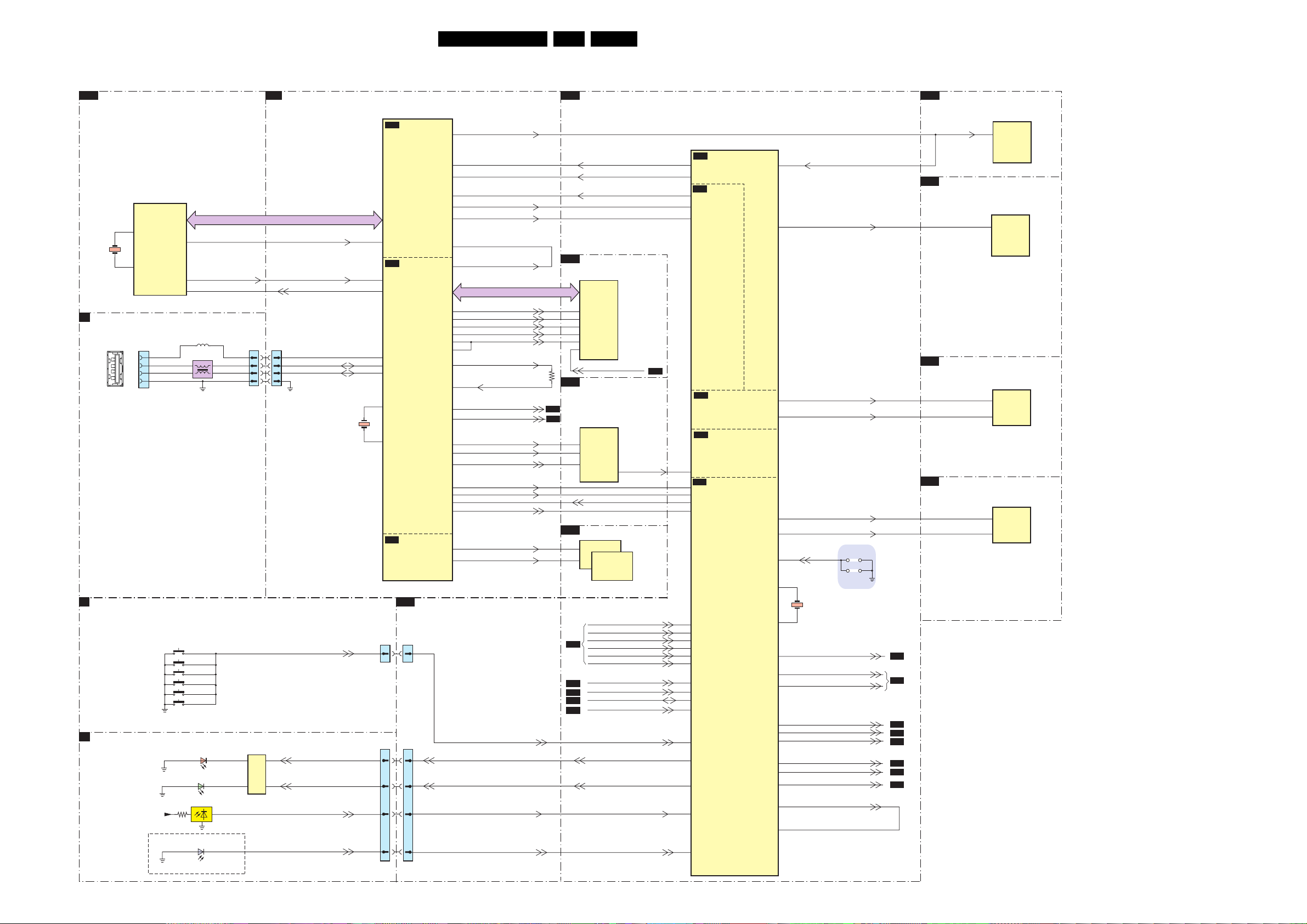

Block Diagram Video 40
Block Diagram Audio 41
I2C IC’s Overview 43
Supply Lines Overview 44
7. Circuit Diagrams and PWB Layouts Diagram PWB

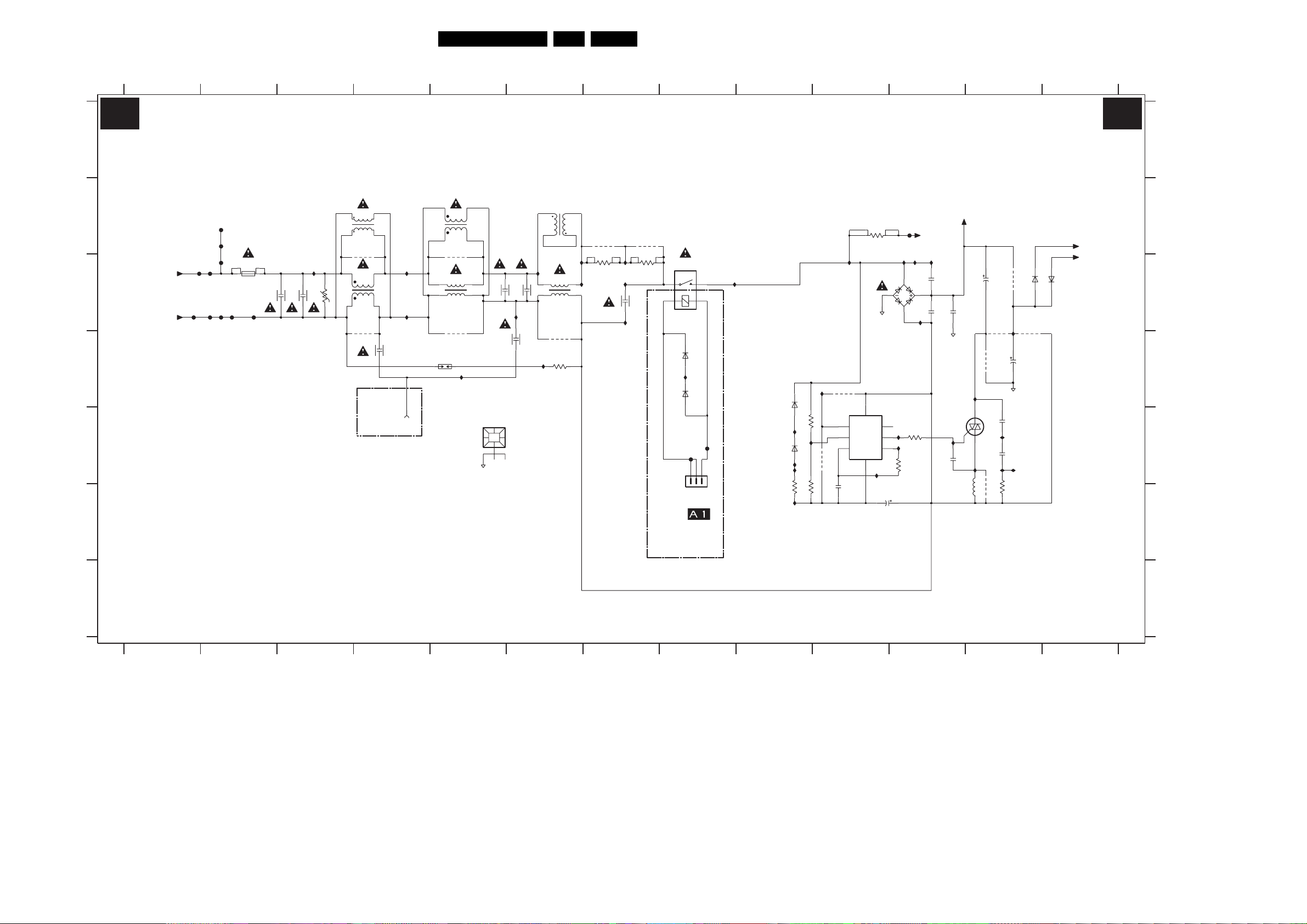

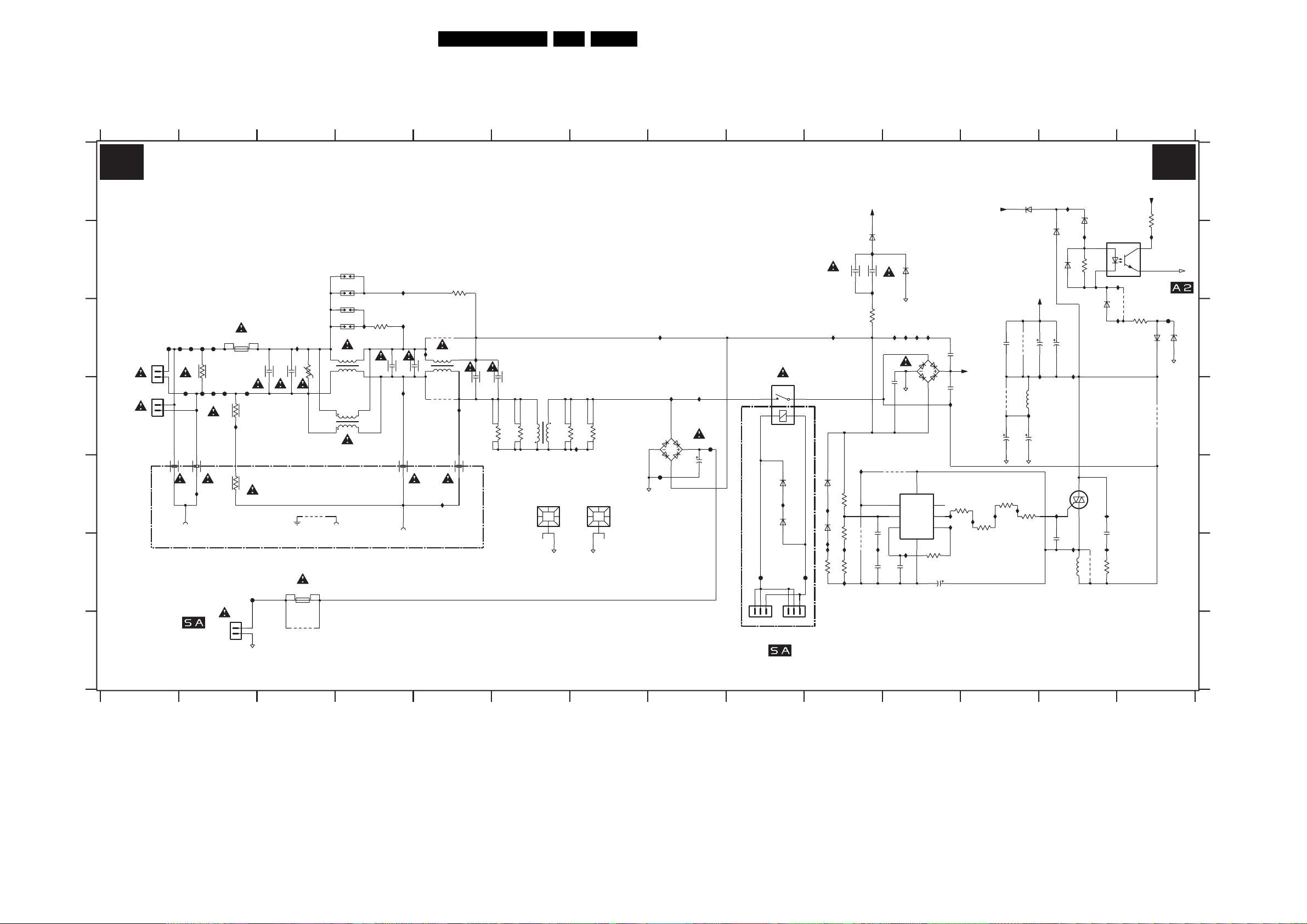

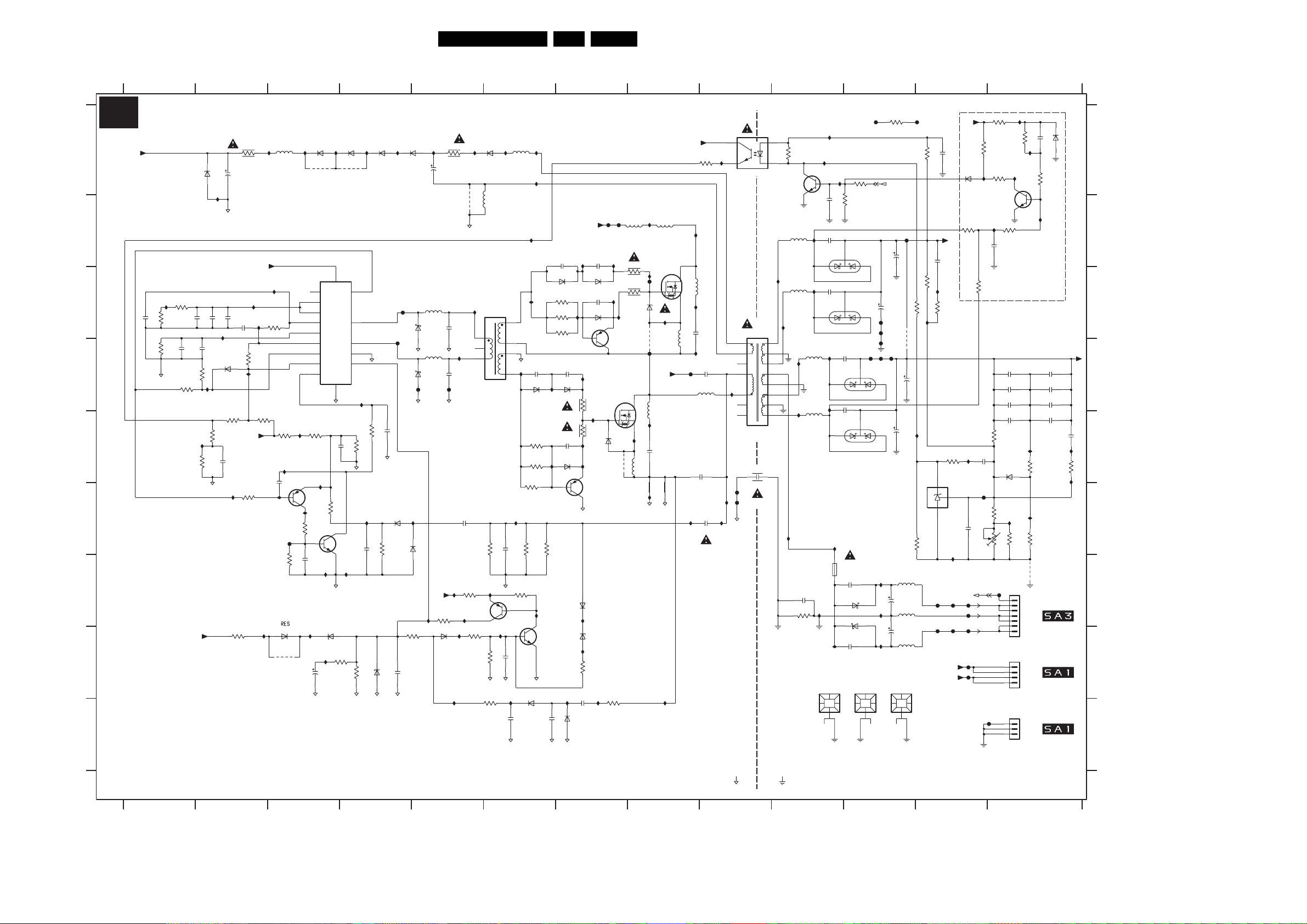

LCD Supply (32”): Mains Filter + Standby (A1) 45 47-50
LCD Supply (32”): Supply (A2) 46 47-50

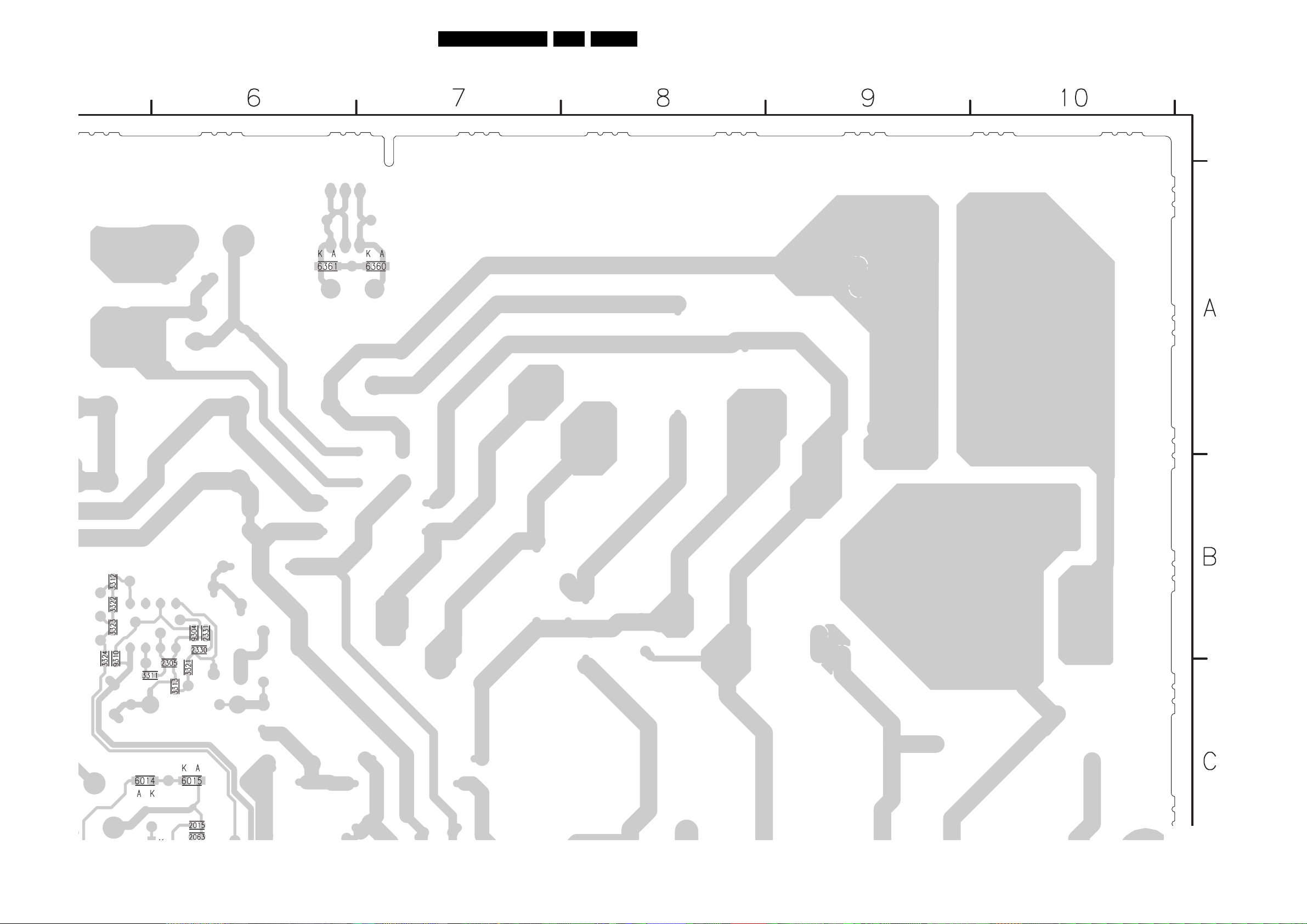

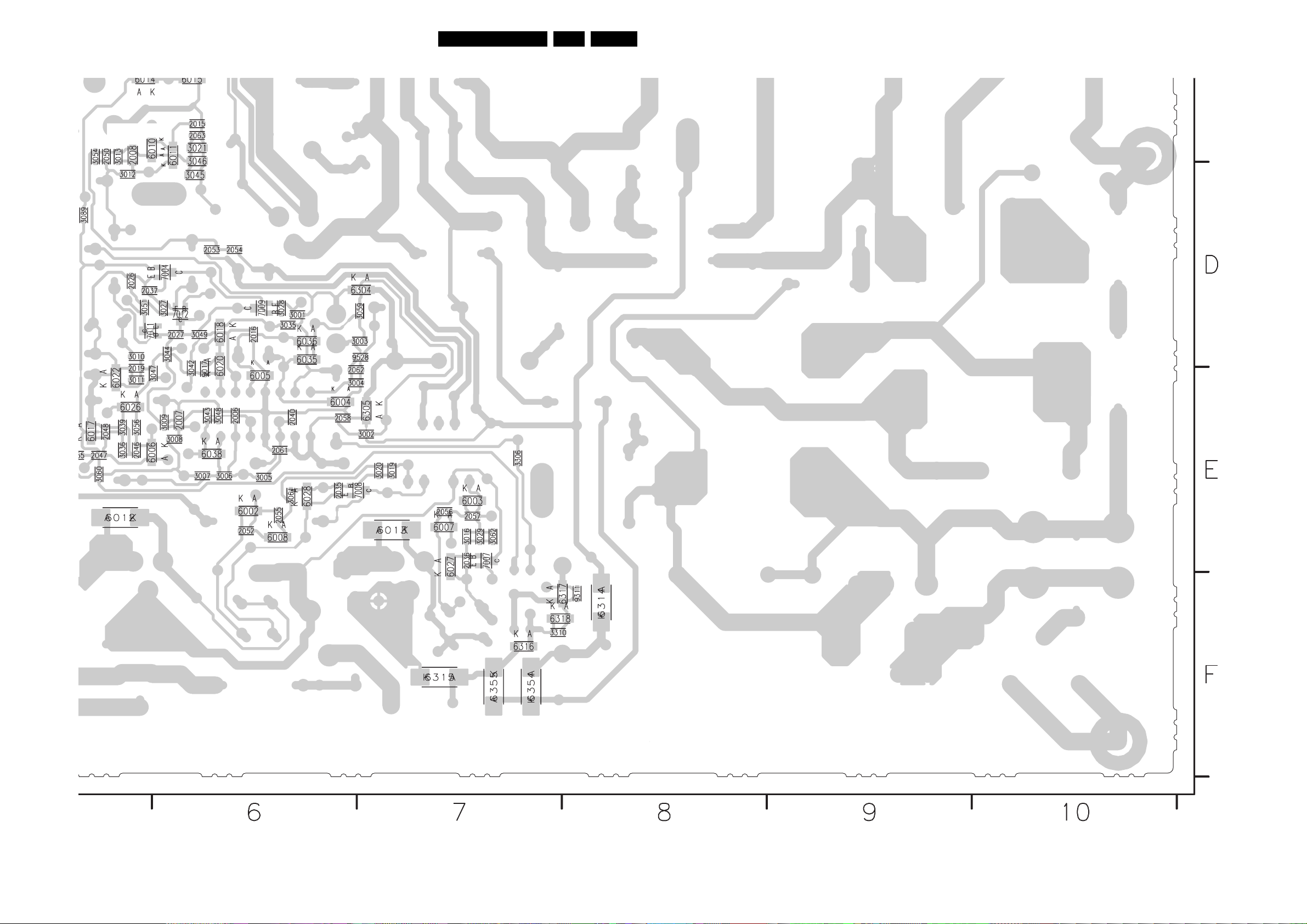

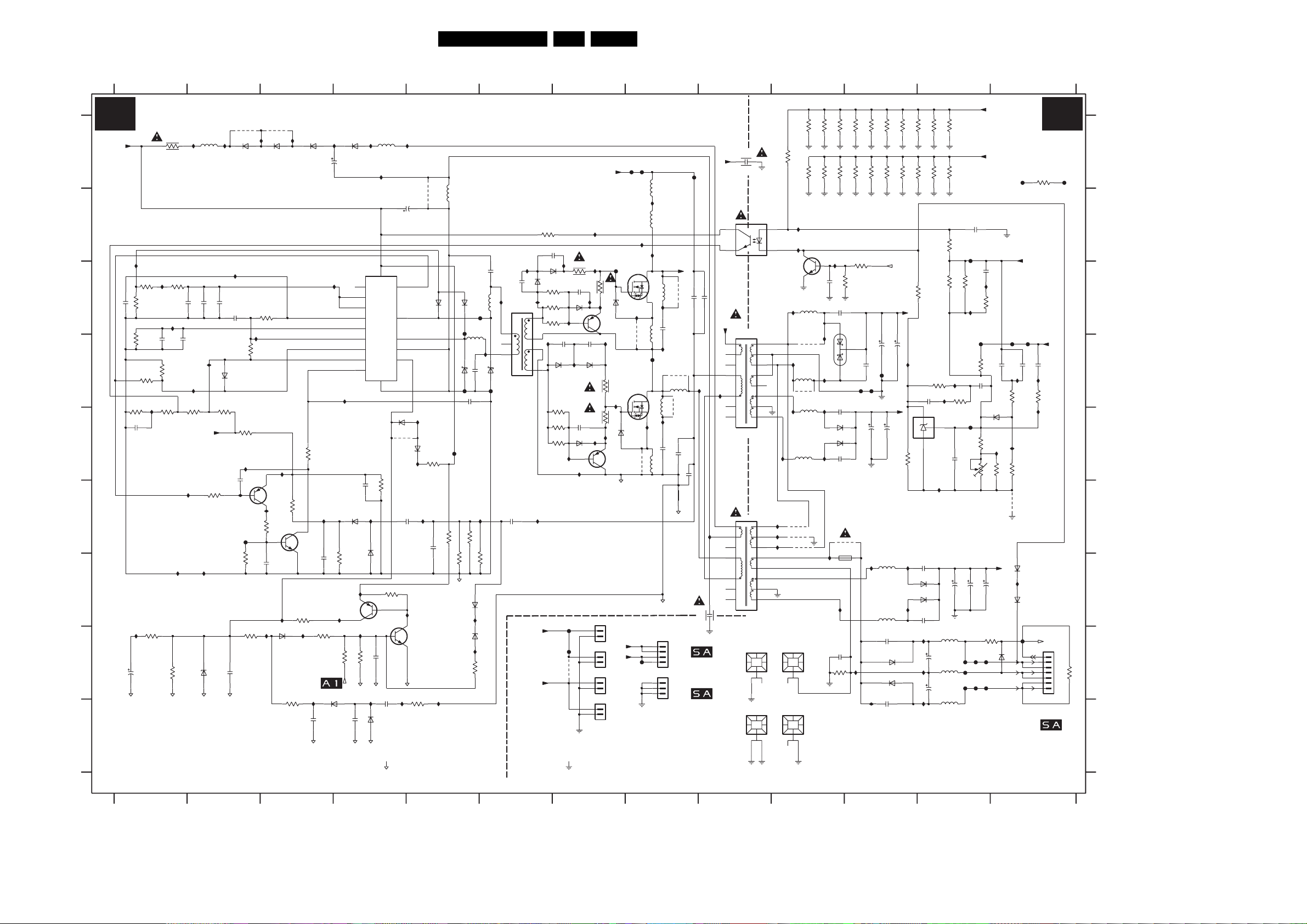

LCD Supply (37”): Mains Filter + Standby (A1) 51 53-58
LCD Supply (37”): Supply (A2) 52 53-58

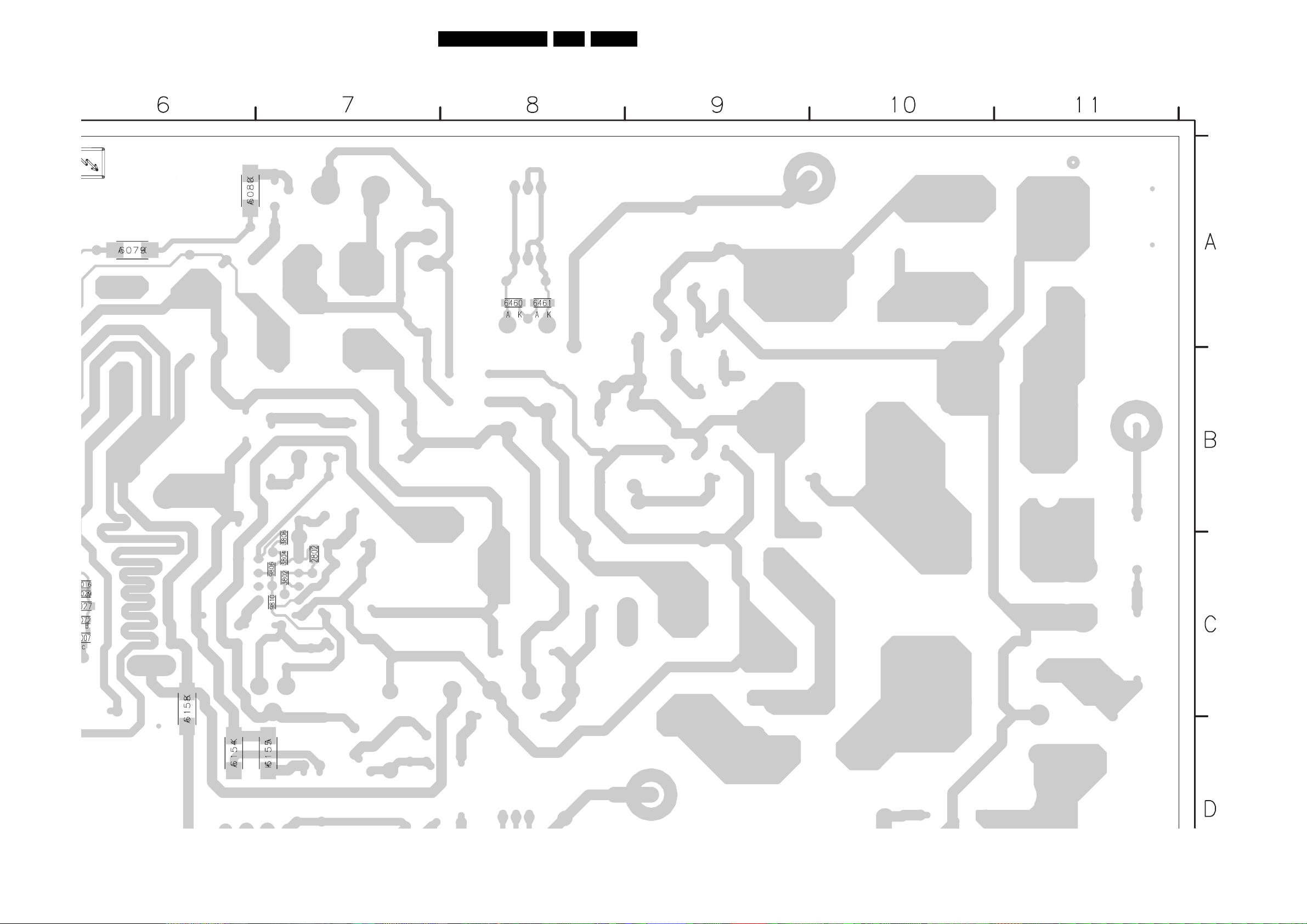

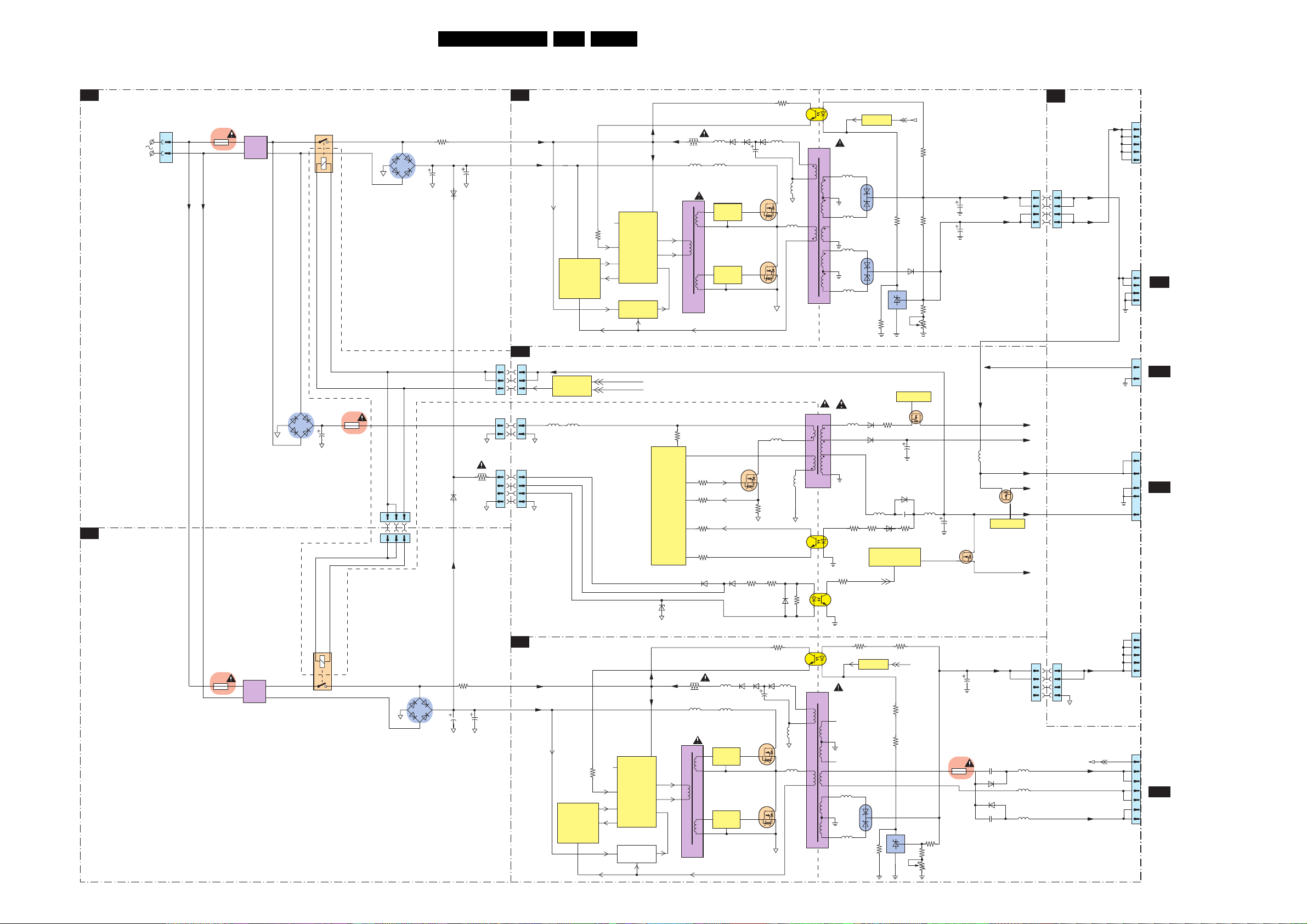

LCD Supply (42”): MF + Standby Part A (A1) 59 63-68
LCD Supply (42”): Supply Part A (A2) 60 63-68
LCD Supply (42”): MF + Standby Part B (A3) 61 63-68
LCD Supply (42”): Supply Part B (A4) 62 63-68

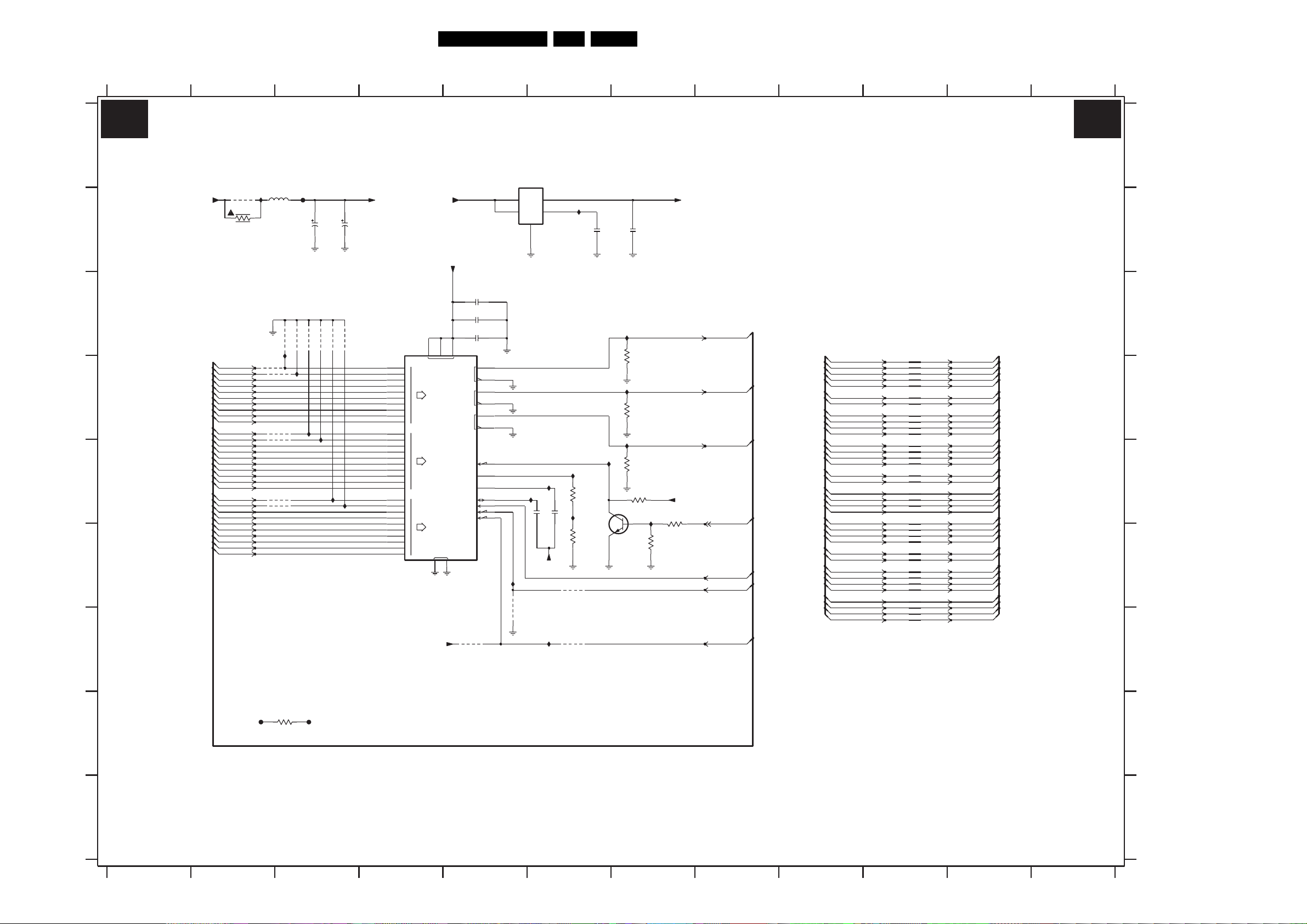

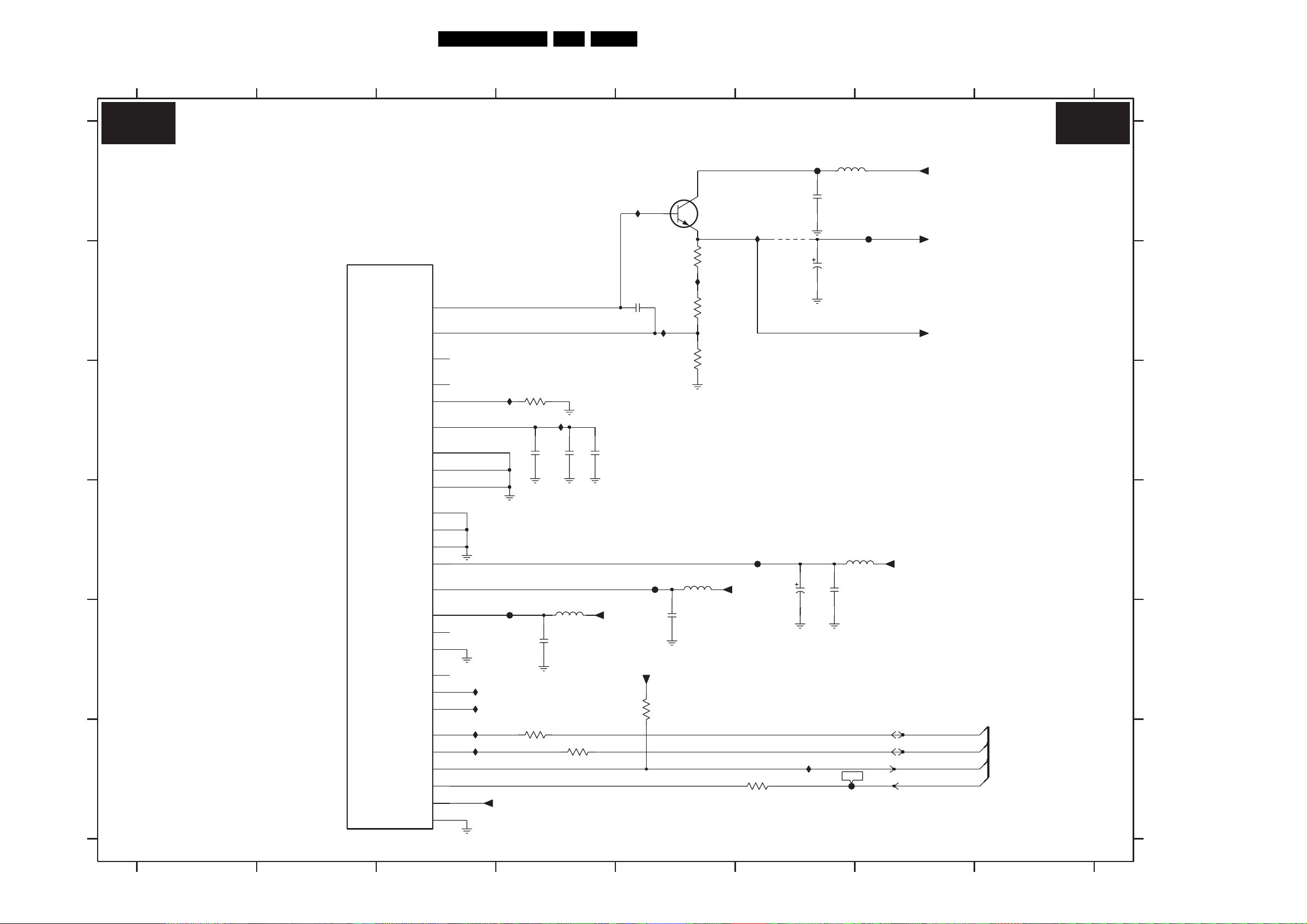

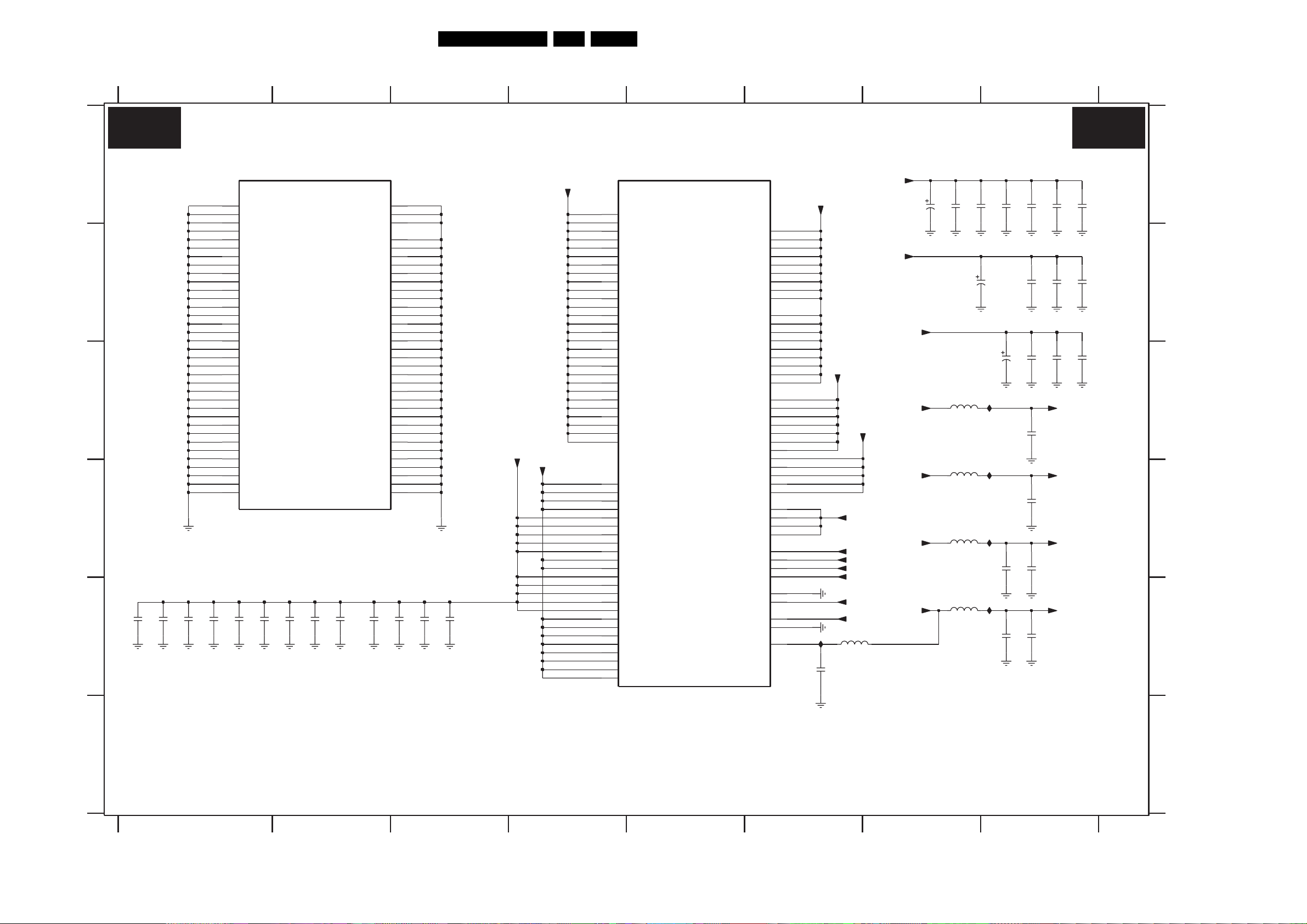

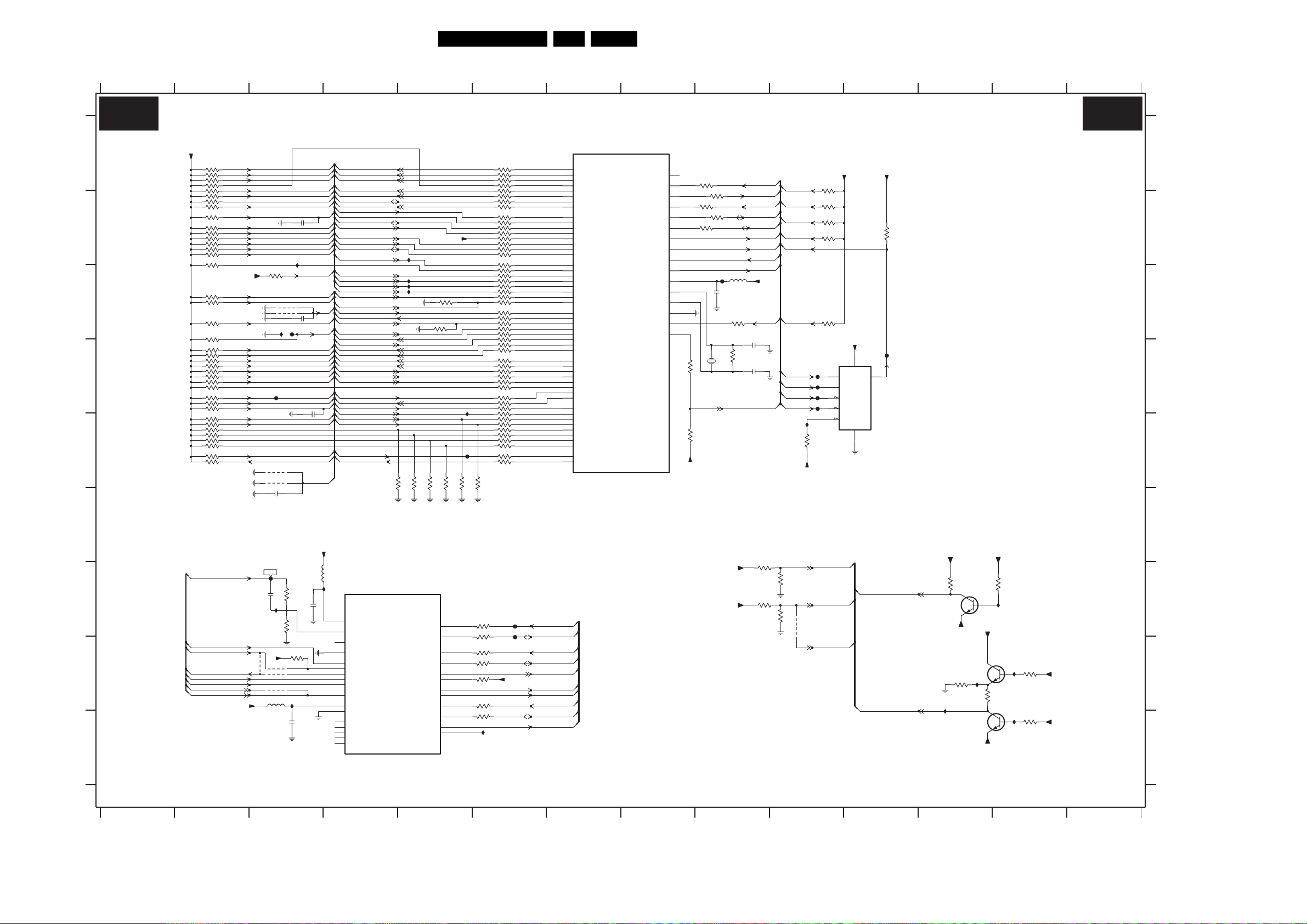

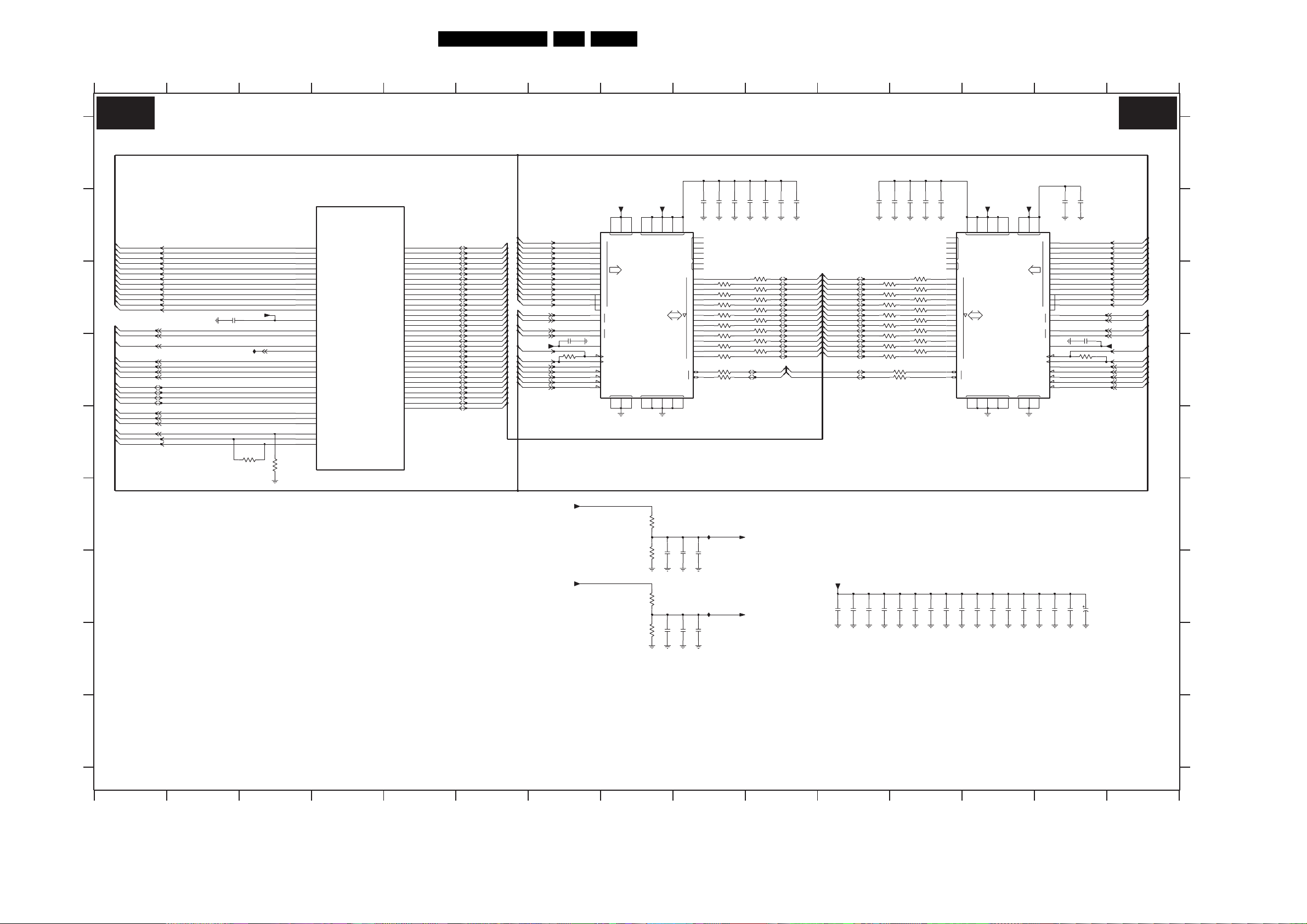

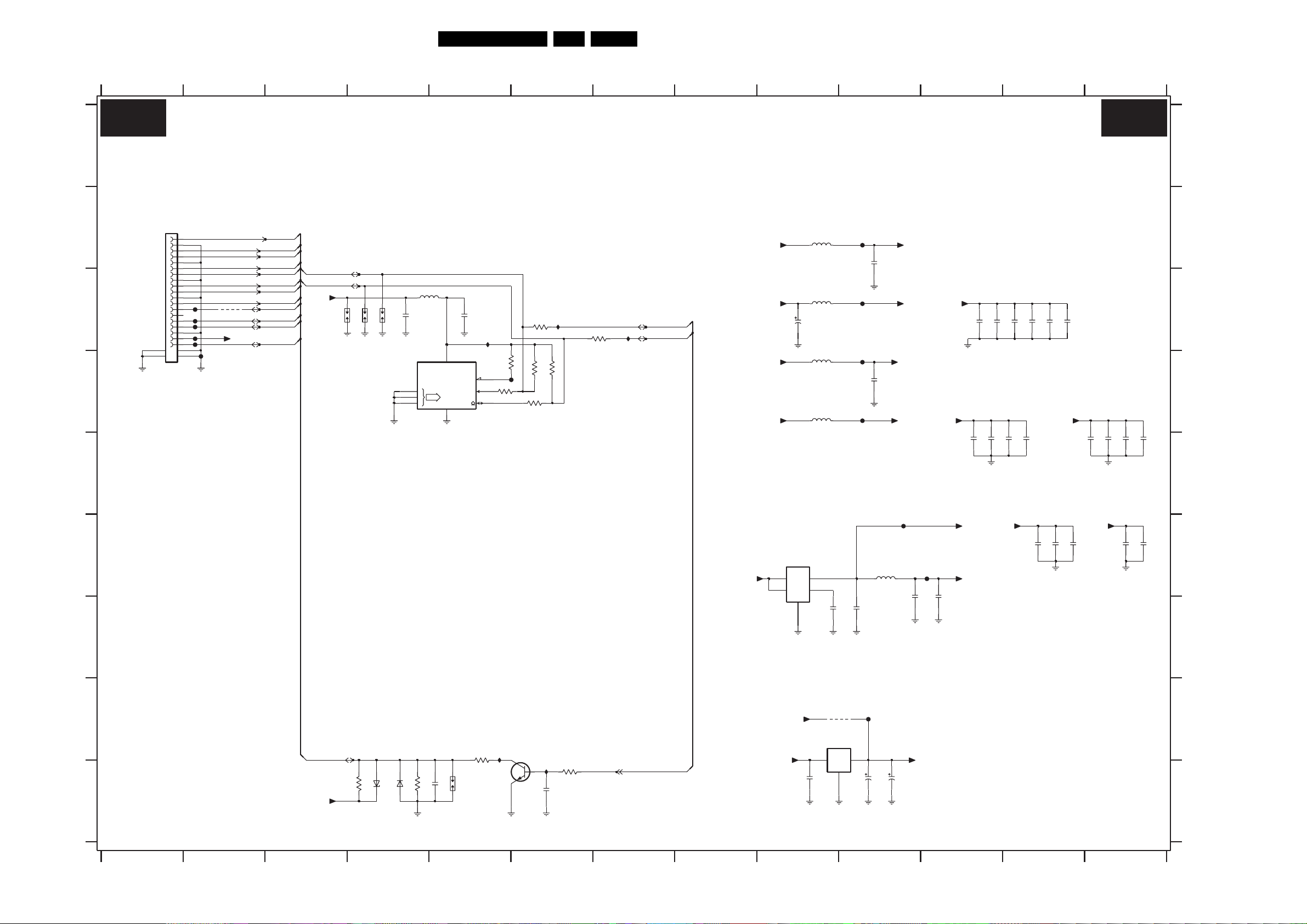

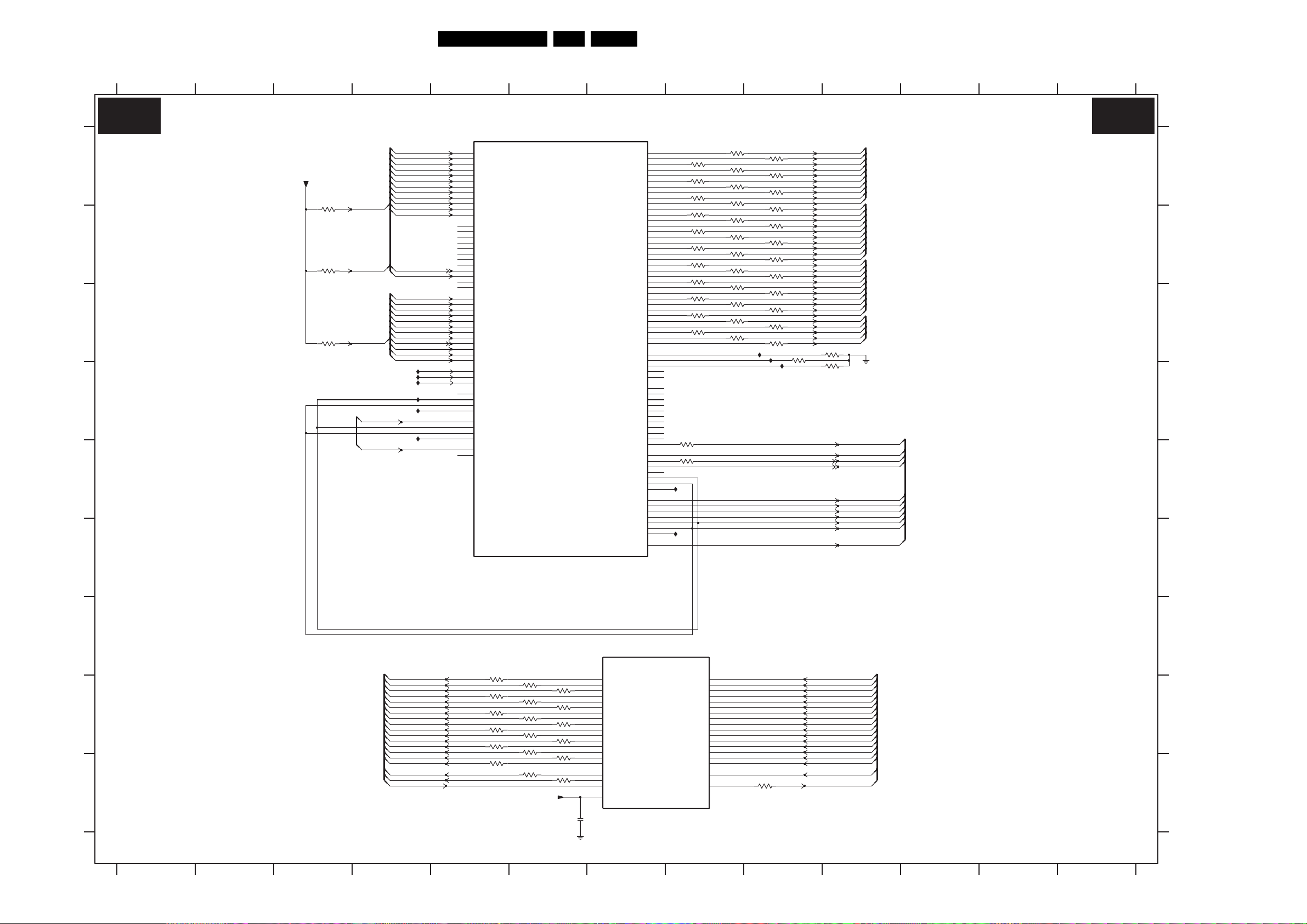

Small Signal Board .3 Version (B1-B8) 69-97 100-105
SSB: SRP List Part 1 (For both .3 & .4 version) 98
SSB: SRP List Part 2 (For both .3 & .4 version) 99
Small Signal Board .4 Version (B1-B8) 106-134 135-140

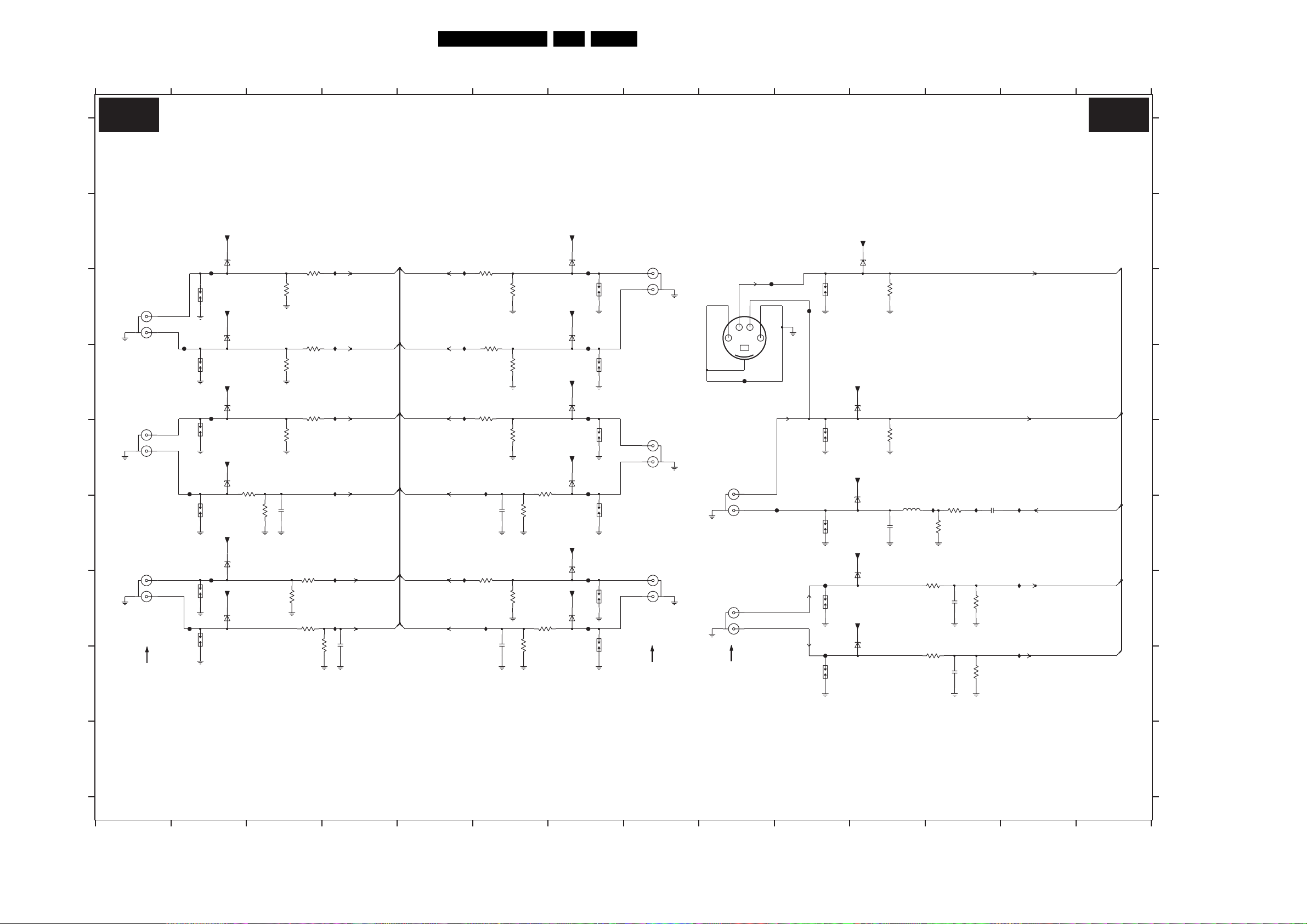

Side I/O Panel: (26” & 32”) (D) 141 142
Side I/O Panel: (37” & 42”) (D) 143 144
©
Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Control Panel (26” & 32”) (E) 145 146
Control Panel (37” & 42”) (E) 145 147
Front IR / LED Panel (26”) (J) 148 148
Front IR / LED Panel (32”, 37”, & 42”) (J) 149 149
Standby/Audio Panel: Connections (SA1) 150 153-155

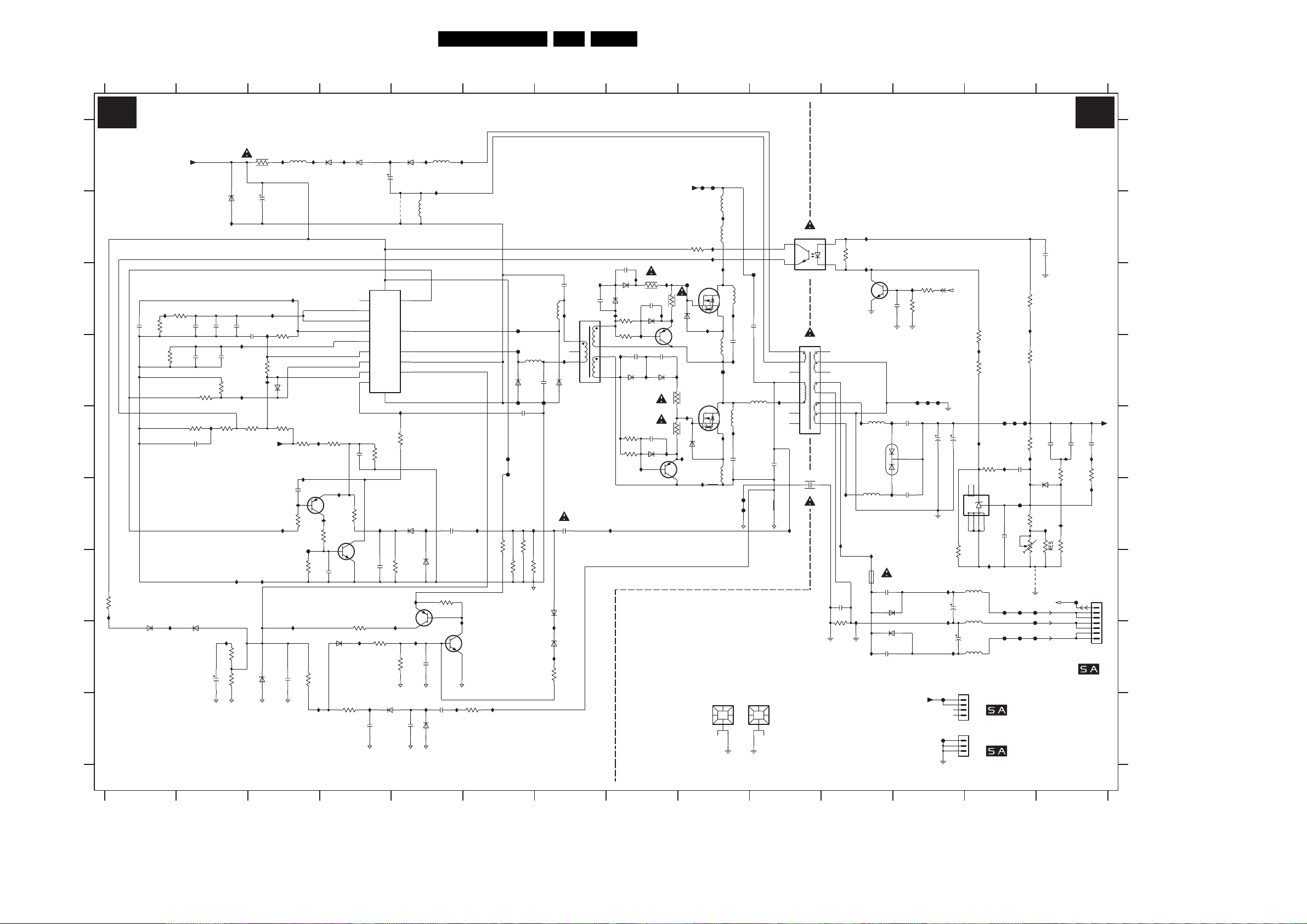

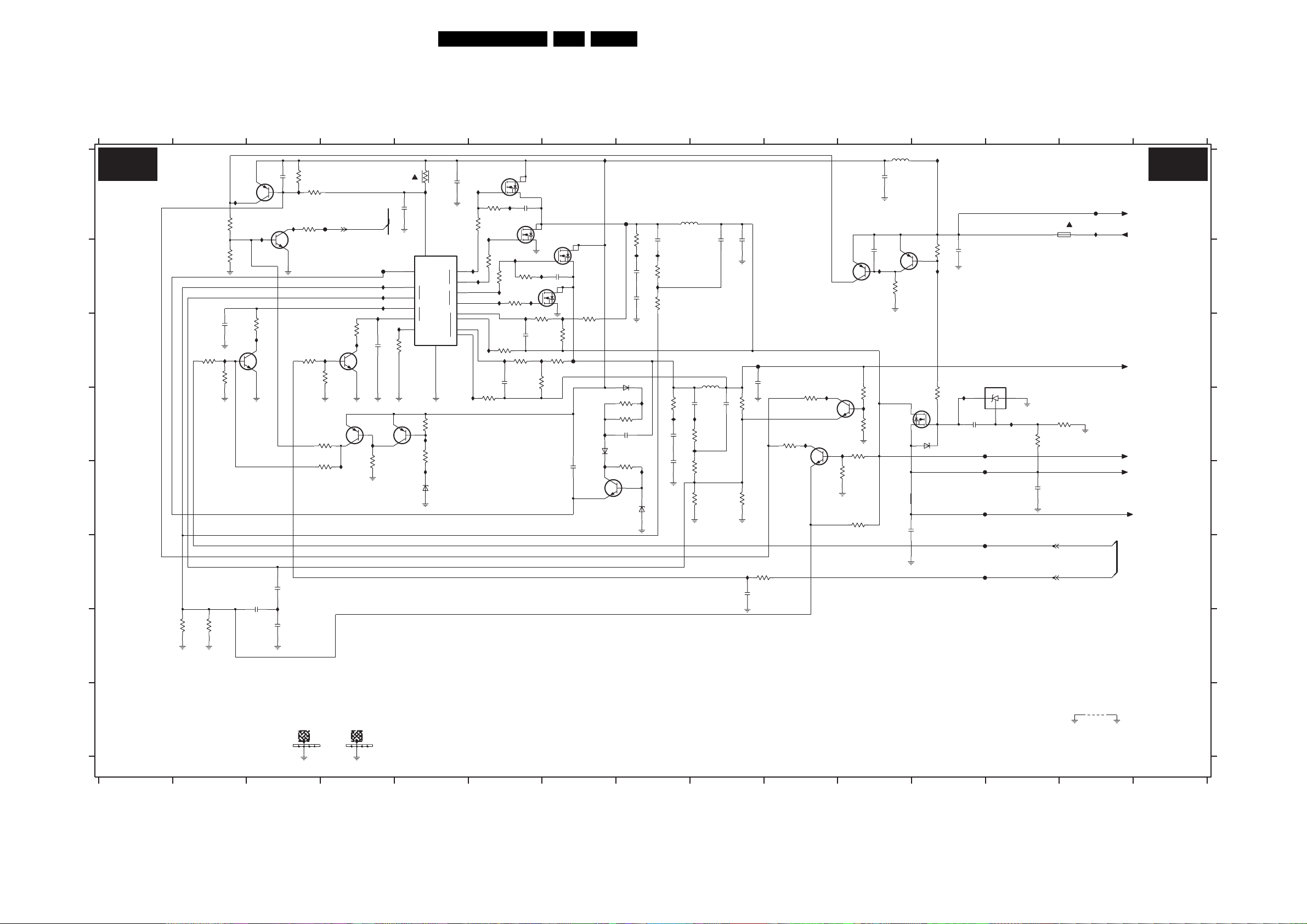

Standby/Audio Panel: Standby (32”& Up) (SA2) 151 153-155

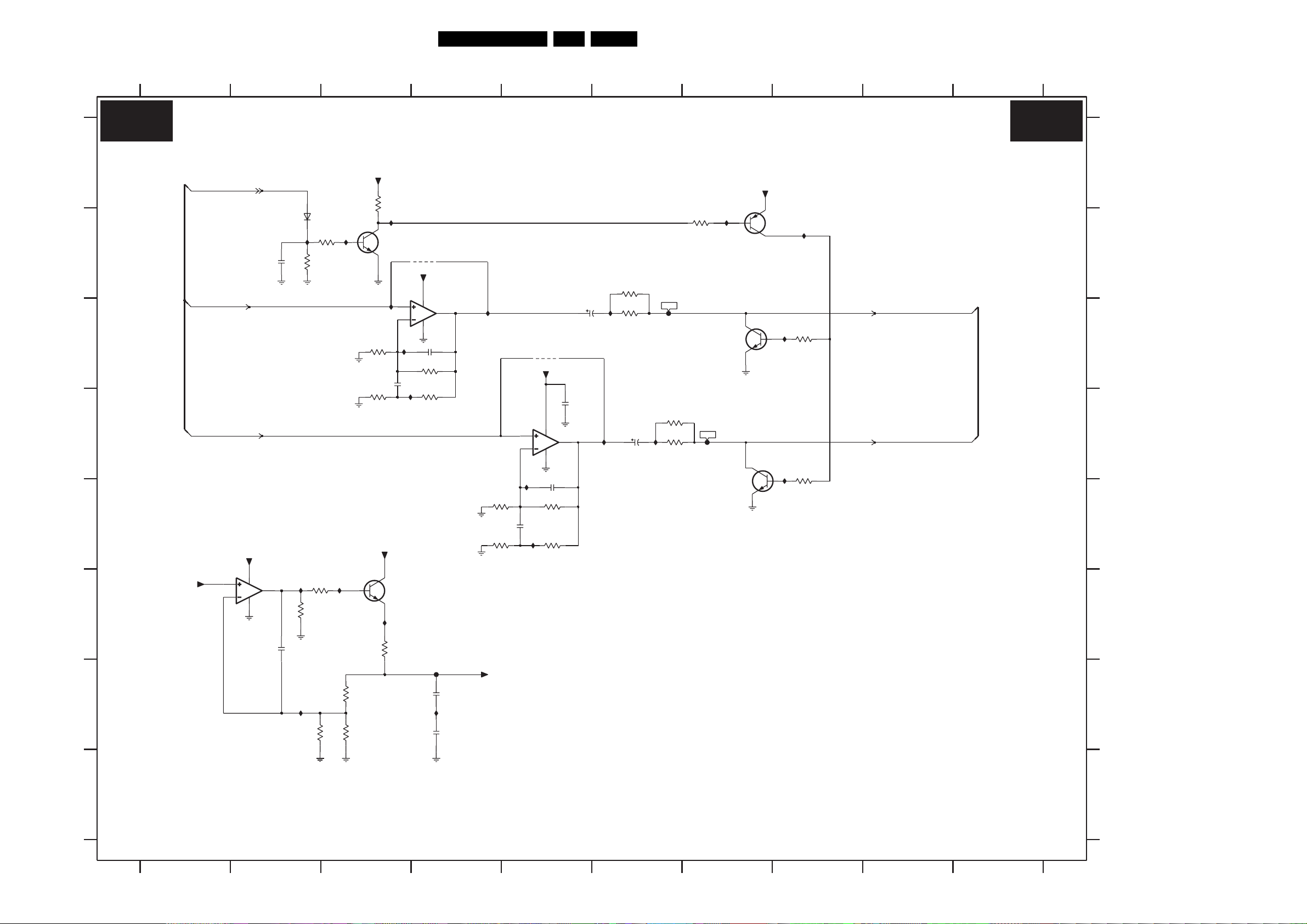

Standby/Audio Panel: Audio (32”& Up) (SA3) 152 153-155
8. Alignments 157
9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 163
Abbreviation List 165
IC Data Sheets 168
10. Spare Parts List 178
11. Revision List 189
Published by WS 0665 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16291
Page 2
EN 2 EL1.1U AA1.
Technical Specifications, Connections, and Chassis Overview
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Some models in this chassis range have a different
mechanical construction. The information given here is
therefore model specific.
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD
Screen size : 26” (67 cm), 16:9
Resolution (HxV pixels) : 1366(*3)x768p
Min. contrast ratio : 600:1
Min. light output (cd/m
2
) : 500
Max. response time (ms) : 12
Viewing angle (HxV degrees) : 176x176
Tuning system : PLL
TV Color systems : ATSC, NTSC
Video playback : NTSC
Cable : Unscrambled digital
Tuner bands : VHF, UHF, S, Hyper
Supported video formats : 640x480i-1fH
Supported computer formats : 640x480 @ 60Hz
: 32” (82 cm), 16:9
: 37” (94 cm), 16:9
: 42” (107 cm), 16:9
cable - QAM
: 640x480p-2fH
: 1280x720p-3fH
: 1920x1080i-2fH
: 800x600 @ 60Hz
: 1024x768 @ 60Hz
: 1366x768 @ 60Hz
- Maximum humidity : 90% R.H.
Power consumption (values are indicative)
- Normal operation (W) : ≈ 130 (26”)
: ≈ 140 (32”)
: ≈ 190 (37”)
: ≈ 270 (42”)
- Stand-by (W) : < 1
Dimensions (WxHxD in inch) : 27.5x19.5x3.9 (26”)
: 36.8x20.3.0x4.7 (32”)
: 44x24.3x4.1 (37”)
: 49.2x27.1x4.4 (42”)
Weight, stand included (kg/lbs) : 13/28.6 (26”)
: 19/42.2 (32”)
: 26/57 (37”)
: 32/70.4 (42”)
1.2 Connection Overview
Note: The following connector color abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side Connections
1.1.2 Sound
Sound systems : AV Stereo
Maximum power (W
) : 2 x 15
RMS
1.1.3 Multimedia
Supported file formats : JPEG
USB input : USB1.1
1.1.4 Miscellaneous
Power supply:
- Mains voltage (V
) : 100 - 240 (26”)
AC
- Mains frequency (Hz) : 50/60 (26”)
Ambient conditions:
- Temperature range (°C) : +5 to +40
:BTSC
: Dolby Digital (AC3)
: 2 x 8 (26” only)
:MP3
: Slideshow (.alb)
: 110 - 120 (32”, 37”,
42”)
: 60 (32”, 37”, 42”)
G_16290_067.eps
300106
Figure 1-1 Side I/O connections
Mini Jack: Audio Headphone - Out
Bk -Headphone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Ye -Video CVBS 1 V
Wh -Audio L 0.5 V
Rd - Audio R 0.5 V
/ 75 ohm jq
PP
/ 10 kohm jq
RMS
/ 10 kohm jq
RMS
S-Video (Hosiden): Video Y/C - In
1 -Ground Y Gnd H
2 -Ground C Gnd H
3 -Video Y 1 V
4 -Video C 0.3 V
/ 75 ohm j
PP
P / 75 ohm j
PP
Page 3
Technical Specifications, Connections, and Chassis Overview
EN 3EL1.1U AA 1.
USB1.1
1234
E_06532_022.eps
300904
Figure 1-2 USB (type A)
1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H
1.2.2 Rear Connections
Figure 1-3 Rear connections
AV3 S-Video (Hosiden): Video Y/C - In
1 -Ground Y Gnd H
2 -Ground C Gnd H
3 -Video Y 1 V
4 -Video C 0.3 V
/ 75 ohm j
PP
P / 75 ohm j
PP
G_16290_068.eps
300106
HDMI 1: Digital Video, Digital Audio - In
19
18 2
1
E_06532_017.eps
250505
Figure 1-4 HDMI (type A) connector
1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Aerial - In
- -F-type (US) Coax, 75 ohm D
AV3 Cinch: Video CVBS - In
Ye -Video CVBS 1 V
/ 75 ohm jq
PP
AV3 Cinch: Audio - In
Wh -Audio L 0.5 V
Rd - Audio R 0.5 V
RMS
RMS
Cinch: S/PDIF - Out
Bk -Coaxial 0.4 - 0.6V
AV2 Cinch: Video YPbPr - In
Gn - Video Y 1 V
Bu -Video Pb 0.7 V
Rd - Video Pr 0.7 V
/ 75 ohm jq
PP
PP
PP
AV2 Cinch: Video CVBS - In
Ye -Video CVBS 1 V
/ 75 ohm jq
PP
AV2 Cinch: Audio - In
Wh -Audio L 0.5 V
Rd - Audio R 0.5 V
RMS
RMS
AV1 Cinch: Video YPbPr - In
Gn - Video Y 1 V
Bu -Video Pb 0.7 V
Rd - Video Pr 0.7 V
/ 75 ohm jq
PP
PP
PP
AV1 Cinch: Video CVBS - In
Ye -Video CVBS 1 V
/ 75 ohm jq
PP
/ 10 kohm jq
/ 10 kohm jq
/ 75 ohm kq
PP
/ 75 ohm jq
/ 75 ohm jq
/ 10 kohm jq
/ 10 kohm jq
/ 75 ohm jq
/ 75 ohm jq
AV1 Cinch: Audio - In
Wh -Audio L 0.5 V
Rd - Audio R 0.5 V
/ 10 kohm jq
RMS
/ 10 kohm jq
RMS
Page 4
EN 4 EL1.1U AA1.
1.3 Chassis Overview
Technical Specifications, Connections, and Chassis Overview
LCD SUPPLY
A
PANEL
SMALL SIGNAL
B
BOARD
Figure 1-5 PWB/CBA locations (26-inch model)
CONTROL
BOARD
SIDE I/O
PANEL
IR / LED
PANEL
E
D
J
LCD SUPPLY
A
PANEL
SMALL SIGNAL
B
BOARD
Figure 1-6 PWB/CBA locations (32-inch model)
STANDBY /
AUDIO PANEL
SIDE I/O
PANEL
CONTROL
BOARD
LED PANEL
G_16290_069.eps
SA
D
E
J
310106
Page 5
SMALL SIGNAL
B
BOARD
Technical Specifications, Connections, and Chassis Overview
LCD SUPPLY
PANEL
EN 5EL1.1U AA 1.
A
CONTROL
E
BOARD
STANDBY / AUDIO
SA
PANEL
Figure 1-7 PWB/CBA locations (37-inch model)
G_16290_094.eps
030206
SIDE I/O
PANEL
IR / LED
PANEL
LCD SUPPLY
PANEL
D
J
A
CONTROL
E
BOARD
SMALL SIGNAL
B
BOARD
Figure 1-8 PWB/CBA locations (42-inch model)
G_16290_095.eps
030206
SIDE I/O
PANEL
IR / LED
PANEL
D
J
Page 6
EN 6 EL1.1U AA2.
Safety Instructions, Warnings, and Notes
2. Safety Instructions, Warnings, and Notes
Index of this chapter:
2.1 Safety Instructions
2.2 Warnings
2.3 Notes
2.1 Safety Instructions
Safety regulations require that during a repair:
• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).
• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:
• Route the wire trees correctly and fix them with the
mounted cable clamps.
• Check the insulation of the Mains/AC Power lead for
external damage.
• Check the strain relief of the Mains/AC Power cord for
proper function.
• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets which
have a Mains/AC Power isolated power supply):
1. Unplug the Mains/AC Power cord and connect a wire
between the two pins of the Mains/AC Power plug.
2. Set the Mains/AC Power switch to the "on" position
(keep the Mains/AC Power cord unplugged!).
3. Measure the resistance value between the pins of the
Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.
4. Switch "off" the set, and remove the wire between the
two pins of the Mains/AC Power plug.
• Check the cabinet for defects, to avoid touching of any
inner parts by the customer.
2.2 Warnings
• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,
connection box, extension cable and earth cable) 4822
310 10671.
– Wristband tester 4822 344 13999.
• Be careful during measurements in the high voltage
section.
• Never replace modules or other components while the unit
is switched "on".
• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.
2.3 Notes
2.3.1 General
• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a color bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or
61.25 MHz for NTSC (channel 3).
• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.
• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.
• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.
2.3.2 Schematic Notes
• All resistor values are in ohms and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).
• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).
• All capacitor values are given in micro-farads (µ= x10
nano-farads (n= x10
• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).
• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.
• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.
2.3.3 Rework on BGA (Ball Grid Array) ICs
General
Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.
Device Removal
As is the case with any component that, it is essential when
removing an (LF)BGA, the board, tracks, solder lands, or
surrounding components are not damaged. To remove an
(LF)BGA, the board must be uniformly heated to a temperature
close to the reflow soldering temperature. A uniform
temperature reduces the chance of warping the PWB.
To do this, we recommend that the board is heated until it is
certain that all the joints are molten. Then carefully pull the
component off the board with a vacuum nozzle. For the
appropriate temperature profiles, see the IC data sheet.
Area Preparation
When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.
After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.
Note: Do not apply solder paste, as this has shown to result in
problems during re-soldering.
-9
), or pico-farads (p= x10
-12
-6
),
).
Page 7
Safety Instructions, Warnings, and Notes
EN 7EL1.1U AA 2.
Device Replacement
The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
So as not to damage neighboring components, it may be
necessary to reduce some temperatures and times.
More Information
For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Repair Downloads”. Here you will find Information
on how to deal with BGA-ICs.
2.3.4 Lead Free Solder
Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.
Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 1991
week 18).
E_06532_024.eps
230205
avoid mixed regimes. If not to avoid, clean carefully the
solder-joint from old tin and re-solder with new tin.
• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.
• Special information for lead-free BGA ICs: these ICs will be
delivered in so-called "dry-packaging" to protect the IC
against moisture. This packaging may only be opened
short before it is used (soldered). Otherwise the body of the
IC gets "wet" inside and during the heating time the
structure of the IC will be destroyed due to high (steam)pressure inside the body. If the packaging was opened
before usage, the IC has to be heated up for some hours
(around 90°C) for drying (think of ESD-protection!).
Do not re-use BGAs at all!
• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.
In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:
• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).
• De-solder thoroughly (clean solder joints to avoid mix of
two alloys).
Caution: For BGA-ICs, you must use the correct temperatureprofile, which is coupled to the 12NC. For an overview of these
profiles, visit the website www.atyourservice.ce.philips.com
(needs subscription, but is not available for all regions)
You will find this and more technical information within the
"Magazine", chapter "Repair Downloads".
For additional questions please contact your local repair help
desk.
Figure 2-1 Serial number example
Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.
P
b
Figure 2-2 Lead-free logo
Due to lead-free technology some rules have to be respected
by the workshop during a repair:
• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.
• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able
– To reach at least a solder-tip temperature of 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.
• Adjust your solder tool so that a temperature around 360°C
- 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will rise drastically and flux-fluid will be destroyed. To
avoid wear-out of tips, switch “off” unused equipment or
reduce heat.
• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
2.3.5 Practical Service Precautions
• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.
Page 8
EN 8 EL1.1U AA3.
3. Directions for Use
Directions for Use
You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com
3.1 Ho tel Mode
3.1.1 Introduction
As the 26” version of the EL1.1U AA chassis is equipped with
Hotel Mode, here is a brief explanation on how to activate and
configure it.
3.1.2 The Benefits of Hotel Mode
This TV is specially designed to operate in Hotel Mode. Hotel
Mode offers the following benefits:
• Access to the user menu can be blocked. This prevents
users (e.g. guests) from deleting or changing channel
settings and/or modifying picture and sound settings.
Picture and sound can only be controlled via preprogrammed Smart Settings and buttons on the remote
control. This ensures that TVs are always set up correctly.
• A switch-on volume and channel can be selected. After
switching on, the TV will always start on the specified
channel and volume level.
• The maximum volume can be limited in order to prevent
disturbance.
• Channels can be blanked.
• The television keys VOLUME +/-, CHANNEL +/- and
MENU can be blocked.
• Screen information can be suppressed.
3.1.3 Activating the Hotel Mode Setup Menu
1. Switch on the television and select a TV channel.
2. On the remote control, press keys: [3, 1, 9, 7, 5, 3, MUTE]
3. The HOTEL MODE SETUP MENU becomes visible.
4. Use the cursor keys to select and change any of the
functions.
5. Select "STORE" and press [CURSOR RIGHT] to save the
settings and exit Hotel Mode setup. Press [MENU] to exit
without saving.
CHANNEL BLANK
Selection Description
YES The current channel is blanked.
NO The current channel is not blanked (normal
visible; DEFAULT value)
CHANNEL BLANK can be set for every channel. Use [CH+ /
CH-] to visit all the channels and set the desired status per
channel. The channel number is visible in the top left corner.
KEYBOARD LOCK
Selection Description
YES The television keys VOLUME +/-, CHANNEL +/-
and MENU are blocked.
NO The television keys VOLUME +/-, CHANNEL +/-
and MENU function normally.
MAX VOLUME
Selection Description
0 .. 99 The TV Volume will not exceed the selected
volume level.
ON VOLUME
Selection Description
0 .. 99 When the user switches the TV ON, it will play at
the specified volume level. Note: "ON VOLUME"
cannot exceed the MAXIMUM VOLUME level.
OSD DISPLAY
Selection Description
YES Normal screen information is displayed (example:
channel information).
NO On Screen Display can be suppressed (except for
some VGA input, if present).
MONITOR OUT
Selection Description
YES Enables Audio & Video output from the TV.
NO Disables Audio & Video output from TV
3.1.4 Hotel Mode Functions
This section describes the functionality of the menu items in the
Hotel Mode Setup menu.
HOTEL MODE
Selection Description
YES Hotel Mode is ON:
- The user menu is blocked.
- The volume level is limited (to the volume level
when Hotel Mode Setup was entered).
- All settings of the Hotel Mode Setup menu are in
effect.
NO Hotel Mode is OFF:
- The TV operates as a normal consumer TV.
INSTALL Allows the TV Set to auto-install without PSIP
activated (if PSIP is set to NO)
ON CHANNEL
Selection Description
0 .. 99,
EXT1,2,3
When the user switches the TV ON, it will tune to
the specified channel or External AV.
POWER ON
Selection Description
FORCED Sets the TV immediately to ON after the mains
power is connected.
STANDBY Sets the TV to standby mode after the mains
power is connected.
PSIP
Selection Description
YES Enables recognition of PSIP settings (during
installation).
NO Disables recognition of PSIP settings (during
installation).
Page 9
4. Mechanical Instructions
Mechanical Instructions
EN 9EL1.1U AA 4.
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal
4.4 Set Re-assembly
4.1 Cable Dressing
Notes:
• Several models in this chassis range have a different
mechanical construction, the instructions given in this
chapter are therefore very model specific.
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
Figure 4-1 Cable dressing (26-inch model)
G_16290_089.eps
030206
Page 10
EN 10 EL1.1U AA4.
Mechanical Instructions
Figure 4-2 Cable dressing (32-inch model)
G_16290_070.eps
310106
Figure 4-3 Cable dressing (37-inch model)
G_16290_091.eps
030206
Page 11
Mechanical Instructions
EN 11EL1.1U AA 4.
Figure 4-4 Cable dressing (42-inch model)
4.2 Service Positions
For easy servicing of this set, there are a few possibilities
created:
• Foam bars (created for Service).
• Aluminium service stands (created for Service).
4.2.1 Foam Bars
E_06532_018.eps
Figure 4-5 Foam bars
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of Flat TVs. By laying the TV
face down on the (ESD protective) foam bars, a stable situation
is created to perform measurements and alignments.
By placing a mirror under the TV, you can monitor the screen.
170504
G_16290_092.eps
4.2.2 Aluminium Stands
E_06532_019.eps
170504
Figure 4-6 Aluminium stands (drawing of MkI)
The new MkII aluminium stands (not on drawing) with order
code 3122 785 90690, can also be used to do measurements,
alignments, and duration tests. The stands can be
(dis)mounted quick and easy by means of sliding them in/out
the "mushrooms". The new stands are backwards compatible
with the earlier models.
Important: For (older) FTV sets without these "mushrooms", it
is obligatory to use the provided screws, otherwise it is possible
to damage the monitor inside!.
030206
Page 12
EN 12 EL1.1U AA4.
s
6
Mechanical Instructions
4.3 Assy/Panel Removal
4.3.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
1. Place the TV set upside down on a table top, using the
foam bars (see part "Foam Bars").
Caution: do not put pressure on the display, but let the
monitor lean on the speakers or the Front cover.
2. Remove all screws that secure the rear cover.
3. Lift the rear cover from the cabinet cautiously. Make sure
that wires and other internal components are not damaged
during cover removal.
4.3.2 Keyboard Control Panel
1. Remove the screws [1] that secure the panel.
2. Disconnect the cable [2] from the panel.
3. Remove the panel.
When defective, replace the whole unit.
1
2
3
4
4.3.6 Stand-by Power Supply/Audio Amplifier Panel (if present)
1. Disconnect all cables [1] from the panel.
2. Remove the fixation screws [2] from the panel. The
positioning might differ from the locations as indicated in
Figure “Stand-by/Audio panel”.
3. Take the panel out of its brackets (it hinges at the bottom
side).
2
1
2
F_15420_042.eps
070605
Figure 4-8 Stand-by/Audio panel
4.3.7 LCD Supply Panel
1. Disconnect all cables [1] from the panel.
2. Remove the fixation screws [2] from the panel.
6
3. Take the panel out of its brackets (it hinges on the right
side).
5
1
7
G_16290_071.eps
8
310106
Figure 4-7 Keyboard Control panel, Side I/O panel and LED panel.
4.3.3 Side I/O Panel
1. Disconnect the cables [3][4][5] from the panel.
2. Remove the panel from its brackets [6].
When defective, replace the whole unit.
4.3.4 LED Panel
1. Disconnect the cable [7] from the panel.
2. Remove the panel from its bracket [8].
When defective, replace the whole unit.
26 and 32-inch models
2
2
2
2
2
1
2
2
1
2
Figure 4-9 LCD supply panel(s)
37 and 42-inch models
1
1
2
1
1
G_16290_088.ep
03020
4.3.5 Speakers
After removal of the rear cover, you can access the speakers.
Page 13
Mechanical Instructions
EN 13EL1.1U AA 4.
4.3.8 Small Signal Board (SSB)
1
1 1 1
1
1
Figure 4-10 SSB bottom shielding
1. Remove the connector fixation screws [1] at the connector
plate (bottom side, see Figure “SSB bottom shielding”).
2. Unplug the LVDS connector [1] on the SSB (SSB top side,
see Figure “SSB top view”). Be careful as it is very fragile.
3. Unplug all other cables on the SSB.
4. Remove the mounting screws [2] that hold the SSB, and lift
the panel from the set.
1
G_16290_072.eps
310106
Take care not to damage the fragile LVDS cable.
Ensure that the conducting tape [1] at both sides of the
panel is secured for re-assembly (see Figure “Conducting
tape”).
10. After removal of the metal frame, you can lift the LCD panel
from the front cabinet.
1
G_16290_074.eps
310106
Figure 4-12 LVDS connector
2
Figure 4-11 SSB top view
4.3.9 LCD Panel
To remove the LCD-panel, carry out the following steps:
1. Disconnect the cables from the “L” and the “R”
loudspeakers.
2. Important: Unplug the LVDS connector [1] on the LCD
panel (see Figure “LVDS connector”). Be careful, as this is
a very fragile connector!
3. Take the Side I/O panel and the LED panel out of its
brackets (see Figure “Keyboard Control panel, Side I/O
panel and LED panel” at the beginning of this chapter).
4. Unplug the cable from the Keyboard Control panel and
remove this cable from its cable clamp (see Figure
“Keyboard Control panel, Side I/O panel and LED panel” at
the beginning of this chapter).
5. Unplug the LCD backlight connectors [2] of the LCD panel
(see Figure “Fixation screws and LCD backlight
connectors”).
6. Remove the Stand-by Power Supply/Audio Amplifier Panel
as described previously in this chapter, because of a
hidden screw.
7. Remove the panel fixation screws and at the same time
disconnect the remaining cable connected to the Side I/O
panel (see Figure “Fixation screws and LCD backlight
connectors”).
8. Remove the LCD panel fixation screws [1]. See Figure
“Location of LCD panel fixation screws”.
9. Lift the metal frame (together with all PWBs) from the LCD
panel.
G_16290_073.eps
310106
2
1
1
2
1
G_16290_075.eps
Figure 4-13 Fixation screws and LCD backlight connectors
1
G_16290_076.eps
310106
Figure 4-14 Location of LCD panel fixation screws
310106
Page 14
EN 14 EL1.1U AA4.
Figure 4-15 Conductive tape
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Mechanical Instructions
1
G_16290_077.eps
310106
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure "Cable
dressing".
• Ensure that the conducting tape [1] at both sides of the
LCD panel is placed in its original position. See Figure
“Conductive tape”.
Page 15
Service Modes, Error Codes, and Fault Finding
5. Service Modes, Error Codes, and Fault Finding
EN 15EL1.1U AA 5.
Index of this chapter:
5.1 Test Points
5.2 Service Modes
5.3 Stepwise Start-up
5.4 Service Tools
5.5 Error Codes
5.6 The Blinking LED Procedure
5.7 Protections
5.8 Fault Finding and Repair Tips
5.9 Software Upgrading
5.1 Test Points
As most signals are digital, it will be almost impossible to
measure waveforms with a standard oscilloscope. Therefore,
waveforms are not given in this manual. Several key ICs are
capable of generating test patterns, which can be controlled via
ComPair. In this way it is possible to determine which part is
defective.
Perform measurements under the following conditions:
• Service Default Mode.
• Video: Color bar signal.
• Audio: 3 kHz left, 1 kHz right.
5.2 Service Modes
Service Default Mode (SDM) and Service Alignment Mode
(SAM) offer several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between a Customer Helpdesk and a customer.
There is also the option of using ComPair, a hardware interface
between a computer (see requirements below) and the TV
chassis. It offers the ability of structured troubleshooting, test
pattern generation, error code reading, software version
readout, and software upgrading.
Minimum requirements for ComPair: a Pentium processor,
Windows 95/98, and a CD-ROM drive (see also paragraph
“ComPair”).
Remark: as the Hotel Mode is a User Mode, rather than a
Service Mode, we have put the description in Chapter 3,
Directions for Use.
• Tuning frequency 61.25 MHz for NTSC: The TV shall tune
to physical channel 3 only if channel 3 is an analog channel
or if there is no channel 3 installed in the channel map. If
there is a digital channel installed in channel 3, then the
frequency to which the set will tune, would be as specified
in the channel map and could be different from the one
corresponding to the physical channel 3.
• All picture settings at 50% (brightness, color, contrast).
• All sound settings at 50%, except volume at 25%.
• All service-unfriendly modes (if present) are disabled, like:
– (Sleep) timer.
– Child/parental lock.
– Picture mute (blue mute or black mute).
– Automatic volume levelling (AVL).
– Auto switch "off" (when no video signal was received
for 10 minutes).
– Skip/blank of non-favorite pre-sets.
– Smart modes.
– Auto store of personal presets.
– Auto user menu time-out.
How to Activate SDM
Use one of the following methods:
• Use the standard RC-transmitter and key in the code
“062596”, directly followed by the “MENU” button.
Note: It is possible that, together with the SDM, the main
menu will appear. To switch it "off", push the “MENU”
button again.
• Short for a moment the two solder pads [1] on the SSB,
with the indication “SDM”. They are located on top of the
SSB. Activation can be performed in all modes, except
when the set has a problem with the Stand-by Processor.
See figure “SDM and SPI service pads”.
12
SDMSPI
5.2.1 Service Default Mode (SDM)
Purpose
• To create a pre-defined setting, to get the same
measurement results as given in this manual.
• To override SW protections (only applicable for protections
detected by stand-by processor) and make the TV start up
to the step just before protection (a sort of automatic
stepwise start up). See paragraph “Stepwise Start Up”.
• To start the blinking LED procedure (not valid in protection
mode).
Specifications
Table 5-1 SDM default settings
Region Freq. (MHz)
Europe, AP-PAL/Multi 475.25 PAL B/G
NAFTA, AP-NTSC, LATAM 61.25 (ch. 3) NTSC M
Default
system
G_16300_001.eps
020206
Figure 5-1 SDM and SPI service pads
After activating this mode, “SDM” will appear in the upper right
corner of the screen (if you have picture).
How to Navigate
When you press the “MENU” button on the RC transmitter, the
set will toggle between the SDM and the normal user menu
(with the SDM mode still active in the background).
How to Exit SDM
Use one of the following methods:
• Switch the set to STAND-BY via the RC-transmitter.
• Via a standard customer RC-transmitter: key in “00”sequence.
Page 16
EN 16 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
5.2.2 Service Alignment Mode (SAM)
Purpose
• To perform (software) alignments.
• To change option settings.
• To easily identify the used software version.
• To view operation hours.
• To display (or clear) the error code buffer.
How to Activate SAM
Via a standard RC transmitter: key in the code “062596”
directly followed by the “INFO” button. After activating SAM
with this method a service warning will appear on the screen,
you can continue by pressing the red button on the RC.
Contents of SAM:
• Hardware Info.
– A. VIPER SW Version. Displays the software version
of the VIPER software (main software) (example:
EL23U-1.2.3.4_12345 = AAAAB_X.Y.W.Z_NNNNN).
• AAAA= the chassis name.
• B= the region: A= AP, E= EU, L= Latam, U = US.
• X.Y.W.Z= the software version, where X is the
main version number (different numbers are not
compatible with one another) and Y is the sub
version number (a higher number is always
compatible with a lower number). The last two
digits are used for development reasons only, so
they will always be zero in official releases.
• NNNNN= last five digits of 12nc code of the
software.
– B. SBY PROC Version. Displays the software version
of the stand-by processor.
– C. Production Code. Displays the production code of
the TV, this is the serial number as printed on the back
of the TV set. Note that if an NVM is replaced or is
initialized after corruption, this production code has to
be re-written to NVM. ComPair will foresee in a
possibility to do this.
• Operation Hours. Displays the accumulated total of
operation hours (not the stand-by hours). Every time the
TV is switched "on/off", 0.5 hours is added to this number.
• Errors. (Followed by maximal 10 errors). The most recent
error is displayed at the upper left (for an error explanation
see paragraph “Error Codes”).
• Defective Module. Here the module that generates the
error is displayed. If there are multiple errors in the buffer,
which are not all generated by a single module, there is
probably another defect. It will then display the message
“UNKNOWN” here.
• Reset Error Buffer. When you press “cursor right” and
then the “OK” button, the error buffer is reset.
• Alignments. This will activate the “ALIGNMENTS” submenu.
• Dealer Options. Extra features for the dealers.
• Options. Extra features for Service.
• Initialize NVM. When an NVM was corrupted (or replaced)
in the former EMG based chassis, the microprocessor
replaces the content with default data (to assure that the
set can operate). However, all preferences and alignment
values are gone now, and option numbers are not correct.
Therefore, this was a very drastic way. In this chassis, the
procedure is implemented in another way: The moment the
processor recognizes a corrupted NVM, the “initialize
NVM” line will be highlighted. Now, you can do two things
(dependent of the service instructions at that moment):
– Save the content of the NVM via ComPair for
development analysis, before initializing. This will give
the Service department an extra possibility for
diagnosis (e.g. when Development asks for this).
– Initialize the NVM (same as in the past, however now it
happens conscious).
Note: When you have a corrupted NVM, or you have replaced
the NVM, there is a high possibility that you will not have picture
any more because your display option is not correct. So, before
you can initialize your NVM via the SAM, you need to have a
picture and therefore you need the correct display option. To
adapt this option, use ComPair. The correct HEX values for the
options can be found in the table below.
Page 17
Service Modes, Error Codes, and Fault Finding
Table 5-2 Display option code overview (all FTV chassis)
EN 17EL1.1U AA 5.
Display Option
(Dec.)
000 PDP SDI V3 42” 768p 1024 S42AX-YD01(PP42AX-007A) 9322 225 38682
001 PDP SDI V3 50” 768p 1366 S50HW-XD03 9322 215 26682
002 PDP FHP A1 42” 1024i 1024 FPF42C128128UC-52 (A1) 9322 212 78682
003 LCD LPL A3 30” 768p 1280 LC300W01-A3P7 9322 198 00682
004 LCD LPL A6 37” 768p 1366 LC370W01-A6 9322 220 87682
005 LCD LPL A6 42” 768p 1366 LC420W02-A6 9322 226 39682
006 LCD Sharp 32” 768p 1366
007 PDP SDI V3 42” 480p 852 S42SD-YD05 (V3) 9322 215 27682
008 PDP FHP A1 37” 1024i 1024 FPF37C128128UB-72 9322 217 56682
009 LCOS XION - - 720p 1280 n.a. n.a.
010 LCD AUO 30” 768p 1280
011 LCD LPL A6 32” 768p 1366 LC320W01-A6K1 9322 217 44682
012 LCD AUO V0.1 32” 768p 1366 T315XW01V5 9322 231 69682
013 LCD Sharp 37” 768p 1366
014 LCD LPL SL01 42” 1080p 1920 LC420WU1-SL01 9322 228 99682
015 PDP SDI 37” 480p 852 S37SD-YD02 9322 217 39682
016 PDP FHP 37” 1080i 1024 not used not used
017 PDP FHP 42” 1080i 1024 FPF42C128135UA-52 9322 235 43682
018 PDP FHP 55” 768p 1366 not used not used
019 LCOS VENUS - - 720p 1280 n.a. n.a.
020 LCOS VENUS - - 1080p 1920 n.a. n.a.
021 LCD LPL SL01 26” 768p 1366 LC260WX2-SL01 9322 221 01682
022 LCD LPL SL01 32” 768p 1366 LC320WX2-SL01 9322 241 46682
023 PDP LGE 42” 480p 852 not used not used
024 PDP SDI V4 42” 480p 852
025 PDP SDI V5 42” 768p 1024
026 PDP FHP A2 42” 1024i 1024 FPF42C128128UD-51 (A2) not used
027 PDP SDI V5 50” 768p 1366
028 LCD Sharp 37” 1080p 1920 LQ370D3LZ13 (ASV2.2) 9322 228 48682
029 LCD AUO V0.1 32” 768p 1366 T315XW01-V3 see partslist for 12NC
030 LCD Sharp 37” 1080p 1920 LW370D3LZ1x (ASV 3 first samples) not used
031 LCD Sharp 37” 1080p 1920 LK370D3LZ33 (ASV 3) 9322 242 22682
032 LCD LPL SL0.1 20” 768p 1366 LC200WX1-SL01 9322 222 90682
033 LCD QDI 23” 768p 1366
034 ECO PTV - 51” 1080i 1366
035 ECO PTV - 55” 1080i 1366 not used not used
036 ECO PTV - 61” 1080i 1366 not used not used
037 PDP FHP A3 42” 1024i 1024 FPF42C128135UA-52 (A3) 9322 235 43682
038 DLP - 50” 720p 1280 not used not used
039 DLP - 60” 720p 1280
040 LCD Sharp 2.3 32” 768p 1366 LK315T3LZ43 (ASV 2.3) 9322 235 32682
041 LCD LPL SLA1 42” 768p 1366 LC420WX2-SLA1 9322 240 80682
042 PDP SDI V4 63” 768p 1366 S63HW-XD04 see partslist for 12NC
043 LCD Sharp 3.0 37” 768p 1366 LK370T3LZ63 (ASV 3) see partslist for 12NC
044 LCD Sharp 2.3 37” 768p 1366 LK370T3LZ53 (ASV 2.3) 9322 235 83682
045 LCD LPL SLB2 26” 768p 1366 LC260WX2-SLB2 9322 234 13682
046 LCD LPL SL06 32” 768p 1366 LC320W01-SL06 9322 230 03682
047 LCD LPL SLB1 42” 768p 1366 LC420W02-SLB1 9322 234 12682
048 LCD QDI 26” 768p 1366
049 LCD AUO 26” 768p 1366 T260XW02V4 9322 231 90682
050 LCD AUO V9 32” 768p 1366 T315XW01V9 9322 231 89682
051 LCD AUO 37” 768p 1366 T370XW01V1 9322 233 78682
052 LCD AUO V5 32” 768p 1366 T315XW02V5 see partslist for 12NC
053 LCD LPL SL04 37” 768p 1366 LC370WX1-SL04 9322 233 19682
054 PDP LGE 42” 768p 1024 PDP42X3 see partslist for 12NC
Technology
Display Make &
Type
Size
Vertical
Resolution
Horizontal
Resolution
Code number 12NC
LQ315T3LZ13 (ASV1) 9322 209 35682
LQ315T3LZ23 (ASV2.2)(5Vtcon) 9322 226 58682
LQ315T3LZ23 (ASV2.2)(12Vtcon) 9322 226 16682
T296XW01 9322 206 49682
T296XW01V2 9322 219 45682
T296XW01V3 9322 213 33682
LQ370T3LZ21 (ASV2)
LQ370T3LZ44 (ASV2.2) ?
S42SD-YD07(PP42SD-015A) (V4) 9322 226 37682
S42SD-YD07(PP42SD-015B) (V4) 9322 226 96682
S42SD-YD07(PP42SD-015F) (V4) 9322 233 81682
S42AX-YD01(PP42AX-007A) (V4) 9322 225 38682
S42AX-YD01(PP42AX-008A) (V4) 9322 226 95682
S42AX-YD01(PP42AX-008B) (V4) 9322 233 80682
S42AX-YD02(PP42AX-009A) (W1) 9322 240 08682
S50HW-XD04(PP50HW-005A) (V4) 9322 226 54682
S50HW-XD04(PP50HW-005B) (V4) 9322 226 97682
S50HW-XD04(PP50HW-005E) (V4) 9322 233 79682
S50HW-YD01(PP50HW-010A) (W1) 9322 240 25682
QD23HL02 REV01 9322 223 91682
QD23HL02 REV01(03) 9322 232 69682
ASSY OPTICAL 51W 2K5 3139 177 92811
ASSY OPTICAL 51W 2K6 3139 177 95871
ASSY OPTICAL 60W 2K5 3139 177 93521
ASSY OPTICAL 60W 2K6 3139 177 96911
QD26HL02-REV01 9322 227 29682
QD26HL02-REV02 9322 235 05682
• Store. All options and alignments are stored when
pressing “cursor right” and then the “OK”-button
• SW Maintenance.
– SW Events. Not useful for service purposes. In case of
specific software problems, the development
department can ask for this info.
Page 18
EN 18 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
– HW Events. Not functional at the moment this manual
is released, description will be published in an update
manual if the function becomes available.
How to Navigate
• In SAM, you can select the menu items with the “CURSOR
UP/DOWN” key on the RC-transmitter. The selected item
will be highlighted. When not all menu items fit on the
screen, move the “CURSOR UP/DOWN” key to display the
next/previous menu items.
• With the “CURSOR LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected submenu.
How to Exit SAM
Use one of the following methods:
• Press the “MENU” button on the RC-transmitter.
• Switch the set to STAND-BY via the RC-transmitter.
Note: As long as SAM is activated, it is not possible to change
a channel. This could hamper the White Point alignments
because you cannot choose your channel/frequency any more.
Workaround: after you have sent the RC code “062596 INFO”
you will see the service-warning screen, and in this stage it is
still possible to change the channel (so before pressing the
“OK” button).
5.2.3 Customer Service Mode (CSM)
Purpose
When a customer is having problems with his TV-set, he can
call his dealer or the Customer Helpdesk. The service
technician can then ask the customer to activate the CSM, in
order to identify the status of the set. Now, the service
technician can judge the severity of the complaint. In many
cases, he can advise the customer how to solve the problem,
or he can decide if it is necessary to visit the customer.
The CSM is a read only mode; therefore, modifications in this
mode are not possible.
How to Activate CSM
Key in the code “123654” via the standard RC transmitter.
Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!
How to Navigate
By means of the “CURSOR-DOWN/UP” knob on the RCtransmitter, you can navigate through the menus.
Contents of CSM
• SW Version (example: EL23U-1.2.3.4_12345). Displays
the built-in main software version. In case of field problems
related to software, software can be upgraded. As this
software is consumer upgradable, it will also be published
on the Internet.
• SBY Processor Version. Displays the built-in stand-by
processor software version. Upgrading this software will be
possible via a PC and a ComPair interface (see chapter
Software upgrade).
• Set Type. This information is very helpful for a helpdesk/
workshop as reference for further diagnosis. In this way, it
is not necessary for the customer to look at the rear of the
TV-set. Note that if an NVM is replaced or is initialized after
corruption, this set type has to be re-written to NVM.
ComPair will foresee a possibility to do this.
• Production Code. Displays the production code (the serial
number) of the TV. Note that if an NVM is replaced or is
initialized after corruption, this production code has to be
re-written to NVM. ComPair will foresee a possibility to do
this.
• Code 1. Gives the latest five errors of the error buffer. As
soon as the built-in diagnose software has detected an
error the buffer is adapted. The last occurred error is
displayed on the leftmost position. Each error code is
displayed as a 2-digit number. When less than 10 errors
occur, the rest of the buffer is empty (00). See also
paragraph Error Codes for a description.
• Code 2. Gives the first five errors of the error buffer. See
also paragraph Error Codes for a description.
• Headphone Volume. Gives the last status of the
headphone volume, as set by the customer. The value can
vary from 0 (volume is minimum) to 100 (volume is
maximum). Change via ”MENU”, “TV”, “SOUND”,
“HEADPHONE VOLUME”.
• Dolby. Indicates whether the received transmitter
transmits Dolby sound (“ON”) or not (“OFF”). Attention: The
presence of Dolby can only be tested by the software on
the Dolby Signaling bit. If a Dolby transmission is received
without a Dolby Signaling bit, this indicator will show “OFF”
even though a Dolby transmission is received.
• Sound Mode. Indicates the by the customer selected
sound mode (or automatically chosen mode). Possible
values are “STEREO” and “VIRTUAL DOLBY
SURROUND”. Change via “MENU”, “TV”, “SOUND”,
“SOUND MODE”. It can also have been selected
automatically by signaling bits (internal software).
• Tuner Frequency. Not applicable for US sets.
• Digital Processing. Indicates the selected digital mode.
Possible values are “STANDARD” and “PIXEL PLUS”.
Change via “MENU”, “TV”, “PICTURE”, “DIGITAL
PROCESSING”.
• TV System. Gives information about the video system of
the selected transmitter.
– M: NTSC M signal received
– ATSC: ATSC signal received
• Center Mode. Not applicable.
• DNR. Gives the selected DNR setting (Dynamic Noise
Reduction), “OFF”, “MINIMUM”, “MEDIUM”, or
“MAXIMUM”. Change via “MENU”, “TV”, “PICTURE”,
“DNR”
• Noise Figure. Gives the noise ratio for the selected
transmitter. This value can vary from 0 (good signal) to 127
(average signal) and to 255 (bad signal). For some
software versions, the noise figure will only be valid when
“Active Control” is set to “medium” or “maximum” before
activating CSM.
• Source. Indicates which source is used and the video/
audio signal quality of the selected source. (Example:
Tuner, Video/NICAM) Source: “TUNER”, “AV1”, “AV2”,
“AV3”, “HDMI 1”, “SIDE”. Video signal quality: “VIDEO”, “SVIDEO”, “RGB 1FH”, “YPBPR 1FH 480P”, “YPBPR 1FH
576P”, “YPBPR 1FH 1080I”, “YPBPR 2FH 480P”, “YPBPR
2FH 576P”, “YPBPR 2FH 1080I”, “RGB 2FH 480P”, “RGB
2FH 576P” or “RGB 2FH 1080I”. Audio signal quality:
“STEREO”, “SPDIF 1”, “SPDIF 2”, or “SPDIF”.
• Audio System. Gives information about the audible audio
system. Possible values are “Stereo”, ”Mono”, “Mono
selected”, “Analog In: No Dig. Audio”, “Dolby Digital 1+1”,
“Dolby Digital 1/0”, “Dolby Digital 2/0”, “Dolby Digital 2/1”,
“Dolby Digital 2/2”, “Dolby Digital 3/0”, “Dolby Digital 3/1”,
“Dolby Digital 3/2”, “Dolby Digital Dual I”, “Dolby Digital
Dual II”, “MPEG 1+1”, “MPEG 1/0”, “MPEG 2/0”. This is the
same info as you will see when pressing the “INFO” button
in normal user mode (item “signal”). In case of ATSC
receiving there will be no info displayed.
• Tuned Bit. Indicates if the selected preset is automatically
tuned (via “Automatic Installation” in the setup menu) or via
the automatic tuning system of the TV. In this case “Tuned
bit” will show “YES”. If the TV was not able to auto-tune to
the correct frequency, this item will show “NO”. So if “NO”
is displayed, it could indicate that the customer has
manually tuned to a frequency which was too far from a
correct frequency, that the TV was not able to auto-tune
any more.
• Preset Lock. Indicates if the selected preset has a child
lock: “LOCKED” or “UNLOCKED”. Change via “MENU”,
“TV”, “CHANNELS”, “CHANNEL LOCK”.
Page 19
Service Modes, Error Codes, and Fault Finding
EN 19EL1.1U AA 5.
• Lock After. Indicates at what time the channel lock is set:
“OFF” or e.g. “18:45” (lock time). Change “MENU”, “TV”,
“CHANNELS”, “LOCK AFTER”.
• TV Ratings Lock. Indicates the “TV ratings lock” as set by
the customer. Change via “MENU”, “TV”, “CHANNELS”,
“TV RATINGS LOCK”. Possible values are: “ALL”,
“NONE”, “TV-Y”, “TV-Y7”, “TV-G”, “TV-PG”, “TV-14” and
“TV-MA”.
• Movie Ratings Lock. Indicates the “Movie ratings lock” as
set by the customer. Change via “MENU”, “TV”,
“CHANNELS”, “MOVIE RATINGS LOCK”. Possible values
are: “ALL”, “NR”, “G”, “PG”, “PG-13”, “R”, “NC-17” and “X”.
• V-Chip Tv Status. Indicates the setting of the V-chip as
applied by the selected TV channel. Same values can be
shown as for “TV RATINGS LOCK”.
• V-Chip Movie Status. Indicates the setting of the V-chip
as applied by the selected TV channel. Same values can
be shown as for “MOVIE RATINGS LOCK”.
• Options 1. Gives the option codes of option group 1 as set
in SAM (Service Alignment Mode).
• Options 2. Gives the option codes of option group 2 as set
in SAM (Service Alignment Mode).
• AVL. Indicates the last status of AVL (Automatic Volume
Level): “ON” or “OFF”. Change via “MENU”, “TV”,
“SOUND”, “AVL”. AVL can not be set in case of digital
audio reception (e.g. Dolby Digital or AC3)
• Delta Volume. Indicates the last status of the delta volume
for the selected preset as set by the customer: from “-12”
to “+12”. Change via “MENU”, “TV”, “SOUND”, “DELTA
VOLUME”.
• HDMI key validity. Indicates the key’s validity.
• IEEE key validity. Indicates the key’s validity (n.a.).
• POD key validity. Indicates the key’s validity (n.a.).
• Digital Signal Quality. Indicates quality of the received
digital signal (0= low).
How to Exit CSM
Press any key on the RC-transmitter (with exception of the
“CHANNEL +/-”, “VOLUME”, “MUTE” and digit (0-9) keys).
5.3 Stepwise Start-up
The stepwise start-up method, as known from FTL/FTP sets is
not valid any more. The situation for this chassis is as follows:
when the TV is in a protection state detected via the Stand-by
Processor (and thus blinking an error) and SDM is activated via
shortcutting the pins on the SSB, the TV starts up until it
reaches the situation just before protection. So, this is a kind of
automatic stepwise start-up. In combination with the start-up
diagrams below, you can see which supplies are present at a
certain moment.
Important to know here is, that if e.g. the 3V3 detection fails
(and thus error 11 is blinking) and the TV is restarted via SDM,
the Stand-by Processor will enable the 3V3, but will not go to
protection now. The TV will stay in this situation until it is reset
(Mains/AC Power supply interrupted).
The abbreviations “SP” and “MP” in the figures stand for:
• SP: protection or error detected by the Stand-by
Processor.
• MP: protection or error detected by the VIPER Main
Processor.
Mains
“off”
- WakeUp requested
- Acquisition needed
Stand-by
(Off St-by)
- POD Card remove
- Tact SW pushed
- No data Acquisition required
and no POD present
- Tact SW pushed
- WakeUp requested
- Acquisition needed
d
POD
Stand-by
On
Only applicable for sets with CableCARDTM slot (POD)
*
No data Acquisition
required and
POD present
*
Off
Mains
“on”
Semi
Stand-by
GoToProtection
GoToProtec
tion
WakeUp
requested
- St-by requested
- Tact SW pushed
WakeUp
requested
Protection
Active
GoToProtection
F_15400_095.eps
020206
Figure 5-2 Transition diagram
Page 20
EN 20 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
Off
Mains is appl ied
Standby Supply starts running.
+5V2, 1V2Stb, 3V3Stb and +2V5D become present.
In case of PDP 3V3 Vpr to CPU PDP becomes present.
st-by µP resets
All I/O lines have a “high” default state:
- Sound-Enable and Reset-Audio should remain “high” .
- NVM power line is “high”, no NVM communication possible.
Initialise I/O pins of the st-by µP, start keyboard scanning, RC
CPU GO (inverse of the stby I/O line P OD-M OD E) and P DP GO
are then both “low” and the PDP is in the “low power” mode.
Switch “low” the NVM power reset line. Add a 2ms delay
before trying to address the NVM to allow correct NVM
Switch “on” all supplies by switching LOW the POD-MODE
+5V, +8V6, +12VS, +12VSW and Vsound are switched on
- Assert the Viper reset.
detection, P50 decoding. Wake up reasons are “off”.
In case of FHP PDP: Switch PDPGO “low”
initialization.
and the ON -M ODE I /O lines.
Wait 50ms and then start polling t he detect-
5V, detect-8V6 and detect-12V every 40ms.
Stand-by or
Protection
If the protection state was left by short circuiting the
SDM pins, detection of a protection condition during
startup will stall the startup. Protection conditions in a
playing set will be ignored. The protection mode will
- Switch Sound-Enable and Reset-Audio “high”.
not be entered.
They are “low” in the standby mode if the
standby mode lasted longer than 2s.
*
Switching the POD-MODE and the
Swi tching the P OD -MO DE
low in an FHP PDP set
makes the CP U GO go “high”
and starts the P DP CP U .
except in an FHP PDP Cold
Boot
“on” mode “low” in an SDI PDP set
makes the PD P supplies go t o the
*
“on” mode. Within 4 seconds, a
valid LVDS must be sent to the
display to prev ent prote ction.
(valid for V3 version)
*
The availability of the supplies is check ed through detect signals (delivered by
dedicated detect-IC's) going to the st-by µP. These signals are available for
+12V, +8V6, +5V, +1V2 and +2V5. A low to high transition of the signals should
occur within a certain time after toggling the standby line. If an observers is
detected before the time-out elapses, of course, the process should continue in
order to minimize start up time.
action holder: M I P S
action holder: St-by
autonomous acti on
*
Switching the PDPGO “high”
will give a visual arte fact a nd
should only be done if really
necessary.
detect-5V
received within
2900 ms after POD-MOD E
toggle?
Yes
activate +5V supply detection algorithm
detect-12VSW received within
2900 ms after POD -mode
toggle?
Yes
activate +12VSW supply
detection algorithm
*
No need to wait for the 8V6 detection at this point.
No
PDP should start: 5V, 8V6 and
Yes
No
FHP PDP Set?
Yes
Switch PDPGO high:
12V are activated
detect-5V
received within
2900 ms after PD PGO
toggle?
+12V error
SP
detect-8V6 received
within 6300 ms after POD-mode toggle?
Startup shall not wait for this detection
and continue startup.
No
+5V error
No
SP
*
Yes
Enable the +1V2 supply (ENABLE-1V2)
Start polling the detect-1V2 every 40ms
To part B To part B
Only applicable for sets with CableCARDTM slot (POD)
*
Figure 5-3 “Off” to “Semi Stand-by” flowchart (part 1)
No
+8V6 erro r
SP
activate +8V6 supply
detection algorithm
return
F_15400_096a.eps
020206
Page 21
Service Modes, Error Codes, and Fault Finding
EN 21EL1.1U AA 5.
From part A
No
From part B
detect-1V2
received within
250ms?
Yes
Enable the supply for
+2.5V and +3.3V (ENABLE-3V3)
Start polling the detect-3V3 every 40ms
detect-3V3
received within
250 ms?
Yes
Activate supply detection algorithms for
+1V2 and +3V3
SUP PLY -FAULT I/O l ine
is High?
Yes
Enable the supply fault detection
interrupt
action holder: MIPS
action holder: St-by
autonomous action
No
+1.2V error
SP
No separate enable and
detect is present for the +2V5
supply in the Baby Jaguar.
+3.3V errorNo
SP
Supply fault errorNo
SP
No
No
Release viper reset
Feed warm boot script(2)
Set I²C slave address
of Standby µP to (A0h)
Detect EJ TAG debug probe
(pulling pin of the probe interface to
ground by inserting EJTAG probe)
EJTAG probe
connected ?
No
Cold boot?
Yes
Release viper reset
Feed cold boot script(1)
Release PNX2015 reset 100ms after
Viper reset is released
Bootscript ready
in 1250 ms?
Yes
Set I²C slave address
of Standby µP to (64h)
RPC start (comm . protocol)
Yes
Release viper reset
Feed initializing boot script (3)
disable alive mechanism
Release PNX2015 reset 100ms
after Viper reset is released
No
Flash to RAM im age
transfer succeeded
within 30s?
Yes
Viper SW initialization
succeeded
within 20s?
Code = 5
Switch Viper in reset
No
Code = 53
To part C To part C To part C To part C
F_15400_096b.eps
Figure 5-4 “Off” to “Semi Stand-by” flowchart (part 2)
260505
Page 22
EN 22 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
From part B From part B From part B
Yes
Enable Alive check mechanism
MIPS reads the wake up reason
from standby µP.
SDI PDP
Set?
No
FHP PDP
Set?
Switch “on” the LVDS output of
*
the PNX2015 with a correct
clock frequency within 4s after
Yes
switching the POD and “on”
mode to prevent PD P dis play
supply protection.
These LVDS items are
SDI V3 display only !!
Yes
Send STBYEN = 1
to PDP display (I²C)
PFCON = 1
VCCON = 1
Wait until Viper starts to
communicate
3-th try?
Yes
Log Code as
error code
SP
Wait 10ms
Switch the NVM reset
line HI GH .
Disable all supply related protections and
switch off the +2V5, +3V3 DC/DC converter.
Wait 5ms
switch off the remaining DC/DC
converters
Switch POD-MODE and ON-MODE
I/O line “hi gh”.
*
Wait for the +8V6 to be d e te cted if not yet present. (if
it does not come, the standby µP will enter a
protection mode, this is not a dead end here)
PWR-OK-PDP
received within 10s
after POD and “on” mode
toggle ?
Yes
Init SDI PDP
Switch LVDS back off if
end state is not the active
state.
Switch PDPGO “ low”
*
action holder: M IPS
action holder: St-by
autonomous action
No
Log display
error and enter
protection mode
SP
No
Start 4 seconds preheating timer in case of
a LPL scanning backlight LCD set.
AVIP needs to be started before the MPIF in order to have a good clock distribution.
AVIP default power-up mode is Standby. The Viper instructs AVIP via I²C to enable all the
PLLs and clocks and hence enter to Full Power mode.
Initialize PNX2015 HD subsystem
MPI Fs shoul d be initialized
MPIF should deliver 4 observers:
POR= 0; normal operation
MSUP = 1: Main supply is present
ASUP = 1; audio supply is present
ROK = 1; reference frequency is present (coming from AVIP)
All observers present with correct state?
Yes
Initialize tuners and HDMI
Initialize source selection
Initialize video processing ICs
- Spider (if available)
No
Init FHP PDP
Log appropriate
Observer error
Do not enter semi-standby state in case of an LPL
scanning backlight LCD set before 4 s preheating timer has
elapsed.
Only applicable for sets with CableCARDTM slot (POD)
*
Figure 5-5 “Off” to “Semi Stand-by” flowchart (part 3)
Initialize Columbus
Initialize 3D Combfilter
Initialize AutoTV
Semi-Stand-by
F_15400_096c.eps
020206
Page 23
Service Modes, Error Codes, and Fault Finding
EN 23EL1.1U AA 5.
action holder: M IP S
action holder: St-by
autonomous action
26" /32" / 37" / 42" LCD LP L
Semi Standby
Wait until previous on-state is left more than 2
seconds ago. (to prevent LCD display problems)
Assert RGB video blanking
and audio m ute
Initialize audio and video processing ICs and
functions according needed use case.
Wait unti l QV CP generates a valid LVDS output
clock.
Switch “on” 12V LCD supply
(LCD-Power-on)
Start to apply valid interface signals to the module (LVDS) within a time
frame of min. 17.5ms to max. 67.5ms after supply switch “on”.
In implementation, use 25ms, this makes it compatible with 37HD"Sharp
(t=17.5ms is the supply switch-on delay taken into account)
Wait 250ms (min. = 200ms)
Switch “off” RGB blanking
Switch “on” LCD lamp after valid, stable video, corresponding
to the requested output is delivered by the Viper
Switch Audio-Reset and sound enable “low” and demute
Active
Figure 5-6 “Semi Stand-by” to “Active” flowchart
G_16290_079.,eps
020206
Page 24
EN 24 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
26" /32" / 37" / 42" LCD LP L
action holder: M IP S
Active
Mute al l sound outputs.
Switch reset-audio and sound-enable
lines “high ”.
Switch “off” LCD lamp.
Mute al l video outputs.
Wait 250ms (min. = 200ms).
action holder: St-by
autonomous action
Switch “off” LVDS signal
(Viper I/O: PD-LVDS).
Switch “off” 12V LCD supply within a time frame of min.
0.5 ms to max. 50ms after LVDS switch “off”.
(Viper I/O: LCD _PWR_ON ).
Semi Standby
Figure 5-7 “Active” to “Semi Stand-by” flowchart
G_16290_080.eps
020206
Page 25
Service Modes, Error Codes, and Fault Finding
EN 25EL1.1U AA 5.
*
POD
Transfer Wake up reasons to the
Images are re-transferred to DDR-RAM from
Flash RAM (verification through checksum).
MIPS image completes the application reload,
stops DDR-RAM access, puts itself in a
sleepmode, and signals the standby µP when
the Stand-by mode can be entered.
DDR-RAM is put in self refresh mode and the images
are kept in the hibernating DDR-RAM.
Stand- by µP.
Wait 5ms
Semi Stand-by
action holder: MIPS
action holder: St-by
autonomous action
Important remark:
release RESET AUDIO and
SOUND_ENABLE 2 sec after
entering stand-by to save power
Switch Viper in reset state
Wait 10ms
Switch the NVM reset line “high”.
Disable all supply related protections and switch “off”
the +2V5, +3V3 DC/DC converter.
Wait 5ms
Switch “off” the remaining DC/DC converters
Switch “off” all supplies by switching “high” the POD-
MODE and the ON-MODE I/O lines.
*
For PDP this means
CPUGO becomes low.
Only applicable for sets with CableCARDTM slot (POD)
*
Figure 5-8 “Semi Stand-by” to “Stand-by” flowchart
Stand-by
F_15400_099.eps
020206
Page 26
EN 26 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
action holder: MIPS
action holder: St-by
autonomous action
If needed to speed up this transition,
this block could be omitted. This is
depending on the outcome of the
safety investigations.
min. 0.5ms to max. 50ms after LVDS switch “off”. (for LCD sets)
MP
Log the appropriate error and
set stand-by flag in NVM
Redefine wake up reasons for protection
state and transfer to stand-by µP.
Switch “off” LCD lamp supply (for LCD sets)
Wait 250ms (min. = 200ms)
Switch “off” LVDS signal
Switch “off” 12V LCD supply within a time frame of
Ask stand-by µP to enter protection state
SP
Switch Viper in reset state
Wait 10ms
Switch the NVM reset line “high”.
Disable all supply related protections and switch “off”
the +2V5, +3V3 DC/DC converter.
Wait 5ms
Switch “off” the remaining DC/DC converters
Switch “off” all supplies by switching “high” the POD-
MODE and the ON-MODE I/O lines.
Flash LED in order to indicate
protection state.
*
Only applicable for sets with CableCARDTM slot (POD)
*
Figure 5-9 “Protection” flowchart
Protection
F_15400_102.eps
020206
Page 27
Service Modes, Error Codes, and Fault Finding
5.4 Service Tools
5.4.1 ComPair
Introduction
ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:
1. ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.
2. ComPair allows very detailed diagnostics (on I
is therefore capable of accurately indicating problem areas.
You do not have to know anything about I
yourself because ComPair takes care of this.
3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the Force/SearchMan electronic manual of the defective
chassis, schematics and PWBs are only a mouse click
away.
Specifications
ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
(or RS-232) cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:
• Automatically (by communicating with the television):
ComPair can automatically read out the contents of the
entire error buffer. Diagnosis is done on I
ComPair can access the I
ComPair can send and receive I
the microcontroller of the television. In this way, it is
possible for ComPair to communicate (read and write) to
devices on the I
2
C/UART buses of the TV-set.
• Manually (by asking questions to you): Automatic
diagnosis is only possible if the microcontroller of the
television is working correctly and only to a certain extent.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the
screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.
text or a waveform picture) that will bring you to the next
step in the fault finding process.
By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.
2
C/UART bus of the television.
2
C/UART commands to
2
C level) and
2
C commands
2
C/UART level.
TO
UART SERVICE
CONNECTOR
PC VCR I2CPower
9V DC
E_06532_021.eps
Figure 5-10 ComPair interface connection
How to Order
ComPair order codes:
• ComPair Software: ST4191.
• ComPair Interface Box: 4822 727 21631.
• AC Adapter: T405-ND.
• ComPair Quick Start Guide: ST4190.
• ComPair interface extension cable: 3139 131 03791.
• ComPair UART interface cable: 3122 785 90630.
Note: If you encounter any problems, contact your local
support desk.
5.4.2 LVDS Tool
Introduction
This service tool (also called “ComPair Assistant 1“) may help
you to identify, in case the TV does not show any picture,
whether the Small Signal Board (SSB) or the display of a Flat
TV is defective.
Furthermore it is possible to program EPLDs with this tool (Byte
blaster). Read the user manual for an explanation of this
feature.
Since 2004, the LVDS output connectors in our Flat TV models
are standardized (with some exceptions). With the two
delivered LVDS interface cables (31p and 20p) you can cover
most chassis (in special cases, an extra cable will be offered).
When operating, the tool will show a small (scaled) picture on
a VGA monitor. Due to a limited memory capacity, it is not
possible to increase the size when processing high-resolution
LVDS signals (> 1280x960). Below this resolution, or when a
DVI monitor is used, the displayed picture will be full size.
Generally this tool is intended to determine if the SSB is
working or not. Thus to determine if LVDS, RGB, and sync
signals are okay.
How to Connect
Connections are explained in the user manual, which is packed
with the tool.
EN 27EL1.1U AA 5.
TO
I2C SERVICE
CONNECTOR
180804
How to Connect
This is described in the chassis fault finding database in
ComPair.
Caution: It is compulsory to connect the TV to the PC as
shown in the picture below (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs will be
blown!
Note: To use the LVDS tool, you must have ComPair release
2004-1 (or later) on your PC (engine version >= 2.2.05).
For every TV type number and screen size, one must choose
the proper settings via ComPair. The ComPair file will be
updated regularly with new introduced chassis information.
How to Order
• LVDS tool (incl. two LVDS cables: 31p and 20p):
3122 785 90671.
• LVDS tool Service Manual:
3122 785 00810.
Page 28
EN 28 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
5.5 Error Codes
5.5.1 Introduction
The error code buffer contains all detected errors since the last
time the buffer was erased. The buffer is written from left to
right, new errors are logged at the left side, and all other errors
shift one position to the right.
When an error has occurred, the error is added to the list of
errors, provided the list is not full or the error is a protection
error.
When an error occurs and the error buffer is full, then the new
error is not added, and the error buffer stays intact (history is
maintained), except when the error is a protection error.
To prevent that an occasional error stays in the list forever, the
error is removed from the list after 50+ operation hours.
When multiple errors occur (errors occurred within a short time
span), there is a high probability that there is some relation
between them.
Basically there are three kinds of errors:
• Errors detected by the Stand-by Processor. These
errors will always lead to protection and an automatic start
of the blinking LED for the concerned error (see paragraph
“The Blinking LED Procedure”). In these cases SDM can
be used to start up (see chapter “Stepwise Start-up”).
• Errors detected by VIPER that lead to protection. In this
case the TV will go to protection and the front LED will blink
at 3 Hz. Further diagnosis via service modes is not possible
here (see also paragraph “Error Codes” -> “Error Buffer” > “Extra Info”).
• Errors detected by VIPER that do not lead to
protection. In this case the error can be read out via
ComPair, via blinking LED method, or in case you have
picture, via SAM.
5.5.2 How to Read the Error Buffer
Use one of the following methods:
• On screen via the SAM (only if you have a picture). E.g.:
– 00 00 00 00 00: No errors detected
– 06 00 00 00 00: Error code 6 is the last and only
detected error
– 09 06 00 00 00: Error code 6 was first detected and
error code 9 is the last detected error
• Via the blinking LED procedure (when you have no
picture). See next paragraph.
•Via ComPair.
5.5.3 How to Clear the Error Buffer
Use one of the following methods:
• By activation of the “RESET ERROR BUFFER” command
in the SAM menu.
• With a normal RC, key in sequence “MUTE” followed by
“062599” and “OK”.
• If the content of the error buffer has not changed for 50+
hours, it resets automatically.
5.5.4 Error Buffer
In case of non-intermittent faults, clear the error buffer before
you begin the repair (before clearing the buffer, write down the
content, as this history can give you significant information).
This to ensure that old error codes are no longer present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error
code and not the actual cause (e.g., a fault in the protection
detection circuitry can also lead to a protection).
There are several mechanisms of error detection:
• Via error bits in the status registers of ICs.
• Via polling on I/O pins going to the stand-by processor.
• Via sensing of analogue values on the stand-by processor.
• Via a “not acknowledge” of an I
2
C communication
Take notice that some errors need more than 90 seconds
before they start blinking. So in case of problems wait 2
minutes from start-up onwards, and then check if the front LED
is blinking.
Table 5-3 Error code overview
Error Description Error/Prot Detected by Device Defective module Result
1
I2C1
2
I2C2
2
3
I
C3
2
4
5 VIPER does not boot (hardware failure) P Stby µP PNX8550 Protection + Error blinking
6 5V supply P Stby µP n.a. Protection + Error blinking
8 1.2V DC/DC P Stby µP n.a. Protection + Error blinking
11 3.3V DC/DC P Stby µP n.a. Protection + Error bl i nking
12 12V supply P Stby µP n.a. Protection + Error blinking
14 Supply Class D amplifiers P Stby µP Protection + Error blinking
17 MPIF1 Audio Supply (ASUP) E VIPER PNX3000 IF I/O Error logged
18 MPIF1 ref freq E VIPE R PNX3000 IF I/O Error logged
25 Supply fault P Stby µP Protection + Error blinking
27 Phoenix E VIPER PNX2015B HD subsystem Error logged
29 AVI P1 E VIPER PNX2015 AV input processor 1 Error logged
32 MPIF1 E VIPER KN10241C Analog Front End 1 Error logged
34 Tuner1 E VIPER Tuner 1 Error logged
37 Channel decoder E VIPER NXT2003 Error logged
43 Hi Rate Front End E VIPER TDA8751 HDMI Error logged
45 Columbus 1 E VIPER PNX2015 Comb filter Error logged
53 VIP ER does not boot (software failure) P Stby µP PNX8550 Protection + Error blink ing
63 PDP Display P VIPER Display Protection + 3 Hz blinking
Extra Info
• Error 1 (I
C4
I
2
C bus 1 blocked). When this error occurs, the
TV will go to protection and the front LED will blink at 3 Hz.
Now you can partially restart the TV via the SDM shortcut
pins on the SSB. Depending on the software version it is
possible that no further diagnose (error code read-out) is
P VIPER n.a.
P VIPER n.a.
P Stby µP n.a.
P VIPER n.a.
I2C1_blocked
I2C2_blocked
I2C3_blocked
I2C4_blocked
Protection + 3 Hz blinking
Protection + 3 Hz blinking
Protection + 3 Hz blinking
Protection + 3 Hz blinking
possible. With the knowledge that only errors 1, 2, 4, and
63 result in a 3 Hz blinking LED, the range of possible
defects is limited.
• Error 2 (I
2
C bus 2 blocked). When this error occurs, the
TV will go to protection and the front LED will blink at 3 Hz.
Now you can partially restart the TV via the SDM shortcut
Page 29
Service Modes, Error Codes, and Fault Finding
EN 29EL1.1U AA 5.
pins on the SSB. Due to hardware restriction (I2C bus 2 is
the fast I
2
C bus) it will be impossible to start up the VIPER
and therefore it is also impossible to read out the error
codes via ComPair or via the blinking LED method. With
the knowledge that only errors 1, 2, 4, and 63 result in a 3
Hz blinking LED, the range of possible defects is limited.
When you have restarted the TV via the SDM shortcut pins,
and then pressed "CH+" on your remote control, the TV will
go to protection again, and the front LED blink at 3 Hz
again. This could be an indication that the problem is
related to error 2.
• Error 3 (I
on I
2
C bus 3 blocked). There are only three devices
2
C bus 3: VIPER, Stand-by Processor, and NVM. The
Stand-by Processor is the detection device of this error, so
this error will only occur if the VIPER or the NVM is blocking
the bus. This error will also be logged when the NVM gives
no acknowledge on the I
2
C bus (see error 44). Note that if
the 12 V supply is missing (connector 1M46 on the SSB),
the DC/DC supply on the SSB will not work. Therefore the
VIPER will not get supplies and could block I
a missing 12 V can also lead to an error 3.
• Error 4 (I
• Error 5 (I
severe hardware problem around the VIPER (supplies not
OK, VIPER completely dead, I
2
C bus 4 blocked). Same remark as with error 1.
2
C bus 5 blocked). This error will point to a
2
C link between VIPER and
2
C bus 3. So,
Stand-by Processor broken, etc. ...).
• Error 7 (8.6 V error). Except a physical problem with the
8.6 V itself, it is also possible that there is something wrong
with the Audio DC Protection: see paragraph "Hardware
Protections" for this.
• Error 12 (12 V error). Except a physical problem with the
12 V itself, it is also possible that there is something wrong
with the Audio DC Protection: see paragraph "Hardware
Protections" for this.
• Error 14 (Audio supply). This error is triggered in case of
too low voltage of the audio supplies and therefore a drop
of the audio supply voltage of below approx. 9 V per supply
rail (or lower than 18 V rail to rail). Also a DC voltage of
higher than 1 V DC on the speakers will lead to protection
and error 14 blinking. For LCD sets this circuit can be found
on schematic SA3, for PDP sets this can be found on
schematic C. It should be noted that for 26-inch models
there is only a supply link between the amplifiers and the
stand-by µC whereas in all other models this link is
implemented by Audio-Prot line pin 7 on 1 M02.
• Error 29 (AVIP1). This error will probably generate extra
errors. You will probably also see errors 32 (MPIF) and
error 31 (AVIP 2). Error 29 and 31 will always be logged
together due to the fact that both AVIPs are inside the
PNX2015 and are on the same I
2
C bus. In this case start
looking for the cause around AVIP (part of PNX2015).
• Error 31 (AVIP2). See info on error 29.
• Error 34 (Tuner 1). When this error is logged, it is not sure
that there is something wrong with the tuner itself. It is also
possible that there is something wrong with the
communication between channel decoder and tuner. See
schematic B2B.
• Error 37 (Channel decoder). This error will always log
error 34 (tuner) extra. This is due to the fact that the tuner
2
C bus is coming from the channel decoder.
I
• Error 44 (NVM). This error will never occur because it is
masked by error 3 (I
for error 3 checks on an I
2
C bus 3). The detection mechanism
2
C acknowledge of the NVM. If
NVM gives no acknowledge, the stand-by software
assumes that the bus is blocked, the TV goes to protection
and error 3 will be blinking.
• Error 53. This error will indicate that the VIPER has started
to function (by reading his boot script, if this would have
failed, error 5 would blink) but initialization was never
completed because of hardware peripheral problems
(NAND flash, ...) or software initialization problems.
Possible cause could be that there is no valid software
loaded (try to upgrade to the latest main software version).
5.6 The Blinking LED Procedure
5.6.1 Introduction
The blinking LED procedure can be split up into two situations:
• Blinking LED procedure in case of a protection detected by
the stand-by processor. In this case the error is
automatically blinked. This will be only one error, namely
the one that is causing the protection. Therefore, you do
not have to do anything special, just read out the blinks. A
long blink indicates the decimal digit, a short blink indicates
the units.
• Blinking LED procedure in the “on” state. Via this
procedure, you can make the contents of the error buffer
visible via the front LED. This is especially useful for fault
finding, when there is no picture.
When the blinking LED procedure is activated in the “on” state,
the front LED will show (blink) the contents of the error-buffer.
Error-codes > 10 are shown as follows:
1. “n” long blinks (where “n” = 1 - 9) indicating decimal digit,
2. A pause of 1.5 s,
3. “n” short blinks (where “n”= 1 - 9),
4. A pause of approx. 3 s.
5. When all the error-codes are displayed, the sequence
finishes with a LED blink of 3 s,
6. The sequence starts again.
Example: Error 12 9 6 0 0.
After activation of the SDM, the front LED will show:
1. 1 long blink of 750 ms (which is an indication of the decimal
digit) followed by a pause of 1.5 s,
2. 2 short blinks of 250 ms followed by a pause of 3 s,
3. 9 short blinks followed by a pause of 3 s,
4. 6 short blinks followed by a pause of 3 s,
5. 1 long blink of 3 s to finish the sequence,
6. The sequence starts again.
5.6.2 How to Activate
Use one of the following methods:
• Activate the SDM. The blinking front LED will show the
entire contents of the error buffer (this works in “normal
operation” mode).
• Transmit the commands “MUTE” - “062500” - “OK”
with a normal RC. The complete error buffer is shown.
Take notice that it takes some seconds before the blinking
LED starts.
•Transmit the commands “MUTE” - “06250x” - “OK”
with a normal RC (where “x” is a number between 1 and
5). When x= 1 the last detected error is shown, x= 2 the
second last error, etc.... Take notice that it takes some
seconds before the blinking LED starts.
Page 30
EN 30 EL1.1U AA5.
Service Modes, Error Codes, and Fault Finding
5.7 Protections
5.7.1 Software Protections
Most of the protections and errors use either the stand-by
microprocessor or the VIPER controller as detection device.
Since in these cases, checking of observers, polling of ADCs,
filtering of input values are all heavily software based, these
protections are referred to as software protections.
There are several types of software related protections, solving
a variety of fault conditions:
• Protections related to supplies: check of the 12V, +5V,
+8V6, +1.2V, +2.5V and +3.3V.
• Protections related to breakdown of the safety check
mechanism. E.g. since a lot of protection detections are
done by means of the VIPER, failing of the VIPER
communication will have to initiate a protection mode since
safety cannot be guaranteed anymore.
Remark on the Supply Errors
The detection of a supply dip or supply loss during the normal
playing of the set does not lead to a protection, but to a cold
reboot of the set.
Protections during Start-up
During TV start-up, some voltages and IC observers are
actively monitored to be able to optimize the start-up speed,
and to assure good operation of all components. If these
monitors do not respond in a defined way, this indicates a
malfunction of the system and leads to a protection. As the
observers are only used during start-up, they are described in
the start-up flow in detail (see paragraph “Stepwise Start-up").
5.7.2 Hardware Protections
There is one hardware protection in this chassis: “Audio DC
Protection”. This protection occurs when there is a DC voltage
on the speakers. In that case the main supply is switched "off",
but the stand-by supply is still working.
For the Samsung V4 PDP displays, the 8V6 supply is switched
"off" and the LED on the display’s Main Supply blinks eleven
times, which means there is an overvoltage protection. The
front LED of the TV will blink error 7 (8V6 error).
In case of LCD supplies, the 12V supply will drop. This will be
detected by the stand-by processor, which will start blinking the
12 V error (error 12).
Repair Tip
• It is also possible that you have an audio DC protection
because of an interruption in one or both speakers (the DC
voltage that is still on the circuit cannot disappear through
the speakers).
5.8 Fault Finding and Repair Tips
Read also paragraph "Error Codes" - "Extra Info".
5.8.1 Exit “Factory Mode”
When an "F" is displayed in the screen's right corner, this
means that the set is in "Factory" mode, and it normally
happens after a new SSB has been mounted.
To exit this mode, push the "VOLUME minus" button on the
TV's keyboard control for 5 seconds and restart the set
5.8.2 MPIF
Important things to make the MPIF work:
• Supply.
• Clock signal from the AVIP.
2
•I
C from the VIPER.
5.8.3 AVIP
Important things to make the AVIP work:
• Supplies.
• Clock signal from the VIPER.
2
C from the VIPER (error 29 and 31).
•I
5.8.4 DC/DC Converter
Introduction
• The best way to find a failure in the DC/DC converters is to
check their starting-up sequence at power "on" via the
Mains/AC Power cord, presuming that the Stand-by
Processor is operational.
• If the input voltage of the DC/DC converters is around 12 V
(measured on the decoupling capacitors 2U17/2U25/
2U45) and the ENABLE signals are "low" (active), then the
output voltages should have their normal values.
• First, the Stand-by Processor activates the +1V2 supply
(via ENABLE-1V2).
• Then, after this voltage becomes present and is detected
OK (about 100 ms), the other two voltages (+2V5 and
+3V3) will be activated (via ENABLE-3V3).
• The current consumption of controller IC 7U00 is around 20
mA (that means around 200 mV drop voltage across
resistor 3U22).
• The current capability of DC/DC converters is quite high
(short-circuit current is 7 to 10 A), therefore if there is a
linear integrated stabilizer that, for example delivers 1.8V
from +3V3 with its output overloaded, the +3V3 stays
usually at its normal value even though the consumption
from +3V3 increases significantly.
• The +2V5 supply voltage is obtained via a linear stabilizer
made with discrete components that can deliver a lot of
current. Therefore, in case +2V5 (or +2V5D) is shortcircuited to GND, the +3V3 will not have the normal value
but much less.
• The supply voltage +12VSW is protected for over-currents
by fuse 1U04.
Fault Finding
• Symptom: +1V2, +2V5, and +3V3 not present (even for a
short while ~10ms).
1. Check 12V availability (fuse 1U01, resistor 3U22,
power MOS-FETs) and enable signal ENABLE-1V2
(active low).
2. Check the voltage on pin 9 (1.5 V).
3. Check for +1V2 output voltage short-circuit to GND that
can generate pulsed over-currents 7-10 A through coil
5U03.
4. Check the over-current detection circuit (2U12 or 3U97
interrupted).
Page 31
Service Modes, Error Codes, and Fault Finding
EN 31EL1.1U AA 5.
• Symptom: +1V2 present for about 100 ms. Supplies +2V5
and +3V3 not rising.
1. Check the ENABLE-3V3 signal (active "low").
2. Check the voltage on pin 8 (1.5 V).
3. Check the under-voltage detection circuit (the voltage
on collector of transistor 7U10-1 should be less than
0.8 V).
4. Check for output voltages short-circuits to GND (+3V3,
+2V5 and +2V5D) that generate pulsed over-currents
of 7-10 A through coil 5U00.
5. Check the over-current detection circuit (2U18 or 3U83
interrupted).
• Symptom: +1V2 OK, but +2V5 and +3V3 present for about
100 ms. Cause: The SUPPLY-FAULT line stays "low"
even though the +3V3 and +1V2 is available. The Stand-by
Processor is detecting that and switches all supply
voltages "off".
1. Check the drop voltage across resistor 3U22 (this
could be too high)
2. Check if the +1V2 or +3V3 are higher than their normal
values. This can be due to defective DC feedback of
the respective DC/DC converter (3U18 or 3UA7).
• Symptom: +1V2, +2V5, and +3V3 look okay, except the
ripple voltage is increased (audible noise can come from
the filtering coils 5U00 or 5U03).
Cause: Instability of the frequency and/or duty cycle of one
or both DC/DC converters.
– Check resistor 3U06, the decoupling capacitors, the
AC feedback circuits (2U20 + 2U21 + 3U14 + 3U15 for
+1V2 or 2U19 + 2U85 + 3U12 + 3U13 for +3V3), the
compensation capacitors 2U09, 2U10, 2U23 and
2U73, and IC 7U00.
Note 1: If fuse 1U01 is broken, this usually means a pair of
defective power MOSFETs (7U01 or 7U03). Item 7U00 should
be replaced as well in this case.
Table 5-4 SSB service kits (for EL and EP chassis)
Model Number New SSB order code
26HF5334D/27 3139 267 27681
26PF5321D/37
32PF5321D/37 3139 267 27711
32PF7321D/37 3139 267 27711
32PF7421D/37
37PF7321D/37 3139 267 27691
42PF5321D/37
42PF7321D/37
42PF7421D/37 3139 267 27691
50MF231D/37
50PF7321D/37
Note: After replacing the SSB, execute the alignments
according to the instructions in this manual.
5.9.2 Main Software Upgrade
The software image resides in the NAND-Flash, and is
formatted in the following way:
Partition 1
Trimedia2 image
Trimedia1 image
MIPS image
Partition 0
USB Download Application
uBTM (boot block)
Figure 5-11 NAND-Flash format
3139 267 27681
3139 267 27711
3139 267 27671
3139 267 27671
3139 267 27671
3139 267 27671
USB CUSTOMER
USB SERVICE
EJTAG
E_14700_082.eps
120505
5.9 Software Upgrading
5.9.1 Introduction
The set software and security keys are stored in a NAND-Flash
(item 7P80), which is connected to the VIPER via the PCI bus.
It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
standalone set, without the need of an E-JTAG debugger. A
description on how to upgrade the main software can be found
in the "Directions For Use".
Important: When the NAND-Flash must be replaced, a new
SSB must be ordered, due to the presence of the security
keys!!! See table “SSB service kits” for the order codes.
Perform the following actions after SSB replacement:
1. Set the correct option codes (see sticker inside the TV).
2. Update the TV software (see chapter 3 for instructions).
3. Perform the alignments as described in chapter 8.
4. Check in CSM menu 5 if the HDMI and POD keys are valid.
Executables are stored as files in a file system. The boot loader
(uBTM) will load the USB Download Application in partition 0
(USB drivers, bootscript, etc.). This application makes it then
possible to upgrade the main software via USB.
Installing "Partition 0" software is possible via an external
EJTAG tool, but also in a special way with the USB stick (see
description in paragraph “Partition 0“).
Partition 1 (Customer)
To do a main software upgrade (partition 1) via USB, the set
must be operational, and the "Partition 0" files for the VIPER
must be installed in the NAND-Flash!
The new software can be uploaded to the TV by using a
portable memory device or USB storage compliant devices
(e.g. USB memory stick). You can download the new software
from the Philips website to your PC.
Partition 0 (Service)
If the "Partition 0" software is corrupted, the software needs to
be re-installed.
To upgrade this “USB download application” (partition 0 except
the bootblock), insert an USB stick with the correct software,
but press the “red” button on the remote control (in ”TV” mode)
when it is asked via the on screen text.
Caution:
• The USB download application will now erase both
partitions (except the boot block), so you need to reload the
main SW after upgrading the USB download application.
As long as this is not done, the USB download application
will start when the set is switched “on”.
• When something goes wrong during the progress of this
method (e.g. voltage dip or corrupted software file), the set
Page 32
EN 32 EL1.1U AA5.
will not start up, and can only be recovered via the EJTAG
tool!
5.9.3 Manual Start of the Main Software Upgrade Application
Normally, the software upgrading procedure will start
automatically, when a memory device with the correct software
is inserted, but in case this does not work, it is possible to force
the TV into the software upgrade application. To do so:
• Disconnect the TV from the Mains/AC Power.
• Press the “OK” button on a Philips DVD RC-6 remote
control (it is also possible to use the TV remote in "DVD"
mode).
• Keep the “OK” button pressed while connecting the TV to
the Mains/AC Power.
• The software upgrade application will start.
• When a memory device with upgrade software is
connected, the upgrade process will start.
5.9.4 Stand-by Software Upgrade
It will be possible to upgrade the Stand-by software via a PC
and the ComPair interface. Check paragraph "ComPair" on
how to connect the interface. To upgrade the Stand-by
software, use the following steps:
1. Disconnect the TV from the Mains/AC Power.
2. Short circuit the SPI pins [2] on the SSB. They are located
outside the shielding (see figure “SDM and SPI service
pads” earlier in this chapter).
3. Keep the SPI pins shorted while connecting the TV to the
Mains/AC Power.
4. Release the short circuit after approx. two seconds.
5. Start up HyperTerminal (can be found in every Windows
application via Programs -> Accessories ->
Communications -> HyperTerminal. Use the following
settings:
–COM1
– Bits per second = 38400
– Data bits = 8
– Parity = none
– Stop bits = 1
– Flow control = Xon / Xoff.
6. Press “Shift U” on your PC keyboard. You should now see
the following info:
– PNX2015 Loader V1.0
– 19-09-2003
– DEVID=0x05
–Erasing
– MCSUM=0x0000
–=
7. If you do not see the above info, restart the above
procedure, and check your HyperTerminal settings and the
connections between PC and TV.
8. Via “Transfer” -> “Send text file ...”, you can send the
proper upgrade file to the TV. This file will be distributed via
the Service Organization.
9. After successful programming, you must see the following
info:
– DCSUM=0xECB3
–:Ok
– MCSUM=0xECB3
– Programming
– PCSUM=0xECB3
– Finished
10. If you do not see this info, restart the complete procedure.
11. Close HyperTerminal.
12. Disconnect and connect Mains/AC Power again.
Service Modes, Error Codes, and Fault Finding
Page 33
Block Diagrams, Test Point Overviews, and Waveforms
6. Block Diagrams, Test Point Overviews, and Waveforms
Wiring Diagram 26” LCD
WIRING 26” LCD
33EL1.1U AA 6.
RIGHT
SPEAKER
INVERTER
LCD SUPPLY
12P
X530
8740
3P
X220
X200
13P
8J02
7P
1M02
LCD PANEL
4P
1740
1J02
13P
LVDS
31P
4P
1M60
8P06
8740
31P
1G50
3P
1M01
8M01
6P
1M21
11P
1M36
8M21
8M60
8M36
INVERTER
D
SIDE I/O
LEFT
SPEAKER
1684
3P
14P
8520
14P
X520
8520
X002
2P3
AC INLET
8002
8187
B
SSB
1M16
3P
1H07
14P
EJTAG
Compair
Tuner
12P
2P3
4P
11P
1309
1U03
1304
J
6P
1870
IR/LED/LIGHT
SENSOR
G_16290_010.eps
270106
KEYBOARD CONTROL
E
Page 34
Block Diagrams, Test Point Overviews, and Waveforms
Wiring Diagram 32” LCD
WIRING 32” LCD
34EL1.1U AA 6.
RIGHT
SPEAKER
INVERTER
4P
1304
LCD SUPPLY
A
3P
1309
4P
1307
7P
1M02
8316
8740
8M02
LCD PANEL
8309
LVDS
8J02
8G50
8304
SA
12P
8740
1316
STANDBY
9P
1739
1315
12P
1317
10P
8305
3P
8M01
4P
1309
1304
8306
8M21
1M46
11P
8M60
1306
1307
1305
1M03
2P3
4P
3P
10P
INVERTER
8310
LEFT
SPEAKER
1684
3P
12P
2P3
1306
3P
1305
1308
2P3
AC INLET
8308
8187
B
7P
1M02
1740
SSB
1M16
3P
4P
EJTAG
1H07
14P
Compair
10P13
1J02
4P
1M60
31P
1G50
3P
1M01
6P
1M21
Tuner
11P
1M36
8317
8M36
12P
D
2P3
4P
SIDE I/O
1310
11P
1304
1309
IR/LED/LIGHT
J
SENSOR
KEYBOARD CONTROL
E
6P
1870
G_16290_001.eps
270106
Page 35
Block Diagrams, Test Point Overviews, and Waveforms
Wiring Diagram 37” LCD
WIRING 37” LCD
35EL1.1U AA 6.
RIGHT
SPEAKER
INVERTER
LCD SUPPLY
A
3P
1309
4P
1304
8316
8740
7P
1M02
8M02
LCD PANEL
8309
LVDS
8J02
8G50
8304
SA
12P
8740
1316
STANDBY
9P
1739
12P
1317
8305
3P
8M01
4P
1309
1304
8306
8M21
1M46
11P
8M60
1306
1307
1305
1M03
2P3
4P
3P
10P
LEFT
SPEAKER
INVERTER
1M01
3P
12P
2P3
1306
3P
1305
1308
2P3
8308
AC INLET
8187
B
7P
1M02
1740
SSB
1M16
3P
4P
EJTAG
1H07
14P
Compair
10P13
1J02
4P
1M60
31P
1G50
3P
1M01
6P
1M21
Tuner
11P
1M36
8317
8M36
12P
8310
D
SIDE I/O
4P
1M60
3P
1M65
11P
1M36
IR/LED/LIGHT
J
SENSOR
KEYBOARD CONTROL
E
6P
1870
G_16290_002.eps
020205
Page 36
Block Diagrams, Test Point Overviews, and Waveforms
Wiring Diagram 42” LCD
WIRING 42” LCD
36EL1.1U AA 6.
RIGHT
SPEAKER
INVERTER
LCD SUPPLY
A
3P
4P
1309
1304
5P
1320
1303
1307
3P
4P
8316
8740
7P
1M02
8M02
8303
LCD PANEL
8309
8320
LVDS
8G50
8J02
8304
SA
12P
8740
1316
STANDBY
9P
1739
12P
1317
4P
3P
1303
1320
8305
3P
8M01
4P
1309
1304
8306
8M21
1M46
11P
8M60
1306
1307
1305
1M03
2P3
4P
3P
10P
LEFT
SPEAKER
INVERTER
1M01
3P
12P
2P3
1306
3P
1B06
3P
1305
1420
3P
1308
2P3
1C05
8308
AC INLET
8187
B
7P
1M02
1740
SSB
1M16
3P
4P
EJTAG
1H07
14P
Compair
10P13
1J02
4P
1M60
31P
1G50
3P
1M01
6P
1M21
Tuner
11P
1M36
8317
8M36
12P
8M65
D
SIDE I/O
4P
1M60
3P
1M65
11P
1M36
IR/LED/LIGHT
J
SENSOR
KEYBOARD CONTROL
E
6P
1870
G_16290_012.eps
270106
Page 37
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Supply 32”
SUPPLY 32"
MAINS FILTER + STANDBY PART A
A1
F4A
5401
5402
MAINS
FILTER
1308
1
2
MAINS INPUT
1400
6506
DF06M
37EL1.1U AA 6.
5009
5040
5104
3V MAX
1V MAX STBY
3108
3156
HOT COLD
3
5002
8
7
3
5
HOT COLD
5105
6156
3157
14
7002
TCET1102
2
9
10
11
12
13
14
15
16
COLD
HOT
5
3
2
1
3
14
2
HOT COLD
5500
14
2
7030
1007
T5A
6
7
8
10
7501
TCET1102
3158
7150
TCET1102
3
3031
5027
5028
5025
5026
5110
3128
PROT-OVV
DC_PROT
6044
STPS20L45CT
3
2
6045
2
3
6021
STPS20H100CT
3
2
6025
2
3
6504
3509
6140
5103
6122
3124
OVERVOLTAGE
PROTECTION
1
1
1
1
3030
7507
7506
7512
6107
2513
3113
3022
2291
6291
6293
2293
STANDBY
7511
2141
7010
TS2431AI
RES
5506
3057
3052
3025
VS Voltage
3026
Adj.
5293
5291
5292
2512
2021
2022
VSND_POS
GND_SND
VSND_NEG
+12V_A
5507
STANDBY: LOW = ON
HIGH = STBY
7531
1304
+12V
+24V
1M02
DC_PROT
+5V2-RELAY-IO2_PWM
VTUN
+11V
+12V
+8V6
7131
RES
+5V2
STANDBY
+5V_SW
SA1
1304
44
33
22
11
7
6
5
TO 1M02
4
B08B
AUDIO
3
2
1
CONNECTIONS
+12V_A
+12V_+24V
1316
1317
1315
1M10
RES
1M03
1M46
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
9
4
11
9
1
2
7
TO
DISPLAY
TO
DISPLAY
TO
DISPLAY
TO 1J02
B01B
B01B
SUPPLY
TO 1J02
B01B
B01B
SUPPLY
G_16290_004.eps
280206
SUPPLY PART A
A2
1450
2
3
4
1
+
2503
HOT
COLD
1315
T1A
6807
GBJ6J
-
3810
+
2815
2816
6154
3101
6155
25V_HOT_A
400V_HOT_A
1305
1306
1307
SA2
1305
11
22
33
1306
11
22
1307
11
22
33
44
7017
7018
SOFT
START
+
CURRENT
PROTECTION
STANDBY
+5V2
5504
3007
CONTROL
7505/7509/7560
5505
7001
MC34067P
11
OSCC
7
ERROR
11
SOST
5
VREF
7004
7009
PROTECTION
CONTROL
VOLTAGE
BIAS SUPPLY
15
VCC
14
OA
12
OB
10
FI
OVER
Prot-OVV
PROT_AUDIOSUPPLY
3000
5001
4
2
7100
7101
7105
CONTROL
6153
5007
SA2
SA1
3101
6080
6077
5017
5008
HIGH
SIDE
DRIVE
LOW
SIDE
DRIVE
3104
3150
3127
3100
STP15NK50
STP15NK50
6150
7007
6
7
7008
10
9
6078
5010
2003
7005
7006
7102
STP15NK50
6151
3028
3155
Page 38
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Supply 37”
SUPPLY 37"
MAINS FILTER + STANDBY
A1
1308
1314
2
T5AH
1
5305
5306
MAINS
FILTER
38EL1.1U AA 6.
400V_HOT
2059
HOT COLD
14
7002
TCET1102
2
3
5011
5002
5025
5026
7003
3057
3031
DC_PROT
6019
STPS20L40CFP
6019
STPS20L40CFP
2029
6021
6041
2045
5021
3030
7010
TS2431
2042
6031
3052
3025
2020
2022
VS Voltage
Adj.
3026
+12V
+24Va
+24Vb
1304
44
33
22
11
SUPPLY
A2
BIAS SUPPLY
VCC
3000
15
14
OA
12
OB
10
FI
5017
5001
4
2
7007
6
7
7008
10
9
2319
+
399V_HOT
6318
9311
3318
25V_HOT
6315
6316
14
2
6317
6314
1350
2
3
4
1
6307
GBJ6J
-
RES
7307
TCET1102
3
6304
5007
5008
25V_HOT
400V_HOT
399V_HOT
7011
7012
SOFT
START
CURRENT
PROTECTION
7001
MC34067P
11
OSCC
3007
CONTROL
7
ERROR
11
SOST
5
+
VREF
7004
7009
OVER
VOLTAGE
PROTECTION
HIGH
SIDE
DRIVE
LOW
SIDE
DRIVE
2003
5009
STP15NK50
60246025
7005
7006
STP15NK50
PRINTED
COMPONENT
5010
5012
2060
SA1
1304
CONNECTIONS
+12V_A
+12V_+24V
1316
1317
1M10
1
2
3
4
5
1
2
3
4
5
1
2
TO
DISPLAY
TO
DISPLAY
TO 1M10
AL
AMBI LIGHT
(OPTIONAL)
6306
DF06M
-
6040
2512
2049
2009
6029
6030
2021
+12V_A
5507
STANDBY: LOW = ON
HIGH = STBY
7531
5020
5018
5019
7131
STANDBY
VSND_POS
GND_SND
VSND_NEG
+5V2-RELAY-IO2_PWM
VTUN
+11V
+12V
+8V6
RES
+5V2
+5V_SW
DC_PROT
1M02
7
6
5
TO 1M02
4
B08B
3
AUDIO
2
1
1M03
TO 1J02
9
B01B
B01B
4
SUPPLY
1M46
11
9
TO 1J02
1
B01B
B01B
2
SUPPLY
7
G_16290_005.eps
270106
5022
1007
T5A
5500
14
2
6
7
8
10
7501
TCET1102
3158
7150
TCET1102
3
HOT COLD
6504
5110
6140
3124
3128
PROT-OVV
7507
7506
7512
3509
5103
6122
OVERVOLTAGE
PROTECTION
STANDBY
6107
2513
3113
7511
RES
2141
5506
HOT
COLD
2303
1315
T1A
+
1305
11
22
33
1306
11
22
SA2
1305
1306
1307
N.C.
STANDBY
1
2
3
4
+5V2
CONTROL
7505/7509/7560
5504
5505
Prot-OVV
PROT_AUDIOSUPPLY
SA2
SA1
7100
7101
7105
CONTROL
6153
3101
3104
3150
3127
3100
6150
STP15NK50
6151
7102
3155
5104
3V MAX
1V MAX STBY
3108
3156
6156
COLD
HOT
5
3
2
1
5105
3157
HOT COLD
3
14
2
Page 39
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Supply 42”
SUPPLY 42"
MAINS FILTER + STANDBY PART A
A1
1308
MAINS INPUT
MAINS FILTER + STANDBY
A3
PART B
1
2
MAINS_L
MAINS_N
1400
3A15
1400
3A15
5400
5401
5403
5D00
5D01
5D03
FILTER
MAINS
FILTER
MAINS
6506
DF06M
39EL1.1U AA 6.
5010
3U28
3028
6156
5U105U17
5009
5040
COLD
HOT
5105
3157
5U09
5U40
HOT COLD
2143
5002
8
7
3
5
HOT COLD
5500
5
3
2
1
2143
14
2
3
HOT COLD
7U02
TCET1102
2143
5U02
8
7
3
5
HOT COLD
7002
TCET1102
5027
9
10
5028
11
12
13
5025
14
15
5026
16
6
7
8
10
7501
TCET1102
3158
7150
TCET1102
9
10
11
12
13
5U25
14
15
5U26
16
7030
6019
STPS20L40CFP
6021
STPS20L40CFP
5110
3128
PROT-OVV
3U57
DC_PROT
6021
STPS20L40CFP
DC_PROT
3
2
1
1
2
3
3030
6504
6140
5103
3124
OVERVOLTAGE
PROTECTION
1
2
3
3U30
3509
6122
DC_PROT
3022
6021
STTH2003CFP
7010
TL431ACD
7507
7506
7512
STANDBY
6107
2513
3113
3U52
DC_PROT
3U39
3U22
7U10
TL431ACD
6014
2141
7511
3057
3052
3025
3U25
3026
5506
3U24
3U26
VS Voltage
Adj.
2512
VS Voltage
Adj.
2020
2022
7531
1U07
T5A
+12V
+24Va
+5V2-RELAY-IO2_PWM
N.C.
+12V_A
5507
7131
STANDBY
STANDBY: LOW = ON
HIGH = STBY
RES
+24V
2U22
2B91
6B91
6B93
2B93
VTUN
+11V
+12V
+8V6
RES
+5V2
+5V_SW
5B93
5B91
5B92
1304
44
33
22
11
1303
11
22
33
44
SA1
1304
1303
CONNECTIONS
+12V_A
+12V_+24V
+24V_2
VSND_POS
VSND_NEG
G_16290_003.eps
DC_PROT
270306
1316
1M10
1M03
1M46
1317
1M02
1
2
3
4
5
1
2
3
4
9
4
11
9
1
2
7
1
2
3
4
5
7
6
5
4
3
2
1
TO
DISPLAY
TO 1M10
AL
AMBI LIGHT
(OPTIONAL)
TO 1J02
B01B
B01B
SUPPLY
TO 1J02
B01B
B01B
SUPPLY
TO
DISPLAY
SA3
TO 1M02
B08B
AUDIO
SUPPLY PART A
A2
1450
2
3
4
1
HOT
COLD
2503
14
1D50
3
1401
T1A
+
-
HOT
COLD
2
6807
GBJ6J
-
1B06
11
22
1C05
33
6H07
GBJ6J
3810
+
2815
China
+
-
6156
6157
400V_HOT_B
3H10
2H15
China
2816
3406
2H16
1305
11
22
33
1306
11
22
1307
11
22
33
44
25V_HOT_A
400V_HOT_A
SA2
1305
1306
1307
A4
25V_HOT_B
400V_HOT_B
STANDBY
7017
7018
SOFT
START
CURRENT
PROTECTION
+5V2
CONTROL
7505/7509/7560/
5504
5505
SUPPLY PART B
7U17
7U18
SOFT
START
CURRENT
PROTECTION
+
+
3007
Prot-OVV
PROT_AUDIOSUPPLY
11
3U07
11
7001
MC34067P
11
OSCC
7
ERROR
11
SOST
5
VREF
7004
7009
PROTECTION
7U01
MC34067P
OSCC
7
ERROR
SOST
5
VREF
7U04
7U09
PROTECTION
CONTROL
OVER
VOLTAGE
VCC
CONTROL
OVER
VOLTAGE
VCC
OA
OB
OA
OB
BIAS SUPPLY
15
14
12
10
FI
7100
7101
7105
CONTROL
6153
BIAS SUPPLY
15
14
12
10
FI
3101
3000
5007
5001
4
2
3U00
5U07
5U01
4
2
3104
3150
3127
3100
6150
6080
6077
6151
7102
6U79
6078
2003
7005
STP15NK50
STP15NK50
3V MAX
1V MAX STBY
3108
3155
6U77
7U05
STP15NK50
7U06
STP15NK50
7006
5104
3156
6U78
2U03
5017
5008
7007
HIGH
6
SIDE
DRIVE
7
7008
LOW
10
SIDE
DRIVE
9
5U08
7U07
HIGH
6
SIDE
DRIVE
7
7U08
LOW
10
SIDE
DRIVE
9
Page 40
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Video
VIDEO
MAIN TUNER
B02B
1T04
TD1336/FGHP
MAIN HYBRID
TUNER
CHANNNEL DECODER
B02A
7T22
NXT2004
DTV CABLE AND
TERRESTRIAL
RECEIVER
QAM 8VSB
Demodulator
FEC
Micro-
Controller
QPSK
Demodulator
MPEG_DATA
SIDE I/O
D
VIDEO
S VIDEO
ANALOG I/O
B07C
PR
PB
AV1
Y
VIDEO
IN
PR
PB
AV2
Y
VIDEO
IN
VIDEO
AV3
S VIDEO
IF-OUT
IF-1
IF-2
FM-T
IF-AGC
34
38
8
7
ADC
ADC
48
GPIO
7
ADC
29
30
DV1F-DATA(0-7)
1002
(1302)
1001
(1301)
1
3
5
4
2
1I04
1I03
1I02
(1I00)
1I01
1
3
5
4
2
12
1T01
14
1
15
14
SAW 44MHz
4
13
FAT-IF-AGC-MAIN
AUX-IF-AGC
FAT-ADC-INN
FAT-ADC-INP
FM-TRAP
IRQ-FE-MAIN
1T11
25M14
TO
B05C
VIPER
FRONT_Y-CVBS_IN
FRONT_C_IN
IF-ANA
7T13
LA7795T-E
2
7
8
3
in
AGC COTROL
AV7_Y-CVBS
AV1_CVBS
AV2_Y-CVBS
AV2_C
PR1
PB1
40EL1.1U AA 6.
PMX-MA
B05
VIPER:
MP-OUT-HS
MP-OUT-VS
MP-CLKOUT
MP-OUT-FFIELD
MP-OUT-DE
45
46
7V00
PNX8550
B05C B05B
TUNNELBUS
VIPER
Tun nel
B05C
AUDIO/VIDEO
2-Layer
secondary
video out
Dual SD
single HD
MPE2 decoder
250Mhz
MIPS32
CPU
Scaler and
de-interlacer
1SD+1HD
YUV
Video in
Video
TS
router
Dual
con
acces
F27
F28
E30
E29
G26
DV-CLKIN
DV-OUT-FFIELD
DV-OUT-HS
DV-OUT-VS
DV-OUT-DE
TXPNXATXPNXA+
TXPNXBTXPNXB+
TXPNXCTXPNXC+
TXPNXCLKTXPNXCLK+
TXPNXDTXPNXD+
TXPNXETXPNXE+
7L50
K4D261638F
DDR
SDRAM
128Mx16
MAIN MEMORY
Memory
controller
DVD
CSS
2D DE
Temporal
noise redux
5 Layer
primary
video out
HD/VGA/
656
DV-OUT-VS
DV-CLK-IN
DV-OUT-DE
DV-ROUTMP-ROUT(0-9)
DV-GOUTMP-GOUT(0-9)
DV-BOUTMP-BOUT(0-9)
MM_DATA
MM_A(0-12)
C4
1H00
A2
27M
DV-ROUT
DV-GOUT
DV-BOUT
VIPER/PNX 2015:
B04G
DISPLAY INTERFACE
VDISP
5J50
5J52
5J54
5J56
5J58
5J60
CTRL-DISP1
CTRL-DISP2
CTRL-DISP3
CTRL-DISP4
SCL-I2C4
SDA-I2C4
MPIF MAIN:
B03
1A10
7
CVBSOUTIF-MAIN
AV1_CVBS
AV2_Y-CVBS
AV7_Y-CVBS
FRONT_Y-CVBS
FRONT_C
HDMI +SUPPLY
1
18 2
19
HDMI
2
7A11
4
AV2_C
1I06
10
12
15
16
19
1B02
EF
1
3
4
6
7
9
8
5
ARX-HOTPLUG
3A17
IF-ANA
7
6
out
7T12
N.C.
B07C
B07C
B05A
B07C
1M36
(1304)
1M36
2
2
4
4
B07A
( ) 26” - 32”
B07b
B07b
Y1
B07b
B03a
PR
PB
B07b
B07b
Y
B07b
B03a
B03a
B03a
N.C.
N.C.
B07A
B07A
B07A
B07A
B07A
B07A
B07A
B07A
CONNECTOR
107
108
99
100
120
123
126
1
ARX2+
ARX2ARX1+
ARX1ARX0+
ARX0-
ARXC+
ARXCARX-DCC-SCL
ARX-DCC-SDA
7B20
HPD-HIRATE
H-SYNC-VGA
V-SYNC-VGA
PR1
PB1
7A00
PNX3000HL
B03C
IF
VIFINP
VIFINN
SIFINP
SIFINN
CVBSOUTIF
B03A
SOURCE SELECTION
CVBS-IF
CVBS1
CVBS2
CVBS_DTV12
CVBS|Y34
C35
CVBS|Y48
C49
Y_COMB15
C_COMB16
R|PR|V_125
YUV
G|Y|Y_126
RGB
B|PB|U_127
R|PR|V_230
G|Y|Y_231
B|PB|U_232
B07B
B05A
Y
Y1
PR
Y
Y1
PB
LPF
BPF
LPF
CVBS/Y RIM
C-PRIM
+
CVBS SEC
LEVEL
ADAPT
CLAMP
INV.
PAL
HDMI: I/O + CONTROL
7B50
TDA9975HS
180
RX2+A
179
RX2-A
174
RX1+A
Termination
173
RX1-A
resistance
168
RX0+A
167
162
161
131
128
control
RX0-A
RXC+A
RXC-1
RX2+B
RX2-B
RX1+B
Termination
RX2-B
resistance
control
RX0+B
RX0-B
RXC+B
RXC-B
HSCL B
HSDA B
Line time
measuremebt
Activity
HSYNC
detection &
VSYNC
sync selec.
90
88
G/Y
Slicers
96
R/PR
94
81
79
68
66
G/Y
B/PB
ADC
SOUND
TRAP
CLAMP
GROUP
DELAY
QSS
LPF
TO AM INTERNAL
AUDIO SWITCH
LPF
PMALC
LPF
Yyuv
U
V
MONO SEC.
CLP PRIM
HDMI
receiver
seperator
generator
QSSOUT
A
D
Yyuv
2FH
2nd
SIF
A/D
A
D
A
D
CLP SEC
CLP yuv
HDMI
Upsample
Derepeater
Sync
Clocks
A
HDCP
D
Yyuv
2Fh
U,V
MPIF
DAT A
LINK
1
DAT A
LINK
3
DAT A
LINK
2
TIMING
CIRCUIT
B03B
SUPPLY
SUPPLY
DIGITAL
BLOCK
CVBS-OUTA
CVBS-OUTB
STROBE1N
STROBE1P
DAT A1N
DATA1P
STROBE3N
STROBE3P
DAT A3N
DATA3P
STROBE2N
STROBE2P
DATA2N
DATA2P
Video
output
formatter
VHREF
timing
generator
I2C slave
interface
14
28
35
44
43
19
22
60
61
62
63
50
51
52
53
55
56
57
123
46
40
2
1
201
207
144
143
+5V
SCL-DMA
SDA-DMA
N.C.
N.C.
STROBE1N-MAIN
STROBE1P-MAIN
DATA1N-MAIN
DATA1P-MAIN
STROBE3N-MAIN
STROBE3P-MAIN
DATA3N-MAIN
DATA3P-MAIN
STROBE2N-MAIN
STROBE2P-MAIN
DATA2N-MAIN
DATA2P-MAIN
HV-PRM-MAIN
N.C.
AV6_VSYNC
N.C.
DV4-DATA(0-7)
DV5-DATA(0-7)
DV4-CLK
DV-HREF
DV-VREF
DV-FREF
SDA-MM-BUS1
SCL-MM-BUS1
PNX 2015: STANDBY
B04E
& CONTROL
7LA7
M25P05
512K
FLASH
CLK-MPIF
AV2_FBL
SPI-SDO
5
SPI-CLK
6
SPI-CSB
1
SPI-WP
3
1LA0
16M
B04
AK10
AH10
AG10
AJ27
AH12
AK8
AH9
AK9
AJ12
R4
R3
R2
R1
N4
N3
N2
N1
P4
P3
P2
P1
M3
M4
L2
G2
AJ9
PNX 2015:
7J00
PNX2015E
TUNNELBUS
B04C
AUDIO/VIDEO
B04A
AVP1_DLK1SN
AVP1_DLK1SP
AVP1_DLK1DN
AVP1_DLK1DP
AVP1_DLK3SN
AVP1_DLK3SP
AVP1_DLK3DN
AVP1_DLK3DP
AVP1_DLK2SN
AVP1_DLK2SP
AVP1_DLK2DN
AVP1_DLK2DP
AVP1_HVINFO1
MPIF_CLK
AVP2_HSYNCFBL2
AVP2_VSYNC2
DV I/O INTERFACE
B04B
DV4_DATA_0 T0 9
DV5_DATA_0 T0 9
DV-HREF
DV-VREF
DV-FREF
B4E
STANDBY
STANDBY
PROCESSOR
See
Block digram
Control
DATA LINK 1
DATA LINK 3
DATA LINK 2
AVIP-1
AVIP-2
North tunnel
Memory
based scaler
Video MPEG
decoder
VIP
PNX2015
COLUMBUS
3D Comb
filter and
noice
reduction
B04D
DDR INTERFACE
VO-2
MUX
VO-1
LVD S_ TX
Memory
controller
South tunnel
DV2_CLK
DV3_CLK
DV1_DATA(0-9)
DV2_DATA(0-9)
DV3_DATA(0-9)
RGB_HSYNC
RGB_VSYNC
RGB_CLK_IN
RGB_UD
RGB_DE
RIN (0-9)
GIN (0-9)
BIN (0-9)
LVDS_AN
LVDS_AP
LVDS_BN
LVDS_BP
LVDS_CN
LVDS_CP
LVDS_CLKN
LVDS_CLKP
LVDS_DN
LVDS_DP
LVDS_EN
LVDS_EP
PMX-MA(0-12)
PNX-MDATA
(0-15)
MCLK_P
MCLK_N
TUN-VIPER-RX-DATA
TUN-VIPER-TX-DATA
TUN-VIPER-RX-DATA
TUN-VIPER-RX-DATA
TUN-VIPER-TX-CLKN
TUN-VIPER-TX-CLKP
DV2A-CLK
AF30
DV3F-CLK
AK28
From
B02A
CHANNEL
DECODER
DV1F-DATA(0-7)
DV3F-DATA (0-7)
J29
J28
J30
J27
K26
B26
C26
A25
B25
D25
E25
C23
D23
B24
C24
E24
F24
PNX-MDATA
PNX-MCLK-P
A17
PNX-MCLK-N
A16
VIPER: MAIN MEMORY
B05B
7V01
K4D551638F
SDRAM 1
7V02
K4D551638F
SDRAM 2
VIDEO-DAC
B06
7G40
ADV7123KSTZ140
VIDEO
DAC
12
24
11
(Reserved for PTV)
1G50
1
2
3
4
12
13
15
16
18
19
21
22
24
25
27
28
7
8
FHP SETS
10
DDR
8Mx16
DDR
8Mx16
34
32
28
1P06 (26” LCD)
ONLY
G_16290_006.eps
B04G
AV-ROUT
AV-GOUT
AV-BOUT
(Reserved for PTV)
1
2
3
4
10
12
13
15
18
20
LVD S
CONNECTOR
TO SCREEN
21
23
26
28
99
2930
3031
020206
1D50
ANALOG
OUTPUT
1
2
3
Page 41
Block Diagrams, Test Point Overviews, and Waveforms

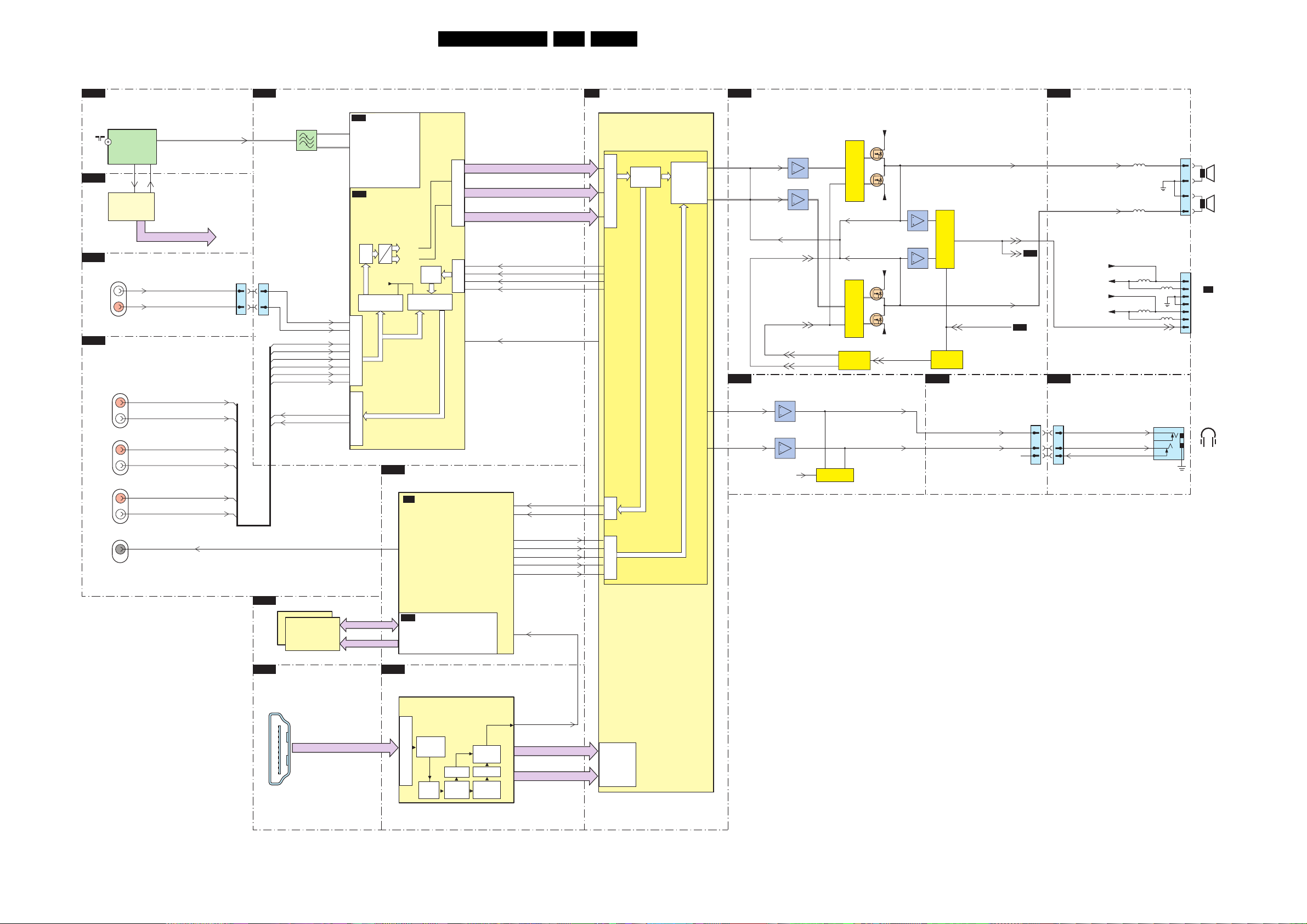

Block Diagram Audio
AUDIO
MAIN TUNER
B02B
1T04
B02A
D
AUDIO IN
L+R
B07C
AV1
AUDIO IN
L+R
AV2
AUDIO IN
L+R
AV3
AUDIO IN
L+R
AV3
DIGITAL
AUDIO
OUT
TD1336/FGHP
HYBRID TUNER
7T22
NXT2004
CABLE AND
TERRESTRIAL
RECEIVER
SIDE I/O
1002
(1302)
ANALOG I/O
1I04
1I03
1I00
1I02
(1I00)
MAIN
DTV
12
DV1F-DATA(0-7)
L
R
FOR MORE MORE DETAILS
SEE ALSO BLOCK DIAGRAM
VIDEO AND CONTROL
AUDIO-IN4-R
AUDIO-IN4-L
AUDIO-IN1-R
AUDIO-IN1-L
AUDIO-IN2-R
AUDIO-IN2-L
SPDIF-OUT1
IF-ANA
1M36
(1304)
( ) 26” - 32”
B03d
B03d
B03d
B03d
B03d
B03d
41EL1.1U AA 6.
B4
AC3
AD3
AE3
AF3
M4
V3
V2
U2
U3
U4
V5
V4
PNX2015
7J00
PNX2015E
I2D
ADCAC12
ADCAC11
ADCAC10
ADCAC19
I2S
OUT
I2S
IN
PNX2015
DEM DEC
AVIP
ADAC1
AUDIO
PROCESSING
ADAC2
ADAC7
ADAC8
AH1
AG1
AB1
AA1
MPIF MAIN:
B03
1A10
2
1M36
6
6
8
8
AUDIO-IN5-L
AUDIO-IN5-R
B07c
B07c
B07c
B07c
B07c
B07c
B3f
B3f
AUDIO-IN1-R
AUDIO-IN1-L
AUDIO-IN2-R
AUDIO-IN2-L
AUDIO-IN4-L
AUDIO-IN4-R
AUDIO-OUT1-R
AUDIO-OUT1-L
7A00
PNX3000HL
IF
B03C
VIFINP
107
7
108
VIFINN
8
99
100
128
127
70
69
85
86
83
84
80
79
SIFINP
SIFINN
B03D
L5
R5
R1
L1
R2
L2
L4
R4
SEE ALSO
BLOCKDIAGRAM
VIDEO
AUDIO SOURCE
SELECTIOM
AUDIO SWITCH
A
LPF
D
AM SOUND
AUDIO SWITCH
(DIGITAL OUT)
LINE / SCART L/R
B05
AB29
MPIF
DLINK1
DLINK2
VIPER:
7V00
PNX8552EH
B5C
SPDIF-OUT1
AUDIO
AMPS
AUDIO SWITCH
(ANALOG OUT)
VIPER
DATA LINK
72
73
74
DSND
75
40
I2S_IN1_WS
I2S_IN1_SCK
I2S_OUT2_SD0
I2S_OUT2_SD1
I2S_OUT2_SD2
I2S_OUT1_SD0
I2S_OUT2_SD3
DATA LINK 1
DATA LINK 2
DATA LINK 3
DSNDR2
DSNDL2
DSNDR1
DSNDL1
CLK-MPIF
T29
T30
T28
T27
R30
U27
R29
I2S-WS-MAIN
I2S-BCLK-MAIN
I2S-MCH-LR
I2S-MCH-CSW
I2S-MCH-SLR
I2S-SUB-D
I2S-MAIN-D
AUDIO: AMPLIFIER
B08A
7D10-02
ADAC1
7D10-3
ADAC2
FEEDBACK
INV-MUTE
MUTE
MPIF MAIN: AUDIO AMPLIFIER
B03E
7A04-1
ADAC7
7A04-2
ADAC8
A-PLOP
MUTE
INV-MUTE
7D26
CONTROL
7D2O÷7D21
CONTROL
FEEDBACK-LR
FEEDBACK-RL
7D14÷7D16
CONTROL
CONTROL
AUDIO-HDPH-L-AP
AUDIO-HDPH-R-AP
+12_20V
7D18
7D18
-12_20V
+12_20V
7D23
7D23
-12_20V
7D10-01
7D10-01
U-VOLT-DETECT
LEFT-SPEAKER
7D11
PROT-AUDIOSUPPLY
CONTROL
RIGHT-SPEAKER
SOUND-ENABLE
7D25
CONTROL
MPIF MAIN: VIDEO SOURS
B03A
SELECTION
AUDIO-HDPH-L-AP
AUDIO-HDPH-R-AP
B05A
N.C.
B04E
1M36
10
11
7
AUDIO: CONNECTORS
B08B
LEFT-SPEAKER
RIGHT-SPEAKER
(-12-16V-NF)
(+12-16V-NF)
SIDE I/O
D
1M36
(1304)
SOUND L-HEADPHONE-OUT
10
11
SOUND R-HEADPHONE-OUT
7
DETECT
-12_20V
-12_20V
5M02
5M03
5M10
5M12
PROT-AUDIOSUPPLY
( ) For 26” LCD
5M11
5M09
1010
(1303)
2
3
5
( ) 26” - 32”
1740
1M02
1
2
3
4
1
2
3
4
5
6
7
Speaker L
15W/8Ω
Speaker R
15W/8Ω
From 1M02
A
SUPPLY
OR
From CN1M02
PDP
SUPPLY
Headphone
Out 3.5mm
VIPER: MAIN MEMORY
B05B
7V02
7V01
HDMI +SUPPLY
B07A
1I06
1
2
18
19
HDMI
CONNECTOR
K4D551638F
2X DDR
SDRAM
8Mx16
PAR X2+
AUDIO
MULTIPLEXED
WITH VIDEO
SEE ALSO
BLOCKDIAGRAM
VIDEO
MM_DATA
MM_A(0-12)
MAIN MEMORY
B05B
HDMI: I/O + CONTROL
B07B
7B50
TDA9970HS
RX2+
RX2-
RX1+
Termination
RX1-
Resistance
RX0+
RX0-
RXC+
RXC-
DDR
INTERFACE
HDMI PANELLINK
RECEIVER
Control
HDMI
receiver
Audio PLL
HDCP
Formatter
Audio FIFO
Packet
extraction
Audio
AA27
183
SPDIF-HDMI
SPDIF-HDMI
DV4-DATA
DV5-DATA
DV
INPUT
G_16290_007.eps
020206
Page 42
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Control & Clock Signals
CONTROL + CLOCK SIGNALS
DV1F - DATA
1M60
(1309)
11
22
33
44
CONTROL
B05
VIPER:
1M60
LIGHT-SENSOR-SDM
B02A
CHANNAL DECODER
1T11
D
SIDE I/O
4321
USB 1.1
CONNECTOR
E
TOP CONTROL
J
LED SWITCH PANEL
7T22
NXT2004
30
CABLE AND
TERRESTRIAL
RECEIVER
25M14
29
1005
(1308)
1
2
3
4
ON / OFF
CHANNEL +
CHANNEL -
VOLUME +
VOLUME -
MENU
+3V3STBY
DTV
3803
Not for 26” Sets
51
84
59
5000
(5300)
1050
(5301-5302)
1706(1313)
1703(1309)
1704(1310)
1701(1311)
1702(1312)
1705(1314)
6801-1
6801-2
7802
7808
IRQ-FE-MAIN
( ) For 26” - 32”
LED1
RED
LED2
GREEN
IR
SENSOR
LIGHT
SENSOR
DV1F-CLK
IRQ-MAIN
RESET-FE-MAIN
USB-BUS-PW
USB1-DM
USB1-DP
KEYBOARD
PC-TV-LED
LED-SEL
IR
AH16
A26
F1
AJ29
AJ28
AH27
C4
27M
1H00
A2
1M01
(1684)
( ) For 26” - 32”
1870
7V00
PNX8550EH/M1/S1
A/V + TUNNELBUS
B05C
VIPER
CONTROL
B05A
MAIN MEMORY
B05B
B16A
CONNECTIONS A
1M01
22
1M21
6
6
4
4
3
3
1
1
LED1
LED2
E30
AH19
AG25
K3
T2
T1
AG22
AB28
AK12
AJ12
AK5
AJ7
AA2
W2
D28
AD2
AD27
C27
AB27
D29
B5
C30
AD3
AD4
B28
A18
B18
DV-CLKIN
TUN-VIPER-TX-CLKN
TUN-VIPER-TX-CLKP
CHDEC-CLK
NAND
NAND-CLE
NAND-ALE
NAND-REn
NAND-WEn
NAND-SEL
PLL-OUT
PCI-CLK-VPR
HPD-HIRATE
SOUND-ENABLE
HDMI-COAST
M135-CLK
POWERDOWN-HDMI
M27-PNX
RESET-MIPS
DEBUG-BREAK
MM_CLK_N
MM_CLK_P
KEYBOARD
LIGHT-SENSOR
42EL1.1U AA 6.
B04A
PNX2015:
7J00
PNX2015E
DV I/O INTERFACE
DV2A-CLK
DV3F-CLK
TUN-VIPER-RX-CLKP
B05E
VIPER: EEPROM
7P80
TC58DVM92F1
EEPROM
(32Mx16)
16
17
8
18
9
19
STBY-WP-NAND-FLASH
3H06
B07B
HDMI: I/O + CONTROL
B07A
7B50
B08A
TDA9975HS/8/C1
124
HDMI
135
CONTROL
115
RESET-SYSTEM
B05B
VIPER: MAIN MEMORY
7V01
46
7V02
45
DDR
SDRAM
16Mx16
DETECT-1V2 (P2.0)
DETECT-3V3 (P2.2)
B04E
B01A
B01A
B07A
B08A
RC
DETECT-5V (P2.3)
DETECT-8V6 (P2.4)
DETECT-12V (P2.5)
POWER-OK-DISPLAY
SUPPLY-FAULT
PROT-AUDIOSUPPLY (P2.7)
LED1
LED2
LIGHT-SENSOR
DV4-CLK
2
DEBUG-BREAK
P50-HDMI
KEYBOARD
B04E
RC
AF30
AK28
M29
U30
U28
AK8
Y28
AG19
AJ21
AG21
AF16
AH17
AG17
AK18
AJ18
AH14
AG13
AG21
AG13
AG18
AK23
AK21
AG20
AK13
AH23
B04B
PNX2015
TUNNELBUS
B04C
DDR INTERFACE
B04D
DV I/O INTERFACE
B04B
STANDBY + CONTROL
B04E
J30
M4
A16
A17
AH10
AJ27
AH20 SDM
AJ12
AH12
AG22
AH15
AK16
AJ21
AH21
AH22
AJ16
AJ16
AG16
AJ16
AA27
MP-CLKOUT
16M
1LA0
STBY-WP-NAND-FLASH
ENABLE-1V2 (P0.2)
ENABLE-3V3 (P0.4)
RESET-MAIN-NVM
BACKLIGHT-CONTROL
UART-SWITCH (P0.7)
CLK-MPIF
PNX-MCLK-N
PNX-MCLK-P
SPI-CLK
SPI-WP
9P24
9P14
SDM
RESET-SYSTEM
RESET-AUDIO
LAMP-ON (P0.5)
RESET-PNX2015
B05E
B01A
B05A
B04A
B05E
B04G
B16A
B10D
B06
VIDEO DAC
7G40
ADV7123KST140
DV-CLKIN
B03B
MPIF MAIN: SUPPLY
24
7A00
PNX3000HL/N3
40
CONTROL
B04D
PNX 2015: DDR INTERFACE
7L50
K4D261638F
46
45
128Mx16
B04E
PNX 2015: STANDBY & CONTROL
7LA7
M25P05-AVMN6P
6
3
VIDEO
DAC
MPIF
E/W &
DDR
SDRAM
512K
FLASH
G_16290_011.eps
270106
Page 43

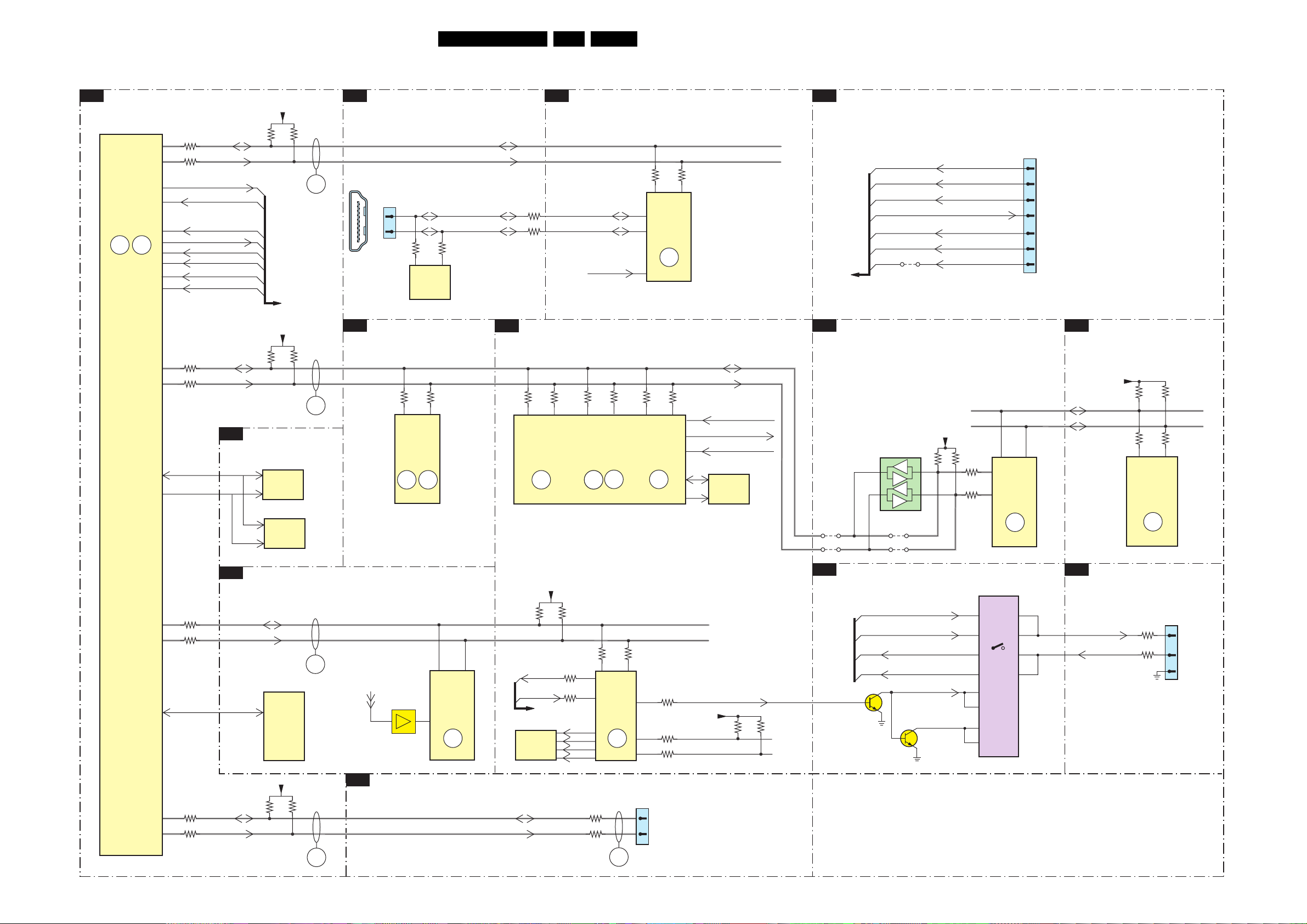

I2C IC’s Overview
I²C
VIPER: CONTROL
B05A
Block Diagrams, Test Point Overviews, and Waveforms
HDMI + SUPPLY
+3V3
B07A
HDMI: I/O + CONTROL
B07B
43EL1.1U AA 6.
SUPPLY + RS232
B01B
I2C1-SDA
I2C1-SCL
7V00-5
SM PNX8552EH
VIPER
PROT
PROT
05
53
I2C2-SDA
I2C2-SCL
A25
C25
F26
E27
B27
D25
A29
A28
C2
AD4
AF29
AD26
3Q11
SDA-MM
3Q10
SCL-MM
TXD-VIPER
RXD-VIPER
EJTAG-TDI
EJTAG-TDO
EJTAG-TMS
EJTAG-TCK
JTAG-TRST
RESET-SYSTEM
3Q13
SDA-DMA
3Q12
SCL-DMA
VIPER: MAIN MEMORY
B05B
3H23
3H22
B01B
+3V3
3H05
3H04
7V01
K4D551638F
DDR
SDRAM 1
7V02
K4D551638F
DDR
SDRAM 2
PROT
01
PROT
02
1
18 2
19
2x HDMI
CONNECTOR
MPIF MAIN: SUPPLY
B03B
1I06
16
15
3B08
5 6
7B02
M24C02
EEPROM
3A14
3A15
43 44
7A00-3
PNX3000HL
MPIF
ERR
ERR
18
32
ARX-DDC-SDA
ARX-DDC-SCL
3B07
SDA-MM
SCL-MM
3Q11
PARX-DDC-SDA
3Q10
PARX-DDC-SCL
PNX 2015: STANDBY & CONTROL
B04E
3LF8
3LG9
AG9 AF9
ERR
45
JTAG-TRST
3LH3
3LH4
G5 G4
7J00-6
PNX2015E
CONTROL
AVIPCOLUMBUS HD
ERR
ERR
ERR
31
29
29
145
146
107
3LH1
B27 C27
3B60
3B61
142 143
7B50-1
TDA9970HS
HDMI
CONTROL
ERR
43
3LH0
ERR
27
SDA-DMA
SCL-DMA
AF11
AF21
AJ21
7L50
K4D261638F
JTAG-TRST
EJTAG-DETECT
RESET-SYSTEM
DDR
SDRAM
16Mx16
B5A
CHANNEL DECODER
B02A
9T11
9T12
9U07
RES
7T23
PCA9515ADP
2
3
9T10
9T13
RES
+3V3
3T53
6
7
JTAG-TRST
EJTAG-DETECT
EJTAG-TDI
EJTAG-TDO
EJTAG-TMS
EJTAG-TCK
RESET-SYSTEM
3T54
3T52
43
3T51
42
1H07
1
2
3
5
7
9
11
I2C-SDA-TUNER
I2C-SCL-TUNER
90
91
7T22
NXT2004
DTV
RECEIVER
ERR
41
EJTAG
CONNECTOR
(FACTORY USE
ONLY)
B02B
MAIN TUNER
+5VTUN
3T28
3T25
3T22
3T23
9 8
1T04
TD1336/FGHP
MAIN
DIG TUNER
ERR
34
I2C3-SDA
I2C3-SCL
I2C4-SDA
I2C4-SCL
AE27
AG29
A3
B4
3Q15
3Q14
3H99
3H98
B05E
SDA-I2C4
SCL-I2C4
VIPER: EEPROM
SDA-UP-VIP
SCL-UP-VIP
PROT
03
7P80
TC58DVM92F1TGI0
EEPROM
32Mx16
+3V3
3Q03
3Q04
PROT
04
RESET-MAIN-NVM
7P18
8
VIPER/PNX 2015: DISPLAY INTERFACE
B04G
5 6
7P14
M24C64
EEPROM
MAIN
NVM
ERR
44
SDA-I2C4
SCL-I2C4
+3V3-STANDBY
3LE3
3LE4
TXD-UP
RXD-UP
B05E
7LA7
M25P05-AVMN6P
DDR
SDRAM
16Mx16
3LJ1
3LJ0
3LF0
AG26 AH26
AJ19
7J00-5
PNX2015E
AK19
PNX2015
STANDBY
ERR
26
3J31
3J30
ERR
64
(OPTIONAL ONLY PDP SETS)
3LE2
AG16
AF14
AG14
1G50
31
30
3LM7
+3V3-STANDBY
3LH8
3LH9
TO
DISPLAY
UART-SWITCH
SCL-UP-SW
SCL-UP-SW
3LC7
3LC6
B05E
VIPER: EEPROM
B5A
B4E
B4E
B5A
7P16
TXD-VIPER
TXD-UP
RXD-UP
RXD-VIPER
UART-SWITCHn
7P17
7P15
74HC4066PW
10
9
2
3
5
12
6
13
UART
B07D
8
11
1
4
TXD
RXD
3I10
3I11
CONNECTOR
COMPAIR
SERVICE
(UART)
1M16
1
3
2
G_16290_008.eps
300106
Page 44
Block Diagrams, Test Point Overviews, and Waveforms

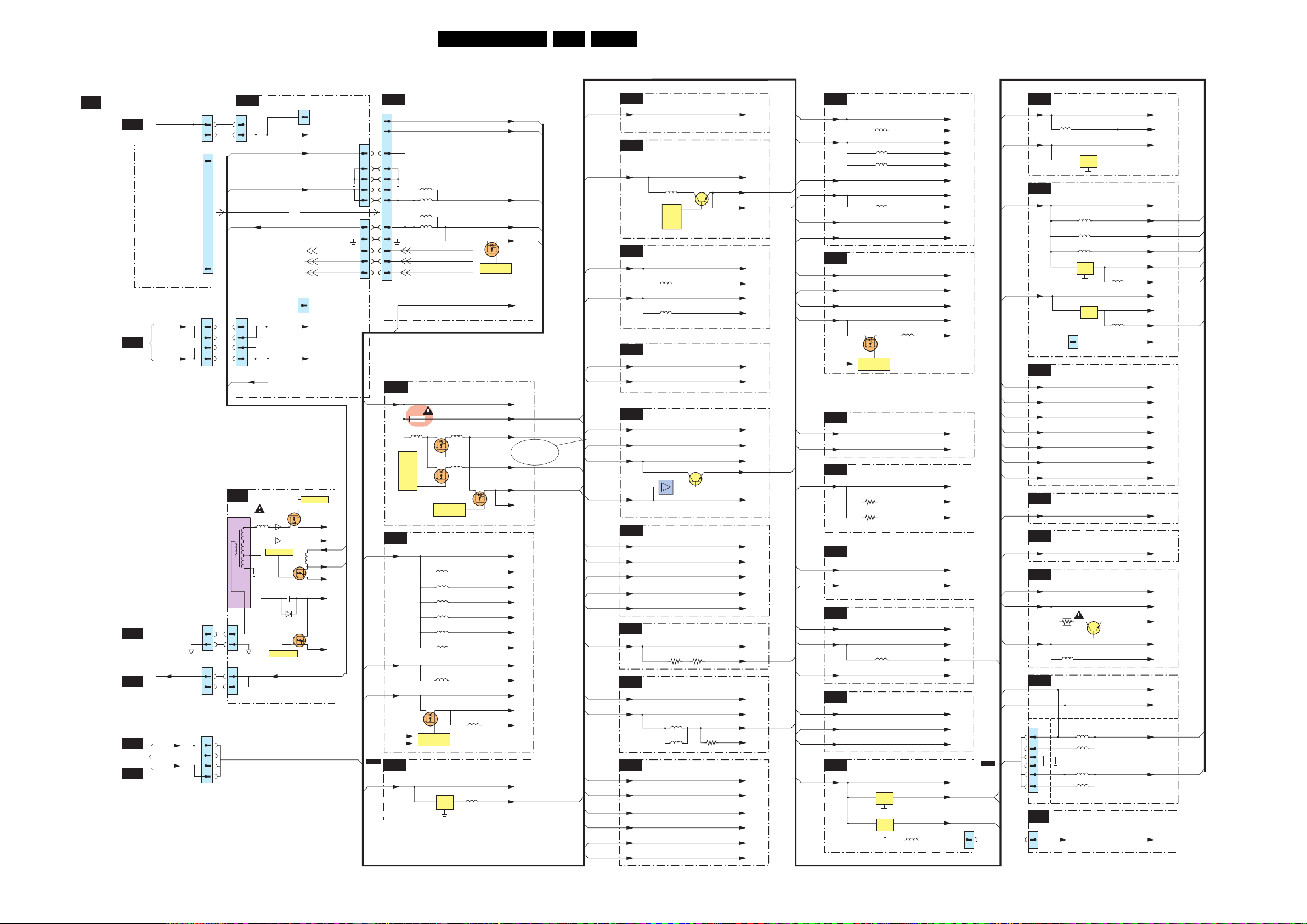

Supply Lines Overview
44EL1.1U AA 6.
SUPPLY LINES OVERVIEW
SUPPLY
A
(32”- 42”)
TO 1303
A4
SUPPLY
(PART B 42”)
SUPPLY 26”
TO 1304
A2
SUPPLY
(PART A 42”)
SEE ALSO
BLOCK DIAGRAM
SUPPLY
TO 1306
A1
MAINS FILTER
(PART A 42”)
TO 1305
MAINS FILTER
(PART A 42”)
TO 1M02
SUPPLY 37”
TO 1M02
SUPPLY 42”
+5V2-RELAY-IO2
A1
A2
OR
A4
POWER
+24Va
+12V
VSND_POS
VSND_NEG
1303
X200
1304
1306
1305
1M02
SA1
1303
11
22
SA2
1
SA2
13P
+5V2-RELAY-IO2
SA2
13
1304
11
22
33
44
+12V_A
SA2
STANDBY
SA2
5500
6
7
8
10
5
1306
11
22
1305
11
22
6
5
2
1
CONNECTIONS
(32”-42”)
7511
6504
5110
6140
STANDBY
7131
2513
6107
7531
CONTROL
+5V2-RELAY-IO2
(32”- 42”)
1317
1
+24V_2
+5V2
+12V
OR
1316
(1317)
1
+12V_+24V
+12V_A
CONTROL
5110
To
Display
STANDBY
DIM_CONTROL
ON_OFF
To
Display
VTUN
+11V
+12V_A
+12V
+8V6
+5V2
+5V_SW
B01b
SA1
B01a
SA1
B01a
SA1
B01a
B01a
1M46
1M03
SUPPLY + RS232
B01B
1J02
1
2
74
17
28
99
11 10
95
46
711
112
313
B01A
B02A
+12VSW
1M02
B08B
B02B
AUDIO
5U37
5U38
5U35
5U36
STANDBY
BACKLIGHT-CNTRL-OUT
LAMP-ON-OUT
B01a
DC / DC
+12VS
1U01
7U00
Control
5U02
1
16
7U01
7U03
7U27
+2V5
STABILIZER
5U00
5U03
CHANNEL DECODER
+2V5
5T20
5T21
5T23
5T24
5T25
5T26
+3V3
5T27
+1V2 +1V2
7T21
7T20
+3V3
CONTROL
MAIN TUNER
+12SW
7T10
IN OUT
COM
5T28
5T11
7U24
POD-MODE
7U28
7U25
-12-16-NF
+12-16-NF
(Only For 26”)
+12VS
+5V2-STBY
+5V
+12VSW
+12VS
+12VSW
+3V3
B02a,B04a,e,f,g,
+1V2
+2V5
+2V5D
+2V5
+2V5D-PLL
+2V5A-PLL
+2V5A
+2V5A-XTAL
+2V5A-ADC
+2V5F
+3V3
+3V3F
+1V2_ATSC
+1V2F
+12SW
+5VTUN
B05a,c,d,e,B06
B07a,b
B08b
B08b
B01a
B03e,B04a,
B05e,f
B03a,b,c,e,
B04e,g,B05a,
B06,B07a
B01b
B01b
B01b
B02b
B02b
B03e
B01b
B01b
B01a
B03b
B01a
B01a
B01b
B01a
B03b
B01a
B01a
B01a
B01a
B05f
B01a
B05f
B01b
B01a
B04g,B07c
B01b,B02b,
B03e,B04e,
B02a,
B04a,d,e,f,
B04c,f,B05d
B02a,B04e
B03c,d
MPIF MAIN: VIDEO SOURCE SELECTOIN
B03A
+5V +5V
MPIF MAIN: SUPPLY
B03B
+5V +5V
5A12
7A00
2
MPIF
MPIF MAIN: IF + SAW FILTER
B03C
+5V +5V
5A16
+5VTUN
5A17
MPIF MAIN: AUDIO SOURCE SELECTION
B03D
+5VTUN
+8V-AUD
MPIF MAIN: AUDIO AMPLIFIER
B03E
+5V
+5V2-STBY
+12VSW
7A17
7A05
VREF-AUD
PNX2015: AUDIO / VIDEO
B04A
+1V2
+3V3
+5V2-STBY
+12VSW
VREF-AUD-POS
PNX2015: TUNNELBUS
B04C
+2V5 +2V5
3L38
PNX2015: DDR INTERFACE
B04D
+1V2
+2V5
5L52
5L51
PNX2015: STANDBY & CONTROL
B04E
+1V2
+1V2-STANDBY
+3V3
+3V3-STANDBY
+5V
+12VSW
3L20
7A10
3L38
VREF-AUD-POS
VREF-AUD
+5V2-STBY
VREF-AUD
+5V2-STBY
VREF-AUD-POS
VREF-PNX
+2V5-DDRPNX
VREF-DDRPNX
+1V2-STANDBY
+3V3-STANDBY
+5VaM
+5VTUN
+5VbM
+5VTUN
+8V-AUD
+5V
+12VSW
+8V-AUD
+1V2
+3V3
+12VSW
+1V2
+2V5
+1V2
+3V3
+5V
+12VSW
B01a
B01a
B05f
B05f
B01a
B04d
B01a
B05f
B01b
B01a
B01a
B01b
B05d
B01a
B04c
B01a
B01a
B01a
B01a
B05f
B01b
B01b
PNX2015: SUPPLY
B04F
+1V2 +1V2
+3V3 +3V3
+1V2-STANDBY +1V2-STANDBY
B04a
+3V3-STANDBY +3V3-STANDBY
B03e
+2V5 +2V5
+2V5-DDRPNX +2V5-DDRPNX
B04G
+3V3 +3V3
+3V3-STANDBY +3V3-STANDBY
+5V
+12VSW +12VSW
+3V3
B05A
+3V3 +3V3
+5V +5V
B03d
B05B
+2V5-VPR +2V5-VPR
B05C
+3V3 +3V3
VREF-PNX VREF-PNX
B05D
+1V2 +1V2
+2V5 +2V5
B05c
+3V3 +3V3
B05E
+3V3 +3V3
+3V3-STANDBY +3V3-STANDBY
B04f
+5V2-STBY +5V2-STBY
B05F
+5V2-STBY
5LN1
5LN3
5LN0
5LN2
PNX2015: DISPLAY INTERFACE
7J04
7J08
7J07
CONTROL
VIPER: CONTROL
VIPER: MAIN MEMORY
3H52
3H50
VIPER: A/V + TUNNELBUS
VIPER: SUPPLY
5Q07
VIPER: EEPROM
MISCELLANEOUS
7M05
IN OUT
COM
7M06
IN OUT
COM
5J11
5M00
PLL-1V2
LVDS-3V3
PLL-3V3
UP-3V3
+5V
VDISP
VREFD-VPRDDR
VREF-VPRDDR
+2V5-VPR
+5V2-STBY
+3V3-STANDBY
+1V2-STANDBY
1M21
5
B01a
B01b
B01a
B01b
B07a
B07a
B01a
B07a
B07a
B07a
B07a
B01a
B05f
B05f
B08b
B08b
B01b
B01b
1M02
PSU
SUPPLY
VIDEO-DAC
B06
+3V3 +3V3
+5V +5V
HDMI + SUPPLY
B07A
+3V3 +3V3
+5V
HDMI
CONNECTOR
HDMI: I/O + CONTROL
B07B
+1V8 +1V8
+1V8-PLL +1V8-PLL
+3V3 +3V3
+3V3-DIG +3V3-DIG
+3V3-AVI +3V3-AVI
+3V3-PLL +3V3-PLL
+3V3-APLL +3V3-APLL
ANALOG I/O
B07C
+12VSW +12VSW
UART
B07D
+3V3-STANDBY +3V3-STANDBY
AUDIO: AMPLIFIER
B08A
+3V3-STANDBY +3V3
+12_20V +12_20V
-12_20V -12_20V
B05b
AUDIO: CONNECTORS
B08B
1M02
1
2
3
4
5
6
B07d,B08a
(32”-42”)
B04e,f,g,
B05e
B04e,f
LED PANEL
J
1870
+3V3STBY +3V3STBY
5
5G10
3D43
5D16
1I06
18
5B17
5B11
5B12
7B25
IN OUT
5M10
5M11
5M12
5M09
7G42
IN OUT
COM
7B45
IN OUT
(OPTIONAL)
COM
COM
7D24
5B18
5B10
+3V3DAC
+3V3-APLL
3V3-PLL
3V3-DIG
+1V8
+1V8-PLL
+5V2-STBY
+3V3-AV
+3V3-AVI
AIN-5V
VP
VN
-12-16-NF
+12-16-NF
(Only For 26”)
-12_20V
+12_20V
B07b
B07b
B07b
B07b
B07b
B07b
B08a
B08a
G_16290_009.eps
270106
Page 45
Circuit Diagrams and PWB Layouts
45EL1.1U AA 7.
7. Circuit Diagrams and PWB Layouts

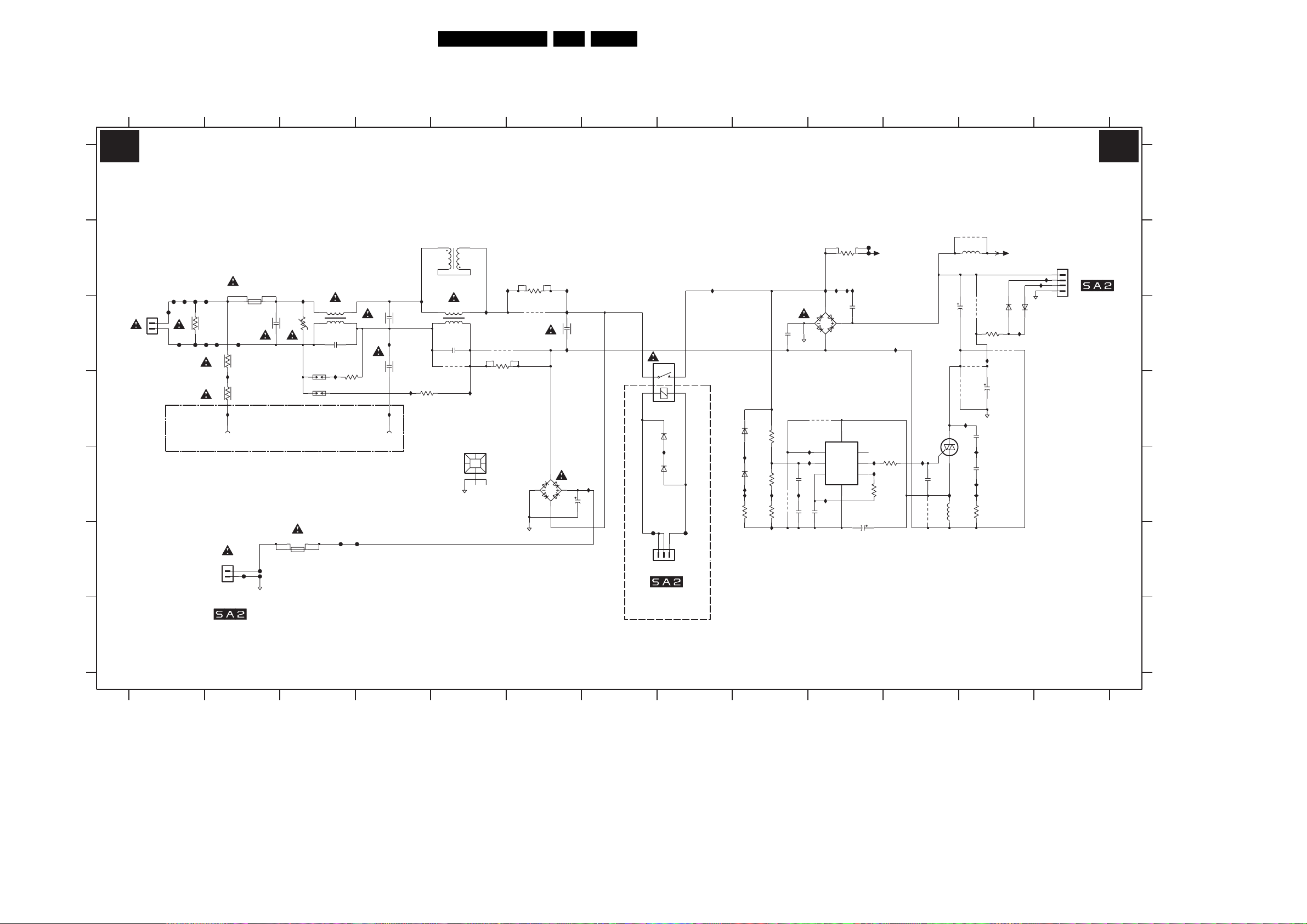

LCD Supply (32”): Mains Filter + Standby
123456
A1 A1
MAINS FILTER + STANDBY (32”)
7
A
MAINS FILTER
5403
1
B
MAINS INPUT
95-264Vac
2
C
1
1308
F410
F411
F415
F412
3401
F418
F413
F414
4M7
F416
F419
D
T3.15AH 250V(EUR)
T5AH 250V(AP)
T5AH 250V(US)
F417
4M7
3402
I419
4M7
3403
I429
1000
1
GND screw
1400
PTF/65
I410
23
2400
470n
14
DMF3547HB60
3400
V
1403
500V
1402
500V
COLD GROUND
5401
2404
I431
I411
470n
2401
47p
3405
220R
I416
2407
I430
1
GND screw
1001
220p
I455
3404
220R
E
T1AE 250V
1401
F
1306
1
2
TO 1306
AUDIO-STANDBY
F426
GNDHOT
F424
F425
PTF/65
F427
F428
290V (303V)
4
2
3
5402
23
14
DMF3547HB60
2406
9003
I412
47p
I432
1011
HEATSINK
9001
3451
I442
3450
1R0
9005
1R0
6506
DF06M
GNDHOT
2408
I415
I445
I444
2503
100n
HOT
1450
G5PA-1-5VDC
I424
I456
4V8 (0V)
10u
RELAY +
F420
1305
TO 1305
AUDIO-STANDBY
COLD
G
3104 313 6063.2
1
234567891011
8 9 10 11 12 13
9050
5006
288V (0)
9814
330u
2815
9813
9811
I420
100n
7806
AVS10CB
5804
100n
33u
47n
I422
6155
3101
1K0
9808
I830
2816
330u
2810
I825
2809
I824
I826
4R7
3805
6461
6460
1
2
BAS316
BAS316
3
COLD
RELAY -
F421
B3B-EH-A
F422
3810
12K
I413
GBJ6J
56n
2804
6809
1N5062
1M0
470R
20K
9806
AVS1ACP08
2805
I831
2807
I426
I427
47n
47n
3800
I814
6808
1N5062
3807
3806
I828
22K
3804
I820
I816
I815
I810
I811
I813
6807
9810
4
7805
VDD
76
MODE
VM
23
OSIN
OSOUT
VSS
1
I428
2802
100p
2803
NC
VG
I812
56n
2806
47u 50V
F423
58
I423
I425
3802
25V_HOT
I817
3803
390R
91K
I421
2808
9812
12 13
400V_HOT
6154
BYG10
I418
I417
BYG10
1307
1
I414
2
3
4
B4P-VH
TO 1307
AUDIO-STANDBY
F_15710_001.eps
300106
F426 F2
1000 D2
F427 F3
1001 D4
F428 F4
1011 E5
I410 B3
1305 F7
I411 C4
1306 F2
1307 B13
I412 C5
I413 B8
1308 C1
I414 B13
1400 C2
I415 C6
1401 F3
I416 C4
1402 D3
A
B
C
D
E
F
G
1403 D3
1450 C8
2400 C2
2401 C4
2404 C3
2406 C5
2407 C4
2408 C6
2503 E6
2802 E10
2803 C10
2804 C9
2805 E9
2806 F10
2807 E9
2808 E11
2809 E12
2810 D12
2815 C11
2816 D12
3101 C12
3400 C3
3401 C1
3402 C2
3403 D2
3404 D4
3405 D3
3450 B6
3451 C5
3800 D9
3802 E10
3803 E11
3804 E9
3805 E12
3806 E9
3807 E9
3810 B10
5006 B12
5401 C3
5402 C5
5403 B5
5804 E11
6154 C12
6155 C12
6460 E8
6461 D8
6506 E6
6807 C10
6808 E9
6809 D9
7805 D10
7806 E11
9001 C5
9003 C5
9005 C6
9050 B12
9806 E9
9808 C12
9810 D10
9811 D12
9812 E11
9813 C12
9814 C12
F410 C1
F411 B1
F412 B1
F413 B1
F414 B1
F415 C1
F416 C2
F417 C2
F418 C1
F419 C2
F420 F7
F421 F8
F422 B10
F423 B10
F424 F2
F425 F2
I417 B13
I418 C12
I419 D2
I420 D12
I421 E11
I422 E11
I423 E10
I424 E7
I425 E10
I426 E10
I427 E10
I428 E10
I429 D2
I430 D4
I431 D3
I432 D5
I442 B6
I444 B6
I445 C6
I455 D4
I456 E7
I810 B10
I811 B10
I812 B10
I813 B10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
I826 E12
I828 E9
I830 C12
I831 E9
Page 46

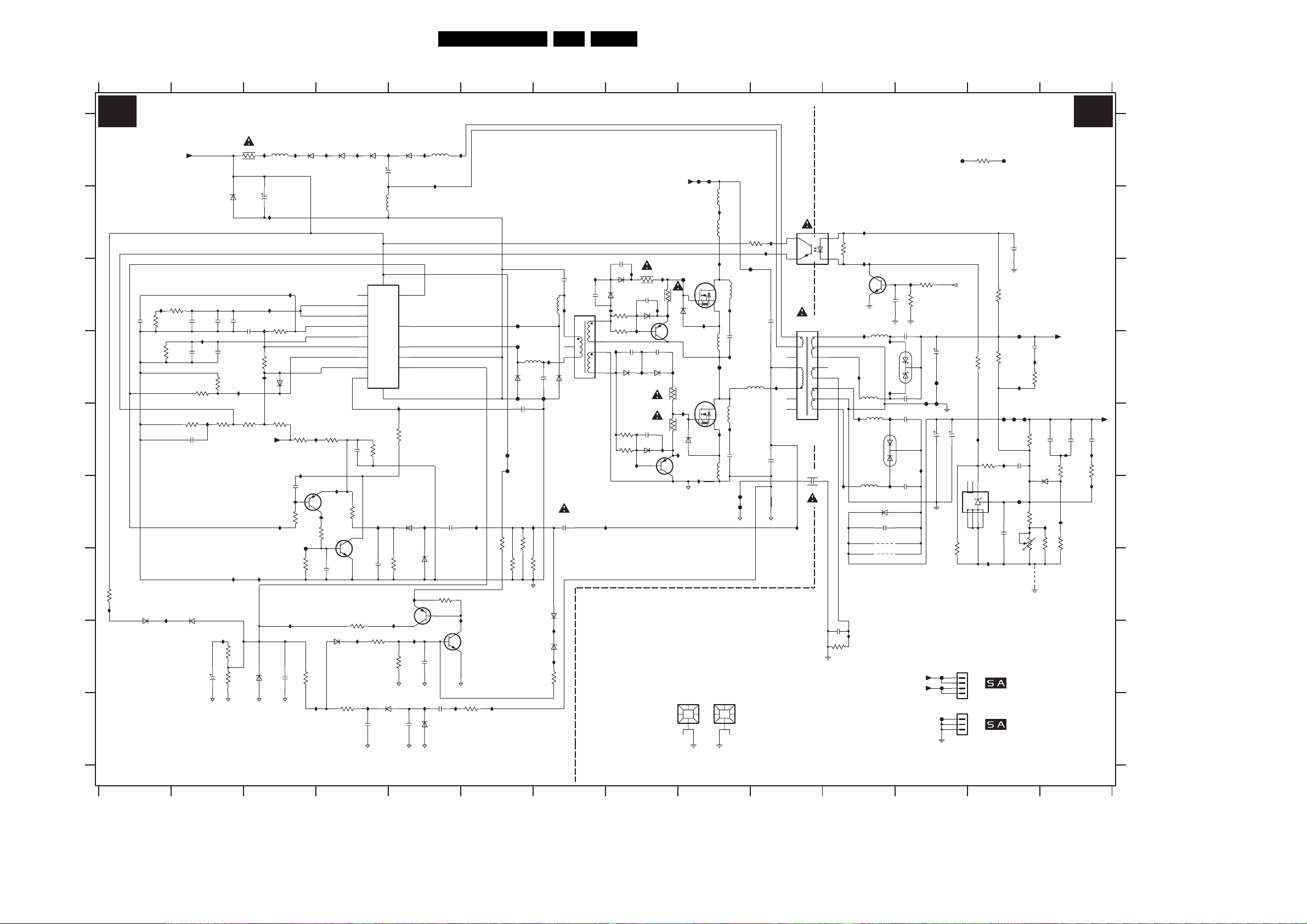

LCD Supply (32”): Supply
12
A2
A
B
C
D
E
F
G
H
I
3104 313 6063.2
SUPPLY (32”)
16V (0V) for US
20V4 (0V)
25V_HOT
I103
3002
39K
2K7
2040
560p
3003
3004
1234
2034
27K
100p
2009
3043
10R
20V4 (0V)
25V_HOT
6081
VS-CONTROLLER
100p
2005
3048
I104
I021
3009
BZX384-C22
I006
2035
100p
630V
2K7
3008
3K3
2002
2004
100p
I009
RES
6001
BAS316
330R
2007
3007
10K
I025
Circuit Diagrams and PWB Layouts
345
BIAS SUPPLY
3000
4R7
470u
16V (0V) for US
20V4 (0V)
25V_HOT
I007
630V
200p
2006
25V
1n0
3006
I010
400V_HOT
16V
470n
3066
10K
3067
100R
I096
I027
I008
3005
33K
10K
3058
5M6
I143
5017
122V(0V) for US
288V(0V)
3050
820K
SOFTSTART
CONTROL
I018
2027
RES
I022
6020
BAS316
9015
I146
CONTROL
MC34067P
I105
50V
15n
7017
BC857BW
I023
3064
F007
2026
3027
100K
I142
2010
BAS316
7001
9
1
2
3
16
6
8
7
11
3053
680K
10K
50V
2n2
RES
6082
9009
I020
EN|UA
OSCC
OSCR
OSCCC
OS
EAO
Ip
In
SOST
3012
I028
6009
PDZ18-B
I141
100u
I147 I014
I097
6080
BYG22D
9008 RES
15
5
VCC
VREF
14
OA
12
OB
13
PGND
10
FI
GND
4
I012
68K
1n0
3061
2050
CURRENT
PROTECTION
15K
I024
7018
BC847BW
2008
I029
3010
470R
3011
470R
3065
BYG22D
16V
470n
6022
6079
2016
100K
3013
BZX384-C4V7
I095
F004
6011
BAS316
10K
2019
F003
16V100n
12V (0V) for US
6077
BYG22D
6004
6005
I033
6010
I135
3047
47R
10n
46EL1.1U AA 7.
6789
22V(0V)
I098
2003
5015
BAT54 COL
5016
BAT54 COL
F008
BAS316
16V (0V) for US
20V4 (0V)
25V_HOT
BAS316
3068
6051
3033
1R0
1m0
9004
470p
2063
I108
470p
2064
F009
2015
10n
100R
I106
3001
I137
2K2
I136
I134
I148
I107
4
3
2
50V
7009
BC857BW
3070
1K0
6078
BYG22D
5009
S13932-04
3045
3071
3056
220R
5001
I139
I099
I100
5010
1m0
I101
I064
400V_HOT
2060
2n2
6003
BAS316
3035
I045
3K3
3016
3021
I140
7004
BC847BW
I052
2048
I109
3K3
3029
3K3
2065
2n2
6002
BAS316
2071
1n0
6028
I145
BAS316
22R
I132
1n0
6017
6
7
9
GND3
I039
2062
10
2n2
6008
BAS316
3028
3K3
3020
3K3
3019
3K3
I036
2077
22R
3046
100n
2018 RES
3075
1K0
2n2
6006
I133
BAS316
47n
2046
22R
I138
10K
HIGH SIDE
I003
BAS316
I004
100R
3017
I057
47R
3018
I059
I051
BC857BW
7008
GND3
6015
BAS316
I296
6014
BZX384-C22
I295
10K
3089
2047
10n
BAS316
F018
DRIVE
2061
2n2
6007
2072
I046
1n0
6027
BAS316
LOW SIDE
DRIVE
STP15NK50ZFP
6012
I011
567
F299
I042
7007
BC857BW
SML4744
3055
220R
7006
10 11 12 13
HOT GROUND
16V (0V) for US
20V4 (0V)
25V_HOT
I149
3100
32
10R
I001
5008
5007
STP15NK50ZFP
3014
I038
100R
3015
F002
47R
6013
I037
SML4744
I294
9024
F005
400V_HOT
FLM 1/6W
5013
I113
I112
2000V
1n5
2012
9025
5041
c002
c001
I055
GND3
I131
7005
5004
F029
I002
5005
I111
2000V
2013
1n5
I110
1600V
10n
2017
5040
I114
2011
10n
1600V
I084
I034
2014
I081
2n2
2000V
HOT GROUND
8
COLD GROUND
11V3 (0V)
7002
14
2K2
3069
10V2 (0V)
TCET1102(G)
5002
89
7
6
5
3
2
1
2652.0002 A
2000
470p
F023
F300
7030
BC847BW
5027
I116
5028
I117
10
11
I073
12
13
14
GND_SND
15
16
I076
I123
2290
10n50V
3292
560R
I070
I072
5025
5026
I124
GND_SND
I062
I063
0V (0V)
2039
2028
50V
1n0
3
STPS20L45CT
2044
1n0
I074
I077
I080
1007
I292
1009
HEATSINK
I005
470n
6044
50V
6045
STPS20L45CT
3
12
10K 3031
47K
3032
2
2
2029
50V
1n0
6021
STPS20H100CT
2045
50V
1n0
6025
STPS20H100CT
250V
T5A
372(5.000)
2291
470p
50V
6291
STPS8H100FP
6293
STPS8H100FP
2293
50V
470p
HEATSINK
1010
F021
1
2020
13
F012
F024
2
2
I290
I291
I293
DC_PROT
A2
2m2 25V
F028
F027
F017
F025
1
13
2292
2294
3999
1K0
F016
2021
2022
5293
2m2
5291
2m2
5292
1012
HEATSINK
25V2m2
9010
2038
4m716V
33u
33u
33u
F022
3022
4m7 16V
3030
3057
3052
680R
I120
I085
7010
TS2431
18K
2023
220R
+12V
2031
33K
3037
1
K
A
3
F297
VSND_POS
GND_SND
F298
VSND_NEG
COLD GROUND
91011
4K7
3059
2K2
33K
3044
470R
BC847BW
I017
2037
I013
3036
I015
7031
3042
12K
470n
+12V
3049
470n
6030
I016
BAS316
3051
4K7
10n
RES
I119
3054
RES
15K
24V4 (0V)
2051
220n
2052
220n
2053
220n
2033
220n
33K
3024
MRS25 1%
3025
F296
1%
470R
3026
6023
BAS316
1K8
I093
3034
1M02
1304
1309
I088
RES
1%
7
6
5
4
3
2
1
1
2
3
4
1
2
3
+24V
+12V
3023
15K
R
I094
F293
F294
I089
2
2030
DC_PROT
F292
F290
F295
F001
F010
A2
2024
220n
16V
100n
Vs
Voltage
Adj.
F006
16V
F014
12 13
6054
470n
2036
100K
BZX384-C10
1K0
3039
I150
ONLY FOR
32" SHARP
2041
220n
2042
220n
2043
220n
2025
220n
I121
8K2
3040
I092
33K
3041
9002
TO 1M02
AUDIO - STBY
TO 1304
AUDIO - STBY
TO 1309
AUDIO - STBY
F_15710_002.eps
+24V
2032
3038
I122
300106
1007 G10
1009 H10
1010 H11
1012 H11
1304 H13
1309 I13
1M02 G13
2000 E9
2002 A2
2003 A5
2004 C2
2005 D2
A
2006 C2
2007 E2
2008 F4
2009 D1
2010 H3
2011 E9
2012 E8
2013 C8
2014 F9
2015 F5
2016 E4
2017 D9
2018 F6
B
2019 H4
2020 C11
2021 B11
2022 E11
2023 A12
2024 E12
2025 E13
2026 G3
2027 E3
2028 B10
2029 D11
2030 F12
C
2031 B12
2032 E13
2033 E13
2034 C1
2035 C2
2036 A13
2037 B13
2038 D11
2039 B10
2040 C1
2041 D13
D
2042 D13
2043 D13
2044 C10
2045 E11
2046 I6
2047 I7
2048 I6
2050 E3
2051 D13
2052 D13
4n7
RES
2053 D13
2060 C6
E
2061 B7
2062 D6
2063 C5
33K
RES
2064 D5
2065 D7
2071 E7
2072 C7
2077 H6
2290 G10
2291 G11
2292 G11
2293 H11
F
2294 H11
3000 A2
3001 G5
3002 C1
3003 C1
3004 D1
3005 C3
3006 D2
3007 E2
3008 E2
3009 E2
G
3010 H4
3011 H4
3012 F3
3013 F4
3014 B7
3015 C7
3016 C7
3017 D7
3018 E7
3019 F6
3020 E6
3021 F6
H
3022 C11
3023 E12
3024 E13
3025 F13
3026 G13
3027 G3
3028 E6
3029 C7
3030 F11
3031 A11
3032 B10
3033 A5
I
3034 F13
3035 C7
3036 A13
3037 C12
3038 E13
3039 A13
3040 E13
3041 F13
3042 B13
3043 D1
3044 A13
3045 F6
3046 F6
3047 H5
3048 D2
3049 A12
3050 E3
3051 B12
3052 C12
3053 E3
3054 C12
3055 I7
3056 I6
3057 A12
3058 E2
3059 A13
3061 E4
3064 F3
3065 E4
3066 F2
3067 H2
3068 G5
3069 A10
3070 H5
3071 H6
3075 G6
3089 H7
3100 A9
3292 G10
3999 A11
5001 C6
5002 C9
5004 C8
5005 C9
5007 B8
5008 B8
5009 B5
5010 A6
5013 D8
5015 C5
5016 D5
5017 A3
5025 D10
5026 E10
5027 B10
5028 C10
5040 D9
5041 E8
5291 G11
5292 H11
5293 G11
6001 D2
6002 D7
6003 C6
6004 C5
6005 D5
6006 I6
6007 C7
6008 D6
6009 H3
6010 F4
6011 F4
6012 E7
6013 C8
6014 H7
6015 G7
6017 I7
6020 H3
6021 D11
6022 H4
6023 E13
6025 E11
6027 C7
6028 E7
6030 A12
6044 B10
6045 C10
6051 H5
6054 A13
6077 A5
6078 A6
6079 A4
6080 A4
6081 A2
6082 A3
6291 G11
6293 G11
7001 C3
7002 A9
7004 H6
7005 C8
7006 D7
7007 C7
7008 F7
7009 G6
7010 E12
7017 F3
7018 F3
7030 A10
7031 B13
9002 G13
9004 B5
9008 A4
9009 A3
9010 C11
9015 H3
9024 C8
9025 E7
F001 H12
F002 C8
F003 C4
F004 D4
F005 D8
F006 I12
F007 F3
F008 D5
F009 D5
F010 H12
F012 D11
F014 F12
F016 B11
F017 D11
F018 B7
F021 A11
F022 A12
F023 F9
F024 D11
F025 D11
F027 C11
F028 C11
F029 D8
F290 G12
F292 G12
F293 G12
F294 H12
F295 H12
F296 G13
F297 G12
F298 H12
F299 B7
F300 F9
I001 B8
I002 B9
I003 B6
I004 D7
I005 A10
I006 B2
I007 C2
I008 C2
I009 C2
I010 D2
I011 H7
I012 D4
I013 A13
I014 A13
I015 A13
I016 A12
I017 B13
I018 E3
I020 E3
I021 E2
I022 F3
I023 F3
I024 F4
I025 F2
I027 C3
I028 G3
I029 G4
I033 F5
I034 F8
I036 F6
I037 C7
I038 B8
I039 D6
I042 B7
I045 C6
I046 C7
I051 E7
I052 D6
I055 F8
I057 E7
I059 E7
I062 A10
I063 A10
I064 B6
I070 B10
I072 C10
I073 D10
I074 D10
I076 E10
I077 D10
I080 F10
I081 F9
I084 F9
I085 E12
I088 E13
I089 E12
I092 F13
I093 F13
I094 F12
I095 A4
I096 A3
I097 A3
I098 A5
I099 A6
I100 A6
I101 A6
I103 C1
I104 D2
I105 E3
I106 G5
I107 C5
I108 D5
I109 C7
I110 D8
I111 C8
I112 E8
I113 E8
I114 D9
I116 C10
I117 C10
I119 C12
I120 C12
I121 E13
I122 E13
I123 F10
I124 G10
I131 I8
I132 I7
I133 I6
I134 I5
I135 G5
I136 H5
I137 G5
I138 H6
I139 G6
I140 G6
I141 H3
I142 H3
I143 H3
I145 E7
I146 A3
I147 A4
I148 A5
I149 A9
I150 B13
I290 G11
I291 G11
I292 H10
I293 H11
I294 C8
I295 H7
I296 G7
c001 F8
c002 F8
Page 47
Circuit Diagrams and PWB Layouts

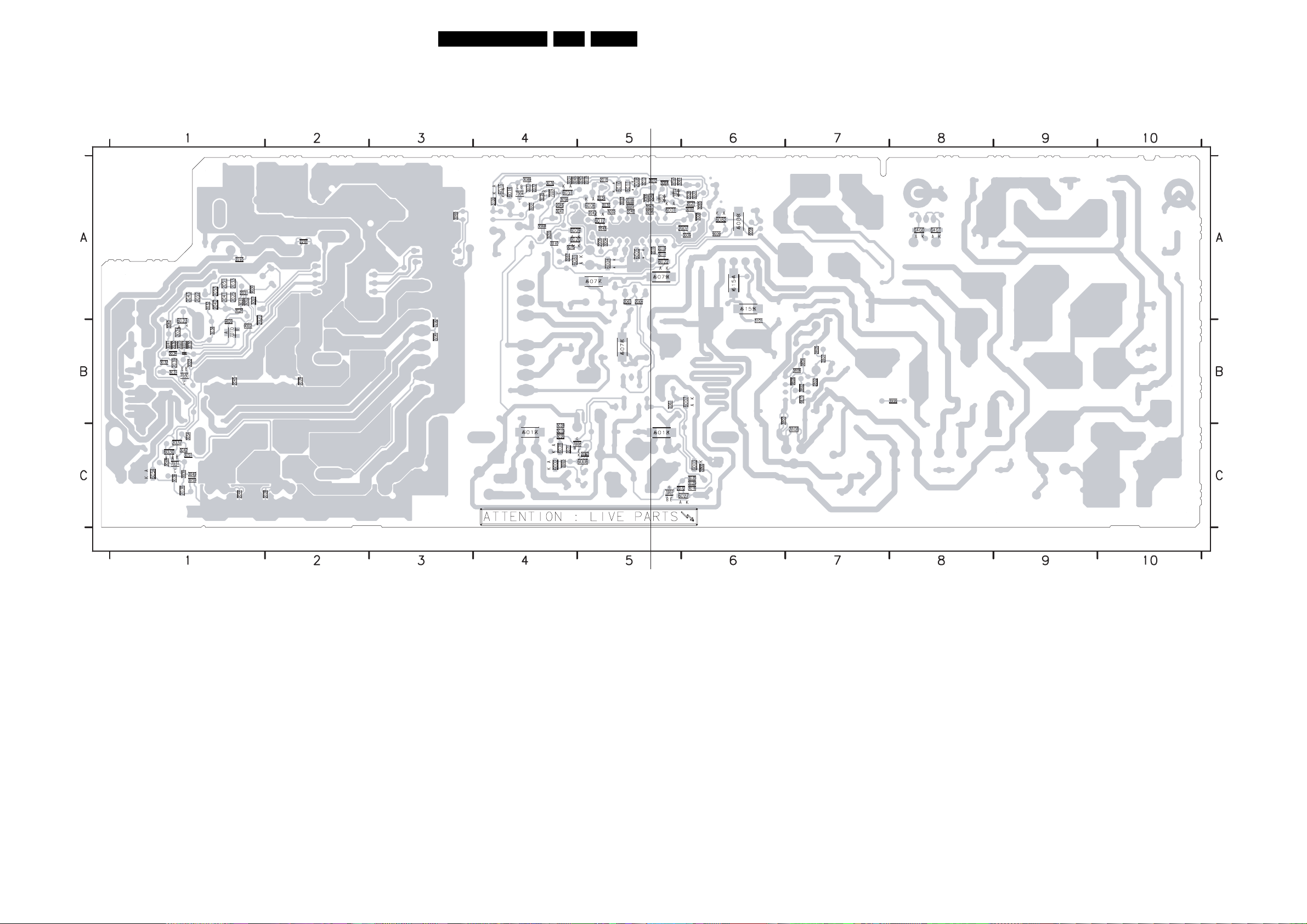

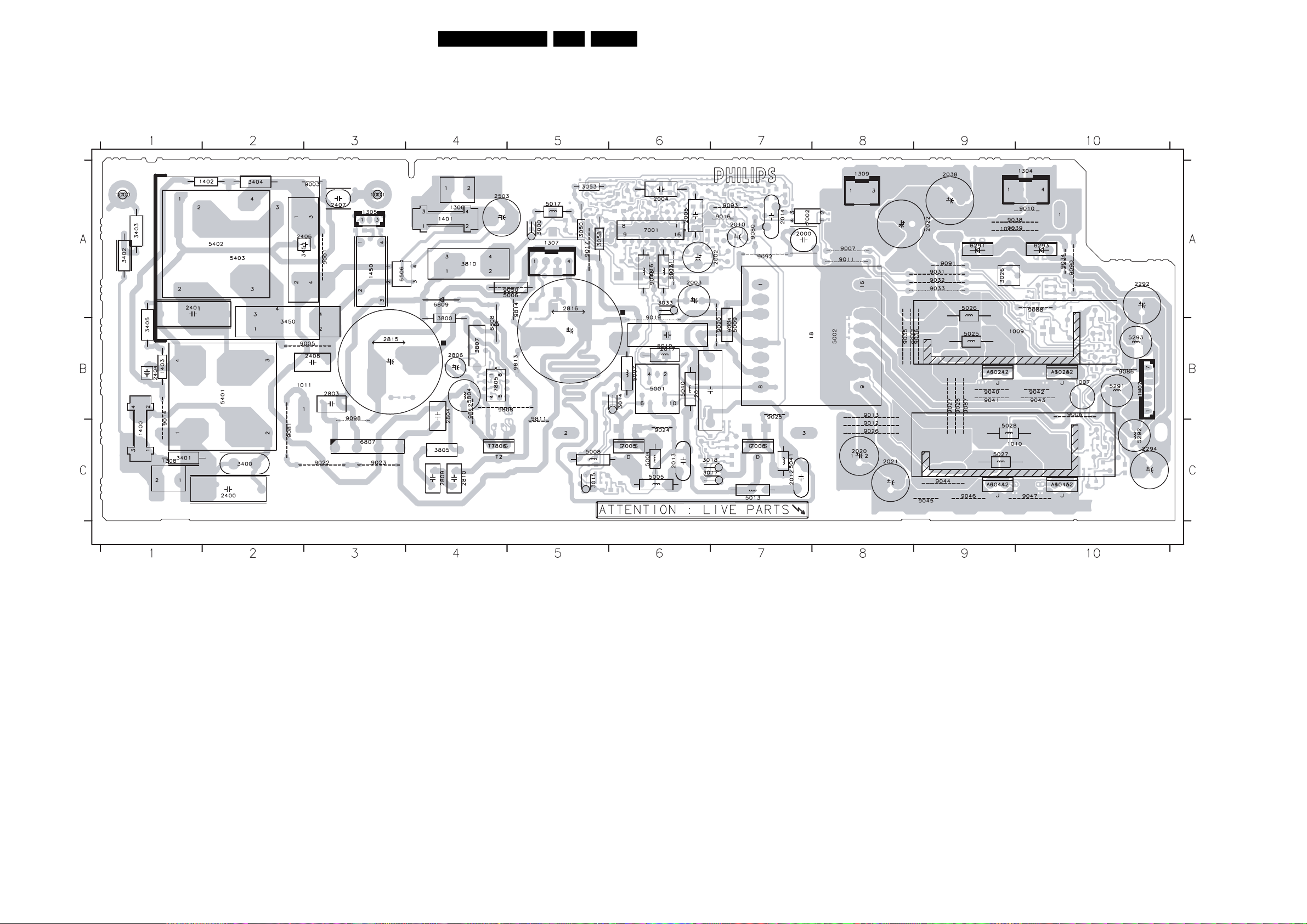

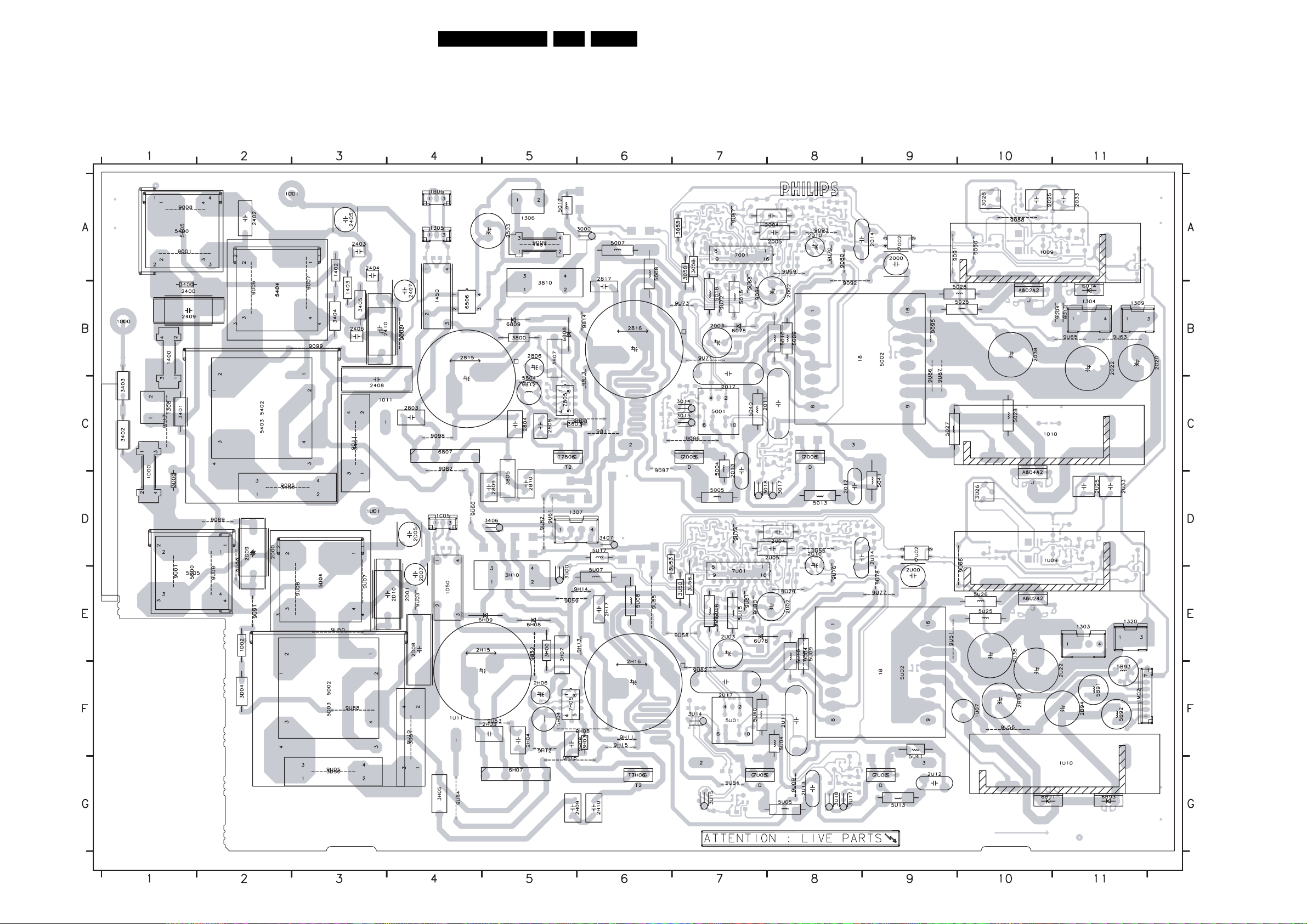

Layout LCD Supply (32”) (Top Side)
1000 A1
1001 A3
1007 B10
1009 B9
1010 C9
1011 C3
1012 A9
1304 A10
1305 A3
1306 A4
1307 A5
1308 C1
1309 A8
1400 C1
1401 A4
1402 A2
1403 B1
1450 A3
1M02 B10
2000 A7
2002 A7
2003 A6
2004 A6
2005 A6
2010 A7
2011 B7
2012 C7
2013 C6
2014 A7
2017 B6
2020 C8
2021 C8
2022 A8
2038 A9
2292 A10
2294 C10
2400 C2
2401 B1
2404 B1
2406 A3
2407 A3
2408 B3
2503 A4
2803 B3
2804 B4
2806 B4
2809 C4
2810 C4
2815 A3
2816 A6
3000 A5
3014 B6
3015 C5
3017 C7
3018 C7
3026 A9
3033 A6
3050 A5
3053 A5
3058 A5
3400 C2
3401 C2
3402 A1
3403 A1
3404 A2
3405 B1
3450 A2
3451 A2
3800 A4
3805 C4
3807 B4
3810 A4
5001 B6
5002 A7
5004 C6
5005 C6
5006 A4
5007 B6
5008 C5
5009 B7
5010 B6
5013 C7
5015 A6
5016 A6
47EL1.1U AA 7.
5017 A5
5025 B9
5026 A9
5027 C9
5028 C9
5040 B6
5041 C7
5291 B10
5292 C10
5293 B10
5401 B2
5402 A1
5403 A2
5804 B4
6021 B9
6025 B10
6044 C10
6045 C10
6291 A9
6293 A10
6506 A4
6807 C3
6808 A4
6809 A4
7001 A6
7002 A7
7005 C6
7006 C7
7805 B4
7806 C4
9001 A3
9003 A3
9004 A7
9005 B3
9006 C10
9007 A8
9010 A10
9011 A8
9012 C8
9013 B8
9014 B1
9016 A7
9017 A5
9018 A6
9019 A6
9020 B7
9021 A6
9022 C3
9023 C3
9024 C6
9025 B7
9026 C8
9027 B9
9028 B9
9031 A9
9032 A9
9033 A9
9034 A10
9035 B8
9036 B9
9037 B8
9038 A9
9039 A9
9040 B9
9041 B9
9042 B10
9043 B10
9044 C9
9045 C9
9046 C9
9047 C10
9050 A5
9080 A7
9081 C2
9086 B10
9087 B9
9088 A10
9090 A10
9091 A9
9092 A7
9093 A7
9098 B3
9808 B5
9811 B5
9812 C4
9813 B5
9814 A5
3104 313 6063.2
F_15710_003.eps
080905
Page 48
Circuit Diagrams and PWB Layouts
Layout LCD Supply (32”) (Overview Bottom Side)
2006 A5
2007 A6
2008 A5
2009 A5
2015 A5
2016 A5
2018 A5
2019 A5
2023 B1
2024 B1
2025 A1
2026 A6
2027 A6
2028 C2
2029 B2
2030 B1
2031 A1
2032 A1
2033 A1
2034 A5
2035 A5
2036 C1
2037 C1
2039 B1
2040 A5
2041 A1
2042 A1
2043 A1
2044 C1
2045 B1
2046 A4
2047 A5
2048 A5
2050 A5
2051 A1
2052 A1
2053 A1
2060 C6
2061 B5
2062 C5
2063 A5
2064 A5
2065 C4
2071 C4
2072 C5
2077 A4
2290 B3
2291 A2
2293 A1
2802 B7
2805 B7
2807 B7
2808 C7
3001 A4
3002 A5
3003 A5
3004 A5
3005 A5
3006 A5
3007 A6
3008 A6
3009 A6
3010 A4
3011 A5
3012 A5
3013 A5
3016 C6
3019 C4
3020 C4
3021 A4
3022 B1
3023 B1
3024 A1
3025 B1
3027 A6
3028 C4
3029 C6
3030 B1
3031 B1
3032 B1
3034 B1
3035 C6
3036 C1
3037 A1
48EL1.1U AA 7.
3038 B1
3039 C1
3040 B1
3041 B1
3042 C1
3043 A5
3044 C1
3045 A5
3046 A4
3047 A4
3048 A5
3049 C1
3051 C1
3052 A1
3054 C1
3055 A4
3056 A4
3057 A1
3059 C1
3061 A5
3064 A5
3065 A6
3066 A5
3067 A4
3068 A4
3069 A3
3070 A4
3071 A4
3075 A4
3089 A4
3100 A4
3101 B6
3292 B3
3802 B7
3803 B6
3804 B7
3806 B7
3999 B8
6001 A5
6002 C4
6003 C6
6004 A5
6005 A5
6006 A5
6007 B6
6008 C5
6009 A4
6010 A5
6011 A5
6012 B4
6013 C5
6014 A4
6015 A4
6017 A5
6020 A4
6022 A5
6023 A1
6027 C6
6028 C4
6030 C1
6051 A4
6054 C1
6077 A5
6078 B5
6079 A5
6080 A6
6081 A4
6082 A6
6154 A6
6155 B6
6460 A8
6461 A8
7004 A4
7007 C5
7008 C4
7009 A4
7010 B1
7017 A5
7018 A5
7030 B1
7031 C1
9002 B1
9008 A6
9009 A6
9015 A4
9030 A1
9085 B1
9806 B7
9810 B7
9820 B1
Part 1
F_15710_004a.eps
Part 2
F_15710_004b.eps
3104 313 6063.2
F_15710_004.eps
080905
Page 49
Circuit Diagrams and PWB Layouts

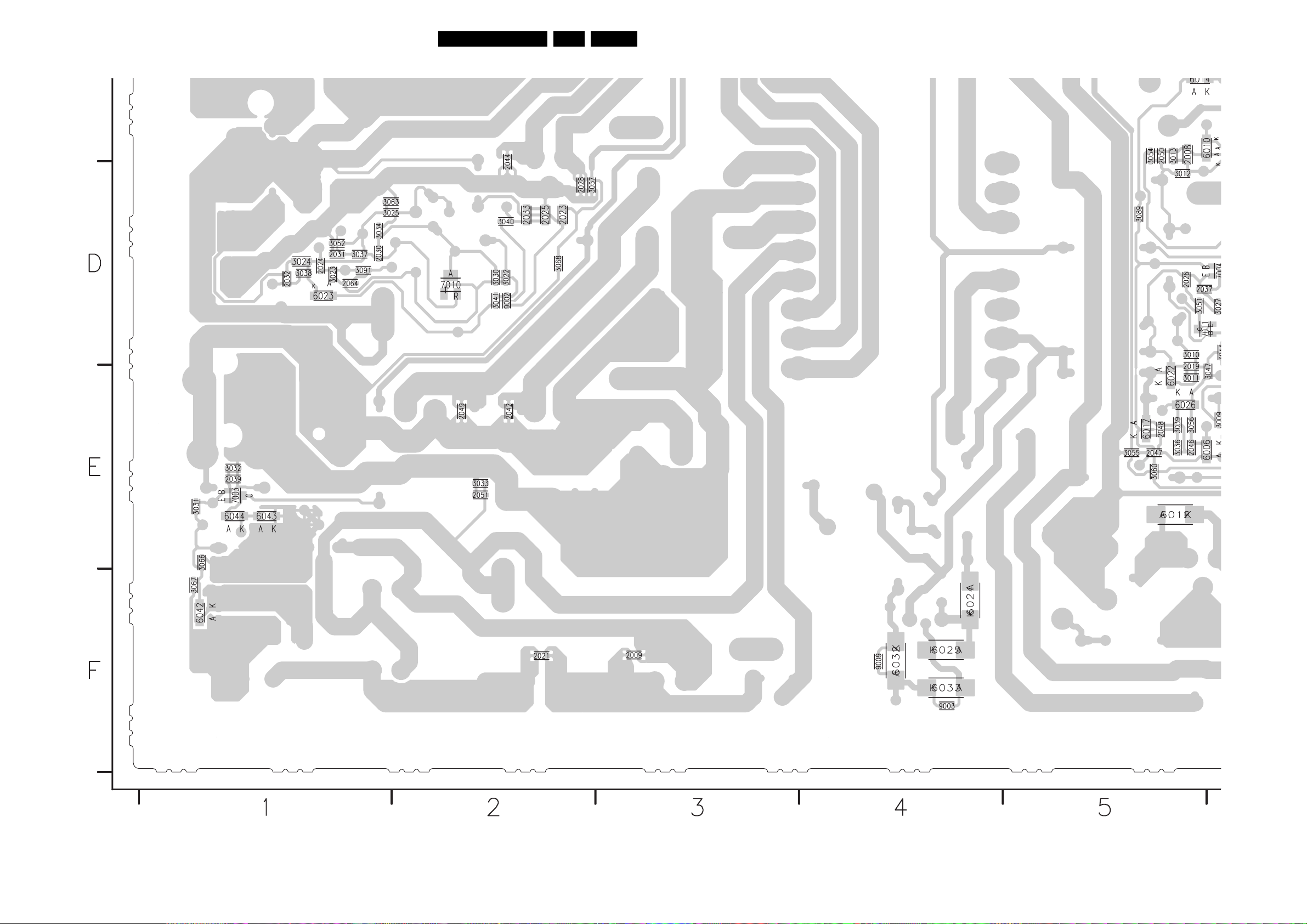

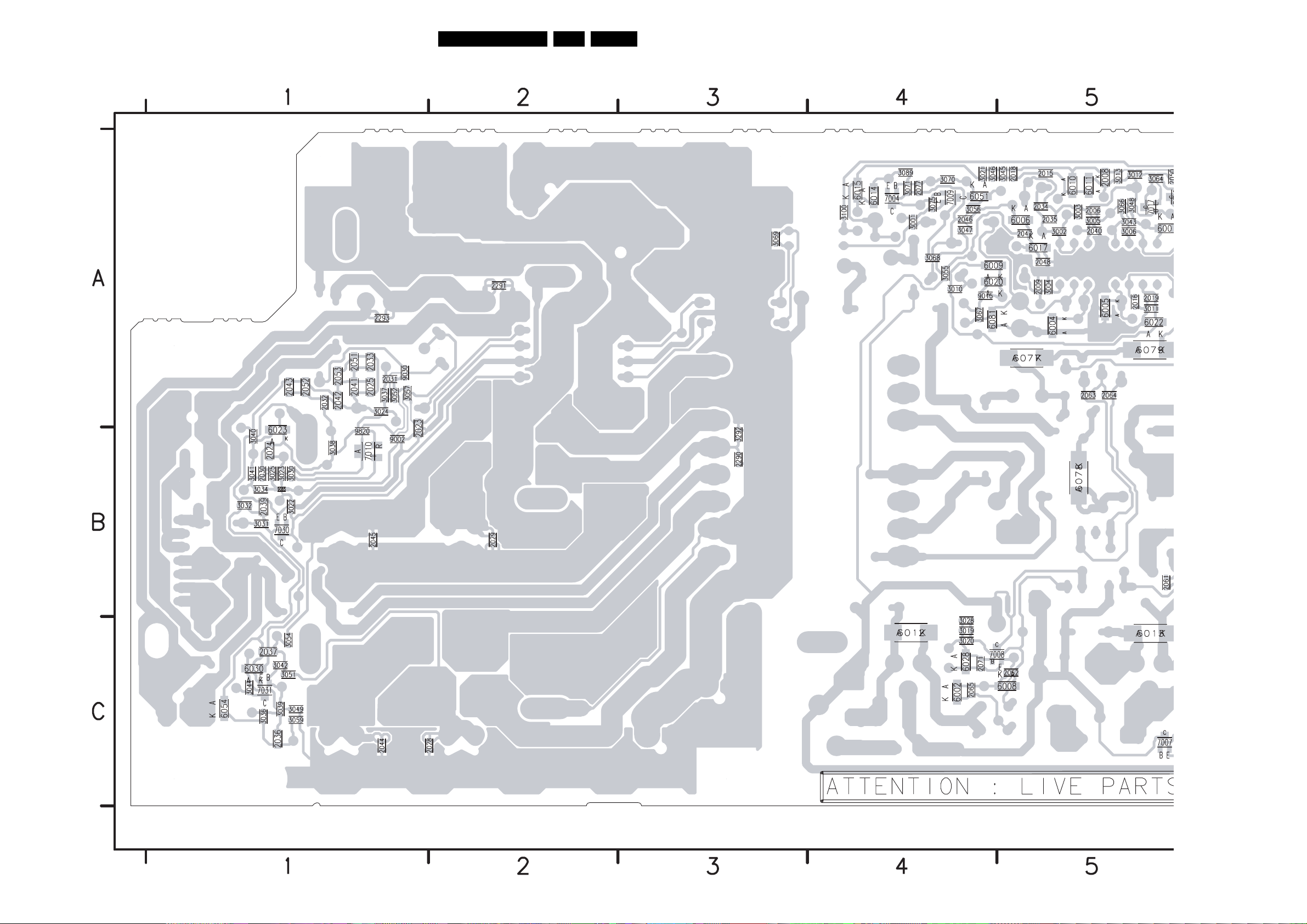

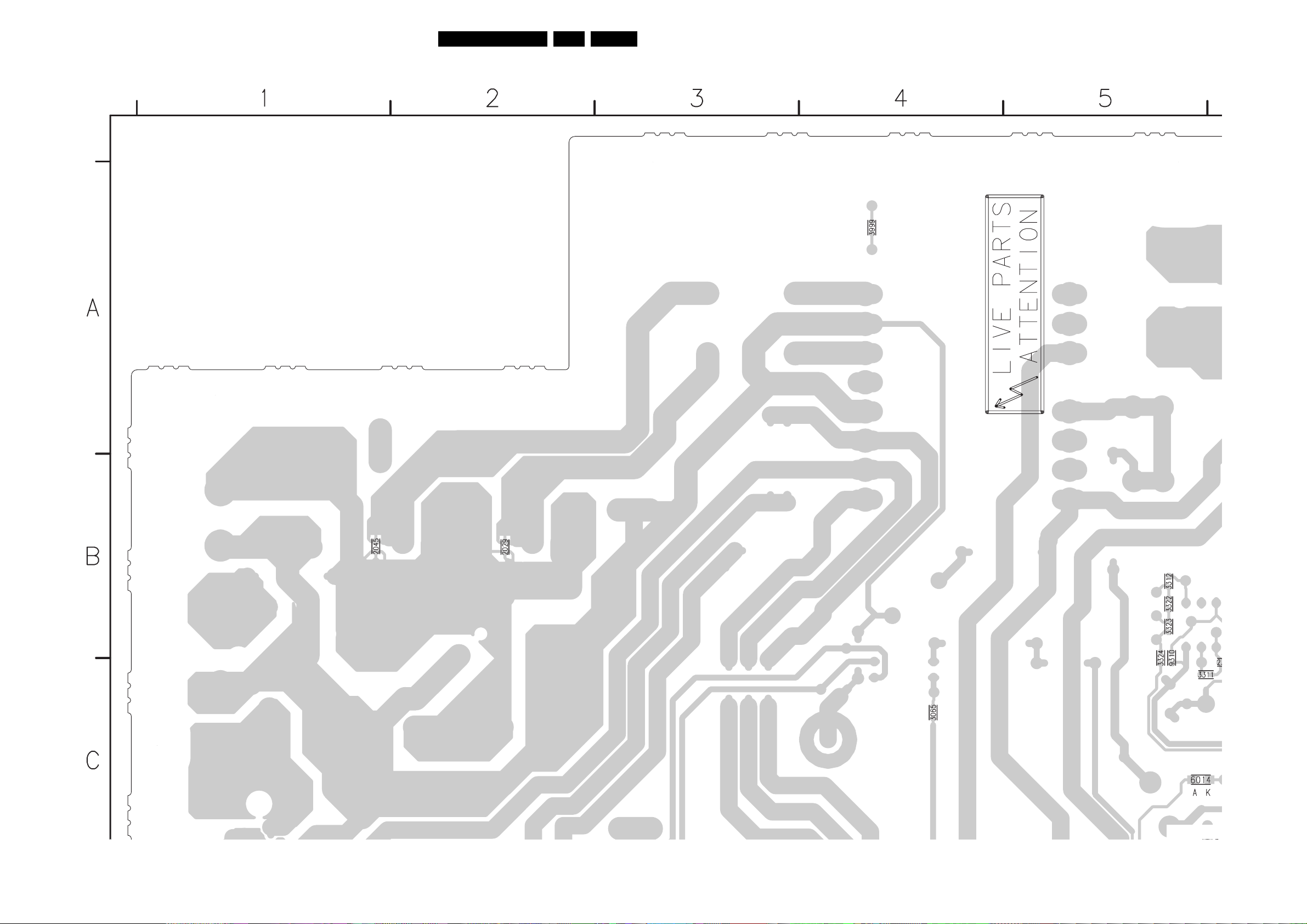

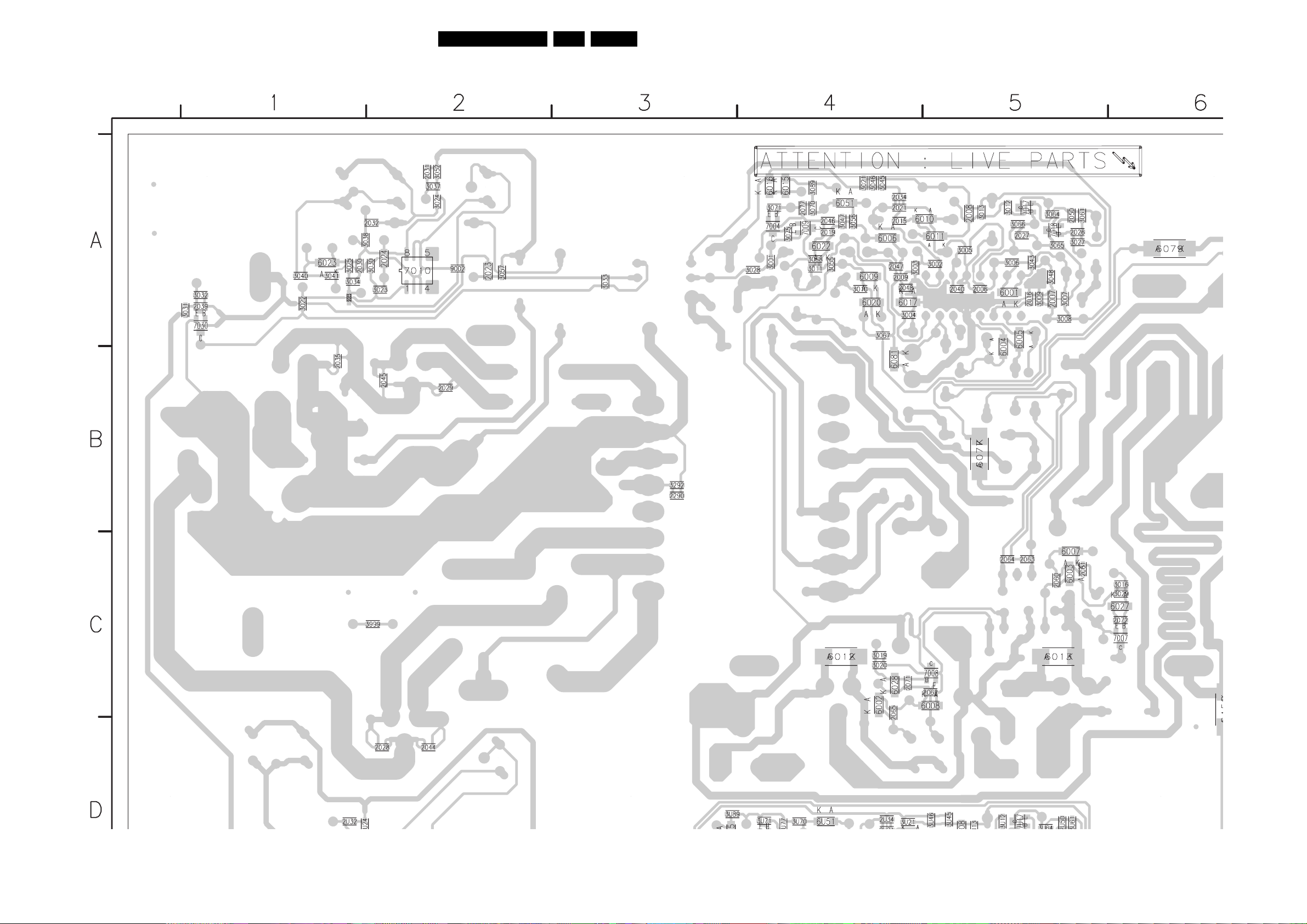

Layout LCD Supply (32”) (Part 1 Bottom Side)
Part 1
49EL1.1U AA 7.
F_15710_004a.eps
090905
Page 50
Circuit Diagrams and PWB Layouts

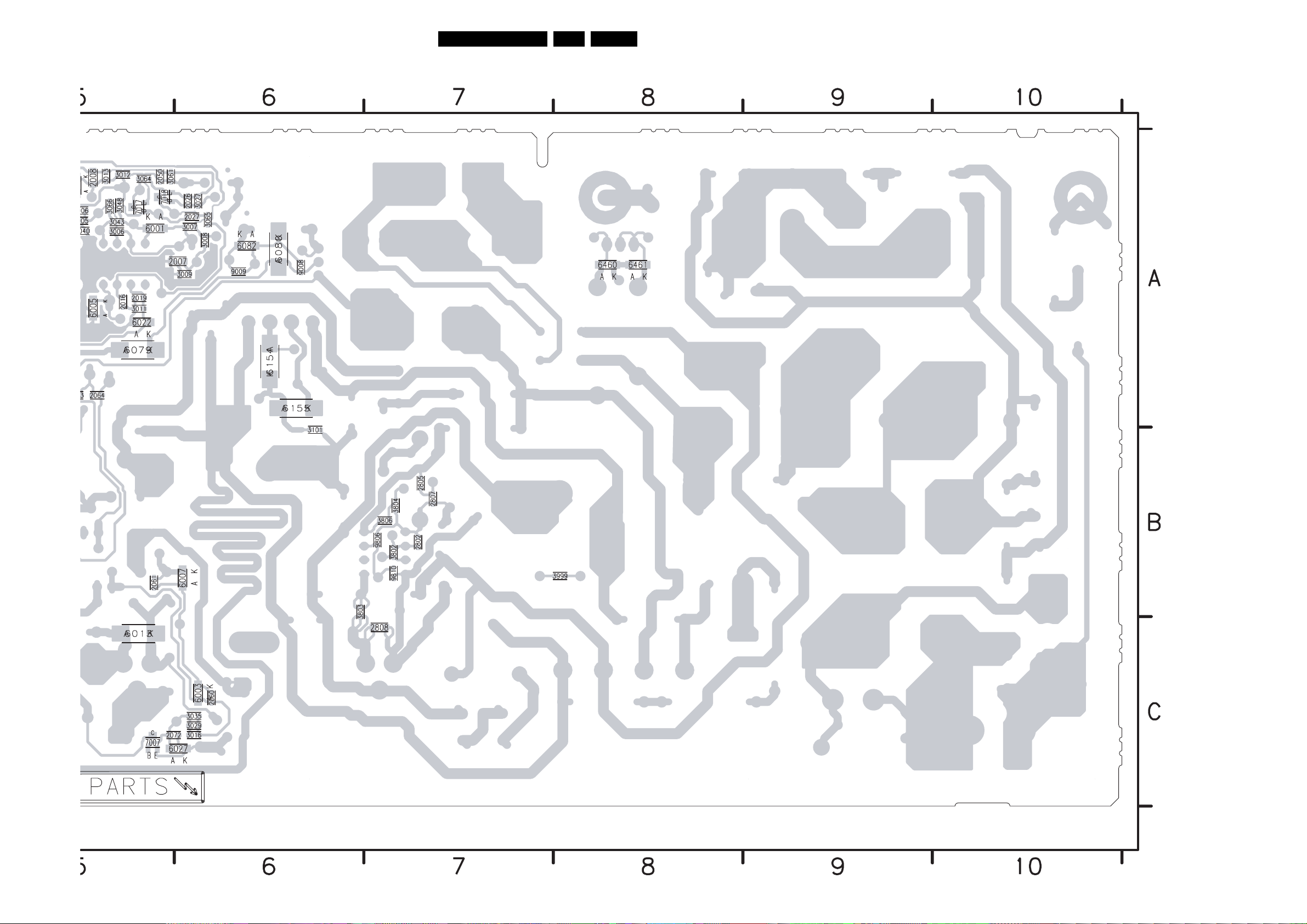

Layout LCD Supply (32”) (Part 2 Bottom Side)
50EL1.1U AA 7.
Part 2
F_15710_004b.eps
090905
Page 51
Circuit Diagrams and PWB Layouts
LCD Supply (37”): Mains Filter + Standby
1002 D1
1003 C4
1005 B4
1300 E4
1301 E4
1302 B4
1303 C4
1305 G9
1306 G2
1307 E2
1308 C1
1311 E6
1312 E7
1314 C2
1315 F3
1350 D9
2300 C3
2301 C4
2302 D5
2303 E8
2304 D11
2305 F11
2307 E4
2309 F13
2310 D11
2311 C11
2313 F11
2314 F13
2315 C12
2316 D12
2317 C12
2318 E5
2319 B10
2320 D12
2321 C13
12
2323 C3
2324 C4
2325 D6
2327 B10
2328 E1
2329 E2
34567891011121314
2330 F10
2331 F10
3300 C3
3301 C2
3302 D2
3303 E2
3304 B5
3305 C4
3306 B141004 G9
3307 F10
3308 C14
3309 E10
3310 B13
3311 F11
3312 E12
3313 F10
3314 F13
3316 D6
3317 D6
3318 C10
3319 D6
3320 D7
3321 F10
3322 E12
3323 E12
3324 E12
5303 D6
5304 F13
5305 C4
5306 C5
5307 D3
5308 D12
6304 B10
6305 B11
6306 D8
6307 C11
6308 E10
6309 E10
6314 C14
6315 A12
6316 B13
6317 C13
6318 B13
6354 C14
6355 B13
6360 E9
6361 E9
7305 E11
51EL1.1U AA 7.
7306 E13
7307 B14
9301 D14
9302 C12
9303 D5
9304 F10
9308 D12
9309 C5
9310 E11
9311 C14
9312 F13
9315 E3
9316 G3
F410 C1
F411 C2
F412 C2
F413 C2
F414 C2
F415 D2
F416 D2
F417 D2
F418 D2
F419 D2
F420 D8
F421 E8
F422 F9
F423 F9
F424 F2
F524 C14
I297 D5
I299 E5
I410 C3
I411 C5
I412 C5
I413 C10
I415 D8
I416 D4
I419 D2
I424 E9
I444 D8
I445 C8
I810 C11
I811 C11
I812 C11
I813 C11
I814 E10
I815 F10
I816 F10
I817 D11
I820 F10
I821 B4
I822 E12
I823 E12
I824 E12
I825 E13
I826 F13
I827 D7
I828 B13
I829 B14
I830 A13
I832 C13
I833 B14
I834 C14
I835 B10
I836 B10
I837 E13
I838 F13
I839 E11
I840 E11
I841 F11
I842 F10
I844 C4I831 C13
I846 C4
I860 F10
I861 E10
I862 D12
I863 E2
A1 A1
MAINS FILTER + STANDBY (37”)
A
2315
330u
I830
6316
BZX384-C33
I828
6355
BYG10
47K
6318
3310
BAS316
330u
2321
330u
I831
I832
7306
I837
2314
AVS10CB
47n
I838
100u
5304
13 14
9312
6317
2309
I826
3314
7307
I833
9311
BZX384-C33
I834
I825
56n
4R7
3308
B
MAINS INPUT
C
95-264Vac
D
E
F
G
3104 313 6082.2
12345678910
F412
F411
F410
1308
2
1
1002
2
1
2328
F415
100p
3301
F418
2329
1307
1
To 1306
Standby Audio
25V_HOT
6304
BAS316
I413
1N5062
1N5062
I816
22K
3309
3321
3313
I820
I842
2327
1M0
2K7
18K
I836
1u0
2319
470n
I835
3318
470R
I861
AVS1ACP08
2330
9304
I860
2331
6305
BAS316
I810
I811
I812
GBJ6J
56n
2310
9310
4
7305
VDD
76
MODE
VM
23
OSIN
OSOUT
47n
VSS
1
I841
47n
2305
100p
I813
6307
NC
VG
3311
100K
2313
47u 50V
MAINS FILTER
1005
V_NOM
1302
500V
1003
V_NOM
1303
I844
500V
5305
2
14
DMF3547HB60
V
2
5307
1
9315
1300
1
271V(297V)
3
3
4
DMF2405H60
2300
470n
I410
2323
T1AE 250V
PTF/65
470n
3300
COLD GROUND
1315
9316
1314
F414
F413
PTF/65
T5AH 250V(EUR)
T5AH 250V(AP)
T5AH 250V(US)
4M7
F416
100p
I863
F419
F417
4M7
3302
I419
4M7
3303
F424
1306
1
2
GNDHOT
3305
220R
2324
I416
2307
GND screw
I821
I846
1301
470n
470n
2301
470p
1
3304
220R
9309
I411
2
14
DMF3547HB60
5306
9303
I299
2318
I412
3
2302
I297
470p
470n
2325
3317
I445
470n
2303
I415
F420
10u
I444
3319
1R0
1R0
DTH40203H65
12
1311
HEATSINK
1R0
3316
5303
43
GND4
3320
I827
1312
HEATSINK
1R0
6306
DF06M
F421
GNDHOT
3
(0V)
5V0
COLD GROUND
1305
123
1350
G5PA-1-5VDC
6361
I424
6360
RELAY +
F423
1004
B3B-EH-A
BAS316
BAS316
F422
123
2
14
RELAY -
6309
I814
6308
I815
3307
B3B-EH-A
To 1305 To 1306
399V_HOT
272V(30V)
56n
2311
400V_HOT
56n
2304
I817
3312
I822
58
100R
I839
3322
I840
100R
2316
100R
I823
2317
9308
3323
6315
BZG03-C200
400V_HOT
10n
9302
5308
I862
330u
2320
I824
3324
100R
Standby Audio
11 12
25V_HOT
1K0
3306
I829
TCET1102(G)
LATCH
F524
22K
6354
6314
BYG10
9301
G_16290_017.eps
300106
A
B
C
BZG03-C200
D
E
F
G
Page 52
Circuit Diagrams and PWB Layouts
52EL1.1U AA 7.
LCD Supply (37”): Supply
12345678910111213
3023
I094
+24Vb
4K7
4K7
3079
+24Va
4K7
4K7
3090
3057
3052
220R
15K
3063
F016
I120
470n
2023
2031
10K
3037
F021
+12V
10n
I853
15K
3999
1K0
F022
24V5(0V)
F024
F012
39K
I089
2024
10K
I030
7010
2m2
2m2
2
TS2431
2041
5020
33u
5018
33u
5019
33u
2030
3091
1R0
F297
F290
F014
50V
15n
3026
4m716V
2043
F293
VSND_POS
GND_SND
F294
F298
VSND_NEG
100n
3025 3024
MRS25 1%
2065
4m7 35V
F292
F295
BAS316
1K5
470R
+24Vb
3066
100K
6023
I093
35V4m7
3034
2033
6042
1u0
3040
I092
3041
BAS316
F025
16V1u0
4n7
2032
2025
I088
I121
33K
8K2
3038
I122
33K
9002
6044
BAS316
I026
6043
BAS316
F296
DC_PROT
1M02
To 1M02
Standby Audio
G_16290_018.eps
+24Vb
7
6
5
4
3
2
1
300106
A2 A2
SUPPLY (37”)
3000
25V_HOT
17V4
I096
4R7
5017
I097
9009
I005 I006
6032
BYG22D
9003
6033
BYG22D
(0V)
I849
2040
VS-CONTROLLER
3059
100K
560p
4K7
3003
27K
3004
3043
10R
3009
I021
3K3
2007
470n
16V
3010
I141
470R
2010
100u
I011
3002
2K2
100p
2058
I009
100p
2005
100p
2062
2K7
3048
I847
3007
3008
10K
330R
I025
I028
3011
470R
2061
I029
6022
100p
2004
I010
6038
3058
5M6
400V_HOT
3044
10K
BZX384-C4V7
I027
200p
2006
25V1n0
3006
BAS316
272V(30V)
3050
1M5
SOFTSTART
CONTROL
I018
50V
15n
2027
I022
F007
3027
100K
3047
47R
10n
2019
I008
10K
3005
33K
I023
3051
2026
I134
BC857BW
7011
10K
50V
2n2
BAS316
I020
3012
I135
6026
3056
220R
BIAS SUPPLY
18V6
(0V)
6025
BYG22D
2003
CONTROL
3049
100K
CURRENT
PROTECTION
22K
I024
7012
BC847BW
2008
3042
2K2
3039
I136
1K0
I133
BAS316
47n
2046
I098
I007
16V
470n
LATCH
6006
1m0
I012
3013
BC857BW
I137
3060
6024
BYG22D
9
1
2
3
16
6
11
6011
BAS316
10K
I139
7009
10K
2048
4K7
4K7
4K7
3072
3070
3071
5010
1m0
I101
15
VCC
MC34067P
PGND
GND
4
1n0
3054
BAS316
2n2
2037
2047
10n
BAS316
VREF
OA
OB
FI
68K
3028
1K0
I100
9008
680u
2002
5
6035
14
12
13
10
I295
6020
BAS316
9017
6018
PDZ18-B
3035
100R
I296
I036
2015
50V
10n
2063
I140
7004
BC847BW
I850
3055
I131
220R
HOT GROUND
100n
F425
5009
BAS316
3001
6036
F030
6005
F008
100R
3045
BAS316
5016
BAT54 COL
2053
2016
100n 16V
3046
22R
6015
I040
6014
I041
3089
HOT
F003
I108
470p
I034
22R
3021
BAS316
BZX384-C33
10K
2054
5015
6004
22R
470p
4
2
BAT54 COL
F009
3
I107
S13932-04
2014
2n2
I851
2057
5001
2000V
COLD
2000
2060
400V_HOT
470p
11V3
7002
32
TCET1102(G)
400V_HOT
10V2
(0V)
5011
BS51312-01
5002
1600V
33n
2017
2059 15n
I114
I845
33n
1600V
15n
I084
F299
400V_HOT
F018
5007
2055
2n2
I042
BAS316
I109
I052
6028
BAS316
I145
6027
3014
100R
2036
2035
I055
1n0
2052
2n2
6002
BAS316
1n0
I014
HIGH SIDE
DRIVE
I038
F002
47R
3015
I046
6013
I037
BC857BW
7007
I855
LOW SIDE
DRIVE
100R
3017
STP15NK50ZFP
I057
47R
3018
I059
6012
I051
BC857BW
7008
I064
7005
STP15NK50ZFP
BZG05C15
I294
9013
7006
BZG05C15
9001
c002
5004
I112
5027 5008
3065
1K0
2056
2n2
6007
BAS316
2n2
6003
3062
BAS316
3K3
3016
I045
3K3
6
3029
3K3
7
I039
9
6008
10
BAS316
3061
3K3
3020
3K3
3019
3K3
I013
I852
399V_HOT
5005
I111
2013
I110
F005
FLM 1/6W
5013
I113
2012
2000V
1n5
9011
5012
9012
2000V
1n5
F029
9014
2011
GND3
c001
I081
GND4
2001
+24Va
+24Vb
F301
F300
9004
1105
1106
1107
1108
1
2
+24Vb
1
+12V
2
1
2
1
2
F302
1304
1
2
3
4
Standby Audio
1309
1
2
3
Standby Audio
470p
To 1304
HEATSINK
To 1309
HEATSINK
(0V)
1109
1113
14
I015
I016
I017
3068
BC847BW
I003
HEATSINK
HEATSINK
I116
I001
1112
1110
7003
9006
9005
220R
I062
I063
4K7
4K7
3081
3080
3082
I854
10n
3032
2039
5003
2028
1n0
6019
I070
9016
I117
5006
9015
5026
9007
5025
STPS20L40CFP
I072
I002
BYW29EX-200
BYW29EX-200
I004
I019
I076
10n
2029
1n0
6021
6041
2045
1n0
9010
1007
T5A 250V
2051
3033
560R
50V
COLD GROUND
I099
7001
EN|UA
OSCC
OSCR
OSCCC
OS
EAO
8
Ip
7
In
SOST
2050
I033
6010
I138
10K
3036
I132
1n0
6017
4K7
4K7
4K7
4K7
4K7
3074
3073
3075
4K7
4K7
4K7
4K7
3085
3083
3084
3031
DC_PROT
10K
10K
50V
2m2
2066
2020
1n0
2044
F028
F017
F027
50V
50V
2022
+24Va
35V4m7
35V4m7
2038
3078
3077
3076
4K7
4K7
3086
3087
3088
3022
680R
+12V
25V
2m2
I085
2064
3n3
K
R
A
31
18K
3030
13V4
I074
5021
I073
5022
2009
470p
I124
BYW29EX-200
BYW29EX-200
2021
I292
15n
6029
6030
50V
50V
I077
2042
1n0
6031
BYW29EX-200
6040
BYW29EX-200
2049
1n0
I290
2018
I291
2034
I293
50V
50V
3104 313 6082.2
12 6
345
7 8 9 10 11 12 13
3067
6042 H13
3035 E5
1007 G11
3036 H4
1105 G7
3037 C12
1106 H7
3038 D13
1107 H7
3039 H3
1108 I7
3040 D13
1109 H9
3041 E13
1110 I10
3042 G3
1112 H10
3043 D1
1113 I9
3044 F2
1304 H8
A
B
C
D
E
F
G
H
47K
I
1309 H8
1M02 H13
2000 A9
2001 G9
2002 B5
2003 A3
2004 C2
2005 D1
2006 C2
2007 E1
2008 G3
2009 H11
2010 H1
2011 E8
2012 E8
2013 C8
2014 F6
2015 F5
2016 D5
2017 C8
2018 H12
2019 H2
2020 D11
2021 I11
2022 E11
2023 B12
2024 D12
2025 D13
2026 G3
2027 E2
2028 C10
2029 E10
2030 E12
2031 C12
2032 D13
2033 D13
2034 H12
2035 E7
2036 C7
2037 H4
2038 E11
2039 C10
2040 C1
2041 G12
2042 G12
2043 G12
2044 D11
2045 E10
2046 I3
2047 I4
2048 I4
2049 G12
2050 F4
2051 H10
2052 D7
2053 D5
2054 C6
2055 D7
2056 B7
2057 C6
2058 C1
2059 C9
2060 E8
2061 C2
2062 D1
2063 F5
2064 D12
2065 G12
2066 D11
3000 A1
3001 F5
3002 C1
3003 C1
3004 D1
3005 C3
3006 D2
3007 E2
3008 E1
3009 E1
3010 H1
3011 H1
3012 F3
3013 G4
3014 C7
3015 C7
3016 C7
3017 D7
3018 E7
3019 E7
3020 E7
3021 G5
3022 C11
3023 D12
3024 D12
3025 E12
3026 E12
3027 G2
3028 G4
3029 C7
3030 E11
3031 C11
3032 C10
3033 H10
3034 E13
3045 G5
3046 F5
3047 H2
3048 D1
3049 E3
3050 E2
3051 F3
3052 C12
3054 F4
3055 I5
3056 I3
3057 B12
3058 E2
3059 C1
3060 H4
3061 E7
3062 C7
3063 C12
3065 B6
3066 H13
3067 H13
3068 A10
3070 A10
3071 A10
3072 A10
3073 A11
3074 A11
3075 A11
3076 A11
3077 A11
3078 A12
3079 A12
3080 A10
3081 A10
3082 A10
3083 A11
3084 A11
3085 A11
3086 A11
3087 A11
3088 A12
3089 H5
3090 A12
3091 D12
3999 A13
5001 C6
5002 F9
5003 C10
5004 C8
5005 C8
5006 D10
5007 A8
5008 B8
5009 B5
5010 A4
5011 D9
5012 D8
5013 D8
5015 C6
5016 D5
5017 A2
5018 H12
5019 I12
5020 H12
5021 G11
5022 G11
5025 E10
5026 E10
5027 E8
6002 D7
6003 C6
6004 D6
6005 D5
6006 I4
6007 C7
6008 D7
6010 G4
6011 F4
6012 E7
6013 C7
6014 H5
6015 G5
6017 I4
6018 E5
6019 C10
6020 E4
6021 E10
6022 H2
6023 E13
6024 A4
6025 A3
6026 H3
6027 C7
6028 E7
6029 H11
6030 H11
6031 G12
6032 A2
6033 A3
6035 C5
6036 C5
6038 D2
6040 G12
6041 E10
6043 G13
6044 G13
7001 C4
7002 B9
7003 C10
7004 H5
7005 C8
7006 D8
7007 C7
7008 E7
7009 G4
7010 E12
7011 F3
7012 F3
9001 E8
9002 F13
9003 A3
9004 H7
9005 F10
9006 F10
9007 F10
9008 B5
9009 A2
9010 F11
9011 D8
9012 D8
9013 C8
9014 C8
9015 D10
9016 D10
9017 E4
F002 C7
F003 C6
F005 D8
F007 F2
F008 D5
F009 D6
F012 D12
F014 E12
F016 B12
F017 D11
F018 A8
F021 A13
F022 A13
F024 D13
F025 D13
F027 D11
F028 D11
F029 A8
F030 C5
F290 H12
F292 H12
F293 H12
F294 H12
F295 H12
F296 H13
F297 H12
F298 H12
F299 A8
F300 H7
F301 H7
F302 H8
F425 E5
I001 E10
I002 D10
I003 E10
I004 E10
I005 A2
I006 A3
I007 C4
I008 D3
I009 C1
I010 D2
I011 C1
I012 E4
I013 B8
I014 B7
I015 F10
I016 F10
I017 F10
I018 E2
I019 G10
I020 F3
I021 E1
I022 F2
I023 F2
I024 F3
I025 F2
I026 G13
I027 C2
I028 G1
I029 G2
I030 D12
I033 F4
I034 F6
I036 F5
I037 C7
I038 C7
I039 D6
I040 G5
I041 H5
I042 C7
I045 C6
I046 C7
I051 E7
I052 D7
I055 E7
I057 D7
I059 E7
I062 B10
I063 B10
I064 B8
I070 D10
I072 D10
I073 G11
I074 G11
I076 G10
I077 G11
I081 F6
I084 F9
I085 D11
I088 D13
I089 D12
I092 E13
I093 E13
I094 F12
I096 A2
I097 A2
I098 A4
I099 A4
I100 A5
I101 A4
I107 C6
I108 D6
I109 C7
I110 D8
I111 C8
I112 E8
I113 E8
I114 D9
I116 C10
I117 D10
I120 C12
I121 D13
I122 E13
I124 H11
I131 I5
I132 I4
I133 I3
I134 H3
I135 G3
I136 H3
I137 G4
I138 H4
I139 G4
I140 G5
I141 H1
I145 E7
I290 H12
I291 H12
I292 I11
I293 I12
I294 C8
I295 E5
I296 E5
I845 D9
I847 D2
I849 C1
I850 H4
I851 C6
I852 B8
I853 C13
I854 B10
I855 D7
c001 F8
c002 E8
Page 53
Circuit Diagrams and PWB Layouts

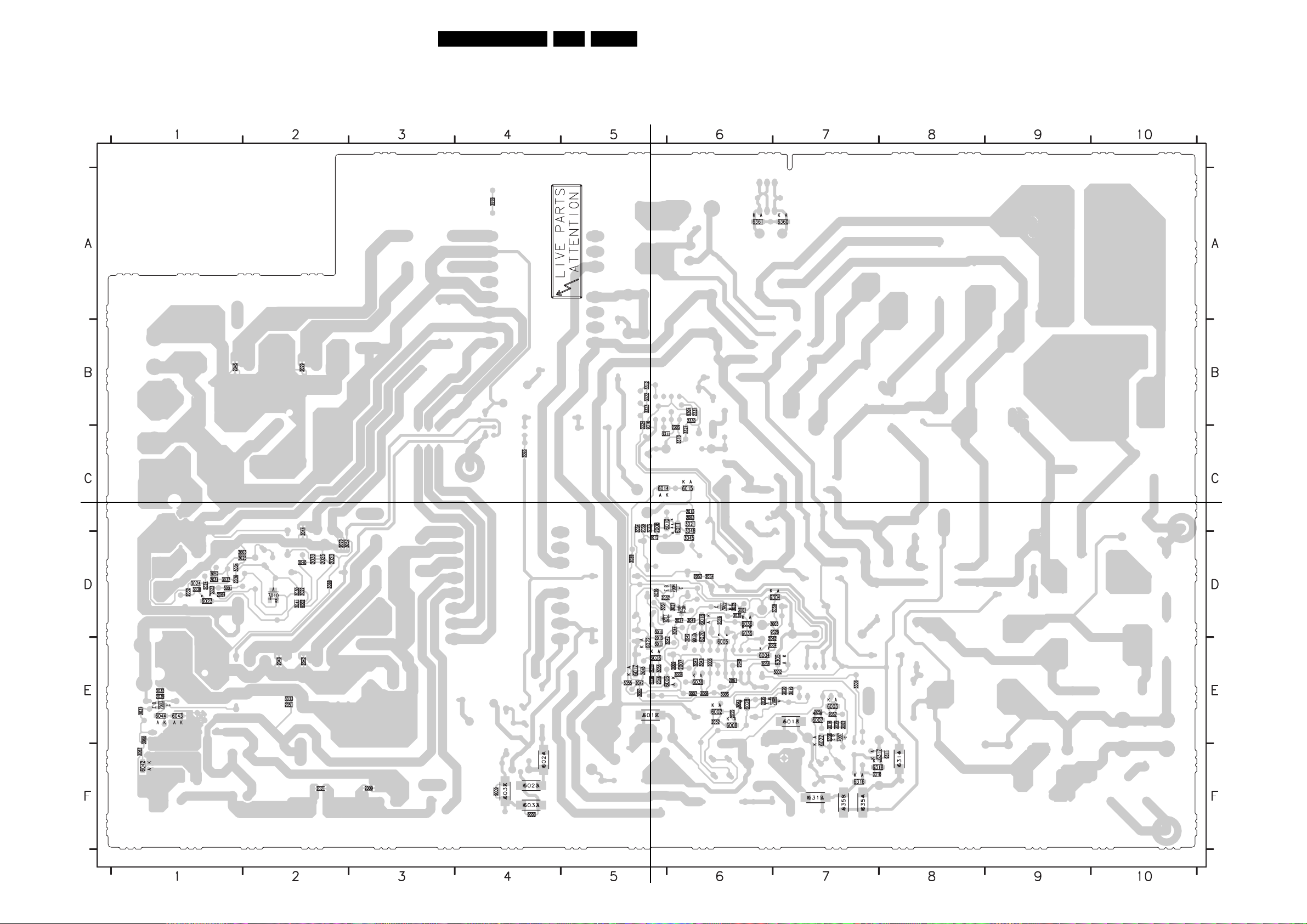

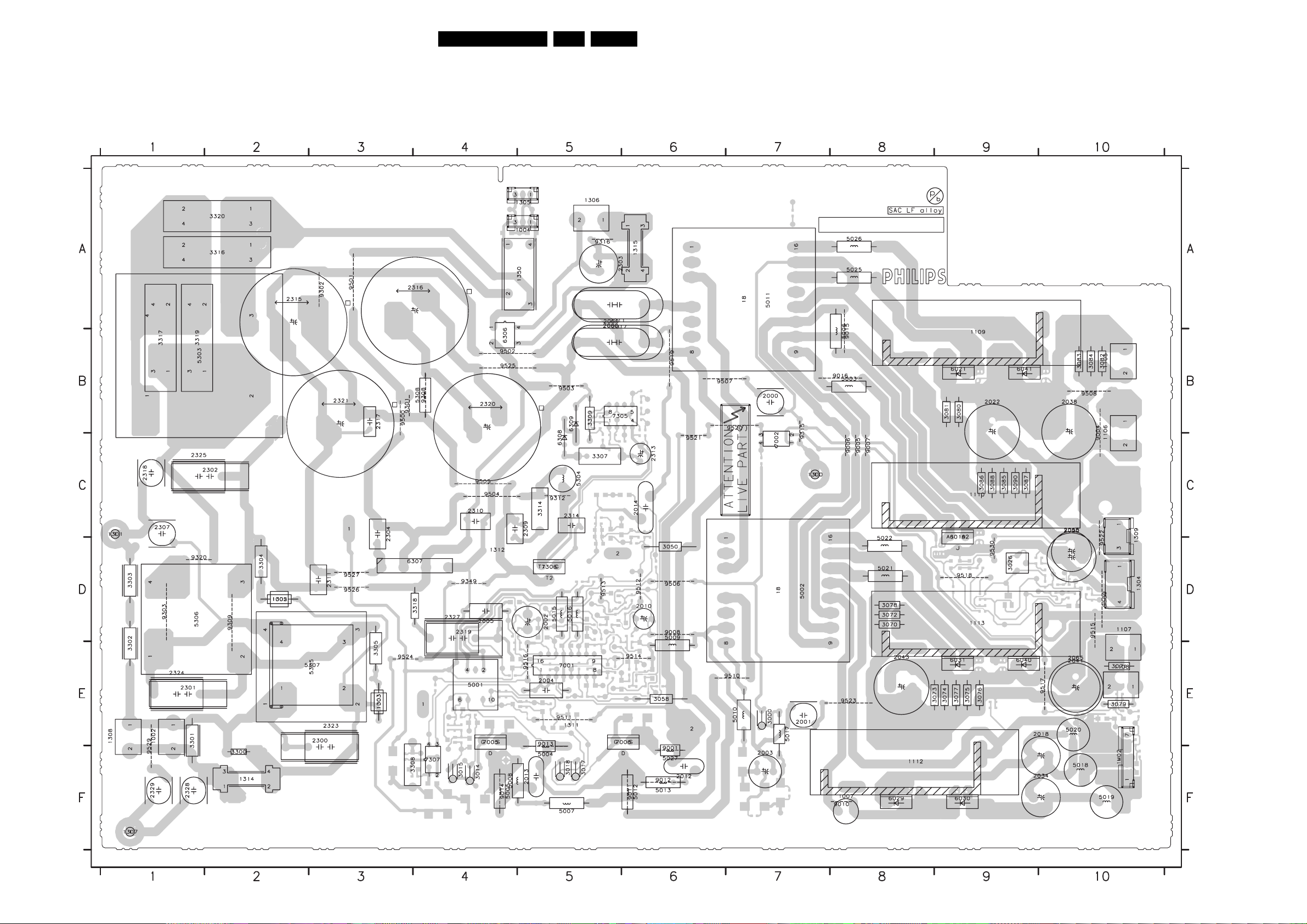

Layout LCD Supply (37”) (Top Side)
1002 E1
1003 E3
1004 A5
1005 D2
1007 F8
1105 B10
1106 B10
1107 D10
1108 E10
1109 B8
1110 C8
1112 F8
1113 E8
1300 C7
1301 C1
1302 D2
1303 E3
1304 D10
1305 A5
1306 A5
1307 F1
1308 E1
1309 C10
1311 E4
1312 D3
1314 F2
1315 A6
1350 A5
1M02 F10
2000 B7
2001 E7
2002 D5
2003 F7
2004 E5
2005 D4
2010 D6
2011 A5
2012 F6
2013 F5
2014 C6
2017 A5
2018 E10
2020 D10
2022 B9
2034 F10
2038 B10
2041 E10
2043 E8
2059 A5
2060 A5
2065 E10
2066 C10
2300 E3
2301 E2
2302 C2
2303 A5
2304 C3
2307 C1
2309 C4
2310 C4
2311 D2
2313 C6
2314 C5
2315 A2
2316 A3
2317 B3
2318 C1
2319 D4
2320 B5
2321 B3
2323 E3
2324 E2
2325 C2
2327 E4
2328 F1
2329 F1
3000 E7
3014 F4
3015 F4
3017 F5
3018 F5
3026 D9
3050 D6
3058 E6
3070 D8
3071 E10
3072 D8
3073 E8
3074 E9
3075 E9
3076 E9
3077 E9
3078 D8
3079 E10
3080 B9
3081 B9
3082 B10
3083 B10
3084 B10
3085 C9
3086 C9
3087 C9
3088 C9
3090 C9
53EL1.1U AA 7.
3300 E2
3301 E2
3302 E1
3303 D1
3304 D2
3305 E3
3307 C5
3308 F3
3309 B5
3314 C5
3316 A1
3317 B1
3318 D4
3319 B2
3320 A1
5001 E4
5002 D8
5003 B8
5004 E5
5005 F4
5006 B7
5007 F5
5008 F4
5009 E6
5010 E7
5011 A7
5012 F5
5013 F6
5015 D5
5016 D5
5017 E7
5018 F10
5019 F10
5020 E10
5021 D8
5022 C8
5025 A8
5026 A8
5027 E6
5303 A1
5304 C5
5305 E2
5306 D1
5307 D3
5308 B4
6019 D9
6021 B9
6029 F8
6030 F9
6031 E9
6040 E9
6041 B9
6306 B4
6307 D3
6308 B5
6309 B5
7001 E5
7002 B7
7005 F4
7006 F5
7305 B5
7306 D5
7307 F4
9001 F6
9004 C10
9005 C8
9006 C8
9007 C8
9008 D6
9010 F7
9011 F6
9012 F6
9013 F5
9014 F4
9015 B8
9016 B8
9301 B4
9302 A3
9303 D1
9308 B4
9309 D2
9312 C5
9315 B7
9316 A5
9320 D2
9349 D4
9500 B3
9501 A3
9502 B5
9503 B5
9504 C4
9505 C4
9506 D6
9507 B6
9508 B10
9509 D10
9510 E7
9511 E5
9512 D6
9513 D5
9514 E6
9515 D10
9516 E5
9517 E10
9518 D9
9519 B6
9520 B6
9521 B6
9522 C10
9523 E8
9524 E3
9525 B4
9526 D3
9527 D3
9529 F1
9530 D9
3104 313 6082.2
G_16290_019.eps
270106
Page 54
Circuit Diagrams and PWB Layouts
Layout LCD Supply (37”) (Overview Bottom Side)
2006 E6
2007 E6
2008 C5
2009 F3
2015 C6
2016 D6
2019 E5
2021 F2
2023 D2
2024 D1
2025 D2
2026 D5
2027 D6
2028 D2
2029 B2
2030 D1
2031 D1
2032 D1
2033 D2
2035 E6
2036 E7
2037 D5
2039 E1
2040 E6
2042 E2
2044 D2
2045 B1
2046 E5
2047 E5
2048 E5
2049 E2
2050 C5
2051 E2
2052 E6
2053 D6
2054 D6
2055 E6
2056 E7
2057 E7
2058 E6
2061 E6
2062 E6
2063 C6
2064 D1
2305 C6
2330 B6
2331 B6
3001 D6
Part 1
G_16290_020a.eps
3002 E7
3003 D7
3004 E6
3005 E6
3006 E6
3007 E6
3008 E6
3009 E6
3010 D5
3011 E5
3012 D5
3013 C5
3016 E7
3019 E7
3020 E7
3021 C6
3022 D2
3023 D1
3024 D1
3025 D1
3027 D6
3028 D6
3029 E7
3030 D2
3031 E1
3032 E1
3033 E2
3034 D1
3035 D6
3036 E5
3037 D1
3038 D1
3039 E5
3040 D2
3041 D2
3042 E6
54EL1.1U AA 7.
3043 E6
3044 D6
3045 D6
3046 C6
3047 E6
3048 E6
3049 D6
3051 D5
3052 D1
3054 C5
3055 E5
3056 E5
3057 D2
3059 D7
3060 E5
3061 E6
3062 E7
3063 D1
3065 C4
3066 E1
3067 F1
3068 D2
3089 D5
3091 D1
3306 E7
3310 F7
3311 C5
3312 B5
3313 C6
3321 C6
3322 B5
3323 B5
3324 B5
3999 A4
6002 E6
6003 E7
6004 E6
6005 E6
6006 E5
6007 E7
6008 E6
6010 C6
6011 C6
6012 E5
6013 E7
6014 C5
6015 C6
6017 E5
6018 D6
6020 D6
6022 E5
6023 D1
6024 F4
6025 F4
Part 2
G_16290_020b.eps
6026 E5
6027 E7
6028 E6
6032 F4
6033 F4
6035 E6
6036 D6
6038 E6
6042 F1
6043 E1
6044 E1
6304 D7
6305 E7
6314 F8
6315 F7
6316 F7
6317 F8
6318 F7
6354 F7
6355 F7
6360 A7
6361 A6
7003 E1
7004 D6
7007 E7
7008 E7
7009 D6
7010 D2
7011 D5
7012 D6
9002 D2
9003 F4
9009 F4
9017 E6
9304 B6
9310 B5
9311 F8
9528 D7
3104 313 6082.2
Part 3
G_16290_020c.eps
Part 4
G_16290_020d.eps
G_16290_020.eps
270106
Page 55
Circuit Diagrams and PWB Layouts
Layout LCD Supply (37”) (Part 1 Bottom Side)
Part 1
55EL1.1U AA 7.
G_16290_020a.eps
270106
Page 56
Circuit Diagrams and PWB Layouts
Layout LCD Supply (37”) (Part 2 Bottom Side)
56EL1.1U AA 7.
Part 2
G_16290_020b.eps
270106
Page 57
Circuit Diagrams and PWB Layouts
Layout LCD Supply (37”) (Part 3 Bottom Side)
57EL1.1U AA 7.
Part 3
G_16290_020c.eps
270106
Page 58
Circuit Diagrams and PWB Layouts
Layout LCD Supply (37”) (Part 4 Bottom Side)
58EL1.1U AA 7.
G_16290_020a.eps
270106
Part 4
G_16290_020d.eps
270106
Page 59
Circuit Diagrams and PWB Layouts
59EL1.1U AA 7.

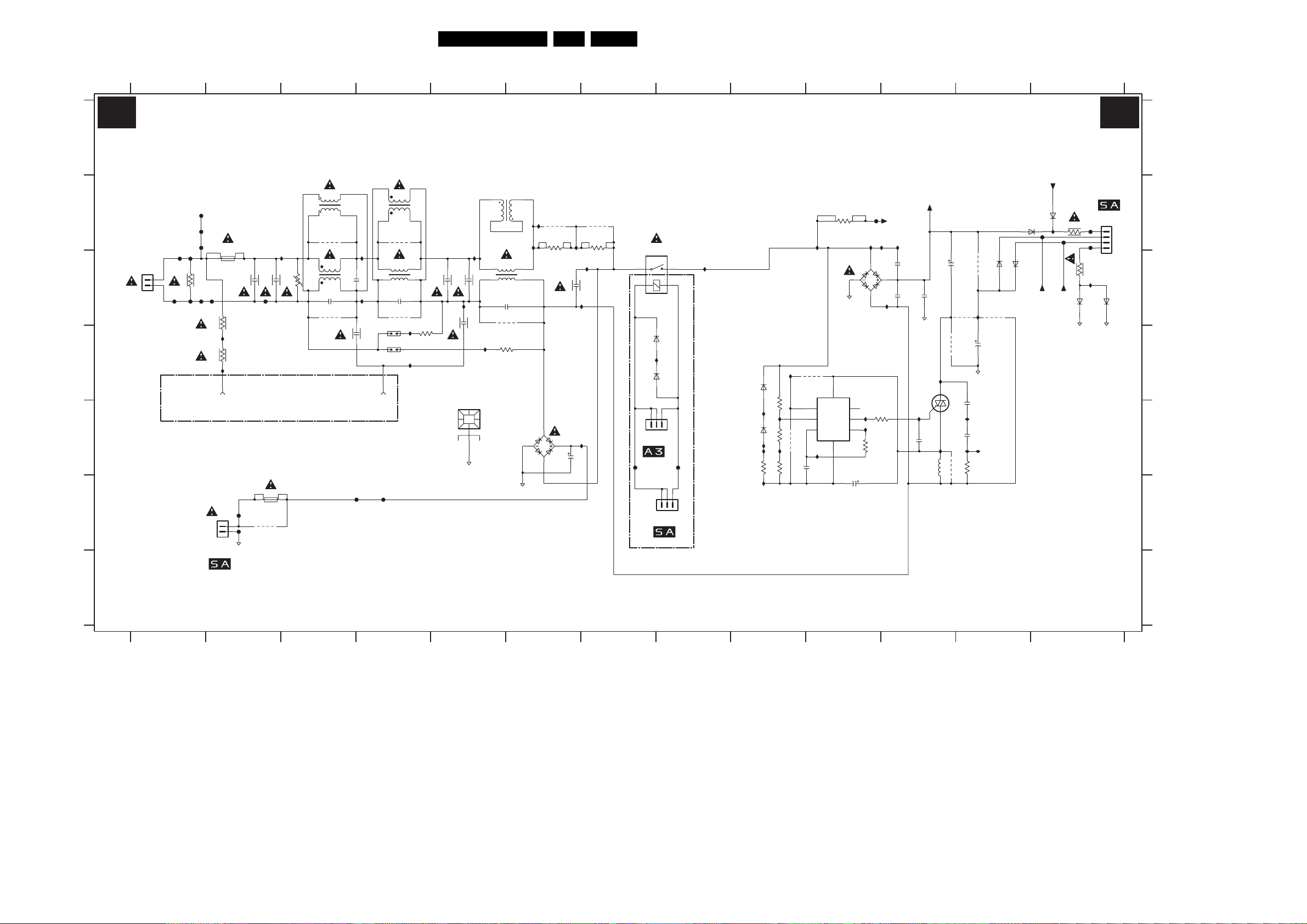

LCD Supply (42”): MF + Standby Part A
12345678
A1 A1
MAINS FILTER + STANDBY PART A
9
10 11
A
4
I474
22n
I475
220p
GND screw
1
5404
DMF28
2
3
9006
5401
3
2
14
DMF3547HB60
2404
47p
90079008
I463
1403
3405
220R
500V
1402
500V
I460
1001
1
5405
1
4
F415
F412
3401
F418
F410
F413
F416
F411
F414
T3.15AH 250V
(EUR+AP CHINA)
T4AH 250V(AP+US)
4M7
F419
3402
3403
1400
PTF/65
I419
I473
1000
1
GND screw
I410
470n
2400
4M7
4M7
470n
2409
F417
COLD GROUND
B
MAINS INPUT
95-264Vac
C
B2P-VA-BF-BK
2
1
1308
MAINS_L
MAINS_N
D
3400
V
2
DMF2405H60
9001
5400
2
DMF28
1
2403
47p
3
3
2402
4
2405
E
F430
1401
PTF/65
GNDHOT
F427
F428
T1AE 250V
9009
F
1306
1
2
B2P-VA-BF-BK
TO 1306
AUDIO-STANDBY
F429
MAINS FILTER
I411
470n
2401
2410
I416
2407
1011
HEATSINK
HOT_GNDA
470n
1n0
I455
5403
DTH40203H65
1
4
3
2
5402
23
14
DMF3547HB60
2406
220R
9003
3404
I412
I442
47p
6506
DF06M
GNDHOT
3450
9005
400V_HOT_A
3810
F426
9011
3451
I444
2408
1R0
I445
470n
I415
I456
10u
1R0
2503
1450
G5PA-1-5VDC
6461
I424
6460
1B06
123
TO
RELAY +
F425
COLD
GROUND
1305
BAS316
BAS316
123
B3B-EH-A
RELAY -
F424
B3B-EH-A
I413
I464
9810
6809
1N5062
AVS1ACP08
1M0
76
3800
I814
I466
6808
1N5062
I816
I827
I815
22K
3807
I820
23
3806
470R
9806
20K
3804
2802
7805
12K
I813
MODE
VM
OSIN
I470
100p
VDD
VSS
4
OSOUT
1
GBJ6J
HOT_GNDA
NC
VG
2806
47u 50V
25V_HOT_A
I811
I810
I812
56n
2803
6807
56n
2804
I817
I465
3803
58
390R
I468
91K
3802
2817
HOT_GNDA
I467
47n
2808
2815
10n
I471
7806
AVS10CB
I469
100u
5804
TO 1305
AUDIO-STANDBY
G
3104 313 6065.3
12345678910
11 12 13
12 13
330u
9813
9811
100n
100n
9812
2816
HOT_GNDA
2810
I825
2809
I826
4R7
3805
6155
9814
BYG10
9808
I462
330u
I824
BYG10
6154
6156
BYG10
F421
HOT_P+
400V_HOT_B
6157
I461
100R
F422
HOT_P-
BYG10
3406
3407
6158
HOT_GNDA
TO 1307
AUDIO-STANDBY
1307
F420
1
2
3
4
F423
B4P-VH
100R
I472
6159
BYG10
BYG10
HOT_GNDB
F_15710_015.eps
130905
A
B
C
D
E
G
F
1000 D2
1001 D4
1011 E5
1305 F7
1306 F2
1307 B13
1308 C1
1400 C2
1401 F2
1402 D4
1403 D4
1450 C8
1B06 E7
2400 C2
2401 C5
2402 C3
2403 C3
2404 C4
2405 D3
2406 C6
2407 C5
2408 C6
2409 C2
2410 C5
2503 E6
2802 E9
2803 C11
2804 C11
2806 F10
2808 E11
2809 E12
2810 E12
2815 C11
2816 D12
2817 C11
3400 C3
3401 C1
3402 C2
3403 D2
3404 D6
3405 D4
3406 B13
3407 C13
3450 B6
3451 B7
3800 E9
3802 E10
3803 E11
3804 E9
3805 E12
3806 E9
3807 E9
3810 B10
5400 C3
5401 C4
5402 C6
5403 B6
5404 B4
5405 B3
5804 E11
6154 C12
6155 C12
6156 B13
6157 B13
6158 C13
6159 C13
6460 D7
6461 D7
6506 E6
6807 C10
6808 E9
6809 D9
7805 D10
7806 E11
9001 B3
9003 C6
9005 B6
9006 B4
9007 C4
9008 C3
9009 F2
9011 B7
9806 E9
9808 C12
9810 D10
9811 D11
9812 E11
9813 C12
9814 C12
F410 B1
F411 B2
F412 B1
F413 B1
F414 B2
F415 C1
F416 C1
F417 C2
F418 C1
F419 C2
F420 B13
F421 B13
F422 B13
F423 C13
F424 E8
F425 E7
F426 B10
F427 F2
F428 F2
F429 F4
F430 F4
I410 C3
I411 C5
I412 B6
I413 C8
I415 C7
I416 C5
I419 D2
I424 D7
I442 C6
I444 C6
I445 C7
I455 D5
I456 E7
I460 D4
I461 B13
I462 C12
I463 D4
I464 D9
I465 E10
I466 E9
I467 E11
I468 E10
I469 E11
I470 E10
I471 D11
I472 C13
I473 D2
I474 C4
I475 C4
I810 B10
I811 B11
I812 B11
I813 C10
I814 E9
I815 E9
I816 E9
I817 C11
I820 F9
I824 E12
I825 E12
I826 E12
I827 E9
Page 60
Circuit Diagrams and PWB Layouts
60EL1.1U AA 7.
LCD Supply (42”): Supply Part A
F299
F018
7005
F002
STP15NK50ZFP
SML4744
I294
LOW SIDE
DRIVE
7006
100R
STP15NK50ZFP
I057
47R
I112
6012
SML4744
I059
I055
c002
GND3
1009
GNDA
9
5007
5008
5004
5041
HEATSINK
GNDA
80R
I146
80R
I147
399V
80R
I111
2013
50R
I110
F005
FLM 1/6W
5013
2012
50R
1010
5005
2000V
1n5
80R
I113
2000V
1n5
F023
F300
HOT_GNDA
10
HOT
GROUND GROUND
3028
I080
1K0
F029
5040
80R
32
I064
TCET1102(G)
1600V
10n
5002
BS51312-01
2017
8
7
6
5
3
I114
2
1
10n
2011
1600V
c001
HOT_GNDA
7002
2000
470p
I084
12
345
678
SUPPLY PART A
A2 A2
BIAS SUPPLY
A
25V_HOT_A
B
C
2040
560p
3003
I103
3002
10K
100K
27K
3004
VS-CONTROLLER
630V
200p
2004
I009
630V
100p
2005
D
3043
1R0
3009
I021
3K3
E
2007
470n
16V
F
G
3067
100R
I143
BAS316
6020
6009
I142
PDZ18-B
H
2010
HOT_GNDA
100p
2021
2009
100p
2K7
3048
3008
330R
I141
3010
3011
100u
HOT_GNDA
6081
2034
I028
BZX384-C22
100p
I104
470R
470R
3000
I096
4R7
2002
I008
2006
1n025V
3006
I010
3007
10K
400V_HOT_A
I029
BZX384-C4V7
HOT_GNDA
5017
50R
470u
I006
I007
3005
33K
10K
6001
3058
5M6
I025
6022
HOT_GNDA
I097
6080
BYG22D
I027
BAS316
3050
820K
SOFTSTART
CONTROL
I018
50V
15n
2027
I022
10K
3066
F007
3027
I135
10n
3047
2019
I105
I134
100K
47R
I023
3064
I078
BC857BW
7017
2026
I144
6079
BYG22D
CONTROL
MC34067P
2V
(0V7)
4V9
(1V2)
4V9
(0V7)
4V9
(0V)
3053
680K
2050
I020
3012
10K
7018
BC847BW
50V
2n2
3068
2K2
BAS316
I136
6051
3056
220R
HOT_GNDA
6077
I098
BYG22D
2003
5009
15
7001
9
VCC
EN|UA
VREF
1
OSCC
2
OSCR
3
OSCCC
16
OS
6
EAO
8
Ip
PGND
7
In
11
SOST
GND
4
68K
1n0
3061
CURRENT
PROTECTION
15K
I024
16V
470n
2008
3013
I137
3070
1K0
HOT_GNDA
6006
I133
BAS316
47n
2046
BYV27-200
1m0
80R
17V
(7V6)
OA
OB
FI
I012
3065
BAS316
10K
I139
BC857BW
3071
HOT_GNDA
6078
5
14
12
13
10
6K8
6011
7009
10K
2048
I099
5V1
(0V5)
7V3
(0V3)
7V3
(0V3)
0V01
(0V)
0V6
(5V)
I033
6010
I138
HOT_GNDA
I132
1n0
6017
HOT_GNDA
2077
5010
1m0
I101
BAS316
2n2
2047
10n
BAS316
2015
3075
1K0
I100
50V
10n
HOT_GNDA
I151
I036
I140
7004
BC847BW
3055
220R
400V_HOT_A
2061
2n2
6007
I148
2063
470p
5001
80R
5015
I107
F003
F004
5016
80R
2064
6005
BAS316
F008
16V100n
2016
F010
F006
I034
22R
3001
100R
3046
22R
22R
3045
3021
HOT_GNDA
I131
S13932-04
4
3
2
I108
470p
6004 BAS316
F009
2014
2n2
2000V
6016
BAS316
I083
6015
BZX384-C22
I082
10K
3089
HOT
2n2
2060
I045
10
I081
COLD
BAS316
6003
BAS316
3016
6
2K2
3029
2K2
7
I039
9
6008
BAS316
3020
2K2
3019
2K2
2062
2n2
I042
6027
BAS316
I109
I052
6028
BAS316
I145
HIGH SIDE
3014
I038
100R
2072
1n0
I046
2065
2n2
6002
BAS316
2071
1n0
I051
DRIVE
3015
I037
BC857BW
7007
I150
3017
3018
BC857BW
7008
47R
6013
HEATSINK
COLD
9
10
11
12
13
14
15
16
10n
3292
560R
GNDA
2290
14
3033
I076
50V
11
I062
1K0
I063
7030
BC847BW
I116
I117
I073
STTH2003CFP
I124
GNDA
5027
80R
5028
80R
5025
80R
6021
5026
80R
BYW29FP-200
50V
6014
2035
1n0
9004
9010
2039
I070
I072
I074
1
3
I077
12
F021
I149
10n
47K
3032
GNDAGNDA
2028
1n0
50V
3
2
1
2044
1n0
50V
2029
50V
1n0
2
I075
2045
1n0
50V
+24Va
+12V
3031
10K
6044
STPS20L45CT
F027
17V3
2020
F031
F032
2022
GNDA
F028
F017
F030
GNDA
2m2
GNDA
1m8 35V
DC_PROT
A4
25V
2038
3030
B4P-VH
B3P-VH
35V
1m8
1
18K
1304
1309
GROUND GROUND
3104 313 6065.3
1
2
3
4 5 6 7 8 9 10 11 12
13
F022
3999
1K0
GNDA
3057
220R
33K
3052
3022
680R
F012
F024
I085
I089
3023
15K
4
5
13V4
7010
K
TL431ACD
NC
R
A
236
7
2030
Vs
Voltage
Adj.
I094
TO 1304
1
2
3
4
AUDIO - STBY
TO 1309
1
2
3
AUDIO - STBY
13 14
2023
16V
100n
F016
I120
2024
220n
F014
470n
+12V
10n
2031
I119
15K
3037
F025
1u0
18K
3024
2033
MRS25 1%
3040
6023
16V
8
BAS316
1%
1K8
3025
I093
I092
RES
3034
470R
3041
1%
3026
9002
GNDA
14
+24Va
50V
4n7
2032
1u0
2025
I121
I088
33K
8K2
3038
I122
33K
F_15710_016.eps
130905
A
B
C
D
E
F
G
H
I
1009 I9
1010 I9
1304 H12
1309 I12
2000 F10
2002 B3
2003 A4
2004 C2
2005 D2
2006 C3
2007 E2
2008 G4
2009 D2
2010 H2
2011 E10
2012 E9
2013 D9
2014 F7
2015 F5
2016 E6
2017 C10
2019 H3
2020 D12
2021 C2
2022 E12
2023 B13
2024 E13
2025 E14
2026 G4
2027 F3
2028 D12
2029 E12
2030 F13
2031 D13
2032 E14
2033 E14
2034 C2
2035 F11
2038 E12
2039 C11
2040 C1
2044 D12
2045 F12
2046 I4
2047 I5
2048 I5
2050 E4
2060 C7
2061 C8
2062 D8
2063 C7
2064 D7
2065 D8
2071 E8
2072 C8
2077 H5
2290 H11
3000 A3
3001 F6
3002 C2
3003 C1
3004 D1
3005 C3
3006 D3
3007 E3
3008 E2
3009 E2
3010 H2
3011 H2
3012 F4
3013 G5
3014 C8
3015 C8
3016 C8
3017 D8
3018 E8
3019 E8
3020 E8
3021 G6
3022 D13
3023 E13
3024 E13
3025 F13
3026 G13
3027 G3
3028 B10
3029 C8
3030 G12
3031 C12
3032 C12
3033 B11
3034 F14
3037 D13
3038 E14
3040 E14
3041 F14
3043 D2
3045 G6
3046 F6
3047 H3
3048 D2
3050 E3
3052 D13
3053 E4
3055 I6
3056 I4
3057 C13
3058 E3
3061 E4
3064 F4
3065 E5
3066 F3
3067 G1
3068 H4
3070 H4
3071 H5
3075 G5
3089 H7
3292 H11
3999 A13
5001 C7
5002 C10
5004 D9
5005 C9
5007 B9
5008 B9
5009 B4
5010 A5
5013 E9
5015 C7
5016 D7
5017 A3
5025 E11
5026 F11
5027 D11
5028 D11
5040 D10
5041 E9
6001 D3
6002 D8
6003 C8
6004 D7
6005 D6
6006 I5
6007 C8
6008 D8
6009 G2
6010 G5
6011 F5
6012 E9
6013 C9
6014 F11
6015 H7
6016 G7
6017 I5
6020 H1
6021 E11
6022 H3
6023 F14
6027 C8
6028 E8
6044 D12
6051 H4
6077 A4
6078 A5
6079 A4
6080 A3
6081 B2
7001 C4
7002 B10
7004 H6
7005 C9
7006 D9
7007 D8
7008 E8
7009 G5
7010 F13
7017 F4
7018 F4
7030 C11
9002 G13
9004 F11
9010 G11
F002 C9
F003 C6
F004 D6
F005 D9
F006 E6
F007 F3
F008 D6
F009 D7
F010 E6
F012 E13
F014 F13
F016 D13
F017 D12
F018 B9
F021 A12
F022 A13
F023 F9
F024 E13
F025 E13
F027 E12
F028 D12
F029 C10
F030 H12
F031 H12
F032 I12
F299 A9
F300 F9
I006 B3
I007 C3
I008 C3
I009 D2
I010 D3
I012 D5
I018 E3
I020 F4
I021 E2
I022 F3
I023 F3
I024 F4
I025 F3
I027 C3
I028 G2
I029 G3
I033 F5
I034 F7
I036 F6
I037 C8
I038 C8
I039 D8
I042 C8
I045 C7
I046 C8
I051 E8
I052 D8
I055 E9
I057 E9
I059 E9
I062 B11
I063 B11
I064 B10
I070 D12
I072 D11
I073 E11
I074 E11
I075 E12
I076 F11
I077 F11
I078 A4
I080 B10
I081 F8
I082 H7
I083 H7
I084 F10
I085 E13
I088 E14
I089 E13
I092 F14
I093 F14
I094 G13
I096 A3
I097 A3
I098 A5
I099 A5
I100 A6
I101 A5
I103 C1
I104 D2
I105 E4
I107 C7
I108 D7
I109 D8
I110 D9
I111 C9
I112 E9
I113 E9
I114 D10
I116 C11
I117 D11
I119 D13
I120 D13
I121 E14
I122 F14
I124 H11
I131 I6
I132 I5
I133 I4
I134 I4
I135 H3
I136 H4
I137 H5
I138 H5
I139 G5
I140 G6
I141 H2
I142 G1
I143 G1
I144 A4
I145 E8
I146 B9
I147 C9
I148 C7
I149 C12
I150 D9
I151 I5
I294 C9
c001 F10
c002 F9
Page 61
Circuit Diagrams and PWB Layouts
61EL1.1U AA 7.
LCD Supply (42”): MF + Standby Part B
7H06
5H04
330u
2H15
9H13 9H08
9H11
ID61
AVS10CB
ID69
100u
9H12
12
2H16
HOT_GNDB
100n
100n
IH26
4R7
12
2H10
2H09
3H05
IH25
ID62
9H14
330u
IH24
6A55
BYG10
6A54
13
HOT_P+
HOT_P-
BYG10
13
1
A3 A3
MAINS FILTER + STANDBY PART B
3
524
67
8
9
10 11
A
1
4
5D05
1
2
DMF2405H60
9U01
2
5D00
DMF28
1
9U08
4
3
ID46
3
4
ID47
220p
2D05
B
MAINS INPUT
95-264Vac
MAINS_L
C
MAINS_N
FD15
FD12
FD18
FD10
FD13
FD16
FD11
FD14
1D00
PTF/65
T3.15AH 250V
(EUR+AP CHINA)
T5AH 250V(AP+US)
FD19
FD17
2D00
470n
2D09
ID10
470n
3D00
V
D
1U01
COLD GROUND
1
GND screw
5DO4
DMF28
2
3
9U06
5D01
23
14
DMF3547HB60
9U07
1D02
ID48
500V
1U11
HEATSINK
E
HOT_GNDB
MAINS FILTER
DTH40203H65
1
2
ID11
23
14
470n
2D07
ID16
2D10
1n0
470n
DMF3547HB60
ID55
2D01
5D03
5D02
9U03
3D04
220R
ID42
25V_HOT_B
IH12
2H03
2H04
IH17
400V_HOT_B
56n
56n
2H17
HOT_GNDB
ID67
2H08
10n
47n
4
3H10
ID70
12K
NC
VG
47u 50V
2H06
GBJ6J
FD26
IH11
IH10
6H07
ID65
3H03
58
390R
ID68
91K
3H02
3
9U05
3D50
1R0
ID12
ID44
2D08
ID45
ID15
470n
9U10
3D51
1R0
1D50
G5PA-1-5VDC
6D61
ID24
6D60
RELAY +
FD25
1C05
BAS316
BAS316
123
TO
RELAY -
FD24
B3B-EH-A
ID13
IH15
IH14
6H09
6H08
IH20
3H07
1N5062
1N5062
IH16
22K
IH13
HOT_GNDB
ID64
9H10
4
7H05
3H00
3H04
AVS1ACP08
1M0
ID66
9H06
18K
VDD
76
MODE
VM
23
OSIN
OSOUT
VSS
1
100p
2H02
F
COLD GROUND
G
3104 313 6065.3
1
2
3
4
5
6
78
911
10
F_15710_017.eps
130905
A
B
C
D
E
F
G
1C05 E8
1D00 C2
1D02 D5
1D03 D5
1D50 C8
1U01 E4
1U11 E5
2D00 C2
2D01 C5
2D03 C4
2D04 C5
2D05 D4
2D06 C6
2D07 D6
2D08 C7
2D09 C3
2D10 C6
2H02 F10
2H03 C11
2H04 C11
2H06 F10
2H08 E11
2H09 E12
2H10 E12
2H15 C12
2H16 D12
2H17 C11
3D00 C3
3D04 D6
3D05 D5
3D50 C7
3D51 C7
3H00 E9
3H02 E11
3H03 E11
3H04 F9
3H05 F12
3H07 F9
3H10 B10
5D00 C4
5D01 C5
5D02 C6
5D03 B6
5D05 B4
5DO4 B5
5H04 F12
6A54 C13
6A55 C12
6D60 D8
6D61 D8
6H07 C11
6H08 E9
6H09 D9
7H05 E10
7H06 E11
9H06 E10
9H08 D12
9H10 D10
9H11 D12
9H12 F12
9H13 D12
9H14 C12
9U01 C4
9U03 D6
9U05 B7
9U06 C5
9U07 D5
9U08 D4
9U10 B7
FD10 B2
FD11 B2
FD12 C1
FD13 C2
FD14 C2
FD15 C1
FD16 C2
FD17 C2
FD18 C2
FD19 C2
FD24 E8
FD25 E8
FD26 B11
ID10 C3
ID11 C6
ID12 C7
ID13 C8
ID15 C7
ID16 C6
ID24 D8
ID42 C6
ID44 C7
ID45 C7
ID46 C4
ID47 C4
ID48 D5
ID55 D6
ID61 D12
ID62 D12
ID63 D5
ID64 D10
ID65 E11
ID66 E10
ID67 E11
ID68 E11
ID69 E12
ID70 E10
IH10 C11
IH11 C11
IH12 C11
IH13 C10
IH14 E9
IH15 E9
IH16 E9
IH17 C11
IH20 F9
IH24 E12
IH25 E12
IH26 E12
Page 62
LCD Supply (42”): Supply Part B
12345678
SUPPLY PART B
A4
A
B
C
D
E
F
G
3U67
100R
IA43
H
I
3104 313 6065.3
25V_HOT_B
6U81
BZX384-C22
IU06
VS-CONTROLLER
IA03
3U02
10K
2U40
560p
BAS316
6U20
3U03
100K
3U04
IA42
630V
200p
100p
2U04
27K
630V
100p
2U05
3U43
1R0
3U09
IU21
3K3
2U07
470n
16V
6U09
PDZ18-B
2U10
HOT_GNDB
100p
2U21
2U34
IU09
100p
2U09
2K7
3U48
IA04
3U08
330R
400V_HOT_B
IU28
IU41
3U10
470R
3U11
470R
100u
HOT_GNDB
3104 313 6065.1
1234567891011121314
Circuit Diagrams and PWB Layouts
BIAS SUPPLY
2U06
25V1n0
IU10
3U07
10K
HOT_GNDB
3U00
4R7
470u
2U02
IU07
IU08
3U06
IU29
6U22
BZX384-C4V7
IU96
3U05
33K
10K
6U01
BAS316
3U58
5M6
IU25
2U19
HOT_GNDB
IU27
IU22
IA35
IU97
5U17
50R
BYG22D
CONTROL
IA05
3U50
820K
SOFTSTART
CONTROL
IU18
50V
15n
2U27
10K
IU23
3U66
3U64
FU07
100K
3U27
47R
10n
3U47
IA34
6U79
3U53
680K
BC857BW
7U17
10K
2U26
BAS316
6U51
6U77
IU05
BYG22D
MC34067P
2V
(0V7)
4V9
(1V2)
4V9
(0V7)
4V9
(0V)
2U50
IU20
3U12
7U18
BC847BW
50V
2n2
3U68
2K2
IA36
3U56
220R
2U03
7U01
15
9
VCC
EN|UA
VREF
1
OSCC
2
OSCR
3
OSCCC
16
OS
6
EAO
8
Ip
PGND
7
In
11
SOST
GND
4
68K
1n0
3U61
CURRENT
PROTECTION
15K
IU24
470n16V
2U08
3U70
1K0
6U06
IA33
BAS316
47n
2U46
HOT_GNDB
IU98
1m0
9U04
OA
OB
FI
IU12
3U65
3U13
BC857BW
IA37
3U71
HOT_GNDB
HOT_GNDB
6U78
BYV27-200
5
14
12
13
10
6K8
6U11
BAS316
10K
IA39
7U09
IA38
10K
2U48
IU99
80R
5U09
17V
(7V6)
5V1
(0V5)
7V3
(0V3)
7V3
(0V3)
0V01
(0V)
0V6
(5V)
IU33
6U10
2U77
HOT_GNDB
IA32
1n0
BAS316
HOT_GNDB
5U10
IA01
BAS316
2n2
2U47
6U17
1m0
10n
2U15
10n
3U75
1K0
IA00
50V
7U04
BC847BW
HOT_GNDB
IA51
62EL1.1U AA 7.
3U70 H4
3U71 H5
3U75 G5
3U89 H7
5B91 G13
5B92 H13
5B93 G13
5U01 C7
5U02 D10
5U04 D9
5U05 C9
5U07 B9
5U08 B9
5U09 B5
5U10 A5
5U13 E9
5U15 C7
5U16 D6
5U17 A3
5U25 E11
5U26 F11
5U40 D10
5U41 E9
6B91 G11
6B93 H11
6U01 D3
6U02 D8
6U03 C8
6U04 D7
6U05 D6
6U06 I4
6U07 C8
6U08 D8
6U09 H2
6U10 G5
6U11 F5
6U12 E9
6U13 C9
6U15 H7
6U16 G7
6U17 I5
6U20 H1
6U21 E11
6U22 H3
6U23 F14
6U27 C8
6U28 E8
6U51 H4
6U77 A4
6U78 A5
6U79 A4
6U81 B2
7U01 C4
7U02 B10
7U04 H5
7U05 C9
7U06 D9
7U07 D8
7U08 E8
7U09 G5
7U10 F13
7U17 F4
7U18 G4
7U30 C11
9U02 G13
9U04 B5
FB90 H13
FB92 G13
FB93 G13
FB94 H13
FB95 H13
FB96 G14
FB97 G13
FB98 H13
FC00 F9
FU02 C9
FU03 C6
FU04 D6
FU05 D9
FU06 E6
FU07 F3
FU08 D6
FU09 D7
FU10 E6
FU12 E13
FU14 F13
FU17 D12
FU18 B9
FU23 F9
FU24 E13
FU25 E13
FU27 E12
FU28 D12
FU29 C10
FU30 I12
FU32 I12
FU99 A9
IA00 A5
IA01 A5
IA03 C1
IA04 D2
IA05 E3
IA07 C7
IA08 D7
IA09 D8
IA10 D9
IA11 C9
IA12 E9
IA13 E9
IA14 E10
IA20 E13
IA21 E14
IA22 F14
IA23 F11
IA24 G11
IA31 I6
IA32 I5
IA33 I4
IA34 I3
IA35 H3
IA36 H4
IA37 H5
IA38 H5
IA39 G5
IA40 H6
IA42 H1
IA43 G1
IA44 C14
IA45 E8
IA46 B9
IA47 C9
IA48 C7
IA49 C12
IA50 D9
IA51 I5
IB90 G12
IB91 G12
IB92 H11
IB93 H12
IB94 C9
IU05 A4
IU06 B2
IU07 C3
IU08 C3
IU09 D2
IU10 D3
IU12 E5
IU18 E3
IU20 F4
IU21 E2
IU22 F3
IU23 F3
IU24 F4
IU25 F3
IU27 C3
IU28 G2
IU29 G3
IU33 F5
IU34 F6
IU36 F6
IU37 C8
IU38 C8
IU39 D8
IU41 H2
IU42 C8
IU45 C8
IU46 C8
IU51 E8
IU52 D8
IU55 F9
IU57 E9
IU59 E9
IU62 B11
IU63 C11
IU64 C9
IU73 E11
IU74 E11
IU76 F11
IU77 F11
IU79 B9
IU80 G11
IU81 F8
IU82 H7
IU83 H7
IU84 F10
IU85 E13
IU86 D13
IU88 E14
IU89 E13
IU92 F14
IU93 F14
IU94 G13
IU96 A3
IU97 A3
IU98 A5
IU99 A5
cU01 F10
cU02 F9
9
400V_HOT_B
2U61
2n2
IA48
2U60
6U07
BAS316
2n2
6U03
BAS316
IU45
3U16
6
2K2
3U29
2K2
7
IU39
9
6U08
10
BAS316
3U20
2K2
3U19
2K2
IU81
470p
2U63
5U01
80R
5U15
IA07
FU09
470p
6U16
6U15
3U89
IA08
6U04 BAS316
2U14
2n2
BAS316
BZX384-C22
10K
S13932-04
4
3
2
2000V
FU03
FU04
5U16
80R
BAS3166U05
2U64
FU08
16V100n
2U16
FU10
FU06
IU36
IA40
3U55
IA31
220R
3U01
100R
3U45
IU34
3U46
22R
HOT_GNDB
22R
3U21
22R
IU83
IU82
HOT
GROUND
3U14
IU42
100R
2U72
1n0
6U27
BAS316
IA09
2U62
2U65
2n2
6U02
IU52
BAS316
2U71
1n0
6U28
BAS316
IA45
COLD
GROUND
HIGH SIDE
DRIVE
IU38
3U15
IU46
IU37
BC857BW
7U07
2n2
3U17
3U18
IU51
FU18
3U28
1K0
FU02
STP15NK50ZFP
47R
6U13
SML4744
IB94
IA50
LOW SIDE
DRIVE
7U06
100R
STP15NK50ZFP
IU57
47R
6U12
SML4744
IU59
BC857BW
7U08
IU55
7U05
FU99
IU79
IU64
IA12
cU02
HEATSINK
80R
5U07
IA46
80R
5U08
IA47
399V
80R
IA11
2U13
50R
5U04
IA10
FU05
FLM 1/6W
5U13
2U12
50R
5U41
HOT_GNDB
1U09
GNDB
5U05
2000V
1n5
80R
IA13
2000V
1n5
FU23
FC00
10 11 12 13 14
470p
7U02
5U02
2U00
GROUNDGROUND
10
11
12
13
14
15
16
GNDB
COLD
14
3U33
2
IU76
IA23
2B90
50V
10n
3B92
560R
GND_SND
IU62
1K0
IU63
7U30
BC847BW
GNDB
IU73
STTH2003CFP
IA24
IB92
5U25
80R
6U21
5U26
80R
IU80
1U07
2U39
GNDB
IU74
1
3
IU77
250V
5AT
2B91
470p 50V
6B91
BYW29EX-200
6B93
BYW29EX-200
2B93
50V470p
IA49
10n
GNDB
2U29
1n0
2
2U45
1n0 50V
3U32
FU28
50V
+24Vb
3U31
DC_PROT
10K
47K
FU27
17V3
GNDB
2U22
FU30
FU32
GNDB
FU17
GNDB
1m8 35V
IB90
IB91
2U38
2B92
IB93
A4
IU86
1m8 35V
1
4
5
NC
236
18K
3U30
5B93
33u
2m2
5B91
33u
2m2
2B94
5B92
33u
1303
1
F_15710_012.eps
2
3
4
B4P-VH
1320
1
2
3
B3P-VH
330R
3U39
330R
3U22
FU12
IU85
IU89
3U23
15K
13V4
7U10
TL431ACD
K
R
A
7
2U30
Voltage
IU94
FB97
VSND_POS
GND_SND
FB98
VSND_NEG
TO 1303
130905
AUDIO - STBY
TO 1320
AUDIO - STBY
FU29
10n 1600V
2U17
5U40
80R
HOT_GNDB
1U10
HEATSINK
GNDB
HOT
3
TCET1102(G)
89
7
6
5
3
IA14
2
1
BS51312-01
10n
2U11
1600V
cU01
IU84
Adj.
Vs
FU24
A4
470n
2U23
GNDB
3U57
220R
IA44
220R
3U52
FU25
1u0
18K
3U24
2U33
MRS25 1%
IA20
2U24
220n
16V
8
FU14
16V
100n
FB93
FB94
3U25
3U26
GNDB
FB92
FB90
FB95
BAS316
1%
1K8
470R
9U02
DC_PROT
6U23
IU93
3U34
3U40
IU92
3U41
1%
A4
AUDIO - STBY
+24Vb
50V1u0
2U32
2U25
IA21
IU88
8K2
3U38
IA22
33K
FB96
B7B-EH-A
1M02
TO 1M02
F_15710_018.eps
4n7
33K
7
6
5
4
3
2
1
130905
1303 I12
1320 I12
1M02 H14
1U07 G11
1U09 I9
1U10 I10
2B90 G11
2B91 G11
2B92 G12
2B93 H11
2B94 H12
2U00 F10
2U02 B3
A
2U03 A4
2U04 C2
2U05 D2
2U06 C3
2U07 E2
2U08 G4
2U09 D2
2U10 H2
2U11 E10
2U12 E9
2U13 D9
2U14 F7
B
2U15 F5
2U16 E6
2U17 D10
2U19 H3
2U21 C2
2U22 E12
2U23 B14
2U24 E13
2U25 E14
2U26 G4
2U27 F3
C
2U29 E12
2U30 F13
2U32 E14
2U33 E14
2U34 C2
2U38 E12
2U39 C12
2U40 C1
2U45 F12
2U46 I4
2U47 I5
2U48 I5
D
2U50 E4
2U60 C7
2U61 C8
2U62 D8
2U63 C7
2U64 D7
2U65 D8
2U71 E8
2U72 C8
2U77 H5
3B92 G11
3U00 A3
E
3U01 F6
3U02 C2
3U03 C1
3U04 D1
3U05 C3
3U06 D3
3U07 E3
3U08 E2
3U09 E2
3U10 H2
3U11 H2
F
3U12 F4
3U13 G5
3U14 C8
3U15 C8
3U16 C8
3U17 D8
3U18 E8
3U19 E8
3U20 E8
3U21 G6
3U22 D13
3U23 E13
G
3U24 E13
3U25 F13
3U26 G13
3U27 G3
3U28 B9
3U29 C8
3U30 G12
3U31 C12
3U32 C12
3U33 B11
3U34 F14
3U38 E14
H
3U39 D13
3U40 E14
3U41 F14
3U43 D2
3U45 G6
3U46 F6
3U47 H3
3U48 D2
3U50 E3
3U52 D13
3U53 E4
I
3U55 I6
3U56 I4
3U57 C13
3U58 E3
3U61 E4
3U64 F4
3U65 E5
3U66 F3
3U67 G1
3U68 H4
Page 63
Circuit Diagrams and PWB Layouts
Layout LCD Supply (42”) (Top Side)
1000 B1
1001 A2
1009 B10
1010 C10
1011 C4
1303 E11
1304 B11
1305 A4
1306 A5
1307 D5
1308 C1
1309 B11
1320 E11
1400 B1
1401 A5
1402 A3
1403 A3
1450 B4
1B06 A4
1C05 D4
1D00 D1
1D02 F2
1D50 E4
1M02 F11
1U01 D3
1U07 F10
1U09 E10
1U10 G10
1U11 G4
2000 A9
2002 B8
2003 B7
2004 A8
2005 A8
2010 A8
2011 C7
2012 D9
2013 C7
2014 A9
2017 B7
2020 C11
2022 B11
2025 A10
2033 A11
2038 B10
2400 B1
2401 B4
2402 A2
2403 A3
2404 A3
2405 A3
2406 B3
2407 B4
2408 C3
2409 B1
2410 B4
2503 A5
2803 C4
2804 C5
2806 B5
2808 C5
2809 D4
2810 D5
2815 B4
2816 B6
2817 A6
2B92 F10
2B94 F10
2D00 E2
2D01 E4
2D05 D4
2D07 E4
2D08 E4
2D09 E2
2D10 E4
2H03 F5
2H04 F5
2H06 F5
2H08 F5
2H09 G5
2H10 G6
2H15 E5
2H16 E6
2H17 E6
2U00 E9
2U02 E8
2U03 E7
2U04 D7
2U05 D7
2U10 D8
2U11 F8
2U12 G9
2U13 G8
2U14 D8
2U17 F7
2U22 F11
2U25 D11
2U33 D11
2U38 E10
3000 A6
3014 C7
3015 C7
3017 D8
3018 D7
3026 A10
3050 A7
3053 A7
3058 A7
3400 B2
3401 C1
3402 C1
3403 C1
3404 B3
3405 B3
3406 D5
3407 D6
3450 C2
3451 C3
3800 B5
3803 C5
3805 C5
3807 B5
3810 B5
3D00 D1
3D04 F2
3D50 G2
3D51 G4
3H00 E5
3H03 F6
3H05 G4
3H07 E5
3H10 E5
3U00 D5
3U14 F7
3U15 G7
3U17 G8
3U18 G8
3U26 D10
3U50 E7
3U53 D6
3U58 E7
5001 C7
5002 B9
5004 C7
5005 D7
5007 A6
5008 A6
5009 B8
5010 B7
5013 D8
63EL1.1U AA 7.
5015 B7
5016 B7
5017 A5
5025 B10
5026 B10
5027 C9
5028 C10
5040 C7
5041 D9
5400 A1
5401 A2
5402 C3
5403 D2
5404 B3
5405 A2
5804 C5
5B91 F11
5B92 F11
5B93 F11
5D00 D1
5D01 D3
5D02 F3
5D03 F2
5D05 E2
5DO4 E3
5H04 F5
5U01 F7
5U02 F9
5U04 F7
5U05 G8
5U07 E6
5U08 E6
5U09 E8
5U10 E8
5U13 G9
5U15 E7
5U16 E7
5U17 D6
5U25 E10
5U26 E10
5U40 F7
5U41 G9
6014 A11
6021 B10
6044 D10
6078 B7
6506 B4
6807 C4
6808 B5
6809 B5
6B91 G10
6B93 G11
6H07 G5
6H08 E5
6H09 E5
6U21 E10
6U78 E7
7001 A7
7002 A9
7005 D7
7006 C8
7805 B5
7806 D5
7H05 F6
7H06 G6
7U01 E7
7U02 D9
7U05 G7
7U06 G9
9001 A1
9003 B4
9004 B11
9005 D2
9006 B2
9007 B3
9008 A1
9009 A5
9010 B11
9011 C3
9080 A8
9082 C4
9088 A10
9089 D2
9090 A10
9091 A9
9092 B8
9093 A8
9094 B7
9095 B9
9096 C7
9097 D6
9098 C4
9099 B3
9808 C6
9811 C6
9812 C5
9813 C6
9814 B6
9H08 F6
9H11 F6
9H12 F5
9H13 E6
9H14 E6
9H15 F6
9H16 G5
9H17 C1
9U01 E1
9U03 E4
9U04 E8
9U05 G3
9U06 E3
9U07 E3
9U08 E2
9U09 G8
9U10 F4
9U50 E3
9U51 E9
9U52 E5
9U53 F5
9U54 G7
9U55 D8
9U56 F10
9U58 E7
9U59 E5
9U60 D4
9U61 D5
9U62 D5
9U63 B11
9U65 B11
9U66 D10
9U67 A7
9U68 B7
9U69 A8
9U70 A8
9U71 B7
9U72 B7
9U73 B7
9U74 D7
9U76 E8
9U77 E9
9U78 E9
9U79 E8
9U80 E7
9U81 E7
9U82 F7
9U83 E7
9U84 G4
9U85 E6
9U86 B9
9U87 B9
9U88 F3
9U90 E2
9U91 E2
3104 313 6065.3
F_15710_019.eps
130905
Page 64
Circuit Diagrams and PWB Layouts
Layout LCD Supply (42”) (Overview Bottom Side)
2006 A5
2007 A5
2008 A5
2009 A4
2015 A4
2016 A5
2019 A4
2021 A4
2023 A2
2024 A2
2026 A5
2027 A5
2028 D2
2029 B2
2030 A1
2031 A2
2032 A2
2034 A4
2035 B1
2039 A1
2040 A5
2044 D2
2045 B2
2046 A4
2047 A4
2048 A4
2050 A5
2060 C5
2061 C5
2062 C5
2063 C5
2064 C5
2065 C4
2071 C4
2072 C6
2077 A4
2290 B3
2802 C7
2B90 F3
2B91 G1
2B93 G1
2H02 F7
2U06 E5
2U07 E5
2U08 D5
2U09 D4
2U15 D4
2U16 E5
2U19 D4
2U21 D4
2U23 D2
2U24 D1
2U26 D5
2U27 D5
2U29 E2
2U30 D1
2U32 D1
2U34 D4
2U39 D1
2U40 E5
2U45 E2
2U46 D4
2U47 D4
2U48 E4
2U50 D5
2U60 G5
2U61 F5
2U62 G4
2U63 F5
2U64 F5
2U65 G4
2U71 G4
2U72 G5
2U77 D4
3001 A4
3002 A5
3003 A4
3004 A4
3005 A5
3006 A5
3007 A5
3008 A5
3009 A5
3010 A4
3011 A4
3012 A5
3013 A5
3016 C6
3019 C4
3020 C4
3021 A4
3022 A1
3023 A2
3024 A2
3025 A1
3027 A5
3028 A4
3029 C6
3030 A2
3031 A1
3032 A1
3033 A3
3034 A1
3037 A2
3038 A1
3040 A1
3041 A1
3043 A5
3045 A4
3046 A4
3047 A4
3048 A5
3052 A2
3055 A4
3056 A4
3057 A2
3061 A5
3064 A5
3065 A5
3066 A5
3067 A4
3068 A4
3070 A4
3071 A4
3075 A4
3089 A4
64EL1.1U AA 7.
3292 B3
3802 C7
3804 C7
3806 C7
3999 C2
3B92 F3
3H02 F7
3H04 F7
3U01 D4
3U02 D5
3U03 D4
3U04 E4
3U05 D5
3U06 D5
3U07 E5
3U08 E5
3U09 E5
3U10 E4
3U11 D4
3U12 D5
3U13 D5
3U16 G5
3U19 G4
3U20 G4
3U21 D4
3U22 E1
3U23 D1
3U24 D1
3U25 D1
3U27 D5
3U28 D3
3U29 G5
3U30 D1
3U31 E1
3U32 D1
3U33 D3
3U34 D1
3U38 D1
3U39 E1
3U40 D1
3U41 D1
3U43 D5
3U45 D5
3U46 D5
3U47 D4
3U48 D5
3U52 D2
3U55 D4
3U56 D4
3U57 D2
3U61 D5
3U64 D5
3U65 D5
3U66 D5
3U67 E4
3U68 D4
3U70 D4
3U71 D4
3U75 D4
3U89 D3
6001 A5
6002 C4
6003 C5
6004 B5
6005 A5
6006 A4
6007 C5
6008 C5
6009 A4
6010 A5
6011 A5
6012 C4
6013 C5
6015 A4
6016 A4
6017 A4
6020 A4
6022 A4
6023 A1
6027 C6
6028 C4
6051 A4
6077 B5
6079 A6
6080 A6
6081 B4
6154 D6
6155 D6
6156 D7
6157 E7
6158 C6
6159 D6
6460 A8
6461 A8
6A54 D7
6A55 D7
6D60 D8
6D61 D8
6U01 D5
6U02 G3
6U03 G5
6U04 E5
6U05 E5
6U06 D4
6U07 F5
6U08 G4
6U09 D4
6U10 D4
6U11 D5
6U12 F3
6U13 F5
6U15 D4
6U16 D3
6U17 E4
6U20 E4
6U22 D4
6U23 D1
6U27 G5
6U28 G4
6U51 D4
6U77 E4
6U79 D6
6U81 E4
7004 A4
7007 C6
7008 C5
7009 A4
7010 A2
7017 A5
7018 A5
7030 A1
7U04 D4
7U07 G5
7U08 G4
7U09 D4
7U10 D2
7U17 D5
7U18 D5
7U30 E1
9002 A2
9085 A1
9806 C7
9810 C7
9H06 F7
9H10 F7
9U02 D2
9U57 D1
Part 1
F_15710_020a.eps
Part 2
F_15710_020b.eps
3104 313 6065.3
Part 3
F_15710_020c.eps
Part 4
F_15710_020d.eps
F_15710_020.eps
130905
Page 65
Circuit Diagrams and PWB Layouts
Layout LCD Supply (42”) (Part 1 Bottom Side)
65EL1.1U AA 7.
Part 1
F_15710_020a.eps
130905
Page 66
Circuit Diagrams and PWB Layouts
Layout LCD Supply (42”) (Part 2 Bottom Side)
66EL1.1U AA 7.
Part 2
F_15710_020b.eps
130905
Page 67
Circuit Diagrams and PWB Layouts
s
5
Layout LCD Supply (42”) (Part 3 Bottom Side)
67EL1.1U AA 7.
Part 3
F_15710_020c.ep
13090
Page 68
Circuit Diagrams and PWB Layouts
Layout LCD Supply (42”) (Part 4 Bottom Side)
68EL1.1U AA 7.
Part 4
F_15710_020a.eps
130905
Page 69
Circuit Diagrams and PWB Layouts
69EL1.1U AA 7.
SSB: DC / DC
+12VSW
+12VS
+1V2
+3V3
+2V5
+2V5D
IU78 B11
IU79 B12
IU80 D12
IU81 D13
IU86 A7
IU88 F9
c111 E12
7U29-2
BC857BS
6
1
IU59
3U95
IU04 B4
IU05 B4
IU06 B4
IU07 B4
IU08 C4
IU09 C4
IU10 C5
IU11 C3
IU12 C2
IU13 D6
IU14 C6
IU15 C6
IU16 B6
IU17 B6
IU19 A6
IU20 A2
IU21 B8
IU22 B8
IU23 A6
IU24 A5
IU25 C6
IU26 D7
IU27 E7
IU28 E8
IU29 B6
IU30 B6
IU31 B6
IU32 B6
IU36 B6
IU37 E5
IU40 D9
IU41 D8
IU42 A12
IU44 C7
IU45 C6IU18 A6
IU54 B8
IU55 D8
IU56 D10
IU57 D11
IU58 D10
IU59 D11
IU60 D8
IU61 G3
IU62 A3
IU63 A3
IU65 D5
IU66 D4
IU68 E4
14 15
7U29-1
BC857BS
100K
2U41
2
3
c111
2
7U28
PDZ9.1-B
6U25
1u0
IU42
FU01
1U01
IU01
420T3A
1u0
1K0
2U58
3UA1
IU79
7U27
TS2431
IU80
2K2
1
3UA3
1
2U73
A3K
R
2
IU81
1n0
FU08
FU07
FU05
FU18
0V
+2V5 STABILIZER
3UA4
1%
1K0
47R
3UA5
1u0
2U46
ENABLE-3V3
5U02
10u
22u
2U25
1
100n
2U72
4
IU78
5
3
3U54
2
3U56
3U94
3K3
2K2
3UA7
1K0
6
3UA2
10R
IU57
PHD38N02LT
1K0
1%
0M96 H3
0M97 H4
1U01 A14
2U09 F3
2U10 G3
2U11 E7
2U12 C6
2U13 C2
2U14 A3
2U15 C4
2U16 A5
2U17 A5
2U18 C6
2U19 B8
2U20 D9
2U21 D9
2U22 C9
2U23 F3
2U24 B9
2U25 A11
2U26 D8
2U27 B8
2U28 B8
2U29 D8
2U30 E8
2U31 A6
2U32 B7
2U37 F9
2U41 E11
2U46 E13
2U58 B12
2U72 B11
2U73 D12
2U85 B9
3U00 C2
3U01 C2
3U02 C3
3U03 C3
3U04 C3
3U05 C4
3U06 C5
3U07 C6
3U08 C6
3U09 D6
3U10 C6
3U11 E8
3U12 B8
3U13 B8
3U14 D9
3U15 E9
3U16 E9
3U17 E9
3U18 D9
3U19 F9
3U20 D8
3U21 B8
3U22 A5
3U23 A6
3U24 A6
3U25 B6
3U26 B6
3U27 B6
3U28 B6
3U29 D5
3U30 D5
3U31 D4
3U32 E4
3U33 E4
3U37 G2
3U38 G2
3U54 D11
3U55 D10
3U56 D11
3U82 C7
3U83 C7
3U85 A3
3U86 A3
3U87 A2
3U88 A3
3U89 B2
3U93 D10
3U94 D11
3U95 E11
3U96 C7
3U97 C6
3UA1 B12
3UA2 B11
3UA3 D12
3UA4 D14
3UA5 D13
3UA7 E11
3UA8 D8
3UA9 D8
5U00 A8
5U02 A11
5U03 C9
6U11 E5
6U21 E8
6U22 D7
6U23 D8
6U25 D12
7U00 B5
7U01-1 A6
7U01-2 A6
7U03-1 B6
7U03-2 B7
7U05-1 C3
7U05-2 C4
7U07 E7
7U10-1 D4
7U10-2 D4
7U13-1 A3
7U13-2 A3
7U15-1 D10
7U15-2 D10
7U27 C13
7U28 D12
7U29-1 B12
7U29-2 B11
9U03 H14
FU01 A14
FU02 B4
FU03 A8
FU05 E13
FU06 C9
FU07 E12
FU08 D12
FU13 C7
FU18 F12
FU19 F12
FU23 A4
IU01 A14
IU03 B3
12345678910111213
B1A B1A
4
BC847BPN
2U13
GND-SIG
IU12
3U01
GND-SIG
3U87
3U89
7U13-2
IU20
3
7U13-1
10K
BC847BPN
2
IU03
10K
3U02
100n
220R
IU11
6
2
7U05-1
BC847BS
1
33K
GND-SIG
A
B
C
3U00
33K
D
E
10K
100n
2U14
3U85
IU62
IU63
6
1
3U86
10K
3U88
FU23
100R
IU09
3U03
10K
3U04
GND-SIG1%GND-SIG
BC857BS
7U10-1
3U31
10K
3U33
10K
22K
5
SUPPLY-FAULT
3U05
3
4
1
6
IU68
220R
IU08
7U05-2
BC847BS
2
IU66
FU02
IU05
IU06
IU07
2U15
GND-SIG
BC857BS
3U32
GND-SIG
NCP5422ADR2G
IU04
IU10
100n
3U06
GND-SIG
4
7U10-2
3
10K
5
2U16
4
7
10
8
9
7U00
39K
10R
3U22
1u0
14
VCC
BST
1
VFB
2
1
COMP
2
ROSC
GND-SIG
3U29
5
IU65
3U30
IU37
6U11
IU24
Φ
GATE
GATE
IS
GND
3
1K0
1K0
BZX384-C9V1
22u
2U17
IU31
1
H1
2
L1
16
H2
15
L2
5
+1
6
-1
1213
+2
11
-2
IU13
12V UNDER-VOLTAGE DETECTION
IU18
3U24
IU32
10R
IU19
IU15
3U09
3U25
6K8
3U23
4R7
IU17
IU16
IU25
2R2
2
3U27
3U07
6K8
2U12
7U01-1
IU23
10R
4
IU29
3U28
2R2
100n
78
SI4936ADY
1
2U31
3n3
7U01-2
3U26
4R7
SI4936ADY
IU14
2U18
3U10
3K3
IU36
6
5
SI4936ADY
3
IU30
2
3U08
3K3
100n
IU45
3U97
7U03-1
7U03-2
5
SI4936ADY
4
3
2U32
3n3
78
1
IU44
6K8
3U83
3U96
FU13
6K8
6K8
2U11
DC / DC
6
3U82
6K8
IU26
6U22
1u0
IU27
7U07
BC817-25W
BOOSTER
IU86
12V/3.3V CONVERSION
FU03
10R
100n
3U21
2U19
IU54
IU22
1n0
6K8
2U27
3U13
IU21
1n0
2U28
1K0
3U12
12V/1.2V CONVERSION
BAS316
6U23
3UA8
BAS316
3UA9
2U26
100n
3U11
220R
IU60
68R
68R
IU28
6U21
BZX384-C18
IU55
3U20
2U29
2U30
10R
1n0
1n0
5U00
10u
2U20
IU40
3U14
IU41
3U15
3U16
GND-SIG
22u
3n3
2U24
2U85
FU06
5U03
10u
100n
2U21
6K8
1K0
4K7
3n3
3U18
3U17
GND-SIG
220R
1K0
1%
2U22
22u
3U93
10K
7U15-2
BC847BS
IU58
3U55
10K
IU56
7U15-1
BC847BS
3
5
4
A
B
C
D
E
F
G
H
3104 313 6095.3
1234567891011
3U37
GND-SIG
470R
1%
3U38
GND-SIG
IU88
3U19
100p
2U23
2U09
IU61
100p
6K8
2U10
GND-SIG
100n
0M96
0M97
2U37
22K
470n
FU19
0V
ENABLE-1V2
F
G
9U03
GND-SIG
G_16290_021.eps
H
010206
12 13 14 15
Page 70
SSB: Supply + RS232
Circuit Diagrams and PWB Layouts
70EL1.1U AA 7.
1
23456789
SUPPLY + RS232
B1B B1B
A
10
11
12
13
B13B-PH-K-S(LF)(SN)
B
C
FOR FACTORY
USE ONLY
D
E
F
3104 313 6095.3
1J02
1
2
3
4
5
6
7
8
9
7U21
TS431AILT
FOR FACTORY
USE ONLY
123
FU11
FU14
FU15
FU17
3U74
3
5
0V2
0V3
3V2
K
A
GND-D
1K0
1
2
FU04
FU10
FU21
FU22
NCNC
FU20
2U48
4
REF
1H07
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5-147279-3
100p
2U60
3U76
2U49
10n
1K0
100p
IU91
3V9
IU92
3U77
FU40
FU41
FU42
FU43
FU44
FU45
FU46
FU47
FU48
FU50
+3V3
2U50
1K5
100p
3U75
1K0
2U51
100p
2U52
+5V2-STBY
3U72
IU90
7U20
BC847B
2U56
FU49
5U35
5U36
5U37
5U38
3U47
3U48
100p
150R
3U73
150R
+3V3-UART
16V
10u
9U07
3U91
100R
100R
10K
FU16
2U53
+3V3
3U90
FU12
100n
10K
3U92
100n
2U40
2U54
JTAG-TRST
EJTAG-DETECT
EJTAG-TDI
EJTAG-TDO
EJTAG-TMS
EJTAG-TCK
RESET-SYSTEM
10K
-12-16V-NF
+12-16V-NF
+5V2-STBY
+12VS
BACKLIGHT-CNTRL-OUT
LAMP-ON-OUT
1u0
GLINK-TXD
TXD
RXD
GLINK-RXD
STANDBY
IU72
IU74
POD-MODE
9U15
RES
9U16
RES
IU75
IU99
IU73
IU87
2U63
100n
2U66
100n
+12VSW
100K
3U39
7U25-1
100n
2U65
100n
78
SI4936ADY SI4936ADY
1
2U64
100n
IU97
IU98
IU43
IU46
0V
IU93
IU94
IU95
IU96
IU47
3U42
47K
3U44
RES
RES
7U22
RS232
1
C1+
3
C1-
4
C2+
5
C2-
11 14
T1
10 7
IN
T2
13 12
R1
89
IN OUT
R2
47K
9U13
+3V3-UART
FU30
16ST3232C
Φ
OUT
GND
15
9U01
9U02
VCC
RES
RES
RES9U14
V-
V+
T1
T2
R1
R2
7U24
BC847BW
2
2U55
IU84
6
2
IU85
IU70
IU64
3U79
100R
4
100R
RES
+5V2-STBY+5V2-STBY
7U25-2
RES3U98
5
2U61
3U99
100R
3U81
100R
3
+5V
6
FU33
1u0
+5V
FOR
FACTORY
USE ONLY
1U02
45
B3B-PH-SM4-TBT(LF)
1U03
45
B3B-PH-SM4-TBT(LF)
RES
RES
RES
FU51
FU52
FU31
FU32
456789
1
2
3
1
2
3
G_16290_022.eps
010206
A
B
C
D
E
F
1H07 E2
1J02 A1
1U02 E9
1U03 E9
2U40 B4
2U48 B2
2U49 B2
2U50 B2
2U51 B2
2U52 B3
2U53 B3
2U54 B3
2U55 C7
2U56 D2
2U60 D2
2U61 C8
2U63 D5
2U64 D7
2U65 D7
2U66 D5
3U39 B7
3U42 B6
3U44 C6
3U47 B3
3U48 B3
3U72 C3
3U73 C3
3U74 C1
3U75 D2
3U76 D2
3U77 D2
3U79 E7
3U81 E8
3U90 E3
3U91 E3
3U92 F3
3U98 E8
3U99 E8
5U35 A3
5U36 A3
5U37 A3
5U38 A3
7U20 C3
7U21 D1
7U22 D6
7U24 C6
7U25-1 B7
7U25-2 B8
9U01 F6
9U02 F6
9U07 E3
9U13 C6
9U14 F6
9U15 E5
9U16 F5
FU04 A2
FU10 A2
FU11 A1
FU12 A3
FU14 A1
FU15 A1
FU16 A3
FU17 A1
FU20 B2
FU21 B2
FU22 B2
FU30 D6
FU31 E8
FU32 E8
FU33 B8
FU40 E2
FU41 E2
FU42 E2
FU43 E2
FU44 E2
FU45 E2
FU46 E2
FU47 F2
FU48 F2
FU49 F2
FU50 F2
FU51 E8
FU52 E8
IU43 B6
IU46 B5
IU47 B6
IU64 E7
IU70 E7
IU72 E4
IU73 E5
IU74 F4
IU75 F5
IU84 D7
IU85 D7
IU87 E5
IU90 C3
IU91 C2
IU92 D2
IU93 D6
IU94 D6
IU95 D6
IU96 E6
IU97 E7
IU98 E7
IU99 F5
Page 71
Circuit Diagrams and PWB Layouts
71EL1.1U AA 7.
SSB: Channel Decoder
123 9 10111213
B2A B2A
A
B
+2V5
C
D
CHANNEL DECODER
+3V3
+1V2_ATSC
5T20
220R
5T21
220R
IT30
5T23
220R
5T24
220R
5T25
220R
5T26
220R
5T27
600R
5T28
220R
2T30
2T31
2T33
2T34
2T35
FT20
+2V5D-PLL
10n
FT21
+2V5A-PLL
10n
FT22
+2V5A
10n
FT23
+2V5A-XTAL
10n
FT24
+2V5A-ADC
10n
FT25
+2V5F
FT26
+3V3F
FT27
+1V2F
E
+12VSW
+12VSW
FT29
8K2
3T42
IT45
7T20-1
BC847BPN
3T45
47K
F
+3V3
3T46
47K
IT47
3T50
47K
7T20-2
IT46
BC847BPN
IT48
3T47
1K0
2T64
100n
+1V2
FT28
3
7T21
SI2306DS
1
3T49
2
IT50
47K
+1V2_ATSC
IT49
G
SCL-DMA
SDA-DMA
9T12
H
1T10
56
4
3
2
1
B4B-PH-SM4-TBT(LF)
RES
+3V3
+5V
9T11
4K7
3T563T55
IT52
IT53
+3V3
4K7
3T57
100R
100R
I
3104 313 6095.3
123 8 9 10 11 12 13
45678
100n
100n2T45
16V100n
2T44 100n
IT31
16V
1u0
IT37
IT32
10n
68p
3T38
3T39
2T36
2T46
NXT2004
29
30
OUT
4
VREF_N
5
VREF_P
6
INCM
7
INP
8
INN
37
PDET_COMP_IN
41
UC_EN
59
POWER_RESET
78
0
77
1
42
SCL
43
SDA
90
0 DATA_EN
91
1
89
2
87
3
86
4
84
5
48
6
47
7
98
BIAS_RES
IT36
33K
33K
3T58
PCA9515ADP
IT51
IT54
CHDEC-CLK
FAT-ADC-INP
FAT-ADC-INN
RESET-FE-MAIN
IRQ-FE-MAIN
I2C-SDA-TUNER
I2C-SCL-TUNER
FM-TRAP
9T10
RES
+3V3F
8
7T23
VCC
3 SDA0 6SDA1
2SCL0 7SCL1
5EN
GND
4
9T13
RES
2T67
100n
100n2T37
100n2T39
2T38 100n
2T40 100n
2T52
IT38
10n
RES
+3V3F
3T31
1
NC
1T11
25M14
33p
2T53
+3V3
4K7
RES
+3V3F
IT40
IT41
3T53
3T48
4K7
2T54
1K0
3T54
IT34
33p
RES
10n
2T58
3T44
220R
IT33
3T51
100R
1K0
2T65
I2C ADRESS=24/26
2T41 100n
2T59
220R
68p
3T52
100R
16V1u0
2T62
2T56
2T42 100n
100n2T43
10n
2T57
3T41
16V
2T63
1u0
2T66
4567
+2V5A
7T22
AVDD
IN
OSC_XTAL
ADC
I2C_SLAVE_ADDR
I2C
GPIO
3
+2V5A-ADC
+2V5A-XTAL
+2V5A
+2V5A
+2V5A
21
26
959791011311
AVDD_ADC VDD2.5
AGND
13142025279699
12
+2V5A-PLL
AVDD-PLL
2
17
+1V2F
+1V2F
+1V2F
+1V2F
1623334552
VDD1.2
Φ
VSB/QAM
AVDD-OSC
DGND
192436394654576165727374757681
60
+1V2F
+1V2F
+1V2F
+1V2F
+2V5F
+2V5F
809218643244507079
63
DGND
82
+3V3F
+3V3F
+3V3F
VDD3.3
PDET_REF_OUT
MPEG
MPEG_DATA
838593
94
+3V3F
+3V3F
+3V3F
88
OSC_CLK
AGC
PKT_SYNC
SER_DATA
+2V5D-PLL
100
DVDD_PLL
NC
IF
AUX
RF
ERR
CLK
0
1
2
3
4
5
6
7
2T47 100n
15
22
28
35
34
38
40
49
51
53
55
71
3T35-1 68R
69
68
67
66
3T36-1 68R
62
58
56
100n2T48
AT35
3T40
3T43
3T37-4
45
68R
3T37-2
27
68R
18
36
18
36
2T49 100n
100n
1K0
1K0
100n
3T37-3
36
3T37-1
18
27
3T35-2
68R3T35-3
4
3T35-4 68R
27
68R3T36-3
45
3T36-4 68R
2T50 100n
2T60
IT01
2T61
68R
68R
68R
5
68R3T36-2
FAT-IF-AGC
AUX-IF-AGC
DV1F-DATA8_ERR
DV1F-CLK
DV1F-DATA9_SOP
DV1F-VALID
DV1F-DATA0
DV1F-DATA1
DV1F-DATA2
DV1F-DATA3
DV1F-DATA4
DV1F-DATA5
DV1F-DATA6
DV1F-DATA7
G_16290_023.eps
010206
A
B
C
D
E
F
G
H
I
1T10 H1
1T11 E6
2T30 A2
2T31 B2
2T33 B2
2T34 C2
2T35 D2
2T36 D8
2T37 D6
2T38 D6
2T39 D6
2T40 D6
2T41 D7
2T42 D7
2T43 D7
2T44 D7
2T45 D8
2T46 D7
2T47 D11
2T48 D12
2T49 D12
2T50 D12
2T52 E5
2T53 E6
2T54 E6
2T56 E7
2T57 E7
2T58 E6
2T59 E7
2T60 E12
2T61 F12
2T62 F7
2T63 F7
2T64 G2
2T65 G7
2T66 G7
2T67 H5
3T31 G5
3T35-1 G11
3T35-2 G12
3T35-3 G11
3T35-4 G12
3T36-1 G11
3T36-2 G12
3T36-3 G11
3T36-4 G12
3T37-1 F12
3T37-2 F12
3T37-3 F12
3T37-4 F12
3T38 G7
3T39 H7
3T40 F11
3T41 F7
3T42 F2
3T43 F11
3T44 F7
3T45 F1
3T46 F1
3T47 F2
3T48 F6
3T49 F3
3T50 F1
3T51 F6
3T52 F7
3T53 G6
3T54 G6
3T55 H2
3T56 H3
3T57 I3
3T58 I4
5T20 A2
5T21 B2
5T23 B2
5T24 C2
5T25 C2
5T26 D2
5T27 D2
5T28 E2
7T20-1 F1
7T20-2 F2
7T21 F3
7T22 E8
7T23 H4
9T10 G5
9T11 H3
9T12 H3
9T13 I5
AT35 E11
FT20 A2
FT21 B2
FT22 B2
FT23 C2
FT24 C2
FT25 D2
FT26 D2
FT27 E2
FT28 F3
FT29 F2
IT01 F12
IT30 B1
IT31 E7
IT32 F7
IT33 F6
IT34 E6
IT36 G8
IT37 E7
IT38 E6
IT40 G6
IT41 I5
IT45 F1
IT46 F2
IT47 F1
IT48 F2
IT49 F2
IT50 F3
IT51 H4
IT52 I2
IT53 I3
IT54 I4
Page 72
Circuit Diagrams and PWB Layouts
72EL1.1U AA 7.
SSB: Main Tuner
12
34
5 6 7 8 9 101112
MAIN TUNER
B2B B2B
A
MAIN DIG TUNER C0
1T04
TD1316O/FGHP
B
C
+5VTUN
18
19
IT14
2T10
10n
FT10
D
E
F
OOB3RF_GC5SCL8SDA
FM-T
+5V2AS
DC_PWR
4
1
IT11
2T25
10n
2T13
2T14
10n
2T18
2T26
180p
2T27
180p
TUNER
DNU
6
IT10
2T11
10n
FT12
10n
IT08
+5VTUN
3T28
IT27
NC
10
9
7
IT12
2T12
10n
2T15
IT09
220R
3T22
3T23
220R
4K7
3T25
IT26
I2C-SCL-TUNER
I2C-SDA-TUNER
VTUN
11
12
10n
10n
+5VTUN
4K7
IF-ANA
IF_114IF_2
IF_AGC
IF_OUT
13
FT15
3T27
1K0
FAT-IF-AGC
17
+5VTUN
16
15
IT13
FT11
+5VTUN
100n
2T23
7T12
BC847BW
3T15
4K7
IT15
3T21
IT16
3T18
4K7
4K7
7T13
UPC3218GV
IT17 IT18
2 INPUT1
3
INPUT2
IT24
IT25
4
VAGC
2T22
10n
1K0
FT30
AUX-IF-AGC
FM-TRAP
AT13
AT14
1T01
X7351P
44M
1
I
14
IGND
2
6
GND GND
11 13
OGND
O
AT20
7
8
4
9
AT23
2T19
10n
2T20
10n
3T29
AGC CONTROL
+5VTUN
1
2T16
1u0
VCC
GND15GND2
8
OUTPUT2
2T17
2T21
IT19
10n
IT22
10n
FAT-ADC-INP
FAT-ADC-INN
7OUTPUT1
IT21
6
+12VSW
IT60
IT61 IT62
7T10
LD1117DT
OUTIN
COM
1
3T10
47R
3T20
47R
32
2T24
5T11
220R
1u0
+5VTUN
1T01 D5
1T04 B1
2T10 C1
2T11 C2
2T12 C2
2T13 C2
2T14 D2
2T15 D2
A
2T16 C8
2T17 D9
2T18 D2
2T19 D6
2T20 D6
2T21 D9
2T22 E7
2T23 E3
2T24 D12
2T25 C2
2T26 D2
B
2T27 E2
3T10 C12
3T15 C3
3T18 C4
3T20 C11
3T21 C4
3T22 E2
3T23 E2
3T25 E2
3T27 E2
C
3T28 E2
3T29 E7
5T11 C12
7T10 C11
7T12 C3
7T13 D7
AT13 D4
AT14 D4
AT20 D6
AT23 D6
D
FT10 C2
FT11 C3
FT12 D2
FT15 E3
FT30 E7
IT08 D2
IT09 D2
IT10 C2
IT11 C2
IT12 C2
IT13 C3
E
IT14 C1
IT15 C4
IT16 C4
IT17 D7
IT18 D9
IT19 D9
IT21 D9
IT22 D9
IT24 D7
IT25 D7
F
IT26 F2
IT27 F2
IT60 C11
IT61 C11
IT62 C12
G
3104 313 6095.3
123456
78910
11 12
G_16290_024.eps
010206
G
Page 73
Circuit Diagrams and PWB Layouts
73EL1.1U AA 7.
SSB: MPIF Main: Video Source Selection
123456789101112
MPIF MAIN: VIDEO SOURCE SELECTION
B3A B3A
A
7A00-4
PNX3000HL/N2
123
126
119
4
5
8
9
15
16
6
25
26
27
30
31
32
49
48
47
54
64
59
SOURCE SELECT
CVBS_IF
AND DATA LINK
CVBS1
CVBS2
CVBS_DTV
CVBS|Y3
C3
CVBS|Y4
C4
Y_COMB
C_COMB
GND_VSW
R|PR|V_1
G|Y|Y_1
B|PB|U_1
R|PR|V_2
G|Y|Y_2
B|PB|U_2
VCC_DIG
GND_DIG
VD2V5
FUSE10
VCC_I2D
GND_I2D
CVBS_OUTA
CVBS_OUTB
STROBE1N
STROBE1P
DATA1N
DATA1P
STROBE3N
STROBE3P
DATA3N
DATA3P
STROBE2N
STROBE2P
DATA2N
DATA2P
HV_PRIM
HV_SEC
IA13
IA15
2212
60
61
62
63
50
51
52
53
55
56
57
58
46
IA18
45
22n
2A26
B
C
D
E
F
G
H
I
3104 313 6095.3
1234567891011
CVBSOUTIF-MAIN
AV1_CVBS
CVBS-IN
AV2_Y-CVBS
AV2_C
FRONT_Y-CVBS
AV7_Y-CVBS
FRONT_Y-CVBS
FRONT_C
AUDIO-IN5-L
AUDIO-IN5-R
AUDIO-HDPH-L-AP
AUDIO-HDPH-R-AP
SDA-DMA
SCL-DMA
POWER-DOWN_BOLT-ON
AUDIO-IN3-R
AUDIO-IN3-L
CVBS-IN
DMMI_B-PB-IN
DMMI_G-Y-IN
DMMI_R-PR-IN
H_SYNC_IN
AV1-AV6_FBL-HSYNC
AUDIO-OUT1-L
AUDIO-OUT1-R
RC
V_SYNC_IN
HP-DET-R-DC
SC-STANDBY
ITV-IR-SW-RESET
1MM1
EMC HOLE
3A61
3A63
5A65
470R
100R
600R
IA10
2A15
22n
2A17
22n
2A31
22n
IA17
2A20
FC02
IA16
22n
22n
RES
RES
2A21
2A96
22n
5A10
+5V
5A11
+5V
AA47
1A01
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 34
AF732L-N2G1A
FA32
FA33
FA34
FA35
FA36
FA37
FA38
FA39
FA40
FA41
FA01
FA02
FA03
FA42
FA43
+3V3-STANDBY
FA44
FA45
FA46
0T120T11
0T13
2A95
22n
2A29
2A32
100n
100n
2A94
FA11
FA12
22n
IA19
22n
2A27
2A10
2A11
22n
22n
2A30
22n
2A12
2A16
22n
2A18
22n
3A60
470R
3A62
100R
5A64
600R
2n2
2n2
2A07
2A08
2A04
1n0
3A05
100R
2A06
75R
3A06
1n0
0T00
2A09
3A01
IA11
IA12
IA14
22n
100p
75R
2A25
2A13
FA25
FA26
FA27
FA28
FA29
FA30
100p
2A05
FA31
22n
RES
2A14
1M36
1
2
3
4
5
6
7
8
9
10
11
B11B-PH-K
1n0
0T10
22n
RES
2n2
2n2
2A24
2A23
75R
75R
3A03
3A02
+5V
7A20
BC847BW
3A04
2A97
100n
2K2
STROBE1N-MAIN
STROBE1P-MAIN
DATA1N-MAIN
DATA1P-MAIN
STROBE3N-MAIN
STROBE3P-MAINFRONT_C
DATA3N-MAIN
DATA3P-MAIN
STROBE2N-MAIN
STROBE2P-MAIN
DATA2N-MAIN
DATA2P-MAIN
FA10
HV-PRM-MAIN
12
13
G_16290_025.eps
010206
13
A
B
C
D
E
G
H
F
I
0T00 I3
0T10 I4
0T11 I5
0T12 I6
0T13 I6
1A01 F7
1M36 D5
1MM1 I2
2A04 F3
2A05 G4
2A06 H3
2A07 E3
2A08 E3
2A09 E3
2A10 B3
2A11 B3
2A12 B3
2A13 B4
2A14 B5
2A15 C3
2A16 C3
2A17 C3
2A18 C3
2A20 C5
2A21 C6
2A23 E4
2A24 E4
2A25 E4
2A26 E10
2A27 E8
2A29 D8
2A30 B3
2A31 C3
2A32 E8
2A94 C8
2A95 C8
2A96 D7
2A97 A11
3A01 G3
3A02 G4
3A03 G4
3A04 B11
3A05 G3
3A06 G3
3A60 D3
3A61 D2
3A62 E3
3A63 E2
5A10 D7
5A11 E7
5A64 E3
5A65 E2
7A00-4 A9
7A20 A11
AA47 H7
FA01 G7
FA02 G7
FA03 G7
FA10 D12
FA11 D8
FA12 E8
FA25 D4
FA26 D4
FA27 E4
FA28 E4
FA29 E4
FA30 E4
FA31 E4
FA32 F7
FA33 F7
FA34 F7
FA35 F7
FA36 F7
FA37 F7
FA38 F7
FA39 G7
FA40 G7
FA41 G7
FA42 G7
FA43 G7
FA44 H7
FA45 H7
FA46 H7
FC02 B6
IA10 B3
IA11 B4
IA12 B4
IA13 B10
IA14 B5
IA15 B10
IA16 C6
IA17 C5
IA18 D10
IA19 D8
Page 74
Circuit Diagrams and PWB Layouts
74EL1.1U AA 7.
SSB: MPIF Main: Supply
12
B3B B3B
MPIF MAIN: SUPPLY
A
7A00-3
PNX3000HL/N2
MPIF-SUPPLY
E/W & CONTROL
B
C
GND_FILT
GND_RGB
D
GND_VADC
VCC_FILT
VCC_RGB
VCC_VADC
TESTPIN3
TESTPIN2
E
F
345678
2A35
10u 16V
100n
4V100u
2A43
5A12
220R
220R
100n
AC40
5A13
FA14
3V2
+5V
VREF-AUD-POS
VREF-AUD
+5V
SCL-DMA
SDA-DMA
IRQ-MPIF
CLK-MPIF
VOUTO
VAUDS
VDEFLO
VDEFLS
RREF
BGDEC
FUSE9
FUSE8
FUSE7
EWVIN
REW
EWIOUT
SCL
SDA
IRQ
XREF
ADR
FUSE6
FA13
2A44
3A10
3A11
3A12
5A14
220R
100n
3
7A10
BC847BW
2
560R
IA22
1K2
1K2
+5V
IA21
9A10
3V2
2A37
FA15
2A42
IA30
3A21
470R
IA20
1
3V9
1u0
+5V
2A38
1n0
+5V
3A16
FA16
IA23
1V4
10K
RES
2
3
20
21
IA24
+5V
FA17
3A13
47K
2A39
3A14
100R
2A45
IA25
100n
5A15
220R
100n
2A40
3A15
100R
1u0
2A41
13
7
33
10
23
11
29
34
14
28
35
18
24
36
IA26
38
IA27
37
IA28
44
IA29
43
42
40
39
41
A
B
C
D
E
F
2A35 A6
2A37 B6
2A38 B5
2A39 C4
2A40 C4
2A41 C4
2A42 D6
2A43 D6
2A44 E5
2A45 E4
3A10 B5
3A11 B5
3A12 B5
3A13 C4
3A14 F4
3A15 F4
3A16 E5
3A21 F6
5A12 A6
5A13 D7
5A14 D5
5A15 E4
7A00-3 B2
7A10 A5
9A10 A6
AC40 F6
FA13 A6
FA14 A7
FA15 D6
FA16 D5
FA17 E4
IA20 A5
IA21 A6
IA22 B5
IA23 B5
IA24 C4
IA25 C4
IA26 E3
IA27 E3
IA28 F3
IA29 F3
IA30 F6
3104 313 6095.3
1 2345678
G_16290_026.eps
010206
Page 75
Circuit Diagrams and PWB Layouts
SSB: MPIF Main: IF & SAW Filter
75EL1.1U AA 7.
561234
789
MPIF MAIN: IF + SAW FILTER
B3C B3C
A
+5V
100n
2A47
IA37
112115
GND1_IF
GND2_IF
IA34
IA31
109
110
VCC_IF
DTVIFPLL
IF PART
GND_SUP
FUSE5
121
119
2A19
10n
103
DTVIFINP
DTVIFINN
TESTPIN1
124
IA35
104
CVBSOUTIF
DTVOUTP
DTVOUTN
VCC1_VSW
VCC_SUP
VCC2_VSW
2NDSIFAGC
DTVIFAGC
122
118
125
120
116
117
114
102
+5VaM
+5VaM
IA44
2A56
1u0
2A57
1u0
IA42
2A54
IA45
10n
3A17
100R
9A15
RES
IA38
+5VTUN
+5VbM
3
7A11
1
BC847BW
IA39
2
3A18
180R
2A51
CVBSOUTIF-MAIN
3A19
180R
330p
B
C
D
IF-ANA
AA46
5A18
5A16
560n
220R
2A90
10n
IA36
2A50
2
3
1
4
5
6
9
10
13
14
15
18
10n
I1
I2
+5VaM
GND
1A10
OFWM1967L
45M75
NC
+5VbM
2A53
3A20
390R
10n
IA43
5A17
220R
IA40
10n
2A49
7A00-2
PNX3000HL/N2
111
VIFPLL
107
VIFINP
108
VIFINN
99
SIFINP
100
SIFINN
101
SIFAGC
105
TUNERAGC
113
2NDSIFEXT
106
FUSE4
+5VTUN
IA41
2A52
100n
7
O1
8
O2
11
12
16
17
AA18
AA19
2A55
10n
FA20
2A58
10n
A
B
C
D
1A10 C2
2A19 B5
2A47 B5
2A49 B4
2A50 B2
2A51 C9
2A52 C3
2A53 C4
2A54 D7
2A55 D3
2A56 D7
2A57 D7
2A58 E3
2A90 C1
3A17 C7
3A18 C8
3A19 C9
3A20 C4
5A16 B1
5A17 B4
5A18 C1
7A00-2 C4
7A11 C8
9A15 C7
AA18 C3
AA19 C3
AA46 C1
FA20 D3
IA31 B5
IA34 B5
IA35 B6
IA36 B2
IA37 B5
IA38 C8
IA39 C8
IA40 C4
IA41 C4
IA42 D7
IA43 D4
IA44 D7
IA45 C7
E
3104 313 6095.3
1
2
3
45
67
E
G_16290_027.eps
010206
89
Page 76
Circuit Diagrams and PWB Layouts
SSB: MPIF Main: Audio Source Selection
76EL1.1U AA 7.
1
23
45
678
MPIF MAIN: AUDIO SOURCE SELECTION
B3D B3D
2A60
+8V-AUD
1u0
IA47
2A61
1u0
2A62
IA49
2A64
100n
2A65
100n
IA51
100n
9A19
IA50
91
77
98
88
92
93
94
95
89
90
97
96
78
76
71
87
7A00-1
PNX3000HL/N2
VAADCP
VCC_AADC
VCC1_ASW
VCC2_ASW
MIC2N
MIC2P
MIC1N
MIC1P
VAADCREF
VAADCN
GND1_ASW
FUSE1
FUSE2
GND_AADC
FUSE3
GND2_ASW
AMEXTL1R1
17
AUDIO SOURCE SELECT
R3L4R4L5R5L2DSNDL1
R2
L3
85
83
81
86
84
82
79
80
128
127
DSNDR1
757374
DSNDR2
DSNDL2
72
LINEL
LINER
68
67
SCART1L
SCART1R
706966
SCART2L
SCART2R
65
A
B
C
D
+5VTUN
IA48
2A63
100n
A
B
C
D
2A01 E3
2A02 E3
2A33 E3
2A34 F3
2A60 A3
2A61 A3
2A62 A4
2A63 B3
2A64 B4
2A65 C4
2A66 E3
2A67 E3
2A68 E3
2A69 E3
2A71 F3
2A73 F3
2A98 F7
2A99 F7
7A00-1 A5
9A19 B4
IA01 F8
IA02 F8
IA08 E7
IA09 F7
IA32 E4
IA33 F4
IA47 A3
IA48 B3
IA49 B4
IA50 B4
IA51 C4
IA53 E4
IA55 E4
IA57 E4
IA58 E4
IA63 F4
IA65 F4
IA90 E4
IA91 E4
F
3104 313 6095.3
AUDIO-IN1-L
AUDIO-IN1-R
AUDIO-IN2-L
AUDIO-IN2-R
AUDIO-IN3-L
AUDIO-IN3-R
AUDIO-IN4-L
AUDIO-IN4-R
AUDIO-IN5-L
AUDIO-IN5-R
123 8
2A66
1u0
2A68
1u0
2A01
1u0
2A33
1u0
2A71
1u0
2A67
1u0
2A69
1u0
2A02
1u0
2A34
1u0
2A73
1u0
4567
IA53
IA55
IA57
IA58
IA90
IA91
IA32
IA33
IA63
IA65
IA08
IA09
2A98
1u0
2A99
1u0
AUDIO-OUT1-R
AUDIO-OUT1-L
IA01
IA02
EE
DSNDR1
DSNDL1
F
G_16290_028.eps
010206
Page 77
Circuit Diagrams and PWB Layouts
77EL1.1U AA 7.
SSB: MPIF Main: Audio Amplifier
1234567
8910
MPIF MAIN: AUDIO AMPLIFIER
B3E B3E
A
B
C
D
E
F
G
VREF-AUD
A-PLOP
ADAC7
ADAC8
LM324
5
6
+12VSW
7A05-2
6A11
BAS316
IA72
3A25
680K
1u0
47K
3A26
2A76
4
11
IA81
7
2A86
3A41
1K0
10K
3A42
1n0
IA83
IA82
BC847BW
IA71
0V
3A43
7A08
1
10K
+5V2-STBY
3A51
3A31
1
3A23
3
2
27K
RES
15K
+12VSW
3A39
100K
IA68
5V
3
IA73
2
IA76
RES
2A80
3
7A17
BC847BW
2
IA05
33R
1u0
IA77
9A01
+5V
84
2A79
33p
3A30
15K
RES
3A32
27K
7A04-1
TS482IST
1
FA21
2A87
IA97
+5V2-STBY
IA69
3A24
10K
3A27
IA89
IA74
33R
3A28
33R
16V 100u
2A78
IA88
9A02
+5V
7A04-2
TS482IST
84
5
6
2A84
IA79
2A85
3A36
1u0
3A38
IA80
3A52
27K
RES
RES
3A37
15K
+8V-AUD
1u0
33p
15K
RES
27K
2A81
16V
100u
100n
7
2A83
IA78
FK02
3A33
33R
3A34
33R
FK11
7A16
BC817-25W
BC857BW
7A15
7A14
BC817-25W
IA75
IA92
IA70
AUDIO-HDPH-L-AP
3A29
1K0
AUDIO-HDPH-R-AP
3A35
1K0
A
B
C
D
E
F
G
2A76 B2
2A78 C5
2A79 C4
2A80 C3
2A81 D5
2A83 D6
2A84 E5
2A85 E5
2A86 F2
2A87 G4
2A92 G4
3A08 G2
3A23 A3
3A24 B7
3A25 B3
3A26 B2
3A27 B6
3A28 C6
3A29 C8
3A30 C4
3A31 D3
3A32 D4
3A33 D6
3A34 D6
3A35 D8
3A36 E5
3A37 E4
3A38 E5
3A39 F3
3A41 F2
3A42 F2
3A43 G3
3A44 G3
3A51 C3
3A52 E4
6A11 B2
7A04-1 C4
7A04-2 D5
7A05-2 E1
7A08 B3
7A14 D8
7A15 B7
7A16 C7
7A17 F3
9A01 B4
9A02 C5
FA21 G4
FK02 C6
FK11 D7
IA05 F3
IA68 B3
IA69 B7
IA70 B8
IA71 B3
IA72 B2
IA73 C3
IA74 C6
IA75 C8
IA76 C3
IA77 D3
IA78 D6
IA79 E5
IA80 E5
IA81 F2
IA82 F3
IA83 G2
IA88 C4
IA89 D6
IA92 D8
IA97 G4
H
3104 313 6095.3
3A08
18K
3A44
10K
2A92
1u0
123
4567
H
G_16290_029.eps
010206
8910
Page 78
Circuit Diagrams and PWB Layouts
78EL1.1U AA 7.
SSB: PNX2015: Audio / Video
123456789
PNX2015: Audio / Video
B4A B4A
A
B
C
D
E
F
VREF-AUD-POS
ADAC1
ADAC2
ADAC7
ADAC8
DSNDL1
DSNDR1
I2S-MCH-LR
I2S-MCH-CSW
I2S-MCH-SLR
I2S-MAIN-D
I2S-SUB-D
I2S-WS-MAIN
CLK-MPIF
2LA5
3n3
2LA6
3n3
2LA8
3n3
2LA9
3n3
2L65
3n3
2L66
3n3
2J01
100n
AH1
AH2
AH3
AG1
AG2
AG3
AF1
AF2
AG4
AE1
AE2
AB5
AD1
AD2
AB4
AC1
AC2
AB3
AB1
AB2
AA4
AA1
AA2
AA3
AF3
AF4
AF5
AE3
AE4
AE5
AD3
AD4
AD5
AC3
AC4
AC5
W5
M4
Y5
U2
U3
U4
V4
V5
V2
V3
U1
U5
AUDIO / VIDEO
ADAC_CLK
ADAC1
ADAC1N
ADAC1P
ADAC2
ADAC2N
ADAC2P
ADAC3
ADAC3N
ADAC3P
ADAC4
ADAC4N
ADAC4P
ADAC5
ADAC5N
ADAC5P
ADAC6
ADAC6N
ADAC6P
ADAC7
ADAC7N
ADAC7P
ADAC8
ADAC8N
ADAC8P
ADAC9
ADAC9N
ADAC9P
ADAC10
ADAC10N
ADAC10P
ADAC11
ADAC11N
ADAC11P
ADAC12
ADAC12N
ADAC12P
I2S_IN_SD1
I2S_IN_SD2
I2S_IN_SD3
I2S_IN_SD4
I2S_IN_SD5
I2S_IN_SD6
I2S_SCK_SYS
I2S_WS_SYS
MPIF_CLK
I2S_SCK_XTRA
I2S_WS_XTRA
7J00-7
PNX
2015
Φ
AVP1_DLK_VDDA
AVP1_DLK_VDDD
AVP1_DLK_VSSA
AVP1_DLK_VSSD
AVP1_DTC_CLVSS
AVP1_DTC_VDD3
AVP1_DTC_VDDA
AVP1_DTC_VSSA
AVP1_HSYNCFBL1
AVP1_HSYNCFBL2
AVP2_DLK_VDDA
AVP2_DLK_VDDD
AVP2_DLK_VSSA
AVP2_DLK_VSSD
AVP2_DTC_CLVSS
AVP2_DTC_VDD3
AVP2_DTC_VDDA
AVP2_DTC_VSSA
AVP2_HSYNCFBL1
AVP2_HSYNCFBL2
AVP1_DLK1DN
AVP1_DLK1DP
AVP1_DLK1SN
AVP1_DLK1SP
AVP1_DLK2DN
AVP1_DLK2DP
AVP1_DLK2SN
AVP1_DLK2SP
AVP1_DLK3DN
AVP1_DLK3DP
AVP1_DLK3SN
AVP1_DLK3SP
AVP1_HVINFO1
AVP1_VSYNC1
AVP1_VSYNC2
AVP2_DLK1DN
AVP2_DLK1DP
AVP2_DLK1SN
AVP2_DLK1SP
AVP2_DLK2DN
AVP2_DLK2DP
AVP2_DLK2SN
AVP2_DLK2SP
AVP2_DLK3DN
AVP2_DLK3DP
AVP2_DLK3SN
AVP2_DLK3SP
AVP2_HVINFO1
AVP2_VSYNC1
AVP2_VSYNC2
I2S_OUT_SCK
I2S_OUT_SD1
I2S_OUT_SD2
I2S_OUT_SD3
I2S_OUT_SD4
I2S_OUT_SD5
I2S_OUT_SD6
I2S_OUT_WS
N5
M5
P5
R5
R2
R1
R4
R3
P2
P1
P4
P3
N2
N1
N4
N3
T6
T3
T4
T5
T1
T2
M3
M1
M2
H5
G6
J5
K5
K2
K1
K4
K3
J2
J1
J4
J3
H2
H1
H4
H3
K6
L3
L4
L5
L1
L2
G3
G1
G2
Y2
W1
W2
V1
W3
W4
Y4
Y3
STROBE1N-MAIN
STROBE1P-MAIN
STROBE2N-MAIN
STROBE2P-MAIN
STROBE3N-MAIN
STROBE3P-MAIN
3JA2
DATA1N-MAIN
DATA1P-MAIN
DATA2N-MAIN
DATA2P-MAIN
DATA3N-MAIN
DATA3P-MAIN
9J22
3J13
120R
120R
120R3J01
68R3J07
3J12
120R
0E02
IJ00
IJ01
IJ02
IJ03
9J24
AV2_FBL
AV6_VSYNC
I2S-MAIN-NDI2S-BCLK-MAIN
2J03
100n
2J06
100n
2J08
100n
2J10
100n
AV1-AV6_FBL-HSYNC
0E03
AV2_FBL
HV-PRM-MAIN
AV6_VSYNC
IJ04
IJ05
IJ06
IJ07
2J13
2J16
2J18
2J20
100n
100n
100n
100n
5J04
120R
5J05
120R
5J06
120R
5J07
120R
5J00
120R
5J01
120R
5J02
120R
5J03
120R
+3V3
+1V2
+1V2
+3V3
RESET-AUDIO
A-PLOP
+1V2
+1V2
FLA8
3L03
470K
IJ11
+12VSW
IJ53
6J07
BAS316
IJ09
1u0
2LT0
3L01
3
1
0V
IJ27
2
0V
100K
IJ55
11V1
7J01
BC847BW
2
IJ25
3L00
100K
6
7J02-1
BC847BPN
1
3L02
10K
IJ26
11V1
5
+5V2-STBY
IJ54
6J08
11V3
4
BC847BPN
7J02-2
3
0V
BAT54 COL
A
B
C
D
E
F
0E02 F5
0E03 F5
2J01 A1
2J03 A6
2J06 B6
2J08 B6
2J10 C6
2J13 E6
2J16 E6
2J18 E6
2J20 F6
2L65 D1
2L66 D1
2LA5 B1
2LA6 B1
2LA8 C1
2LA9 D1
2LT0 E9
3J01 E4
3J07 F4
3J12 C4
3J13 C4
3JA2 E4
3L00 E9
3L01 E8
3L02 E9
3L03 E8
5J00 A6
5J01 B6
5J02 B6
5J03 C6
5J04 D6
5J05 E6
5J06 E6
5J07 F6
6J07 D9
6J08 D9
7J00-7 A3
7J01 E8
7J02-1 F9
7J02-2 E9
9J22 C4
9J24 C5
FLA8 E7
IJ00 A5
IJ01 B5
IJ02 B5
IJ03 C5
IJ04 D6
IJ05 E6
IJ06 E6
IJ07 F6
IJ09 E9
IJ11 E8
IJ25 E9
IJ26 E9
IJ27 F8
IJ53 D9
IJ54 D9
IJ55 E8
3104 313 6095.3
123456789
123
G_16290_030.eps
010206
Page 79
Circuit Diagrams and PWB Layouts
SSB: PNX2015: DV I/O Interface
79EL1.1U AA 7.
12 456
3789
PNX 2015: DV I/O Interface
B4B B4B
A
7J00-4
2015
PNX
Φ
DV INPUT
DV4-CLK
B
C C
DV4-VALID
DV4-DATA0_SOP
DV4-DATA1_ERR
DV4-DATA2_0
DV4-DATA3_1
DV4-DATA4_2
DV4-DATA5_3
DV4-DATA6_4
DV4-DATA7_5
DV4-DATA8_6
DV4-DATA9_7
DV5-DATA0_SOP
DV5-DATA1_ERR
DV5-DATA2_0
DV5-DATA3_1
DV5-DATA4_2
DV5-DATA5_3
DV5-DATA6_4
DV5-DATA7_5
DV5-DATA8_6
DV5-DATA9_7
DV-VREF
DV-FREF
DV-HREF
D
AK8
AH8
AG8
AK7
AJ7
AH7
AG7
AF7
AK6
AJ6
AH6
AG6
AF6
AK5
AH5
AG5
AK4
AJ4
AH4
AK3
AJ3
AK2
AJ9
AK9
AH9
DV_CLK
DV_VALID
DV4_DATA_0
DV4_DATA_1
DV4_DATA_2
DV4_DATA_3
DV4_DATA_4
DV4_DATA_5
DV4_DATA_6
DV4_DATA_7
DV4_DATA_8
DV4_DATA_9
DV5_DATA_0
DV5_DATA_1
DV5_DATA_2
DV5_DATA_3
DV5_DATA_4
DV5_DATA_5
DV5_DATA_6
DV5_DATA_7
DV5_DATA_8
DV5_DATA_9
DV_VREF
DV_FREF
DV_HREF
DV1_CLK
DV1_VALID
DV1_DATA0
DV1_DATA1
DV1_DATA2
DV1_DATA3
DV1_DATA4
DV1_DATA5
DV1_DATA6
DV1_DATA7
DV1_DATA8
DV1_DATA9
DV2_CLK
DV2_VALID
DV2_DATA0
DV2_DATA1
DV2_DATA2
DV2_DATA3
DV2_DATA4
DV2_DATA5
DV2_DATA6
DV2_DATA7
DV2_DATA8
DV2_DATA9
DV3_CLK
DV3_VALID
DV3_DATA0
DV3_DATA1
DV3_DATA2
DV3_DATA3
DV3_DATA4
DV3_DATA5
DV3_DATA6
DV3_DATA7
DV3_DATA8
DV3_DATA9
AD28
AD29
AB27
AA30
AA29
AA28
AB29
AB28
AC30
AC28
AC27
AB30
AF30
AF27
AE30
AF28
AD27
AD26
AD30
AE26
AE27
AE28
AE29
AG27
AK28
AK30
AJ30
AH29
AG29
AG30
AH30
AG28
AH27
AJ28
AK29
AH28
33R 3LS1-2
33R 3LR9-3
33R
3LR9-1
3LS0-233R
33R 3LS1-3
33R 3LS0-4
33R 3LR1
33R 3LR0
33R
33R
33R
33R
3LR9-4
3LS0-3
3LS1-1
3LR9-233R
3LS1-4
DV2A-CLK
DV3F-CLK
DV3F-VALID
DV3F-DATA0_SOP
DV3F-DATA1_ERR
DV3F-DATA2_0
DV3F-DATA3_1
DV3F-DATA4_2
DV3F-DATA5_3
DV3F-DATA6_4
DV3F-DATA7_5
DV3F-DATA8_6
DV3F-DATA9_7
MP-ROUT-0
MP-ROUT-1
MP-ROUT-2
MP-ROUT-3
MP-ROUT-4
MP-ROUT-5
MP-ROUT-6
MP-ROUT-7
MP-ROUT-8
MP-ROUT-9
MP-GOUT-0
MP-GOUT-1
MP-GOUT-2
MP-GOUT-3
MP-GOUT-4
MP-GOUT-5
MP-GOUT-6
MP-GOUT-7
MP-GOUT-8
MP-GOUT-9
MP-BOUT-0
MP-BOUT-1
MP-BOUT-2
MP-BOUT-3
MP-BOUT-4
MP-BOUT-5
MP-BOUT-6
MP-BOUT-7
MP-BOUT-8
MP-BOUT-9
A27
A28
A29
A30
B28
B30
C28
C29
C30
D27
D28
D29
D30
E27
E28
E30
F26
F27
F28
F29
F30
G26
G27
G28
G29
G30
H27
H28
H30
J26
7J00-2
PNX
Φ
OUTPUT INTERFACE
RIN0
RIN1
RIN2
RIN3
RIN4
RIN5
RIN6
RIN7
RIN8
RIN9
GIN0
GIN1
GIN2
GIN3
GIN4
GIN5
GIN6
GIN7
GIN8
GIN9
BIN0
BIN1
BIN2
BIN3
BIN4
BIN5
BIN6
BIN7
BIN8
BIN9
2015
LVDS_CLKN
LVDS_CLKP
RGB_CLK_IN
RGB_HSYNC
RGB_VSYNC
LVDS_AN
LVDS_AP
LVDS_BN
LVDS_BP
LVDS_CN
LVDS_CP
LVDS_DN
LVDS_DP
LVDS_EN
LVDS_EP
RGB_UD
RGB_DE
B26
C26
A25
B25
D25
E25
B24
C24
E24
F24
C23
D23
J30
J27
J29
J28
K26
AJ10
TXPNXA-
TXPNXA+
TXPNXB-
TXPNXB+
TXPNXC-
TXPNXC+
TXPNXD-
TXPNXD+
TXPNXE-
TXPNXE+
TXPNXCLK-
TXPNXCLK+
MP-CLKOUT
MP-OUT-FFIELD
MP-OUT-HS
MP-OUT-VS
MP-OUT-DE
A
B
D
3LR0 D4
3LR1 C4
3LR9-1 D4
3LR9-2 E4
3LR9-3 D4
3LR9-4 D4
3LS0-2 D4
3LS0-3 D4
3LS0-4 E4
3LS1-1 D4
3LS1-2 D4
3LS1-3 E4
3LS1-4 E4
7J00-2 B7
7J00-4 B2
AJ10 D8
E
3104 313 6095.3
1
2
34
5
67
E
G_16290_031.eps
010206
89
Page 80
Circuit Diagrams and PWB Layouts
SSB: PNX2015: Tunnelbus
80EL1.1U AA 7.
A
B
C
D
123
45
6
PNX 2015: TUNNELBUS
B4C B4C
7J00-1
2015
PNX
Φ
TUNNELBUS
R28
M30
M29
K28
K27
L30
L28
K29
N26
L27
K30
M27
N28
N27
P28
P27
N30
N29
R29
R27
P30
T27
R30
T28
T29
T30
U27
V27
V28
V29
V30
W26
W27
W28
W29
W30
U30
U28
M28
3L10 33R
3L12-1 33R
33R3L13-3
33R3L13-2
3L12-3 33R
3L14-1 33R
3L11-3 33R
33R3L14-3
3L11-1 33R
3L15
3L13-4
3L12-4
3L13-1
3L14-4
3L11-4
3L11-2
3L14-2
33R
33R3L12-2
33R
33R
33R
33R
33R
33R
33R
VREF-PNX
TUN-VIPER-RX-BUSY
TUN-VIPER-RX-CLKP
TUN-VIPER-RX-DATA0
TUN-VIPER-RX-DATA1
TUN-VIPER-RX-DATA2
TUN-VIPER-RX-DATA3
TUN-VIPER-RX-DATA4
TUN-VIPER-RX-DATA5
TUN-VIPER-RX-DATA6
TUN-VIPER-RX-DATA7
TUN-VIPER-RX-DATA8
TUN-VIPER-RX-DATA9
TUN-VIPER-RX-DATA10
TUN-VIPER-RX-DATA11
TUN-VIPER-RX-DATA12
TUN-VIPER-RX-DATA13
TUN-VIPER-RX-DATA14
TUN-VIPER-RX-DATA15
TUN-VIPER-TX-DATA0
TUN-VIPER-TX-DATA1
TUN-VIPER-TX-DATA2
TUN-VIPER-TX-DATA3
TUN-VIPER-TX-DATA4
TUN-VIPER-TX-DATA5
TUN-VIPER-TX-DATA6
TUN-VIPER-TX-DATA7
TUN-VIPER-TX-DATA8
TUN-VIPER-TX-DATA9
TUN-VIPER-TX-DATA10
TUN-VIPER-TX-DATA11
TUN-VIPER-TX-DATA12
TUN-VIPER-TX-DATA13
TUN-VIPER-TX-DATA14
TUN-VIPER-TX-DATA15
TUN-VIPER-TX-BUSY
TUN-VIPER-TX-CLKN
TUN-VIPER-TX-CLKP
+2V5
9LA8
9LA9
D2
C2
C4
C3
D3
C1
D1
D9
C9
D8
D7
C8
D6
C6
D5
C5
D4
C7
A1
B4
A4
F3
B3
E3
F2
A3
F1
A2
B1
E1
A9
B9
A8
B6
A6
A5
E4
B7
A7
TUNN_TX_BUSY
TUNN_TX_CLKN
TUNN_TX_CLKP
TUNN_TX_D0
TUNN_TX_D1
TUNN_TX_D2
TUNN_TX_D3
TUNN_TX_D4
TUNN_TX_D5
TUNN_TX_D6
TUNN_TX_D7
TUNN_TX_D8
TUNN_TX_D9
TUNN_TX_D10
TUNN_TX_D11
TUNN_TX_D12
TUNN_TX_D13
TUNN_TX_D14
TUNN_TX_D15
TUNN_RX_D0
TUNN_RX_D1
TUNN_RX_D2
TUNN_RX_D3
TUNN_RX_D4
TUNN_RX_D5
TUNN_RX_D6
TUNN_RX_D7
TUNN_RX_D8
TUNN_RX_D9
TUNN_RX_D10
TUNN_RX_D11
TUNN_RX_D12
TUNN_RX_D13
TUNN_RX_D14
TUNN_RX_D15
TUNN_RX_BUSY
TUNN_RX_CLKN
TUNN_RX_CLKP
TUNN_REF
TUNS_TX_BUSY
TUNS_TX_CLKN
TUNS_TX_CLKP
TUNS_TX_D0
TUNS_TX_D1
TUNS_TX_D2
TUNS_TX_D3
TUNS_TX_D4
TUNS_TX_D5
TUNS_TX_D6
TUNS_TX_D7
TUNS_TX_D8
TUNS_TX_D9
TUNS_TX_D10
TUNS_TX_D11
TUNS_TX_D12
TUNS_TX_D13
TUNS_TX_D14
TUNS_TX_D15
TUNS_RX_D0
TUNS_RX_D1
TUNS_RX_D2
TUNS_RX_D3
TUNS_RX_D4
TUNS_RX_D5
TUNS_RX_D6
TUNS_RX_D7
TUNS_RX_D8
TUNS_RX_D9
TUNS_RX_D10
TUNS_RX_D11
TUNS_RX_D12
TUNS_RX_D13
TUNS_RX_D14
TUNS_RX_D15
TUNS_RX_BUSY
TUNS_RX_CLKN
TUNS_RX_CLKP
TUNS_REF
A
B
C
D
2L01 E5
2L06 F2
2L07 F3
2L08 F3
2L64 E2
3L10 B4
3L11-1 C4
3L11-2 C5
3L11-3 C4
3L11-4 B5
3L12-1 B4
3L12-2 B5
3L12-3 B4
3L12-4 B5
3L13-1 B5
3L13-2 B4
3L13-3 B4
3L13-4 B5
3L14-1 B4
3L14-2 C5
3L14-3 C4
3L14-4 B5
3L15 D4
3L20 F3
3L38 F3
3L39 F3
7J00-1 A3
9LA8 D2
9LA9 D2
IL03 E3
IL05 F4
E
F
3104 313 6095.3
1
+2V5
1n0
2L64
IL03
1K01K0
2L07
2L08
100n100n
3L20
47R
IL05
1V3
2L06
1u0
RES
3L38
3L39
23
1n0
2L01
E
VREF-PNX
F
G_16290_032.eps
010206
456
Page 81
Circuit Diagrams and PWB Layouts
SSB: PNX2015: DDR Interface
81EL1.1U AA 7.
12
3
PNX 2015: DDR Interface
B4D B4D
+2V5-DDRPNX +2V5-DDRPNX
7J00-3
2015
A
PNX-MA-0
PNX-MA-1
PNX-MA-2
PNX-MA-3
PNX-MA-4
PNX-MA-5
PNX-MA-6
PNX-MA-7
PNX-MA-8
PNX-MA-9
B
C
PNX-MA-10
PNX-MA-11
PNX-MA-12
PNX-MDATA-0
PNX-MDATA-1
PNX-MDATA-2
PNX-MDATA-3
PNX-MDATA-4
PNX-MDATA-5
PNX-MDATA-6
PNX-MDATA-7
PNX-MDATA-8
PNX-MDATA-9
PNX-MDATA-10
PNX-MDATA-11
PNX-MDATA-12
PNX-MDATA-13
PNX-MDATA-14
PNX-MDATA-15
D
E
3104 313 6095.3
3L41
3L43
3L45
3L47
3L49
3L92
33R
33R
33R
33R
33R
33R
33R
33R
33R
33R
33R
33R
33R
3L40
3L42
3L44
3L46
3L48
3L91
3L93
C12
MA_0
D12
MA_1
D11
MA_2
C10
MA_3
D21
MA_4
C21
MA_5
D20
MA_6
D19
MA_7
C19
MA_8
D18
MA_9
D13
MA_10
C18
MA_11
D17
MA_12
A11
MD_0
B12
MD_1
C11
MD_2
A12
MD_3
A10
MD_4
B13
MD_5
B10
MD_6
A13
MD_7
A18
MD_8
B21
MD_9
B18
MD_10
A21
MD_11
A19
MD_12
C20
MD_13
B19
MD_14
A20
MD_15
2
PNX
Φ
DDR INTERFACE
MBA_0
MBA_1
MCKE_0
MCLK_N
MCLK_P
MCS_0
MDQM_0
MDQM_1
MDQS_0
MDQS_1
Mem_DLL0
Mem_DLL1
MM_VREF
MRAS
MCAS
MWE
+2V5
3L51
3L52
5L52
220R
5L51
220R
100R
3L96
33R
33R3L95
1K0
22R
3L94
22R
ILN1
3L98
33R
IL04
2L62
D14
C13
C17
A16
A17
C14
B15
D16
A15
B16
E21
E10
C16
A14
D15
C15
3L90
3L97
33R
456713
33R
3L99
PNX-MRAS
1n0
2L63
PNX-MWE
PNX-MBA0
PNX-MBA1
PNX-MCKE
PNX-MCLK-N
PNX-MCLK-P
PNX-MCS-0
PNX-MDQM-0
PNX-MDQM-1
PNX-MDQS-0
PNX-MDQS-1
VREF-DDRPNX
+2V5-DDRPNX
100p
2L59
2L60
1n0
FLA9
100n
+1V2
5L50
30R
PNX-MA-0
PNX-MA-1
PNX-MA-2
PNX-MA-3
PNX-MA-4
PNX-MA-5
PNX-MA-6
PNX-MA-7
PNX-MA-8
PNX-MA-9
PNX-MA-10
PNX-MA-11
PNX-MBA0
PNX-MBA1
PNX-MDQM-0
PNX-MDQM-1
VREF-DDRPNX
PNX-MCLK-N
PNX-MCLK-P
PNX-MCKE
PNX-MCS-0
PNX-MRAS
PNX-MCAS
PNX-MWE
+2V5-DDRPNX
2L55
2L57
100n
2L56
7L50
K4D261638F-LC40
29
30
31
32
35
36
37
38
39
40
28
41
26
27
20
47
3L21
560R
49
46
45
44
24
23
22
21
3L22
1n0
100n
2L58
0
1
2
3
4
5
6
7
8
9
10
11
AP
0
BA
L
DM
U
VREF
CK
CK
CKE
CS
RAS
CAS
WE
IK01
560R
1
A
34
100n
18
VDD
VSS
48
VREF-DDRPNX
33
3
Φ
DDR
SDRAM
128Mx16
66
6
100n
2L61
3L56
3L58
3L60
3L62
3L64
3L66
3L68
3L70
3L89
1n0
PNX-MDATA-0
PNX-MDATA-1
PNX-MDATA-2
PNX-MDATA-3
PNX-MDATA-4
PNX-MDATA-5
PNX-MDATA-6
PNX-MDATA-7
PNX-MDATA-8PNX-MCAS
PNX-MDATA-9
PNX-MDATA-10
PNX-MDATA-11
PNX-MDATA-12
PNX-MDATA-13
PNX-MDATA-14
PNX-MDATA-15
PNX-MDQS-0
PNX-MDQS-1
9
12
15
VDDQ
VSSQ
52
2L50
55
58
2L51
100n
100n
2L52
61
14
17
19
25
NC
42
43
50
53
3L50
2
0
4
1
3L57
5
2
7
3
3L59
8
4
10
5
11
3L61
6
DQS
13
71
3L63
54
8
56
9
3L65
57
10
59
11
3L67
60
12
62
13
3L69
63
14
65
15
16
L
3L71
51
U
64
D
100n
2L53
100n
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
22R
2L54
22R
8910
10456789
PNX-MA-12
G_16290_033.eps
010206
A
B
C
D
E
2L50 A8
2L51 A8
2L52 A8
2L53 A9
2L54 A9
2L55 C6
2L56 A7
2L57 A7
2L58 A7
2L59 C5
2L60 C6
2L61 A9
2L62 E7
2L63 E7
3L40 A2
3L41 A1
3L42 A2
3L43 A1
3L44 B2
3L45 B1
3L46 B2
3L47 B1
3L48 B2
3L49 B1
3L50 B9
3L51 B4
3L52 B4
3L56 C9
3L57 C9
3L58 C9
3L59 C9
3L60 C9
3L61 C9
3L62 C9
3L63 C9
3L64 C9
3L65 C9
3L66 C9
3L67 C9
3L68 C9
3L69 C9
3L70 D9
3L71 D9
3L89 D9
3L90 B4
3L91 B2
3L92 B1
3L93 B2
3L94 B5
3L95 B4
3L96 C4
3L97 C4
3L98 C5
3L99 B5
5L50 C6
5L51 E7
5L52 E7
7J00-3 A3
7L50 B7
FLA9 C6
IL04 E7
Page 82
Circuit Diagrams and PWB Layouts
82EL1.1U AA 7.
SSB: PNX2015: Standby & Control
1 7891011
23
456
12 13
PNX 2015: STANDBY & CONTROL
B4E B4E
A
B
C
D
E
F
G
H
I
3104 313 6095.3
12345
+3V3-STANDBY
3LA0
10K
10K
3LR4
10K3LA2
3LA3 10K
10K3LA4
3LA5 1K0
3L76 10K
3LA7 10K
10K3LC0
10K3LC2
3LC3 10K
10K3LC4
3LC5 100K
4K73LC6
3LC7 4K7
10K3LA9
10K
3LD0
10K
3LD1
3L78 10K
3LR2 10K
10K
3LD3
3LD4 10K
10K3LD5
3LD6 10K
10K3LD7
3LD8 10K
10K3L81
10K3LE7
3LE8 10K
10K3LE9
680R3LS2
3LC1
10K
3LC8
10K
10K3L82
10K
3L83
3LE5 10K
10K3LE6
10K3LH5
10K3LH6
M27-PNX
JTAG-TCK
JTAG-TD-VIPER-PNX2015
JTAG-TD-PNX2015-HDMI
JTAG-TMS
JTAG-TRST
RESET-MIPS
RESET-PNX2015
+1V2
+3V3
9LA2
ALB0
2LA2
3LC9
10K
ILB9
FLC2
RES
9P25
RES
9P15
2Q71
100p
9LA0
9LA1
9LA3
5LA3
600R
ILB5
+3V3
ON-MODE
POD-MODE
ENABLE-1V2
ENABLE-3V3
LAMP-ON
UART-SWITCH
2LB3 1n0
P50-HDMI
SUPPLY-FAULT
POWER-OK-DISPLAY
SCL-UP-SW
SDA-UP-SW
ILC3
DETECT-3V3
RESET-MIPS
RESET-PNX2015
9P24 RES
9P14 RES
2Q70
100p
FLB7
RESET-SYSTEM
RESET-AUDIO
DEBUG-BREAK
EJTAG-DETECT
RESET-MAIN-NVM
STBY-WP-NAND-FLASH
KEYBOARD
TEMP-SENSOR
SPI-PROG
SPI-PROG
10p
3LL8
330R
2LB1
3LL9
180R
3LJ3
10K
ILB7
100n
2LA4
RC
P50
SDM
P3_2 P3_2
SDM
LED2
LED1
100n2LB4
SPI-WP
+1V2
5LA1
600R
ILB6
100n
Y29
Y28
Y27
Y26
AH11
AK11
AJ11
AG11
AF11
AA27
AD6
AE6
D10
Y1
Y30
AJ1
AJ2
ON-MODE
POD-MODE
ENABLE-1V2
ENABLE-3V3
LAMP-ON
P0_6P0_6
UART-SWITCH
RC
P50
P50-HDMI
SUPPLY-FAULT
POWER-OK-DISPLAY
SCL-UP-SW
SDA-UP-SW
DETECT-1V2
DETECT-3V3
DETECT-5V
DETECT-8V6
DETECT-12V
CTRL4-STBY
PROT-AUDIOSUPPLY
RXD-UP
TXD-UP
RESET-MIPS
RESET-PNX2015
SDM
LED2
LED1
RESET-SYSTEM
RESET-AUDIO
DEBUG-BREAK
EJTAG-DETECT
P4_4P4_4
RESET-MAIN-NVM
STBY-WP-NAND-FLASH
KEYBOARD
LIGHT-SENSOR
TEMP-SENSOR
FRONT-DETECTFRONT-DETECT
SPI-PROG
SPI-WP
XTAL_SYS_VDD
XTALI_SYS
XTALO_SYS
XTAL_SYS_VSS
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRSTN
RESET_IN
SDAC_VDDD
SDAC_VSSD
NC_1
NC_3
NC_4
NC_5
NC_6
3L84
7J00-6
2015
PNX
Φ
CONTROL
3V2
RES
10K
ILC4
ILC5
ILC6
ILC7
3V2
3V2
RES
3L85
SCL_COL
SDA_COL
HD_EXINT1
HD_EXINT2
SCL_AVIP
SDA_AVIP
INT_AVIP1
INT_AVIP2
+3V3-STANDBY
10K
3LA8
SCL_HD
SDA_HD
INT_HD1
INT_HD2
100R
P0.0
3LM0
3LR3
100R
100R
3LM2
100R
3LM3
100R
3LM4
100R
3LM5
100R
3L75
100R
3LM7
100R3LG3
3LG7 100R
100R3LG5
3LG6 100R
10K3LD2
100R
3LG8
100R3LH9
3LH8 100R
3LN0
100R
3LN1
100R
3LN2
100R
3LN3
100R
3LN4
100R
3LN5
100R
100R
3LN6
3LG2
100K
10K3L79
RES
ILB3
FJ40
RES
RES
RES
10K
10K
10K
3LB2
3LB3
3LB1
3LF8
AF9
3LG9
AG9
C27
3LH1 100R
B27
F4
3LJ2 10K
F5
C22
D22
3LH3
G4
3LH4
G5
A22
B22
100R
3LN7
100R3LJ0
3LJ1 100R
3L77
100R
3LJ5 100R
100R3LJ6
3LJ7 100R
100R3LJ8
3LJ9 100R
100R3LK0
3LK1 100R
100R3LK2
3LK3 100R
3L80
100R
3LK5 100R
100R3LK6
3LK7 100R
100R3LK8
100R3LK9
100R3LL0
3LL1
100R
100R3LL2
3LL3 100R
100R3LL4
3LL7 100R
100R3LL5
100R
3LL6
RES
10K
FLA6
100R
FLA7
100R
100R3LH0
+3V3
100R
100R
ILB2
AK15
P0_0
AJ15
AH15
AG15
AK16
AJ16
AH16
AG16
AK13
AJ13
AH13
AG13
AK14
AH14
AG14
AF14
AF16
AK17
AH17
AG17
AK18
AJ18
AH18
AG18
AK19
AJ19
AH19
AG19
AK20
AH20
AG20
AK21
AJ21
AH21
AG21
AF21
AK22
AJ22
AH22
AG22
AK23
AH23
AG23
AF23
AK24
AJ24
AH24
AG24
AK27
AJ27
SCL-DMA
SDA-DMA
SCL-DMA
SDA-DMA
IRQ-HIRATE
IRQ-HD1
IRQ-HD2
SCL-DMA
SDA-DMA
IRQ-AVIP
P0_1
P0_2
P0_3
P0_4
P0_5
P0_6
P0_7
P1_0
P1_1
P1_2
P1_3
P1_4
P1_5
P1_6
P1_7
P2_0
P2_1
P2_2
P2_3
P2_4
P2_5
P2_6
P2_7
P3_0
P3_1
P3_2
P3_3
P3_4
P3_5
P3_6
P3_7
P4_0
P4_1
P4_2
P4_3
P4_4
P4_5
P4_6
P4_7
P5_0
P5_1
P5_2
P5_3
P5_4
P5_5
P5_6
P5_7
P6_4
P6_5
P0.2
P0.3
P0.4
P0.5
P0.7
P2.0
P2.1
P2.2
P2.3
P2.4
P2.5
P2.6
P2.7
67891011
7J00-5
2015
PNX
STANDBY PROCESSOR
Φ
MC_RESET
SPI_CSB
SPI_SDO
XTAL_MC_VDD
XTALI_MC
XTALO_MC
XTAL_MC_VSS
PWM1
ALE
SCL_MC
SDA_MC
SPI_CLK
SPI_SDI
PSEN
PWM0
EA
AJ25
AG25
100R
AF25
AK26
100R
AH26
AG26
100R
AH10
AG10
AJ10
AK10
AK12
AJ12
AH12
AG12
AH25
AK25
RES
3LF2
100R
10K
RES
3LF9
+3V3-STANDBY
3LE1
3LH2
3LF0
1LA0
3LH7
100R
3LE2
100R
FLA0
100n
2LB0
3LB6
16M
DSX840GA
BACKLIGHT-CONTROL
+5V
+12VSW
5LA2
600R
3LQ6
100R
1M0
RES
ALE
RESET-STBY
SCL-UP-VIP
SDA-UP-VIP
SPI-CLK
SPI-CSB
SPI-SDI
SPI-SDO
+1V2-STANDBY
PSEN
2LA0
22p
2LA1
22p
3LU8
1K0
3LV8
27K
+3V3-STANDBY
84
VCC
Φ
D
512K
FLASH
C
S
W
HOLD
VSS
DETECT-1V2
POWER-OK-DISPLAY
+3V3-STANDBY
3LB5
2
Q
FLA5
10K
7LB5
10K
+1V2
3LU0
10K
ILD3
7LB2-2
BC847BS
+1V2-STANDBY
3LT7
100K
ILD1
+3V3
7LB2-1
6
BC847BS
1
10K
3LU2
3
4
+1V2
ILD2
3LT9
2
ILD5
5
3LU1
+5V
47K
+1V2-STANDBY
10K
13
+3V3-STANDBY
3V3
3LT5
BC847BW
ILD4
12
+3V3-STANDBY
M25P05-AVMN6
FLA1
FLA2
FLA3
FLA4
ILB8
10K
3LB4
+3V3-STANDBY
3V2
9J23
3LB7
10K
3LB8
10K
3LE3
4K7
3LE4
4K7
3LB9
10K
7LA7
5
6
1
3
7
DETECT-5V
DETECT-12V
DETECT-8V6
ALE
EA
EA
SCL-UP-VIP
SDA-UP-VIP
SPI-SDI
PSEN
SPI-SDO
SPI-CLK
SPI-CSB
SPI-WP
3V5
2K2
3LU7
10K
3LV7
14
G_16290_034.eps
010206
14
1LA0 D9
3LK5 D6
2LA0 D9
3LK6 D6
2LA1 D9
3LK7 D6
3LK8 D6
2LA2 G3
3LK9 E6
2LA4 I3
3LL0 E6
2LB0 C9
3LL1 E6
2LB1 G3
3LL2 E6
2LB3 B3
3LL3 E6
2LB4 D3
A
B
C
D
E
F
G
H
I
2Q70 C3
2Q71 F3
3L75 B6
3L76 B2
3L77 C6
3L78 C2
3L79 C5
3L80 D6
3L81 D2
3L82 E2
3L83 E2
3L84 E4
3L85 E5
3LA0 A2
3LA2 A2
3LA3 A2
3LA4 B2
3LA5 B2
3LA7 B2
3LA8 E5
3LA9 B2
3LB1 E5
3LB2 E5
3LB3 E6
3LB4 E10
3LB5 B11
3LB6 D9
3LB7 A10
3LB8 B10
3LB9 C10
3LC0 B2
3LC1 E2
3LC2 B2
3LC3 B2
3LC4 B2
3LC5 B2
3LC6 B2
3LC7 B2
3LC8 E2
3LC9 C3
3LD0 C2
3LD1 C2
3LD2 B6
3LD3 D2
3LD4 D2
3LD5 D2
3LD6 D2
3LD7 D2
3LD8 D2
3LE1 A9
3LE2 B9
3LE3 B10
3LE4 B10
3LE5 E2
3LE6 E2
3LE7 D2
3LE8 D2
3LE9 D2
3LF0 B9
3LF2 D8
3LF8 G6
3LF9 E8
3LG2 C5
3LG3 B6
3LG5 B6
3LG6 B6
3LG7 B6
3LG8 B6
3LG9 G5
3LH0 H5
3LH1 H5
3LH2 B9
3LH3 H5
3LH4 I5
3LH5 E2
3LH6 E2
3LH7 B9
3LH8 B6
3LH9 B6
3LJ0 C6
3LJ1 C6
3LJ2 H6
3LJ3 H3
3LJ5 C6
3LJ6 C6
3LJ7 C6
3LJ8 D6
3LJ9 D6
3LK0 D6
3LK1 D6
3LK2 D6
3LK3 D6
3LL4 E6
3LL5 E6
3LL6 E6
3LL7 E6
3LL8 G3
3LL9 G3
3LM0 A6
3LM2 A6
3LM3 A6
3LM4 B6
3LM5 B6
3LM7 B6
3LN0 B6
3LN1 C6
3LN2 C6
3LN3 C6
3LN4 C6
3LN5 C6
3LN6 C6
3LN7 C6
3LQ6 C9
3LR2 C2
3LR3 A6
3LR4 A2
3LS2 D2
3LT5 G12
3LT7 G13
3LT9 H13
3LU0 H12
3LU1 I13
3LU2 H12
3LU7 G10
3LU8 G9
3LV7 G10
3LV8 G9
5LA1 G3
5LA2 C9
5LA3 H3
7J00-5 A8
7J00-6 G4
7LA7 D10
7LB2-1 H13
7LB2-2 I12
7LB5 G12
9J23 G10
9LA0 H3
9LA1 H3
9LA2 H3
9LA3 H3
9P14 C3
9P15 E3
9P24 C3
9P25 E3
ALB0 G3
FJ40 E5
FLA0 C9
FLA1 D10
FLA2 D10
FLA3 D10
FLA4 D10
FLA5 D11
FLA6 G6
FLA7 G6
FLB7 C3
FLC2 D3
ILB2 I6
ILB3 D6
ILB5 G3
ILB6 G4
ILB7 H3
ILB8 E10
ILB9 C3
ILC3 B3
ILC4 B5
ILC5 C5
ILC6 C5
ILC7 C5
ILD1 G13
ILD2 H13
ILD3 H12
ILD4 H12
ILD5 I13
Page 83
SSB: PNX2015: Supply
Circuit Diagrams and PWB Layouts
83EL1.1U AA 7.
A
B
C
D
E
1
2
3
45
67
8
PNX 2015: SUPPLY
B4F B4F
2L80
2u2
2L81
2u2
2L82
2u2
B2
B5
B8
B11
B14
B17
B20
B29
C25
D24
D26
E2
E23
E26
E29
H29
L29
N13
N14
N15
N16
N17
N18
P13
P14
P15
P16
P17
P18
U26
U25
P29
R13
R14
R15
2L83
2u2
2L84
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
100n
2L85
100n
2L86
7J00-9
PNX
Φ
GND
2L87
100n
2015
100n
2L88
100p
VSS_36
VSS_37
VSS_38
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
2L89
1n0
2L90
R16
R17
R18
T13
T14
T15
T16
T17
T18
J6
U6
U13
U14
U15
U16
U17
U18
U29
V13
V14
V15
V16
V17
V18
AC29
AF29
AJ5
AJ8
AJ14
AJ17
AJ20
AJ23
AJ26
AJ29
1n0
2L91
1n0
2L92
1n0
+2V5-DDRPNX
+2V5
+1V2
E11
E12
E16
E17
F10
F12
F16
F17
AA6
J25
K25
AB6
R6
AB25
F22
F21
AA5
AE10
AE12
AF10
AF12
AF13
E20
E22
AA25
E13
E14
E15
E18
E19
F13
F14
F15
F18
F19
L26
M25
M26
N25
R26
P25
T26
R25
E9
F9
P6
E5
E6
E7
E8
F6
F7
C1V2_VDD_1
C1V2_VDD_2
C1V2_VDD_3
C1V2_VDD_4
C1V2_VDD_5
C1V2_VDD_6
C1V2_VDD_7
C1V2_VDD_8
C1V2_VDD_9
C1V2_VDD_10
C1V2_VDD_11
C1V2_VDD_12
C1V2_VDD_13
C1V2_VDD_14
C1V2_VDD_15
C1V2_VDD_16
C1V2_VDD_17
C1V2_VDD_18
C1V2_VDD_19
C1V2_VDD_20
C1V2_VDD_21
C1V2_VDD_22
C1V2_VDD_23
C1V2_VDD_24
C1V2_VDD_25
C1V2_VDD_27
C1V2_VDD_28
P2V5VDD_1
P2V5VDD_2
P2V5VDD_3
P2V5VDD_4
P2V5VDD_5
P2V5VDD_6
P2V5VDD_7
P2V5VDD_8
P2V5VDD_9
P2V5VDD_10
P2V5VDD_11
P2V5VDD_12
P2V5VDD_13
P2V5VDD_14
P2V5VDD_15
P2V5VDD_16
P2V5VDD_17
P2V5VDD_18
P2V5VDD_19
P2V5VDD_20
P2V5VDD_21
P2V5VDD_22
P2V5VDD_23
P2V5VDD_24
7J00-8
PNX
2015
Φ
SUPPLY
P3V3VDD_1
P3V3VDD_2
P3V3VDD_3
P3V3VDD_4
P3V3VDD_5
P3V3VDD_6
P3V3VDD_7
P3V3VDD_8
P3V3VDD_9
P3V3VDD_11
P3V3VDD_12
P3V3VDD_13
P3V3VDD_14
P3V3VDD_15
P3V3VDD_16
P3V3VDD_17
P3V3VDD_18
P3V3VDD_19
SB1V2VDD_1
SB1V2VDD_2
SB1V2VDD_3
SB1V2VDD_4C1V2_VDD_26
SB1V2VDD_5
SB1V2VDD_6
SB1V2VDD_7
SB3V3VDD_1
SB3V3VDD_2
SB3V3VDD_3
SB3V3VDD_4
SB3V3VDD_5
VDD_LVDS_1
VDD_LVDS_2
VDD_LVDS_3
VDD_LVDS
VDDA_SYS_PLL
VCCA_LVDS_PLL
VDDA_1_7_MCAB
VCCA_U5PLL
ADC_VSSA
ADC3V3VDDA
AVDD_MCAB
AVSS_MCAB
SDAC_3V3
F25
G25
H26
M6
N6
V6
W6
AF8
AA26
AB26
AC26
AD25
AE7
AE13
AE14
AE24
AE25
AF26
AE15
AE16
AE17
AE18
AF15
AF17
AF18
AE19
AE21
AE22
AF19
AF20
A23
A24
A26
B23
AE9
T25
V25
P26
AF24
AF22
V26
W25
AK1
+3V3
+1V2-STANDBY
+3V3-STANDBY
ILN2
100n
2LS5
LVDS-3V3
PLL-1V2
LVDS-3V3
+3V3
PLL-3V3
UP-3V3
+1V2
5LN4
600R
+3V3
+1V2
+2V5
+3V3
+1V2
+3V3-STANDBY
+3V3
2LN2
4V47u
2LN3
5LN0
600R
5LN1
600R
5LN2
600R
5LN3
600R
100n
2LN4
2LP0
ILN3
ILN4
ILN5
ILN6
100n
4V100u
2LN5
2LP7
2LR5
2LR8
100n
4V100u
100n
100n
2LN6
2LP8 2LP2
2LR2
2LR4
2LR6
2LR9
100n
100n
100n
100n
100n
100n
100n
2LN7
2LP3
2LP9
PLL-3V3
PLL-1V2
UP-3V3
LVDS-3V3
100n
100n
100n
2LN8
2LR0 2LP4
100n
100n
100n
A
B
C
D
E
2L80 E1
2L81 E1
2L82 E1
2L83 E1
2L84 E1
2L85 E1
2L86 E2
2L87 E2
2L88 E2
2L89 E2
2L90 E2
2L91 E3
2L92 E3
2LN2 A7
2LN3 A7
2LN4 A7
2LN5 A8
2LN6 A8
2LN7 A8
2LN8 A8
2LP0 B7
2LP2 B8
2LP3 B8
2LP4 B8
2LP7 C8
2LP8 C8
2LP9 C8
2LR0 C8
2LR2 C8
2LR4 D8
2LR5 D8
2LR6 D8
2LR8 E8
2LR9 E8
2LS5 E6
5LN0 C7
5LN1 D7
5LN2 D7
5LN3 E7
5LN4 E6
7J00-8 A5
7J00-9 A2
ILN2 E6
ILN3 C8
ILN4 D8
ILN5 D8
ILN6 E8
F
3104 313 6095.3
123
45
67
F
G_16290_035.eps
010206
8
Page 84
Circuit Diagrams and PWB Layouts
84EL1.1U AA 7.
SSB: PNX2015: Display Interface
12345
B4G B4G
VIPER/PNX 2015: DISPLAY INTERFACE
67
10 1189
+3V3+5V
A
RES
RES
4K7
10K
3J40
3J41
IJ30
RES
7J10
BC847BW
IJ31
3J28
5J10
*
220R
5J11
220R
5J12
220R
3J86
1K0
RES
IJ69
*
10K
2J57
100n
*
3J94
FJ13
*
2J71
*
100n
6J06
SML-310
RES
2J61
*
1n0
*
10K
VDISP
*
+3V3
+12VSW
RES
7J05-1
BC847BPN
BACKLIGHT-CNTRL-OUT
+12VSW
47K
3J15
6
1
IJ72
3J22
BC847BPN
1K0
RES
2
7J05-2
IJ76
4
IJ75
5
3
9J21
RES
15K
3J21
2G35
3J16
10K
100n
+12VSW
7J06
BC847BW
3J17
10K
IJ74
3J19
2J77
100p
IJ73
3J18
4K7
2K2
RES
3J20
1K0
BACKLIGHT CONTROL
3J92
6J01
7J04
SI4835BDY
IJ80
7J08
*
SI3441BDV
*
47K
*
7J07
*
2J76
*
IJ70
1u0
3J25
47K
BC847BW
*
IJ16
IJ68
B
+5V
C
+12VSW
D
9J30
9J31
*
3J99
47R
IJ14
BZX384-C5V6
IJ15
*
*
VDISP-SWITCH
9J40
IJ32
LAMP-ON-OUT
IJ82
BACKLIGHT-CONTROL
AV-ROUT
LAMP-ON
AV-GOUT
AV-BOUT
MP-OUT-HS
MP-OUT-VS
GLINK-TXD
GLINK-RXD
ANALOG OUTPUT
E
+3V3
*
*
47R
3J42
F
G
H
CTRL1-VIPER
CTRL4-VIPER
CTRL4-STBY
ON-MODE
IJ18
IJ20
IJ23
IJ71
3J91
47R
3J23
47R
3J51
47R
3J55
100K
*
*
+3V3-STANDBY
*
4K7
3J52
*
*
2J37
100p
*
IJ81
*
3J56
100K
*
7J09
BC847BW
*
I
*
*
47R
47R
*
100p
3J44
2J69
*
100p
2J64
3J88
47R
FJ12
FJ22
FJ10
FJ09
100p
3J43
2J38
DISPLAY CONTROL
CTRL-DISP1
CTRL-DISP2
CTRL-DISP3
CTRL-DISP4
FHP SDI
IRQ
PDWIN
CPU-GO
PDP-GO
RESET
TXPNXA-
TXPNXA+
TXPNXB-
TXPNXB+
TXPNXC-
TXPNXC+
TXPNXCLK-
TXPNXCLK+
TXPNXD-
TXPNXD+
TXPNXE-
TXPNXE+
1
2
1
2
1
2
1
2
1
2
1
2
5J50
DLW21S
5J52
DLW21S
5J54
DLW21S
5J56
DLW21S
5J58
DLW21S
5J60
DLW21S
2J40
4
10p
3
2J41
2J42
10p
4
10p
CTRL-DISP1
3
2J43
10p
2J44
4
10p
3
2J45
10p
2J46
4
10p
3
2J47
10p
2J48
4
10p
3
2J49
2J72
10p
4
10p
3
2J73
10p
CTRL-DISP2
CTRL-DISP3
CTRL-DISP4
SCL-I2C4
SDA-I2C4
FJ24
FJ25
FJ27
FJ30
FJ31
FJ36
VDISP
FJ23
FJ26
FJ28
FJ29
FJ32
FJ37
100R3J30
*
100R
3J31
*
*
*
2J30
2J31
100p
3104 313 6095.3
1234567
8 9 10 11
12 13
5J20
120R
5J21
120R
5J22
120R
3J60
100R
3J61
100R
3J62
100R
3J63
100R
LVDS
CONNECTOR
1G50
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
32
FI-WE31P-HFE-E1500
100p
12 13
2J21
2J22
2J24 2J23
2J26 2J25
2J27
100p
100p
100p
100p 100p
100p 100p
FJ03
FJ04
FJ05
FJ01
FJ02
B9B-PH-K
FJ06
FJ07
1P06
32
0-1453230-3
1D50
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
G_16290_036.eps
010206
1D50 C13
FJ12 F5
1G50 F12
FJ13 B5
1P06 F13
FJ22 F5
2G35 D8
FJ23 G11
2J21 B12
FJ24 G11
FJ25 G11
2J22 B12
FJ26 G11
2J23 C12
2J24 C12
FJ27 H11
2J25 D12
2J26 D12
2J27 E12
2J30 I11
2J31 I11
2J37 H4
2J38 H4
2J40 F9
2J41 F9
2J42 F9
2J43 G9
2J44 G9
2J45 G9
2J46 H9
2J47 H9
2J48 H9
2J49 I9
2J57 D4
2J61 D5
2J64 H5
2J69 H5
2J71 B5
2J72 I9
2J73 I9
2J76 D2
2J77 C9
3J15 B7
3J16 C8
3J17 C8
3J18 C9
3J19 C9
3J20 D9
3J21 D8
3J22 D7
3J23 G2
3J25 D3
3J28 D4
3J30 H11
3J31 I11
3J40 A9
3J41 A9
3J42 F4
3J43 F4
3J44 F5
3J51 H2
3J52 H4
3J55 H2
3J56 I3
3J60 C12
3J61 D12
3J62 D12
3J63 E12
3J86 C4
3J88 F5
3J91 G2
3J92 C2
3J94 D4
3J99 D2
5J10 B4
5J11 B4
5J12 B4
5J20 B12
5J21 B12
5J22 C12
5J50 F9
5J52 G9
5J54 G9
5J56 H9
5J58 H9
5J60 I9
6J01 D2
6J06 C5
7J04 B3
7J05-1 C7
7J05-2 C7
7J06 C9
7J07 D4
7J08 C3
7J09 I3
7J10 B10
9J21 D7
9J30 C1
9J31 C1
9J40 B9
FJ01 B13
FJ02 B13
FJ03 C13
FJ04 C13
FJ05 D13
FJ06 D13
FJ07 E13
FJ09 G5
FJ10 G5
FJ28 H11
FJ29 H11
FJ30 H11
FJ31 H11
FJ32 H11
FJ36 H11
FJ37 H11
IJ14 C2
IJ15 D2
IJ16 D3
IJ18 G2
IJ20 G2
IJ23 H2
IJ30 A9
IJ31 B9
IJ32 B10
IJ68 D4
IJ69 D4
IJ70 D3
IJ71 H2
IJ72 D7
IJ73 C9
IJ74 C9
IJ75 C8
IJ76 C7
IJ80 C4
IJ81 H3
IJ82 C9
A
B
C
D
E
F
G
H
I
Page 85
Circuit Diagrams and PWB Layouts
85EL1.1U AA 7.
SSB: Viper: Control
3H69
10K
+3V3
3H70 E8
3H71 D1
3H72 E7
3H73 B8
3H74 B8
100R
100R
100R 3Q13
100R
100R 3Q14
100R 3H98
9H03
9H16
EJTAG-TDO
EJTAG-TDI
EJTAG-TCK
EJTAG-TMS
FQ50
100R
10K
10K
3H56
10K
3H55
FQ03
RESET-TM
10K
3H54
FQ52
9H05
FQ53
3Q48
3Q52
3H57
3Q11100R
3Q10
3Q12
3Q15100R
3H99100R
AF29
AD26
AE27
AG29
AE28
AD27
AF30
AE29
AD28
AC27
AE30
AD29
AD30
AB27
AB28
C4
A2
AD4
A25
C25
A3
B4
D2
C1
E4
D3
C2
D25
B27
A28
A29
B5
E5
D4
B1
E7
A5
A26
B25
D5
E26
D27
B29
B28
C27
E25
D26
F3
G4
E2
G5
F4
H4
F1
G3
F2
E1
3H75 B2
3H79 A8
3H80-1 D8
3H80-2 C8
3H80-3 D8
XTALO
RESET_IN
I2C1_SDA
I2C1_SCL
I2C2_SDA
I2C2_SCL
I2C3_SDA
I2C3_SCL
I2C4_SDA
I2C4_SCL
JTAG_TDO
JTAG_TDI
JTAG_TCK
JTAG_TMS
JTAG_TRST
DBG_TDO
DBG_TDI
DBG_TCK
DBG_TMS
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
SC1_SCCK
SC1_OFFN
SC1_RST
SC1_CMD
SC1_DA
SC2_SCCK
SC2_OFFN
SC2_RST
SC2_CMD
SC2_DA
QVCP2L_DATA_OUT0
QVCP2L_DATA_OUT1
QVCP2L_DATA_OUT2
QVCP2L_DATA_OUT3
QVCP2L_DATA_OUT4
QVCP2L_DATA_OUT5
QVCP2L_DATA_OUT6
QVCP2L_DATA_OUT7
QVCP2L_DATA_OUT8
QVCP2L_DATA_OUT9
QVCP2L_CLK_OUT
3H80-4 C8
3H81-1 D8
3H81-2 C8
3H81-3 D8
3H82 B2
VIPER REV C
CONTROL
45
3H84 E8
3H85 E1
3H86 E8
3H88 F8
3H89 F10 3H98 C4
7V00-5
PLL_OUTXTALI
M135_CLK
M27_CLK
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_PAR
PCI_PERR
PCI_STOP
PCI_TRDY
PCI_IRDY
PCI_FRAME
PCI_DEVSEL
PCI_IDSEL
PCI_CLK
PCI_CBE3
PCI_CBE2
PCI_CBE1
PCI_CBE0
PCI_SERR
PCI_REQ
PCI_REQ_A
PCI_REQ_B
PCI_GNT
PCI_GNT_A
PCI_GNT_B
XIO_D8
XIO_D9
XIO_D10
XIO_D11
XIO_D12
XIO_D13
XIO_D14
XIO_D15
XIO_ACK
XIO_A25
XIO_SEL0
XIO_SEL1
XIO_SEL2
XIO_SEL3
XIO_SEL4
UA1_TX
UA1_RX
UA2_TX
UA2_RX
UA2_RTSN
UA2_CTSN
USB1_DM
USB1_DP
USB2_DM
USB2_DP
USB_BUS_PWR
USB_OVRCUR
SYS_RSTN_OUT
3H90 B1
3H94 I7
3H95 I7
3H97 G1
INTA
AA2
AA1
D28
D29
C30
AK12
AJ12
AH12
AG12
AJ11
AG11
AK10
AJ10
AG10
AK9
AJ9
AH9
AG9
AK8
AG8
AK7
AJ5
AG5
AJ4
AH4
AK3
AJ3
AK2
AJ1
AH2
AG2
AG3
AG4
AF1
AF2
AF4
AF5
AH7
AF7
AK6
AH6
AG6
AF6
AJ6
AJ2
AD2
AH1
AK5
AJ7
AG7
AH10
AD1
AE1
AE2
AE4
AD5
AE3
AE5
AA3
AA4
AB1
AB2
AB3
AB4
AC1
AC4
W3
W4
Y4
Y2
W2
E24
B26
F26
E27
C29
B30
AJ28
AH27
AF26
AK29
AJ29
AG27
AD3
3H99 B4
3Q03 B2
3Q04 B2
3Q10 B4
3Q11 B4
3H72 100R
IH16
3H24
IQ22
3H25
FH12
+3V3
3Q12 B4
3Q13 B4
3Q14 B4
3Q15 B4
3Q16 H10
3Q17 I7
3Q18 I8
3Q19 F13
3Q20 H11
3Q21 H11
3Q22 G13
3Q23 H10
3Q24 F10
3Q27 B1
3Q29 F13
3Q48 B4
3Q52 D4
5H02 H11
5H03 G13
6H00 I7
6H01 F1
6H03 G1
6H07-1 G13
6H07-2 G12
7V00-5 A5
9H02 F3
9H03 C4
9H04 C1
9H05 F4
9H06 E3
9H07 D1
9H08 D1 FQ52 F4
9H13 D1
9H15 F3
9H16 C4
78910
3H94
IQ27
IQ24
IQ25
4K7
RES
NAND-D(8)
NAND-D(9)
NAND-D(10)
NAND-D(11)
NAND-D(12)
NAND-D(13)
NAND-D(14)
NAND-D(15)
NAND-AD(0)
NAND-AD(1)
NAND-AD(2)
NAND-AD(3)
NAND-AD(4)
NAND-AD(5)
NAND-AD(6)
NAND-AD(7)
100R
100R
6H00
3H95
330R
PCI-INTA
PCI-REQ
PCI-REQ-A
PCI-REQ-B
SML-310
IQ28
IQ23
3Q17
15K
+3V3
4K7
3H80-4
3H81-1
PCI-INTA
PCI-REQ
PCI-REQ-A
PCI-REQ-B
3Q18
15K
3H79
3H74
3H73
4K7
3H80-1
3H80-2
4K7
4K7
3H80-3
4K7
22R
68R
22R
3H81-2
AH10
4K7
3H70
3H84
3H86 4K7
3H81-3
PLL-OUT
PLL-OUT
PCI-CLK-VPR
M135-CLK
M27-PNX
NAND-CLE
NAND-ALE
0H00
4K7
NAND-D(8)
PCI-CLK-VPR
NAND-REn
NAND-WEn
4K7
+3V3
4K7
4K73H88
USB-BUS-PW
USB-OVERCUR
NAND-RBY
NAND-SEL
GLINK-TXD
GLINK-RXD
USB-BUS-PW
TXD-VIPER
RXD-VIPER
USB-OVERCUR
USB1-DP
USB1-DM
USB1-DP
USB1-DM
USB-BUS-PW
USB-OVERCUR
RESET-MIPS
0H09
2H07
2H06
3H06
22R
1H20
0H10
10K
3H89
IQ15
IQ16
1n0
1n0
IQ03
3Q23
15K
0H05
+3V3
IQ04
3Q24
3Q16
AH10 A8
AH11 B2
FH12 H7
FQ00 H15
FQ01 H14
FQ02 H15
FQ03 E4
FQ04 H14 IQ24 G7
FQ10 G1
FQ19 C1
FQ21 C1
FQ22 C1
FQ23 C1
FQ40 B2
FQ41 B2
FQ50 D4
FQ53 F4
IH09 D1
IH16 G6
IQ03 H10
IQ04 H10
IQ15 F10
IQ16 F10
IQ17 G13
IQ22 G6
IQ23 G7
IQ25 H7
IQ27 F7
IQ28 G7
IQ30 F1
14 15
1M00
EMC HOLE
+3V3
+3V3
1K8
1K8
3H04
0H02
1MM3
EMC HOLE
10K
5H02
3Q21
22R
3Q20
22R
15K
DLW21S
43
12
SCL-DMA
SDA-DMA
SCL-MM
6H07-2
BAV99S
11 12 13 14
3H05
+3V3
+3V3
4K7
4K7
3H22
3H23
56K
3Q19
+5V
0R4
POLYSWITCH
IQ17
5H03
220R
+T
2Q69
470u 16V
1M60
FQ01
FQ04
FQ00
FQ02
B4B-PH-K
1
2
3
4
3Q29
100K
3Q22
+5V
6H07-1
BAV99S
15
0H00 B10
0H02 B11
0H05 C10
0H09 C10
0H10 C10
1H00 B2
1H20 B10
1M00 A11
1M60 H15
1MM3 C11
2H06 G10 3H24 G7
2H07 G10
2H08 A1
2H09 B1
2Q69 G14
3H04 B13
3H05 B13
3H06 A10
3H08 C3
3H10 D1
12
B5A B5A
VIPER: CONTROL
3H11 D1
3H16 C3
3H17 C3
3H22 C13
3H23 C13
3H25 G7
3H31 F1
3H40 E1
3H41 F1
3H54 F4
3H55 E4
3H56 E4
3H57 D4
3H69 D3
3456 11 12 13
A
2H08
27p
1H00
2H09
AH11
+3V3
9H04
JTAG-TD-CON-VIPER
3H71
9H08
9H07
9H13
IH09
3H85
4K7
3H40
4K7
3H31
4K7
3H41
4K7
27p
FQ40
3Q03
4K7
FQ41
3Q04
4K7
JTAG-TRST SDA-MM
JTAG-TMS
JTAG-TCK
4K7
RESET-FE-MAIN
SOUND-ENABLE
3Q27
3H10
RES
+3V3
4K7
3H90
IRQ-MPIF
IRQ-AVIP
RES
FQ19
FQ21
FQ22
FQ23
4K7
+3V3
4K7
4K73H11
B
C
D
+3V3
E
+3V3
+3V3
6H01
BAS316
IQ30
3H97
0V
6H03
BAS316
4K7
+3V3
+3V3
FQ10
0V
F
G
3H75
100R
1M0
27M
3H82
DSX840GA
SCL-I2C4
SDA-I2C4
JTAG-TD-VIPER-PNX2015
JTAG-TD-CON-VIPER
JTAG-TMS
IRQ-MAINIRQ-FE-MAIN
CTRL4-VIPER
DEBUG-BREAK
SOUND-ENABLE-VPR
RESET-FE-MAIN
IRQ-HD2
IRQ-HD2
HPD-HIRATE
IRQ-HIRATE
IRQ-HD1
A-PLOP
IRQ-HIRATE
IRQ-HD1
HDMI-COAST
CHDEC-CLK
RESET-SYSTEM
SDA-MM
SCL-MM
SDA-DMA
SCL-DMA
SDA-UP-VIP
SCL-UP-VIP
SDA-I2C4
SCL-I2C4
JTAG-TD-VIPER-PNX2015
JTAG-TD-CON-VIPER
JTAG-TCK
JTAG-TMS
JTAG-TRST
4K7
3H08
4K7
3H16
4K7
3H17
POWERDOWN-HDMI
+3V3
IRQ-MAIN
CTRL4-VIPER
DEBUG-BREAK
SOUND-ENABLE-VPR
9H06
9H15
9H02
+3V3
+3V3
+3V3
H
I
3104 313 6095.3
1
23 678910
USB
CONNECTOR
G_16290_037.eps
010206
A
B
C
D
E
F
G
H
Page 86
Circuit Diagrams and PWB Layouts
86EL1.1U AA 7.
SSB: Viper: Main Memory
12
3 13 14 15
4567
8 9 10 12
11
VIPER: MAIN MEMORY
B5B B5B
A
7V00-2
VIPER REV C
B
MM_A0
MM_A1
MM_A2
MM_A3
MM_A4
MM_A5
MM_A6
MM_A7
MM_A8
MM_A9
C
D
E
MM_A10
MM_A11
MM_A12
MM_BA0
MM_BA1
MM_CS0
MM_DQM_0
MM_DQM_1
MM_DQM_2
MM_DQM_3
MM_DQS0
MM_DQS1
MM_DQS2
MM_DQS3
MM_RAS
MM_CAS
MM_WE
MM_CKE
MM_CLK_N
MM_CLK_P
2V02
VREF-VPRDDR
1n0
IH20
RES
3V44
100R
3V78
B13
D15
B14
A15
C15
B15
A16
D16
B16
C16
D14
C18
B17
C12
D13
A13
B12
D17
A19
D24
D6
B11
B20
A23
A6
B10
C13
A12
D12
D18
A18
B18
1K0
G
DDR INTERFACE
MM_ADDR0
MM_ADDR1
MM_ADDR2
MM_ADDR3
MM_ADDR4
MM_ADDR5
MM_ADDR6
MM_ADDR7
MM_ADDR8
MM_ADDR9
MM_ADDR10
MM_ADDR11
MM_ADDR12
MM_AVREF
MM_BA0
MM_BA1
MM_CS0
MM_CS1
MM_DQM_0
MM_DQM_1
MM_DQM_2
MM_DQM_3
MM_DQS_0
MM_DQS_1
MM_DQS_2
MM_DQS_3
MM_RAS
MM_CAS
MM_WE
MM_CKE
MM_CLK_N
MM_CLK_P
MM_DATA0
MM_DATA1
MM_DATA2
MM_DATA3
MM_DATA4
MM_DATA5
MM_DATA6
MM_DATA7
MM_DATA8
MM_DATA9
MM_DATA10
MM_DATA11
MM_DATA12
MM_DATA13
MM_DATA14
MM_DATA15
MM_DATA16
MM_DATA17
MM_DATA18
MM_DATA19
MM_DATA20
MM_DATA21
MM_DATA22
MM_DATA23
MM_DATA24
MM_DATA25
MM_DATA26
MM_DATA27
MM_DATA28
MM_DATA29
MM_DATA30
MM_DATA31
D19
B19
C19
A21
D20
D21
B21
C21
A24
B22
A22
D22
C24
C22
B24
D23
C6
B6
D7
C7
B7
C9
D8
A7
A8
B9
D10
A9
D9
C10
A10
D11
MM_DATA_7
MM_DATA_3
MM_DATA_5
MM_DATA_4
MM_DATA_1
MM_DATA_6
MM_DATA_2
MM_DATA_0
MM_DATA_13
MM_DATA_12
MM_DATA_10
MM_DATA_8
MM_DATA_11
MM_DATA_14
MM_DATA_15
MM_DATA_9
MM_DATA_21
MM_DATA_17
MM_DATA_23
MM_DATA_16
MM_DATA_20
MM_DATA_22
MM_DATA_19
MM_DATA_18
MM_DATA_24
MM_DATA_26
MM_DATA_27
MM_DATA_28
MM_DATA_30
MM_DATA_29
MM_DATA_31
MM_DATA_25
MM_A0
MM_A1
MM_A2
MM_A3
MM_A4
MM_A5
MM_A6
MM_A7
MM_A8
MM_A9
MM_A10
MM_A11
MM_A12
MM_BA0
MM_BA1
MM_DQM_0
MM_DQM_1
VREFD-VPRDDR
MM_CLK_N MM_CLK_N
MM_CLK_P
MM_CKE
MM_CS0
MM_RAS
MM_CAS
MM_WE
MT46V32M16P-5BTR
1n0
2V00
220R 220R
+2V5-VPR
+2V5-VPR
*
7V01
29
30
31
32
35
36
37
38
39
40
28
41
42
26
27
20
47
49
46
45
44
24
23
22
21
0
1
2
3
4
5
6
7
8
9
10
11
AP
0
1
L
U
VREF
CKE
CS
RAS
CAS
WE
BA
DM
CK
CK
+2V5-VPR
11833
VDD
A
VSS
344866
3
Φ
DDR
SDRAM
8Mx16
6
1V3
1V3
+2V5-VPR
91555
VDDQ
VSSQ
125258
560R
560R
3H53 3H52
2H10
3H50
2H02
3H51
560R 560R
61
NC
DNU
0
1
2
3
4
512
6
7
D
8
9
10
11
12
13
14
15
L
DQS
U
64
100p
100n
2H11
100p
100n
2H00
2H12
2H03
2Q01
14
17
25
43
53
19
50
2
4
5
7
8
10
11
13
54
56
57
59
60
62
63
65
16
51
1u0
1u0
2Q03
3V02 22R
3V14
3V22 22R
3V34 22R
3V38 22R
3V42 22R
3V40 22R
IQ13
1u0
IQ14
1u0
22R3V06
22R3V10
22R
22R3V18
2V36
100p
100p
2V38
2V37
22R
3V00
22R3V04
3V08 22R
3V12
22R
22R
3V16
3V20 22R
22R3V32
3V36 22R
MM_DQS0
MM_DQS1
VREFD-VPRDDR
VREF-VPRDDR
100p
2V39
100p
2V40
MM_DATA_0
MM_DATA_1
MM_DATA_2
MM_DATA_3
MM_DATA_4
MM_DATA_5
MM_DATA_6
MM_DATA_7
MM_DATA_8
MM_DATA_9
MM_DATA_10
MM_DATA_11
MM_DATA_12
MM_DATA_13
MM_DATA_14
MM_DATA_15
MM_DQS2
MM_DQS3
100p
MM_DATA_16
MM_DATA_17
MM_DATA_18
MM_DATA_19
MM_DATA_20
MM_DATA_21
MM_DATA_22
MM_DATA_23
MM_DATA_24
MM_DATA_25
MM_DATA_26
MM_DATA_27
MM_DATA_28
MM_DATA_29
MM_DATA_30
MM_DATA_31
+2V5-VPR
100n
2V16
2V17
100n
2V18
100p
2V42
2V41
3V03
3V07 22R
3V11
3V15
3V39
3V43 22R
3V41
100n
100n
2V19
100p
22R
22R
22R
22R3V19
22R3V23
22R3V35
22R
2V20
100p
2V44
2V43
MT46V32M16P-5BTR
3V01 22R
3V05 22R
3V09 22R
3V13 22R
3V21 22R
3V37 22R
22R
100n
100n
2V21
100p
100p
2V45
*
7V02
14
17
25
43
53
19
50
2
4
5
7
8
10
11
13
22R3V17
54
56
57
59
22R3V33
60
62
63
65
16
51
100n
2V22
2V23
H
SD RAM1
SD RAM2
100n
2V26
9
15
Φ
DDR
SDRAM
8Mx16
12
52
100n
2V27
+2V5-VPR
3
6
100n
2V28
18
33
VDD
A
DM
VREF
VSS
66
48
100n
2V29
+2V5-VPR
55
61
VDDQ
NC
DNU
0
1
2
3
4
512
6
7
D
8
9
10
11
12
13
14
15
L
DQS
U
VSSQ
58
64
100n
100n
2V24
2V25
1u0
1u0
2Q23
2Q21
1
29
0
30
1
31
2
32
3
35
4
36
5
37
6
38
7
39
8
40
9
28
10
41
11
42
AP
26
0
BA
27
1
20
L
47
U
2V01 1n0
49
46
CK
45
CK
44
CKE
24
CS
23
RAS
22
CAS
21
WE
34
100n
100n
100n
2V30
2V31
2V35
VREFD-VPRDDR
3V253V24
4V47u
MM_DQM_2
MM_DQM_3
MM_CLK_P
MM_A0
MM_A1
MM_A2
MM_A3
MM_A4
MM_A5
MM_A6
MM_A7
MM_A8
MM_A9
MM_A10
MM_A11
MM_A12
MM_BA0
MM_BA1
MM_CKE
MM_CS0
MM_RAS
MM_CAS
MM_WE
A
B
C
D
G
H
E
F
2H00 H9
2H02 H8
2H03 H9
2H10 G8
2H11 G9
2H12 G9
2Q01 B9
2Q03 B9
2Q21 B14
2Q23 B14
2V00 D7
2V01 D14
2V02 C2
2V16 G11
2V17 G11
2V18 G11
2V19 G11
2V20 G12
2V21 G12
2V22 G12
2V23 G12
2V24 G12
2V25 G13
2V26 G13
2V27 G13
2V28 G13
2V29 G14
2V30 G14
2V31 G14
2V35 G14
2V36 B9
2V37 B10
2V38 B10
2V39 B10
2V40 B10
2V41 B11
2V42 B12
2V43 B12
2V44 B12
2V45 B12
3H50 G8
3H51 H8
3H52 F8
3H53 G8
3V00 C10
3V01 C12
3V02 C9
3V03 C11
3V04 C10
3V05 C12
3V06 C9
3V07 C11
3V08 C10
3V09 C12
3V10 C9
3V11 C11
3V12 C10
3V13 C12
3V14 C9
3V15 C11
3V16 C10
3V17 C12
3V18 C9
3V19 C11
3V20 C10
3V21 C12
3V22 D9
3V23 D11
3V24 D7
3V25 D14
3V32 D10
3V33 D12
3V34 D9
3V35 D11
3V36 D10
3V37 D12
3V38 D9
3V39 D11
3V40 D9
3V41 D11
3V42 D9
3V43 D11
3V44 E3
3V78 E3
7V00-2 B4
7V01 B7
7V02 B12
IH20 D3
IQ13 F9
IQ14 G9
3104 313 6095.3
123 9 10111213
45678 14 15
G_16290_038.eps
010206
I
Page 87
Circuit Diagrams and PWB Layouts
87EL1.1U AA 7.
SSB: Viper: A/V + Tunnelbus
12
34
56
7 8 9 10111213
VIPER: A/V + TUNNELBUS
B5C B5C
DV1F-DATA0
DV1F-DATA1
DV1F-DATA2
A
+3V3
3H28
4K7
DV1F-VALID
DV1F-DATA3
DV1F-DATA4
DV1F-DATA5
DV1F-DATA6
DV1F-DATA7
DV1F-DATA8_ERR
DV1F-DATA9_SOP
DV1F-VALID
DV1F-CLK
B
3H32
4K7
DV2A-VALID
C
3H18
4K7
DV3F-VALID
D
I2S-MAIN-ND
SPDIF-HDMI
DV2A-VALID
DV2A-CLK
DV3F-DATA2_0
DV3F-DATA3_1
DV3F-DATA4_2
DV3F-DATA5_3
DV3F-DATA6_4
DV3F-DATA7_5
DV3F-DATA8_6
DV3F-DATA9_7
DV3F-VALID
DV3F-CLK
DV3F-DATA1_ERR
DV3F-DATA0_SOP
IH10
IH11
IH15
IH01
IH03
IH00
E
F
G
TUN-VIPER-TX-DATA0
TUN-VIPER-TX-DATA1
TUN-VIPER-TX-DATA2
TUN-VIPER-TX-DATA3
TUN-VIPER-TX-DATA4
TUN-VIPER-TX-DATA5
TUN-VIPER-TX-DATA6
H
TUN-VIPER-TX-DATA7
TUN-VIPER-TX-DATA8
TUN-VIPER-TX-DATA9
TUN-VIPER-TX-DATA10
TUN-VIPER-TX-DATA11
TUN-VIPER-TX-DATA12
TUN-VIPER-TX-DATA13
TUN-VIPER-TX-DATA14
TUN-VIPER-TX-DATA15
TUN-VIPER-TX-CLKP
TUN-VIPER-TX-CLKN
TUN-VIPER-TX-BUSY
I
AG13
AH13
AJ13
AK13
AG14
AJ14
AG15
AH15
AJ15
AK15
AG16
AH16
AJ16
AK16
AJ17
AG17
AK18
AJ18
AH18
AG19
AK19
AH19
AJ19
AG18
AK24
AJ24
AK25
AG23
AH24
AJ25
AK26
AG24
AJ26
AG25
AF24
AH25
AG26
AK28
AJ27
AA30
AA29
AA28
AB30
W28
W27
AA27
AC30
Y29
Y27
DV1_DATA0
DV1_DATA1
DV1_DATA2
DV1_DATA3
DV1_DATA4
DV1_DATA5
DV1_DATA6
DV1_DATA7
DV1_DATA8
DV1_DATA9
DV1_VALID
DV1_CLK
DV2_DATA0
DV2_DATA1
DV2_DATA2
DV2_DATA3
DV2_DATA4
DV2_DATA5
DV2_DATA6
DV2_DATA7
DV2_VALID
DV2_CLK
DV2_ERR
DV2_SOP
DV3_DATA0
DV3_DATA1
DV3_DATA2
DV3_DATA3
DV3_DATA4
DV3_DATA5
DV3_DATA6
DV3_DATA7
DV3_VALID
DV3_CLK
DV3_ERR
DV3_SOP
DV_FREF
DV_VREF
DV_HREF
I2S_IN1_SD
I2S_IN1_WS
I2S_IN1_SCK
I2S_IN1_OSCLK
I2S_IN2_SD
I2S_IN2_WS
I2S_IN2_SCK
I2S_IN2_OSCLK
SPDIF_IN2
SPDIF_IN1
33R3Q36-4
33R3Q36-1
33R3Q35-2
33R3Q37-3
33R3Q37-1
33R3Q38-1
7V00-1
VIPER REV C
AUDIO/VIDEO
33R3Q36-3
33R3Q35-4
33R3Q35-1
33R3Q37-2
33R3Q38-3
33R3Q39
VREF-PNX
33R3Q36-2
33R3Q35-3
33R3Q37-4
33R3Q38-4
33R3Q38-2
33R3Q40
QVCP5L_DATA_OUT0
QVCP5L_DATA_OUT1
QVCP5L_DATA_OUT2
QVCP5L_DATA_OUT3
QVCP5L_DATA_OUT4
QVCP5L_DATA_OUT5
QVCP5L_DATA_OUT6
QVCP5L_DATA_OUT7
QVCP5L_DATA_OUT8
QVCP5L_DATA_OUT9
QVCP5L_DATA_OUT10
QVCP5L_DATA_OUT11
QVCP5L_DATA_OUT12
QVCP5L_DATA_OUT13
QVCP5L_DATA_OUT14
QVCP5L_DATA_OUT15
QVCP5L_DATA_OUT16
QVCP5L_DATA_OUT17
QVCP5L_DATA_OUT18
QVCP5L_DATA_OUT19
QVCP5L_DATA_OUT20
QVCP5L_DATA_OUT21
QVCP5L_DATA_OUT22
QVCP5L_DATA_OUT23
QVCP5L_DATA_OUT24
QVCP5L_DATA_OUT25
QVCP5L_DATA_OUT26
QVCP5L_DATA_OUT27
QVCP5L_DATA_OUT28
QVCP5L_DATA_OUT29
QVCP5L_CLK_OUT
QVCP5L_VSYNC
QVCP5L_HSYNC
QVCP5L_AUX1
QVCP5L_AUX2
DAC_IRSET
DAC_RDUMPY
DAC_RDUMPC
DAC_CVBS
DAC_CHROMA
TS_DATA0
TS_DATA1
TS_DATA2
TS_DATA3
TS_DATA4
TS_DATA5
TS_DATA6
TS_DATA7
TS_VALID
I2S_OUT1_SD0
I2S_OUT1_SD1
I2S_OUT1_SD2
I2S_OUT1_SD3
I2S_OUT1_WS
I2S_OUT1_SCK
I2S_OUT1_OSCLK
I2S_OUT2_SD0
I2S_OUT2_SD1
I2S_OUT2_SD2
I2S_OUT2_SD3
I2S_OUT2_WS
I2S_OUT2_SCK
I2S_OUT2_OSCLK
SPDIF_OUT
N2
TUN_TX_DATA0
N1
TUN_TX_DATA1
P4
TUN_TX_DATA2
P2
TUN_TX_DATA3
R1
TUN_TX_DATA4
R2
TUN_TX_DATA5
R3
TUN_TX_DATA6
R4
TUN_TX_DATA7
T3
TUN_TX_DATA8
T4
TUN_TX_DATA9
U2
TUN_TX_DATA10
U4
TUN_TX_DATA11
V1
TUN_TX_DATA12
V2
TUN_TX_DATA13
V3
TUN_TX_DATA14
V4
TUN_TX_DATA15
T1
TUN_TX_CLOCKP
T2
TUN_TX_CLOCKN
W1
TUN_TX_BUSY
K2
TUN_AVREF
TS_SOP
TS_CLK
VIPER REV C
TUNNELBUS
J28
J27
H30
H27
G30
G29
G28
G27
F30
F29
M28
M27
L29
L27
K30
K29
K28
K27
J30
J29
R28
R27
P29
P27
N30
N29
N28
N27
M30
M29
E30
F28
F27
G26
E29
AH30
AF27
AH29
AG28
AJ30
AJ22
AG21
AK22
AH21
AJ21
AK21
AG20
AJ20
AK23
AH22
AG22
U27
V30
V29
V28
V27
W30
W29
T28
T27
R30
R29
T29
T30
U29
AB29
7V00-4
68R 3Q28-2
68R 3Q34-3
68R 3Q26-4
68R 3Q25-1
68R 3Q44-2
68R 3Q08-3
68R 3Q07-4
68R 3Q07-1
68R 3Q05-2
68R
3Q09
33R
3H07 22R
IH04
IH05
TUN_RX_DATA0
TUN_RX_DATA1
TUN_RX_DATA2
TUN_RX_DATA3
TUN_RX_DATA4
TUN_RX_DATA5
TUN_RX_DATA6
TUN_RX_DATA7
TUN_RX_DATA8
TUN_RX_DATA9
TUN_RX_DATA10
TUN_RX_DATA11
TUN_RX_DATA12
TUN_RX_DATA13
TUN_RX_DATA14
TUN_RX_DATA15
TUN_RX_CLOCKP
TUN_RX_BUSY
3Q25-3
3Q02-468R
68R 3Q28-1
68R 3Q34-2
68R 3Q26-3
68R 3Q44-4
68R 3Q44-1
68R 3Q08-2
68R 3Q07-3
68R 3Q05-4
68R 3Q05-1
68R 3H02
68R
G2
G1
J4
J3
H1
K4
J2
J1
K1
L4
L2
M4
M3
M2
M1
N4
K3
N3
3Q28-468R
3Q02-1
IH08
3Q28-368R
68R 3Q34-4
68R 3Q34-1
68R 3Q25-2
3Q44-3
68R
68R 3Q08-4
68R 3Q08-1
68R 3Q07-2
68R 3Q05-3
68R 3Q25-4
68R
3Q02-3
68R
3Q02-2
IH07
3H21 39R
IH06
3Q41
33R
DV-BOUT-0
DV-BOUT-1
DV-BOUT-2
DV-BOUT-3
DV-BOUT-4
DV-BOUT-5
DV-BOUT-6
DV-BOUT-7
DV-BOUT-8
DV-BOUT-9
DV-GOUT-0
DV-GOUT-1
DV-GOUT-2
DV-GOUT-3
DV-GOUT-4
DV-GOUT-5
DV-GOUT-6
DV-GOUT-7
DV-GOUT-8
DV-GOUT-9
DV-ROUT-0
DV-ROUT-1
DV-ROUT-2
DV-ROUT-3
DV-ROUT-4
DV-ROUT-5
DV-ROUT-6
DV-ROUT-7
DV-ROUT-8
DV-ROUT-9
DV-CLKIN
DV-OUT-VS
DV-OUT-HS
DV-OUT-FFIELD
DV-OUT-DE
3H19 1K0
39R3H20
BACKLIGHT-CONTROL
TUN-VIPER-RX-DATA0
TUN-VIPER-RX-DATA1
TUN-VIPER-RX-DATA2
TUN-VIPER-RX-DATA3
TUN-VIPER-RX-DATA4
TUN-VIPER-RX-DATA5
TUN-VIPER-RX-DATA6
TUN-VIPER-RX-DATA7
TUN-VIPER-RX-DATA8
TUN-VIPER-RX-DATA9
TUN-VIPER-RX-DATA10
TUN-VIPER-RX-DATA11
TUN-VIPER-RX-DATA12
TUN-VIPER-RX-DATA13
TUN-VIPER-RX-DATA14
TUN-VIPER-RX-DATA15
TUN-VIPER-RX-CLKP
TUN-VIPER-RX-BUSY
CHDEC-CLK
I2S-SUB-D
CTRL1-VIPER
I2S-MCH-LR
I2S-MCH-CSW
I2S-MCH-SLR
I2S-MAIN-D
I2S-WS-MAIN
I2S-BCLK-MAIN
SPDIF-OUT1
A
B
C
D
E
G
H
F
I
2H01 I6
3H02 C9
3H07 E8
3H18 C3
3H19 C9
3H20 D9
3H21 C9
3H28 A3
3H32 B3
3Q02-1 C9
3Q02-2 C9
3Q02-3 C9
3Q02-4 C8
3Q05-1 C9
3Q05-2 C8
3Q05-3 C9
3Q05-4 B9
3Q07-1 B8
3Q07-2 B9
3Q07-3 B9
3Q07-4 B8
3Q08-1 B9
3Q08-2 B9
3Q08-3 B8
3Q08-4 B9
3Q09 E8
3Q25-1 B8
3Q25-2 A9
3Q25-3 C8
3Q25-4 C9
3Q26-3 A9
3Q26-4 A8
3Q28-1 A9
3Q28-2 A8
3Q28-3 A9
3Q28-4 A9
3Q34-1 A9
3Q34-2 A9
3Q34-3 A8
3Q34-4 A9
3Q35-1 H6
3Q35-2 H5
3Q35-3 H6
3Q35-4 H6
3Q36-1 H5
3Q36-2 H6
3Q36-3 H6
3Q36-4 H5
3Q37-1 H5
3Q37-2 H6
3Q37-3 H5
3Q37-4 H6
3Q38-1 I5
3Q38-2 I6
3Q38-3 H6
3Q38-4 H6
3Q39 I6
3Q40 I6
3Q41 I9
3Q44-1 B9
3Q44-2 B8
3Q44-3 B9
3Q44-4 B9
7V00-1 A6
7V00-4 G7
IH00 D4
IH01 D4
IH03 D4
IH04 E8
IH05 F8
IH06 D9
IH07 C9
IH08 C9
IH10 D4
IH11 D4
IH15 D4
3104 313 6095.3
12
1n0
2H01
G_16290_039.eps
010206
3
45
678
910
11 12
13
Page 88
SSB: Viper: Supply
2Q00 D10
2Q02 D11
2Q04 D11
2Q05 D12
2Q06 D12
2Q07 D12
2Q08 D12
2Q09 D13
2Q10 D13
1234
2Q11 D13
2Q12 D13
2Q13 D14
Circuit Diagrams and PWB Layouts
2Q14 D14
2Q15 D14
2Q16 D14
2Q17 D15
2Q18 D15
2Q20 E10
2Q22 E11
2Q24 E11
2Q26 E12
2Q27 E12
2Q28 E12
2Q30 E12
2Q32 E13
2Q33 E13
2Q34 E13
2Q35 E14
2Q37 E14
2Q38 E14
2Q39 E14
2Q40 D10
2Q42 D11
2Q43 D11
2Q44 D11
2Q45 D12
2Q46 D12
2Q47 D12
56
88EL1.1U AA 7.
2Q48 D12 2Q83 E11
2Q49 D13 2Q87 F14
2Q50 D13
2Q51 D13
2Q52 D13
2Q53 D14
2Q54 D14
2Q55 D14
2Q56 D14
2Q57 D15
2Q58 D15
2Q59 D15
2Q60 F10
2Q61 F11
2Q62 F11
2Q63 C8
2Q64 C8
2Q65 C9
2Q66 C10
2Q67 C9 2Q81 D10
2Q76 C82Q19 D15
2Q77 C9
2Q78 C9
2Q79 D10
2Q80 D11
2Q82 E10
2Q84 F13
2Q85 F14
7 8 9 10 11 12
2Q86 F14
2Q88 F14
2Q89 F15
2Q90 F15
2Q91 F13
13 14
5Q01 B8
5Q02 B8
5Q03 B9
5Q04 B10
5Q07 F11
5Q08 F11
7V00-3 C1
IQ07 C9
IQ08 C10
15
IQ09 C8
IQ10 B8
IQ11 F11
B5D B5D
VIPER: SUPPLY
+3V3
+1V2
+1V2
+3V3
B
600R
600R
5Q02
5Q01
IQ10
1n0
100n
C14
B23
C8
VDD_2V5_22
VDD_2V5_20
VDD_2V5_21
VDD_2V5_19
2Q64
C20
VDD_2V5_23
100n
E6F5B3
VDDA_3V3
2Q76
2Q63
7V00-3
VIPER REV C
+1V2
M12
VDDC_1
M13
M14
VDDC_2
M15
VDDC_4
VDDC_3
M16
VDDC_5
M17
VDDC_6
M18
VDDC_7
M19
N12
VDDC_8
N19
VDDC_9
VDDC_10
P12
P19
VDDC_12
VDDC_11
R19
R12
VDDC_13
VDDC_14
T12
T19
VDDC_15
VDDC_16
U12
U19
VDDC_17
V12
V19
VDDC_18
VDDC_19
W12
W13
VDDC_20
VDDC_21
W14
W15
VDDC_22
VDDC_23
VDDC_24
C
W16
W17
VDDC_25
VDDC_26
W18
W19
VDDC_27
VDDC_28
+3V3
J26
L26
VDD_1
N26
VDD_2
R26
VDD_3
U26
VDD_4
W26
VDD_5
AA5
VDD_6
AA26
VDD_7
AC5
VDD_8
AC26
VDD_9
AF9
VDD_11
VDD_10
AF11
AF13
VDD_12
VDD_13
AF15
VDD_14
AF17
VDD_15
AF19
VDD_16
AF21
VDD_17
AF23
D1
VDD_18
VDD_19
Y3
VDD_20
AC2
VDD_21
AF3
AH5
AH11
VDD_22
VDD_23
AH17
VDD_24
VDD_25
AH23
AJ8
AK1
VDD_26
VDD_27
AK20
AK14
VDD_28
VDD_29
H29
AK27
VDD_30
VDD_31
L28
VDD_32
VDD1_33
U28
P30
VDD1_34
AC28
Y30
VDD1_35
VDD1_36
AH28
AG30
VDD1_37
VDD1_38
E28A4A30
VDD1_39
VDD1_40
C3
VDD2_41
VDD2_42
+2V5-VPR
E23
C26
VDD2_44
VDD2_43
E9
VDD2_45
E11
E13
E15
VDD_2V5_3
VDD_2V5_2
VDD_2V5_1
E19
E21
E17
VDD_2V5_6
VDD_2V5_5
VDD_2V5_4
L5
N5
J5
VDD_2V5_8
VDD_2V5_9
VDD_2V5_7
R5
VDD_2V5_10
VDD_2V5_11
U5W5H3
VDD_2V5_12
VDD_2V5_13
VDD_2V5_14
P3
U1
L1
VDD_2V5_15
VDD_2V5_16
IQ09
A17
A11
VDD_2V5_18
VDD_2V5_17
D
1n0
2Q77
AE26B2
VDD_DAC
VDDA_1V2
VDDA_1_7_MCAB
5Q03
2Q65
600R
100n
IQ07
2Q78
1n0
2Q67
SUPPLY
VSS_54
VSS_55
VSS_56
VSS_57
VSSC_5
N16
N17
VSSC_3
VSSC_4
N15
VSSC_2
N14
VSSC_1
N13
VSS_68
M26
AK30
AK17
AK11
AK4
AJ23
AH26
AH20
AH14
AG1
AH3
AH8
AF28
VSSC_9
VSSC_7
VSSC_8
VSSC_11
VSSC_12
P17
P16
VSSC_10
P14
P15
P13
VSSC_6
N18
VSSC_36
E
V15
V16
V17
V18
V13
V14
U14
U15
U16
U17
U18
U13
VSSC_19
VSSC_16
VSSC_17
VSSC_18
VSSC_13
VSSC_15
T13
T14
T15
T16
T17
T18
P18
R13
R14
R15
R16
R17
R18
VSSC_14
VSSC_20
VSSC_21
VSSC_22
VSSC_23
VSSC_24
VSSC_25
VSSC_26
VSSC_27
VSSC_32
VSSC_33
VSSC_29
VSSC_30
VSSC_31
VSSC_28
VSSC_34
VSSC_35
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_67
VSS_65
VSS_66
AF22
AF20
VSS_53
AF18
VSS_52
AF16
VSS_51
AF14
VSS_49
VSS_50
AF10B8AF12
VSS_48
AF8
VSS_47
AC29
VSS_46
AC3
AB26
VSS_44
VSS_45
AB5
Y28
VSS_42
VSS_43
Y26
VSS_41
Y1
Y5
VSS_40
V26
VSS_38
VSS_39
V5
VSS_37
U30
VSS_36
U3
VSS_35
T26
VSS_34
T5
VSS_33
P28
VSS_32
P26
VSS_31
P5
VSS_30
P1
VSS_29
M5
VSS_28
L30
VSS_27
L3
VSS_26
K26
VSS_25
K5
VSS_24
H26
H28
VSS_22
VSS_23
H5
VSS_21
H2
E22
VSS_20
E20
VSS_18
VSS_19
E18
VSS_17
E16
VSS_16
E14
VSS_15
E12
VSS_14
E10
VSS_13
E8
VSS_12
E3
VSS_11
D30
VSS_10
C28
VSS_9
C23
C17
VSS_8
C11
VSS_7
C5
VSS_6
VSS_5
A27
VSS_4
A20
VSS_3
A14
VSS_2
VSS_1
VSSA_1_7_MCAB
A1
VSS_DAC
AF25
600R
5Q04
1n0
100n
2Q66
IQ08
+3V3
2Q00
2Q40
2Q20
6.3V4u7
4u7
2Q79
4u7
47u 4V
6.3V4u7
4u7
2Q82 2Q81
2Q02
2Q42
2Q22
4u7
2Q80
4u7 6.3V
+2V5-VPR
6.3V4u7
2Q43
4u7 6.3V
6.3V
4u7
2Q83
4u7
+1V2
2Q04
2Q44
2Q24
100n
100n
100n
2Q05
2Q45
2Q26
100n
100n
100n
2Q06
2Q46
2Q27
100n
100n
100n
2Q07
2Q47
2Q28
100n
100n
100n
2Q08
2Q48
2Q30
100n
100n
100n
2Q09
2Q49
2Q32
100n
100n
2Q10
2Q50
100n
100n
100n
2Q33
2Q11
2Q51
100n
100n
100n
2Q34
2Q12
2Q52
100n
100n
100n
2Q35
2Q13
2Q53
100n
100n
100n
2Q14
2Q54
2Q37
100n
100n
100n
2Q15
2Q55
2Q38
100n
100n
100n
2Q16
2Q56
2Q39
10n
10n
100n
2Q17
2Q57
10n
2Q18
10n
2Q58
AA
B
C
10n
10n
2Q19
D
10n
10n
2Q59
E
F
G
3104 313 6095.3
123
2Q61
IQ11
1n0
2Q62
100p
+2V5-VPR
2Q91
+2V5
2Q60
100n
5Q07
220R
5Q08
220R
RES
4 5 6 7 8 9 10 11 12 13
2Q86
1n0
10n
2Q88
2Q87
2Q89
2Q90
F
10n
2Q84
2Q85
10n
10n
1n0
1n0
1n0
G
G_16290_040.eps
010206
14 15
Page 89
SSB: Viper: EEPROM
Circuit Diagrams and PWB Layouts
89EL1.1U AA 7.
12
3456
789
VIPER: EEPROM
B5E B5E
+3V3-STANDBY
IP10
9P42
A
B
C
D
E
F
RESET-MAIN-NVM
RXD
UART-SWITCHn
TXD
UART-SWITCHn
UART-SWITCH
FP23
FP33
7P16
PDTC114EU
MAIN NVM
3P83
3P84
100R
100R
3P85
100R
3P86
100R
+5V2-STBY
3P88
FP32
10K
+3V3-STANDBY
1
2
3
7P15-1
74HC4066PW
1
13
7P15-2
74HC4066PW
4
5
7P15-3
74HC4066PW
8
6
7P15-4
74HC4066PW
11
12
7P17
PDTC114EU
7P14
M24C64
(8Kx8)
EEPROM
0
ADR
1
2 SDA
+5V2-STBY
1
1
X1
714
14
1
1
X1
7
1
1
X1
714
1
1
X1
714
10K
3P57
FP36
PDTA114EU
7P18
84
Φ
2
3
9
10
RES
2P34
100n
WC
SCL
2P35
100n
100K
3P37
+3V3-STANDBY
RES
9P16
7
FP22
FP34
6
5
9P17
RXD-UP
RXD-VIPER
TXD-UP
TXD-VIPER
FP35
SCL-UP-VIP
SDA-UP-VIP
NAND-AD(0)
NAND-AD(1)
NAND-AD(2)
NAND-AD(3)
NAND-AD(4)
NAND-AD(5)
NAND-AD(6)
NAND-AD(7)
NAND-D(8)
NAND-D(9)
NAND-D(10)
NAND-D(11)
NAND-D(12)
NAND-D(13)
NAND-D(14)
NAND-D(15)
2P80
100n
26
28
30
32
40
42
44
46
27
29
31
33
41
43
45
47
23
24
34
35
36
38
39
VCC
EEPROM
(32Mx16)
0
1
2
3
4
5
6
7
I/O
8
9
10
11
12
13
14
15
NC
GND
IP11
3P82
+3V3
12
Φ
6
10K
VSS
VCCQ
48
CLE
ALE
NC
25
+3V3
2P81
100n
7P80
TC58DVM92F1TGI0
3713
8
RE
9
CE
16
17
18
WE
19
WP
7
RY
BY
1
2
3
4
5
10
11
14
15
20
21
22
IP16
3P80
10K
3P81
2K2
NAND-SEL
NAND-RBY
NAND-REn
NAND-SEL
NAND-CLE
NAND-ALE
STBY-WP-NAND-FLASH
NAND-WEn
NAND-RBY
A
B
C
D
E
F
2P35 C3
2P80 C7
2P81 C8
3P37 A4
3P57 F3
3P80 B8
3P81 C8
3P82 F7
3P83 D2
3P84 D2
3P85 D2
3P86 E2
3P88 E2
7P14 B3
7P15-1 D2
7P15-2 D3
7P15-3 E2
7P15-4 E2
7P16 F1
7P17 F2
7P18 A3
7P80 C8
9P16 B4
9P17 C4
9P42 A3
FP22 B4
FP23 D1
FP32 E2
FP33 F1
FP34 B4
FP35 B4
FP36 A3
IP10 A3
IP11 E7
IP16 D8
3104 313 6095.3
123
456
G_16290_041.eps
7
89
010206
Page 90
SSB: Miscellaneous
Circuit Diagrams and PWB Layouts
90EL1.1U AA 7.
1
B5F B5F
MISCELLANEOUS
2345678
A
B
C
+5V2-STBY
7M05
LD3985M33
1
OUTIN
3
INH BP
COM
2
+5V2-STBY
FM51 FM52
6M10
BZX384-C3V9
FM54
9M09
100p
3M72
2M87
680R
IM09
5
4
7M11
1
PDTC144EU
10n
2M92
2M91
+3V3-STANDBY
3M71
FM53
3
0V
2
1u0
10K
+3V3-STANDBY
2M86
100n
RESET-STBY
+5V2-STBY
1
3
7M06
LD3985M122
OUTIN
INH BP
COM
2
+1V2-STANDBY
10n
2M94
FM50
1u0
5
4
2M93
D
1M21
B6B-PH-K
1M01
B3B-PH-K
1
2
3
4
5
6
1
2
3
E
+3V3-STANDBY
3M00
10K
IM05
0V8
+5V2-STBY
3M02
IM06
7M01
BC847BW
0V2
0V2
10K
IM08
STANDBY
ON-MODE
LIGHT-SENSOR
RC
LED2
LED1
KEYBOARD
FM55
2M85
FM59
FM60
100p
3M50
100R
FM58
FM56
2M84
100p
3M51
100R
3M53
100R
3M52
100R
2M83
2M82
100p
100p
+5V2-STBY
FM57
2M81
100p
5M00
220R
3M54
10R
2M80
100n
A
B
C
D
E
1M01 E7
1M21 D7
2M80 E7
2M81 F6
2M82 E5
2M83 E5
2M84 E5
2M85 D4
2M86 D3
2M87 D1
2M91 B2
2M92 B2
2M93 B5
2M94 B5
3M00 E2
3M02 E2
3M50 D4
3M51 D5
3M52 E5
3M53 E5
3M54 E7
3M71 C2
3M72 D1
5M00 E6
6M10 C1
7M01 E2
7M05 A1
7M06 A4
7M11 D2
9M09 D2
FM50 B5
FM51 C1
FM52 C2
FM53 C2
FM54 D1
FM55 D4
FM56 D5
FM57 E6
FM58 E4
FM59 E4
FM60 E4
IM05 E2
IM06 E2
IM08 F2
IM09 D2
F
3104 313 6095.3
G_16290_042.eps
010206
12345678
F
Page 91
Circuit Diagrams and PWB Layouts
91EL1.1U AA 7.
SSB: Video DAC
12
34
567891011
VIDEO-DAC
B6 B6
A
7G42
LD3985M33
1
3
33
31
27
PSAVE_38
37
RSET
35
COMP
36
VREF
24
CLOCK
12
SYNC_
11
IG01
9G36
OUTIN
INH BP
COM
2
IG18
2G63
IG17
100n
2G64
+3V3DAC
IG00
5
IG21
4
10n
IG08
RES
RES
RES
2G67
IG16
3G73
IG14
3G74
IG12
3G75
100n
3G79
3G72
9G48
RES
9G47
RES
IG10
IG20
470R
BC847BW
47R
2G68
7G41
75R
75R
75R
3G70
10K
0V
+3V3DAC
1u0
AV-ROUT
IG09
100K
3G77
+3V3DAC
3G76
100K
AV-GOUT
AV-BOUT
ON-MODE
DV-CLKIN
DV-OUT-VS
DV-OUT-DE
DV-CLKIN
DV-OUT-HS
DV-OUT-VS
DV-OUT-DE
DV-OUT-FFIELD
DV-ROUT-0
DV-ROUT-1
DV-ROUT-2
DV-ROUT-3
DV-ROUT-4
DV-ROUT-5
DV-ROUT-6
DV-ROUT-7
DV-ROUT-8
DV-ROUT-9
DV-GOUT-0
DV-GOUT-1
DV-GOUT-2
DV-GOUT-3
DV-GOUT-4
DV-GOUT-5
DV-GOUT-6
DV-GOUT-7
DV-GOUT-8
DV-GOUT-9
DV-BOUT-0
DV-BOUT-1
DV-BOUT-2
DV-BOUT-3
DV-BOUT-4
DV-BOUT-5
DV-BOUT-6
DV-BOUT-7
DV-BOUT-8
DV-BOUT-9
cG10
cG11
cG12
cG13
cG14
cG15
cG16
cG17
cG18
cG19
cG20
cG21
cG22
cG23
cG24
cG25
cG26
cG27
cG28
cG29
cG30
cG31
cG32
cG33
cG34
cG35
cG36
cG37
cG38
cG39
cG40
cG41
cG42
cG43
cG44
MP-CLKOUT
MP-OUT-HS
MP-OUT-VS
MP-OUT-DE
MP-OUT-FFIELD
MP-ROUT-0
MP-ROUT-1
MP-ROUT-2
MP-ROUT-3
MP-ROUT-4
MP-ROUT-5
MP-ROUT-6
MP-ROUT-7
MP-ROUT-8
MP-ROUT-9
MP-GOUT-0
MP-GOUT-1
MP-GOUT-2
MP-GOUT-3
MP-GOUT-4
MP-GOUT-5
MP-GOUT-6
MP-GOUT-7
MP-GOUT-8
MP-GOUT-9
MP-BOUT-0
MP-BOUT-1
MP-BOUT-2
MP-BOUT-3
MP-BOUT-4
MP-BOUT-5
MP-BOUT-6
MP-BOUT-7
MP-BOUT-8
MP-BOUT-9
78
B
C
D
E
F
G
H
I
3104 313 6095.3
1
+3V3
9G49
DV-ROUT-0
DV-ROUT-1
DV-ROUT-2
DV-ROUT-3
DV-ROUT-4
DV-ROUT-5
DV-ROUT-6
DV-ROUT-7
DV-ROUT-8
DV-ROUT-9
DV-GOUT-0
DV-GOUT-1
DV-GOUT-2
DV-GOUT-3
DV-GOUT-4
DV-GOUT-5
DV-GOUT-6
DV-GOUT-7
DV-GOUT-8
DV-GOUT-9
DV-BOUT-0
DV-BOUT-1
DV-BOUT-2
DV-BOUT-3
DV-BOUT-4
DV-BOUT-5
DV-BOUT-6
DV-BOUT-7
DV-BOUT-8
DV-BOUT-9
3G78
2R2
RES
9G38
FG99 FG98
120R
IG02
9G39
RES
RES
9G40
9G41
RES
RES
9G42
9G43
RES
3999
100R
9G30
FG01
9G31
IG03
9G32
IG04
2G65
100u
9G33
IG05
RES
9G34
IG06
2G69
9G35
IG07
+3V3DAC
4V100u
7G40
ADV7123KSTZ140
39
R0
0
R140
1
R241
2
R342
3
R443
4
44 R5
5
R645
6
R746
7
R847
8
R948
9
G01
0
G12
1
G23
2
4G3
3
G45
4
G56
5
G67
6
G78
7
G89
8
G910
9
B014
0
B115
1
B216
2
B317
3
B418
4
B519
5
B620
6
21 B7
7
B822
8
23 B9
9
+3V3DAC
13 29 30
VAA
Φ
VIDEO DAC
R
G
B
GND
25 26
+3V3DAC
+5V
2G60
100n
2G61
100n
2G62
100n
IOR 34
IOR
IOR_
IOG 32
IOG
IOG_
IOB 28
IOB
IOB_
PSAVE
RSET
COMP
VREF
CLOCK
SYNC
BLANK
BLANK_
9G37
IG19
5G10
23456 9101112
12
G_16290_043.eps
010206
A
B
C
D
G
H
2G60 C5
2G61 C5
2G62 C5
2G63 E6
2G64 E6
2G65 B3
2G67 B7
2G68 B6
2G69 B3
3999 H3
3G70 E7
3G72 F6
3G73 D7
3G74 D7
3G75 E7
3G76 E7
3G77 F7
3G78 B2
3G79 E6
5G10 B3
7G40 C4
7G41 F6
7G42 A6
9G30 C3
9G31 C3
9G32 C3
9G33 C3
9G34 C3
9G35 C3
9G36 G5
9G37 G5
9G38 D2
9G39 D3
9G40 D3
9G41 D3
9G42 E3
9G43 E3
9G47 G6
9G48 F6
9G49 B2
FG01 B3
FG98 H3
FG99 H2
IG00 G6
IG01 F5
IG02 C3
IG03 D3
IG04 D3
IG05 D3
E
IG06 E3
IG07 E3
IG08 E6
IG09 E7
IG10 E6
IG12 D7
IG14 D7
IG16 C7
IG17 E6
IG18 E6
F
IG19 B2
IG20 E6
IG21 B6
cG10 D10
cG11 D10
cG12 D10
cG13 D10
cG14 D10
cG15 D10
cG16 D10
cG17 D10
cG18 D10
cG19 D10
cG20 D10
cG21 E10
cG22 E10
cG23 E10
cG24 E10
cG25 E10
cG26 E10
cG27 E10
cG28 E10
cG29 E10
cG30 E10
cG31 E10
cG32 F10
cG33 F10
cG34 F10
cG35 F10
cG36 F10
cG37 F10
I
cG38 F10
cG39 F10
cG40 F10
cG41 F10
cG42 F10
cG43 G10
cG44 G10
Page 92
Circuit Diagrams and PWB Layouts
92EL1.1U AA 7.
SSB: HDMI: Supply
2
B7A B7A
HDMI + SUPPLY
A
B
C
D
1I06
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1-1734011-2
FB09
FB10
FB11
FB12
FB13
2021
FB14
2223
HDMI CONNECTOR 1
9B00
RES
AIN-5V
ARX-DDC-SCL
ARX-DDC-SDA
ARX-HOTPLUG
E
F
G
H
I
345
ARX2+
ARX2-
ARX1+
ARX1-
ARX-DDC-SCL
ARX0+
ARX-DDC-SDA
ARX0-
ARXC+
ARXC-
P50-HDMI
AIN-5V
ARX-HOTPLUG
AIN-5V
1B03
1B00
DDC NVM
HDMI 1
1K0
6B21
3B19
1B04
M24C02-WDW6
PDZ24-B
2B00
1
2
3
BAS316
7B02
6B20
100n
3B20
5B00
600R
2B01
84
Φ
(256x8)
EEPROM
0
ADR
1
2 SDA
4n7
1B20
2B03
100K
100n
WC
SCL
3B17
22R
IB11
BC847BW
678
+3V3
+3V3-AV
3B02
IB02
100R
10K
3B04
FB04
7
3B07
6
100R
5
IB19
7B20
3B08
100R
3B05
47K
IB20
2B04
3B06
47K
10n
3B03
100R
3B18
10K
IB00
PARX-DDC-SCL
PARX-DDC-SDA
+3V3
+3V3
+3V3
HPD-HIRATE
91 13
5B17
220R
5B10
220R
2B11
47u 4V
5B11
220R
5B12
220R
7B25
LD3985M18
1
3
+3V3
+5V
5
OUTIN
4
INH BP
COM
2B31
2
9B38
RES
7B45
LD1117DT33
32
COM
1u0
2B45
OUTIN
1
10 11 12
FB17
2B10
FB16
FB18
2B26
FB19
1u0
10n
2B46
FB45
2B40
RES
3V3-APLL
100n
3V3-AVI
3V3-PLL
100n
3V3-DIG
FB20
5B18
220R
4V100u
2B41
100u 4V
RES
2B32
FB21
100n
+3V3-AV
3V3-AVI
3V3-DIG
2B33
2B12
2B22
+1V8
1V8-PLL
100n
100n
100n
2B23
2B13
100n
+1V8
100n
2B24
2B14
100n
100n
2B25
2B15
100n
2B35
100n
2B16
100n
100n
3V3-DIG
2B36
2B17
100n
2B37
100n
100n
2B18
+1V8
100n
2B19
100n
2B20
2B38
100n
100n
2B21
2B39
100n
100n
G
1B00 C3
1B03 C4
1B04 C4
1B20 I5
1I06 B1
2B00 C4
2B01 C5
A
2B03 I4
2B04 I6
2B10 B10
2B11 C9
2B12 C11
2B13 C11
2B14 C12
2B15 C12
2B16 C12
2B17 C12
B
2B18 E13
2B19 E13
2B20 E13
2B21 E13
2B22 E11
2B23 E11
2B24 E12
2B25 E12
2B26 D10
2B31 G9
2B32 G10
C
2B33 G11
2B35 F12
2B36 F12
2B37 F12
2B38 F13
2B39 F13
2B40 I10
2B41 I10
2B45 I9
2B46 G10
D
3B02 C6
3B03 C7
3B04 D5
3B05 D6
3B06 D6
3B07 D5
3B08 D6
3B17 H5
3B18 I6
3B19 I4
E
3B20 I4
5B00 C5
5B10 C9
5B11 D9
5B12 D9
5B17 B9
5B18 F10
6B20 I4
6B21 I4
7B02 D4
7B20 I5
F
7B25 F9
7B45 H10
9B00 C2
9B38 H10
FB04 D5
FB09 C2
FB10 C2
FB11 C2
FB12 C2
FB13 C2
FB14 D2
FB16 C10
FB17 B10
FB18 D10
FB19 D10
FB20 F10
FB21 F11
FB45 H10
IB00 C7
IB02 C6
IB11 C5
H
IB19 H5
IB20 I6
I
3104 313 6095.3
12345678910111213
G_16290_044.eps
010206
Page 93
Circuit Diagrams and PWB Layouts
93EL1.1U AA 7.
SSB: HDMI: I/O + Control
12
B7B B7B
HDMI: I/O + CONTROL
A
B
C
2B56
2B59
2B62
2B65
2B68
2B71
5B65
1u0
1p51p5
5B67
1u0
1p5
5B69
1u0
1p5
5B71
1u0
1p5
5B73
1u0
5B75
1u0
1p5
2B51
3B51
10n
10n
2B52
PR1
3B52
39R
39R
Y
10n
2B50
D
3B50
39R
PR
3B65
470R
3B67
470R
3B69
470R
E
Y1
PB
F
PB1
3B71
470R
3B73
470R
3B75
470R
G
H
I
3104 313 6095.3
1
23456
345678910111213
7B50-3
2B57
IB68
2B60
IB69
2B63
IB70
2B66
IB73
2B69
IB75
2B72
IB67
10p
1K0
3B66
1K0
3B68
10p
10p
1K0
3B70
10p
1K0
3B72
10p
1K0
3B74
2B77
10p
1K0
3B76
HDMI-COAST
M135-CLK
POWERDOWN-HDMI
2B55
10n
2B75
10n
2B61
10n
2B76
10n
2B67
10n
10n
JTAG-TD-PNX2015-HDMI
JTAG-TD-HDMI-CON
JTAG-TD-HDMI-CON
JTAG-TMS
JTAG-TRST
JTAG-TCK
SCL-MM
SDA-MM
FB80
3B89
Y
Y1
H-SYNC-VGA
V-SYNC-VGA
RES
9B51
IB86
22R
3B60
100R
9B52
9B53
9B50
2B78
+3V3
3B81
3B61
100R
TDA9975HS/8/C1
63
69
7B50-1
TDA9975HS/8/C1
IB57
137
IB53
3B54
12K
2B58
2B64
2B70
10n
2B79
10n
ARX0ARX0+
ARX1ARX1+
ARX2ARX2+
ARXCARXC+
10K
PARX-DDC-SDA
PARX-DDC-SCL
2B80
3V3-DIG
3B80
3B82
133
72
124
125
126
135
116
115
93
78
65
96
95
94
10n
81
80
10n
79
68
67
10n
66
90
89
10n
88
130
131
132
127
128
129
IB58
117
167
168
173
174
179
180
165
164
171
170
177
176
161
162
159
158
IB81
153
152
1K0
IB82
109
1K0
110
55
108
107
138
118 187
143
142
145
146
148
149
139
VPP
CONVERTER
INTERFACE
CKEXT
BIAS
COAST
GAIN
CLAMP
MCLK
OE
PD
R_Pr
REF
G_Y
B_Pb
1
R_Pr
2
3
1
2
G_Y
3
1
2
B_Pb
3
1
G_Y
2
3
1
H_C_SYNC
2
3
1
2
VSYNC
3
HE
-
RXA0
+
-
RXA1
+
-
RXA2
+
-
RXB0
+
-
RXB1
+
-
RXB2
+
-
RXAC1
+
-
RXBC
+
A
RRX
B
TCK
TDI
TDO
TMS
TRST
DIS
A0
SCL
SDA
HSDAA
HSCLA
HSDAB
HSCLB
NC
Φ
VIDEO
33R
33R
33R
FB83
33R3B85
RES
33R
33R
3B55
3B53
3V3-DIG
3B83
RES
33R
1K0
IB83
33R
33R
33R
33R 3B59-2
33R
33R
33R
33R
33R
33R
33R
3B58-4
10K
3B84
3B86
IB85
DV4-DATA0_SOP
3B56-2
3B56-433R 178
3B59-4
3B57-2
3B57-4
3B62-2
3B62-4
33R3B58-2
33R
15R
9B54
DV4-DATA1_ERR
DV5-DATA0_SOP
DV5-DATA1_ERR
33R
DV4-DATA2_0
DV4-DATA3_1
DV4-DATA4_2
DV4-DATA5_3
DV4-DATA6_4
DV4-DATA7_5
DV4-DATA8_6
DV4-DATA9_7
DV5-DATA2_0
DV5-DATA3_1
DV5-DATA4_2
DV5-DATA5_3
DV5-DATA6_4
DV5-DATA7_5
DV5-DATA8_6
DV5-DATA9_7
DV-VREF
DV4-VALID
HPD-HIRATE
DV4-CLK
IRQ-HIRATE
DV-HREF
DV-FREF
DV-HREF
DV-VREF
SPDIF-HDMI
TDA9975HS/8/C1
1V8-PLL
+1V8
3V3-DIG 3V3-DIG
3V3-AVI
3V3-PLL
208
VREF
VPA
VPB
VPC
VCLK
OR
CTL
HREF
FREF
ACLK
3V3-DIG
5
0
6
1
7
2
3
4
5
6
7
8
9
10
11
0
1
2
3
4
5
6
7
8
9
10
11
0
1
2
3
4
5
6
7
8
9
10
11
VAI
R_V
G_Y
B_U
0
1
2
3
PL
DE
HS
VS
CS
WS
0
1
AP
2
3
0
X
1
2
3B56-1
8
9
3B56-3
10
15
3B59-1
16
17
3B59-3
18
19
20
23
24
25
26
27
28
31
32
33
34
35
36
39
40
41
42
43
44
47
48
49
50
51
52
206
203
205
204
192
193
194
195
207
198
199
200
201
202
182
183
184
185
186
56
57
58
33R
3B57-1
33R
3B57-3
3B62-1
33R
3B62-3
3B58-1
3B58-3
FB84
2
IB59
IB60
IB61
1
IB62
IB63
3B87
3B88
IB64
IB84
74
76
82
86
91
97
100
71
99
84
87
73
102
12
141
191
136
105
111
112
113
114
7B50-2
103
VDDA10_18
11
VDDC1_18
140
VDDC2_18
190
VDDC3_18
106
VDDI|TST1
147
VDDI_33
64
VDDA1_33
70
VDDA2_33
75
VDDA3_33
77
VDDA4_33
83
VDDA5_33
85
VDDA6_33
92
VDDA7_33
98
VDDA8_33
101
VDDA9_33
104
VDDA11_33 VDDO9_33
7 8 9 10 11
Φ
AGND1
AGND2
AGND3
AGND4
AGND5
AGND6
AGND7
AGND8
AGND9
AGNDB_Pb
AGNDR_Pr
AGNDG_Y
AGNDSOG_Y
AGNDBIAS
AGNDPLL
CGND1
CGND2
CGND3
CGND|TCLK
CGND|TST0
CGND|TST2
CGND|TST3
CGND|TST4
CGND|TST5 CGND|TST11
GND
VDD
HGNDAPLL
CGND|TST6
CGND|TST7
CGND|TST8
CGND|TST9
CGND|TST10
Φ
IGND1
IGND2
OGND1
OGND2
OGND3
OGND4
OGND5
OGND6
OGND7
OGND8
OGND9
HGND1
HGND2
HGND3
HGND4
HGND5
HGND6
HGND7
144
150
4
14
22
30
38
46
54
189
197
61
151
155
160
166
172
59
119
120
121
122
123
134
60
VDDH1_18
154
VDDH3_18
156
VDDH4_18
62
VDDH2_33
157
VDDH5_33
163
VDDH6_33
169
VDDH7_33
175
VDDH8_33
181
VDDH9_33
3
VDDO1_33
13
VDDO2_33
21
VDDO3_33
29
VDDO4_33
37
VDDO5_33
45
VDDO6_33
53
VDDO7_33
188
VDDO8_33
196
12 13
1V8-PLL
+1V8
3V3-APLL
3V3-DIG
G_16290_045.eps
010206
2B50 D1
2B51 D1
2B52 D1
2B55 C3
2B56 D2
2B57 D3
2B58 D6
2B59 D2
2B60 D3
A
2B61 E3 IB82 G6
2B62 E2
2B63 E3
2B64 D6
2B65 E2
2B66 F3
2B67 F3
2B68 F2
2B69 F3
2B70 D6
B
2B71 G2
2B72 G3
2B75 D3
2B76 E3
2B77 F3
2B78 D5
2B79 D5
2B80 D6
3B50 D1
3B51 D1
C
3B52 D1
3B53 C8
3B54 C5
3B55 C8
3B56-1 C8
3B56-2 C9
3B56-3 C8
3B56-4 C9
3B57-1 D8
3B57-2 D9
3B57-3 D8
D
3B57-4 D9
3B58-1 D8
3B58-2 E8
3B58-3 E8
3B58-4 E8
3B59-1 C8
3B59-2 C9
3B59-3 C8
3B59-4 D9
3B60 H4
E
3B61 H5
3B62-1 D8
3B62-2 D9
3B62-3 D8
3B62-4 D9
3B65 C2
3B66 D3
3B67 D2
3B68 D3
3B69 E2
3B70 E3
F
3B71 E2
3B72 E3
3B73 F2
3B74 F3
3B75 F2
3B76 G3
3B80 G6
3B81 G5
3B82 G6
3B83 E8
G
3B84 F8
3B85 G8
3B86 G9
3B87 G8
3B88 G8
3B89 G4
5B65 C3
5B67 D3
5B69 E3
5B71 E3
H
5B73 F3
5B75 F3
7B50-1 B7
7B50-2 G11
7B50-3 B11
9B50 C5
9B51 G4
9B52 G5
9B53 G5
9B54 G9
FB80 G4
I
FB83 F8
FB84 F8
IB53 C6
IB57 B6
IB58 E6
IB59 F8
IB60 F8
IB61 F8
IB62 G8
IB63 G8
IB64 G8
IB67 C3
IB68 D3
IB69 E3
IB70 E3
IB73 F3
IB75 F3
IB81 G6
IB83 C8
IB84 G8
IB85 C9
IB86 G4
Page 94
Circuit Diagrams and PWB Layouts
94EL1.1U AA 7.
SSB: Analog I/O
1
B7C B7C
ANALOG I/O
5
6234
78
A
1I0H
1I0E
1I0I
1I0F
1I0J
FI0G
FI0I
FI0H
1I0K
+12VSW
6I0N
+12VSW
6I0J
+12VSW
6I0P
+12VSW
6I0D
+12VSW
6I0L
+12VSW
6I0F
PDZ24-B
PDZ24-B
PDZ24-B
PDZ24-B
PDZ24-B
PDZ24-B
3I0B
100R
3I0C
100K
II0C
3I0M
100R
3I0L
75R
II12
3I0G
100R
75R
3I0F
II0D
3I0K
100R
75R
3I0J
II07
2I07
100p
II10
3I0I
100R
75R
3I0H
II11
3I0D
100R
3I0E
100K
AV1_CVBS
AUDIO-IN1-R
AUDIO-IN1-L
2I08
100p
PB
PR
Y1Y
AV7_Y-CVBS
PB1
AUDIO-IN4-R
PR1
AUDIO-IN4-L
II01
3I06
100R
75R
3I01
II17
3I12
100R
75R
3I13
II02
3I04
100R
75R
3I02
II06
2I06
100p
100K
II03
3I03
100R
75R
3I00
II05
2I05
3I09 3I0A
100p
100K
B
C
1I03-1
YLC21-3020N
GREEN
1
YELLOW
32
FI0F
D
1I03-2
BLUE
4
RED
65
E
YLC21-3020N
FI0C
F
1I03-3
RED
7
WHITE
98
G
H
YLC21-3020N
FI0D
AV2
3I08
100R
3I07
100R
+12VSW
6I09
+12VSW
6I11
+12VSW
6I0A
+12VSW
6I02
+12VSW
6I08
+12VSW
6I00
FI04
PDZ24-B
FI12
PDZ24-B
FI05
PDZ24-B
PDZ24-B
FI01
FI03
PDZ24-B
FI00
PDZ24-B
1I0A
1I17
1I0B
1I08
1I09
1I07
1I04-1
GREEN
1
YELLOW
32
YLC21-3020N
V_NOM
1I04-2
BLUE
4
RED
65
YLC21-3020N
1I04-3
RED
7
WHITE
98
YLC21-3020N
AV1 AV3
I
3104 313 6095.3
123
4
5678910
9 101112
+12VSW
6I0T
+12VSW
6I0V
+12VSW
6I0H
+12VSW
6I10
+12VSW
6I0Y
PDZ24-B
PDZ24-B
PDZ24-B
PDZ24-B
PDZ24-B
3I0N
3I0P
2I09
75R
75R
120R
3I68
220R
2I0F
2I0E
100p
100p
II13
3I66
3I67
II08
5I02
120R
12p
3I69
3I0Q
100R
3I60
100R
YKF51-5564
YKC21-4374
2
YKC21-4374
1I01
2
1I02
1I00
SVHS
3
12
3
1
C
Y / CVBS
34
1
5
FI0P
YELLOW
BLACK
RED
WHITE
FI0J
1I0L
FI0K
1I0M
FI0E
1I0G
FI0N
1I0P
FI0M
1I0N
11 12 13
100K
100K
2I53
100n
13
AV2_Y-CVBS
II14
II15
II16
SPDIF-OUT1
AUDIO-IN2-R
AUDIO-IN2-L
14
AV2_C
G_16290_046.eps
010206
14
1I00 G9
II01 B5
1I01 C9
II02 D5
1I02 E9
II03 G5
1I03-1 C1
II05 G6
1I03-2 E1
II06 E6
1I03-3 G1
II07 E4
1I04-1 B8
II08 F12
1I04-2 E8
II0C B4
1I04-3 G8
II0D D4
1I07 G7
1I08 F7
1I09 G7
1I0A C7
1I0B E7
1I0E F2
1I0F G2
1I0G F10
1I0H D2
1I0I G2
1I0J C2
1I0K E2
1I0L C10
1I0M E10
1I0N H10
1I0P G10
1I17 D7
2I05 G6
2I06 F6
2I07 F3
2I08 G4
2I09 F11
2I0E H12
2I0F G12
2I53 F12
3I00 G6
3I01 C6
3I02 E6
3I03 G6
3I04 D6
3I06 C6
3I07 G6
3I08 E6
3I09 G6
3I0A F6
3I0B E3
3I0C F3
3I0D G3
3I0E G3
3I0F D3
3I0G D3
3I0H G3
3I0I G3
3I0J E3
3I0K D3
3I0L C3
3I0M C3
3I0N C11
3I0P E11
3I0Q G12
3I12 D6
3I13 D6
3I60 H12
3I66 G12
3I67 H12
3I68 F12
3I69 F12
5I02 F11
6I00 G7
6I02 E7
6I08 F7
6I09 B7
6I0A D7
6I0D E2
6I0F G2
6I0H F10
6I0J C2
6I0L F2
6I0N B2
6I0P D2
6I0T B11
6I0V D11
6I0Y G11
6I10 G11
6I11 C7
FI00 G7
FI01 F7
FI03 G7
FI04 C7
FI05 D7
FI0C E2
FI0D G2
FI0E F10
FI0F D2
FI0G G2
FI0H D2
FI0I C2
FI0J C9
FI0K C10
FI0M H10
FI0N G10
FI0P D9
FI12 D7
II10 G4
II11 G4
II12 C4
II13 F12
II14 F13
II15 G13
II16 H13
II17 C5
A
B
C
D
E
F
G
H
I
Page 95
SSB: UART
Circuit Diagrams and PWB Layouts
95EL1.1U AA 7.
A
B
123
UART
B7D B7D
1
6I01-1
BAV99S
6
TXD
RXD
3
BAV99S
4
6I01-2
2
5
3I11
100R
+3V3-STANDBY
3I10
100R
FI10
+3V3-STANDBY
FI11
1I11
1I10
2I02
2I03
100p
S3B-PH-SM4-TB
100p
1M16
UART
1
SERVICE
2
3
CONNECTOR
45
A
B
Personal Notes:
1I10 B2
1I11 A2
1M16 A3
2I02 A3
2I03 B3
3I10 A2
3I11 B2
6I01-1 A1
6I01-2 B1
FI10 B2
FI11 A2
C
D
E
C
D
E
3104 313 6095.3
123
G_16290_047.eps
010206
E_06532_012.eps
131004
Page 96
Circuit Diagrams and PWB Layouts
96EL1.1U AA 7.
SSB: Audio: Amplifier
5D18
220R
5D12
33u
2D59
ID65
*
2D52
*
*
*
2D56
*
GND-DL
*
GND-DL
*
2D28
25V100u
2n2
2n2
3D78 E12
3D79 G12
3D81 G4
3D83 C7
3D84 B8
3D85 B8
3D87 C10
LEFT-SPEAKER
470n
2D53
GND-DL
100u
25V
ID63
SOUND-ENABLE
ID10
2D20
100n
2D41
GND-DL
3D82
47K
*
GND-DL
*
GND-DL
220n
ID40
2D42
3D88 C10
3D89 B4
3D90 E9
3D91 E9
5D10 E7
5D11 E15
5D12 F6
5D13 F14
5D14 G7
ID30
3D83
+12_20V
*
100n
2D14
5D14
220R
16V 100u
5D10
*
GND-DL
2D15
5D15 G15
5D16 G2
5D18 F6
5D19 F14
6D10 B4
6D11 C4
7D10-1 B3
7D10-2 F3
7D10-3 F10
8
7D10-4 B3
7D11-1 B5
7D11-2 C5
7D12-1 D4
7D12-2 C3
7D14 F4
7D15 E5
7D16-1 F5
7D16-2 F4
7D17 G4
7D18-1 E5
7D18-2 G5
7D19 F11
7D20 E12
7D21-1 F12
7D21-2 F12
7D22 G12
7D23-1 E12
7D23-2 G12
7D24 E2
7D25-1 C8
7D25-2 B9
7D26-1 C9
7D26-2 B10
7D30 F6
7D31 F13
9D03-1 F6
9D03-2 F6
9D03-3 G6
9D03-4 G6
9D04-1 F13
9D04-2 F13
9D04-3 F13
9D04-4 G13
9D48 E2
FD26 F2
10 11
FD27 G10
FD49 B3
FD54 B3
FD73 C9
ID10 E7
ID11 E15
ID12 E11
ID13 E4
ID14 F5
ID15 F12
ID16 F6
ID17 F13
ID20 F2
ID21 F11
ID22 F12
ID23 F4
ID24 F9
ID25 F1
ID28 G4
ID29 G12
ID30 C7
ID31 B8
ID32 G5
ID33 G12
ID34 G3
ID35 G5
ID36 G4
** =
12
overcurrent
protection
ID37 G11
ID38 G10
ID39 G2
ID40 G7
ID41 G15
ID42 G3
ID43 G10
ID44 H2
ID45 G13
ID46 H3
ID47 H11
ID48 B5
ID50 B4
ID51 B4
ID52 B2
ID53 B4
ID55 C5
ID56 C4
ID57 C3
ID60 B4
ID61 C4
ID62 F1
ID63 C7
ID64 F14
ID65 F6
ID66 F9
ID67 E9
ID70 B8
ID71 C10
ID72 C10
ID74 F9
ID75 F11 ID87 F4
ID76 F11
ID77 F14 ID92 E6
ID78 F13
ID80 E1
13 14 15
ID81 F1
ID82 F5
ID83 F5
ID86 F4
ID91 C10
ID93 E6
cD01 D15
cD04 D15
cD05 E15
DIVERSITY LIST
6
ID15
7D21-1
BC847BPN
1
330R
4
GND-DR
3
3D79
2x15W (8 ohm )
22K
3D78
SI4532ADY
3D45
7D23-2
ID33
2
SI4532ADY
22K
------------
-----------100uF/25V
100uF/25V
100nF/25V
100nF/25V
100uF/25V
------------
------------
1n52n2
100uF/25V
470nF/25V
470nF/25V
1n5------------
------------
------------
------------
1K02K2
1K0
1K0
15K
3K9
3K9
47K
1K0
1K0
33uH
33uH
------------
------------
SI4559
SI4559
------------
7D23-1
*
*
78
1
FEEDBACK-RL
ID17
3D47
ID78
2D39
ID45
CPROT
45
22K
3D40-4
3D61
0R1
9D04-1
6R8
18
9D04-2
27
9D04-3
36
9D04-4
1n5
45
2D40
1n5
BC857BW
**
*
*
*
*
*
*
*
*
7D31
cD01
cD04
cD05
RIGHT-SPEAKER
*
5D19
220R
5D13
33u
2D23
*
GND-DR
*
*
*
470n
2D54
2D57
**
ID77
*
2D58
GND-DR
GND-DR
*
2D22
GND-DR
ID64
25V 100u
100u 25V
2n2
2n2
2D21
2D43
GND-DR
ID11
2D17
GND-DR
220n
100n
GND-D
*
100n
ID41
*
2D44
GND-DR
2D18
GND-DR
100u16V
16V
100u
2x8W (8 ohm)
POS
2D15
2D18
2D22
+12_20V
47K
3D85
ID70
3D84
ID31
6
2
7D25-1
BC847BPN
1
1n0
47K
2D51
220R
INV-MUTE
16V
FEEDBACK
100u
FEEDBACK-LR
FEEDBACK-RL
ADAC2
-12_20V
EMC HOLE
47K
1DM1
5
4
BC847BPN
7D25-2
3
BC847BPN
MUTE
U-VOLT-DETECT
ID67
2D64
2p2
2D65
2p2
2D66
2p2
ID24
*
3D51
10K
7D26-1
-12_20V
3D90
3D91
ID74
2D60
100n
2D61
100n
2D62
100n
4
BC847BPN
7D26-2
100K
FD27
5
3
ID91
INV-MUTE
ID71
-18V4
47K
3D87
ID72
33K
3D88
-12_20V
U-VOLT-DETECT
MUTE
3K3
3D37
2p2
5
4
1n5
ID38
3D69
3K9
1n5
2D49
ID21
2
27
1u0
2D46
ID47
3D74
560R
-17V4
2D31
10n
3D40-2
22K
3D70
100K
3D72
10K
VP
3
7D10-3
LM339P
12
VN
ID43
*
2n2
2D50
47K
3D75
-17V4
FD73
6
1
2K2
33K
ID66
2D27
1u0
GND-DR
GND-DL
GND-D
3D86
2
FEEDBACK
2D72
15K
2D36
3D57
2D23
2D26
2D27
2D28
2D42
2D44
2D48 1n52n2
2D50
2D52
2D53
2D54
2D55
2D56
2D57 -----------2D58
2D59
3D25
3D35
3D38
3D49
3D50
3D51
3D54
3D64
3D65
3D90
3D91
5D12
5D13
5D18
5D19
6D11 BZX384-C18 BZX384-C27
7D18
7D23
7D24 BC817-25W
9D48
*
1K2
3D38
3D40-3
ID12
6
3
22K
7D19
BC847BW
ID76
ID75
18
3D58
680R
ID37
*
1K2
3D65
BEAD 0805 220 E 100MHz
BEAD 0805 220 E 100MHz
BC807-25W
3D40-1
22K
ID29
BC817-25W
100uF/16V
100uF/16V
------------
-----------100nF/16V
100nF/16V
------------
100uF/16V
100uF/16V
------------
------------
------------
------------
------------
------------
------------
------------
SI4532
SI4532
------------
7D20
2
ID22
7D21-2
BC847BPN
5
7D22
2n2
2n2
2n2
2n2
1K2
1K2
10K
10K
1K2
1K2
1K2
JMP
10 11 12
+12_20V
3D10
FD49
2K7
3
*
2D48
2D63 C6
2D64 E9
2D65 F9
2D66 F9
2D70 C4
2D71 G1
2D72 F10
3D10 A3
3D12 A4
VP
47K
3
9
8
VN
FD54
+12_20V
*
3D25
3D42
ID57
U-VOLT-DETECT
3D34
VP
7D10-2
LM339P
13
12
VN
ID42
2D45
2n2
ID46
3D73
7D10-1
LM339P
14
12
7
6
2K2
18V4
47K
7D12-2
BC847BS
3
4
MUTE
3K3
27
-17V4
2D30
10n
ID34
3D39-3
36
22K
3D68
100K
1u0
3D71
10K
560R
VP
3
VN
3D39-2
22K
ID86
3D13 B2
3D14 B2
3D15 B4
3D16 B5
3D17 B2
3D18 B2
3D19 C4
3D20 C5
3D21 C2
7D10-4
LM339P
12
5
3D26
*
*
3D22 C5
3D23 D4
3D24 C4
3D25 C3
3D26 D3
3D34 E3
3D35 E4
3D37 E10
3D38 E11
4 9
+3V3-STANDBY
3D12
3D89
22K
BAS316
1
ID51
+12_20V
*
6D11
BZX384-C18
ID56
10K
3D24
ID61
7D12-1
6
2
2K2
1
BC847BS
-12_20V
1K2
3D35
ID13
7D14
BC847BW
ID87
-16V9
3D39-1
18
22K
3D81
680R
ID36
1K2
3D64
1DM1 H8
2D11 B2
2D14 E7
2D15 E7
2D17 E15
2D18 E15
2D19 F2
2D20 F7
2D21 G14
2D22 H14
2D23 E14
2D26 F2
2D27 F9
2D28 H7
2D30 F3
2D31 F11
2D32 F6
2D35 G2
2D36 G9
2D37 G6
2D38 H2
2D39 G13
2D40 G13
2D41 H7
2D42 H7
2D43 H14
2D44 H15
2D45 H3
2D46 H10
2D47 H2
2D48 H3
2D49 H10
2D50 H10
2D51 C8
2D52 E6
2D53 F7
2D54 F14
2D55 F2
2D56 F6
2D57 F14
2D58 G14
2D59 G6
2D60 H9
2D61 H9
2D62 H9
123
B8A B8A
AUDIO: AMPLIFIER
A
3D13
LEFT-SPEAKER
3D14
220K
GND-D
2K7
B
2D11
GND-D
ID52
3D18
47K
2u2
3D21
GND-D
RIGHT-SPEAKER
3D17
220K
C
D
*
E
3D43
+12_20V
10R
F
-12_20V
ID25
*
3D50
ADAC1
10K
FEEDBACK
9D48
ID80
7D24
*
*
15K
3D49
BC817-25W
ID81
3D56
FD26
ID20
100n
2D19
GND-D
11
10
1n5
15K
2D35
*
*
3D54
ID62
47K
2D71
2p2
2D26
1u0
1n5
2D55
*
G
5D16
-12_20V
220R
ID39
2D38
GND-D
100n
3D67
ID44
3K9
1n5
2D47
H
3D39-1 G4
3D39-2 E4
3D39-3 G3
3D39-4 E5
3D40-1 G11
3D40-2 G11
3D40-3 E11
3D40-4 E13
3D42 C3 3D77 E6
SOUND-ENABLE
5K6
ID60
0V
ID50
47K
3D15
6D10
ID53
47K
3
3D19
7D11-2
BC847BS
4
2D70
*
*
1n0
3D23
2K2
CPROT
7D15
BC807-25W
6
2
7D16-1
BC847BPN
1
ID23
7D16-2
4
5
ID28
GND-DL
BC847BPN
3
ID32
7D17
BC817-25W
3D43 E1
3D44 F5
3D45 F12
3D46 F6 3D82 C7
3D47 F13
3D49 E1
3D50 F1
3D51 F9 3D86 C9
3D54 F1
3D56 G2
3D57 G9
3D58 G11
3D60 F6
3D61 F13
3D64 G4
3D65 G11
3D67 H3
3D68 H3
3D69 H10
3D70 H11
3D71 H3
3D72 H11
3D73 H3
3D74 H10
3D75 B9
3D76 G5
567
3D16
GND-D
5
-12_20V
22K
SI4532ADY
2K2
6
7D11-1
BC847BS
1
4
SI4532ADY
7D18-2
2
PROT-AUDIOSUPPLY
3D20
3D22
7D18-1
*
3
5
*
8
7
1
ID48
0V7
22K
ID55
10K
6
ID82
ID83
ID35
10n
2D63
CPROT
FEEDBACK-LR
ID92
*
*
3D77
ID93
6R8
3D46
1n5
2D32
1n5
2D37
1
2
3
4
22K
9D03-1
9D03-2
9D03-3
9D03-4
7D30
BC857BW
3D60
0R1
*
*
*
*
*
*
*
*
GND-DL
***
*
ID16
8
7
6
5
+3V3-STANDBY
2
3D39-4
ID14
330R
3D44
22K
3D76
45
3104 313 6095.3
123
45
6789 131415
GND-DR
GND-DL
5D11
+12_20V
220R
5D15
-12_20V
220R
G_16290_048.eps
010206
A
B
C
D
E
F
G
H
Page 97
SSB: Audio: Connectors
Circuit Diagrams and PWB Layouts
97EL1.1U AA 7.
A
B
C
1234
567
AUDIO: CONNECTORS
B8B B8B
-12-16V-NF
IM12
2M15
2M16
0V7
2n2
2n2
2M10
1n0
2M11
1n0
2M12
1n0
2M13
1n0
5M10
220R
5M11
220R
5M12
220R
5M09
220R
5M02
220R
5M03
220R
IM10
IM11
PROT-AUDIOSUPPLY
LEFT-SPEAKER
IM13
RIGHT-SPEAKER
IM14
-12_20V
+12_20V
2M11
2M13
2M14
3M04
5M09
5M11
0M98
2x8W (8 ohm)
----------
----------
----------
----------
----------
----------
0M99
2x15W (8 ohm)
1nF
1nF
1nF
100E
220E 100MHz
220E 100MHz
1M02
1
2
3
4
5
6
7
B7B-PH-K
1740
1
2
3
4
B4B-EH-A
FM16
GND-D
FM18
FM15
FM17
+12-16V-NF
FM10
FM12
FM13
2M14
1n0
GND-D
FM14
FM11
2M17
2n2
2M18
2n2
3M04
100R
IM15
IM16
A
B
C
0M98 C6
0M99 C6
1740 C1
1M02 A1
1MM2 D6
2M10 A3
2M11 A3
2M12 B3
2M13 B3
2M14 B2
2M15 C3
2M16 C3
2M17 C3
2M18 C3
3M04 B3
5M02 C4
5M03 C4
5M09 B4
5M10 A4
5M11 A4
5M12 B4
FM10 A2
FM11 A3
FM12 B2
FM13 B2
FM14 B2
FM15 B2
FM16 C2
FM17 C2
FM18 C2
IM10 A4
IM11 B4
IM12 B3
IM13 C4
IM14 C4
IM15 C3
IM16 C3
D
3104 313 6095.3
13
2
4
1MM2
EMC HOLE
D
G_16290_049.eps
010206
567
Page 98
Circuit Diagrams and PWB Layouts
SSB: SRP List Part 1 (For both .3 & .4 version)
98EL1.1U AA 7.
Schematic Netname
B08a (7x) +12_20V
B08b (1x) +12_20V
B01b (2x) +12-16V-NF
B08b (2x) +12-16V-NF
B01a (1x) +12VS
B01b (1x) +12VS
B01a (2x) +12VSW
B01b (2x) +12VSW
B02a (4x) +12VSW
B02b (2x) +12VSW
B03e (4x) +12VSW
B04a (2x) +12VSW
B04e (2x) +12VSW
B04g (8x) +12VSW
B07c (34x) +12VSW
B01a (4x) +1V2
B02a (2x) +1V2
B04e (4x) +1V2
B05d (8x) +1V2
B02a (2x) +1V2_ATSC
B02a (1x) +1V2F
B04e (2x) +1V2-STANDBY
B05f (1x) +1V2-STANDBY
B07a (3x) +1V8
B07b (2x) +1V8
B01a (2x) +2V5
B02a (2x) +2V5
B04d (2x) +2V5
B05d (2x) +2V5
B02a (1x) +2V5A
B02a (1x) +2V5A-ADC
B02a (1x) +2V5A-PLL
B02a (1x) +2V5A-XTAL
B01a (2x) +2V5D
B04d (4x) +2V5-DDRPNX
B04f (1x) +2V5-DDRPNX
B02a (1x) +2V5D-PLL
B02a (1x) +2V5F
B05b (7x) +2V5-VPR
B05d (3x) +2V5-VPR
B01a (2x) +3V3
B01b (4x) +3V3
B02a (10x) +3V3
B04e (4x) +3V3
B04g (6x) +3V3
B05a (42x) +3V3
B05c (2x) +3V3
B05d (8x) +3V3
B05e (4x) +3V3
B06 (2x) +3V3
B07a (10x) +3V3
B07b (2x) +3V3
B07a (2x) +3V3-AV
B06 (6x) +3V3DAC
B02a (4x) +3V3F
B03a (2x) +3V3-STANDBY
B04e (2x) +3V3-STANDBY
B04g (2x) +3V3-STANDBY
B05e (6x) +3V3-STANDBY
B05f (6x) +3V3-STANDBY
B07d (4x) +3V3-STANDBY
B08a (6x) +3V3-STANDBY
B01b (2x) +3V3-UART
B01b (4x) +5V
B02a (2x) +5V
B03a (6x) +5V
B03b (12x) +5V
B03c (2x) +5V
B03e (4x) +5V
B04e (4x) +5V
B04g (4x) +5V
B05a (4x) +5V
B06 (2x) +5V
B07a (2x) +5V
B01b (8x) +5V2-STBY
B03e (4x) +5V2-STBY
B04a (2x) +5V2-STBY
B05e (4x) +5V2-STBY
B05f (8x) +5V2-STBY
B03c (3x) +5VaM
B03c (2x) +5VbM
B02b (7x) +5VTUN
B03c (2x) +5VTUN
B03d (1x) +5VTUN
B03d (1x) +8V-AUD
B03e (1x) +8V-AUD
B08a (8x) -12_20V
B08b (1x) -12_20V
B01b (2x) -12-16V-NF
B08b (2x) -12-16V-NF
B07a (1x) 1V8-PLL
B07b (2x) 1V8-PLL
B07a (1x) 3V3-APLL
B07b (1x) 3V3-APLL
B07a (2x) 3V3-AVI
B07b (1x) 3V3-AVI
B07a (3x) 3V3-DIG
B07b (6x) 3V3-DIG
B07a (1x) 3V3-PLL
B07b (1x) 3V3-PLL
B04a (1x) ADAC1
B08a (1x) ADAC1
B04a (1x) ADAC2
B08a (1x) ADAC2
B03e (1x) ADAC7
B04a (1x) ADAC7
B03e (1x) ADAC8
B04a (1x) ADAC8
B07a (3x) AIN-5V
B04e (2x) ALE
B03e (1x) A-PLOP
B04a (1x) A-PLOP
B05a (1x) A-PLOP
B07a (1x) ARX0B07b (1x) ARX0B07a (1x) ARX0+
B07b (1x) ARX0+
B07a (1x) ARX1B07b (1x) ARX1B07a (1x) ARX1+
B07b (1x) ARX1+
B07a (1x) ARX2B07b (1x) ARX2B07a (1x) ARX2+
B07b (1x) ARX2+
B07a (1x) ARXCB07b (1x) ARXCB07a (1x) ARXC+
B07b (1x) ARXC+
B07a (2x) ARX-DDC-SCL
B07a (2x) ARX-DDC-SDA
B07a (2x) ARX-HOTPLUG
B03a (1x) AUDIO-HDPH-L-AP
B03e (1x) AUDIO-HDPH-L-AP
B03a (1x) AUDIO-HDPH-R-AP
B03e (1x) AUDIO-HDPH-R-AP
B03d (1x) AUDIO-IN1-L
B07c (1x) AUDIO-IN1-L
B03d (1x) AUDIO-IN1-R
B07c (1x) AUDIO-IN1-R
B03d (1x) AUDIO-IN2-L
B07c (1x) AUDIO-IN2-L
B03d (1x) AUDIO-IN2-R
B07c (1x) AUDIO-IN2-R
B03a (1x) AUDIO-IN3-L
B03d (1x) AUDIO-IN3-L
B03a (1x) AUDIO-IN3-R
B03d (1x) AUDIO-IN3-R
B03d (1x) AUDIO-IN4-L
B07c (1x) AUDIO-IN4-L
B03d (1x) AUDIO-IN4-R
B07c (1x) AUDIO-IN4-R
B03a (1x) AUDIO-IN5-L
B03d (1x) AUDIO-IN5-L
B03a (1x) AUDIO-IN5-R
B03d (1x) AUDIO-IN5-R
B03a (1x) AUDIO-OUT1-L
B03d (1x) AUDIO-OUT1-L
B03a (1x) AUDIO-OUT1-R
B03d (1x) AUDIO-OUT1-R
B02a (1x) AUX-IF-AGC
B02b (1x) AUX-IF-AGC
B03a (1x) AV1_CVBS
B07c (1x) AV1_CVBS
B03a (1x) AV1-AV6_FBL-HSYNC
B04a (1x) AV1-AV6_FBL-HSYNC
B03a (1x) AV2_C
B07c (1x) AV2_C
B04a (2x) AV2_FBL
B03a (1x) AV2_Y-CVBS
B07c (1x) AV2_Y-CVBS
B04a (2x) AV6_VSYNC
B03a (1x) AV7_Y-CVBS
B07c (1x) AV7_Y-CVBS
B04g (1x) AV-BOUT
B06 (1x) AV-BOUT
B04g (1x) AV-GOUT
B06 (1x) AV-GOUT
B04g (1x) AV-ROUT
B06 (1x) AV-ROUT
B01b (1x) BACKLIGHT-CNTRL-OUT
B04g (1x) BACKLIGHT-CNTRL-OUT
B04e (1x) BACKLIGHT-CONTROL
B04g (1x) BACKLIGHT-CONTROL
B05c (1x) BACKLIGHT-CONTROL
B02a (1x) CHDEC-CLK
B05a (1x) CHDEC-CLK
B05c (1x) CHDEC-CLK
B03b (1x) CLK-MPIF
B04a (1x) CLK-MPIF
B08a (3x) CPROT
B04g (1x) CTRL1-VIPER
B05c (1x) CTRL1-VIPER
B04e (1x) CTRL4-STBY
B04g (1x) CTRL4-STBY
B04g (1x) CTRL4-VIPER
B05a (2x) CTRL4-VIPER
B04g (2x) CTRL-DISP1
B04g (2x) CTRL-DISP2
B04g (2x) CTRL-DISP3
B04g (2x) CTRL-DISP4
B03a (2x) CVBS-IN
B03a (1x) CVBSOUTIF-MAIN
B03c (1x) CVBSOUTIF-MAIN
B03a (1x) DATA1N-MAIN
B04a (1x) DATA1N-MAIN
B03a (1x) DATA1P-MAIN
B04a (1x) DATA1P-MAIN
B03a (1x) DATA2N-MAIN
B04a (1x) DATA2N-MAIN
B03a (1x) DATA2P-MAIN
B04a (1x) DATA2P-MAIN
B03a (1x) DATA3N-MAIN
B04a (1x) DATA3N-MAIN
B03a (1x) DATA3P-MAIN
B04a (1x) DATA3P-MAIN
B04e (2x) DEBUG-BREAK
B05a (2x) DEBUG-BREAK
B04e (2x) DETECT-12V
B04e (2x) DETECT-1V2
B04e (2x) DETECT-3V3
B04e (2x) DETECT-5V
B04e (2x) DETECT-8V6
B03a (1x) DMMI_B-PB-IN
B03a (1x) DMMI_G-Y-IN
B03a (1x) DMMI_R-PR-IN
B03d (1x) DSNDL1
B04a (1x) DSNDL1
B03d (1x) DSNDR1
B04a (1x) DSNDR1
B02a (1x) DV1F-CLK
B05c (1x) DV1F-CLK
B02a (1x) DV1F-DATA0
B05c (1x) DV1F-DATA0
B02a (1x) DV1F-DATA1
B05c (1x) DV1F-DATA1
B02a (1x) DV1F-DATA2
B05c (1x) DV1F-DATA2
B02a (1x) DV1F-DATA3
B05c (1x) DV1F-DATA3
B02a (1x) DV1F-DATA4
B05c (1x) DV1F-DATA4
B02a (1x) DV1F-DATA5
B05c (1x) DV1F-DATA5
B02a (1x) DV1F-DATA6
B05c (1x) DV1F-DATA6
B02a (1x) DV1F-DATA7
B05c (1x) DV1F-DATA7
B02a (1x) DV1F-DATA8_ERR
B05c (1x) DV1F-DATA8_ERR
B02a (1x) DV1F-DATA9_SOP
B05c (1x) DV1F-DATA9_SOP
B02a (1x) DV1F-VALID
B05c (2x) DV1F-VALID
B04b (1x) DV2A-CLK
B05c (1x) DV2A-CLK
B05c (2x) DV2A-VALID
B04b (1x) DV3F-CLK
B05c (1x) DV3F-CLK
B04b (1x) DV3F-DATA0_SOP
B05c (1x) DV3F-DATA0_SOP
B04b (1x) DV3F-DATA1_ERR
B05c (1x) DV3F-DATA1_ERR
B04b (1x) DV3F-DATA2_0
B05c (1x) DV3F-DATA2_0
B04b (1x) DV3F-DATA3_1
B05c (1x) DV3F-DATA3_1
B04b (1x) DV3F-DATA4_2
B05c (1x) DV3F-DATA4_2
B04b (1x) DV3F-DATA5_3
B05c (1x) DV3F-DATA5_3
B04b (1x) DV3F-DATA6_4
B05c (1x) DV3F-DATA6_4
B04b (1x) DV3F-DATA7_5
B05c (1x) DV3F-DATA7_5
B04b (1x) DV3F-DATA8_6
B05c (1x) DV3F-DATA8_6
B04b (1x) DV3F-DATA9_7
B05c (1x) DV3F-DATA9_7
B04b (1x) DV3F-VALID
B05c (2x) DV3F-VALID
B04b (1x) DV4-CLK
B07b (1x) DV4-CLK
B04b (1x) DV4-DATA0_SOP
B07b (1x) DV4-DATA0_SOP
B04b (1x) DV4-DATA1_ERR
B07b (1x) DV4-DATA1_ERR
B04b (1x) DV4-DATA2_0
B07b (1x) DV4-DATA2_0
B04b (1x) DV4-DATA3_1
B07b (1x) DV4-DATA3_1
B04b (1x) DV4-DATA4_2
B07b (1x) DV4-DATA4_2
B04b (1x) DV4-DATA5_3
B07b (1x) DV4-DATA5_3
B04b (1x) DV4-DATA6_4
B07b (1x) DV4-DATA6_4
B04b (1x) DV4-DATA7_5
B07b (1x) DV4-DATA7_5
B04b (1x) DV4-DATA8_6
B07b (1x) DV4-DATA8_6
B04b (1x) DV4-DATA9_7
B07b (1x) DV4-DATA9_7
B04b (1x) DV4-VALID
B07b (1x) DV4-VALID
B04b (1x) DV5-DATA0_SOP
B07b (1x) DV5-DATA0_SOP
B04b (1x) DV5-DATA1_ERR
B07b (1x) DV5-DATA1_ERR
B04b (1x) DV5-DATA2_0
B07b (1x) DV5-DATA2_0
B04b (1x) DV5-DATA3_1
B07b (1x) DV5-DATA3_1
B04b (1x) DV5-DATA4_2
B07b (1x) DV5-DATA4_2
B04b (1x) DV5-DATA5_3
B07b (1x) DV5-DATA5_3
B04b (1x) DV5-DATA6_4
B07b (1x) DV5-DATA6_4
B04b (1x) DV5-DATA7_5
B07b (1x) DV5-DATA7_5
B04b (1x) DV5-DATA8_6
B07b (1x) DV5-DATA8_6
B04b (1x) DV5-DATA9_7
B07b (1x) DV5-DATA9_7
B05c (1x) DV-BOUT-0
B06 (2x) DV-BOUT-0
B05c (1x) DV-BOUT-1
B06 (2x) DV-BOUT-1
B05c (1x) DV-BOUT-2
B06 (2x) DV-BOUT-2
B05c (1x) DV-BOUT-3
B06 (2x) DV-BOUT-3
B05c (1x) DV-BOUT-4
B06 (2x) DV-BOUT-4
B05c (1x) DV-BOUT-5
B06 (2x) DV-BOUT-5
B05c (1x) DV-BOUT-6
B06 (2x) DV-BOUT-6
B05c (1x) DV-BOUT-7
B06 (2x) DV-BOUT-7
B05c (1x) DV-BOUT-8
B06 (2x) DV-BOUT-8
B05c (1x) DV-BOUT-9
B06 (2x) DV-BOUT-9
B05c (1x) DV-CLKIN
B06 (2x) DV-CLKIN
B04b (1x) DV-FREF
B07b (1x) DV-FREF
B05c (1x) DV-GOUT-0
B06 (2x) DV-GOUT-0
B05c (1x) DV-GOUT-1
B06 (2x) DV-GOUT-1
B05c (1x) DV-GOUT-2
B06 (2x) DV-GOUT-2
B05c (1x) DV-GOUT-3
B06 (2x) DV-GOUT-3
B05c (1x) DV-GOUT-4
B06 (2x) DV-GOUT-4
B05c (1x) DV-GOUT-5
B06 (2x) DV-GOUT-5
B05c (1x) DV-GOUT-6
B06 (2x) DV-GOUT-6
B05c (1x) DV-GOUT-7
B06 (2x) DV-GOUT-7
B05c (1x) DV-GOUT-8
B06 (2x) DV-GOUT-8
B05c (1x) DV-GOUT-9
B06 (2x) DV-GOUT-9
B04b (1x) DV-HREF
B07b (2x) DV-HREF
B05c (1x) DV-OUT-DE
B06 (2x) DV-OUT-DE
B05c (1x) DV-OUT-FFIELD
B06 (1x) DV-OUT-FFIELD
B05c (1x) DV-OUT-HS
B06 (1x) DV-OUT-HS
B05c (1x) DV-OUT-VS
B06 (2x) DV-OUT-VS
B05c (1x) DV-ROUT-0
B06 (2x) DV-ROUT-0
B05c (1x) DV-ROUT-1
B06 (2x) DV-ROUT-1
B05c (1x) DV-ROUT-2
B06 (2x) DV-ROUT-2
B05c (1x) DV-ROUT-3
B06 (2x) DV-ROUT-3
B05c (1x) DV-ROUT-4
B06 (2x) DV-ROUT-4
B05c (1x) DV-ROUT-5
B06 (2x) DV-ROUT-5
B05c (1x) DV-ROUT-6
B06 (2x) DV-ROUT-6
B05c (1x) DV-ROUT-7
B06 (2x) DV-ROUT-7
B05c (1x) DV-ROUT-8
B06 (2x) DV-ROUT-8
B05c (1x) DV-ROUT-9
B06 (2x) DV-ROUT-9
B04b (1x) DV-VREF
B07b (2x) DV-VREF
B04e (2x) EA
B01b (1x) EJTAG-DETECT
B04e (2x) EJTAG-DETECT
B01b (1x) EJTAG-TCK
B05a (1x) EJTAG-TCK
B01b (1x) EJTAG-TDI
B05a (1x) EJTAG-TDI
B01b (1x) EJTAG-TDO
B05a (1x) EJTAG-TDO
B01b (1x) EJTAG-TMS
B05a (1x) EJTAG-TMS
B01a (1x) ENABLE-1V2
B04e (2x) ENABLE-1V2
B01a (1x) ENABLE-3V3
B04e (2x) ENABLE-3V3
B02a (1x) FAT-ADC-INN
B02b (1x) FAT-ADC-INN
B02a (1x) FAT-ADC-INP
B02b (1x) FAT-ADC-INP
B02a (1x) FAT-IF-AGC
B02b (1x) FAT-IF-AGC
B08a (3x) FEEDBACK
B08a (2x) FEEDBACK-LR
B08a (2x) FEEDBACK-RL
B02a (1x) FM-TRAP
B02b (1x) FM-TRAP
B03a (2x) FRONT_C
B03a (2x) FRONT_Y-CVBS
B04e (2x) FRONT-DETECT
B01b (1x) GLINK-RXD
B04g (1x) GLINK-RXD
B05a (1x) GLINK-RXD
B01b (1x) GLINK-TXD
B04g (1x) GLINK-TXD
B05a (1x) GLINK-TXD
B01b (1x) GND-D
B08a (16x) GND-D
B08b (4x) GND-D
B08a (11x) GND-DL
B08a (11x) GND-DR
B01a (15x) GND-SIG
B03a (1x) H_SYNC_IN
B05a (1x) HDMI-COAST
B07b (1x) HDMI-COAST
B03a (1x) HP-DET-R-DC
B05a (1x) HPD-HIRATE
B07a (1x) HPD-HIRATE
B07b (1x) HPD-HIRATE
B07b (1x) H-SYNC-VGA
B03a (1x) HV-PRM-MAIN
B04a (1x) HV-PRM-MAIN
B02a (1x) I2C-SCL-TUNER
B02b (1x) I2C-SCL-TUNER
B02a (1x) I2C-SDA-TUNER
B02b (1x) I2C-SDA-TUNER
B04a (1x) I2S-BCLK-MAIN
B05c (1x) I2S-BCLK-MAIN
B04a (1x) I2S-MAIN-D
B05c (1x) I2S-MAIN-D
B04a (1x) I2S-MAIN-ND
B05c (1x) I2S-MAIN-ND
B04a (1x) I2S-MCH-CSW
B05c (1x) I2S-MCH-CSW
B04a (1x) I2S-MCH-LR
B05c (1x) I2S-MCH-LR
B04a (1x) I2S-MCH-SLR
B05c (1x) I2S-MCH-SLR
B04a (1x) I2S-SUB-D
B05c (1x) I2S-SUB-D
B04a (1x) I2S-WS-MAIN
B05c (1x) I2S-WS-MAIN
B02b (1x) IF-ANA
B03c (1x) IF-ANA
B08a (2x) INV-MUTE
B04e (1x) IRQ-AVIP
B05a (1x) IRQ-AVIP
B02a (1x) IRQ-FE-MAIN
B05a (1x) IRQ-FE-MAIN
B04e (1x) IRQ-HD1
B05a (2x) IRQ-HD1
B04e (1x) IRQ-HD2
B05a (2x) IRQ-HD2
B04e (1x) IRQ-HIRATE
B05a (2x) IRQ-HIRATE
B07b (1x) IRQ-HIRATE
B05a (2x) IRQ-MAIN
B03b (1x) IRQ-MPIF
B05a (1x) IRQ-MPIF
B03a (1x) ITV-IR-SW-RESET
B04e (1x) JTAG-TCK
B05a (2x) JTAG-TCK
B07b (1x) JTAG-TCK
B05a (3x) JTAG-TD-CON-VIPER
B07b (2x) JTAG-TD-HDMI-CON
B04e (1x) JTAG-TD-PNX2015-HDMI
B07b (1x) JTAG-TD-PNX2015-HDMI
B04e (1x) JTAG-TD-VIPER-PNX2015
B05a (2x) JTAG-TD-VIPER-PNX2015
B04e (1x) JTAG-TMS
B05a (3x) JTAG-TMS
B07b (1x) JTAG-TMS
B01b (1x) JTAG-TRST
B04e (1x) JTAG-TRST
3104 313 6095.3 & 4
G_16290_096.eps
150206
Page 99
Circuit Diagrams and PWB Layouts
SSB: SRP List Part 2 (For both .3 & .4 version)
99EL1.1U AA 7.
Schematic Netname
B05a (2x) JTAG-TRST
B07b (1x) JTAG-TRST
B04e (2x) KEYBOARD
B05f (1x) KEYBOARD
B04e (2x) LAMP-ON
B04g (1x) LAMP-ON
B01b (1x) LAMP-ON-OUT
B04g (1x) LAMP-ON-OUT
B04e (2x) LED1
B05f (1x) LED1
B04e (2x) LED2
B05f (1x) LED2
B08a (2x) LEFT-SPEAKER
B08b (1x) LEFT-SPEAKER
B04e (1x) LIGHT-SENSOR
B05f (1x) LIGHT-SENSOR
B04f (3x) LVDS-3V3
B05a (1x) M135-CLK
B07b (1x) M135-CLK
B04e (1x) M27-PNX
B05a (1x) M27-PNX
B05b (3x) MM_A0
B05b (3x) MM_A1
B05b (3x) MM_A10
B05b (3x) MM_A11
B05b (3x) MM_A12
B05b (3x) MM_A2
B05b (3x) MM_A3
B05b (3x) MM_A4
B05b (3x) MM_A5
B05b (3x) MM_A6
B05b (3x) MM_A7
B05b (3x) MM_A8
B05b (3x) MM_A9
B05b (3x) MM_BA0
B05b (3x) MM_BA1
B05b (3x) MM_CAS
B05b (3x) MM_CKE
B05b (3x) MM_CLK_N
B05b (3x) MM_CLK_P
B05b (3x) MM_CS0
B05b (2x) MM_DATA_0
B05b (2x) MM_DATA_1
B05b (2x) MM_DATA_10
B05b (2x) MM_DATA_11
B05b (2x) MM_DATA_12
B05b (2x) MM_DATA_13
B05b (2x) MM_DATA_14
B05b (2x) MM_DATA_15
B05b (2x) MM_DATA_16
B05b (2x) MM_DATA_17
B05b (2x) MM_DATA_18
B05b (2x) MM_DATA_19
B05b (2x) MM_DATA_2
B05b (2x) MM_DATA_20
B05b (2x) MM_DATA_21
B05b (2x) MM_DATA_22
B05b (2x) MM_DATA_23
B05b (2x) MM_DATA_24
B05b (2x) MM_DATA_25
B05b (2x) MM_DATA_26
B05b (2x) MM_DATA_27
B05b (2x) MM_DATA_28
B05b (2x) MM_DATA_29
B05b (2x) MM_DATA_3
B05b (2x) MM_DATA_30
B05b (2x) MM_DATA_31
B05b (2x) MM_DATA_4
B05b (2x) MM_DATA_5
B05b (2x) MM_DATA_6
B05b (2x) MM_DATA_7
B05b (2x) MM_DATA_8
B05b (2x) MM_DATA_9
B05b (2x) MM_DQM_0
B05b (2x) MM_DQM_1
B05b (2x) MM_DQM_2
B05b (2x) MM_DQM_3
B05b (2x) MM_DQS0
B05b (2x) MM_DQS1
B05b (2x) MM_DQS2
B05b (2x) MM_DQS3
B05b (3x) MM_RAS
B05b (3x) MM_WE
B04b (1x) MP-BOUT-0
B06 (1x) MP-BOUT-0
B04b (1x) MP-BOUT-1
B06 (1x) MP-BOUT-1
B04b (1x) MP-BOUT-2
B06 (1x) MP-BOUT-2
B04b (1x) MP-BOUT-3
B06 (1x) MP-BOUT-3
B04b (1x) MP-BOUT-4
B06 (1x) MP-BOUT-4
B04b (1x) MP-BOUT-5
B06 (1x) MP-BOUT-5
B04b (1x) MP-BOUT-6
B06 (1x) MP-BOUT-6
B04b (1x) MP-BOUT-7
B06 (1x) MP-BOUT-7
B04b (1x) MP-BOUT-8
B06 (1x) MP-BOUT-8
B04b (1x) MP-BOUT-9
B06 (1x) MP-BOUT-9
B04b (1x) MP-CLKOUT
B06 (1x) MP-CLKOUT
B04b (1x) MP-GOUT-0
B06 (1x) MP-GOUT-0
B04b (1x) MP-GOUT-1
B06 (1x) MP-GOUT-1
B04b (1x) MP-GOUT-2
B06 (1x) MP-GOUT-2
B04b (1x) MP-GOUT-3
B06 (1x) MP-GOUT-3
B04b (1x) MP-GOUT-4
B06 (1x) MP-GOUT-4
B04b (1x) MP-GOUT-5
B06 (1x) MP-GOUT-5
B04b (1x) MP-GOUT-6
B06 (1x) MP-GOUT-6
B04b (1x) MP-GOUT-7
B06 (1x) MP-GOUT-7
B04b (1x) MP-GOUT-8
B06 (1x) MP-GOUT-8
B04b (1x) MP-GOUT-9
B06 (1x) MP-GOUT-9
B04b (1x) MP-OUT-DE
B06 (1x) MP-OUT-DE
B04b (1x) MP-OUT-FFIELD
B06 (1x) MP-OUT-FFIELD
B04b (1x) MP-OUT-HS
B04g (1x) MP-OUT-HS
B06 (1x) MP-OUT-HS
B04b (1x) MP-OUT-VS
B04g (1x) MP-OUT-VS
B06 (1x) MP-OUT-VS
B04b (1x) MP-ROUT-0
B06 (1x) MP-ROUT-0
B04b (1x) MP-ROUT-1
B06 (1x) MP-ROUT-1
B04b (1x) MP-ROUT-2
B06 (1x) MP-ROUT-2
B04b (1x) MP-ROUT-3
B06 (1x) MP-ROUT-3
B04b (1x) MP-ROUT-4
B06 (1x) MP-ROUT-4
B04b (1x) MP-ROUT-5
B06 (1x) MP-ROUT-5
B04b (1x) MP-ROUT-6
B06 (1x) MP-ROUT-6
B04b (1x) MP-ROUT-7
B06 (1x) MP-ROUT-7
B04b (1x) MP-ROUT-8
B06 (1x) MP-ROUT-8
B04b (1x) MP-ROUT-9
B06 (1x) MP-ROUT-9
B08a (3x) MUTE
B05a (1x) NAND-AD(0)
B05e (1x) NAND-AD(0)
B05a (1x) NAND-AD(1)
B05e (1x) NAND-AD(1)
B05a (1x) NAND-AD(2)
B05e (1x) NAND-AD(2)
B05a (1x) NAND-AD(3)
B05e (1x) NAND-AD(3)
B05a (1x) NAND-AD(4)
B05e (1x) NAND-AD(4)
B05a (1x) NAND-AD(5)
B05e (1x) NAND-AD(5)
B05a (1x) NAND-AD(6)
B05e (1x) NAND-AD(6)
B05a (1x) NAND-AD(7)
B05e (1x) NAND-AD(7)
B05a (1x) NAND-ALE
B05e (1x) NAND-ALE
B05a (1x) NAND-CLE
B05e (1x) NAND-CLE
B05a (1x) NAND-D(10)
B05e (1x) NAND-D(10)
B05a (1x) NAND-D(11)
B05e (1x) NAND-D(11)
B05a (1x) NAND-D(12)
B05e (1x) NAND-D(12)
B05a (1x) NAND-D(13)
B05e (1x) NAND-D(13)
B05a (1x) NAND-D(14)
B05e (1x) NAND-D(14)
B05a (1x) NAND-D(15)
B05e (1x) NAND-D(15)
B05a (2x) NAND-D(8)
B05e (1x) NAND-D(8)
B05a (1x) NAND-D(9)
B05e (1x) NAND-D(9)
B05a (1x) NAND-RBY
B05e (2x) NAND-RBY
B05a (1x) NAND-REn
B05e (1x) NAND-REn
B05a (1x) NAND-SEL
B05e (2x) NAND-SEL
B05a (1x) NAND-WEn
B05e (1x) NAND-WEn
B04e (2x) ON-MODE
B04g (1x) ON-MODE
B05f (1x) ON-MODE
B06 (1x) ON-MODE
B04e (1x) P0_6
B04e (2x) P3_2
B04e (2x) P4_4
B04e (1x) P50
B04e (2x) P50-HDMI
B07a (1x) P50-HDMI
B07a (1x) PARX-DDC-SCL
B07b (1x) PARX-DDC-SCL
B07a (1x) PARX-DDC-SDA
B07b (1x) PARX-DDC-SDA
B07b (1x) PB
B07c (1x) PB
B07b (1x) PB1
B07c (1x) PB1
B05a (2x) PCI-CLK-VPR
B05a (2x) PCI-INTA
B05a (2x) PCI-REQ
B05a (2x) PCI-REQ-A
B05a (2x) PCI-REQ-B
B04f (2x) PLL-1V2
B04f (2x) PLL-3V3
B05a (2x) PLL-OUT
B04d (2x) PNX-MA-0
B04d (2x) PNX-MA-1
B04d (2x) PNX-MA-10
B04d (2x) PNX-MA-11
B04d (2x) PNX-MA-12
B04d (2x) PNX-MA-2
B04d (2x) PNX-MA-3
B04d (2x) PNX-MA-4
B04d (2x) PNX-MA-5
B04d (2x) PNX-MA-6
B04d (2x) PNX-MA-7
B04d (2x) PNX-MA-8
B04d (2x) PNX-MA-9
B04d (2x) PNX-MBA0
B04d (2x) PNX-MBA1
B04d (2x) PNX-MCAS
B04d (2x) PNX-MCKE
B04d (2x) PNX-MCLK-N
B04d (2x) PNX-MCLK-P
B04d (2x) PNX-MCS-0
B04d (2x) PNX-MDATA-0
B04d (2x) PNX-MDATA-1
B04d (2x) PNX-MDATA-10
B04d (2x) PNX-MDATA-11
B04d (2x) PNX-MDATA-12
B04d (2x) PNX-MDATA-13
B04d (2x) PNX-MDATA-14
B04d (2x) PNX-MDATA-15
B04d (2x) PNX-MDATA-2
B04d (2x) PNX-MDATA-3
B04d (2x) PNX-MDATA-4
B04d (2x) PNX-MDATA-5
B04d (2x) PNX-MDATA-6
B04d (2x) PNX-MDATA-7
B04d (2x) PNX-MDATA-8
B04d (2x) PNX-MDATA-9
B04d (2x) PNX-MDQM-0
B04d (2x) PNX-MDQM-1
B04d (2x) PNX-MDQS-0
B04d (2x) PNX-MDQS-1
B04d (2x) PNX-MRAS
B04d (2x) PNX-MWE
B01b (1x) POD-MODE
B04e (2x) POD-MODE
B03a (1x) POWER-DOWN_BOLT-ON
B05a (1x) POWERDOWN-HDMI
B07b (1x) POWERDOWN-HDMI
B04e (3x) POWER-OK-DISPLAY
B07b (1x) PR
B07c (1x) PR
B07b (1x) PR1
B07c (1x) PR1
B04e (1x) PROT-AUDIOSUPPLY
B08a (1x) PROT-AUDIOSUPPLY
B08b (1x) PROT-AUDIOSUPPLY
B04e (2x) PSEN
B03a (1x) RC
B04e (2x) RC
B05f (1x) RC
B04a (1x) RESET-AUDIO
B04e (2x) RESET-AUDIO
B02a (1x) RESET-FE-MAIN
B05a (2x) RESET-FE-MAIN
B04e (2x) RESET-MAIN-NVM
B05e (1x) RESET-MAIN-NVM
B04e (3x) RESET-MIPS
B05a (1x) RESET-MIPS
B04e (3x) RESET-PNX2015
B04e (1x) RESET-STBY
B05f (1x) RESET-STBY
B01b (1x) RESET-SYSTEM
B04e (2x) RESET-SYSTEM
B05a (1x) RESET-SYSTEM
B08a (2x) RIGHT-SPEAKER
B08b (1x) RIGHT-SPEAKER
B01b (1x) RXD
B05e (1x) RXD
B07d (1x) RXD
B04e (1x) RXD-UP
B05e (1x) RXD-UP
B05a (1x) RXD-VIPER
B05e (1x) RXD-VIPER
B02a (1x) SCL-DMA
B03a (1x) SCL-DMA
B03b (1x) SCL-DMA
B04e (3x) SCL-DMA
B05a (2x) SCL-DMA
B04g (1x) SCL-I2C4
B05a (2x) SCL-I2C4
B05a (2x) SCL-MM
B07b (1x) SCL-MM
B04e (2x) SCL-UP-SW
B04e (2x) SCL-UP-VIP
B05a (1x) SCL-UP-VIP
B05e (1x) SCL-UP-VIP
B03a (1x) SC-STANDBY
B02a (1x) SDA-DMA
B03a (1x) SDA-DMA
B03b (1x) SDA-DMA
B04e (3x) SDA-DMA
B05a (2x) SDA-DMA
B04g (1x) SDA-I2C4
B05a (2x) SDA-I2C4
B05a (2x) SDA-MM
B07b (1x) SDA-MM
B04e (2x) SDA-UP-SW
B04e (2x) SDA-UP-VIP
B05a (1x) SDA-UP-VIP
B05e (1x) SDA-UP-VIP
B04e (3x) SDM
B05a (1x) SOUND-ENABLE
B08a (2x) SOUND-ENABLE
B05a (2x) SOUND-ENABLE-VPR
B05c (1x) SPDIF-HDMI
B07b (1x) SPDIF-HDMI
B05c (1x) SPDIF-OUT1
B07c (1x) SPDIF-OUT1
B04e (2x) SPI-CLK
B04e (2x) SPI-CSB
B04e (2x) SPI-PROG
B04e (2x) SPI-SDI
B04e (2x) SPI-SDO
B04e (3x) SPI-WP
B01b (1x) STANDBY
B05f (1x) STANDBY
B04e (2x) STBY-WP-NAND-FLASH
B05e (1x) STBY-WP-NAND-FLASH
B03a (1x) STROBE1N-MAIN
B04a (1x) STROBE1N-MAIN
B03a (1x) STROBE1P-MAIN
B04a (1x) STROBE1P-MAIN
B03a (1x) STROBE2N-MAIN
B04a (1x) STROBE2N-MAIN
B03a (1x) STROBE2P-MAIN
B04a (1x) STROBE2P-MAIN
B03a (1x) STROBE3N-MAIN
B04a (1x) STROBE3N-MAIN
B03a (1x) STROBE3P-MAIN
B04a (1x) STROBE3P-MAIN
B01a (1x) SUPPLY-FAULT
B04e (2x) SUPPLY-FAULT
B04e (2x) TEMP-SENSOR
B04c (1x) TUN-VIPER-RX-BUSY
B05c (1x) TUN-VIPER-RX-BUSY
B04c (1x) TUN-VIPER-RX-CLKP
B05c (1x) TUN-VIPER-RX-CLKP
B04c (1x) TUN-VIPER-RX-DATA0
B05c (1x) TUN-VIPER-RX-DATA0
B04c (1x) TUN-VIPER-RX-DATA1
B05c (1x) TUN-VIPER-RX-DATA1
B04c (1x) TUN-VIPER-RX-DATA10
B05c (1x) TUN-VIPER-RX-DATA10
B04c (1x) TUN-VIPER-RX-DATA11
B05c (1x) TUN-VIPER-RX-DATA11
B04c (1x) TUN-VIPER-RX-DATA12
B05c (1x) TUN-VIPER-RX-DATA12
B04c (1x) TUN-VIPER-RX-DATA13
B05c (1x) TUN-VIPER-RX-DATA13
B04c (1x) TUN-VIPER-RX-DATA14
B05c (1x) TUN-VIPER-RX-DATA14
B04c (1x) TUN-VIPER-RX-DATA15
B05c (1x) TUN-VIPER-RX-DATA15
B04c (1x) TUN-VIPER-RX-DATA2
B05c (1x) TUN-VIPER-RX-DATA2
B04c (1x) TUN-VIPER-RX-DATA3
B05c (1x) TUN-VIPER-RX-DATA3
B04c (1x) TUN-VIPER-RX-DATA4
B05c (1x) TUN-VIPER-RX-DATA4
B04c (1x) TUN-VIPER-RX-DATA5
B05c (1x) TUN-VIPER-RX-DATA5
B04c (1x) TUN-VIPER-RX-DATA6
B05c (1x) TUN-VIPER-RX-DATA6
B04c (1x) TUN-VIPER-RX-DATA7
B05c (1x) TUN-VIPER-RX-DATA7
B04c (1x) TUN-VIPER-RX-DATA8
B05c (1x) TUN-VIPER-RX-DATA8
B04c (1x) TUN-VIPER-RX-DATA9
B05c (1x) TUN-VIPER-RX-DATA9
B04c (1x) TUN-VIPER-TX-BUSY
B05c (1x) TUN-VIPER-TX-BUSY
B04c (1x) TUN-VIPER-TX-CLKN
B05c (1x) TUN-VIPER-TX-CLKN
B04c (1x) TUN-VIPER-TX-CLKP
B05c (1x) TUN-VIPER-TX-CLKP
B04c (1x) TUN-VIPER-TX-DATA0
B05c (1x) TUN-VIPER-TX-DATA0
B04c (1x) TUN-VIPER-TX-DATA1
B05c (1x) TUN-VIPER-TX-DATA1
B04c (1x) TUN-VIPER-TX-DATA10
B05c (1x) TUN-VIPER-TX-DATA10
B04c (1x) TUN-VIPER-TX-DATA11
B05c (1x) TUN-VIPER-TX-DATA11
B04c (1x) TUN-VIPER-TX-DATA12
B05c (1x) TUN-VIPER-TX-DATA12
B04c (1x) TUN-VIPER-TX-DATA13
B05c (1x) TUN-VIPER-TX-DATA13
B04c (1x) TUN-VIPER-TX-DATA14
B05c (1x) TUN-VIPER-TX-DATA14
B04c (1x) TUN-VIPER-TX-DATA15
B05c (1x) TUN-VIPER-TX-DATA15
B04c (1x) TUN-VIPER-TX-DATA2
B05c (1x) TUN-VIPER-TX-DATA2
B04c (1x) TUN-VIPER-TX-DATA3
B05c (1x) TUN-VIPER-TX-DATA3
B04c (1x) TUN-VIPER-TX-DATA4
B05c (1x) TUN-VIPER-TX-DATA4
B04c (1x) TUN-VIPER-TX-DATA5
B05c (1x) TUN-VIPER-TX-DATA5
B04c (1x) TUN-VIPER-TX-DATA6
B05c (1x) TUN-VIPER-TX-DATA6
B04c (1x) TUN-VIPER-TX-DATA7
B05c (1x) TUN-VIPER-TX-DATA7
B04c (1x) TUN-VIPER-TX-DATA8
B05c (1x) TUN-VIPER-TX-DATA8
B04c (1x) TUN-VIPER-TX-DATA9
B05c (1x) TUN-VIPER-TX-DATA9
B01b (1x) TXD
B05e (1x) TXD
B07d (1x) TXD
B04e (1x) TXD-UP
B05e (1x) TXD-UP
B05a (1x) TXD-VIPER
B05e (1x) TXD-VIPER
B04b (1x) TXPNXAB04g (1x) TXPNXAB04b (1x) TXPNXA+
B04g (1x) TXPNXA+
B04b (1x) TXPNXBB04g (1x) TXPNXBB04b (1x) TXPNXB+
B04g (1x) TXPNXB+
B04b (1x) TXPNXCB04g (1x) TXPNXCB04b (1x) TXPNXC+
B04g (1x) TXPNXC+
B04b (1x) TXPNXCLKB04g (1x) TXPNXCLKB04b (1x) TXPNXCLK+
B04g (1x) TXPNXCLK+
B04b (1x) TXPNXDB04g (1x) TXPNXDB04b (1x) TXPNXD+
B04g (1x) TXPNXD+
B04b (1x) TXPNXEB04g (1x) TXPNXEB04b (1x) TXPNXE+
B04g (1x) TXPNXE+
B04e (2x) UART-SWITCH
B05e (1x) UART-SWITCH
B05e (2x) UART-SWITCHn
B04f (2x) UP-3V3
B05a (2x) USB1-DM
B05a (2x) USB1-DP
B05a (3x) USB-BUS-PW
B05a (3x) USB-OVERCUR
B08a (3x) U-VOLT-DETECT
B03a (1x) V_SYNC_IN
B04g (2x) VDISP
B08a (4x) VN
B08a (4x) VP
B03b (1x) VREF-AUD
B03e (1x) VREF-AUD
B03b (2x) VREF-AUD-POS
B04a (28x) VREF-AUD-POS
B04d (3x) VREF-DDRPNX
B05b (2x) VREFD-VPRDDR
B04c (2x) VREF-PNX
B05c (1x) VREF-PNX
B05b (2x) VREF-VPRDDR
B07b (1x) V-SYNC-VGA
B07b (2x) Y
B07c (1x) Y
B07b (2x) Y1
B07c (1x) Y1
3104 313 6095.3 & 4
G_16290_097.eps
150206
Page 100
Circuit Diagrams and PWB Layouts
Layout SSB (Top Side Overview)
100EL1.1U AA 7.
3104 313 6095.3
G_16290_050a.eps
Part 2
G_16290_050b.eps
Part 1
G_16290_050.eps
060206
1740 F1
1A01 A2
1D50 D1
1G50 C1
1H00 C2
1H07 E3
1I00 E4
1I01 F4
1I02 E4
1I03 C4
1I04 C4
1I06 B4
1J02 E1
1LA0 B4
1M01 A1
1M02 F1
1M16 F4
1M21 A1
1M36 A1
1M60 D1
1P06 C1
1T04 A2
1T10 A2
1U01 F1
1U03 F3
2A04 A2
2A05 A2
2A06 A1
2A07 A1
2A08 A1
2A09 A1
2A19 A2
2A23 A1
2A24 A1
2A25 A1
2A29 A2
2A37 A1
2A42 A1
2A47 A2
2A49 A2
2A50 A1
2A52 A2
2A53 A2
2A54 A2
2A56 A1
2A57 A1
2A58 A2
2A78 A2
2A79 A2
2A80 A2
2A81 A2
2A83 B2
2A84 B2
2A85 B2
2A86 A1
2A87 A1
2A90 A2
2A92 A1
2A94 A1
2A95 A1
2A96 A1
2A98 A2
2A99 A2
2B00 B4
2B01 B4
2B03 B4
2B04 B4
2B10 A3
2B11 B2
2B26 A3
2B31 B3
2B32 B3
2B33 B3
2B40 B3
2B41 B3
2B46 B3
2D14 E4
2D15 E4
2D17 F4
2D18 F4
2D20 E4
2D21 F4
2D22 E3
2D23 F4
2D28 E4
2D32 E4
2D37 E4
2D39 F4
2D40 F4
2D41 E4
2D42 E4
2D43 F4
2D44 F3
2D52 E4
2D53 E4
2D54 F3
2D56 E4
2D57 F4
2D58 F4
2D59 E4
2D60 F4
2D61 E4
2D62 F3
2G60 E2
2G61 E2
2G62 E2
2G63 E2
2G64 E2
2G65 E2
2G67 E1
2G68 E1
2G69 E2
2H00 D2
2H01 C3
2H02 D2
2H03 D2
2H06 D3
2H08 C2
2H09 C2
2I02 F4
2I03 F4
2I05 C4
2I06 C4
2I07 D4
2I08 E4
2I09 E4
2I0E E4
2I0F F4
2I53 E4
2J01 B3
2J03 B3
2J06 B3
2J08 B3
2J10 B3
2J13 B2
2J16 B2
2J18 B3
2J20 B3
2J21 E1
2J22 E1
2J23 D1
2J24 D1
2J25 D1
2J26 D1
2J27 D1
2J30 B1
2J31 B1
2J37 D1
2J38 C1
2J57 D1
2J61 C1
2J64 C1
2J69 D1
2J71 C1
2J76 C1
2L01 C2
2L06 C2
2L07 C2
2L08 C2
2L58 B1
2L59 B2
2L60 C2
2L61 B2
2L62 B2
2L63 B2
2L64 B2
2L65 B3
2L66 B3
2L80 B2
2L81 B2
2L82 B2
2L83 B2
2L84 B2
2L85 B2
2L86 B2
2L87 B2
2L88 B2
2L89 B2
2L90 C2
2L91 B2
2L92 B2
2LA0 B3
2LA1 B4
2LA4 B3
2LA5 B3
2LA6 B3
2LA8 B3
2LA9 B3
2LB0 B3
2LB1 C3
2LB3 B3
2LB4 C3
2LN2 B2
2LN3 B3
2LN4 C3
2LN5 C3
2LN6 B3
2LN7 B3
2LN8 B3
2LP0 B3
2LP2 B3
2LP3 B2
2LP4 C2
2LP7 C2
2LP8 C3
2LP9 B2
2LR0 C3
2LR2 C3
2LR4 B3
2LR5 C3
2LR6 C3
2LR8 C2
2LR9 C3
2LS5 B3
2M16 F1
2M18 F1
2M80 B1
2M81 B1
2M82 B1
2M83 B1
2M84 B1
2M85 B1
2M86 C4
2M87 C4
2M91 B4
2M92 B4
2M93 B4
2M94 B4
2P34 C3
2Q00 D3
2Q01 D2
2Q02 D3
2Q03 D2
2Q04 D3
2Q05 D3
2Q06 D3
2Q07 D3
2Q08 D3
2Q09 D3
2Q10 D3
2Q11 D3
2Q12 D3
2Q13 D3
2Q14 D3
2Q15 D3
2Q16 D3
2Q17 D3
2Q18 D3
2Q19 D3
2Q20 D3
2Q21 C1
2Q22 D3
2Q23 C1
2Q24 D3
2Q26 D3
2Q27 D3
2Q28 D3
2Q30 D3
2Q32 D3
2Q33 D3
2Q34 D3
2Q35 D3
2Q37 D3
2Q38 D3
2Q39 D3
2Q40 D3
2Q42 D3
2Q43 D2
2Q44 D2
2Q45 D2
2Q46 D2
2Q47 D2
2Q48 D2
2Q49 C3
2Q50 C3
2Q51 D2
2Q52 D2
2Q53 C3
2Q54 C3
2Q55 C3
2Q56 C3
2Q57 D2
2Q58 D2
2Q59 D2
2Q60 C2
2Q61 C2
2Q62 C2
2Q63 C2
2Q64 D3
2Q65 C2
2Q66 D3
2Q67 C2
2Q69 D1
2Q70 B1
2Q71 B1
2Q76 C2
2Q77 D3
2Q78 C2
2Q79 D3
2Q80 C3
2Q81 C3
2Q82 D3
2Q83 D3
2Q84 D3
2Q85 D3
2Q86 D3
2Q87 D3
2Q88 D3
2Q89 D3
2Q90 D3
2Q91 D3
2T33 A2
2T34 A2
2T35 A2
2T36 A2
2T38 A2
2T44 A2
2T56 A2
2T57 A2
2T58 A2
2T59 A2
2T62 A2
2T63 A2
2T64 A2
2U17 F2
2U22 F2
2U24 F3
2U25 F2
2U27 F3
2U28 F3
2U29 F2
2U30 F2
2U40 F1
2U46 F3
2U48 E1
2U49 E1
2U50 E1
2U51 E1
2U53 E1
2U54 E1
2U55 F3
2U56 E3
2U58 F2
2U61 F3
2V02 D2
2V19 C1
2V35 E2
2V36 D2
2V37 D2
2V38 D2
2V39 D2
2V40 D2
2V41 D2
2V42 D2
2V43 C2
2V44 C2
2V45 C2
3A01 A2
3A02 A2
3A03 A2
3A05 A2
3A06 A2
3A08 A1
3A20 A2
3A21 A1
3A30 A2
3A31 A2
3A32 A2
3A36 B2
3A37 B2
3A38 B2
3A39 A1
3A41 A1
3A42 A1
3A43 A1
3A44 A1
3A51 B2
3A52 A2
3B02 B4
3B03 A4
3B04 B4
3B05 B4
3B06 B4
3B07 B4
3B08 B4
3B17 B4
3B18 B4
3B19 B4
3B20 B4
3D46 E4
3D47 F4
3D60 E3
3D61 F3
3G70 E2
3G72 E2
3G73 E2
3G74 E2
3G75 E2
3G76 E2
3G77 E2
3G78 F2
3G79 E2
3H02 D2
3H06 C3
3H07 D3
3H08 C2
3H10 D2
3H11 D2
3H16 C2
3H17 C2
3H18 D3
3H19 D3
3H20 D3
3H21 D3
3H22 D2
3H23 D2
3H24 C3
3H25 C3
3H28 D3
3H31 E3
3H32 D3
3H40 C2
3H41 E3
3H50 D2
3H51 D2
3H54 D3
3H55 D3
3H56 D3
3H57 D3
3H69 C3
3H70 C3
3H72 C3
3H73 D2
3H74 D2
3H75 C2
3H79 D2
3H80 D3
3H81 D3
3H82 C2
3H84 C3
3H85 C2
3H86 C3
3H88 D3
3H89 D1
3H94 C3
3H95 C3
3H98 B1
3H99 B1
3I00 C4
3I01 B4
3I02 B4
3I03 C4
3I04 B4
3I06 B4
3I07 C4
3I08 C4
3I09 C4
3I0A C4
3I0B D4
3I0C D4
3I0D D4
3I0E E4
3I0F D4
3I0G D4
3I0H D4
3I0I D4
3I0J D4
3I0K D4
3I0L D4
3I0M D4
3I0N F4
3I0P F4
3I0Q F4
3I10 F4
3I11 E4
3I12 B4
3I13 B4
3I60 E4
3I66 F4
3I67 E4
3I68 E4
3J01 B2
3J07 B3
3J12 B2
3J13 B2
3J23 C1
3J25 D1
3J28 C1
3J30 B1
3J31 B1
3J40 B4
3J41 B4
3J42 D1
3J43 C1
3J44 D1
3J51 C1
3J52 D1
3J55 D1
3J56 D1
3J60 D1
3J61 D1
3J62 D1
3J63 D1
3J86 C1
3J88 C1
3J91 D1
3J92 C1
3J94 D1
3J99 C1
3JA2 B2
3L10 C3
3L11 C3
3L12 C2
3L13 C3
3L14 C3
3L15 C3
3L20 C2
3L38 C2
3L39 C2
3L40 B2
3L41 B2
3L42 B2
3L43 B2
3L44 C2
3L45 C2
3L46 C2
3L47 C2
3L48 C2
3L49 C2
3L77 B3
3L78 B3
3L79 C3
3L80 C3
3L81 C3
3L82 C3
3L84 C3
3L90 B2
3L91 B2
3L92 C2
3L93 C2
3L94 B2
3L95 B2
3L96 B2
3L97 B2
3L98 B2
3LA8 C3
3LB1 C3
3LB2 C3
3LB3 C3
3LB4 B3
3LB5 B3
3LB6 B4
3LC0 B3
3LC1 C3
3LC2 B3
3LC3 B3
3LC4 B3
3LC5 B3
3LC6 B3
3LC7 B3
3LC8 C3
3LD0 C3
3LD1 C3
3LD3 B3
3LD4 B3
3LD5 C3
3LD6 B3
3LD7 B3
3LD8 B3
3LE2 C3
3LE3 C3
3LE4 C3
3LE5 C3
3LE6 C3
3LE7 C3
3LE8 C3
3LE9 B3
3LF0 C3
3LF2 C3
3LF8 B3
3LF9 C3
3LG3 B3
3LG5 B3
3LG6 B3
3LG7 B3
3LG8 B3
3LG9 B3
3LH0 C2
3LH1 C2
3LH3 B2
3LH4 B2
3LH5 C3
3LH6 C3
3LH8 B3
3LH9 B3
3LJ0 B3
3LJ1 C3
3LJ2 B2
3LJ3 B3
3LJ5 C3
3LJ6 C3
3LJ7 C3
3LJ8 B3
3LJ9 B3
3LK0 C3
3LK1 C3
3LK2 B3
3LK3 C3
3LK5 C3
3LK6 C3
3LK7 B3
3LK8 C3
3LL0 C3
3LL1 C3
3LL2 C3
3LL4 C3
3LL5 C3
3LL6 C3
3LL7 C3
3LR0 C3
3LR1 C3
3LR2 C3
3LR9 C3
3LS0 C3
3LS1 C3
3LS2 C3
3LT5 B3
3LT7 B4
3LT9 B3
3LU0 B3
3LU1 B3
3LU2 B3
3M00 D1
3M02 D1
3M50 B1
3M51 B1
3M52 B1
3M53 B1
3M54 B1
3M71 C4
3M72 C4
3P37 C4
3Q02 D2
3Q03 B1
3Q04 B1
3Q05 D3
3Q07 D3
3Q08 D3
3Q09 D3
3Q10 D2
3Q11 D2
3Q14 D3
3Q15 D3
3Q16 D1
3Q18 D3
3Q19 D1
3Q20 D1
3Q21 D1
3Q22 D1
3Q23 D1
3Q24 D1
3Q25 D3
3Q26 D2
3Q28 D3
3Q29 D1
3Q34 D2
3Q35 C3
3Q36 C3
3Q37 C3
3Q38 C3
3Q39 C3
3Q40 C3
3Q41 C3
3Q44 D3
3Q48 C3
3Q52 D2
3T42 A2
3T45 A2
3T46 A2
3T47 A2
3T49 A2
3T50 A2
3U20 F2
3U21 F3
3U25 F2
3U39 F3
3U42 F3
3U44 F3
3U47 E1
3U48 E1
3U79 E3
3U81 E2
3UA7 F3
3V44 D2
3V78 D2
5A10 A2
5A16 A1
5A17 A2
5B00 B4
5B11 A3
5B12 A3
5B17 A3
5B18 B3
5D10 E4
5D11 F4
5D12 E3
5D13 F3
5D14 E4
5D15 F4
5D18 E3
5D19 F3
5G10 E2
5H02 D1
5H03 D1
5I02 E4
5J00 B3
5J01 B3
5J02 B3
5J03 B3
5J04 B2
5J05 B2
5J06 B2
5J07 B3
5J10 C1
5J11 C1
5J12 C1
5J20 E1
5J21 E1
5J22 E1
5J50 C1
5J52 C1
5J54 C1
5J56 C1
5J58 C1
5J60 C1
5L50 C2
5L51 B2
5L52 B2
5LA1 C3
5LA2 B3
5LA3 B3
5LN0 C3
5LN1 B3
5LN2 C3
5LN3 B3
5LN4 B3
5M00 B1
5M03 F1
5Q01 D3
5Q02 D3
5Q03 D2
5Q04 D3
5Q07 C2
5Q08 C2
5T20 A2
5T21 A2
5T23 A2
5T24 A2
5T25 A2
5T26 A2
5T27 A2
5T28 A2
5U00 F3
5U02 F1
5U03 F2
5U35 E1
5U36 E1
5U37 E1
5U38 E1
6B20 B4
6B21 B4
6H00 C3
6I00 C4
6I01 F4
6I02 C4
6I08 C4
6I09 B4
6I0A B4
6I0D D4
6I0F D4
6I0H E4
6I0J D4
6I0L D4
6I0N D4
6I0P D4
6I0T F4
6I0V F4
6I0Y E4
6I10 E4
6I11 B4
6J01 C1
6J06 C1
6M10 C4
7A00 A2
7A04 B2
7A05 A1
7A17 A2
7B02 B4
7B20 B4
7B25 B3
7D18 E4
7D23 F4
7G40 E2
7G41 E2
7G42 E1
7J04 C2
7J07 C1
7J08 C1
7J09 D1
7J10 C4
7L50 B1
7LA7 B3
7LB2 B3
7LB5 B3
7M01 D1
7M05 B4
7M06 B4
7M11 C4
7P14 C4
7P18 C4
7P80 C4
7T20 A2
7T21 A2
7U01 F2
7U03 F2
7U24 F3
7U25 F3
7V01 D1
7V02 C2
9B00 B4
9G30 E2
9G31 E2
9G32 F2
9G33 F2
9G34 E2
9G35 E2
9G36 F2
9G37 F2
9G38 E2
9G39 E2
9G40 F2
9G41 F2
9G42 E2
9G43 E2
9G47 F2
9G48 F2
9G49 E2
9H02 D3
9H05 E3
9H06 C2
9H15 D3
9J22 B3
9J24 B2
9J30 C1
9J31 C1
9J40 B4
9LA3 C3
9LA8 B2
9LA9 B2
9M09 C4
9P14 B1
9P15 B1
9P16 C3
9P17 C4
9P42 C4
Loading...
