Page 1

Owner’s manual

Page 2

This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

Read all instructions before using this household sewing machine.

DANGER – To reduce the risk of electric shock:

• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine from the electric outlet immediately after using and before cleaning.

WARNING – To reduce the risk of burns, À re, electric shock,

or injury to person:

• This sewing machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the sewing machine by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the sewing machine.

• Use this sewing machine only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual.

• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.

• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.

• Keep À ngers away from all moving parts. Special care is required around the sewing machine needle.

• Always use the proper needle plate. The wrong plate can cause the needle to break.

• Do not use bent needles.

• Do not pull or push fabric while stitching. It may deÁ ect the needle causing it to break.

• Wear safety glasses.

• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc.

• Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.

• Never drop or insert any object into any opening.

• Do not use outdoors.

• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.

• To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Hold plug when rewinding into cord reel. Do not allow plug to whip when rewinding.

• This sewing machine is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.

SAVE THESE INSTRUCTIONS

SERVICING OF DOUBLE INSULATED PRODUCTS

In a double-insulated product, two systems of insulation are provided instead of grounding. No ground means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing of a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualiÀ ed service personnel. Replacement parts for a double-insulated product must be identical to those parts in the product. A double-insulated product is marked with the words ‘DOUBLE INSULATION’ or ‘DOUBLE INSULATED’.

Page 3

ongratulations

Congratulations on purchasing your new PFAFF® creative sensation™sewin

and embroidery machine.

As a sewin

enthusiast, you have acquired one of the most advanced and

comprehensive sewing and embroidery machines in the world; it will enable

ou to transform all your creative ideas into reality using the most highly tuned

technology and features.

efore you start, please spend some time reading this owner’s manual. You will

soon discover how to maximize the use of your machine. Our authorized PFAFF®

ealers will of course also be pleased to advise you at any time.

r PFAFF®creative sensation™ sewing and embroidery machine will

eÀ nitely enable you to experience a totally new dimension of sewing and

mbroidery.

Page 4

Table of contents

Introduction 1:7

Machine overview 1:8

Front side ...................................................................... 1:8

Rear side ....................................................................... 1:9

Top parts ....................................................................... 1:9

Accessory tray .............................................................. 1:9

Parts of the embroidery unit .................................... 1:10

Included accessories 1:10

Presser feet .................................................................. 1:11

Stitch overview 1:12

Utility stitches ............................................................ 1:12

Decorative stitches .................................................... 1:16

Alphabets .................................................................... 1:22

Preparations 2:1

Unpacking 2:2 Connect to the power supply 2:2 Pack away after sewing 2:2 Custom LED lights 2:3 Free arm 2:3 Thread cutter 2:3 Electronic knee-lift 2:3 Spool pins 2:4 Threading the machine 2:5

Needle threader ........................................................... 2:5

Thread sensor 2:6 Bobbin winding 2:7 Inserting the bobbin 2:8 IDT™ system (Integrated dual feed) 2:9 Changing needle plate 2:9 Needles 2:10 Changing the needle 2:10 Changing the presser foot 2:11 Attaching the Dynamic spring foot 6D 2:11 USB ports 2:12

USB embroidery stick ............................................... 2:12

Connect machine to computer 2:12 5D™ Embroidery Software 2:13

Installing your software ........................................... 2:13

Install hardware drivers and connect

the embroidery machine........................................... 2:13

How to launch the programs .................................. 2:14

Embroidery Machine Communication module .... 2:14

How to update your machine .................................. 2:14

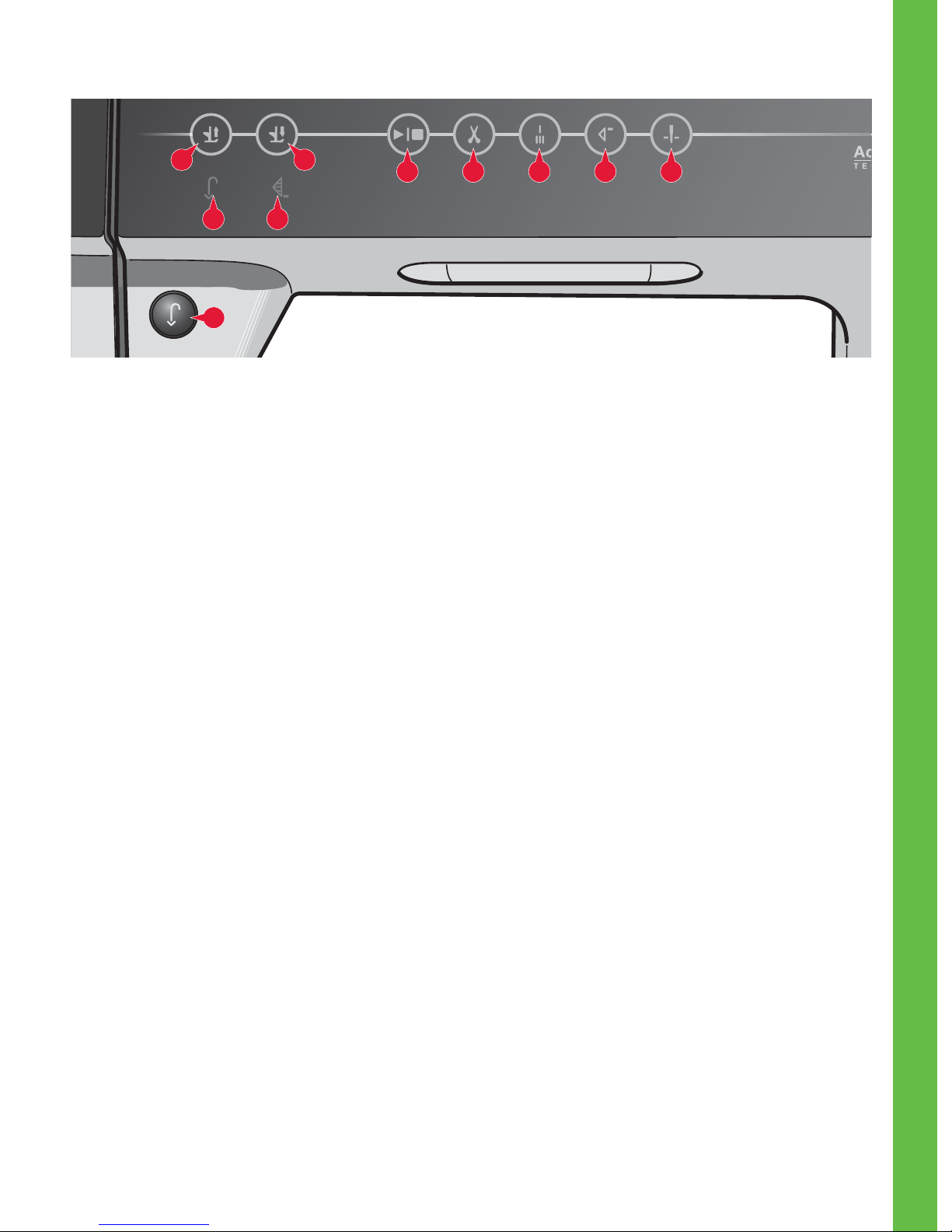

Soft Touch Buttons and indicators 2:15

PFAFF® creative™ Color Touch Screen 3:1

Start view 3:2 Main parts 3:2

Task bar ......................................................................... 3:2

Option bar ..................................................................... 3:3

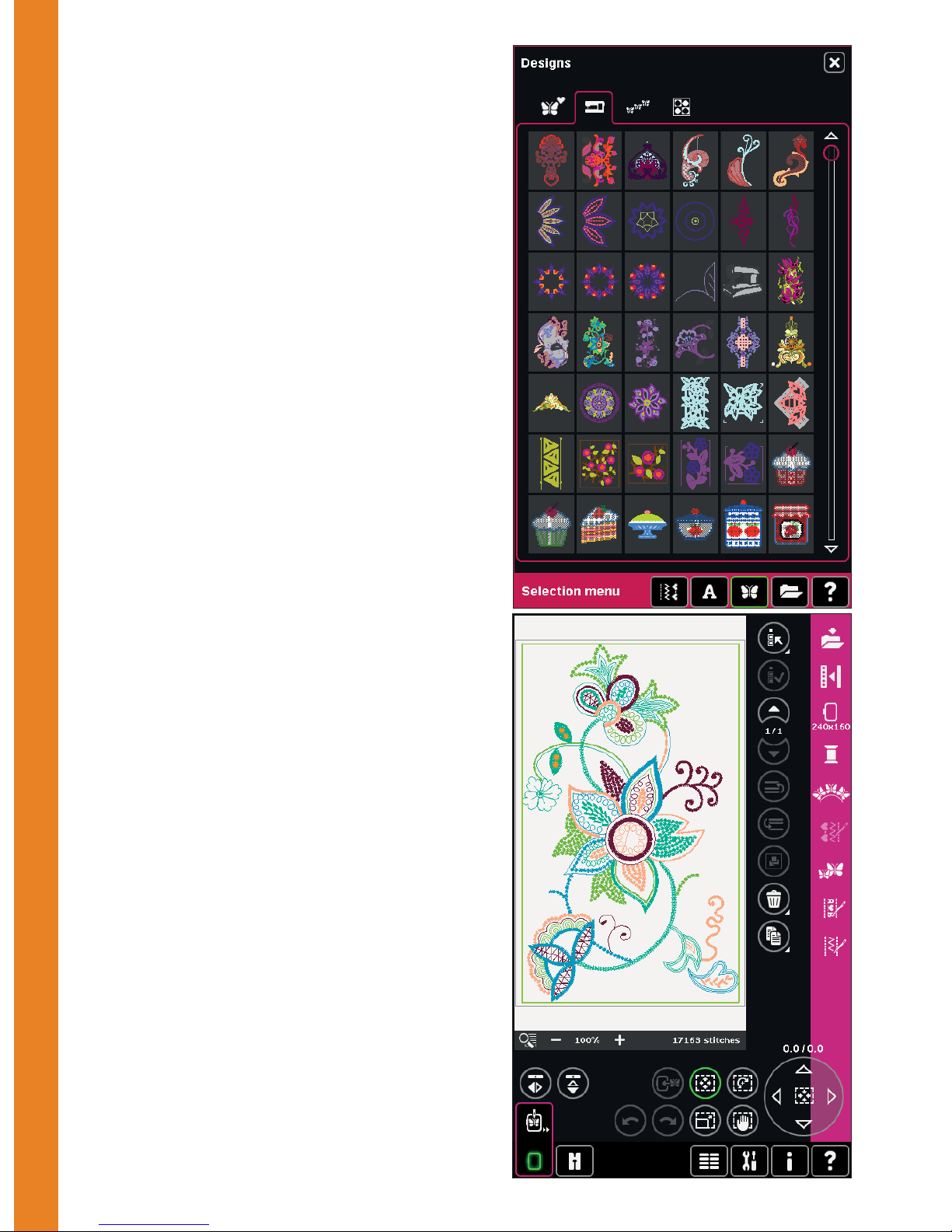

Common icons 3:3 Selection menu 3:4 Embroidery edit 3:6

Embroidery text editor ............................................... 3:6

Embroidery stitch-out 3:7 Sequencing 3:7 Stitch Creator 3:8 Settings menu 3:9

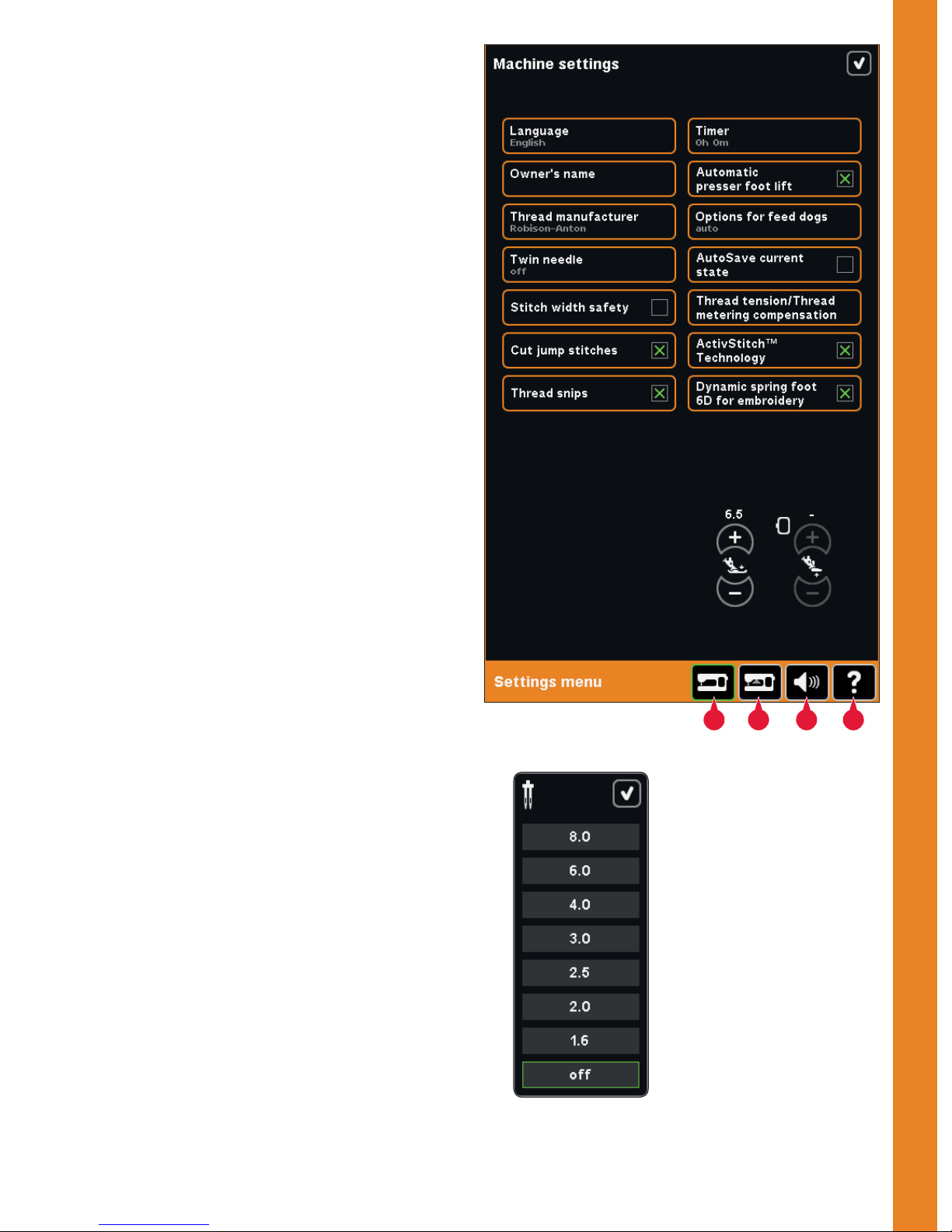

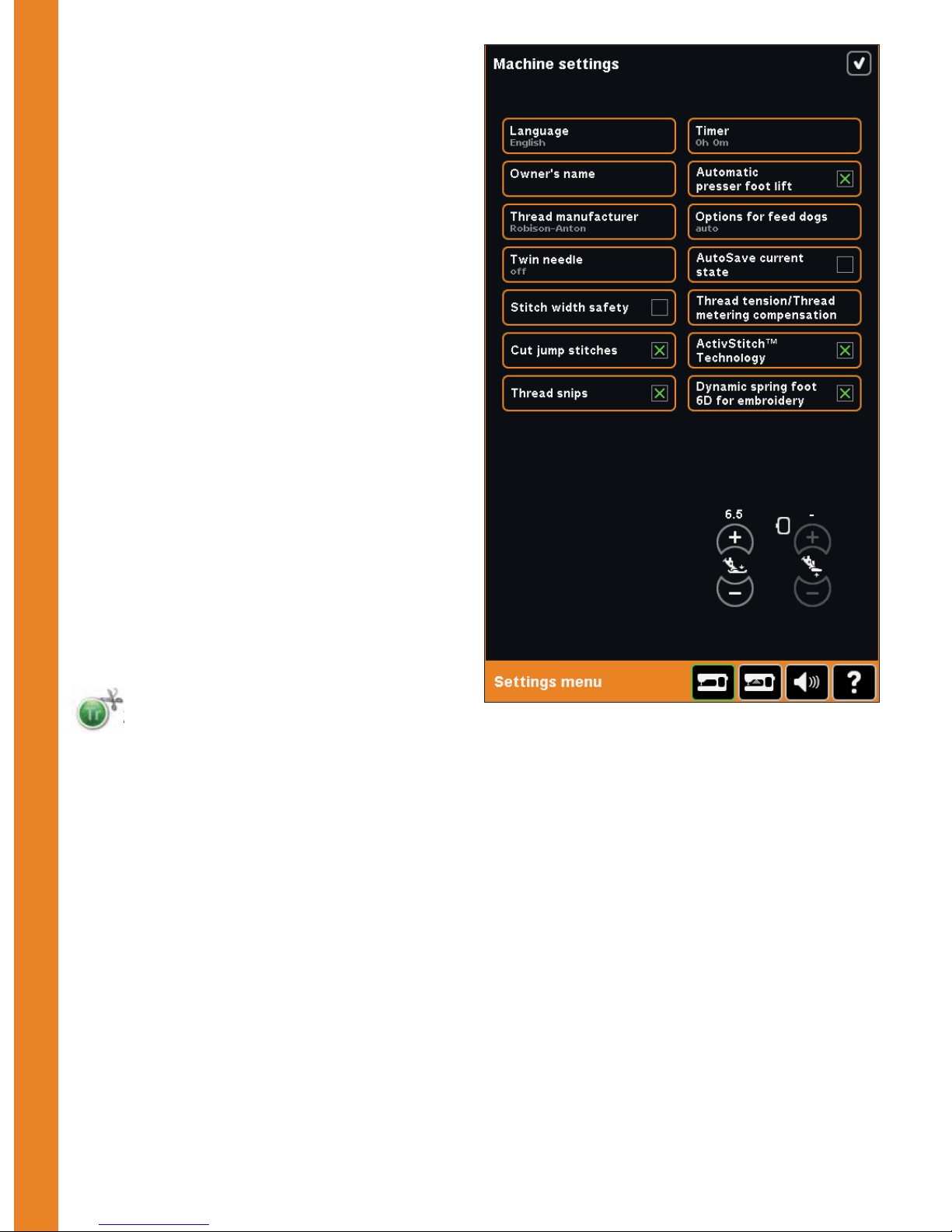

Machine settings .......................................................... 3:9

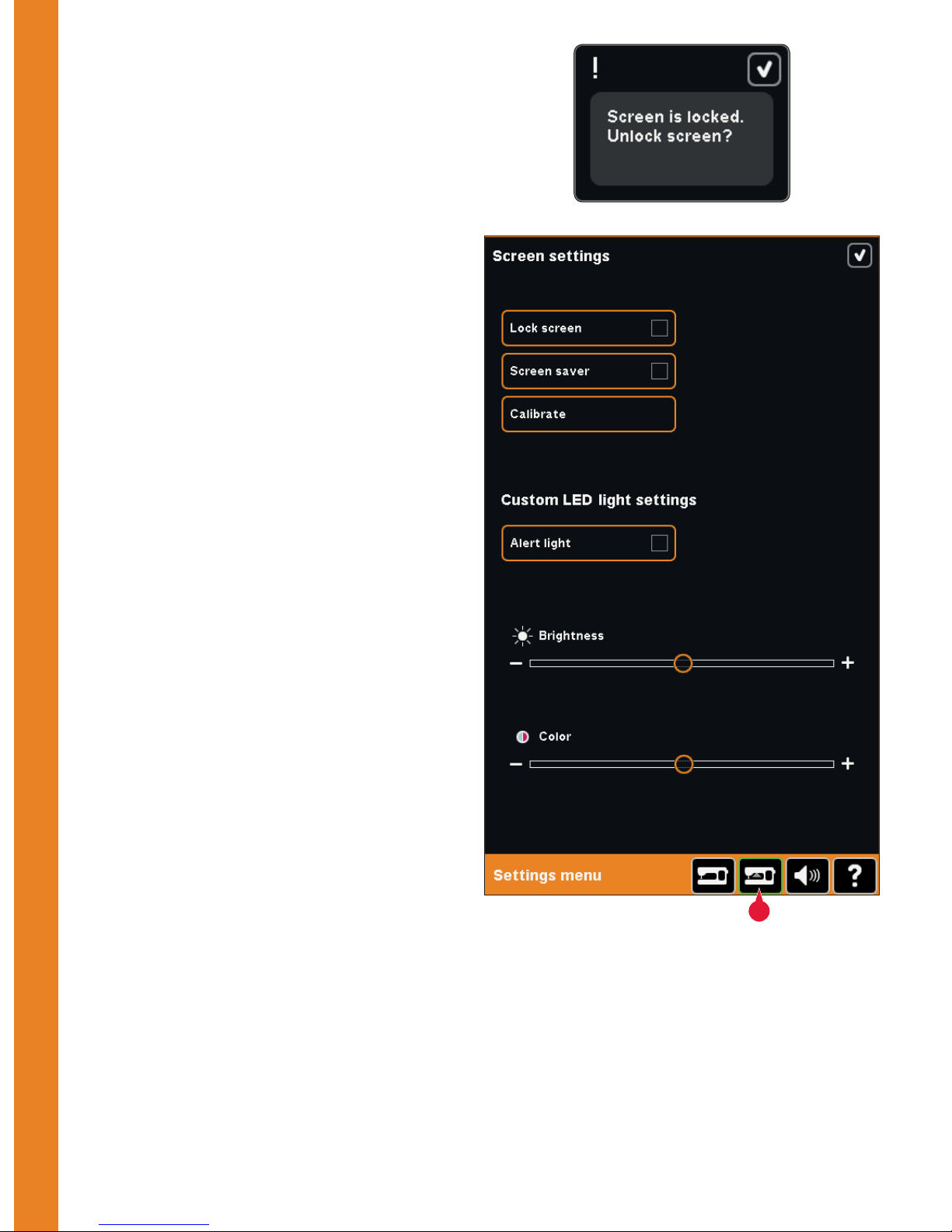

Screen and light settings ........................................... 3:14

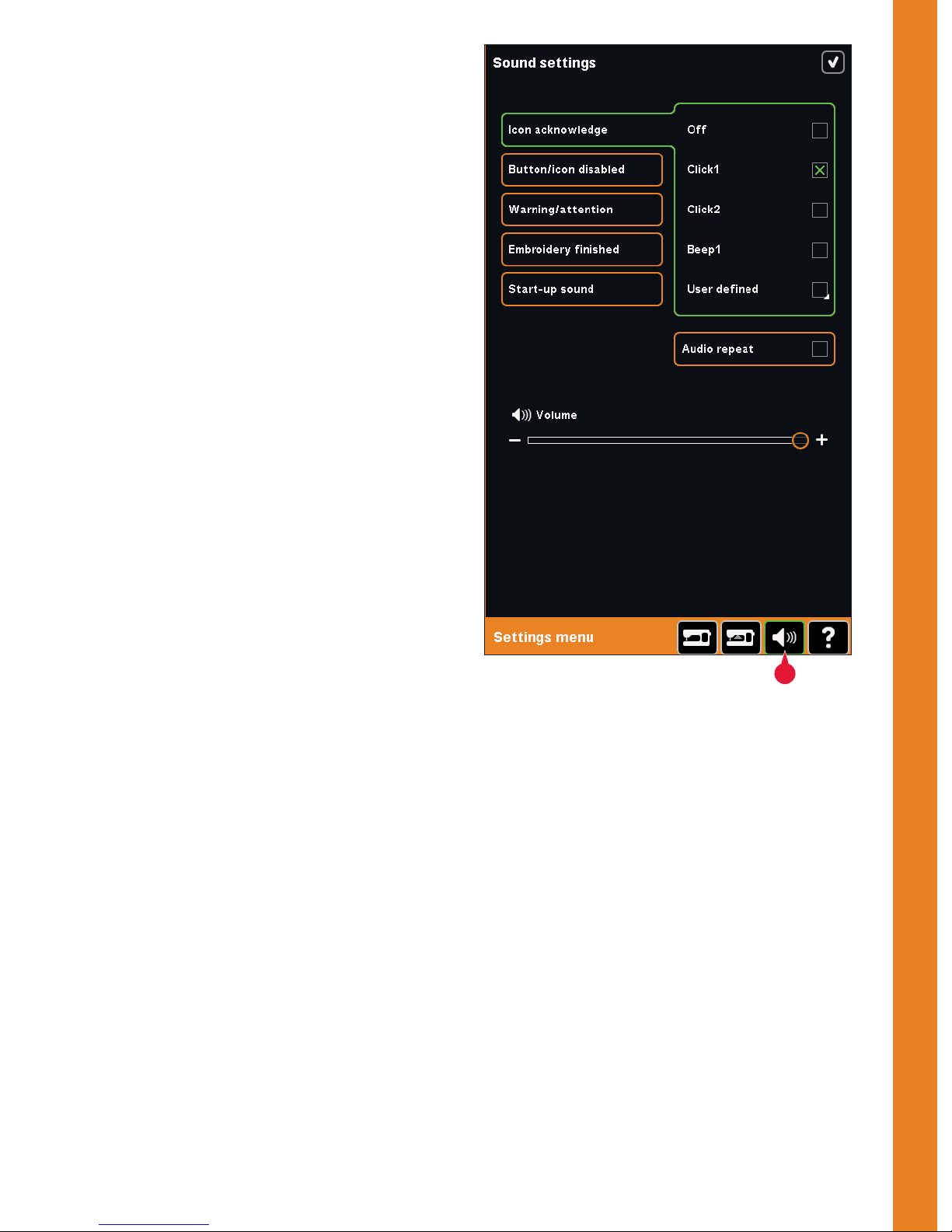

Sound settings ............................................................ 3:15

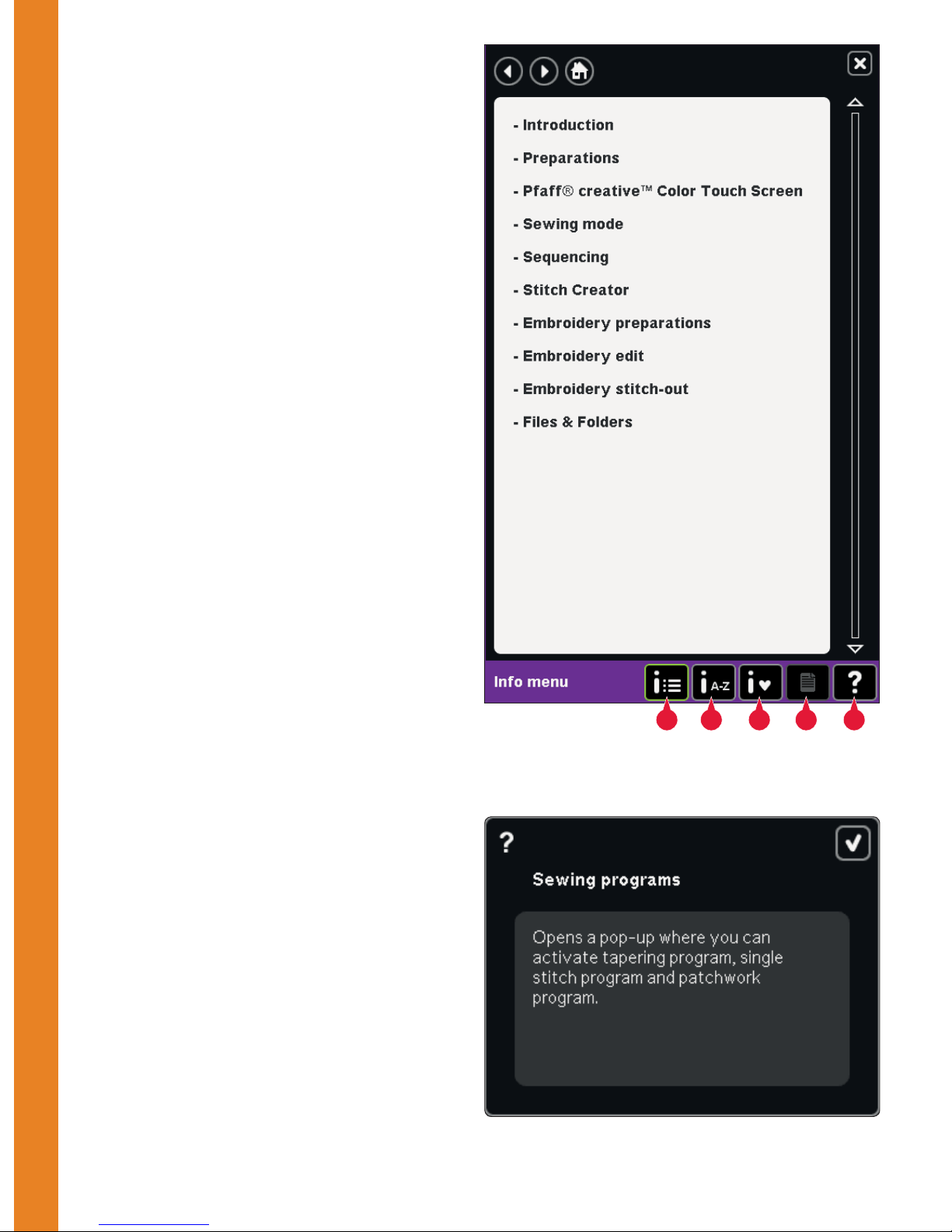

Info menu 3:16 Quick help 3:16

Page 5

Sewing mode 4:1

Sewing mode - overview 4:2 Select a stitch 4:3 Sewing recommendations 4:3 Machine settings 4:3 Raise and lower the presser foot 4:3 Stitch settings 4:4

Stitch width .................................................................. 4:4

Stitch positioning ......................................................... 4:4

Stitch length .................................................................. 4:4

Stitch density ................................................................ 4:5

Mirroring ...................................................................... 4:5

Balance .......................................................................... 4:5

Buttonhole slit length .................................................. 4:6

Button stitch repetition ............................................... 4:6

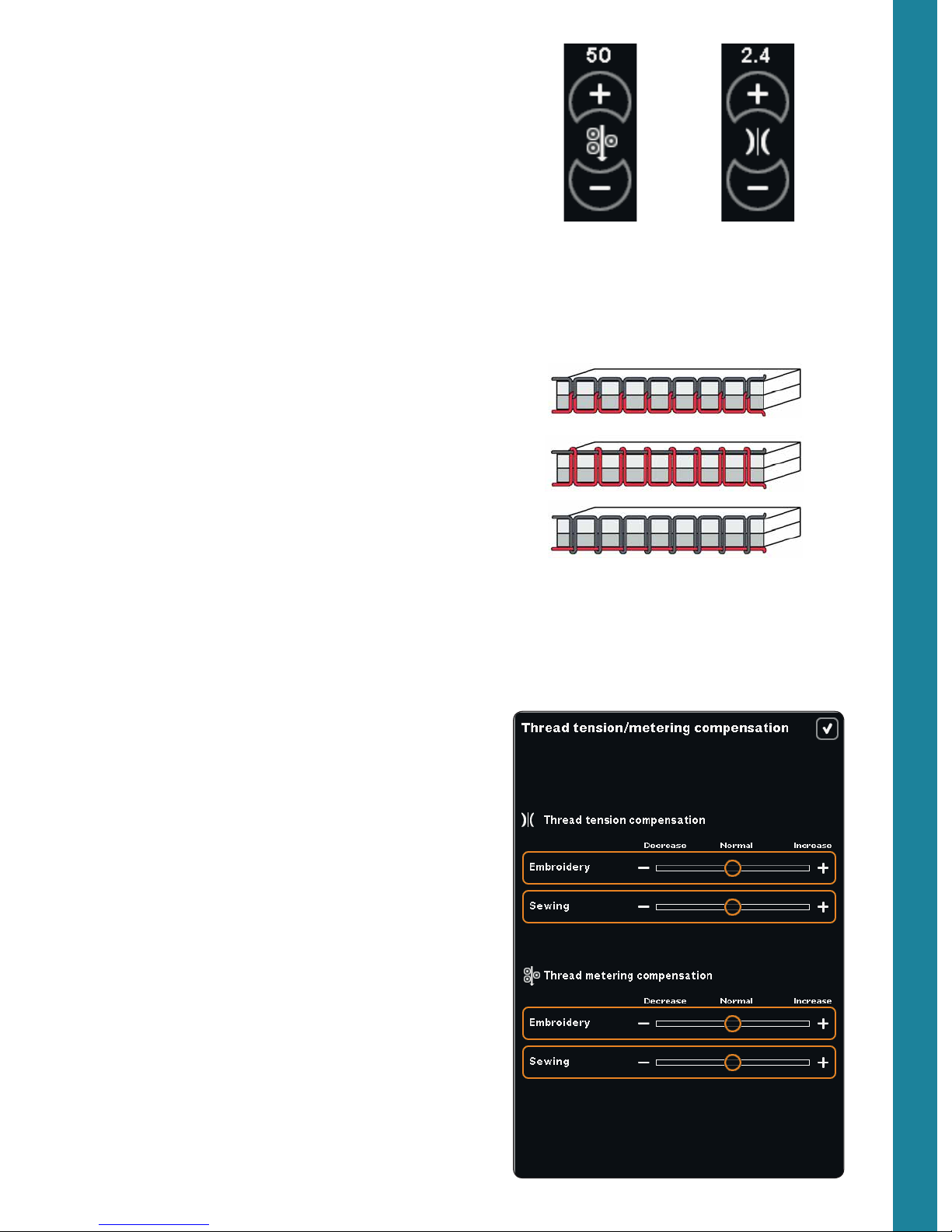

Thread metering/Thread tension 4:7

Adjust thread tension/thread metering................... 4:7

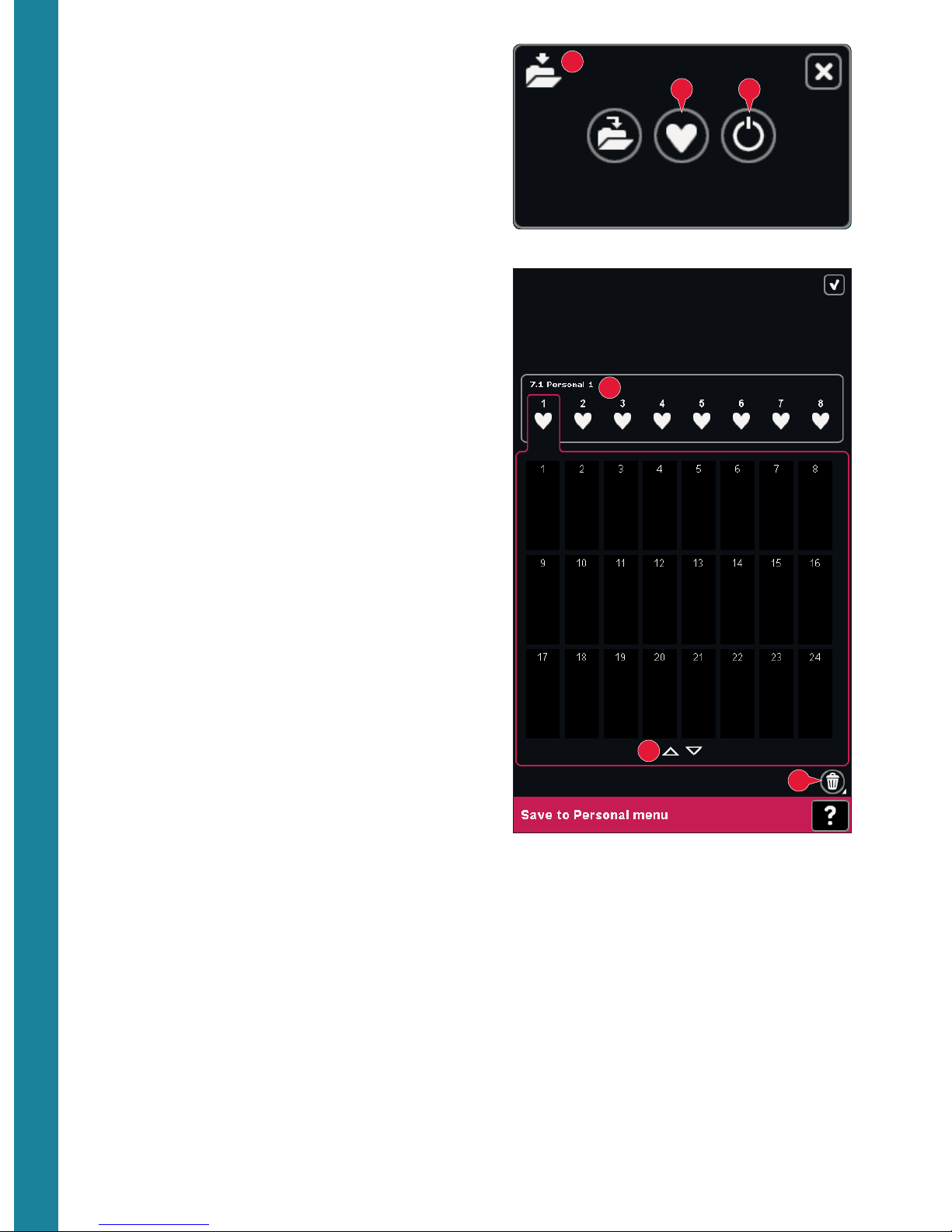

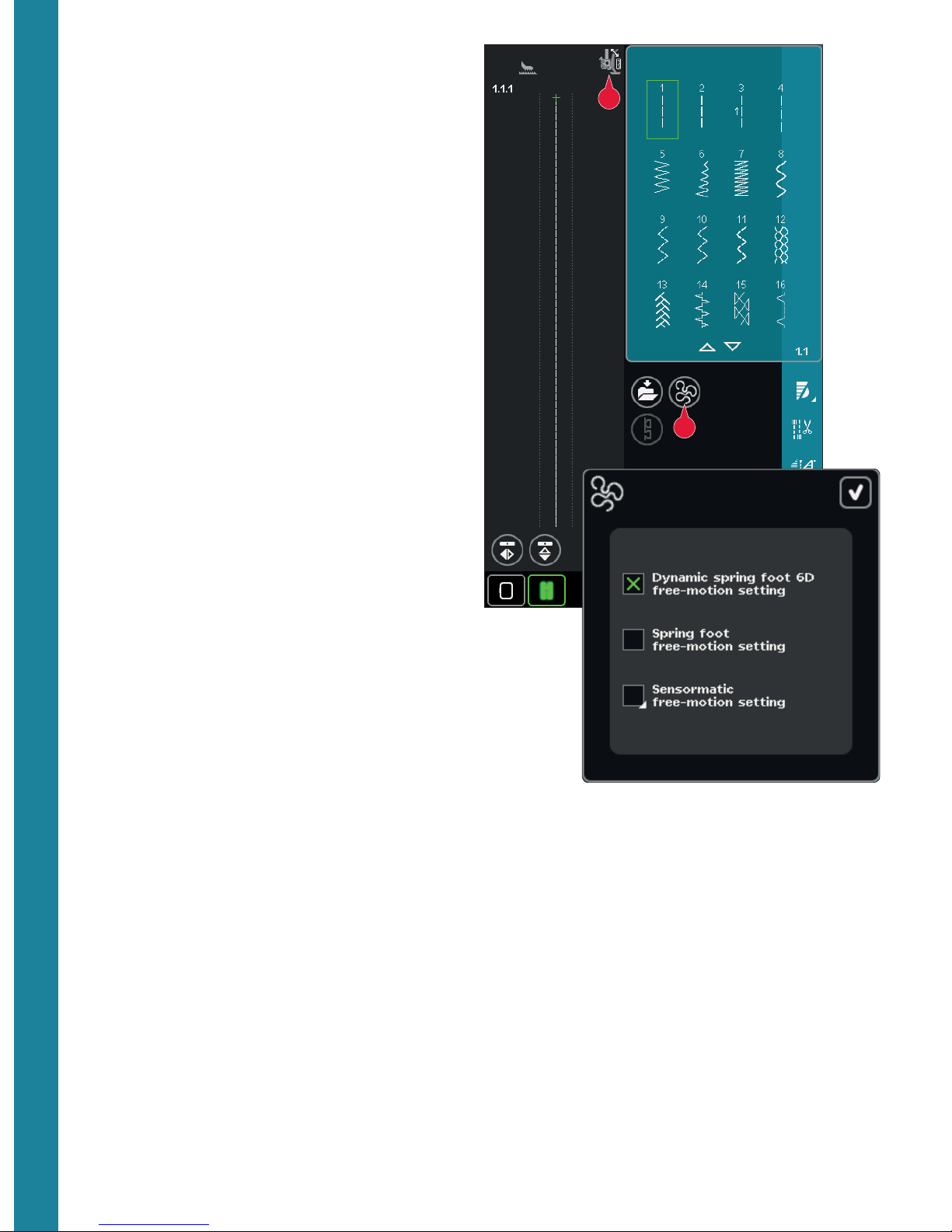

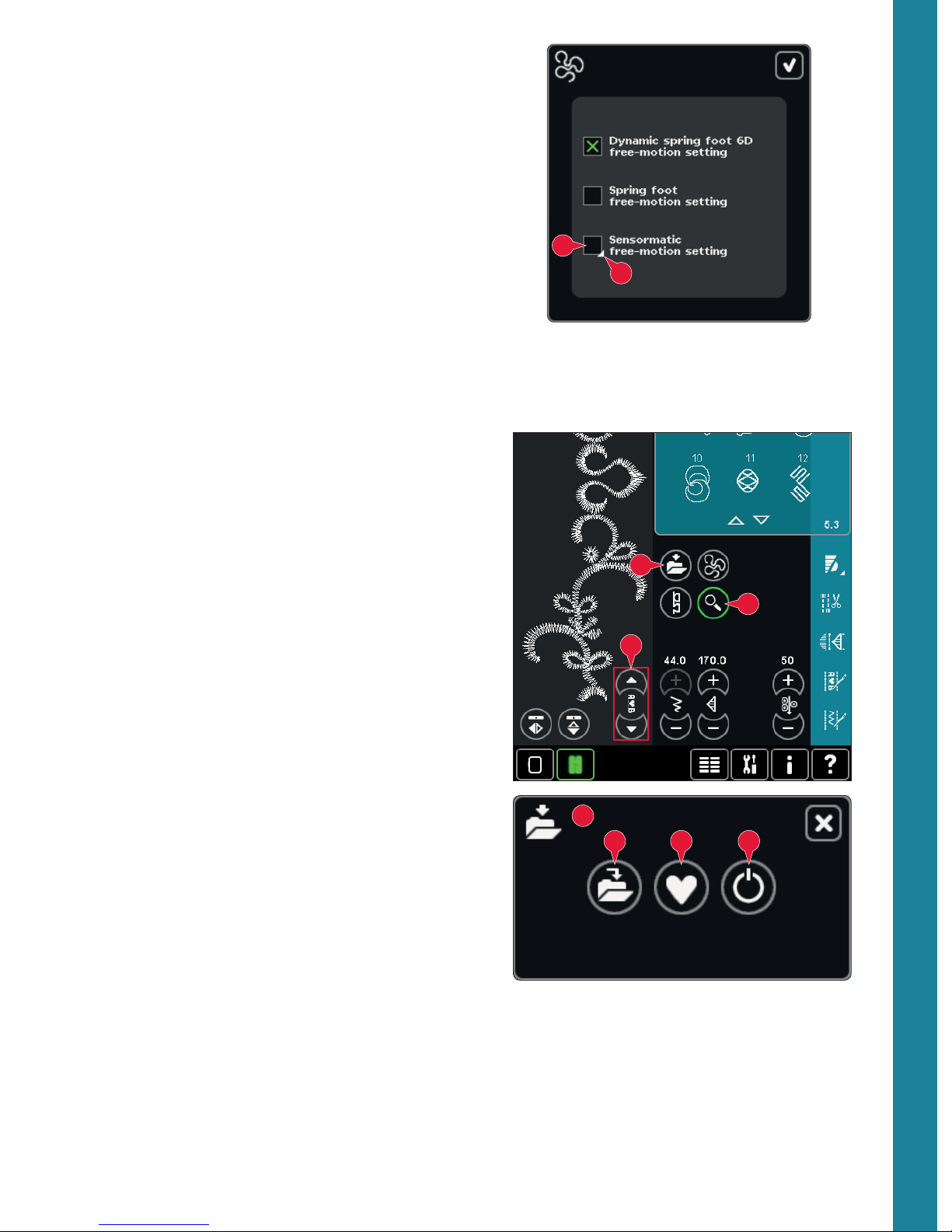

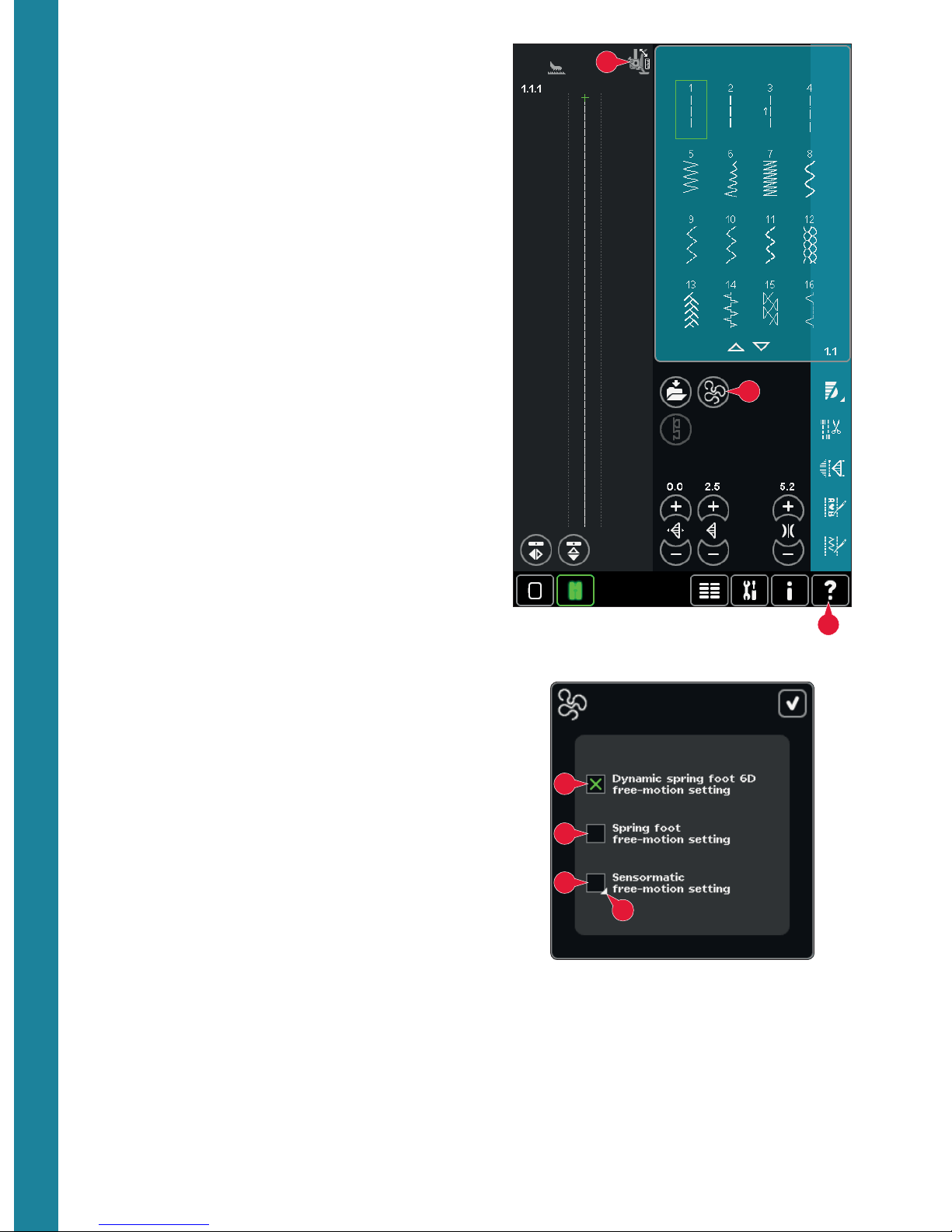

Free-motion options 4:8 Sequence start position 4:9 Save options 4:9 Option bar 4:11

Speed control .............................................................. 4:11

Tie-off options ............................................................ 4:11

Sewing programs ....................................................... 4:12

Sequencing ................................................................. 4:13

Stitch Creator ............................................................. 4:13

Sewing techniques 4:14

Sewing in zippers ...................................................... 4:14

Sewing hems in heavy fabric ................................... 4:14

Three-step zigzag stitch ............................................ 4:14

Blindhem stitch .......................................................... 4:15

Rolled hem .................................................................. 4:15

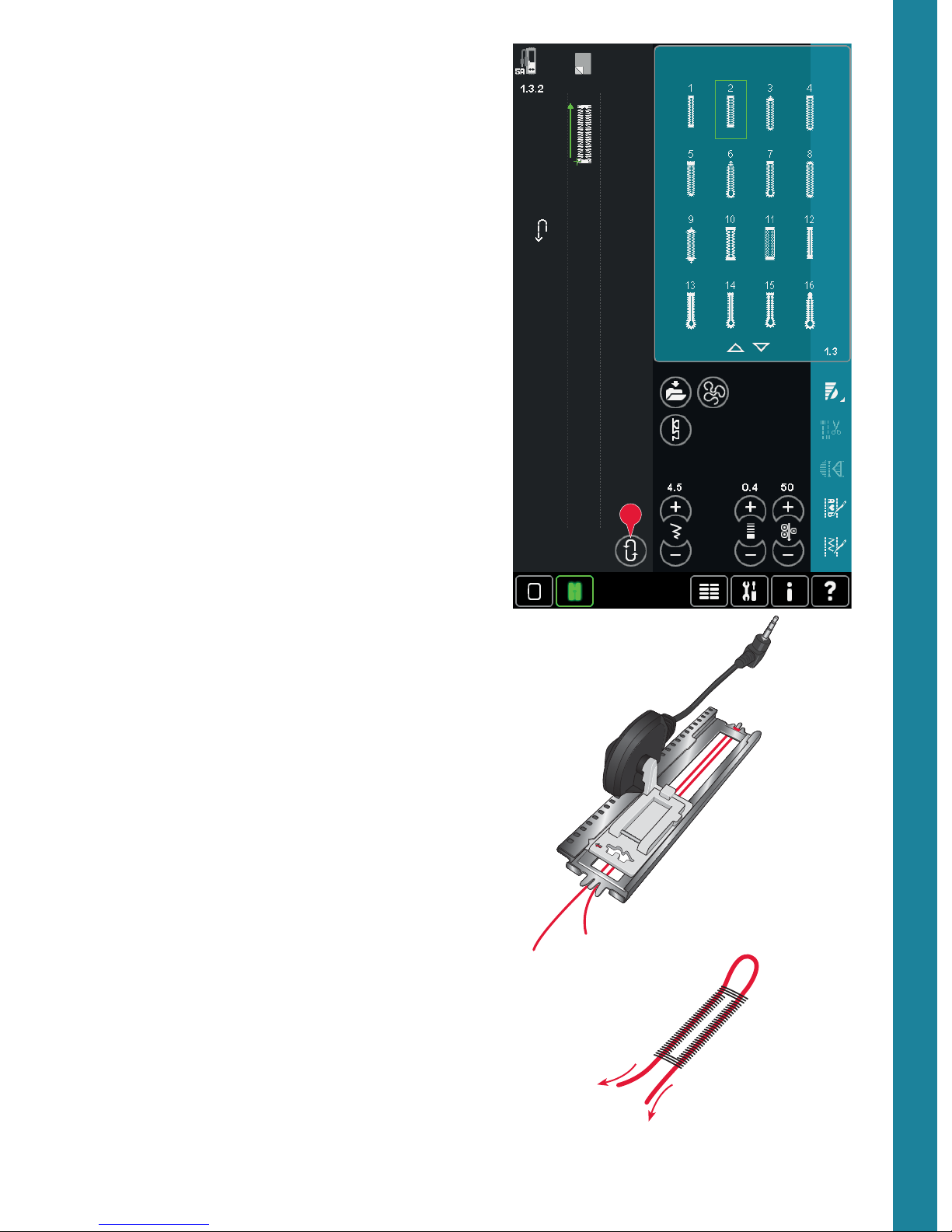

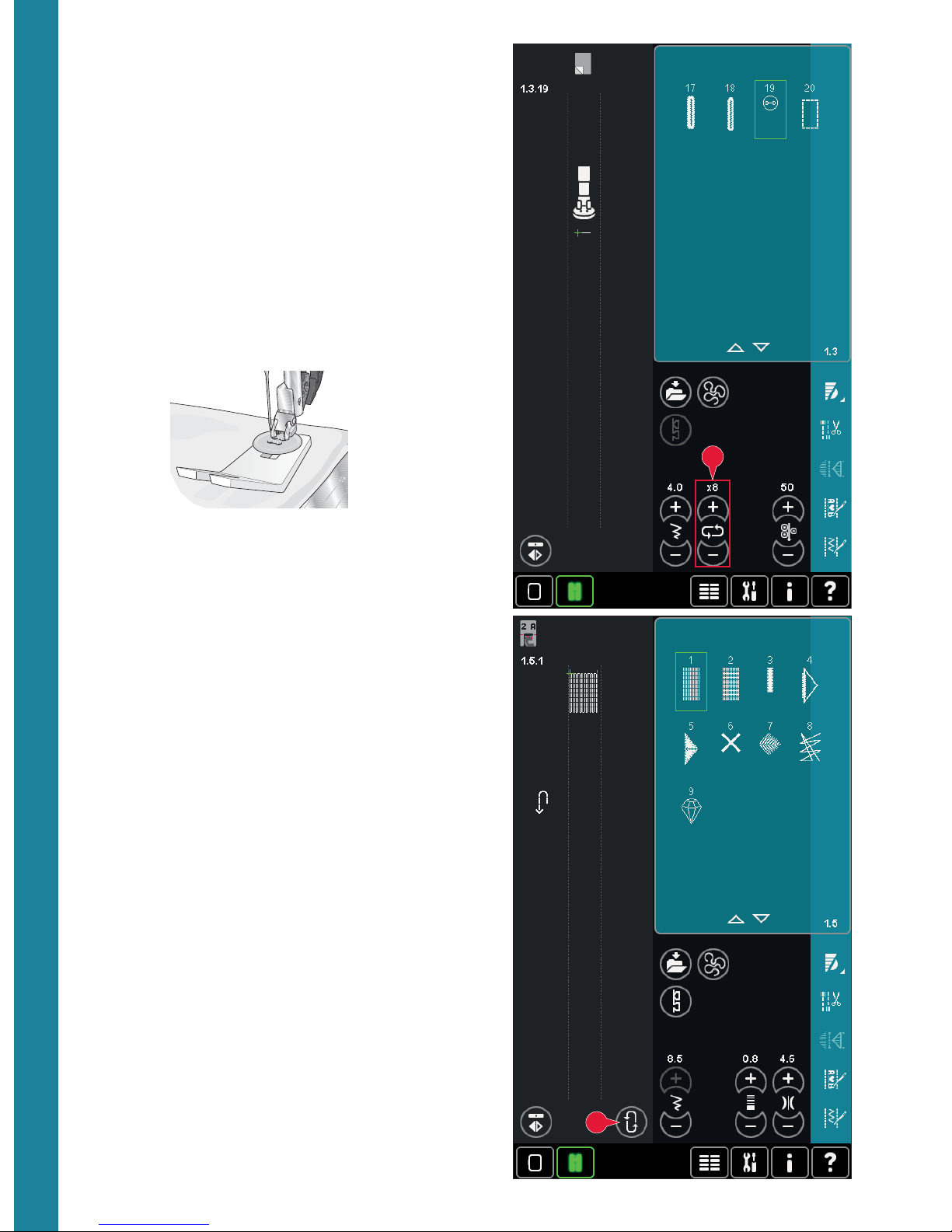

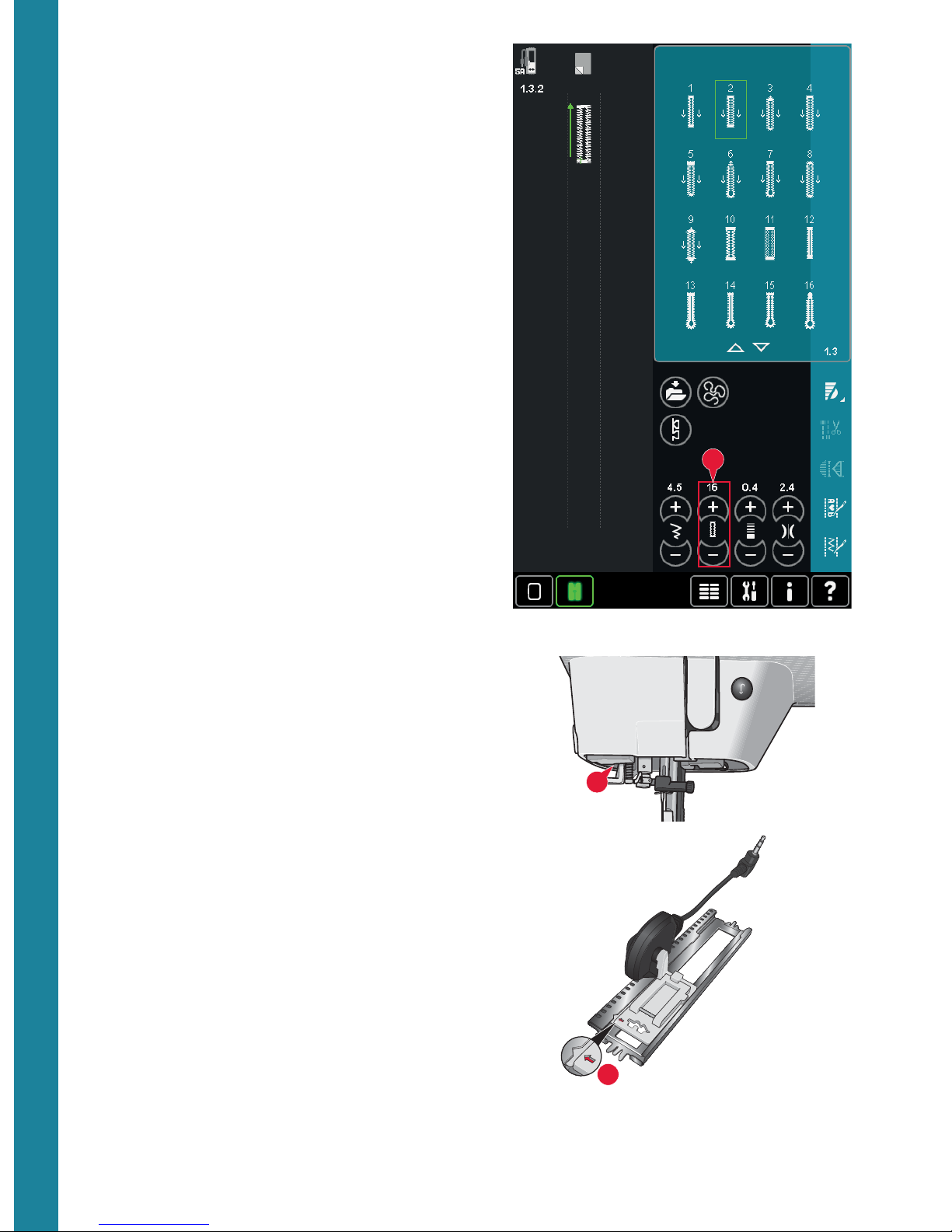

Buttonholes ................................................................. 4:16

Sew on a button ......................................................... 4:18

Darning ....................................................................... 4:18

Special sewing techniques 4:21

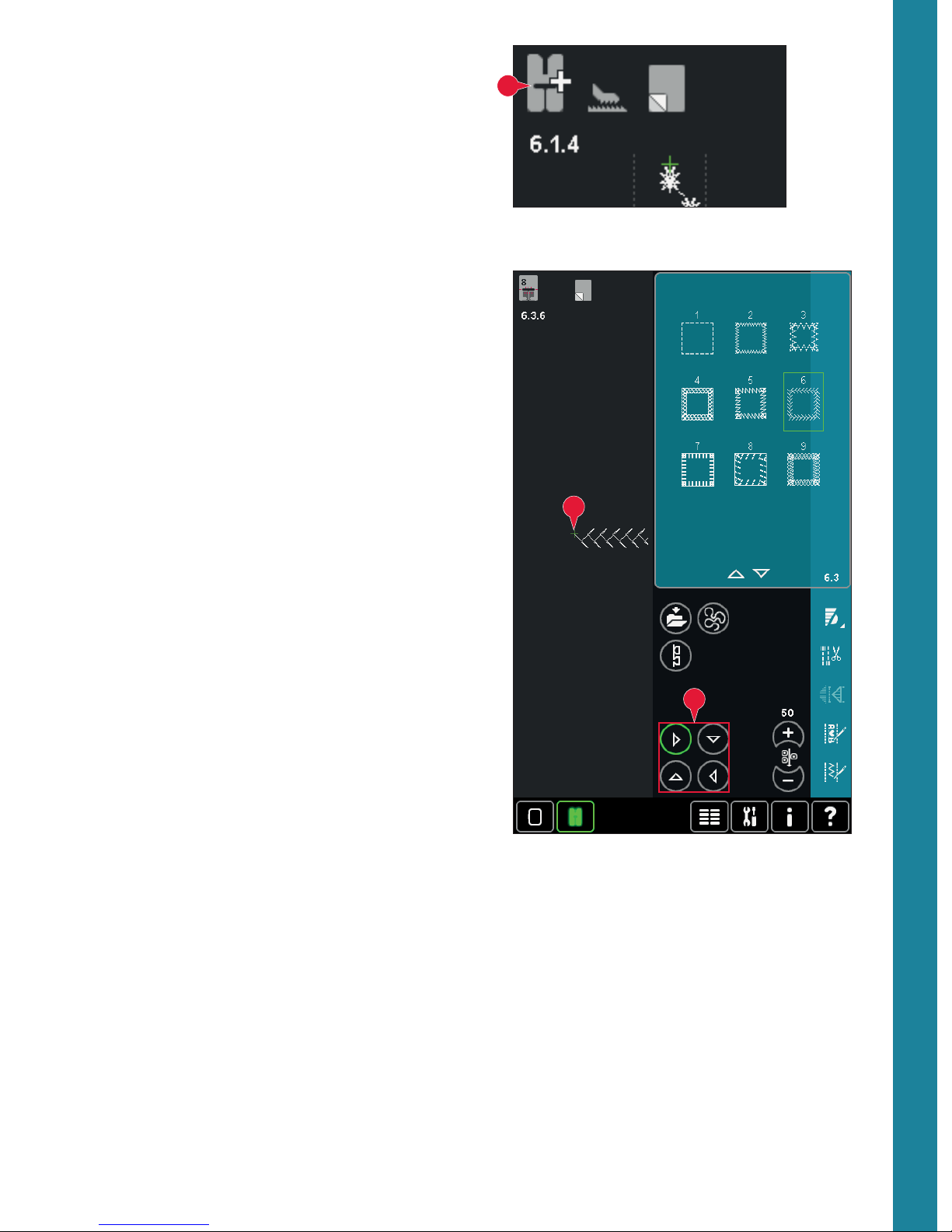

Four direction sewing ............................................... 4:21

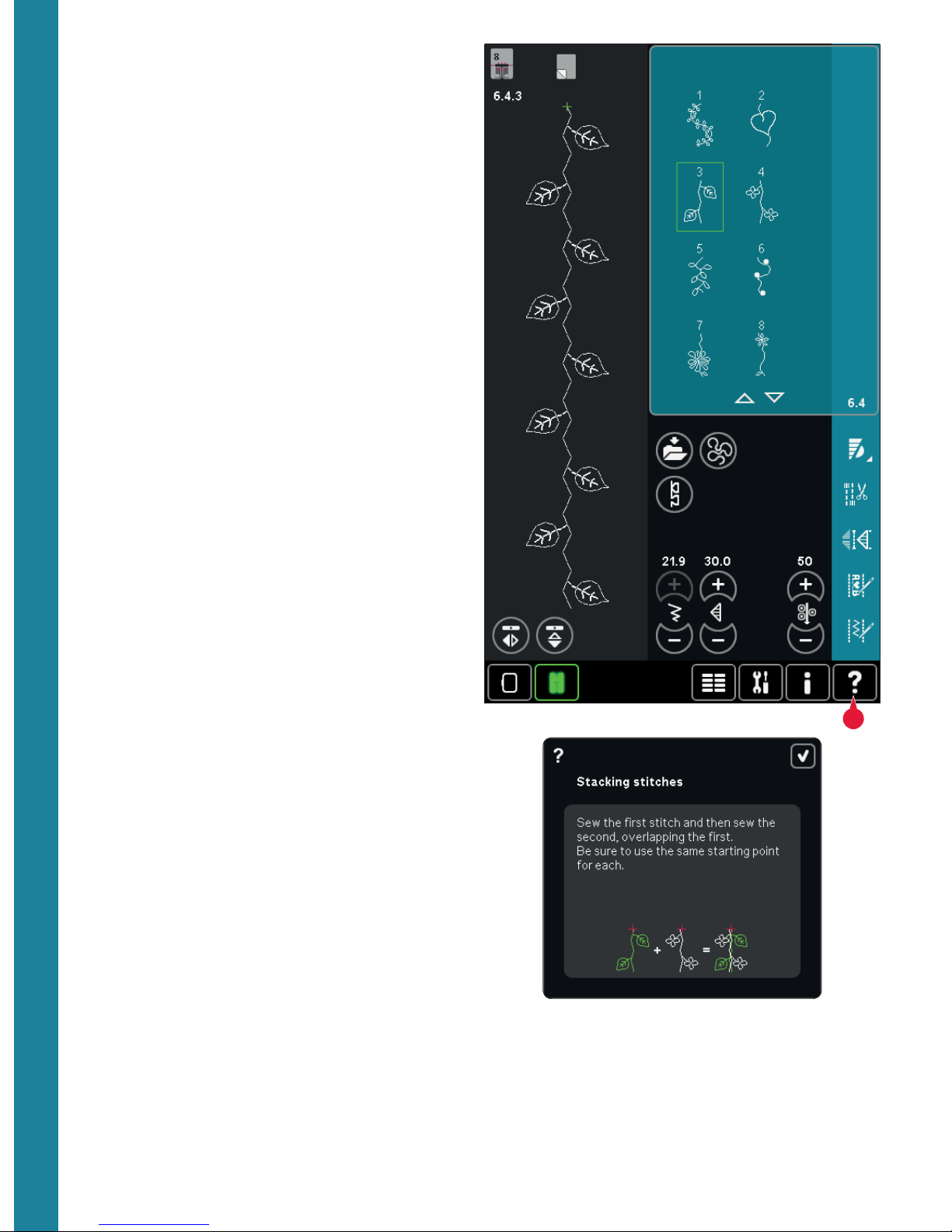

Stacking stitches ......................................................... 4:22

Common sewing pop-ups 4:23

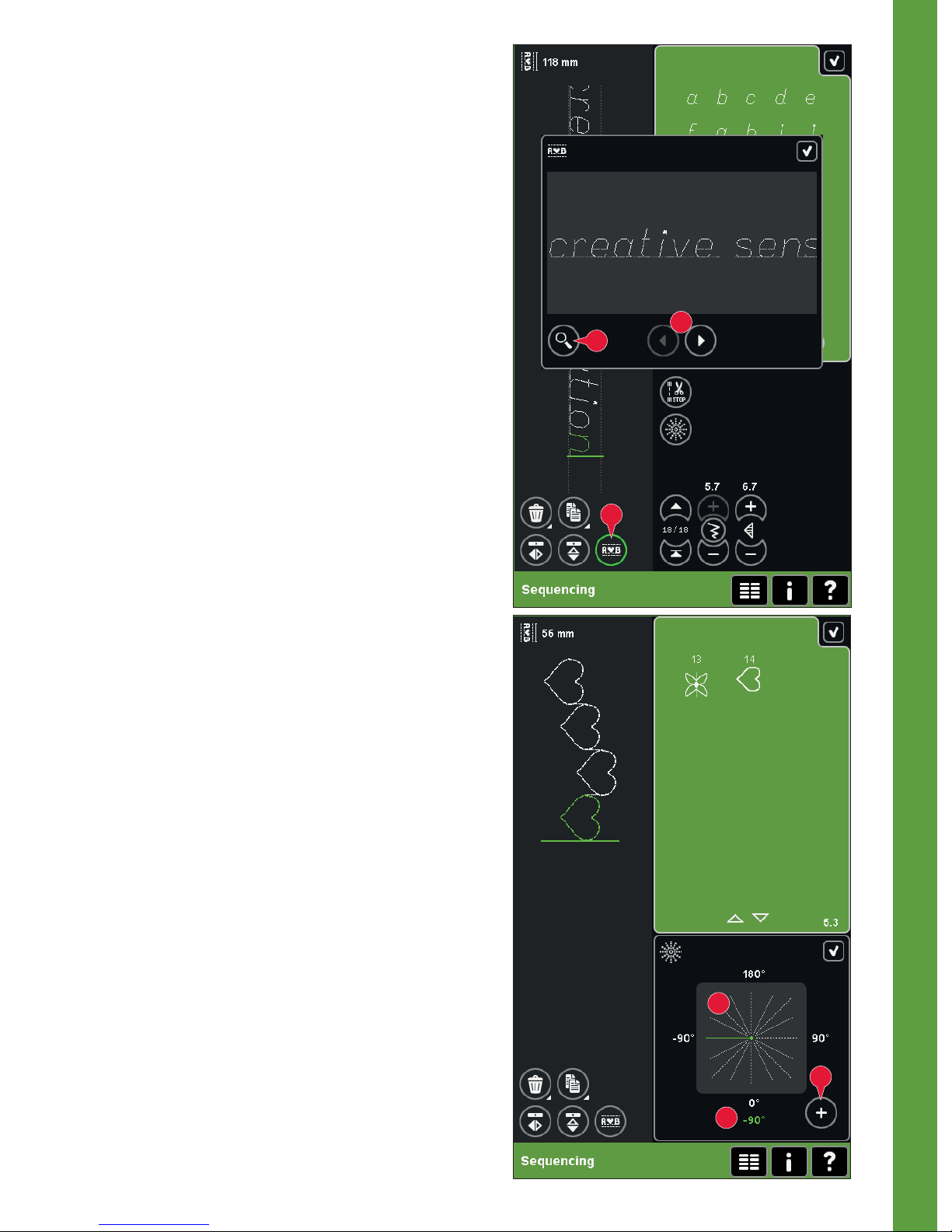

Sequencing 5:1

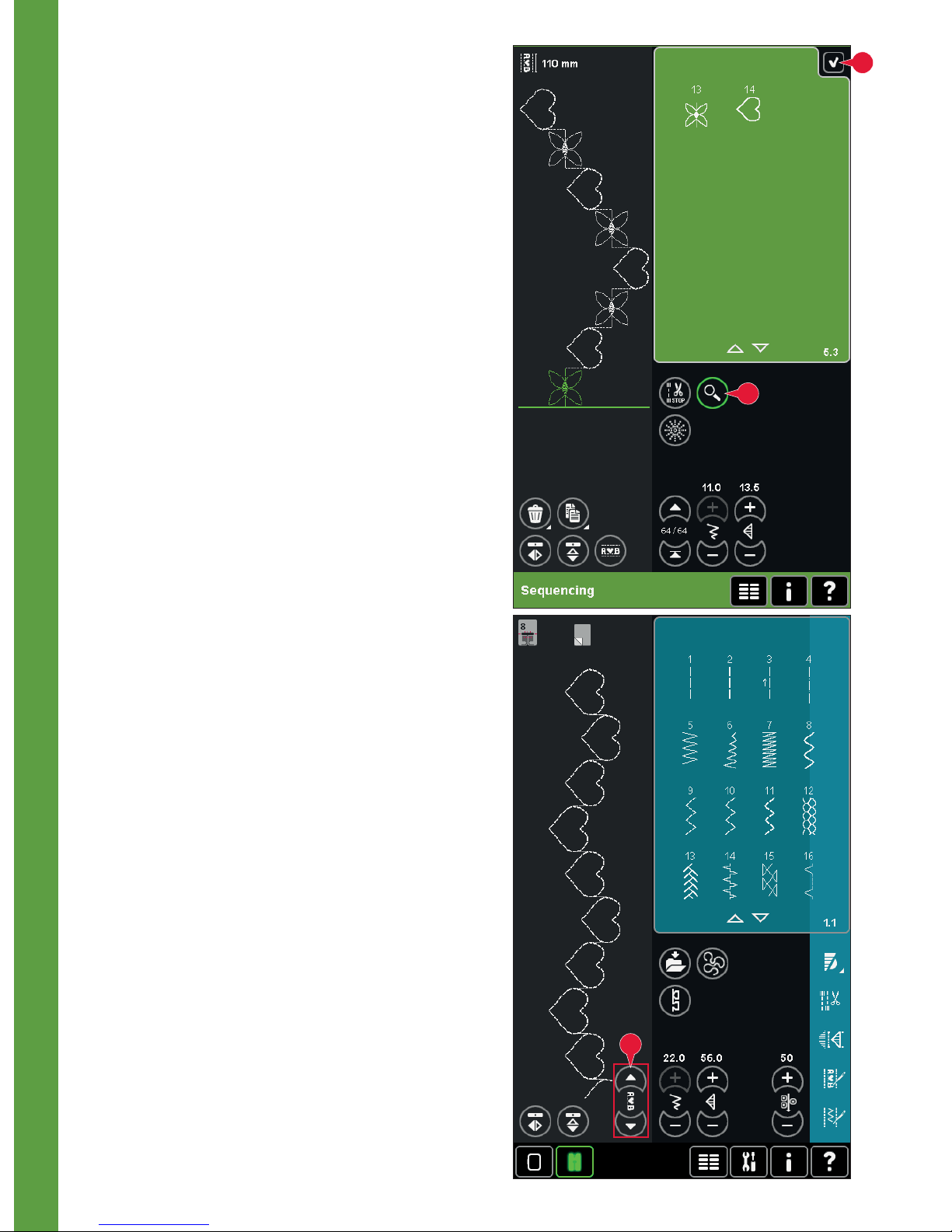

Sequencing - overview 5:2 Open and exit sequencing 5:3 Create a sequence 5:3

Sequence commands ................................................... 5:4

Horizontal preview ..................................................... 5:5

Directional stitches ...................................................... 5:5

Zoom to all ................................................................... 5:6

Loading and sewing a sequence 5:6 Saving a sequence 5:7 Important sequencing information 5:8 Common sequencing pop-ups 5:8

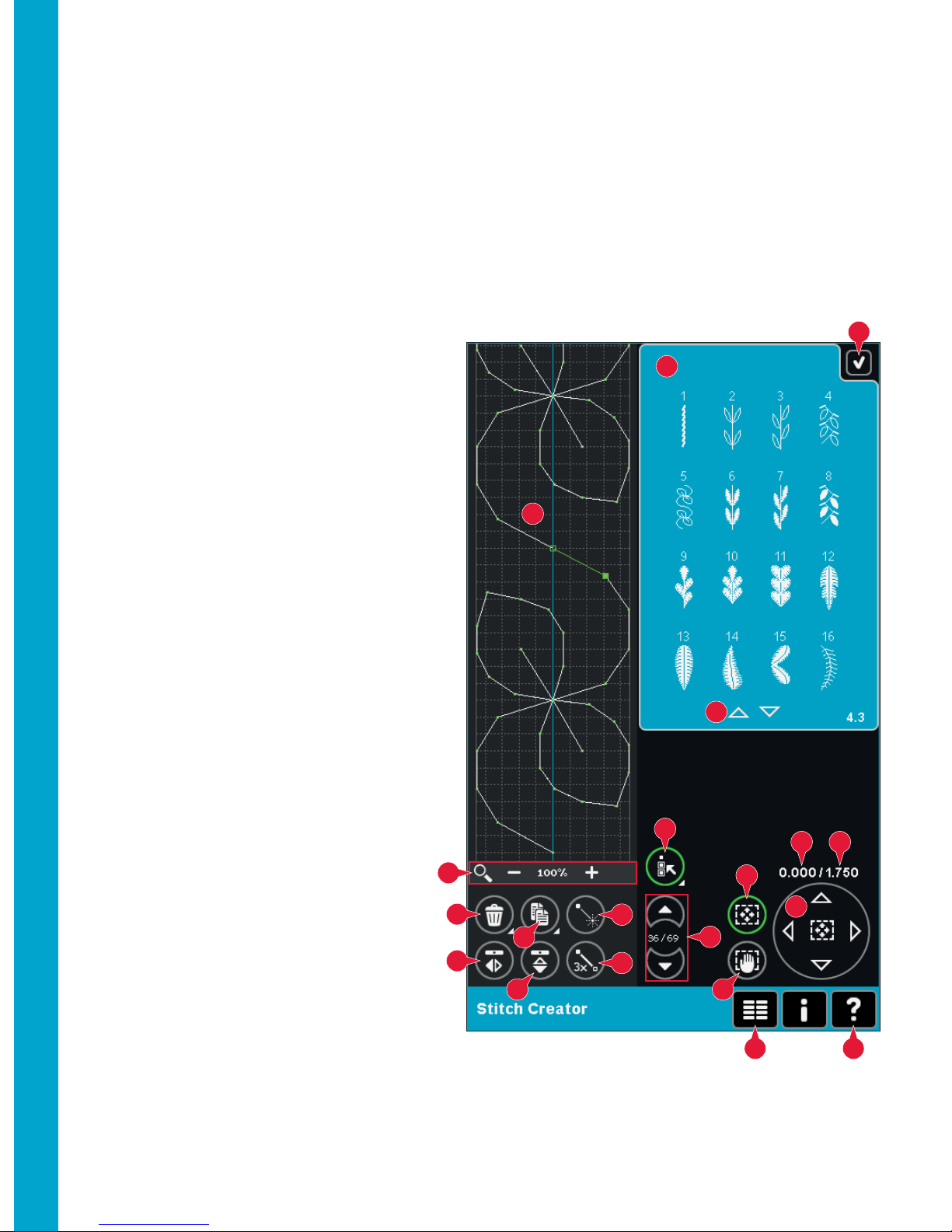

Stitch Creator 6:1

Stitch Creator - overview 6:2

Open and exit Stitch Creator ..................................... 6:3

DeÀ nition of a stitch point ........................................ 6:3

Start creating - add a stitch or stitch point ............... 6:3

Select stitches/stitch points ....................................... 6:3

Multi-select ................................................................... 6:4

Delete selected stitch point ........................................ 6:4

Duplicate selected stitch point ................................... 6:4

Insert a new stitch point ............................................. 6:4

Zoom ............................................................................. 6:4

Mirroring side to side ................................................. 6:5

Mirroring end to end .................................................. 6:5

Triple stitch ................................................................... 6:5

Touch functions 6:6 Position of the marked stitch point 6:6 Loading and sewing a stitch 6:7 Saving a stitch 6:7 Common Stitch Creator pop-ups 6:8 Important Stitch Creator information 6:8

Some fabrics have a lot of excess dye which can cause discoloration on other fabric but also on your sewing machine. This discoloring may be very difÀ cult or impossible to remove.

Fleece and denim fabric, especially red and blue, often contain a lot of excess dye.

If you suspect that your fabric/ready-to-wear garment contains a lot of excess dye, always pre-wash it before sewing to avoid the discoloring.

Page 6

Embroidery preparations 7:1

Embroidery unit overview 7:2

Embroidery hoop overview 7:2

Built-in designs 7:3 creative sensation™ Embroidery collection 7:3 Connect the embroidery unit 7:3 Remove the embroidery unit 7:4 Attaching the Dynamic spring foot

for embroidery 7:4 To hoop the fabric 7:5 Slide on the hoop 7:5 Getting started embroidering 7:6

Embroidery mode - edit 8:1

Embroidery edit - overview 8:2 Load a design 8:3 Load a font 8:3 Load a stitch 8:4 Zoom 8:4 Select design(s) 8:5 Stitch-out order 8:6 Move design forward/backward 8:6 Adjustments 8:6

Group ............................................................................ 8:6

Delete ............................................................................. 8:6

Duplicate ....................................................................... 8:6

Mirroring ...................................................................... 8:7

Move design into hoop ............................................... 8:7

Undo .............................................................................. 8:7

Redo ............................................................................... 8:7

Touch functions 8:8

Move .............................................................................. 8:8

Rotate ............................................................................ 8:8

Scale ............................................................................... 8:8

Pan ................................................................................. 8:8

Option bar 8:9

Save design ................................................................... 8:9

More options .............................................................. 8:10

Select hoop .................................................................. 8:11

Thread color edit ....................................................... 8:11

Shape Creator ............................................................. 8:12

Embroidery stitch editor .......................................... 8:20

Resize........................................................................... 8:23

Embroidery text editor ............................................. 8:25

Embroidery edit pop-ups 8:27

Embroidery mode - stitch-out 9:1

To enter Embroidery stitch-out 9:2 Embroidery stitch-out - overview 9:2 Crosshair 9:3 Color list 9:3 Zoom 9:3 Embroidery information 9:4 Current stitch 9:4

Go to stitch .................................................................... 9:4

Basting 9:4 Color block sort 9:5 Thread metering/Thread tension 9:5 Option bar 9:6

More options ................................................................ 9:6

Hoop position .............................................................. 9:7

Speed control ................................................................ 9:7

Precise positioning ...................................................... 9:8

Common Embroidery stitch-out pop-ups 9:12

Files & Folders 10:1

Files & Folders - overview 10:2 File formats 10:3 Browse Files & Folders 10:3 Load a À le 10:5 Open a folder 10:5 Organize 10:6 Common Files & Folders pop-ups 10:7

Maintenance 11:1

Cleaning the machine 11:2 Non-original parts and accessories 11:2 Troubleshooting 11:3 Index 11:5 Intellectual Property 11:10

Page 7

Introduction

Page 8

1:8

10 11 12 13 14 15 16

Introduction

Front side

1. Lid with stitch categories

2. Threading slots

3. Thread cutter

4. Sensormatic buttonhole foot socket

5. Free arm

6. Custom LED lights

7. Reverse

8. Reverse indicator

9. Action indicator

10. Presser foot up and extra lift toggle

11. Presser foot down and pivot toggle

12. Start/stop

13. Thread snips

14. Immediate tie-off

15. Stitch restart

16. Needle up/down

17. Button ruler

18. Handwheel

19. PFAFF® creative™ Color

Touch Screen

20. Built-in USB ports

21. Stylus holder

22. Main switch, connectors for power cord and foot control

23. Connection for knee-lift

Machine overview

Needle area

24. Built-in needle threader

25. Bobbin cover

26. Needle plate

27. Presser foot

28. Presser foot bar and presser foot holder

29. Needle thread guide

30. Needle screw

31. Needle bar

Page 9

1:9

35 36 37 38 39 40 41

42434445

Introduction

Rear side

32. Handle

33. IDT™ system

34. Embroidery unit connection socket

Top parts

35. Pre-tension device for threading and bobbin winding

36. Bobbin winder thread guide

37. Thread guide

38. Bobbin thread guides

39. Bobbin winder lever

40. Bobbin spindle

41. Bobbin thread cutter

42. Auxiliary spool pin

43. Spool caps

44. Spool pin

45. Take-up lever

Accessory trays

The accessory trays feature special compartments for presser feet and bobbins, plus space for needles and other accessories. Store the accessories in the tray so they are easily accessible.

46. Space for accessories

47. Removable tray for presser feet

48. Removable bobbin holder

Embroidery unit overview

(type BE20)

49. Embroidery unit release button

50. Level adjusting feet

51. Embroidery unit accesssory tray

52. Embroidery unit socket

53. Embroidery hoop connection assembly

54. Embroidery arm

Embroidery unit accessory tray

Accessory tray

Page 10

1:10

55 56 57 58 59

60 61 62

67 68 69

Introduction

Included accessories

Accessories

55. Stylus

56. Thread net (2)

57. Edge guide

58. Felt pad (2)

59. USB Embroidery stick

60. Screwdriver

61. Seam ripper

62. Brush

63. Spool cap, large (2)

64. Spool cap, medium

65. Spool cap, small

66. Multi-purpose tool

67. Bobbins (10)

68. Hoop clips

69. Knee-lift

Included hoops

70. creativ

e™ 120 Square Hoop (120x120)

71. creative™ Master Hoop (240x150)

72. creative™ Deluxe Hoop (360x200)

Included accessories not in picture

• Straight stitch needle plate

• Foot control

• Power cord

• USB cord (P/N:412 62 59-04)

• Needles

• MicroÀ ber cloth

• 5D™ Embroidery Machine Communication CD

• creative sensation™ Embroidery collection

Presser feet

0A - Standard presser foot with IDT™ system (attached on the machine upon delivery)

This foot is used mainly for straight stitching and zigzag stitching with a stitch length longer than 1.0mm.

1A - Fancy stitch foot with IDT™ system

This foot is used for decorative stitches. The groove on the underside of the foot is designed to Á ow smoothly over the stitches.

Page 11

1:11

Introduction

2A - Fancy stitch foot

When sewing decorative stitches or short zigzag stitches and other utility stitches with less than 1.0mm stitch length, use this foot. The groove on the underside of the foot is designed to Á ow smoothly over the stitches.

3 - Blindhem foot with IDT™ system

This foot is used for blindhem stitches. The toe on the foot guides the fabric. The red guide on the foot is designed to ride along the fold of the hem edge.

4 - Zipper foot with IDT™ system

This foot can be snapped on either the right or the left of the needle, making it easy to sew close to both sides of the zipper teeth. Move needle position to right or left to sew closer to zipper teeth.

5A - Sensormatic buttonhole foot

When connected to the machine, the buttonhole is sewn in a suitable length to the button size that has been entered into the machine.

5M - Manual buttonhole foot

This foot is used for sewing manual buttonholes. Use the markings on the foot to position the garment edge. The À nger on the back of the foot holds cording for corded buttonhole.

6A - Embroidery/ Sensormatic free-motion foot

This foot is used for embroidery and free-motion sewing. This foot can also be used for darning.

6D - Dynamic spring foot

This foot is always recommended for embroidery.

It is also used for free-motion sewing, quilting and embroidering on especially thick or spongy fabric. When using the Dynamic spring foot for free-motion, select Dynamic spring foot free-motion setting in the Free-motion options window in sewing mode.

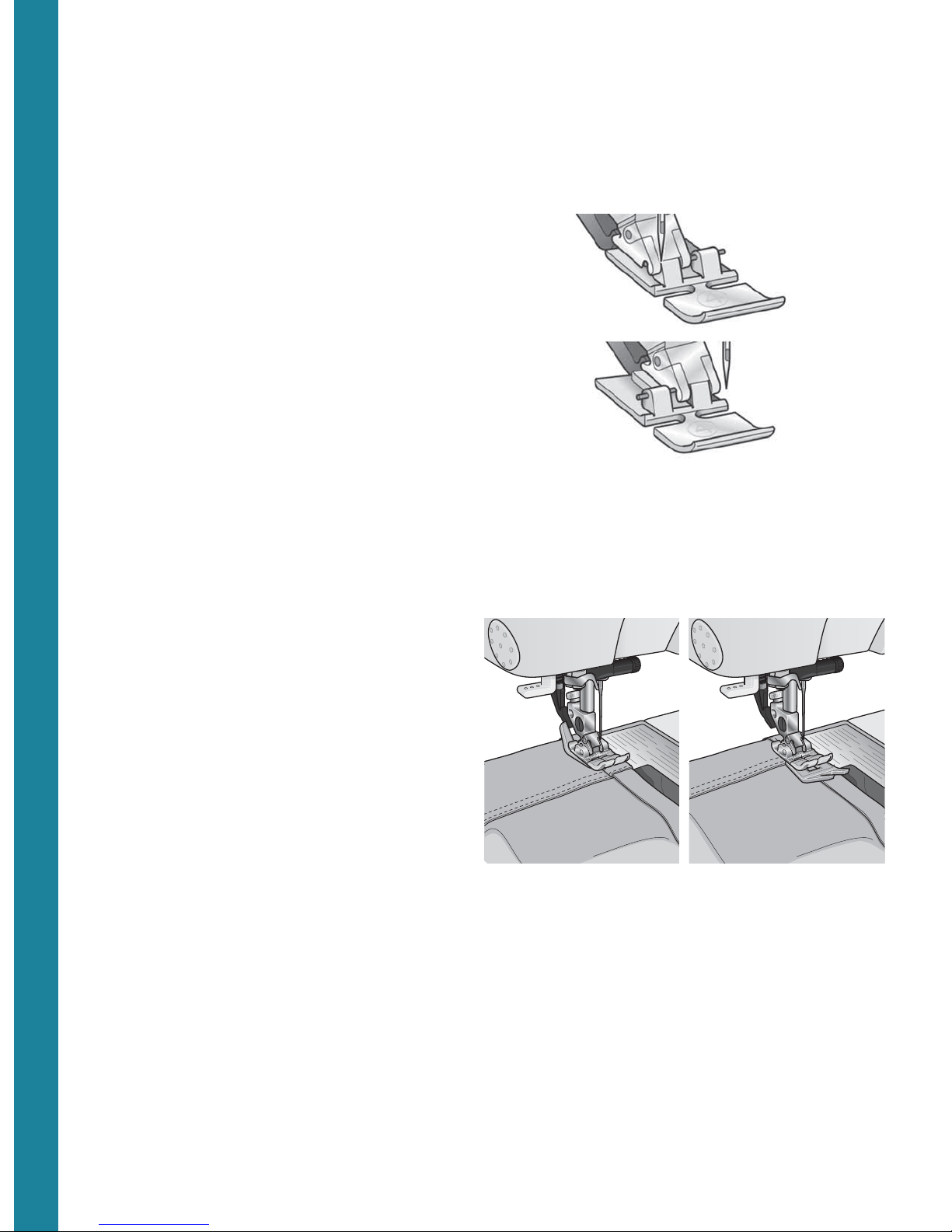

1/4” quilting foot with IDT™ system

This foot is perfect for piecing and patchwork, especially when used in conjunction with the straight stitch needle plate. The distance from the needle to the outer edge of the right toe is 1/4” (6mm). The distance from the needle to the inner edge of the right toe is 1/8” (3mm).

8 - Maxi-stitch foot

This foot is used for side-motion stitches.

Important: Make sure that the IDT™ system is disengaged when using presser foot 2A, 5A, 5M, 6A, 6D and 8.

Page 12

1:12

Introduction

Stitch overview

Utility stitches

Stitch Stitch number Name Description

1.1.1 Straight stitch

For seaming and topstitching. Select from 37 different needle positions.

Note: This stitch makes a stronger tie-off than stitch 2.1.1.

1.1.2

Stretch triple straight stitch

Reinforced seam. Topstitching.

1.1.3 Straight stitch reverse Sew continuous reverse with strong tie-off.

1.1.4 Basting stitch

Single stitch used for basting. Touch foot control to sew one stitch. Move fabric manually to desired position and touch foot control again to sew another stitch.

1.1.5 Zigzag stitch Reinforce seams, clean À nish, stretch sewing, lace insertion.

1.1.6

Zigzag stitch, right or left needle position

Reinforce seams, clean À nish, stretch sewing.

1.1.7 Z-zigzag stitch Applique, couching, eyelets.

1.1.8

Stretch triple zigzag stitch

Elastic stitch for decorative hems or topstitching.

1.1.9

Three-step zigzag stitch

Sewing elastic, darning, patching.

1.1.10 Elastic stitch Sewing elastic, darning, patching.

1.1.11 Triple stretch stitch Sewing elastic, darning, patching and decorative sewing.

1.1.12 Honeycomb stitch

Decorative stitch for stretch fabrics and hems. Also used with elastic thread in the bobbin.

1.1.13 Bridging stitch

Joining fabrics and quilt batting, decorative stitch for quilting, hemstitching.

1.1.14

Foundation elastic stitch

Joining stitch for undergarments, terry cloth, leather, bulky fabrics where overlapping the seams.

1.1.15 Crosshem stitch Elastic decorative hem for stretch fabrics.

1.1.16 Blindhem stitch Sewing blindhems on woven fabrics.

1.1.17 Elastic blindhem stitch Sewing blindhems on stretch fabrics.

1.1.18 Stretch tricot stitch Sewing seams on stretch fabrics.

1.2.1 Closed overlock Seam and overcast stretch fabrics in one step.

Page 13

1:13

Introduction

1.2.2 Closed overlock Seam and overcast in one step.

1.2.3 Closed overlock Seam and overcast in one step with reinforced edge.

1.2.4 Elastic overcast Seam and overcast stretch fabrics in one step.

1.2.5 Standard overcast Seam and overcast stretch fabrics in one step with reinforced edge.

1.2.6 Overlock Seam and overcast stretch fabrics in one step.

1.2.7

Light knit fabric patching

Seam and overcast stretch fabrics in one step, patch, hem.

1.2.8 Closed overlock Seam and overcast in one step, patch, hem.

1.2.9 Stretch knit overlock Seam and overcast stretch fabrics in one step.

1.2.10 Reinforced overlock Seam and overcast stretch fabrics in one step and reinforce.

1.2.11 Finished edge overlock Seam and overcast stretch fabrics in one step with reinforced edge.

1.2.12 Overlock Seam and overcast stretch fabrics in one step.

1.2.13 Mock cover hem Create the look of a serger cover hem for stretch fabrics.

1.2.14 Mock cover hem Create the look of a serger cover hem for stretch fabrics.

1.2.15

Open overlock blindhem

Create decorative overlock blindhem for woven fabrics.

1.2.16

Closed overlock blindhem

Create decorative overlock blindhem for stretch fabrics.

1.3.1 Linen buttonhole Buttonhole for blouses, shirts and linen.

1.3.2 Standard buttonhole Basic buttonhole for blouses, shirts and jackets. Also for pillowcases.

1.3.3

Rounded buttonhole with pointed tack

Buttonhole for garments.

1.3.4

Rounded buttonhole with lengthwise tack

Buttonhole for garments.

1.3.5

Rounded buttonhole with crosswise tack

Buttonhole for garments.

1.3.6

Eyelet buttonhole with pointed tack

Tailors buttonhole or decorative buttonhole.

Page 14

1:14

Introduction

1.3.7

Eyelet buttonhole with lengthwise tack

Tailors buttonhole for jackets and trousers.

1.3.8 Rounded buttonhole Buttonhole for light garments or jackets.

1.3.9

Decorative buttonhole with triangle tack

Decorative buttonhole.

1.3.10 Stretch buttonhole Buttonhole for stretch fabrics.

1.3.11 Cross stitch buttonhole Decorative buttonhole.

1.3.12 Decorative buttonhole Decorative buttonhole.

1.3.13

Professional eyelet buttonhole

Professional tailors buttonhole for jackets and trousers.

1.3.14

Decorative eyelet buttonhole

Decorative buttonhole for jackets.

1.3.15

Decorative eyelet buttonhole

Decorative buttonhole for jackets.

1.3.16 Decorative buttonhole Decorative buttonhole.

1.3.17 Decorative buttonhole Decorative buttonhole.

1.3.18

Heirloom round buttonhole with pointed tack

Decorative heirloom buttonhole.

1.3.19 Button sewing Sew on buttons or tacking.

1.3.20 Bound buttonhole Foundation stitch for bound buttonhole.

1.4.1 Eyelet Heirloom sewing decorative trim.

1.4.2 Decorative eyelet Heirloom sewing decorative trim.

1.4.3 Decorative eyelet Heirloom sewing decorative trim.

1.4.4 Decorative eyelet Heirloom sewing decorative trim.

1.4.5 Decorative eyelet Heirloom sewing decorative trim.

1.4.6 Decorative eyelet Heirloom sewing decorative trim.

1.5.1

Programmable darning stitch

Darning holes or damaged fabric.

Page 15

1:15

Introduction

1.5.2

Programmable reinforced darning stitch

Reinforced darning holes or damaged fabric.

1.5.3 Bartack Automatically reinforce seams and pockets.

1.5.4 Denim bartack Automatically reinforce seams and pockets decoratively.

1.5.5 Decorative bartack Automatically reinforce seams and pockets decoratively.

1.5.6 Cross bartack Automatically reinforce seams and pockets.

1.5.7 Decorative tack Automatically reinforce seams and pockets.

1.5.8 Decorative tack Automatically decorative topper for seams and pockets.

1.5.9 Decorative tack Automatically reinforce seams and pockets.

Page 16

1:16

Introduction

2.1 Quilt stitches - Handlook stitches 2.2 Quilt stitches - Antique quilt stitches

2.3 Quilt stitches - Stippling stitches

3.1 Needle art stitches - Cross stitches 3.1 Needle art stitches - Cross stitches

2.4 Quilt stitches - Crazy patch stitches

Decorative stitches

Page 17

1:17

Introduction

3.2 Needle art stitches - Hemstitches 3.3 Needle art stitches - Antique hand embroidery stitches

3.3 Needle art stitches - Antique hand embroidery stitches 3.4 Needle art stitches - Smocking stitches

4.1 Decorative stitches - Scallop edges 4.2 Decorative stitches - Satin stitches

Page 18

1:18

Introduction

4.5 Decorative stitches - Ornamental stitches 4.5 Decorative stitches - Ornamental stitches

4.3 Decorative stitches - Leaves and Á owers 4.3 Decorative stitches - Leaves and Á owers

4.4 Decorative stitches - Art stitches 4.4 Decorative stitches - Art stitches

Page 19

1:19

Introduction

4.6 Decorative stitches - Bows and hearts

4.7 Decorative stitches - Fun stitches 4.8 Decorative stitches - Borders

4.8 Decorative stitches - Borders

4.7 Decorative stitches - Fun stitches

5.1 Maxi stitches - Scallop and satin stitches

Page 20

1:20

Introduction

5.2 Maxi stitches - Leaves and Á owers 5.3 Maxi stitches - Art stitches

5.4 Maxi stitches - Fun stitches

5.6 Maxi 1 (monogram) 5.6 Maxi 1 (monogram)

5.5 Maxi stitches - Stippling stitches

Page 21

1:21

Introduction

5.7 Maxi 2 (monogram) 5.7 Maxi 2 (monogram)

6.1 Sewing techniques - Optional feet stitches 6.2 Sewing techniques - Handlook quilt stitches

6.3 Sewing techniques - Four direction stitches 6.4 Sewing techniques - Stacking stitches

Page 22

1:22

Alphabets

Block Comic Cyrillic

Outline ScriptGrand

6.4 Sewing techniques - Stacking stitches

Introduction

Page 23

Preparations

Page 24

2:2

3 1 2

Preparations

Unpacking

1. Place the box on a steady, Á at surface. Lift the machine out of the box and remove the outer packaging and lift off the machine carrying case.

2. Remove all other packing material and the plastic bag.

3. Slide off the accessory tray and remove the styrofoam inside.

Note: Styrofoam left in the accessory tray while sewing may affect stitch quality. The styrofoam is for packing purposes only and should be removed.

Connect to the power supply

Among the accessories you will À nd the power cord and the foot control.

Note: Before plugging in the foot control, check to ensure that it is type “FR5” (see underside of foot control).

1. Pull out the cord from the foot control. Connect the foot control cord to the front socket on the bottom right side of the machine (1).

2. Connect the power cord to the rear socket on the bottom right side of the machine (2). Plug the cord into the wall socket.

3. Press the ON/OFF switch to ON to turn on power and light (3).

Pack away after sewing

1. Switch the main switch (3) off.

2. Unplug the cord from the wall socket and then from the machine (2).

3. Unplug the foot control cord from the machine (1). Pull the cord gently and release - the cord will retract itself into the foot control.

4. Place all accessories in the accessory tray. Slide the tray on to the machine around the free arm.

5. Place the foot control in the space above the free arm.

6. Put on the hard cover.

For the USA and Canada

This sewing machine has a polarized plug (one blade wider than the other). To reduce the risk of electric shock, this plug is intended to À t in a polarized outlet only one way. If the plug does not À t fully in the outlet, reverse the plug. If it still does not À t, contact a qualiÀ ed electrician to install the proper outlet. Do not modify the plug in any way.

Page 25

2:3

Preparations

Custom LED lights

Your machine has LED lights which distribute the light evenly over the sewing area and eliminates shadows. You can adjust the intensity and color temperature of the light in the Settings menu, see chapter 3.

Free arm

To use the free arm, slide off the accessory tray. When attached, a hook keeps the accessory tray locked to the machine. Remove the tray by sliding it to the left.

Thread cutter

To use the thread cutter, pull the thread from back to front as shown.

Electronic knee-lift

Your machine comes with an electronic knee-lift for regulating the presser foot height.

Insert the knee-lift in the provided hole on the machine. The Á at side must face upwards. Adjust the rectangular bar on the knee-lift until it is positioned at a comfortable height for you (A).

If you press the knee-lift to the right, the presser foot will raise. You can now guide the fabric with both hands.

To remove the knee-lift, just pull it straight out of the hole.

Page 26

2:4

Preparations

Small spool cap

Main spool pin in vertical position

Large spool cap

Spool pins

Your machine has two spool pins, a main spool pin and an auxiliary spool pin. The spool pins are designed for all types of thread. The main spool pin is adjustable and can be used both in a horizontal position (the thread reels off the spool) and a vertical position (the thread spool rotates). Use the horizontal position for normal threads and the vertical position for large spools or specialty threads.

Horizontal position

Place a spool cap and the thread spool on the spool pin. Make sure that the thread reels over the top and slide on a second spool cap.

Use a spool cap slightly larger than the thread spool. For narrow thread spools, use a smaller spool cap in front of the spool. For large thread spools, use a larger spool cap in front of the spool.

The Á at side of the spool cap should be pressed À rmly against the spool. There should be no space between the spool cap and the thread spool.

Vertical position

Raise the spool pin to the vertical position. Slide on the large spool cap and place a felt pad under the thread spool. This is to prevent the thread from reeling off too fast.

Do not place a spool cap on top of the spool pin as that would prevent the spool from rotating.

Auxiliary spool pin

The auxiliary spool pin is used when winding a bobbin thread from a second spool of thread or for a second spool when sewing with a twin needle.

Raise the auxiliary spool pin. Slide on a large spool cap and place a felt pad under the thread spool.

Auxiliary spool pin and main spool pin in vertical position.

Page 27

2:5

Preparations

Threading the machine

Make sure that the presser foot is raised and the needle is in the up position.

1. Place the thread on the spool pin and À t a spool cap of the right size.

2. Pull the thread into the thread guide by pulling it from the front to the back (A). Make sure the thread clicks into place. Then pull the thread underneath the bobbin winder thread guide (B) on the pre-tension disc (C).

3. Thread down through the right-hand threading slot and then upwards through the left-hand threading slot.

4. Bring the thread from the right into the take-up lever (D) and down in the left-hand threading slot to the needle thread guide (E).

5. Thread the needle.

Needle threader

The needle threader allows you to thread the needle automatically. The needle must be in the up position to use the built-in needle threader. We also recommend lowering the presser foot.

1. Use the handle to pull the needle threader all the way down. The threader hook (G) swivels through the needle eye.

2. Place the thread from the back over the hook (F) and under the thread hook (G).

3. Let the needle threader gently swing back. The hook pulls the thread through the needle eye and forms a loop behind the needle. Pull the thread loop out behind the needle.

Note: The needle threader is designed to be used for size 70-120 needles. You cannot use the needle threader for size 60 needles or smaller, the wing needle, twin needle or triple needle. There are also some optional accessories that require manual threading of the needle.

When threading the needle manually make sure that the needle is threaded from front to back. The bobbin cover can be used as a magnifying glass.

Page 28

2:6

Preparations

Threading for twin needle

Replace the sewing needle with a twin needle. Make sure that the presser foot is raised and the needle is in the up position.

1. Place the thread on the spool pin and À t a spool cap of the right size. Raise the auxiliary spool pin. Slide on a large spool cap and a felt pad. Place the second thread on the spool pin.

2. Pull the threads into the thread guide by pulling them from the front to the back (A). Make sure the threads click into place. Then pull the threads underneath the bobbin winder thread guide (B) on the pre-tension disc (C).

3. Thread down through the right-hand threading slot and then upwards through the left-hand threading slot. Make sure that you pass one thread to the left and one thread to the right sides of the tension disk (F).

4. Bring the threads from the right into the take-up lever (D) and down in the left-hand threading slot. Make sure that one thread is inside the needle thread guide (E) and the other one outside. Make sure that the threads do not become twisted together.

5. Thread the needles.

Note: Activate twin needle and select the correct twin needle width in Settings menu. This will limit the width of all stitches for that needle size to prevent damage to presser foot and needle.

Thread sensor

If the upper thread breaks or bobbin thread runs out, the machine stops and a pop-up appears on the screen.

If upper thread breaks: Re-thread the machine and touch OK on the pop-up. If bob bin thread runs out: replace with a wound bobbin and continue sewing.

Page 29

2:7

Preparations

Bobbin winding

Winding from horizontal position

1. Place an empty bobbin on the bobbin spindle, with the logo facing up. Use only the original PFAFF® bobbins approved for this model.

2. Place the thread spool on the spool pin in horizontal position. Slide a spool cap tightly against the spool.

3. Place the thread into the thread guide (A) from front to back. Pull the thread counter-clockwise above the bobbin winder thread guide (B) and then through the bobbin thread guides (C) at the rear.

Note: Make sure the thread is pulled securely inside

the pre-tension device for correct thread tension.

4. Thread through the slot in the bobbin (D) from the inside to the outside.

5. Push the bobbin winder lever towards the bobbin to wind. A pop-up appears on the screen. To adjust winding speed, use the slider in the pop-up. Stop and start bobbin winding with the icons in the pop-up. Hold the end of the thread À rmly when starting to wind.

When the bobbin is full, the bobbin winder

lever will switch back and the winding will stop automatically. The pop-up closes. Remove the bobbin and cut the thread using the bobbin thread cutter. Cut the free thread end close to the bobbin.

Winding while threaded

Make sure that the presser foot and the needle are in the up position. To prevent the needle from bending, pull the thread out of the needle.

Bring the thread up from the needle thread guide (E), upward through the left-hand threading slot and through the bobbin thread guides (C). Then follow step 4 and 5 above.

Page 30

2:8

Preparations

Winding while embroidering or sewing

Swing the auxiliary spool pin up. Place an appropriate spool cap, felt pad and thread spool on the spool pin.

The needle thread (blue) is placed into the thread guide (A) and underneath the bobbin winder thread guide (B). Pull the bobbin thread (red) counterclockwise above the bobbin winder thread guide (B) and through the bobbin thread guides (C). Then follow step 4 and 5 on the previous page.

Inserting the bobbin

1. Remove the bobbin cover by sliding it towards you.

2. Place the bobbin in the bobbin case with the logotype facing up and the thread unreeling from the left of the bobbin. The bobbin will then rotate counter-clockwise when you pull out the thread.

3. Place your À nger on the bobbin to keep it from turning as you pull the thread À rmly to the right and then to the left into the tension spring (A) until it “clicks” into place.

4. Continue threading around (B) and to the right of the thread cutter (C). Replace the cover. Pull the thread to the left to cut.

Page 31

2:9

Preparations

IDT™ system (Integrated dual feed)

For sewing any fabric precisely PFAFF® creative sensation™ sewing and embroidery machine

provides the ideal solution: the integrated dual feed, IDT™ system. As on industrial machines, the IDT™ system feeds the fabric from the top and bottom at the same time. The material is fed precisely, eliminating puckering on seams in light weight fabrics such as silk and rayon. The dual feed action of the IDT™ system prevents layers from shifting while sewing, keeping quilt layers aligned and ensuring a more perfect match when sewing plaid or striped fabrics.

Engaging the IDT™ system

Important: For all work with the IDT™ system use presser feet with the center back cut-out.

Raise the presser foot. Press the IDT™ system down until it engages.

Disengaging the IDT™ system

Raise the presser foot. Hold the IDT™ system with two À ngers at the ribbed ankle. Pull the IDT™ system down, then pull it away from you to release the IDT™ system slowly upward.

Changing needle plate

Remove the presser foot and slide off the bobbin cover. Place the screwdriver under the needle plate as shown in the picture and gently turn the screwdriver to pop off the needle plate.

To replace the needle plate, lower the feed dogs and position the needle plate so that the knob on the underside of the plate À ts into the notch at the back (A). Press the needle plate down until it clicks into place.

Page 32

2:10

A B C D E

Preparations

Needles

The sewing machine needle plays an important role in successful sewing. Use only quality needles. We recommend needles of system 130/705H. The needle package included with your machine contains needles of the most frequently used sizes.

Universal needle (A)

Universal needles have a slightly rounded point and come in a variety of sizes. For general sewing in a variety of fabric types and weights.

Stretch needle (B)

Stretch needles have a special scarf to eliminate skipped stitches when there is a Á ex in the fabric. For knits, swimwear, Á eece, synthetic suedes and leathers.

Embroidery needle (C)

Embroidery needles have a special scarf, a slightly rounded point and a slightly larger eye to avoid damage to thread and materials. Use with metallic and other specailty threads for embroidery and decorative sewing

Denim needle (D)

Denim needles have a sharp point to penetrate tightly woven fabrics without deÁ ecting the needle. For canvas, denim, microÀ bers.

Wing needles (E)

The Wing needle has wide wings on the side of the needle to poke holes in the fabric when sewing entredeux and other hemstitches on natural À ber fabrics.

Changing the needle

1. Use the hole in the multi-purpose tool to hold the needle.

2. Loosen the needle screw.

3. Remove the needle.

4. Insert the new needle, using the multi-purpose tool. Push the new needle upwards with the Á at side away from you until it will go no further.

5. Tighten the needle screw as tight as it will go.

Note: Change the needle often. Always use a straight needle with a sharp point (F).

A damaged needle (G) can cause skipped stitches, breakage or snapping of thread. A damaged needle can also damage the needle plate.

Do not use asymmetrical twin needles (H), since it may damage your sewing machine.

Page 33

2:11

Preparations

Changing the presser foot

Remove presser foot

Press the presser foot downwards until it disengages from the presser foot holder.

Attach presser foot

Line up the pins on the foot with the gap underneath the presser foot holder. Press upwards until the foot snaps into place.

You can also use the presser foot up/down buttons to raise or lower the presser foot holder. Place the presser foot under the presser foot holder, so that the pins of the foot snap onto the presser foot holder when lowered.

Attaching the Dynamic spring foot 6D

1. Disengage the IDT™ system (B). Remove the standard presser foot (C). Carefully loosen the screw (D) until the cross-hole (E) is accessible.

2. Squeeze the embroidery foot gently together and guide the pin of the foot into the cross-hole (E) of the presser foot holder as far as it will go. The arm on the foot should be placed behind the needle screw.

3. Tighten the screw (D).

To remove the embroidery foot loosen the screw (D), squeeze the embroidery foot together and pull it out to the right. Tighten the screw (D).

Page 34

2:12

Preparations

USB ports

Your machine has two USB ports – one to connect the sewing machine to your computer, and one to connect either your USB embroidery stick, optional CD-drive, optional USB hub or optional mouse.

USB embroidery stick

Delivered with your machine is a USB embroidery stick. Use the stick to store designs and other À les, or to move À les between the computer and sewing machine.

Connect to and remove from USB port

Insert the USB embroidery stick or other devices in the upper port. The USB plugs can only be inserted one way – do not force them into the ports!

The USB PC cable packed with your machine (P/N:412 62 59-04) plugs in to the lower port. No other cable should be used in this port. Connect the other end of the cable to your PC.

Note: Install the Embroidery Machine Communication CD before connecting the machine to your PC.

To remove, carefully pull the USB embroidery stick or the plug of the USB cable out straight.

Using the USB embroidery stick

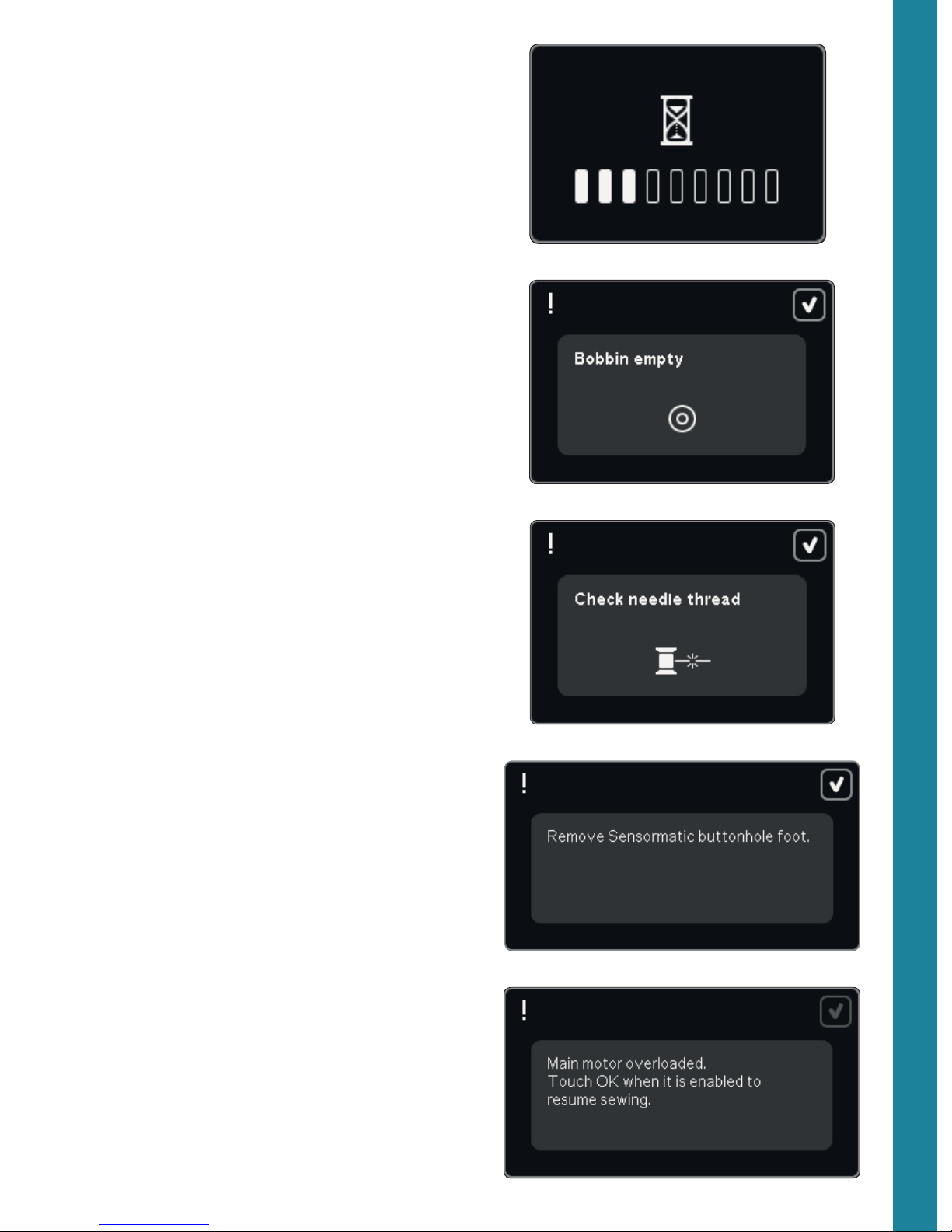

When loading from or saving to the USB embroidery stick an hourglass appears on the screen.

Note: Do not remove the USB embroidery stick when the hourglass is shown on the screen or while Files & Folders is open. Removing the stick at that time can damage the À les on your USB embroidery stick.

Connect machine to computer

Your machine comes with an Embroidery Machine Communication CD. This CD should be installed before the machine is connected to your computer for the À rst time.

When the software on the CD is installed and the machine and the computer are connected, via the USB cable, you can easily move designs or other À les to your machine.

Note: Your computer must be running Windows® XP or Windows® 7/Vista.

Note: The USB embroidery stick provided with the machine can be left in the machine when putting on the hard cover. Make sure that the cover of the USB stick is turned downwards.

Page 35

2:13

Preparations

5D™ Embroidery Software

Computer Connection

The Embroidery Machine Communication module is automatically installed. This is required to use the Send To features in any 5D™ Embroidery System module, and Send Multiple in 5D™ Organizer.

5D™ QuickFont

Create font À les (.vf3) for your PFAFF® creative sensation™ embroidery machine from most

TrueType® or OpenType® fonts on your computer.

5D™ Organizer

Find your designs and pictures easily. Browse them in different sizes and print selected groups as full worksheets of thumbnail catalogs. Convert your designs between major embroidery formats, to pictures or desktop wallpaper for your computer.

Installing your software

If you own other PFAFF® 5D™ Embroidery System software, you may need to install the 5D™ Embroidery System 9.2 (or higher version) Update instead of installing the Embroidery Machine Communication Software. Then add the PFAFF®

creative sensation™ from the Machine Manager in 5D™ ConÀ gure, as described in Step 5. Continue

with Step 6 to install hardware drivers.

1. Ensure your embroidery machine is disconnected from your computer.

2. Ensure you are logged onto your computer with a user name that is an administrator on the computer, then install your software from the CD provided.

3. Insert your CD. In Windows® 7/Vista, an AutoPlay message may appear, asking what you wish to do with the CD. Click the option to Run Menu.exe. Select your desired language, and select the “Install Embroidery Machine Communication Software” option from the menu.

4. Follow the instructions in the Installation Wizard. When asked to enter your Installation

code, enter the following number:

8200.

5. In the 5D™ ConÀ gure Wizard under MyMachines select your machine type: PFAFF® creative sensation™. Under Send 1 or Send 2 select PFAFF® creative sensation™ (or Type Q). It is recommended to set the Embroidery Machine Communication module to start automatically when starting Windows.

Note: You can À nd more detailed information about the installation in the 5D™ Embroidery System Getting Started Guide, in the folder ’UserGuides’ on the CD.

After installing the 5D™ software, you can choose to register your software by clicking on Register in the menu. Create an account and enter your details to receive customized 5D™ software newsletters.

Important!

During the registration process you will be given an option to enter the sewing and embroidery machine(s) you own. This is NOT a product or warranty registration. The machine information entered here is only used to customize 5D™ Software newsletters. For product and warranty registration, go to the PFAFF® web site at www.pfaff.com.

To register later, select the Register button in 5D™ ConÀ gure at any time.

Install hardware drivers and connect the embroidery machine

Windows® 7/Vista

6. From the main menu of your CD, click the Install Drivers option for your version of Windows® 7/Vista.

If the following User Account Control message appears: ’A program needs your permission to continue’, click the Continue button.

Page 36

2:14

Preparations

7. During the installation process a security message may appear asking ’Would you like to install this device software?’ Click Install to continue. Click Finish on the last page.

8. You may now connect your embroidery machine to your computer. A message will appear and you will be informed when your embroidery machine is ready to be used.

Windows® XP

6. From the main menu of your CD, click the Install Drivers option for Windows® XP.

Drivers are only available for 32-bit Windows® XP.

7. During the installation process, if existing drivers are found, you will be informed that drivers have been removed and that the computer must be restarted. Click OK to restart the computer. Installation will resume after the computer has restarted.

8. At the end of the installation, you will be prompted to connect your embroidery machine. Click Finish on the last page. Leave your 5D™ Embroidery System software CD in your computer.

9. The Found New Hardware wizard will appear. Select ’No, not at this time’ on the À rst page, then click Next. Select ’Install the software automatically’, then click Next. A warning will appear that the drivers are not signed. This is normal and should not be a cause for concern. Click Continue Anyway, and the driver installation will complete automatically.

How to launch the programs

Shortcuts on the Desktop

1. Double-click on the Shortcut to the 5D™ Embroidery System program folder. A list of programs appears.

2. Double-click on 5D™ Organizer, 5D™ QuickFont or 5D™ ConÀ gure to launch it.

Alternatively use the Start Menu to open modules under Start, All Programs, 5D™ Embroidery System.

Viewing and printing PDF Guides

To À nd all the Reference and Sample Guides for your 5D™ Embroidery System software, go to Start, All Programs, 5D™ Embroidery System then choose Reference Guides or Sample Guides. Choose relevant folder, then select the desired PDF Guide. Double-click on the desired name to launch the relevant .pdf À le if you have Adobe Acrobat installed on your computer. To install the Acrobat Reader, insert the 5D™ Embroidery System CD and select that option from the menu that appears.

Embroidery Machine Communication module

The Embroidery Machine Communication module must be active (

or ) to use your embroidery machine with your computer. The icons are found in the lower right corner of your computer screen. If the Embroidery Machine Communication module is not active, it may be started from the Send tab of 5D™ ConÀ gure.

How to update your machine

Be sure to consult the web site at www.pfaff.com and/or your local authorized PFAFF® dealer for updates and upgrades for your machine and Owner’s manual.

You can update your machine using the USB embroidery stick or the USB cable packed with your machine (P/N:412 62 59-04).

Updating instructions

• Go to the PFAFF® web site at www.pfaff.com

to À nd information about available updates.

• Follow the update wizard to prepare your USB

embroidery stick for the update.

• To start your machine in update mode, press

and hold the reverse button while turning on your machine. Keep the reverse button pressed until update mode is visible on the PFAFF® creative™ Color Touch Screen. Follow the instructions to update.

Page 37

2:15

B C

G H I J

Preparations

Soft Touch Buttons and indicators

Reverse button (A)

For permanent reverse, press the button once before starting to sew. The reverse indicator (B) will be lit and the machine sews in reverse until you press the button again to cancel. If you press the reverse button while sewing, the machine sews in reverse for as long as you keep the button pressed. The reverse indicator is lit when the reverse button is pressed.

Reverse is also used when sewing buttonholes, programmed tie-off end, darning stitches and tapering stitches to step between the parts of the stitch.

Reverse indicator (B)

The reverse indicator will be lit when pressing the reverse button to sew in reverse. It is also lit while sewing permanent reverse.

Action indicator (C)

The action indicator is lit to indicate that an action is to be done, for example performing tapering. The icon stays lit until the action is done.

Presser foot up and extra lift toggle (D)

Raises the presser foot and needle to the up position.

Press the button once more and the presser foot will raise to extra lift. The feed dogs will be lowered to make it easier to get thick fabric under the presser foot.

Presser foot down and pivot toggle (E)

Lower the presser foot completely. Press the button once more to raise the presser foot to pivot height.

The presser foot is lowered automatically when you start sewing.

Start/stop (F)

Press this button to start or stop the machine without using the foot control. Press the button once to start and press it again to stop.

Thread snips (G)

Press to cut both needle and bobbin thread immediately.

If pressing this button while sewing, the threads will be cut before the needle moves to the start position of the next stitch. Your machine ties off the thread, cuts the needle and bobbin threads and raises the presser foot and the needle.

The thread snips function can be programmed, see chapter 4.

Note: Threads are cut automatically when buttonholes are sewn with the Sensormatic buttonhole foot.

The presser foot will not raise after thread snips if Automatic presser foot lift has been deactivated in the Settings menu.

Thread snips performed by the machine can be cancelled in the Settings menu.

In embroidery mode the threads are cut and the presser foot raised. The upper thread is only cut automatically at the color change. When the design is À nished both needle and bobbin threads are cut automatically.

Immediate tie-off (H)

Press immediate tie-off while sewing and your machine sews a few tie-off stitches and stops automatically.

By touching the tie-off button once more while the action indicator is lit, the function can be turned off.

The tie-off function can be programmed, see chapter

Page 38

2:16

B C

G H I J

Preparations

Stitch restart (I)

When having stopped sewing in the middle of a stitch, press restart to start sewing at the beginning of the stitch again without having to reset any special settings you have made.

If pressing the stitch restart button while sewing, the stitch will be À nished and the machine will then stop.

You can also use stitch restart to go back to the beginning of an embroidery.

Needle up/down (J)

Press this button to move the needle up or down. The set ting of the needle stop po si tion is changed at the same time. When needle down is activated, the icon is lit, the needle will stop in the down position and the presser foot will raise to pivot height.

You can also tap the foot control to raise or lower the needle.

Page 39

PFAFF® creative™ Color Touch Screen

Page 40

3:2

2 3 4 5 6

PFAFF® creative™ Color Touch Screen

Your machine features the PFAFF® creative™ Color Touch Screen. This technology provides great resolution and color.

The screen is very easy to work with - just touch it with your stylus or your À nger tip to make your choices. The task bar at the bottom of the screen includes the main functions and help.

Every mode has its own color scheme, to make it easier to navigate and use the machine.

Start view

When your machine is turned on, a welcome screen is shown and then the machine opens sewing mode. If the embroidery unit is attached the machine automatically opens embroidery mode.

Main parts

The task bar (A) is used for selecting and activating the main functions.

The colored vertical bar on the right hand of the screen is called the option bar (B). It has different options depending on which mode is active.

Task bar (A)

The look of the task bar will change depending on whether sewing mode or embroidery mode is active. Change mode by touching the corresponding icon (1 or 2). The icon for the active mode is highlighted. The task bar is always located at the bottom of the screen.

1. Embroidery mode icon

2. Sewing mode icon

3. Selection menu

4. Settings menu

5. Info menu

6. Quick help

In embroidery mode

7. Embroidery stitch-out icon

The task bar in embroidery mode has an additional icon (7) above the embroidery icon. This is the Embroidery stitch-out icon. Touch it to toggle to Embroidery stitch-out mode.

Return to Embroidery edit by touching the embroidery mode icon (1).

Main functions in task bar

Task bar in embroidery mode

Task bar in Embroidery stitch-out

Page 41

3:3

DGE

PFAFF® creative™ Color Touch Screen

Option bar (B)

The option bar contains different options in sewing mode, Embroidery edit and Embroidery stitchout. Read more about the options for each mode in chapters 4, 7 and 8.

Common icons

There are some icons and functions that are frequently used on the screen. The most common are described below.

Scroll arrows (C)

Touch the arrows to scroll between available stitches.

OK (D) and cancel (E)

The OK (D) and cancel (E) icons are used to conÀ rm your settings and selections. They are also used to close full screen windows.

To abort an actual process, touch cancel. To continue, touch OK.

Long touch (F)

Some icons have increased functions, marked with an arrow at the lower right corner. To access these functions, touch and hold the icon for a few seconds.

Touch functions (G)

The touch functions will be used to make adjustments. There are up to four functions to use; move (H), rotate (I), scale (J) and pan (K).

When a function is selected, you can make adjustments by touching the arrows in the wheel, or by touching and dragging your stylus on the screen. The appearance of the wheel will change depending on which function is selected.

Page 42

3:4

2a1a2b1b2c1c2d1d2e 2f 2g

PFAFF® creative™ Color Touch Screen

Selection menu

The selection menu contains a selection bar at the bottom with icons for stitches, fonts, designs and Files & Folders. Read more about Files & Folders in chapter 10.

Select one of the icons in the selection bar to access the menus. When a stitch, font or design is selected, the selection menu will close automatically. To return to previous view, close by touching cancel.

Selection menu - overview

1. Selection bar

a) Stitches

b) Fonts

c) Designs

d) Files & Folders

2. Stitch categories

a) Utility stitches

b) Quilt stitches

c) Needle art stitches

d) Decorative stitches

e) Maxi stitches

f) Sewing techniques

g) Personal menu

3. Stitch subcategories

4. Stitches

5. Scroll arrows

6. Clear personal menu (only visible if personal menu is selected)

Selecting a stitch

To select a stitch, À rst select a category at the top (2). For each category, there are one or more subcategories (3). For each subcategory a list of stitches is shown (4). Use the scroll arrows (5) to go to the next page in the subcategory. Select a stitch by touching it.

Page 43

3:5

PFAFF® creative™ Color Touch Screen

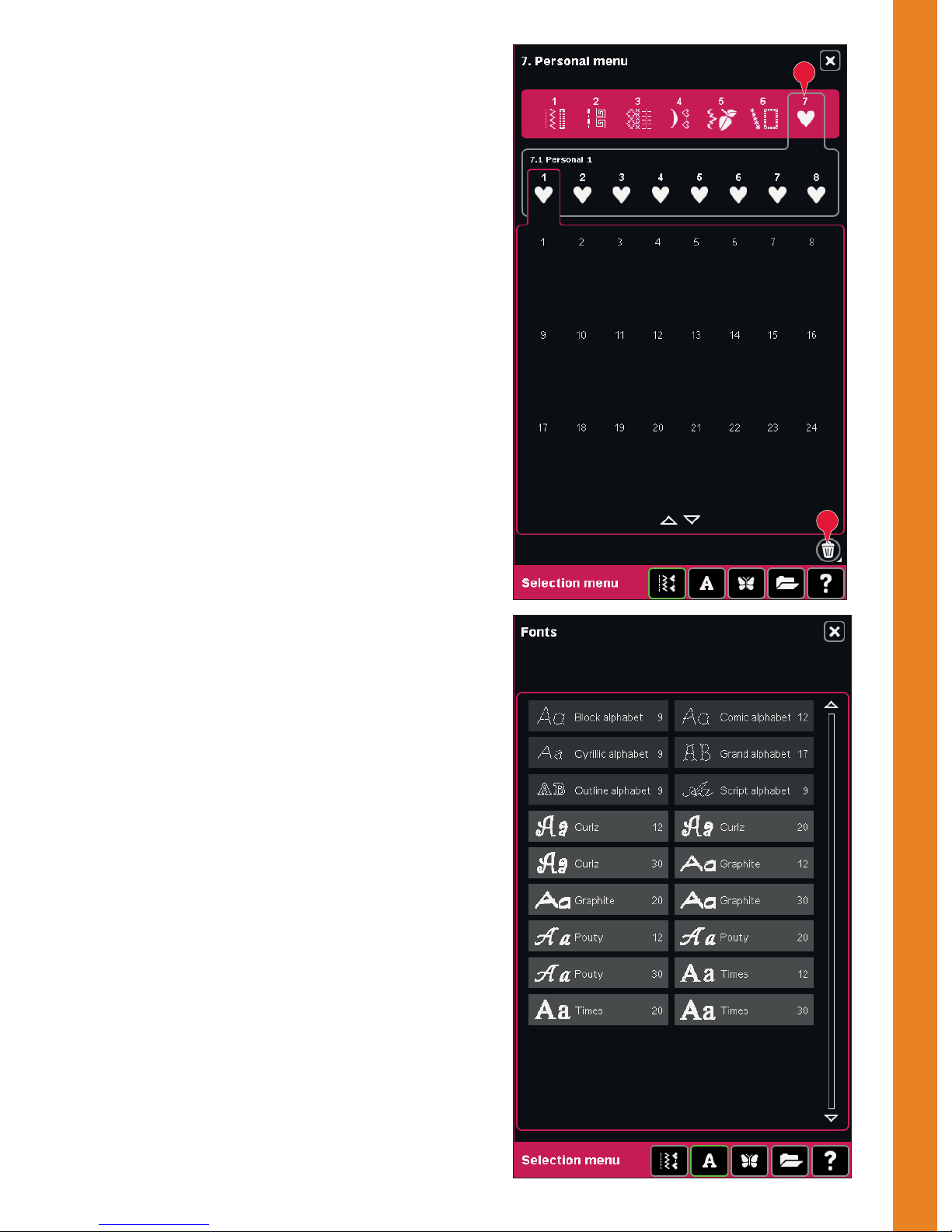

Personal menu

To À nd your personal saved stitches, open personal menu (2g). Each subcategory in the personal menu has 48 positions to save your own stitches or sequences. Scroll through the stitches in the selected subcategory using the scroll arrows. Select a stitch by touching it.

If you want to delete one stitch, À rst touch the delete icon (5), and then touch the stitch. The positon will be emptied. To abort the deletion before selecting a stitch, deselect the delete icon.

A long touch of the delete icon (5) will empty the whole subcategory selected.

Note: All stitches in the subcategory will be deleted, even though they are not visible on the screen.

Selecting a font

Stitch fonts are indicated with a dark grey background and embroidery fonts have a lighter grey background. Select a font by touching it. Use the scroll bar to see additional fonts.

A selected stitch font opens in sequencing. A selected embroidery font opens in the embroidery text editor.

Note: Embroidery fonts are only visible if the embroidery mode is active and neither sequencing nor Stitch Creator is active.

Page 44

3:6

PFAFF® creative™ Color Touch Screen

Selecting a design

Your machine has four tabs with designs: Personal designs, machine designs, mini designs and quilt designs. Read more about the different design tabs in chapter 8.

Touch a tab to display the contents. Select an embroidery design by touching it. Use the scroll bar to browse through additional designs.

When a design is selected, the machine will automatically switch to embroidery mode and the design will be loaded into Embroidery edit.

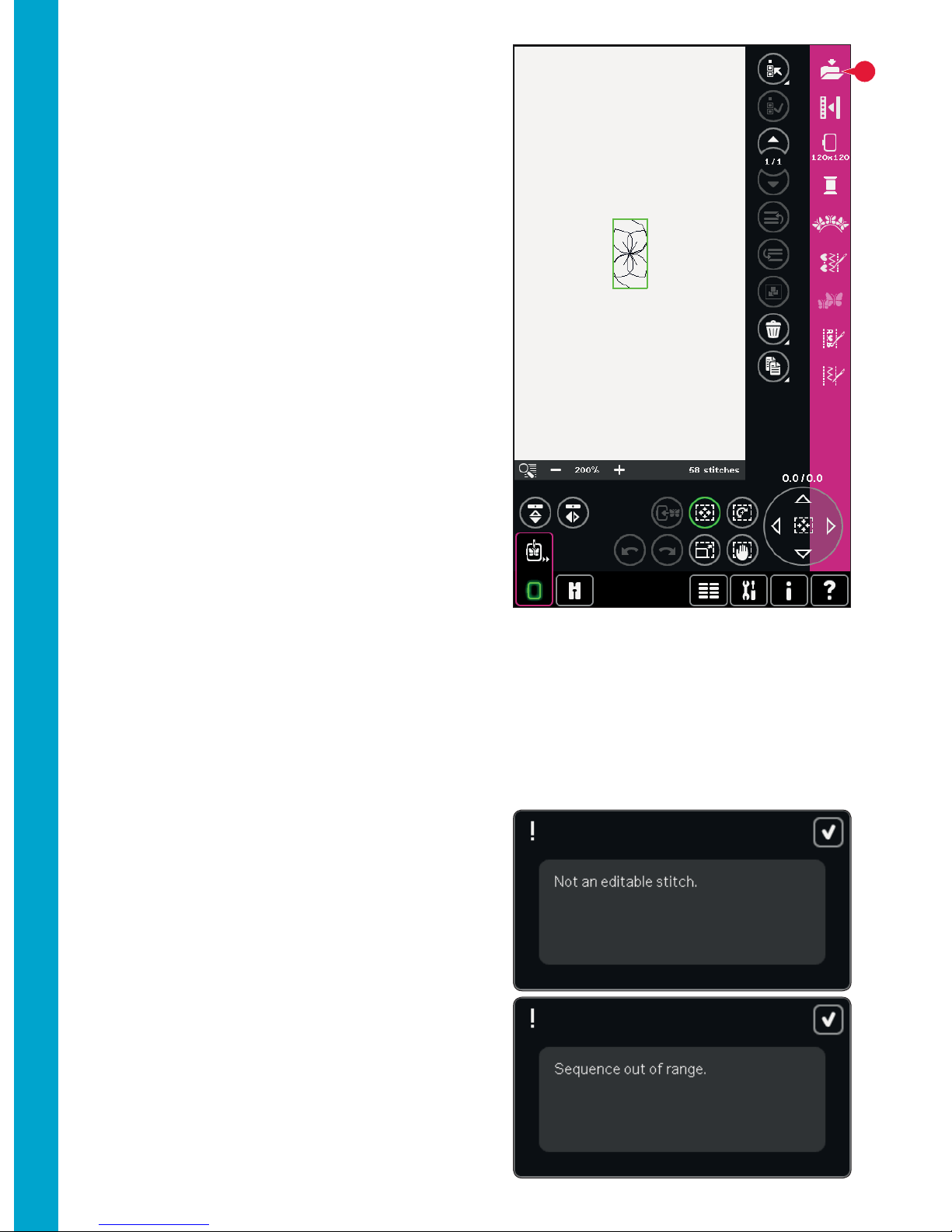

Embroidery edit

In Embroidery edit you can change colors, size, position and rotation of your designs. You can also combine designs, create shapes from designs, save, restore and delete.

You can edit your designs with or without the embroidery unit attached.

Read more about Embroidery edit in chapter 8.

Page 45

3:7

PFAFF® creative™ Color Touch Screen

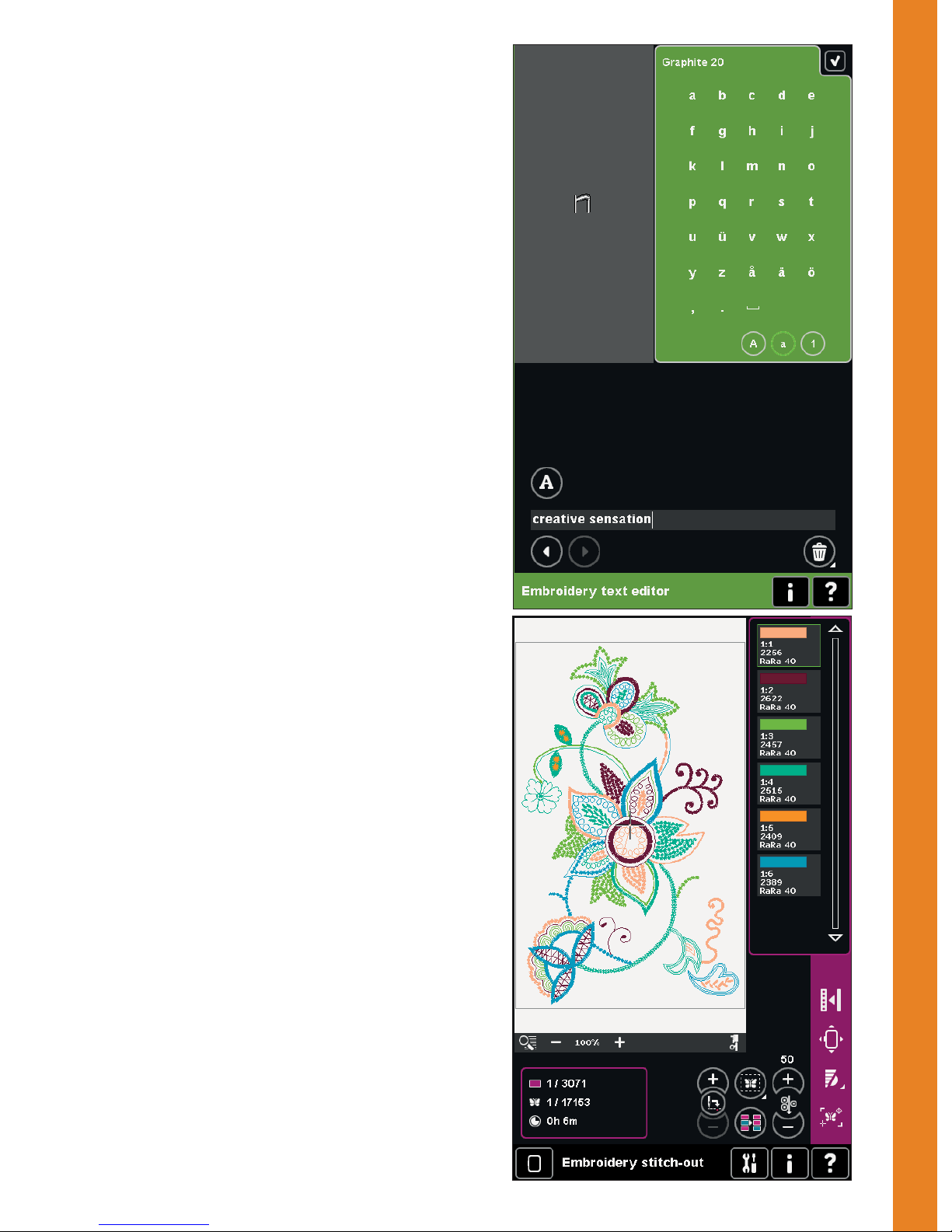

Embroidery text editor

Used to create or adjust embroidery font text.

To open, select an embroidery font in the selection menu. You can also select an existing text in Embroidery edit and then touch sequencing/ embroidery text editor on the option bar.

Read more about Embroidery text editor in chapter

Embroidery stitch-out

To embroider your design, change from Embroidery edit to Embroidery stitch-out by touching the Embroidery stitch-out icon on the task bar.

In Embroidery stitch-out you À nd functions that are useful when embroidering.

Read more about Embroidery stitch-out in chapter

Page 46

3:8

PFAFF® creative™ Color Touch Screen

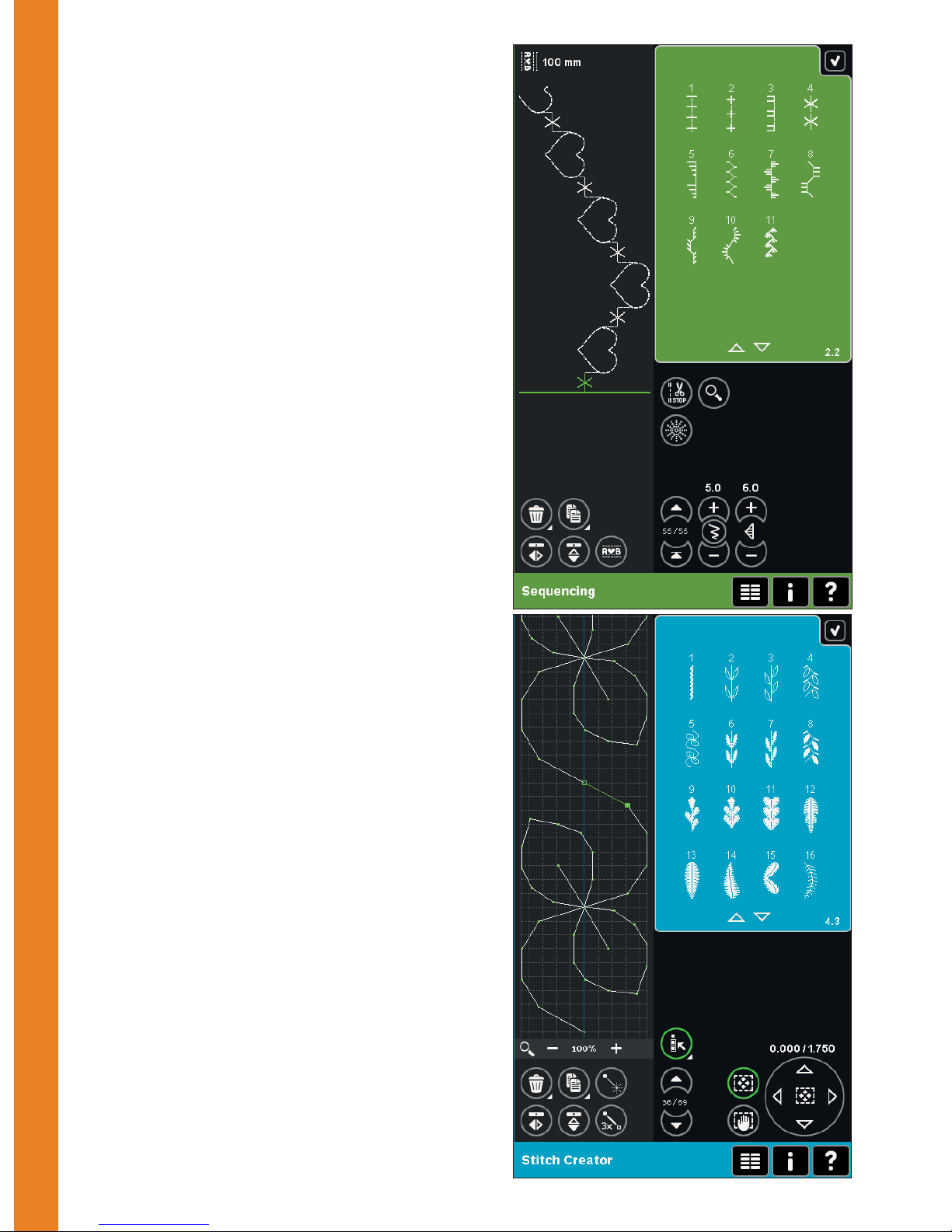

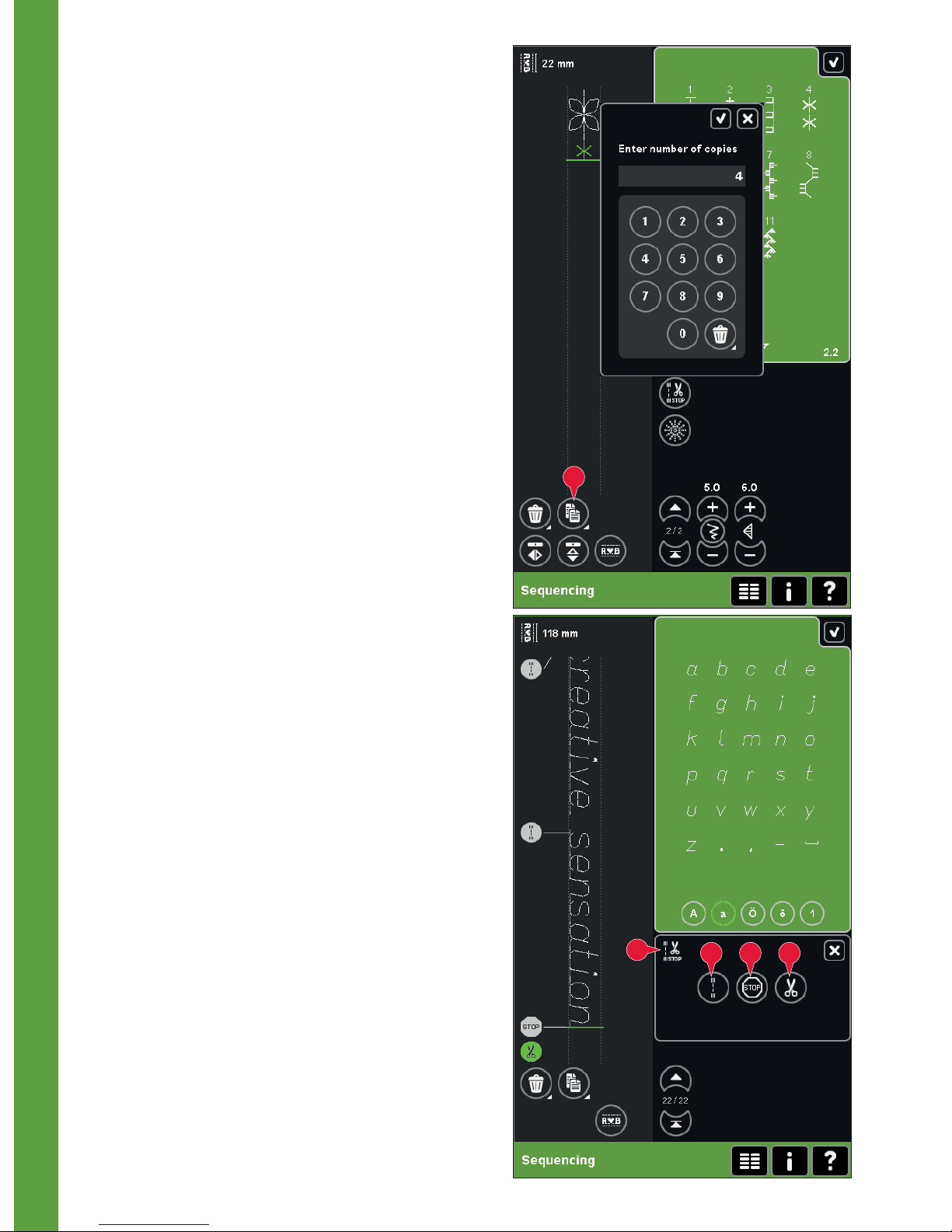

Sequencing

With sequencing you can combine various stitches and adjust them. You can use built-in stitches, load stitches from external devices or use stitches you have created. You can program tie-offs, stops and thread snips into your sequence. Connection stitches can be inserted to create endless variations.

Read more about sequencing in chapter 5.

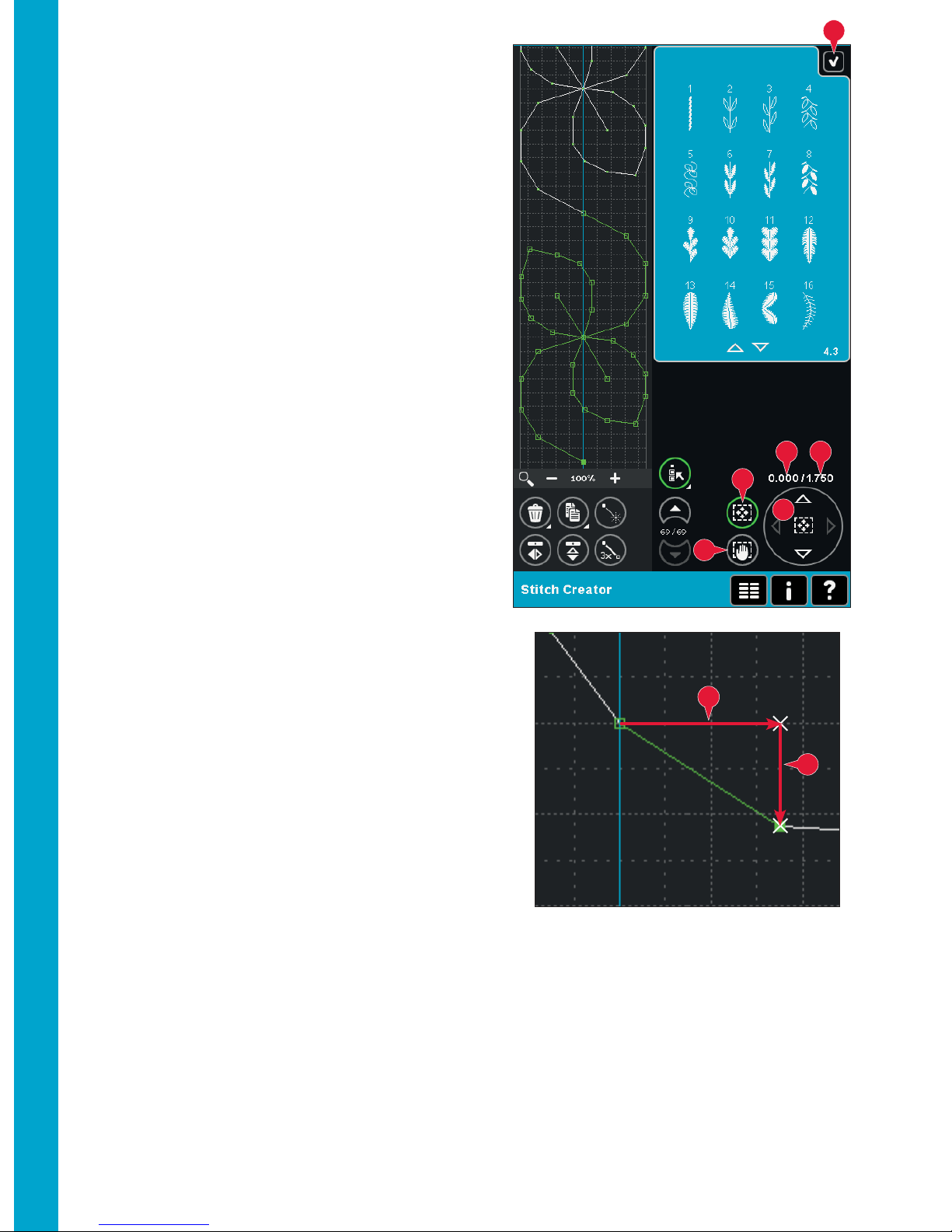

Stitch Creator

Stitch Creator allows you to create your own 9mm stitches or edit built-in stitches. Add, delete, move and adjust stitch points directly on the screen. Every single stitch point can be edited.

Start with an empty stitch À eld and build your stitch or insert a stitch for further adjustments.

Read more about Stitch Creator in chapter 6.

Page 47

3:9

A B C D

PFAFF® creative™ Color Touch Screen

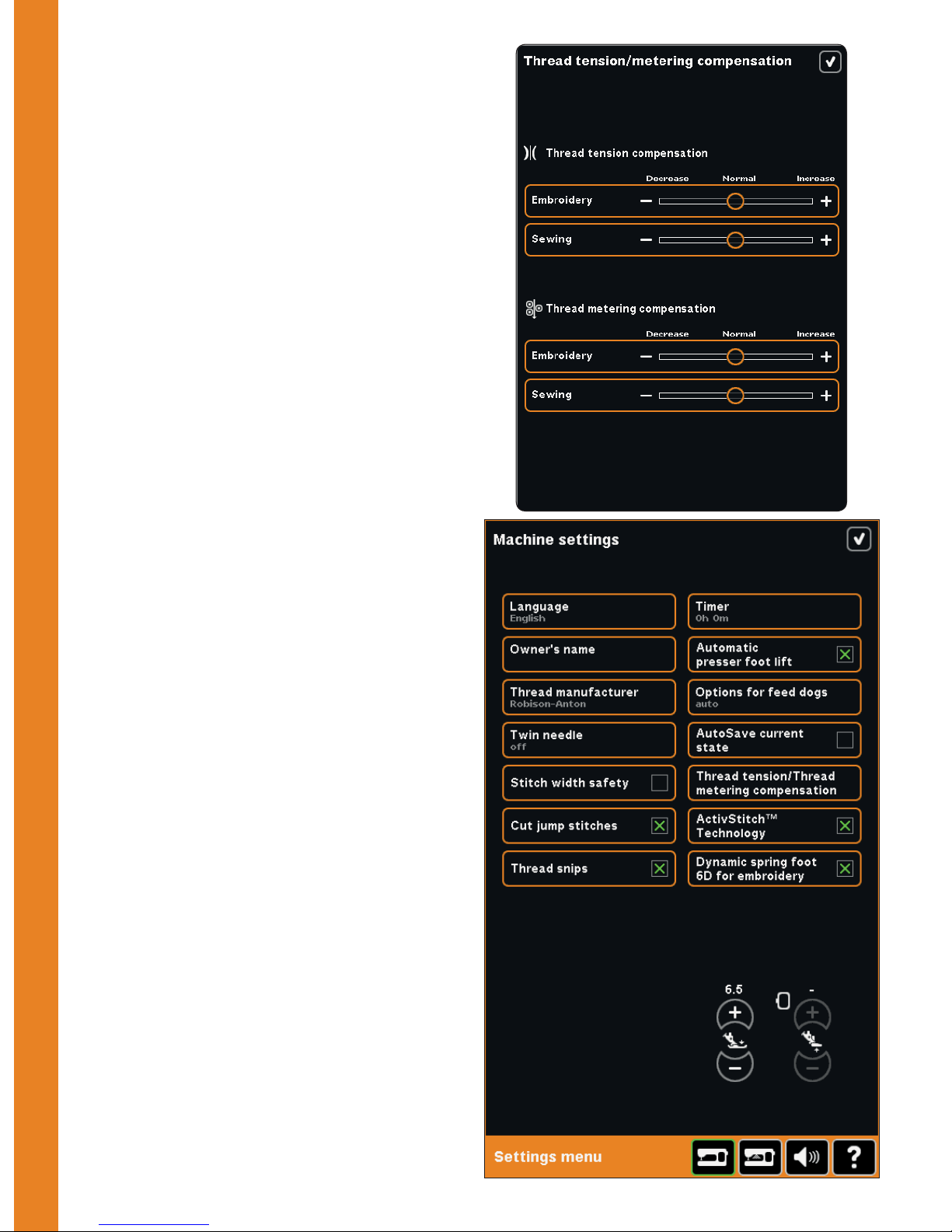

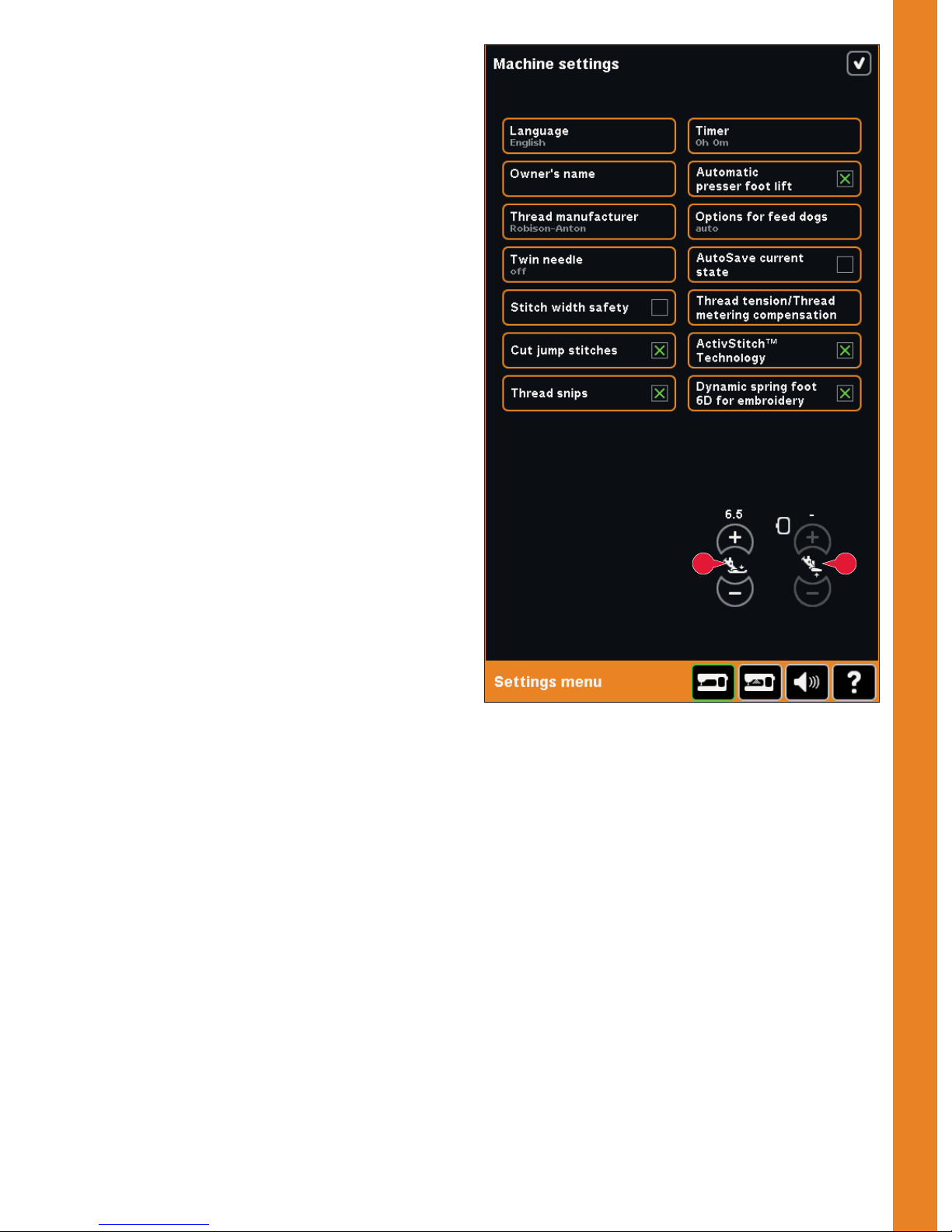

Settings menu

In the Settings menu, you can change default settings and make manual adjustments to the machine settings (A), screen and light settings (B) and sound settings (C).

Touch the icons to activate a function or open a list of choices. The settings are saved even after turning off the machine with two exceptions: Dynamic spring foot 6D is always active at power on, and for Options for feed dogs the default setting is auto.

Use Quick help to receive instant information about the settings. Touch the Quick help icon (D) and then the setting you want information about. Read more about Quick Help on page 3:16.

Machine settings (A)

Language

Touch the icon to view the available languages. Select your desired language from the list by touching it.

Owner’s name

Touch the icon to get a pop-up where you can enter your name.

Thread manufacturer

Touch to select preferred thread manufacturer. You can select between Gütermann Sulky and RobisonAnton. Color codes from the selected manufacturer will be used when changing colors in a design, or creating a new design from stitches or fonts in your machine.

Note: Changing thread manufacturer setting will not automatically convert the colors in existing designs to the selected thread manufacturer.

Twin needle

Touch the icon to open a list for twin needle width selections. When a twin needle size is selected, the width of all stitches is limited for that needle size to prevent needle breakage. The setting is kept until you deselect the twin needle width.

When a twin needle size is selected, a pop-up is shown when turning on your machine. Another warning pop-up is shown when selecting a stitch that is too wide for the set twin needle size. The stitch width of those stitches is automatically adjusted to À t the twin needle. Deselect twin needle to go back to normal sewing.

Pop-up for twin needle selection.

Page 48

3:10

PFAFF® creative™ Color Touch Screen

Stitch width safety

Select this function when using a straight stitch presser foot to lock the needle in center position for all stitches, preventing damage to the needle and/or presser foot.

This function is automatically selected, and cannot be deselected, when the straight stitch needle plate is attached.

When turning on the machine with this setting activated and for every stitch selection that is not a straight stitch, a pop-up informs you that it is set to straight stitch. Deselect stitch width safety to go back to normal sewing.

Note: Twin needle and stitch width safety cannot be used at the same time.

Cut jump stitches

Your machine features the automatic function Cut jump stitches. This function saves you time trimming after the embroidery is completed. When Cut jump stitches is selected your machine will trim the top jump stitch thread and pull the thread end to the underside of the fabric as you embroider.

Note: Your machine will also cut the thread after you have changed to a new color. Hold the thread end when you start embroidering again, so that you can easily remove the thread end when cut.

Designs marked with this symbol are programmed for Cut jump stitches. Jump stitch trim commands can be added to any design using the 5D™ Organizer Software, included with your machine.

Automatic thread snips

When selected, the automatic thread snips is activated. The threads are cut automatically and the presser foot raises at color changes or when an embroidery is À nished. When deselected, no automatic thread snips will be performed.

Page 49

3:11

PFAFF® creative™ Color Touch Screen

Timer

Displays the total sewing and embroidery time of your machine. Touch the icon to reset the timer.

Automatic presser foot lift

When selected, the automatic presser foot lift is activated. The presser foot will raise to pivot height for example when stopping with the needle in the down position. When deselected, the presser foot will stay lowered even if the machine stops with the needle in down position.

Options for feed dogs

Touch to open a pop-up with three options.

The default setting is auto (recommended). Changes to the default setting are not retained once the machine has been turned off. Your machine automatically raises or lowers the feed dogs, depending on the stitch/technique selected.

For example, the feed dogs lower automatically in free-motion or embroidery modes, when the button sewing stitch is selected or when using the Presser foot extra lift. When a new stitch/technique is selected, the feed dogs come up automatically when you start sewing.

Select up to set the feed dogs to remain raised for all sewing.

Select down to set the feed dogs to remain lowered for all sewing.

AutoSave current state

When AutoSave current state is selected, the machine will save current state periodically while embroidering and also when you stop embroidering.

The information about the embroidery will be saved even after switching the machine off.

Note: If AutoSave current state is selected it can take longer to go from Embroidery edit to Embroidery stitchout.

Page 50

3:12

PFAFF® creative™ Color Touch Screen

Thread tension/ thread metering compensation

If you À nd that the thread tension/thread metering needs to be increased or decreased for most stitches or embroideries, you can change the general setting for embroidering and/or sewing. You may need to adjust the thread tension/thread metering controls if you regularly sew or embroider on special fabric or use specialty threads.

Touch Thread tension/thread metering compensation. Adjust the slider bars to generally increase or decrease the thread tension/thread metering for all stitches and/or embroidery. Default setting is normal.

Once you have increased or decreased the value in the Settings menu, the thread tension control icon or thread metering control icon will change to red.

Note: Contact you authorized PFAFF® dealer if you experience thread tension/thread metering problems that cannot be helped with the Thread tension/thread metering compensation.

ActivStitch™ Technology

The ActivStitch™ Technology feature controls the needle thread in two ways: thread tension and thread metering. When activated, the machine will automatically use thread metering if possible. Depending on your other settings, the machine will automatically use thread tension in some cases, e.g., when free-motion is active.

Certain optional accessories or special techniques may require the use of thread tension for best results. Deselect ActivStitch™ Technology to switch to thread tension.

Read more about the ActivStitch™ Technology feature on page 4:9.

Page 51

3:13

E F

PFAFF® creative™ Color Touch Screen

Dynamic spring foot 6D for embroidery

Dynamic spring foot 6D for embroidery is active by default when you turn on the machine.

The Dynamic spring foot 6D is always recommended for embroidery. If another type of foot is used, e.g., presser foot 6A, deactivate Dynamic spring foot 6D for embroidery. When deactivated, the ActivStitch™ Technology feature will use thread tension instead of thread metering.

Presser foot pressure (E)

In most cases, you do not need to adjust the presser foot pressure. Specialty techniques may require an adjustment. The higher the number the more pressure on the fabric.

Presser foot height embroidery (F)

Adjust the height of the presser foot in Embroidery stitch-out mode. Use the + and - icons to either raise or lower the height of the presser foot.

Some embroideries may build up under the presser foot. If there is not enough space between the presser foot and the embroidery, the top thread will form loops on the underside of the embroidery. Increase the presser foot height in small steps until the embroidery moves freely under the presser foot.

Note: Because the Dynamic spring foot 6D measures the fabric thickness continuously during embroidery, the option to adjust presser foot height in embroidery is only available if Dynamic spring foot 6D for embroidery is deselected.

Page 52

3:14

PFAFF® creative™ Color Touch Screen

Screen and light settings (B)

Lock screen

If needed, you can easily lock the screen while sewing or embroidering.

When activated, the screen is locked everytime it is inactive for ten seconds. The screen will be locked until you unlock it by touching OK.

Screen saver

When activated, the creative sensation™ start up screen will be displayed as a screen saver ten minutes after the last touch. Touch the screen or press any button to exit the screen saver.

Calibrate

When touching the icons on the screen, the screen might need a calibration to adjust to your touch.

Touch the calibrate icon to open a special view for PFAFF® creative™ Color Touch Screen calibration. Follow the instructions on the screen to calibrate.

Alert light

When activated, you will get a Á ashing light at some warning pop-ups. When not activated, only the sound will be played.

Adjust Custom LED lights

Adjust the brightness and the color temperature of the Custom LED lights on your machine to make it perfect for all types of fabric and the light conditions in your sewing room. Simply move the button right or left on the slides.

Page 53

3:15

PFAFF® creative™ Color Touch Screen

Sound settings (C)

You can change the sound settings on your machine for different situations. First select from the list which sound event you want to change. Then, select the sound you want to play by checking one of the boxes. You will be able to hear the sound when you check the box. Each event can have a different sound.

User deÀ ned sound

If you want to import your own sound À les, check the user deÀ ned box at the bottom of the list. This will open Files & Folders. Browse your USB embroidery stick to À nd your sound À le, select it on screen and touch the OK icon. The name of the loaded sound À le is shown next to the button. To set another user deÀ ned sound, long touch the check box to open Files & Folders.

The sound length for icon acknowledge, button/ icon disabled and for warning or attention popups is maximum 5 seconds. For starting up and embroidery À nished, the maximum sound length is 30 seconds. The sound À les must be stored either on your machine or, if connected, an external device or your PC.

Note: You can only play PCM encoded WAV-À les. For optimal result the À le should be 8-bit mono. The machine will not support compressed sound À les.

We recommend always storing your sound À les on your machine before importing them into user deÀ ned sound.

Audio repeat

When active, the signal for some warning or attention pop-ups is repeated in intervals until it is cancelled.

Volume

You can change the volume using the slider.

Page 54

3:16

A B C D E

PFAFF® creative™ Color Touch Screen

Info menu

Use the info system to easily get help topics and information. The Info menu is a built-in shortened version of the Owner’s manual.

When you touch the info menu icon on the task bar, you have four options to select from - category (A), index (B), personal info (C) and text (D).

Browse through the topics using your stylus. The left arrow at the top of the screen opens the previous page. The right arrow takes you back to the current page.

Category (A)

Category shows the help topics divided into categories following the structure of the Owner’s manual.

Index (B)

Index shows the help topics in alphabetical order.

Personal info (C)

Personal info contains the owner’s name, machine’s software information and serial number.

Text (D)

You can open and read text and HTML-À les on your machine. The text view shows these text À les which are opened from Files & Folders (see chapter 10).

Note: The text icon is not active if no text or HTML À le has previously been opened from Files & Folders.

Quick help (E)

Your machine has a built-in Quick help, which gives you instant information about everything you see on the screen. Touch the Quick help icon on the lower right corner of the screen. It starts Á ashing indicating that Quick help is active. Touch the icon or the part of the screen you want information about. A pop-up gives a short explanation. Touch OK to close the pop-up and exit Quick help.

When a USB mouse is connected, it is even easier to use the built-in Quick help. Place the cursor over the icon and right click on the mouse and Quick help will pop-up instantly.

Page 55

Sewing mode

Page 56

4:2

262527 28 29

12 13 14

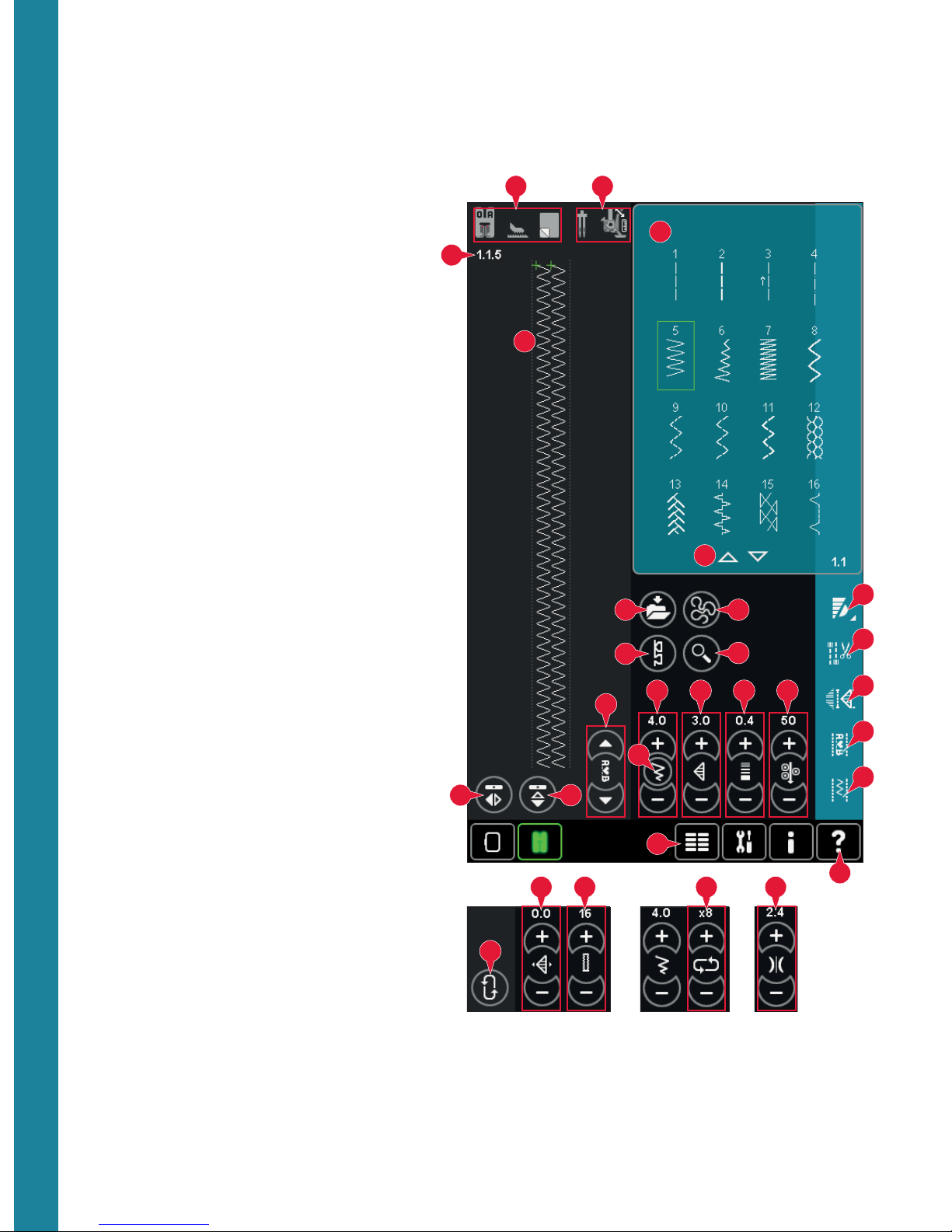

Sewing mode

1. Sewing recommendations

2. Machine settings

3. Stitch selection area

4. Arrows for scrolling through stitch categories

5. Selected stitch number

6. Stitch À eld

7. Mirroring side to side

8. Mirroring end to end

9. Sequence start position

10. Stitch width

11. Width/position toggle

12. Stitch length

13. Stitch density

14. Thread metering

15. Save options

16. Free-motion options

17. Balance

18. Zoom to all

19. Speed control

20. Tie-off options

21. Sewing programs

22. Sequencing

23. Stitch Creator

24. Selection menu

25. Repeat buttonhole

26. Stitch positioning

27. Buttonhole slit length

28. Button stitch repetition

29. Thread tension

30. Quick help

Note: All symbols and options will not be shown at the same time.

Sewing mode

In sewing mode you can select stitches, adjust and sew them. Use Stitch Creator and sequencing to create your own stitches and sequences. The selected stitch is shown in actual size in the stitch À eld. Recommendations and machine settings are shown at the top of the screen.

Sewing mode - overview

Quick help (30)

Use Quick help to receive instant information about any icon or part of the screen. Touch the Quick help icon (30) and then the icon or the part of the screen you want information about.

Page 57

4:3

2b 2c 2d 2e

1c 2a

C DB

Sewing mode

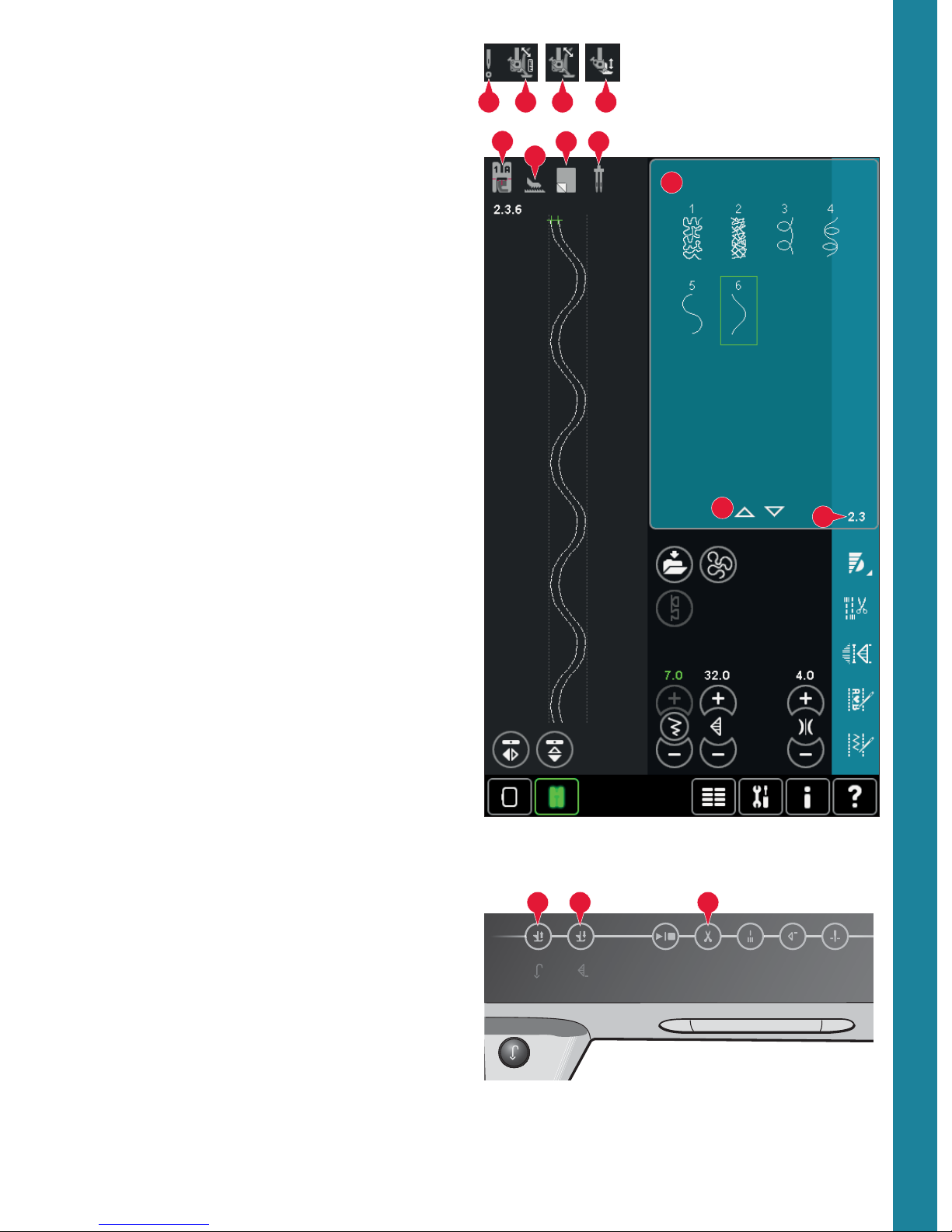

Select a stitch

To select a stitch, touch the actual stitch in the stitch selection area (3). You can scroll through the list of stitches by touching the arrows at the bottom of the stitch selection area (4). The number of the actual subcategory is shown in the lower right corner (A).

You can also select a stitch from the selection menu (24), see page 3:4.

Sewing recommendations (1)

Your machine automatically gives you recommendations for the selected stitch.

a) Presser foot recommendation

b) IDT™ system recommended

c) Stabilizer recommended

Machine settings (2)

Some machine settings are indicated with a symbol when activated in the settings menu.

a) Set for twin needle

b) Set for stitch width safety

c) Set for dynamic spring foot free-motion

d) Set for spring foot free-motion

e) Set for sensormatic free-motion

Raise and lower the presser foot

Your machine features the automatic presser foot up and extra lift button and the presser foot down and pivot button.

To lower the presser foot, place the fabric under the presser foot and press the presser foot down button (C) or step on the foot control. To raise the presser foot, press the presser foot up button (B) or press the thread snips button (D) to cut needle and bobbin thread and raise the foot. When the needle stops in the down position, the presser foot raises to pivot height.

You can also lower the presser foot and the needle with your foot control. If you tap your foot control once you will lower the presser foot. If you tap the foot control a second time the needle will be lowered into the fabric.

Note: With Needle down selected, when you stop sewing and touch the presser foot up button the foot will raise but the needle stays in the fabric. Touch presser foot up again to raise the needle.

Page 58

4:4

Stitch length +Stitch length -

102612

Sewing mode

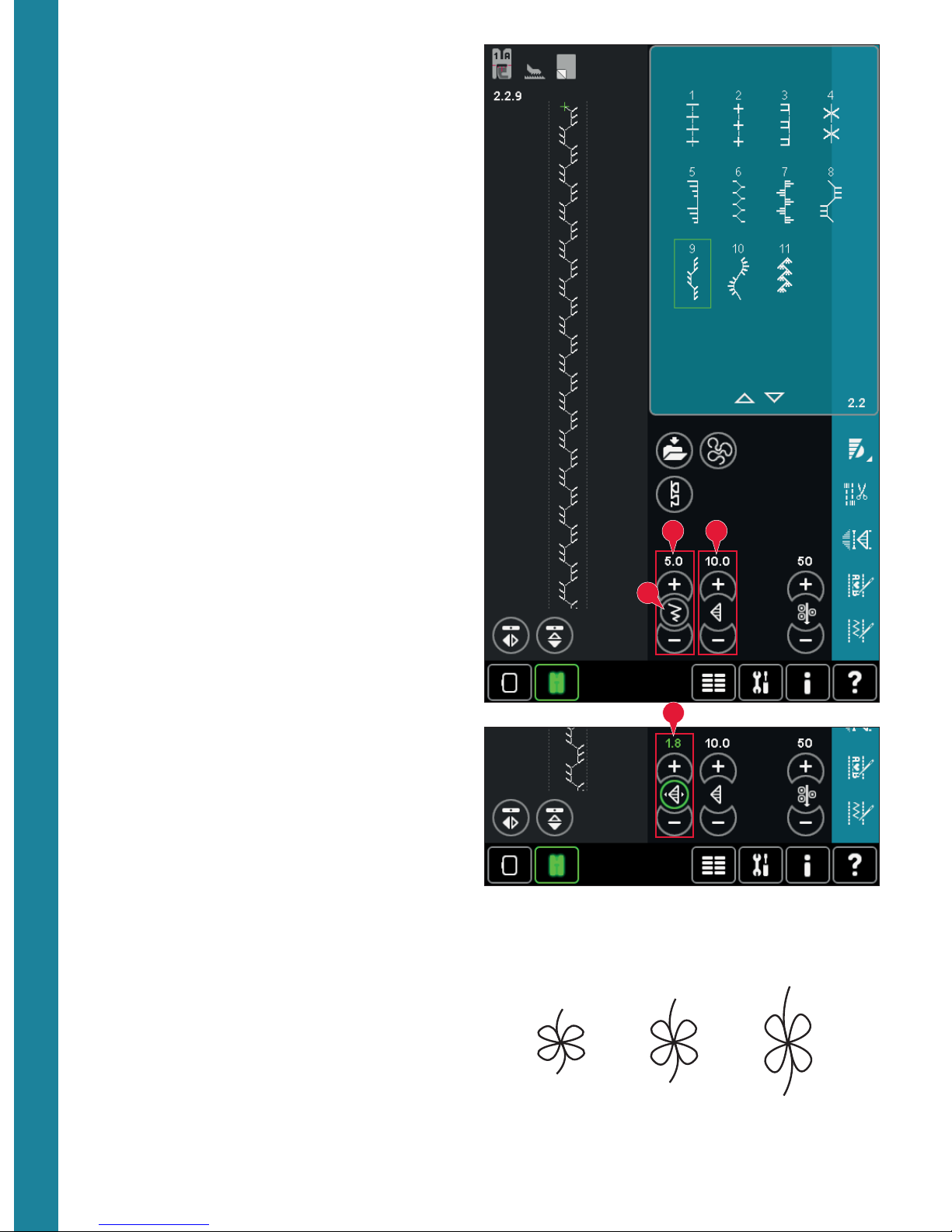

Stitch settings

Your machine will set the best settings for each selected stitch. You can make your own adjustments on the selected stitch.

The setting changes only affect the selected stitch. Your changed settings will be reset to default when selecting another stitch. The changed settings are not automatically saved when turning your machine off. You can save the adjusted stitch in Personal menu.

Note: The set stitch width and the stitch length are shown above the icons. When trying to exceed minimum or maximum settings for width and length, a warning sound will be heard.

The default value is shown in white. Value changes are shown in green.

Stitch width (10)

Increase or decrease the stitch width using + and -.

Stitch positioning (26)

For straight stitches the stitch positioning icon (26) is shown instead of the stitch width icon. Use + to move the needle to the right and - to move the needle to the left. For straight stitches the machine has 37 needle positions.

It is possible to change the needle position of all stitches that are less than 9 mm wide. Touch the width/position toggle (11) icon to toggle between stitch width and stitch positioning. The stitch position can only be changed to the limit of the maximum stitch width. Changing the stitch position will also limit the stitch width adjustment.

Stitch length (12)

Increase or decrease the stitch length using + and -. If lengthening a zigzag stitch or a decorative stitch, the entire stitch will be longer. If lengthening a satin stitch where the density can be adjusted, the entire stitch will be longer but the density will remain the same.

Page 59

4:5

Stitch density -

Stitch

density +

7 8

Sewing mode

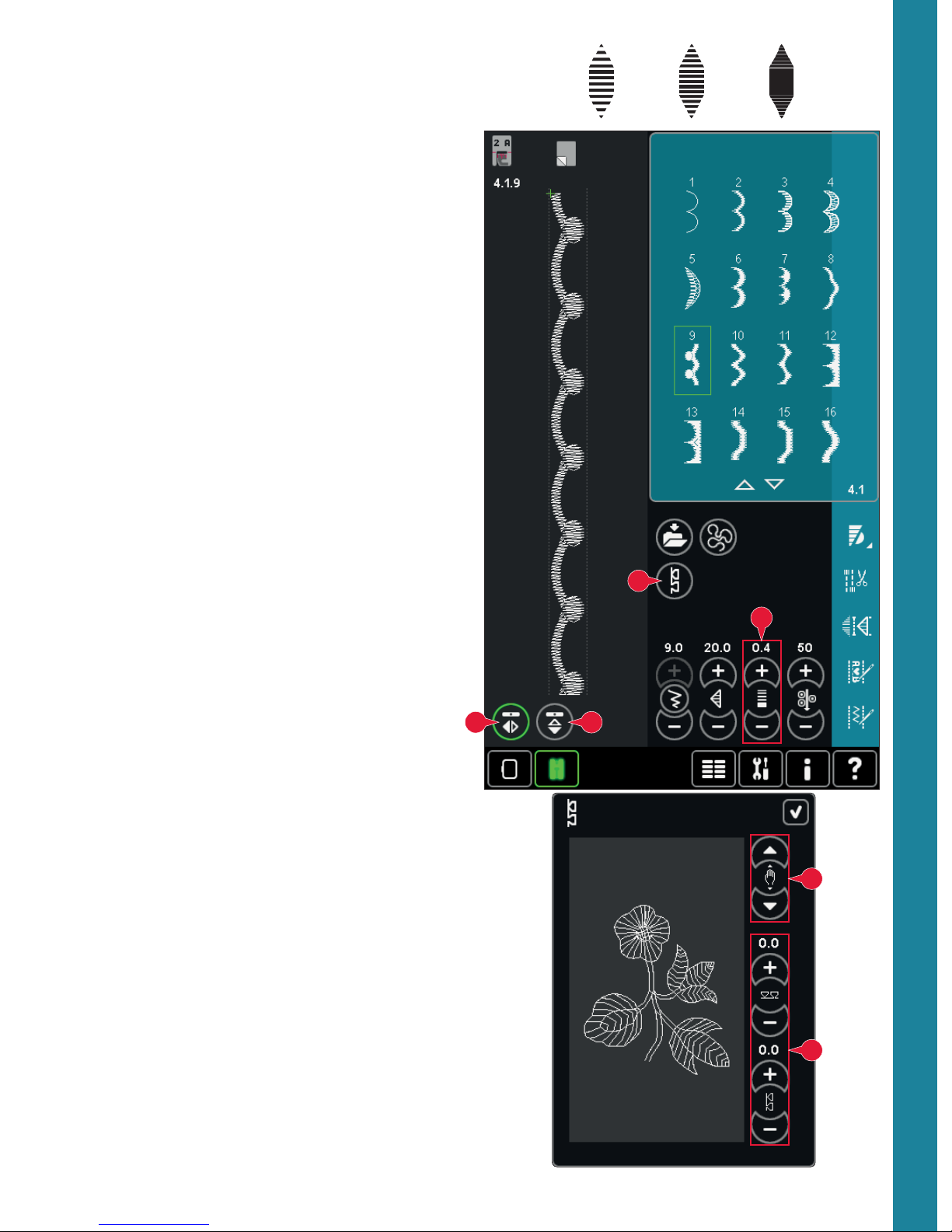

Stitch density (13)

The stitch density control adjusts the density (the closeness of the satin stitches that make up the entire stitch). The density does not affect the actual length of the entire stitch.

Touch + to decrease the density. Touch - to increase the density.

Note: This is often used with specialty threads and when a less dense satin stitch is desired.

Mirroring (7 and 8)

To mirror stitches or sequences side to side touch icon (7). For mirroring end to end touch icon (8).

Balance (17)

When sewing on special fabrics or doing a special technique, the balance may need to be adjusted.

Start by sewing a stitch on a piece of scrap fabric. Touch the balance icon (17) to open the balance window. Use the + and - icons (F) to adjust the side to side and/or forward/backward balance of the stitch. Use the pan icons (E) to see the whole stitch. Change the picture on the screen to match your sewn sample. When you sew again, the balance will be corrected.

Buttonholes can also be balanced.

Page 60

4:6

Sewing mode

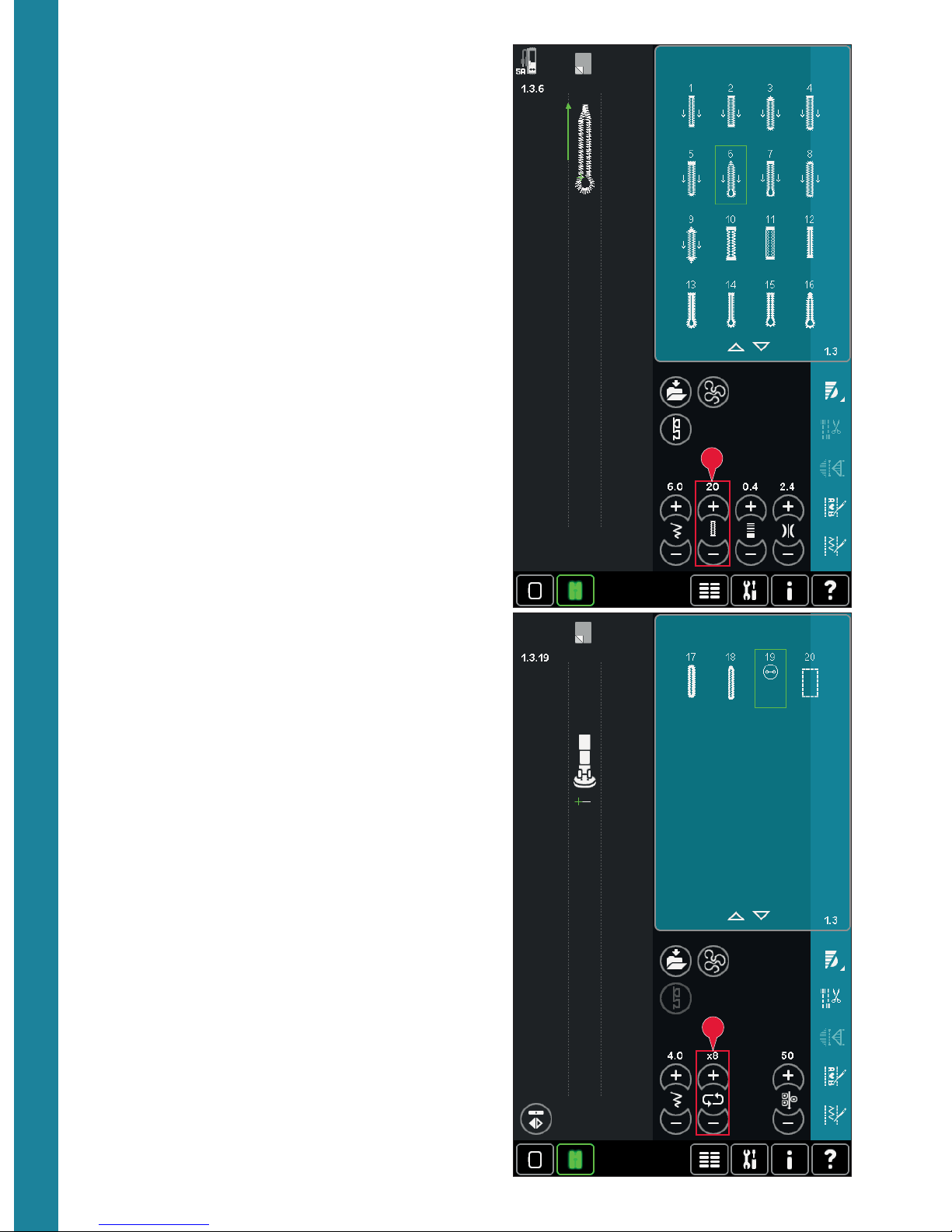

Buttonhole slit length (27)

Set the buttonhole slit length by using + to increase and - to decrease when sewing a buttonhole with the Sensormatic buttonhole foot.

Button stitch repetition (28)

Touch + to increase and - to decrease the number of stitch repetitions to be sewn, when sewing on a button.

Page 61

4:7

Thread tension control

Thread metering control

Sewing mode

Thread metering (14)/ Thread tension (29)

The ActivStitch™ Technology feature controls the needle thread in two ways: thread tension and thread metering. The ActivStitch™ Technology feature improves the correct balance between needle thread and bobbin thread. It will automatically use thread metering when possible, to get the best result.

Thread metering automatically and continuously measures the fabric thickness to meter the correct amount of thread for the selected stitch. When using thread tension, the tension discs will keep the correct amount on tension on the needle thread.

Certain optional accessories or special techniques may require the use of thread tension for best results. Deselect ActivStitch™ Technology in Machine settings to switch to thread tension.

The control visible in sewing mode will change between thread metering and thread tension depending on the setting in Machine settings. Use the control to adjust the balance between needle thread and bobbin thread, e.g., when using specialty thread.

Adjust thread tension/ thread metering

For the best stitch appearance and durability make sure the needle thread tension/thread metering is correctly adjusted, i.e. for general sewing, the threads evenly meet between the two fabric layers.

If the bobbin thread is visible on the top side of the fabric, the thread tension/thread metering is too tight. Reduce the thread tension/thread metering.

If top thread is visible on the underside of the fabric, the thread tension/thread metering is too loose. Increase the thread tension/thread metering.

For decorative stitches and buttonholes the top thread should be visible on the underside of the fabric.

Thread tension/thread metering compensation

If you À nd that the thread tension or thread metering in general is too low or too high, touch Thread tension/thread metering compensation in the Machine settings menu and adjust the settings in the window that appears, see page 3:12.

Page 62

4:8

Sewing mode

Free-motion options (16)

All stitches on your machine can be sewn in freemotion to create fantastic effects.

Touch the free-motion options icon (16) to open a window where you can select between three different free-motion options. A free-motion foot symbol at the top of the screen (A) indicates which setting is selected. Use Quick help (30) on the symbol for information about the current setting.

For all free-motion sewing the feed dogs will lower automatically and the fabric must be moved manually.

Note: Make sure that the IDT™ system is disengaged.

Read more about free-motion sewing on page 4:20.

Dynamic spring foot free-motion (16a)

Activate to set the machine in Dynamic spring foot free-motion mode for the Dynamic spring foot 6D. The Dynamic spring foot measures the fabric thickness and will raise and lower with each stitch to hold the fabric on the needle plate while the stitch is being formed.

Note: The Dynamic spring foot 6D is recommended for use with straight stitch. Activate Stitch width safety in Machine settings.

Spring foot free-motion (16b)

Activate to set the machine in Spring foot freemotion mode for optional spring feet. A spring foot will raise and lower with each stitch to hold the fabric on the needle plate while the stitch is being formed.

Note: Optional spring feet can be purchased at your local authorized PFAFF® dealer.

Do not use a spring foot if Sensormatic free-motion is activated, since the needle might damage the presser foot.

Page 63

4:9

a b c

Sewing mode

Sensormatic free-motion (16c)

Activate to set the machine in Sensormatic freemotion mode for presser foot 6A.

When sewing free-motion at low speed the presser foot will raise and lower with each stitch to hold the fabric on the needle plate while the stitch is being formed. At higher speed, the presser foot Á oats over the fabric while sewing.

Skipped stitches can occur if your fabric moves up and down with the needle as you are stitching. Lowering the presser foot height will reduce the space between the presser foot and the fabric and eliminate the skipped stitches.

To adjust the presser foot height in Sensormatic free-motion mode, long touch the check box (d) and make adjustments in the pop-up.

Note: Be careful not to reduce the presser foot height too much. The fabric must still move freely under the presser foot.

Sequence start position (9)

When sewing a sequence it is possible to start sewing anywhere in the sequence. Use the arrows (9) to step through the sequence. Read about sequencing in chapter 5.

Zoom to all (18)

If the stitch or sequence is wider than what can be shown on the screen, you may use the zoom to all icon to see the whole width of the sequence.

Note: Zoom to all is only visible if the stitch or sequence is wider than the stitch À eld.

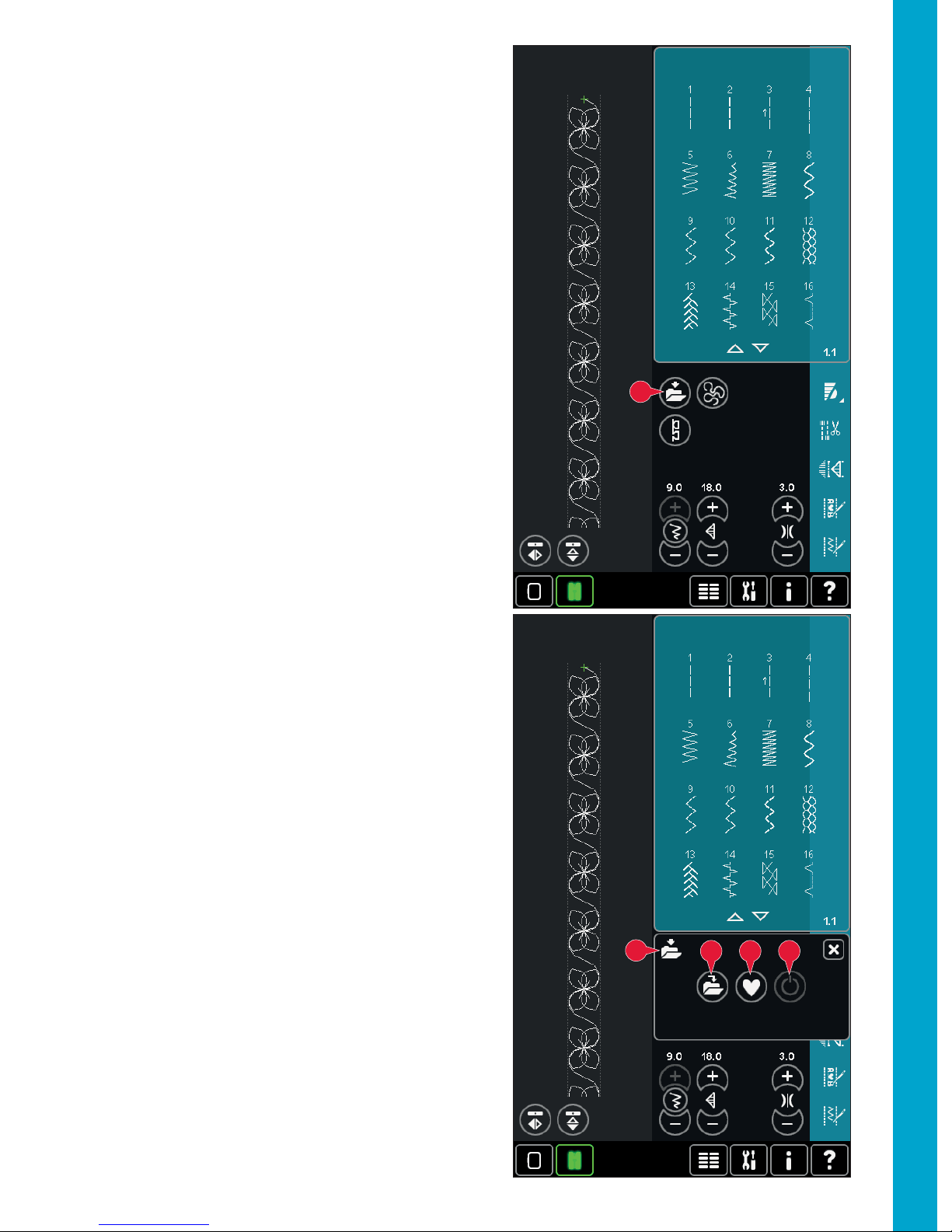

Save options (15)

Select where to save your stitch, open the different save options under save (15).

a) Save to Personal À les

b) Save to Personal menu

c) Save personal default stitch

Save to Personal À les (15a)

To save a stitch into your Personal À les, touch the save icon (15) and select save to Personal À les (15a).

The icon will open a new window where you can select where to save your stitch. You can save either to a folder in your Personal À les or to an approved external device.

Page 64

4:10

b c

Sewing mode

Save to Personal menu (15b)

To save a stitch into your Personal menu, touch the save options icon (15) and select save to Personal menu (15b). A new window will open. Choose which subcategory you want to save your stitch in (A). All your previously saved stitches will be shown in the Personal menu.

You can scroll through the list to À nd a free position, using the arrows (B). Any box without a stitch is a free position and can be used to save your new stitch. Simply touch the position and your stitch is saved.

Any box with a stitch is an occupied position. You can overwrite a previously stored stitch. Simply touch the stitch to overwrite. A pop-up will ask you to conÀ rm that you want to overwrite the previously stored stitch. Cancel the saving process by touching the cancel icon. The saving window will close and you return to the previous screen.

To delete a saved stitch or sequence, touch the delete icon (C). The delete icon will be active until a stitch is selected and deleted or until the delete icon is touched again. A pop-up will ask you to conÀ rm the deletion.

Long touch the delete icon to delete all stitches saved in the current subcategory at one time.

Note: If using the long touch function, even the stitches in the actual subcategory not visible on screen, will be deleted.

Save personal default stitch (15c)

Select your stitch and then touch this icon (15c) to conÀ rm your default stitch. This stitch will now be selected when you turn on your machine.

Page 65

4:11

Speed control

Tie-off options

Stitch programs

Sequencing

Stitch Creator

Sewing mode

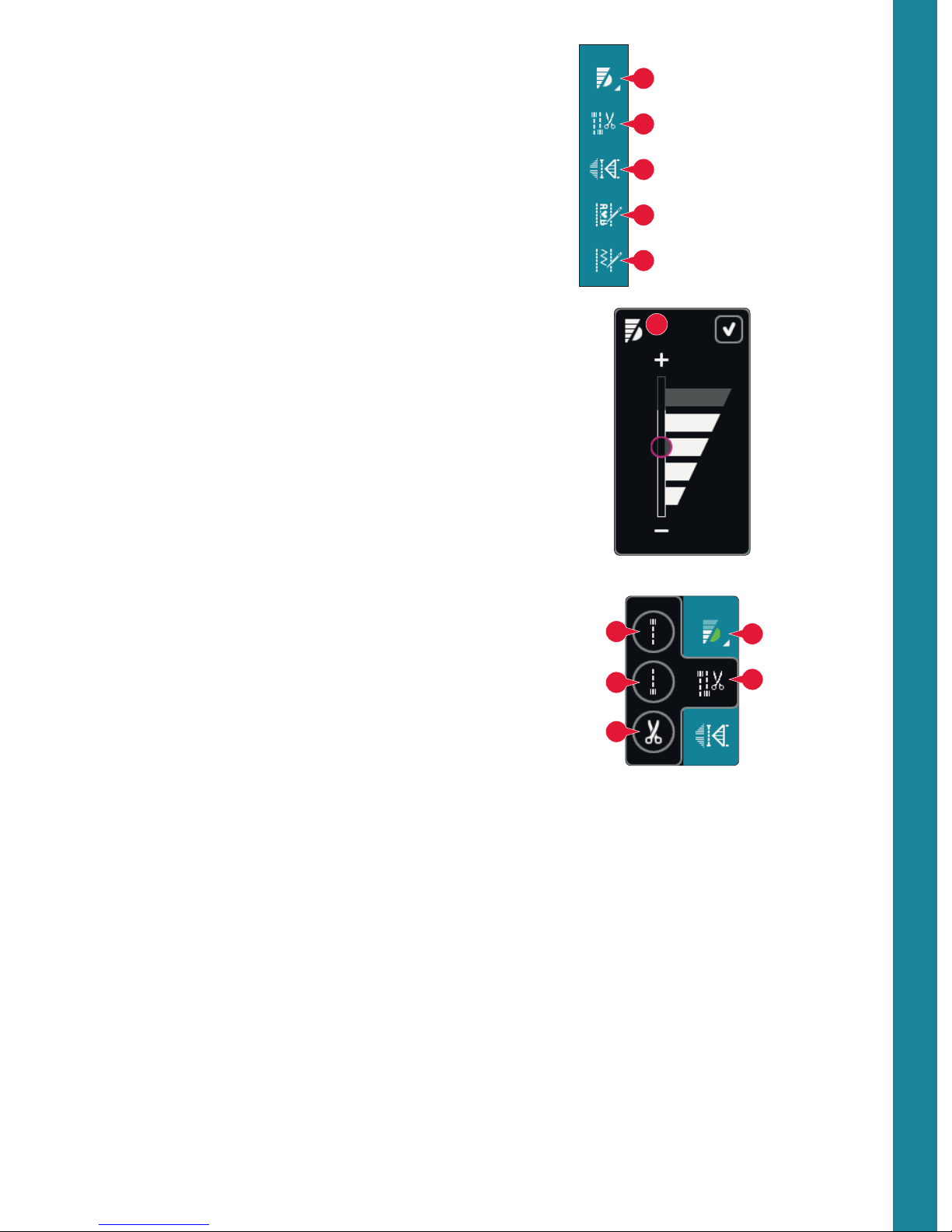

Option bar

Speed control (19)

This function enables you to easily reduce the maximum sewing speed. Just touch the speed control icon to reduce the speed. To return to normal speed, deselect the icon.

You can change the set speed limit. Long touch the speed control icon to get a pop-up. Set desired speed limit using the slider then close the pop-up. The next time you touch the speed control icon, the speed will be reduced to the limit you have chosen.

You can sew without closing the pop-up.

Note: You cannot set maximum speed in the popup. To set maximum speed, close the popup and deselect the speed control icon.

Tie-off options (20)

These options let you program tie-offs both at the beginning and the end, and thread snips at the end of the stitch.

When touching the tie-off icon, three options open to let you select different functions; tie-off beginning (20a), tieoff end (20b) and thread snips (20c).

When you have activated your settings, you can hide the three icons by touching the tie-off icon on the option bar again. The tie-off icon will show your settings by changing the color of the chosen function. The settings will remain active until you switch them off.

Note: For immediate tie-off, use the tie-off button, found on the front of the machine.

Sewing with tie-off options selected

1. The tie-off beginning (20a) will be performed as soon as you start to sew.

2. Press the reverse button to perform tie-off end (20b). The action indicator will be lit. The machine will À nish the stitch and do a tie-off.

When a thread snip (20c) is programmed, the machine

will automatically cut the threads after performing the tie-off end. The needle and presser foot will raise.

Note: Stop sewing and press the reverse button twice to

activate reverse sewing. The reverse indicator will be lit. No tie-off will be performed.

Press the reverse button when sewing in reverse to activate

tie-off end. Both the reverse indicator and the action indicator will be lit.

To go back to sewing forward, stop sewing in reverse and

press the reverse button. No indicators will be lit and no tie-off will be performed.

Page 66

4:12

D E

Sewing mode

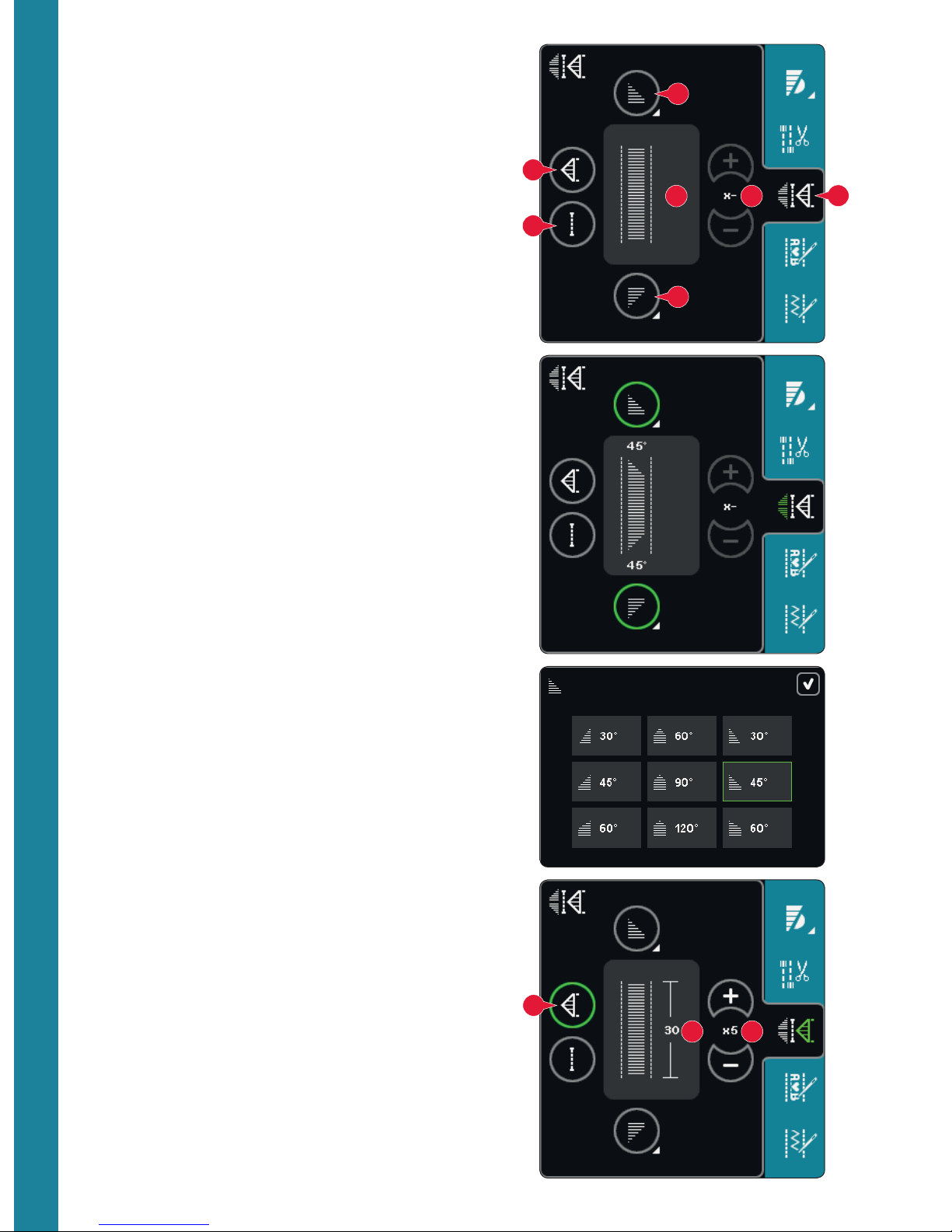

Sewing programs (21)

Sewing programs - overview

A Tapering program

B Single stitch program

C Patchwork program

D Preview À eld

E Set number of stitch repetitions in single stitch

program

Note: Not all programs can be used at the same time. You can sew without closing this pop-up.

Tapering program (A)

Tapering increases or decreases the width of the stitch during sewing to create symmetrical or asymmetrical tapers.

Activate tapering by selecting either of the tapering icons (A). The default angle is 45 degrees. Long touch a tapering icon (A) to view the angle choices for that taper. Select one angle for the beginning taper and the same angle or a different one for the end taper.

If tapering is deactivated and then activated again, the angle will be set to the previously selected angle.

When tapering is activated at both the beginning and at the end and you start to sew, the stitch width will start at 0mm. It becomes wider until the selected stitch width is reached. Sew your desired length and press the reverse button. The width is reduced until the width is 0mm and the action indicator on the machine will be lit until the taper is À nished.

Single stitch program (B)

Activate the single stitch program by touching the icon (B). The single stitch program lets you decide how many repetitions of the stitch you want to sew.

Set the number of repetitions using the icons on the right (E). The number of repetitions chosen is shown between the + and - icons. The estimated length of the repetitions is shown in the preview À eld (D). The machine will stop automatically when the repetitions are sewn.

Page 67

4:13

Sequencing

Stitch Creator

Sewing mode

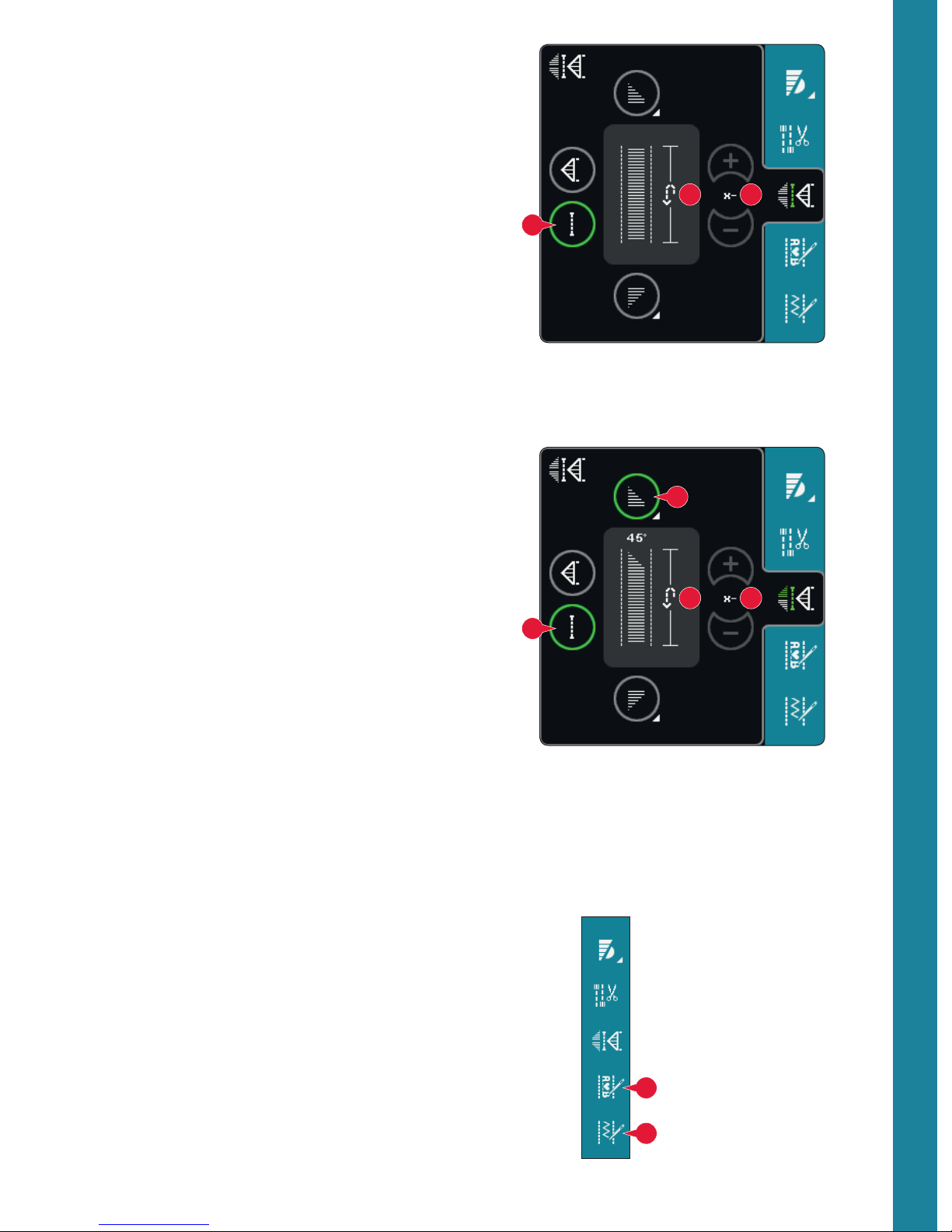

Patchwork program (C)

The patchwork program makes it possible for you to program an exact seam length that can be sewn repeatedly. This is very useful when quilting.

To program a seam length, activate the patchwork program (C). Sew your desired seam length and press the reverse button. The action indicator on the machine will be lit until the last repetition of the stitch is À nished. This will set the length of the seam. The length of the patchwork sequence is shown in millimeters in the preview À eld (D).

After you have programmed the patchwork sequence, the patchwork program icon is inactive. The single stitch program is now activated instead.

The programmed length of your patchwork can be adjusted using the single stitch adjustment icons (E).

Combining Tapering and Patchwork or Single stitch programs

Combining Tapering and Patchwork or Single stitch programs makes it possible to repeat a tapered seam with the same length.

Activate tapering by selecting any of the tapering icons (A) then activate Patchwork by touching the icon (C). Follow the instructions for tapering on the previous page. When the reverse button is pressed the action indicator will be lit until the taper and last repetion of the stitch is À nished.

The seam is now programmed and the single stitch program is activated. When you start sewing again the seam will automatically be repeated with the same length.

The length of the seam is shown in millimeters in the preview À eld (D). Between the + and - icons (E) the number of repetitions in the program is shown. Use the + and - icons to adjust the length of the seam.

Note: The tapering is included in the repetitions shown on the screen.

Sequencing (22)

Touch this icon to open sequencing. Read about sequencing in chapter 5.

Stitch Creator (23)

Touch this icon to open the Stitch Creator. Read about the Stitch Creator in chapter 6.

Page 68

4:14

Sewing mode

Sewing techniques

These techniques may require some special presser feet and accessories.

Sewing in zippers

There are different ways to sew in zippers. Follow the directions included with your pattern for best results.

For all types of zippers it is important to sew close to the teeth of the zipper. The zipper foot 4 can be snapped to the presser foot bar on the left or right, depending on how you will insert your zipper. Then set the stitch position so that it enters close to the edge of the zipper teeth by using one of the 37 needle positions available for the straight stitch. If the presser foot is attached on the right side, the needle must only be moved to the right. If the foot is attached on the left, the needle must only be moved to the left.

Sewing hems in heavy fabric

When sewing over seams in extra heavy fabric or a blue jeans hem, the presser foot can tip as the machine climbs over the seam. Use the multi purpose tool to balance the height of the presser foot as you sew.

One side of the tool is thicker than the other. Use the side that suits the thickness of the seam best.

Tip! Increasing the stitch length may improve the sewing result when sewing hems in heavy fabric.

Page 69

4:15

Blindhem stitch number 1.1.16

Elastic blindhem stitch number 1.1.17

Sewing mode

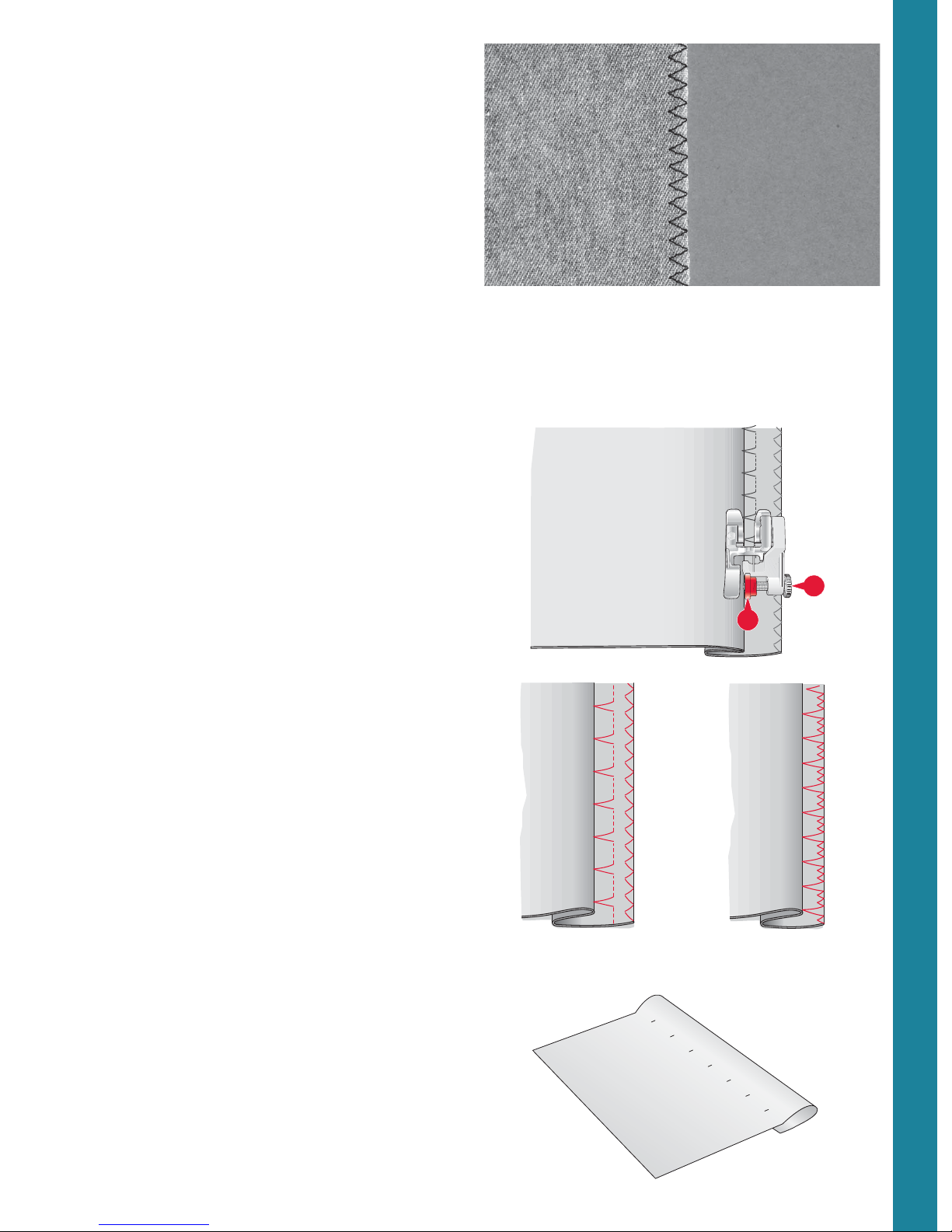

Three-step zigzag stitch

Stich number 1.1.9 can be used to overcast raw edges. Make sure the needle pierces the fabric on the left side and overcasts the edge on the right side.

Stitch number 1.1.9 can also be used as an elastic stitch to add elastic to pajamas, skirts and sportswear.

Blindhem stitch

The blindhem stitch number 1.1.16 is used to make invisible hems on skirts, trousers and home decorating. Use foot number 3 with IDT™ system.

• Finish the edge of the hem.

• Fold and press the hem allowance to the wrong side.

• Fold the hem back on itself so approximately 3/8” (1 cm) of the À nished edge extends beyond the fold. The wrong side of your project should now be facing up.

• Place the fabric under the presser foot so that the fold runs along edge guide A.

• When the needle swings into the fold it should catch a small amount of fabric. If the stitches are visible on the right side, adjust edge guide A by turning adjusting screw B until the stitch that catches the hem just barely shows.

Elastic blindhem stitch

The elastic blind stitch number 1.1.17 is especially suitable for stretchy fabrics, because the zigzag in the stitch lets the stitch stretch. The hem is À nished and sewn at the same time. There is no need to À nish the raw edge À rst on most knits.

Page 70

4:16

Sewing mode

Buttonholes

Buttonholes are found in category 1, subcategory

1.3 in the selection menu. You can also scroll

through the categories in sewing mode to À nd the buttonhole subcategory.

Note: Buttonholes up to 50 mm can be sewn using the Sensormatic buttonhole foot. Both sides of the Sensormatic buttonhole are sewn in the same direction for a more even result.

Buttonholes over 50 mm are sewn manually in four steps with presser foot 5M.

The direction of the stitches being sewn will be indicated on the screen by an arrow next to the buttonhole.

To sew a buttonhole, À rst attach the correct foot, then select your buttonhole. To ensure a good result, start with sewing a test sample on the fabric and stabilizer you will use.

Note: Make sure that the IDT™ system is disengaged.

Attaching the Sensormatic buttonhole foot

1. Snap on the Sensormatic buttonhole foot.

2. Plug the cord into the socket found to the left underside between the two LED lights (A).

Sensormatic buttonhole

When you sew a buttonhole with the Sensormatic buttonhole foot, adjust the slit length (27) so that it is slightly larger than the size of the button. You can measure your button using the button ruler on the lid.

Set the slit length and make sure that the red arrow lines up with the marking on the foot (B). Start sewing by pressing the foot control or start/ stop button. The buttonhole will be completed automatically and the threads are cut. You can repeat the buttonhole as many times as you wish.

Page 71

4:17

Sewing mode

Manual buttonhole

To sew a manual buttonhole, use presser foot 5M. Sew the À rst column as long as you want the buttonhole. Touch the reverse button. The machine sews the bartack and the second column. When the columns are aligned, press the reverse button to sew the second bartack.

Repeat a manual buttonhole (25)

When you have adjusted your buttonhole, use the repeat buttonhole function (25), to sew identical copies. As long as that icon is selected, the machine will repeat the buttonhole over and over again. Repeat buttonhole is only visible when sewing a buttonhole manually.

To cancel the function, just deselect the icon. The repeat function will also be cancelled if any adjustments are made.

Corded buttonhole

Corded buttonholes that are sewn with gimp threads are more stable, durable and have a professional appearance. Use pearl cotton or a regular gimp thread.

1. Place the center of a length of gimp thread over the metal bar extending from the center back of the sensormatic buttonhole foot 5A. Pass the thread ends under the foot and pull up into the right and left guides on the front of the presser foot.

2. Snap on the sensormatic buttonhole foot 5A. Before starting to sew, make sure that the red arrow lines up with the marking on the foot.

3. After completing the buttonhole, pull the ends of the gimp thread until the loop of thread is hidden below the buttonhole bartack.

4. Thread the gimp threads into a needle and pull them to the wrong side of the garment. Tie the gimp threads and cut off the excess thread.

Page 72

4:18

Sewing mode

Sew on a button

To sew on a button, remove the presser foot and select the sew on button program. The feed dogs will automatically be lowered.

Place the button under the presser foot holder. Use the mirroring icon to make sure the holes in the button are aligned with the swing of the needle and the width is appropriate for the actual button. If needed change the width between holes with the width icons.

If needed, increase or decrease the number of stitches that will fasten the button on the fabric, using the button stitch repetition icons (28). Start to sew. The machine will sew the program for you.

Note: Use the multi-purpose tool to create a thread shank for your button. You can also use a sew on button foot, available as an optional accessory at your local authorized PFAFF® dealer.

Darning

Darning a small hole or a tear before it becomes larger can save a garment. Choose a lightweight thread in a color as close to your garment as possible.

1. Place fabric or stabilizer in position under the hole or tear in your garment.

2. Select a darning stitch.

3. Start sewing above the hole and over it.

4. Once you have sewn across the hole, press the reverse button to set the length of the stitch. Your sewing machine will automatically complete the stitch.

5. By default, the machine will be set to repeat the same size darning square; just continue sewing.

The repeat icon (A) will be highlighted,

indicating that repeat is activated. Touch the repeat icon to deactivate repeat.

Page 73

4:19

Sewing mode

Quilting

A quilt usually consists of three layers, two layers of fabric with a layer of batting sandwiched between.

To sew three layers together, you have a wide variety of stitches and techniques to choose from.

When the quilting is À nished simply bind the edges or make it into cushions, wearable art or other smaller projects.

Straight stitch needle plate

Attach the straight stitch neede plate when piecing your quilt. The smaller hole in the straight stitch needle plate supports the fabric closer to the needle and helps prevent the fabric from being pulled down into the bobbin area, especially at the beginning and/or end of a seam. In addition, when chain piecing, it is sometimes helpful to begin sewing on a leader cloth and then continue with the piecing.

Patchwork program

The patchwork program makes it possible for you to program an exact seam length that can be sewn repeatedly. This is very useful when quilting, especially when piecing many quilt blocks of the same size.

See page 4:13 on how to use the patchwork program.

Piecing the quilt top

Cut out the pieces of fabric for your quilt top with a seam allowance of ¼” (6 mm). Snap on the ¼” quilting foot with IDT™ system; position the fabric under the foot so that the cut edge is aligned with the outer edge of the toe of the foot. Press the seam Á at to lock the stitches, then open the pieces and press the seam allowance to one side. When possible, press seam allowances towards the darker fabric. Assemble the pieces according to the pattern instructions. Layer the pieced quilt top with batting and backing. Pin baste the layers together in preparation for quilting.

Handlook quilting

1. Baste the completed quilt top to the batting and backing.

2. Thread the needle with an invisible (monoÀ lament) thread. Use contrasting or matching rayon or cotton thread in the bobbin.

3. Snap on the recommended foot shown in the sewing recommendations view.

4. Engage the IDT™ system.

5. Select one of the handlook quilt stitches

6.2.1-6.2.11. These stitches are pre-set with a higher thread metering/thread tension value to intentionally pull up bobbin thread and produce the desired ”hand look” effect.

Page 74

4:20

Sewing mode

Free-motion stippling

Free-motion stippling adds texture and interest to your quilt, while keeping the layers together.

Free-motion stippling is done with the feed dogs lowered. You move the fabric manually to determine the stitch length.

1. Set your sewing machine for free-motion sewing with a straight stitch. Attach the straight stitch needle plate. Touch the free-motion options icon (B) and select one of the three options.

Note: Read about the different options on page 4:8.

2. Disengage the IDT™ system and attach the correct free-motion foot depending on which technique you have selected. A symbol of the foot for the selected setting is displayed at the top of the screen (C).

3. Begin by pin basting your quilt through all layers with safety pins, starting from the center of your quilt and working out. Place a pin every 6-8 inches (15-20 cm).

Tip! Practice stippling on scraps of the fabric and batting from your quilt. It is important to move your hands a the same speed as the needle to prevent stitches that are too long or too short. Maintaining a consistent speed while free-motion sewing will also help keep stitches even.

4. Begin near the center of your quilt. Take one stitch and pull the bobbin thread to the top of the quilt. Take a few stitches right next to one another to lock the threads. Activate Needle down.

5. Plan a path for your stitching, then begin stitching your desired stipple pattern, moving the quilt as you go. Continue stippling until all areas of the quilt top are À lled.

Stitch-in-the-Ditch

Stitch-in-the-ditch is another option for joining the layers of your quilt. Pin baste the layers as described above. Snap on the Fancy stitch foot 1A with IDT™ system and engage IDT™ system. Stitch in the seams of the quilt, using the red line on the presser foot as a guide.

Note: You can also use the optional presser foot, Stitchin-Ditch w/IDT™ system P/N 820 925 096.

Crazy quilt stitching

Embellish your quilt with decorative stitches from stitch category 2.4. The stitches can be sewn in a coordinating or contrasting color, depending on the desired effect. Decorative threads like rayon embroidery or heavy cotton threads are sometimes used.

Page 75

4:21

Sewing mode

Special sewing techniques

The 6th stitch category includes special sewing technique stitches such as candlewicking, beading stitches, edge stitches, four direction sewing and stacking stitches. These techniques may require some special presser feet and accessories. This is indicated by the optional presser foot icon (A).

Note: Touch Quick help and then touch the selected stitch in the stitch selection area to À nd out which special presser foot is required for that stitch.

Four direction sewing

Use the four direction stitches for sewing on patches without having to turn your fabric and for decorative stitch designs. When selecting a stitch in this subcategory, the four direction icons will be shown (C).

The starting point is marked in the stitch À eld (B). To change the direction of the starting point, select one of the four direction icons (C).

When the desired length is sewn in one direction, select the new direction by touching one of the four direction icons.

Page 76

4:22

Sewing mode

Stacking stitches

Sew beautiful decorations in two colors using the stacking stitches. The stacking stitches consist of pairs of matching stitches that are designed to be sewn on top of each other.

Sew the À rst stitch and then sew the second, overlapping the À rst. Be sure to use the same starting point for each.

Touch Quick Help (30) and one of the stacking stitches to preview what the stitches look like when combined/stacked.

Page 77

4:23

Sewing mode

Common sewing pop-ups

System busy

When the machine is loading, saving, moving À les or anything that takes time, an hour glass is shown.

Bobbin empty

When the bobbin is almost empty, the machine stops automatically and a pop-up appears on the screen. Replace the empty bobbin with a full one.

Note: It is possible to sew until the thread has run out. Just continue sewing without closing the pop-up.

Check needle thread

The machine stops automatically if the needle thread runs out or breaks. Re-thread the needle thread, close the pop-up and start sewing again.

Remove Sensormatic buttonhole foot

The Sensormatic buttonhole foot needs to be removed before doing any of the following:

• Sewing a stitch that is not a buttonhole.

• Sewing a buttonhole that can not be sewn with the Sensormatic buttonhole foot.

• Sewing an adjusted buttonhole saved without the Sensormatic buttonhole foot in your Personal menu.

Main motor overloaded

If you are sewing on very heavy fabric or if the machine is blocked when sewing, the main motor can get overloaded. When the main motor and power supply are no longer overloaded, the OK button will be enabled. Touch OK to resume sewing.

Page 78

4:24

Sewing mode

Page 79

Sequencing

Page 80

5:2

5 6

10 11 131914

a b c

Sequencing

In sequencing, you can create and adjust a sequence of stitches. Combine various 9mm stitches, maxi stitches and stitch fonts from the machine or from an external device. Stitches made in Stitch Creator can also be inserted in a sequence.

You can create sequences up to approximately 500mm (20”) long. You can see how long your actual sequence is in the upper left corner (1).

Sequencing - overview

1. Approximate length of sequence

2. Stitch selection area

3. Arrows for scrolling through stitch categories

4. Stitch À eld

5. Delete

6. Duplicate

7. Mirroring side to side

8. Mirroring end to end

9. Horizontal preview

10. Arrows (move cursor back and forth in the sequence)

11. Stitch width

12. Width/position toggle

13. Stitch length

14. Stitch density

15. Sequence commands

a) tie-off

b) stop

c) cut

16. Zoom to all

17. Directional stitches

18. Selection menu

19. Stitch positioning

20. OK, close Sequencing

21. Quick help

Note: All symbols and options will not be shown at the same time.

Quick help (21)

Use Quick help to receive instant information about any icon or part of the screen. Touch the Quick help icon (21) and then the icon or the part of the screen you want information about.

Page 81

5:3

Sewing mode Embroidery

mode

Sequencing

Open and exit sequencing

Sequencing can be used in both sewing mode and in embroidery mode. To open, just touch the sequencing symbol (A) on the option bar. To close sequencing and sew or embroider your created sequence, touch OK (20) in the top right corner.

Note: If sewing mode is active and your programmed stitch is ready to be sewn, you can also close the active function by pressing the foot control, or by pressing the start/stop button.

Not all stitches are available to use in a sequence. If you try to select an unavailable stitch, a pop-up will notify you.

Create a sequence

To start creating a sequence, À nd the desired stitch category by scrolling with the arrows at the bottom of the stitch selection area or by opening the selection menu (18). Touch a stitch in the selection area to add it to the sequence.

To create a sequence from letters, open the selection menu (18) and load the desired stitch font. In the stitch selection area, touch the circles (B) to select upper or lower case letters, normal or numbers and special symbols.

The active position is marked by a cursor and the selected stitch or letter will be marked in green. Inserted stitches will be placed at the cursor position. Only the selected stitch can be adjusted.

Move the cursor through the sequence using the arrows (10). The number of the selected stitch and total number of stitches in the sequence are shown between the arrows.

Insert a stitch or letter

Move the cursor where you want to add a stitch or letter. Select the desired stitch you want to insert. It will be placed at the cursor position.

Adjust text and stitches

You can mirror, adjust length and width or change the density or position of the selected stitch. The adjustments work just like in sewing mode.

Delete a stitch or letter (5)

If you want to delete a stitch, move the cursor to the stitch you want to delete and touch the delete icon. Use the long touch function to delete the whole sequence.

Page 82

5:4

a b c

Sequencing

Duplicate a stitch or letter (6)

To duplicate a stitch, move the cursor to the stitch you want to duplicate. Touch the duplicate icon to copy the selected stitch.

Note: Make your adjustments on the stitch before duplicating and the copied stitch includes the adjustments.

Use the long touch function to get a pop-up where you can enter the exact number of copies you want to insert.

Replace a stitch or letter

To replace a stitch, simply select it and then touch delete and insert the new stitch. It will be placed at the cursor position.

Sequence commands (15)

You can insert tie-offs, stop and thread snips commands into the sequence. These commands will be included in the sequence and will always be performed when sewing it.

Use the tie-off command (a) if you want a secure tieoff. You can insert the tie-off commands anywhere in the sequence.

Note: If creating a sequence in embroidery mode, tie-offs at the beginning and end will be added automatically, allowing you to create a sequence in between. The commands can be removed.

Insert a stop command (b) if you want the machine to stop. This is useful for example at the end of the sequence if you want to sew it only once or to create a sequence in several rows.

Insert the thread snips command (c) if you want the machine to tie-off and cut the threads and raise the presser foot.

Move the cursor to the position where you want to add a command. Select it and an icon will be added into the sequence. This conÀ rms that the command is inserted and it also shows where the command will be performed in the sequence.

Note: The commands will appear on the screen in the order you program them.

Page 83

5:5

Sequencing

Horizontal preview (9)

To see your sequence horizontally, touch the preview icon.

Your sequence will be shown on a pop-up. If it is too long for the window, it is possible to zoom to all (A) to see the entire sequence. You can also scroll through the sequence with the arrows (B).

Directional stitches (17)

Add directional stitches between stitches in a sequence. These stitches make it possible to move stitches in various directions and you can create new shapes and wider large-area borders.

Directional stitches are straight stitches with a length of approximately 1mm and can be used in 16 different directions.

Open the directional stitches pop-up. The selected angle will be indicated in green (C) in the directional À eld. The angle will also be shown on the pop-up (D). Touch the directional À eld to select which angle you want to insert a stitch. You can either touch the desired line on the white area or touch and drag the green line and then release it at the desired angle.

When the intended angle is selected, touch the insert icon (E) and one stitch will be inserted in the sequence at the cursor position.

The directional stitch can be deleted, duplicated or mirrored without closing the directional stitches pop-up.

Page 84

5:6

Sequencing

Zoom to all (16)

If the stitch or sequence is wider than what can be shown on the screen, you may use the zoom to all icon to see the whole width of the sequence.

Note: Zoom to all is only visible if the stitch or sequence is wider than the stitch À eld.

Loading and sewing a sequence

To sew the sequence touch OK (20) in the top right corner of the screen. The sequence will be loaded to the mode that was active before entering sequencing; sewing mode or Embroidery edit.

Sewing mode

In sewing mode it is possible to start sewing anywhere in the sequence. Use the arrows (A) to step through the sequence.

If selecting another stitch in sewing mode and then re-opening sequencing, your sequence will remain unchanged. Every time sequencing is closed, the sequence will be loaded to sewing mode.

Note: If you have used directional stitches to create your sequence and the total width of the sequence is more than 9mm, the maxi-stitch foot 8 for side motion stitches must be used even if the machine recommends another foot.

Page 85

5:7

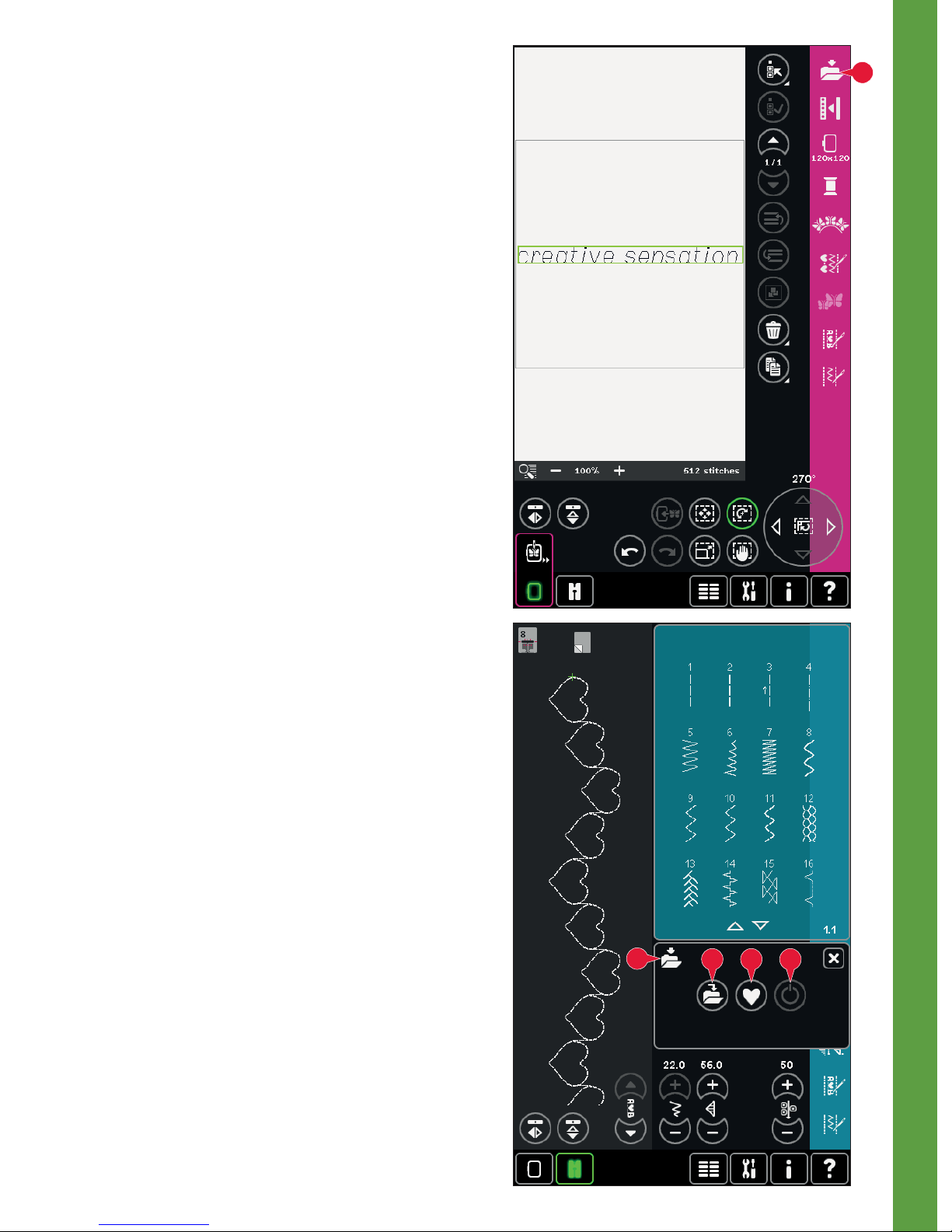

a b c

Sequencing

Embroidery edit

When loaded to Embroidery edit your sequence will become an embroidery design. Go to Embroidery stitch-out and stitch it out as a regular design.

If a sequence is selected and you re-open sequencing from embroidery mode, the sequence will remain unchanged. If no sequence is selected, sequencing will be empty when re-opened, ready to create something new. Every time sequencing is closed, the sequence will be loaded to Embroidery edit.

Saving a sequence

Saving a sequence is done in sewing mode or Embroidery edit. Close sequencing by touching OK (20) in the top right corner of the screen.

Embroidery mode

In embroidery mode the sequence is saved as a design. Touch save (C) and select Personal designs, Personal À les or an external device. See page 8:9 for more information.

Sewing mode

In sewing mode sequences are saved the same way as stitches. Save the sequence by touching the save icon (A). You can save your sequence both in personal À les (a) and personal menu (b). See page 4:8-4:9 for more information.

Note: A sequence cannot be saved as a default stitch. The icon (c) will be grayed out.

Page 86

5:8

Sequencing

Important sequencing information

Sequence adjustments

Adjustments made in sewing mode or embroidery mode will affect the whole sequence. However, these changes will not be saved if you return to sequencing. In Embroidery edit, the position of the sequence will be kept.

To adjust individual stitches in the sequence, return to sequencing.

To use sequencing in either sewing mode or embroidery mode

Sequencing can be used in either sewing mode or embroidery mode. A sequence created when sewing mode is active will not be available when opening sequencing after activating embroidery mode and vice versa. The created sequence will not be transferred to the other mode.

A sequence created when embroidery mode is active will become an embroidery design when loaded to Embroidery edit and cannot be sewn as a stitch in sewing mode.

A sequence created in sewing mode can be loaded manually into Embroidery edit, but will then become an embroidery design.

Sequences in Stitch Creator

A sequence can be opened in Stitch Creator and modiÀ ed. Note that when doing this, your sequence will become one stitch. When re-opening sequencing, it will not be possible to adjust any part of the former stitches in the sequence any more. The entire sequence will be handled as one stitch.

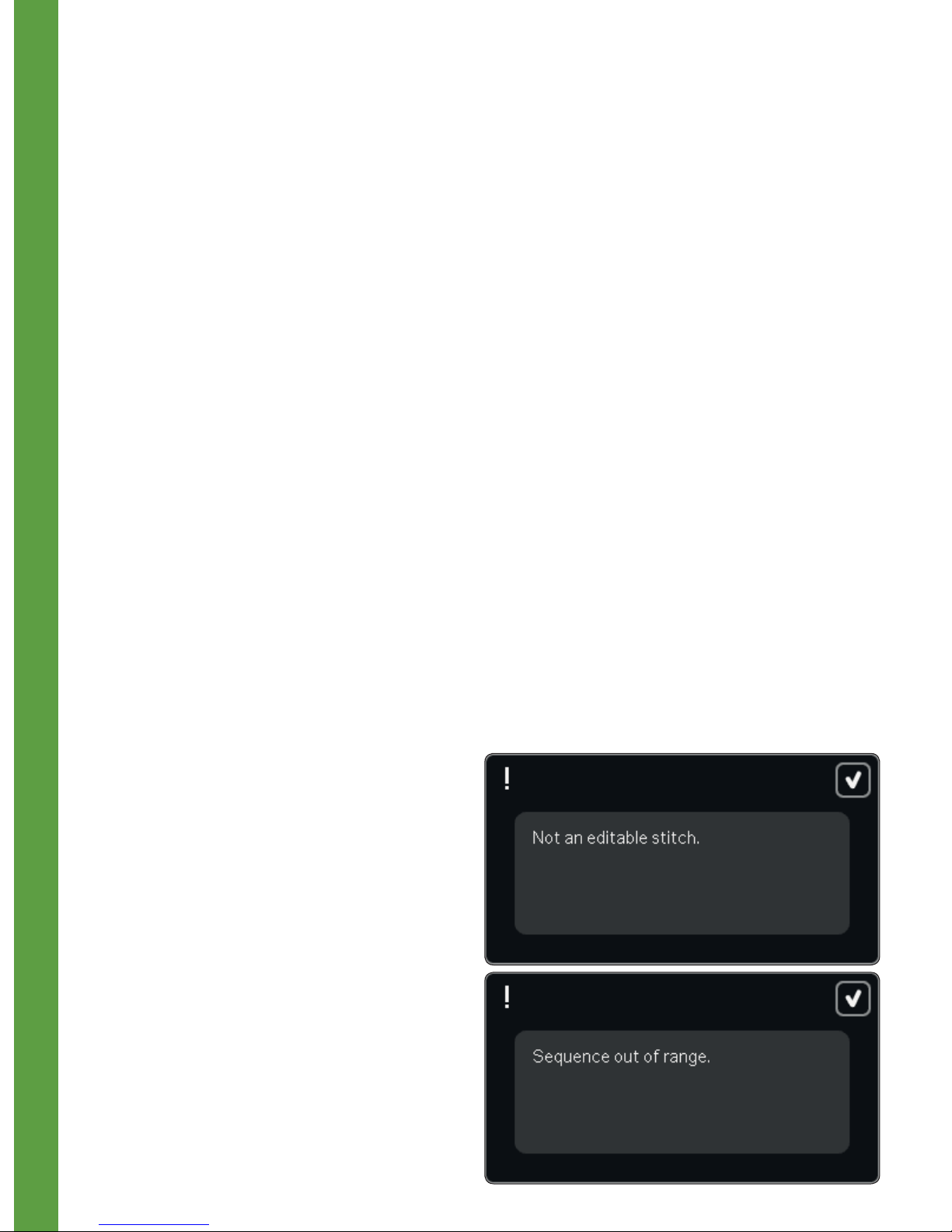

Common sequencing pop-ups

Not an editable stitch

Some stitches are not possible to insert in a sequence, for example buttonholes and four direction stitches.

Sequence out of range

Your programmed stitch can be up to approximately 500mm (20”) long and contain up to 99 stitches. If the sequence exceeds the maximum length this pop-up will let you know.

The stitch you are trying to add will make the sequence too long.

Page 87

Stitch Creator

Page 88

6:2

161817

19 20

Stitch Creator

In Stitch Creator, you can create completely new stitches and adjust every single stitch point. Customize and create your own stitches. Add, erase, move and combine stitches directly on screen. Either create a stitch

of individually designed stitches or use already existing stitches or letters. You can also insert a built-

in stitch, and then edit to create your own version of that stitch.

The width of the stitch À

eld is 9mm and maximum stitch length is 6mm. The grid and the vertical center line will help you to create your stitch. Your stitch can be up to approximately 500mm (20”) long and can be stored in your personal menu or in personal À les.

1. Stitch selection area

2. Arrows for scrolling through stitch

Pfaff IEC/EN 60335-2-28, UL1594 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
