Peugeot PARTNER 2005 Owner Manual

Familiarisation

10 -

Familiarisation

STEERING WHEEL HEIGHT ADJUSTMENT

F When stationary, push the con-

trol A forwards to unlock the steering wheel.

F Adjust the height of the steering

wheel.

F Lock it by pulling control A

towards you fully.

ELECTRIC WINDOWS

1. Driver's electric window.

2. Passenger's electric window.

EXTERIOR MIRRORS

F Move the manual control 3 in all

four directions to adjust.

Electric control for the passenger's side mirror

F From the driver's seat, adjust in

all four directions by operating the control 4.

Manual mode:

F Press the switch. The window

stops as soon as the switch is released.

Automatic mode (driver): F Press and hold the the switch.

One touch completely opens or closes the window.

: 67 : 68

: 69

01-02-2005

Technical data

102 -

01-02-2005

103

Technical data

01-02-2005

CONSUMPTION

The consumption values presented here correspond to the values communicated at the time of printing. They were obtained under conditions of use which conform to current standards, in particular Directive 1999/100/CE.

* During the course of the year.

In accordance with directive 1999/100 /CE in M.P.G. (litres/100 km)

Engine Gearbox Model codes Urban driving Inter-urban Mixed

Emission

of CO2 by

weight (g/km)

1.1 litre Manual GBHFXB - - - -

1.4 litre Manual

GBKFWB GCKFWB

29.1 (9.7) 45.6 (6.2) 37.6 (7.5) 175

1.6 litre Turbo HDI* Manual - - - - -

1.9 litre Diesel Manual

GJWJYB

GCWJYB PLC

32.1 (8.8) 49.6 (5.7) 40.9 (6.9) 181

2 litre Turbo HDI Manual

GBRHYB GCRHYB

39.2 (7.2) 57.6 (4.9) 49.6 (5.7) 152

103

Technical data

01-02-2005

WEIGHTS AND TOWING LOADS (IN KG)

* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h). ** During the course of the year.

Engine

1.1 litre 1.4 litre

Model

600 kg 600 kg 800 kg

Gearbox

Manual Manual Manual

Model codes

GBHFXB GBKFWB GCKFWB

•

Kerb weight

1108 1108 1110

•

Gross vehicle weight (GVW)

1690 1690 1890

•

Gross train weight (GTW)

2440 2590 2790

•

Unbraked trailer

500 500 500

•

Braked trailer (within GTW)

750 900 900

•

Recommended nose weight

70 70 70

Engine

1.6 litre

Turbo HDI**

1.9 litre D 2 litre Turbo HDI

Model

- 600 kg 800 kg 600 kg 800 kg

Gearbox

Manual Manual Manual Manual Manual

Model codes

- GJWJYB

GCWJYB PLC

GBRHYB GCRHYB

•

Kerb weight

- 1163 1175 1211 1211

•

Gross vehicle weight (GVW)

- 1755 1955 1790 1990

•

Gross train weight (GTW)

- 2855 3055 2890 3090

•

Unbraked trailer

- 500 500 500 500

•

Braked trailer (within GTW)

- 1100 1100 1100 1100

•

Recommended nose weight - 70 70 70 70

Technical data

106 -

01-02-2005

THE IDENTIFICATION FEATURES OF YOUR PARTNER

B. Serial number on the

bodywork (under the bonnet, on the right-hand crossmember).

C. Tyres and paint colour

reference.

The label C on the driver's door pillar, near the hinges, gives:

- the wheel and tyre sizes,

- the tyre pressures: (tyre pressure

checks must be carried out cold, at least every month),

- the paint colour reference.

A. Manufacturer's plate (under

the bonnet, on the front right wing).

Familiarisation

To activate

F Place the knob 1 in the ON

position.

A speed can now be memorised. F Place the knob 1 in the OFF

position to deactivate the system.

CRUISE CONTROL

The cruise control makes it possible to maintain a constant vehicle speed, programmed by the driver.

In order for the vehicle speed to be memorised, it must be greater than approximately 25 mph (40 km/h) and fourth or fth gear must be engaged.

Deactivating the memorised speed

If you wish to deactivate the memorised speed:

F press button 4 or the brake or

clutch pedal.

Memorising a speed

When you reach the required speed, press button 2 or 3. The speed is memorised.

Recalling the memorised speed

After deactivation, press button 4. Your vehicle reverts to the last memorised speed.

Cancelling the stored speed

F Place the knob 1 in the OFF

position or switch off the ignition.

: 74

01-02-2005

Familiarisation

12 -

Familiarisation

HEATING

N° Symbol Function

1 Air ow adjustment.

Air ow adjustment and air intake control.

Temperature adjustment.

Air distribution adjustment.

: 40

01-02-2005

Familiarisation

AIR CONDITIONING

N° Symbol Function

Air conditioning control.

Air ow adjustment and air intake control.

Temperature adjustment.

Air distribution adjustment.

: 42

01-02-2005

Familiarisation

14 -

Familiarisation

FRONT FITTINGS

1. Storage compartments in the doors

A. Bottle holder. B. Can holder. C. Storage compartment.

2. Overhead storage with map

reading light

3. Courtesy light

4. Sun visor

5. Glove box

6. Lighter

7. Removable ashtray

8. 12 v accessories socket

9. Storage drawer

: 70

01-02-2005

Familiarisation

STOWING RINGS

Use the 6 stowing rings located on the boot oor to secure your loads.

You can use suitable load retainers (half-height partitions, grille, etc...) supplied by your PEUGEOT dealer.

For greater safety, always secure the loads transported rmly.

: 72

01-02-2005

Familiarisation

16 -

FILLING WITH FUEL

This operation must be carried out with the engine switched off.

F Insert the key then turn it to the

left. F Remove the cap. An indication shows which type of

fuel to use. When you ll your tank, do not

continue after the third cut-off of the pump. This could cause a malfunction.

The capacity of the tank is approximately 55 litres for petrol engines and 60 litres for Diesel engines.

From the time this light comes on, you have enough fuel left to cover

approximately 30 miles (50 km).

Outside the vehicle: Lift the control,

raise the bonnet and secure the strut to keep the bonnet open.

OPENING THE BONNET

Inside the vehicle: Pull the control

on the left-hand side, under the fascia panel.

Note: the right-hand sliding side door cannot be opened while the fuel tank cap is removed.

Low fuel level warning light

: 61: 61

01-02-2005

Instruments, controls and displays

18 -

01-02-2005

Instruments, controls and displays

01-02-2005

1. Seat belt not fastened warning

light*

2. Passenger air bag disarmed

warning light*

3. Front and side air bags warning

light

4. Front fog lamps indicator light

5. Anti-lock braking system (ABS)

warning light

6. Rear fog lamp indicator light

7. Diesel pre-heat warning light

8. Left hand direction indicator

9. Total distance recorder, service

indicator and engine oil level indicator

10. Right hand direction indicator

11. Engine diagnostics warning light

12. Main beam headlamps indicator

light

13. Handbrake, low brake uid

level and electronic brake force distribution warning light

14. Dipped beam headlamps

indicator light

15. Battery charge warning light

16. Engine oil pressure and

temperature warning light

17. Water in diesel lter warning

light

18. Low coolant level warning light

19. Coolant temperature indicator

20. Total distance recorder button

21. Central (STOP) warning light

22. Speedometer

23. Rev counter

24. Lighting rheostat button

25. Fuel level indicator

26. Low fuel level warning light

INSTRUMENT PANEL: PETROL - DIESEL

* According to country.

Instruments, controls and displays

22 -

01-02-2005

Instruments, controls and displays

01-02-2005

Service indicator

This is a visual reminder of when the next service is due. This service is to be carried out according to the manufacturer's servicing schedule.

5 seconds after the ignition is switched on, the total distance recorder resumes normal operation and the display shows the total or trip distances.

The distance remaining before the next service is less than 500 miles (1,000 km).

Example: 400 miles (900 km) remain

before the next service is due. When switching on the ignition and

for 5 seconds, the display shows:

5 seconds after the ignition is switched on, the total distance recorder resumes normal operation and the symbol remains lit.

This indicates that a service should be carried out shortly. The display shows the total or trip distances.

The service is overdue.

Each time the ignition is switched on and for 5 seconds, the symbol and the excess distance ash.

Example: the service is overdue by 300 miles/km. The service should be carried out very shortly.

When the ignition is switched on and for 5 seconds, the display shows:

5 seconds after the ignition is switched on, the total distance recorder resumes normal operation and the symbol remains lit. The display shows the total or trip distances.

Note: the service spanner lights if the two-year interval has been exceeded.

INSTRUMENT PANEL DISPLAY

After switching on the ignition, three functions are shown in succession:

- service indicator,

- engine oil level indicator (Diesel),

- total distance recorder/total and trip

distances.

Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle.

Example: 4,800 miles/km remain before the next service is due. When the ignition comes on and for 5 seconds the display indicates:

Operation

As soon as the ignition is switched on and for 5 seconds, the spanner symbolising ''service operation'' is lit. The trip recorder display shows the distance remaining (in round gures) before the next service.

Instruments, controls and displays

01-02-2005

Engine oil level indicator (Diesel)

When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the service information.

Flashing of the six squares and displaying of "max" indicate a surplus of oil which could damage the engine.

If the surplus of oil is conrmed by a check using the dipstick, contact a PEUGEOT dealer without delay.

Your PEUGEOT dealer carries out this operation after each service. The reset procedure is as follows:

- Switch off the ignition.

- Press and hold button 1.

- Switch on the ignition. The display begins a 10 second countdown.

- Keep button 1 pressed for 10 se-

conds.

The display shows [=0] and the service symbol disappears.

Flashing of the six segments and displaying of "min" indicate a lack of oil which could damage the engine.

If the lack of oil is conrmed by a check using the dipstick, it is essential that the level is topped up.

Flashing of the six segments indicates a malfunction of the oil level indicator.

There is a risk of damage to the engine.

Contact a PEUGEOT dealer.

The level read on the dipstick or on the indicator will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.

Resetting the service indicator

Surplus of oil

Lack of oil

Oil level indicator fault

Instruments, controls and displays

24 -

01-02-2005

Instruments, controls and displays

01-02-2005

DISPLAY A

This displays the following information:

- the time,

- the date,

- the audio system displays,

- a door check (e.g.: ''left front door open''),

- warning messages (e.g. ''remote control battery at'') or information messages (e.g. ''economy mode active''), displayed temporarily.

Briey pressing button 1 alternates between the total and trip distance displays.

To reset the trip recorder to zero, when it is displayed press button 1 until zeros appear.

Total distance recorder

With the lights on, press the button to vary the intensity of the lighting of the instruments and controls. When the lighting reaches the minimum (or maximum) setting, release the button then press it again to increase (or reduce) the brightness.

As soon as the lighting is of the required brightness, release the button.

Lighting rheostat

CLOCK

Button 1 : hour adjustment Button 2 : minute adjustment Press and hold the button for rapid

advance.

Instruments, controls and displays

01-02-2005

Adjusting the parameters display A

Press and hold button A for two seconds to access the settings; the data ashes, indicating it is ready to be modied.

Then, each press of button A scrolls through the various data in the following order:

- language of information displayed,

- hours (12 then 24 hour mode),

- minutes,

- year,

- month,

- day.

Pressing button B alters the value of the parameter selected. Press and hold for rapid advance (return to start after the last possible value).

After 7 seconds with no action, the standard display returns; the modied data is now recorded.

MONOCHROME DISPLAY B

This enables the following information to be displayed:

- the time,

- the date,

- the outside temperature (this ashes accompanied by the message "Ice alert"),

- the radio displays,

- the status of the doors. The display shows you, by means of a graphic, whether a door is open,

- the warning messages (e.g. "battery charge fault") or information messages (e.g. "fuel level low"), displayed temporarily, can be cleared by pressing button C or D,

- the trip computer.

Setting the parameters screen B

Press button C for two seconds to access the settings. The information ashes to show it is ready to be modied.

Then, individual presses on button C allow you to scroll through the various data in the following sequence:

- language in which the information is displayed,

- unit of distance (kms or miles),

- unit of temperature (degrees Celsius or Fahrenheit),

- time format (12 then 24 hour mode),

- hour,

- minutes,

- year,

- month,

- day.

Pressing button D allows you to change the information selected. Maintain the pressure for rapid scrolling.

After 7 seconds without operation, the screen returns to the normal display and the modied data is recorded.

Instruments, controls and displays

24 -

01-02-2005

Instruments, controls and displays

01-02-2005

DISPLAY A

This displays the following information:

- the time,

- the date,

- the audio system displays,

- a door check (e.g.: ''left front door open''),

- warning messages (e.g. ''remote control battery at'') or information messages (e.g. ''economy mode active''), displayed temporarily.

Briey pressing button 1 alternates between the total and trip distance displays.

To reset the trip recorder to zero, when it is displayed press button 1 until zeros appear.

Total distance recorder

As soon as the lighting is of the required brightness, release the button.

Lighting rheostat

CLOCK

Button 1 : hour adjustment Button 2 : minute adjustment Press and hold the button for rapid

advance.

Instruments, controls and displays

01-02-2005

Adjusting the parameters display A

Press and hold button A for two seconds to access the settings; the data ashes, indicating it is ready to be modied.

Then, each press of button A scrolls through the various data in the following order:

- language of information displayed,

- hours (12 then 24 hour mode),

- minutes,

- year,

- month,

- day.

Pressing button B alters the value of the parameter selected. Press and hold for rapid advance (return to start after the last possible value).

After 7 seconds with no action, the standard display returns; the modied data is now recorded.

MONOCHROME DISPLAY B

This enables the following information to be displayed:

- the time,

- the date,

- the outside temperature (this ashes accompanied by the message "Ice alert"),

- the radio displays,

- the status of the doors. The display shows you, by means of a graphic, whether a door is open,

- the warning messages (e.g. "battery charge fault") or information messages (e.g. "fuel level low"), displayed temporarily, can be cleared by pressing button C or D,

- the trip computer.

Setting the parameters screen B

Press button C for two seconds to access the settings. The information ashes to show it is ready to be modied.

Then, individual presses on button C allow you to scroll through the various data in the following sequence:

- language in which the information is displayed,

- unit of distance (kms or miles),

- unit of temperature (degrees Celsius or Fahrenheit),

- time format (12 then 24 hour mode),

- hour,

- minutes,

- year,

- month,

- day.

Pressing button D allows you to change the information selected. Maintain the pressure for rapid scrolling.

After 7 seconds without operation, the screen returns to the normal display and the modied data is recorded.

38 -

Ventilation

01-02-2005

39-

Ventilation

01-02-2005

39-

Ventilation

01-02-2005

VENTILATION

1. Windscreen de-icing or

demisting vents.

2. Front window de-icing or

demisting vents.

3. Side vents.

4. Centre vents.

5. Air outlets to front footwells.

Advice on operation

Select the air distribution most suited to your requirements and the climatic conditions.

Gradually adjust the temperature setting for your comfort.

Position the air control in the ‘’Outside Air’’ position.

For perfectly even air distribution, take care not to obstruct the exterior air intake grille and the vents.

Check that the passenger compartment lter is in good condition.

When the engine is cold, to prevent too great a distribution of cold air, the ventilation will increase to its optimum level gradually.

In order to be effective, the air conditioning (A/C button), should only be used with the windows closed.

the interior temperature remains very high following a prolonged period parked in the sun, do not hesitate to ventilate the passenger compartment for a few minutes.

De-icing the rear screen and mirrors

With the engine running, pressing the control de-ices the rear screen and mirrors.

It switches off automatically after approximately twelve minutes.

Pressing the control again switches the de-icing system on again for twleve minutes.

It is possible to switch off the de-icing by pressing the control before the twelve minutes have elapsed.

Familiarisation

4 -

Familiarisation

01-02-2005

Familiarisation

INSTRUMENTS AND CONTROLS

13 - Audio equipment steering wheel

control.

14 - Steering lock and ignition.

15 - Fuse box.

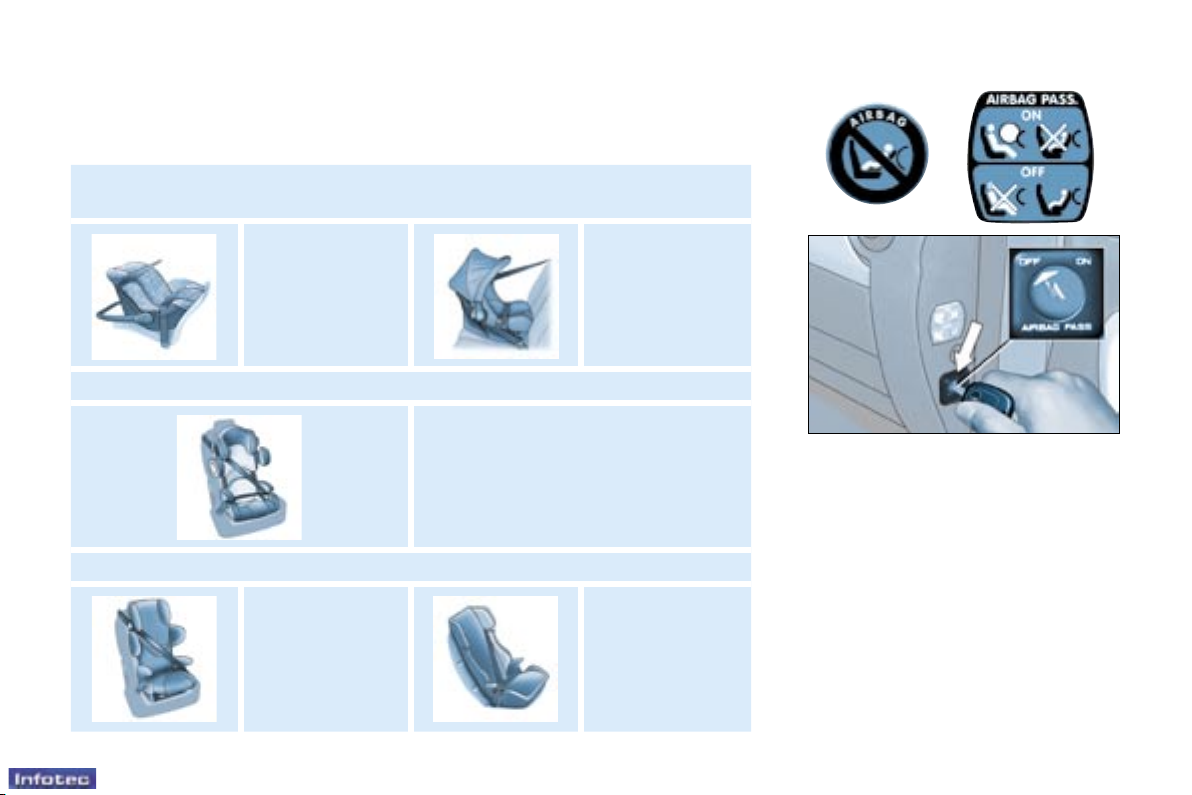

16 - Passenger air bag disarming

control*.

17 - Alarm.

18 - Steering wheel adjustment

control.

19 - Passenger's electric mirror

control.

20 - Headlamp height adjustment.

21 - Heated seats control.

22 - Handbrake.

23 - 12V accessories socket.

24 - Removable ashtray.

25 - Lighter.

26 - Storage.

27 - Gear lever.

28 - Heating/air conditioning

controls.

29 - Audio RB3 or RD3.

30 - Lower glove box.

31 - Upper glove box or passenger

air bag.

32 - Bonnet release.

33 - Side adjustable heating/

ventilation vents.

34 - Side window de-icing/demisting

vents.

* According to country.

1 - Speaker (tweeter).

2 - Windscreen demisting vents.

3 - Controls:

- Electric windows.

- Demisting of rear door

windows or tailgate.

- Air conditioning.

4 - Central locking button.

5 - Multifunction display or clock.

6 - Hazard lights button.

7 - Central adjustable heating/

ventilation vents.

8 - Lights and direction indicators

stalk.

9 - Cruise control.

10 - Instrument panel.

11 - Driver's air bag

Horn.

12 - Windscreen wash-wipe stalk.

01-02-2005

40 -

Ventilation

01-02-2005

41-

Ventilation

01-02-2005

Intake of exterior air.

HEATING

1. Air ow adjustment

Turn the control from position 1 to position 4 to obtain an air ow sufcient to ensure your comfort.

2. Air ow adjustment and air intake control

Turn the control from position 1 to position 4 to obtain an air ow sufcient to ensure your comfort.

As soon as possible, position the control in the exterior air intake position to prevent misting of the windows.

This is the normal operating position.

Passenger compartment isolation.

This position prevents exterior odours and smoke entering the passenger compartment.

+ 51 hidden pages
