Installation and Assembly Manual:
Vector Pro II™
Models: PJF2-UNV, PJF2-UNV-S
R
This product is intended for use with UL Listed products and must be installed by a qualified professional installer.
Maximum UL Load Capacity: 50 lb (27 kg)
1 of 9 |
ISSUED: 01-14-09 SHEET #: 056-9018-2 05-18-10 |
Visit the Peerless Web Site at www.peerlessmounts.com |
For customer care call 1-800-729-0307 or 708-865-8870. |
Note: Read entire instruction sheet before you start installation and assembly.
WARNING
•Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless customer care at 1-800-729-0307.
•This product should only be installed by someone of good mechanical aptitude, has experience with basic building construction, and fully understands these instructions.
•Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.
•Never exceed the Maximum UL Load Capacity.
•Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
•Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding power. See suggested torque values where applicable within these instructions.
CAUTION
•It is the responsibility of the installer to ensure that the projector is properly ventilated. Feet of channels are used to raise the mount off the projector surface.
Tools Needed for Assembly
•stud finder ("edge to edge" stud finder is recommended)
•phillips screwdriver
•drill
•1/4" masonry bit for concrete surface
•5/32" bit for wood studs
•level
•3/8" (10 mm) socket wrench
Table of Contents |
|
Parts List............................................................................................................................................................................ |
3 |

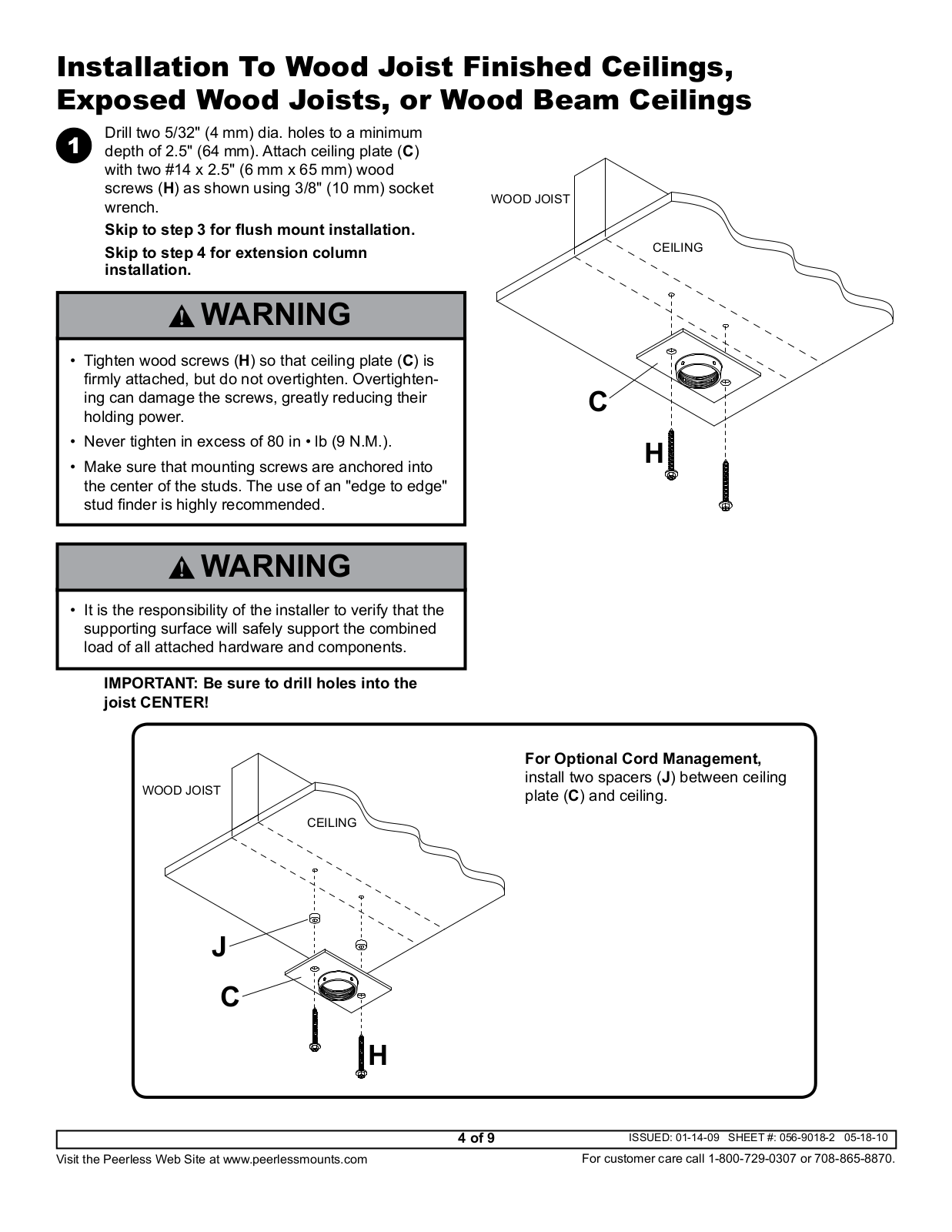

Installation to Wood Joist or Wood Beam Ceilings............................................................................................................ |
4 |
Installation to Concrete Ceilings......................................................................................................................................... |
5 |
Flush Mount Application..................................................................................................................................................... |
6 |
Installation to Extension Columns...................................................................................................................................... |
7 |
Attaching Adapter Plate to Projector.................................................................................................................................. |
8 |
Attaching Adapter Plate to Projector Mount, Projector Alignment...................................................................................... |
9 |
2 of 9 |
ISSUED: 01-14-09 SHEET #: 056-9018-2 05-18-10 |
Visit the Peerless Web Site at www.peerlessmounts.com |
For customer care call 1-800-729-0307 or 708-865-8870. |
Before you start check the parts list to insure all of the parts shown are included.
Parts List |
|
|
PJF2-UNV |
PJF2-UNV-S |
|
|
Description |
|
Qty. |
Part # |
Part # |
A |
ball and socket mount |
|
1 |
055-0011 |
055-0016 |
B |
adapter plate |
|
1 |
055-1867 |
055-4867 |
C |
ceiling plate |
|
1 |
580-1042 |
580-4042 |
D |
extension column connector with cord management |
|
1 |
580-1025 |
580-4025 |
E |
M5 x .8 x 10 mm socket pin type F screw |
|
1 |
520-1164 |
520-2031 |
F |
#10-32 x 3/8" spade thumb screw |
|
1 |
560-1107 |
560-2107 |
G |
#10-32 x 3/8" serrated washer head socket pin screw |
|
1 |
520-1151 |
520-2151 |
H |
#14 x 2.5 phillips hex head wood screw |
|
2 |
5S1-015-C03 |
5S1-015-C04 |
J |
.25" ID x .56" OD x .26 spacer |
|
2 |
590-1050 |
590-2071 |
K |
#10-32 x 3/8" socket pin screw |
|
2 |
520-1084 |
520-2084 |
L |
#10-32 x 3/16" slotted set screw |
|
3 |
520-1187 |
520-2187 |
M |
washer |
|
4 |
540-1025 |
540-2025 |
N |
M3 x 8 mm serrated washer head socket pin screw |
|
4 |
510-1004 |
510-2004 |
O |
M4 x 10 mm serrated washer head socket pin screw |
|
4 |
510-1060 |
510-2060 |
P |
M5 x 10 mm serrated washer head socket pin screw |
|
4 |
510-1126 |
510-2063 |
R |
M6 x 10 mm serrated washer head socket pin screw |
|
4 |
510-1066 |
510-2066 |
T |
2 mm security allen wrench |
|
1 |
560-1097 |
560-1097 |
U |
4 mm security allen wrench |
|
1 |
560-9646 |
560-9646 |
A |
B |
C |
|
|
D |
E F
G
H
J
K
L
M N
O
P
R
U
T
Note: Actual parts may appear slightly different than illustrated.
