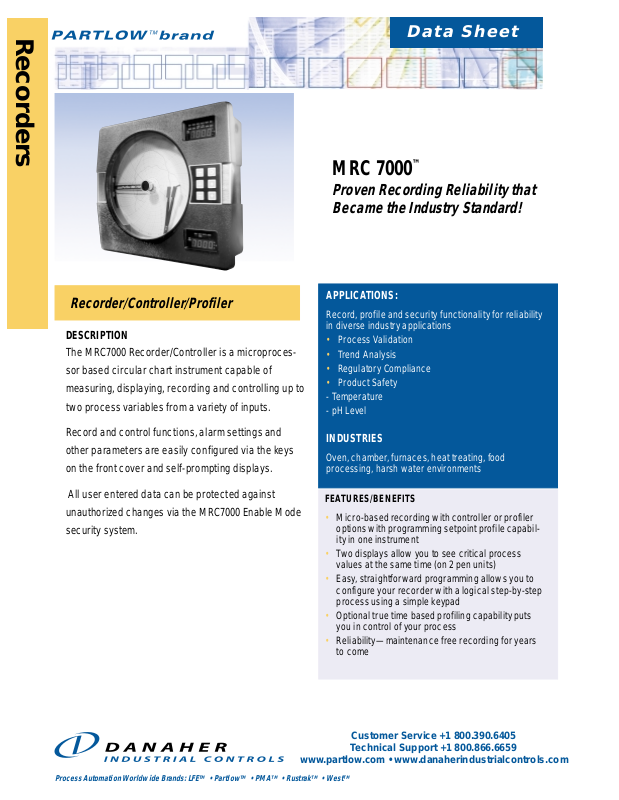

Partlow MRC 7000 Specifications

Recorders

Data Sheet

Recorder/Controller/Profiler

DESCRIPTION

The MRC7000 Recorder/Controller is a microproces­sor based circular chart instrument capable of
measuring, displaying, recording and controlling up to
two process variables from a variety of inputs.

Record and control functions, alarm settings and
other parameters are easily configured via the keys
on the front cover and self-prompting displays.

MRC 7000

™

Proven Recording Reliability that
Became the Industry Standard!

APPLICATIONS:

Record, profile and security functionality for reliability
in diverse industry applications

• Process Validation

• Trend Analysis

• Regulatory Compliance

• Product Safety

- Temperature

- pH Level

INDUSTRIES

Oven, chamber, furnaces, heat treating, food
processing, harsh water environments

All user entered data can be protected against
unauthorized changes via the MRC7000 Enable Mode
security system.

Process Automation Worldwide Brands: LFETM • PartlowTM • PMATM • RustrakTM • West

FEATURES/BENEFITS

• Micro-based recording with controller or profiler

• Two displays allow you to see critical process

• Easy, straightforward programming allows you to

• Optional true time based profiling capability puts

• Reliability—maintenance free recording for years

www.partlow.com • www.danaherindustrialcontrols.com

options with programming setpoint profile capabil­ity in one instrument

values at the same time (on 2 pen units)

configure your recorder with a logical step-by-step
process using a simple keypad

you in control of your process

to come

Customer Service +1 800.390.6405

Technical Support +1 800.866.6659

TM

Recorders

Hollowshaft, Incremental EncodersRecorder/Controller/Profiler

SPECIFICATIONS

STANDARD FEATURES

Functionality: Digital; Available in four

configurations: Record only, High/Low limit
optional, Controlling Recorder, Profiling
Controlling Recorder.

Display: One digital display (std.); 2nd display

with 2 pen (optional); 0.56˝ high, red, seven
segment LED; 3 button keypad; automatic and
decimal point positioning. Two alarm
indications possible per pen.

Status Indicators: 7 LED status indicators – Out

1, 2, Man (Ramp, Soak or Seg 1–6 for profiler
option only), one green LED pen 2 indicator,
ALRM1/ALRM2 with red LEDs.

Chart: 10˝ circular chart; 100 charts furnished

with each instrument. Unless otherwise
specified, charts shipped with instrument are
0–100 range. 24 hour rotation default setting.

Chart Drive: DC Stepper Motor.
Chart Rotation: User configurable from 0.1 and

999.9 hours per revolution.

Chart Range: Bottom and top of span –9999 to

9999 units.

Pen Type: One or two disposable fiber tip pen.
Pen Color: Pen 1 (red); Pen 2 (green).
Memory Backup: Battery; 5 year normal life.
Construction/Enclosure: Structural foam

enclosure with plastic cover standard.

OPERATING CHARACTERISTICS

Operating Temp: 32° to 122°F (0° to 50°C).
Storage Temp: –40° to 149°F (–40° to 65°C).
Humidity: 0% to 90% non-condensing R.H.
Vibration: 0.5 to 100Hz @ 0.2g.
Electro Static Discharge: No effect from 5000V

static charge over the entire area.

RFI: Degradation due to RF fields to recording

and output accuracy to 8% at spot frequen­cies in the range of 100–1000MHz.

PROCESS
CONTROL

U

L

®

LISTED

88BO

MRC 7000

Proven Recording Reliability that
Became the Industry Standard!

ELECTRICAL

Power Consumption: 25VA max.
Line Voltage: 115V or 230VAC ±10%, 50–60Hz.

OUTPUTS

CONTROL OUTPUTS:
Relay: SPST/SPDT; 115VAC 5.0A Resistive, 1/

8HP, 250VA; 230VAC 2.5A Resistive, 1/8HP,
250VA.

SSR Driver: Open collector output; short

circuit protected @ 100mA max; provides
4VDC @ 20mA or 3VDC @ 40mA.

Current: 0–20mA or 4–20mA; 0–650 ohm

maximum load.

ALARM/EVENT OUTPUTS (Options):
Relay: SPST/SPDT: 115VAC 5.0A resistive, 1/

8HP, 250VA. 230VAC 2.5A resistive, 1/8HP,
250VA.

SSR Driver: Open collector output; short

circuit protected @ 100mA max; provides
4VDC @ 20mA or 3VDC @ 40mA.

Process Alarm: Direct (High) or Reverse (Low)

–9999 to 9999 units.

Deviation Alarm: Direct (Deviation above

setpoint) or Reverse (Deviation below
setpoint) –3000 to 3000 units.

Deviation Band Alarm: 1 to 3000 units.
Alarm Hysteresis: 0–300 units (width of

hysteresis band).

INPUTS

Thermocouple: J, K, T, R, S, B, C, E, N.
RTD: 100 ohm, platinum; 0.00385 ohms/ ohm/°C.
Volts: 0–5 VDC or 1–5VDC.
DC Millivolts: 0–25mV, 0–50mV or 10–50mV.
DC Milliamps: 4–20mA or 0–20mA used with

appropriate shunt resistor.

Remote Setpoint Input (optional): 0–5VDC, 1–

5VAC, 0–20mA, 4–20mA (recording controller
only); accommodated with an internal 249
ohm jumper selectable shunt resistor.

™

PERFORMANCE

GENERAL:
Input Measurement Error: Type J, K, T, E, N, C, T/

C and RTD ±0.25% of reading plus 1 degree @
25°C; Type R, S, B, C, T/C ±0.25% of span @
25°C.

Ambient Temperature Error: 0.01% of span per

degree C deviation from 25°C.

Cold Junction Compensation Error: ±0.2% @

25°C.

Cold Junction Compensation Rejection: ±0.04%

deviation from 25°C.

Common Mode Rejection: 90dB minimum; 24VAC

maximum for RTD input; 115VAC max for other
inputs.

Normal Mode Rejection: 85dB minimum @ 60Hz

or greater.

Chart Accuracy: Recording: 0.5% of span. Chart

Rotation: ±0.5% of rotation time.

Process Value Output Error Limit: 0.5% of span.
Record Error Limit: ±0.5% of chart span or better

typically; ±1.0% of chart span maximum.

CONTROL PARAMETERS (optional):
Proportional Band Output 1/Output 2: 1 to 3000

units.

Manual Reset (Integral): –1500 to 1500 units.
Auto Reset (Integral): 0.0–100.0 repeats/ minute.
Rate Derivative: 0.0–10.0 minutes.
Cycle Time Output 1/Output 2: 1 to 240 seconds.
Position Proportioning Sensitivity: 0.0–50.0%.
ON/OFF Hysteresis: 0–300 units (width of

hysteresis band).

First /Second Output Position: –1000 to 1000

units.

Control Action: Direct or Reverse.
Automatic Transfer Function: User-selectable to

transfer from manual to automatic control
when setpoint is reached; can be disabled.

Anti-Reset Windup: Auto-reset is disabled when

the process is outside of the proportional band.

Auto/Manual: Bumpless transfer.
Manual Output: 0–100%.
Output Limiting: High/Low 0–100%.
Setpoint Limiting: High/Low Limit: –9999 to 9999

units.

www.partlow.com • www.danaherindustrialcontrols.com

Process Automation Worldwide Brands: LFETM • PartlowTM • PMATM • RustrakTM • West

Customer Service +1 800.390.6405

Technical Support +1 800.866.6659

TM

Recorders

Hollowshaft, Incremental EncodersRecorder/Controller/Profiler

SPECIFICATIONS (Continued)

PERFORMANCE (continued)

PROFILE PARAMETERS (optional):
Programmable Profiles: 8 user-programmable

profiles.

Segments: 1–6 segments per profile.
Ramp and Soak: 1 ramp and soak per segment.
Profile Time Base: User-selectable; Choose

from hours and tenths (HHH.T); hours and
minutes (HH.MM) or minutes and seconds
(MM.SS).

Profile Interruption Action: Upon return of AC

power either go to OFF mode, continue
profile, go to HOLD mode, or restart profile at
beginning.

Profile Loop Count: 1–9999; 0 = continuous.
Profile End Control: User-selectable; hold at

last setpoint; Abort (all outputs off or 0%);
transfer to another profile.

Assured Soak: Deviation Hold after Ramp Up or

Down; 1–3000 units; 0 = No Auto Hold.

Pen Profiling Configuration: Pen 1 only or Pen

1 and 2.

Remote Run/Hold (optional): User-selectable;

override Run/Hold key; allow Run/Hold key
function.

Event Output(s): Up to 3 event outputs possible;

each event can be set on or off for each
ramp and soak.

MRC 7000

Proven Recording Reliability that
Became the Industry Standard!

COMMUNICATIONS INTERFACES

Communications Port: RS-422/485 serial,

half duplex.

Protocol: Partlow ASCII
Bit Rate: User-configurable 300, 600, 1200,

2400, 4800 or 9600/sec.

Address: User-configurable for each pen

0–99.

RATINGS/AGENCY APPROVALS

Safety: UL 1092 File E67237; CSA Spec C22.2

File LR39885.

Immunity: Optional CE compliance.
Other: ISO 9002 registered.

PROTECTION

NEMA 3 enclosure optional; CE compliance

optional.

Enable Mode security system option.

PHYSICAL DIMENSIONS

Width: 15.13˝ (384mm).
Depth: 3.63˝ (92mm).
Height: 13.19˝ (335mm).
Weight: 20 lbs (9.1kg).

™

OPTIONS/ACCESSORIES

Choice of pen, thermocouple input and SSR

driver outputs (see matrix for details).
RS-485 communication option.
24V DC power supply option.
115 or 230VAC input option.
NEMA 3 protection optional; CE compliance

optional.
Enable Mode security system option.

WARRANTY

3 years.

www.partlow.com • www.danaherindustrialcontrols.com

Process Automation Worldwide Brands: LFETM • PartlowTM • PMATM • RustrakTM • West

Customer Service +1 800.390.6405

Technical Support +1 800.866.6659

TM

MRC7000

†N3 - NEMA type protection for wet environments.

** This option comes with a structural foam cover.

included, the total must be less than or equal to six. With Limit, only 1 selectable Alarm is available.

* Total quantity of SPST Relays and SSR Drivers must be less than or equal to eight. When SPDT Relays are

6 Six SPST

7 One SPDT

8 Two SPDT

9 Two SPDT

and

Two SPST

6 Six

8 Eight

4 Four Standard

NOTE: 4-20mA inputs are accommodated using the 1-5V input and a 250 ohm Shunt Resistor, P/N 64411701 or the 10-50mA input

and a 2.5 ohm Shunt Resistor, P/N 64411702

Order as Separate Line Item.

††High/low limit device is Factory Mutual approved.

Recorder

4 High or

Only

Low

Limit††

1 Recorder Only

1 One SPST

2 Two SPST

4 Four SPST

1 One

2 Two

4 Four

1 One Standard

2 Two Standard

3 Three Standard

1 Recorder

0 None

0 None

0 None

0 None

7

Model

Code 2:

Pen 1

Code 3:

Pen 2

Code 4:

Relay (SPST)

Outputs*

Code 5:

SSR Driver

Outputs*

Code 6:

4-20mA

Outputs

Recorder/Controller/Profiler

MODELS (Recorder Only)

Code 1:

CE CE

AW

Compliance

7 4 & 6

Combined**

AE N3 plus

mVDC

Input

6 Sealed

Conduit

Connections

4 115VAC

5 115/230VAC

AD 0/100

Depression

on Pen 2

0 None

1 24VDC

Regulated

/Isolated

0 None

2 RS-485

Total Access

4 Door Lock**

2 Standard

Cover (Plastic

Windows)

1 115VAC

2 115/230VAC

CSA APPROVED

BLANK - None

N3 NEMA †

AW RTD

0 0

Code 7:

Transmitter

Power Supply

Required

Zeros

Code 8:

Digital

Communications

Code 9:

Enclosure

Options

Code 10:

Operating

Voltage

Code 11:

Option

Suffix

MRC 7000

Proven Recording Reliability that

Became the Industry Standard!

™

Recorders

* Total quantity of SPST Relays and SSR Drivers must be less than

or equal to eight. When SPDT Relays are included, the total must be less than or equal to six.

** Applies to Model 73XXXXXXXXXX.

*** This option comes with a structural foam cover.

9 Two SPDT

Two SPST

and

Standard

8 Two SPDT

7 One SPDT

8 Eight

4 Four

Standard

Controller

6 Six SPST

6 Six

3 Three

Standard

Controller

Profile

3 Recording

Controller

Profile

2 Recording

Only

4 Four SPST

2 Two SPST

4 Four

2 Two

2 Two

Standard

/Isolated

Regulated

Recording/

MRC7000

2 Recording

Controller

1 Recorder

0 None

1 One SPST

0 None

1 One

0 None

1 One

0 None

1 24VDC

0 None

7

Model

Code 1:

Pen 1

Code 2:

Pen 2

Code 3:

Outputs*

Relay (SPST)

Code 4:

Outputs*

SSR Driver

Code 5:

Outputs

4-20mA

Code 6:

Power Supply

Transmitter

Code 7:

MODELS (Recording Controller/Profiler)

Recorder/Controller/Profiler

†N3 - NEMA type protection for wet environments.

NOTE: 4-20mA inputs are accommodated using the 1-5V input and a 250 ohm Shunt

Resistor, P/N 64411701 or the 10-50mA input and a 2.5 ohm Shunt Resistor, P/N

64411702ea.

Order as Separate Line Item

3 Remote

2 Remote

Run/Hold**

Setpoint

Proportioning

2 Remote

Setpoint

6 Sealed

4 Door Lock

***

4 115VAC

CSA APPROVED

Proportioning

Total Access

.

7 4 & 6

Combined

Connections

Conduit

***

5 115/230VAC

1 Position

0 None

1 Position

0 None

2 RS-485

0 None

2 Standard

Windows)

Cover

(Plastic

2 115/230VAC

1 115VAC

Input

Pen 1 Auxiliary

Code 8:

Input

Pen 2 Auxiliary

Code 9:

Communications

Digital

Code 10:

Options

Enclosure

Code 11:

Voltage

Operating

Code 12:

MRC 7000

Proven Recording Reliability that

Became the Industry Standard!

™

CE CE

Compliance

AW

AE N3 plus

Input

AD 0/100

mVDC

AW RTD

on Pen 2

Depression

N3 NEMA †

BLANK - None

Suffix

Option

Code 13:

Recorders

Recorders

Hollowshaft, Incremental EncodersRecorder/Controller/Profiler

DIMENSIONS

EC1

(384.2 mm)

15.1"

WIDTH OF COVER

MRC 7000

™

Proven Recording Reliability that
Became the Industry Standard!

2.5"

(63.5 mm)

(65.9 mm)

2.6"

9

DIA.(7.1mm)

32

12.6"

(320.7 mm) (190.5 mm)

7.5"

13.9"

13.5"

( 354 mm)

(342.5 mm)

Made in USA.
* Specifications subject to change without notice in accordance with

Panel cut-out for flush mounting

Headquarters: 1675 Delany Road • Gurnee, IL 60031-1282 • USA
Phone: [phone] • Fax: [phone]

Satellite Locations:
North America: North Carolina, South Carolina, Connecticut, Massachusetts, New York,

Canada, British Virgin Islands • Europe: United Kingdom, Italy, France, Germany, Spain,
Slovakia • Latin America: Brazil • Asia: China, Japan, Korea, Singapore

www.partlow.com • www.danaherindustrialcontrols.com

Process Automation Worldwide Brands: LFETM • PartlowTM • PMATM • RustrakTM • West

our DBS policy of continuous improvement. All product and brand
names are trademarks of their respective companies. All rights
reserved.

Partlow™ brand and MRC 7000™ are trademarks of Danaher Industrial
Controls Group. All rights reserved.

© 2005 DICG Corp.
Partlow Brand MRC 7000 Data Sheet (5/05)

Customer Service:

Tel.: [phone]
Fax: [phone]
[e-mail]

TM

Technical Support:

Tel.: [phone]
Fax: [phone]
[e-mail]
