Partlow MIC 6000 Data Sheet
Data Sheet
Process Automation Worldwide Brands: LFE
TM
• Partlow
TM
• PMA
TM
• Rustrak
TM
• West
TM

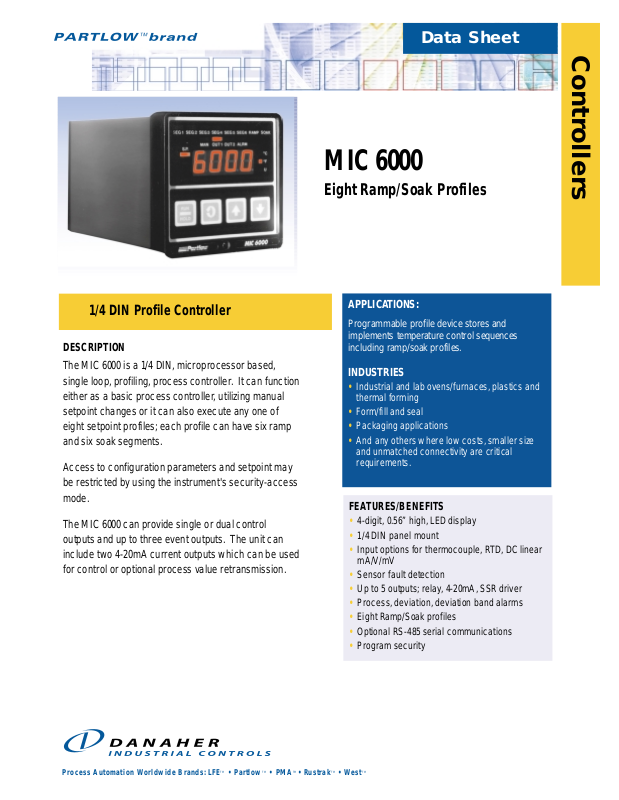

MIC 6000
Eight Ramp/Soak Profiles
FEATURES/BENEFITS
• 4-digit, 0.56” high, LED display
• 1/4 DIN panel mount
• Input options for thermocouple, RTD, DC linear
mA/V/mV
• Sensor fault detection
• Up to 5 outputs; relay, 4-20mA, SSR driver
• Process, deviation, deviation band alarms
• Eight Ramp/Soak profiles
• Optional RS-485 serial communications
• Program security
DESCRIPTION
The MIC 6000 is a 1/4 DIN, microprocessor based,
single loop, profiling, process controller. It can function
either as a basic process controller, utilizing manual
setpoint changes or it can also execute any one of
eight setpoint profiles; each profile can have six ramp
and six soak segments.
Access to configuration parameters and setpoint may
be restricted by using the instrument's security-access
mode.
The MIC 6000 can provide single or dual control
outputs and up to three event outputs. The unit can
include two 4-20mA current outputs which can be used
for control or optional process value retransmission.
1/4 DIN Profile Controller
Controllers
APPLICATIONS:
Programmable profile device stores and
implements temperature control sequences
including ramp/soak profiles.
INDUSTRIES
• Industrial and lab ovens/furnaces, plastics and
thermal forming
• Form/fill and seal
• Packaging applications
• And any others where low costs, smaller size
and unmatched connectivity are critical
requirements.
Process Automation Worldwide Brands: LFE
TM
• Partlow
TM
• PMA
TM
• Rustrak
TM
• West
TM
MIC 6000
Eight Ramp/Soak Profiles
1/4 DIN Profile Controller
SPECIFICATIONS*
OUTPUTS
Relay: SPST
115VAC: 5.0 A Resistive; 1/8HP or 250VA
230VAC: 2.5 A Resistive; 1/8HP or 250VA
SSR Driver: Open collector output Short
circuit protected at 100mA maximum
Provides 4VDC at 20mA or 3VDC at
40mA
Current Output: 0-20 or 4-20 mADC into
650 ohms maximum
DISPLAY
Digital Display: Four 7 segment LEDs each
0.56 inches. Individual LED indicators for
Setpoint, Out 1, Out 2, Manual, Alarm,
Degrees F, Degrees C, or Engineering
Units, and minus sign for negative
values, Segment 1 – 6, ramp and soak
ALARM ADJUSTMENT
Process Alarm: -9999 to 9999 units
Deviation Alarm: -3000 to 3000 units
Deviation Band Alarm: 1 to 3000 units
CONTROL ADJUSTMENTS
On/Off Hysteresis: 0 to 300 units
Proportional Band: 1 to 3000 units
Manual Reset: -1500 to 1500 units
Auto Reset: 0.0 to 100.0 repeats/minute
Rate: 0.0 to 10.0 minutes
Cycle Time: 1 to 240 seconds
Position Prop. Sensitivity: 0.0 to 50.0%
First Output Position: -1000 to 1000 units
Spread: -1000 to 1000 units
(Second Output Position)
Profile Time Base:
Selectable for ramp time and soak
time as:
HHH.T (hrs. & tenths)
HH.MM (hrs. & min.)
MM.SS (min. & sec.)
Selectable for ramp rate (EO option only)
as:
XXX.X (units per hour)
XXX.X (units per minute)
STANDARD FEATURES
Up to 5 outputs via relay, 4-20 mA current or
SSR driver
Alarm or Event output
Available inputs for T/C, RTD, Voltage or
Current
Sensor fault detection
Optional remote Run/Hold, Position
Proportioning or RS-485 Communications
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 0 to 55°C, 32 to
131°F
Storage Temperature: -40 to 65°C, -40 to
149°F
Humidity: 0 to 90% RH, non condensing
Vibration: 0.5 to 100Hz at 0.5g
ELECTRICAL
Line Voltage: 115/230VAC +/- 10% 50/60 Hz
Power Consumption: 15VA maximum
Transmitter Power Supply: Provides up to
40mA @ 24 VDC.
INPUTS
Thermocouple types: J, K, T, R, S, E, B, N,
and C.
RTD: 100 ohm platinum (.00385
Ohm/Ohm/C)
Volts: 0 to 5VDC, 1 to 5 VDC
Millivolts: 0 to 25mVDC, 0 to 50mVDC, 10
to 50mVDC
Milliamps: 0 to 20 or 4 to 20mADC,
accommodated via the addition of a shunt
resistor
Remote Run/Hold: Dry contact-closure
Sensor Fault Detection: Displays Hi or Lo
for thermocouple or RTD inputs (10%
above or below range) and sensor break,
SnSr. On/Off outputs go off, proportional
outputs go to 0%. Sensor fault detection
is not functional for 0 to 5VDC or 0 to
20mADC.
PERFORMANCE
Measurement Error Limit:
• Type J, K, T, E, N, C thermocouples and RTD
+/- 0.25% of reading plus 1 degree at 25°C
• Type R, S, B thermocouple +/- 0.25% of span
at 25°C
• mVDC, mADC and VDC +/- 0.25% of span,
plus 1 least-significent-digit at 25°C
Ambient Temperature Error: 0.01% of span per
degree C deviation from 25°C
Scan Rate: 1 scan per second (3 scans per
second available on EA option)
Display Resolution: T/C & RTD: 0.1 or 1 degree
mV & VDC: 0.001, 0.01, 0.1, or 1.0
Auto Reset Windup Inhibit: Auto reset is
disabled when the process is outside of the
proportional band
Cold Junction Compensation: Self compensation
for ambient temperature. All calibration values
are stored in memory.
Noise Rejection: Normal mode, 85dB minimum
@ 60Hz or greater. Common mode, 90dB
minimum ±8 VDC maximum peak for RTD
input, 115VAC maximum for other inputs.

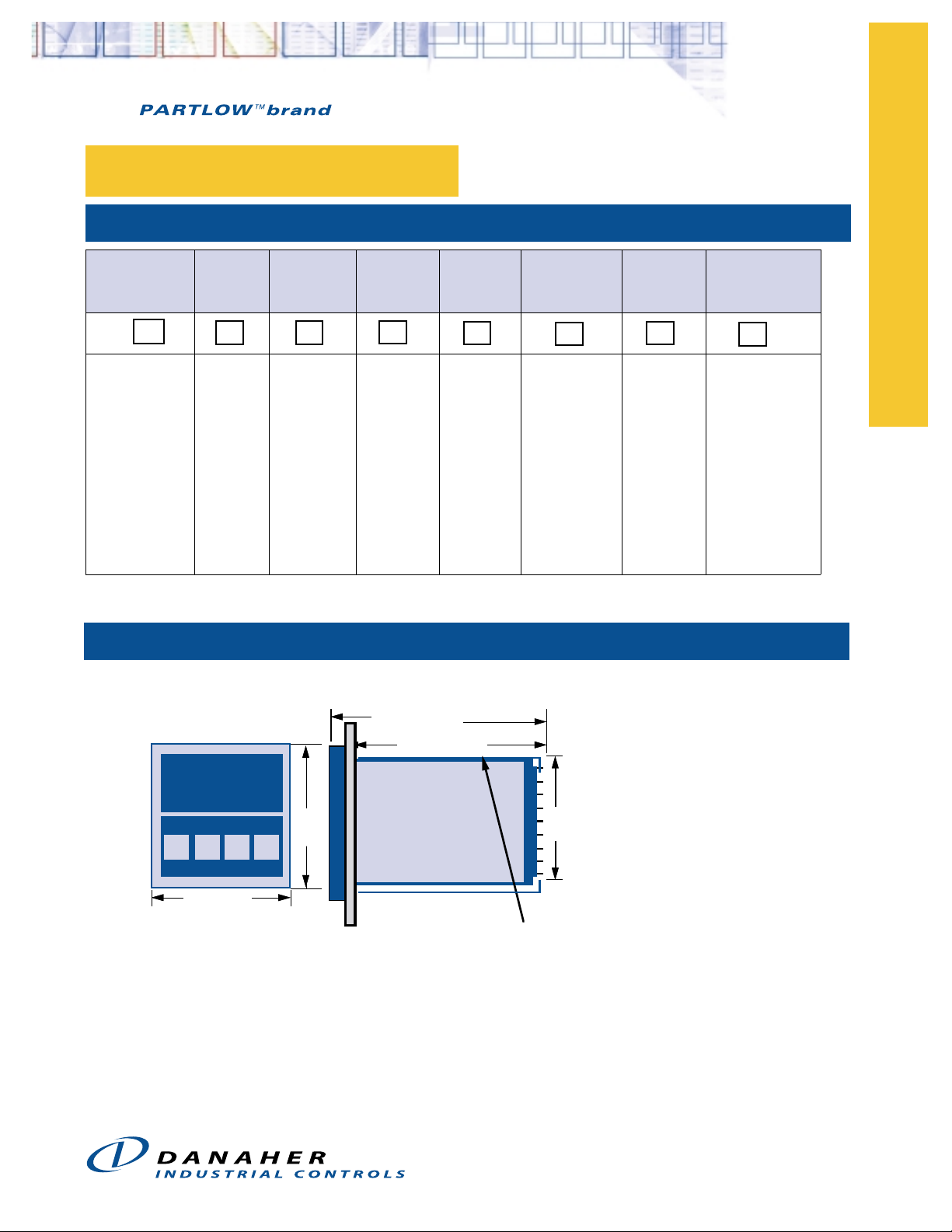

PHYSICAL DIMENSIONS
Dimensions: 1/4 DIN front panel, 5.8" deep
Weight: 3 pounds maximum
COMMUNICATIONS
Type: RS-485 serial communication port
Protocol: Partlow ASCII
RATINGS/AGENCY APPROVALS
UL & cUL recognized (E67237),
CSA (LR39885)
WARRANTY
3 years
Made in USA
* Specifications are for base models with standard features
only unless otherwise noted. Specifications subject to
change without notice in accordance with our DBS policy
of continuous improvement. All product and brand names
are trademarks of their respective owners. All rights
reserved.
Partlow™ brand and MIC 6000™ are trademarks of Danaher Industrial
Controls Group. All rights reserved.
© 2005 DICG Corp.
Partlow Brand MIC 6000 Data Sheet (7/05)
