 1 ■

HOT GLUE GUN PHP 500 D2
Introduction

Congratulations on the purchase of your new ap­pliance. You have selected a high-quality product.
The operating instructions are part of this product.
They contain important information about safety,
usage and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the range of applications specified. Please also
pass these operating instructions on to any future
owner.

Intended use

This appliance is intended for gluing wood, card­board, packaging, PVC, carpet, seals, plastics,
leather, ceramics, glass and fabric with hot-melt
adhesive.
The material to be glued must be clean, dry and free
of grease. Any other usage of or modification to the
appliance is deemed to be improper and carries a
significant risk of accidents. The manufacturer accepts
no responsibility for damage(s) attributable to misuse.
The appliance is not intended for commercial use.

Features

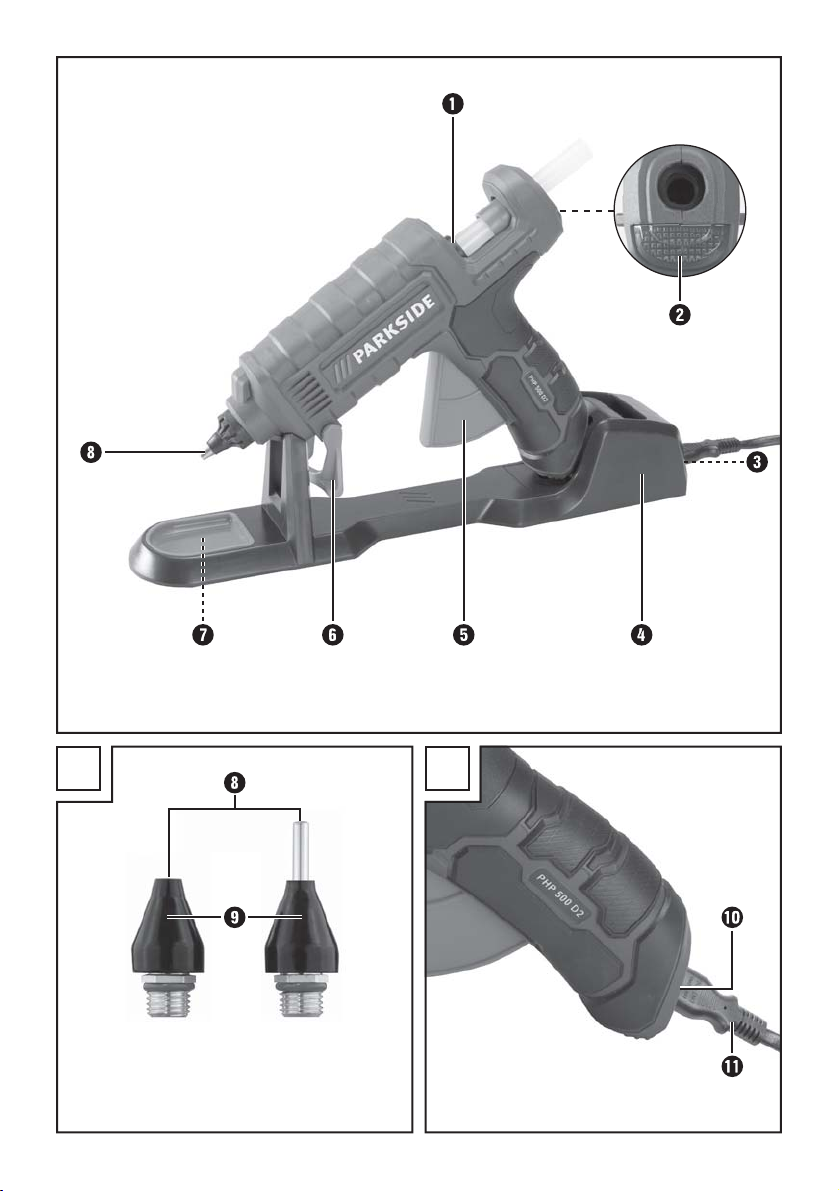

Feeder shaft
Control lamp
Mains connection charger
Charger with appliance cradle
Trigger
Plastic stand
Drip tray
Nozzle
Thermal protection for nozzle
Mains connection glue gun
Power cable

Package contents

1 hot glue gun PHP 500 D2
1 charger with appliance cradle
1 mains cable
1 plastic stand
1 nozzle (short/flat)
1 nozzle (short/round, prefitted)
1 nozzle (long)
3 glue sticks
1 carrying case
1 set of operating instructions

Technical details

Rated voltage: 230V ∼ 50 Hz

(alternating
current)

Rated power consumption: 25 W

(starting at 500 W)
Heating time: approx. 5 min.
Protection class: II /

(double

shielded)

General Safety Warnings

for Power Tools in
Household Use

WARNING!

► Read all safety warnings and all instructions.

Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious
injury.

Save all warnings and instructions for future
reference.

This appliance may be used by chil-

■

dren aged 8 years and above and
by persons with limited physical,
sensory or mental capabilities or
lack of experience and knowledge,
provided that they are under super­vision or have been told how to use
the appliance safely and are aware

■ 2 │ GB

│

CY

PHP 500 D2

of the potential risks. Children must
not play with the appliance. Clean­ing and user maintenance tasks
may not be carried out by children
unless they are supervised.

■ To avoid potential risks, damaged mains cables

should be replaced by the manufacturer, their
customer service department or a similarly
qualified person.

Additional safety instructions for
glue guns

■ Children should be supervised to ensure that

they do not play with the appliance.

■ CAUTION! This appliance must be placed on

its stand when not in use.

■ Always protect the appliance from rain and

moisture. Water entering a power tool will
increase the risk of electric shock.

■ Do not misuse the power cord, e.g. to carry

or hang up the appliance, or to pull the plug
from the socket. Keep cord away from heat,
oil, sharp edges or moving parts. If the power
cord is damaged or severed during work, do
not touch the cord but rather pull out the power
plug. Damaged or entangled cords increase the
risk of electric shock.

■ Only for indoor use.

■ If you take a break of longer than 30 minutes,

pull out the power plug.

■ Allow the appliance to cool completely after

use and before storage.

■ Do not work on any material containing asbestos.

■ Avoid the risk of injury or fire as well as health

risks: RISK OF BURNS! The adhesive and the
nozzle reach a temperature of around 200°C.
Do not touch the nozzle or the glue. Do not
allow hot glue to come into contact with people
or animals. In case of contact with skin, rinse
the affected part in cold running water for a few
minutes. Do not attempt to remove the adhesive
from the skin.

■ Always route the power cable towards the rear,

away from the appliance.

Operation

Before use

Preparing the surfaces to be glued:

■ Do not use flammable solvents to clean the

surfaces to be glued.

■ The ambient temperature and the materials to

be bonded may not be colder than 5°C and
not warmer than 50°C.

■ The area to be glued must be clean, dry and

free of grease.

♦ Smooth surfaces should be roughened before

gluing.

♦ Quick-cooling materials such as steel should be

warmed a little to facilitate adhesion.

♦ Select the desired nozzle

Using the appliance

Mains operation:

♦ Connect the power cable

nection of the glue gun (see fig. B). Insert the
power plug into the socket.

♦ Fold down the plastic stand

appliance.

♦ Push a glue stick into the feeder shaft
♦ Allow the appliance to heat up for about

5 minutes. The appliance is now ready for use.

Battery operation:

♦ Connect the power cable

nection of the charger . Insert the power plug
into the socket.

♦ Place the glue gun into the charger
♦ Push a glue stick into the feeder shaft
♦ Allow the appliance to heat up for about

5 minutes. The appliance is now ready for use.

♦ Repeat the heating phase if the glue is still too

thick or viscous.

Gluing:

♦ Pull the trigger

accordance with your requirements.

to control the flow of glue in

.

to the mains con-

. Put down the

.

to the mains con-

.

.

PHP 500 D2

GB│CY 

│

 3 ■

♦ Apply the glue in spots. For flexible materials,

such as textiles, apply the glue in zigzag lines.

♦ Press the two workpieces to be bonded together

immediately after applying the glue and hold
for about 30 seconds. The glued bond is ready
after about 5 minutes.

♦ During breaks in work, put the glue gun down

on the plastic stand
charger .

♦ Remove any glue residue after it has cooled

down with a sharp knife. Bonded joints can be
released by heating.

Switching the appliance off:

♦ Unplug the appliance from the mains socket.

Changing the nozzles:
The temperature of the nozzle

temperature of around 200°C.

200

■ Wear protective gloves.
♦ Heat the appliance up for about 5 minutes.

Replace the nozzle

■ Risk of burns! Touch the nozzle

thermal protection . The nozzle tip is hot!

NOTE

Hold the appliance vertically with the nozzle
pointing upwards, otherwise the glue could
drip out.

or replace it in the

reach a

when hot.

only by the

Maintenance and cleaning

WARNING! ALWAYS REMOVE THE

POWER PLUG FROM THE POWER
SOCKET BEFORE CLEANING THE
APPLIANCE.

■ The glue gun is maintenance free.

■ Keep the appliance clean and dry at all times.

■ Never permit liquids to enter inside the appli-

ance. Use a cloth to clean the housing. Never
use petrol, solvents or cleansers which can
damage plastic.

Disposal

The packaging is made from environmen-

tally friendly material and can be
disposed of at your local recycling plant.

Do not dispose of electrical appli-

ances with normal domestic waste!

As required by European Guideline 2012/19/EU,
worn-out electrical appliances must be collected
separately and fed into an environmentally compat­ible recycling process.

Your local community or municipal authorities can
provide information on how to dispose of the worn­out appliance.

■ 4 │ GB

│

CY

PHP 500 D2

Warranty

This appliance is provided with a 3-year
warranty valid from the date of purchase.
The appliance has been manufactured with
care and inspected meticulously prior to
delivery. Please retain your receipt as proof
of purchase. In the event of a warranty claim,
please contact your Customer Service unit by
telephone. This is the only way to guarantee
free return of your goods.

The warranty only covers claims for material and
manufacturing defects, not for damage sustained
during carriage, components subject to wear and
tear or damage to fragile components such as
switches or batteries. This appliance is intended
solely for private use and not for commercial
purposes.

The warranty shall be deemed void in cases of
misuse or improper handling, use of force and
modifications/repairs which have not been carried
out by one of our authorised Service centres. Your
statutory rights are not restricted by this warranty.

The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must be
reported immediately after unpacking, but no later
than two days after the date of purchase. Repairs
carried out after expiry of the warranty period shall
be subject to charge.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)
E-Mail: [e-mail]

IAN 274702

CY

Service Cyprus

Tel.: [phone]
E-Mail: [e-mail]

IAN 274702

Importer

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

PHP 500 D2

GB│CY 

│

 5 ■

Translation of the original
Conformity Declaration

We, KOMPERNASS HANDELS GMBH, docu­ments officer: Mr. Semi Uguzlu, BURGSTR. 21,
44867 BOCHUM, Germany, hereby declare that
this product complies with the following standards,
normative documents and the EC directives:

EC Low Voltage Directive
(2014/35/EU)

EMC (Electromagnetic Compatibility)
(2014/30/EU)

RoHS Directive
(2011/65/EU)

Applied harmonised standards:

EN 60335-2-45:2002/A2:2012
EN 60335-1:2012/A11:2014
EN 62233:2008
EN 55014-1:2006/A2:2011
EN 55014-2:1997/A2:2008
EN 61000-3-2:2014
EN 61000-3-3:2013

Type/Appliance designation:

Hot glue gun PHP 500 D2

Year of manufacture: 06 - 2016
Serial number: IAN 274702

Bochum, 10/02/2016

Semi Uguzlu

- Quality Manager ­The right to effect technical changes in the context

of further development is reserved.

■ 6 │ GB

│

CY

PHP 500 D2

Sadržaj

Uvod ...........................................................8

Namjenska uporaba ......................................................... 8

Oprema ................................................................... 8

Opseg isporuke ............................................................. 8

Tehnički podaci ............................................................. 8

Opće sigurnosne napomene za električne uređaje za kućnu uporabu ......8

Dodatne sigurnosne napomene za pištolj za vruće ljepljenje .......................... 9

Rukovanje .......................................................9

Prije uključivanja uređaja ...................................................... 9

Puštanje u pogon ............................................................ 9

Održavanje i čišćenje .............................................10

Zbrinjavanje ....................................................10

Jamstvo ........................................................11

Servis ..........................................................11

Uvoznik ........................................................11

Prijevod originalne izjave o sukladnosti .............................12

Tehnički podaci ............................................................12

PHP 500 D2

HR 

│

7■

PIŠTOLJ ZA VRUĆE LIJEPLJENJE
PHP 500 D2
Uvod

Čestitamo na kupnji Vašeg novog uređaja. Time ste
se odlučili za vrlo kvalitetan proizvod. Upute za
uporabu sastavni su dio ovog proizvoda. One
sadrže važne napomene za sigurnost, rukovanje i
zbrinjavanje. Prije uporabe proizvoda upoznajte se
sa svim napomenama za rukovanje i sa svim sigur­nosnim napomenama. Proizvod koristite isključivo
na opisani način i u navedenim područjima upora­be. U slučaju predaje proizvoda trećim osobama,
priložite i također predajte i svu dokumentaciju.

Namjenska uporaba

Uređaj je posebno prikladan za lijepljenje drveta,
kartona, pakiranja, PVC, tepiha, brtvi, plastike, kože,
keramike, stakla i tkanina pomoću topivog ljepila.
Materijal koji se lijepi mora biti čist, suh i odmašćen.
Svaki drugi način uporabe i svaka izmjena uređaja
smatra se nenamjenskom i krije znatnu opasnost
od nezgode. Proizvođač ne preuzima odgovornost
za štete nastale uslijed nenamjenskog korištenja
uređaja. Uređaj nije namijenjen za komercijalnu
uporabu.

Oprema

Kanal za umetanje patrone
Kontrolni indikator
Mrežni priključni vod stanice za punjenje
Stanica za punjenje s držačem uređaja
Poluga za guranje
Plastični preklopnik za postavljanje
Prihvatna zdjela
Mlaznica
Omotač mlaznice za zaštitu od topline
Mrežni priključni vod pištolja za lijepljenje
Mrežni kabel

Opseg isporuke

1 Pištolj za vruće ljepljenje PHP 500 D2
1 Stanica za punjenje s držačem uređaja
1 Mrežni kabel
1 Plastični preklopnik za postavljanje
1 Zamjenska mlaznica (kratka / plitka)
1 Zamjenska mlaznica (kratka / okrugla,

unaprijed montirana)
1 Zamjenska mlaznica (duga)
3 Klina za lijepljenje
1 Kofer za nošenje
1 Upute za uporabu

Tehnički podaci

Nazivni napon: 230 V ∼ 50 Hz

(Izmjenična struja)

Nazivna snaga: 25 W

(prilikom puštanja u rad

500 W)
Vrijeme zagrijavanja: cca 5 min.
Razred zaštite: II /

(dvostruka izolacija)

Opće sigurnosne napome-

ne za električne uređaje
za kućnu uporabu

UPOZORENJE!

► Pročitajte sve sigurnosne napomene i upute.

Nepridržavanje sigurnosnih napomena i uputa
može uzrokovati strujni udar, požar i/ili teške
ozljede.

Sačuvajte sve sigurnosne napomene i upute
za buduću uporabu.

Ovaj uređaj smiju koristiti djeca

■

stara 8 godina ili više, kao i osobe
sa smanjenim fizičkim, senzornim
ili mentalnim sposobnostima ili po­manjkanjem iskustva i/ili znanja,
ukoliko su pod nadzorom ili su pri­mile poduku o sigurnom rukovanju
uređajem te su razumjele opasnosti

■ 8 

│

 HR

PHP 500 D2

koje proizlaze iz uporabe uređaja.
Djeca se ne smiju igrati uređajem.
Čišćenje i servisiranje ne smiju
obavljati djeca bez odgovarajućeg
nadzora.

■ Ako dođe do oštećenja mrežnog kabela, isti

mora zamijeniti proizvođač, servis za kupce ili
slična kvalificirana osoba, kako bi se izbjegle
opasnosti.

Dodatne sigurnosne napomene za
pištolj za vruće ljepljenje

■ Djeca bi trebala biti pod nadzorom, čime treba

biti osigurano da se ne mogu igrati ovim ure­đajem.

■ POZOR! Ovaj se uređaj mora postaviti na pre-

klopno postolje kada se ne koristi.

■ Uređaj držite dalje od kiše i vlage. Prodiranje

vode u električni uređaj povećava rizik od struj­nog udara.

■ Ne koristite kabel za nošenje ili vješanje uređaja,

ili za izvlačenje utikača iz utičnice. Kabel držite
podalje od topline, ulja i oštrih bridova. Ako
se prilikom rada ošteti ili prereže mrežni kabel,
kabel ne dirajte i odmah izvucite utikač iz utič­nice. Oštećeni ili zapetljani kabeli povećavaju
rizik od strujnog udara.

■ Samo za uporabu u zatvorenim prostorijama.

■ Kod pauza u radu dužih od 30 minuta, izvucite

utikač iz utičnice.

■ Ostavite da se uređaj nakon uporabe i prije

spremanja potpuno ohladi.

■ Ne obrađujte materijale koji sadrže azbest.

■ Izbjegavajte opasnost od ozljeda i požara,

kao i opasnosti po zdravlje: OPASNOST OD
OPEKLINA! Ljepilo i mlaznica zagrijavaju se
na temperaturu veću od 105 °C. Ne dodirujte
mlaznicu niti ljepilo. Ne dozvolite da vruće
ljepilo dospije na osobe ili životinje. U slučaju
kontakta s kožom, mjesto kontakta nekoliko
minuta držite pod mlazom hladne vode. Ne
pokušavajte ljepilo odstraniti s kože.

■ Mrežni kabel uvijek postavite prema nazad iza

uređaja.

Rukovanje

Prije uključivanja uređaja

Priprema mjesta lijepljenja:

■ Ne koristite zapaljiva otapala za čišćenje mjesta

za lijepljenje.

■ Temperatura okoline i materijala koji se lijepe ne

smije biti niža od + 5 °C niti viša od + 50 °C.

■ Mjesta koja se lijepe moraju biti čista, suha i

odmašćena.

♦ Glatke površine prije lijepljenja izbrusite kako bi

bile hrapave.

♦ Lagano zagrijte materijale koji se brzo hlade,

primjerice čelik, kako bi ljepilo bolje prionulo.

♦ Zavrnite željenu mlaznicu

Puštanje u pogon

Rad preko kabela:

♦ Povežite mrežni kabel

za lijepljenje (vidi sliku B). Utaknite mrežni
utikač u utičnicu.

♦ Isklopite plastičnu polugu za postavljanje

prema naprijed. Odložite uređaj.

♦ Umetnite patronu za ljepljenje u kanal za ume-

tanje patrona

♦ Pustite uređaj otprilike 5 minuta da se dovoljno

zagrije. Uređaj je sada spreman za rad.

Rad bez kabela:

♦ Povežite mrežni kabel

stanice za punjenje . Utaknite mrežni utikač
u utičnicu.

♦ Utaknite pištolj za lijepljenje u stanicu za punje-

nje

.

♦ Umetnite patronu za lijepljenje u kanal za ume-

tanje patrona

♦ Pustite uređaj otprilike 5 minuta da se dovoljno

zagrije. Uređaj je sada spreman za rad.

♦ Fazu zagrijavanja ponovite ako ljepilo teško

izlazi ili ako je vrlo gusto.

.

.

.

s priključkom pištolja

s mrežnim priključkom

PHP 500 D2

HR 

│

9■
