PANASONIC TX65CW324 User Manual

OPERATING INSTRUCTIONS

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

TX-65CW324

COLOUR TELEVISION WITH REMOTE CONTROL

TÉLÉVISEUR COULEUR AVEC TÉLÉCOMMANDE

FARB-TV-GERÄT MIT FERNBEDIENUNG

Contents

Safety Information ..................................................3

Markings on the Product.........................................3

Maintenance ...........................................................4

Display panel, Cabinet, Pedestal............................4

Mains plug ..............................................................4

Assembling / Removing the pedestal ..................... 5

When using the wall-hanging bracket.....................5

Environmental Information......................................5

Features .................................................................6

Accessories Included..............................................6

Standby Notications .............................................. 6

TV Control Buttons & Operation ............................. 6

Inserting the Batteries into the Remote .................. 7

Connect Power ...................................................... 7

Antenna Connection ............................................... 7

Notication ..............................................................7

Specication ...........................................................8

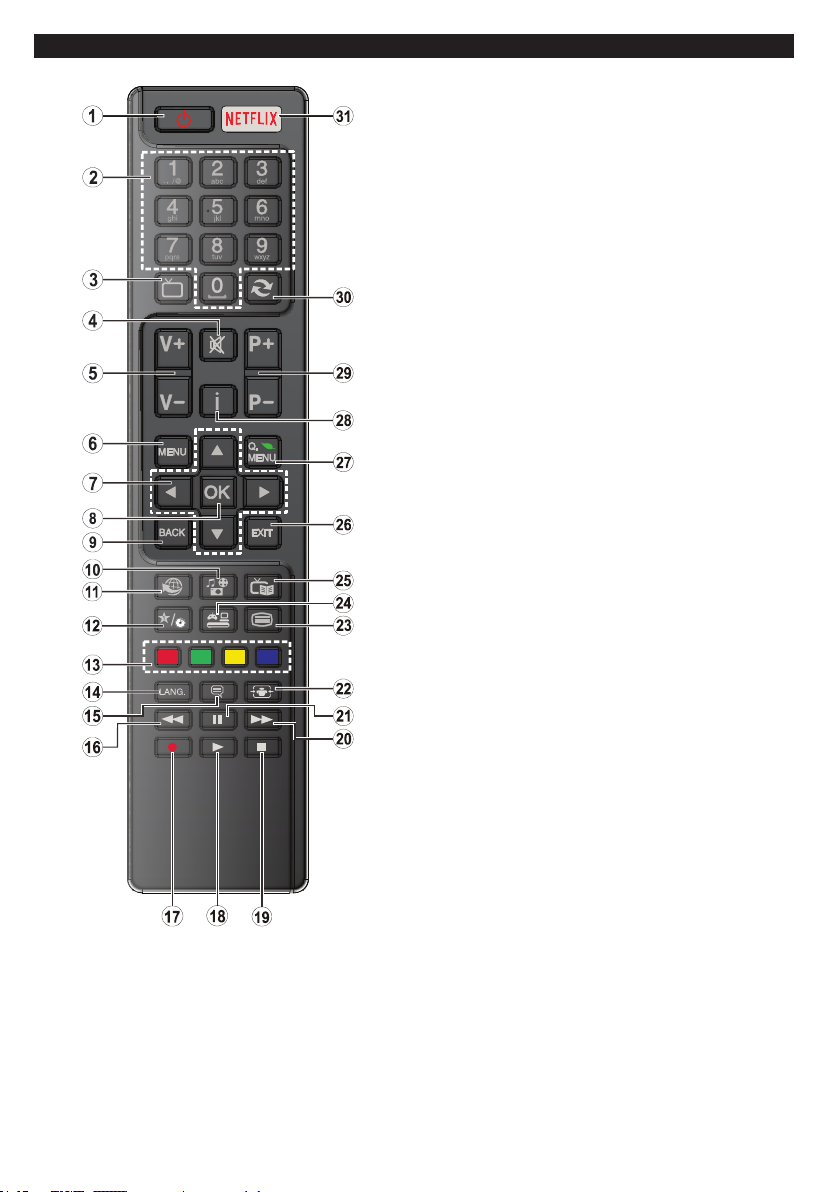

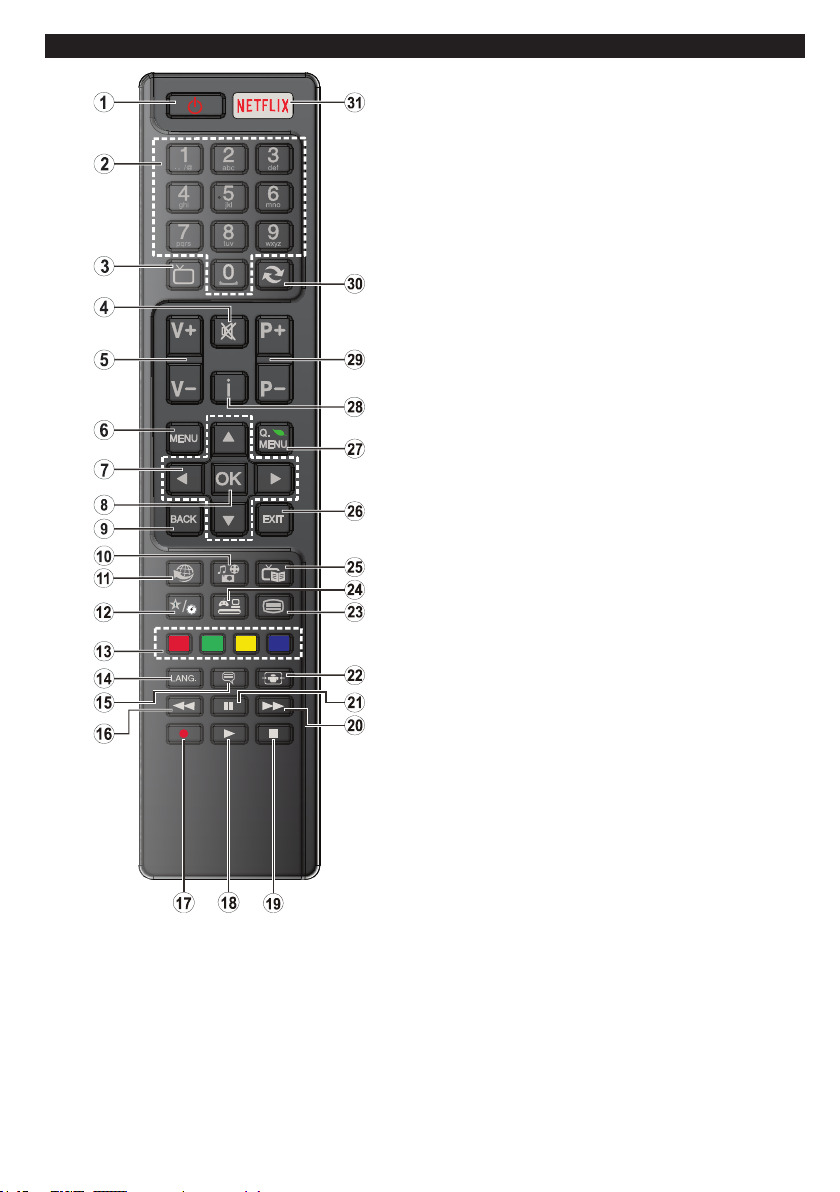

Remote Control ......................................................9

Connections..........................................................10

Switching On/Off ................................................... 11

First Time Installation............................................ 11

Media Playback via USB Input ............................. 12

Media Browser Menu............................................12

CEC and CEC RC Passthrough ........................... 13

TV Menu Contents................................................14

General TV Operation ..........................................18

Using the Channel List .........................................18

Conguring Parental Settings ............................... 18

Electronic Programme Guide (EPG) ....................18

Teletext Services .................................................. 19

Software Upgrade.................................................19

Troubleshooting & Tips .........................................19

PC Input Typical Display Modes ...........................20

AV and HDMI Signal Compatibility .......................20

Supported Video File Formats for USB Mode ......21

Supported Picture File Formats for USB Mode .... 21

Supported Audio File Formats for USB Mode ......22

Supported Subtitle File Formats for USB Mode ...23

Supported DVI Resolutions .................................. 24

Connectivity ..........................................................25

Nero MediaHome Installation ............................... 28

Internet Portal .......................................................28

Internet Browser ................................................... 29

English - 2 -

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Don’t operate your TV in extreme ambient conditions as this may cause damage to your TV.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

This sign is present wherever there is very important information on operation and maintenance of the appliance in the literature

Note: Follow the on screen instructions for operating the related features.

accompanying it.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at

least 10 cm all around the set.

•Do not block ventilation holes.

•Do not place the TV on sloping or unstable surfaces,

the TV may tip over.

• Use this device in moderate climates.

• The power cord plug should be easily accessible. Do

not place the TV, furniture, etc. on the power cord.

A damaged power cord/plug can cause re or give

you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced,

this should only be done by qualied personnel.

•Do not use this TV in a humid or damp environment.

Do not expose the TV to liquids. In case the cabinet contacts any liquids unplug the TV immediately

and have it checked by qualied personnel before

operating it any further.

•Do not expose the TV to direct sunlight,

open ames or place it near intense heat

sources such as electric heaters.

• Listening in excessive volumes from earphones and

headphones may cause hearing loss.

• Ensure that no open ame sources, such as lit

candles, are placed on top of the TV.

• To prevent injuries, this TV must be securely attached to a wall by carefully following the instructions (if the option is available).

• Occasionally, a few non-active pixels may appear on the screen as a xed blue, green or red point.

Please note that this does not affect the performance of your product. Take care not to scratch the screen

with ngernails or other hard objects.

• Before cleaning, unplug the TV from the wall socket.

Only use a soft, dry cloth while cleaning.

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

connection to electrical earth, the earth connection is used for functional purposes.

the supply wiring.

English - 3 -

Warning

Risk of electric shock

Caution

Important

Notice

Serious injury or death risk

Dangerous voltage risk

Injury or property damage risk

Operating the system correctly

Additional notes marked

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such

a way that it does not require a safety

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product:

CLASS 1 LASER PRODUCT

This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn

Hazard

(The accessories supplied with or) This pro-

duct may contain a coin/button cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2

hours and can lead to death.

Keep new and used batteries away from

children.

If the battery compartment does not close

securely, stop using the product and keep it

away from children.

If you think batteries might have been swal-

lowed or placed inside any part of the body,

seek immediate medical attention.

WARNING

Never place a television set in an unstable

location. A television set may fall, causing

serious personal injury or death. Many inju-

ries, particularly to children, can be avoided

by taking simple precautions such as;

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on all furniture (for example, cupboards or bookcases) without acnhoring both the furniture and the television set to a suitable support.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Maintenance

First, remove the mains plug from the mains socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or

ngerprints.

For stubborn dirt:

1. First clean the dust from the surface.

2. Dampen a soft cloth with clean water or diluted

neutral detergent (1 part detergent to 100 parts water).

3. Wring out the cloth rmly. (Please note, do not

let liquid enter the TV inside as it may lead to product failure.)

4. Carefully wipe moisten and wipe away the

stubborn dirt.

5. Finally, wipe away all the moisture. Caution

Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.

• Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.

• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap

or scratch the surface with your ngernail or other

hard objects.

• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals.

Moisture and dust may cause re or electrical shock.

English - 4 -

Assembling / Removing the pedestal

Preparations

Take out the pedestal(s) and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

• Use a at and rm table bigger than the TV.

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV.

Assembling the pedestal

1. Place the stand(s) on the stand mounting

pattern(s) on the rear side of the TV.

When using the wall-hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

Holes for wall-hanging bracket installation;

Rear of the TV

2. Insert the screws (M4 x 12) provided and

tighten them gently until the stand is properly

tted.

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

• Put the TV onto a work table with the screen panel down on the clean and soft cloth. Leave the stand(s) protruding over the edge of the surface.

• Unsrew the screws that xing the stand(s).

• Remove the stand(s).

a (mm)

400

b (mm) 400

View from the side

Depth of screw (a)

Diameter M6

Note: The screws for xing the TV onto the wall-hanging bracket are not supplied with the TV.

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a xed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the Picture menu.

The Energy Saving settings can be found in the Picture menu. Note that some picture settings will

be unavailable to be changed.

min. (mm) 4

max. (mm) 8

English - 5 -

If pressed Right button while Auto option is selected or Left button while Custom option is selected, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Features

• Remote controlled colour TV

• Fully integrated digital terrestrial/cable/satellite TV

(DVB-T-T2/C/S-S2)

• HDMI inputs to connect other devices with HDMI sockets

• USB input

• OSD menu system

• Scart socket for external devices (such as DVD

Players, PVR, video games, etc.)

• Stereo sound system

• Teletext

• Headphone connection

• Automatic programming system

• Manual tuning

• Automatic power down after up to eight hours.

• Sleep timer

• Child lock

• Automatic sound mute when no transmission.

• NTSC playback

• AVL (Automatic Volume Limiting)

• PLL (Frequency Search)

• PC input

• Game Mode (Optional)

• Picture off function

• Ethernet (LAN) for Internet connectivity and service

• 802.11n built in WIFI Support

• Audio Video Sharing

Accessories Included

• Remote Control

• Batteries: 2 x AAA

• Instruction Book

• Detachable stand

• Stand mounting screws (M4 x 12)

StandbyNotications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, it will go

into standby. When you next switch-on, the following message will be displayed: “TV switched to stand-by

mode automatically because there was no signal for a long time.” Press OK to continue.

If the TV is on and it isn’t being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. “TV switched to

stand-by mode automatically because no operation was made for a long time.” Press OK to continue.

TV Control Buttons & Operation

TV/AV

P/CH

1. Standby/On button

2. Source button

3. Programme +/- buttons

4. Volume +/- buttons

Press the Volume +/- buttons simultaneously to view main menu and use Programme +/- buttons to navigate and Volume +/- buttons to change value.

Operation with the Remote Control

Press the Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press

Return/Back or Menu button to quit a menu screen. Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

English - 6 -

Inserting the Batteries into the Remote

Remove the back cover to reveal the battery compartment. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow

the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT-TV) socket or satellite plug to the SATELLITE INPUT (ANT SAT) socket located on the rear bottom side of the TV.

Rear bottom side of the TV

satellite

aerial or cable

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resouces and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Notication

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

YouTube and the YouTube logo are trademarks of Google Inc.

English - 7 -

Authorized Representative: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany

Web Site: http://www.panasonic.com

Specication

TV Broadcasting

Receiving Channels

Digital Reception

Number of Preset Channels

Channel Indicator On Screen Display

RF Aerial Input 75 Ohm (unbalanced)

Operating Voltage 220-240V AC, 50Hz.

Audio A2 Stereo+Nicam Stereo

Headphone 3.5 mm mini stereo jack

Audio Output Power (WRMS.) (10% THD)

Power Consumption (W) 200 W

Weight (Kg) 36,5 Kg

TV Dimensions DxLxH (with foot) (mm)

TV Dimensions DxLxH (without foot) (mm)

Display 16/9 65”

Operation temperature and operation humidity

PAL BG/DK/II’ SECAM BG/DK

VHF (BAND I/III) - UHF (BAND U) - HYPERBAND

Fully integrated digital terrestrial-cable-satellite TV(DVB-T-C-S) (DVB-T2, DVB-S2 compliant)

10.000

2 x 12 W

344 x 1460 x 905

38/48 x 1460 x 838

0ºC up to 40ºC, 85% humidity max

WirelessLANSpecications

Frequency Range USA: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47 ~

5.725GHz, 5.725 ~ 5.85GHz

Europe: 2.400 ~ 2.483GHz, 5.15 ~ 5.35GHz, 5.47 ~ 5.725GHz

Japan: 2.400 ~ 2.497GHz, 5.15 ~ 5.35GHz, 5.47 ~

5.725GHz

China: 2.400 ~ 2.483GHz, 5.725 ~5.85GHz Standard

IEEE 802.11.a/b/g/n

Host Interface

USB 2.0

Security

WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

English - 8 -

Remote Control

(*) MY BUTTON:

This button may have a default function depending on the model. However you can set a special function to this button

by pressing on it for ve seconds when on a desired source or channel. A conrmation message will be displayed on the

screen. Now MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON will return to its default function.

1. Standby: Switches On / Off the TV

2. Numeric buttons: Switches the channel, enters a

number or a letter in the text box on the screen.

3. TV: Displays channel list / Switches to TV Source

4. Mute: Completely turns off the volume of the TV

5. Volume +/-

6. Menu: Displays TV menu

7. Directional buttons: Helps navigate menus, content

etc. and displays the subpages in TXT mode when pressed Right or Left

8. OK: Conrms user selections, holds the page (in TXT

mode), views channel list (DTV mode)

9. Back/Return: Returns to previous screen, opens

index page (in TXT mode)

10. Media player: Opens the media player screen

11. Internet: Opens the portal page, where you can reach

many web based applications

12. My button (*)

13. Coloured Buttons: Follow the on-screen instructions

for coloured button functions

14. Language: Switches between sound modes

(analogue TV), displays and changes audio/subtitle language (digital TV, where available)

15. Subtitles: Turns subtitles on and off (where available)

16. Rapid reverse: Moves frames backwards in media

such as movies

17. No function

18. Play: Starts to play selected media

19. Stop: Stops the media being played

20. Rapid advance: Moves frames forward in media such

as movies

21. Pause: Pauses the media being played

22. Screen: Changes the aspect ratio of the screen

23. Text: Displays teletext (where available), press again

to superimpose the teletext over a normal broadcast picture (mix)

24. Source: Shows all available broadcast and content

sources

25. EPG (Electronic programme guide): Displays the

electronic programme guide

26. Exit: Closes and exits from displayed menus or

returns to previous screen

27. Quick Menu: Displays a list of menus for quick access

28. Info: Displays information about on-screen content,

shows hidden information (reveal - in TXT mode)

29. Programme +/-

30. Swap: Quickly cycles between previous and current

channels or sources

31. Netix: Launches the Netix application, if this feature

is supported by your TV

English - 9 -

Connections

ideo

Connector Type Cables Device

Scart

Connection

(back)

YPBPR

YPbPr Video

Connection

/ V

AUDIO IN

SPDIF

BACK AV

/ Video

HEADPHONE

(back)

HDMI

Connection

(bottom&side)

VGA

Connection

(bottom)

PC/YPbPr/

Back AV

Audio

Connection

(back)

SPDIF

(Optical Out)

Connection

(bottom)

Back AV

(Audio/Video)

Connection

(back)

Headphone Connection

(side)

USB

Connection (back&side)

Connection

(side)

YPbPr Connection Cable

YPbPr/PC Audio Cable

Audio Video Cable

CAM

module

NOTE: When connecting a device via the YPbPr or Back AV inputs, you must use the connection cables to enable connection. See the illustrations

on the left side. | To enable PC/YPbPr audio, you will need to use the Back Audio inputs with a YPbPr/PC audio cable for audio connection. | If an

external device is connected via the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels

(Mpeg4 H.264) or while in Media Player mode, output will not be available via the scart socket. | When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the

TV before mounting on the wall.

| Insert or remove the CI module

only when the TV is SWITCHED

OFF. You should refer to the module instruction manual for

details of the settings. | The/Each USB input of your TV supports

devices up to 500mA. Connecting devices that have current value above 500mA may damage your

TV. | By connecting an HDMI cable to your TV, you have to use only a

shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

If you want to connect a device to the TV, make

sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

LAN

Ethernet

Connection

(bottom)

LAN / Ethernet Cable

Subwoofer

Connection

(back)

English - 10 -

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz). Switch the “ button on the TV(switch position may differ depending on the model) to position “|” so the TV will switch into standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a

numeric button on the remote control.

• Press the Standby button or Programme +/- on

the TV.

The TV will then switch on.

To Switch the TV Off

Press the Standby button on the remote control or press the Standby button on the TV, then the TV switches into standby mode.

Switch the “

illustrated -

, switch is used for turning the TV on or off.

Note:

The position of the power switch may differ depending

on the model.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as

Standby Search, Over Air Download or Timer is active. The

LED can also blink when you switch on the TV from standby

mode.

” button on the TV to position 2 as

, so the TV will switch off.

English - 11 -

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

”

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked

to set and conrm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN

for any menu operation later.

About Selecting Broadcast Type

Aerial: If Aerial broadcast search option is turned on,

the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Cable: If Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. According to your

other preferences a conrmation message may be

displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When nished, press OK button.

Note: Searching duration will change depending on the selected Search Step.

Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed. Before satellite search is performed some settings should be made. Antenna Type menu will be

displayed rst. You can select Antenna Type as Direct, Single Satellite Cable or DiSEqC switch by

using “ ” or “ ” buttons.

•Direct: If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.

•Single Satellite Cable: If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Congure settings by following instructions on the next screen. Press OK to scan for services.

•DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. Press OK to continue. You can set four DiSEqC options (if available) on the next screen. Press OK

button to scan the rst satellite in the list.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When nished, press OK to continue.

You can activate Store Mode option at this point.

This option will congure your TV’s settings for store

environment. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in Setup>More menu and can be turned off/on later.

Press OK button on the remote control to continue and the Network Settings menu will be displayed. Please refer to Connectivity section to congure a wired or a wireless connection. After the settings are completed press OK button to continue. To skip to the next step without doing anything press the Rapid advance button on the remote.

After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to conrm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable

channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available

depending on the country selection.

Media Playback via USB Input

You can connect 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the les on your storage devices

before connecting them to the TV. Manufacturer will

not be responsible for any le damage or data loss.

Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

While formatting USB hard drives which have more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process.

Wait a little while before each plugging and unplugging

as the player may still be reading les. Failure to do

so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive

while playing a le.

You can use USB hubs with your TV’s USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV’s USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing image les the Media Player menu can only display 1000 image les stored on the connected

USB device.

Media Browser Menu

You can play photo, music and movie les stored

on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Player mode will access the Picture, Sound and Setup menu options. Pressing the Menu button

again will exit from this screen.

You can set your

Media Player preferences by using the Setup menu.

Loop/Shufe Mode Operation

Start playback with the Play button and activate

Start playback with the OK button and activate

Start playback with the Play button and activate

All les in the list will be

continuously played in original order

The same le will be played

continuously (repeat)

All les in the list will be

played once in random order

All les in the list will be

continuously played in the

same random order.

English - 12 -

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the Setup>More menu should be set as Enabled at rst. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the Setup>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device’s volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI3 input.

System Audio Control

Allows an Audio Amplier/Receiver to be used with

the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the Setup>More menu as Amplier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

English - 13 -

TV Menu Contents

Colour

Picture Zoom

PC Position

Autoposition

Reset

Picture Menu Contents

Mode

Contrast Brightness Sharpness

Energy Saving

Backlight

Advanced Settings

Dynamic Contrast

Noise Reduction

Colour Temp

White Point

Movie Sense

Film Mode

Skin Tone Colour Shift

HDMI Full Range

H Position V Position

Dot Clock

Phase

While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural.

Adjusts the light and dark values on the screen. Adjusts the brightness values on the screen. Sets the sharpness value for the objects displayed on the screen. Sets the colour value, adjusting the colours. For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto,

Picture Off or Off.

Note: Available options may differ depending on the selected Mode.

This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other then Custom.

You can change the dynamic contrast ratio to desired value.

If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.

Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.

If the Colour Temp option is set as Custom, this setting will be available. Increase the ‘warmth’ or ‘coolness’ of the picture by pressing Left or Right buttons.

Sets the desired image size format.

Press left/right buttons to set Movie Sense to Low, Medium, High or Off. While Movie Sense is active, it will optimize the TV’s video settings for motional images to acquire a better quality and readability. When Movie Sense option is set to Low, Medium or High, Movie Sense demo option will be available. If one of these options is selected and if you press OK button, then the demo mode starts. While demo mode is active, the screen will be divided into two sections, one displaying the movie sense activity, the other displaying the normal settings for TV screen.

Films are recorded at a different number of frames per second to normal television programmes.

Turn this feature on when you are watching lms to see the fast motion scenes clearly.

Skin tone can be changed between -5 and 5.

Adjust the desired colour tone.

While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.

Appears only when the input source is set to VGA/PC.

Automatically optimizes the display. Press OK to optimize.

This item shifts the image horizontally to the right hand side or left hand side of the screen.

This item shifts the image vertically towards the top or bottom of the screen.

Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.

Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.

Resets the picture settings to factory default settings (except Game mode).

English - 14 -

Sound Menu Contents

Volume Equalizer Balance

Headphone

Sound Mode AVL (Automatic

Volume Limiting)

Headphone/Lineout

Dynamic Bass Digital Out

Adjusts the volume level.

Selects the equalizer mode. Custom settings can be made only when in User mode.

Adjusts whether the sound comes from the left or right speaker.

Sets headphone volume. Please ensure before using headphones that the headphone volume is set to a low

level, to prevent damage to your hearing.

You can select a sound mode (If the viewed channel supports).

Sets the sound to obtain xed output level between programmes.

When you connect an external amplier to your TV using the headphone jack, you

can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.

Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.

Enables or disables the Dynamic Bass.

Sets digital out audio type.

English - 15 -

Setup Menu Contents

Conditional Access

Network Settings

Accessibility

Menu Timeout

Language

Parental

Timers

Date/Time Sources

Hard of Hearing

Audio Description

Netix

Blue Background

Software Upgrade

Application Version

Subtitle Mode

Auto TV OFF

Biss Key

Store Mode

Audio Video Sharing

Controls conditional access modules when available. You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu

Lock, Maturity Lock(may not be available depending on the country selection in the First Time Installation) and Child Lock in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.

Note: Default PIN can be set to 0000 or 1234. If you have dened the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have dened.

Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.

Sets date and time. Enables or disables selected source options. Displays network settings. Displays accessibility options of the TV. Enables any special feature sent from the broadcaster. A narration track will be played for the blind or visually impaired audience. Press OK

to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.

If this feature is supported by your TV, you can view your ESN(*) number and deactivate

Netix.

(*) ESN number is an unique ID number for Netix, created especially to identify your TV.

Displays other setting options of the TV. Changes timeout duration for menu screens. Activates or deactivates the blue background system when the signal is weak or

absent.

Ensures that your TV has the latest rmware. Press OK to see the menu options.

Displays current software version.

This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.

Sets the desired time for the TV to automatically go into standby mode when not being operated.

Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.

Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.

Audio Video Sharing feature allows you to share les stored on your smartphone or tablet

pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Audio Video Sharing mode will not be available with internet portal feature.

English - 16 -

Power Up Mode

Virtual Remote

CEC

CEC Auto Power On

Speakers

This setting congures the power up mode preference. Last State and Standby options are available.

Enable or disable the virtual remote feature. With this setting you can enable and disable CEC functionality completely. Press Left

or Right button to enable or disable the feature. This function allows the connected HDMI-CEC compatible device to turn on the TV

and switch to its input source automatically. Press Left or Right button to enable or disable the feature.

To hear the TV audio from the connected compatible audio device set as Amplier. You can use the remote control of the TV to control the volume of the audio device.

Install and Retune Menu Contents

Automatic channel scan (Retune)

Manual channel scan

Network channel scan

Analoguene

tune

Satellite Settings

Installation Settings

Clear Service List

Select Active Network

First time installation

Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores

analogue stations. Satellite: Searches and stores satellite stations.

This feature can be used for direct broadcast entry.

Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.

You can use this setting for ne tuning analogue channels. This feature is not available if no

analogue channels are stored.

Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite anntenna settings and/or start a satellite scan.

Displays installation settings menu. Standby Search (Optional): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown.

Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.

This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.

Deletes all stored channels and settings, resets TV to factory settings.

English - 17 -

General TV Operation Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel

List. You can lter the listed channels by pressing the Blue button or open the Edit Channel List menu by

pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/ Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel

List menu to lter the channels in the Channel list

permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed everytime the Channel list is

opened. The ltering function in the Channel list menu will only lter the currently displayed Channel list in order to nd a channel and tune in to it. This

changes will not remain the next time the Channel list is opened.

ConguringParentalSettings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the Setup>Parental menu.

To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock’s value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

English - 18 -

Internet Lock: If this option is set to OFF, the open

browser application in the portal will be disabled. Set to ON to release the application again.

Set PIN: Denes a new PIN number. Default CICAM PIN: This option will appear as greyed

out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have dened.

Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to

see events in a wider time interval.

Filter (Blue button): Views ltering options. Select Genre (Subtitles button): Displays Select Genre menu. Using this feature, you can search the

programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options. Event Details (Info button): Displays detailed

information about selected events. Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Search (Text button): Displays Guide Search menu. Now (Swap button): Displays current event of the

highlighted channel.

List Schedule(*)

(*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice. Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day. Event Details (Info button): Displays detailed information about selected events.

Filter (Text button): Views ltering options. Next Time Slice (Green button): Displays the events

of next time slice.

Options (OK button): Displays event options.

Now/Next Schedule

Navigate (Directional buttons): Press the Directional buttons to navigate through the channels

and events.

Options (OK button): Displays event options. Event Details (Info button): Displays detailed

information about selected events.

Filter (Blue button): Views ltering options.

Event Options

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel. Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel or source while there is an active timer on the current channel.

It is not possible to set timer for two or more individual events at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Digital Teletext

Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.

Software Upgrade

Your TV is capable of nding and updating the rmware

automatically via the broadcast signal or via Internet.

Software upgrade search via user interface

On the main menu select Setup and press the OK button. Setup Menu will be displayed. Then select

More and press the OK button. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the

TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o’clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while led is blinking

during the reboot process. If the TV fails to come on after the

upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.

• Low signal level can cause picture distortion. Please

check antenna access.

• Check if you have entered the correct channel frequency if you have done manual tuning.

• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• This means your TV is not receiving any transmission. Make sure the correct source has been selected.

• Is the antenna connected properly?

• Is the antenna cable damaged?

• Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or increase the volume to check.

• Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation

• The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. If not;

• Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

English - 19 -

PC Input Typical Display Modes

Source

Supported Signals

Available

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index Resolution Frequency

1 640x350 85Hz 2 640x400 70Hz 3 640x480 60Hz 4 640x480 66Hz 5 640x480 72Hz 6 640x480 75Hz 7 640x480 85Hz 8 800x600 56Hz

9 800x600 60Hz 10 800x600 70Hz 11 800x600 72Hz 12 800x600 75Hz 13 800x600 85Hz 14 832x624 75Hz 15 1024x768 60Hz 16 1024x768 66Hz 17 1024x768 70Hz 18 1024x768 72Hz 19 1024x768 75Hz 20 1024x768 85Hz 21 1152x864 60Hz 22 1152x864 70Hz 23 1152x864 75Hz 24 1152x864 85Hz 25 1152x870 75Hz 26 1280x768 60Hz 27 1360x768 60Hz 28 1280x768 75Hz 29 1280x768 85Hz 30 1280x960 60Hz 31 1280x960 75Hz 32 1280x960 85Hz 33 1280x1024 60Hz 34 1280x1024 75Hz 35 1280x1024 85Hz 36 1400x1050 60Hz 37 1400x1050 75Hz 38 1400x1050 85Hz 39 1440x900 60Hz 40 1440x900 75Hz 41 1600x1200 60Hz 42 1680x1050 60Hz 43 1920x1080 60Hz 44 1920x1200 60Hz

AV and HDMI Signal Compatibility

PAL O

EXT (SCART)

SECAM O NTSC4.43 O NTSC3.58 O RGB 50/60 PAL O SECAM O

Side AV

NTSC4.43 O NTSC3.58 S-VIDEO 50Hz (PAL) S-VIDEO 60Hz (NTSC) 480i, 480p 60Hz O

YPbPr

576i, 576p 50Hz O 720p 50Hz,60Hz O 1080i 50Hz,60Hz O 480i, 480p 60Hz O 576i, 576p 50Hz O 720p 50Hz,60Hz O

HDMI

1080i 50Hz,60Hz O

24Hz, 25Hz,

1080p

30Hz,

O 50Hz, 60Hz

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc. ). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

English - 20 -

Supported Video File Formats for USB Mode

Extension Video Codec SPEC (Resolution) & Bit Rate

.dat, vob MPEG1/2

.mpg, .mpeg

.ts, .trp, .tp

.mp4, .mov, .3gpp, .3gp

.avi MPEG1/2,

.mkv MPEG1/2,

.asf Sorenson H.263,

.v WMV3 1080P@30fps - 40 Mbps .swf RV30/RV40 1080P@30fps - 40 Mbps .wmv

MPEG1/2, MPEG4

MPEG1/2, H.264, AVS, MVC

MPEG1/2, MPEG4, H.263, H.264, Motion JPEG

MPEG4, Sorenson H.263, H.263, H.264, WMV3, Motion JPEG

MPEG4, H.263, H.264, WMV3, Motion JPEG

H.264, WMV3, Motion JPEG

1080P@30fps - 40 Mbps

H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps MVC: 1080P@30fps - 62.5 Mbps Other: 1080P@30fps - 40Mbps

H.264: 1080Px2@30fps - 62.5 Mbps, 1080P@60fps - 62.5 Mbps Motion JPEG: 640x480@30fps - 10 Mbps Other: 1080P@30fps - 40 Mbps

Supported Picture File Formats for USB Mode

Image Photo Resolution (width x height) Remark

JPEG

PNG

BMP 9600x6400

Base-line 15360x8640 Progressive 1024x768 non-interlace 9600x6400 interlace 1200x800

The limitation of max resolution depends on DRAM size

English - 21 -

Supported Audio File Formats for USB Mode

Extension

Audio Codec Bit Rate Sample rate

.mp3,

.avi

.asf

.mkv, .mka

.ts, .trp, .tp, .dat, .vob, .mpg, .mpeg

MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz AAC, HEAAC 8KHz ~ 48KHz WMA 128bps ~ 320Kbps 8KHz ~ 48KHz WMA 10 Pro M0 < 192kbps 48KHz WMA 10 Pro M1 < 384kbps 48KHz WMA 10 Pro M2 < 768kbps 96KHz LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM, MS-

ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps WMA 128bps ~ 320Kbps 8KHz ~ 48KHz WMA 10 Pro M0 < 192kbps 48KHz WMA 10 Pro M1 < 384kbps 48KHz WMA 10 Pro M2 < 768kbps 96KHz MPEG1/2 Layer1 32Kbps ~ 448Kbps

MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz FLAC < 1.6Mbps 8KHz ~ 96KHz MPEG1/2 Layer1 32Kbps ~ 448Kbps

MPEG1/2 Layer3 8Kbps ~ 320Kbps AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz EAC3 32Kbps ~ 6Mbps 32KHz, 44.1KHz, 48KHz AAC, HEAAC 8KHz ~ 48KHz LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz

384Kbps 8KHz ~ 48KHz

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

English - 22 -

Extension

Audio Codec Bit Rate Sample rate

MPEG1/2 Layer1 32Kbps ~ 448Kbps

.wav

.3gpp, .3gp, .mp4, .mov, .m4a

.v

.ac3

.swf MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz .ec3 EAC3 32Kbps ~ 6Mbps 32KHz, 44.1KHz, 48KHz

.rm, .rmvb, .ra

.wma, .wmv

.webm VORBIS Up to 48KHz

MPEG1/2 Layer3 8Kbps ~ 320Kbps LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM,

MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz EAC3 32Kbps ~ 6Mbps 32KHz, 44.1KHz, 48KHz AAC, HEAAC 8KHz ~ 48KHz VORBIS Up to 48KHz LPCM 64Kbps ~ 1.5Mbps 8KHz ~ 48KHz IMA-ADPCM,

MS-ADPCM G711 A/mu-law 64Kbps ~ 128Kbps 8KHz MPEG1/2 Layer3 8Kbps ~ 320Kbps 16KHz ~ 48KHz AAC, HEAAC 8KHz ~ 48KHz AC3 32Kbps ~ 640Kbps 32KHz, 44.1KHz, 48KHz AAC, HEAAC 8KHz ~ 48KHz

AAC, HEAAC 8KHz ~ 48KHz

LBR (cook) 6Kbps ~ 128Kbps

WMA 128bps ~ 320Kbps 8KHz ~ 48KHz WMA 10 Pro M0 < 192kbps 48KHz WMA 10 Pro M1 < 384kbps 48KHz WMA 10 Pro M2 < 768kbps 96KHz

384Kbps 8KHz ~ 48KHz

Supported Subtitle File Formats for USB Mode

Internal Subtitles

Extension Container Subtitle Code

dat, mpg, mpeg, vob MPG, MPEG DVD Subtitle ts, trp, tp TS DVB Subtitle

mp4 MP4

mkv MKV

External Subtitles

Extension Subtitle Parser Remark

.srt Subrip .ssa/ .ass SubStation Alpha .smi SAMI

.sub

.txt TMPlayer

SubViewer MicroDVD DVDSusbtitleSystem SubIdx (VobSub)

16KHz ~ 48KHzMPEG1/2 Layer2 8Kbps ~ 384Kbps

8KHz, 11.025KHz,

22.05KHz, 44.1KHz

DVD Subtitle UTF-8 Plain Text

ASS SSA UTF-8 Plain Text VobSub DVD Subtitle

SubViewer 1.0 & 2.0 Only

English - 23 -

Supported DVI Resolutions

When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not

supplied), you can refer to the following resolution information.

56Hz 60Hz 66Hz 70Hz 72Hz 75Hz

640x400

640x480

800x600

832x624

1024x768

1152x864

1152x870

1280x768

1360x768

1280x960

1280x1024

1400x1050

1440x900

1600x1200

1680x1050

1920x1080

1920x1200

þ þ þ þ

þ þ þ þ þ

þ þ þ

þ þ

English - 24 -

Connectivity

Wired Connectivity

To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.

• Ensure that Nero Media Home software is installed to your PC (for Audio Video Sharing function). See “Nero Media Home Installation” section.

• Connect your PC to your modem/router. This can be a wired or wireless connection.

• Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

Broadband ISP connection

LAN (ethernet) cable

LAN input on the rear side of the TV

• To access and play shared les, you must select the

Media Player. Press the Menu button and select Media Player. Press OK to continue. Select the

desired le type and press OK. You must always use the Media Player screen to access and play

shared network les.

• PC/HDD/Media Player or any other devices that are

compatible should be used with a wired connection for higher playback quality.

Tocongure wired settings please referto the

Network Settings section in the Setup Menu.

• You might be able to connect your TV to your LAN depending on your network’s conguration. In such

a case, use an ethernet cable to connect your TV directly to the network wall outlet.

ConguringWiredDeviceSettings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet.

Internet Speed Test

Highlight Internet Speed Test and press the OK but- ton. TV will check the internet connection bandwidth and display the result when complete.

Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Press the OK button to save settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem’s SSID visible, you should change your SSID settings via the modem’s software.

To Connect to a wireless LAN, you should perform the following steps:

1. Ensure that Nero Media Home software is

installed to your PC (for Audio Video Sharing function).

2. To congure your wireless settings please refer to

the Network Settings section in the Setup Menu.

Broadband ISP connection

network

wall socket

LAN input on the rear side of the TV

A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother

and faster HD video streaming, le transfers and

wireless gaming.

English - 25 -

• Use a LAN connection for quicker file sharing between other devices like computers.

• The frequency and channel differ depending on the area.

• The transmission speed differs depending on the

distance and number of obstructions between the

transmission products, the conguration of these products, the radio wave conditions, the line trafc

and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

• The location where the transmission is most effective differs depending on the usage environment.

• The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.

• You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

ConguringWirelessDeviceSettings

Open the Network Settings menu and select Network Type as Wireless Device to start connection process.

The TV will scan the wireless networks automatically. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should set N

mode settings.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via the directional

buttons and the OK button on the remote control. Wait until the IP address is shown on the screen. This means that the connection is now established.

To disconnect from a wireless network, highlight Network Type and press Left or Right buttons to set as Disabled.

Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highlight Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Press the OK button to save settings when complete.

Other Information

The status of the connection will be displayed as Connected or Not Connected and the current IP address, if a connection is established.

English - 26 -

Connecting to your mobile device via WiFi

• If your mobile device has WiFi feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.

• Connect to your router following the steps stated above in the Wireless Connectivity section.

• Afterwards, engage your mobile device with the router and then activate the sharing software on your mobile

device. Then, select les that you want to share with

your TV.

• If the connection is established correctly, you will be able to access the shared les from your mobile device

via the Media Player of your TV.

• Enter the Media Player menu and the playback device selection OSD will be displayed. Select your mobile device and press the OK button to continue.

• If available, you can download a virtual remote controller application from the server of your mobile device application provider.

Note: This feature may not be supported on all mobile

devices.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any rewalls of your network allow the

TV wireless connection.

• Try searching for wireless networks again, using the Network Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case: Keep at least three meters distance from microwave

ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Internet Connection Not Available / Audio Video Sharing Not Working

If the MAC address (a unique identier number) of

your PC or modem has been permanently registered,

it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet.

It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet

service provider. A rewall might be the reason of a

connectivity and discovery problem while using the TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.

Invalid Domain

Ensure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing

any les in your media server program on your PC. If

the domain is invalid, this might cause problems while

browsing les in Audio Video Sharing mode.

Using Audio Video Sharing Network Service

Audio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network.

This standard allows you to view and play photos, music and videos stored in the media server connected to your home network.

1. Nero Media Home Installation

The Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC. Please prepare your PC with the Nero Media Home programme. For more information about the installation, please refer to the “Nero Media Home

Installation” section.

2. Connect to a Wired or Wireless Network

See the Wired/Wireless Connectivity chapters for

detailed conguration information.

3. Play Shared Files via Media Player

Select Media Player by using the Left or Right buttons from the main menu and press OK. The media browser will then be displayed.

Audio Video Sharing

Audio Video Sharing support is only available in the Media Player Folder mode. To enable folder mode, go to the Setup tab in the main media browser screen and press OK. Highlight View Style and set to Folder using the Left or Right butt ons. Select the desired media type and press OK.

If sharing congurations are set properly, Device Selection screen will be displayed after selecting the

desired media type. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK. If you want to refresh the device list, press the Green button. You can press Menu to exit.

If you select the media type as Videos and choose a device from the selection menu. Then select the

folder with video les in it on the next screen and all the available video les will be listed.

To play other media types from this screen, you must go back to main Media Player screen and select the media type as desired and then perform the network selection again. Refer to the Media Player menu section

for further information on le playback. Subtitle les do not work if you watch videos from

your network through Audio Video Sharing feature. You can connect only one television to the same

network. If a problem occurs with the network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature.

Note: There may be some PC’s which may not be able to

utilize the Audio Video Sharing feature due to administrator

and security settings (such as business PC’s).

For best home network streaming with this TV, the Nero

software should be installed.

English - 27 -

Nero MediaHome Installation

To install Nero MediaHome, please proceed as follows:

Note: To use Audio Video Sharing feature, this software

should be installed to your PC.

1. Enter the link below completely in the adress-

bar of your web browser.

http://www.nero.com/mediahome-tv

2. Click the Download button on the opening

page. The installation le will be downloaded

onto your PC.

3. After the download is completed, double click

on the installation le to start the installation.

The installation wizard will guide you through the installation process.

4. The prerequisites screen will be displayed rst.

The installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

5. Click the Install button. The integrated serial

will be displayed. Please do not change the displayed serial.

6. Click the Next button. The License Conditions

(EULA) screen will be displayed.

Please read

the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

7. Click the Next button. On the next screen you

can set your installation preferences.

8. Click the Install button. The installation begins

and nishes automatically. A progress bar will

indicate the state of the installation process.

9. Click the Finish button. The installation is

completed. You will be directed to the web site of the nero software.

10. A shortcut is now placed on your desktop. Congratulations! You successfully installed Nero

MediaHome on your PC. Run Nero MediaHome by double clicking on the

shortcut icon.

Internet Portal

Portal feature adds your TV a feature that allows you to connect a server on the Internet and view the content provided by this server over your Internet connection. Portal feature allows you to view the music, video, clip

or web content with dened short-cuts. Whether you

can view this content without interruption depends on the connection speed provided by your internet service provider.

Press the Internet button on your remote control to open internet portal page. You will see icons of the available applications and services on the portal screen. Use the directional buttons on your remote to select the desired one. You may view the desired content by pressing OK after selecting. Press Back/ Return button to return back to the previous screen.

Moreover, you can access some features using the

short-cut feature dened for the coloured or numeric

buttons of your remote. Press the Exit button to quit the Internet portal mode.

PIP Window

Current source content will be displayed in the PIP window, if you switch to portal mode while on any active source.

If you switch to portal mode while watching TV channels, current programme will be displayed in the PIP window.

Notes: Possible application dependent problems may be caused by

the content service provider. Portal service content and the interface may be changed at

any time without prior notice. Third party internet services may change, be discontinued or

restricted at any time.

English - 28 -

+ 64 hidden pages
