Panasonic TH-42PR10B, TH-37PR10B User Manual

Operating Instructions

High Defi nition Hospitality Plasma Display

Model No.

TH-37PR10B
TH-42PR10B

Please read these instructions before operating your set
and retain them for future reference.

English

The illustration shown is an image.

Dear Panasonic Customer

Welcome to the Panasonic family of customers. We hope that you will have many years of
enjoyment from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number of
your set in the space provided on the rear cover of these instructions.

Visit our Panasonic Web Site http://panasonic.net

Table of Contents

Important Safety Notice ........................................... 3

Safety Precautions ................................................... 4

Accessories .............................................................. 7

Accessories Supply ................................................. 7

Connections .............................................................. 8

PC Input Terminals connection ................................ 9

SERIAL Terminals connection ............................... 10

Power On / Off ......................................................... 11

Basic Controls ........................................................ 12

On-Screen Menu Displays ..................................... 14

Initial selections ..................................................... 16

Selecting the input signal ...................................... 16

Selecting the On-Screen Menu Language ............ 16

ASPECT Controls ................................................... 17

Adjusting Pos. /Size ............................................... 18

MULTI PIP ................................................................ 19

Advanced PIP .......................................................... 20

Picture Adjustments ............................................... 21

Advanced settings ................................................. 22

Sound Adjustment .................................................. 23

Mute ...................................................................... 23

Digital Zoom ............................................................ 24

PRESENT TIME Setup / Set up TIMER .................. 25

PRESENT TIME Setup .......................................... 25

Set up TIMER ........................................................ 26

Screensaver (For preventing image retention) .... 27

Setup of Screensaver Time ................................... 28

Reduces screen image retention ........................... 28

Side Panel Adjustment .......................................... 29

Reduces power consumption ............................... 30

Customizing the Input labels ................................. 30

Setup for Input Signals .......................................... 31

Component / RGB-in select ................................... 31

3D Y/C Filter .......................................................... 31

Colour system / Panasonic Auto ........................... 32

Cinema reality / P-NR ............................................ 32

Sync ...................................................................... 33

H-Freq. (kHz) / V-Freq. (Hz) .................................. 33

Options Adjustments ............................................. 34

Weekly Command Timer ....................................... 38

Shipping condition ................................................. 40

Troubleshooting ..................................................... 41

PC input signals ..................................................... 42

Command list of Weekly Command Timer ........... 43

Specifi cations ......................................................... 44

Trademark Credits

• VGA is a trademark of International Business Machines Corporation.

• Macintosh is a registered trademark of Apple Computer, USA.

• S-VGA is a registered trademark of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been

fully respected.

Note:

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3
mode.

2

Important Safety Notice

IMPORTANT: THE MOULDED PLUG

WARNING

1) To prevent damage which may result in fi re or shock hazard, do not expose this appliance to dripping
or splashing.

Do not place containers with water (fl ower vase, cups, cosmetics, etc.) above the set. (including on

shelves above, etc.)

No naked fl ame sources, such as lighted candles, should be placed on / above the set.

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualifi ed
service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only fi t an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.

Do not defeat the purpose of the earthing plug.

4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.

CAUTION

This appliance is intended for use in environments which are relatively free of electromagnetic fi elds.
Using this appliance near sources of strong electromagnetic fi elds or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic fi elds.

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is
fi tted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5
amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

If the plug contains a removable fuse cover, you must ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fi tted moulded plug is unsuitable for the socket outlet in your home, then the fuse shall be removed
and the plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off plug
is inserted into any 13 amp socket.

If a new plug is to be fi tted, please observe the wiring code as shown below.
If in any doubt, please consult a qualifi ed electrician.

WARNING : — THIS APPARATUS MUST BE EARTHED.

IMPORTANT : —The wires in this mains lead are coloured in accordance with the following code: —
Green-and-Yellow : Earth Blue: Neutral Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows.

IMPORTANT: THE MOULDED PLUG

or the BSI mark on the body of the fuse.

ASA

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which
is marked with the letter E or by the Earth symbol or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug
which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug
which is marked with the letter L or coloured RED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and replace the fuse.

3

Safety Precautions

WARNING

Setup

This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Matsushita Electric Industrial Co., Ltd.)

• Pedestal ..............................................................................................................TY-ST09GR-K

• Wall-hanging bracket (vertical) ............................................................................TY-WK42PV3W

• Wall-hanging bracket (angled) ............................................................................TY-WK42PR3W

• BNC Component Video Terminal Board ..............................................................TY-42TM6A

• BNC Composite Video Terminal Board ...............................................................TY-42TM6B

• BNC Dual Video Terminal Board ......................................................................... TY-FB9BD

• Ir Through Terminal Board .................................................................................. TY-FB9RT

• RCA Component Video Terminal Board ..............................................................TY-42TM6Z

• RCA Composite Video Terminal Board ...............................................................TY-42TM6V

• PC Input Terminal Board .....................................................................................TY-42TM6P

• RGB (Digital) Terminal Board .............................................................................. TY-42TM6D

• HDMI Terminal Board .......................................................................................... TY-FB8HM

• SCART Terminal Board ....................................................................................... TY-FB8SC

• AV terminal BOX .................................................................................................TY-TB10AV

Always be sure to ask a qualifi ed technician to carry out set-up.

Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.

Do not place the Plasma Display on sloped or unstable surfaces.

• The Plasma Display may fall off or tip over.

Do not place any objects on top of the Plasma Display.

• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in fi re or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.

Transport only in upright position!

• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.

Ventilation should not be impleded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.

For suffi cient ventilation;
If using the pedestal (optional accessory) for the Plasma Display, leave a space of at least 10 cm at the top,
left and right, at least 6 cm at the bottom, and at least 7 cm at the rear. If using some other setting-up method,
leave a space of at least 10 cm at the top, bottom, left and right, and at least 7 cm at the rear.

4

Safety Precautions

When using the Plasma Display

The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.

Do not cover the ventilation holes.

• Doing so may cause the Plasma Display to overheat, which can cause fi re or damage to the Plasma Display.

Do not stick any foreign objects into the Plasma Display.

• Do not insert any metal or fl ammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause fi re or electric shock.

Do not remove the cover or modify it in any way.

• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.

Ensure that the mains plug is easily accessible.

An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing
connection.

Do not use any power supply cord other than that provided with this unit.

• Doing so may cause fi re or electric shocks.

Securely insert the power supply plug as far as it will go.

• If the plug is not fully inserted, heat may be generated which could cause fi re. If the plug is damaged or the wall
socket is loose, they shall not be used.

Do not handle the power supply plug with wet hands.

• Doing so may cause electric shocks.

Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug
body, not the cable.

• Do not damage the cable, make any modifi cations to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause fi re and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.

If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.

If problems occur during use

If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.

• If you continue to use the Plasma Display in this condition, fi re or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.

If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.

• A short circuit may occur, which could cause fi re. Contact your local Panasonic dealer for any repairs that need to
be made.

5

Safety Precautions

CAUTION

When using the Plasma Display

Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.

• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.

Be sure to disconnect all cables before moving the Plasma Display.

• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and fi re or electric shock could result.

Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.

• Electric shocks can result if this is not done.

Clean the power cable regularly to prevent it becoming dusty.

• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in fi re.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.

This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or refl ected light from your Plasma Display.

Cleaning and maintenance

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.

• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.

• Do not scratch or hit the surface of the panel with fi ngernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.

• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.

• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.

6

Accessories

Accessories Supply

Check that you have the accessories and items shown

Power supply cord Fixing bands × 2Operating Instruction book

I Year Guarantee
Registration

The remote control is not included with this set. Available for purchase separately.

Object model : EUR7636090R

CRM
(Customer Relationship
Management)

7

Connections

– AC cord fi xing

2

Note:

Make sure that the AC cord is locked
on both the left and right sides.

1

Plug the AC cord into

1

the display unit.

Plug the AC cord until

it clicks.

2

Fix the AC cord with

the clamper. which
is atttached to the
unit.

AC cord connection (see page 11)

Close

Push until
the hook
clicks.

Open

2. Pull off.

Unplug the AC cord

Unplug the AC cord pressing
the two knobs.

Note:

1. Keep the

knob pressed.

When disconnecting the AC
cord, be absolutely sure to
disconnect the AC cord plug
at the socket outlet fi rst.

– Cable fi xing bands Secure any excess cables with bands as required.

Pass the attached cable
fi xing band through the
clip as shown in the
fi gure.

1

SLOT1 SLOT2 SLOT3

To secure cables connected to Terminals, wrap the cable fi xing band around them
then pass the pointed end through the locking block, as shown in the fi gure.

While ensuring there is suffi cient slack in cables to minimize stress (especially
in the power cord), fi rmly bind all cables with the supplied fi xing band.

To tighten: To loosen:

Pull

2

Optional Terminal
Board Insert Slot
(covered)

From EXTERNAL
monitor terminal on
Computer (see page 9)

Push the catch

Pull

AUDIO

SERIALPC IN

From SERIAL Terminal
on Computer
(see page 10)

8

PC Input Terminals connection

COMPUTER

Conversion adapter
(if necessary)

RGB

PC cable

Connections

AUDIO

PC IN

Mini D-sub 15p

Audio

Connect a cable which matches
the audio output terminal on the computer.

Stereo plug

Notes:

• Due to space limitations, occasionally you may have trouble connecting Mini D-sub 15P cable with ferrite core to PC input
Terminal.

• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)

• The display resolution is a maximum of 768 × 720 dots (TH-37PR10B), 768 × 768 dots (TH-42PR10B) when the
aspect mode is set to “4:3”, and 1,024 × 720 dots (TH-37PR10B), 1,024 × 768 dots (TH-42PR10B) when the aspect
mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible to show fi ne detail
with suffi cient clarity.

• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will
need to make setting changes to the computer at the time of connection.

• Some PC models cannot be connected to the set.

• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.

• The computer shown in the illustration is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specifi ed
frequency range.

• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.

• Change the “Component/RGB-in select” setting in the “Setup” menu to “Component”

(when Component connection) or “RGB” (when RGB signal connection). (see page 31)

• To use sync input VBS signals, use the connector which incorporates a 75-ohm termination resistance and which is
available on the market, for the connection of the HD connector where the VBS signals are to be input.

Signal Names for Mini D-sub 15P Connector

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

45

10

15 14 13 12 11

Pin Layout for PC Input
Terminal

1

2

67839

1

2

3

4

5

R (PR/CR)

G (Y)

B (PB/CB)

NC (not connected)

GND (Ground)

6

7

8

9

10

GND (Ground)

GND (Ground)

GND (Ground)

NC (not connected)

GND (Ground)

11

NC (not connected)

12

13

14

15

HD/SYNC

SDA

VD

SCL

9

Connections

SERIAL Terminals connection

The SERIAL terminal is used when the Plasma Display is controlled by a computer.

COMPUTER

RS-232C Straight cable

SERIAL

Pin layout for SERIAL Terminal

13452

6789

D-sub 9p

Notes:

• Use the RS-232C cable to connect the computer to the Plasma Display.

• The computer shown is for example purposes only.

• Additional equipment and cables shown are not supplied with this set.

The SERIAL terminal conforms to the RS-232C interface specifi cation, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the sending and receiving of control data which satisfi es the conditions
given below. Use a computer application such as programming language software. Refer to the documentation for
the computer application for details.

Communication parameters

Signal level RS-232C compliant

Synchronization method Asynchronous

Baud rate 9600 bps

Parity None

Character length 8 bits

Stop bit 1 bit

Flow control -

D-sub 9-pin female Details

RS-232C Conversion cable

2

3

5

4

6

•

7
8

1

9

•

R X D
T X D

GND

Non use

Shorted

NC

Basic format for control data

The transmission of control data from the computer
starts with a STX signal, followed by the command,
the parameters, and lastly an ETX signal in that order.
If there are no parameters, then the parameter signal
does not need to be sent.

STX C1 C2 C3 P1 P2 P3 P4: P5 ETX

Start
(02h)

Colon Parameter(s)
3-character
command (3 bytes)

(1 - 5 bytes)

End
(03h)

Notes:

• If multiple commands are transmitted, be sure to wait
for the response for the fi rst command to come from
this unit before sending the next command.

• If an incorrect command is sent by mistake, this
unit will send an “ER401” command back to the
computer.

• SL1A, SL1B, SL2A and SL2B of Command IMS are
available only when a dual input terminal board is
attached.

10

Command

Command Parameter Control details
PON None Power ON
POF None Power OFF
AVL ** Volume 00 - 63

AMT

IMS None

DAM None

0 Audio MUTE OFF
1 Audio MUTE ON

Input select (toggle)
SL1
SL2
SL3
PC1
SL1A
SL1B
SL2A
SL2B

NORM
ZOOM
FULL
JUST
SELF

Slot1 input

Slot2 input

Slot3 input

PC input

Slot1 input (INPUT1A)

Slot1 input (INPUT1B)

Slot2 input (INPUT2A)

Slot2 input (INPUT2B)

Screen mode select (toggle)

NORMAL (4 : 3)

ZOOM

FULL

JUST

Panasonic AUTO

With the power off, this display responds to PON command only.

Power On / Off

Connecting the AC cord plug to the Plasma Display.

Fix the AC cord plug securely to the
Plasma Display with the clamper.
(see page 8)

Connecting the plug to the Wall Outlet

Notes:

• Main plug types vary between countries. The power plug shown
at right may, therefore, not be the type fi tted to your set.

• When disconnecting the AC cord, be absolutely sure to
disconnect the AC cord plug at the socket outlet fi rst.

Press the Power switch on the Plasma Display to turn the set
on: Power-On.

Power Indicator: Green

Example: The screen below is displayed for a while after the

Plasma Display is turned on (setting condition is an
example).

Press the button on the remote control to turn the Plasma Display off.

Power Indicator: Red (standby)

Press the button on the remote control to turn the Plasma Display on.

Remote Control Sensor

Power Indicator

Power Indicator: Green

Turn the power to the Plasma Display off by pressing the
unit, when the Plasma Display is on or in standby mode.

Note:

During operation of the power management function, the power indicator turns
orange in the power off state.

switch on the

11

Basic Controls

Remote control sensor

INPUT

MENU

VOL

INPUT button

(INPUT1, INPUT2, INPUT3
and PC selection)
(see page 16)

ENTER/

Power Indicator

The Power Indicator will light.

• Power-OFF .... Indicator not illuminated (The unit

will still consume some power
as long as the power cord is still
inserted into the wall outlet.)

• Standby .......... Red

• Power-ON ...... Green

• DPMS .............Orange (With PC input signal

and during operation of PC’s
screensaver.)

Main Power On / Off Switch

How to release button lock

MENU and ENTER/■ buttons are locked before
shipping.
You can unlock them with unit buttons.

1. Press +/▲ 4 times.

2. Press INPUT 4 times.

3. Press –/▼ 4 times.

4. Press ENTER/■.

Volume Adjustment

Volume Up “+” Down “–”
When the menu screen is displayed:
“+”: press to move the cursor up
“–”: press to move the cursor down
(see page 14)

Enter / Aspect button

This button is locked by initial setting.
(see page 14, 17)

MENU Screen ON / OFF

This button is locked by initial setting.
Each time the MENU button is pressed, the
menu screen will switch. (see page 14)

Normal Viewing Picture Setup

Sound Pos. /Size

N button (see page 18, 21, 22, 23)

POS. / SIZE button (see page 18)

PICTURE button (see page 21)

Note:

After unlocking the buttons, Button lock in
OPTIONS menu is set to “Off”. (see page 35)

SURROUND button

The surround setting switches on and off each time
the SURROUND button is pressed.
The benefi ts of surround sound are enormous. You
can be completely enveloped in sound; just as if
you were at a concert hall or cinema.

Note:

The surround settings are memorized separately
for each Sound Mode (Normal, Dynamic, Clear).

On Off

Surround

On

INPUT button
(INPUT1, INPUT2, INPUT3 and PC selection)

Press to select INPUT1, INPUT2, INPUT3 and PC input
SLOTS sequentially. (see page 16)

Sound mute On / Off (see page 23)

Numeric buttons

ASPECT button

Press to adjust the aspect. (see page 17)

MULTI Window buttons (see page 19)

12

Basic Controls

The remote control is not included with this set. Available for purchase separately.

Object model : EUR7636090R

Standby (ON / OFF) button

The Plasma Display must fi rst be plugged into the wall outlet and turned on at the power switch (see page 11).
Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to Standby
mode.

POSITION

buttons

ACTION button

Press to make
selections.

SOUND button

(see page 23)

R button (see page 15)
Press the R button to return to previous menu screen.

Status button

Press the “Status” button to display the current system status.

PC

4:3

1

Input label

1

2

2

Aspect mode (see page 17)
Off timer

3

The off timer indicator is

Off timer 90

displayed only when the off

3

timer has been set.

SET UP button (see page 14, 15)

DIRECT INPUT buttons

Press the INPUT “1”, “2”, “3” or “PC” input mode selection button to
select the input mode.
This button is used to switch directly to INPUT mode.
These buttons can only display the slot which is installed. If you
press the button whose slot is not installed, it automatically displays
the current input signal.
When a dual input terminal board is attached, A or B is displayed
depending on the selected input signal. (Ex. INPUT1A, INPUT1B)

Note:

Image retention (image lag) may occur on the plasma display panel
when a still picture is kept on the panel for an extended period. The
function that darkens the screen slightly is activated to prevent image
retention (see page 41), this function is not the perfect solution to
image retention.

Channel Adjustment

You can use this button when U/V Tuner Board with Hospitality Port
is installed (optional accessories). Refer to each Board's Operating
Instruction for detail.

Volume Adjustment

Press the Volume Up “+” or Down “–” button to increase or decrease
the sound volume level.

OFF TIMER button

The Plasma Display can be preset to switch to stand-by after a
fi xed period. The setting changes to 30 minutes, 60 minutes, 90
minutes and 0 minutes (off timer cancelled) each time the button
is pressed.

30 60

90

0

When three minutes remain, “Off timer 3” will fl ash.
The off timer is cancelled if a power interruption occurs.

Digital Zoom (see page 24)

Press to access
Digital Zoom.

This displays an enlargement of the designated part of the
displayed image.

13

MENU

ENTER/

INPUT

VOL

On-Screen Menu Displays

To Picture adjust menu
(see page 21)

Normalise

Picture Mode
Contrast
Brightness
Colour
Tint
Sharpness

White balance
Colour Management
Advanced settings

Normal

Normal

25

0
0
0
5

Normal

Press to select
“On”.

Press to enter
Advanced settings.

To Advanced settings
(see page 21, 22)

Advanced settings

Normalise

Black extension
Input level
Gamma
AGC

Normal

0
0

2.2
Off

Off
On

1/2Picture

2/2Picture

1/2

The MENU button on the unit can also
be pressed.

Each time the MENU button is pressed,
the menu screen will switch.

Normal Viewing Picture Setup

Sound Pos. /Size

1

Press to select.

[ from the unit ]

MENU

INPUT

VOL

1

1

Press to select.

2

Press to access each adjust

ENTER/

2

screen.

Setup

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language English (UK

Signal

RGB

PC
Off
Off
Off
Off

1/2

)

Advanced settings

W/B High R
W/B High G
W/B High B
W/B Low R
W/B Low G
W/B Low B

2/2

0
0
0
0
0
0

To Pos./Size adjust menu (see page 18)

During “AV(S Video)”,
“Component” and “Digital” input
signal.

Pos. /Size

H-Pos
H-Size
V-Pos
V-Size

Normal

0
0
0
0

Normalise

During “RGB / PC” input signal.

Pos. /Size

Normalise

H-Pos
H-Size
V-Pos
V-Size

Clock Phase

Normal

2/2 Setup

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

To Sound adjust menu
(see page 23)

Sound

Normalise

Sound Mode

0
0
0
0
0

Bass
Mid
Treble
Balance
Surround
Audio Out (PIP)

Normal

Normal
0
0
0
0

Off

Main

14

MENU

ENTER/

INPUT

VOL

On-Screen Menu Displays

Note:

Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.

2

Press to access

[ from the unit ]

each adjust
screen.

Press the R button to return to
previous menu screen.

Press to return to next menu screen.

To Signal screen for AV
(S Video) (see page 31, 32)

On

Auto

Off

4 : 3

Off

[

Signal

3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR

To Signal screen for
Component (see page 32)

]

AV

Signal

Cinema reality
P-NR

[

Component

Off
Off

To Signal screen for RGB
(see page 32, 33)

]

Signal

Sync
Cinema reality
P-NR

H-Freq.

V-Freq.

33.8

60.0

kHz

Hz

Auto

Off
Off

[

RGB

To Signal screen for Digital
(see page 32, 33)

]

Signal

Cinema reality
P-NR

H-Freq.

V-Freq.

Note : “Signal” setup menu displays different setting condition for each input signals. (see page 16)

Press to select Start Time / Finish Time
(When Time Designation is selected).

To setup Screensaver
(see page

Screensaver

Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

Start

27-29

)

PRESENT TIME 15:00

White bar scroll

Time Designation

6:15

12:30

High

Off
Off

Press to select Periodic Time / Operating Time
(When Interval is selected).

Press to Setup.

Screensaver

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

[

Digital

Off
Off

kHz

33.8

Hz

60.0

PRESENT TIME 15:00

White bar scroll

Time Designation

6:15

12:30

High

Off
Off

]

Screensaver

Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit

PRESENT TIME 15:00

White bar scroll

Interval

12:00

3:00

High

Off
Off

To Set up Timer selection
screen (see page 25, 26)

Set up TIMER

PRESENT TIME 10:00

POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time

Off

0:00

Off

0:00

To PRESENT TIME Setup
(see page 25)

PRESENT TIME Setup

PRESENT TIME MON 99:99

Set
DAY
PRESENT TIME

MON

99:99

Press the R button to return
to “Setup” menu.

Press to select POWER ON
Time / POWER OFF Time.

Press to Set up
POWER ON Time /
POWER OFF Time.

Press the R button to return
to “Setup” menu.

Screensaver

PRESENT TIME 15:00

Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit

Set up TIMER

PRESENT TIME 10:00

POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time

Set up TIMER

PRESENT TIME 10:00

POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time

White bar scroll

Interval

12:00

3:00
High

Off
Off

Off

12:00

Off

18:00

On

12:00

On

18:00

15

Initial selections

Selecting the input signal

Select the input signals to be connected by installing the optional Terminal Boards.

Press to select the input signal to be played back from
the equipment which has been connected to the Plasma
Display.

Input signals will change as follows:

INPUT1 INPUT2 PCINPUT3

Notes:

• Selecting is also possible by pressing the INPUT button on the unit.

• Input terminal will not be selected if the terminal board is not installed into the
SLOT.

• Select to match the signals from the source connected to the component/RGB
input terminals. (see page 31)

• In 2 screen display, the same input mode cannot be selected for the main picture
and sub picture.

MENU

INPUT

VOL

ENTER/

Swing up the door at “PULL”.

Selecting the On-Screen Menu Language

Press to display the Setup menu.

Press to select the OSD Language.

Press to select your preferred language.

Selectable languages

English(UK)

Deutsch

Français

Italiano

Español

ENGLISH(US)

.......(Chinese)

.......(Japanese)

Setup

Component/RGB-in select

Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK

1/2

Signal

RGB

PC
Off
Off
Off
Off

)

16

ASPECT Controls

The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema
format picture.

Press repeatedly to move through the aspect options:

4 : 3 Zoom 16 : 9

Panasonic Auto Just

Note:

When selecting an input slot that attaches BNC Dual Video Terminal

[from the unit]

MENU

INPUT

VOL

ENTER/

[During MULTI PIP Operations]

• Picture and Picture, Picture in Picture :

• Others : Aspect switching is not possible.

Notes:

• For PC signal input, the mode switches between “4:3”, “Zoom” and “16:9” only.

• For a 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p
signal input, the mode is set to “16:9” mode, and switching is not possible.

• Panasonic Auto can be selected only during Video signal input.

• The aspect mode is memorized separately for each input terminal.

Board (TY-FB9BD), Panasonic Auto cannot be selected.

The aspect mode changes each time the ENTER button is
pressed.

4 : 3 16 : 9

Mode Picture Explanation

4 : 3

Zoom

16 : 9

Just

4

4 : 3

3

4

3

4

3

4

3 9

16

16

16

Zoom

16 : 9

Just

4:3 will display a 4:3 picture at its standard 4:3 size.

Zoom mode magnifi es the central section of the picture.

9

16:9 will display the picture at its maximum size but with slight
elongation.

9

Just mode will display a 4:3 picture at its maximum size but with
aspect correction applied to the center of the screen so that
elongation is only apparent at the left and right edges of the screen.
The size of the picture will depend on the original signal.

416

39

Panasonic Auto

The display will automatically become enlarged (depending on the
picture source), allowing you to view the picture at its maximum size.

Notes:

• Panasonic Auto mode is designed to automatically adjust the
aspect ratio to handle a mix of 16:9 and 4:3 program material.
Certain 4:3 program material, such as stock market data screens,
may occasionally cause the image size to change unexpectedly.
When viewing such programs, it is recommended that the ASPECT
be set to 4:3.

• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9
mode, the adjustment is not memorized. When exiting the mode,
the screen will return to a former adjustment.

• Panasonic Auto can not be selected while BNC Dual Video

Panasonic

Auto

For an elongated image

4

3

For a 4:3 image

Image is expanded

Changes in
accordance with
the Panasonic Auto
mode setting (see
page 32).

Terminal Board (TY-FB9BD) is installed.

Note:

Do not allow the picture to be displayed in 4:3 mode for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display Panel.

17

Adjusting Pos. / Size

1

Press to display the Pos. /Size menu.

2

Press to select H-Pos / H-Size / V-Pos / V-Size /
Clock Phase.

Press to adjust Pos. / Size.

3

4

Notes:

• Adjustment details are memorized separately for different input signal formats
(Adjustments for component signals are memorized for 525 (480) / 60i · 60p,
625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 24p · 25p · 30p · 24sF, 1250
(1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are
memorized for each frequency.)

• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture
position will shift up or down. This picture position movement cannot be
controlled by the Picture Pos./Size function.

• If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9 mode, the
adjustment is not memorized. When exiting the mode, the screen will return
to a former adjustment.

Press to exit from adjust mode.

During “AV(S Video)”, “Component”
and “Digital” input signal.

Pos. /Size

Normalise

H-Pos
H-Size
V-Pos
V-Size

During “RGB / PC” input signal.

Pos. /Size

Normalise

H-Pos
H-Size
V-Pos
V-Size

Clock Phase

Normal

0
0
0
0

Normal

0
0
0
0
0

H-Pos Adjust the horizontal position. H-Size Adjust the horizontal size.

V-Pos Adjust the vertical position. V-Size Adjust the vertical size.

Clock Phase
(RGB/PC in mode)

Helpful Hint ( /

While the Pos. / Size display is active, if either the N button on the remote control is pressed at any time or the ACTION
( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Eliminate the fl ickering and distortion.

Normalise

Normalisation)

18

MULTI PIP

Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed
as follows below.

[Picture and Picture] [Picture in Picture]

Main picture Sub picture

Normal

Viewing

Press to swap main
picture and sub picture.

Press to select the input mode.
Under main Picture and sub picture display,
select the picture which you would like to
change input modes.

Notes:

• The sub picture sound is heard while a sub
picture operation is underway.

• The sub picture operation automatically
returns to the main picture operation if
a sub picture operation has not been
performed for about 5 seconds or if any
of the remote control buttons is pressed
(except button).

Press to change input signal.

AB

BA

[Picture out Picture]

Main picture Sub picture Main picture Sub picture

A

B

A

B

B

A

B

A

[Example]

Main picture label is bright Sub picture label is bright

PC1

VIDEO2

A

B

Input modes switching is possible

Main picture label is changed

VIDEO2
VIDEO1

C

B

Picture is changed

Sub picture label is changed

A

A

PC1

VIDEO2

B

PC1

VIDEO2

D

Press to move the sub picture.
Each time the location of the sub picture will be moved.

Notes:

• This button is effective only in the picture in picture.

• The sub picture may be hidden by the on screen display, depending on its position.

Notes:

• If “Input lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.

• Sound output is from the picture which is selected in Audio Out (PIP) (See page 23).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of
the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals
displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

•

Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them satisfactorily.

• Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

19

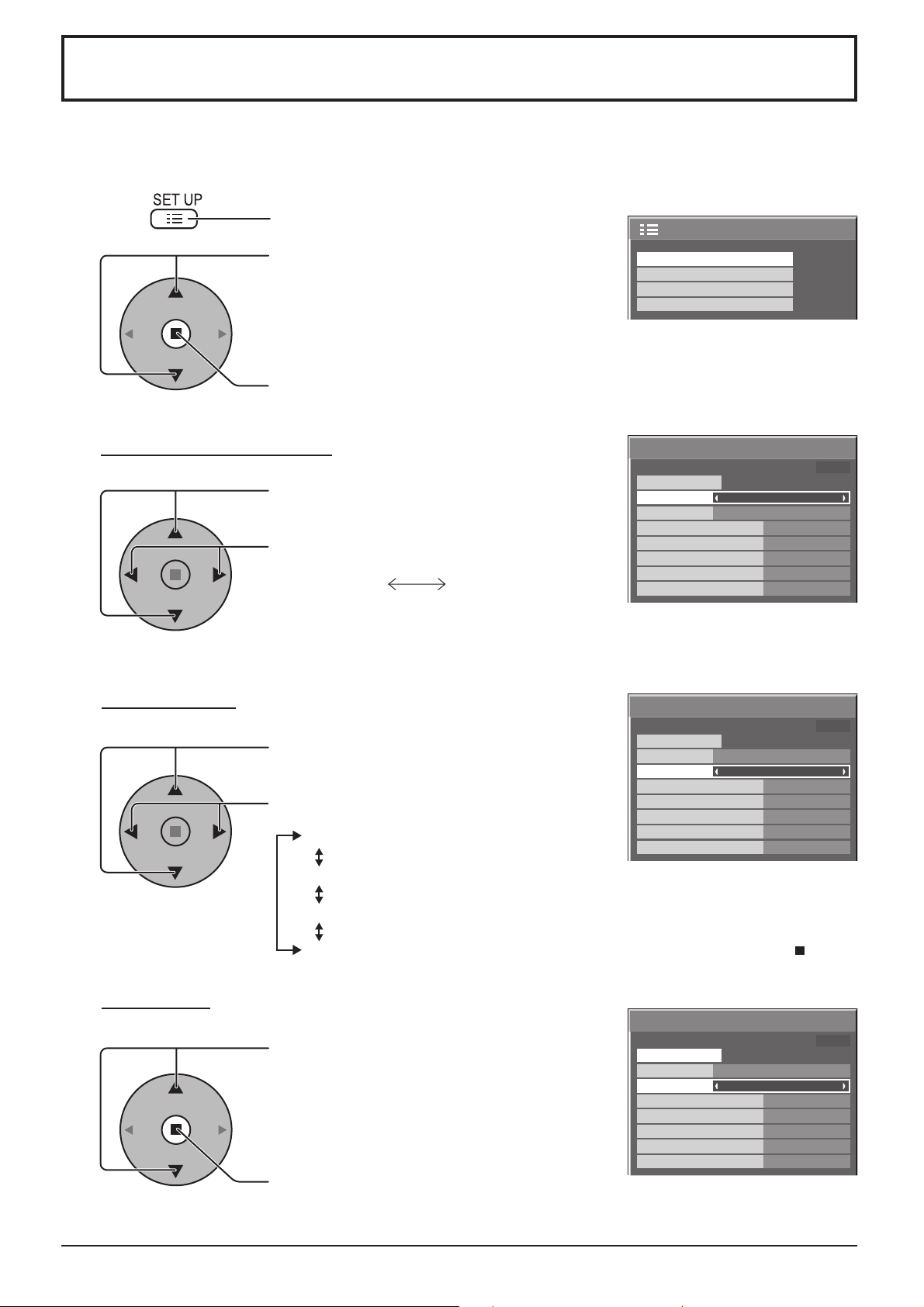

Advanced PIP

1

2

3

4

5

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold until the Options menu is displayed.

Press to select Advanced PIP.

Press to adjust the menu.
Off : Sets normal two screen display mode
(see page 19).
On : Sets Advanced PIP mode.

Options

Weekly Command Timer

Onscreen display
Initial INPUT
Initial VOL level
Maximum VOL level
INPUT lock
Button lock
Remocon User level

Advanced PIP

1/3

On

Off

Off 0 0

Off

Off

Off

Off

Off

One screen Advanced PIP

6

Press to exit from
Options menu.

123

Main screenSub screen

(When Advanced PIP is On)

7

Note:

To use , , , buttons for the screen operations, follow the procedures in the previous page.

Notes:

• Advanced PIP corresponding signal

NTSC, PAL, SECAM (tuner, video)
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i,
1250/50i (Component Video, RGB, DVI, SDI, HDMI)

• If “Input lock” in Options menu is set to other than “Off”, MULTI PIP function isn’t available.

• Sound output is from the picture which is selected in Audio Out (PIP) (See page 23).

• In 2 screen display, the same input mode cannot be selected for the main picture and sub picture.

• The main picture and sub picture are processed by different circuits, resulting in a slight difference in the clarity of
the pictures. There may also be a difference in the picture quality of the sub picture depending on the type of signals
displayed on the main picture and depending on the 2-picture display mode.

• Due to the small dimensions of the sub pictures, these sub pictures cannot be shown in detail.

•

Computer screen picture is displayed in a simplifi ed format, and it may not be possible to discern details on them satisfactorily.

• Following combinations of two analog signals cannot be displayed simultaneously;

Component - Component, Component - PC (RGB), PC (RGB) - Component, PC (RGB) - PC (RGB)

• Refer to each board's operating instruction for DVI, SDI, HDMI's corresponding signals.

Press repeatedly.
Each time pressing this button main picture and sub picture will be displayed as above.

Sub screen Main screen

640x480@60Hz, 852x480@60Hz, 1024x768@60Hz,
1366x768@60Hz (RGB, DVI, HDMI)
1280x768@60Hz (DVI)

654

20

Picture Adjustments

1

Select to adjust each item.

2

Normalise

Picture Mode
Contrast
Brightness
Colour
Tint
Sharpness

Normal

25

0
0
0
5

Normal

Press to display the Picture menu.

Press to select the menu to adjust.

Select the desired level by looking at
the picture behind the menu.

Note:

Menu that cannot be adjusted is grayout. Adjustable menu
changes depending on signal, input and menu setting.

1/2Picture

Press “ ” or “ ” button to switch between modes.

Normal

Cinema Dynamic

Normal

For viewing in standard (evening lighting) environments.
This menu selects the normal levels of Brightness

2/2Picture

and Contrast.

White balance
Colour Management
Advanced settings

Normal

Off
On

Press to select “On”.

Press to enter
Advanced Settings.

Advanced settings On
Enables fi ne picture adjustment at a professional
level (see next page).

Advanced settings

Normalise

Black extension
Input level
Gamma
AGC

Advanced settings

W/B High R
W/B High G
W/B High B
W/B Low R
W/B Low G
W/B Low B

Normal

1/2

0
0

2.2
Off

2/2

0
0
0
0
0
0

Advanced settings Off
Displays images with settings of the Picture menu.

Dynamic

For viewing in brighter environments.
This menu selects higher than normal levels of
Brightness and Contrast.

Cinema

Ideal for movies.

Note:

If you would like to change the picture and colour of the
selected Picture menu to something else, adjust using the
items in the Picture menu. (see next page)

Press “ ” or “ ” button to switch between modes.

Normal Cool Warm

Colour Management On
Enables vivid colour adjustment automatically.

Helpful Hint ( /

Normalise

Normalisation)

While the “Picture” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

21

Picture Adjustments

Item Effect Adjustments

Contrast

Less More

Selects the proper brightness and
density for the room.

Adjusts for easier viewing of dark

Brightness

Colour

Tint

Sharpness

Darker Brighter

Less More

Reddish Greenish

Less More

pictures such as night scenes and
black hair.

Adjusts colour saturation.

Adjusts for nice skin colour.

Adjusts picture sharpness.

Advanced settings

Item Effect Details

Black

extension

Input level

Less More

Less More

Adjusts the dark shades of the image in gradation.

Adjustment of parts which are extremely bright and hard to see.
(This cannot be adjusted when the input signal is Digital.)

Notes:

• “Colour” and “Tint” settings cannot be
adjusted for “RGB/PC” and “Digital”
input signal.

• You can change the level of each
function (Contrast, Brightness, Colour,
Tint, Sharpness) for each Picture
Mode.

• The setting details for normal,
dynamic and cinema respectively
are memorized separately for each
input terminal.

• The “Tint” setting can be adjusted
for NTSC signal only during “AV
(S Video)” input signal.

• In Contrast, there is not a noticeable
change even when contrast is
increased with a bright picture or
reduced with a dark picture.

Gamma

AGC

W/B High

R

W/B High

G

W/B High

B

W/B Low R

W/B Low G

W/B Low B

Down Up

Off On

Less More

Less More

Less More

Less More

Less More

Less More

S Curve 2.0 2.2 2.5

Increases the brightness of dark signal automatically.

Adjusts the white balance for light red areas.

Adjusts the white balance for light green areas.

Adjusts the white balance for light blue areas.

Adjusts the white balance for dark red areas.

Adjusts the white balance for dark green areas.

Adjusts the white balance for dark blue areas.

Notes:

• Carry out “W/B” adjustment as follows.

1.

Adjust the white balance of the bright sections using the “W/B High R”, “W/B High G” and “W/B High B” settings.

2. Adjust the white balance of the dark sections using the “W/B Low R”, “W/B Low G” and “W/B Low B” settings.

3. Repeat steps 1 and 2 to adjust.

Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.

• The adjustment values are memorized separately for each input terminal.

• The adjustment range values should be used as an adjustment reference.

Helpful Hint ( /

Normalise

Normalisation)

On the remote control unit, while the “Advanced settings” menu is displayed, if either the N button is pressed at any time or
the ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

22

Sound Adjustment

1

Press to display the Sound menu.

Select to adjust each item.

2

Press to select the menu to adjust.

Select the desired level by listening to the sound.

Bass

Adjusts low pitch sounds

Mid

Adjusts normal sounds

Treble

Adjusts high pitch sounds

Balance

Sound

Normalise

Sound Mode
Bass
Mid
Treble
Balance
Surround
Audio Out (PIP)

Normal

Normal
0
0
0
0

Off

Main

Normal

Dynamic

Clear

Emits the original sound.

Accentuates sharp
sound.

Attenuates human voice.

Adjusts left and right volumes

Surround

Select On or Off

Main

Selects main
picture sound.

INPUT1

PC

A

B

Sub

Selects PIP frame
sound.

INPUT1

PC

A

B

Musical note is displayed on right side of the audio output screen label.

Notes:

• Press the SURROUND button to directly turn the surround effect On and Off. (see page 12)

• Bass, Mid, Treble and Surround settings are memorized separately for each Sound Mode.

(When main picture
sound is chosen.)

(When PIP frame
sound is chosen.)

Helpful Hint ( /

Normalise

Normalisation)

While the “Sound” menu is displayed, if either the N button on the remote control is pressed at any time or the
ACTION ( ) button is pressed during “Normalise”, then all adjustment values are returned to the factory settings.

Mute

Useful when answering the phone or receiving unexpected visitors.

Press to mute the sound.
Press again to reactivate sound. Sound is also reactivated when power is turned off
or volume level is changed.

23

Digital Zoom

This displays an enlargement of the designated part of the displayed image.

Display the operation guide.

1

Press to access Digital Zoom.
The operation guide will be displayed.

During Digital Zoom, only the following buttons can be operated.

[Remote control]

Select the area of the image to be enlarged.

2

Press on the enlargement location to select.

POSITION /
ACTION button

VOL button

MUTE button

SURROUND button

OFF TIMER button

The cursor will move.

[Unit]

INPUT

MENU

VOL button

VOL

Exit

1

ENTER/

Select the magnifi cation required for the enlarged display.

3

Each time this is pressed, the magnifi cation factor changes.
This is shown in the image being displayed.

× 1 × 2 × 3 × 4

Return to normal display (quit Digital Zoom).

4

Press to exit from the Digital Zoom.

Notes:

• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.

• The Digital Zoom function cannot be selected while in the following operation state:
“Multi-viewer” (Picture in Picture, Picture out Picture, Picture and Picture) operation. (see page 19)

• While Digital Zoom is in operation, “Adjusting Pos. / Size” cannot be used.

Exit

2

2

24

PRESENT TIME Setup / Set up TIMER

The timer can switch the Plasma Display On or Off.

Before attempting Timer Set, confi rm the PRESENT TIME and adjust if necessary.
Then set POWER ON Time / POWER OFF Time.

1

Press to display the Setup menu.

2

Press to select Set up TIMER or PRESENT TIME Setup.

Press to display the Set up TIMER screen or
PRESENT TIME Setup screen.

PRESENT TIME Setup

Display the PRESENT TIME Setup screen.

Setup

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language English (UK

Signal

RGB

PC
Off
Off
Off
Off

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

1/2

)

2/2Setup

To setup DAY and PRESENT TIME, follow the procedure described below.

1

Press to select DAY or PRESENT TIME.

Press to setup DAY or PRESENT TIME.

button: Forward

button: Back

Notes:

• Pressing “ ” or “ ” button once changes PRESENT TIME 1minute.

• Pressing “ ” or “ ” button continuously changes PRESENT TIME by 15 minutes.

2

Press to select Set.

Press to store PRESENT TIME Setup.

Notes:

• Set cannot be selected unless PRESENT TIME is set.

• Unless setting the present time other than “99:99”, DAY setting is invalid.

3

Press to exit from PRESENT TIME Setup.

PRESENT TIME Setup

PRESENT TIME MON 99:99

Set
DAY
PRESENT TIME

PRESENT TIME Setup

PRESENT TIME MON 99:99

Set
DAY
PRESENT TIME

MON
99:99

TUE

10:00

25

PRESENT TIME Setup / Set up TIMER

Set up TIMER

Display the Set up TIMER screen.

1

2

3

Press to select
POWER ON Time / POWER OFF Time.

Press to setup
POWER ON Time / POWER OFF Time.

button: Forward

button: Back

Notes:

• Pressing “ ” or “ ” button once changes POWER ON Time / POWER OFF Time
1minute.

• Pressing “ ” or “ ” button continuously changes POWER ON Time / POWER OFF
Time by 15 minutes.

Press to select POWER ON Function/POWER
OFF Function.

Press to select On.

Press twice to exit from Setup.

Set up TIMER

PRESENT TIME 10:00

POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time

Set up TIMER

PRESENT TIME 10:00

POWER ON Function
POWER ON Time
POWER OFF Function
POWER OFF Time

Off

12:00

Off

18:00

On

12:00

On

18:00

Note:

Timer function will not work unless “PRESENT TIME” is set.

26

Screensaver (For preventing image retention)

Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a Screensaver should be used.

1

2

Reversal / Scroll selection

3

Press to display the Setup menu.

Press to select Screensaver.

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

Press to display Screensaver screen.

Screensaver

Press to select Function.

Press to select the desired function.

White bar scroll Image Reversal

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

White bar scroll : The white bar will scroll from left to right.

Image Reversal : Negative image will be displayed on the screen.

2/2Setup

PRESENT TIME 99:99

White bar scroll

Off

6:15

12:30

High

Off
Off

Mode selection

4

Start setting

5

Screensaver

PRESENT TIME 99:99

White bar scroll

Off

6:15

12:30

High

Off
Off

Press to select Mode.

Press to select each mode items.

Off

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

Interval : Operates when Periodic Time and Operating Time are setup

and those times arrive.

Time Designation : Operates when Start Time and Finish Time are setup and

those times arrive.

On : Operates when Start is selected and the ACTION ( ) button

is pressed.

Screensaver

When the Mode is set to On, press to select
Start.

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

PRESENT TIME 99:99

White bar scroll

On

6:15

12:30

High

Off
Off

Press to start Screensaver.
The menu screen will disappear and the Screensaver will be activated. To stop the

Screensaver under On, press the R button.

27

Screensaver (For preventing image retention)

Setup of Screensaver Time

After selecting Time Designation or Interval, the relevant Time Setup will become available for selection and the
Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)

Screensaver

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

PRESENT TIME 15:10

White bar scroll

Time Designation

6:15

12:30

High

Off
Off

Screensaver

Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit

PRESENT TIME 15:00

White bar scroll

Interval

12:00

3:00
High

Off
Off

Press to select Start Time / Finish Time
(When Time Designation is selected).
Press to select Periodic Time / Operating Time
(When Interval is selected).

Press to setup.

button: Forward

Notes:

button: Back

• Pressing “ ” or “ ” button once changes the Time 1minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]

• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.

Screensaver

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

Screensaver

Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

PRESENT TIME 99:99

White bar scroll

Off

6:15

12:30

High

Start

PRESENT TIME 15:00

Time Designation

Off
Off

White bar scroll

6:15

12:30

High

Off
Off

Screensaver

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

PRESENT TIME 15:10

White bar scroll

Time Designation

0:00
0:00
High

Off
Off

Screensaver

Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit

PRESENT TIME 15:00

White bar scroll

Interval

0:00
0:00
High

Off
Off

Screensaver

Start
Function
Mode
Periodic Time
Operating Time
Side panel
Wobbling
Peak limit

PRESENT TIME 15:00

White bar scroll

Interval

12:00

3:00
High

Off
Off

Note: Timer function will not work unless “PRESENT TIME” is set.

Reduces screen image retention

These functions prevent the occurrence of an “image retention” on the display when turned ON.

Wobbling: Automatically shifts the display image (therefore unnoticeable to the eye) to prevent image retention of

sharper contour of image.
On1: Shifts the image every 30 seconds.
On2: Shifts the image at a dot level pitch depending on screen-detection.

Peak limit: Suppresses image contrast (peak brightness).

1
2

Note:

When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 41)

Press to display the Setup menu.
Press to select “Screensaver”.

Screensaver

MULTI DISPLAY Setup

Set up TIMER

PRESENT TIME Setup

2/2Setup

3

28

Press to display Screensaver menu.

Press to select “Wobbling” or “Peak limit”.

Press to select “On1”, “On2” or “Off” (Wobbling).

“On” or “Off” (Peak limit).

Screensaver

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

PRESENT TIME 99:99

White bar scroll

Off

6:15

12:30

High

Off
Off

Screensaver (For preventing image retention)

Side Panel Adjustment

Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
panels either side of the display fi eld.
To reduce the risk of such an image retention, illuminate the
side panels.

This function may be applicable to the non-picture area.

Display the Screensaver screen.
(Refer to the previous page, operation guide steps 1 and 2)

1

Press to select Side panel.

Press to select Off, Low, Mid, High.

Off Mid HighLow

side panel

4:3

Screen Display

image retention

Non picture area

Picture out Picture Picture and Picture

Screensaver

Start
Function
Mode
Start Time
Finish Time
Side panel
Wobbling
Peak limit

PRESENT TIME 99:99

White bar scroll

Off

6:15

12:30

High

Off
Off

2

Press to exit from Screensaver.

Notes:

• To reduce the occurrence of image retention, set the Side panel to High.

• The side panels may fl ash (alternate black / white) depending on the picture being shown on the screen. Using
Cinema mode will reduce such fl ashing.

29

Reduces power consumption

• Power save: When this function is turned On, luminous level of the Plasma Display is suppressed, so
power consumption is reduced.

• Standby save: When this function is turned On, power consumption of the microcomputer is reduced
during power supply standby (see page 11-13), so standby power of the set is reduced.

• Power management: The unit power supply is turned On or Off depending on whether or not there is a signal
during PC input mode.

• Auto power off: Equipment power supply is turned Off when there is no signal.

When this is set to On, the power supply of the unit goes Off 10 minutes after the input

This function is effective for input signals except input from PC (Mini D-sub) terminal.

This function is enabled when it is turned On. (Only during input from PC (Mini D-sub) terminal)

signals stop.

1

2

Press to select
“Power save”
“Standby save”
“Power management”
“Auto power off”.

Press to select “On” or “Off”.

Setup

Signal

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language

RGB

PC
Off
Off
Off
Off

English (UK

1/2

)

On Off

Note:

“Power management” and “Auto power off” are effective

3

during normal viewing (one picture screen) only.

Press to exit from Setup.

Customizing the Input labels

This function can change the label of the Input signal to be displayed.
Select the input signal which you would like to change its label before customizing the Input labels. (see page 13, 16)

Note:

Press to select Input label.

Press to change the Input label.

Setup

Signal

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language

English (UK

1/2

RGB

PC

Off
On
Off
Off

)

While selecting an Input signal through Optional Terminal Board connected to Slot1, Slot2 and Slot3, the Input label
will depend on each Optional Terminal Board.

Input labels for Slot1, Slot2, Slot3 and Mini D-sub:

[Slot1 Input]
[Slot2 Input]
[Slot3 Input]

INPUT1 / VIDEO1 / COMPONENT1 / RGB1 / DIGITAL1 / PC1 / DVD1 / CATV1 / VCR1 / STB1
INPUT2 / VIDEO2 / COMPONENT2 / RGB2 / DIGITAL2 / PC2 / DVD2 / CATV2 / VCR2 / STB2
INPUT3 / VIDEO3 / COMPONENT3 / RGB3 / PC3 / DVD3 / CATV3 / VCR3 / STB3

[PC (Mini D-sub) input] PC / COMPONENT / RGB / DVD / STB

When BNC Dual Video Terminal Board (TY-FB9BD) is used, an “A” or “B” is added at the end of each input label,
depending on the input selected (see below).

Addition sign “A” “B”
Selected Input Composite S VIDEO

30

Setup for Input Signals

Component / RGB-in select

Select to match the signals from the source connected to the Component / RGB input terminals.
Y, PB, PR signals “Component”
R, G, B, HD, VD signals “RGB”

1

Press to display the Setup menu.

Press to select the “Component / RGB-in

2

3

Note:

Selection may not be possible, depending on which optional board is installed.

select”.

Press to select the desired input signal.
Component RGB

Press to exit from adjust mode.

Setup

Signal

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language

RGB

PC
Off
Off
Off
Off

English (UK

1/2

)

3D Y/C Filter – For NTSC AV images

Select “Signal” from the “Setup” menu during AV(S Video) input signal. (“Signal
[AV]” menu is displayed.)

Press to select the “3D Y/C Filter (NTSC)”

1

Press to set On / Off.

2

Note:

When On, this setting only affects NTSC input signals.

Press to exit from adjust mode.

Setup

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language English (UK

Signal

RGB

PC
Off
Off
Off
Off

Press ACTION ( ) button

Signal

3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR

On

Auto

Off

4 : 3

Off

1/2

)

[

]

AV

31

Setup for Input Signals

Colour system / Panasonic Auto

Select Signal from the “Setup” menu during AV(S Video) input signal. (“Signal
[AV]” menu is displayed.)

Press to select the “Colour system” or
“Panasonic Auto”.

Press to select each functions.

If the picture image becomes unstable:

With the system set on Auto, under conditions of low level or noisy input
signals the image may in rare cases become unstable. Should this occur,
set the system to match the format of the input signal.

Mode Function

Colour system

Set the colour system to match the input signal. When selecting “Auto”, the color system is automatically
selected from NTSC/PAL/SECAM, however, M.NTSC signal is not displayed properly depending on
the attached terminal board. To display M.NTSC signal, select “M.NTSC” in Colour system.

Auto SECAM M.NTSC NTSCPAL

Setup

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language English (UK

Signal

RGB

PC
Off
Off
Off
Off

Press ACTION ( ) button

Signal

3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR

On

Auto

Off

4 : 3

Off

1/2

)

[

]

AV

Panasonic Auto
(4 : 3)

Set to “4 : 3” to view 4:3 images in an unchanged format when Panasonic Auto is selected.
If you would like to view 4:3 images in Just format, set to “Just”.

Note:

Panasonic Auto does not function when BNC Dual Video Terminal Board (TY-FB9BD) is used.

Cinema reality / P-NR

Cinema reality:

When on, the display attempts to reproduce a more natural interpretation of sources
such as movie pictures, which are recorded at 24 frames per second.
If the picture is not stable, turn the setting to off.

Note:

When On, this setting only affects the following signal input:

• NTSC / PAL signal input during “AV(S Video)” input signal.

• 525i(480i) 625i(575i), 1125(1080) / 60i signal input during “Component” input

signal.

P-NR:

Automatically reduces unwanted picture noise.

Note:

P-NR cannot be adjusted while a PC signal is being applied.

Signal

3D Y/C Filter (NTSC)
Colour system
Cinema reality
Panasonic Auto (4 : 3)
P-NR

1

Press to select Cinema
reality or P-NR.
Press to set On / Off.

Auto

4 : 3

Setup

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language English (UK

Press ACTION ( ) button

[

]

Signal

AV

On

Off

Off

Sync
Cinema reality
P-NR

Signal

H-Freq.

V-Freq.

33.8

60.0

RGB

kHz

Hz

PC
Off
Off
Off
Off

Auto

Off
Off

1/2

[

RGB

)

]

2

32

Press to exit from adjust mode.

Signal

Cinema reality
P-NR

[

Component

Off
Off

]

Signal

Cinema reality
P-NR

H-Freq.

V-Freq.

33.8

60.0

kHz

Hz

[

Digital

Off
Off

]

Sync

Setup for Input Signals

Select Signal from the “Setup” menu during RGB input signal.

1

Press to adjust.

2

Press to exit from adjust mode.

Setting RGB sync signal:

Confi rm that the input is set to RGB input (this setting is valid only for RGB input
signal).

Auto: The H and V sync or synchronized signal are automatically selected.

If both input, it is selected the H and V sync.

on G: Uses a synchronized signal on the Video G signal, which is input

from the G connector.

VBS: Uses a synchronized signal of Composite Sync input, which is input

from the HD connector.

Setup

Component/RGB-in select

Input label

Power save
Standby save
Power management
Auto power off
OSD Language English (UK

Signal

Press ACTION ( ) button

Signal

Sync
Cinema reality
P-NR

H-Freq.

V-Freq.

Sync

Sync

Sync

33.8

60.0

kHz

Hz

RGB

PC
Off
Off
Off
Off

Auto

Off
Off

Auto

on G

VBS

[

RGB

1/2

)

]

H-Freq. (kHz) / V-Freq. (Hz)

Displays the H (Horizontal) / V (Vertical) frequencies.

This display is valid only for RGB / PC and Digital input signal.
Display range:

Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz

H-Freq.

V-Freq.

33.8

60.0

kHz

Hz

33

Options Adjustments

1

2

3

4

5

6

Press to display the Setup menu.

Press to select “OSD Language”.

Press and hold until the Options menu is displayed.

Press to select your preferred menu.

Press to adjust the menu.

Press to exit from Options menu.

Options

Weekly Command Timer

Onscreen display
Initial INPUT

Initial VOL level
Maximum VOL level
INPUT lock
Button lock

Remocon User level
Advanced PIP

1/3

On

Off

Off 0 0
Off

Off

Off

Off

Off

Item Effect Adjustments

Weekly

Command

Timer

Onscreen

display

Initial INPUT

On Off

Sets Weekly Command Timer. (see page 38)

On: Displays all the following on screen.

• Power on display

• Input signal switch display

• No signal display

• Mute and the remaining time of off-timer after

Off: Hides all the items above from view.

Off PC INPUT1 INPUT2 INPUT3

Adjusts the input signal when the unit is turned on.

Notes:

• Only the adjusted signal is displayed. (see page 16).

• Signal can be displayed when the Terminal board is installed.

• This menu is available only when “INPUT lock” is “Off”.

• When a dual input terminal board is attached, A or B is displayed depending on the selected
input signal. (Ex. INPUT1A, INPUT1B)

was pressed.

34

Options Adjustments

Item Effect Adjustments

Press button to adjust the volume when the unit is turned on.

Off On

Initial VOL

level

Maximum VOL

level

Off On

Off On

Off: Sets normal volume.
On: Sets your preferred volume.
Notes:

•

When “Maximum VOL level” is “On”, the volume can only be adjusted between 0 and your maximum range.

•

You can hear the changed volume regardless of your volume setting before opening the options menu if you
adjust the volume when “Initial VOL level” is “On” and cursor is on the menu.

Press button to adjust the maximum volume.

Off On
Off: Sets auto maximum volume.
On: Sets your preferred maximum volume.
Notes:

• If the “Maximum VOL level” is set lower than the “Initial VOL level”, the “Initial VOL level”
automatically becomes the same as the “Maximum VOL level”.

• The volume display can go up to 63 regardless of the settings.

•

You can hear the changed volume regardless of your volume setting before opening the options menu if you
adjust the volume when “Maximum VOL level” is “On” and cursor is on the menu.

Options

Weekly Command Timer

Onscreen display
Initial INPUT

Initial VOL level
Maximum VOL level
INPUT lock
Button lock

Remocon User level
Advanced PIP

1/3

On

Off

Off 0 0
Off

Off

Off

Off

Off

INPUT lock

Button lock

Remocon

User level

Advanced PIP

Off On

Off PC INPUT1 INPUT2 INPUT3

Locks the input switch operation.

Notes:

• Only the adjusted signal is displayed (see page 16).

• Signal can be displayed when the Terminal board is installed.

• Input switch can be used when this is set to “Off”.

• In two screen display mode, if anything other than “Off” is set, the value will be fi xed as the value
input in the single screen display mode.

• When a dual input terminal board is attached, A or B is displayed depending on the selected input
signal. (Ex. INPUT1A, INPUT1B)

Off MENU&ENTER On
Off: All the buttons at the bottom of the main unit can be used.
MENU & ENTER:

Locks

MENU

and

buttons on bottom face of main unit.

ENTER/

On: Locks all the button on bottom face of main unit.
Sets Button lock with the unit buttons in the following procedure.

Off: Press
MENU & ENTER
On: Press four times→Press

four times→Press

: Press

four times→Press four times→Press

ENTER/

four times→Press four times→Press

INPUT

four times→Press four times→Press

ENTER/

ENTER/

four times→Press

INPUT

ENTER/

ENTER/

Off User1 User2 User3
Off: You can use all of the buttons on the remote control.
User1: You can only use , , , , , , , buttons on the remote

control.

User2: You can only use

, , buttons on the remote control.

User3: Locks all the buttons on remote control.

Off: Sets normal two screen display mode (see page 19).
On: Sets Advanced PIP mode (see page 20).
Notes:

• When “INPUT lock” is “On”, you cannot use all the two screen display functions.

•

, buttons are unavailable during Advanced PIP mode operation.

35

Options Adjustments

Item Effect Adjustments

Off-timer

function

Initial Power

Mode

ID select

Enable

Disable

Enable: Enables the “Off-timer function”.
Disable: Disables the “Off-timer function”.
Note: When “Disable” is set, the Off-timer is cancelled.

Normal Standby On
Sets the power mode of the unit for when the power recovers from failure or after plugging off
and in again.

Normal: Power returns in as the same state as before the power interruption.
Standby: Power returns in standby mode. (Power Indicator : red/orange)
On: Power returns in power On. (Power Indicator : green)
Note: When using multiple displays, “Standby” is preferred to be set in order to reduce a

power load.

Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)

Options

Off-timer function

Initial Power Mode
ID select
Remote ID
Serial ID
Display size
Studio W/B
Studio Gain

2/3

Enable

Normal

0

Off

Off

Off

Off

Off

Remote ID

Serial ID

Display size

Studio W/B

Studio Gain

Off On

Off On

Off On

Off On

Off On

Off: Disables ID remote control functions. You can use normal remote control operations.
On: Enable ID remote control functions.

Sets the panel ID Control.

Off: Disables external control by the ID.
On: Enables the external control by the ID.

Adjusts the image display size on screen.

Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display..
Off On

Notes:

• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (BNC Dual Video Terminal Board

(TY-FB9BD)) 525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p,
1125/24p, 1125/30p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)

• This setting is invalid when two screen display, digital zoom or Multi screen is selected.

• When “Display size” is set to “On”, “Pos. /Size” adjustment cannot be used.

• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.

Off: Nullify all the settings adjusted.
On: Sets the colour temperature for TV studio.
Note: Valid only when the low is set as colour temperature on screen adjustment.

Sharpens the contrast for a better view when a part of the image is too light to see.

Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Note: This setting is valid only when the input signals are as follows:

Component Video, RGB (analog), SDI, HDMI

36

Options Adjustments

Options

Slot power
V. lnstallation
Rotate
Serial Slot Select

3/3

Off
Off
Off

Slot1

Item Effect Adjustments

Off Auto On
Off: Power is not transmitted to the slot power.

Slot Power

Auto: Power is transmitted to the slot power only when main power is on.
On: Power is transmitted to the slot power when main power is on or in the standby state.
Note: In some cases, power is transmitted to the slot power when main power is on or in the

standby state regardless of the slot power setting.

V.Installation

Rotate

Off On

Off On

Note: This mode is unavailable.

Off: Does not rotate the image.
On: Rotates the image 180 degrees.

Slot1 Slot2 Slot3

Serial Slot

Select

Selects the slot which communicates serial.
Note: The setting of an external command can be set only from the fi xed serial terminal (see page

10).

Normalization

When both main unit buttons and remote control are disabled due to the “Button lock”, “Remocon User level” or “Remote
ID” adjustments, set all the values “Off” so that all the buttons are enabled again.

Press the

button on main unit together with button on the remote control and hold for more than 5 seconds.

VOL

The “SHIPPING” menu is displayed and the lock is released when it disappears.

37

Options Adjustments

Weekly Command Timer

You can set 7-day timer programming by setting time and command.

Note:

Before setting Weekly Command Timer, set PRESENT TIME Setup. (see page 25)

1

2

Press to select Function.

Press to select “On”.

Note:

• When Function is set to On, SET up TIMER
(see page 26) is unavailable and Interval /
Time Designation in Mode of Screensaver
(see page 27) cannot be selected.

Press to select a day.

Press to select a program number.

Note:

• You can set the program from 1 to 7.

--- indicates unset.

Options

Weekly Command Timer

Onscreen display

Press ACTION ( ) button

Weekly Command Timer

Function

Monday

Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday

Program Edit

Weekly Command Timer

Function

Monday
Tuesday

Wednesday
Thursday
Friday
Saturday
Sunday

Program Edit

1/3

On

On

Program1

Program3

---

Program3

---

Program6

Program4

On

Program1

Program3

---

Program3

---

Program6

Program4

3

4

Press to select Program Edit.

Press to show the Program Edit screen.

Press to select Program.

Press to change the program numbers (1-7).

Program number

Thursday
Friday
Saturday
Sunday

Program Edit

Program Edit screen

Weekly Command Timer

Program

01
02
03
04
05
06
07
08

8:00

10:30

--:--

--:--

--:--

12:00

9:12

--:--

PON

IMS:SL1

---

---

---

DAM:ZOOM

AVL:10

---

Program3

---

Program6

Program4

1/8

1

38

5

Options Adjustments

Press to select a command number.

Press to show the previous / next command
pages (1-8) of the selected program.

Press to show the command setting screen.

6

Weekly Command Timer

Program

01
02

03
04
05
06
07
08

8:00

10:30

--:--

--:--

--:--

12:00

9:12

--:--

Set time of timer(--:-- indicates unset)

Command numbers

Press to select Command No.

Press to select a command number.

1/8

1

PON

IMS:SL1

---

---

---

DAM:ZOOM

AVL:10

---

Command (--- indicates unset)

Weekly Command Timer

Program

57
58
59
60
61
62
63
64

20:00

20:30

22:00

--:--

--:--

--:--

--:--

--:--

AVL:00

DAM:NORM

POF

---

---

---

---

---

Command setting screen

Weekly Command Timer

Command No

Time
Command

1

Program

8/8

1

02

10:30

IMS:SL1

Press to select Time / Command.

7

Press to set each item.
Time: Set the time to execute a command
program.
Pressing “ ” or “ ” button once changes “Time” 1 minute.
Pressing “ ” or “ ” button continuously changes “Time” by 15 minutes.
Command:Select a command to execute at the set time. This unit has 64 commands
to set. (see page 43)

Notes:

•

Command is performed in order of execution time, regardless of the command number.

• If a command execution time overlaps with that of other commands, these commands
are performed in number order.

• Pressing , Time becomes --:-- and Command becomes ---.

Note:

• Press to return to the previous screen.

Weekly Command Timer

Program

Command No
Time

Command

1

02

10:30

IMS:SL1

39

Shipping condition

This function allows you to reset the unit to the factory setting.

1

Press to display the Setup menu.

2

3

4

Press to select “OSD Language”.

Press and hold till the SHIPPING menu is
displayed.

Press to select “YES”.

Press to confi rm.

Setup

Component/RGB-in select

Input label
Power save
Standby save
Power management
Auto power off
OSD Language English (UK

SHIPPING

Signal

RGB

PC
Off
Off
Off
Off

YES

1/2

)

[from the unit]

1 Press the MENU button till the Setup menu is displayed.

2 Press the Volume Up“+” or Down“–” button to select “OSD Language”.

3 Press and hold the ENTER button till the SHIPPING menu is displayed.

4 Press the Volume Up“+” or Down“–” button to select “YES”.

5 Press the ENTER button and wait for 10 sec.

Note:

Press the R button to return to Setup menu when SHIPPING menu is displayed.

40

Troubleshooting

Before you call for service, determine the symptoms and make a few simple checks as shown below.

Symptoms

Picture Sound

Electrical Appliances

Interference Noisy Sound

Normal Picture No Sound

No Picture No Sound

No Picture Normal Sound

No Colour Normal Sound

No remote control operations can be performed. Check whether the batteries have discharged completely and, if they have not,

A cracking sound is sometimes heard from the unit.

The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
I can hear sounds coming from inside the unit. When the power is turned on, a sound of the display panel being driven may be

This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the
type of input signal. However, this is not a malfunction.

Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)

Not plugged into AC outlet
Not switched on
Picture and Brightness/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable colour system format, or frequency is input, only
the input terminal indication is displayed.

Colour controls set at minimum level
(see page 21, 22)
Colour system (see page 32)

whether they were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a
strong fl uorescent light.
Check whether the remote control designed specifi cally for use with the unit is
being used. (The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet
undergoing very slight contractions in response to changes in the room temperature.
There are no adverse effects on the performance or other aspects.
Adjust the position of the picture on the screen.

When using a video software program (such as a cinema size program) with a
screen wider than one in the 16:9 mode, blank areas separate from the images
are formed at the top and bottom of the screen.

heard: This is normal and not indicative of malfunctioning.

Checks

Plasma Display panel

Symptoms Checks

The screen darkens slightly
when bright pictures with minimal
movements are shown.
It takes a while for the picture
to appear.

The edges of the images
fl icker.
The brightness on both sides of
images in the 4:3 mode changes.
Some parts of the screen do
not light up.

Image retention appears

The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As
such, it sometimes takes a few moments for the picture to appear when the power has been turned
on, when the input has been switched or when the images for the main picture and sub picture on
the two screens are swapped.
Due to the characteristics of the system used to drive the panel, the edges may appear to fl icker in
the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change
depending on the kind of program shown: This is normal and not indicative of malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent
image retention to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed
in 4:3 mode.

Note:

The permanent image retention on the Plasma Display resulting from fi xed image use is not an
operating defect and as such is not covered by the Warranty.
This product is not designed to display fi xed images for extended periods of time.

41

PC input signals

Applicable input signals for Mini D-sub 15P (Component) / Mini D-sub 15P (RGB) (

Horizontal

Signal name

1 525 (480) / 60i 15.73 59.94 13.5
2 525 (480) / 60p 31.47 59.94 27.0
3 625 (575) / 50i 15.63 50.00 13.5
4 625 (575) / 50p 31.25 50.00 27.0
5 750 (720) / 60p 45.00 60.00 74.25
6 750 (720) / 50p 37.50 50.00 74.25
7 1,125 (1,080) / 60i 33.75 60.00 74.25
8 1,125 (1,080) / 50i 28.13 50.00 74.25
9 1,125 (1,080) / 24sF 27.00 47.92 74.25

10 1,125 (1,080) / 30p 33.75 30.00 74.25

11 1,125 (1,080) / 25p 28.13 25.00 74.25
12 1,125 (1,080) / 24p 27.00 24.00 74.25
13 1,250 (1,080) / 50i 31.25 50.00 74.25
14 640 × 400 @70 Hz 31.46 70.07 25.17
15 640 × 480 @60 Hz 31.47 59.94 25.18
16 640 × 480 @72 Hz 37.86 72.81 31.5
17 640 × 480 @75 Hz 37.50 75.00 31.5
18 640 × 480 @85 Hz 43.27 85.01 36.0
19 852 × 480 @60 Hz 31.47 59.94 33.54
20 800 × 600 @56 Hz 35.16 56.25 36.0
21 800 × 600 @60 Hz 37.88 60.32 40.0
22 800 × 600 @72 Hz 48.08 72.19 50.0
23 800 × 600 @75 Hz 46.88 75.00 49.5
24 800 × 600 @85 Hz 53.67 85.06 56.25
25 1,024 × 768 @60 Hz 48.36 60.00 65.0
26 1,024 × 768 @70 Hz 56.48 70.07 75.0
27 1,024 × 768 @75 Hz 60.02 75.03 78.75
28 1,024 × 768 @85 Hz 68.68 85.00 94.5
29 1,152 × 864 @75 Hz 67.50 75.00 108.0
30 1,280 × 960 @60 Hz 60.00 60.00 108.0
31 1,280 × 960 @85 Hz 85.94 85.00 148.5
32 1,280 × 1,024 @60 Hz 63.98 60.02 108.0
33 1,280 × 1,024 @75 Hz 79.98 75.03 135.0
34 1,280 × 1,024 @85 Hz 91.15 85.02 157.5
35 1,600 × 1,200 @60 Hz 75.00 60.00 162.0
36 1,600 × 1,200 @65 Hz 81.25 65.00 175.5
37 1,066 × 600 @60 Hz 37.64 59.94 53.0
38 1,366 × 768 @60 Hz 48.36 60.00 86.71
39 Macintosh13” (640 × 480) 35.00 66.67 30.24
40 Macintosh16” (832 × 624) 49.72 74.54 57.28
41 Macintosh21” (1,152 × 870) 68.68 75.06 100.0

∗1:

When selected the RGB format and 525p signal input to the Mini D-sub 15P terminal, it is recognized as VGA 60Hz signal.

∗2:

When inputted VGA 60Hz format signal from the other than Mini D-sub 15P terminal, it is recognized as 525p signal.

Note: Signals without above specifi cation may not be displayed properly.

frequency

(kHz)

Vertical

frequency

(Hz)

Dot clock

frequency

(MHz)

* Mark)

Mini D-sub 15P

(Component)

**
**
**
**
**
**
**
**
**
**
**
**
**

Mini D-sub 15P

(RGB)

*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*

∗1

∗2

∗2

42

Command list of Weekly Command Timer

No. Command Control details

1 AAC:MENCLR Audio Menu (Clear)
2 AAC:MENDYN Audio Menu (Dynamic)
3 AAC:MENSTD Audio Menu (Standard)
4 AAC:SURMON Surround (ON)
5 AAC:SUROFF Surround (OFF)
6 AMT:0 Audio Mute (OFF)
7 AMT:1 Audio Mute (ON)
8 ASO:M Audio out when PIP mode (Main Picture)
9 ASO:S Audio out when PIP mode (Sub Picture)

10 AVL:00 Audio Volume (00)

11 AVL:10 Audio Volume (10)
12 AVL:20 Audio Volume (20)
13 AVL:30 Audio Volume (30)
14 AVL:40 Audio Volume (40)
15 AVL:50 Audio Volume (50)
16 AVL:60 Audio Volume (60)
17 DAM:FULL Aspect (16:9)
18 DAM:JUST Aspect (Just)
19 DAM:NORM Aspect (4:3)
20 DAM:SELF Aspect (Panasonic Auto)
21 DAM:ZOOM Aspect (Zoom)
22 DWA:OFF Advanced PIP mode (OFF)
23 DWA:OVL1 Advanced PIP mode (1) (see page 20)
24 DWA:OVL2 Advanced PIP mode (2) (see page 20)
25 DWA:OVL3 Advanced PIP mode (3) (see page 20)
26 DWA:OVL4 Advanced PIP mode (4) (see page 20)
27 DWA:OVL5 Advanced PIP mode (5) (see page 20)
28 DWA:OVL6 Advanced PIP mode (6) (see page 20)
29 DWA:OVLOF Advanced PIP mode (OFF) (normal two screen display mode)
30 DWA:OVLON Advanced PIP mode (ON)
31 DWA:PIN0 The location of the sub picture (lower right)
32 DWA:PIN1 The location of the sub picture (lower left)
33 DWA:PIN2 The location of the sub picture (upper left)
34 DWA:PIN3 The location of the sub picture (upper right)
35 DWA:PIP Dual Picture mode (Picture in Picture)
36 DWA:POP Dual Picture mode (Picture out Picture)
37 DWA:SWP Swap main picture and sub picture when PIP mode
38 DWA:TWN Dual Picture mode (Picture and Picture)
39 IMS:PC1 Input select (PC1) (Main Picture when PIP mode)
40 IMS:SL1 Input select (SLOT1) (Main Picture when PIP mode)
41 IMS:SL1A Input select (SLOT1A) (Main Picture when PIP mode)
42 IMS:SL1B Input select (SLOT1B) (Main Picture when PIP mode)
43 IMS:SL2 Input select (SLOT2) (Main Picture when PIP mode)
44 IMS:SL2A Input select (SLOT2A) (Main Picture when PIP mode)
45 IMS:SL2B Input select (SLOT2B) (Main Picture when PIP mode)
46 IMS:SL3 Input select (SLOT3) (Main Picture when PIP mode)
47 ISS:PC1 Sub Picture Input Select (PC1)
48 ISS:SL1 Sub Picture Input Select (SLOT1)
49 ISS:SL1A Sub Picture Input Select (SLOT1A)
50 ISS:SL1B Sub Picture Input Select (SLOT1B)
51 ISS:SL2 Sub Picture Input Select (SLOT2)
52 ISS:SL2A Sub Picture Input Select (SLOT2A)
53 ISS:SL2B Sub Picture Input Select (SLOT2B)
54 ISS:SL3 Sub Picture Input Select (SLOT3)

OSP:SCR0 Screen Saver White bar scroll (OFF)

55

OSP:SCR1 Screen Saver White bar scroll (ON)

56
57 POF Power OFF
58 PON Power ON

SSC:FNC0 Screen Saver function (White bar scroll)

59

SSC:FNC1 Screen Saver function (Image Reversal)

60

SSC:MOD0 ScreenSaver (Mode (OFF))

61

SSC:MOD3 ScreenSaver (Mode (ON))

62
63
64

Picture Mute cannot be unlocked by powering off/on with the remote control. Turn off and on again with the button

∗

on the unit or enter the command VMT:0 to unlock Picture Mute.

VMT:0
VMT:1

∗
∗

Picture Mute (OFF)
Picture Mute (ON)

43

Specifi cations

TH-37PR10B TH-42PR10B

Power Source 220 - 240 V AC, 50/60 Hz

Power Consumption

Power on 325 W 365 W

Stand-by condition Save off 1.0 W, Save on 0.8 W Save off 1.0 W, Save on 0.8 W

Power off condition 0.5 W 0.5 W

Plasma Display panel Drive method : AC type

37-inch, 16:9 aspect ratio

Screen size 818 mm (W) × 461 mm (H)

× 939 mm (diagonal)

(No.of pixels) 737,280 (1,024 (W) × 720 (H))

[3,072 × 720 dots]

Operating condition

Temperature 0 °C - 40 °C

Humidity 20 % - 80 %

Applicable signals

Scanning format 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i ·

50i · 24p · 25p · 30p · 24sF ···· SMPTE274M, 1250 (1080) / 50i

PC signals

XGA, SXGA, UXGA ···· (compressed)

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

Connection terminals

PC IN (HIGH-DENSITY MINI D-SUB 15PIN) Y or G with/sync 1.0 Vp-p (75 Ω)

Y or G without/sync 0.7 Vp-p (75 Ω)
B/PB/CB : 0.7 Vp-p (75 Ω)
R/PR/CR : 0.7 Vp-p (75 Ω)
HD/VD : 1.0 - 5.0 Vp-p (high impedance)
VBS (use HD port) with/picture 1.0 Vp-p (high impedance)
without/picture 0.3 Vp-p (high impedance)
AUDIO IN (M3 JACK) 0.5 Vrms (high impedance)

SERIAL EXTERNAL CONTROL TERMINAL (D-SUB 9PIN) RS-232C COMPATIBLE

Accessories Supplied

Fixing bands TMME203 × 2

Dimensions (W × H × D) 917 mm × 644 mm × 95 mm

(109 mm when including protruding portion of slots)

Mass (weight) approx. 25.0 kg net approx. 28.0 kg net

Sound

Speaker 120 mm × 60 mm × 2 pcs, 8 Ω

Audio Output 20 W [10 W + 10 W] (10 % THD)

VGA, SVGA

Horizontal scanning frequency 15 - 110 kHz

Vertical scanning frequency 48 - 120 Hz

(109 mm when including protruding portion of slots)

Drive method : AC type

42-inch, 16:9 aspect ratio

920 mm (W) × 518 mm (H)

× 1,056 mm (diagonal)

786,432 (1,024 (W) × 768 (H))

[3,072 × 768 dots]

VGA, SVGA, XGA

SXGA, UXGA ···· (compressed)

1,020 mm × 705 mm × 95 mm

Notes:

• Design and specifi cations are subject to change without notice. Mass and dimensions shown are approximate.

• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.

44

Memo

45

Memo

46

Memo

47

Sales and Support Information

Customer Care Centre

• For customers within the UK : 0844 844 3852

• For customers within the Republic of Ireland: 01 289 8333

• Visit our website for product information

www.panasonic.co.uk

• E-mail: [e-mail]

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with
ease and confidence by phoning our Customer Care Centre
Monday – Thursday 9:00am – 5:30pm,

Friday 9:30am – 5:30pm (Excluding public holidays).

• Or go on line through our Internet Accessory ordering
application at www.panasonic.co.uk.

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide
range of finished products, take a browse on our website for
further details.

Exclusive to Plasma / DVD Ram / LCD Television / LCD Projector product:

Interested in purchasing an extended guarantee? Please contact your dealer
or our Customer Support Department on 01344 476540 or
[e-mail] for more details.

Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)

This symbol on the products and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may
be able to return your products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling. Please contact your local authority for further details of your nearest designated
collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of
disposal.

Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record
of your purchase to aid in identifi cation in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Matsushita Electric Industrial Co., Ltd.

Web Site : http://panasonic.net

2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

©

Printed in Czech Republic

MBS0307S0
