Panasonic SC-HT733 User Manual

The illustration shows SC-HT730.

12345

INPUT

SELECTOR H.BASS PROGRESSIVE CD MODE

POWER

5 DISC SELECTOR

TUNE MODE FM MODE MEMORY

VOLUME

TUNING

OPENCLOSE DISC EXCHANGE DISC SKIP

DOWN UP

PHONES

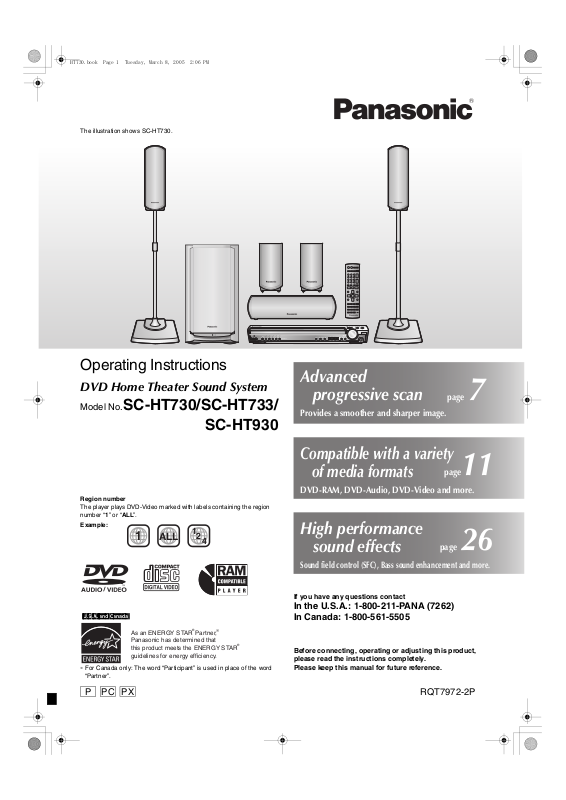

Operating Instructions

DVD Home Theater Sound System

Model No.SC-HT730/SC-HT733/

SC-HT930

Region number

The player plays DVD-Video marked with labels containing the region number “1” or “ALL”.

Example:

1 ALL

Advanced

progressive scan

page

Provides a smoother and sharper image.

Compatible with a variety

of media formats

page

DVD-RAM, DVD-Audio, DVD-Video and more.

High performance

sound effects

Sound field control (SFC), Bass sound enhancement and more.

page

[U.S.A.[and[Canada[

As an ENERGY STAR Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

For Canada only: The word “Participant” is used in place of the word

“Partner”.

P PC PX

If you have any questions contact

In the U.S.A.: 1-800-211-PANA (7262) In Canada: 1-800-561-5505

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

RQT7972-2P

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

[HT730]: indicates features applicable to SC-HT730 only.

[HT733]: SC-HT733 only.

[HT930]: SC-HT930 only.

System SC-HT730 SC-HT733 SC-HT930

Main unit SA-HT730 SA-HT733 SA-HT930

Front speakers SB-FS730 SB-FS730 SB-FS930

Center speaker SB-PC730 SB-PC730 SB-PC930

Surround speakers SB-FS731 SB-FS731 SB-FS931

Active subwoofer SB-WA730 SB-WA733 SB-WA930

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,

BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS

WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS

LIGHTED CANDLES, ON THE UNIT.

≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY

FRIENDLY MANNER.

≥

These operating instructions are applicable to models SC-HT730, SC-HT733 and SC-HT930 for a variety of regions.

≥Unless otherwise indicated, illustrations in these

operating instructions are of SC-HT730 for U.S.A. and Canada.

≥Operations in these instructions are described mainly

with the remote control, but you can perform the operations on the main unit if the controls are the same.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for

help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA

CAUTION

RISK OF ELECTRIC SHOCK

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

For units with PX printed on the outer packaging

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

For units with PX printed on the outer packaging

CAUTION:

The AC voltage is different according to the area. Be sure to set the proper voltage in your area before use.

(For details, please refer to page 8.)

CAUTION: TO REDUCE THE RISK OF ELECTRIC

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DO NOT OPEN

SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RQT7972

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) \U.S.A.\and\Canada] Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

(Inside of product)

Table of contents

Getting started

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . .3

Simple setup

STEP 1 Front speaker assembly . . . . . . . . . . . . . . . . 4

STEP 2 Positioning. . . . . . . . . . . . . . . . . . . . . . . . . . . 6

STEP 3

STEP 4 Video connections. . . . . . . . . . . . . . . . . . . . . 7

STEP 5 Radio and system connections . . . . . . . . . . 8

STEP 6 The remote control . . . . . . . . . . . . . . . . . . . . 9

STEP 7 QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . 9

Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . .10

Discs that can be played . . . . . . . . . . . . . . . . . . . . . . . . .11

Main unit and disc caution. . . . . . . . . . . . . . . . . . . . . . . .11

Disc operations

Basic play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Convenient functions. . . . . . . . . . . . . . . . . . . . . . . . .14–17

Disc information/Displaying current playback condition (QUICK OSD)/Reviewing titles to play (ADVANCED DISC REVIEW)/ CD sequential play (CD MODE)/Quick replay/ Skipping one minute forward (CM SKIP)/ Changing the zoom ratio/Changing play speed/ Angle selection and Still picture rotation/advance/ Changing soundtracks/Changing subtitles/Repeat play/ Program/Random play

Connecting speakers with the subwoofer

Using the main unit/Using the remote control

. . . 7

(Back of product)

The laser product label has not been attached to products for the U.S.A. and Canada

Using navigation menus . . . . . . . . . . . . . . . . . . . . . . . . 18

Playing data discs/Playing from the selected track in the CD/ Playing HighMAT

discs/Playing RAM discs

Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . 20

Main menu/Other Settings

Changing the player settings. . . . . . . . . . . . . . . . . . . . . 22

Changing the delay time (Speaker Settings)

Other operations

The radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Automatic presetting/Selecting the preset channels/ Manual tuning/Optional antenna connections

Sound field and sound quality. . . . . . . . . . . . . . . . . . . . 26

Sound Field Control/Super Surround/Center Focus/ Dolby Pro Logic II/Down-mixing/Enhancing the bass sound/ Subwoofer level/Speaker level adjustments

Other useful functions . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Sleep timer/Muting/Using headphones

Operating other equipment . . . . . . . . . . . . . . . . . . . . . . 28

Operating the television and the video cassette recorder/ Operating the tape deck ([HT930] only)

Reference

Other speaker setup options . . . . . . . . . . . . . . . . . . . . . 29

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Troubleshooting guide. . . . . . . . . . . . . . . . . . . . . . . . . . 32

Product Service/Maintenance/Glossary . . . . . . . . . . . . 34

Limited Warranty (ONLY FOR U.S.A.). . . . . . . . . . . . . . 35

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

IMPORTANT SAFETY INSTRUCTIONS/Table of contents

RQT7972

Simple setup

The supplied stands are specially designed for

STEP1 Front speaker assembly

Preparation

≥To prevent damage or scratches, lay down a soft cloth and perform assembly on it. ≥For assembly, use a Phillips-head screwdriver. ≥Make sure you have all the indicated components before starting assembly, setup, and connection. ≥There is no difference between the right and left speakers and pipes.

[HT730] [HT733]

attachment to Panasonic SB-FS730 or SB-FS930 front speakers. Use only as indicated in this setup.

2 Front speakers

4 Pipes 4 Washer

≥2kpipe A

(with cable)

≥2kpipe B

2 Bases

screws

4 Bracket screws

4 Small screws

2 Brackets Sheet of

rubber pads

Front speaker assembly

You can use the front speakers without assembling with the stands. In this case, attach the included rubber pads to the base of the speakers. This prevents vibration from causing the speakers to move or fall over. Use 3 or 4 pads per speaker.

1 Attach the pipes to the bases.

1 Insert pipe B.

Match these holes when you insert the pipe.

2 Secure pipe B to the base.

Ensure the screws are securely fastened.

Washer screws

Pipe B

Base

3 Attach the pipes to the speakers.

Slot the screw head in between the 2 stoppers of the speaker groove.

Ensure the pipe is fastened on straight by gradually tightening the right and left screws alternately until fully tightened.

To prevent a short-circuit, do not cover the connection terminals with the pipe.

Bracket screws

Pipe A

Bracket

Screw head

Phillips-head screwdriver

(not included)

2 Assemble the pipes.

1 Thread the speaker cable from pipe A through pipe B and

the base.

For quicker threading, loosely fold the cable in half (do not crease), pass the folded portion through the pipe, and then pull the rest of the cable through the base.

Cable

Pipe B

2 Join pipe A to pipe B.

Pipe B

3 Secure the pipes.

Ensure the screws are securely fastened.

Pipe B

Cable

Pipe A

Small screws

Pipe A

Front speaker

Stoppers

Connection terminals

4 Connect the speaker cables.

Rear of the speaker

Twist off the vinyl ends of the speaker cables.

_: White `: Blue

Push!

5 Secure the speaker cables to the bases.

1 Press the speaker

cable into the base cover groove as far as possible.

Cable

2 Press the

speaker cable against the base while threading it between the pegs.

RQT7972

Bottom of the base

[HT930]

[HT730]

2 Front speakers 2 Bases2 Pipes 4 Short screws4 Long screws

[Note] To prevent the speaker cables from being pulled out of the pipes, leave the plastic wrap on the pipes while

assembling the speaker stands.

1 Assemble the speaker stands.

1 Thread the speaker cable through the base.

For quicker threading, loosely fold the cable in half (do not crease), pass the folded portion through the hole, and then pull the rest of the cable through the base.

Cable

Plastic wrap

Leave the excess speaker cable for connecting later.

2 Insert the pipe.

Pipe

Groove

Pipe support

Insert the pipe while gently pulling on the speaker cable.

Match the groove and these holes with the base when you insert the pipe.

3 Secure the pipe to the base.

Ensure the screws are securely fastened.

Base

2 Attach the stands to the speakers.

Ensure the stand is fastened on straight by gradually tightening the top and bottom screws alternately until fully tightened.

Long screws

Pipe

Front speaker assembly

Front speaker

You can also attach to the lower rear of the speaker.

The height of the speaker can be changed when attaching the stand to the upper rear or lower rear of the speaker.

3 Connect the speaker cables.

Rear of the speaker

Twist off the vinyl ends of the speaker cables.

_: Copper `: Silver

Push!

Phillips-head screwdriver

(not included)

Short screws

Before proceeding to the next step, please remove the plastic wrap from the pipe.

∫ Preventing the speakers from falling over

Preparation

Attach screw eyes (not included) to secure the speakers to the wall (➜ diagram right).

≥You will need to obtain the appropriate screw eyes to match

the walls or pillars to which they are going to be fastened.

≥Consult a qualified housing contractor concerning the

appropriate procedure when attaching to a concrete wall or a surface that may not have strong enough support. Improper attachment may result in damage to the wall or speakers.

To prevent the speaker from falling over, thread the string (not included) from the wall to the speaker as shown and tie tightly.

[HT733]

[HT930]

Press the speaker cable into the groove.

If there is any excess speaker cable, thread the speaker cable into the opening near the top of the pipe while pulling the speaker cable from the bottom of the base.

4 Secure the speaker cables to the bases.

Press the speaker cable into the base cover groove as far as possible.

String (not included)

Rear of the speaker

String (not included)

Cable

Screw eye (not included)

Approx. 150 mm (5

Screw eye (not included)

Rear side of base

Groove

Wall

/32z)

Rear of the speaker

Approx. 150 mm (5

/32z)

RQT7972

How you set up your speakers can affect the bass and the sound field. Note the following

STEP2 Positioning

points:

≥Place speakers on flat secure bases. ≥Placing speakers too close to floors, walls, and corners can result in excessive bass.

Cover walls and windows with thick curtains.

≥The left and right speakers are the same with respect to the front and surround

speaker pairs.

Positioning

RQT7972

FRONT

(L, R)2SURROUND

≥Place the front, center, and surround speakers at approximately

the same distance from the seating position. The angles in the diagram are approximate.

(L, R)

Setup example

[HT730]

CENTER

Main unit

ACTIVE

SUBWOOFER

≥Use only supplied speakers

Using other speakers can damage the unit, and sound quality will be negatively affected.

≥Set the speakers up on an even surface to prevent them from

falling. Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.

Main unit

[Note]

Keep your speakers at least 10 mm (13/32q) away from the system for proper ventilation.

Center speaker

≥Vibration caused by the center speaker can disrupt the picture if it

is placed directly on the television. Put the center speaker on a rack or shelf.

≥To prevent the speakers from falling, do not place directly on top

of the television.

Active subwoofer

Place to the right or left of the television, on the floor or a sturdy shelf so that it won’t cause vibration. Leave 10 cm (4q) at the rear for ventilation.

Caution

Do not stand on the base and shake the speaker. Be cautious when children are near.

e.g. [HT730]

FRONT

(L, R)

SURROUND

(L, R)

≥Other speaker setup options

(➜ page 29).

CENTER

ACTIVE

SUBWOOFER

Notes on speaker use

≥You can damage your speakers and shorten their useful life if you

play sound at high levels over extended periods.

≥Reduce the volume in the following cases to avoid damage:

– When playing distorted sound. – When the speakers are reverberating due to a record player,

noise from FM broadcasts, or continuous signals from an

oscillator, test disc, or electronic instrument. – When adjusting the sound quality. – When turning the unit on or off.

If irregular coloring occurs on your television

The supplied speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem. If it persists, move the speakers farther away from the television.

Caution

≥The active subwoofer and supplied

speakers are to be used only as indicated in this setup. Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥Do not attempt to attach these speakers to

walls using methods other than those described in this manual.

STEP3 Connecting speakers with the subwoofer

VIDE O

OUT

≥Attach the speaker-cable stickers to make connection easier. ≥The terminals of the subwoofer have high output power. Carefully connect the speaker wires.

Sheet of speaker-cable stickers3 Speaker cables

≥1kshort cable: For center speaker ≥2klong cables: For surround speakers

Speaker-cable sticker

2 FRONT (R)

The illustration shows SC-HT730 for U.S.A. and Canada.

1 FRONT (L)

4 SURROUND (R)

ACTIVE

3 SURROUND (L)

SUBWOOFER

5 CENTER

[HT730] [HT733]

Insert the wire fully.

Click!

i: White j: Blue

[HT930]

i: Copper j: Silver

[Note]

≥[HT930] Even though the subwoofer shown is different, you can connect the speakers to the subwoofer in the same way. ≥Never short-circuit positive (i) and negative (j) speaker wires. ≥Be sure to connect only positive ([HT730] [HT733]: white, [HT930]: copper) wires to positive (i) terminals and negative ([HT730] [HT733]: blue,

[HT930]: silver) wires to negative (j) terminals. Incorrect connection can damage the speakers.

Connecting speakers with the subwoofer/Video connections

STEP4 Video connections

Video cable

≥Do not connect through the video cassette recorder.

Due to copy guard protection, the picture may not be displayed properly.

≥Turn the television off before connecting, and refer to the television’s operating instructions.

∫ Television with a VIDEO IN terminal

Back of the main unit

COMPONENT VIDEO OUT

(480p/480i)

VIDEO

OUT

S-VIDEO

OUT

Video cable

(included)

Television

(not included)

VIDEO IN

∫ Television with an S-VIDEO IN terminal

Back of the main unit

COMPONENT VIDEO OUT

(480p/480i)

VIDEO

OUT

S-VIDEO

OUT

S-video cable

(not included)

S-VIDEO OUT terminal

The S-VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance (Y) signals. (Actual results depend on the television.)

Television

(not included)

S-VIDEO

∫

Television with COMPONENT VIDEO IN terminals

Back of the main unit

COMPONENT VIDEO OUT

COMPONENT VIDEO OUT terminals

These terminals can be used for either interlace or progressive output and provide a purer picture than the S-VIDEO OUT terminal. Connection using these terminals outputs the color difference signals (P order to achieve high fidelity in reproducing colors. ≥The description of the component video input terminals depends

on the television or monitor (e.g. Y/P Connect to terminals of the same color.

≥After making this connection, select “Darker” from the “Black

Level Control” in the “Video” tab (➜ page 23).

To enjoy progressive video

≥Connect to the component video input terminals on a 480p

compatible television. (Video will not be displayed correctly if connected to an incompatible television.)

≥All Panasonic televisions that have 480p input connectors are

compatible. Consult the manufacturer if you have another brand of television.

Video cables

(480p/480i)

VIDEO

OUT

(not included)

S-VIDEO

OUT

B/PR) and luminance signal (Y) separately in

B/PR, Y/B-Y/R-Y, Y/CB/CR).

(not included)

COMPONENT

Television

VIDEO IN

RQT7972

STEP5 Radio and system connections

AUDI O

VCR

AUDIO

FM ANTFM ANT

AM ANTAM ANT

DIGITAL

TRANSMITTER

(7(75≠)

LOOPLOOP

EXTEXT

COMP

Radio and system connections

System cable AM loop antenna FM indoor antenna AC power supply cord

\U.S.A.\and\Canada] \Others]

≥Connect the AC power supply cord after all other connections are complete. ≥Optional antenna connections (➜ page 25).

FM indoor antenna

Affix this end of the antenna where reception is best.

Adhesive tape

Click!

Main unit

Catch up

To disconnect

Press the catch and pull out.

Power plug adaptor

\Areas\except\U.S.A.\and\Canada]

The illustration shows SC-HT730 for U.S.A. and Canada.

AM loop antenna

Stand the antenna up on its base. Place the antenna where reception is best. Keep loose antenna cable away from other wires and cables.

[For[areas[except[U.S.A.[and[Canada[

Before connecting the AC power supply cord Set the voltage.

127 V 110 V 220 V-230 V 240 V

VOLT ADJ

Use a flat-head screwdriver to turn the voltage selector on the back of the subwoofer to the appropriate position for the area in which this system is used. If the power supply in your area is 115 V or 120 V, please set the voltage selector as follows:

≥For 115 V: Set to 110 V. ≥For 120 V: Set to 127 V.

RQT7972

AC power supply cord

[For\areas\except\U.S.A.\and\Canada]

≥If the power plug does not fit

Active subwoofer

Catch up

your AC outlet

Use the power plug adaptor (included).

To disconnect

System cable

Press the catch and pull out.

To household AC outlet

If it still doesn’t fit, contact an electrical parts distributor for assistance.

Conserving power

The main unit consumes a small amount of power, even when it is turned off (For U.S.A. and Canada: approx. 0.5 W or for other areas: approx.

0.9 W). To save power when the unit is not to be used for a long time, unplug it from the household AC outlet. You will need to reset some memory items after plugging in the unit.

[Note]

The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

Set your surround sound free!

When you insert the digital transmitter into the DIGITAL TRANSMITTER slot of the main unit and connect the surround speakers to the receiver, you can enjoy surround speaker sound wirelessly. For details, please refer to the operating instructions for Panasonic SH-FX50 Digital Transmitter and Receiver.

Panasonic SH-FX50 Digital Transmitter and Receiver (optional) \For\U.S.A.\and\Canada]

STEP6 The remote control

Do not:

Remote control Batteries

Insert so the poles (i and j) match those in the

remote control.

R6/LR6, AA, UM-3

≥Do not use

rechargeable type batteries.

≥mix old and new batteries. ≥use different types at the same time. ≥heat or expose to flame. ≥take apart or shor t circuit. ≥attempt to recharge alkaline or manganese batteries. ≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

∫ Use

Aim at the remote control signal sensor (➜ page 10), avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit.

STEP7 QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

Turn on the television and select the appropriate video input on the television.

The remote control/QUICK SETUP

3, 4, 2, 1

ENTER

SHIFT

AV SYSTEM

TV/VIDEO

DISC

ENTER

CANCEL

SKIP

TOP MENU

DIRECT

NAVIGATOR

ENTER

FUNCTIONS

SUBWOOFER

SUPER SRND

LEVEL

H.BASS

ZOOM

SLEEP

CM SKIP

QUICK OSD

ANGLE/PAGE

FL DISPLAY REPEAT

GROUP

ADVANCED

SHIFT

DISC REVIEW

TUNER/BAND

DVD/ CD

VOLUME

S10

SLOW/SEARCH

RETURN

TV VOLTV VOL

C.FOCUS

SFC

SUBTITLE

AUDIO

CD MODE

PLAY MODE

PLAY SPEED

CH SELECT

QUICK REPLAY

VCR

PLAY LIST

MIX 2CH

SETUP

MUTING

TEST

DVD/CD

RETURN

SETUP

DVD/CD

SHIFT

RETURN

Select

ENTER

SETUP

MUTING

Turn on the unit.

Select “DVD/CD”.

Show the QUICK SETUP screen.

Follow the messages and make the settings.

Press to finish QUICK SETUP.

SHIFT

SETUP

MUTING

Press to exit.

To change these settings later

Select “QUICK SETUP” in the “Others” tab (➜ page 23).

RQT7972

Control reference guide

See reference pages in brackets.

Turn the unit on/off (9)

Select the disc or show disc information (14)

Switch the television’s video input mode (28)

Select television channels and disc’s title

numbers etc./Enter numbers (13)

Cancel (13)

AV SYSTEM

TV/VIDEO

DISC

CANCEL

SKIP

TUNER/BAND

ENTER

S10

SLOW/SEARCH

VCR

DVD/ CD

VOLUM E

The illustration shows SC-HT730.

Television and Video cassette recorder operations (28)

Select the source AUX (29) ([HT930] only), TUNER/BAND (24), DVD/CD (9)

Channel select (24, 28)

Adjust the volume (13)

Basic operations for play (12, 13)

Control reference guide

Show a disc top menu (18) or

program list (19)

Select or register menu items on the television

screen, Frame-by-frame (13)

Show on-screen menu (20) or

television volume down (28)

To use functions labeled in orange:

While pressing [SHIFT],

press the corresponding button.

Standby/on indicator

When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on.

INPUT SELECTOR (24)

DVD /CD #FM#AM#TV#VCR# AUX ([HT930] only)#Return to DVD/CD

ENTER

QUICK REPLAY

C.FOCUS

SFC

SUBTITLE

AUDIO

PLAY SPEED

PLAY

LIST

RETURN

TV VOLTV VOL

MIX 2CH

SETUP

MUTING

CD MODE

PLAY MODE

TEST

CH SELECT

Show a disc menu (18) or play list (19)

Return to previous screen (13) or television volume up

(28)

SUBWOOFER

LEVEL

(27) (26) (26) (26)

SLEEP

QUICK OSD

(14, 27) (14, 15)

FL DISPLAY REPEAT

TOP MENU

DIRECT

NAVIGATOR

FUNCTIONS

SUBWOOFER

SUPER SRND

LEVEL

H.BASS

ZOOM

SLEEP

CM SKIP

QUICK OSD

ANGLE/PAGE

FL DISPLAY REPEAT

GROUP

ADVANCED

SHIFT

DISC REVIEW

(13)

H.BASS

Turn the bass sound enhancement on/off (26)

H.BASS indicator ([HT930] only)

PROGRESSIVE Enjoy progressive video (12)

CD MODE

Play several music CD’s sequentially (14)

SUPER SRND

H.BASS

ZOOM

CM SKIP

ANGLE/PAGE

GROUP

C.FOCUS

SFC

SUBTITLE

AUDI O

(15)

MIX 2CH

SETUP

MUTING

(22, 27)

CD MODE

PLAY MODE

(13, 15)(15)(14, 16)

ADVANCED

DISC REVIEW

(14)

PLAY SPEED

QUICK REPLAY

(14, 15)

TEST

CH SELECT

(27)

4, 5/X TUNING W Skipping or slow-search play (12)/ Select the radio stations (24)

<OPEN/CLOSE

Open/Close the disc drawer (12)

DISC EXCHANGE

Open the disc drawer to exchange the disc in the play position (12)

DISC SKIP Skip to the next disc tray (12)

OPEN CLOSE DISC EXCHANGE DISC SKIP

RQT7972

12345

INPUT

SELECTOR H.BASS PROGRESSIVE CD MODE

POWER

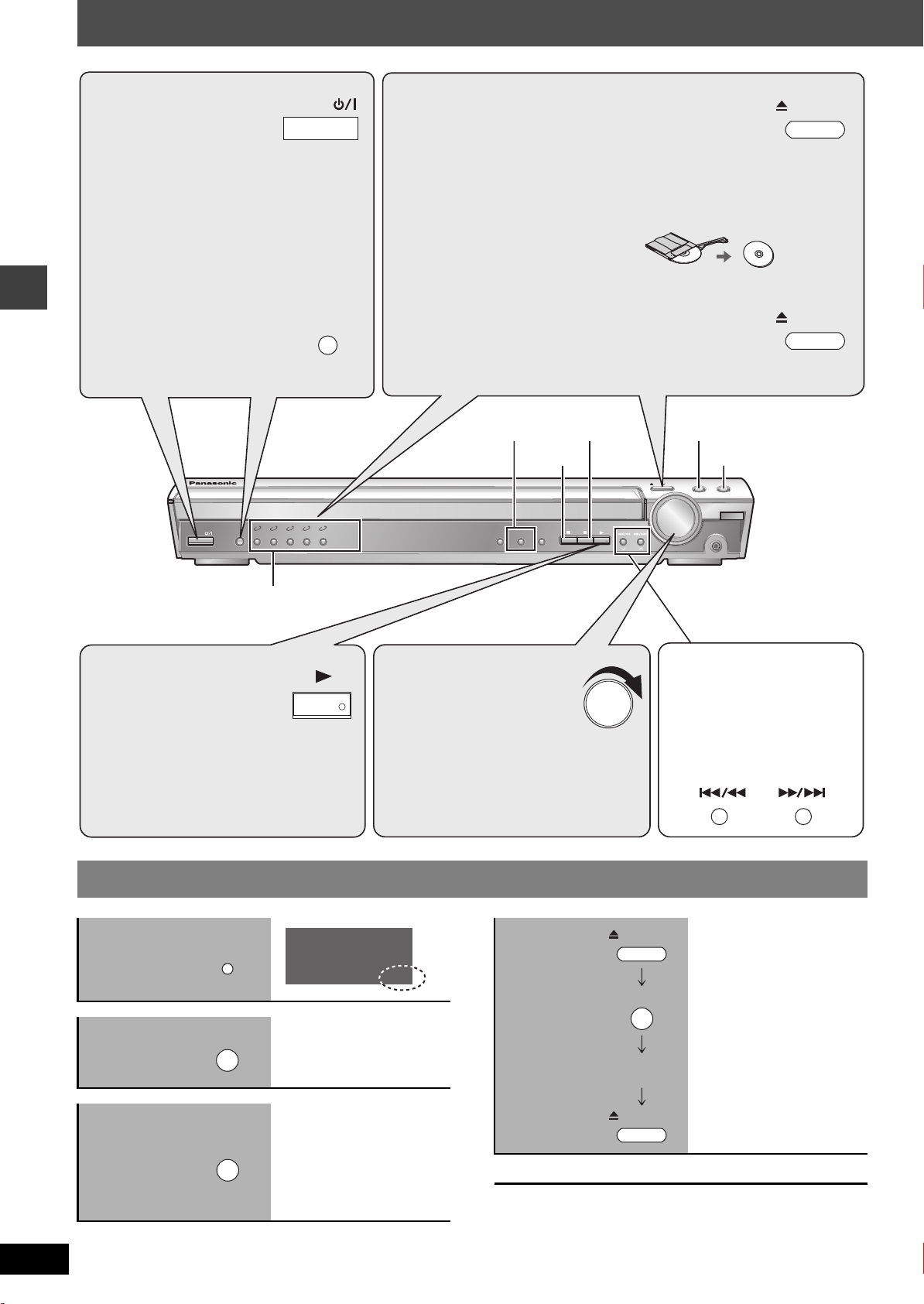

Direct select buttons/indicators Select the disc tray (12)

Standby/on switch [POWER Í/I]

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. (12)

AC supply indicator [AC IN]

This indicator lights when the unit is connected to the AC mains supply.

5 DISC SELECTOR

∫/TUNE MODE Stop playing (12)/

TUNE MODE FM MODE MEMORY

VOLUME

TUNING

Jog LED

([HT930] only)

Select the tuning mode (24)

;/FM MODE

Pause (12)/Adjust the FM reception condition (24)

1/MEMORY

Play discs (12)/Memorize the receiving radio stations (24)

DOWN UP

PHONES

Remote control signal sensor

PHONES Connect headphones (27)

VOLUME Turn up/down the volume (12)

Discs that can be played

Indication in

Disc Logo

DVD-RAM

DVD-Audio

DVD-Video

these operating

instructions

[RAM]

[JPEG]

[DVD-A] —

[DVD-V]

Remarks

Recorded with devices using Version 1.1 of the Video Recording Format (a unified video recording standard), such as DVD video recorders, DVD video cameras, personal computers, etc.

Recorded using the DCF (Design rule for Camera File system) standard Ver si on 1 .0. ≥To play JPEG files, select “Play as Data Disc” in Other Menu (➜ page 21).

Some DVD-Audio discs contain DVD-Video content. To play DVD-Video content, select “Play as DVD-Video” in Other Menu (➜ page 21).

—

DVD-R (DVD-Video)/ DVD-RW (DVD-Video)

iR (Video)/ iRW (Video)

Video CD

SVCD

CD [CD]

CD-R CD-RW

A process that allows play on compatible equipment.

≥It may not be possible to play the above discs in all cases due to the type of disc or condition of the recording.

—

[DVD-V]

[VCD]

[WMA]

[MP3]

[JPEG]

[CD]

[VCD]

Discs recorded and finalized

Discs recorded and finalized§ on DVD video recorders or DVD video cameras.

—

Conforming to IEC62107

This unit is compatible with HDCD, but does not support the Peak Extend function (a function which expands the dynamic range of high level signals). HDCD-encoded CD’s sound better because they are encoded with 20 bits, as compared with 16 bits for all other CD’s.

≥This unit can play CD-R/RW (audio recording disc) recorded with the formats on

the left. Close the sessions or finalize

≥HighMAT discs

WMA, MP3 or JPEG files only. To play without using the HighMAT function, select “Play as Data Disc” in Other Menu (➜ page 21).

≥[WMA] This unit does not support Multiple Bit Rate (MBR: a file that contains the

same content encoded at several different bit rates).

on DVD video recorders or DVD video cameras.

the disc after recording.

Discs that can be played/Main unit and disc caution

∫ Discs that cannot be played

DVD-ROM, CD-ROM, CDV, CD-G, SACD, DivX Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridge,

2.6-GB and 5.2-GB DVD-RAM, and “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so play may not be possible.

Main unit and disc caution

∫ To prevent damage

Do not: –load more than one disc per tray. –touch the drawer or the carousel while they are in motion. –rotate the carousel by hand. –close the drawer by hand.

∫ To clean discs

Wipe with a damp cloth and then wipe dry.

∫ Audio format of DVD’s

This unit automatically recognizes and decodes discs with these symbols.

∫ Disc handling precautions

≥Do not attach labels or stickers to discs (This may cause disc

warping, rendering it unusable).

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, static

electricity prevention liquids or any other solvent.

≥Do not use scratch-proof protectors or covers. ≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels

(rented discs, etc). – Discs that are badly warped or cracked. – Irregularly shaped discs, such as heart shapes.

RQT7972

+ 25 hidden pages
