Panasonic KV-S1026C-U Datasheet

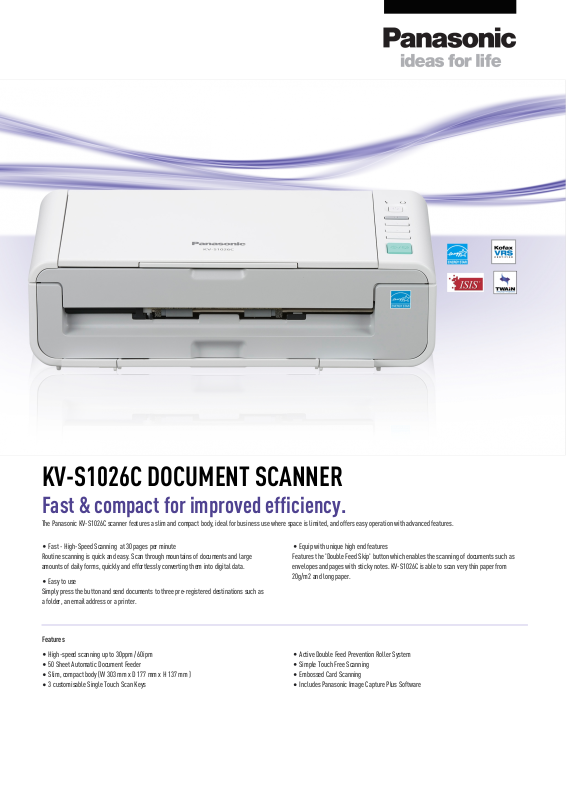

KV-S1026C DOCUMENT SCANNER
Fast & compact for improved efficiency.
The Panasonic KV-S1026C scanner features a slim and compact body, ideal for business use where space is limited, and offers easy operation with advanced features.
Fast - High-Speed Scanning at 30 pages per minute
Routine scanning is quick and easy. Scan through mountains of documents and large amounts of daily forms, quickly and effortlessly converting them into digital data.
Easy to use
Simply press the button and send documents to three pre-registered destinations such as a folder, an email address or a printer.
Features
High-speed scanning up to 30ppm / 60ipm
50 Sheet Automatic Document Feeder
Slim, compact body (W 303 mm x D 177 mm x H 137 mm )
3 customisable Single Touch Scan Keys
Equip with unique high end features
Features the 'Double Feed Skip' button which enables the scanning of documents such as envelopes and pages with sticky notes. KV-S1026C is able to scan very thin paper from 20g/m2 and long paper.
Active Double Feed Prevention Roller System
Simple Touch Free Scanning
Embossed Card Scanning
Includes Panasonic Image Capture Plus Software
KV-S1026C PRODUCT GUIDE AND SPECIFICATIONS
Model |
|
|
KV-S1026C |
SCANNER TYPE |
|
|
Duplex Sheet Feed Scanning |
|
|
|
|
SCANNER TECHNOLOGY |
|
|
1-Line CIS (Contact Image Sensor) |
SCANNING SPEED* 1 |
|
|
Up to 30 ppm / 60 ipm (Binary 200 dpi) |
(A4, Portrait) |
|
|
Up to 20 ppm / 40 ipm (Colour 200 dpi) |
|
|
|
|
RESOLUTION |
|
|
Resolution : 100 - 600dpi (1dpi step) |
(Colour and B/W) |
|
|
Optical : 300/600dpi |
|
|
|
|
AUTOMATIC DETECTION |
|
|
Ultrasonic Double Feed Detection |
IMAGE COMPRESSION |
|
|
JPEG (Grayscale/Colour) |
|
|
|
|
IMAGE OUTPUT |
|
|
Binary, Grayscale, Colour, MultiStream (Colour & Binary or Gray & Binary) |
|
|
|
|
BINARY MODE HALFTONE |
|
|
Dither, Error Diffusion |
IMAGE CONTROL |
|
|
Automatic Binary/Color Distinction, Multi Color Drop Out, Blank Page Removal, Double Exposure, Smooth Background, Automatic |
|
|
|
Cropping, De-skewing, Dynamic Threshold, White Level From Paper, Image Emphasis (5 steps), Gamma Correction, Automatic |
|
|
|
Separation, Noise Reduction, Shadow Removal, Mirror Image, Monochrome Reversing, 2-Page Separation and much more. |
|
|
|
|
OTHER FUNCTIONS |
|
|
Zone OCR (a function of the Image Capture Plus software that adds characters from the document to the output file name), |
|
|
|
Separation sheet, Single Touch Scan, Skip key |
DOCUMENT |
SIZE (ADF) |
|
Minimum 48 mm x 70 mm (1.9 in. x 2.8 in.) length |
|
|
|
Maximum 216 mm x 2,540 mm (8.5 in. x 100 in.) length |
|
|
|
|
|
WEIGHT/THICKNESS*2 |
|
Single 20 - 209 g/m2 (5.4 lbs. - 55 lbs.) |
|
|
|
Continuous 20 - 209 g/m2 (5.4 lbs. - 55 lbs.) |
|
|
|
|
AUTOMATIC DOCUMENT FEEDER |
|
Up to 50 sheets (20 lbs., 80 g/m2), 3 hard cards (ISO 7810 ID-1) |
|
SUPPORTED OPERATING SYSTEM |
|
Windows® XP SP3 or later (32-bit), Windows Vista ® SP2 or later (32/64-bit), Windows ® 7 and Windows® 8 (32/64-bit) |
|
|
|
|
|
INTERFACE |
|
|
High-Speed USB 2.0, Up to 480 Mbps transfer rate |
|
|
|
|
POWER REQUIREMENT |
|
|
AC 100 - 120 V 50/60 Hz, AC 200 - 240 V 50/60 Hz |
POWER CONSUMPTION |
|
|
Scanning mode 17 W or less |
|
|
|
Idle mode 4.5 W or less |
|
|
|
Sleep mode 1.6 W or less |
|
|
|
Power off mode 0.3 W or less |
|
|
|
|
OPERATING ENVIRONMENT |
|
|
Temperature 10 °C - 35 °C (50 °F - 95 °F) |
|
|
|
Humidity 20 % RH - 80 % RH |
|
|
|
|
STORAGE ENVIRONMENT |
|
|
Temperature 0 °C - 40 °C (32 °F - 104 °F) |
|
|
|
Humidity 10 % RH - 80 % RH |
|
|
|
|
EXTERNAL DIMENSIONS*3 (W x D x H) |
|
303 mm x 177 mm x 137 mm (11.9 in. x 7 in. x 5.4 in.) without Feed tray |
|
|
|
|
|
WEIGHT*3 |
|
|
2.7 kg (5.9 lbs.) |
ACCESSORIES |
|
|
DVD-ROM : Drivers and Utilities for Windows / Manuals |
|
|
|
Driver software ISIS / TWAIN |
|
|
|
Application software Image Capture Plus |
|
|
|
|
|
|
|
Safety Guide, Quick Reference Guide, Mixed batch card guide, AC adapter & Power cord, USB cable |
|
|
|
|
OPTIONS |
ROLLER EXCHANGE KIT |
|
KV-SS058 (Double-feed prevention roller x 1, Paper feed roller x 1) |
|
|
|
|
|
ROLLER CLEANING PAPER |
|
KV-SS03 |
|
|
|
|
|
FLATBED SCANNER |
|
KV-SS081 |
*1 The scanning speed differs depending on the host computer, the operating system, the application, the measuring method, the quantity of data in the image, and the paper type. The scanning speed depends on a measuring method of Panasonic.
*2 "Weight in pounds" of paper represents the weight of 500 (432 x 559 mm / 17 x 22 inches) sheets. *3 Dimensions and weight are approximate
Trademarks and registered trademarks
-ENERGY STAR and the ENERGY STAR mark are registered U.S.marks.
-ISIS® is a registered trademark or trademark of EMC Corporation in the United States and other countries.
-Microsoft®, Windows® and Windows Vista® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
-All other brand or product names are the property of their respective holders.
• Design and specifications are subject to change without notice.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
Panasonic System Communications Company Europe, a Division of Panasonic Marketing Europe GmbH, Hagenauer Straße 43, 65203 Wiesbaden, Germany.
