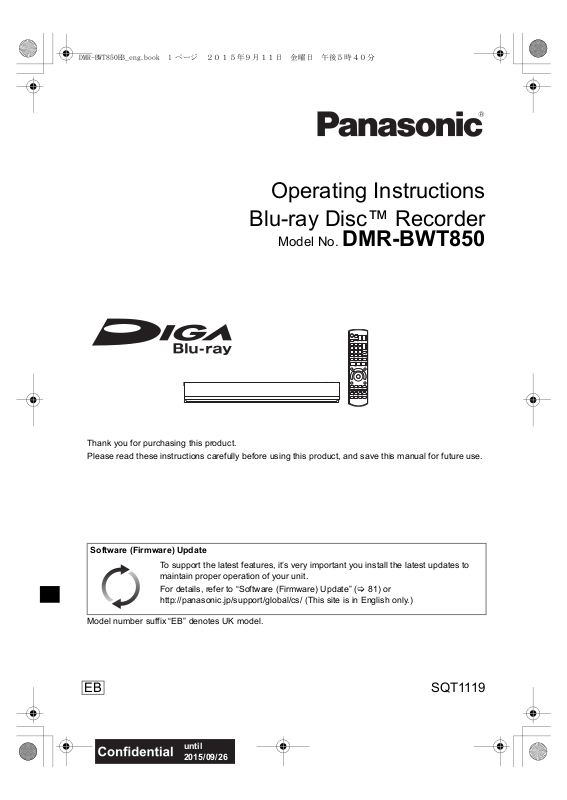

Panasonic DMR-BWT850 Operating Instructions

Operating Instructions

Blu-ray Disc™ Recorder

Model No. DMR-BWT850

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Software (Firmware) Update

To support the latest features, it’s very important you install the latest updates to maintain proper operation of your unit. For details, refer to “Software (Firmware) Update” (> 81) or http://panasonic.jp/support/global/cs/ (This site is in English only.)

Model number suffix “EB” denotes UK model.

SQT1119

Safety precautions

WARNING

Unit

• To reduce the risk of fire, electric shock or product damage,

- Do not expose this unit to rain, moisture,

dripping or splashing.

- Do not place objects filled with liquids, such as

vases, on this unit.

- Use only the recommended accessories.

- Do not remove covers.

- Do not repair this unit by yourself. Refer

servicing to qualified service personnel.

- Do not let metal objects fall inside this unit.

- Do not place heavy items on this unit.

AC mains lead

• To reduce the risk of fire, electric shock or product damage,

- Ensure that the power supply voltage

corresponds to the voltage printed on this unit.

- Insert the mains plug fully into the socket

outlet.

- Do not pull, bend, or place heavy items on the

lead.

- Do not handle the plug with wet hands.

- Hold onto the mains plug body when

disconnecting the plug.

- Do not use a damaged mains plug or socket

outlet.

• The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object

• Keep the Memory Card out of reach of children to prevent swallowing.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Do not place sources of naked flames, such as lighted candles, on this unit.

• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.

• This unit is intended for use in moderate climates.

Placement

• Place this unit on an even surface.

• To reduce the risk of fire, electric shock or product damage,

- Do not install or place this unit in a bookcase,

built-in cabinet or in another confined space. Ensure this unit is well ventilated.

- Do not obstruct this unit’s ventilation openings with

newspapers, tablecloths, curtains, and similar items.

- Do not expose this unit to direct sunlight, high

temperatures, high humidity, and excessive vibration.

Batteries

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

• Mishandling of batteries can cause electrolyte leakage and may cause a fire.

- Do not mix old and new batteries or different

types at the same time.

- Do not heat or expose to flame.

- Do not leave the battery(ies) in a car exposed

to direct sunlight for a long period of time with doors and windows closed.

- Do not take apart or short circuit.

- Do not recharge alkaline or manganese batteries.

- Do not use batteries if the covering has been

peeled off.

- Remove batteries if you do not intend to use

the remote control for a long period of time. Store in a cool, dark place.

• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

SQT1119

Caution for AC Mains

R6/LR6, AA

(Alkaline or manganese batteries)

Lead

(For the AC mains plug of three pins)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Supplied accessories

Please check and identify the supplied accessories.

(Product numbers are correct as of August 2015. These may be subject to change.)

Remote control (N2QAYB001058): 1pc. Batteries for remote control: 2 pcs. AC mains lead (K2CT2YY00098): 1pc. RF coaxial cable (K2KYYYY00247): 1pc. HDMI cable (K1HY19YY0011): 1 pc.

• Do not use AC mains lead with other equipment.

Insert batteries

Insert so the poles (i and j) match those in the remote control.

About descriptions in these operating instructions

• Pages to be referred to are indicated as “> ±±”.

• Images are for illustration purpose, contents may change without notice.

Figure A Figure B

Fuse cover

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Fuse (5 ampere)

SQT1119

Table of contents

Safety precautions . . . . . . . . . . . . . . . . . . . . 2

Caution for AC Mains Lead. . . . . . . . . . . . . 3

Supplied accessories . . . . . . . . . . . . . . . . . . 3

Getting started

HDD and media information . . . . . . . . . . . . 6

Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Control reference guide . . . . . . . . . . . . . . . 12

Connection. . . . . . . . . . . . . . . . . . . . . . . . . . 14

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

FUNCTION MENU screen . . . . . . . . . . . . 21

Watching broadcasts

Watching broadcasts . . . . . . . . . . . . . . . . . 22

Freeview Play . . . . . . . . . . . . . . . . . . . . . . . 25

Recording

Recording TV programmes. . . . . . . . . . . . 27

Timer recording. . . . . . . . . . . . . . . . . . . . . . 29

Playing back video

Playing titles on the HDD . . . . . . . . . . . . . 34

Playing titles on the media . . . . . . . . . . . . 37

Operation during play. . . . . . . . . . . . . . . . . 39

With Other Equipment

Copying the HD Video (AVCHD) . . . . . . . 65

Registering the external HDD (USB HDD)

. . . . . . . . . 65

Convenient functions

VIERA Link functions. . . . . . . . . . . . . . . . . 67

Playback menu . . . . . . . . . . . . . . . . . . . . . . 68

Basic Settings . . . . . . . . . . . . . . . . . . . . . . . 70

4K Networking. . . . . . . . . . . . . . . . . . . . . . . 81

Software (Firmware) Update . . . . . . . . . . 81

Other operations. . . . . . . . . . . . . . . . . . . . . 82

Troubleshooting

Troubleshooting guide . . . . . . . . . . . . . . . . 86

Reference

Specifications . . . . . . . . . . . . . . . . . . . . . . . 92

Reference . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Editing video

Deleting/Editing titles . . . . . . . . . . . . . . . . . 42

Copying video

Copying titles. . . . . . . . . . . . . . . . . . . . . . . . 46

Photo and Music

Playing photos. . . . . . . . . . . . . . . . . . . . . . . 54

Editing photos . . . . . . . . . . . . . . . . . . . . . . . 56

Copying photos. . . . . . . . . . . . . . . . . . . . . . 57

Playing music . . . . . . . . . . . . . . . . . . . . . . . 58

Copying/Deleting music. . . . . . . . . . . . . . . 59

Network

Smart Home Networking (DLNA). . . . . . . 60

TV Anywhere . . . . . . . . . . . . . . . . . . . . . . . . 64

Enjoying Network Service . . . . . . . . . . . . . 64

SQT1119

Getting started

Watching broadcasts

Recording

Playing back video

Editing video

Copying video

Photo and Music

Network

With Other Equipment

Convenient functions

Troubleshooting

Reference

SQT1119

Getting started

HDD and media information

For more details, refer also to the specifications. (> 92)

Recordable/playable contents

Media type Standard symbol Recordable contents Playable contents

Built-in hard disk drive

(HDD)

[HDD]

External hard disk drive

(USB HDD)

[USB_HDD]

(> 9)

BD-Video

[BD-V]

•Video

• AVCHD/AVCHD 3D

•MKV

•MP4

• MPEG2

•Xvid

§1

•Video

–

•JPEG

•MPO (3D photo)

• AVCHD/AVCHD 3D

•MKV

•MP4

• MPEG2

• Xvid

•JPEG

•MPO (3D photo)

•Video

(–: Impossible)

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

§2, 3

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

BD-RE

BD-RE DL

BD-R

BD-R DL

DVD-Video

DVD-RAM

DVD-R

DVD-R DL

SQT1119

•Video

• AVCHD/AVCHD 3D

[BD-RE]

[BD-R]

•JPEG

• MPO (3D photo)

•Video

• AVCHD/AVCHD 3D

§2

• MKV • Xvid

–

§4

•Video

[DVD-V] –

•Video

[RAM]

[DVD-R]

•JPEG

• MPO (3D photo)

–

•Video

§2

• AVCHD

–

• AVCHD

•MKV

• Xvid

•JPEG

•MPO (3D photo)

§2

• AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

Getting started

(–: Impossible)

Media type Standard symbol Recordable contents Playable contents

DVD-RW

[DVD-RW]

•Video

§2

• AVCHD

–

•Video

+R/+R DL [+R]

+RW [+RW]

•Video

Audio CD (CD-DA)

[CD]

(including CD-R/RW)

USB memory [USB] –

[SD]

•MP4

•MPEG2

SD Cards

§2

• AVCHD

•MKV

• Xvid

–

• JPEG

•MPO (3D photo)

•AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

§2

–

• AVCHD

•Music

–

•MKV

• Xvid

–

• JPEG

•MPO (3D photo)

• AVCHD/AVCHD 3D

•MKV

•MP4

• MPEG2

• Xvid

• JPEG

•MPO (3D photo)

• JPEG

• MPO (3D photo)

–

• AVCHD/AVCHD 3D

•AAC

•ALAC

•FLAC

•MP3

•WAV

•WMA

§2, 3

•AAC

•ALAC

•DSD

•FLAC

•MP3

•WAV

•WMA

§2

§1

It cannot be recorded directly. (Only compatible with copying from the built-in HDD)

§2

Recorded with AVCHD format compatible devices (Panasonic video camera, etc.). It may not be able to play back, add, or edit depending on the device.

§3

It cannot be played back directly from the USB HDD or USB memory. Playback is possible by copying to the built-in HDD. (> 65)

§4

Includes finalised DVD-R, DVD-R DL, DVD-RW, +R and +R DL.

• [+RW] This unit cannot record to 8X Speed +RW disc.

• With certain recording states and folder structures, the play order may differ or playback may not be possible.

• It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method, and how the files were created.

SQT1119

Getting started

HDD and media information

Information about contents

∫ Broadcast Recordings

Numbers of titles that can be recorded:

Media

Maximum

titles

HDD 3000

BD-RE, BD-R 200

DVD-RAM, DVD-R, DVD-RW 99

+R, +RW 49

• Maximum numbers of titles are including recordings of HD CAMCORDER.

∫ HD CAMCORDER Recordings

MPEG-4 AVC/H.264 (based on AVCHD) Numbers of titles that can be recorded:

Media

Maximum

titles

HDD 3000

BD-RE, BD-R 200

• Maximum numbers of titles are including recordings of Broadcast.

∫ Photo files

Compatible pixels:

Between 34k34 and 8192k8192 pixels

Sub sampling: 4:2:2, 4:2:0

(Motion JPEG is not supported.)

Maximum numbers of contents:

Media Folders Files

HDD – 20000

BD-RE, DVD-RAM,

DVD-R, +R,

CD-R, CD-RW,

500 10000

USB device, SD

∫ Video files/Audio files

Numbers of contents that can be copied to internal HDD:

Contents

Maximum numbers of

folders and files Video 20000 Audio 20000

USB device:

• Each folder can store up to 1000 files.

• We recommend that you limit the depth of folder trees to about five levels.

• Bit rate up to 100 Mbps/resolution up to 3840k2160 25p/30p, 4096k2160 24p. (MP4 only)

About extension of files

MKV: “.mkv”

Subtitle text files: “.srt” “.sub” “.txt” MP4: “.mp4” “.mov” MPEG2: “.mpg” “.mpeg” “.m2ts” “.mts” “.ts” Xvid: “.avi”

Subtitle text files: “.srt” “.sub” “.txt” JPEG: “.jpg” MPO: “.mpo” AAC: “.m4a” ALAC: “.m4a” DSD: “.dsf” “.dff” FLAC: “.flac” MP3: “.mp3” WAV: “.wav” WMA: “.wma”

• The video file and subtitle text files are inside the same folder, and the file names are the same except for the file extensions.

• Some files may not be played back even if they have these extensions.

SQT1119

Recording mode

Recording Mode DR HG/HX/HE/HL/HM

Feature Programmes can be

recorded in a nearly perfect broadcasted state.

Recordable

media

Recording can be done with reduced recording volume in High definition (HD) quality

§2

Getting started

XP/SP/LP/EP/FR

§1

Recording can be done with reduced recording volume in Standard definition (SD) quality.

Multiple audio Record all multiple audio

Audio

Can be recorded

Record only one audio

Can be recorded

§3

Description

Subtitles Can be recorded

Surround audio Surround audio as the

Can be recorded (only one subtitle)

Stereo audio

§4

broadcast

§1

FR (Flexible Recording Mode): The unit automatically selects the best possible recording rate between XP mode and EP mode.

§2

The SD quality programme cannot be converted to HD quality.

§3

You cannot select during play whether it activates or deactivates.

§4

You cannot select during play whether it appears or disappears.

Approximate recording times

Refer to “Recording modes and approximate recording times”. (> 92)

Notes

Notes for the USB device

You can use an external HDD (USB HDD) in the following two ways (A single HDD cannot handle those two ways simultaneously), and a USB memory for data files.

• For recorded titles

Moving titles in the built-in HDD to a USB HDD to save the capacity of the built-in HDD.

• The USB HDD must first be registered on this unit. (> 65)

• The USB HDD over 3 TB is not usable.

• For data files

Playing back MP4, JPEG, MP3, etc. in a USB device with this unit.

• The USB device must be formatted in FAT12, FAT16, FAT32 or NTFS file system.

• The USB device over 2 TB is not usable.

• This unit supports USB 2.0 High Speed.

• Although this unit can use USB 3.0 devices as USB 2.0 devices.

• This unit does not recognise USB HDDs other than those in which the size of one sector is 512-bytes or 4096-bytes. (For details, consult the dealer of your USB HDD.)

• This unit supports USB mass storage device class.

• This unit does not guarantee connection with all USB devices.

SQT1119

Getting started

DO DO NOT

HDD and media information

Notes for the disc

• Region management information

The unit can play back BD-Video/DVD-Video discs of the following regions codes, including “ALL”:

e.g., BD-Video DVD-Video

• Disc recorded on another device

• It may be necessary to finalise the disc, create Top Menu or close the session on the equipment used for recording to play on this unit.

• [DVD-RW] Recorded in DVD Video Recording (DVD-VR) format

- This unit can play back and copy to HDD.

- This unit does not support editing or

recording.

- It is possible to record and edit with

DVD-Video (DVD-V) format by formatting discs with this unit.

• Recording may not be possible to discs which were used for recording on other equipment.

• Play on other players

• [BD-RE] [BD-R] When these discs cannot be played back on other Blu-ray Disc players, etc. (e.g., title recorded with HE-AAC audio format), convert the recording mode to play them back. (> 44, File Conversion)

• [DVD-R] [DVD-RW] [+R] Finalisation is needed. (> 83)

• [+RW] If the disc failed to play on other equipment, we recommend you create a Top Menu (> 83).

• [DVD-R] The disc created in AVCHD format can only be played back on AVCHD compatible equipment.

• Regarding 8 cm Disc

This unit cannot record or edit the 8 cm disc. Only playback or copy to the HDD is possible.

• Discs that cannot be played

- DVD-RAM in a cartridge

- 2.6 and 5.2 GB DVD-RAM, 12 cm

- DVD-Audio

- Super Video CD, Super Audio CD, Video CD

• Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.

Notes for the SD cards

• Compatible SD card

- SD Memory Card

(from 8 MB to 2 GB, FAT12 and FAT16 formats)

- SDHC Memory Card

(from 4 GB to 32 GB, FAT32 format)

- SDXC Memory Card

(48 GB, 64 GB, exFAT format)

• Using miniSD card or microSD card

Mini-type and micro-type cards can also be used, but must be used with adaptor cards (optional).

• If the SD card is formatted on other equipment, the time necessary for recording may be longer or the card may not be able to be used on this unit. In these cases, format the card on this unit.

Media handling

• Do not touch the recorded surface of the discs or the terminal surface of the SD cards.

• Wipe with a damp cloth and then wipe dry.

• Do not attach labels or stickers to discs.

• Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.

• Do not use the following discs:

- Discs with exposed adhesive from removed

stickers or labels (rental discs, etc.).

- Discs that are badly warped or cracked.

- Irregularly shaped discs, such as heart

shapes.

• Do not expose the terminals of the SD card to water, garbage or other strange things.

SQT1119

Unit care

Getting started

HDD/USB HDD handling care

• The HDD is a high precision recording instrument and is easily susceptible to damage. Therefore, be careful of the following points while the unit is turned on, especially during operation, otherwise the HDD and the recorded content may be damaged:

- Do not subject the unit to any vibration and

shock.

- Do not remove the AC mains lead from the

household mains socket.

• The HDD is a temporary storage device

- It is recommended to save the recorded

content on a disc or to keep the original data or CDs that they were copied from.

- If you notice a problem with the HDD such as

repetitive strange sounds, immediately save (backup) all content and request service. If you continue using the HDD with a problem, the unit or the recorded content will be damaged.

• If the HDD or USB HDD is damaged, the recorded content cannot be recovered.

Setup precautions

• Do not place on anything that generates heat like a Set Top Box, etc.

• Place in an area where condensation does not occur. Conditions where condensation may occur

- When there is an extreme change in

temperature.

In the above situation, without turning the unit on, let the unit adjust to the room temperature and wait 2–3 hours until condensation is gone.

• The unit may breakdown if cigarette smoke or bug spray/vapour, etc. gets inside the unit.

When moving the unit

Before moving the unit, ensure the disc tray is empty. 1 Switch the unit to standby mode. (Wait until

“BYE” disappears from the display.)

2 Remove the AC mains lead from the

household mains socket.

3 Move only after the unit has come to a

complete stop (approx. 3 minutes) in order to avoid subjecting to vibration and shock. (Even after the unit is switched to standby mode, the HDD continues operating for a short time.)

Cleaning

• Wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, carefully read the instructions that came with the cloth.

• Use the lens cleaner (not supplied) to clean the unit’s lens.

When requesting this unit for repair

The registration of the USB HDD may be cancelled in the process of repairing this unit. You can use the USB HDD again by re-registering, but all recorded content already on the USB HDD will be lost. In such cases, the recorded content (data) cannot be recovered.

To dispose or transfer this unit

This unit may contain private information. Before disposing of or transferring this unit, perform the following to delete the data, including personal or secret information:

- Format HDD (> 73)

- Perform “Shipping Condition” (> 80)

SQT1119

Getting started

STATUS

PLAY/x1.3

PAUSE

PAUSE LIVE TV

STOP

SLOW/SEARCH

SKIP

PAGE

NET

INPUT



DRIVE SELECT



EXIT

OPTION

VOL

abc

jkl

tuv

1 4

ghi

qrs

def

mno

xyz

DELETE

PROG/CHECK

TIME SLIP

RADIO/TV

-10s +60s

REC MODE

REC TEXT STTL

CHAPTER

MANUAL SKIP

REWIND LIVE TV

LAST VIEW

BACK/

RETURN

 

 















 



















 

 

 

 

 

SLOW/SEARCH

REWIND LIVE TV

LAST VIEW

Control reference guide

Instructions for operations are generally described using the remote control.

Remote control

1 Transmit the remote control signal

• Point it at remote control signal sensor on

2 Switch the unit from on to standby mode or

vice versa

3 Select drive (HDD, Disc, SD or USB) 4 Select channels and title numbers, etc./Enter

numbers or characters

Switch to the previously watched channel (>22)

6 Basic operations for recording and play,

REWIND LIVE TV/PAUSE LIVE TV (> 24)

7 Show Information (> 22, 35, 39) 8 Selection/OK, Frame-by-frame (> 39) 9 Show Video Menu (> 34), Top Menu, Pop-up

: Show OPTION menu (> 42, 56, 68) ; Colour buttons (red, green, yellow, blue)

(Use in accordance with instruction on the screen.)

< Start recording (> 27) =

Select a recording mode/conversion mode

> Show the Timer Recording screen (> 31) ? Create chapter (> 40) @ Listen to Audio Description (> 23, 40) A Skip the specified time (> 40) B TV operation buttons (> 17) C Channel select (> 22)/Change pages in the

Video Menu screen etc.

D Show the Freeview Play Catch Up Service

screen (> 26)

E Show NETFLIX screen (> 64) F Show the Network Service screen (> 64) G Exit the menu screen H Show the TV Guide screen (> 25) I Show the FUNCTION MENU screen (> 21) J Return to previous screen K Show subtitles (> 22, 40) L Show Digital Teletext (> 23) M Switching to the radio channel list (> 22) N To delete unwanted recorded titles, timer

programmes, video, photo or music (> 42)

O Skip approx. 1 minute forward (> 39) P Skip approx. 10 seconds backward (> 39)

this unit. (> 13)

(> 27)

SQT1119

Getting started



Display

Pull to flip down the front panel.

 

SD card

USB memory

Disc

Main unit

1 Remote control signal sensor

• Angle: Approx. 20° up and down, 30° left and right

• Distance: Within approx. 7 m in front of the unit

2 Open/close disc tray 3 Standby/on switch (Í/I)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

Display

12 5 6743

HDD

COPY

SDUSB

8910

1 Drive (HDD, BD or SD) indicator 2 Disc indicator 3 Copying indicator

4 USB port indicator 5 SD card slot indicator 6 Remote control signal indicator 7 Timer recording indicator

• This indicator lights up when the timer recording standby is activated.

8 Main display section indicator

• Messages and other information are displayed. (> 91)

9 Playback indicator 10 Recording indicator

• The indicator will light up while recording.

• The indicator will blink while recording is paused and before recording starts.

PLAY

4 Disc tray 5 USB port 6 SD card slot

• When removing the SD card, press on the centre of the card and pull it straight out.

• While writing to/reading from the media, do not switch the unit to standby mode or remove the media. Such action may result in loss of the media contents.

• When inserting the media, ensure that it is facing the right way up.

SQT1119

Getting started

HDMI

VHF/UHF

RF IN

This unit’s rear panel

Household mains socket (AC 220 to 240 V, 50 Hz)

AC mains lead (supplied)

• Connect only after all other connections are complete.

HDMI cable

(supplied)

To the aerial

Aerial cable

RF coaxial cable

　(supplied)

Cooling fan

Connection

3D programmes or 4K images can be played back when this unit is connected to 3D or 4K compatible terminal of a 3D or 4K compatible TV.

• Before connection, turn off all equipment and read the appropriate operating instructions.

• If you use an optional HDMI cable, use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. The HDMI-compliant cable is supplied with this unit.

• When the unit is not to be used for a long time To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when the unit is in standby mode. (> 92)

Basic connections

• Keep the RF coaxial cables as far away as possible from other cables.

SQT1119

Getting started

HDMI cable

(supplied)

Amplifier/

receiver

HDMI cable

(supplied)

Amplifier/

receiver

Amplifier/receiver connections

HDMI terminal

• You will not be able to view 3D programmes or 4K images with this connection if your amplifier/receiver is not 3D or 4K compatible.

∫ Amplifier/receiver not compatible with 3D

or 4K

3D programmes or 4K images can be played back when this unit is connected to a 3D or 4K compatible TV.

• This connection only supports up to 5.1ch.

• When using a TV or an amplifier/receiver that does not display “ARC” on the HDMI terminal, it is necessary to connect the TV and the amplifier/receiver with a digital audio cable to enjoy the TV audio on the amplifier/receiver.

SQT1119

Getting started

Amplifier/receiver

Coaxial cable

Broadband router, etc.

Internet

LAN (ethernet) cable

Connection

DIGITAL AUDIO OUT terminal

• When you do not want the audio to be output from the TV, set “HDMI Audio Output” to “Off” (> 76).

Network connection

When this unit is connected to the network, you can enjoy network functions (DLNA function, Network Service, TV Anywhere, etc.).

For details about connection method, refer to the instructions supplied with the connected equipment.

After you make the LAN cable/Wireless LAN connection, the network setting is needed. (> 19, Easy Network Setting)

LAN cable connection

SQT1119

• Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.

Wireless LAN connection

About wireless LAN connection (> 19, Easy Network Setting)

• For up-to-date compatibility information on your Wireless router, refer to http://panasonic.jp/support/global/cs/ (This site is in English only.)

• The unit is not compatible with public wireless LAN services.

Settings

Progress

DVB Auto Setup

CH 21 60

Free TV: 2 Pay TV: 0 Data: 0Radio: 0

Searching

Actual number of channels may differ due to channel duplication.

Quality

Type

Channel Name

RETURN

This will take about 3 minutes.

10 10

Free TV Free TV

Owner ID

Please enter new PIN

PIN entry

You now have the opportunity to enter your

details and help the police to crack crime.

See Instruction Book.

* * * *

RETURN

Getting started

TV operation buttons

The TV can be operated from the TV operation buttons of the remote control.

• Perform the setting if you cannot operate the TV with the TV operation buttons.

While pressing [TV Í], enter the code with the number buttons.

Manufacturer and Code No.

Manufacturer Code Manufacturer Code

Panasonic 01/02/03/04 AIWA 35 AKAI 27/30 BEKO 05/71/72/73/74 BENQ 58/59 BRANDT 10/15 BUSH 05 CENTREX 66 CURTIS 05 DAEWOO 64/65 DESMET 05 DUAL 05 ELEMIS 05 FERGUSON 10/34 FINLUX 61 FISHER 21 FUJITSU 53 FUNAI 63/67 GOLDSTAR 05/50/51 GOODMANS 05 GRADIENTE 36 GRUNDIG 09 HITACHI 05/22/23/40/41 IRRADIO 30 ITT JVC 17/30/39/70 KDS 52 KOLIN 45 KONKA 62

LG MAG 52 METZ 05/28/79 MITSUBISHI 05/19/20/47

MIVAR 24

05/50/51

• If your TV brand has more than one code listed, select the one that allows correct operation.

• If the brand of your TV is not listed or the code number is invalid for your TV, this remote control is not compatible with your TV.

NEC 36 NOBLEX 33 NOKIA 25/26/27/60/61 NORDMENDE 10 OLEVIA 45 ONWA 30/39/70 ORION 05 PEONY 49/69 PHILCO 41/48/64 PHILIPS 05/06/46 PHONOLA 05 PIONEER 37/38 PROVIEW 52 PYE 05 RADIOLA 05 SABA 10 SALORA 26

SANSUI 05 SANYO 21/54/55/56 SCHNEIDER 05/29/30 SEG SELECO 05/25 SHARP 18 SIEMENS 09 SINUDYNE 05 SONY 08

TELEFUNKEN 10/11/12/13/14 TEVION 52 THOMSON 10/15/44 TOSHIBA 16/57 WHITE

WESTINGHOUSE

YAMAHA 18/41

32/42/43/65/68SAMSUNG

05/69/75/76/77/78

31/33/66/67/69TCL

Easy Setting

1 Turn on the TV, then select the appropriate

AV input to suit the connections to this unit.

2 Press [Í] on the remote control or [Í/I] on

this unit.

• The Easy Setting will start at the initial power on.

Auto Setup starts. (This operation may take some time.) e.g.,

3 Clock will be set automatically.

If the clock setting screen appears, set the time manually (> 80, Clock).

• If the region selection screen appears, select repeatedly until you reach the available region.

4 Enter the PIN.

This PIN will be used only for the Owner ID-Data Entry screen.

1 Press the number buttons to enter 4-digit

PIN.

2 Repeat step 1 to confirm.

• Make a note of PIN in case you forget it. The PIN number cannot be reset.

• Steps 4 – 6 will be skipped in the Easy Setting after “Shipping Condition” (> 80) is performed. (> go to step 7 on page 18)

SQT1119

Getting started

Owner ID-Data Entry

NAME

HOUSE NO

POSTCODE

PIN 0000

RETURN

Change PIN

Select

Number

PIN Entry

Enter a new 4-digit PIN, then press OK. This PIN will be used for controlling viewing and playback. PIN will be set to “0000” by pressing “RETURN” when there is no number input.

- - -

RETURN

Settings

5 Set the Owner ID-Data Entry (“NAME”,

“HOUSE NO” and “POSTCODE”).

e.g.,

1 Select the item, then press [OK]. 2 Select the character, then press [OK].

Repeat this step.

3 Press [BACK/RETURN ]. 4 Repeat steps 1-3 to enter all data. 5 Press [BACK/RETURN ] to exit from

the Owner ID-Data Entry screen.

6 Enter the new PIN for parental control.

• The default PIN is “0000”.

1 Enter the new 4-digit PIN with the number

buttons.

• Make a note of the PIN you have decided on in case you forget it.

2 Press [OK].

7 Set “Quick Start” to “On”, “Off” or “Timer

Setting for Quick Start”, then press [OK]. For details, refer to “Quick Start”. (> 79)

To stop partway

Press [BACK/RETURN ].

To restart setup (> 70, Auto Setup)

To display the Owner ID information on TV

1 While the unit is on, press and hold [OK], the

yellow button and the blue button on the remote control at the same time for more than 5 seconds.

- “00 RET” is displayed on the front panel display.

2 Repeatedly press [1] (right) on the remote

control until “01 OID” is displayed on the front panel display.

3 Press [OK] on the remote control.

The PIN is not displayed.

To change PIN for parental control

Refer to “PIN Entry”. (> 80)

To change the region for Channel Sorting

Refer to “Channel Sorting by Region”. (> 71)

• If tuning is cancelled partway through, it may not be possible to receive the channels. Restart setup again.

When “Easy Setting has been completed.” appears, Easy Setting is complete.

- Select “Yes” to set network settings.

- Select “No” to finish the Easy Setting.

SQT1119

Getting started

RETURN

Easy Network Setting

Settings and tests for connection required for home network and the Internet will be conducted. First, please select a connection mode.

LAN cable connection: Connect a LAN cable to the unit and select “Wired”.

Wireless LAN connection: Select “Wireless”.

Current setting : Wired

Wired Wireless

e.g.,

Easy Network Setting

After completing “Easy Setting”, you can continue with “Easy Network Setting”. Select “Wired” or “Wireless”, then press [OK].

“Wired” connection

Follow the on-screen instructions to apply your connection settings.

“Wireless” connection

Before beginning wireless connection setup

• Obtain your network name (SSID

• If your wireless connection is encrypted, please be sure that you know your encryption key.

Select “Search for wireless network” or “WPS (PUSH button)” and press [OK], then follow the on-screen instructions and apply the settings.

§1

Search for wireless network:

The available wireless networks will be displayed. Select your network name and press [OK].

- If your Network name is not displayed, search again by pressing the red button on the remote control.

- Stealth SSID will not be displayed. Enter manually by using “Wireless Settings”. (> 76)

• If your wireless network is encrypted, Encryption Key Input Screen will be displayed. Input the encryption key of your network.

WPS (PUSH button):

If your Wireless router supports WPS (PUSH button), you can easily perform the settings by pressing WPS button on it. WPS (Wi-Fi Protected Setup™) is a standard that facilitates settings relating to the connection and security of wireless LAN devices. 1 Press WPS button or corresponding button of

Wireless router until the lamp starts flashing.

• For details, refer to the operating instructions of Wireless router.

2 Press [OK].

※

§1

SSID: An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network. Transmission is possible if the SSID matches for both devices.

§2

The wireless router compatible with Wi-Fi Protected

Setup

may have the mark.

SQT1119

Getting started

Settings

To restart Easy Network Setting

1 Press [FUNCTION MENU]. (> 21) 2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Easy Network Setting” in “Network”,

then press [OK].

To redo settings individually

If “Easy Network Setting” did not work properly or when you change the settings individually, perform the following steps:

1 Press [FUNCTION MENU]. (> 21) 2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Network Settings” in “Network”, then

press [OK].

4 Refer to “Network Settings”. (> 76)

Check security before using Home Network function

If you set “Home Network function” to “On”, all connected devices on the same network can access this unit. Ensure that the router for your home network has adequate security system to prevent unauthorised access.

• Refer to the operating instructions of the hub or router.

• If you set “Home Network function” or “TV Anywhere” to “On”, the setting for “Quick Start” is fixed to “On”.

• Do not use this unit to connect to any wireless network for which you do not have usage rights. During automatic searches in a wireless network environment, wireless networks (SSID) for which you do not have usage rights may be displayed; however, using these networks may be regarded as illegal access.

• After performing network settings on this unit, the settings (encryption level, etc.) of the Wireless router might change. When you have trouble getting online on your PC, perform the network settings on your PC in accordance with the settings of Wireless router.

• Please be aware that connecting to a network without encryption may result in the content of the communication being illegitimately viewed by a third party, or the leaking of data such as personal or secret information.

SQT1119

FUNCTION MENU screen

RETURN

FUNCTION MENU

Media

TV Guide

Freeview Play

Catch Up

Home Network

Setup

Timer Recording

Contents on HDDNetwork Service

Copy Video

You can easily access the desired functions, such as playback, timer recording, the unit’s settings etc. via the FUNCTION MENU.

1 Press [FUNCTION MENU].

2 Select the item, then press [OK].

Getting started

FUNCTION MENU list

• Freeview Play Catch Up (> 26)

•TV Guide (> 25)

• Timer Recording (> 31)

• Network Service (> 64)

• Contents on HDD

- Recorded Programmes (> 34)

- Video ( AVCHD ) (> 34)

- Video ( MP4 / Xvid / MKV ) (> 36)

-Photo (> 54)

-Music (> 58)

• Home Network

- Miracast (> 63)

- DLNA Client (> 61)

- Media Renderer (> 62)

- Wi-Fi Direct (> 63)

•Setup

- Basic Settings (> 70)

• You can change the unit’s settings of Tuning, Sound, Display, Connection, Network etc.

- TV Anywhere (> 64)

- Wallpaper Personalize a background of the FUNCTION MENU.

• To select from among “Photo”, register photo

in advance. (> 55)

- BD-Video Data Management (> 38)

•Media

-Disc

- SD Card

- USB device

- USB HDD

• Copy Video

- Copy Menu (> 48)

- Copy Video (AVCHD) to DVD-R (> 53)

SQT1119

Watching broadcasts

Watch ing broadcasts

10:30

Now

ADMPEG

Change category

All DVB Channels

9:00 - 11:00

Set timer







SD>HD



STTL TEXT Multi Audio

e.g.,

Watching broadcasts

Press [CH WX] to select the channel.

• You can also select the channel by the following operations.

- Using number buttons

- Using “TV Guide” (> 25)

- Using channel information (> below)

To switch to the channel you have previously watched

Press [LAST VIEW ].

• This function will work only for the channels you have watched for more than 10 seconds.

To switch to the radio channels or to the all channels

Press [RADIO/TV].

If this unit requests a PIN

If you have locked channels (> 71, Child Lock List), you may be asked to enter the PIN. In that case, enter the 4-digit PIN with the number buttons by following the on-screen instructions.

• PIN can be changed via “PIN Entry”. (> 80)

Using channel information

While watching a programme Press [STATUS ]. Channel information appears.

1 Set timer (> 32) 2 Current Category 3 Guidance information for parental control

(> 72, Child Lock)

4 HD simulcast programmes 5 Audio Description 6 Subtitle 7 Digital teletext 8 Multiple audio

SQT1119

To show detailed information

Press [STATUS ] again.

To hide the information screen

Press [EXIT ].

To change Category

Press the blue button.

• To register your favourite channels

1 Press [OPTION]. 2 Select “Digital TV Menu”, then press [OK]. 3 Select “Favourites Edit”, then press [OK]. 4 Refer to “Favourites Edit”. (> 70)

To switch between the current programme and the next programme

Press [2, 1].

To switch to another channel

Press [3, 4], then press [OK].

To show subtitle

When “STTL” appears in channel information (

left)

Press [STTL ].

• Press again to hide subtitle.

Switching audio

When “Multi Audio” appears in channel information (

left)

1 Press [OPTION].

2 Select “Multi Audio” in “Digital TV Menu”, then

press [OK].

3 Select the desired audio.

• Press [EXIT ] to exit from the screen.

Watching broadcasts

To use data service (Hybrid Broadcast Broadband TV)

To use Hybrid Broadcast Broadband TV application, perform network connection and settings. (> 16, 19)

• Set “HbbTV Setting” to “On”. (> 71)

• Operations may vary depending on the broadcaster.

• On-screen instructions may not correspond to the remote control buttons.

• It may take some time to show the data service.

• Some functions of the data service may be deactivated during recording.

To listen to the Audio Description

Audio Description adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

When “AD” appears in channel information (> 22)

1 Press [AD]. 2

Select “Audio Description” and set to “Automatic”.

3 Select “Volume”, then adjust the volume with

[2, 1].

To show Digital teletext (MHEG)

When “TEXT” appears in channel information (>22)

1 Press [TEXT ]. 2 Use [3, 4, 2, 1], number buttons or colour

buttons, etc. according to on-screen instructions.

• Some functions of Digital teletext are deactivated during recording.

• “Player PIN Control” applies access control for some MHEG services. If you have locked viewing of Digital teletext (MHEG) (

71, Player PIN Control), PIN is required to start viewing.

Aspect

You can switch the aspect ratio of the screen. (>85)

• Audio Description may not be available depending on the type of audio format.

• When “Dolby D / Dolby D + / Dolby True HD”, “DTS/ DTS-HD”, “MPEG” or “HE-AAC” is set to “Bitstream”, the Audio Description may not work. Set them to “PCM” (> 74, Digital Audio Output).

• You can also set “Audio Description” active in the Setup menu. (> 71)

SQT1119

Watching broadcasts

8:50:55 06/01/2015

Play



8:50.50

Watching broadcasts

REWIND LIVE TV/PAUSE LIVE TV

This unit temporarily saves a live TV programme you are watching with this unit’s tuner on HDD.

REWIND LIVE TV

You can rewind live TV programme to the point where temporary save has started (up to

1.5 hours).

PAUSE LIVE TV

You can pause live TV programme and restart watching from the paused position.

1 While watching TV

REWIND LIVE TV:

Press [SLOW/SEARCH 6] to rewind.

PAUSE LIVE TV:

Press [PAUSE ;] to pause.

• The maximum amount of the temporary save is 1.5 hours.

2 When you want to resume:

Press [PLAY/a1.3 1].

• You can perform search or Quick View, etc.

• If temporary save stops (> right), playback will be performed by that point.

To stop REWIND LIVE TV or PAUSE LIVE TV

1Press [STOP∫]. 2 Select “Yes”, then press [OK].

To hide the display information

Press [EXIT ].

• Temporary save stops in the following cases:

- When switching to other channels or other screen

- When two programmes simultaneous recording is started

- When performing PAUSE LIVE TV or REWIND LIVE TV for more than 8 hours (This may vary depending on the HDD free space.)

• These functions do not work in the following cases:

- When the clock is not set

- When two programmes simultaneous recording is started

- While copying

- While watching a programme being recorded

- When a radio programme is selected

Display information

While pausing or rewinding a broadcast:

Press [STATUS ].

8:05 9:35

Pause





8:50



• Press [STATUS ] again.

1 The time that you can rewind the live

programme.

2 The amount of time temporarily saved on

HDD.

3 The time of the current playback position.

SQT1119

Freeview Play

TV Guide

Catch Up

Freeview Play Side Bar

Schedule

Jump Now

Timer Rec.

Channel

Back

TV Guide

Tue 22th Dec 2015 20:42

AD HDS

1 XXXXXXXXXXX XXXXXXXXXXX

XXXXXXXXXXX XX XX XX XXXX XXXX-XXXX

XXXXXXXXXXX

1 XXXXXXXXXX

8:00Today 8:30 9:00 9:30

TV Guide

Back

Record Series Info

Tue 22th Dec 2015 20:42

Watch Now

1 XXXXX XXXXXXXXXXX

XX XX XX XXXX XXXX-XXXX XXXXXXXXXX

XXXXXXXXXXX

AD HDS

Watching broadcasts

When this unit is connected to a network, it enables you to scroll back through the TV Guide for programmes from the last seven days on catch up (7 days back function), or display the list of services provided by broadcasters, such as BBC, ITV, and Channel 4 (Freeview Play Catch Up function).

Freeview Play will launch in October 2015. The following functions will be available for this unit:

• Freeview Play Side Bar (> below)

• TV Guide (> right)

• 7 days back function (> 26)

• Freeview Play Catch Up

(> 26)

About the 7 days back function and Freeview Play Catch Up function

• These functions will be made available through a firmware update. (As of October 2015) For details, please check the following website. http://panasonic.jp/support/global/cs/ (This site is in English only.)

• A network connection and related access settings are required. (> 16, 19)

• Minimum broadband speed of 2 Mbps required for catch up and on demand services.

Freeview Play Side Bar

You can use the Freeview Play Side Bar to select items.

1 While watching a programme

Press [OK].

TV Guide

1 While watching a programme

Press [OK] to display the Freeview Play Side Bar.

2 Select the “TV Guide”, then press [OK].

• You can directly access the TV Guide by pressing [GUIDE].

e.g.,

Page up/down

Press and hold [CH WX] or [3, 4].

To view a programme list for another day

Press the red button, then select the item.

To set a timer recording using the TV Guide (> 29)

3 Select the programme, then press [OK].

TV Guide

Back

Watch Now

Record

2 Select the item, then press [OK].

TV Guide (> right) Catch Up (Freeview Play Catch Up) (> 26)

To exit

Press [BACK/RETURN].

4 To watch the programme

Select “Watch Now”, then press [OK].

• To set a timer recording, edit timer recording settings or etc., select the desired item with [2, 1] and press [OK].

• Selection of channel is made easy by creating a Favourite of the channels you watch often. (> 70, Favourites Edit)

SQT1119

Watching broadcasts

Schedule

Jump Now

Channel

Back

TV Guide

Tue 22th Dec 2015 20:42

Monday 21thSunday 20th19th

1 XXXXXXXXXXX XXXXXXXXXXX

XXXXXXXXXXX XX XX XX XXXX XXXX-XXXX

XXXXXXXXXXX

1 XXXXXXXXXX

e.g.,

Freeview Play

7 days back function

1 While watching a programme

Press [OK] to display the Freeview Play Side Bar.

2 Select the “TV Guide”, then press [OK].

• You can directly access the TV Guide by pressing [GUIDE].

3 Press [2] to display the 7 days back function

screen.

4 Select the programme, then press [OK].

• You can select a broadcaster by pressing [CH WX].

• You can select a date by pressing [2, 1].

5 To watch the programme

Select “Watch Now”, then press [OK].

To return to the TV Guide screen for the current time

Press the green button.

SQT1119

Freeview Play Catch Up

While watching a programme Press [OK] to display the Freeview Play Side Bar.

2 Select the “Catch Up”, then press [OK].

• You can directly access Freeview Play

Catch Up by pressing

e.g.,

XXXXXXXXXXX

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

[].

Tue 22th Dec 2015 20:42

Back

3 Select the item, then press [OK].

Follow the on-screen instructions and make the subsequent settings.

To exit

Press [BACK/RETURN].

Screen icons

AD Audio Description

S Programmes with subtitles

SL Programmes with sign language

HD High definition programmes

SD Standard definition programmes

SD>HD HD simulcast programmes

Pay Pay-per-view programmes

Guidance Programmes with guidance

§1

§2

§1

The icon turns grey when the timer is

cancelled.

§2

This function can be used when this unit is

connected to a network, and it will be made available through a firmware update.

information

Series programmes

Programmes set for single timer recording

Programmes set for series timer recording

Catch Up Programmes

Recording TV programmes

Recording

Off (DR)

Conversion Mode Setting

RETURN

HDD Remain (DR)m

High Definition

Data Size

Large

Small

Large

Small

Standard Definition

Automatic Stop (Guide Link) at 8:45

REC1/OTR

Recording Time

Continuous recording

30 min

8:00 - 8:45

To set the recording time

1 Select “Recording Time” or “Continuous

• This unit can record two programmes being broadcasted at the same time.

1 Select the channel to record.

2 Press [REC MODE] and select the

conversion mode, then press [OK].

• This unit will record the programmes in DR mode once, and then automatically convert to the selected recording mode while this unit is in standby.

• Recording mode (> 9)

2 Press [OK].

To convert the recording mode after recording in DR mode

Refer to “File Conversion”. (> 44)

To confirm whether the conversion is completed

Refer to “To confirm whether the conversion is completed”. (> 44)

To cancel a conversion

Refer to “To cancel a “During standby” conversion”. (> 44)

Recording

recording” in step 4 (> left).

Recording Time:

You can set the length of recording time from 30 minutes to 4 hours.

• You can select the recording time with

[2, 1].

• The conversion mode set here is used

as an initial value for the next recording.

3 Press [REC ¥].

Recording will start.

4 Select “Automatic Stop”, then press

[OK].

• One touch recording (OTR)

Recording stops automatically when the programme ends.

• If a timer recording reaches its start time when all tuners are being used for recording, the recording (OTR) of one of the programmes terminates.

• Digital teletext will not be recorded.

• Following contents or media cannot be played back while recording.

- video file

- photo

- USB HDD (For data files, > 9) and USB memory

• Copying cannot be performed while recording.

• When “Automatic Standby after OTR” is set to “On” (> 79), this unit is turned to standby mode if this unit is not operated for approximately 5 minutes after completing “Automatic Stop” or “Recording Time”.

SQT1119

Recording

Recording programme displayed on the TV

Recording programme not displayed on the TV

Stop Recording

Yes

Recording of this programme is in progress. Stop this recording ?

RETURN

Stop Recording

2 recordings are in progress. Which recording would you like to stop ?

RETURN

Page

Select

Start Time Prog.Type:

Rec Time

Play RETURN

Channel Date Title Name

Delete

Drama

9:00 0h10min(DR

04/10 04/10 29/10 29/10

Channel Date Title Name

Recording TV programmes

Operation during Recording

To check the recording programme

Press [STATUS ].

e.g., While recording two programmes simultaneously

HDD

REC1/OTR AUTO

REC2

To stop recording

Press [STOP ∫].

When recording one programme:

If the following screen appears

Select “Yes”, then press [OK].

When recording two programmes:

Following screen appears

1 Select the programme, then press [OK]. 2 Select “Yes”, then press [OK].

To pause recording

After displaying the recording programme, press [PAUSE ;].

• Press again to restart recording. (A title is not split into separate titles.)

• Timer recording programme cannot be paused.

SQT1119

To record two programmes simultaneously

While recording, perform steps 1–4 on page 27.

• Channel can only be switched between the recording programmes.

Simultaneous rec and play

You can play the recording title from the beginning or the titles previously recorded to the HDD.

1 Press [VIDEO MENU].

“[” (red) is displayed on the recording programme.

2 Select the title, then press [OK].

Notes for Conversion

• The title before conversion (the title recorded in DR mode) will be deleted once the conversion is completed.

• Conversion will take about the same time as the recorded duration.

• When the HDD does not have enough remaining space, conversion will not start.

• Conversion is stopped when this unit is turned on. Conversion will start from the beginning again once the unit is switched to standby mode.

• When converted, audio content and subtitle will be converted with the same settings as at the start of recording.

Timer recording

Recording

To use TV Guide (> 25)

• You can enter up to 32 programmes within a month in advance. (Each daily or weekly programme is counted as one programme.)

• This unit can record two programmes being broadcasted at the same time.

Preparation

If you want to change the recording mode: Press [REC MODE] and select the recording mode, then press [OK].

1 Press [GUIDE].

TV Guide screen appears.

2 Select the programme, then press the

[REC ¥]. The timer icon “F” (red) is displayed.

• If on-screen instructions are displayed, follow them.

• This unit has several functions that enable timer recordings to be controlled by the signal sent from the broadcaster. (> 30) If the signal is not sent correctly, the recording may lack the beginning or the ending part of the programmes.

• Some broadcasters may not send programme information. When programme information is not displayed correctly, use manual timer recording. (> 31)

• If the unit cannot record the selected programme, the unit will record the repeat programme if it is available. However, this unit will not record the repeat programme, if any part of the selected programme is recorded.

Operation during Recording (> 28)

To edit the timer recording on the TV Guide screen

1 Select the programme to edit, then press the

[OK] or [STATUS ]. 2 Select “Edit Recording”, then press [OK]. 3 Go to step 3 on page 31, “Manually

programming timer recording”.

• Some options cannot be changed when “Guide Link” is effective. (> 30, 32)

To cancel a timer recording on the TV Guide screen

Select the programme to cancel, then press the [REC ¥].

If the screen for selecting single or series timer recording appears

Select “Single Timer Recording” or “Series Timer Recording” (> 30), then press [OK].

SQT1119

Recording

Timer recording

If “Overlapped Timer Recording” screen appears

Overlapped Timer Recording

Timer programme overlaps with others. Some part or all of programmes may not be recorded completely.

Keep Change

RETURN

You can eliminate the overlapping or may change with repeat event for the duplicated programme.

1 Select “Change”, then press [OK]. 2 Follow the on-screen instructions.

Overlapped Timer Recording

Please delete unnecessary programme to resolve.

New Programme

Existing Programmes

RETURN

THU 11/10 23:15 - 23:45 TWO Wales

THU

11/10

23:00 - 23:30 Holiday

THU

11/10

23:00 - 23:30 Animals

Episode 01/ 02

ConfirmDelete Repeat

Red: Delete Green: Record repeat programme Yellow: Exit (Overlapping is not resolved)

Various functions with Freeview

Guide Link

The recording’s start and stop times can be controlled by the broadcaster, e.g. delayed start.

• This is indicated by “Guide Link” in the Timer Recording screen (> 32).

• The “Guide Link” function may not work if you manually change the start time or the stop time over 10 minutes.

Series Timer Recording

You can record all the episodes of a series by setting just one timer recording.

Series Information WED 07/01/2015 19:40

Channel Schedule Contents

RETURN

Programme for which you set the timer

recording

Series Timer Recording programme

Repeat programme

High definition programme

TUE 06/01

2/6 Comedy-drama series about housemates who are actually awere...

23:00 - 0:00 WED 07/01

3/6 Comedy-drama series about housemates who are actually awere...

23:00 - 0:00

THU 08/01

3/6 Comedy-drama series about housemates who are actually awere...

23:00 - 0:00

• Titles recorded using “Series Timer Recording” are bundled and displayed as a “group” in the Video Menu screen (> 34).

• The series recording will be cancelled if there has been no episode of the series for 13 weeks.

SQT1119

Recording

SAT 14/03 19:45 - 20:00

Recommendation List

Channel Name

Schedule

Mode

Space

Timer Recording

30:30 DRHDD TUE 06/01/2015 8:05

New Timer Programme

Channel Name

Schedule

Mode

Space

Timer Recording

30:30 DRHDD TUE 06/01/2015 8:05

New Timer Programme

Programme Name

WED 07/01 8:00 - 9:00

Recording recommended programme

You can record a programme that the broadcaster recommends.

1 On the TV Guide screen:

Select “Recommended”, then press [OK].

2 Select the programme, then press [OK].

• If the screen for selecting single or series timer recording, or “Programme Selection” screen appears, refer to page 29.

3 Press [OK].

The timer icon (red) is displayed on the Recommendation List.

• To exit from the screen

Press [EXIT ].

To cancel the timer recording on the Recommendation List

1 Select the programme with the timer icon

(red), then press [OK].

2 Select “Yes”, then press [OK].

(The timer icon disappears.)

• “Recommended” cannot be selected if there is no recommended programme.

Manually programming timer recording

1 Press [PROG/CHECK].

2 Select “New Timer Programme”, then press

[OK].

3 Select the items and change the items.

(> 32, Timer recording options)

4 Press [OK].

The timer programme is stored.

To confirm and edit the timer programme

Refer to “To confirm and edit a timer programme”. (> 33)

Operation during Recording

Refer to “Operation during Recording”. (> 28)

SQT1119

Recording

e.g.,

Timer recording

Timer recording options

Select the items and change the settings.

Day/Date Stop

Start 8:00 9:00

RETURN

Date or Weekly?

HDD

30:24 DR

Mode

Conv. Subtitles

DR OFF

OFF

Timer Recording TUE 06/01/2015 8:05

Channel

1 WED 07/01

Title Name

Category

Channel

• You can select Category with the red button.

Day/Date

• You can select “Date” or “Weekly” by pressing the green button.

Auto Renewal Recording

• (Only daily/weekly/series timer recording) The unit will record the new programme over the old one. Press the yellow button. “Renew : ON” is displayed.

Start/Stop

• Press and hold [3, 4] to alter in 15-minute increments.

Mode/Conv.

Refer to step 2. (> 27)

Subtitles

You can choose whether or not to record the subtitle at conversion. (Only when item other than “OFF” is selected in “Conv.”)

Title Name

1 Select “Title Name”, then press [OK]. 2 Refer to “Entering text”. (> 84)

Timer recording from channel information

You can make timer recording of the current or next programme.

1 While watching a programme

Press [STATUS ].

9:00 - 11:00

Now

MPEG

Set timer

STTL TEXT

10:30

All DVB Channels

Change category

2 Display the channel information of a

programme to record.

• Switch the programme with [2, 1].

• Switch the channel with [3, 4].

3 Press the yellow button. 4 Go to step 3 on page 31, “Manually

programming timer recording”.

• Some options cannot be changed when “Guide Link” is effective. (

Notes on timer recording

• When the programme recorded in DR mode is converted, the audio content and subtitle language will be selected according to the following settings:

- “Multi Audio” and “Audio Description” of

“Preferred Multi Audio” (> 71)

- “Subtitles” of “Preferred Subtitles” (> 71)

• When you programme successive timer recordings to start, about last 1 minute of earlier programme will not be recorded.

• Timer recording will not start while:

- copying a title in high speed mode [with

finalising or creating Top Menu ([+RW])]

- copying a title in normal speed mode

- converting a title in “File Conversion” (Only

when “Now” is selected)

- copying HD Video (AVCHD) from USB device

or SD card

- copying video/photos/music files

-formatting

- finalising/creating Top Menu

• When “Pure Sound mode” is activated, timer recording does not start during playback of BD-Video, DVD-Video or music CD. (> 72)

30, Guide Link)

SQT1119

Recording

Channel Name

Schedule

Mode

Space

OK RETURN

Page Up

Page Down

Turn Timer Off

Total 3/32

Timer Recording

30:30 DRHDD TUE 06/01/2015 8:05

Delete

Info

Resolve overlap

New Timer Programme

MON 13/01

MON 13/01 10:00 - 11:50

11:00 - 11:45

11:30 - 1:00

8:00 - 10:45

MON 13/01

TUE 07/01

Guide

e.g.,

Guide

S/P

To confirm and edit a timer programme

1 Press [PROG/CHECK].

2 Select the programme, then perform the

operations.

To deactivate a timer programme

Press the red button.

• The timer icon “F” will change from red to

grey.

• Press the red button again to activate timer

recording standby. (The timer icon “F” will change to red.)

To delete a timer programme

Press [DELETE].

To resolve an overlap timer programme

Press the green button.

• The overlapped timer recording list will appear. (> 30)

To edit a timer programme

1 Press [OK]. 2 Change the timer recording options.

• Refer to “Timer recording options”. (> 32)

3 Press [OK].

To show programme information

Press [STATUS ].

• “No Data” is displayed on a series recording item if there will be no episode of the series for the next 8 days. We recommend you delete the “No Data” item after you confirm the last episode of the series is recorded.

Screen icons

Red: Timer recording standby is activated.

Grey: Timer recording standby is deactivated.

[

Currently recording programme

(Red)

A part or all of the programme will not be recorded since the programme is overlapping.

The HDD is full.

Copy-protected programme It was not recorded.

The recording of the programme was not completed because of some reason.

Auto Renewal Recording is set (> 32).

Guide Link (> 30)

Split Programme

Series Timer Recording (> 30)

Displayed if the recording can fit in the

remaining space

Daily or weekly timer programme is set.

• The timer remains active until the date

(Date)

indicated below .

It may not be possible to record because:

- there is not enough space left.

- the number of possible titles has reached its maximum. (> 8)

- programmes are deactivated, etc.

To exit the timer recording list

Press [EXIT ].

SQT1119

Playing back video

Playing titles on the HDD

“For recorded titles (> 9)” only

1 Press [FUNCTION MENU]. 2 Select “Contents on HDD”, then press

[OK].

e.g.,

Contents on HDD

Recorded programmes can be played.

Recorded Programmes

Video ( AVCHD )

Video ( MP4 / Xvid / MKV )


Music

3 To play recorded titles:

Select “Recorded Programmes”, then press [OK].

The Video Menu screen appears (> right).

To play HD Video (AVCHD): Select “Video ( AVCHD )”, then press [OK].

The AVCHD tab appears on the Video Menu screen (> right).

To play video files: Select “Video ( MP4 / Xvid / MKV )”, then press [OK].

The video list screen appears (> 36).

RETURN

Video Menu screen

e.g.,



Video Menu

HDD

All

Channel Date Title Name Titles

Play RETURN

AVCHD tab

1 Tab (> 35) 2 Programme type 3 AVCHD tab

• [USB_HDD] When connecting registered

USB HDD, “USB HDD” tab and registration number appears. Select “USB HDD” tab.

e.g.,

Video Menu

USB HDD

Grouped Titles

Time Remaining 45h54m (DR)

Start Time Prog.Type:

Time Remaining 45h54m (DR) Registration number 1

All

Not Viewed

Sport AVCHDMovieNot Viewed

Drama

Rec time

9:00 0h01m(DR) Movie

Page

Delete

Select Copy

Grouped Titles

Drama

Movie

Page Down

Sport

Page Up

AVCH D

4 Select the title, then press [OK].

SQT1119

Playing back video

Screen icons

[

(Red)

Currently recording programme

Protected title

Title was not recorded due to recording protection

Title cannot be played

(When data is damaged etc.)

Grouped titles

[

(Blue)

Title has not yet been played

Title is recorded using a different encoding system from that of the unit. Change the “TV System” (> 75).

Radio programme

&

3D contents

Recorded in 1080/50p contents

Recorded in 1080/60p contents

This icon is displayed with the following titles when “Child Lock” is set to “On”. (> 72)

- Title with Guidance information

- Title restricted by Child Lock List

• PIN is required to play. Title has been recorded in Series

timer recording. Title has been recorded in Series timer recording and has not yet been played. Titles cannot be copied to the disc in

high definition quality mode (DR, HG,

HX, HE, HL, HM) any more. Titles can be copied to the disc in

high definition quality mode (DR, HG,

HX, HE, HL, HM) once. Recording did not complete as the

timer recording has started.

Title cannot be played from DLNA client not compatible with DTCP-IP (> 60)

(> 71)

Tab

You can quickly find the recorded titles by selecting the tab.

To select the tab

Press [2, 1].

To change the displayed programme type tab

1 Select the programme type, then press the

green button.

2 Select the item, then press [OK].

Showing Information

Select the title, then press [STATUS ].

Showing grouped titles

1 Press [OPTION].

2 Select “Grouped Titles” or “All Titles”, then

press [OK].

Grouped Titles:

• Two or more titles recorded in the daily/weekly/series timer recording mode are bundled and displayed as one item.

All Titles

Playing back grouped titles

1 On the Grouped Titles screen:

Select the item marked with .

2 When playing all titles:

Press [PLAY/a1.3 1].

When playing the individual title:

Press [OK] and select the title, then press [OK].

SQT1119

Playing back video

Press OK to start playing from the selected chapter. Selected chapter can be edited via OPTION. Press RETURN to go back to previous menu.

Page 001/001

0:00.00

001

0:12.29

Play

SelectEdit Chapter Mark

Play

RETURN

Delete

Parent Folder

Videos \ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

HDD

Page 0001/0003

SelectParent Folder

Play

RETURN

Delete

Page Up

Page Down

DELETE

Play

08/02/2012 13:46

08/03/2011 11:46

08/03/2010 12:46

08/03/2009 10:46

Playing titles on the HDD

Editing the grouped titles

1 Select the title or the group, then press the

yellow button.

• A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel.

2 Press [OPTION].

3 Select the item, then press [OK].

Create Group:

Selected titles are bundled to form a group.

Release Grouping:

All the titles in the group are released.

Remove:

Selected titles are removed from the group.

Playback from Chapter View

1 Select the title, then press [OPTION].

2 Select “Chapter View”, then press [OK].

e.g., [HDD]

3 Select the chapter, then press [OK].

To edit the chapter in Chapter View

Refer to “Editing chapters”. (> 45)

Video list screen

e.g.,

Screen icons

Folder

Titles

Titles (4K)

Copy to SD card is not available

Move to the parent folder

• When the following conditions are met, videos are played back in 4K regardless of the image quality:

- When this unit is connected to a TV that is 4K and

24p/25p compatible

- When “HDMI Video Format” is set to “Automatic” (> 75)

- When “24p / 25p Conversion” is set to “Auto” (> 69)

This unit can not output 4K image when playing back in 3D.

SQT1119

Playing titles on the media

USB Device

RETURN

USB device is inserted.

View Photos

Play / Copy Video

Play / Copy Music

Copy Video ( AVCHD )

Copy New Photos

Menu screen

Selecting screen for each operation is displayed when the media is inserted, and you can access

“For data files (> 9)” only

1 Insert the media.

• AVCHD: If the menu screen is not displayed

Press [PLAY/a1.3 1].

the operation screen easily.

e.g., [USB]

Playing back video

2 When the Video Menu screen or menu

screen etc., appears:

Select the item or title, then press [OK].

• Repeat this step if necessary.

To play back the playlist created on other equipment

1 Press [FUNCTION MENU]. 2 Select “Disc” in “Media”, then press [OK]. 3 Select “Playlists”, then press [OK]. 4 Select the playlist, then press [OK].

• When the following conditions are met, videos are played back in 4K regardless of the image quality:

- When this unit is connected to a TV that is 4K and

24p/25p compatible

- When “HDMI Video Format” is set to “Automatic” (> 75)

- When “24p / 25p Conversion” is set to “Auto” (> 69)

This unit can not output 4K image when playing back in 3D.

• To enjoy BD-Video that supports Dolby Atmos or (> 76)

DTS:X

• Display items differ depending on what is recorded in each media.

If the menu screen is not displayed, display it by performing the following operation.

1 While stopped

Press [FUNCTION MENU]. 2 Select “Media”, then press [OK]. 3 Select the media, then press [OK].

Video list screen

e.g.,

Videos \ Video \

USB

Parent Folder

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

Play

RETURN

About screen icons (> 36)

08/02/2012 13:46

08/03/2011 11:46

08/03/2010 12:46

08/03/2009 10:46

Page 0001/0003

Select CopyParent Folder

Page Up

Page Down

Video Menu screen

e.g.,

Video Menu

BD-RE

All

All Titles

10h30m (DR)

Time Remaining

Channel Date Title Name

Dogs and Cats

29/10 Start Time 22:46 Rec time 0h10m(HM)

Birds

04/10

World news

04/10

Football

29/10

Play RETURN

Delete

Page 003/003

CopySelect

Page Down

Page Up

Showing Information

Select the title, then press [STATUS ].

Playback from Chapter View (> 36)

SQT1119

Playing back video

Video Menu ( AVCHD )

RETURN

Date Day

Time

Title Name

Rec time

0:30.41

Page 01/03

Page Up

Page Down

No.

05/01 5:00 Birds 06/01 9:30 World news 07/01 10:00 Football 07/01 11:30 House dog 08/01 2:00 Hunting 09/01 11:00 Shopping 09/01 10:00 Venus 10/01 3:45 Kitten 10/01 9:00 Moon

05/01

SUN MON TUE TUE WED THU THU FRI FRI

SUN 9:00 Dogs and Cats

Play

SD Card

001 002 003 004 005 006 007 008 009 010

Playing titles on the media

Video Menu ( AVCHD ) screen

[SD]

e.g.,

Showing Information

1 Select the title, then press [OPTION]. 2 Select “Information”, then press [OK].

Notes for BD-Live discs

[BD-V]

BD-Live allows you to enjoy more functions such as subtitles, exclusive images and online games.

Preparation

1 Perform network connection and settings.

(> 16, 19) 2 Insert a disc.

For the playback method, refer to the instructions for the disc.

Delete BD-Video data

If you no longer need BD-Live data recorded on the built-in HDD, you can delete data with the following operation.

1 Press [FUNCTION MENU]. 2 Select “BD-Video Data Management” in

“Setup”, then press [OK].

3 Select “Delete BD-Video data”, then press

[OK].

4 Select “Yes”, then press [OK]. 5 Select “Start”, then press [OK].

6 Press [OK].

SQT1119

• You can restrict Internet access when BD-Live functions are

used (> 72, BD-Live).

• When “Pure Sound mode” is set to “On”, this unit cannot

use BD-Live functions. (> 72)

Operation during play

Playing back video

Press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

• Press [PLAY/a1.3 1] to restart play.

• Discs continue to rotate while menus are displayed. Press

[STOP ∫] when you have finished playback to protect the unit’s motor, your TV screen, etc.

General operations

Status messages

Press [STATUS ] twice.

e.g.,

8:05:50 06/01/2015

Remain HDD

0:05.14 DR

0:30.00

Stop

Press [STOP ∫].

Resume play function

Press [PLAY/a1.3 1] to restart from the stopped position.

• Discs: Only previous stopped position is memorised. The

position may be cleared if the tray is opened or the unit is switched to standby mode.

Quick View

Press and hold [PLAY/a1.3 1].

• Press again to return to normal speed.

• Xvid, MKV, MP4 and MPEG2: Quick View is not effective.

• Quick View is not effective when playing back the DVD-RW disc.

• The speed increases up to 5 steps.

([+R] [+RW]: Up to 3 steps)

• Xvid, MKV, MP4 and MPEG2: Audio is not heard during all

levels search.

Pause

Press [PAUSE ;].

• Press [PLAY/a1.3 1] to restart play.

Slow-motion

While paused, press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

• Press [PLAY/a1.3 1] to restart play.

• The speed increases up to 5 steps.

• Xvid, MKV, MP4 and MPEG2: Slow-motion is not effective.

• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction

[SLOW/SEARCH 5] only.

Frame-by-frame

While paused, press [2](2;) or [1](;1).

• Each press shows the next frame.

• Press and hold to change in succession forward or backward.

• Press [PLAY/a1.3 1] to restart play.

• Xvid, MKV, MP4 and MPEG2: Frame-by-frame is not effective.

• [BD-V], AVCHD ([DVD-R] [SD]): Forward direction [1](;1) only.

Manual Skip

Skip forward 1 minute:

Press [MANUAL SKIP +60s].

Skip backward 10 seconds:

Press [MANUAL SKIP -10s].

• Xvid and MKV: Manual Skip is not effective.

SQT1119

Playing back video

Operation during play

Skipping the specified time

1 Press [TIME SLIP]. 2 Select the time with [3, 4].

• Press and hold [3, 4] to change the time by

10-minute.

3 Press [OK].

• Play skips the specified time.

• [BD-V] [DVD-V], Xvid, MKV, AVCHD, MP4 and MPEG2:

[TIME SLIP] is not effective.

To display menu

[BD-V] [DVD-V]

1 Press [OPTION].

2 Select “Playback Menu”, then press [OK].

3 Select “Top Menu”, “Pop-up Menu” or “Menu”,

then press [OK].

Skipping the title or chapter

Press [SKIP :] or [SKIP 9].

• [HDD] [USB_HDD] (For recorded titles, > 9): It will not skip the

title. But the title in the grouped titles will be skipped. (> 35)

To create Chapter Marks

[HDD] [USB_HDD] (For recorded titles, > 9) [BD-RE] [BD-R] [RAM]

During the playback or pause Press [CHAPTER].

To delete the Chapter Mark

[HDD] [USB_HDD] (For recorded titles, > 9) [BD-RE] [BD-R] [RAM]

1 While paused

Press [SKIP :] or [SKIP 9] and skip to the location you want to delete.

2 Press [CHAPTER]. 3 Select “Yes”, then press [OK].

Changing audio

Select the desired audio with “Multi Audio” in the Basic Operation menu (> 68).

Switching subtitles

[HDD] [USB_HDD] (For recorded titles, > 9) [BD-RE] [BD-R]

1 Press [STTL ].

2 Press [OK]. 3 Select “On” or “Off”, then press [OK].

• If you want to switch the subtitle language, select it in the Basic Operation menu (> 68).

[BD-V] [DVD-V], Xvid and MKV:

Display with “Subtitle Settings” in the Basic Operation menu (> 68).

Listening to the Audio Description

[HDD] [USB_HDD] (For recorded titles, > 9) [BD-RE] [BD-R]

1 Press [AD].

2 Select “Audio Description” and set to

“Automatic”.

3 Select “Volume”, then adjust the volume with

[2, 1].

• You can also set “Audio Description” active in the Setup menu. (> 71)

Aspect

You can switch the aspect ratio of the screen. (> 85)

SQT1119

Playing back video

3D video playback

Preparation

Connect 3D compatible TV to this unit. (> 14)

• Perform the necessary preparations for the TV.

Play back following the instructions displayed on the screen.

Preparatory 3D settings

3D BD-Video Playback

It is also possible to play back 3D discs in 2D (conventional video). (> 72)

3D Type

If 3D video cannot be played back in 3D, you may be able to play it in 3D by changing the setting. (> 75)

3D AVCHD Output

If 2D AVCHD video is recognised as 3D video and cannot be played back correctly, you may be able to play it by changing the setting. (> 75)

3D Playback Message

Hide the 3D viewing warning screen. (> 75)

3D settings during playback

Change this setting when the screen is not correctly displayed for 3D compatible programmes.

1 Press [OPTION]. 2 Select “Playback Settings” in “Playback

Menu”, then press [OK].

3 Select “3D Settings”, then press [OK].

4 Select the item, then press [OK].

Signal Format

- Original: Keep original picture format.

- Side by side: 3D picture format comprising of left and right screens.

- 2D to 3D: Converts 2D pictures to 3D effect while playing.

3D Picture Mode

-Normal

-Soft

• This function cannot be enabled when “Signal Format” is set to “2D to 3D”.

- Manual: 3D effects set manually (> below)

Manual Settings

(To change the setting, set “3D Picture Mode” to “Manual”.)

Distance

Set the amount of depth perception.

Screen Type

Selects how the screen appears during 3D playback (flat or round).

Frame Width

Set the amount of feathering at the edge of screen.

Frame Colour

Set the colour of feathering at the edge of screen.

Graphic Display Level

Adjust the 3D position for the playback menu or message screen etc.

• Please refrain from viewing 3D images if you do not feel well or are experiencing visual fatigue. In the event that you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.

• Depending on the connected TV, the video being played back might switch to 2D video due to changes in resolution etc. Check the 3D setting on the TV.

• 3D video might not output the way it is set in “HDMI Video Format” (> 75) and “24p Output” (> 76).

• It may display as Side-by-Side (2 screen structure) when playback of the 3D video is started. Select “Side by side” in “Signal Format”. (> left)

• This unit only guarantees the playback of the Frame Sequential and the Side-by-Side (Half) programme types.

SQT1119

Editing video

Editing vi deo

Set up Protection

Cancel Protection

Partial Delete

Divide Title

File Conversion

Enter Title Name

Delete Title

Playback

Information

Chapter View

Create Group

Release Grouping

Edit

All Titles

Deleting/Editing titles

Once deleted, divided or partially deleted, content cannot be restored to its original state. Make certain before proceeding.

“For recorded titles (> 9)” only

• If the disc is protected, release the protection. (> 82, Disc Protection)

• PIN is required to edit the titles with in some functions.

(> 35)

Deleting recorded titles

1 On the Video Menu screen:

Select the title.

Video Menu

HDD

All

Play RETURN

Grouped Titles

Time Remaining 45h54m (DR)

Channel Date Title Name Titles

Drama Sport AVCHDMovieNot Viewed

04/10 04/10 29/10 29/10

Start Time

9:00 0h01m (DR)

Prog.Type:

Movie

Rec Time

Page

Delete

Select Copy

Page Up

Page Down

Editing recorded titles

1 On the Video Menu screen:Select the title.

• Multiple selection (> left)

2 Press [OPTION]. 3 Select the item, then press [OK].

e.g.,

Entering title name

Select “Enter Title Name” in “Edit”, then press [OK].

2 Refer to “Entering text”. (> 84)

2 Press [DELETE]. 3 Select “Delete”, then press [OK].

Multiple selection

Select the title, then press the yellow button.

A check mark

• Press the yellow button again to cancel.

Deleting during play

1 Press [DELETE] while playing.

2 Select “Delete”, then press [OK].

• Available disc space after deleting:

- [HDD] [USB_HDD] [BD-RE] [RAM]

The space deleted becomes available for recording.

- [BD-R] [DVD-R] [+R]

Available space does not increase even after the contents are deleted.

- [DVD-RW] [+RW]

Available recording space increases only when the last recorded title is deleted.

SQT1119

is displayed. Repeat this step.

Editing video

Setting protection

[HDD] [USB_HDD] [BD-RE] [BD-R] [RAM] [+R] [+RW] Protection setting prevents the title from

accidental deletion.

1 Select “Set up Protection” or “Cancel

Protection” in “Edit”, then press [OK].

2 Select “Yes”, then press [OK].

appears when setting the protection.

Partial deleting

[HDD] [USB_HDD] [BD-RE] [BD-R] [RAM]

Select “Partial Delete” in “Edit”, then press [OK].

Press [OK] at the start point and end point to delete.

• You can find the desired point by using play, search, etc. (> 39)

3 Select “Continue”, then press [OK].

• Select “Next”, then press [OK] to delete other sections. Up to 20 sections can be set. (> go to step 2)

4 Select “Delete”, then press [OK].

5 Press [BACK/RETURN ].

• Chapter Mark is generated in the scene that was partially deleted.

Dividing title

[HDD] [USB_HDD] [BD-RE] [BD-R] [RAM]

1 Select “Divide Title” in “Edit”, then press [OK].

2 Press [OK] at the point to divide the title.

• You can find the desired point by using play, search, etc. (> 39)

3 Select “Continue”, then press [OK].

4 Select “Divide”, then press [OK].

To confirm the division point

After performing step 2. Select “Preview”, then press [OK].

• The unit plays 10 seconds before and after the division point.

To change the division point

After performing step 2. Restart play and select “Divide”, then press [OK] at the division point.

• [HDD] [USB_HDD] Divided titles will become a group of titles.

SQT1119

Editing video

File Conversion

Convert the selected title by changing its recording mode. Please select recording mode and other options, then press OK.

Subtitles

Off

Audio Description

Off

Recording Mode

HL -- Longer Play

Timing

During standby

RETURN

Deleting/Editing titles

File Conversion

[HDD] [USB_HDD] File Conversion is a function to convert the

recording mode of the title in DR mode and AVCHD contents. The size of the converted title will be small regularly. It will take about the same time as the recorded duration.

1 Select “File Conversion” in “Edit”, then press

[OK].

e.g.,

2 Set the conversion options, then press [OK].

Recording Mode (> 9):

• [USB_HDD] You cannot select XP, SP, LP and

EP mode.

Subtitles:

•Automatic

Subtitles will be recorded if they are included in the title.

•Off

Subtitle will not be recorded.

Audio Description:

•Automatic

Audio Description will be recorded if they are included in the title, and will not be recorded if they are not included.

•Off

Audio Description will not be recorded.

3 Select the item, then press [OK].

Convert & Delete:

The original title will be deleted to save HDD capacity after conversion.

Convert Only:

The original title remains after conversion.

• When converting to HG, HX, HE, HL or HM mode, if the selected title is indicated with

or , you cannot select “Convert

Only”. (> 35)

4 “Now” conversion:

Select “Start”, then press [OK].

“During standby” conversion:

Press [OK].

• Conversion will be performed after the unit is switched to standby mode.

“COPY” or “CONV” on the front panel display remains lighted during conversion.

To cancel a “Now” conversion

Press and hold [BACK/RETURN ] for more than 3 seconds.

To confirm whether the conversion is completed

Press [VIDEO MENU].

e.g.,

Channel Date Title Name Titles

04/10 04/10 29/10 29/10 Start Time Prog.Type:

9:00 Movie

Rec time

1h00m(DR HL)

When “±± > ±± (Recording mode for conversion)” is displayed, the conversion has not finished.

Timing:

•Now

Conversion begins immediately after step 4.

• Timer recording will not be performed during conversion.

• During standby

Conversion will be performed after the unit is switched to standby mode.

SQT1119

To cancel a “During standby” conversion

After performing steps 1–2 (> 42, Editing recorded titles) 1 Select “File Conversion” in “Edit”, then press

[OK].

2 Select “Yes”, then press [OK].

Editing video

e.g.,

Parent Folder

Videos \ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

HDD

Page 0001/0003

Select CopyParent Folder

Play

RETURN

Delete

Page Up

Page Down

DELETE

Play

08/02/2012 13:46

08/03/2011 11:46

08/03/2010 12:46

08/03/2009 10:46

• To use “File Conversion”, the HDD needs enough storage capacity.

• File Conversion is stopped when this unit is turned on during performing “During standby” conversion. Conversion will start from the beginning again once the unit is switched to standby mode.

• When converted, the audio content and subtitle language will be selected according to the following settings:

- “Multi Audio” of “Preferred Multi Audio” (> 71)

- “Subtitles” of “Preferred Subtitles” (> 71)

• When converted, 3D information may not be retained.

Editing chapters

[HDD] [USB_HDD] [BD-RE] [BD-R] [RAM]

1 Select “Chapter View”, then press [OK].

2 Perform the editing operations.

Edit Chapter Mark:

Select the point where you want to start a new chapter while viewing the title.

1 Press the green button. 2 Press [OK] at the point you want to divide.

• Repeat this step.

3 Press [BACK/RETURN ] to go to

Chapter View screen.

To delete the chapter:

1 Select the chapter, then press [DELETE].

• Multiple selection (> 42)

2 Select “Delete”, then press [OK].

Deleting video files on the HDD

[HDD]

1 On the video list screen:

Select the file or folder.

• Multiple selection (> 42)

2 Press [DELETE]. 3 Select “Yes”, then press [OK].

• All files in the folder will be deleted.

To combine chapters (Delete chapter mark):

1 Select the chapter, then press [OPTION]. 2 Select “Combine Chapters”, then press [OK]. 3 Select “Combine”, then press [OK].

The selected chapter is combined to the next chapter.

Playback from Chapter View

Refer to “Playback from Chapter View”. (> 36)

• The maximum number of chapters: (Depends on the state of recording.)

[HDD] [USB_HDD ]: Approx. 1000 per title [BD-RE] [BD-R] [RAM]: Approx. 1000 per disc

• [HDD] [USB_HDD] When the title has the maximum number of chapters, you cannot perform the Resume play function (> 39) with the title.

SQT1119

Copying video

§1, 2, 3

§1, 3

Copying titles

§1

“For recorded titles (> 9)” only

§2

The title in the source media will be deleted.

§3

The recording mode cannot be changed.

1 Insert or connect the media.

2 Press [FUNCTION MENU].

3 Select “Recorded Programmes” or

“Video ( AVCHD )” in “Contents on HDD”, then press [OK].

4 Select the title.

• Multiple selection

Select the title, then press the yellow button.

A check mark

step.

• Press the yellow button again to cancel.

is displayed. Repeat this

To register the external HDD (USB HDD) (> 66)

To copy HD Video (AVCHD) to the DVD-R in High Definition (> 53)

To copy video files (> 53)

Release the disc protection (> 82)

• If you wish to choose the audio language, select the language from “Multi Audio” of “Preferred Multi Audio” before copying (> 71).

• Simultaneous operation is not possible while copying with finalising or creating Top Menu.

• You cannot copy the following titles.

- [USB_HDD] Protected titles

- [USB_HDD] HD Video (AVCHD)

5 Press the blue button.

If the copy direction selection screen is displayed:

Select the copying direction, then press [OK].

6 Select “Yes”, then press [OK].

• If you select “No”, you can change the selection. (> 47, To change the selection)

7 Set other settings, then press [OK].

(> 47, Setting the copying options)

8 Select “Yes”, then press [OK].

SQT1119

Copying video

Remaining space

The order of copying

Standby status can be changed if required. Please press OK to start copying.

RETURN

Automatic Standby after Copy

Off

To change the selection

1 Select “No”, then press [OK] in step 6 (> 46).

e.g., [HDD] > [BD-RE]

Copy

HDD

All

OK RETURN

Grouped Titles BD-RE Remain

04/10 04/10 29/10 29/10 Start Time

9:00 0h01m(DR)

Prog.Type:

Movie

Drama

Rec time

Page

Select Copy

Channel Date Title Name Titles

2 To change the selected titles:

Select the title, then press the yellow button. Repeat this step to select titles.

To change the picture quality:

[HDD] > [BD-RE] [BD-R] [RAM] [DVD-R] [DVD-R W]

[+R] [+RW]

1 Select the title, then press [OPTION]. 2 Select “Conversion Select”, then press

[OK].

3 Select the picture quality, then press [OK].

Repeat steps if necessary.

3 Press the blue button.

4 Go to step 6. (> 46)

About screen icons on the Video Menu

Refer to “Screen icons”. (> 35)

Setting the copying options

1 Select the item in step 7 (> 46).

e.g.,

90%

Sport

AVCHDMovieNot Viewed

2 Press [2, 1] to change the settings.

Page Up

Page Down

• Automatic Standby after Copy On:

This unit is turned to standby mode when it is not operated for approximately 5 minutes after completing copy.

• Subtitles Automatic:

Subtitles will be recorded if they are included in the title.

• If you wish to choose the subtitle, select the language

from “Subtitles” of “Preferred Subtitles” before copying (> 71).

• Audio Description Automatic:

Audio Description will be recorded if they are included in the title, and will not be recorded if they are not included.

•Finalise On:

[DVD-R] [DVD-RW] [+R] The discs become play-only and you can also play them on other DVD equipment.

• Create Top Menu On:

[+RW] You can play the disc on other DVD equipment.

• You can perform “Finalise” or “Create Top Menu” later. (> 83)

SQT1119

Copying video

Copy

Cancel All

Copy Direction

Copy Mode

Create List

Start Copying

HDD

High Speed

RETURN

Press OK to start copying.

Disc

Copy

HDD

Disc

Source

Destination

Cancel All

Copy Mode

Create List

Start Copying

High Speed

Select the copy direction.

RETURN

Information of the copy destination

- BD-RE

- Copy restricted titles can be copied on to disc

Copy Direction

HDD Disc

Copying titles

Copying from media other than HDD with Video Menu

[BD-RE] [BD-R] [RAM] [+RW] > [HDD]

1 Insert a disc.

The menu screen appears. (> 37)

2 Select “Play Video”, then press [OK]. 3 Select the title.

• Multiple selection (> 46)

4 Press the blue button.

• To change the detailed settings for copy, refer to “Copying titles with copying list”. (> right)

5 Select “Start Copying”, then press [OK]. 6 Select “Yes”, then press [OK].

Copying titles with copying list

[HDD] ,.

[HDD] >

[USB_HDD]

[BD-RE] [BD-R] [RAM] [+RW]

[USB_HDD]

[BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] [+R] [+RW]

[BD-RE] [BD-R]

> [HDD]

1 [HDD] ,. [USB_HDD]:

1 Press [FUNCTION MENU]. 2 Select “Copy Menu” in “Copy Video”, then

press [OK].

Except “[HDD] ,. [USB_HDD]”: 1 Insert a disc.

The menu screen appears. (> 37)

2 Select “Copy”, then press [OK].

2 Set the copy direction.

1 Select “Copy Direction”, then press

[1] (right).

2 Set “Source” and “Destination”. 3Press [2].

SQT1119

3 Set the recording mode (> 9).

1 Select “Copy Mode”, then press

[1] (right).

2 Set “Recording Mode”. 3Press [2].

Copying video

4 Register titles for copy.

1 Select “Create List”, then press

[1] (right).

2 Select “New item”, then press [OK]. 3 Select the title, then press the yellow

button. Repeat this step to select titles.

e.g., [HDD]

Create List Grouped Titles

HDD

Time Rec time

Size 1360 MB

RETURN

• To change the appearance of the list or show information of the title

1 Press [OPTION]. 2 Select the item, then press [OK].

• The titles will be copied in the order of the copying list. If you want to specify the order, edit the copying list after the titles are selected. (> 50, Editing the copying list)

4 Press [OK]. 5Press [2].

Data size of each title

Destination Capacity:

No. Size

New item (Total=0)

Page 01/01

9:00

0:30 (DR)

Size:

3200 MB

0 MB

Title

Date Channel

01/01 01/01 02/01 03/01 03/01 04/01 05/01 05/01 06/01 06/01

( 0% )

Time

9:00

15:00

9:30 10:00 18:30

2:00 11:0 0 15:00

3:45

9:00

Page

Select

Data size recorded to the copy destination

001/003

Title Name

Page Up

Page Down

5 Make other settings.

1 Select “Other Settings”, then press

[1] (right).

e.g.,

Copy

Cancel All

Copy Direction

HDD Disc

Copy Mode

Create List

Titles

1 1 1 1 1 1 1 1 1 1

Other Settings

Start Copying

RETURN

• This screen does not appear depending on the copying mode. (> go to step 6)

Subtitles

Finalise

Audio Description

Press OK to change the setting.

Off

2 Select the copying option, then press

[OK]. (> 47, Setting the copying options)

3 Select the item, then press [OK]. 4Press [2].

6 Select “Start Copying”, then press [OK]. 7 Select “Yes”, then press [OK].

To cancel all registered copying settings and lists

After performing step 1 1 Select “Cancel All”, then press [OK]. 2 Select “Yes”, then press [OK].

• Titles in the grouped titles and other titles cannot be registered simultaneously.

• [RAM] Radio programme cannot copy.

SQT1119

Copying video

Copying titles

Editing the copying list

1 Select the title after step 4-4 (> 49).

Copy

Cancel All

Copy Direction

HDD Disc

Copy Mode

Create List

Other Settings

Start Copying

RETURN

Create copy list.

Destination Capacity:

Size:

No. Size

0:30 DR (25%)

New item (Total=2)

Page 01/01

2:00

( 50% )

1:00

Title

2 Press [OPTION]. 3 Select the item, then press [OK].

Delete All:

All titles that you registered to copy are deleted.

Add:

Add new items to the copying list. 1 Select the titles with the yellow button. 2 Press [OK].

Delete:

Selected titles are deleted.

• Select the title, then press the yellow button before step 2. Repeat this step to select titles.

Screen icons

Titles that cannot be copied in high speed mode

Titles that cannot be copied

Title contains photos

• Photos cannot be copied.

(NTSC)

(PAL)

Title recorded using a different encoding system from that of the unit.

• Titles displaying these marks cannot be selected.

About other screen icons (> 35)

Move:

Change the order of items on the copying list.

• Select the title to move before step 2. Select the destination, then press [OK].

SQT1119

Copying video

Notes for copying

High speed copy

High Speed Copying is the process of copying a title to disc in high speed while maintaining the original record mode and recording length.

• Converting the recording mode will result in a normal speed copy.

• The following recording mode and media combinations support high speed copying.

Original title’s

recording mode

DR HG HX HE

XP SP LP EP FR

DVD-RAM only

• High speed copy is possible only when there is enough recording capacity on the destination media.

• It is impossible to copy at high speed in the following cases:

- [HDD] > [BD-RE] [BD-R] :

• Copying radio programmes

- [HDD] > [DVD-R] [DVD-RW] [+R] [+RW] :

• Titles that contain many deleted segments

- [HDD] > [+R] [+RW] :

• Titles recorded in “EP” mode and “FR (recordings 5 hours or longer)” mode

• Titles recorded in 16:9 aspect

Media

Normal speed copy

• [DVD-R] [DVD-RW] [+R] [+RW] You cannot copy to

the disc in the following cases.

- When there is not enough free space on the HDD.

- When the number of titles recorded on the disc will exceed its maximum limit if copying is performed. (> 8)

• Copying will continue up to the point cancelled.

- [DVD-R] [DVD-RW] [+R] [+RW] If copy is cancelled during the step while temporarily copying to the HDD, then nothing will be copied.

- [BD-R] [DVD-R] [DVD-RW] [+R] [+RW] Even if the title was not copied to the disc, the amount of remaining writable disc space becomes less.

• When copying title recorded in 1080/50p or 1080/60p, it cannot copy in progressive.

Copying 3D programmes

• It may not display correctly in 3D when a copied 3D programme is played back. In such a case, change the “Signal Format” during the playback of the title. (> 41)

• 3D information may not be copied.

• If you want to copy 3D AVCHD video to the disc in 3D, use BD-R or BD-RE and copying speed must be high speed.

About maintaining the chapter mark

• The position of the chapter might shift slightly.

• Maximum number of chapters on the disc is limited.

- [BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] :

Approx. 1000

- [+R] [+RW] : Approx. 254

(Depends on the state of recording.)

About copy-restricted programmes

The recorded titles indicated with “ ” icon can be

copied to the disc in high definition quality mode (Original Picture Quality, HG, HX, HE, HL or HM) once.

After completing copy, the titles on the HDD cannot be copied to the disc anymore in high definition

quality mode and the icon is changed to “ ”.

The titles copied to the discs cannot be copied again.

SQT1119

Copying video

01/02

01 Mouse

Cattle

Copying titles

Copying a finalised disc

[DVD-V] > [HDD] While playing a disc, the content being played is copied to the HDD according to the set time.

1 Press [FUNCTION MENU]. 2 Select “Copy Menu” in “Copy Video”, then

press [OK].

3 Set “Copy Mode”.

1 Select “Copy Mode”, then press

[1] (right).

2 Press [OK], then select the recording

mode (XP/SP/LP/EP).

3Press [2].

4 Set “Copy Time”.

1 Select “Copy Time”, then press

[1] (right).

2 Select “Time Setting”, then press [OK]. 3 Select “On” or “Off”.

On:

Set the copying time.

• Set a few minutes longer than the source title, in order to include the operation time before play begins.

Off:

Copying all the content on the disc.

4Press [2].

5 Select “Start Copying”, then press [OK]. 6 Select “Yes”, then press [OK].

• When the Top Menu is displayed: Select the title you want to start copying, then press [OK].

• Operations and on-screen displays during copy are also recorded.

Copying Title Playing

[HDD] > [BD-RE] [BD-R] [ RAM] [DVD-R] [DVD-RW] [+R]

[+RW]

1 Play back the title to copy.

• Multiple audio, subtitle displayed during playback will be copied.

- Select the multiple audio with “Multi

Audio” in the Basic Operation menu (> 68)

- Select the subtitles with “Subtitle

Language” in the Basic Operation menu. (> 68)

2 Press [OPTION]. 3 Select “Copy Title Playing”, then press [OK].

4 Select “Start”, then press [OK].

Copying will start from the beginning of the title regardless of the playing position.

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• You can record to or play HDD while high speed copying. Press [OK] to exit the screen display.

• Press [STATUS ] to confirm the current progress.

• Speed and recording mode when copying

The high speed copy is performed if available. Refer to “Notes for copying”. (> 51)

After the last title on the disc has finished playing the Top Menu is recorded until the set time is reached.

To stop copying

Press [STOP ∫].

• If stopped partway, copying will be up to that point.

SQT1119

• [BD-RE] [BD-R] When copying the titles in DR, HG, HX, HE,

HL or HM modes and the copy destination does not have enough space, one from HG, HX, HE, HL or HM modes will be selected to match the available space.

• [RAM] [DVD-R] [DVD-RW] [+R] [+RW] When copying the titles

in DR, HG, HX, HE, HL or HM modes, copy will be performed at normal speed in FR mode.

• When copying the titles in XP, SP, LP, EP or FR modes and the copy destination does not have enough space, copy will be performed at normal speed in FR mode.

Copying video

e.g.,

USB

Parent Folder

Videos \ Video \

Folder 01

Folder 02

video01.mpeg

video02.mpeg

video03.mpeg

video04.mpeg

Page 0001/0003

Select CopyParent Folder

Play

RETURN

Page Up

Page Down

Play

08/02/2012 13:46

08/03/2011 11:46

08/03/2010 12:46

08/03/2009 10:46

Copying HD Video (AVCHD) to the DVD-R in High Definition

You can copy HD Video (AVCHD) recorded on HDD to a DVD-R in High Definition quality.

[HDD] > [DVD-R]

1 Insert an unformatted DVD-R or DVD-R DL.

The menu screen appears. (> 37)

2 Select “Copy Video ( AVCHD ) to Disc”, then

press [OK].

3 Go to step 4 on page 49, “Copying titles with

copying list”.

To copy HD Video (AVCHD) from other equipment

Refer to “Copying the HD Video (AVCHD)”. (> 65)

• When a disc is named, formatting will be automatically performed. Therefore, do not name a disc before this operation. (> 82, Disc Name)

• Discs will be automatically finalised after copy.

• The following HD Videos (AVCHD) cannot be copied to the disc in high definition.

- Exceeding 18 Mbps

- 1080/50p or 1080/60p

- Without the AVCHD information (video recorded with

certain non-Panasonic equipment, video copied to the HDD after copying it to BD-R or BD-RE once, etc.)

• 3D video may not be copied correctly.

Copying video files

[HDD] ,. [SD]

[USB] > [HDD]

On the video list screen:Select the file or folder.

• Multiple selection (> 46)

2 Press the blue button. 3 Select “Yes”, then press [OK].

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• All files in the folder will be copied.

• The names of folders/files cannot be changed after they are copied to the HDD. We recommend that you create a folder with an easily identifiable name on a PC or other device first and use the folder to perform copying.

• Up to 1000 files can be copied at once.

• Xvid and MKV: Copying from the HDD to the SD card is not possible.

• While copying, no other operations can be performed. Timer recordings will not proceed.

SQT1119

Photo and Music

§2 §3§1

HDD

Page

SelectSlideshow

Calendar

03/01/2012

29/10/2012

25/02/2013

15/03/2013

0002/0002

Copy

OK RETURN

Photo Menu

All

Page Up

Page Down

e.g., [HDD]

Ta b

Playing photos

§1

“For data files (> 9)” only (JPEG, MPO)

§2

[BD-RE] only

§3

[RAM] [DVD-R] [+R] only

1 [HDD]

1 Press [FUNCTION MENU]. 2 Select “Photo” in “Contents on HDD”,

then press [OK].

Except [HDD] 1 Insert or connect the media.

The menu screen appears. (> 37)

2 Select “View Photos”, then press

[OK].

2 Select the folder, then press [OK].

3 Select the photo, then press [OK].

•Press [2, 1] to display the previous or

next photo.

Photo Menu screen

Photos imported to the HDD (> 57) are managed using folders. Folders and photos can be edited by pressing [OPTION]. (> 56)

• To select the tab

Press [2, 1].

• To start Slideshow

Refer to “Slideshow settings”. (> 55)

• [HDD] To display or exit the Calendar screen

Press [PAUSE ;].

Screen icons

• When the following conditions are met, photos are played back in 4K regardless of the image quality:

- When this unit is connected to a TV that is 4K and 30p

compatible

- When “HDMI Video Format” is set to “Automatic” (> 75)

This unit can not output 4K image when playing back in 3D.

SQT1119

(Tab)

3D photos (MPO)

• Select from this tab to play back in 3D.

Photo protected

New photo which is not viewed

Photo and Music

Slideshow

RETURN

Start Slideshow

Interval

Transition Effect

Repeat Play

Normal

Fade

Music Selection

No background music

Background Music

No List

Random BGM

Off

Photo play option

1 While displaying a photo:

Press [OPTION].

2 Select the item, then press [OK].

Graphic Display Level

You can change the 3D position of the screen display, etc., during the 3D photo playback.

Photo Menu

• Start Slideshow

You can start a slideshow.

• Rotate RIGHT/Rotate LEFT

• The information of the rotated photos will not be stored depending on the media.

• This function is not available during the 3D photo playback.

• Information

Information (shooting date etc.) is shown.

• Wallpaper

A photo being played back is registered as wallpaper on the FUNCTION MENU screen. (> 21)

Slideshow settings

1 On the Photo Menu screen:

Press the green button.

2 Select the item, then press [OK].

Start Slideshow

Interval

Set up the time until the next photo is to display.

Transition Effect

Effect for the next photo to display can be set.

Repeat Play

Music Selection

Select background music on (either from HDD or USB) or off.

Background Music

Select background music from HDD or USB (Folder).

Random BGM

Play back the BGM (Background Music) in random order.

This function is not available during the 3D photo playback.

To pause the Slideshow

Press [PAUSE ;].

• Press [PAUSE ;] again to restart.

To stop the Slideshow

Press [BACK/RETURN ].

SQT1119

Photo and Music

§1 §2

Editing photos

§1

[BD-RE] only

§2

[RAM] only

1 On the Photo Menu screen:

To edit the folder:

Select the folder.

To edit the photo:

1 Select the folder, then press [OK].

2 Select the photo to edit.

• To select multiple folders or photos

Press the yellow button when selecting the folder or photo.

A check mark

step.

• Press the yellow button again to cancel.

2 Press [OPTION].

• Selectable items will change depending on the media and the type of file.

is displayed. Repeat this

3 Select the item, then press [OK].

Enter Folder Name

Refer to “Entering text”. (> 84)

Combine Folders

[HDD]

Delete Folder

Move Photos

[HDD]

Select “Move to new folder” or “Move to another folder”, then press [OK].

• If “Move to another folder” is selected, set a destination folder.

Delete Photos

Set up Protection

[BD-RE] [RAM] [SD]

appears.

• Even if the protection is set, the photo may be deleted by another unit.

SQT1119

Cancel Protection

[BD-RE] [RAM] [SD]

Copying photos

§2 §3§1

Yes No

Start copying ?

Copy New Photos

RETURN

HDD

USB

Photo and Music

Copying automatically

§1

“For data files (> 9)” only (JPEG, MPO)

§2

[BD-RE] only

§3

[RAM] [DVD-R] [+R] only

• The name of the copied photos will be changed.

Selecting and copying the photos

[HDD] > [BD-RE] [RAM] [SD]

[BD-RE] [RAM] [DVD-R] [+R] [CD]

> [HDD] [SD]

[USB_HDD] [USB] [SD] > [HDD] [BD-RE] [RAM]

1 On the Photo Menu screen:

To copy the folder:

Select the folder, then press the blue button.

To copy the photo: 1 Select the folder, then press [OK].

2 Select the photos to copy, then press the

blue button.

• To select multiple folders or photos

Press the yellow button when selecting the folder or photo.

A check mark is displayed. Repeat this

step.

• Press the yellow button again to cancel.

If the copy destination selection screen is displayed:

Select the copying destination, then press [OK].

2 Select “Yes”, then press [OK].

Copying starts.

[USB_HDD] [BD-RE] [RAM] [DVD-R] [+R] [CD] [USB] [SD]

> [HDD]

Newly added photos will automatically be copied to the HDD.

1 Insert the media.

The menu screen appears. (> 37)

2 Select “Copy New Photos”, then press [OK].

e.g., [USB]

3 Select “Yes”, then press [OK].

Copying starts.

4 Once the copy is completed, select “Yes” or

“No”, then press [OK].

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

• Photos without shooting date will be categorised using the creation date.

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

SQT1119

Photo and Music

§1

§2

Music Menu

No.

Track Name Play Time

Track List

01 02 03 04 05

3.43

0.02

Track 1

e.g.,

Playing music

§1

“For data files (> 9)” only

§2

[DVD-R] [+R] only

Playing music CD (CD-DA)

[CD] (CD-DA)

Insert the disc. Playback will automatically start.

Screen icons

Folder

Music

Move to the parent folder

Playing music file on the HDD

[HDD]

1 Press [FUNCTION MENU]. 2 Select “Music” in “Contents on HDD”, then

press [OK]. The music list screen appears.

3 Go to step 3 (> left), “Playing music file on

the media”.

To play other music (track)

Select the item, then press [OK].

Playing music file on the media

[USB_HDD] [DVD-R] [+R] [CD] [USB]

1 Insert or connect the media.

The menu screen appears. (> 37)

2 Select “Play / Copy Music”, then press [OK].

The music list screen appears.

USB

Music \ Music \

Parent Folder

Folder 01

Folder 02

music01.mp3

music02.mp3

music03.mp3

music04.mp3

Play RETURN

Parent Folder

Page 0001/0003

Select Copy

3 Select the item, then press [OK].

• Repeat this step if necessary. Playback will start.

• The track/artist/album name will be displayed if the information is contained in music file.

SQT1119

Operations during music play

Stop

Press [STOP ∫].

Pause

Press [PAUSE ;].

• Press [PLAY/a1.3 1] to restart play.

Press [SLOW/SEARCH 6] or [SLOW/SEARCH 5].

• Press [PLAY/a1.3 1] to restart play.

Skip

Page Up

Page Down

Press [SKIP :] or [SKIP 9].

Repeat Play/Random

Refer to “Repeat Play” or “Random” in Basic Operation menu (> 68).

Sound Effects

Refer to “Sound Effects” in Sound Effect Settings/Sound Settings menu (> 69).

To play music continuously even if the Power off link works

Refer to “Playing music continuously even after turning off power to the TV”. (> 67)

Copying/Deleting music

e.g.,

Parent Folder

Music \ Music \

Folder 01

Folder 02

music01.mp3

music02.mp3

music03.mp3

music04.mp3

Page 0001/0003

Select Copy

Play RETURN

Parent Folder

USB

Page Up

Page Down

§1

“For data files (> 9)” only

§2

[DVD-R] [+R] only

Copying

[USB_HDD] [DVD-R] [+R] [CD]

§3

Except [CD] (CD-DA)

1 On the music list screen:

Select the file or folder.

2 Press the blue button. 3 Select “Yes”, then press [OK].

§2

§3

[USB] > [HDD]

Photo and Music

Deleting

[HDD]

1 On the music list screen:

Select the file or folder.

• Multiple selection (> left)

2 Press [DELETE]. 3 Select “Yes”, then press [OK].

• All files in the folder will be deleted.

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

Multiple selection

Select the file or folder, then press the yellow button.

A check mark

is displayed. Repeat this step.

• Press the yellow button again to cancel.

• While copying, no other operations can be performed. Timer recordings will not proceed.

• All files in the folder will be copied.

• Up to 1000 files can be copied at once.

SQT1119

Network

This unit (Server)

DLNA compatible

equipment (Client)

Smart Home Networking (DLNA)

Smart Home Networking (DLNA) allows you to watch the contents and broadcasts on Server equipment connected on the same network from Client equipment. This unit can be used both as Server and Client. Additionally, if used as Client, this unit can also be used as Media Renderer, which can be controlled by a Smartphone, etc.

Preparation

• Perform network connection and settings. (> 16, 19)

• Perform Home Network settings of the DLNA compatible equipment.

Using this unit as Server

You can watch broadcasts received by this unit (Multiroom TV Streaming), videos and photos saved on HDD of this unit on DLNA (Client) compatible equipment.

For more details, refer to the following website and the operating instructions for each item of equipment.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

• Ensure that the router for your home network has adequate security system to prevent unauthorised access.

• If using slow network connection, the video may not be displayed correctly. A high-speed home network with a speed of at least 20 Mbps is recommended.

• Some video or broadcasts cannot be enjoyed depending on the DLNA (Client) compatible equipment, the condition of this unit, or the file type.

For details regarding the connection and operation of equipment connected via a network, refer to their respective operating instructions.

DLNA function compatible software should be installed.

Preparation

• Perform Home Network settings. (> 78)

1 Operate the playback equipment (Client) to

display the list of contents on this unit.

2 Select the item, then press [OK].

• The DLNA compatible device that is to be connected to the unit should be connected to the same hub or broadband router as the unit.

• The titles with access restriction (e.g., copy restriction) signals sent from broadcasters are not available for this function.

• You cannot play back music from the playback equipment (Client).

• If video frames are dropped, change the following settings.

- Conversion Setting for DLNA (> 78)

- Resolution Setting for DLNA (> 78)

• Files not on the HDD cannot be played back.

• Playing back 3D video recorded on this unit may not work properly.

• 3D photos copied to this unit cannot be played back in 3D.

• We recommend that you set “Networked Standby” to “Off”. (> 79)

SQT1119

Using this unit as Client

This unit (Client)

DLNA compatible

equipment (Server)

You can share videos, photos and music stored in the DLNA Certified media server.

1 Press [FUNCTION MENU]. 2 Select “DLNA Client” in “Home Network”,

then press [OK]. A list of equipment connected via the network is displayed.

• This list can be updated by pressing the red button.

3 Select the equipment, then press [OK]. 4 Select the item, then press [OK].

• Menu structure will be different depending on the equipment. Select the contents by repeating the operation.

• Convenient functions can be used by pressing [OPTION] depending on the contents.

• Control Panel

Control Panel is displayed once the playback starts.

• Press [OK] if the Control Panel is not

displayed. (It may not be displayed depending on the conditions of use.)

• (While playing video or photo) Press

[BACK/RETURN ] to hide the Control Panel.

Network

• Playlist of Windows Media® Player can play back only the contents that are stored in the libraries.

• While playing back the 3D programme, you cannot set “3D Settings”. (> 41)

SQT1119

Network

This unit

(Media Renderer)

Server

Controller

Server

This unit

(Media Renderer)

Smart Home Networking (DLNA)

Playable contents

When this unit works as a DLNA client, following contents are playable.

Video

Container

Recorded programmes (XP/SP/LP/

EP/FR)

Recorded programmes (DR/HG/HX/ HE/HL/HM)

§1

AVCHD

MP4 H.264 AAC .mp4

MPEG2 MPEG2

Xvid H.264 MP3

MKV H.26 4 AAC-LC


Format Example of file extension

JPEG .jpg

§1, 2

MPO

§1

Only when the server is another Panasonic

Video

codec

MPEG2

MPEG2 H.264

§1

H.264

.mpo

Audio codec

Dolby

Digital

Linear PCM

MPEG HE-AAC

Digital

Dolby

Digital

Dolby

Digital

Linear PCM

Digital

Dolby

MP3

Digital

Dolby PCM Vorbis FLAC

Blu-ray Disc Recorder, etc.

§2

2D playback only.

Audio

Audio codec Example of file extension

MP3 .mp3

WAV .wav

AAC .m4a, .adts

WMA .wma

FLAC .flac

DSD

ALAC

Linear PCM –

• Depending on the server, the contents other

.dsf, .dff

.m4a

than stated above can be played back.

Example of

file

extension

.mpg .mpeg

.m2ts .ts

.mts

.mpg .mpeg

.avi

.mkv

Using this unit as Media Renderer

This unit works as Media Renderer, which allows you to play back the contents on DLNA Server by operating a Digital Media Controller (a smartphone, etc.).

Digital Media Controller compatible software should be installed.

Following steps are necessary to use this unit as Media Renderer.

1 Press [FUNCTION MENU]. 2 Select “Media Renderer” in “Home Network”,

then press [OK].

3 Operate the Digital Media Controller

compatible equipment.

To exit from Home Network ( Media Renderer ) screen

Press [BACK/RETURN ].

SQT1119

Network

Wi-Fi Direct compatible equipment

This unit

Connecting temporarily

Miracast compatible equipment

This unit

Using Smart Home Networking (DLNA) with Wi-Fi Direct

Wi-Fi Direct is a standard that enables wireless LAN devices to communicate each other directly without a wireless broadband router. This unit can be connected wirelessly and directly to other DLNA compatible equipment on a temporary basis, regardless of the network connection and settings of this unit.

1 Press [FUNCTION MENU].

2 Select “Wi-Fi Direct” in “Home Network”,

then press [OK].

3 Select the item, then press [OK].

• Set up the device to be connected so that a Wi-Fi Direct connection can be made. For details, refer to the operating instructions for the device to be connected.

4 Select the device to be connected, then

press [OK].

• If the device you want to connect to is not displayed, switch the connection method by pressing the yellow button.

5 When selected “DLNA Client”:

Go to step 4 on page 61.

When selected “DLNA Server”:

Operate the playback equipment (Client).

When selected “Media Renderer”:

Operate the Digital Media Controller.

When no devices are found

Wi-Fi Direct Connection

Device not found. To connect with a Wi-Fi Direct compatible device, please check connection mode of pairing device and select “Search again”.

To connect with a Wi-Fi Direct incompatible device, please select “Next”.

Search again

If the corresponding device is not found even after the search is run again, select “Next” and change the connection method.

Wi-Fi Direct Connection

Please select connection method. Press RED button to change the wireless type of connection with the pairing device. Press RETURN to finish.

Current Wireless type :

RETURN

Wireless type

802.11n/g/b (2.4GHz)

WPS (PUSH button)

WPS (PIN code)

Manual setting

Select the connection method according to the device to be connected.

Using Miracast

You can enjoy the content you are viewing on a Miracast-compatible smartphone, etc. on the big screen of your TV.

• Compatible with Android

device, ver. 4.2 and above and Miracast certified. For information on whether the smartphone, etc. supports Miracast, contact the manufacturer of the device.

1 Press [FUNCTION MENU]. 2 Select “Miracast” in “Home Network”, then

press [OK].

3 Operate the Miracast compatible equipment.

To exit from Miracast

Press [EXIT ].

SQT1119

Network

This unit

Smartphone, tablet or PC

Internet

Timer recording

Watching TV Playback titles

BACK

XXXXXX

Featured Videos

Setup & Help

XXXXXX

TV Anywhere

You can use the following functions, etc. anywhere using a smartphone, tablet or PC.

- Setting a recording

- Watching TV with this unit’s tuner

- Playing back titles recorded on this unit

Not available for PCs.

(You must register to a service to use these functions.)

For details, please check the following website. http://panasonic.jp/support/global/cs/

(This site is in English only.)

Preparation

• Perform network connection and settings. (> 16, 19)

• TV Anywhere Settings (> 77)

• This unit will always be connected to the Internet when this function is activated.

• Please note that a regular maintenance or unexpected trouble may interrupt the service, and that the service content may be changed or revoked and operation menu screens may be changed with or without a prior notice.

• We recommend that you use a high-speed connection, such as LTE or Wi-Fi.

SQT1119

Enjoying Network Service

Network Service allows you to access some specific websites supported by Panasonic, and enjoy Internet contents such as photos, videos, etc. from Network Service home screen.

e.g.,

Preparation

• Perform network connection and settings. (> 16, 19)

1 Press [NET].

• When the message is displayed. Please read it carefully and then press [OK].

• NETFLIX can be accessed directly by pressing [NETFLIX] button.

2 Select the item, then press [OK].

• Operable buttons: [3, 4, 2, 1], [OK], [BACK/RETURN ],

colour buttons and number buttons.

To exit

Press [EXIT ].

• Some features of websites or content of the service may not be available.

• This unit does not support 4K streaming.

• If using slow Internet connection, the video may not be displayed correctly. A high-speed Internet service with a speed of at least 6 Mbps is recommended.

• The services through Network Service are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

• In the following cases, settings are possible using “Network Service Settings”. (> 77)

- When restricting the use of Network Service.

- When the audio is distorted.

• A separate subscription is required to watch Netflix.

With Other Equipment

video camera, etc.

Copying the HD Video (AVCHD)

“For data files (> 9)” only

e.g., Connecting to the Panasonic video camera

USB connection cable (optional)

Connect the video camera or insert the media.

• Make the video camera ready for data transfer.

The menu screen appears. (> 37)

Select “Copy Video ( AVCHD )”, then press [OK].

3 When copying from an SD card or video

equipment: Select “Copy to HDD” or “Copy to Blu-ray Disc”, then press [OK].

4 Select the title, then press the yellow button.

A check mark is displayed. Repeat this step.

• Press the yellow button again to cancel. (All the recordings on the same date become a title.)

5 Press [OK]. 6 Select “Start”, then press [OK].

It will automatically format the unformatted disc, such as a new disc.

• It may take time for the copying to start.

Registering the external HDD (USB HDD)

“For recorded titles (> 9)” only If you intend to move recorded titles to a USB HDD, the USB HDD must be registered to this unit first.

Limitation information

• A USB HDD with a capacity of less than 160 GB

cannot be used.

• Registering of a USB HDD will format the

USB HDD and all the content already recorded will be deleted.

• Up to eight USB HDDs can be registered on this

unit. If you have already registered eight USB HDDs, it will be necessary to delete one or more of them before registering a new USB HDD.

• Registered USB HDDs cannot be used with

devices other than this unit.

Regarding the external HDD (USB HDD)

Please use a confirmed USB HDD.

For the latest information on confirmed USB HDDs, please check the following website.

http://panasonic.jp/support/global/cs/

• Certain non-confirmed USB HDDs cannot be

used with this unit.

• If a problem occurs with the USB HDD, please

contact the manufacturer of the device.

To stop copying

Press and hold [BACK/RETURN ] for 3 seconds.

Screen icons

(NTSC)

(PAL)

Title recorded using a different encoding system from that of the unit.

• Titles displaying these marks cannot be selected.

SQT1119

With Other Equipment

This unit

e.g.,

USB HDD

Registering the external HDD (USB HDD)

Connecting the USB HDD

Connect this unit with optional USB HDD.

• Only one USB HDD (For recorded titles, > 9) can be connected at the same time.

• Do not connect additional HDDs using a USB hub.

• For details about connection method, refer to the instructions supplied with the USB HDD.

• The USB HDD can be connected to the USB port on either the front or rear of this unit.

Disconnecting the USB HDD

Disconnecting without following this procedure may result in the loss of recorded content from the USB HDD or the internal HDD.

1 Press [FUNCTION MENU]. 2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Settings for USB HDD” in “HDD /

Disc / USB HDD”, then press [OK].

4 Select “USB HDD Disconnection”, then

press [OK].

5 Select “Yes”, then press [OK]. 6 Disconnect the USB HDD from this unit.

Registering the USB HDD

• If the registering screen appears when connecting the USB HDD, go to step 5.

1 Press [FUNCTION MENU]. 2 Select “Basic Settings” in “Setup”, then press

[OK].

3 Select “Settings for USB HDD” in “HDD /

Disc / USB HDD”, then press [OK].

4 Select “USB HDD Registration”, then press

[OK].

5 Select “Yes”, then press [OK].

6 When the registering is complete, message

screen appears. Press [OK].

7 The confirmation screen appears.

Press [OK].

To cancel all USB HDD registrations (> 73)

• It is not possible to play back the content on the USB HDD whose registration has been cancelled.

• You can check the registration number of the USB HDD on the Video Menu. (> 34)

SQT1119

VIERA Link functions

Convenient functions

What is VIERA Link?

VIERA Link is a convenient function which will link the operations of this unit and a Panasonic TV (VIERA) or an amplifier/receiver. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment.

Convenient functions

Easy control only with Panasonic TV’s remote control

You can operate this unit using the TV remote control.

Refer to the operating instructions of the TV about the buttons that you can use.

Automatic input switching/ Power on link

When the following operations are performed, the input channel of the TV will be automatically switched and the screen of this unit will be displayed. Additionally when the TV is off, the TV will automatically turn on.

- When play starts on this unit

- When an action that uses Video Menu etc, is performed

Power off link

When you set the TV to standby mode, this unit is also automatically set to standby mode.

• Power off link function does not work when manual recording, copying etc.

Playing music continuously even after turning off power to the TV

The following operations make it possible to keep the power of the unit on and to play music continuously. When the unit is directly connected to an amplifier/receiver. 1 While playing music

Press [OPTION].

2 Select “TV Power Off”, then press [OK].

• Sound may be discontinued for several seconds when the power to the TV is turned off.

• VIERA Link, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

• These functions may not work normally depending on the equipment condition.

• Use the remote control supplied with this unit if you cannot operate this unit using buttons on the TV remote control.

SQT1119

Convenient functions

Item

Setting

Playback menu

A variety of playback operations and settings can be performed from this menu. Available options differ depending on the playing contents and the condition of the unit.

1 Press [OPTION]. 2 Select “Playback Settings” in “Playback

Menu” or select “Playback Settings”, then press [OK].

Basic Operation

Multi Audio Audio1 (Dolby D)

Audio Channel LR

Subtitle Settings On

Subtitle Language eng (MPEG)

Repeat Play Off

Aspect Normal

3 Select the menu, then press [OK]. 4 Select the item, then press [OK]. 5 Change the setting.

To clear the Playback menu

Press [BACK/RETURN ] until the Playback menu disappears.

Language

ENG English JPN Japanese ARA Arabic

FRA French CHI Chinese HIN Hindi

DEU German KOR Korean PER Persian

ITA Italian MAL Malay IND Indonesian

ESP Spanish VIE Vietnamese MRI Maori

NLD Dutch THA Thai BUL B ulgarian

SVE Swedish POL Polish RUM Romanian

NOR Norwegian CES Czech GRE Greek

DAN Danish SLK Slovak TUR Turkish POR Portuguese HUN Hungarian ¢ Others

RUS Russian FIN Finnish

Basic Operation

Soundtrack

Show or change the soundtrack.

Multi Audio

Switch in the case of multiple audio.

Audio Channel

Change audio (LR/L/R) during playback.

Subtitle Settings

Turn the subtitle on/off, and change the language depending on the media.

Subtitle Settings Subtitle Style Subtitle Position Subtitle Luminance

Subtitle Language

Select the subtitle language in the case of multiple languages.

Angle

Change the number to select an angle.

Repeat Play

Select the item which you want to repeat.

Random

Select whether to play random or not.

Video

The original video recording method (MPEG-4 AVC etc.) appears.

Primary Video

The original video recording method appears.

Secondary Video

Video

Select on/off of images. The original video recording method appears.

Soundtrack

Select on/off of audio and the language.

Aspect (> 85) Reception

The radio wave status during the playback of Smart Home Networking (DLNA) is displayed. (Only when a wireless connection is used)

SQT1119

With some discs, you may only be able to make changes using the menus on the disc.

Convenient functions

Picture Settings

Picture Type

Select the picture type.

Sharpness Adjustment

Noise Reduction

Luminance/Colour Adjustment

Bandwidth Limitation

Adjusts the bandwidth limitations.

24p / 25p Conversion

Plays back videos with film-like motion.

• This function is available on the following conditions:

- “HDMI Video Format” set to “Automatic”,

“1080i

” or “1080p§” (> 75)

Only for 24p Conversion

- Connect 24p/25p compatible TV.

• Noise may appear on the image when you switch the setting.

Progressive

Select the method of conversion for progressive output to suit the type of title being played.

•Auto

Automatically detects the film and video content, and appropriately converts it.

•Video

Select this setting when the content is distorted if “Auto” is selected.

•Film

Select this if the edges of the film content appear jagged or rough when “Auto” is selected. However, if the video content is distorted, then select “Auto”.

Reset to Default Picture Settings

Restores the default settings of the Picture Settings menu.

Sound Effect Settings

DSD Decode Sampling Frequency

Select the settings that suit your sound quality preferences.

DSD LPF Setting

Select the settings that suit your sound quality preferences.

Sound Settings

Sound Effects

• This function is effective when “Digital Audio Output” is set to “PCM”. (> 74)

Night Surround

Enjoy a movie with powerful sound even when the volume is kept low at night.

Re-master 1-2

Sound becomes more natural by adding higher frequency signals not recorded on the track.

Dialogue Enhancer

The volume of the centre channel is raised to make dialogue easier to hear.

Sound Effects

3D Settings (> 41)

Signal Format 3D Picture Mode Manual Settings Graphic Display Level

• The menu is not displayed when playing photos.

SQT1119

Convenient functions

Basic Settings

RETURN

Tuning HDD / Disc / USB HDD Picture Sound Display Connection Network Others

Basic Settings

You can change the unit’s settings of Digital TV Tuning, Sound, Display, Connection, Network etc. in the menu.

1 Press [FUNCTION MENU]. 2 Select “Basic Settings” in “Setup”, then press

[OK].

• To delete channels: Select the channel in the “Favourites” column, then press [OK].

• Yellow: Delete all channels.

• To change the name of the Favourites list: 1 Press the red button in the “Favourites”

column.

2Press [3, 4, 2, 1] to select a character,

then press [OK]. Repeat this step to enter other characters.

• Red: Delete a character.

• Blue: Delete all characters.

3 Press [BACK/RETURN ].

3 Select the menu, then press [OK]. 4 Select the item, then make the setting.

To return to the previous screen

Press [BACK/RETURN ].

Tuning

Favourites Edit

You can create four favourites of channels for making viewing and recording easier.

After editing as follows, save the Favourites.

Press [BACK/RETURN ], then press [OK].

• To select the other Favourites list: Press the green button.

• To add channels to the Favourites list: Select the channel in the “All DVB Channels” column, then press [OK]. Repeat this step.

• Yellow: Add all the available channels to the

Favourites. (This function is available only when there are no channels in the “Favourites”.)

• To change the order of the channels list: 1 Select the channel in the “Favourites”

column to move, then press the green button.

2 Select the new position, then press the

green button.

SQT1119

Auto Setup

You can restart the Auto Setup. (> 17) PIN is required when you have locked channels. (> 71, Child Lock List)

Select “Yes”, then press [OK].

• The timer recording programmes are cancelled.

• If you perform “Channel Sorting by Region” (> 71), you can sort the channel list best suited to your region after Auto tuning is finished.

Settings for Channels

Channel List

You can edit the channel list.

• To hide unwanted channels 1 Select the channel. 2 Press [OK].

The check mark is removed.

• Yellow: Reveal all channels.

• To change the channel number assignment 1 Select the channel to change, then press

the green button.

2 Enter the channel number to reassign

with the number buttons.

3 Press [OK].

• To set the channel manually 1 Press the red button. 2 Refer to “Manual Tuning”. (> 71)

Convenient functions

Channel Sorting by Region

If you want to sort the channel list best suited to your region, follow the on-screen instructions to select the region you live in. Normally, you should select “Best signal quality (All Regions)”.

Manual Tuning

You can add new channels manually. 1Press [3, 4] to select the frequency.

• Adjust the frequency by checking the signal strength and signal quality displays.

2 Press [OK] to start scan.

• The set channel is displayed in the table.

Update Channel List

You can update the channel list to the latest one.

Signal Condition

You can check the quality and strength of signals. Press [CH WX] to select the channel.

• The channels you can receive are affected by weather conditions, seasons, time (day/night), region, length of the cable that is connected to the aerial, etc.

• When the signal is too strong (red bar), reduce the signal amplification at your aerial. (For details, consult your dealer.)

New Channel Message

Set whether to obtain the information automatically when a new DVB channel is added.

Player PIN Control

You can restrict the viewing of Digital teletext (MHEG) unsuitable to children.

Preferred Multi Audio

Multi Audio

Select the language for multi broadcast. If the selected language is not available, the original language will be selected.

Audio Description

(When Audio Description is available in the programme) When “Automatic” is selected, Audio Description will be set as default while watching.

Preferred Subtitles

Subtitles

Choose the subtitle language for broadcast. If the selected language is not available, then the original language will be selected.

HbbTV Setting

Turn on/off the HbbTV service.

• When “On” is selected, HbbTV service are available.

Child Lock

You can restrict the viewing/playback/recording of channels unsuitable to children.

• PIN is required to change. (> 22)

Child Lock List

1 Select the channel to lock. 2 Press [OK].

is displayed.

• Press [OK] again to cancel.

• Green: Lock all channels.

• Yellow: Unlock all channels.

SQT1119

Convenient functions

Basic Settings

HDD / Disc / USB HDD

Settings for Playback

3D BD-Video Playback

Select the playback method of 3D compatible video software.

Soundtrack

Select the audio language.

• Enter a code with the number buttons when

you select “Other ¢¢¢¢”. (> 85, Language code list)

Subtitles

Select the language for subtitle.

• Enter a code with the number buttons when

you select “Other ¢¢¢¢”. (> 85, Language code list)

Select the language for disc menus.

• Enter a code with the number buttons when

you select “Other ¢¢¢¢”. (> 85, Language code list)

BD-Live

You can restrict Internet access when BD-Live functions are used.

• If “On ( Limit )” is selected, Internet access is permitted only for BD-Live contents which have content owner certificates.

BD-Video Parental Control

Set an age limit of BD-Video play.

• PIN is required to change. (> 22)

DVD-Video Parental Control

Set a rating level to limit DVD-Video play.

• PIN is required to change. (> 22)

Child Lock

You can restrict playback of the following titles:

- Titles that are recorded with guidance information

- Titles restricted by Child Lock List (> 71)

(Titles with icon in Video Menu, etc.)

• PIN is required to change. (> 22)

Pure Sound mode

You can enjoy movies or music in an environment more suitable for viewing by stopping the rotation of the HDD when playing back commercial BD-Videos, DVD-Videos or music CDs.

• If “On” is selected, timer recording does not start while playing back BD-Video, DVD-Video or music CD.

Settings for Recording

REWIND LIVE TV

Turn on/off the REWIND LIVE TV function.

• When “Automatic Standby” is set to “Off” (> 79), “On” cannot be selected.

Aspect for Recording

Sets the aspect ratio when recording or copying except in DR mode.

• “HG”, “HX”, “HE”, “HL” or “HM” mode: If “Automatic” is selected, the title will be recorded with the original aspect ratio.

• “XP”, “SP”, “LP” or “FR (recordings less than 5 hours)” mode:

If “Automatic” is selected, the title will be recorded with the original aspect ratio at the time when recording started (including when recording started at a commercial, etc.).

• “EP” or “FR (recordings 5 hours or longer)” mode: If “Automatic” is selected, aspect is fixed to 4:3.

• In the following cases, the programme will be recorded with the original aspect ratio.

- [BD-RE] [BD-R] When the recording mode is

set to “XP”, “SP”, “LP”, “EP” or “FR”.

• In the following cases, aspect is fixed to 4:3.

- When copying to a +R, +R DL and +RW.

SQT1119

Convenient functions

Chapter Creation

Set the Chapter Creation method.

• Even if “Automatic” is selected, depending on the programme to be recorded, the chapter may not be created correctly.

Disc Speed for High Speed Copy

Select the speed of high-speed copying.

HDD Management

Press and hold [OK] for 3 seconds to show the following settings.

Delete all titles

Delete all recorded programmes and AVCHD on the built-in HDD.

• Delete does not work if one or more titles are protected.

Delete all videos ( MP4 / Xvid / MKV )

Delete all videos (MP4/Xvid/MKV) on the built-in HDD.

Delete all photos

Delete all photos on the built-in HDD.

Delete all music

Delete all Music on the built-in HDD.

Format HDD

Formatting deletes all contents on the built-in HDD, and they cannot be restored. Check carefully before proceeding.

Settings for USB HDD

USB HDD Registration

USB HDD Disconnection

This function puts the USB HDD in a state in which it can be safely disconnected. (> 66)

USB HDD Management

Press and hold [OK] for 3 seconds to show the following settings.

Delete all titles

Delete all titles on the USB HDD.

• Delete does not work if one or more titles are protected.

Format USB HDD

Formatting deletes all contents, and they cannot be restored. Check carefully before proceeding.

Cancellation of all USB HDD Registrations

This function cancels the registrations of all the USB HDDs registered on this unit. Only do this if you are going to dispose of this unit.

• Before operation, perform “USB HDD Disconnection” (> above) and remove the USB HDD.

SQT1119

Convenient functions

Basic Settings


Still Mode

Select the type of picture shown when you pause play.

•Field: Select if jittering occurs when “Automatic” is selected. (The picture is coarser.)

•Frame: Select if small text or fine patterns cannot be seen clearly when “Automatic” is selected.

(The picture is clearer and finer.)

Sound

Dynamic Range Compression

To lower the dynamic range for playback (e.g., at night).

• This does not work depending on broadcasts and recorded titles.

Downmix

Select the downmix system of multi-channel to 2-channels sound.

• Select “Surround encoded”, when the connected equipment supports the virtual surround function.

• There is no effect on “Bitstream” via HDMI AV OUT and DIGITAL AUDIO OUT terminal.

• The audio will be output in “Stereo” in the following cases.

- AVCHD playback

- [BD-V] : Playback of clicking sound on the

menu and audio with secondary video in picture-in-picture mode.

Bilingual Audio Selection

Select whether to record the audio type (“M1” or “M2”) when:

- File Conversion (> 44)

- Copying to a DVD-R, DVD-RW, +R and +RW.

Digital Audio Output

PCM Down Conversion

Select how to output audio with a sampling frequency of 96 kHz.

•On: Signals are converted to 48 kHz.

(Choose when the connected equipment cannot process signals with a sampling frequency of 96 kHz.)

•Off: Signals are output as 96 kHz.

• The signals will be converted to 48 kHz

regardless of the setting in the following cases.

- When the signals have a sampling frequency of over 96 kHz.

- When the disc has copy protection.

- When “BD-Video Secondary Audio” is set to “On”. ([BD-V]) (> below)

Dolby D / Dolby D + / Dolby TrueHD DTS / DTS-HD

MPEG HE-AAC

Select the audio signal to output.

• Select “PCM” when the connected equipment cannot decode the respective audio format.

• Not making the proper settings may result in noise.

System Volume Adjustment

If the volume of a programme being watched through this unit is different than the volume of a programme being watched directly on the TV, changing this setting may reduce the gap. (This function works only while you are watching a programme or playing back a programme recorded in DR mode with this unit.)

BD-Video Secondary Audio

Turn on/off the clicking sound on the menu and audio with secondary video.

SQT1119

Convenient functions

Audio Delay

Mis-sync between the video and audio is corrected by delaying the audio output.

Display

On-Screen Information

Select the time until the channel information screen (> 22) disappears automatically.

Front Panel Display

Changes the brightness of the front panel display.

• If “Automatic” is selected, the display turns dark during play and disappears when the unit is in standby mode. While using this mode, the standby power consumption can be reduced.

• When “Quick Start” is set to “Off” or “Timer Setting for Quick Start” (> 79), this function is fixed to “Automatic”.

Screen Saver

This is to prevent image retention on the screen.

Connection

3D Settings

TV Aspect

Set to match the type of TV connected.

•16:9: When connected to a 16:9 widescreen TV.

•4:3: Side picture is trimmed for 16:9

picture. The pictures may be shown in the letterbox style depending on the content.

• Letterbox: Black bands appear for 16:9

picture.

Aspect for 4:3 Video

To play a 4:3 title, set how to show pictures on a 16:9 TV.

•4:3: Picture output expands left or right.

• 16:9: Picture is output as original aspect with side panels.

TV System

Set in accordance with the TV System for the connected TV.

3D Type

If 3D video cannot be played back in 3D, you may be able to play it in 3D by changing the setting.

• Change the settings for 3D on the TV also when “Side by side” is selected.

3D AVCHD Output

If 2D AVCHD video is recognised as 3D video and cannot be played back correctly, you may be able to play it by changing the setting.

3D Playback Message

Set to display or hide the 3D viewing warning screen.

HDMI Connection

HDMI Video Format

You can only select items compatible with the connected equipment.

• If “Automatic” is selected, the output resolution best suited to the connected TV (1080p, 1080i, 720p or 576p/480p) is automatically selected.

• To enjoy High Quality Video up-converted to 1080p, you need to connect the unit to 1080p compatible HDTV. If this unit is connected to an HDTV through other equipment, it must also be 1080p compatible.

SQT1119

Convenient functions

Basic Settings

24p Output

When playing BD-Video recorded in 24 frames, this unit displays each frame at 1/24 second intervals–the same interval originally shot with the film movie.

• When this unit is connected to TV compatible with 4K/24p and “HDMI Video Format” is set to “Automatic”, images will be output in 4K/24p.

• When this unit is connected to a TV compatible with 1080/24p and “HDMI Video Format” is set to “Automatic”, “1080i” or “1080p”, images will be output in 1080/24p.

• When BD-Video images other than 24p are played, images are output at 60p.

• This unit cannot output 4K image when playing back in 3D.

Deep Colour Output

Deep Colour output when a TV that supports Deep Colour is connected.

HDMI Audio Output

Select “Off” when connected to an amplifier/receiver with a DIGITAL AUDIO OUT terminal.

• To enjoy BD-Video that suppo rts

Connect this unit to an AV amplifier or similar device

supports it with an HDMI cable, and select the

that

following settings:

- Dolby D / Dolby D + / Dolby TrueHD: “Bitstream”

- DTS / DTS-HD: “Bitstream”

- BD-Video Secondary Audio: “Off”

Dolby Atmos is a trademark of Dolby Laboratories.

Dolby Atmos or

DTS:X

Contents Type Flag

If “Automatic” is selected, the optimal method of playback depending on the TV (e.g. cinema) will automatically be selected (only when the TV supports Contents Type Flag).

Network

Easy Network Setting

Press [OK] to start Easy Network Setting. (> 19)

Network Settings

LAN Connection Mode

Select the LAN connection method.

• When not using wireless LAN (when turning it off), select “Wired”.

Wireless Settings

This allows to set and check the connection settings of the Wireless router.

Search for wireless network WPS (PUSH button) WPS (PIN code) Manual Setting

Select a connection method to wireless access point.

IP Address / DNS Settings

Check the connection of the network or set the IP address and DNS.

• To set the IP address and DNS

1 Set “IP Address Auto-assignment” and

“DNS-IP Auto-assignment” to “Off”.

2 Select the item, then press [OK] to show

the respective setting.

• When the router’s DHCP server function is not activated, check the numbers of other connected devices such as personal computers, then assign a number different from those of other devices for the “IP Address” and assign the same number for “Subnet Mask” and “Gateway Address”.

VIERA Link

Select “Off” when you do not want to use VIERA Link.

SQT1119

Convenient functions

Proxy Server Settings

Check and set the connection to the Proxy server.

• Press [OK] to show the respective setting.

Network Service Settings

Second Screen Browsing

When this function is set to “On”, you can enjoy the content you are viewing on a Network Service application of smartphone, etc. with the home network on the big screen of your TV.

Lock

You can restrict using Network Service.

• PIN is required to change. (> 22)

Automatic Volume Control

Volume is adjusted automatically to the standard volume while using Network Service.

• Depending on contents, this function will not work.

• Select “Off” when the audio is warped.

Notice

Displays the terms of service for the cloud services.

• You must agree to the terms of use for the Internet function and the privacy policy.

TV Anywhere Settings

You must register to a service to use this function. (> 64)

TV Anywhere

When you control this unit from a smartphone or a tablet away from home, set this function to “On”. (> 64)

Device ID

This is the device ID and device password required for registering to and using a service.

Initialize Device Password

The device password for this unit is initialized.

• When you initialize the device password, you will not be able to use TV Anywhere. To use the TV Anywhere again, you must re-register to the service.

SQT1119

Convenient functions

Basic Settings

Home Network Settings

You can set the DLNA (Server) function. (> 60)

Home Network function

You can switch between enable/disable of the DLNA (Server) and DMR (Media Renderer) function.

• If “On” is selected, the setting for “Quick Start” is fixed to “On”. (> 79)

• If “Off” is selected, the setting for “TV Anywhere” and “Networked Standby” is fixed to “Off”. (> 77, 79)

• When you set “Networked Standby” to “On”, the setting for this function will also be changed to “On”, but “Quick Start” will remain set to “Off”.

• This cannot be set to “On” if the connection with the wireless broadband router is not encrypted in the wireless connection.

Setting device name

It is also possible to change the name of this unit on the network.

• Select from a preset list Select the preset name, then press [OK].

• Create name Enter the name. Refer to “Entering text”. (> 84)

Registration type for remote devices

• Automatic: All connected devices on the same network can access this unit.

• Manual: Only registered devices can access this unit.

Remote device list

• To register equipment manually 1 Select the device name or the MAC

Address for the device you want to register, then press [OK].

2 Select “Yes”, then press [OK].

• To deregister equipment 1 Select the registered equipment,

then press [OK].

2 Select “Yes”, then press [OK].

• This function cannot be enabled when “Automatic” is selected in “Registration type for remote devices”. (> above)

• The maximum number of equipment that can be registered is 16.

Conversion Setting for DLNA

•On: When playing back on DLNA (Client)

compatible equipment, this setting reduces the chance of break-ups and freezing of an image by lowering the image quality.

• When this is set to “On”, switching the channel or starting playback will take longer.

Resolution Setting for DLNA

When “Conversion Setting for DLNA” is set to “On”, select the image quality.

SQT1119

Convenient functions

Others

Standby Settings

Quick Start

•On: It is possible to start quickly from standby mode.

•Off: Power consumption in standby mode is minimised. (> 92) However, startup time from standby mode

will be longer.

• Timer Setting for Quick Start: “Quick Start” is activated when the set time comes.

• When “Home Network function” (> 78) or “TV Anywhere” (> 77) is set to “On”, the setting for this function is fixed to “On”.

• If “Off” or “Timer Setting for Quick Start” is selected, the setting for “Front Panel Display” in “Display” is fixed to “Automatic”. (> 75)

Automatic Standby

Set the time to turn the unit to standby mode automatically. When the unit is not operating, the unit will be turned to standby mode once the set time has passed.

• When “REWIND LIVE TV” is set to “On” (> 72), “Off” cannot be selected.

RF OUT (AerialSignal)

Set whether to output the broadcasting signal from RF OUT or not while in standby mode (When “Quick Start” is not activated).

• If “On” is selected, the broadcasting signal is output from this unit.

Networked Standby

This unit can be turn on using a wake-up message sent from the network device in the home network. (Available only when “Quick Start” is set to “Off”.)

•On:

- Power consumption increases when this unit is in standby mode. (> 92)

- This unit can be used as a DLNA Server when this unit is in standby mode. (This is possible if you have ever connected your client Panasonic recorder to the network

using this unit as a server.)

• Off:

- Power consumed when this unit is in standby mode becomes smaller than that consumed when “On” is selected. (> 92)

- When this unit is in standby mode, it cannot be used as a DLNA Server.

• When you change the “On/Off” setting of this function, the “On/Off” setting of “Home Network function” also changes.

• If “Quick Start” and “Home Network function” are set to “On”, even when this unit is turned off, it can be used as a DLNA Server.

Automatic Standby after OTR

•On: This unit is turned to standby mode when it

is not operated for approximately 5 minutes after completing “Automatic Stop” or “Recording Time” (> 27).

Automatic Standby after Copy

•On: This unit is turned to standby mode when it is not operated for approximately 5 minutes after completing copy (> 48, Copying from

media other than HDD with Video Menu, Copying titles with copying list).

• This function can be used with Panasonic recorders to be released from September 2015 and beyond.

• This function may not work correctly depending on network environment,

SQT1119

Convenient functions

Remember the PIN.

PIN Entry

0 0 0 0

Basic Settings

Remote Control

Change the remote control code on the main unit and the remote control if you place other Panasonic products close together.

• Use “BD 1”, the factory set code, under normal circumstances.

1 Select the code, then press [OK]. 2 While pressing [OK], press and hold the

number button ([1] to [6]) for more than

5 seconds. 3 Press and hold [OK] for more than 5 seconds. 4 Press [OK].

Clock

If the time is not set correctly, use the settings listed in the method below.

• Manual Setting

1 Select “Off” of “Automatic”, then press [OK]. 2 Select the item you want to change. 3 Change the setting. 4 Press [OK] when you have finished the

settings.

Owner ID

In order to prevent another person from using this unit if it is stolen, you can set a PIN and input your personal information (NAME, HOUSE NO, POSTCODE).

Once the PIN has been set, you cannot return to the factory preset. Make sure not to forget this.

PIN Entry

You can set/change the PIN for parental control.

1 Enter your 4-digit PIN with the number buttons. 2 Enter the new 4-digit PIN with the number

buttons.

• Make a note of PIN in case you forget it.

e.g.,

System Update

Software Update in Standby

When you set this unit to standby mode, software (firmware) updates (> 81) are downloaded automatically at the time you have specified.

Software Update Now ( Broadcast )

Refer to “Software (Firmware) Update”. (> 81)

Software Update Now ( Internet )

Refer to “Software (Firmware) Update”. (> 81)

Software Licence

Information about the software licence is displayed.

System Information

Display Software (firmware) version and Wireless Module version (When using wireless connection only) of this unit.

Initialize

Shipping Condition

All the settings except for some settings return to the factory preset.

• The timer recording programmes are also cancelled.

• The device password is also initialized. (> 77)

Default Settings

All the settings other than the tuning settings, clock settings, disc language settings, parental control settings, remote control code, etc. return to the factory presets.

3 Press [OK].

SQT1119

Convenient functions

New software version has been found. The software will be updated automatically after this unit is switched to standby. Do not disconnect the AC mains lead.

4K Networking

You can save 4K videos/photos recorded with digital cameras and other 4K-compatible devices to the HDD of this unit and play them back.

Compatible 4K content

• MP4/MOV (4K/24p, 25p and 30p)

- bit rate up to 100 Mbps

- resolution up to 3840k2160 25p/30p, 4096k2160 24p

• JPEG, MPO

- resolution 3840k2160 Photos with a resolution greater than

3840k2160 are played back in 3840k2160.

Preparation

• Connect a 4K-compatible TV to this unit. (> 14)

Playing back 4K content

∫ 4K videos

[HDD]

Refer to “Playing titles on the HDD”. (> 34) [USB] [SD] Refer to “Playing titles on the media”. (> 37)

∫ Photos

Refer to “Playing photos”. (> 54)

• Video may not be played back smoothly depending on the USB device.

• You can also watch the 4K contents stored in the DLNA Certif ied media server. (

Copying 4K content

∫ 4K videos

[HDD] ,. [SD]

[USB] > [HDD]

Refer to “Copying video files”. (> 53)

∫ Photos

Refer to “Copying photos”. (> 57)

60, Smart Home Networking (DLNA))

Software (Firmware) Update

You cannot operate the unit until the update is complete. Don’t remove the AC mains lead during the update. Removing the AC mains lead while the update is in progress may damage the unit.

Update software (firmware) of this unit

Software of this unit can be updated automatically by the following methods at the specified time.

• From broadcasts

(Default setting is 3 a.m. > 80, Software Update in Standby)

• From Internet

Network connection and setting are required. (>16, 19)

If a software (firmware) update is available, a notification is displayed.

Update of the software (firmware) will start when the unit is turned to standby mode.

To update the software (firmware) immediately

Use the “Software Update Now ( Broadcast )” function or “Software Update Now ( Internet )” function. (> 80)

• It may take up to a few hours until the update is completed depending on the network environment.

• The timer recording always takes preference over the software (firmware) download; if the timer recording is scheduled to start, the downloading will be performed at the next opportunity.

• For the latest firmware update information, please refer to the Panasonic support site below.

• You can also download the latest software (firmware) from the following website. http://panasonic.jp/support/global/cs/

SQT1119

Convenient functions

Disc Name

Delete all titles

Disc Protection

Other operations

Media management

[BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] [+R] [+RW] [SD]

1 Press [FUNCTION MENU].

2 Select “Media”, then press [OK].

3 Select the media, then press [OK].

4 Select the management item, then press

[OK].

• Selectable items will change depending on the selected item and inserted media.

Disc Name

[BD-RE] [BD-R] [RAM] [DVD-R] [DVD-RW] [+R] [+RW]

This function is to name a disc. Refer to “Entering text”. (> 84)

• The disc name is displayed in the Blu-ray Disc Management/DVD Management window.

• [DVD-R] [DVD-RW] [+R] With a finalised disc, the name is displayed on the Top Menu.

• [+RW] The disc name is displayed only if you play the disc on other equipment after creating Top Menu.

• Do not perform this operation before copying HD Video (AVCHD) to DVD-R or DVD-R DL. (> 53)

Disc Protection

[BD-RE] [BD-R] [RAM] Select “Yes”, then press [OK].

e.g.,

Delete all titles

[BD-RE] [BD-R] [RAM]

1 Select “Yes”, then press [OK].

2 Select “Start”, then press [OK].

• Photo data (JPEG/MPO) or computer data cannot be deleted.

Format Disc/Format SD Card

[BD-RE] [RAM] [DVD-RW] [+RW] [SD] [BD-R] [+R] (New disc only)

Formatting deletes all contents (including computer data), and they cannot be restored. Check carefully before proceeding.

1 Select “Yes”, then press [OK]. 2 Select “Start”, then press [OK].

3 Press [OK].

[RAM] To stop formatting

Press [BACK/RETURN ].

• You can cancel formatting if it takes more than 2 minutes. The disc must be reformatted if you do this.

• Do not disconnect the AC mains lead while formatting. This can cause the disc or the card unusable.

• The contents are deleted when you format a disc or card even if you have set protection.

• [RAM] Formatting normally takes a few minutes; however, it may take up to a maximum of 70 minutes.

• When a disc or card has been formatted using this unit, it may not be possible to use it on any other equipment.

• It will become DVD Video format when a DVD-RW recorded in DVD Video Recording format is formatted with this unit.

• To release the protection Repeat the same steps.

• The screen icon will be switched to “Off”.

SQT1119

Top Menu

[DVD-R] [DVD-RW] [+R] [+RW] You can select the background for DVD-Video Top Menu.

Select the background, then press [OK].

Auto-Play Select

[DVD-R] [DVD-RW] [+R] [+RW] You can select whether to show the Top Menu after finalising or creating Top Menu. Select “Top Menu” or “Title 1”, then press [OK].

Top Menu:

The Top Menu appears first.

Title 1:

The disc content is played without displaying the Top Menu.

Finalise

[DVD-R] [DVD-RW] [+R] (You can play the disc on compatible DVD players by finalising it on the unit.)

[BD-R] (Finalising BD-R prevents accidental recording or editing.)

1 Select “Yes”, then press [OK].

2 Select “Start”, then press [OK].

3 Press [OK].

Convenient functions

• Do not disconnect the AC mains lead while finalising.

This can cause the disc unusable.

• You cannot cancel finalising.

• Finalising takes up to 15 minutes (Up to 60 minutes in case of DVD-R DL and +R DL).

• Depending on the disc, it may take longer than displayed on the confirmation screen (approximately four times longer).

• You cannot finalise discs recorded on other manufacturer’s equipment.

• [DVD-R] [DVD-RW] [+R] If you finalise discs recorded on Panasonic equipment other than this unit, the background selected as “Top Menu” may not be displayed.

• Discs finalised on this unit may not be playable on other players due to the condition of the recording.

Create Top Menu

[+RW]

You can create Top Menu for displaying on other equipment.

Make selections from “Top Menu” and “Auto-Play Select” before creating Top Menu.

1 Select “Yes”, then press [OK].

2 Select “Start”, then press [OK]. 3 Press [OK].

• You cannot use the Top Menu for playing on this unit.

• The created menu is deleted when you record or edit the disc.

After finalising

• [BD-R] [DVD-R] [+R] The disc becomes play-only

and you can no longer record or edit.

• [DVD-RW] You can record and edit the disc after

formatting.

SQT1119

Convenient functions

RETURN



Delete

;

‘

s d f g h j k l .

“

Symbols

Alphanumeric



Shift

Enter Title Name



Finish

Other Characters

Name field: shows the text you have

entered

e.g.,

Other operations

HOLD function Entering text

The HOLD function deactivates all buttons on the unit and remote control.

Press and hold [OK] and [BACK/RETURN ] simultaneously until “X HOLD” appears on the front panel display.

To cancel the HOLD function

Press and hold [OK] and [BACK/RETURN ] simultaneously until “X HOLD” disappears.

Preparation

• Show the “Enter Title Name” screen, etc.

1 Select a character, then press [OK].

Repeat this step to enter other characters.

• Green: Enter Alphanumeric characters

• Red: Enter Symbols

• Yellow: Enter Other Characters, such as umlaut mark or accent grave

•[PAUSE;]: Delete a character

•[PLAY/a1.3 1]: Shift the alphabetic characters on the screen to upper case/lower case

SQT1119

2 Press [STOP ∫] (Finish).

“Writing...” appears then the screen returns to the previous screen and so on.

To end partway

Press [BACK/RETURN ]. (Text is not added.)

• The maximum number of characters depends on the media.

Convenient functions

Switching the aspect ratio of the screen

When the image does not match the screen size of the TV, you can enlarge the image to fill the screen.

1 Press [OPTION]. 2 Select “Playback Settings” in “Playback

Menu”, then press [OK].

3 Select “Aspect” in “Basic Operation”, then

press [OK].

4 Select the item, then press [OK].

Normal:

Normal output

Side cut:

The black bars on the right and left sides of the 16:9 image disappear and the image is enlarged.

Zoom:

The black bars on the top and bottom sides of the 4:3 image disappear and the image is enlarged.

• This function does not work on 3D contents.

• The screen mode is switched to “Normal” in the following situations:

- when you change the channel

- when you start or end the playback of a title

- when you switch the unit on or to standby mode.

• [BD-V] [DVD-V] “Side cut” does not have any effect.

• When “TV Aspect” (> 75) is set to “4:3” or “Letterbox”, the “Zoom” effect is disabled.

Language code list

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Amharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali; Bangla: 6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765 Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783 Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178 Gujarati: 7185 Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165 Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: 7686

Lingala: 7678 Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 7784 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869 Norwegian: 7879 Oriya: 7982 Pashto, Pushto: 8083 Persian: 7065 Poli sh: 8 07 6 Portuguese: 808 4 Punjabi: 8065 Quechua: 8185 Rhaeto-Romance: 8277 Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387 Swedish: 8386 Tagalog: 8476 Tajik: 8471 Tamil: 8465 Tatar: 8484 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 Tonga: 8479 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yo r u b a : 8 9 7 9 Zulu: 9085

SQT1119

Troubleshooting

Troubleshooting guide

Before requesting service, make the following checks. If the problem still persists, consult your dealer for instructions. Updating to the latest software (firmware) may solve the problem. (> 81)

The followings do not indicate a problem with this unit:

• Regular disc rotating sounds or HDD rotating sounds.

• Poor reception due to atmospheric conditions.

• When you switch the unit on or to standby mode, there may be an unexpected sound.

The remote control does not work.

• The remote control and main unit are using different codes. Change the code on the remote control. “Remote Control ” appears on the right side of the screen. (“∑” stands for a number.)

Press and hold [OK] and the indicated number button at the same time

Front panel display

for more than 5 seconds. (> 80, Remote Control)

General operation

The unit does not work.

• Check the connections. (> 14)

• One of the unit’s safety devices may have been activated. Reset the unit as follows: 1Press [Í/I] on the main unit to switch the unit

to standby.

• If the unit does not switch to standby, press

[Í/I] on the main unit for about 3 seconds. The unit is forcibly switched to standby. Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.

2Press [Í/I] on the main unit to switch it on. If

the unit still cannot be operated, consult the dealer.

Cannot eject a disc.

1 Press and hold [Í/I] on the main unit for at

least 3 seconds when it is turned off.

2 Press and hold [OK], the yellow button and the

blue button at the same time for more than 5 seconds.

• “00 RET” is displayed on the front panel display.

3 Repeatedly press [1] (right) until “06 FTO” is

displayed on the front panel display.

4 Press [OK].

Startup is slow.

• Startup takes time in the following situations:

- A disc is inserted.

- The clock is not set.

- Immediately after a power failure or the AC mains lead is connected.

- When a BD-J application is executing.

- When the “Quick Start” is not activated. (> 79)

Displays

“0:00” is flashing on the front panel display.

• Set the clock. (> 80)

The clock does not display on the unit when switched to standby.

• The clock does not display when “Front Panel Display” is set to “Automatic”. (> 75)

SQT1119

Troubleshooting

TV screen and video

Screen size is wrong.

• Check the “TV Aspect” or “Aspect for 4:3 Video”. (> 75)

• Adjust the aspect ratio setting on TV.

• Adjust the aspect ratio setting on this unit. (> 85)

• Check “Aspect for Recording” before recording or file conversion. (> 72)

The black screen appears on the TV.

• This phenomenon may occur, depending on the TV setting, when “Quick Start” is activated. Depending on the TV, this phenomenon may be prevented by reconnecting to a different HDMI input terminal.

TV reception is not displayed.

• Broadcast signals are not output from this unit’s RF OUT terminal. Select “On” in “RF OUT ( Aerial Signal )”. (> 79)

The screen changes automatically.

• If “Screen Saver” is set to “On”, the screen saver function will be activated when there is no operation for 5 minutes or more. (> 75)

2 Repeatedly press [1] (right) until “04 PRG”

is displayed on the front panel display.

3 Press and hold [OK] for at least 3 seconds.

Set the item again.

• When Dolby Digital Plus, Dolby TrueHD, and DTS-HD

audio are not output properly, select “Yes” in “Default Settings” and make proper settings. (> 80)

• The unit’s TV System is different from that of the disc. Change the TV System. (

75, TV System)

• The picture may be distorted or a black screen may appear between scenes recorded with different aspect ratios.

• Set “Deep Colour Output” (> 76) or “Contents Type Flag” (> 76) to “Off”.

3D video is not output correctly.

• 3D video may be output correctly by changing the following settings:

- “3D Type” of “3D Settings” (> 75)

- “Signal Format” (> 41, 3D settings during

playback)

• Check the settings of the connected TV.

• When a non-3D compatible amplifier/receiver is connected between this unit and a TV, 3D video is not output. (> 15)

• When “HDMI Audio Output” is set to “Off”, 3D video may not be output correctly. (> 76)

There is a lot of image lag when playing video.

• Set to “0” all items in the “Noise Reduction”. (>69)

• Set “Audio Delay”. (> 75)

The images do not appear on the TV. The picture is distorted during play, or video is not played correctly.

• Check the connections. (> 14)

• Check the settings of the connected TV, etc.

• An incorrect resolution is selected in “HDMI Video Format”. (> 75) Reset the setting as follows:

1 While the unit is on, press and hold [OK], the

yellow button and the blue button at the same time for more than 5 seconds.

• “00 RET” is displayed on the front panel display.

Sound

No sound. Distorted sound.

• Check the connections. (> 14)

• Check the settings of the connected TV, etc.

• Select the audio with “Multi Audio”. (> 22, 40)

• To output audio from a device connected with an HDMI cable, set “HDMI Audio Output” to “On”. (> 76)

Cannot change audio channel.

• You cannot change the audio channel if “Digital Audio Output” is set to “Bitstream” (> 74)

SQT1119

Troubleshooting

Troubleshooting guide

Recording, timer recording and copying

Cannot record. Cannot copy.

• Some broadcasts are copyright protected.

• You cannot record to the disc by pressing the

[REC ¥] or timer recording.

• The disc is protected. (> 82)

• [DVD-R] [DVD-RW] [+R] [+RW] Since it will copy to

HDD temporarily, copying is not possible if there is insufficient available capacity on the HDD.

• This unit cannot record/copy NTSC signals to discs that already have PAL signal recordings.

Timer recording does not work properly.

• When is displayed on the screen. (> 33)

• Because the actual broadcast time may be different from the time displayed on the TV Guide, we recommend you set the start time earlier and the end time later by some minutes, up to a maximum of 10 minutes.

The timer recording programmed via Network Service does not work properly.

• Timer recording programmed via Network Service will be recorded with the same conditions as those of manual timer recording, and some functions such as “Guide Link” (> 30) does not work.

A part or whole of a recorded title has been lost.

If there is a power failure or the AC mains lead is disconnected from the household mains socket while recording or editing, the title may be lost or the HDD may become unusable. We cannot offer any guarantee regarding lost programmes.

An unusually loud sound is coming from the rotating disc.

• If you want copy to perform more quietly, select “Normal ( Silent )” in “Disc Speed for High Speed Copy”. (> 73)

The time recorded on the disc and the available time shown do not add up.

• [DVD-R] [+R] If you record or edit many times, the remaining capacity is reduced and then recording or editing may be disabled.

• Available disc space display may be different from actual.

Auto Renewal Recording does not work properly.

• The programme will not be overwritten in the following cases:

- the programme is protected

- any programme is being played back or copied

- a screen such as Video Menu is displayed Instead, the programme will be saved as a separate programme and that will be overwritten.

SQT1119

Troubleshooting

Play

Cannot play back.

• The disc is dirty. (> 10)

• The disc is scratched or marked.

• The disc may not be able to play back if it was not finalised or a Top Menu was not created on the equipment used for recording.

• Refer to “Screen icons”. (> 35)

Audio and video momentarily pause.

• DVD-R DL and +R DL discs have two writable layers on one side. Video and audio may momentarily cut out when the unit is switching layers.

You have forgotten your rating PIN number for parental control.

• The PIN number for parental control and the rating level return to the factory preset. The default PIN number is “0000”. 1 While the unit is on, press and hold [OK], the

yellow button and the blue button at the same time for more than 5 seconds.

• “00 RET” is displayed on the front panel display.

2 Repeatedly press [1] (right) until “03 VL” is

displayed on the front panel display.

3 Press [OK].

• “INIT” is displayed on the front panel display.

Edit

Cannot edit.

• You may not be able to edit on the HDD if there is no available space. Delete any unwanted titles to create empty space. (> 42)


The contents of the SD card cannot be read.

• Remove the card from the slot and then insert again. If this does not solve the problem, switch the unit to standby mode and turn it on again.

Photos do not play back normally.

• The images that were edited on the PC, such as Progressive JPEG, etc., may not play back. (> 8)

USB

This unit does not recognize the USB device correctly.

• If inserted during playback the USB device may not be recognized by this unit. Disconnect and reconnect the USB device. If it still does not recognize the connection, switch the unit to standby mode and turn it on again.

• USB devices connected using a USB extension cable other than a dedicated one or a USB hub may not be recognized by this unit.

Image for the Quick View is not smooth.

• Image may not be played back smoothly in case of high definition titles.

Cannot play the disc on other players.

• Refer to “Play on other players”. (> 10)

SQT1119

Troubleshooting

Troubleshooting guide

TV Guide

The TV Guide information is not displayed properly.

• Set the clock correctly. (> 80, Clock)

• There was a programme change, or TV Guide information from a broadcast station was possibly not correctly transmitted.

• If signal quality is bad, the TV Guide may not be able to receive any data.

• It may take time until the TV Guide screen is displayed correctly. Wait for about a day.

Broadcast

Picture regularly breaks up on some channels.

• Adjust the reception with “Manual Tuning”. (> 71)

Network

You cannot access this unit from DLNA compatible equipment on the network.

• Check the network connection and the network settings. (> 16, 19)

• It may not be possible to connect depending on the types of the equipment or the status of the equipment.

When using this unit as a server, video frames are dropped.

• Change the following settings:

- Conversion Setting for DLNA (> 78)

- Resolution Setting for DLNA (> 78)

You cannot play contents properly from DLNA compatible equipment on the network.

• There may be some video that cannot be played back on DLNA compatible equipment depending on the equipment.

• Following titles may not be played back:

- A title with access restriction

- A title with incompatible format

• Playback via DLNA compatible equipment may not be performed when this unit is in the following conditions:

- While playing back a BD-Video

- While simultaneously performing High speed

copy and recording

- While displaying the Basic Settings menu

- While executing functions using a network,

such as Network Service

• If the DLNA compatible equipment is not capable of outputting HE-AAC audio format, etc., sound may not be played back.

• When “Automatic” is set for “Audio Description” (> 23), some parts of Home Network function cannot be used. Set “Audio Description” to “Off”.

When using Wireless LAN connection, video from the DLNA Certified media server is not played back or video frames are dropped during playback.

• Use 802.11n (2.4 GHz or 5 GHz) Wireless router. Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.

• On the “Wireless Settings” screen (>76), the continuous lighting of at least four “Reception” indicators is the target for a stable connection. If three or fewer indicators are lit or the connection is being interrupted, change the position or angle of your Wireless router. If there is no improvement, connect to a wired network and perform the “Easy Network Setting” (

19, 76) again.

Reset

To return all the settings to the factory preset

Perform “Shipping Condition” or “Default Settings”. (> 80)

SQT1119

Troubleshooting

Messages on the front panel display

The following messages or service numbers appear on the front panel display when something unusual is detected.

BD 

(“∑” stands for a number.)

The remote control and main unit are using different codes. Change the code on the remote control. (> 86)

CONV

Selected titles in the USB HDD are being converted. Do not disconnect the USB HDD from this unit.

GUIDE

TV Guide data is being downloaded.

NoERAS

You cannot delete items on this disc. The disc may be damaged.

NoREAD

• The disc is dirty. (> 10) The unit cannot record, play, or edit.

• The lens cleaner has finished cleaning. Press [< OPEN/CLOSE] on the main unit to eject the disc.

NoWRIT

You cannot write to this disc. The disc may be damaged. Use a new disc.

PLEASE WAIT

• Displayed when the unit is started and is switched to standby mode.

• There was a power failure or the AC plug was disconnected while the unit was on. The unit is carrying out its recovery process. Wait until the message disappears.

PROG FULL

There are already 32 timer programmes. Delete unnecessary timer programmes. (> 33)

REMOVE

The USB device is drawing too much power. Remove the USB device.

START

Update of the software (firmware) is started. You cannot operate the unit until the update is complete. (> 81)

SW-DL

Software (firmware) is downloading. Download will stop when the unit is turned on, or the timer recording starts. (> 81) When “FINISH” is displayed, update of the software (firmware) has completed.

UNSUPPORT

The media is not supported.

UPD /

(“∑” stands for a number.)

The software (firmware) is being updated. You cannot operate the unit until the update is complete. (> 81)

U59

The unit is hot. The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears. Install or place this unit with good ventilation.

U61

(When a disc is not inserted) A malfunction has occurred. The unit is trying to restore to the normal operation. Once the message disappears you can use the unit again. If it remains displayed, consult the dealer.

U76

HDMI cannot be output because it is connected to a model that does not support copyright protection.

U77

Due to the current disc not having authorised copyright information, video output is not performed.

U88

(When a disc is inserted) There was something unusual detected with the disc or the unit. The unit is trying to restore to the normal operation. Once the message disappears you can use the unit again. If it remains displayed, consult the dealer.

U99

The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to standby mode. Now press [Í/I] on the main unit again to turn the unit on.

XHOLD

The HOLD function is activated. (> 84)

SQT1119

Reference

Specifications

Specifications are subject to change without notice. ∫ General

Dimensions: 430 mm (W)

(including the projecting parts)

Mass: Approx. 2.4 kg Power supply: AC 220 V to 240 V, 50 Hz Power consumption: Approx. 28 W

Power consumption in Networked Standby mode :

“Quick Start” is not activated and “Networked Standby” is set to “On”.

Power consumption in Standby mode :

“Quick Start” is not activated, “Networked Standby” is set to “Off” and “RF OUT ( Aerial Signal )” is set to “Off”.

Operating temperature: 5 oC to 40 oC Operating humidity range: 10 % to 80 % RH

∫ TV system

Tuner System: DVB-T/T2 Country: UK Channel Coverage: UHF 21~68

∫ Video/Audio terminals

Digital audio out (coaxial): 1 pc. HDMI out (19 pin type A): 1 pc.

∫ Internal HDD capacity

∫ Other terminals

USB Port (Type A): USB2.0

SD Card Slot: 1 pc.

∫ Wireless LAN

LAN (Ethernet) Port: 1 pc.

Standard compliance: IEEE802.11a/b/g/n Frequency range: 2.4 GHz/5 GHz band

Security

WPA™/WPA2™

WEP (64 bit/128 bit)

This unit supports WPA™ and WPA2™ encryption.

10BASE-T/100BASE-TX

(Encryption type: TKIP/AES,

Authentication type: PSK)

59 mm (H)

210 mm (D)

Approx. 1 W

Approx. 0.2 W

(no condensation)

1TB

2 pcs.

∫ LASER specification

Class 1 LASER Product

Wave length: 405 nm (BDs)

661 nm (DVDs)

783 nm (CDs)

Laser power:

No hazardous radiation is emitted with the safety protection

Recording modes and approximate recording times

Depending on the content being recorded, the recording time may become shorter than indicated.

∫ DR mode

HDD BD-RE, BD-R

Recording Mode

DR (HD quality) 259

DR (SD quality) 518

(1 TB) Single

Layer

(25 GB)

6 hours

hours

30 min.

13 hours 26 hours

Dual

Layer

(50 GB)

13 hours

hours

• Recording time of DR mode may vary depending on the bit rate of broadcasting:

• High Definition (HD) quality: estimated bit rate is 8 Mbps

• Standard Definition (SD) quality: estimated bit rate is 4 Mbps

• Regarding recording time remaining:

Remaining time in the DR mode is calculated with a bit rate of 8 Mbps. But the bit rate differs depending on the broadcast, so the displayed remaining time might be different from the actual remaining time.

SQT1119

Reference

∫ HG, HX, HE, HL, HM modes

HDD BD-RE, BD-R

Recording Mode

(1 TB) Single

Layer

(25 GB)

Dual

Layer

(50 GB)

HG 157 hours 4 hours 8 hours

HX 235 hours 6 hours 12 hours

HE 353 hours 9 hours 18 hours

HM 684 hours 17 hours

472

hours 12 hours 24 hours

35 hours

30 min.

∫ XP, SP, LP, EP modes

HDD BD-RE, BD-R

Recording Mode

(1 TB) Single

XP 215 hours 5 hours

SP 431 hours 10 hours

Layer

(25 GB)

15 min.

Dual

Layer

(50 GB)

10 hours

30 min.

21 hours

30 min.

LP 862 hours 21 hours 42 hours

Recording Mode

1724

hours

DVD-RAM DVD-R,

sided

Double-

sided

(9.4 GB)

Single-

(4.7 GB)

42 hours 84 hours

DVD-R

DVD-RW

+R,

+RW

DL,

+R DL

(8.5 GB)

(4.7 GB)

XP 1 hour 2 hours 1 hour 1 hour

45 min.

SP 2 hours 4 hours 2 hours 3 hours

35 min.

LP 4 hours 8 hours 4 hours 7 hours

10 min.

EP 8 hours 16 hours 8 hours 14 hours

20 min.

• Regarding recording time remaining:

This unit records using a VBR (Variable bit rate) data compression system to vary recorded data segments to match video data segments which may cause differences in the displayed amount of time and space remaining for recording.

Audio information

The audio output differs depending on which terminals are connected to the amplifier/receiver, and the setting on this unit. (> 74, Digital Audio Output)

• The number of channels listed is the maximum possible number of output channels when connected to amplifier/receiver compatible with the respective audio format.

Terminal

Digital Audio Output

Bitstream

PCM

§1

BD-Video:

HDMI AV

OUT

Output using

original audio

§2

7.1ch PCM DVD-Video:

§2, 3

5.1ch PCM

DIGITAL

AUDIO

OUT

§1

The maximum possible number of Dolby®

Dolby Digital/

DTS Digital Surround

Down-mixed 2ch

PCM

sound is 2ch PCM.

§2

When “BD-Video Secondary Audio” is set to “On”, the audio will be output as Dolby Digital, DTS Digital Surround

§3

The audio output is amplified from 5.1ch or

or 5.1ch PCM.

6.1ch to 7.1ch depending on the DTS, Inc. specifications.

SQT1119

Reference

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Customers can download a copy of the original DoC to our R&TTE products from our DoC server: http://www.doc.panasonic.de Contact to Authorised Representative: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is intended to be used in the following countries. Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Iceland, Liechtenstein, Luxembourg, Malta, Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom, Switzerland

This product is intended for general consumer. (Category 3) The WLAN feature of this product shall exclusively be used inside buildings. This product on purpose to connect to access point of 2.4 GHz or 5 GHz WLAN.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

Personal information handling

To provide functions and services of this unit, a device ID, device password and usage history information are stored and managed securely in an appropriate security environment of Panasonic. Please note that usage history and other information may be collected for purposes such as improving products and services in such a way that individuals cannot be identified.

Indemnity concerning recorded content

Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-HDD related component).

SQT1119

Disposal of Old Equipment and Batteries

(Inside of product)

(Back of product)

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Reference

SQT1119

Reference

Licenses

“AVCHD”, “AVCHD 3D”, “AVCHD Progressive” and “AVCHD 3D/Progressive” are trademarks of Panasonic Corporation and Sony Corporation.

Copyright 2004-2014 Verance Corporation. CinaviaTM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

DVB and the DVB logos are trademarks of the DVB Project.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio | Essential is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

This product is licensed under the AVC patent portfolio license for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com

This product is licensed under the VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the VC-1 Standard (“VC-1 Video”) and/or (ii) decode VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide VC-1 video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com

SDXC Logo is a trademark of SD-3C, LLC.

The Wi-Fi CERTIFIEDTM Logo is a certification mark of Wi-Fi Alliance®. The Wi-Fi Protected SetupTM Identifier mark is a certification mark of Wi-Fi Alliance®.

“Wi-Fi®” and “Wi-Fi Direct®” are registered trademarks of Wi-Fi Alliance®. “Wi-Fi Protected SetupTM”, “MiracastTM”, “WPATM”, and “WPA2TM” are trademarks of Wi-Fi Alliance®.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Vorbis, FLAC, WPA Supplicant The software licenses are displayed when “Software Licence” in the Basic Settings menu is selected. (> 80)

Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.

Java is a registered trademark of Oracle and/or its affiliates.

SQT1119

Reference

This product incorporates the following software: (1) the software developed independently by or for Panasonic Corporation, (2) the software owned by third party and licensed to Panasonic Corporation, (3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0), (4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL V2.1), and/or (5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.

The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. Please refer to the detailed terms and conditions thereof shown in the Basic Settings menu.

At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL V2.1 or the other licenses with the obligation to do so, as well as the respective copyright notice thereof. Contact Information: oss-cd-request@gg.jp.panasonic.com

The source code and the copyright notice are also available for free in our website below. http://panasonic.net/avc/oss/

The Freeview service and channels are subject to coverage and may be changed from time to time. Aerial upgrade and/or receiver may be required. Visit freeview.co.uk/availability. The FREEVIEW words and logos are trade marks of DTV Services LTD. © DTV Services Ltd Minimum broadband speed of 2mbps required for catch up and on demand services. Watching on demand and catch up programmes will count towards any monthly broadband data allowance.

Android is a trademark of Google Inc.

MS/PlayReady/Final Product Labeling This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

MS/PlayReady/End User Notices Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

Rovi and Rovi Guide are trademarks of Rovi Corporation and/or its subsidiaries.

The Rovi Guide system is manufactured under license from Rovi Corporation and/or its subsidiaries.

The Rovi Guide system is protected by patents and patent applications filed in the US, Europe, and other countries including one or more of the United States patents 6,396,546; 5,940,073; 6,239,794 issued to Rovi Corporation and/or its subsidiaries.

Rovi Corporation and/or its subsidiaries and related affiliates are not in any way liable for the accuracy or availability of the program schedule information or other data in the Rovi Guide system and cannot guarantee service availability in your area. In no event shall Rovi Corporation and/or its related affiliates be liable for any damages in connection with the accuracy or availability of the program schedule information or other data in the Rovi Guide system.

Restriction on use of unauthorized copied content

This unit adopts the following technology for copyright protection.

Cinavia Notice This product uses Cinavia technology to limit the use of unauthorized copies of some

commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted. More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com

. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

SQT1119

Reference

Index

Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75, 85

Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 40, 93

Audio Description (AD) . . . . . . . . . . . 23, 40, 71

Auto Setup . . . . . . . . . . . . . . . . . . . . . . . . 17, 70

AVCHD . . . . . . . . . . . . . . . . . . . . . 34, 37, 53, 65

Basic Settings . . . . . . . . . . . . . . . . . . . . . . . . 70

BD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

BD-Live . . . . . . . . . . . . . . . . . . . . . . . . . . 38, 72

3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Channel information . . . . . . . . . . . . . . . . . . . 22

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Chapter . . . . . . . . . . . . . . . . . . . . . 36, 40, 45, 73

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . 71, 72

BD-Video Parental Control . . . . . . . . . . . . . . 72

DVD-Video Parental Control . . . . . . . . . . . . . 72

HOLD function . . . . . . . . . . . . . . . . . . . . . . . . 84

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Connection

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

AVCHD . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Delete

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Delete BD-Video data . . . . . . . . . . . . . . . . . . 38

Disc

Finalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Media information . . . . . . . . . . . . . . . . . . . . . . 6

Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

DVD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Easy setting . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Finalise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Format

Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

USB HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Freeview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Freeview Play Catch Up . . . . . . . . . . . . . . . . . 26

FUNCTION MENU . . . . . . . . . . . . . . . . . . . . . 21

HDD

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Media information . . . . . . . . . . . . . . . . . . . . . . 6

Language code list . . . . . . . . . . . . . . . . . . . . 85

Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . . 71

Media Renderer . . . . . . . . . . . . . . . . . . . . . . . 62

Menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Miracast

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Network

BD-Live . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Easy Network Setting . . . . . . . . . . . . . . . 19, 76

Miracast

Network Service . . . . . . . . . . . . . . . . . . . . . . 64

Smart Home Networking (DLNA) . . . . . . 60, 78

Wi-Fi Direct

. . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . . . . . 63

SQT1119

Reference

PAUSE LIVE TV . . . . . . . . . . . . . . . . . . . . . . . 24

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

PIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 80

Playback menu . . . . . . . . . . . . . . . . . . . . . . . . 68

Protection

Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Pure Sound Mode . . . . . . . . . . . . . . . . . . . . . 72

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Recording mode . . . . . . . . . . . . . . . . . . . . . . 92

Timer recording . . . . . . . . . . . . . . . . . . . . . . . 29

Recording mode . . . . . . . . . . . . . . . . . . . . . . 92

Recording time . . . . . . . . . . . . . . . . . . . . . . . . 92

Remote control . . . . . . . . . . . . . . . . . . . . . . . 12

HOLD function . . . . . . . . . . . . . . . . . . . . . . . . 84

Remote control code . . . . . . . . . . . . . . . . . . . 80

TV operation . . . . . . . . . . . . . . . . . . . . . . . . . 17

Reset . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 89, 90

REWIND LIVE TV . . . . . . . . . . . . . . . . . . . 24, 72

SD Card

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Media information . . . . . . . . . . . . . . . . . . . 6, 10

miniSD / microSD . . . . . . . . . . . . . . . . . . . . . 10

Setting

Auto Setup . . . . . . . . . . . . . . . . . . . . . . . 17, 70

Easy setting . . . . . . . . . . . . . . . . . . . . . . . . . .17

Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Smart Home Networking (DLNA) . . . . . . 60, 78

Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Media Renderer . . . . . . . . . . . . . . . . . . . . . . 62

Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Software (Firmware) Update . . . . . . . . . . . . . 81

Timer recording . . . . . . . . . . . . . . . . . . . . . . . 29

Top Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Create Top Menu . . . . . . . . . . . . . . . . . . . . . 83

Troubleshooting guide . . . . . . . . . . . . . . . . . 86

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Tuning

Channel List . . . . . . . . . . . . . . . . . . . . . . . . . 70

Channel Sorting by Region . . . . . . . . . . . . . . 71

Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Manual Tuning . . . . . . . . . . . . . . . . . . . . . . . 71

Signal condition . . . . . . . . . . . . . . . . . . . . . . . 71

TV Anywhere . . . . . . . . . . . . . . . . . . . . . . . . . 64

TV Guide

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Timer recording . . . . . . . . . . . . . . . . . . . . . . . 29

TV System . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

USB HDD

Cancellation of all USB HDD Registrations

Disconnection . . . . . . . . . . . . . . . . . . . . . 66, 73

Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Media information . . . . . . . . . . . . . . . . . . . . 6, 9

Registration . . . . . . . . . . . . . . . . . . . . . . . 66, 73

USB memories

Media information . . . . . . . . . . . . . . . . . . . . 6, 9

. . . . 73

Video

AVCHD . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 37

BD-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

MKV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Playback . . . . . . . . . . . . . . . . . . . . . . . . . 34, 37

Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Video Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Xvid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

VIERA Link . . . . . . . . . . . . . . . . . . . . . . . . 67, 76

Wi-Fi Direct® . . . . . . . . . . . . . . . . . . . . . . . . . 63

Xvid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4K Networking . . . . . . . . . . . . . . . . . . . . . . . . 81

7 days back function . . . . . . . . . . . . . . . . . . . 26

SQT1119

Sales and Support Information

Customer Communications Centre

• For customers within the UK: 0344 844 3899

• For customers within Ireland: 01 289 8333

• Monday - Friday 9:00 am - 5:00 pm (Excluding public holidays).

• For further support on your product, please visit our website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Communications Centre Monday - Friday 9:00 am - 5:00 pm (Excluding public holidays).

• Or go on line through our Internet Accessory ordering application at www.pas-europe.com

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details.

To get the most up to date service from Freeview it is important for Freeview customers to retune from time to time.

How do I re-tune my Freeview Box?

The below instructions are a quick reference. If you have any problems, check your instruction manual or ask a friend or family member to show you how. Alternatively, go to your local electrical retailer, contact your manufacturer or visit freeview.co.uk/retune Re-tuning only takes a few minutes, just follow the steps below: 1 Press [FUNCTION MENU]. 2 Select “Basic Settings” in “Setup”, then press [OK]. 3 Select “Auto Setup” in “Tuning”, then press [OK]. 4 Select “Yes”, then press [OK]. Please note: most digital TV recorders will keep your original recordings after running a re-tune but you will need to reset any future recordings. For detailed information on re-tuning your receiver please refer to page 70 of this instruction book.

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://www.panasonic.com

SQT111 9

F0915TA0

Panasonic DMR-BWT850 Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
