Panasonic cz-p56hr1u parts list
18
- 9 -

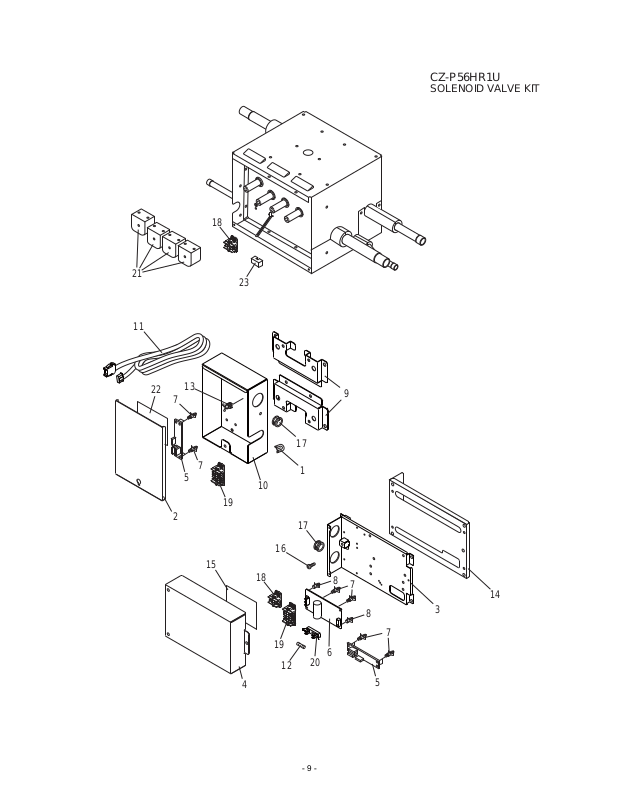

CZ-P56HR1U
SOLENOID VALVE KIT
21
11
22
23
13
7
9
17
7
5
1
10
19
2
17
16
15
18
8
7
14
8
3
7
19
12
4
6
20
5
ATTENTION!
- 10 -
To ensure correct parts supply,please let us know the following,
Part No. when you make service parts order:
1.Part No. 2.Description 3.Q'ty 4.Volts-Hz-Ph 5.Product Mode No.
CZ-P56HR1U
SOLENOID VALVE KIT
KeyNo. Part No.
1 CV 6230162938 Eyelet 1 7332442512200
2 CV 6233066264 Cover,Elec.Component Box 1 8542530467301
3 CV 6233066097 Elec Component Box Ass'y 1 8540531111401
4 CV 6233066080 Cover,Elec.Component Box 1 8542530467201
*
5 CV 6231715805 P.C.B.Ass'y CR-SV80A 2 8540517836700
*
6 CV 6233066073 P.C.B.Ass'y LDA10F-12 1 1FA4P1B006400
7 CV 6230965966 Spacer SPLSN-4 10 8512536603700
8 CV 6230965973 Spacer SPSN-4 2 8512536604100
9 CV 6233066271 Mounting Plate 2 8542236224201
10 CV 6233066219 Elec Component Box 1 8542530635101
*
11 CV 6233066226 Wire K 1 8FA0528634300
*
12 CV 6233066257 Fuse ET 3.15A 1 1FA4S3A028200
13 CV 6230270268 Clamper #1197 1 8002530812500
14 CV 6233066127 Front Panel 1 8542111625601
15 CV 6233066295 Elec. Wiring Diagram 1 8FA2525039800
16 CV 6230516960 Screw Special 1 8522239610101
17 CV 6230383425 Bushing OCB-875 2 8512537000900
*
18 CV 6380126767 Terminal Base KTM-2J 2 1FJ4J3A003700
*
19 CV 6233066196 Terminal Base KTM-5J 2 1FA4J3A037300
20 CV 6233066189 Fuse Holder BM-SS-I-14 1 1FA4J2A007500
*
21 CV 6233066172 Magnetic Coil VPV-MOAQ533UB1 4 1FA4L8A037400
22 CV 6233066165 Elec. Wiring Diagram 1 8FA2525045200
23 CV 6233199030 Packing 1 8542136268710
CV 6233199023 Installation Instructions 1 8546436953600
NOTE: Metal and plastic parts will be supplied basically
with necessary heat insulation pads or packing.
Each key number with an asterisk (*) means the
recommended service parts.
Description Model Number Q'ty Reference No.
