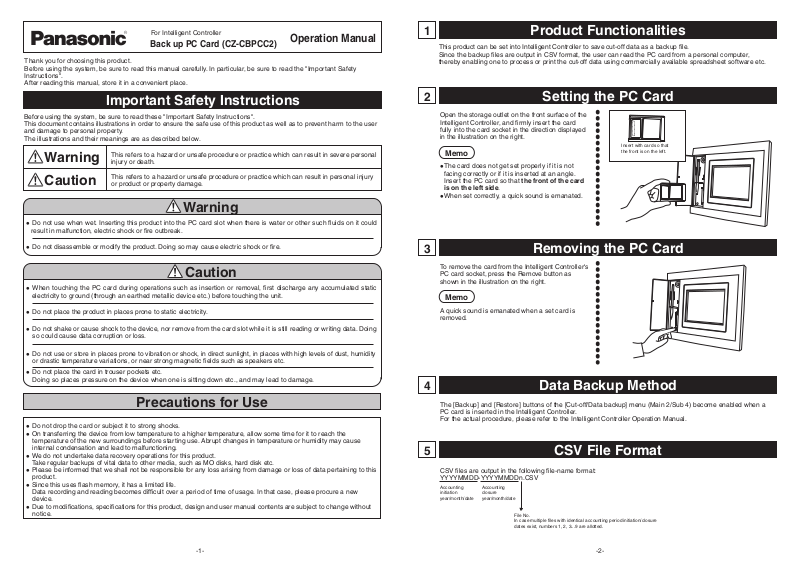

PANASONIC CZCBPCC2 User Manual
For Intelligent Controller
Back up PC Card (CZ-CBPCC2)
Thank you for choosing this product.
Before using the system, be sure to read this manual carefully. In particular, be sure to read the "Important Safety
Instructions".
After reading this manual, store it in a convenient place.
Operation Manual
Important Safety Instructions
Before using the system, be sure to read these "Important Safety Instructions".
This document contains illustrations in order to ensure the safe use of this product as well as to prevent harm to the user
and damage to personal property.
The illustrations and their meanings are as described below.
Warning
Caution
This refers to a hazard or unsafe procedure or practice which can result in severe personal
injury or death.
This refers to a hazard or unsafe procedure or practice which can result in personal injury
or product or property damage.
Warning
z Do not use when wet. Inserting this product into the PC card slot when there is water or other such fluids on it could
result in malfunction, electric shock or fire outbreak.
1
This product can be set into Intelligent Controller to save cut-off data as a backup file.
Since the backup files are output in CSV format, the user can read the PC card from a personal computer,
thereby enabling one to process or print the cut-off data using commercially available spreadsheet software etc.
2
Open the storage outlet on the front surface of the
Intelligent Controller, and firmly insert the card
fully into the card socket in the direction displayed
in the illustration on the right.
Memo
z The card does not get set properly if it is not
facing correctly or if it is inserted at an angle.
Insert the PC card so that the front of the card
is on the left side.
z When set correctly, a quick sound is emanated.
Product Functionalities
Setting the PC Card
Insert with card so that
the front is on the left.
z Do not disassemble or modify the product. Doing so may cause electric shock or fire.
Caution
z When touching the PC card during operations such as insertion or removal, first discharge any accumulated static
electricity to ground (through an earthed metallic device etc.) before touching the unit.
z Do not place the product in places prone to static electricity.
z Do not shake or cause shock to the device, nor remove from the card slot while it is still reading or writing data. Doing
so could cause data corruption or loss.
z Do not use or store in places prone to vibration or shock, in direct sunlight, in places with high levels of dust, humidity
or drastic temperature variations, or near strong magnetic fields such as speakers etc.
z Do not place the card in trouser pockets etc.
Doing so places pressure on the device when one is sitting down etc., and may lead to damage.
Precautions for Use
z Do not drop the card or subject it to strong shocks.
z On transferring the device from low temperature to a higher temperature, allow some time for it to reach the
temperature of the new surroundings before starting use. Abrupt changes in temperature or humidity may cause
internal condensation and lead to malfunctioning.
z We do not undertake data recovery operations for this product.
Take regular backups of vital data to other media, such as MO disks, hard disk etc.
z Please be informed that we shall not be responsible for any loss arising from damage or loss of data pertaining to this
product.
z Since this uses flash memory, it has a limited life.
Data recording and reading becomes difficult over a period of time of usage. In that case, please procure a new
device.
z Due to modifications, specifications for this product, design and user manual contents are subject to change without
notice.
3
To remove the card from the Intelligent Controller's
PC card socket, press the Remove button as
shown in the illustration on the right.
Removing the PC Card
Memo
A quick sound is emanated when a set card is
removed.
4
The [Backup] and [Restore] buttons of the [Cut-off/Data backup] menu (Main 2/Sub 4) become enabled when a
PC card is inserted in the Intelligent Controller.
For the actual procedure, please refer to the Intelligent Controller Operation Manual.
5
CSV files are output in the following file-name format:
YYYYMMDD-YYYYMMDDn.CSV
Accounting
initiation
year/month/date
Accounting
closure
year/month/date
Data Backup Method
CSV File Format
File No.
In case multiple files with identical accounting period initiation/closure
dates exist, numbers 1, 2, 3...9 are allotted.
-2--1-
Header portion
1) Distribution ratio calculation method
Character string "Simple nor mal distribution mode" or "Simple thermostat ON distribution mode"
2) Period
Accounting period initiation month/date and time, closure month/date and time
(Format: [99Months99Days99Hrs])
3) Adaptor-wise pulse counts and distribution group number (Main unit and adaptors 1-7)
Power 1 (Regular hours, Out of hours, and Special days), Power 2 (Regular hours, Out of hours,
and Special days), Gas (Regular hours, Out of hours, and Special days), Distribution group
number of Power 1, Distribution group number of Power 2, Distribution group number of gas
No
Adaptor No.
1
Link No.
2
Unit key
3
Central control address
4
System address
5
Unit address
6
Product type
7
Model
8
Indoor unit function [kW]
9
Electric heater Yes/No
10
Unit name
11
Tenant No.
12
Tenant name
13
Distribution group
14
15
Blast thermostat ON
16
(minutes)
17
18
Strong blower thermostat
19
ON (minutes)
20
21
Light blower thermostat
22
ON (minutes)
23
24
Blast thermostat OFF
25
(minutes)
26
27
Strong blower thermostat
28
OFF (minutes)
29
30
Light blower thermostat
31
OFF (minutes)
32
33
Heater ON (minutes)
34
35
36
37
38
39
Adaptor usage Yes/No
40
41
42
43
44
Intra-group power
45
distribution ratio [%]
46
47
48
Power consumption
49
[kWh]
50
51
52
Intra-group gas
53
distribution ratio [%]
54
55
56
57
Gas consumption [m3]
58
59
Main item
Sub item
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Regular hours
Out of hours
Special days
Regular hours
Out of hours
Special days
Regular hours
Out of hours
Special days
Regular hours
Out of hours
Special days
Regular hours
Out of hours
Special days
Regular hours
Out of hours
Special days
Regular hours
Out of hours
Special days
Main unit
Adaptor 1
Adaptor 2
Adaptor 3
Adaptor 4
Adaptor 5
Adaptor 6
Adaptor 7
Regular hours
Out of hours
Special days
Total time
Regular hours
Out of hours
Special days
Total time
Regular hours
Out of hours
Special days
Total time
Regular hours
Out of hours
Special days
Total time
Range
0 to 7
1 to 2
(Optional)
1 to 64, undetermined
1 to 32
1 to 64
PAC, GHP, HOT
0.0 to 999.9
0/1
maximum 12 characters
1 to 128
maximum 20 characters
1 to 8
0 to 3932159
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
0/1
"
"
"
"
"
"
"
0.00 to 100.00
"
"
"
0
"
"
"
0.00 to 100.00
"
"
"
0
"
"
"
Data portion
As regards the indoor units data, the data in the table below is constantly output in
comma-separated format for the maximum number of indoor units (256 units).
For the system that does not have indoor units, the adaptor number=0 and only a comma is
generated as output.
In lines 1 and 2, an item-wise heading (Main item, Sub item in the table below) is generated as
output.
0 signifies the Intelligent Controller main unit.
1: LINK 1, 2: LINK 2
(for internal system processing)
31 and 32 to be used only in case of local adaptors
HOT is set by the Intelligent Controller.
Indoor unit model
Values if modified by the Intelligent Controller
Presence of electric heater Yes (1)/No (0)
Distribution group allocation Yes (1)/No (0)
"
"
"
"
"
"
"
Comments
-3-
Memo
Standard commercially available CF cards cannot be used on the Intelligent Controller.
The [Backup] and [Restore] buttons of the [Cut-off/Data backup] menu (Main 2/Sub 4) do not become enabled
if such a card is inserted.
When processing with commercially available spreadsheet software, ensure that the data has first been copied
to a separate folder in the computer before conducting operations. Avoid directly processing the original data
inside the PC card.
6
Operating temperature range
5 to 40°C
External dimensions
CF card dimensions diagram
3.3mm
TOP
42.8mm
Dimensions diagram when CF card is mounted on the PC card adaptor
PC card adaptor
54.0
Authorized representative in EU
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Specifications
36.4mm
85.6
-4-
39.0
5.0
CF card
45.0
Printed in Japan
