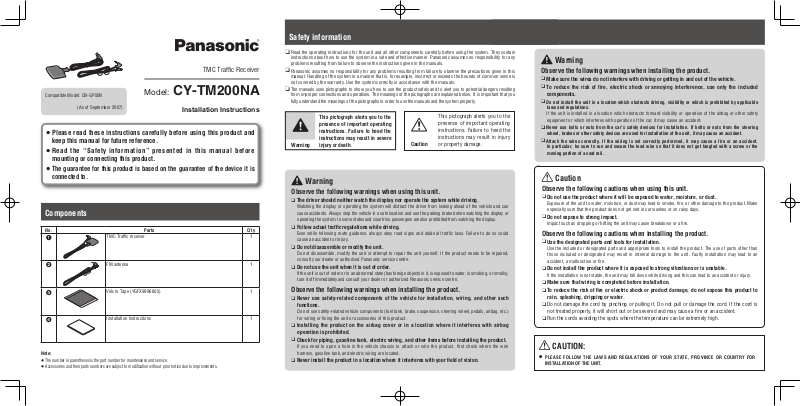

Panasonic CY-TM200NA Operating Instructions
TMC Traffi c Receiver
Compatible Model: CN-GP50N
(As of September 2007)
Model: CY-TM200NA
Installation Instructions
Please read these instructions carefully before using this product and
keep this manual for future reference.
Read the “Safety information” presented in this manual before
mounting or connecting this product.
The guarantee for this product is based on the guarantee of the device it is
connected to.
Components
No. Parts Q’ty
Note:
The number in parentheses is the part number for maintenance and service.
Accessories and their parts numbers are subject to modifi cation without prior notice due to improvements.
TMC Traffi c receiver 1
FM antenna 1
Velcro Tape (YGFX9996605) 1
Installation Instructions 1
Safety information
Read the operating instructions for the unit and all other components carefully before using the system. They contain
instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any
problems resulting from failure to observe the instructions given in the manuals.
Panasonic assumes no responsibility for any problems resulting from failure to observe the precautions given in this
manual. Handling of the system in a manner that is, for example, incorrect or exceeds the bounds of common sense is
not covered by the warranty. Use the system correctly in accordance with the manuals.
The manuals uses pictographs to show you how to use the product safely and to alert you to potential dangers resulting
from improper connections and operations. The meanings of the pictographs are explained below. It is important that you
fully understand the meanings of the pictographs in order to use the manuals and the system properly.
This pictograph alerts you to the
presence of important operating
instructions. Failure to heed the
instructions may result in severe
injury or death.Warning
Caution
This pictograph alerts you to the
presence of important operating
instructions. Failure to heed the
instructions may result in injury
or property damage.
Warning
Observe the following warnings when using this unit.
The driver should neither watch the display nor operate the system while driving.
Watching the display or operating the system will distract the driver from looking ahead of the vehicle and can
cause accidents. Always stop the vehicle in a safe location and use the parking brake before watching the display or
operating the system. In some states and countries, passengers are also prohibited from watching the display.
Follow actual traffi c regulations while driving.
Even while following route guidance, always obey road signs and abide all traffi c laws. Failure to do so could
cause an accident or injury.
Do not disassemble or modify the unit.
Do not disassemble, modify the unit or attempt to repair the unit yourself. If the product needs to be repaired,
consult your dealer or authorized Panasonic service centre.
Do not use the unit when it is out of order.
If the unit is out of order or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells),
turn it off immediately and consult your dealer or authorized Panasonic service centre.
Observe the following warnings when installing the product.
Never use safety-related components of the vehicle for installation, wiring, and other such
functions.
Do not use safety-related vehicle components (fuel tank, brake, suspension, steering wheel, pedals, airbag, etc.)
for wiring or fi xing the unit or accessories of this product.
Installing the product on the airbag cover or in a location where it interferes with airbag
operation is prohibited.
Check for piping, gasoline tank, electric wiring, and other items before installing the product.
If you need to open a hole in the vehicle chassis to attach or wire the product, first check where the wire
harness, gasoline tank, and electric wiring are located.
Never install the product in a location where it interferes with your fi eld of vision.
Warning
Observe the following warnings when installing the product.
Make sure the wires do not interfere with driving or getting in and out of the vehicle.
To reduce the risk of fire, electric shock or annoying interference, use only the included
components.
Do not install the unit in a location which obstructs driving, visibility or which is prohibited by applicable
laws and regulations.
If the unit is installed in a location which obstructs forward visibility or operation of the airbag or other safety
equipment or which interferes with operation of the car, it may cause an accident.
Never use bolts or nuts from the car’s safety devices for installation. If bolts or nuts from the steering
wheel, brakes or other safety devices are used for installation of the unit, it may cause an accident.
Attach the wires correctly. If the wiring is not correctly performed, it may cause a fire or an accident.
In particular, be sure to run and secure the lead wire so that it does not get tangled with a screw or the
moving portion of a seat rail.
Caution
Observe the following cautions when using this unit.
Do not use the product where it will be exposed to water, moisture, or dust.
Exposure of the unit to water, moisture, or dust may lead to smoke, fi re, or other damage to the product. Make
especially sure that the product does not get wet in car washes or on rainy days.
Do not expose to strong impact.
Impact such as dropping or hitting the unit may cause breakdown or a fi re.
Observe the following cautions when installing the product.
Use the designated parts and tools for installation.
Use the included or designated parts and appropriate tools to install the product. The use of parts other than
those included or designated may result in internal damage to the unit. Faulty installation may lead to an
accident, a malfunction or fi re.
Do not install the product where it is exposed to strong vibrations or is unstable.
If the installation is not stable, the unit may fall down while driving and this can lead to an accident or injury.
Make sure that wiring is completed before installation.
To reduce the risk of fi re or electric shock or product damage, do not expose this product to
rain, splashing, dripping or water.
Do not damage the cord by pinching or pulling it. Do not pull or damage the cord. If the cord is
not treated properly, it will short out or be severed and may cause a fi re or an accident.
Run the cords avoiding the spots where the temperature can be extremely high.
CAUTION:
l
PL EASE F OLLO W THE LAWS AND REGU LATI ONS OF YOUR S TATE , PROV INCE O R COUN TRY FOR
INSTALLATION OF THE UNIT.
Maintenance
Notes on use
Connection
Caution on cleaning
Your product is designed and manufactured to ensure a
minimum of maintenance. Use a dry soft cloth for routine
exte rior cleaning. Never use benzine, t hinner or other
solvents.
Thinner
Alcohol
Pesticide
Wax
Benzine
Specifications
Dimensions (W x H x D) 54 mm10 mm57 mm
Weight 47 g (without FM Antenna)
Cord length Main unit cable 1.5 m
FM Input Frequency 87.5 MHz to 108.0 MHz
Voltage Type
Power Consumption
Operating Temperature -10 °C to +60 °C
Storage Temperature -20 °C to +70 °C
RDS Sensiivity
Notes:
l
Specifications and the design are subject to modification
without notice due to improvements in technology.
l
Some figures and illustrations on this manual may be
different from your product.
Authorized Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
FM Antenna 75 cm
DC 5V 5%
25 mA
30 dB V
Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net
Cleaning this unit
When the unit is dirty, wipe the surface
of the display using a soft cloth.
1
Moisten the soft cloth in dishwashing
soap diluted with water and wring well.
2
W ipe lig htly. Go ov er t he s ame
surface with a dry cloth.
Notes:
l
If water drops or similar wet substances get inside
the monitor, it may cause a malfunction.
l
Since there is the possibility of water drops getting
inside of the unit, do not directly apply cleanser to the
surface.
l
Do not scratch the screen with your nails or other hard
objects. The resulting scratches or marks will obscure
the images.
Sales and Support Information
For UK and Ireland customers only.
Customer Care Centre
l For customers within the UK: 0844 844 3852
l For customers within the Republic of Ireland: 01 289 8333
l Visit our website for product information:
www.panasonic.co.uk.
l E-mail: customer.care@panasonic.co.uk
Direct Sales at Panasonic UK
l Order accessories and consumable items for your product
with ease and confidence by phoning our Customer Care
Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am
- 5:30pm. (Excluding public holidays).
l Or go on line throug h our In ternet Accessory order ing
application at www.panasonic.co.uk.
l Most major credit and debit cards accepted.
l All enq uiries, transactions an d distribution f aciliti es are
provided directly by Panasonic UK Ltd.
l It couldn’t be simpler!
l Also available through our Internet is direct shopping for a wide
range of finished products, so take a browse on our website for
further details.
YGFM294543 FX0708-0
Printed in China
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)
This symbol on the products and/or accompanying documen ts means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may
be able to return your products to your local retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate
waste handling. Please contact your local authority for further details of your nearest designated
collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of
disposal.
l
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation of the device.
Limitation of liability
l
If malfunction or damage occurs due to fire not caused by this product, earthquake, third-party action, other accident,
error or intent by the customer, misoperation, or use under other improper conditions, resulting repairs will, as a
general rule, require payment.
l
Panasonic shall not be liable for any incidental losses resulting from the use of this product, or from inability to use
this product (loss of business profits, change or loss of memory contents, etc.).
l
The warranty certificate for this product is invalidated in the event that it is installed in a commercial vehicle (bus,
truck, taxi, commercial car, etc.).
About This Product
Traffic Message Channel (TMC) is a system that transmits road traffic information (RDS-TMC) real-time via an FM
broadcast. By connecting this product to your Navigation System, the TMC road traffic information such as congestion,
accidents, or road works can be received by the Navigation system, displayed on the map, and a new route that avoids
the congestion, accident, or road works can be automatically searched (re-route).
l
The supplied information is reference information, and may differ from actual information, or may not be up to date.
l
Panasonic assumes no responsibility for the contents of RDS-TMC.
l
It may take some time for the TMC data to be received.
l
The broadcasting station (frequency) that can be used for RDS-TMC differs depending on the country and region.
l
Depending on the region, TMC may not be supported.
l
Only FM-RDS is supported. Other types of TMC (DAB or satellite radio etc) are not supported.
Preparation:
l
Wipe all dirt (oil, dust, etc.) off the mounting surface, and dry any moisture.
l
If the air temperature is low, use a hair drier, etc. to warm the mounting surface.
Use the sucker to attach the FM antenna
to the windscreen.
Sucker
To anchor the cord, use a commercially available
cord clamper or other such item.
Example Installation
Navigation System (option) TMC Traffic Receiver
Connecting to a Navigation System (option).
Navigation System (option)
Main Unit Cable (TMC Traffic Receicver)
Traffic receiver connector
Notes:
l
Install this product in compliance with national and regional laws and by-laws in a position that does not interfere with your driving.
l
RDS-TMC information may not be receivable if your car is fitted with electric wave impermeable glass.
Consult your dealer or authorized Panasonic service centre.
l
If you bundle up the excess antenna cord, keep it at least 30 cm away from the navigation System.
At ta ch th e TM C Traffic Receiver to the
dashboard using the Velcro Tape.
Main Unit Cable
FM antenna
Connect the FM antenna to the TMC Traffic
Receiver.
At least 20mm distance from
the metal part of the car body.
FM antenna
TMC Traffic
Receiver
Velcro Tape
Loading...
