PANASONIC CUA125KH, CSA125KH, CSA95KH, CUA95KH User Manual

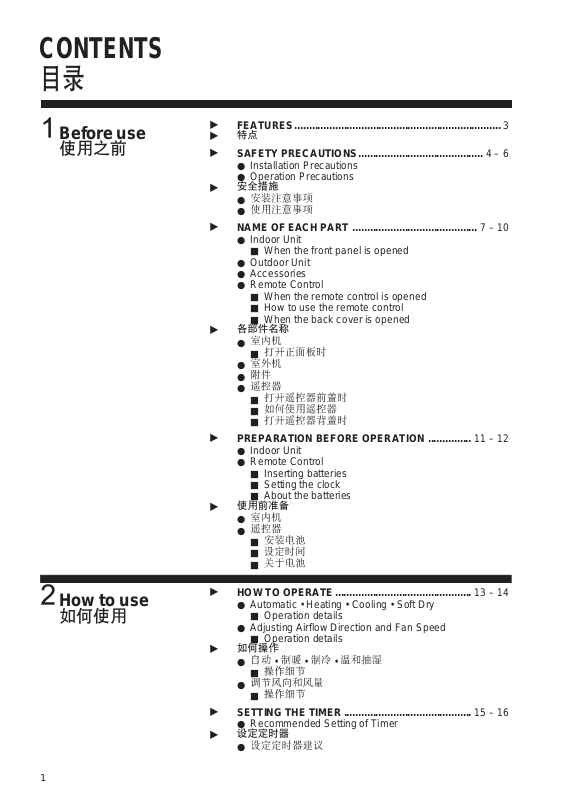

CONTENTS
Before use
: FEATURES....................................................................... 3
:

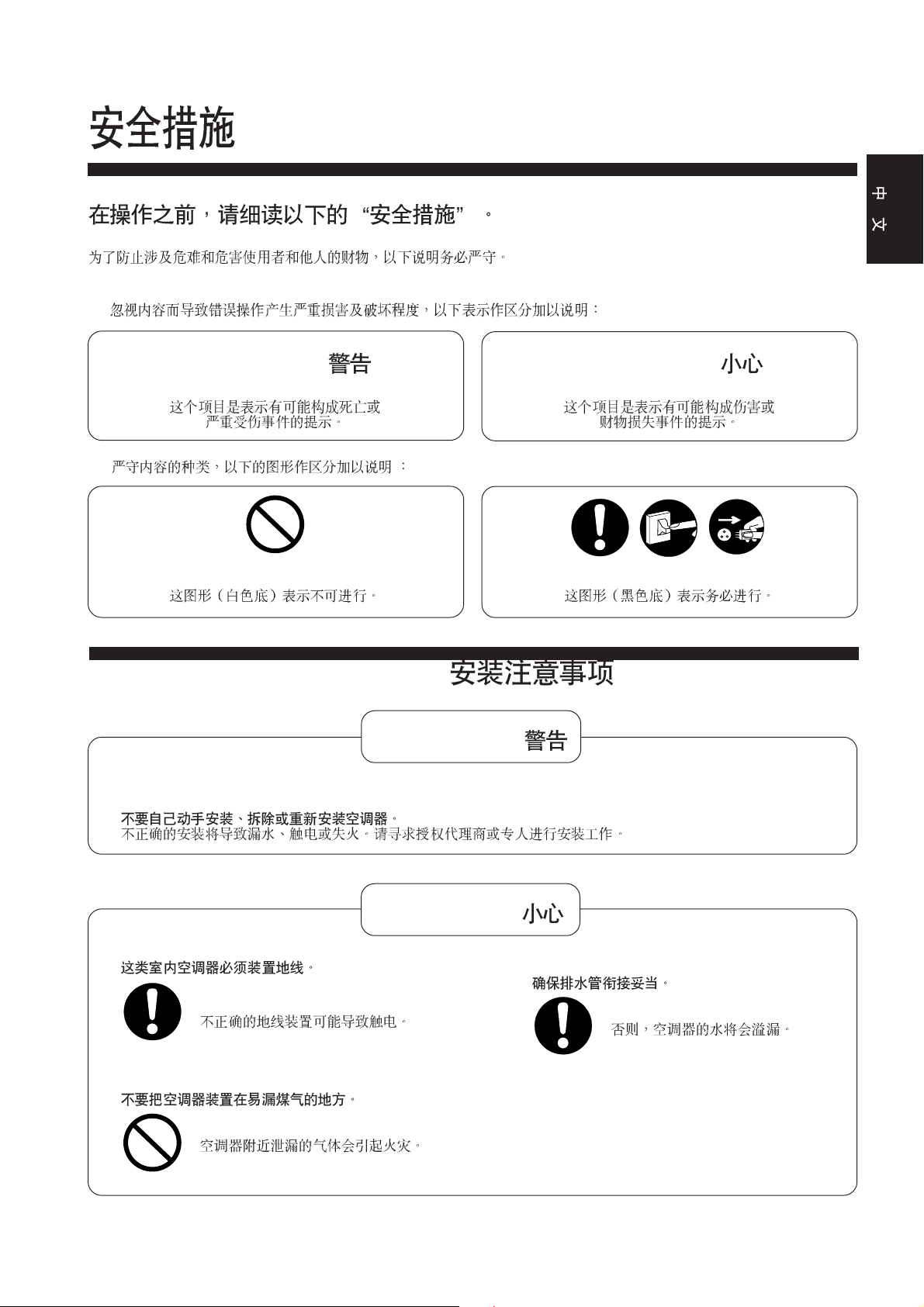

: SAFETY PRECAUTIONS........................................... 4 – 6
Installation Precautions

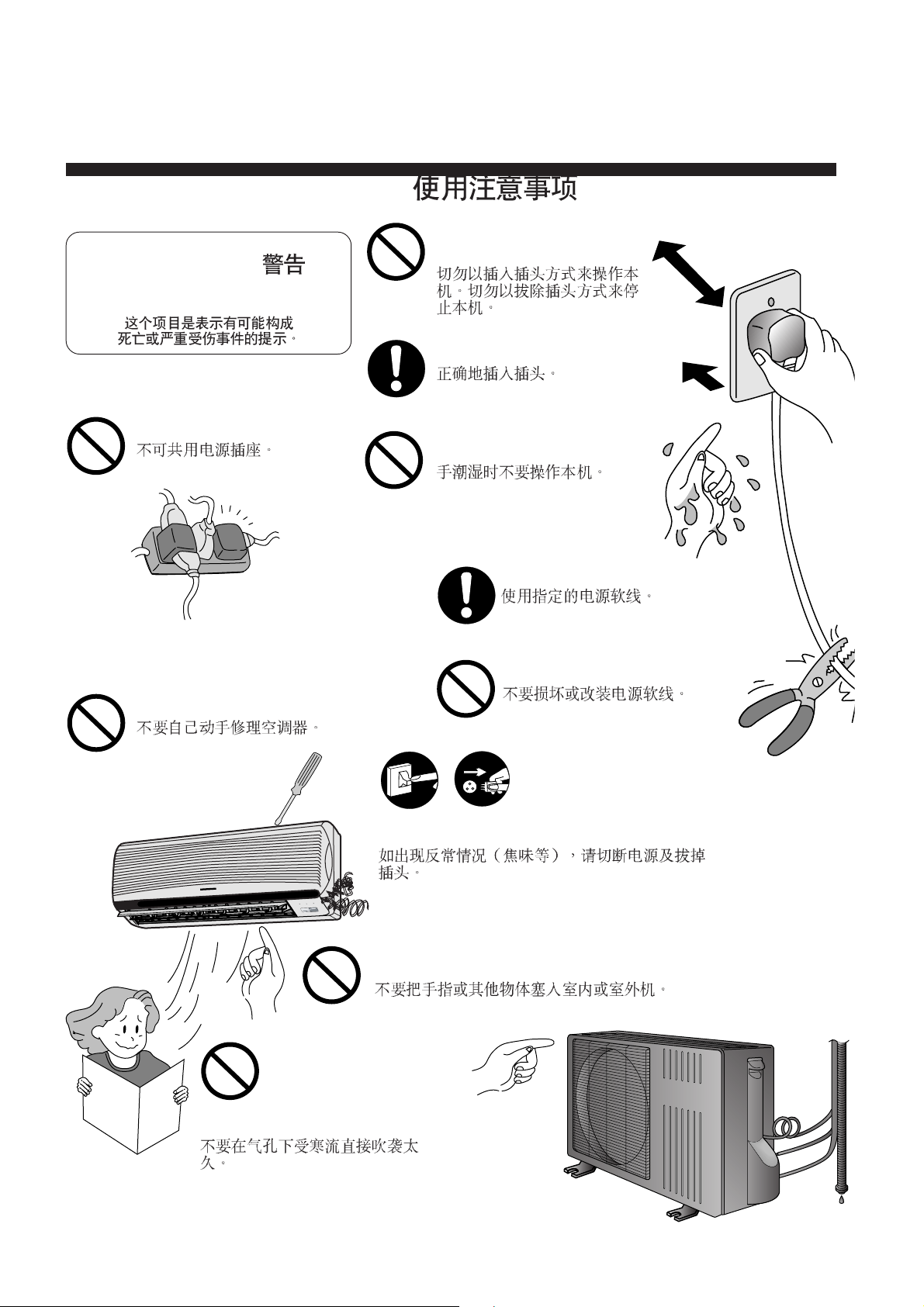

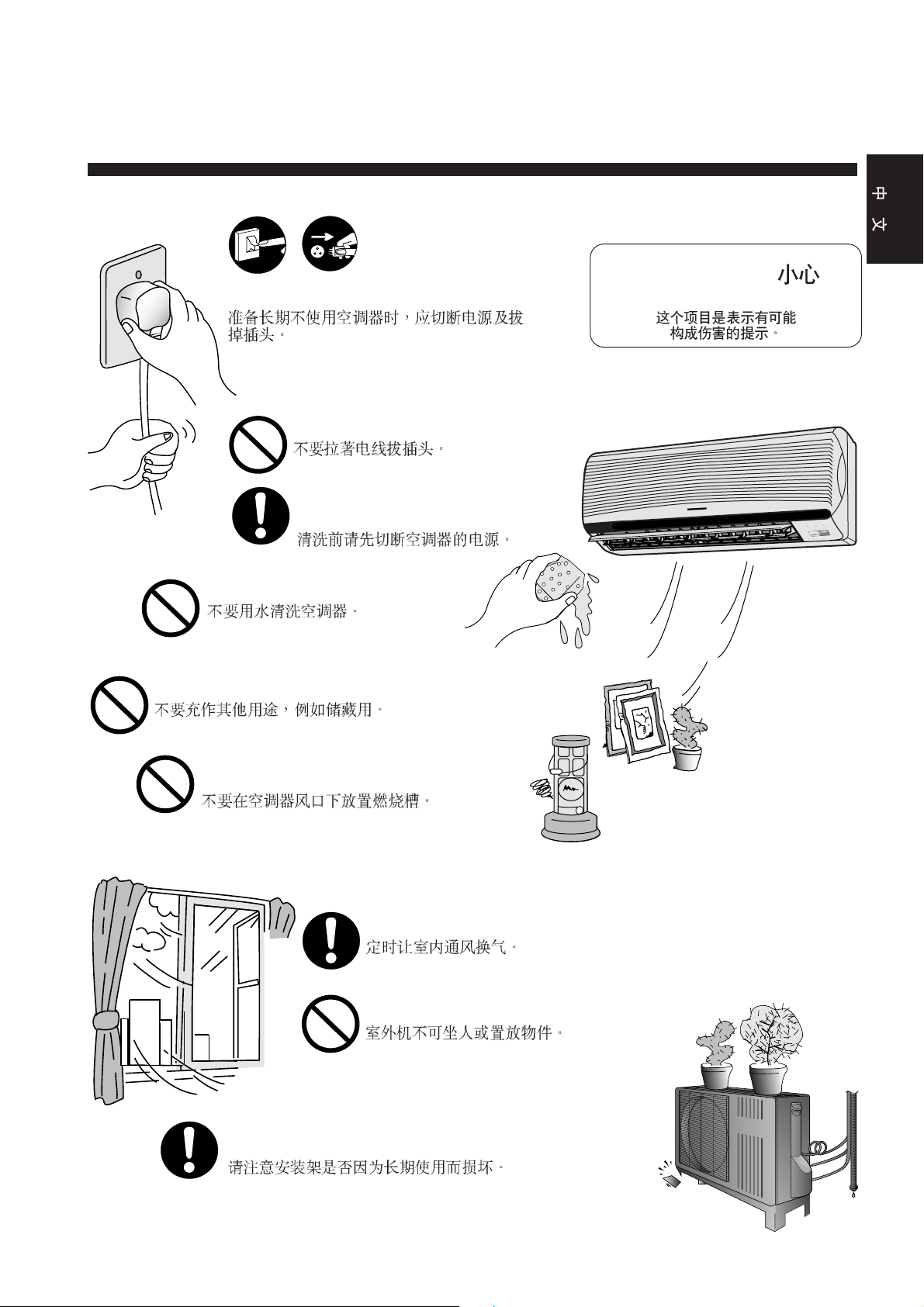

Operation Precautions
:

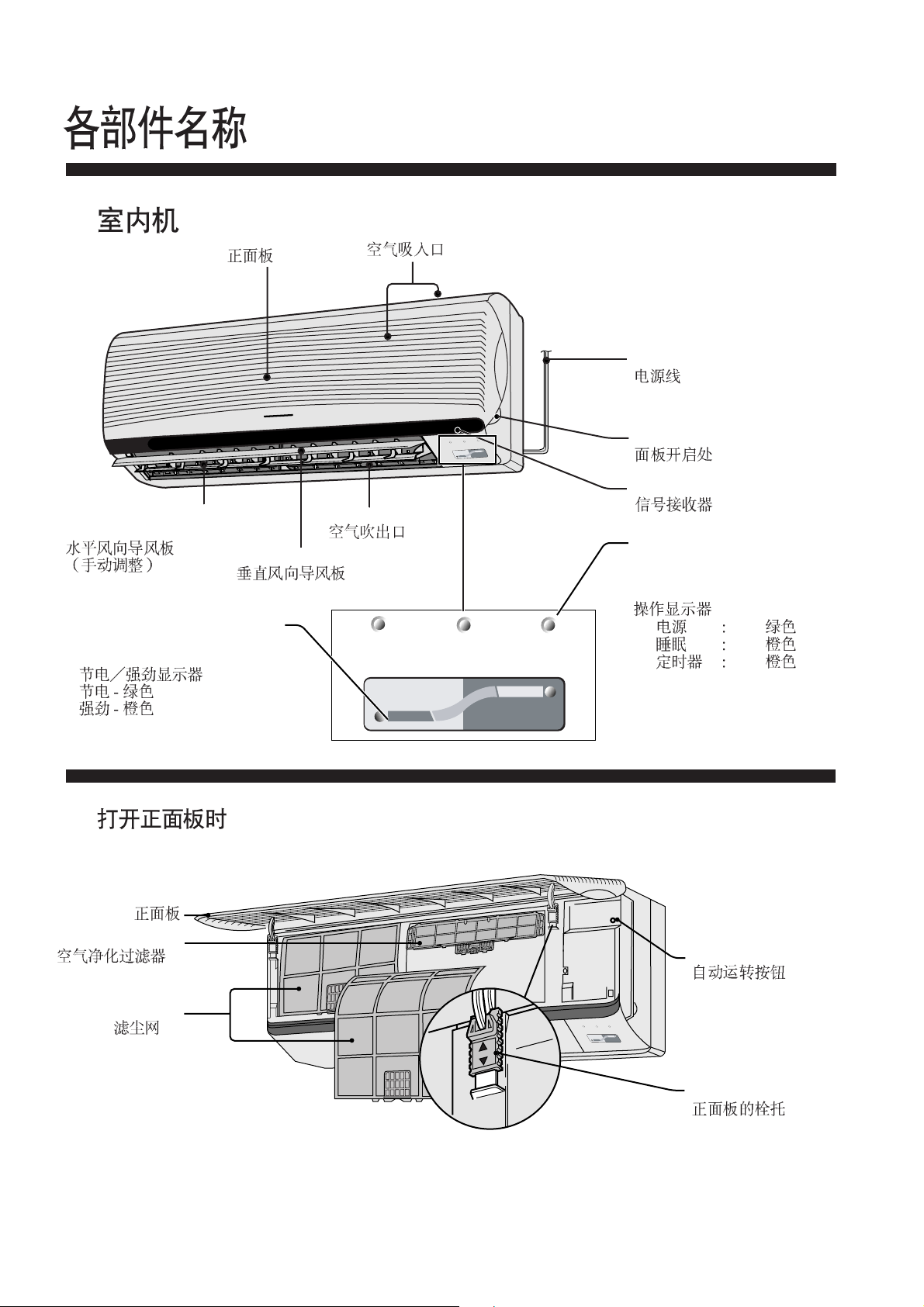

Indoor Unit
When the front panel is opened

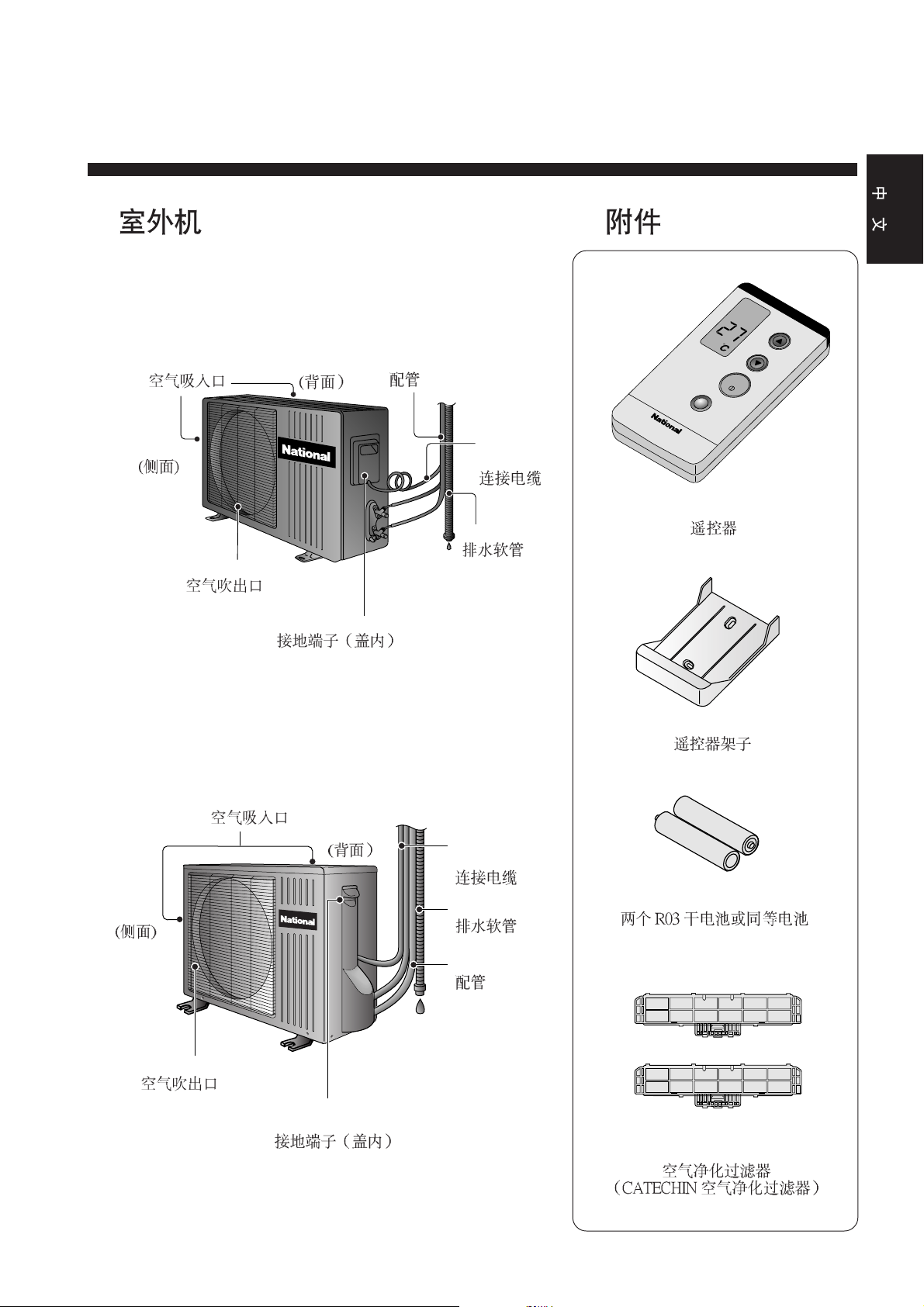

Outdoor Unit
Accessories

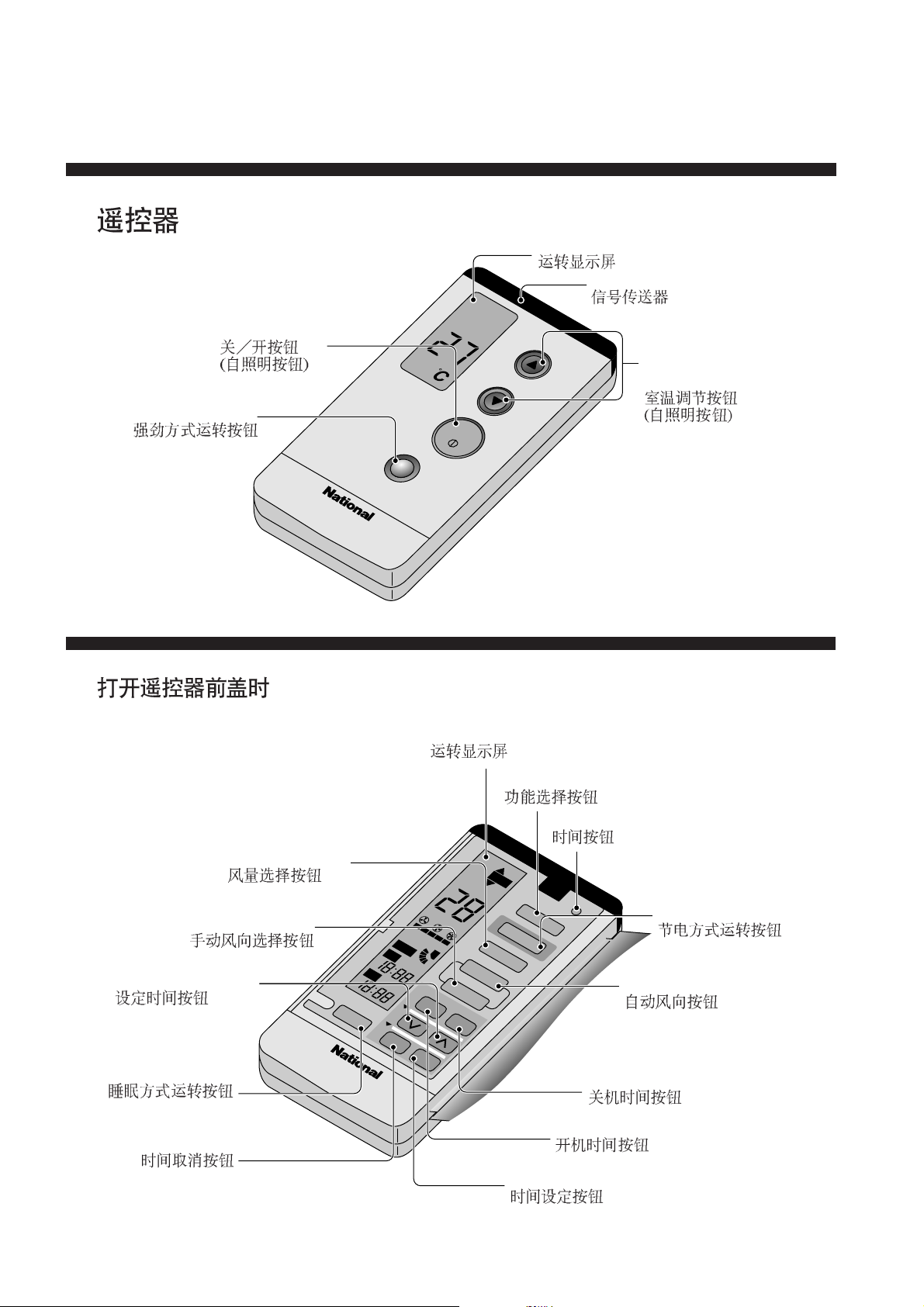

Remote Control
When the remote control is opened

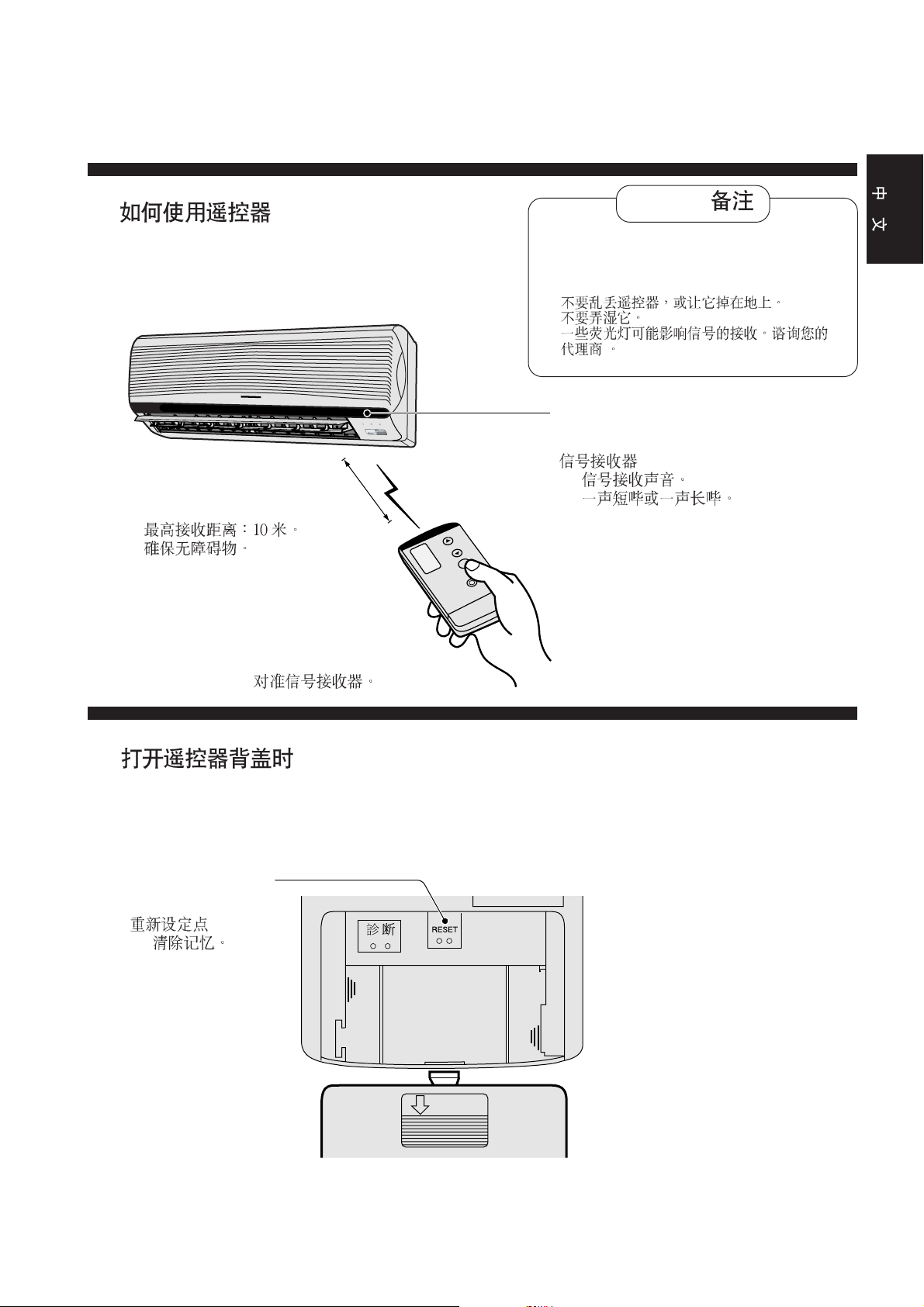

How to use the remote control
When the back cover is opened
:
How to use
: PREPARATION BEFORE OPERATION ............... 11 – 12
Indoor Unit
Remote Control
Inserting batteries
Setting the clock
About the batteries
:
: HOW TO OPERATE............................................... 13 – 14
Automatic • Heating • Cooling • Soft Dry
Operation details
Adjusting Airflow Direction and Fan Speed
Operation details
:
: SETTING THE TIMER ............................................ 15 – 16
Recommended Setting of Timer
:
1
If necessary
ENGLISH
: CONVENIENCE OPERATION ............................... 17 – 18
Sleep Mode
Operation details
Economy or Powerful Mode
Operation details
:
: CARE AND MAINTENANCE ................................. 19 – 22
Cleaning the Indoor Unit and Remote Control
Cleaning the Air Filter
Cleaning the Front Panel
Removing the front panel
Fixing the front panel
Cleaning the front panel
Replacing the Air Purifying Filters
Removing the air purifying filters
Reinstalling the air purifying filters
Pre-season Inspection
When the Air Conditioner is Not Used for an Extended
Period of Time
Recommended Inspection
:
: TROUBLESHOOTING ........................................... 23 – 24
Normal Operation
Abnormal Operation
Call the Dealer Immediately
:
: HELPFUL INFORMATIONS........................................... 25
:
: ENERGY SAVING AND OPERATION HINTS............... 26
:
2
FEATURES
SELF-ILLUMINATING BUTTON
For your convenience to operate in the dark.
(Refer page 9)
AUTOMATIC OPERATION
Sence intake air temperature every hour to select the optimum mode.
(Refer page 13)
SLEEP MODE
Prevent the room from getting too hot or too cold while you are sleeping.
(Refer page 17)
ECONOMY MODE
To reduce electrical power consumption.
(Refer page 18)
POWERFUL MODE
Reaches the desired room temperature quickly.
(Refer page 18)
REMOVABLE FRONT PANEL
For quick and easy cleaning (washable).
(Refer page 20)
CATECHIN AIR PURIFYING FILTER
Filter that can trap dust, tabacco smoke and tiny particles in the room. It can also prevent the growth of bacteria and viruses trapped in this filter.
(Refer page 21)
AUTO RESTART CONTROL
Automatically restart the unit after power failure.
(Refer page 25)
Thank you for purchasing a National Room Air Conditioner.
Note: Before using your air-conditioner, please read this operating instructions carefully and keep it for future reference.
3
