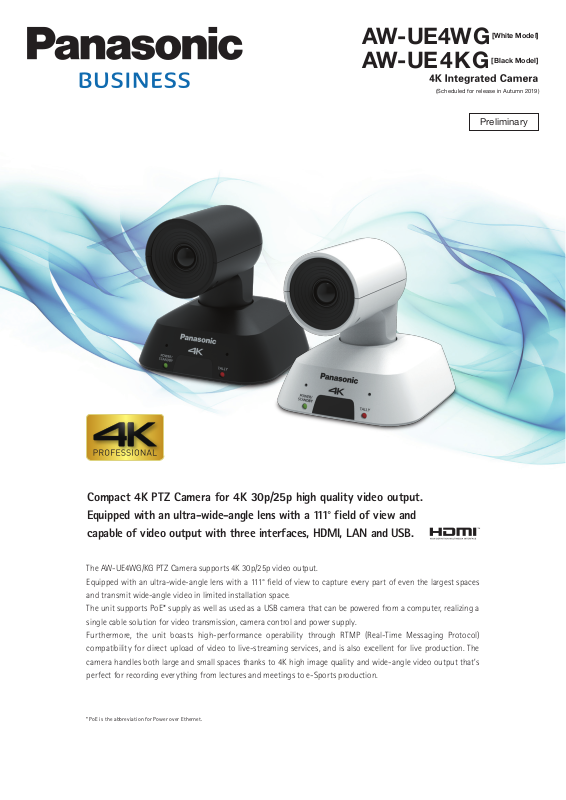

Panasonic AW-UE4 User Manual
AW-UE4WG AW-UE4KG
[White Model]
[Black Model]
(Scheduled for release in Autumn 2019)
Preliminary
Compact 4K PTZ Camera for 4K 30p/25p high quality video output. Equipped with an ultra-wide-angle lens with a 111° field of view and capable of video output with three interfaces, HDMI, LAN and USB.
The AW-UE4WG/KG PTZ Camera supports 4K 30p/25p video output.
Equipped with an ultra-wide-angle lens with a 111° eld of view to capture every part of even the largest spaces and transmit wide-angle video in limited installation space.
The unit supports PoE* supply as well as used as a USB camera that can be powered from a computer, realizing a single cable solution for video transmission, camera control and power supply.
Furthermore, the unit boasts high-performance operability through RTMP (Real-Time Messaging Protocol) compatibility for direct upload of video to live-streaming services, and is also excellent for live production. The camera handles both large and small spaces thanks to 4K high image quality and wide-angle video output that’s perfect for recording everything from lectures and meetings to e-Sports production.
* PoE is the abbreviation for Power over Ethernet.
4K Integrated Camera AW-UE4WG/KG
High-Quality 4K 30p/25p Video Output |
Single Cable Solution |
Enables 3840 x 2160 4K output and a variety of other formats.
Output format (Preliminary)
4K 2160/30p, 2160/29.97p, 2160/25p
HD
1080/60p, 1080/59.94p, 1080/50p, 1080/30p, 1080/29.97p, 1080/25p
720/60p, 720/59.94p, 720/50p
Ultra-Wide-Angle Lens with a 111° Field of View
Enables the entire space to be captured regardless of the installation position.
The 111° Field of View
AW-UE4
111°
In addition to PoE* supply, power supply from a computer via USB cable is also supported to enable operation without connecting an AC adapter.
*PoE is the abbreviation for Power over Ethernet.
Using PoE Supply
LAN cable
|
Video signal |
|
|
Live |
||
|
|
|
|
|
|
streaming |
|
|
|
|
|
PoEHUB* |
|
|
|
|
|
|
|
|
AW-UE4WG/KG |
Power supply |
|
|
|
||
|
|
|
|
|||
|
|
Control signal |
|
|
PC |
|
|
|
|
|
|
|
|
Using as a USB Camera
Web conference app |
|
|
USB cable |
|
|
||
Video signal |
|
|
|
95°
Camera Position |
<Rear View>
Power supply
AW-UE4WG/KG |
Control signal |
|
PC
*AC adapter or PoE supply is required for HDMI output.
<Specifications> |
(Preliminary) |
|
|
|
|
Power Requirements |
DC 5 V (USB) |
|
DC 42 V - 57 V (PoE) |
||
|
||
Dimensions (W x H x D) |
123 mm x 131 mm x 136 mm |
|
(4-53/64 inches x 5-5/32 inches x 5-11/32 inches) |
||
|
||
Imaging Sensors |
1/2.5-type MOS |
|
Lens |
Digital zoom: 4x |
|
Horizontal angle of view |
111° |
|
Video output |
HDMI, IP, USB |
|
Internal mic |
Yes (with mute function) |
|
Pan/Tilt |
Manual adjustment. |
|
Panning Range |
220° (±110°) |
|
Tilting range |
50° (±25°) |
|
|
|
* Speci cations are subject to change without prior notice for product improvement, etc.
* The terms HDMI and HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
2-15 Matsuba-cho, Kadoma, Osaka 571-8503 Japan
For more information, please visit Panasonic web site https://pro-av.panasonic.net/en/qr/
Factories of AVC Networks Company have received ISO14001:2004-the Environmental Management System certification. (Except for 3rd party’s peripherals.)
