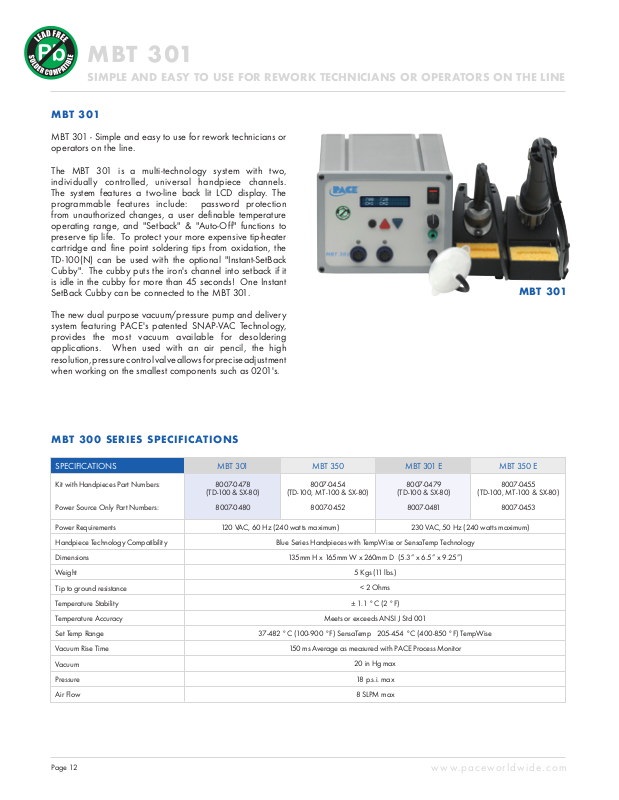

MBT 301 - Simple and easy to use for rework technicians or
operators on the line.

The MBT 301 is a multi-technology system with t wo,
individually controlled, universal handpiece channels.
The system features a two-line back lit LCD display. The
programmable features include: password protection
from unauthorized changes, a user definable temperature
operating range, and "Setback" & "Auto-Off" functions to
preserve tip life. To protect your more expensive tip-heater
cartridge and fine point soldering tips from oxidation, the
TD-100(N) can be used with the optional "Instant-SetBack
Cubby". The cubby puts the iron's channel into setback if it
is idle in the cubby for more than 45 seconds! One Instant
SetBack Cubby can be connected to the MBT 301.

The new dual purpose vacuum/pressure pump and delivery
system featuring PACE's patented SNAP-VAC Technology,
provides the most vacuum available for desoldering
applications. When used with an air pencil, the high
resolution, pressure control valve allows for precise adjustment
when working on the smallest components such as 0201's.

mbT 301

mbT 300 SERIES SPECIfICATIONS

SPECIFICATIONS

Kit with Handpieces Part Numbers:

Power Source Only Part Numbers:

Power Requirements

Handpiece Technology Compatibility

Dimensions

Weight

Tip to ground resistance

Temperature Stability

Temperature Accuracy

Set Temp Range

Vacuum Rise Time

Vacuum

Pressure

Air Flow

MBT 301

8007-0478

(TD-100 & SX-80)

8007-0480

120 VAC, 60 Hz (240 watts maximum) 230 VAC, 50 Hz (240 watts maximum)

MBT 350

8007-0454

(TD-100, MT-100 & SX-80)

8007-0452

Blue Series Handpieces with TempWise or SensaTemp Technology

135mm H x 165mm W x 260mm D (5.3” x 6.5” x 9.25”)

5 Kgs (11 lbs.)

< 2 Ohms

± 1.1 °C (2 °F)

Meets or exceeds ANSI J Std 001

37-482 °C (100-900 °F) SensaTemp 205-454 °C (400-850 °F) TempWise

150 ms Average as measured with PACE Process Monitor

20 in Hg max

18 p.s.i. max

8 SLPM max

MBT 301 E

8007-0479

(TD-100 & SX-80)

8007-0481

(TD-100, MT-100 & SX-80)

MBT 350 E

8007-0455

8007-0453

Page 12

w w w.p acewo r l d wide. c o m

AdvANCEd TEChNOlOGY ANd PROGRAmmAbIlITY

mbT 350

The MBT 350 is loaded with features to improve quality,
increase through-put, extend tip life, and protect your
process. The system is fully programmable and can be
password protected from unauthorized changes. In some
cases technicians become frustrated with being locked into
a single temperature. The MBT 350 provides the solution!
An approved operating range can be programmed allowing
operators the flexibility to do their work, while eliminating
the risks associated with giving techs access to the entire
temperature range of the system. Operators can be given
a range of 5 to 450˚F (3-250˚C) to operate within! When
high-mass tips are required, an offset can be programmed for
each of the three channels, individually.

mbT 350

To maximize tip life and reduce operating costs, PACE's well
recognized “Setback” and “Auto-Off” features are included.
The system will automatically reduce the set temperature by
50% then turn off after a user defined period of inactivity, from
1 to 90 minutes. To really protect your more expensive tip­heater cartridge and fine point soldering tips from oxidation,
the TD-100 can be used with the new “Instant-Setback
Cubby”. The cubby puts the iron's channel into setback if it’s
in the cubby for more than 45 seconds! Up to two instant
setback cubbies can be connected to the MBT 350.

The new dual purpose vacuum/pressure pump and delivery
system featuring PACE's patented SNAP-VAC Technology,
provides the most vacuum available for desoldering
applications. When used with an air pencil, the high
resolution, pressure control valve allows for precise adjustment
when working on the smallest components such as 0201's.

1. 2. 3.

mbT 350

The new backlit, digital, LCD screen displays the temperature
of all three handpiece channels or, with scan mode activated,
will cycle through the handpiece channels one at a time
displaying set and actual temperatures. The backlight and
character contrast on the display can be adjusted to meet
individual preferences. And finally, the system can be
programmed with the name of the operator or company
which is displayed when the system is turned on.

1. TD-100 THERMO-DRIVE IRON

2. MT -100 MINIT WEEZ

3. PS-90 UNIVERSAL IRON

4. TT-65 THERMOTWEEZ

5. TJ-85 THERMOJET

6. SX-90 SODR-X-TRACTOR

7. TP-100 THERMOPIK

4. 5. 6.

7.
