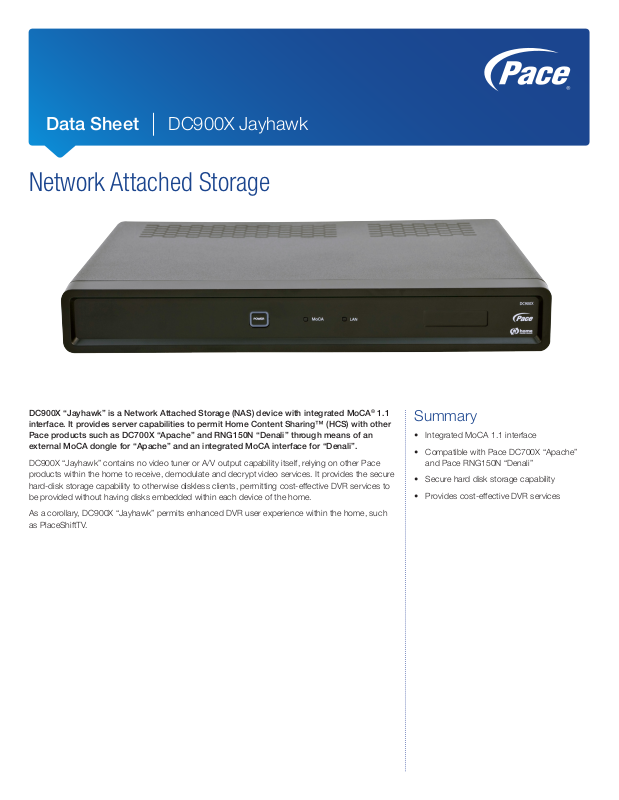

Data Sheet DC900X Jayhawk

Network Attached Storage

DC900X “Jayhawk” is a Network Attached Storage (NAS) device with integrated MoCA® 1.1
interface. It provides server capabilities to permit Home Content Sharing™ (HCS) with other
Pace products such as DC700X “Apache” and RNG150N “Denali” through means of an
external MoCA dongle for “Apache” and an integrated MoCA interface for “Denali”.

DC900X “Jayhawk” contains no video tuner or A/V output capability itself, relying on other Pace
products within the home to receive, demodulate and decrypt video services. It provides the secure
hard-disk storage capability to otherwise diskless clients, permitting cost-effective DVR services to
be provided without having disks embedded within each device of the home.

As a corollary, DC900X “Jayhawk” permits enhanced DVR user experience within the home, such
as PlaceShiftTV.

Summary

• Integrated MoCA 1.1 interface

• Compatible with Pace DC700X “Apache”
and Pace RNG150N “Denali”

• Secure hard disk storage capability

• Provides cost-effective DVR services

DC900X Jayhawk

Technical Specifications

RF Interfaces

1 x MoCA Band D Tuner
(Frequency Plan 8 Channel 50 MHz spacing – D1-B8: 1.125 – 1.525 GHz)

1 x In-band, 54 MHz-1 GHz Tuner with QAM 64/256 decoding
[fit option; default option is no-fit]

System Processor / Memory / Storage

1.2 GHz ARM Processor for system and application use

8 MB Serial Flash

128 MB NAND Flash

256 MB DDR2 SDRAM

500 GB SATA HDD [fit option for 1 TB HDD; default option is 500 GB]

Front Panel

Standby / Power Button with LED(s) behind

LEDs for state of MoCA and LAN connections

Digital Interfaces

1 x USB 2.0 port

Security Interfaces

DTCP-IP for secure link transmission of content

Software

Bootloader with system software upgrade facility

Linux and Pace stream server application

Open Standards based on UPnP protocols and DLNA compatibility

DLNA compatibility

Set-up and Diagnostics

Remote diagnostic capability

Dimensions

1.5” height x 10” depth x 12” width

Accessories

Consumer User Manual

External Power Supply

For more information on Pace products, please visit our website - www.pace.com/americas

Pace Americas, 3701 FAU Blvd, Suite 200, Boca Raton, FL 33431
Tel: [phone] Fax: [phone]

Pace and are trade marks and/or registered trade marks of Pace plc.

This specification is subject to change without notice

DC900X-0315-3
