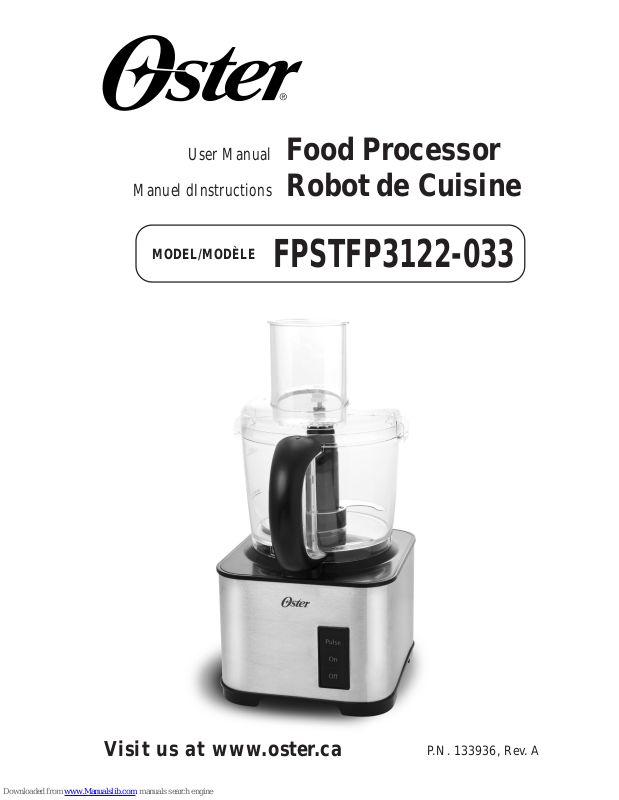

Page 1
P.N. 133936, Rev. A
Visit us at www.oster.ca
MODEL/MODÈLE
User Manual
Food Processor
Manuel dInstructions
Robot de Cuisine
FPSTFP3122-033
Page 2
English-2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions
should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USE
• To protect against risk of electrical shock, do not put food processor in water
or any other liquid. This may cause personal injury or damage to the product.
• Close supervision is necessary when using this appliance near children.
• Unplug from outlet when not in use, before putting on or taking off parts
a
nd before cleaning.
• Do not contact moving parts.
• Do not operate food processor with a damaged cord or plug or after the
appliance malfunctions, or is dropped or damaged in any manner. Return
appliance to the nearest authorized Oster service center for examination, repair
or mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer
may cause fire, electrical shock or injury.
• Do not let cord touch hot surfaces or hang over table edges or co
unters.
• Do not use your food processor if any part is broken.
• Do not use outdoors or for commercial purposes.
• Keep hands and utensils away from moving blades or discs while processing
food to reduce the risk of severe injury to persons or damage to the food
processor.
A scraper may be used but must be used only when the food processor is
not running.
• Blade and processing disk are sharp. Handle carefully.
• To reduce the risk of injury to persons, never place cutting blade on mot
or base
without first putting container properly in place.
• Be certain container cover is securely locked in place while operating appliance.
• Never feed food into food chute by hand, always use the food pusher.
• Be sure to turn switch to OFF position after each use.
• Do not use this appliance for other than its intended use.
THIS UNIT IS FOR
HOUSEHOLD USE ONLY
This appliance has a polarized alternating current plug (one blade is wider than the
other). To reduce the risk of electric shock, as a safety feature, this plug will fit in a
polarized outlet only one way. If the plug does not insert fully in the outlet, reverse
the plug. If it still fails to fit, contact a qualified electrician.
DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.
A short power-supply cord is provided to reduce the risk resulting from
entangled in or tripping over a longer cord. An extension cord may be used if care is
exercised in its use. If an extension cord is used, the electrical
be at least as great as the electrical rating of the appliance.
be arranged so that it will not drape over the countertop
pulled on by children or tripped over unintentionally.
SAVE THESE INSTRUCTIONS
Page 3
English-3
THIS UNIT IS FOR
HOUSEHOLD USE ONLY
This appliance has a polarized alternating current plug (one blade is wider than the
other). To reduce the risk of electric shock, as a safety feature, this plug will fit in a
polarized outlet only one way. If the plug does not insert fully in the outlet, reverse
the plug. If it still fails to fit, contact a qualified electrician.
DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.
EXTENSION CORD USE
A short power-supply cord is provided to reduce the risk resulting from
becoming
entangled in or tripping over a longer cord. An extension cord may be used if care is
exercised in its use. If an extension cord is used, the electrical
rating of the cord must
be at least as great as the electrical rating of the appliance.
The extension cord should
be arranged so that it will not drape over the countertop
or tabletop where it can be
pulled on by children or tripped over unintentionally.
SAVE THESE INSTRUCTIONS
Page 4
SLICING/
SHREDDING
DISK
English-4
WELCOME
Congratulations on your purchase of an OSTER®Food Processor!
To learn more about OSTER®products, please visit us at www.oster.ca.
FOOD PROCESSOR FEATURES
FOOD
CHUTE
BOWL
MOTOR
BASE
TOUCH-PAD
CONTROL
BUTTONS
FOOD
PUSHER
COVER
BEFORE USING YOUR OSTER
Before using your OSTER
food pusher, disk blade and chopping blade. For more cleaning details see “C
S
TORING AND CARING FOR YOUR OSTER
THE BLADES ARE EXTREMELYSHARP.USE CAUTION
ASSEMBLING YOUR OSTER
Before you begin, PLEASE BE SURE THAT THE ELECTRIC CORD IS
UNPLUGGED.
1. Set food processor on a dry, level surface with the control buttons on the
motor housing to the front.
2. Place the bowl without the cover, with the handle left of switch panel over
the drive shaft on the motor base. Rotate the bowl until it drops down
evenly on the base. Hold handle and turn the bowl counterclockwise until it
locks firmly into position. The bowl handle will be positioned above the
control buttons. See Fig.1
NOTE: Each time you re-assemble your food processor, be sure to attach
the bowl first and lock it into position. The unit will not operate if the bowl
does not lock onto base. Then, attach the cover making sure it is locked.
3. Place the chopping blade over the central column, rotating it slightly until it
drops into place.The slicing/shredding disk must be used with the blade shaft.
Insertthe blade shaft into the centralcolumn. The slicing/shredding blade is
convertible. One side is for slicing and the other side is for shredding. Insert
blade onto the blade shaft with the blade of your choice facing up.
THE BLADES ARE EXTREMELY SHARP.
CHOPPING
BLADE
CHOPPING
BLADE
BLADE
SHAFT
FIG.1
Locking Bowl to Base
BOWL
Page 5
English-5
BEFORE USING YOUR OSTER®FOOD PROCESSOR
Before using your OSTER®Food Processor for the first time, clean the bowl, cover,
food pusher, disk blade and chopping blade. For more cleaning details see “C
LEANING,
S
TORING AND CARING FOR YOUR OSTER
®
FOOD PROCESSOR” section.
THE BLADES ARE EXTREMELYSHARP.USE CAUTION
HANDLINGBLADES.
ASSEMBLING YOUR OSTER®FOOD PROCESSOR
Before you begin, PLEASE BE SURE THAT THE ELECTRIC CORD IS
UNPLUGGED.
1. Set food processor on a dry, level surface with the control buttons on the
motor housing to the front.
2. Place the bowl without the cover, with the handle left of switch panel over
the drive shaft on the motor base. Rotate the bowl until it drops down
evenly on the base. Hold handle and turn the bowl counterclockwise until it
locks firmly into position. The bowl handle will be positioned above the
control buttons. See Fig.1
NOTE: Each time you re-assemble your food processor, be sure to attach
the bowl first and lock it into position. The unit will not operate if the bowl
does not lock onto base. Then, attach the cover making sure it is locked.
3. Place the chopping blade over the central column, rotating it slightly until it
drops into place.The slicing/shredding disk must be used with the blade shaft.
Insertthe blade shaft into the centralcolumn. The slicing/shredding blade is
convertible. One side is for slicing and the other side is for shredding. Insert
blade onto the blade shaft with the blade of your choice facing up.
THE BLADES ARE EXTREMELY SHARP.
USE CAUTION HANDLING BLADES.
Page 6
English-6
USING YOUR OSTER®FOOD PROCESSOR
Follow the directions above to assemble your Oster®Food Processor.
Using the Chopping Blade attachments:
1. With cover off of the bowl and the chopping blade in place, add ingredients.
2. Attach the cover onto the bowl so that the food chute is on the left side of
the bowl. Turn counterclockwise until the cover locks into place. The food
chute will be directly above and in line with the handle.
Note: Unit will not operate if the cover is not locked onto bowl.
3. Plug the power supply cord into an electrical outlet.
4. Start processing by selecting ON or PULSE and pressing the appropriate
touch-pad buttons.
Using the slicing/shredding disk attachment:
1. Select which side of the disk you would like to use, the one for slicing or the
one for shredding. Insert blade onto the blade shaft with the blade of your
choice facing up. Note: The blades are extremely sharp. Use caution when
handling or storing.
2.
Attach the cover onto the bowl so that the food chute is on the left
side of the bowl. Turn
counterclockwise until the cover locks into place.
The food chute will be directly above and in line with the handle.
NOTE: Unit will not operate if the cover is not locked onto bowl.
3. Load the food chute with ingredients before turning the food processor ON.
Always use the food pusher to yield more evenly sliced or shredded foods –
NEVER USE YOUR FINGERS.
4. Plug the power supply cord into an electrical outlet.
5.
Rest the food pusher in the food chute. Press the ON button on the touchpad.
Now, holding the food pusher with one hand, and food chute in the
other, push gently down on the food pusher. When finished, press control
button to the OFF position before removing cover.
PULSING TECHNIQUES
The food processor processes food very quickly; in most cases, in seconds!
Therefore, foods can easily become over processed if you don’t watch carefully.
We suggest that when using the chopping blade in the bowl, you process foods
no more than a few seconds at a time. Pulsing ensures excellent results every
time.
NOTE: Please be sure that the chopping blade has stopped spinning
completely before removing the cover.
PLACING FOOD INTO BOWL
For the best results, you should try to process pieces of food that are of about
equal size. When you cut, break or tear foods into uniform pieces before you
begin processing, the finished results will be more uniform, too.
You will get faster, more consistent processing results if you do not overload
the
bowl
. When using the cutting blade be sure to fill the bowl only 3/4 of its
maximum capacity.
NOTE: When processing a heavy load, check to be sure the food processor
is sitting firmly on the counter or tabletop. DO NOT WALK AWAY FROM
THE FOOD PROCESSOR WHILE PROCESSING.
CHOPPING MEATS
Pre-cut meat into pieces about 3/4 inch square.
replace the cover and process using the pulse technique for 5 to 7
seconds. Never process more than 2 cups of meat cubes at one time.
CHOPPING VEGETABLES
When processing vegetables such as onions, peel and quarter; cut large onions
into eighths. Place 1 to 2 cups of the pieces into the bowl, turningthe food
processor ON and OFF 1 to 2 times to coarsely chop, 3 to 4 times more to finely
chop. Scrape sides of bowl once or twice duringprocessing, if necessary.
ADDING LIQUID INGREDIENTS
Liquid ingredients may be added while the processor is operating by pouring
them through the food chute.
NOTE: When processing sauces or semi-liquid ingredients, stop the food
processor and scrape down the sides of the bowl and cover.
Page 7
English-7
FOOD PROCESSING TECHNIQUES
PULSING TECHNIQUES
The food processor processes food very quickly; in most cases, in seconds!
Therefore, foods can easily become over processed if you don’t watch carefully.
We suggest that when using the chopping blade in the bowl, you process foods
no more than a few seconds at a time. Pulsing ensures excellent results every
time.
NOTE: Please be sure that the chopping blade has stopped spinning
completely before removing the cover.
PLACING FOOD INTO BOWL
For the best results, you should try to process pieces of food that are of about
equal size. When you cut, break or tear foods into uniform pieces before you
begin processing, the finished results will be more uniform, too.
You will get faster, more consistent processing results if you do not overload
the
bowl
. When using the cutting blade be sure to fill the bowl only 3/4 of its
maximum capacity.
NOTE: When processing a heavy load, check to be sure the food processor
is sitting firmly on the counter or tabletop. DO NOT WALK AWAY FROM
THE FOOD PROCESSOR WHILE PROCESSING.
CHOPPING MEATS
Pre-cut meat into pieces about 3/4 inch square.
Place the pieces in the
bowl
,
replace the cover and process using the pulse technique for 5 to 7
seconds. Never process more than 2 cups of meat cubes at one time.
CHOPPING VEGETABLES
When processing vegetables such as onions, peel and quarter; cut large onions
into eighths. Place 1 to 2 cups of the pieces into the bowl, turningthe food
processor ON and OFF 1 to 2 times to coarsely chop, 3 to 4 times more to finely
chop. Scrape sides of bowl once or twice duringprocessing, if necessary.
ADDING LIQUID INGREDIENTS
Liquid ingredients may be added while the processor is operating by pouring
them through the food chute.
NOTE: When processing sauces or semi-liquid ingredients, stop the food
processor and scrape down the sides of the bowl and cover.
Page 8
English-8
CLEANING, STORING AND CARING FOR YOUR
OSTER®FOOD PROCESSOR
When you have finished processing, unplug the food processor from
the electrical outlet and remove the cover, all attachments and the bowl
from the motor base.
Wipe the base of your unit with a damp cloth, then wipe lightly with a dry
one.
NEVER IMMERSE THE MOTOR BASE IN ANY LIQUID.
The bowl, cover, case, chopping blades, disk, blade shaft and food pusher
are all dishwasher safe. These parts may be cleaned on the top rack of
a dishwasher.
REMEMBER TO USE EXTREME CAUTION WHEN HANDLING
THE CUTTING BLADE AND BLADE ATTACHMENTS. THEY ARE
VERY SHARP!
Cleaning the internal shaft of your chopping blade is most important.
We suggest the use of a small baby bottle brush to remove any food particles,
then wash and dry the shaft thoroughly.
We suggest that you store the food processor on a dry counter or table-top in
your kitchen, where it will always be ready for immediate use. Store the
cutting blade in the clear container. Store the blade attachments in a safe
location (OUT OF THE REACH OF CHILDREN). The blades
are EXTREMELY sharp! Use caution when handling the blades.
After washing and drying the bowl, you may wish to apply a small amount
of vegetable oil to the rim of the cover and bowl. This lubrication allows the
cover to move freely when in contact with the bowl.
ALWAYS STORE BLADE AND BLADE ATTACHMENTS
OUT OF THE REACH OF CHILDREN!
1 Year Limited Warranty
Sunbeam Products,Inc.doingbusiness as Jarden Consumer Solutions or if in Canada,Sunbeam
Corporation (Canada) Limiteddoingbusiness as Jarden Consumer Solutions (collectively
“JCS”) warrants that for a period of one year from the date of purchase, this productwill be
freefromdefects in material and workmanship.JCS,at its option, will repairor replacethis
product or any component of the productfoundto be defective duringthe warranty pe
Replacement willbe made with a new or remanufactured product or component. If the product
is no longer available,replacementmay be made witha similar product of equal or greater
value. Thisis your exclusive warranty. Do NOT attempt to repairor adjustany electrical or
mechanicalfunctions on this product. Doing so will voidthiswarranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase
and is not transferable. Kee
obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS
products do not have the right to alter, modify or any way change the terms and conditions
of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the
following: negligent use or misuse of the product, use on improper voltage or current, use
contrary to the operating instructions, di
JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God,
such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of
any express, implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of
merchantability or fitness for a particular purpose is limited in duration to the duration of
the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory
or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or
misuse of, or inability to use the product including incidental, special, consequential or
similar damages or loss of profits, or for any breach of contract, fundamental
or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages or limitations on how long an implied warranty lasts, so the above
limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary
from province to province, state to state or jurisdiction to jurisdiction
How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.334.0759 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.667.8623 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by SunbeamProd
Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warrantyis offered
by Sunbeam Corporation (Canada)Limiteddoing business as Jarden ConsumerSolutions,
locatedat 20 B Hereford Street, Brampton,OntarioL6Y 0M1. If you have any other problem
or claim in connection with this product, please write our Consumer Service Department
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES
Page 9
English-9
1 Year Limited Warranty
Sunbeam Products, Inc.doingbusiness as Jarden Consumer Solutions or if in Canada,Sunbeam
Corporation (Canada) Limiteddoingbusiness as Jarden Consumer Solutions (collectively
“JCS”) warrants that for a period of one year from the date of purchase, this productwill be
freefromdefects in material and workmanship.JCS,at its option, will repairor replacethis
product or any component of the productfoundto be defective duringthe warranty pe
riod.
Replacement willbe made with a new or remanufactured product or component. If the product
is no longer available,replacementmay be made witha similar product of equal or greater
value. Thisis your exclusive warranty. Do NOT attempt to repairor adjustany electrical or
mechanicalfunctions on this product. Doing so will voidthiswarranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase
and is not transferable. Kee
p the original sales receipt. Proof of purchase is required to
obtain warranty performance. JCS dealers, service centers, or retail stores selling JCS
products do not have the right to alter, modify or any way change the terms and conditions
of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the
following: negligent use or misuse of the product, use on improper voltage or current, use
contrary to the operating instructions, di
sassembly, repair or alteration by anyone other than
JCS or an authorized JCS service center. Further, the warranty does not cover: Acts of God,
such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of
any express, implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of
merchantability or fitness for a particular purpose is limited in duration to the duration of
the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory
or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or
misuse of, or inability to use the product including incidental, special, consequential or
similar damages or loss of profits, or for any breach of contract, fundamental
or otherwise,
or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages or limitations on how long an implied warranty lasts, so the above
limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary
from province to province, state to state or jurisdiction to jurisdiction
.
How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.334.0759 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.667.8623 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by SunbeamProd
ucts, Inc. doing businessas Jarden
Consumer Solutions located in Boca Raton, Florida 33431. In Canada, this warrantyis offered
by Sunbeam Corporation (Canada)Limiteddoing business as Jarden ConsumerSolutions,
locatedat 20 B Hereford Street, Brampton,OntarioL6Y 0M1. If you have any other problem
or claim in connection with this product, please write our Consumer Service Department
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES
OR TO THE PLACE OF PURCHA
SE
Page 10
English-10
Notes
Notes
Page 11
English-11
Notes
Page 12
Visit us at www.oster.ca
MODEL/MODÈLE
User Manual
Manuel dInstructions
For product questions contact:
Sunbeam Consumer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.ca
©2009 Sunbeam Products, Inc., doing business as Jarden Consumer Solutions. All rights reserved.
OSTER®is a registered trademark of Sunbeam Products, Inc.
In the U.S., distributed by Sunbeam Products, Inc.,
doing business as Jarden Consumer Solutions, Boca Raton, FL 33431.
In Canada, imported and distributed by Sunbeam Corporation (Canada) Limited,
doing business as Jarden Consumer Solutions, 20 B Hereford Street, Brampton ON L6Y 0M1
Pour les questions de produit:
Sunbeam Consumer Service
États-Unis : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.ca
©2009 Sunbeam Products, Inc., faisant affaire sous le nom de Jarden Consumer Solutions.
Tous droits réservés.
OSTER®est une marque déposée de Sunbeam Products, Inc.
Aux États-Unis, distribuez par Sunbeam Produits, Inc.,
faisant affaire sous le nom de Jarden Consumer Solutions, Boca Raton, FL 33431.
Au Canada, importé et distribué par Sunbeam Corporation, Limited,
faisant affaire sous le nom de Jarden Consumer Solutions
Para preguntas sobre los productos llame:
Sunbeam Consumer Service
EE.UU. : 1.800.334.0759
Canadá : 1.800.667.8623
www.oster.ca
SPR-061308
Printed in China Imprimé aux Chine
Loading...
