Onkyo TX-8220 User Manual

TX-8220

STEREO RECEIVER

Instruction Manual

Mode d’emploi Manual de instrucciones

Before Start

> Before Start > Part Names > Install > Playback

Setup | Others

Table of Contents

Before Start.............................................................2

What's in the box .....................................................3

Part Names ............................................................. 4

Part Names .............................................................4

Install.......................................................................8

Step1: Connect the Speakers .................................8

Step2: Connect an other External Device ...............9

Step3: Connect Other Cables (North American

Models) ................................................................. 11

Step3: Connect Other Cables (European Models)

Playback ...............................................................13

Playing Audio from a Connected Device .............. 13

BLUETOOTH Listening to the AM/FM Radio (AM: North American

Models only)...........................................................15

Listening to DAB Digital Radio (European Models

only) ......................................................................17

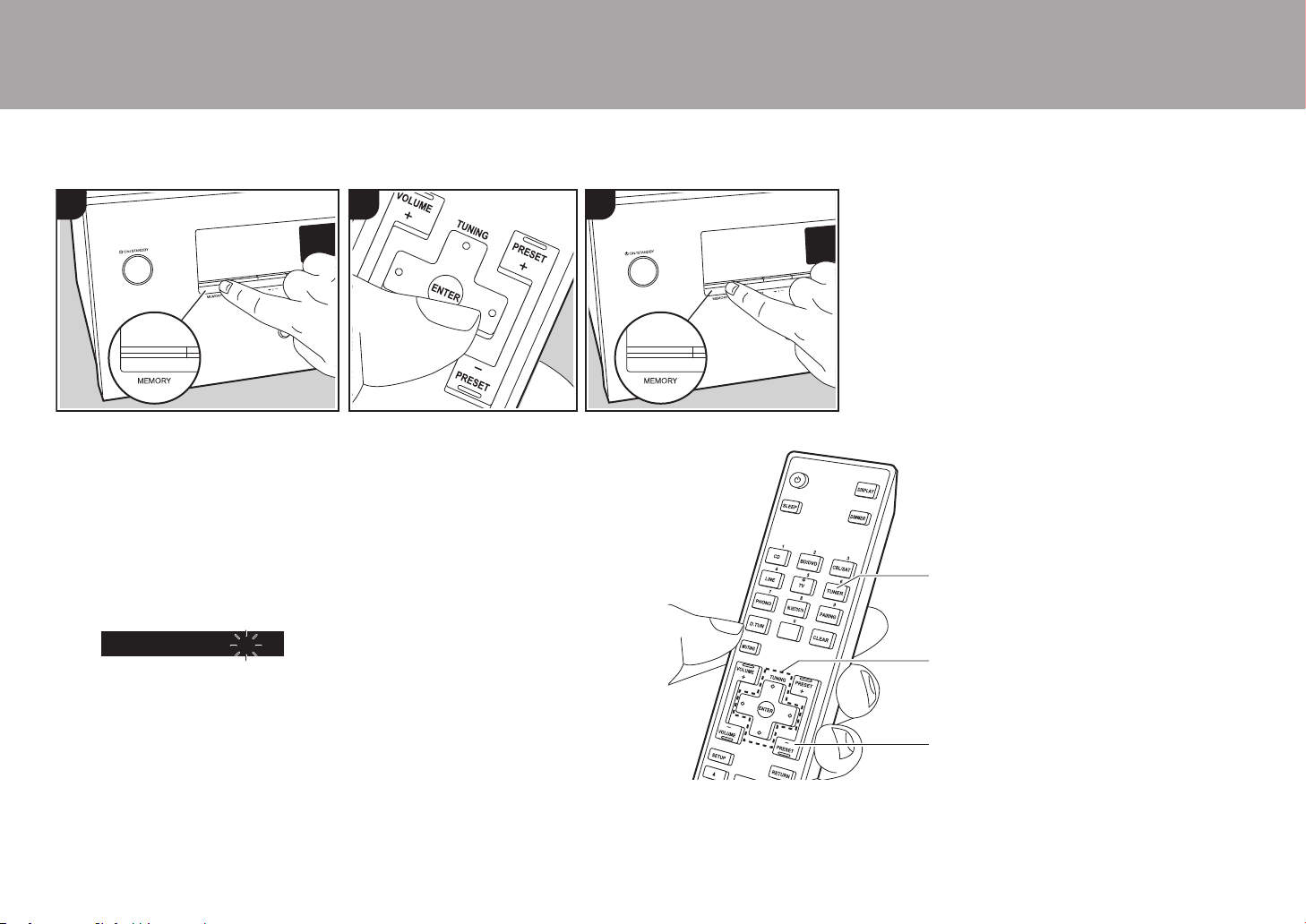

Registering a Station .............................................18

Naming Radio Stations Registered as Presets ..... 19

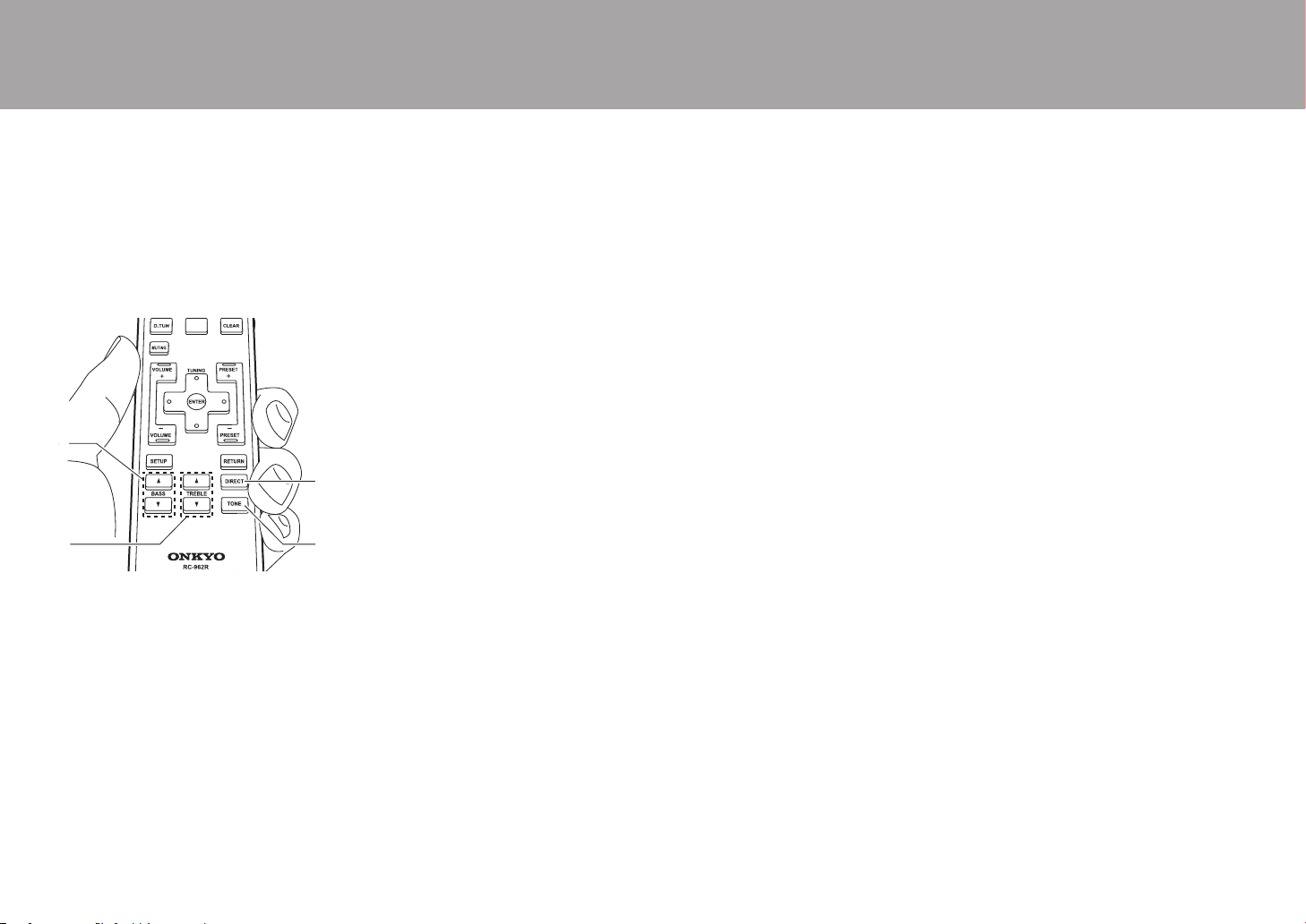

Adjusting the Sound Quality ..................................20

Setup.....................................................................21

Setup Menu ...........................................................21

Others ..................................................................24

Troubleshooting ....................................................24

General Specifications ..........................................26

Playback ......................................14

.... 12

What's in the box

> Before Start > Part Names > Install > Playback

Setup | Others

1. Main unit (1)

2. Remote controller (RC-962R) (1), batteries (AAA/R03) (2)

3. (North American models) FM indoor antenna (1) (European models) FM/DAB antenna (1)

4. (For North American models only) AM indoor antenna (1)

≥ Instruction Manual (This document) (1)

0 Connect speakers with 4 ≠ to 16 ≠ impedance. Note that

when connecting to both SPEAKERS A and B terminals, connect speakers with 8 ≠ to 16 ≠ impedance to both A and B.

0 The power cord must be connected only after all other

cable connections are completed.

0 We will not accept responsibility for damage arising from

the connection of equipment manufactured by other companies.

0 Specifications and appearance are subject to change

without prior notice.

Part Names

> Before Start >Part Names > Install > Playback

Setup | Others



   

Part Names

Front Panel

1. Í ON/STANDBY button

2. MEMORY button: Used to register DAB (European models)/AM (North American models)/FM radio stations (P18).

3. TUNING/PRESET button: Switch between the TUNING mode, where you select a frequency to tune to a station, and the PRESET mode, where you select a preset station.

4. Remote control sensor: Receives signals from the remote controller.

0 The signal range of the remote controller is within about 16y/5 m, at an angle of 20° on

the perpendicular axis and 30° to either side.

5. 2/- , +/1 buttons: Use to tune to DAB (European models)/AM (North American models)/ FM radio stations and select preset numbers.

6. Display (P5)

7. SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/

8. DIRECT/TONE button: Switches between the DIRECT mode which outputs pure sound as it was intended, and the TONE mode which enables adjustments to the BASS and TREBLE.

9. Bluetooth indicator: Lights when the unit is connected by BLUETOOTH. It will flash during pairing or if the connection is not correct.

10.

DISPLAY button: Switches the information on the display.

11.

VOLUME

12.

PHONES jack: Connect stereo headphones with a standard plug (Ø1/4z/6.3 mm).

13.

INPUT buttons: Switches the input to be played. The input changes BD/DVD  CBL/SAT  LINE  TV  TUNER  PHONO  BLUETOOTH  CD each time you press the 1 button.

14.

BASS buttons: Adjusts the bass.

15.

TREBLE buttons: Adjusts the treble.

> Before Start >Part Names > Install > Playback

Setup | Others

16.

BALANCE buttons: Adjusts the balance of the sounds output from the left and right speakers (P20).







Display

1. The currently selected speaker system lights.

2. Lights when headphones are connected.

3. Lights when PCM signals are being input.

4. Lights in the following conditions. PRESET: PRESET mode has been selected with TUNING/PRESET on the main unit. RDS (European models): Receiving RDS broadcasting. AUTO: When tuning mode is auto. 1TUNED2: Receiving DAB/AM/FM radio FM STEREO: Receiving FM stereo.

5. Flashes when muting is on.

6. DIGITAL: Lights according to the type of input digital audio signals.

7. Displays radio and a variety of other information.

8. Lights in the following conditions. SLEEP: Sleep timer has been set. ASb: Auto Standby has been set. Hz: May light while "Tuner Setting" in the Setup menu is being set.



> Before Start >Part Names > Install > Playback

Setup | Others



(European models)





 





Rear Panel

1. GND jack: The ground wire of the turntable is connected.

2. FM 75Ω/AM ANTENNA terminals (North American models): Connect the supplied FM indoor antenna and AM indoor antenna. DAB/FM ANTENNA terminal (European models): Connect the supplied FM/DAB antenna.

3. SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.

4. SPEAKERS jacks: Connect speakers with speaker cables. You can connect a set of left and right speakers to each of the A/B terminals.

5. Power cord

6. AUDIO IN jacks: Input audio signals from an other external device with an analog audio cable.

7. LINE OUT jacks: Connect a recording device, such as a cassette tape deck. Connect to

the AUDIO IN jacks on the recording device using analog audio cable.

8. DIGITAL IN OPTICAL/COAXIAL jacks: Input digital audio signals from an other external device with a digital optical cable or digital coaxial cable.

> Before Start >Part Names > Install > Playback

Setup | Others



 

























 



Remote Controller

1. Í ON/STANDBY button

2. SLEEP button: Set the sleep timer (P23).

3. INPUT SELECTOR buttons: Switches the input to be played.

4. Numbered buttons

5. D.TUN button: Use to select the number of a preset station or to directly input the frequency of the station.

6. MUTING button: Temporarily mutes audio. Press again to cancel muting.

7. VOLUME buttons

8. Cursors (Up / Down / Left / Right), ENTER button: Select the item with the cursors and press ENTER to confirm.

9. SETUP button: You can show advanced setting items on the display to provide you with an even better experience (P21).

10.

BASS buttons: Enhance or moderate the bass range (P20).

11.

TREBLE buttons: Enhance or moderate the treble range (P20).

12.

DISPLAY button: Switches the information on the display.

13.

DIMMER button: You can adjust the brightness of the display in three steps. It cannot be turned off completely.

14.

PAIRING button: Used to connect to another BLUETOOTH wireless technology enabled device (P14).

15.

CLEAR button: Deletes all characters you have entered when entering text (P19).

16.

PRESET buttons: Used to select DAB/AM/FM radio stations (P18).

17.

RETURN button: Returns the display to the previous state during setting.

18.

DIRECT button: Switches to the DIRECT mode which outputs pure sound as it was intended (P20).

19.

TONE button: Switches to the TONE mode which enables BASS and TREBLE (P20).

Install

> Before Start > Part Names >Install > Playback

Setup | Others

Speaker B

Speaker A

5/8˝

(15 mm)

Right Left Right Left

a Speaker Cable

Step1: Connect the Speakers

You can connect two systems, Speaker A and Speaker B, as the Speaker System. When connecting only one set, connect to the SPEAKERS A terminals. With one set, use speakers with 4 ≠ to 16 ≠ impedance. Note that when connecting to both SPEAKERS A and B terminals, connect speakers with 8 ≠ to 16 ≠ impedance to both A and B. Connect the speaker cable so the wires do not protrude from the speaker jacks. If the exposed wires of the speakers touch the rear panel or the + and – wires touch each other, the protection circuit will be activated.

Setup

0 When connected as a Speaker B System, you

can output the same audio as Speaker A System by switching with A/B/A+B. Press SPEAKER A/B on the main unit to switch. The selection changes in the order SPEAKER A, SPEAKER B, SPEAKER A+B, Off with each press.

0 If any of the connected speakers have an

impedance of 4 ≠ or more to less than 6 ≠, or when a Speaker B system is to be used, press SETUP (P7) on the remote controller, and set "SP Impedance" to "4 ohm".

(*)You can also connect a powered subwoofer to the

SUBWOOFER PRE OUT jack to boost bass playback even more. Use a subwoofer cable for connection.

Step2: Connect an other External Device

> Before Start > Part Names >Install > Playback

Setup | Others

a Digital Optical Cable, b Digital Coaxial Cable

1. DIGITAL IN connection

Connect an other external device with a digital optical cable or digital coaxial cable.

0 Only PCM audio is supported for input through the

DIGITAL IN OPTICAL/COAXIAL jacks. Set the audio output on the other external device to output PCM.

2. AUDIO IN connection

> Before Start > Part Names >Install > Playback

Setup | Others

Tur ntable

a Analog Audio Cable

Connect an other external device with an analog audio cable. You can connect a turntable that has an MM-type cartridge to the PHONO jack.

0 If the turntable has a built-in audio equalizer, connect it to

an AUDIO IN jack other than the PHONO jack. Also, if the turntable uses an MC type cartridge, install an audio equalizer compatible with the MC type cartridge between the unit and the turntable, then connect to any AUDIO IN jack other than the PHONO jack.

If the turntable has a ground wire, connect it to the GND terminal.

Step3: Connect Other Cables (North American Models)

> Before Start > Part Names >Install > Playback

Setup | Others

a FM indoor antenna, b AM indoor antenna

Antenna Hookup

Move the antenna around while playing the radio to find the position with the best reception.

Power Cord Hookup

The power cord must be connected only after all other connections are completed.

Step3: Connect Other Cables (European Models)

> Before Start > Part Names >Install > Playback

Setup | Others

DAB/FM

a FM/DAB antenna

Antenna Hookup

Move the antenna around while playing the radio to find the position with the best reception.

Power Cord Hookup

The power cord must be connected only after all other connections are completed.

Playback

> Before Start > Part Names > Install > Playback

Setup | Others

41 2 3

Playing Audio from a Connected Device

Basic Operations

You can play the audio from other external devices such as Blu-ray Disc players through this unit.

Perform the following procedure when the unit is on.

1. Press the input selector button (a) on the remote controller with the same name as the jack to which you connected the player to switch the input. For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen the TV's sound.

2. Start play on the connected player.

BLUETOOTH® Playback

> Before Start > Part Names > Install > Playback

Setup | Others

1 2 3

OnkyoTX-8220

You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device. Perform the following procedure when the unit is on.

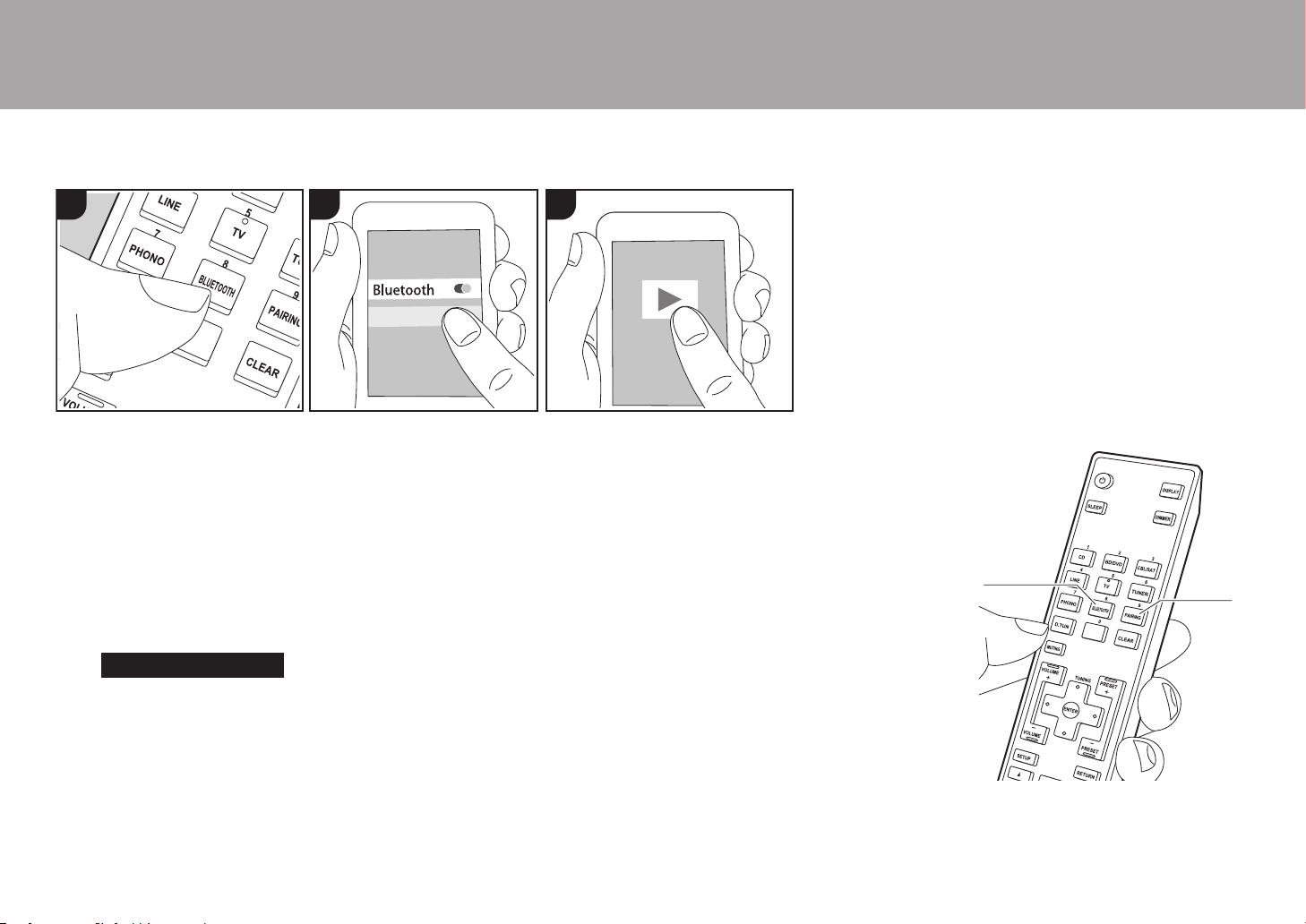

Pairing

1. When you press BLUETOOTH (a), "Now Pairing..." is displayed on this unit's display, and the pairing mode is enabled.

Now Pairing . . .

2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH wireless technology enabled device, then select this unit from amongst the devices displayed. If a password is requested, enter "0000".

0 This unit is displayed as "Onkyo TX-

8220".

0 To connect another BLUETOOTH

wireless technology enabled device, press PAIRING (b), then perform step

2. This unit can store the data of up to eight paired devices.

0 The coverage area is 32y/10 m. Note

that connection is not always guaranteed with all BLUETOOTH wireless technology enabled devices.

Playing Back

1. Perform the connection procedure on the BLUETOOTH wireless technology enabled device. The input on this unit automatically switches to "BLUETOOTH".

2. Play the music files. Increase the volume of the BLUETOOTH wireless technology enabled device to an appropriate level.

0 Due to the characteristics of

BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH wireless technology enabled device.

> Before Start > Part Names > Install > Playback

Setup | Others

Listening to the AM/FM Radio (AM: North American Models only)

1 2

You can receive AM (North American models) /FM radio stations on this unit with the built-in tuner. Perform the following procedure when the unit is on.

∫ Tuning into a Radio Station

Tuning Automatically

The unit is set to the auto-tuning mode by default. If the signal from a radio station is weak, perform the procedure for "Tuning Manually" in the next section. Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

1. Repeatedly press TUNER (e) on the remote controller and select "AM" or "FM".

2. When you press the cursor Up/Down buttons (c) on the remote controller, automatic tuning starts, and searching stops when a station is found. When tuned into a radio station, the

"1TUNED2" indicator on the display lights. When tuned into a stereo FM radio station, the "FM STEREO" indicator lights.

Tuning Manually

If you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

1. Repeatedly press TUNER (e) on the remote controller and select "AM" or "FM".

2. After pressing SETUP (d) on the remote controller, use the cursor Up/Down buttons (c) to select "Mono" in "Tuner Setting" - "Tuning Mode", and then press ENTER to set.

Mode : Mono

3. Press SETUP (d) on the remote controller to return to the tuning display.

4. While pressing the cursor Up/Down

buttons (c) on the remote controller, select the desired radio station.

0 The frequency changes by 1 step

each time you press Up/Down buttons. The frequency changes continuously if the button is held down and stops when the button is released.

Tuning into Stations by Frequency

It allows you to directly enter the frequency of the radio station you want to listen to.

1. Press TUNER (e) of the remote controller repeatedly to select either "AM" or "FM".

2. Press D.TUN (b) on the remote controller twice.

3. Using the number buttons (a) on the remote controller, enter the frequency of the radio station within 8 seconds.

0 To enter 87.5 (FM), for example,

press 8, 7, 5 or 8, 7, 5, 0. If the entered number is incorrect, press D.TUN twice again and re-enter the number.

> Before Start > Part Names > Install > Playback

Setup | Others

∫ Using RDS (European

models)

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. In regions using RDS, the radio station name is displayed when you tune into a radio station broadcasting program information. Further, when you press DISPLAY on the main unit in this state, you can use the following functions.

Displaying Text Information (Radio Text)

1. While the name of the station is being displayed on the display, press DISPLAY on the main unit once. Text information broadcast by the station (Radio Text) is displayed scrolling across the display. "No Text" is displayed when no text information is available.

Search for Stations by Program Typ e

1. While the name of the station is being displayed on the display, press DISPLAY on the main unit twice.

2. Press the cursors Left/Right buttons on the remote controller to select the Program Type you want to find, then press ENTER to start the search.

0 The Program Types displayed are as

follows: News (News reports) / Affairs (Current affairs) / Info (Information) / Sport / Educate (Education) / Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop music) / Rock M (Rock music) / Easy

M (Middle of the road music) / Light M (Light classics) / Classics (Serious classics) / Other M (Other music) / Weather / Finance / Children (Children’s programmes) / Social (Social affairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country (Country music) / Nation M (National music) / Oldies (Oldies music) / Folk M (Folk music) / Document (Documentary)

0 In addition, there are three other

program types, Alarm, Test (Alarm test), and None. Alarm and Test (Alarm test) are used for emergency announcements. None appears when a program type cannot be found.

0 The information displayed may

sometimes not match the content being broadcast by the station.

3. When a station is found, the station flashes on the display. Press ENTER while this is happening to start receiving that station. If you don't press ENTER, the unit continues to search for another station.

0 If no stations are found, the message

"Not Found" is displayed.

0 Unusual characters may be displayed

when the unit receives unsupported characters. However, this is not a malfunction. Also, if the signal from a station is weak, information may not be displayed.

Listening to DAB Digital Radio (European Models only)

> Before Start > Part Names > Install > Playback

Setup | Others

DAB

Scan: 100%

ABC-Station

Basic Operations

1. Repeatedly press TUNER (b) on the remote controller and select "DAB".

0 The very first time you select DAB, the

Auto Tuning function automatically scans the DAB Band 3 for the multiplexes (i.e., stations) available in your area. Once the scanning process is complete, the first station that was detected is selected.

2. Select the desired radio station with Up/ Down buttons (c) on the remote controller.

0 If a new DAB station is introduced, or

you move to a new area, press SETUP on the remote controller, then use the cursors and ENTER to run the "DAB Auto Scan" in "Tuner Setting".

Changing the order stations are displayed:

You can sort the available stations alphabetically or by multiplex.

1. Press SETUP on the remote controller,

select "Tuner Setting" - "Station Order", and select the display order setting from the following. Alphabet (default setting): Sort stations alphabetically.

Multiplex: Sort stations by multiplex.

Displaying DAB Radio Information:

1. Press DISPLAY (a) repeatedly to display more information about the selected DAB station.

DLS (Dynamic Label Segment): When tuned to a station that's broadcasting DLS text data, the text will scroll across the display. Program Type: Displays the type of program. Bit Rate and Audio Mode: Displays the station's bit rate and audio mode (Stereo, Mono). Quality: Displays the signal quality. 0 - 59: Poor reception 60 - 79: Good reception 80 - 100: Excellent reception

Multiplex Name: Displays the name of the current multiplex. Multiplex Number and Frequency: Displays the number and frequency of the current multiplex.

Registering a Station

> Before Start > Part Names > Install > Playback

Setup | Others

1 2 3

STATION 1

You can register up to 40 of your favorite radio stations.

Registering

After tuning into the radio station you want to register, perform the following procedure.

1. Press MEMORY on the main unit so that the preset number on the display flashes.

2. While the preset number is flashing (about 8 seconds), repeatedly press the cursor Left/Right buttons (b) on the remote controller to select a number between 1 and 40.

3. Press MEMORY again on the main unit to register the station. When the station is registered, the preset number stops flashing. Repeat this procedure for all of your favorite radio stations.

Selecting a Preset Radio Station

1. Press TUNER (a) on the remote controller.

2. Press PRESET (c) on the remote controller to select a preset number.

Deleting a Preset Radio Station

1. Press PRESET (c) on the remote controller to select the preset number to delete.

2. Press SETUP on the remote controller, then use the cursors and ENTER to start "Tuner Setting" - "Preset Erase" and delete the preset number. When deleted, the number on the display goes off.

Naming Radio Stations Registered as Presets

> Before Start > Part Names > Install > Playback

Setup | Others

Shift

You can enter names of up to 8 characters for the stations you have preset. Uses the following procedure.

1. Press TUNER on the remote controller, select AM (North American models)/FM, then select the preset number.

2. After pressing SETUP on the remote controller, use the cursor Up/Down buttons (c) to select "Tuner Setting" "Name Edit", and then press ENTER to set.

3. Select the characters or symbols with Up/Down/Left/Right buttons (c).

abcdefghijklm

4. Press ENTER (c) to confirm the selected character. Repeat this to enter text.

0 Press D.TUN (a) to change the

characters to be entered, for example to switch between upper and lower case.

0 Press CLEAR (b) to delete all the

input characters.

5. After completing input, select "OK" with Up/Down/Left/Right buttons (c) and press ENTER (c).

Shift B S O K

Characters that can be entered

Space: A single space the size of a

character is entered.

Shift: Switches between characters displayed. (a  A)

 (left) /  (right): Select to move the cursor.

BS (backspace): Removes a character on the left of the cursor. The cursor moves left.

OK: Confirms the entered content.

Adjusting the Sound Quality

> Before Start > Part Names > Install > Playback

Setup | Others

By pressing BASS, TREBLE, etc. on the remote controller during play, you can adjust frequently used settings, such as the sound quality.

0 BALANCE adjustments can only be

made with BALANCE on the main unit.

∫ BASS (a)

Enhance or moderate the bass range of the speakers. Select between j7 and i7 in 1 dB increments. (default value: 0)

0 It cannot be set if the DIRECT mode is

selected.

∫ TREBLE (b)

Enhance or moderate the treble range of the speakers. Select between j7 and i7 in 1 dB increments. (default value: 0)

0 It cannot be set if the DIRECT mode is

selected.

∫ DIRECT (c)

Switch to the DIRECT mode which outputs pure sound as it was intended by bypassing the tone control circuits during play.

∫ TONE (d)

Switch to the TONE mode which enables BASS and TREBLE.

∫ BALANCE (main unit only)

Adjust the balance of the sounds output from the left and right speakers. Select between Li10 and Ri10 in 1 steps increments. (default value: 0)

Setup

> Before Start > Part Names > Install > Playback

Setup |Others

AutoStandby

Setup Menu

The unit allows you to configure advanced settings to provide you with an even better experience.

1. Press SETUP (b) on the remote controller.

2. Select the item with the Up/Down buttons (a) on the remote controller and press ENTER (d) to confirm your selection.

3. Select the submenu with the Up/Down buttons (a) on the remote controller.

4. Select the setting value with the Left/Right buttons (c) on the remote controller and press ENTER (d) to confirm your selection.

0 To return to the previous display, press RETURN (e).

5. To exit the settings, press SETUP (b).

AutoStandby

This setting places the unit on standby automatically after 20 minutes of inactivity without any audio input. "On": The unit will automatically enter standby mode. "ASb" lights on the display. "Off": The unit will not automatically enter standby mode.

0 "AutoStandby" is displayed on the display 30 seconds before the Auto Standby comes on. 0 Default values vary depending on the regions.

Digital Input

You can change input assignment between the input selectors and DIGITAL IN COAXIAL/

> Before Start > Part Names > Install > Playback

Setup |Others

OPTICAL jacks. If you do not assign a jack, select "----".

CD Assign a desired DIGITAL IN COAXIAL jack or DIGITAL IN

OPTICAL jack to the "CD" input selector. (Default Value is "COAX")

BD/DVD Assign a desired DIGITAL IN COAXIAL jack or DIGITAL IN

OPTICAL jack to the "BD/DVD" input selector. (Default Value is "----")

CBL/SAT Assign a desired DIGITAL IN COAXIAL jack or DIGITAL IN

OPTICAL jack to the "CBL/SAT" input selector. (Default Value is "----")

LINE Assign a desired DIGITAL IN COAXIAL jack or DIGITAL IN

OPTICAL jack to the "LINE" input selector. (Default Value is "----")

TV Assign a desired DIGITAL IN COAXIAL jack or DIGITAL IN

OPTICAL jack to the "TV" input selector. (Default Value is "OPT")

0 "----" cannot be selected for "TV".

0 Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz,

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 24 bit.

SP Impedance

Set the impedance (≠) of the connected speakers. "4 ohm": When any of the connected speakers have 4 ≠ or more to less than 6 ≠ impedance, or when speaker systems are connected to both of the SPEAKERS A/B terminals "6 ohm (default value)": When the connected speakers all have 6 ≠ or more impedance

0 Note that when connecting to both SPEAKERS A and B terminals, connect speakers with

8 ≠ to 16 ≠ impedance to both A and B.

0 For impedance, check the indications on the back of the speakers or their instruction

manual.

Tuner Setting

The setting cannot be selected when input other than TUNER is selected.

Preset Write You can register up to 40 of your favorite radio stations. While

Preset Erase Delete a registered preset number.

Name Edit Set simple names for the stations you have preset. The set

Tuning Mode Switches tuning to AM (North American models)/FM automatic

Search Level (European models)

Station Order (European models)

DAB Auto Scan (European models)

the preset number is flashing (about 8 seconds), repeatedly press the cursor Left/Right buttons on the remote controller to select a number between 1 and 40.

0 This setting is not available if you have not selected a preset

number.

name will be shown on the main unit display. To name a preset radio station, press TUNER on the remote controller, select AM (North American models)/FM and select the preset number. (Preset names cannot be given to DAB stations.) For details on how to enter text, refer to "Naming Radio Stations Registered as Presets" (P19).

0 This setting is not available if you have not selected a preset

number.

tuning/manual tuning. "Auto (default value)": Tuning Automatically. "Mono": Tuning Manually.

0 If automatic tuning regularly stops on FM stations with weak

reception when "Normal (default value)" is selected, select "Strong" so only those FM stations with strong reception are selected.

Change the order stations are displayed: "Alphabet (default value)": Sort stations alphabetically. "Multiplex": Sort stations by multiplex.

0 The setting cannot be selected when an input other than DAB

is selected.

You can run the auto scan when new DAB stations are added or when you move house.

0 The setting cannot be selected when an input other than DAB

is selected.

> Before Start > Part Names > Install > Playback

Setup |Others

DAB DRC

(European models)

With the DRC (Dynamic Range Control) setting, you can reduce the dynamic range of DAB digital radio so that you can still hear quiet parts even when listening at low volume levels - ideal for listening to the radio late at night when you don't want to disturb anyone. "Off (default value)": DRC off "Large": Large reduction in dynamic range "Small": Small reduction in dynamic range

0 The setting cannot be selected when an input other than DAB

is selected.

Bluetooth

Bluetooth Select whether or not to use the BLUETOOTH function.

AutoChange The input of the unit will automatically be switched to

Reconnect This function automatically reconnects to the BLUETOOTH

"On (default value)": Enables connection with a BLUETOOTH wireless technology enabled device by using the BLUETOOTH function. Select "On" also when making various BLUETOOTH settings. "Off": When the BLUETOOTH function is not to be used

"BLUETOOTH" when connection is made from a BLUETOOTH wireless technology enabled device to the unit. "On (default value)": The input will automatically become "BLUETOOTH" when a BLUETOOTH wireless technology enabled device is connected. "Off": The function is disabled.

0 If the input is not switched automatically, set to "Off" and

change the input manually.

wireless technology enabled device connected last when you change the input to "BLUETOOTH". "On (default value)": When this function is to be used "Off": When this function is not to be used

0 This may not work with some BLUETOOTH wireless

technology enabled devices.

Pairing Info You can initialize the pairing information saved on this unit.

Pressing ENTER when "Clear" is displayed initializes the pairing information stored in this unit.

0 This function does not initialize the pairing information on the

BLUETOOTH wireless technology enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH wireless technology enabled device in advance. For information on how to clear the pairing information, refer to the BLUETOOTH wireless technology enabled device's instruction manual.

Device Displays the name of the BLUETOOTH wireless technology

enabled device connected to the unit.

0 The name is not displayed when "Stat" is "Ready" or "Pairing".

Stat Displays the status of the BLUETOOTH wireless technology

enabled device connected to the unit. "Ready": Not paired "Pairing": Pairing "Connected": Successfully connected

Sleep Timer

You can make the unit enter standby automatically when the specified time elapses.

1. Press SLEEP on the remote controller to display the time to set on the display.

0 Press SLEEP repeatedly on the remote controller to make the setting in 10-minute steps

from "90", "80", "70", down to "OFF".

0 After pressing SLEEP on the remote controller, you can make the setting in 1-minute

steps by repeatedly pressing the Up/Down buttons on the remote controller.

0 To see how much time is left on the Sleep time, press SLEEP on the remote controller.

While the remaining time is being displayed, you can reduce the set time in 10-minute steps by pressing SLEEP on the remote controller.

Others

> Before Start > Part Names > Install > Playback

Setup | Others

Troubleshooting

Before starting the procedure

Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem isn't fixed after referring to "Troubleshooting", resetting the unit to the status at the time of shipment may solve the problem. Note that your settings will also be initialized when you reset, so we recommend that you note down your settings before doing the following.

0 This unit contains a microPC for signal processing and

control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in.

0 We are not responsible for reparations for damages

(such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

If operation becomes unstable

Try unplugging the power cord of the unit and connected devices, and then plugging them in again.

Resetting the unit (this resets the unit settings to the default)

If the issue is not fixed by unplugging the power cord, resetting the unit to the status at the time of shipment may solve the problem. Your settings will also be initialized when you reset, so note down your settings before doing the following.

1. While holding down SPEAKER A/B on the main unit, press Í ON/STANDBY.

2. The unit switches to standby and the settings are reset.

∫ Power

Cannot turn on the unit

0 Make sure that the power cord is properly plugged into

the wall outlet.

0 Unplug the power cord from the wall outlet, wait 5

seconds or more, then plug it in again.

The unit turns off unexpectedly

0 The unit automatically switches to standby when the

"AutoStandby" setting in the Setup menu functions.

0 A speaker cable may have shorted and the protective

circuit function may have been activated. Make sure bare speaker wires are not touching each other or the back panel of the unit, then turn the unit on again. If "NG" is displayed, immediately unplug the power cord from the wall outlet and contact your dealer.

0 The protective circuit function may have been activated

because the temperature of the unit rose abnormally. If this happens, then the power will continue to turn off after you have turned the unit on again. Make sure the unit has plenty of space for ventilation around it, wait for the unit to cool down sufficiently, and then try turning it on again.

WARNING : If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or customer support.

∫ Audio

0 Confirm that the connection between the output jack on

the device and the input jack on this unit is correct.

0 Make sure that none of the connecting cables are bent,

twisted, or damaged.

0 If the MUTING indicator on the display flashes, press

MUTING on the remote controller to cancel muting.

0 While headphones are connected to the PHONES jack,

no sound is output from the speakers.

No sound from an other connected external device

0 Change the input selector on this unit to the position of

the terminal to which the other external device is connected.

0 Check the digital audio output setting on the connected

component. On some game consoles, such as those that support DVD, the default setting is off.

0 Only PCM audio is supported for input through the

DIGITAL IN OPTICAL/COAXIAL jacks. Set the audio output on the other external device to output PCM.

A speaker produces no sound

0 Make sure that the polarity of the speaker cables (+/–) is

correct, and that no bare wires are in contact with the metal part of speaker terminals.

0 Make sure that the speaker cables have not shorted. 0 Make sure the speakers are connected correctly (P8).

Noise can be heard

0 Using cable ties to bundle analog audio cables, power

cord, speaker cables, etc. may degrade the audio performance. Do not bundle cords.

0 An audio cable may be picking up interference. Try

repositioning your cables.

∫ AM/FM broadcasting

Radio reception is poor or there is a lot of noise

0 Re-check the antenna connection. 0 Separate the antenna from speaker cables and the

power cord.

0 Move the unit away from your TV or PC. 0 Passing cars and airplanes can cause interference. 0 Concrete walls weaken radio signals. 0 Listen to the station in mono. 0 When listening to an AM station, operating the remote

controller may cause noise (North American models).

0 FM reception may become clearer if you use the antenna

jack on the wall used for the TV.

> Before Start > Part Names > Install > Playback

Setup | Others

∫ The BLUETOOTH feature

0 Try plugging/unplugging the power of the unit and try

turning on/off the BLUETOOTH wireless technology enabled device. Restarting the BLUETOOTH wireless technology enabled device may be effective.

0 The BLUETOOTH wireless technology enabled devices

must support the A2DP profile.

0 Radio wave interference may occur in the vicinity of

components, such as microwave ovens or cordless phones, which use radio waves in the 2.4 GHz range. This interference may render this unit unusable.

0 If there is a metallic object near the unit, BLUETOOTH

connection may not be possible as the metal can effect on the radio waves.

Cannot connect with this unit

0 Check that the BLUETOOTH function of the

BLUETOOTH wireless technology enabled device is enabled.

Music playback is unavailable on the unit even after successful BLUETOOTH connection

0 When the audio volume of your BLUETOOTH wireless

technology enabled device is set low, the playback of audio may be unavailable. Turn up the volume on the BLUETOOTH wireless technology enabled device.

0 Some BLUETOOTH wireless technology enabled

devices may be equipped with a Send/Receive selector switch. Select Send mode.

0 Depending on the characteristics or specifications of

your BLUETOOTH wireless technology enabled device, playback on this unit may not be possible.

Sound is interrupted

0 There may be a problem with the BLUETOOTH wireless

technology enabled device. Check the information on the internet.

The audio quality is poor after connection with a

BLUETOOTH wireless technology enabled device

0 Reception is poor. Move the BLUETOOTH wireless

technology enabled device closer to the unit or remove any obstacle between the BLUETOOTH wireless technology enabled device and this unit.

∫ Remote Controller

0 Make sure that the batteries are installed with the correct

polarity.

0 Install new batteries. Do not mix different types of

batteries, or old and new batteries.

0 Make sure that the unit is not subjected to direct

sunshine or inverter-type fluorescent lights. Relocate if necessary.

0 If the unit is installed in a rack or cabinet with colored-

glass doors or if the doors are closed, the remote controller may not work reliably.

∫ Display

The display doesn't light

0 The display may go dim while the Dimmer is working.

Press DIMMER to change the brightness level of the display.

∫ Others

Strange noises can be heard from the unit

0 If you have connected another unit to the same wall

outlet as this unit, this noise may be an effect from the other unit. If the symptoms improve by unplugging the power cord of the other unit, use different wall outlets for this unit and the other unit.

General Specifications

> Before Start > Part Names > Install > Playback

Setup | Others

Amplifier (Audio) section

Rated Output Power (FTC) (North American)

0 With 8 ohm loads, both channels driven, from 20 -

20,000 Hz; rated 45 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output.

0 With 6 ohm loads, both channels driven, at 1 kHz;

rated 85 watts per channel minimum RMS power, with no more than 0.9% total harmonic distortion from 250

milliwatts to rated output. Rated Output Power (IEC) (European, Asian and Australian)

2 ch k 100 W at 6 ohms, 1 kHz, 1ch Driven of 1%THD

MAXIMUM Effective Output Power (JEITA)

2 ch k 100 W at 6 ohms, 1 kHz, 2ch Driven of 10%THD Dynamic Power (*) (*)IEC60268-Short-term maximum output power

140 W (3 ≠)

120 W (4 ≠)

80 W (8 ≠) THD+N (Total Harmonic Distortion+Noise)

0.08% (20 Hz - 20,000 Hz, half power)

Input Sensitivity and Impedance

450 mV/40 k≠ (LINE (Unbalance))

10 mV/50 k≠ (PHONO MM) Rated RCA Output Level and Impedance

420 mV/2.2 k≠ (LINE OUT)

2.8 V/3.3 k≠ (SUBWOOFER PRE OUT)

Phono Overload

40 mV (MM 1 kHz, 0.5%) Frequency Response

10 Hz - 100 kHz/i1 dB, j3 dB (DIRECT) Tone Control Characteristics

n12 dB, 100 Hz (BASS)

n12 dB, 10 kHz (TREBLE)

Signal to Noise Ratio

100 dB (IHF-A, LINE IN, SP OUT)

93 dB (IHF-A, PHONO IN, SP OUT)

Speaker Impedance

4 ≠ - 16 ≠

Headphone Output Impedance

390 ≠

Headphone Rated Output

60 mW (32 ≠, 1 kHz, 10% THD)

Tuner Section

FM Tuning Frequency Range

87.5 MHz - 107.9 MHz (North American)

87.5 MHz - 108.0 MHz, RDS (European)

AM Tuning Frequency Range (North American)

530 kHz - 1710 kHz

Preset Channel

Digital Tuner (European)

DAB / DAB+

BLUETOOTH Section

Communication system

BLUETOOTH Specification version 4.2

Frequency band

2.4 GHz band

Modulation method

FHSS (Frequency Hopping Spread Spectrum)

Compatible BLUETOOTH profiles

A2DP 1.3 AVRCP 1.5

Supported Codecs

SBC AAC

Transmission range (A2DP)

20 Hz - 20 kHz (Sampling frequency 44.1 kHz)

Maximum communication range

Line of sight approx. 32 ft. / 10 m (*)

(*)The actual range will vary depending on factors such as

obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, antenna’s performance, operating system, software application, etc.

General

Power Supply

AC 120 V, 60 Hz (North American) AC 220-240 V, 50/60 Hz (European)

Power Consumption

150 W (North American) 160 W (European)

0.4 W (Stand-by) 20 W (No-sound)

Dimensions (W k H k D)

17-1/8" k 5-7/8" k 12-15/16" 435 mm k 149 mm k 328 mm

Weight

6.8 kg / 15 lbs (North American) 7 kg / 15.4 lbs (European)

Audio Inputs

Digital

OPTICAL 1 (TV), Maximum Fs: 96 kHz COAXIAL 1 (CD), Maximum Fs: 96 kHz

Analog

PHONO, CD, BD/DVD, CBT/SAT, LINE

Audio Outputs

Analog

SUBWOOFER PRE OUT LINE OUT L/R

Speaker Outputs

SPEAKERS A: L/R SPEAKERS B: L/R

Phones

PHONES (Front, Ø1/4"/6.3 mm)

+ 58 hidden pages
