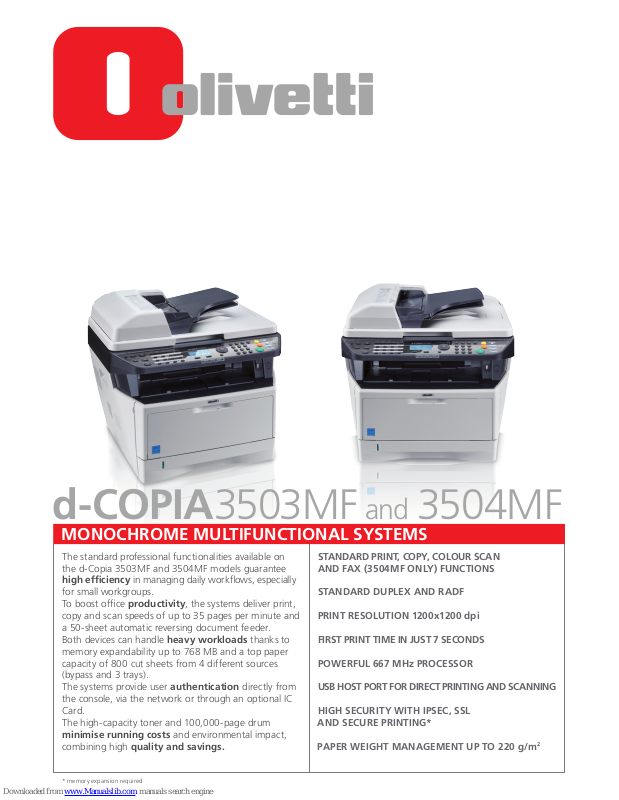

Page 1
The standard professional functionalities available on
the d-Copia 3503MF and 3504MF models guarantee
high efficiency in managing daily workflows, especially
for small workgroups.
To boost office productivity, the systems deliver print,
copy and scan speeds of up to 35 pages per minute and
a 50-sheet automatic reversing document feeder.
Both devices can handle heavy workloads thanks to
memory expandability up to 768 MB and a top paper
capacity of 800 cut sheets from 4 different sources
(bypass and 3 trays).
The systems provide user authentication directly from
the console, via the network or through an optional IC
Card.
The high-capacity toner and 100,000-page drum
minimise running costs and environmental impact,
combining high quality and savings.
MONOCHROME MULTIFUNCTIONAL SYSTEMS
STANDARD PRINT, COPY, COLOUR SCAN
AND FAX (3504MF ONLY) FUNCTIONS
STANDARD DUPLEX AND RADF
PRINT RESOLUTION 1200x1200 dpi
FIRST PRINT TIME IN JUST 7 SECONDS
POWERFUL 667 MHz PROCESSOR
USB HOST PORT FOR DIRECT PRINTING AND SCANNING
HIGH SECURITY WITH IPSEC, SSL
AND SECURE PRINTING*
PAPER WEIGHT MANAGEMENT UP TO 220 g/m
2
d-COPIA3503MF and 3504MF
* memory expansion required
Page 2
Time to first print
Languages Functions
Operating systems
Approx. 7 seconds
PCL 6 (5e /XL) , KPDL 3 ( PostScript 3 compatible),
Line Printer, IBM Proprinter X24E, Epson LQ-850,
Diablo 630, PDF Direct Print, XPS Direct Print
(with memory expansion)
Encrypted PDF direct print, IPP print, e-mail
print, WSD print, secure print via SSL/ IPsec/
SNMPv3, private print (with memory expansion)
All current Windows operating systems,
Macintosh OS X 10.4 or later, Unix, Linux
PRINTER
Fonts
93 scalable (PCL6, HP compatible)
+ 8 (Windows Vista), 101 (KPDL 3), 1 bitmap,
45 types of monodimensional barcodes
and 1 two-dimensional (PDF417)
Modem speed
Compatibility
Transmission time
One-touch dial
Address book
Scan speed
33.6 Kbps
ITU-T Super G3
Less than 3 seconds
22 destinations
100 entries
2.5 seconds
FAX
(d-COPIA 3504MF)
Compression method
Memory reception
JBIG, MMR, MR, MH
256 sheets or more
Density
Normal: 8 points /mm x 3.85 line/mm
Fine: 8 points/mm x 7.7 line/mm
Superfine: 8 points /mm x 15.4 line /mm
Ultrafine: 16 points/mm x 15.4 line/mm
Functions
Network fax, duplex /encrypted/polling
transmission and reception, broadcast,
memory reception
Technology
Type desktop/console
Operator panel
Interfaces
CPU
RAM memory
Resolution
Electrophotographic laser, monocomponent
Desktop
5 line-LCD display
USB 2.0 (Hi-Speed), USB Host, Fast Ethernet
10/100Base-TX, slot for optional CompactFlash
card, slot for Print Server (only for 3503MF)
PowerPC 440/667 MHz
256 MB standard (max 768 MB)
1,200 x 1,200 dpi (print)
600x 600 dpi (scan and copy)
GENERAL
Warm-up time
Accounting
Approx. 20 seconds from power-on
20 departmental codes
Monthly duty cycle
Power requirements
Power consumption
Noise Level
(ISO 7779/9296 )
20,000 pages max
220-240 VAC, 50/60 Hz
Print/copy: 497 W (3503MF), 502 W (3504MF)
Stand-by: 80 W (3503MF), 84 W (3504MF)
Energy saving: 7.8 W (3503MF)
10.6 W (3504MF)
Automatic power off: 0.5 W or less
Copy/print: 49 dB(A) Half-speed mode
55 dB(A) Full-speed mode
Stand-by: 30 dB(A)
Dimensions (WxDxH) 494 x 430 x 448 mm
Weight
Approx. 18 kg
Consumables
(ISO/IEC 19752)
First equipment toner: up to 3,600 pages
Toner: up to 7,200 pages
Engine speed Up to 35 ppm A4
Greyscale
Original format
Zoom
Preset magnification ratio
Exposure modes
Image adjustment
Functions
Multicopy
First copy time
256 levels
Max A4, Legal
25% - 400% (1% step)
7 reductions, 5 enlargements
Manual/automatic: 7 levels
Text, photo+text, photo
Scan-once-copy-many, electronic sort, 2-in1,
4-in1, ID card copy, job reserve, program/recall job, priority print, auto duplex, split copy,
auto cassette change, continuous scan, copy
density control
1-999
Approx. 7.9 seconds
COPIER
Paper cassette
Multi-purpose tray
Output paper capacity
Automatic document
feeder
250 sheets
Paper formats: A4, A5, A6, B5, Letter, Legal,
Folio, custom (105 x 148 to 216 x 356 mm)
Paper weight: 60 -120 g / m
2
50 sheets
Paper formats: A4, A5, A6, B5, Letter, Legal,
Folio, Envelopes, custom (70 x 148
to 216 x 356 mm)
Paper weight: 60-220 g /m
2
150 sheets face down
50-sheet RADF, standard
Paper formats: A4, A5, B5, Letter, Legal,
custom (140 x 210 to 216 x 356 mm)
Paper weight: 50 -120 g / m
2
simplex,
50 -110 g / m2 duplex
PAPER HANDLING
Duplex
Standard
Paper formats: A4, Letter, Legal
Paper weight: 60 -10 5 g /m
2
Original recognition Text, photo, text+photo, OCR
Scan format
Document input File formats
Functions
Max A4, Legal
RADF, flatbed with CCD sensor TIFF, PDF, JPEG, XPS
Colour scan, address-book, Active Directory
support, encrypted data transfer, multiple
simultaneous send (e-mail, fax, SMB/FTP
folder, print)
SCANNER
Interfaces USB 2.0 (Hi-Speed), Ethernet 10/100 Base -TX
Scan modes
Scan-to-Email, Scan-to-FTP (FTP over SSL),
Scan-to-SMB, Scan-to-USB Host, TWAIN (USB),
WSD (WIA) scan ( USB)
Speed
Up to 35 ipm (300 dpi, A4, B&W)
Up to 14 ipm (300 dpi, A4, Colour)
Copy desk
Paper cassette (PF-120)
Memory expansion
IC Card Reader
512 MB DDR-2 DIMM
OPTIONS
Max 2 optional 250-sheet cassettes
Paper formats: A4, A5, B5, Letter, Legal,
custom (148 x 210 to 216 x 297 mm)
Paper weight: 60 -120 g / m
2
TECHNICAL CHARACTERISTICS
Product performances are referred to an appropriate use under optimal conditions. With the right
to change technical specifications. The registered trademarks are the property of their respective owners.
d-Copia 3503MF and 3504MF are distributed by Olivetti S.p.A.
(03/12) - Code: 28693-00
