ETWORK CONFIGURATION

NTRODUCTION

Your printer incorporates a fast 100BASE-TX/10BASE-T network interface. This User’s Guide explains the functionality of the built in network interface. Access for interconnection and producing self-diagnostic test and configuration printouts is provided via an interface panel at the rear of the printer.

This network interface supports IEEE802.2, IEEE802.3, EthernetII and SNAP, and can detect those frame types automatically.

Also, the interface supports major protocols such as TCP/IP, IPX/ SPX (NetWare), EtherTalk and NetBEUI.

This section details the network interface specification and several software utilities.

You should set the emulation in the Printer Menu settings to Auto or PS before printing the self-diagnostic test and settings.

Network Configuration> 12

PECIFICATION

Frame Types IEEE 802.2

IEEE 802.3

Ethernet-II, SNAP, AUTO

Network Interface 100BASE-TX

10BASE-T

Network Protocols TCP/IP

Network layer ARP, RARP, IP, ICMP

Session layer TCP, UDP

Application layer LPR, FTP, TELNET, HTTP,

IPX/SPX (NetWare)

Remote printer mode (up to eight file servers and 32 queues)

Print server mode over IPX/SPX (up to eight print servers)

Encrypted password supported in print server mode

SNMP

EtherTalk

E L AP, AA RP, DD P, A E P, N BP, ZI P, R TM P, AT P, PAP

NetBEUI

SMB, NetBIOS, WINS

IPP, BOOTP, DHCP, SNMP, DNS, SMTP, POP3, SLP, Rendezvous

Functions Self-diagnostic test printing

Banner supported

Monitoring and configuration by Web browser

Printer status notification by E-Mail

ELF-DIAGNOSTIC TEST

With the printer power switched on, press the push-button located on the network interface panel (at the rear of the printer) for more than three seconds and release. The self-diagnostic test results and configuration settings are printed.

Network Configuration> 13

On the first page of the Network Information that is printed out, under the heading “General Information” the MAC Address is given. For example:

MAC Address 00808784E3F1

The Ethernet address is therefore: 00:80:87:84:E3:F1

ONFIGURATION UTILITIES

You can configure the network interface (NIC) by using one of the following methods:

UTILITY FEATURES SYSTEM

REQUIREMENTS

Quick Setup Configure the NIC easily

and simply without installing any software packages into your system. You can set the following:

> Enable/disable TCP/IP,

NetWare, EtherTalk, NetBEUI protocols.

> Set IP address, Subnet

Mask and Gateway for TCP/IP manually or by using DHCP.

> Set NetWare Mode and

create Queue/Print Server/Printer objects.

> Zone name and Port

name for EtherTalk.

Admin Manager

Configure the NIC in detail.

Web Browser Configure the NIC and

printer by using a Web browser such as Microsoft Internet browser or Netscape Navigator.

Windows95/98/Me/ NT4.0/2000/XP (TCP/IP protocol or IPX/SPX protocol should be installed).

To create a NetWare queue, NetWare Client 32 or IntraNetWare Client should be installed in your system.

Microsoft Internet Explorer Version 3.0 and higher or Netscape Navigator Version 3.0 and higher.

Operating system that supports Web browser.

Network Configuration> 14

UTILITY FEATURES SYSTEM

REQUIREMENTS

Telnet Configure the NIC using

TELNET.

SNMP The printer and network

card can be controlled using third-party vendor developed SNMP application.

SING QUICK SETUP

Third-party vendor developed TELNET client package.

A TELNET Application is standard in Windows/ UNIX/Linux.

Third-party vendor developed SNMP application.

Quick Setup utility allows you to configure the network interface easily and simply without installing any software packages.

You can configure the following:

> Enable/disable TCP/IP, NetWare, EtherTalk, NetBEUI

protocols.

> Set IP address, Subnet Mask and Gateway for TCP/IP

manually or by using DHCP.

> Set NetWare mode and create Queue/Print Server/Printer

objects.

> Zone name and Port name for EtherTalk.

Configuration requires a PC with Windows 9x/Me, Windows 2000 Advanced Server/Professional or Windows NT Server 4.0/Workstation 4.0, Windows XP running TCP/IP or IPX/SPX (NetWare).

This utility can only be used on a PC that can be connected to the network with TCP/IP or IPX/SPX.

This utility must be used on a PC that is located on the same segment as the printer.

To create a NetWare queue, NetWare Client 32 or IntranetWare Client should be installed in your system.

The following explanation uses Windows 98 as an example.

Network Configuration> 15

1. Insert the Network Software CD-ROM into the CD-ROM drive. The Setup Utility starts automatically. If it does not start, double-click \setup.exe (in the root directory) on the CD-ROM.

2. Select [Network Card Setup]—[Network Card Quick Setup].

3. Select the appropriate language and follow the on-screen instructions.

4. When the settings are correct, click [Execute]. The new settings are transmitted to the network card but it still operates with pre-transmission settings.

5. Click [Finish] to validate the new settings. The printer may have to be switched off for 15 seconds and on again.

Network Configuration> 16

SING ADMINMANAGER

AdminManager is a powerful Microsoft Windows-based utility to configure all network interface functions easily and intuitively via a graphical user interface.

Configuration requires a PC with Windows 95/98/Me, Windows 2000 Advanced Server/Professional or Windows NT Server 4.0/ Work-station 4.0, Windows XP running TCP/IP or IPX/SPX (NetWare).

This utility can only be used on a PC that can be connected to the network with TCP/IP or IPX/SPX and must be used on a PC that is located on the same segment as the printer.

To create a NetWare queue, NetWare Client 32 or IntranetWare Client should be installed on to your system.

The following explanation uses Windows 98 as an example.

NSTALLATION

1. Insert the Network Software CD-ROM into the CD-ROM

drive. The Setup Utility starts automatically. If it does not start, double-click \autorun.exe (in the root directory) on the CD-ROM.

2. Select [Network Card Setup].

3. Select [Network Card Standard Setup].

4. Select the appropriate language.

5. Follow the on-screen instructions. If you want to install

AdminManager on to your local drive, select [Install and Execute]. Otherwise, select [Execute from CD-ROM].

6. To run AdminManager, check [Yes] for [Do you wish to execute AdminManager?] and click [Finish]. Otherwise check [No] and click [Finish].

Network Configuration> 17

NTERFACE

Select [Start]-[Programs]-[Oki Setup Utility]-[Admin Manager].

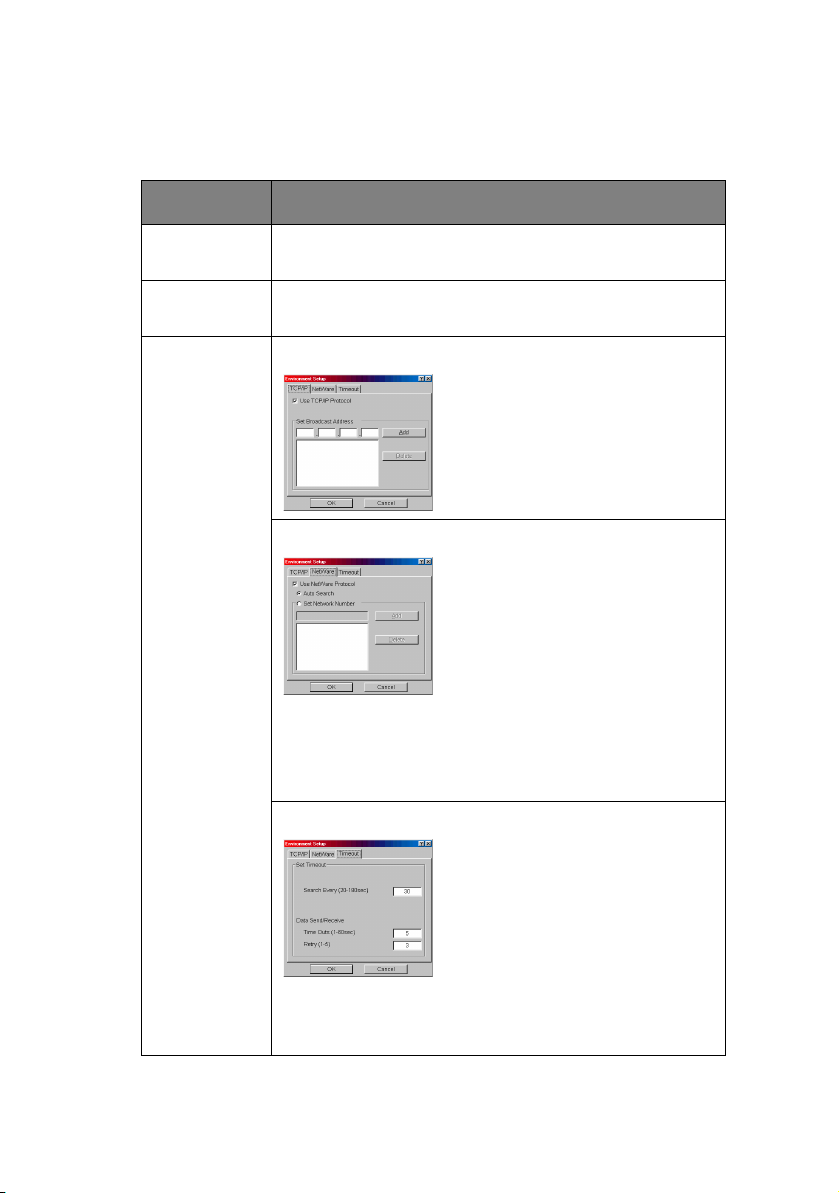

MENU ITEM FUNCTION

File Search Search printers in your network and list all

printers that have the 7100e, 7100e+, 7200e, 7300e and 8100e NIC installed.

Status Printer

Status

System Status

NetMeter Display current network

List of Configurati on Items

Current printer status is displayed:

Displays current NIC configuration. Configuration data can be saved as log file.

status. For further information, see on-line help file of NetMeter.

Displays current NIC configuration. Configuration data can be saved as log file.

Network Configuration> 18

MENU ITEM FUNCTION

Setup Device

Setup

Setup by HTTP

Setup by TELNET

Setup Create

NetWare Queue

Delete NetWare Object

Reset Reset the selected network interface card.

Test Print Print self-diagnostic test pages.

IP Address Setup

Configure the network interface (NIC).

Launch the default browser in your environment to access the selected printer’s web page.

Launch TELNET application in your environment to access the selected printer’s TELNET port.

Note:The TELNET application is not included

as part of the NIC package. Install the TELNET package on to your system. For further information, see your Windows manual.

Create a NetWare queue.

Delete NetWare object.

Set static IP address of network interface card manually.

EVICE SETUP

Device Setup allows you to configure the network interface. Type the root password (default value is the last 6 characters of the MAC address) to configure. Remember that the root password is case sensitive. If the MAC address contains any alpha characters, type them as upper case. Device Setup contains details for the following selectable tabs:

> General > SNMP

> TCP/IP > POP

> NetWare > SMTP

Network Configuration> 19

> NetBEUI > Maintenance

> EtherTalk

The following section explains each tab’s functionality. Depending on your printer, some items in the following explanation may not be displayed.

General Tab

This allows you to set or change the root password used for Admin Manager, TELNET and FTP.

ITEM EXPLANATION

Change root password

You can set/ change the root password for AdminManager, TELNET and FTP.

TCP/IP Tab

This allows you to configure TCP/IP related items.

ITEM EXPLANATION

Use TCP/IP Protocol

Use DHCP/ BOOTP

Use RARP Check this item if IP address is retrieved from the

IP Address Set the IP address of the selected network interface

Set TCP/IP protocol as enabled/disabled.

Check this item if IP address, subnet mask, default gateway and IP addresses for DNS primary server and secondary servers are retrieved from the DHCP or BOOTP server. Otherwise, uncheck.

RARP server. Otherwise, uncheck.

card.

Network Configuration> 20

ITEM EXPLANATION

Subnet Mask Set the subnet mask of the selected network

interface card.

Default Gateway

Use FTP/LPD Banner

DNS Server… Set IP addresses for

Network PnP Setup…

Set the default gateway of the selected network interface card.

Check this item if you want to add the FTP/LPD banner. Otherwise uncheck.

DNS primary and secondary servers.

Configure items related to Network PnP.

In this dialogue box, the following items can be configured:

Auto IP address Set to get IP address

dynamically by Auto IP, enabled or disabled

Use Network PnP Set notifying users with using

UPnP supported OS of the printer, enabled or disabled

Device Name Set the device name for

Network PnP

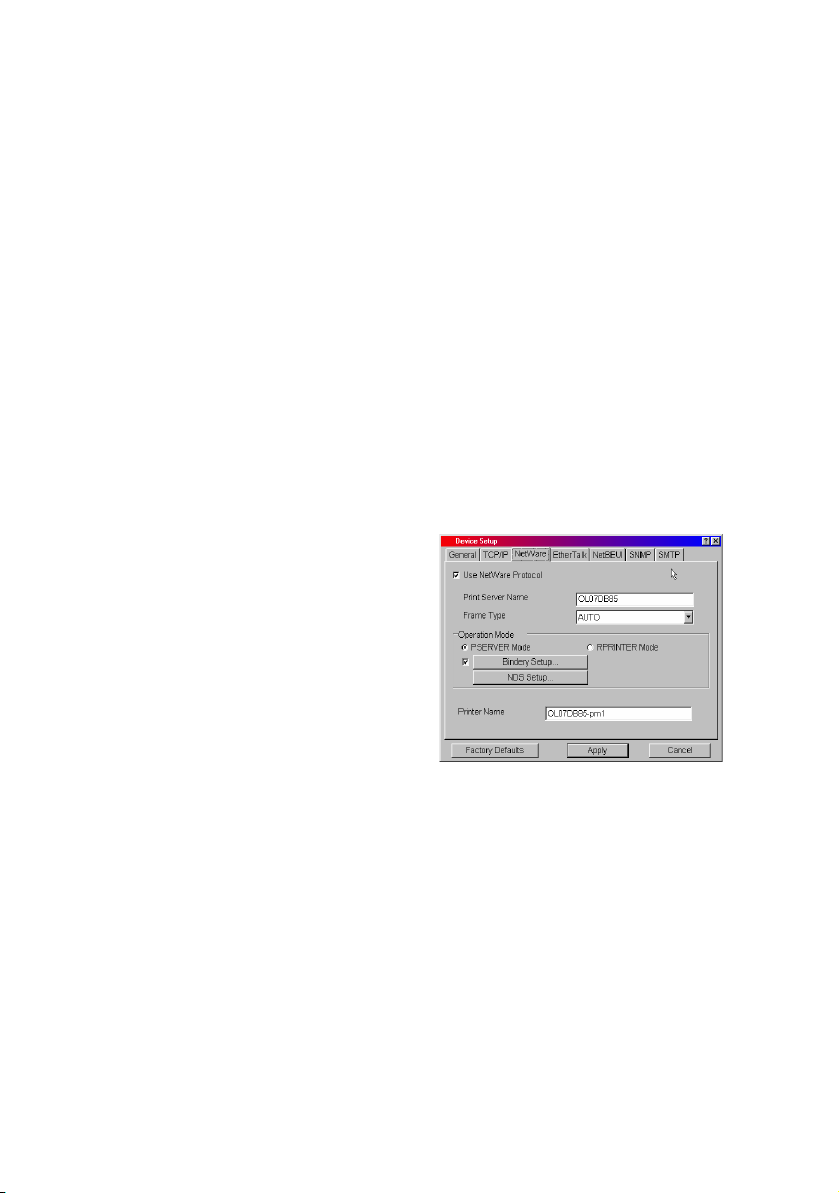

NetWare Tab

This is where you can configure NetWare related items.

ITEM EXPLANATION

Use NetWare Protocol

Use IPX Protocol / Use TCP/IP Protocol

Print Server Name

Set NetWare protocol as enabled/disabled.

Set protocol to use.

Set Print Server name.

Network Configuration> 21

ITEM EXPLANATION

Frame Type Set primary NetWare frame type.

Operation Mode

Check box beside Bindery Setup

Bindery Setup

Set NetWare mode.

Check if you want to use the Bindery mode and Bindery Setup button becomes available. If it is unchecked, the button is greyed out.

Configure items related to Bindery mode.

In this dialogue box, the following items can be configured:

Available File Server and Selected File Server.

Select file servers to connect. Up to eight file servers can be selected. Select a server from [Available file server] list and click >> button. The server is copied to [Selected file server] box.

Password. Set password for Print

Server.

Job Polling Time. Set print job polling interval

in seconds.

NDS Setup Set NDS tree and context

where Print Server was created.

Network Configuration> 22

ITEM EXPLANATION

RPRINTER Setup

Available if you select RPRINTER mode in Operation Mode.

By selecting the [RPRINTER] button, this is displayed:

NDS or Bindery Show the Available print

server tree in NDS mode or Bindery mode.

Available print server and Selected print server

Select file servers to connect. Up to eight file servers can be selected. Select a server from [Available file server] list and click >> button. The server is copied to [Selected file server] box.

Time Out Set duration from the last

data’s arrival to freeing of the port in seconds.

Printer Name Set the NetWare printer object name.

Network Configuration> 23

EtherTalk Tab

This allows you to configure EtherTalk related items.

ITEM EXPLANATION

Use EtherTalk Protocol

Printer Name Set EtherTalk Printer object name.

Zone Name Set the zone name to which the printer belongs.

Set EtherTalk protocol to enabled/disabled.

NetBEUI Tab

This allows you to configure NetBEUI related items.

ITEM EXPLANATION

Use NetBEUI Protocol

Computer Name

Workgroup Set a work group name to which the printer belongs.

Comment Set the comments for the printer.

WINS Server…

Set NetBEUI protocol to enabled/disabled.

Set a computer name for the printer.

Configure items related to the WINS Server.

In this dialogue box, the following items can be configured:

Primary Server Set WINS Primary server.

Secondary Server

Scope ID Set a Scope ID.

Network Configuration> 24

Set WINS Secondary server.

SMTP Tab

This allows you to configure SNMP related items.

ITEM EXPLANATION

Authentic Community

TRAP Community

TRAP Address

SysContact Set SysContact (printer manager) name.

SysName Set SysName (printer model name).

SysLocation Set SysLocation (the location where the printer is

Default TTL Set TTL (Time To Live) value.

Enable Authentic Tra p

This community name is used to check whether incoming SNMP requests have the correct community name or not. The community name is displayed as ****** for security reasons.

This community name is assigned to outgoing system traps such as cold start, authentication failure, etc.

Set a destination IP address of a Trap packet. If

0.0.0.0 is set, the Trap is disabled.

installed).

Set Authentic Trap to enabled/disabled.

Network Configuration> 25

ITEM EXPLANATION

Printer Trap Setup…

By selecting the button, the following dialogue box is displayed:

In the dialogue box, the following items can be configured:

Printer Trap Community Name

This community name is assigned to outgoing printer status traps such as off-line, paper out, etc.

TCP#1–5 Set the IP addresses to which a

Trap packet will be sent. You can set up to five IP addresses.

Network Configuration> 26

ITEM EXPLANATION

Printer Trap Setup…

(continued)

Detail… By selecting the

button, the following dialogue box is displayed:

In the dialogue box, the following items can be configured:

Trap Enable Set sending a Trap

packet, enabled or disabled, for each destination.

Printer Reboot

Set sending a Trap packet, enabled or disabled, when the printer is rebooted.

Receive Illegal

Set sending a Trap packet, enabled or disabled, when the printer receives an illegal Trap packet.

On-line Set sending a Trap,

enabled or disabled, when the printer turns to ON-LINE.

Off-line Set sending a Trap,

enabled or disabled, when the printer turns to OFF-LINE.

Paper Out Set sending a Trap,

Paper Jam

Cover Open

enabled or disabled, when any of these conditions occur.

Printer Error (any error)

IPX Set node address and network

address to which a Trap packet will be sent.

Network Configuration> 27

ITEM EXPLANATION

Printer Trap Setup…

IPX

Detail…

By selecting the button, the following dialogue box is displayed:

In the dialogue box, the following items can be configured:

Trap Enable Set sending a Trap

packet, enabled or disabled, for each destination.

Printer Reboot

Set sending a Trap packet, enabled or disabled, when the printer is rebooted.

Receive Illegal

Set sending a Trap packet, enabled or disabled, when the printer receives an illegal Trap packet.

On-line Set sending a Trap,

enabled or disabled, when the printer turns to ON-LINE.

Off-line Set sending a Trap,

enabled or disabled, when the printer turns to OFF-LINE.

Paper Out Set sending a Trap,

Paper Jam

Cover Open

Printer Error (any error)

Network Configuration> 28

enabled or disabled, when any of these conditions occur.

POP Tab

This allows you to configure POP related items.

ITEM EXPLANATION

Use POP3 Protocol

POP3 Server Address/ Name

POP3 Port Number

POP3 Server UserID

POP3 Server Password

Use APOP Check if you want to use APOP.

POP3 Interval

Set retrieving E-Mail via POP3, enabled or disabled.

Set IP address or host name of POP3 server.

Set port number of POP3.

Set User ID for POP3 server.

Set password for POP3 server.

Set interval to retrieve E-Mail(s) from POP3 server. Set to OFF if you do not want to use POP3 function.

Some printers support an email reception function (SMTP/POP3) allowing the printer to print PDF and text files attached to emails. If the POP tab is not displayed, your printer does not support this function.

Network Configuration> 29

SMTP Tab

In SMTP Tab, you can configure SMTP related items.

ITEM EXPLANATION

Use SMTP Tra nsm i t Protocol

Use SMTP Receive Protocol

SMTP Server Address/ Name

Reply-To Address

E-Mail Address

Set sending E-Mail via SMTP, enabled or disabled.

Set receiving E-Mail via SMTP, enabled or disabled.

Set IP address or host name of SMTP server.

Set the E-Mail address that is used in the [Reply-To] field in the mail header.

Set the E-Mail address that is used in the [From] field in the mail header.

Network Configuration> 30

ITEM EXPLANATION

1–5 By selecting each

button, the following dialogue box is displayed:

In the dialogue box, the following items can be configured:

Available condition and Selected condition.

Select each E-Mail alert condition.

Select a condition from Available Condition list and click >> button. The selected condition is copied to Selected condition list. Available conditions are:

Off line, Consumable Message, Toner Low/Out, Paper Low/Out, Paper Jam, Cover Open, Stacker Error, Mass Storage Error, Recoverable Error, Service Call Request and Finisher Error.

1–5 To Address 1–5 Set E-Mail addresses to which E-

Mail should be sent. Up to five EMail addresses can be set.

Check Interval Set interval that the printer

checks specified event(s). An EMail is sent when specified event(s) occurs when DISABLE is selected.

Network Configuration> 31

ITEM EXPLANATION

Advanced… By selecting the button, the

following dialogue box is displayed:

In the dialogue box, the following items can be configured:

SMTP Port

Set port number of SMTP.

Number

Signature Set up to four signature lines.

Signatures added to the bottom of an E-Mail.

Network Configuration> 32

REATE A NETWARE QUEUE

By selecting this item, you can create a NetWare queue on the NetWare server from AdminManager.

> NetWare Client 32 or IntranetWare Client should be

loaded on the PC on which the AdminManager runs. Also the client package should be configured to access NetWare NDS network or bindery network.

> You should log in to NetWare servers as a user who can

create objects on the servers. If you want to create a queue with the remote printer mode on NetWare 4.1, you should select NDS mode. You cannot create a queue if Bindery mode is selected.

1. Select [Create NetWare Queue] from the [Setup] menu.

2. Select [Next] button.

3. Select either [NDS mode] or [Bindery] mode depending

on your network environment.

Network Configuration> 33

4. Follow the on-screen instructions.

MODE

NDS Context

LOCATION

should be specifie d.

PSERVERORRPRINTER

PSERVE R mode

SERVER

Current Print Server name is used.

QUEUE

Set queue name and its volume for the queue creation.

RPRINTE R mode

Select existing Print Server.

Set queue name and its volume for the queue creation.

BinderyFile

server should be specifie

PSERVE R mode only

Current Print Server name is used.

Set queue name for the queue creation.

5. Confirm your configuration. If it is correct, select [Execute].

PRINTER

Current Printer name is used.

6. Select [Finish] button. If necessary, select [Setup]— [Device Setup] and continue your configuration.

Network Configuration> 34

ELETE NETWARE OBJECT

By selecting this item, you can delete a NetWare queue/print server/printer from NetWare server via AdminManager.

> NetWare Client 32 or IntranetWare Client should be

loaded on to the PC on which the AdminManager runs. Also, the client package should be configured to access NetWare NDS network or bindery network. You should login to NetWare servers as a user who can delete objects on the servers.

1. Select [Delete NetWare Object] from [Setup] menu.

2. Select an object you want to delete and click [Delete]

button.

3. To exit from this dialogue box, select [Quit].

Network Configuration> 35

+ 70 hidden pages

Oki C7200, C7300, 100base-tx, C5400, 10base-t UTILITIES GUIDE

CONTENTS
