OK OLE 328 B-D4 User Manual

OLE 328 B-D4

32-Zoll LED-TV DVB-T/-C MPEG4 // 32” LED-TV DVB-T/-C MPEG4 //

TV LED de 32” con DVB-T/-C MPEG4 // 32” LED-TV DVB-T/-C MPEG4

DE	Bedienungsanleitung	NL	Gebruikershandleiding
EL	οδηγίες χρήσης	PL	Instrukcja obsługi
EN	User guide	PT	Guia do usuário
ES	Instrucciones de uso	RU	Руководство пользователя
FR	Guide de l’utilisateur du téléviseur	SV	Manual
HU	Használati útmutató	TR	Kullanma kılavuzu
IT	Guida utente

EN

Important safety instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated:

This TV with the weight of more than 20 kg must be lifted and carried by at least two people.

Be careful! This TV does not contain any parts which could be repaired by the user. In case of a fault, contact the producer or the authorized service. The contact with certain parts inside the appliance might endanger your life. The guarantee is not provided for the faults caused by non-professional interactions!

Do not remove the rear part of the appliance.

In order to prevent fire spread, always keep candles and other open flames away from this product.

This appliance is designed for receiving and reproduction of video and sound signals. Any other use is strictly forbidden.

The ideal distance to watch TV is approximately five times longer of the diagonal of the screen The light striking upon the screen from other light sources can cause reflections and make the quality of the picture worse.

Please, ensure the sufficient ventilation and appropriate distance of the appliance from other pieces of furniture.

The TV set is designed exclusively for the operation in a dry place. When using the appliance outside, please, make sure it is protected against moisture (rain, splashing water). Never expose the appliance to moisture.

Do not place any containers with water on the appliance, such as vases, etc. These containers might get pushed over, which would endanger electric safety. Place the appliance exclusively on flat and stable surfaces. Do not place any objects such as newspaper or blankets, etc. on or under the appliance.

Make sure the appliance does not stand on any power cables as they might get damaged. Mobile phones and other devices such as WLAN adapters, monitoring cameras with wireless signal transmission, etc. might cause electromagnetic interference and they should not be placed near the appliance.

Do not place the appliance near heating elements or in a place with direct sunshine as it has a negative effect on

cooling of the appliance. Heat storage is dangerous and it can seriously reduce the lifetime of the appliance. In order to ensure the safety, ask the qualified person to remove the dirt from the appliance.

Try to prevent the mains cable or (if it is part of delivery) mains adapter damage. The appliance can only be connected with a supplied mains cable/adapter.

Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by the lightening, the appliance might get damaged, even if it is turned off. Thus you should disconnect all the cables and connectors of the appliance before the storm.

To clean the screen of the appliance use only a damp and soft cloth. Use only clean water, never detergents or in no case dissolvents.

Warning:

Never connect any external devices to a live appliance. Switch off not only the TV but also the devices which are being connected! Plug the appliance plug into the wall outlet after connecting the external devices and the aerial!

The product construction responds the protection class 1. Only a properly installed wall outlet with a guard wire (230 V~/50 Hz)of public mains can be used as power source.

Always make sure there is free access to the appliance main switch and to its mains plug.

The appliance is not designed for a use in a workplace fitted with monitors.

The systematic use of headphones at high volume might lead to irreversible hearing damage.

Ensure environmental disposal of this appliance and any components including batteries. When in doubt, please, contact your local authority for details of recycling.

While installing the appliance, do not forget that furniture surfaces are treated with various varnishes, plastics, etc. or they might be polished. The additions contained in these products might cause destruction of base material of appliance stand. This will result in the holdovers of this material stuck to the furniture surface, which are difficult to remove, if not even impossible.

The screen of your TV responds to the top quality requirements and it was checked in details for accidental faulty pixels several times. Due to the technological properties of the manufacturing process, it is not possible to eliminate the existence of a small number of faulty points on the screen for 100% (even with maximum care while production provided). These faulty pixels are not considered faults in terms of guarantee conditions, if their extent is not greater than the boundaries defined by DIN norm.

2

Important information regarding use of video games, computers, captions and other fixed image displays.

The extended use of fixed image program material can cause a permanent “shadow image “ on LCD screen (this is sometimes incorrectly referred to as “burnout to the screen“ ). This shadow image is then permanently visible on the screen in the backro-und. It is a partly irreversible damage. You can avoid such a damage by respecting the following instructions:

Reduce the brightness/contrast setting to a minimum viewing level.

Do not display the fixed image for a long period of time. Avoid displaying of:

»Teletext time and charts,

»TV/DVD menu, e.g. DVD contents,

»In the„Pause“ mode (hold): Do not use this mode for a long time, e.g. while watching a DVD or a video.

»Turn off the appliance if you are not using it.

Important safety instructions

Batteries

Observe the correct polarity when inserting the batteries.

Do not expose batteries to high temperatures and do not place them on locations where the temperature might increase

quickly, e.g. near the fire or on the direct
sunshine.	Cd

Do not expose batteries to excessive radiant heat, do not throw them into the fire, do

not disassemble them and do not try to recharge unrechargeable batteries. They could leak out or explode.

»Never use different batteries together or mix new and old ones.

»Dispose of batteries in an environmentally friendly way.

»Most of the EU countries regulate the disposal of batteries by law.

Disposal

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to converse resources and protect the environment. Contact your retailer or local authorities for more information.

3

EN

What is included in the box

Supply of this TV includes following parts:

7	4	1
2 5 8 0
9	6	3

1x TV

1x Remote control

2x AAA bateries

1x User guide

1x Stand

1x RF cable

1x Stand neck

1 x TV stand instalation packet

Attaching the Stand

Please follow the instructions in the Stand installation leaflet, located in the accessories bag.

Wall mounting the TV

This television requires a VESA 100 wall mount, or equivalent.

1.Remove the four screws highlighted below.

2.The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

3.For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV’s screen is ‘face on’. See fig 1 and 2

	TV	TV
fig 1		fig 2
Wrong		Correct
Viewingangleangle		Viewingangleangle

Important Note

Position the TV close to the wall to avoid the possibility of it falling when pushed.

The instructions shown below are a safer way to set up the TV, by fixing it to the wall, avoiding the possibility of it falling

forwards if pulled. This will prevent the TV from falling forward and causing injury. This will also prevent the TV from damage.

This method is used if the TV is placed on a glass surface or you do not wish to screw anything into your furniture.

Ensure that children do not climb or hang onto the TV.

For this type of installation you will need a fastening chord

A)Using one/both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening chord/s to the TV.

B)Secure the other end of the fastening chord/s to your wall.

4

1

2

3
DTV	RADIO USB	DVD
4

5,6

Getting started - initial set up

1.Using the RF cable supplied, connect the TV to the TV Aerial wall socket. Connect the power cable to the Electrical outlet.

2.Turn on the device with marked ON/OFF switch

3.Insert the batteries supplied into the Remote control and press the Standby button to power on the TV.

4.You will now be welcomed with the initial set-up screen. If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.

As part of our continuing efforts to reduce energy consumption, we added a new Ecohome feature (appears on the first installation screen). This function helps reduce energy consumption up 15% compared to other modes. The image brightness is reduced using Ecohome mode. If this setting does not suit your environment, you can choose from other modes (Note: the professional mode is the optimal default mode, but consumes 15% more than the Ecohome).

Please select desired language, country and environment. Set LCN* to ON if you want to arrange found channels by cable provider preferences (only applies to DVB-C channels).

Press [OK] button to start the tuning process.

5.In the next step select the type of digital broadcasting. You can choose between DVB-T (terrestrial), DVB-C (cable) or DVB-S2(satellite). The analog channel will be searched automatically, as most of the cable network includes analog channels.

6.Select DVB-C if your TV is connected to a cable TV network. Keep all default settings as it is recommended .Then press [OK] to start the search. If DVB-C channels are not found, contact your network provider for the valid "Network ID". Then perform a new search. Press the [MENU], select "Network ID" and enter the network ID. Start your search by clicking [OK].

7.Optional channel presets DVB-S2*: Select "Satellie" in the "Digital-type" in the menu for the optional channel presets. Here you can choose between the various satellites. Since selection completed, then the channel list of the exact satellite will be available to be imported into your TV system. This take several seconds. Confirm with [OK] button on the remote control, to start scanning.

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

7*

Tip:

If the TV finds some, but not all, of the Digital channels, the TV is functioning

correctly but the signal being received is not strong enough. (The signal

strength needs to be above 85% - you can see the signal strength the TV is

receiving when you change channels/ programmes) you will need to increase

the signal reception in order to receive all of the channels available. The most

economical way to do this is by purchasing and connecting a ‘signal booster’ in

between the TV and the TV aerial socket. If this does not solve the problem, you

will need to upgrade the TV aerial to a digital hi-gain compatible aerial.

* - Only for models with DVB-S tuner

5

EN

Remote control

1. STANDBY – Switch on TV when in standby or vice versa.

	MUTE – Mute the sound or vice versa.	1
	DTV – Switch to digital TV source.
	RADIO – Switch to Digital and switch between TV and radio in Digital mode.
	USB – Switch to USB source.
	DVD1 – Switch to DVD mode
	2. 0 – 9 – to select a TV channel directly.	2
	TV GUIDE – Opens the 7 Day TV Guide (Digital mode).
		2

– To return to the previous channel viewed.

VOL ▲/▼– To increase / decrease the sound level.

S.MODE - Scrolls through sound mode options

P.MODE - Scrolls through picture mode options

FAV – To display favourites menu.

CH ▲/▼– To increase or decrease the channel being watched.

3.(▲/▼/◄/►/ OK ) – Allows you to navigate the on-screen menus and adjust the system settings to your preference.

MENU – To display OSD menu. EXIT – To exit all menus.

SOURCE – To display the input/source menu.

INFO – Press once for now/next channel information. Press twice for programme information about current programme.

4.ASPECT – To switch the screen between the different picture formats. SLEEP – Press repeatedly to cycle through the sleep options.

AUDIO – To change the audio language (if available).

SUBTITLE – To switch the dialogue at the bottom of the screen (on/off ). TEXT – Teletext mode - To enter Teletext

TEXT HOLD - Teletext mode - Hold current page which is displayed

TEXT DVD ZOOM - DVD mode - Teletext Mode - To zoom in - 3 DISPLAY – To switch off the screen when listening to radio

DVD MENU1/Rec2 – DVD mode - To display the DVD disc menu PVR mode - PVR Record

DVD SETUP1/Rec List2 – DVD mode - To display the DVD setup menu PVR mode - Opens the list of recordings.

– To restart the current chapter

– To advance forward to the next chapter

/– To stop the playback / Eject DVD.

– To play in fast rewind mode.

– To play in fast forward mode.

– To play/pause 4 GOTO1 – DVD mode - To go to a specific chapter

A-B1 – DVD mode - Press once to set point, press a second time to return to point

ANGLE1 – DVD mode - Select different angle of DVD (if available) REPEAT1 – DVD mode - To repeat playback

Red Green Yellow Blue button- Aditional teletext and OSD functions Yellov button3 - Switches between 3D type settings

1 - available only for TVs with DVD players

2 - available only with PVR function

3 - Available only for TVs with 3D function

DTV	RADIO	USB	DVD

1 2 3

4 5 6

7 8 9

TV	0
GUIDE
	P.MODE
VOL	S.MODE
	CH
	FAV
MENU	EXIT
	OK
SOURCE	INFO

ASPECT

TEXT DVD MENU

DVD SETUP REC LIST GOTO

SLEEP	AUDIO	SUBTITLE
		DISPLAY
TEXT	TEXT/DVD
HOLD	ZOOM
PVR / DVD
A-B	ANGLE	REPEAT

6

TV buttons & Source menu

			Eject *
			Play / Pause *
Vol+			Volume up and menu right
Vol-			Volume down and menu left
CH+			Programme/Channel up and menu up
CH-			Programme/Channel down and menu down
MENU			Displays Menu/OSD
SOURCE			Displays the input source menu
STANDBY			Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/connections.

a) Using the buttons on the remote control:

1.Press [SOURCE/ AV] - The source menu will appear.

2.Press [▼] or [▲] to select the input you require.

3.Press [OK].

b)Using the buttons on the Television:

1.Press [SOURCE].

2.Scroll up / down using CH+/ CHbuttons to the input/source you require.

3.Press Vol+ to change input/source to the one selected.

*

*

*

*

*

*

*

Connections
USB		HDMI 1, 2, 3* in
USB-Input		HDMI-Input 1, 2, 3*
VGA(PC) *		VGA (PC) Audio In *
VGA PC-Input		3.5mm PC audio input
R	R
		Y
L	W
R/L - Video & YPbPr audio In *		Video (CVBS) *
Component / Video audio input		VIDEO Input
		G
		B
		R
Mini YPbPr *		YPbPr *
Mini Component HD Input		Component HD Input
SCART *		CI Card IN
SCART-Input		SCART input
RF In		Sat In *
RF / TV Aerial Input		Satellite Input
COAX Audio Out *		HEADPHONES
Digital Coax output		3.5mm Headphone output

* - Only on supported devices

7

EN

Connections

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

TVs Input/Source should be set to SCART.

SCART

SCART

OUT

IN

RF OUT

RF IN

RF IN

Connecting a Camcorder, Camera or Games Console

TVs Input / Source should be set to Video.

Audio

R / L

Connecting a High Definition (HD) Device by HDMI

Option 1 - via HDMI to HDMI cable. HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

Video (CVBS)

Option 2 - via Component cable.

If your TV set has a component connectors (RED, GREEN, BLUE coloured sockets for video and RED & WHITE coloured sockets for sound), then use regarded YPrPb cable and RCA phono cable for video and sound connection. If TV set is equipped with mini Component connector, then you should use mini YPrPb cable adapter for video signal connection, as shown on the picture. Note: Cables for components connection are not supplied.

Y	Y
PB	PB
PR	PR
Mini YPbPr
L	L
R	R

Using the television as a computer monitor *

Connect the VGA cable (not supplied) to the TV and then to your PC or laptop. In order to use the TV speakers, you connect your PC or laptop to the audio input IN of the TV, just over 3.5 mm jack (not included). The input source of the TV must be set to VGA.

VGA	VGA
IN	OUT
AUDIO	AUDIO
IN	OUT

* - only for devices with VGA connector

NOTE:

The unit without VGA connector shall not be used as a computer monitor, as it would be possible via HDMI.

8

TV Menu operation

TV Menu navigation


MENU

EXIT

	OK
SOURCE	INFO

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll (▲/▼/◄/►) buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Channel

Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

ATV Manual Tuning - Allows you to manually tune your analogue signal.

DTV Manual Tuning- Allows you to manually tune your digital signal.

Programme Edit - Allows you to delete, skip and add favourite channels.

Schedule List - Lists your programme reminders. Signal Information - Information about DVB signal.

CI Information - Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Dish Setup* - This menu is only available in DVB-S2 mode. You can select the type of satellite, your transponder and your LNB type, etc.

* - Only for models with DVB-S tuner

Picture Mode - Choose from the following presets.

Standard	Default settings
Dynamic	Recommended settings for fast moving pictures
Mild	Set to be lighter in colour and less bright
Personal	Lets you manually alter all the settings
Ecohome	Consume 15% less energy.

Contrast - Switch the balance between black and white. Brightness - Increase or decrease the brightness of the picture. Colour - Increases the colour from black and white.

Tint - Lets you increase or decrease the level of tint within the picture.

Sharpness - Increase or decrease the sharpness of the picture.

Colour Temperature - Choose from the following presets.

Normal	Default settings
Warm	Increases red within the picture
Cold	Increases blue within the picturew

Noise Reduction - Choose from the following presets.

Off	Turns noise reduction off
Low	Minor system adjustment
Middle	Medium system adjustments
High	Maximum system adjustments
Default	Default settings

9

EN

TV Menu operation

Sound

Time

Sound Mode - Choose from the following presets:

Standard	Default settings
Music	Emphasises music over voices
Movie	Provides live and full sound for movies
Personal	Selects your personal sound settings
Sports	Emphasises sound for sports

Tip: Treble and bass levels can only be adjusted when the sound mode ‘Personal’ is selected.

Treble - To adjust the level of high frequency within the sound. Bass -To adjust the level of low frequency within the sound. Balance - To switch the sound between the left and right speakers.

Auto Volume Level (AVL) - When ‘on’ is selected, the volume will stay at a constant level regardless of input/source.

Digital Output - This is the digital COAX Audio output. Choose from the following options:

Off	Off
Auto	Selects the best settings automatically
PCM	Select this option if you are connecting to a Stereo
	Hi-fi via coax cable (Pulse-code modulation (PCM)
	is a digital representation of an analogue signal)

AD Switch - Additional sound track for visually impaired. Available only on selected DTV shows.

Clock - Set the date and time. Date and time is set up automatically in DVB mode.

Off Time - Allows you to set a specific time for your TV to turn off.

On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Time Zone - Change your current time zone.

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min.

Auto standby - Adjustment for the auto standby in hourly increments: Off -> 3h -> 4h -> 5h.

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.

Lock

System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password. Use the ◄ button o quit the password input. Use the ►button to clear. Default password is 0000.

Set Password - Change the default password. Channel lock - Lock specific TV channels.

Parental Guidance - Lock TV channels based on age restriction. Key Lock - Lock the TV buttons.

10

Setup

Language - Allows you to change the language of the menu. TT Language - Encoding settings for the proper display of teletext characters.

Audio Languages - Allows you to change audio language on selected DVB channels.

Subtitle Language - Allows you to change subtitles language on selected DVB channels.

Hearing Impaired - If signal provides support for the hearing impaired, the subtitles can be displayed by pressing the “Subtitle”. If you set Hearing Impaired ON and switch to a channel with supports for hearing impaired subtitles will be activated automatically.

Aspect Ratio - Within the EU the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs.

Auto	Automatically displays the best picture
	format. So the picture is in the correct
	position. May have black lines at the top/
	bottom and/or sides.
4:3	Displays the 4:3 picture in its original size.
	Side bars are shown to fill the 16:9 screen.
16:9	Fills the screen with a regular 16:9 signal.
Zoom 1/2	The picture is the correct proportion but
	zoomed in to fill the screen.
Full Screen	Stretch signal to fill the screen.

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources).

First Time Installation - Starts the first time installation. Reset - This resets the menus to factory settings.

Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/firmware onto the television. Further details of how to do this will be issued with the firmware. Contact the helpline or refer to the ‘www.umc-slovakia.sk/products-support/’ website.

TV Menu operation

HDMI CEC - Allows you to operate devices conected via HDMI with TV remote control.

Auto power - Automatically turn on/off connected devices via HDMI CEC

Device menu - Allows you to acces devices menu and operate the menu using TV remote control.

HDMI ARC - Sends audio signal from terrestrial/satellite broadcast via HDMI to the AV receiver without using any additional audio cables, this functions is available only on HDMI 2 output.

HDMI CEC must be supported by connected device.

PC Settings *

Auto Adjust - Lets you automatically configure the television to be used as a computer monitor.

H Offset - Changes the horizontal position of the picture. V Offset - Changes the vertical position of the picture. Size - increase picture size.

Phase - To adjust delay time of phase in order to reduce the noise of picture

Position Reset - Changes back to the original settings

Tip: If the computer is left in-active for a period of time, the television will switch into a ‘sleep’ state (the screen will power off to save power). To switch back on press the standby button.

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see ‘OSD Timer’ section.

* only for devices with VGA connector

11

EN

TV Menu operation

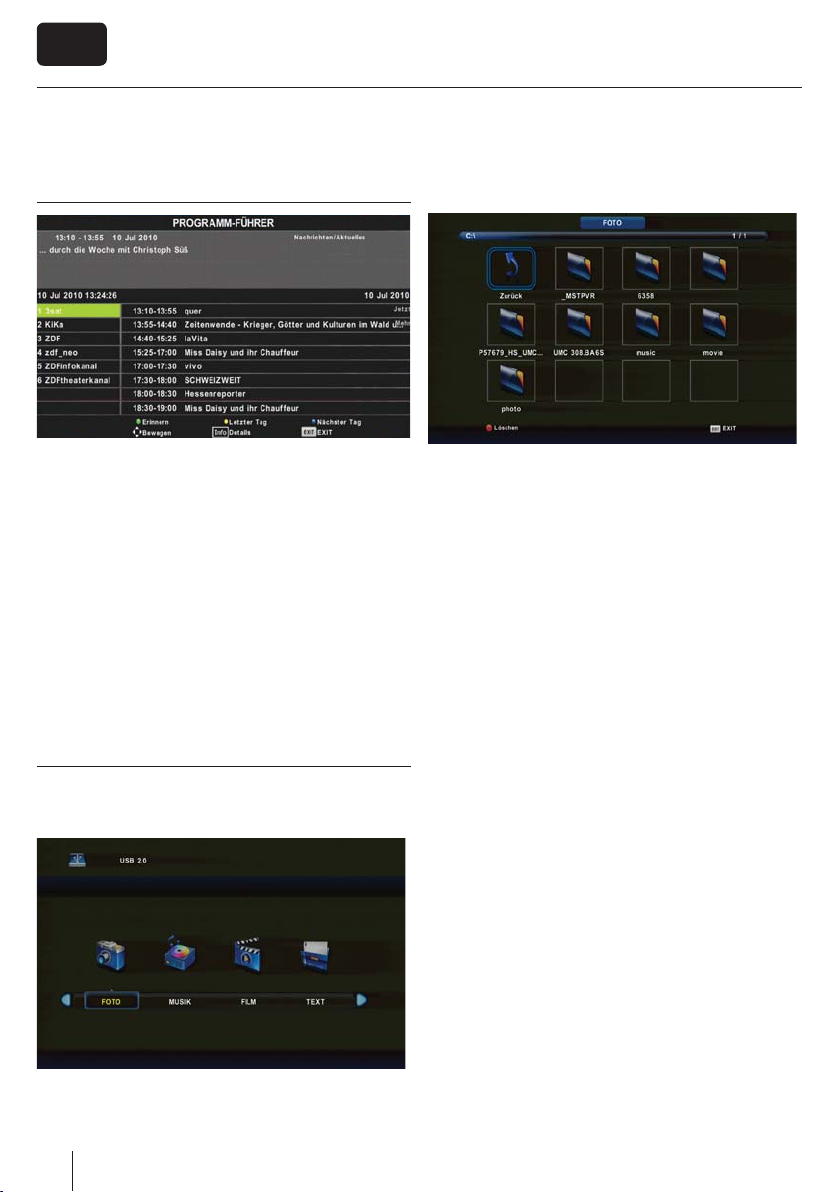

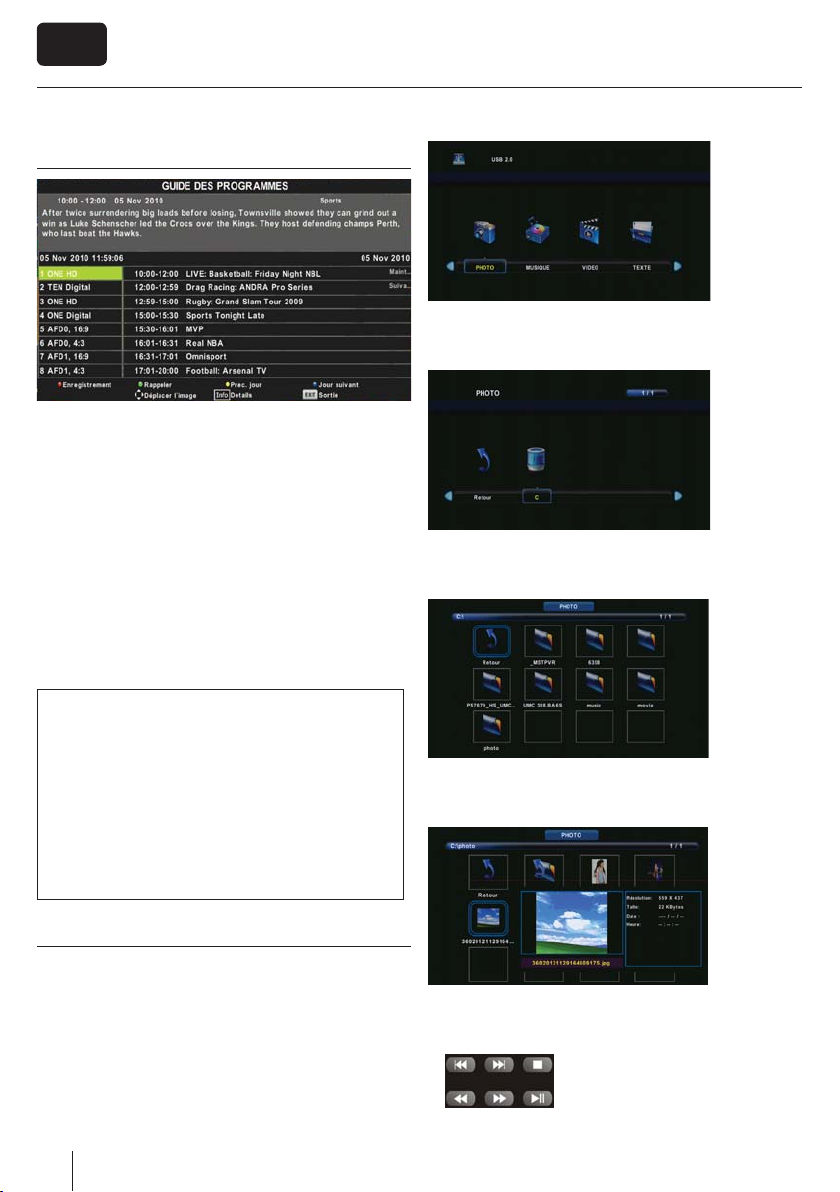

7 Day TV Guide

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the Digital channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

1.Press [TV GUIDE]. The following 7 Day TV Guide will appear.

2.Navigate through the menu using ▲/▼/◄/►.

You can now:

Set a reminder by pressing GREEN.

View a previous day by pressing YELLOW. View the next day by pressing BLUE.

[INFO] shows detailed information about the selected post

3.Press [EXIT] to exit the 7 day TV Guide.

5.Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

6. You can now access the item. Press OK to view.

USB mode / Media player

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the USB mode menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

7.While viewing you may control the item playback modes by using the remote control buttons

PVR / DVD

or by invoking playback navigation menu and selecting onscreen buttons ▲/▼/◄/► and [OK]

4.You can navigate through the menus using the scroll ▲/▼/◄/►buttons. To confirm the item you wish to play/view press [OK] button.

12

TV Menu operation

DVD Menu*

TEXT DVD MENU

TEXT HOLD

D

TEXT/DVD

ZOOM

DVD SETUP

PVR / DVD

To access this menu, press [D. MENU] button on the remote control. If you wish to make changes to any of the default settings, use the scroll ▲/▼/◄/► buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

General Setup Page

TV Display - Choose from the following options

4:3	PS Traditional picture format, often used on
PanScan	old film
4:3	LB Traditional picture which has been
LetterBox	adapted for widescreen
Wide	Widescreen picture format

OSD Language - Select desired language

Audio Setup Page

Speaker Setup - Choose from the following options

LT/RT	Set LT/RT Downmix
Stereo	Set Stereo Downmix

*- only for devices equipped with built in DVD Player

Dolby Digital Page

Dual Mono

Stereo	Outputs 2 channels of sound both left and
	right
Mono L	Outputs left side sound
Mono R	Outputs right side sound
Mix Mono	Outputs a single channel of sound but mix
	between right and left

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Preference Page

TV Type - Choose from the following options

NTSC	Normally used for discs from North America,
	Japan etc
PAL	The standard for discs from UK/Europe, most
	of Asia, Australia etc
Multi	For both NTSC and PAL

Default - This option allows you reset all DVD settings to factory settings.

13

EN

Technical specification

	Model	OLE328B-D4,	OLE398B-D4			OLE328B-D4S		OLE398B-D4S
		OLE328W-D4
	Screen size (diagonal)	32"/81cm		39”/99cm		32”/81cm		39”/99cm
	Resolution				1920 x 1080
	Contrast Ratio	1400	3500			1400		3500
	Brightness cd/m2	360	300			360		300
	TV signal inputs	Antena 75 Ohm / PAL-SECAM				Antena 75 Ohm / PAL-SECAM, DVB-S2
	Video inputs	1 x SCART, 1 x CVBS/VIDEO, 1 x Component (YPbPr 1080p), 3× HDMI (1080p), 1x VGA/PC
	Audio Inputs / Outputs	1 × 3,5 mm connector for PC audio input, 1 × L/R audio input Commonly used for CVBS/VIDEO and YPBPR
		(component) ,1 x COAX – audio output, 1 × output for headphones
	USB Port				1
	Sound power, watts				2 x 9
	Voltage / StandBy			AC 110V~240V; 50/60Hz; / 0,5W
	Power consumption	40/60/80W	45/60/80W			40/60/80W		45/60/80W
	(Ecomode/Standard/Max)
	Dimensions including stand (mm)	755 × 180 × 504	891 × 208 × 592			755 × 180 × 504		891 × 208 × 592
	Dimensions without stand (mm)	755 × 66 × 460	891 × 73 × 538			755 × 66 × 460		891 × 73 × 538
	Net weight (Kgs)	10,8	14,0			10,8		14,0
	Model	OLE198B-D4			OLE228B-D4,			OLE228B-D4-DVD
					OLE228W-D4
	Screen size (diagonal)	18.5"/47cm			21.5”/55cm			21.5”/55cm
	Resolution	1366 x 768			1920 x 1080			1920 x 1080
	Contrast Ratio				1000
	Brightness cd/m2				250
	TV signal inputs			Antena 75 Ohm / PAL-SECAM
	Video inputs	1 x SCART, 1 x CVBS/VIDEO, 1 x Component (YPbPr 1080p), 2× HDMI (1080p)
	Audio Inputs / Outputs	1 × L/R audio input Commonly used for CVBS/VIDEO and YPBPR (component),
				1 × output for headphones
	USB Port				1
	Sound power, watts				2 x 3
	Voltage / StandBy			AC 110V~240V; 50/60Hz; / 0,5W
	Power consumption	17W/35W			21/40W			21/50W
	(Ecomode/Max)
	Dimensions including stand (mm)	454 × 195 × 340		526 × 194 × 377				526 × 194 × 377
	Dimensions without stand (mm)	454 × 50 × 300		526 × 45 × 337				526 × 45 × 337
	Net weight (Kgs)	3			3,6			4,10

14
