NuTone LS100L, LS80L User Manual

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE. ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power off at service

panel and lock service panel to prevent power from being
switched on accidentally.
When the service disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to the service panel.

CAUTION:

For general ventilating use only. Do not use to exhaust hazardous

or explosive materials and vapors.

INSTALLATION INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified

person(s) in accordance with all applicable codes and standards, including fire-rated
construction.

B. Sufficient air is needed for proper combustion and exhausting of gases through the

flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating
equipment manufacturer's guideline and safety standards such as those published by
the National Fire Protection Association (NFPA),and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE),
and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring

and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. If this unit is to be installed over a tub or shower, it must be marked as appropriate for

the application and be connected to a GFCI (Ground Fault Circuit Interrupter)

protected branch circuit.
F. NEVER place a switch where it can be reached from a tub or shower.

• Do not install in a ceiling insulated to a value greater than R40.

• Suitable for use with solid state speed controls. Use NuTone Model VS-64.

• Not for use in kitchens.

FOR BEST RESULTS

When installing the Ventilator in a new construction site, install housing during

the rough-in construction of the building. The blower unit and grille should be installed
after the finished ceiling is in place.

To install a ventilator in an existing building requires an accessible area (attic or

crawl space) above the planned location.

INSTALLATION IN A NEW CONSTRUCTION SITE

PREPARATION

1. Remove blower/power unit assembly from housing:

A. If necessary, unplug power unit.
B. Loosen one (1) mounting screw.
C. Slide unit back to free it from the mounting screw.
D. Remove unit and set aside until needed.

2. Remove wiring knockouts from housing, as needed.

INSTALLATION INSTRUCTIONS

READ & SAVE THESE INSTRUCTIONS!

Ultra-QuieTTest Fan/Lights

MODELS: LS80L, LS100L

SUITABLE FOR USE OVER TUB OR SHOWER ENCLOSURE
WHEN INSTALLED IN A GFCI PROTECTED BRANCH CIRCUIT.

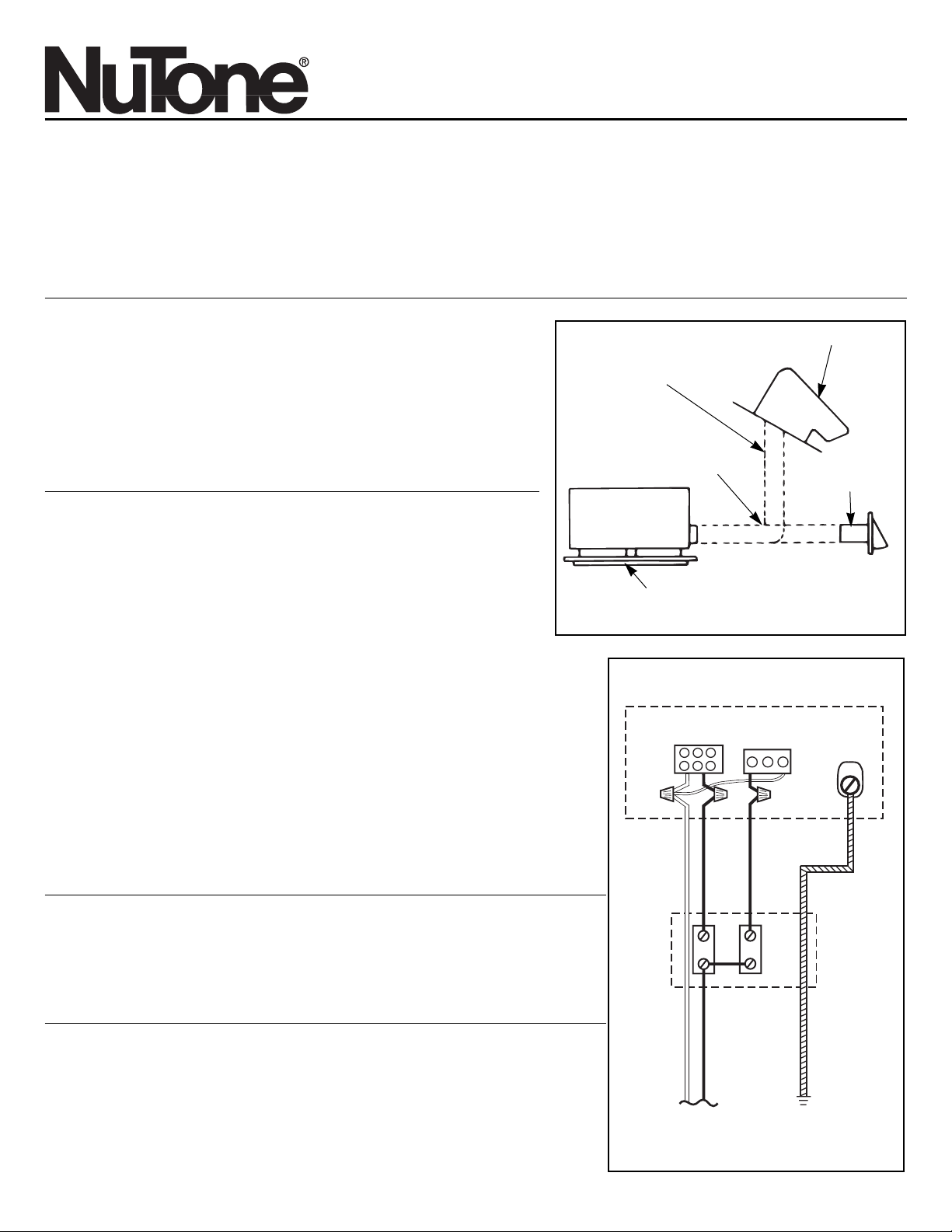

FIGURE 1

ROOF CAP

4" DIAMETER DUCT

90° ELBOW

WALL CAP

FIGURE 2

GROUND

SCREW

120v AC SUPPLY

WHITE (NEUTRAL)

SWITCH BOX

CEILING INSTALLATION

FAN

RECEPTACLE

LAMP

RECEPTACLE

(3 PIN)

BLACK (HOT)

MOUNTING THE HOUSING

1. Refer to Figure 3. Insert mounting brackets at each end of

housing.

2. Place long side of housing parallel to ceiling joist. Position housing

in desired location. Make sure housing flange is even with the
planned finished ceiling.

3. Use screws or nails (not provided) to secure mounting brackets to

ceiling joists.

4. Refer to Figure 1. Use 4" round duct to discharge the ventilator to

the outside.

IMPORTANT: Be sure nothing obstructs the discharge of
the ventilator. Make sure that insulation does not get into the
duct work or into the fan.

WIRING

Refer to Figure 2.

1. Run 120v AC house power wiring (with ground) through switch box
to junction box in ventilator housing.

2. Remove ventilator junction box cover.

3. Connect white supply common lead to white leads from fan and
light receptacle. Connect black supply wire from fan switch to black
wire from fan receptacle. Connect black supply wire from light
switch to black wire from light receptacle. Connect supply ground
wire to green ground screw.

4. Replace junction box cover.

NOTE: BE SURE VENTILATOR AND SWITCH ARE PROPERLY

GROUNDED. ALL WIRING MUST COMPLY WITH LOCAL
ELECTRICAL CODES.

POWER/BLOWER UNIT INSTALLATION

1. Plug motor into socket in housing's junction box.

2. Position power unit over mounting screw in housing.

3. Slide unit forward using the guide on the blower housing to
engage opening in housing until mounting screw is seated in
narrow end of keyhole slot.

4. Refer to Figure 3. Securely tighten screw.

INSTALLATION IN EXISTING CONSTRUCTION

Installing the ventilator in an existing house requires an

accessible area (attic crawl space) above the planned installation
location. Review “INSTALLATION IN A NEW CONSTRUCTION”
and follow all instructions which apply to your installation.

Location – locate ventilator parallel to a ceiling joist.
Wiring and Ducting – plan ducting and wiring before proceeding

with installation. Refer to Figure 2 for wiring and Figure 1 for
ducting. CAUTION: Check area above planned installation to
be sure that the ducting can be installed, wiring can be run to
the planned location and that wiring or other obstructions will
not interfere with the installation.

INSTALLATION FROM ACCESSIBLE AREA
ABOVE

1. From below, drill a small hole in ceiling at the planned location.
Stick clothes hanger through hole to help locate it.

2. Locate hole in attic or crawl space.

3. In attic or crawl space, mark ceiling for cutout by using the
housing as a template. The long side of cutout must be parallel
to ceiling joist.

4. Make cutout along marked line.

NOTE: If ceiling is plaster, cutout should be made from

below to avoid chipping plaster.

5. Install housing, connect wiring and ducting, install power
unit/blower assembly and install grille.

FIGURE 3

DISCHARGE OPENING

HOUSING

MOUNTING
BRACKET

MOUNTING SCREWS

MOUNTING SPRING

NOTCHED BOSS

POWER UNIT

GRILLE
