NordicTrack NTL27005.0 User Manual

Model No. NTL27005.0
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DI­RECTLY.
USER'S MANUAL
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.nordictrackservice.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
NordicTrack is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure hat all users of this treadmill are adequately
t informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 300 pounds.
8. Never allow more than one person on the
treadmill at a time.
12. Failure to use a properly functioning surge uppressor could result in damage to the con-
s trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROUBLESHOOTING on page 24 if the tread­mill is not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see OPERATION AND ADJUSTMENT.
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid sudden jumps in speed.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 9), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local NordicTrack dealer or call the toll­free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store.
18. The pulse sensors are not medical devices. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.
19. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the reset/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the reset/off circuit breaker.)
20. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 22.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
21. Do not change the incline of the treadmill by placing objects under the treadmill.
3
2. When folding or moving the treadmill, make
2
sure that the storage latch is fully closed.
3. When using iFIT programs, an electronic
2
“chirping” sound will alert you when the
peed and/or incline of the treadmill is about
s to change. Always listen for the “chirp” and
e prepared for speed and/or incline changes.
b In some instances, the speed and/or incline may change before the personal trainer de­scribes the change.
24. When using iFIT programs, you can manually override the speed and incline settings by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the program.
25. Always remove iFIT CDs and videos from your CD player or VCR and disconnect your MP3 player when you are not using them.
6. Inspect and properly tighten all parts of the
2
treadmill regularly.
7. Never insert or drop any object into any
2
opening.
DANGER: Always unplug the power
28. ord immediately after use, before cleaning
c the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
29. This treadmill is intended for in-home use
only. Do not use this treadmill in any commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on the treadmill. If a decal is missing or illegible, call the toll­free telephone number on the front cover of this manual and order a free replacement decal (see ORDERING REPLACEMENT PARTS on page 31). Apply the decal in the location shown.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary NordicTrack
PEX 8000 treadmill. The APEX 8000 treadmill offers
A an impressive array of features designed to make your workouts at home more effective and enjoyable. And when you’re not exercising, the unique APEX 8000
readmill can be folded up, requiring less than half the
t floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill
. If you have questions after read-
Book Holder
Fan
Handrail
Latch Knob
LEFT SIDE
®
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u model number and serial number before contacting us. The model number of the treadmill is NTL27005.0. The serial number can be found on a decal attached to the
readmill (see the front cover of this manual for the lo-
t cation).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Water Bottle Holder*
Console
Pulse Sensor
Key/Clip
Walking Belt
Foot Rail
Rear Roller Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Walking Platform
*No water bottle is included.
5
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials, unless otherwise instructed. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own flat-bladed screwdriver , wire cutters ,
nd adjustable wrench .
a
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the treadmill or the shipping carton. This is a normal con­dition and does not affect treadmill performance. If there is lubricant on top of the walking belt or foot pads, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise both Uprights (83) to a vertical position. Remove any packag­ing from the crossbar.
Remove the elastic holding the Upright Wire Harness (131) in the right Upright (83). Have a second person hold the Handrails (73) near the Uprights. Connect the Upright Wire Harness to the wires extending from the Console Base (120).
gether easily and snap into place. If they do not, turn one connector and try again. Insert the connectors and
the Upright Wire Harness into the hole in the right Upright. Then, set the Handrails on the Uprights, being careful not to pinch the wires.
2. Insert two 4 1/2” Bolts (96) with Handrail Spacers (95) into the right Upright (83). Next, lift the right Handrail (73) slightly and align the Handrail Bolts with the holes in the Handrail. Thread the Handrail Bolts into the Handrail.
not tighten the Handrail Bolts yet. Be careful not to pinch the wires.
Attach the left Handrail (not shown) in the same way. Make sure that the Handrail Spacers (95) are flush against the Uprights (83), with the thick sides facing the center of the treadmill, as shown in the inset drawing. Then, tighten all four Handrail Bolts (96).
The connectors should slide to-
Do
2
1
73
73
120
131
83
Crossbar
83
95
Thick
Side
95
96
3. With the help of a second person, carefully tip both
Uprights (83) to the floor.
Insert the three Cage Nuts (28) into the three indicated holes in the treadmill.
To insert each Cage Nut (28), first hook one side of the Cage Nut into a hole and then use a flat-bladed screw­driver to press the other side into the hole, as shown.
3
83
28
28
6
4. With the help of a second person, carefully raise the
Upright (83) to a vertical position. Press the Knob Sleeve
87) into the right side of the left Upright, and press the
( Latch Knob Spacer (86) into the other side of the left
pright.
U
Remove the knob from the pin. Make sure that the collar and the spring are on the pin. (If there are two collars, make sure that there is one on each side of the spring.) Next, insert the pin into the Knob Sleeve (87) and the left Upright (83). Then, tighten the knob back onto the pin.
4
Knob
86
3
8
Spring
87
Collar
Pin
5. With the help of a second person, raise the Frame (7) to
the storage position and make sure that the latch pin is engaged as described on page 22.
Position the Base Plate (115) on the treadmill as shown. Attach the Base Plate with the three 2” Bolt (114). Note: It may be helpful if a second person tips the treadmill slightly as you tighten the Base Plate Screws.
Carefully lower the Frame (7) to the floor as described on page 23.
6. Make sure that all parts are properly tightened before you use the treadmill. Place a mat beneath the
treadmill to protect the floor. For your benefit, familiarize yourself with the TROUBLESHOOTING informa­tion on pages 24 to 26.
5
7
114
115
7
HOW TO USE THE CHEST PULSE SENSOR
OW TO PUT ON THE CHEST PULSE SENSOR
H
he chest pulse sensor consists of two components:
T the chest strap and the sensor unit (see the drawing below). Insert the tab on one end of the chest strap into one end of the sensor unit, as shown in the inset draw­ing. Press the end of the sensor unit under the buckle on the chest strap. The tab should be flush with the front of the sensor unit.
ried. If the chest pulse sensor is not dried after
d each use, it may remain activated longer than nec-
ssary, draining the battery prematurely.
e
• Store the chest pulse sensor in a warm, dry place. o not store the chest pulse sensor in a plastic bag
D or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time; do not expose it to temperatures above 122° Fahrenheit (50° Celsius) or below 14° Fahrenheit (-10° Celsius).
Chest Strap
Tabs
Tab
Sensor Unit
Next, wrap the chest pulse sen­sor around your chest and attach the other end of the chest strap to the sensor unit. Adjust the length of the chest strap, if necessary. The chest pulse sen­sor should be under your clothes, tight against your skin, and as high under the pectoral muscles or breasts as is comfortable. Make sure that the logo on the sensor unit is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches and locate the two electrode areas on the inner side (the electrode areas are covered by shallow ridges). Using saline solution such as saliva or contact lens so­lution, wet both electrode areas. Return the sensor unit to a position against your chest.
Sensor
Unit
Buckle
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest strap may be hand washed and air dried.
CHEST PULSE SENSOR TROUBLESHOOTING
The instructions on the following pages explain how the chest pulse sensor is used with the con­sole. If the chest pulse sensor does not function properly, try the steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: If the chest pulse sensor does not function when positioned as de­scribed, move it slightly lower or higher on your chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sensor unit. If heart rate readings do not appear until you begin perspiring, re-wet the electrode areas.
• As you walk or run on the treadmill, position your-
self near the center of the walking belt. For the
console to display heart rate readings, the user must be within arm’s length of the console.
The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate reading problems may be caused by medical conditions such as premature ventricular contrac tions (pvcs), tachycardia bursts, and arrhythmia.
-
CHEST PULSE SENSOR
• Thoroughly dry the chest pulse sensor after each use. The chest pulse sensor is activated when the electrode areas are wetted and the heart rate monitor is put on; the chest pulse sensor shuts off when it is removed and the electrode areas are
CARE AND MAINTENANCE
The operation of the chest pulse sensor can be
• affected by magnetic interference caused by high power lines or other sources. If it is suspected that this is a problem, try relocating the treadmill.
• The CR2032 battery may need to be replaced (see page 26).
8
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with high­performance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
elt or the walking platform. Such substances will
b deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local NordicTrack dealer or call the toll-free telephone number on the front cover of this man­ual and order part number 146148, or see your local electronics store.
ric shock. This product is equipped with a cord having
t an equipment-grounding conductor and a grounding plug.
Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
utlet that is properly installed and grounded in
o
ccordance with all local codes and ordinances.
a Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a moni­toring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec
If it should malfunc
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.
covers are not grounded. Contact a qualified elec-
-
trician to determine if the outlet box cover is grounded before using an adapter.
-
Some 2-pole receptacle outlet box
9
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features designed to make your workouts more effec­tive. When the manual mode of the console is se­lected, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the hand­grip pulse sensor or the chest pulse sensor.
In addition, the console features 26 preset programs. Each preset program automatically controls the speed and incline of the treadmill as it guides you through an effective workout.
The console also offers four distance programs—5K, 10K, half marathon, and marathon—that count down from 5,000 meters, 10,000 meters, 13.10 miles, or
26.20 miles while you complete an endurance run.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per sonal trainer in your home. Using the included audio
-
cable, you can connect the treadmill to your portable stereo, home stereo, computer, or VCR and play spe­cial iFIT.com MP3, CD, and video programs (iFIT.com MP3 programs, CDs, and videocassettes are available separately). Each iFIT.com program automatically con­trols the speed and incline of the treadmill as a per­sonal trainer guides you through every step of your workout; high-energy music provides added motiva-
To download iFIT.com MP3 programs, go to
tion.
www.iFIT.com. To purchase iFIT.com CDs or videocassettes, call the toll-free telephone number on the front cover of this manual.
With the treadmill connected to your computer, you can also go to www.iFIT.com and access iFIT.com programs directly from our Web site. See
www.iFIT.com for more information.
To use the manual mode of the console, follow the steps beginning on page 11. To use a preset pro gram, see page 13. To use a distance program, see page 15. To use an iFIT.com MP3, CD, or video pro­gram, see page 18. To use an iFIT.com program di rectly from our Web site
, see page 20.
-
-
10
HOW TO TURN ON THE POWER
lug in the power cord
P (see page 9). Next, locate
n
he on/off switch on the
t treadmill frame near the power cord. Make sure that the switch is in the “on” po­sition.
Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 10), and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the matrix and the display will light.
emergency situation, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.
Note: If there is a sheet of clear plastic on the face of the console, remove the plastic. To prevent damage to the walking platform, always wear clean shoes while using the treadmill. The first time the treadmill is used, observe the alignment of the walking belt, and center the walking belt if necessary (see page 25).
O
osition
P
Important: In an
mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed in-
rease and decrease buttons. Each time a button
c is pressed, the speed setting will change by 0.1
ph; if a button is held down, the speed setting
m will change in increments of 0.5 mph. To change the speed setting quickly, press the Quick Speed buttons.
Note: After the buttons are pressed, it may take a moment for the walking belt to reach the selected speed setting.
To stop the walking belt, press the Stop button. To restart the walking belt, press the Start button or the Speed increase button.
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the Incline increase and decrease buttons. Each time a button is pressed, the incline will change by
0.5%. To change the incline setting quickly, press the Quick Incline buttons.
Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected in­cline setting.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is in­serted, the manual mode will be selected. If a program or the iFIT.com mode has been selected, reselect the manual mode by removing the key and then reinserting it.
the walking belt.
Start
3
To start the walking belt, press the Start button or the Speed increase button.
If the Start button or the Speed increase button is pressed, the walking
belt will begin to move at 1
Follow your progress with the matrix and the
5
display.
When the manual mode or the iFIT.com mode is selected, the matrix will show a 1/4-mile (400­meter) track. As you walk or run on the tread­mill, the segments of the track will appear in succession until the entire track appears. The track will then disappear and the segments will again begin to appear in succession.
The lower left corner of the display will show the approximate number of calories you have burned and the incline level of the treadmill. When you use the handgrip pulse sensor or the chest pulse sensor, the lower left corner of the dis­play will also show your heart rate.
1
1
The lower right corner of the display will
how the distance that
s you have walked or
un, the elapsed time,
r the speed of the walk­ing belt, and your pace (in minutes per mile).
The center of the dis­play is the priority dis­play. Press the Display button repeat­edly until the priority display shows the in­formation that you are most interested in viewing. Note: While information is displayed in the priority display, the same information will not be displayed in the lower left or right corner of the display.
Note: The console can display speed and dis­tance in either miles or kilometers. A “Km/H” will appear in the priority display when the console is displaying speed and distance in kilometers. To change the unit of measurement, see THE IN­FORMATION MODE/DEMO MODE on page 21.
Note: For simplicity, all instructions in this sec­tion refer to miles.
addition, make sure that your
ands are
h clean. Next,
tand on the
s foot rails
hold the metal contacts—
avoid moving your hands. When your pulse is detected, the
heart symbol in the lower left corner of the display will appear, one or two dashes will appear, and then your heart rate will be shown.
accurate heart rate reading, continue to hold the contacts for about 15 seconds.
Turn on the fans if desired.
and
Contacts
For the most
7
To turn on the fans, press the Fan button. To turn on the fans at high speed, press the button a sec­ond time. To turn off the fans, press the button a third time. Note: If the fans are on when the walk­ing belt is stopped, the fans will automatically turn off after a few minutes.
When you are finished exercising, remove the
8
key from the console.
To reset the display, press the Stop button, re­move the key, and then reinsert the key.
Measure your heart rate if desired.
6
To use the chest pulse sensor, see page 9. To use the handgrip pulse sensor, see the instruc­tions below. Note: If you use the chest pulse sen­sor and the handgrip pulse sensor at the same time, the console will not display your heart rate accurately.
To use the handgrip pulse sensor, first remove the sheets of clear plastic from the metal contacts. In
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi­tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se­cure place. Note: If the display remains lit after
the key is removed, the console is in the “demo” mode. See page 21 and turn off the demo mode.
When you are finished using the treadmill, switch the and unplug the power cord.
on/off switch to the “off” position
12
OW TO USE A PRESET PROGRAM
H
nsert the key into the console.
I
1
ee HOW TO TURN ON THE POWER on page
S
11.
Press the Start button or the Speed increase
4
button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and
ncline settings of the program. Hold the handrails
i and begin walking.
elect one of the preset programs.
S
2
To select a preset program, press the Aerobic Programs button repeatedly until the number of the desired preset program (“P1” through “P26”) ap­pears in the lower right corner of the display.
When a preset program is selected, the maximum incline setting of the program and the maximum speed setting of the program will flash in the dis­play for a few seconds. The display will also show the program time and the intensity level (“L1” through “L10”) of the program. A profile of the speed settings of the program will scroll across the matrix.
Adjust the intensity level of the program if
3
desired.
There are ten intensity levels for each preset pro­gram. If desired, press the increase or decrease button next to the Aerobic Programs button to change the intensity level of the program. If you change the intensity level, the new maximum speed setting of the program and the new maxi­mum incline setting of the program will flash in the display for a few seconds. In addition, the profile in the matrix will change to show the new speed settings of the program.
Each program is divided into several one-minute segments. One speed setting and one incline set­ting are programmed for each segment. Note: The same speed setting and/or incline setting may be programmed for two or more consecutive seg­ments.
The speed setting for the first segment will be shown in the flashing Current Segment col­umn of the matrix. (The incline settings are not shown in the matrix.) The speed settings for the next several seg­ments will be shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the speed setting and/or the incline setting will flash in the display to alert you.
When the first segment is completed,
settings will move one column to the left
speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second seg­ment. Note: If all seven of the indicators in the Current Segment column are lit,
may move downward
cators appear in the matrix.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
so that only the highest indi
Current
Segment
all speed
. The
the speed settings
-
13
If the speed and/or incline settings of the program are too high or too low, you can change the inten-
ity level of the program at any time by pressing
s the increase or decrease button next to the
erobic Programs button.
A
To stop the program at any time, press the Stop button. To restart the program, press the Start but­ton or the Speed increase button. The walking belt will begin to move at 1 mph. When the next seg­ment of the program begins, the treadmill will auto­matically adjust to the speed and incline settings for the next segment.
Follow your progress with the matrix and the
5
display.
See step 5 on page 11.
Measure your heart rate if desired.
6
See step 6 on page 12.
Turn on the fans if desired.
7
See step 7 on page 12.
When you are finished exercising, remove the
8
key from the console.
When the program ends, make sure that the in-
line of the treadmill is at the lowest setting.
c
Next, remove the key from the console and put it in a safe place. Note: If the display remains lit
after the key is removed, the console is in the “demo” mode. See page 21 and turn off the demo mode.
When you are finished using the treadmill, switch the on/off switch to the “off” position and unplug the power cord.
14
OW TO USE A DISTANCE PROGRAM
H
nsert the key into the console.
I
1
See HOW TO TURN ON THE POWER on page
1.
1
elect a distance program.
S
2
To select a distance program, press the Distance Programs button repeatedly until 5000, 10.00,
13.10, or 26.20 appears in the priority display, and the letters “m,” “km,” or “mi” appear in the matrix.
When a distance program is selected, the maxi­mum speed setting of the program will flash in the display for a few seconds.
The priority display will show the number of me­ters or miles still to be run. When you have almost
eached the distance goal, the lower right corner
r of the display will flash and a series of tones will
ound.
s
o stop the program at any time, press the Stop
T button. To restart the program, press the Start but-
on. The walking belt will begin to move at 1 mph.
t Adjust the speed of the walking belt as desired by pressing the Speed increase or decrease button or one of the twelve numbered Speed buttons.
When you have completed a distance program, your total time will flash in the lower left corner of the display and “cool dn” (cool down) will scroll across the priority display. If the speed of the walking belt is greater than 5 mph, the walking belt will then slow to 5 mph for one minute. After one minute, the walking belt will slow to 4 mph for 2 minutes. The walking belt will then slow to 3 mph for 2 minutes. The walking belt will then slow to a stop.
Follow your progress with the matrix and the
4
display.
Press the Start button to start the program.
3
A moment after the button is pressed, the walking belt will begin to move at 3 mph. Hold the handrails and begin walking.
Near the end of the first minute of the program, the speed setting will flash in the display and a se­ries of tones will sound. The speed of the walking belt will then increase to 5 mph.
Near the end of the second minute of the pro gram, the speed setting will flash in the display and a series of tones will sound. The speed of the walking belt will then increase to 6.5 mph.
Note: To change the speed of the walking belt or the incline of the treadmill at any time during the program, press the Speed or Incline buttons.
See step 5 on page 11.
Measure your heart rate if desired.
5
See step 6 on page 12.
Turn on the fans if desired.
6
See step 7 on page 12.
When you are finished exercising, remove the
7
-
key from the console.
See step 8 on page 14.
15
HOW TO CONNECT THE TREADMILL TO USE
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
R
IGHT
LEFT
LINE OUT
PHONES
IFIT.COM PROGRAMS
To use iFIT.com MP3 or CD programs
ust be connected to your MP3 player, CD player,
m
ortable stereo, home stereo, or computer. See pages
p
, the treadmill
16 and 17 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your computer. See page 17 for connecting instructions. To use iFIT.com video pro- grams, the treadmill must be connected to your VCR. See page 18 for connecting instructions.
HOW TO CONNECT YOUR MP3 PLAYER OR CD PLAYER
A. Plug one end of the included 3.5 mm to 3.5 mm
stereo audio cable into the input jack on the con­sole. Plug the other end of the cable into a jack on your MP3 player or CD player. Plug your head­phones into the headphone jack on the console.
HOW TO CONNECT YOUR PORTABLE STEREO
ote: If your stereo has an RCA-type AUDIO OUT
N jack, see instruction A below. If your stereo has a
.5 mm LINE OUT jack, see instruction B. If your
3 stereo has only a PHONES jack, see instruction C.
A. Plug one end of a long 3.5 mm to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the AUDIO OUT jack on your stereo.
A/B
Audio Cable
A
B. See the drawing above. Plug one end of a long 3.5
mm to 3.5 mm stereo audio cable (available at elec­tronics stores) into the input jack on the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Note: While the cable is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the con-
Audio
sole.
Cable
Headphones
C. Plug one end of a long 3.5 mm to 3.5 mm stereo
audio cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the PHONES jack on your stereo. Plug your headphones into the headphone jack on the console.
C
Audio Cable
Headphones
16
HOW TO CONNECT YOUR HOME STEREO
CD
VCR
Amp
L
INE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
HOW TO CONNECT YOUR COMPUTER
ote: If your stereo has an unused LINE OUT jack,
N see instruction A below. If the LINE OUT jack is
eing used, see instruction B.
b
A. Plug one end of a long 3.5 mm to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Note: While the cable is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the console.
A
Audio Cable
. Plug one end of a long 3.5 mm to 3.5 mm stereo
A
audio cable (available at electronics stores) into the
nput jack on the console. Plug the other end of the
i cable into the LINE OUT jack on your computer. Note: While the cable is plugged into the LINE OUT jack, do not plug your headphones into the head­phone jack on the console.
A
Audio Cable
B. Plug one end of a long 3.5 mm to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo. Note: While the Y-adapter is plugged into the LINE OUT jack, do not plug your headphones into the headphone jack on the console.
B
Audio Cable
Wire removed from
LINE OUT jack
RCA
Y-adapter
17
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
R
FOUT
IN
OUT
CH 34
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH 34
A
ote: If your VCR has an unused AUDIO OUT jack,
N see instruction A below. If the AUDIO OUT jack is
eing used, see instruction B. If you have a TV
b with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 17.
A. Plug one end of a long 3.5 mm to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into the AUDIO OUT jack on your VCR.
A
Audio Cable
B. Plug one end of a long 3.5 mm to RCA stereo audio
cable (available at electronics stores) into the input jack on the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
HOW TO USE AN IFIT.COM MP3, CD, OR VIDEO PROGRAM
To use an iFIT.com MP3, CD, or video program, the
readmill must be connected to your MP3 player, CD
t
layer, or VCR. See HOW TO CONNECT THE
p TREADMILL TO USE IFIT.COM PROGRAMS on pages 16 to 18. To download iFIT.com MP3 pro-
grams, go to www.iFIT.com. To purchase iFIT.com CDs or videocassettes, call the toll-free telephone number on the front cover of this manual.
Follow the steps below to use an iFIT.com MP3, CD, or video program.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
2
To select the iFIT.com mode, press the Aerobic Programs but­ton repeatedly until a track and the letters “iFIT” appear in the matrix.
Press the Play button on your CD player or
3
VCR.
Note: If you are using an iFIT.com CD, insert the CD into your CD player; if you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Audio Cable
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
18
A moment after the Play button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the time is flashing in the dis­play, press the Start button or the Speed increase button on the console. The treadmill will not re
­spond to an MP3, CD, or video program while the time is flashing in the display.
During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the
readmill is about to change. C
t
listen for the “chirp” and be prepared for speed
nd/or incline changes. In some instances, the
a speed and/or incline may change before your personal trainer describes the change.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However,
heard, the speed and/or incline will change to the next settings of the program.
AUTION: Always
when the next “chirp” is
• Adjust the volume of your MP3 player, CD
player, or VCR. If the volume is too high or too
ow, the console may not detect the program
l signals.
• Make sure that the audio cable is properly
connected.
If you are using a portable CD player and the
CD skips, set the CD player on the floor or an­other flat surface instead of on the console.
Follow your progress with the matrix and the
4
display.
To stop the walking belt at any time, press the Stop button on the console. To restart the pro­gram, press the Start button or the Speed in­crease button. After a moment, the walking belt will begin to move at 1 mph.
“chirp” is heard, the speed and/or incline will change to the next settings of the program.
When the program is completed, the walking belt will stop. Note: To use another MP3, CD, or video program, press the Stop button or remove the key and go to step 1 on page 18.
Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the letters “iFIT” appear in the matrix and that the time is not flashing in the display. If the time is flashing, press the Start button or the Speed increase button on the console.
When the next
See step 5 on page 11.
Measure your heart rate if desired.
5
See step 6 on page 12.
Turn on the fans if desired.
6
See step 7 on page 12.
When you are finished exercising, remove the
7
key from the console.
See step 8 on page 14.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR and disconnect your MP3 player when you are not using them.
19
HOW TO USE AN IFIT.COM PROGRAM DIRECTLY FROM OUR WEB SITE
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use a program from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 17. In addition, you must have an internet connection and an internet service provider. A list of specific system re­quirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
2
See step 2 on page 18.
Go to your computer and start an internet
3
connection.
Start your web browser, if necessary, and go to
4
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
5
lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count­down will begin.
When the on-screen countdown ends, the program
ill begin and the walking belt will begin to move.
w Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console.
heard, the speed and/or incline will change to the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. To restart the walking belt, press the Start button or the Speed increase button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is
heard, the speed and incline will change to the next settings of the program.
When the program is completed, the walking belt will stop. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard, make sure that the letters “iFIT” appear in the matrix and that the time is not flashing in the display. In addition, make sure that the audio cable is properly connected.
Follow your progress with the matrix and the
8
display.
See step 5 on page 11.
When you are finished exercising, remove the
9
key from the console.
However, when the next “chirp” is
20
See step 8 on page 14.
THE INFORMATION MODE/DEMO MODE
he console features an information mode that keeps
T track of treadmill usage information. The information
ode also allows you to select miles or kilometers as
m the unit of measurement for speed and distance and to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console, and then release the Stop button. When the information mode is selected, the following information will be shown in the display:
The priority dis­play will show the total number of hours that the treadmill has been operated. The lower right corner of the dis­play will show the total number of miles (or kilometers) that the walking belt has moved. In addition, an “E” for English miles or an “M” for metric kilometers will appear in the lower left corner of the display. Press the Speed increase button to change the unit of measurement if desired.
IMPORTANT: If a “d” appears in the
ower left corner
l of the display, the
onsole is in the
c “demo” mode. This mode is in­tended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the indica­tors in the display will automatically appear in a preset sequence. The buttons on the console will not operate.
If a “d” appears when the information mode is se­lected, press the Speed decrease button so the “d” disappears.
To exit the information mode, remove the key from the console.
21
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be-
ome permanently damaged. Remove the key and unplug
c the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the location shown by the arrow at the right.
bility of injury, bend your legs and keep your back straight. As you raise the frame, lift with your legs rather than your back.
the vertical position.
Move your right hand to the position shown and hold the
2. treadmill firmly. Using your left hand, pull the lock knob to the left and hold it. Raise the frame until the pin on the lock knob is aligned with the hole in the catch. Insert the pin into the catch.
serted into the catch.
CAUTION: To decrease the possi-
Raise the frame about halfway to
Make sure that the pin is fully in-
Pin
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor­age position as described above. Make sure that the pin
on the lock knob is fully inserted into the catch.
1. Hold the top of the upright and place one foot against a wheel.
2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location.
Never move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
Place one foot against a wheel, and carefully lower the
3. treadmill until it is resting in the storage position.
Upright
Wheel
Latch Knob
Catch
Base
22

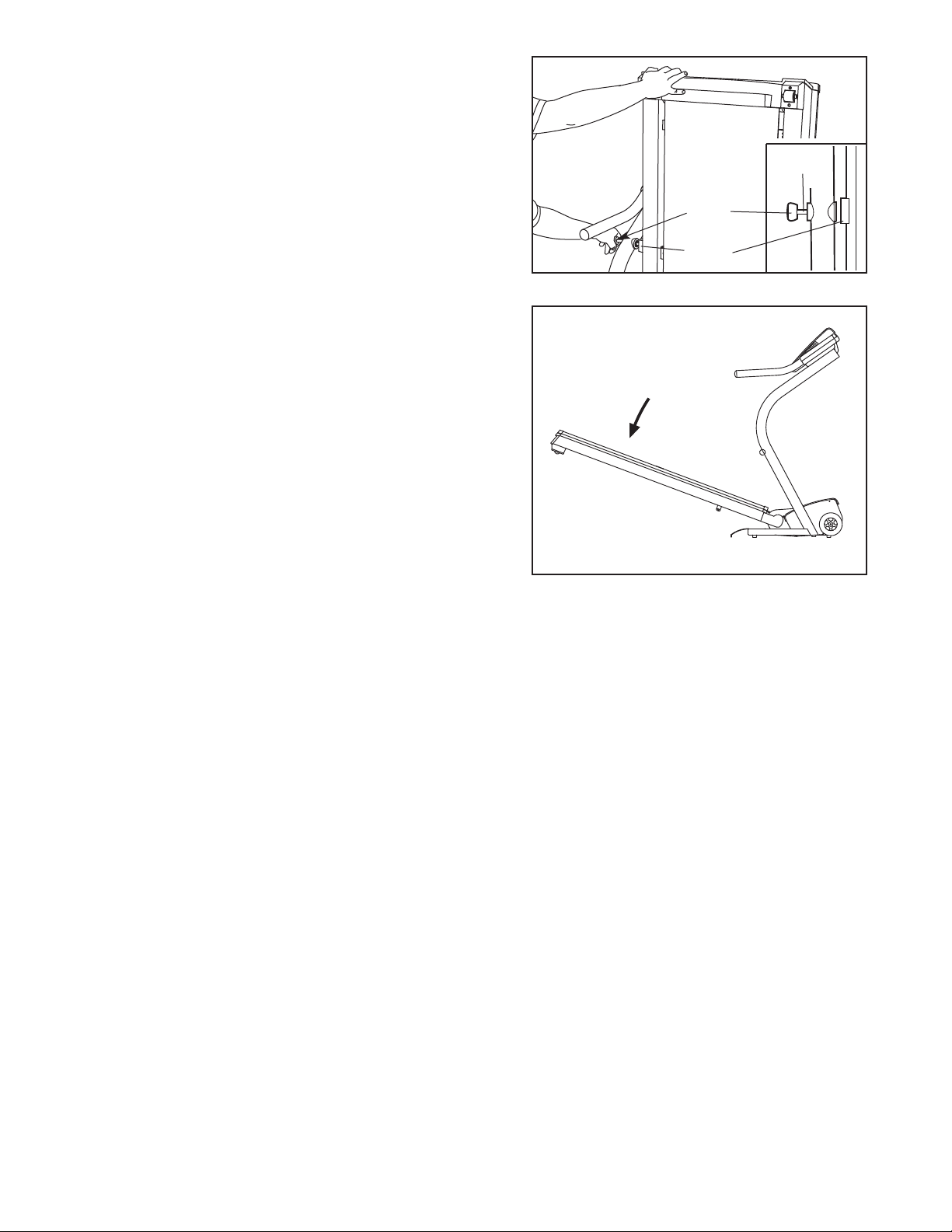

HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the lock knob to the left and hold it. Pivot the frame down until it is past the pin on the lock knob. Note: You may need to push the handrail to the side slightly.
2. Hold the treadmill firmly with both hands, and lower the frame to the floor. Do not drop the frame to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
Pin
Latch Knob
Catch
23
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 9). Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch protrudes as shown, the reset/off circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION:
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and unplug the
a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the reset/off circuit breaker is in the reset position.
e. If the treadmill still will not run, see the front cover of this manual.
power cord. Remove the indicated Screws (69) from the Hood (37). Carefully rotate and lift the Hood.
c
Tripped
a
69
Reset
37
69
Locate the Reed Switch (20) and the Magnet (107) on the left side of the Pulley (10). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed Switch is about 1/8”. If necessary, loosen the Screw
(109), move the Reed Switch slightly, and then retighten the Screw. Then, reattach the hood, and run the treadmill for a few minutes to check for a correct speed reading.
24
1/8”
109
20
Top
View
10
107
PROBLEM: The walking belt slows when walked on
OLUTION: a
S
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION:
. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
. If the walking belt is overtightened, treadmill perfor-
b
mance may decrease and the walking belt may be­come damaged. Remove the key and POWER CORD. Using the allen wrench, turn both rear roller bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walk­ing belt centered. Then, plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
a. If the walking belt is off-center, first remove the key and
UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise
1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is centered.
UNPLUG THE
b
”–4”
3
Rear Roller Bolts
a
b. If the walking belt slips when walked on, first remove the
key and wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com
CDs and videos are played
With the key in the console, press one of the Incline buttons.
SOLUTION:
a.
move the key.
maximum incline level and then return to the minimum level. This will recalibrate the incline sys­tem.
UNPLUG THE POWER CORD. Using the allen
After a few seconds, re-insert the key. The treadmill will automatically rise to the
b
While the incline is changing,
re
-
25
PROBLEM: The chest pulse sensor does not function properly
OLUTION: a
S
. If the chest pulse sensor does not function properly, see CHEST PULSE SENSOR TROUBLE-
SHOOTING on page 8.
b. If the chest pulse sensor still does not function properly, the battery
should be changed. To replace the battery, locate the battery cover on the back of the sensor unit. Insert a coin into the slot in the cover and turn the cover counterclockwise to the “open” position. Remove the cover.
Next, remove the old battery from the sensor unit. Insert a new CR
2032 battery
sure that the rubber gasket is in place in the sensor unit. Replace the battery cover and turn it to the closed position.
, making sure that the writing is on top. In addition, make
b
Battery
Cover
attery
B
Rubber Gasket
26
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
ian. This is especially important for individu-
c als over the age of 35 or individuals with pre­existing health problems.
The pulse sensors are not medical devices. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
begin to use stored is to burn fat, adjust the speed and incline of the tread-
ill until your heart rate is near the lowest number in
m your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
fat calories
for energy. If your goal
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible ergy. Only after the first few minutes does your body
carbohydrate calories
for en-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the
­flexibility of your muscles and will help prevent post-ex-
ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
27
SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
T
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot to­ward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
28
NOTES
29
PART LIST—Model No. NTL27005.0 R1005B
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Insert 2 1 Left Foot Rail 3 1 Pivot Spacer 4 1 Left Foot Rail Endcap 5 4 Endcap Screw 6 2 Rear Platform Screw 7 1 Frame 8 1 Walking Belt
9 1 Walking Platform 10 1 Front Roller/Pulley 11 1 Motor Belt 12 1 Drive Motor 13 2 Roller Bushing, Bottom 14 2 Roller Bushing, Top 15 2 Bushing Plate 16 8 Bushing Plate Screw/Isolator Screw 17 1 Lift Frame 18 1 Reed Switch Clip 19 4 Platform Screw 20 1 Reed Switch/Sensor Wire 21 1 Transformer 22 1 Idler Tension Bolt 23 1 Idler Pulley Bolt 24 1 Tension Washer 25 1 Idler Arm Bearing 26 1 Idler Arm 27 2 Idler Arm Washer 28 3 Cage Nut 29 1 Pulley Bushing 30 1 Idler Pulley 31 2 Hood Clips 32 1 Idler Spring 33 1 Transformer Bracket 34 1 Left Fan Housing 35 1 Filter Wire 36 37 1 Motor Hood 38 2 Motor Bolt 39 2 40 4 Lift Motor Nut/Idler Nut 41 42 43 1 Lift Motor 44 1 45 4 46 1 Electronics Bracket 47 1 Controller 48 10 49 4 50 1 Belly Pan 51 1 52 1
6 Electronics Screw
Motor Bolt Star Washer
1 1
Lift Motor Bolt Lift Motor Bracket
Lift Motor Bolt, Bottom Isolator
Belly Pan Screw Belly Pan Screw, Long
Static Warning Decal Reset/Off Circuit Breaker
53 1 Power Cord 54 1 Power Cord Grommet 55 4 Fan Screw 56 1 Belly Pan Bracket 57 2 Rear Wheel Spacer 58 6 Wheel Block Screw 59 1 Right Wheel Block, Bottom 60 2 Rear Wheel 61 1 Right Wheel Block, Top 62 3 Roller Adj. Washer 63 2 Rear Roller Adj. Bolt 64 1 Front Roller Adj. Bolt 65 1 Rear Endcap 66 1 Rear Endcap 67 1 Left Wheel Block, Top 68 1 Rear Roller 69 24 Screw 70 1 Latch Catch 71 6 Console Screw 72 1 Front Roller Nut 73 1 Handrail 74 2 Handrail Cap 75 1 Hand Grip Pulse 76 2 Walking Board Bracket 77 4 U-nut 78 1 Right Foot Rail Endcap 79 6 1” Screw 80 1 Console 81 1 Book Holder 82 1 Key/Clip 83 1 Upright/Base 84 1 Right Fan Housing 85 2 Console Fan 86 1 Lock Knob Spacer 87 1 Lock Knob Sleeve 88 89 1 Left Cup Holder 90 1 Right Cup Holder 91 1 92 2 Handrail Spacer 93 94 95 4 Handrail Washer 96 4 97 1 98 1 Audio Cable
99 1 Chest Pulse Strap 100 101 102 1 Shock 103 104
1 Console Base, Bottom
Lock Pin Assembly
2 4
1 1
2 2
Upright Endcap, Round Handrail Bushing
4 1/2” Bolt Left Wheel Block, Bottom
Latch Warning Decal Chest Pulse Sensor
Front Wheel Bolt Front Wheel Bushing
30
Key No. Qty. Description Key No. Qty. Description
105 2 Front Wheel 106 2 Front Wheel Spacer 107 1 Magnet 108 6 Base Pad 109 15 Base Pad Screw/Misc. Screw
10 2 Pinch Decal
1 111 2 Upright Endcap 112 2 Belt Guide Bracket 113 1 Wire Track 114 3 2” Bolt 115 1 Base Plate 116 4 Base Plate Bumper 117 1 Chest Purse Receiver 118 3 Catch Screw 119 6 Deck Rail Washer 120 1 Console Base, Top 121 1 Releaseable Tie 122 1 Allen Wrench 123 4 Cable Tie Clamp 124 4 8” Cable Tie 125 1 Split Pivot Spacer 126 20 3/4” Tek Screw 127 1 Right Foot Rail
128 5 Hood Mount, Large 129 2 Hood Mount 130 1 Ground Wire 131 1 Upright Wire Harness 132 8 Platform Bracket Screw
33 2 Belt Guide
1 134 1 Lift/Roller Ground Wire 135 1 Hole Plug 136 4 Belt Guide Screw 137 4 Bushing Plate Screw 138 2 Wheel Washer 139 4 #8 Star Washer 140 2 1/4” Star Washer 141 5 Wire Track Screw 142 2 Platform Pad
# 1 6” Blue Wire, 2F # 1 4” Red Wire, M/F # 1 4” Black Wire, M/F # 1 4” Green Wire, M/Ring # 1 User's Manual
# These parts are not illustrated
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:
• the MODEL NUMBER OF THE PRODUCT (NTL27005.0)
• the NAME OF THE PRODUCT (NordicTrack APEX 8000 treadmill)
the SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the EXPLODED DRAWING attached in the center of this manual)
31
37
5
109
78
13
36
46
54
53
52
50
38
40
41
15
17
12
13
11
42
5
14
1
4
10
2
126
7
19
118
6
70
66
9
68
67
60
57
97
63
58
62
63
62
6
19
19
1
127
56
69
69
8
26
22
23
29
30
40
27
27
40
32
25
15
14
69
109
43
31
31
19
62
64
45
126
126
20
18
36
69
65
69
69
100
61
60
57
59
58
128
129
109
109
109
129
130
48
16
45
132
76
16
45
76
132
3
125
107
122
72
16
132
112
16
45
112
132
119
119
119
119
119
119
47
36
35
40
44
36
36
36
33
21
139
137
137
126
134
140
140
139
36
139
135
126
126
126
126
126
126
139
133
136
136
133
19
19
142
142
EXPLODED DRAWING—Model No. NTL27005.0 R1005B
121
48
123
124
108
109
110
102
110
109
91
87
86
93
93
82
111
111
108
109
108
109
108
114
114
114
115
113
141
141
141
116
98
83
108
109
28
28
28
131
106
105
103
104
103
105
106
104
73
74
75
75
69
74
77
77
120
51
85
34
85
84
69
6
6
69
71
79
6
69
69
77
69
6
71
71
71
71
69
90
69
69
89
88
71
69
95
96
95
96
81
80
101
99
117
69
69
69
69
6
138
138
69
EXPLODED DRAWING—Model No. NTL27005.0 R1005B
LIMITED WARRANTY
WHAT IS COVERED—The entire NordicTrack APEX 8000 treadmill (“Product”) is warranted to be free of all defects in
aterial and workmanship.
m
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser.
HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the drive motor for life. Parts and labor are warranted for one year from the date of purchase.
WHAT WE DO TO CORRECT COVERED DEFECTS—We will ship to you, without charge, any replacement part or component, providing the repairs are authorized by ICON first and are performed by an ICON trained and authorized
ervice provider, or, at our option, we will replace the Product.
s
WHAT IS NOT COVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, im­proper assembly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain as set out in your User’s Manual (“Manual”). This warranty does not extend to products used for commercial or rental purposes or to products used as store display modules.
WHAT YOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as specified in the Manual; notify our Customer Service Department of any defect within 10 days after discov­ery of the defect; as instructed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if neces­sary, arrange for service where your Product is located or advise you how to ship the Product for service. Before ship­ping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping carton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or problem and a copy of your proof of purchase if you believe the ser­vice is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above lim­itation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 232609 R1005B
Printed in USA
2005 ICON IP, Inc.
©
Loading...
