NordicTrack NTEL79010 User Manual

CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
Model No. NTEL79010 Serial No. _
Serial Number
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, we will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained techni­cians on our customer hot line will provide immediate assis­tance, free of charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
NordicTrack®is a registered trademark of ICON Health & Fitness, Inc.
3
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical crosstrainer.
1. Read all instructions in this manual before using the elliptical crosstrainer.
2. It is the responsibility of the owner to ensure that all users of the elliptical crosstrainer are adequately informed of all precautions.
3. The elliptical crosstrainer is intended for in-home use only. Do not use the elliptical crosstrainer in any commercial, rental, or institutional setting.
4. Place the elliptical crosstrainer on a level surface, with a mat beneath it to protect the floor or carpet. Keep the elliptical crosstrain­er indoors, away from moisture and dust.
5. Inspect and tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away from the elliptical crosstrainer at all times.
7. The elliptical crosstrainer should not be used by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothing when using the elliptical crosstrainer. Always wear athletic shoes for foot protection.
9. Always hold the handlebar or the upper body arms when mounting, dismounting, or using the elliptical crosstrainer.
10. Keep your back straight when using the ellip­tical crosstrainer. Do not arch your back.
11. If you feel pain or dizziness at any time while exercising, stop immediately and begin cooling down.
12. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
13. When you stop exercising, allow the pedals to slowly come to a complete stop. The ellip­tical crosstrainer does not have a free wheel; the pedals will continue to move until the flywheel stops.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Congratulations for selecting the new NordicTrack
®
CXT 930 elliptical crosstrainer. The CXT 930 is an incredibly smooth exerciser that moves your feet in a natural elliptical path, minimizing the impact on your knees and ankles. And the unique CXT 930 features adjustable resistance and incline to help you get the most from your exercise. Welcome to a whole new world of natural, elliptical-motion exercise from NordicTrack.
For your benefit, read this manual carefully before you use the elliptical crosstrainer. If you have addi-
tional questions, please call our Customer Service Department toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is NTEL79010. The serial number can be found on a decal attached to the elliptical crosstrainer (see the front cover of this man­ual for the location of the decal).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Upper Body Arm
Water Bottle Holder*
*No water bottle is included
Handgrip Pulse Sensor
FRONT
BACK
RIGHT SIDE
Spring Arm
Pedal Disk
Leveling Foot
Wheel
Pedal
Bookrack
Console
Incline Bracket
Incline Frame
5
ASSEMBLY
Assembly requires two people. Place all parts of the elliptical crosstrainer in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the two included allen wrenches, assembly requires a phillips screwdriver , an adjustable wrench , a rubber mallet , and pliers .
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
1. Identify the Rear Stabilizer (94), which has two Leveling Feet (99) threaded into it. Turn the Rear Stabilizer so the Leveling Feet are closest to the rear of the Frame (1) as shown. Attach the Rear Stabilizer to the Frame with the four M10 x 56mm Button Screws (60) and four M10 Split Washers (22).
22
1
60
60
22
94
99
1
M8 Split
Washer (58)–2
M10 x 43mm Button Screw (97)–4
M10 x 56mm Button Screw (60)–4
M8 Washer (33)–2
M8 x 19mm Screw (30)–2
M10 x 85mm Bolt (25)–1
M10 Split
Washer (22)–8
M10 x 36mm Carriage Bolt (61)–2
M10 Washer (63)–2
M10 Nylon Locknut (26)–5
6
3
5
V-shaped Groove
29
Grease
33
33
30
30
58
58
1
Tubes
Tubes
3. Slide an M8 Split Washer (58) and an M8 Washer (33)
onto an M8 x 19mm Screw (30). Tighten the Screw into one end of the Incline Axle (29). Next, apply a small amount of the included grease to the Incline Axle.
Align the indicated tubes on the Incline Frame (5) with the tubes on the Frame (1). Make sure that the
Incline Frame is turned so the V-shaped grooves are on top. Insert the Incline Axle (29) through the
Incline Frame and the Frame. Note: It may be helpful to tap the Incline Axle with a rubber mallet to insert it.
Slide an M8 Split Washer (58) and an M8 Washer (33) onto the other M8 x 19mm Screw (30). Tighten the Screw into the open end of the Incline Axle (29).
4. Attach the Incline Bracket (24) to the lower end of the
Upright (2) with the M10 x 85mm Bolt (25) and an M10 Nylon Locknut (26). Do not overtighten the Nylon
Locknut; the Incline Bracket must be able to pivot easily.
4
24
25
26
2
2. Attach the Front Stabilizer (90) to the Frame (1) with the four M10 x 43mm Button Screws (97) and four M10 Split Washers (22). Make sure that the Front
Stabilizer is turned so the Wheels (45) are not touching the floor.
97
90
45
22
22
1
2
7
7. Identify the Left Pedal (41). Attach the Left Pedal to the Left Spring Arm (3) with an M10 x 36mm Carriage Bolt (61), an M10 Washer (63), and an Adjustment Knob (77) as shown. Note: The Left Pedal can be attached in any of five positions (see HOW TO ADJUST THE PEDALS on page 9).
Attach the Right Pedal (not shown) in the same way. Make sure that both Pedals are in the same position.
7
61
41
77
63
3
6. Remove the four M10 Nylon Locknuts (26) from the welded bolts on the front of the Frame (1).
While a second person holds the Upright (2) near the Frame (1), connect the Extension Wire Harness (51) to the Wire Harness (85).
Align the four holes in the bracket at the bottom of the Upright (2) with the welded bolts on the Frame (1). Lower the Upright, feeding all slack Extension Wire
Harness (51) and Wire Harness (85) into the Upright, until the welded bolts are inserted into the bracket. Do not allow the Wire Harnesses to be pinched.
Lift the front of the Incline Frame (5). Tighten the four M10 Nylon Locknuts (26) onto the welded bolts on the Frame (1).
6
2
5
1
26
51
85
Welded Bolts
2
Wire
Harness
Bookrack
51
35
35
93
5
84
84
87
87
5. The Console (87) requires four “D” batteries (not included). Alkaline batteries are recommended. To install batteries, turn the Console face down and remove the Battery Cover (84), as shown in the inset drawing. Insert four batteries into the Console. Make
sure that the negative ends of the batteries (marked “—”) are facing the springs in the Console. Then, reattach the Battery Cover.
Connect the console wire harness to the Extension Wire Harness (51).
Attach the Console (87) to the Upright (2) with the four Console Screws (35) and the four Console Washers (93) packaged with the Console. Be careful to avoid
pinching the wires.
Snap the bookrack onto the Console (87) where shown.
Make sure the Wire Harnesses (51, 85) do not get pinched and damaged during this step.
26
8
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed.
8. Apply a small amount of the included Teflon®lubricant
to a paper towel. Rub a thin film of the lubricant onto the Chrome Tubes (21) on the Left and Right Spring Arms (3, 4). Next, slide the Left Upper Body Arm (7), which is marked with a sticker, onto the Chrome Tube on the Left Spring Arm. Slide the Right Upper Body Arm (75) onto the Chrome Tube on the Right Spring Arm. Make sure that the Upper Body Arms are on
the correct sides—the upper ends should bend in the direction shown by the arrows. Next, slide an
Axle Cover (74) onto the post on each Upper Body Arm. Apply grease to the Arm Axle (19). Insert the Arm Axle
into the right Axle Cover (74) and the Right Upper Body Arm (75). Next, insert the Arm Axle into the Upright (2) until the left end of the Arm Axle is flush with the left side of the Upright. Then, insert the ArmAxle into the left Axle Cover (74) and the Left Upper Body Arm (7).
Center the Arm Axle (19). Using the included pedal tool, tap two Push Nuts (15) about 1/8” onto each end of the ArmAxle. Make sure that the Push Nuts are turned as shown in the inset drawing. (Note: It may be helpful if another person holds a block of wood against one end of the ArmAxle while you tap Push Nuts onto the other end.) Then, press an Axle Cap (34) onto each end of the ArmAxle.
8
21
21
2
74
Post
Grease
74
19
34
34
15
15
7
4
75
Pedal Tool 15 19
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR

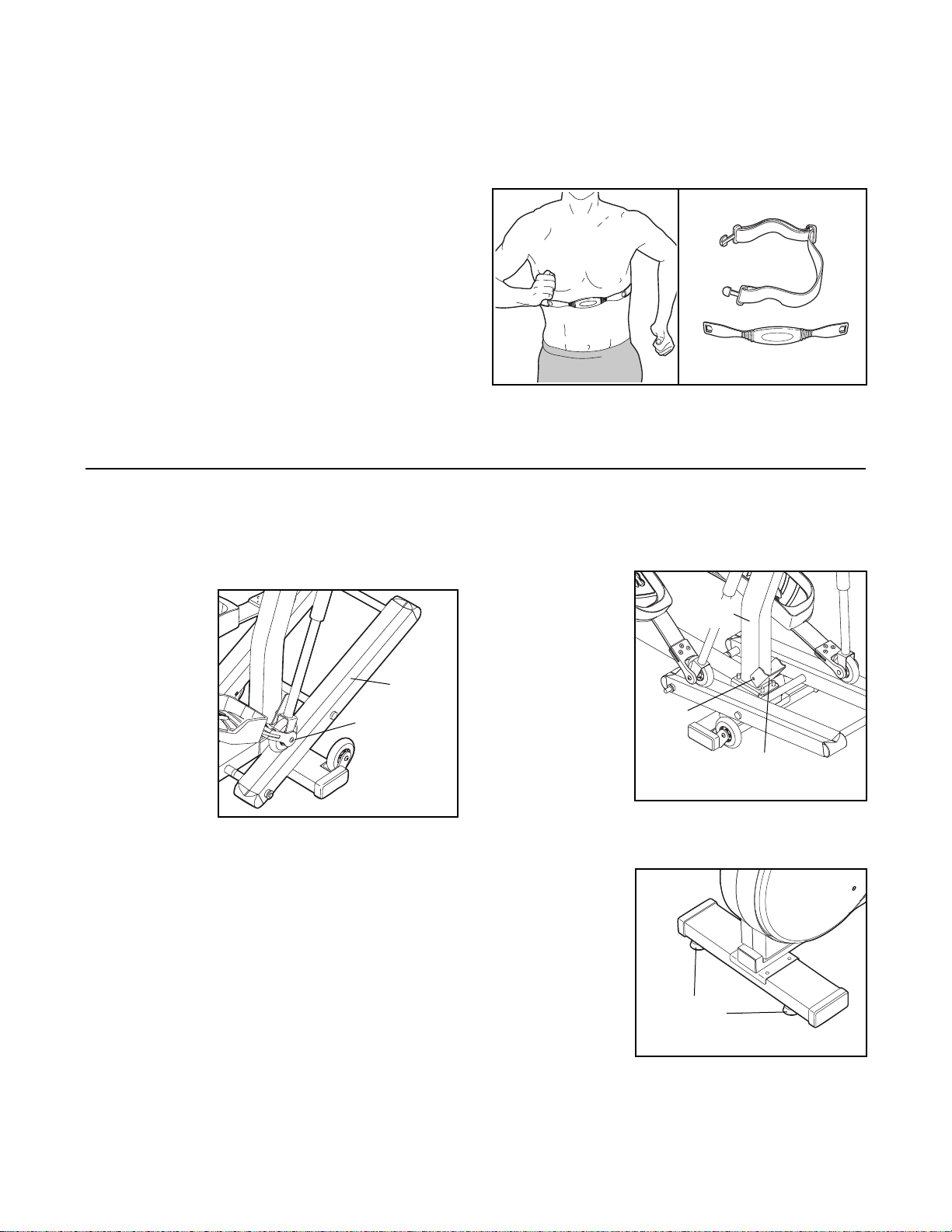

If you purchase the optional chest pulse sensor (refer to page 20), follow the steps below to install the receiver and the short jumper wire included with the chest pulse sensor.
1. Remove the four indicated screws from the back of the Console (87). Lift off the front of the Console.
2. Peel the paper off the adhesive pad on the back of the receiver (A). Orient the receiver exactly as shown, and press it onto the Console (87) in the indicated location.
Connect the short jumper wire (B) to the wire on the receiver (A). Plug the other end of the short jumper wire into either of the indicated jacks on the Console (87). Note: The included long jumper wire is not needed.
Refer to step 1 above. Reattach the front of the Console (87) with the four screws. Make sure that no
wires are pinched.
A
87
Jacks
87
Screws
1
B
Cylinder
2
3
9

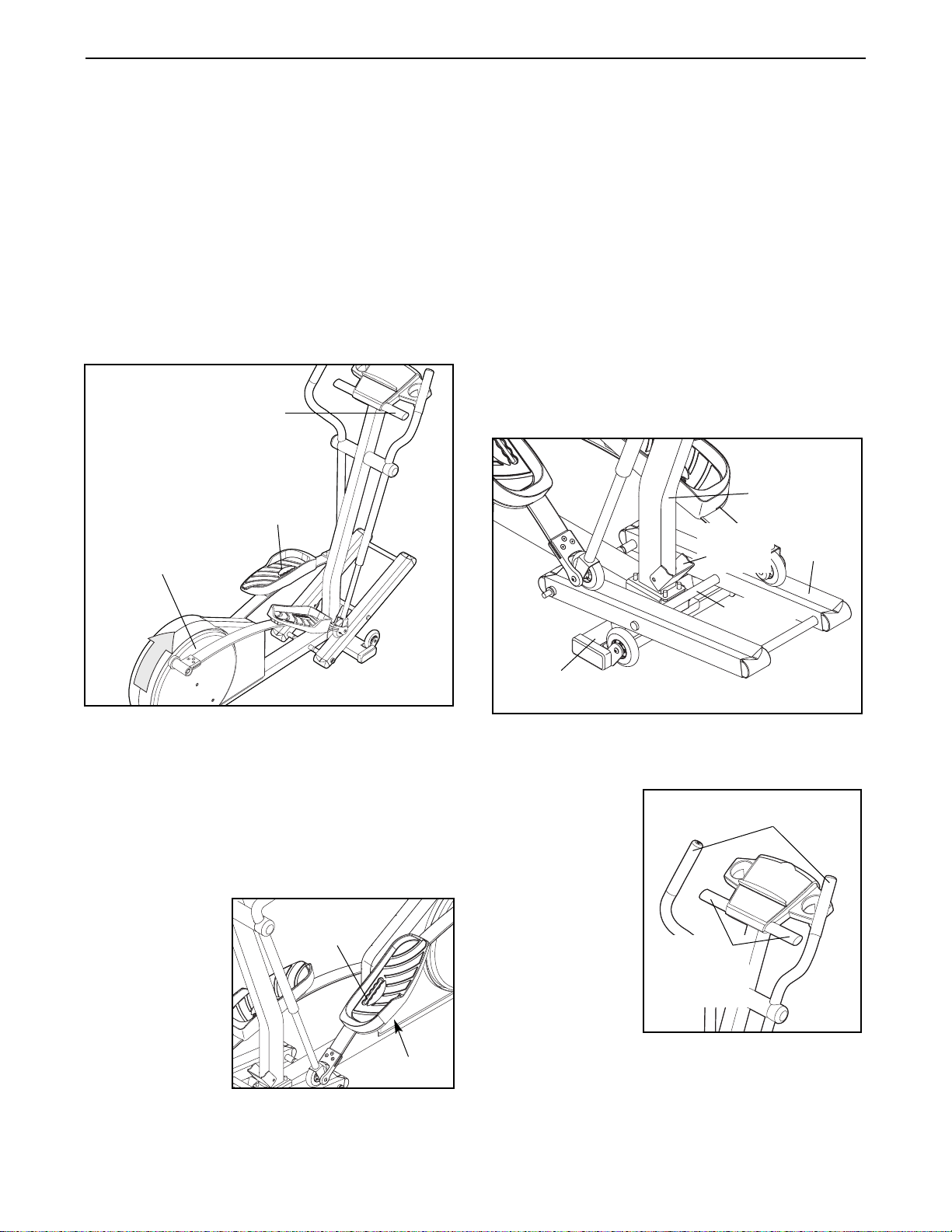

HOW TO USE THE ELLIPTICAL CROSSTRAINER
EXERCISING ON THE ELLIPTICAL CROSSTRAINER
To mount the elliptical crosstrainer, hold the handgrip pulse sensor and step onto the pedal that is in the lowest position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note: The pedal disks can turn in either
direction. It is recommended that you turn the pedal disks in the direction shown by the arrow below; however, to give variety to your exercise, you may turn the pedal disks in the opposite direction.
To dismount the elliptical crosstrainer, wait until the pedals come to a complete stop. The elliptical
crosstrainer does not have a free wheel; the ped­als will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest pedal first. Then, step off the lowest pedal.
HOW TO ADJUST THE PEDALS
The motion of the pedals is deter­mined by their position on the spring arms. Their are five dif­ferent pedal posi­tions. To adjust the pedals, first loosen the knob beneath each
pedal. Slide the pedals forward or backward to the desired position, and then retighten the knobs. Make sure that both pedals are in the same position.
INCLINE ADJUSTMENT
To further adjust the intensity of your exercise, the incline frame can be raised or lowered. To raise the incline frame, position the spring arms side by side. Lift the end of the incline frame until the crossbar is on top of the incline bracket. Make sure that the
crossbar is resting securely on top of the incline bracket. To lower the incline frame, lift the incline
frame slightly, push the incline bracket toward the upright, and then lower the incline frame onto the sta­bilizer.
HOW TO USE THE UPPER BODY ARMS
The upper body arms are designed to add upper-body exercise to your workouts. As you exercise, push and pull the upper body arms in order to work your arms, back, and shoulders. To exercise only your lower body, hold the handgrip pulse sensor as you exercise.
Pedal
Pedal Disk
Handgrip
Pulse Sensor
Upper Body Arms
Handgrip
Pulse
Sensor
Stabilizer
Pedal
Knob
Incline Frame
Upright
Incline
Bracket
Crossbar
10
FEATURES OF THE CONSOLE
The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the elliptical crosstrainer can be changed with a touch of a button. As you exer­cise, the console will provide continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor. (For information about an optional chest pulse sensor, refer to page 20.)
The console also offers four preset workout programs. Each program automatically changes the resistance of the elliptical crosstrainer and prompts you to increase or decrease your pace as it guides you through an effective workout.

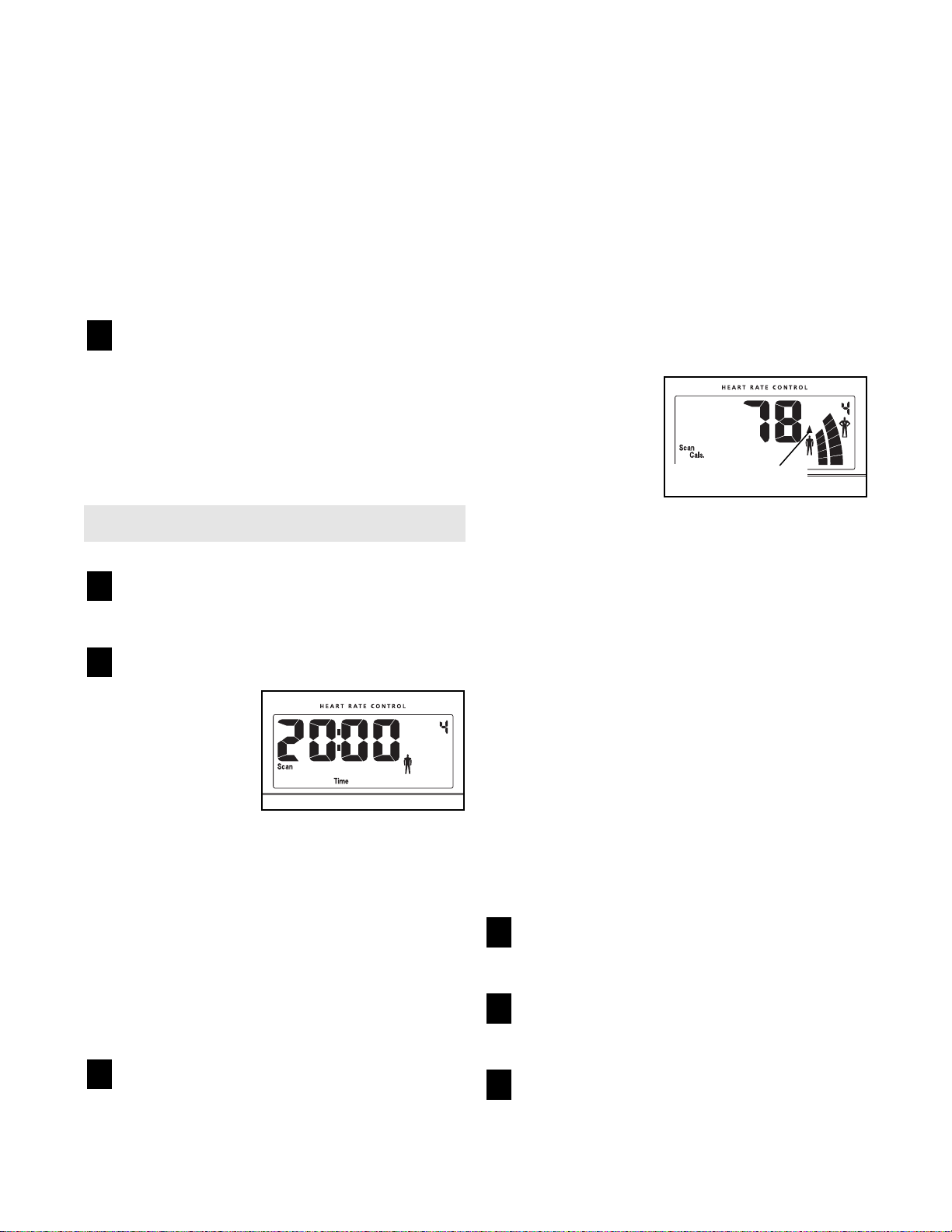

In addition, the console features two heart rate work­out programs that automatically change the resistance of the elliptical crosstrainer and prompt you to vary your pace to keep your heart rate near a target heart rate as you exercise.

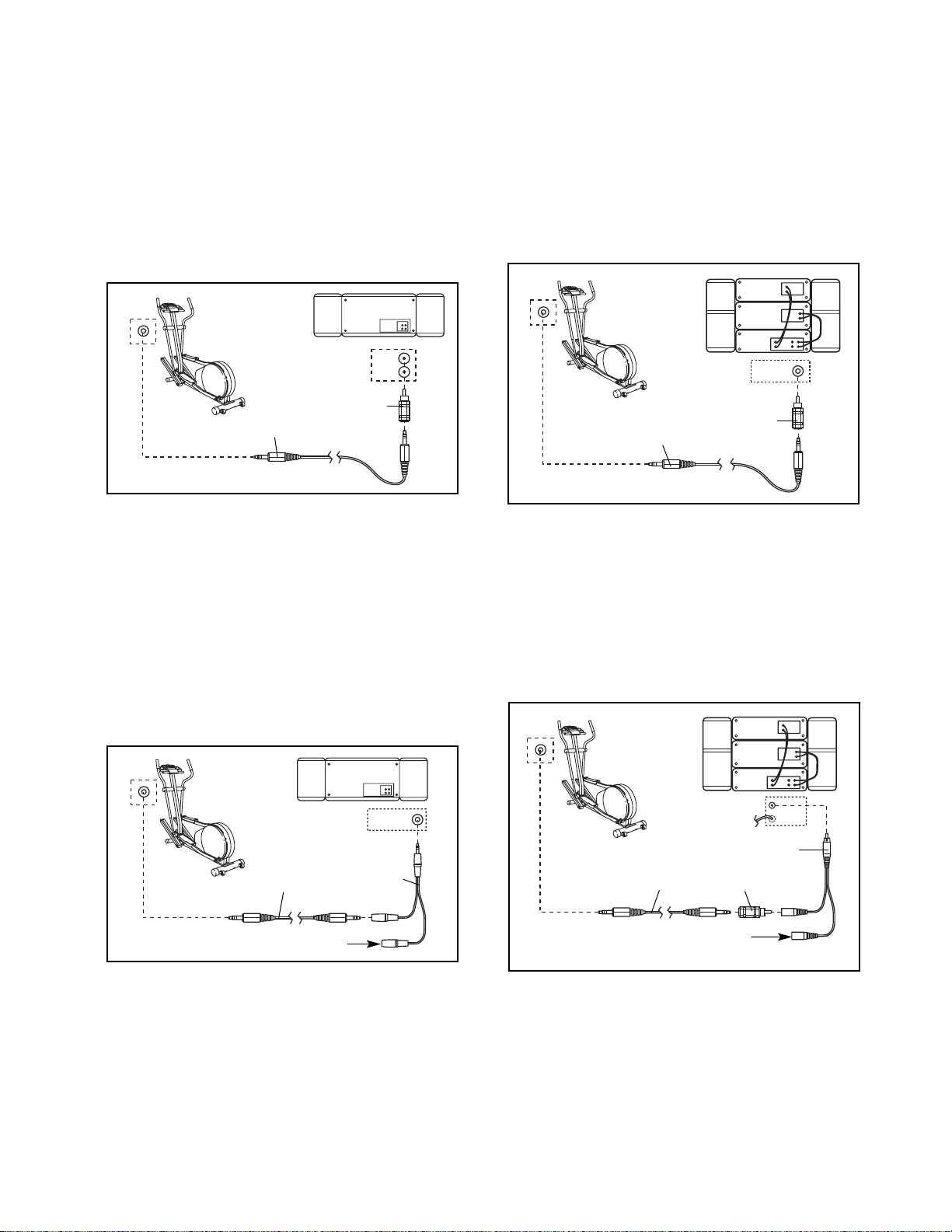

The console also features new iFIT.com interactive technology. IFIT.com technology is like having a per­sonal trainer right in your home. Using the included audio cable, you can connect the elliptical crosstrainer
to your home stereo, portable stereo, or computer and play special iFIT.com CD programs (CDs are available separately). IFIT.com CD programs automatically con­trol the resistance of the elliptical crosstrainer and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High­energy music provides added motivation. Each CD fea­tures two programs designed by certified personal trainers.

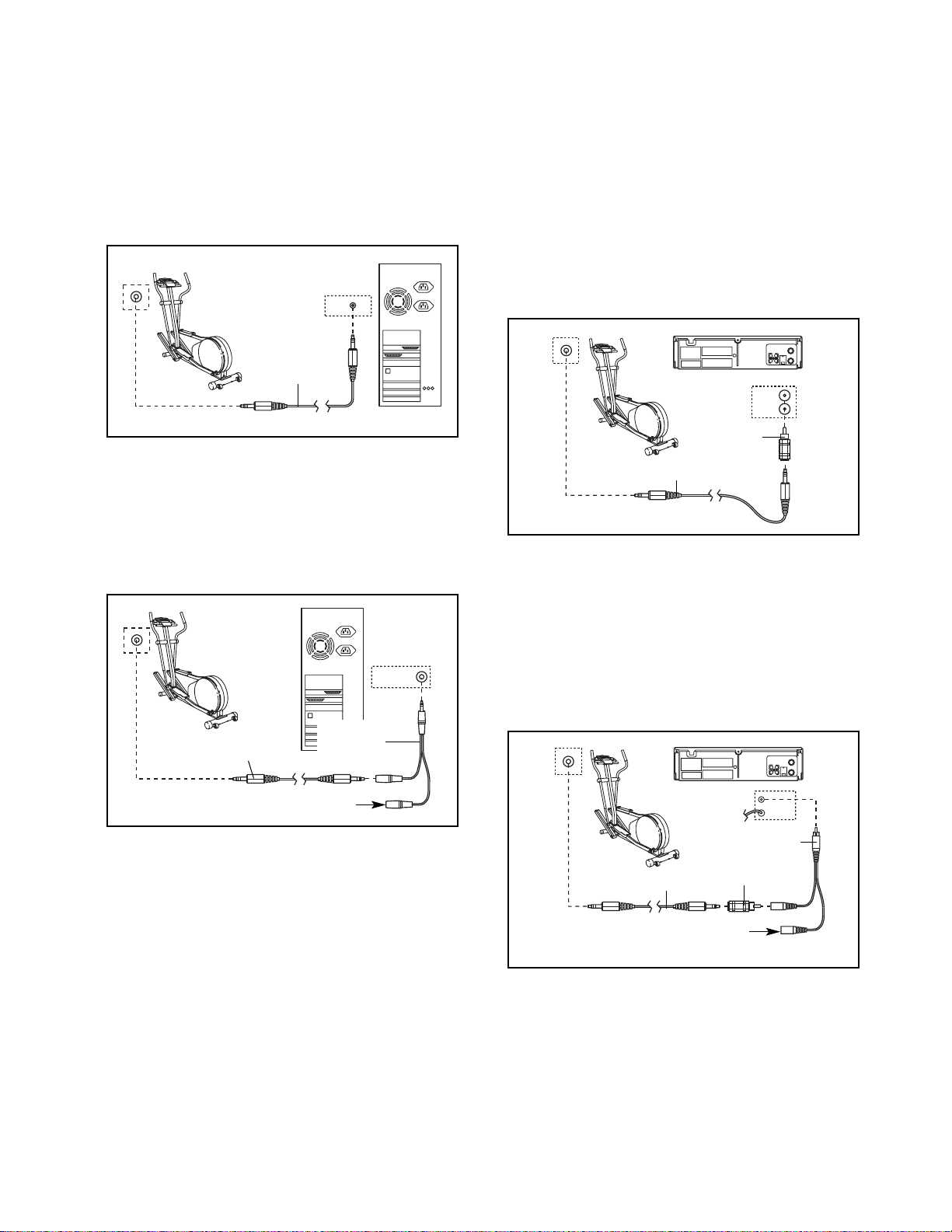

In addition, you can connect the elliptical crosstrainer to your VCR and TV and play iFIT.com video programs (videocassettes are available separately). Video pro­grams offer the same benefits as iFIT.com CD pro­grams, but add the excitement of working out with a class and an instructor.
With the elliptical crosstrainer connected to your com­puter, you can also go to our new Web site at www.iFIT.com and access audio programs and video programs directly from the internet.
For information about the availability of iFIT.com CDs or videocassettes, please send an e-mail to ellipticalworkouts@iFIT.com, and we’ll notify you as soon as iFIT.com CDs and videocassettes are available. Or, call toll-free 1-800-884-0620.
G
F
L
M
A
C
D
B

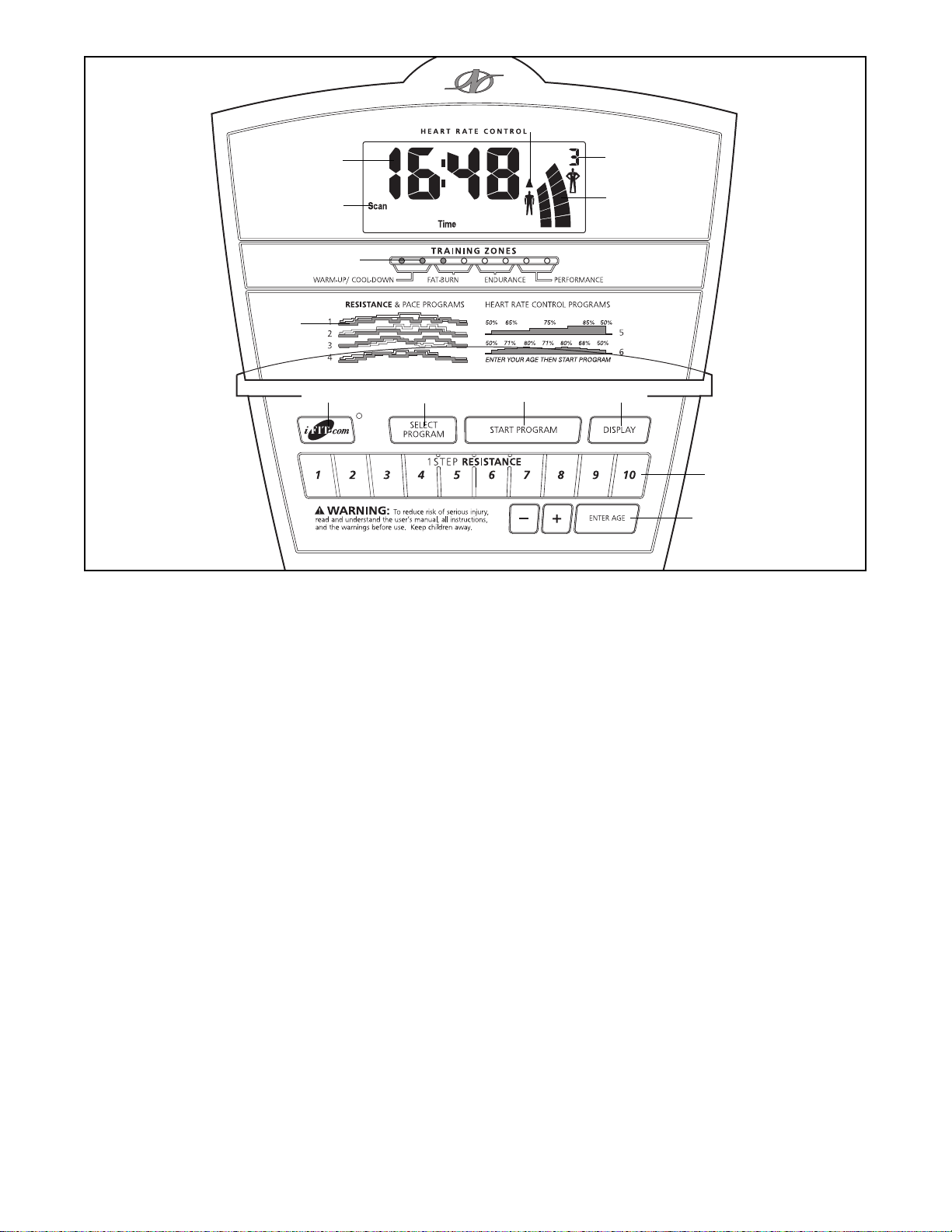

CONSOLE DIAGRAM
K
J
I
H
E
Note: If there is a sheet of clear plastic on the face of the con­sole, remove it.
11
CONSOLE DESCRIPTION
Refer to the drawing on page 10.
A. Exercise feedback display—This display features
seven modes that give you instant exercise feed­back: your current speed, the elapsed time (or the time remaining in a preset program or a heart rate program), the distance that you have pedaled, the resistance level, the approximate number of calo­ries you have burned, your power output in watts, and your heart rate (when you use the handgrip pulse sensor or the optional chest pulse sensor [refer to page 20 for information about the chest pulse sensor]). If the scan mode is selected, the display will change from one mode to the next every six seconds. Or, you can select a single mode for continuous display.
Note: The console can show speed and distance in either miles or kilometers. To change the unit of measurement, refer to step 4 on page 12.
B. Feedback mode indicators—These indicators show
which feedback mode (scan, speed, time, resis­tance level, calories, distance, watts, or heart rate) is currently displayed. Note: When the distance is shown, the word Miles or the letters Kms will appear; when your speed is shown, the letters MPH or Km/H will appear.
C. Increase and decrease arrows—During preset pro-
grams, heart rate programs, and iFIT.com pro­grams, these arrows will prompt you to increase or decrease your pace to match the target pace.
D. Manual mode/program indicator—When a preset
program is selected, the upper right corner of the display will show a 1, 2, 3, or 4, depending on which preset program is selected. When a heart rate program is selected, the upper right corner of the display will show a 5 or 6. When the iFIT.com mode is selected, the upper right corner will show the letters IF. When the manual mode is selected, the upper right corner will be blank.
E. Pace bar graphs—When the manual mode is
selected, only the left bar graph will appear. This bar graph represents your exercise pace. As you increase or decrease your pace, additional bars will appear or disappear in the bar graph. W hen a preset program, a heart rate program, or the iFIT.com mode is selected, both bar graphs will appear. The left bar graph will represent your exercise pace, and the right bar graph will represent a target pace. During the program, the target pace will periodically
change. As the right bar graph changes, simply adjust your pace so that the same number of bars appear in both bar graphs. Important: The target
pace is a
goal
pace. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Make sure to exercise at a pace that is comfort­able for you.
F. Training zone display—As you exercise, the training
zone display will show the approximate intensity level of your exercise.
G.Program profiles—These profiles show how the
resistance of the elliptical crosstrainer and the tar­get pace will change during preset programs and heart rate programs. For example, profile number 4 shows that during preset program 4, both the resis­tance and the pace will gradually increase during the first half of the program, and then gradually decrease during the last half.
H. IFIT.com button—This button is used to select the
iFIT.com mode. The indicator beside the button will light when the iFIT.com mode is selected.
I. Select Program button—This button is used to
select the manual mode, preset programs, and heart rate programs.
J. Start Program button—This button is used to start
preset programs and heart rate programs.
K. Display button—This button is used to select the
feedback modes. The modes will be selected in the following order: scan, speed, time, resistance level, calories, distance, watts, and heart rate (when the handgrip pulse sensor or the optional chest pulse sensor is used).
L. Resistance buttons—These buttons control the
resistance of the elliptical crosstrainer. There are ten resistance levels; level 10 is the most challeng­ing.
M.+ and – buttons and Enter button—These buttons
are used to enter your age when a heart rate pro­gram is selected.
To use the manual mode of the console, refer to page 12. To use a preset program, refer to page 13.
To use a heart rate program, refer to page 14. To use iFIT.com CDs or videos, refer to page 18. To use a program directly from our Web site, refer to
page 19.
12

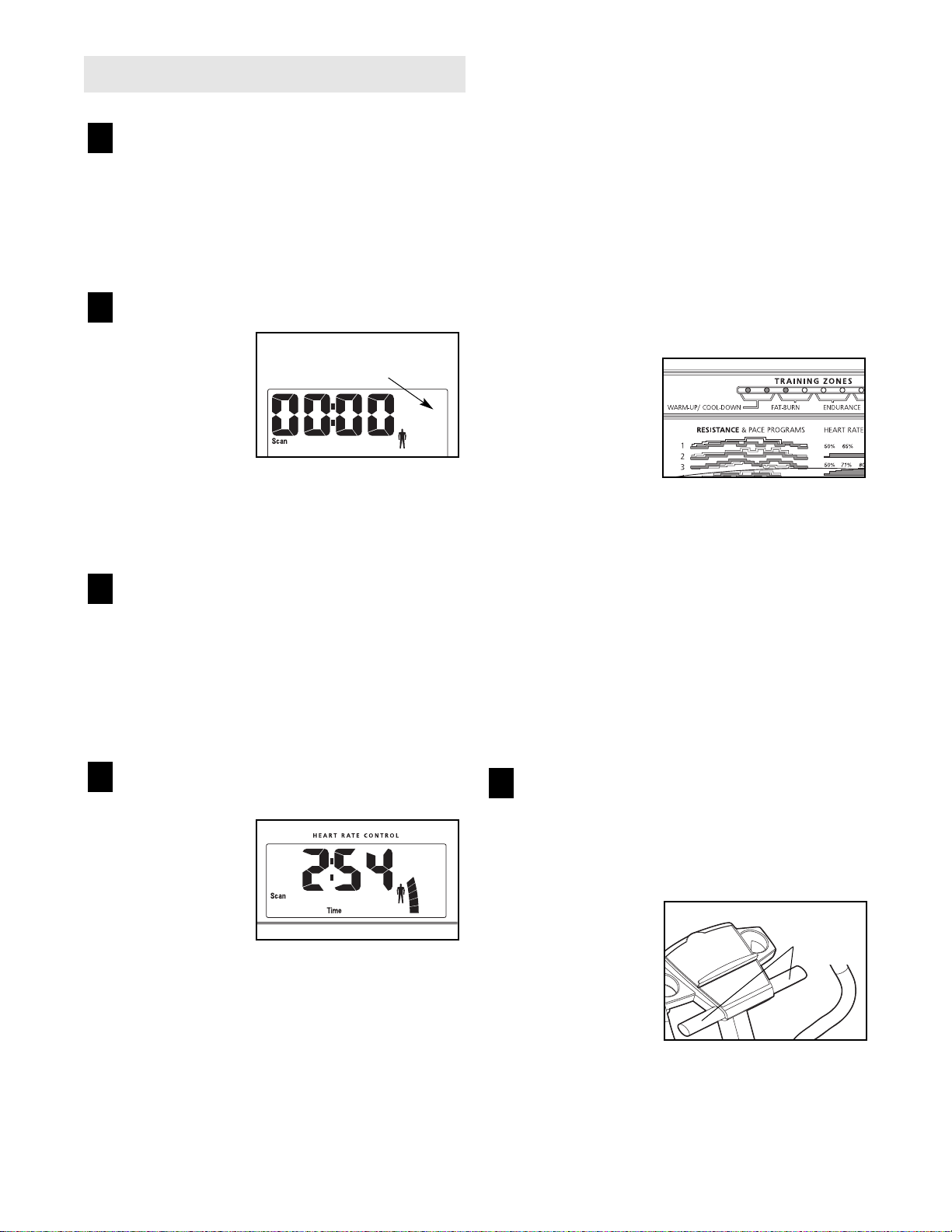

Turn on the console.
Note: The console requires four “D” batteries (not included). If you have not installed batteries, refer to step 5 on page 7 and install batteries.
To turn on the console, press any button or begin pedaling.
Select the manual mode.
Each time the console is turned on, the manual mode will be selected. If a preset pro­gram, a heart rate program, or the iFIT.com mode has been selected, select the manual mode by pressing the Select Program button repeatedly until the upper right corner of the display is blank.
Begin exercising and adjust the resistance of the elliptical crosstrainer.
As you exercise, adjust the resistance of the elliptical crosstrainer as desired by pressing the Resistance buttons. There are ten resistance lev­els; level 10 is the most challenging. Note: After the buttons are pressed, it will take a few sec­onds for the selected setting to be reached.
Follow your progress with the feedback modes, the left bar graph, and the training zone display.
As you exer­cise, the display will show your current speed, the elapsed time, the cur­rent resistance level, the approximate number of calories you have burned, the distance that you have pedaled, and your power output in watts. In addition, your heart rate will be shown when you use the handgrip pulse sensor (refer to step 5 at the right) or the optional chest pulse sensor (refer to page 20). Note: Each time the resistance level changes, the console will show the resistance level for six sec­onds. When a preset program or a heart rate pro-
gram is selected, the display will show the
time
remaining
in the program instead of the elapsed
time. In addition, the left bar graph will appear in the dis-
play to show your exercise pace. As you increase or decrease your pace, additional bars will appear or disappear in the bar graph.
If desired, you can select a single feedback mode for continuous display. Press the Display button repeatedly until only the MPH (or Km/H), Time, Resist., Cals., Miles (or Kms), or Watts indicator appears in the display. Make sure that the Scan indicator does not appear.
In addition, the training zone display will show the approximate intensity level of your exercise. For example, if three or four indicators in the display are lit, the display shows that your intensity level is ideal for fat burning.
Note: The console can show speed and dis­tance in either miles or kilometers. To change the unit of measurement, first hold down the Start Program button for three seconds. An E (for English miles) or an M (for metric kilome­ters) will appear in the display. To change the unit of measurement, press the + button. Then, press the Start Program button again. When the batteries are replaced, it may be necessary to reselect the desired unit of measurement.
Measure your heart rate if desired.
Note: If you wear the optional chest pulse sensor (see page 20) and hold the handgrip pulse sensor at the same time, the console may not display your heart rate accurately.
If there are thin sheets of plas­tic on the metal contacts on the handgrip pulse sensor, peel off the plastic. To
use the handgrip pulse sensor, place your hands on the metal contacts. Your palms must be on the upper contacts and your
5
4
3
2
1
HOW TO USE THE MANUAL MODE
This corner
should be blank
Metal
Contacts
13
fingers must be touching the lower contacts. Avoid moving your hands. When your pulse is detected, the heart-shaped indicator in the display will flash each time your heart beats. After a moment, two dashes (– –) will appear and then your heart rate will be shown.
For the most accurate heart rate reading, continue to hold the handgrips for about 15 seconds. Note: When you first hold the handgrips, the display will show your heart rate continuously for 15 seconds. The display will then show your heart rate along with the other feedback modes.
When you are finished exercising, the console will automatically turn off.
If the pedals are not moved and the console but­tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve the batteries.
Turn on the console.
Refer to step 1 on page 12.
Select one of the four preset programs.
Each time the console is turned on, the manual mode will be selected. To select a preset program, press the Select Program button repeatedly until the number 1, 2, 3, or 4 appears in the upper right corner of the display.
The profiles numbered 1 through 4 on the left side of the console show the resistance and pace settings for the preset programs. For example, profile number 4 shows that when preset program 4 is selected, both the resistance and the pace will gradually increase during the first half of the program, and then decrease during the last half.
Start the program.
To start the program, press the Start Program button or simply begin exercising. Each preset
program consists of twenty, one-minute periods. One resistance setting and one pace setting are programmed for each period. (The same resis­tance setting and/or pace setting may be pro­grammed for consecutive periods.)
During the program, the resistance of the elliptical crosstrainer will automatically change as shown by the applicable profile on the console. If the cur­rent resistance level is too high or too low, you can change the resistance level by pressing the Resistance buttons. However, when the current period of the program is completed, the resis­tance level will automatically change if a different resistance setting is programmed for the next period.
The pace set­tings for the pro­gram will be shown by the right bar graph in the display. (The left bar graph will show your actual exercise pace.) As the right bar graph changes during the program, simply increase or decrease your pace so that the same number of bars appear in both bar graphs. If your pace is slower than the current pace setting, the increase arrow will also appear in the display to prompt you to increase your pace; if your pace is faster than the pace setting, the decrease arrow will appear.
Important: The pace settings for the program are intended only to provide a goal. Your actu­al pace may be slower than the pace settings, especially during the first few months of your exercise program. Make sure to exercise at a pace that is comfortable for you.
During the program, the display will show the time remaining in the program. When no time remains, the program will be completed. If you continue to exercise after the program is completed, the dis­play will continue to show your exercise feedback.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 12.
When you are finished exercising, the console will automatically turn off.
Refer to step 6 above.
6
5
4
3
2
1
6
HOW TO USE A PRESET PROGRAM
Increase Arrow
14
Each heart rate program helps you to keep your heart rate near a certain
percentage
of your
maximum heart
rate
during your workout. (Your maximum heart rate is estimated by subtracting your age from 220. For example, if you are 25 years old, your maximum heart rate is 195.) Heart rate program 5 is designed to keep your heart rate between 50% and 85% of your maxi­mum heart rate while you exercise; heart rate program 6 is designed to keep your heart rate between 50% and 80% of your maximum heart rate.
Follow the steps below to use a heart rate program.
Turn on the console.
Refer to step 1 on page 12.
Select one of the two heart rate programs.
Each time the console is turned on, the manual mode will be selected. To select a heart rate program, press the Select Program button repeatedly until the number 5 or 6 appears in the upper right corner of the display.
The profiles numbered 5 and 6 on the right side of the console show the resistance settings for the heart rate programs. For example, profile number 5 shows that when heart rate program 5 is selected, the resistance level will gradually increase during the program and then decrease near the end.
Enter your age.
When a heart rate program is selected, the word AGE and the current age setting will flash in the display. You must enter your age to use a heart rate program. If you have already entered your age, press the Enter button and go to step 4. If you have not entered your age, press the + or – button. The current age setting will then flash. Press the + or – button repeatedly to enter your age. When your age is shown, press the Enter button. Once you have entered your age, your age will be saved in memory until the batteries are replaced.
Hold the handgrip pulse sensor
.
When using a heart rate program, you must use the handgrip pulse sensor (refer to step 5 on page 12) or the optional chest pulse sensor (refer to page 20). If you use the handgrip pulse sensor, it is not necessary to hold the handgrips continu­ously during the program. However, you should hold the handgrips frequently for the program to operate properly. Each time you hold the hand-
grips, keep your hands on the metal contacts for at least 30 seconds. Note: When you are not
holding the handgrips, the letters PLS will appear in the display instead of your heart rate.
Start the program.
To start the program, press the Start Program button or simply begin exercising. Each heart rate program consists of twenty, one-minute periods. One resistance setting and one heart rate setting are programmed for each period. (The same resistance setting and/or heart rate setting may be programmed for consecutive periods.)
During the program, the resistance of the elliptical crosstrainer will automatically change as shown by the applicable profile on the console. If the cur­rent resistance level is too high or too low, you can adjust the resistance level by pressing the Resistance buttons. However, when the current period of the program is completed, the resis­tance level will automatically change if a different resistance setting is programmed for the next period.
As you exercise, the bar graphs will help you to keep your heart rate near the heart rate setting for the current period. The right bar graph will show a target pace. (The left bar graph will show your actual exercise pace.) When you hold the handgrip pulse sensor (or wear the optional chest pulse sensor), the console will compare your heart rate to the heart rate setting for the current period; if necessary, the right bar graph will then change to prompt you to increase or decrease your pace to bring your heart rate closer to the current heart rate setting. When the
5
4
3
2
1
HOW TO USE A HEART RATE PROGRAM
15
right bar graph changes, increase or decrease your pace so that the same number of bars appear in both bar graphs. If your pace is slower than the current pace setting, the increase arrow will also appear in the display; if your pace is faster than the pace setting, the decrease arrow will appear. Important: The pace settings for
the program are intended only to provide a goal. Your actual pace may be slower than the pace settings, especially during the first few months of your exercise program. Make sure to exercise at a pace that is comfortable for you.
During the program, the display will show the time remaining in the program. When no time remains, the program will be completed. If you continue to exercise after the program is complet­ed, the display will continue to show your exer­cise feedback.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
When you are finished exercising, the console will automatically turn off.
Refer to step 6 on page 13.
HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the elliptical crosstrainer must
be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 15 to 17 for connecting instructions. To use iFIT.com videocassettes, the elliptical crosstrainer must be connected to your VCR. See page 17 for con­necting instructions. To use iFIT.com programs directly from our Web site, the elliptical crosstrainer must be connected to your home computer. See page 17 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
7
6
Audio Cable
Head-
phones
A
Audio Cable
1/8”
Y-adapter
Headphones
B
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
16
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 1/8” LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Do not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
Audio Cable
C
1/8”
Y-adapter
Headphones
Audio Cable
Adapter
A
Audio Cable
Adapter
A, B
Audio Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
AUDIO OUT
RIGHT LEFT
CD
VCR
Amp
LINE OUT
LINE OUT
CD
PHONES
VCR
Amp
LINE OUT
17
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speak­ers into the other side of the Y-adapter.
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
Audio Cable
A
Audio Cable
B
1/8”
Y-adapter
Headphones/Speakers
Audio Cable
Adapter
A
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
LINE OUT
PHONES
VIDEO AUDIO
IN
CH 34
OUT
AUDIO OUT
RIGHT LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
34
OUT
18
To use iFIT.com CDs or videocassettes, the elliptical crosstrainer must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER on page 15.
Note: For information about the availability of iFIT.com CDs or videocassettes, send an e-mail to ellipticalworkouts@iFIT.com, and we’ll notify you as soon as iFIT.com CDs and videocassettes are available. Or, call toll-free 1-800-884-0620.
Follow the steps below to use an iFIT.com CD or video program.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator beside the button will light and the letters IF will appear in the upper right corner of the display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the play button on your CD player or VCR.
A moment after the play button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions.
The program will function in almost the same way as a preset program (refer to step 3 on page 13). However, an electronic “chirping” sound will alert you when the resistance and/or the pace setting is about to change.
Note: If the resistance of the elliptical cross­trainer and/or the pace setting does not change when a “chirp” is heard:
• Make sure that the indicator beside the iFIT.com button is lit.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected and that it is fully plugged in.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console will automatically turn off.
Refer to step 6 on page 13.
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
19
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Our Web site at www.iFIT.com allows you to play iFIT.com audio and video programs directly from the internet. To use programs from our Web site, the ellip­tical crosstrainer must be connected to your home computer. See HOW TO CONNECT YOUR COMPUT­ER on page 17. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.
Follow the steps below to use a program from our Web site.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator beside the button will light and the letters IF will appear in the upper right corner of the display.
Go to your computer and start an internet connection.
Start your Web browser, if necessary, and go to our Web site at www.iFIT.com.
Follow the desired links on our Web site to select a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the elliptical crosstrainer and begin exercising.
When the on-screen countdown ends, the pro­gram will begin. The program will function in almost the same way as a preset program (refer to step 3 on page 13). However, an electronic “chirping” sound will alert you when the resistance and/or the pace setting is about to change.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console will automatically turn off.
Refer to step 6 on page 13.
10
9
8
7
6
5
4
3
2
1
20
Inspect and tighten all parts of the elliptical crosstrainer regularly. Replace any worn parts immediately.
For smooth operation of the elliptical crosstrainer, the incline frame should be kept clean. Using a soft cloth and mild detergent, clean dust and other residue from the incline frame where the wheels make contact with it. Other parts of the elliptical crosstrainer can also be cleaned in this way.
Never use abrasives or solvents.
To prevent damage to the console, keep liquids away from the console. Always remove the batteries from the console when storing the elliptical crosstrainer.
BATTERY REPLACEMENT
If the letters LO appear in the console display, the batteries should be checked. Refer to assembly step 5 on page 7 to find the location of the battery compart­ment. Remove one of the batteries and then re-insert it. If the letters LO continue to appear in the display, replace the batteries.
LUBRICATING THE INCLINE BRACKET
The incline bracket and the indicated bolt should be regu­larly lubricated. Apply a small amount of the included lubri­cant to the bolt and between the bracket and the upright.
HOW TO LEVEL THE ELLIPTICAL CROSSTRAINER
If the elliptical crosstrainer rocks slightly during use, turn one or both of the level­ing feet under the rear stabilizer until the the rock­ing motion is eliminated.
MAINTENANCE AND TROUBLESHOOTING
Incline Frame
Bolt
Upright
Wheel
HOW TO USE THE INFORMATION MODE
The console features an information mode that shows the total time that the elliptical crosstrainer has been used, the total distance that the pedals have moved, and whether the console is set to display speed and distance in miles or kilometers.
To select the information mode, hold down the Start Program button for three seconds. An E (for English miles) or an M (for metric kilometers) will appear in the display. (To change the unit of measurement, press the + button.) Press the Display button. The display will then show the number of hours that the elliptical exer­ciser has been used. Press the Display button again. The display will show the distance that the pedals have moved.
To exit the information mode, press the Start Program button again.
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free operation and continuously monitors your heart rate during your workouts. To purchase the optional
chest pulse sensor, call toll-free 1-800-999-3756.
Incline
Bracket
Leveling
Feet
21
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age on the bottom line of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative­ly low intensity level for a sustained period of time. During the first few minutes of exercise, your body
uses easily accessible
carbohydrate
calories for ener­gy. Only after the first few minutes of exercise does your body begin to use stored
fat
calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest num­ber in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your exercise until your heart rate is near the middle num­ber in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exer­cise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts: A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your body temperature, heart rate, and circulation in prepa­ration for exercise.
Training zone exercise, consisting of 20 to 30 min­utes of exercising with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise pro­gram, consult your physician. This is espe­cially important for persons over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
22
Note: # indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
1 1 Frame 2 1 Upright 3 1 Left Spring Arm 4 1 Right Spring Arm 5 1 Incline Frame 6 2 Crank Arm 7 1 Left Upper Body Arm 8 1 Large Pulley
9 2 Frame Bearing 10 1 Plastic Crank Spacer 11 1 Flat Delrin Washer 12 1 Idler Bracket 13 1 Pulley 14 2 Idler Bearing 15 4 Push Nut 16 1 M10 x 25mm Flat Head Bolt 17 2 M8.5 Flat Washer 18 2 Foam Grip 19 1 Arm Axle 20 2 Plastic Arm Sleeve 21 2 Chrome Tube 22 8 M10 Split Washer 23 6 Arm Bushing 24 1 Incline Bracket 25 1 M10 x 85mm Bolt 26 7 M10 Nylon Locknut 27 2 M10 Union Bolt Set 28 1 Belt 29 1 Incline Axle 30 2 M8 x 19mm Screw 31 6 Incline Bushing 32 4 Incline Frame Cap 33 2 M8 Washer 34 2 Pivot Axle Cap 35 4 Console Screw 36 1 Spring 37 1 Flywheel 38 2 Flywheel Bearing 39 1 Flywheel Axle 40 2 Pedal Disk 41 1 Left Pedal 42 1 Right Pedal 43 12 M6 x 33mm Flat Head Screw 44 2 Incline Wheel 45 2 Stabilizer Wheel 46 2 M8 Union Bolt Set 47 1 Left Side Shield 48 1 Right Side Shield 49 2 M5 x 6mm Screw 50 1 Reed Switch/Wire 51 1 Extension Wire Harness 52 1 Reed Switch Bracket 53 2 Spring Bracket 54 1 Reed Switch Clamp
55 1 Magnet 56 1 Left Rear Spring Bracket 57 1 Right Rear Spring Bracket 58 2 M8 Split Washer 59 4 Bump-on 60 4 M10 x 56mm Button Screw 61 2 M10 x 36mm Carriage Bolt 62 2 Front Stabilizer Endcap 63 2 M10 Washer 64 2 Rear Stabilizer Endcap 65 1 M10.3 Washer 66 1 “J” Bolt 67 4 Spring Bracket Bushing 68 1 Eyebolt 69 4 M5 Washer 70 1 Adjustment Bracket 71 1 M4 x 63.5mm Screw 72 7 M4 x 16mm Screw 73 7 M5 x 16mm Screw 74 2 Axle Cover 75 1 Right Upper Body Arm 76 4 Pedal Bushing 77 2 Adjustment Knob 78 2 Snap Ring 79 2 Spring Spacer 80 4 M8 Nylon Locknut 81 2 M6 Nut 82 1 Resistance Motor 83 2 Flange Screw 84 1 Battery Cover 85 1 Wire Harness 86 12 M6 Nylon Locknut 87 1 Console 88 4 M5 x 25mm Screw 89 3 Stop Nut 90 1 Front Stabilizer 91 1 Side Shield Support 92 12 M6 Split Washer 93 4 Console Washer 94 1 Rear Stabilizer 95 1 M6 x 38mm Bolt 96 1 “C” Magnet 97 4 M10 x 43mm Button Screw 98 2 Frame Endcap
99 2 Leveling Foot 100 4 M5 x 12mm Screw 101 4 M5 Nylon Locknut 102 6 Veneer Spacer 103 2 Wood Veneer
# 1 Grease # 1 Teflon
®
Lubricant # 1 Push Nut Tool # 2 Allen Wrench # 1 User’s Manual
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. NTEL79010 R1201A
EXPLODED DRAWING—Model No. NTEL79010 R1201A
23
78
88
86
76
56
92
51
92
53
86
92
76
92
77
30
58
33
40
61
41
65
31
22
90
12
14
13
14
26
28
46
67
43
3
63
103
102
43
79
45
62
16
66
83
6
29
46
80
59
26
32
62
73
59
52
32
50
97
45
72
54
31
33
31
46
46
58
31
101
30
25
80 69
15
98
31
5
24
26
27
17
34
23
27
39
26
72
20
38
32
44
27
44
27
72
55
47
49
23
74
21
2
49
23
20
92
86
86
92
21
37
15
92
7
23
84
53
34
43
19
23
87
35
74
67
75
18
23
18
48
93
71
99
64
94
85
89
70
4
103
72
73
61
42
40
72
73
73
88
100
82
11
8
95
89
22
89
9
60
60
1
98
64
81
36
73
96
91
86
79
9
10
76
6
83
57
92
76
80
78
43
17
38
102
68
80
77
63
Part No. 181500 R1201A Printed in China © 2001 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-825-2588, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:
• The MODEL NUMBER of the product (NTEL79010)
• The NAME of the product (NordicTrack
®
CXT 930 elliptical crosstrainer)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) from page 22 of this manual.
LIMITED WARRANTY
WHATIS COVERED—The entire NordicTrack®elliptical crosstrainer (“Product”) is warranted to be free of all defects in material and workmanship.
WHO IS COVERED—The original purchaser or any person receiving the Product as a gift from the original purchaser. HOW LONG IS IT COVERED—ICON Health & Fitness, Inc. (“ICON”), warrants the product for one year after the date of purchase.
Labor is covered for one year. WHATWE DO TO CORRECTCOVERED DEFECTS—We will ship to you, without charge, any replacement part or component, pro-
viding the repairs are authorized by ICON first and are performed by an ICON trained and authorized service provider, or, at our option, we will replace the Product.
WHATIS NOTCOVERED—Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assem­bly or installation, alterations, modifications without our written authorization or by failure on your part to use, operate, and maintain as set out in your User’s Manual (“Manual”).
WHATYOU MUST DO—Always retain proof of purchase, such as your bill of sale; store, operate, and maintain the Product as spec­ified in the Manual; notify our Customer Service Department of any defect within 10 days after discovery of the defect; as instruct­ed, return any defected part for replacement or, if necessary, the entire product, for repair.
USER’S MANUAL—It is VERY IMPORTANT THAT YOU READ THE MANUAL before operating the Product. Remember to do the periodic maintenance requirements specified in the Manual to assure proper operation and your continued satisfaction.
HOW TO GET PARTS AND SERVICE—Simply call our Customer Service Department at 1-888-825-2588 and tell them your name and address and the serial number of your Product. They will tell you how to get a part replaced, or if necessary, arrange for service where your Product is located or advise you how to ship the Product for service. Before shipping, always obtain a Return Authorization Number (RA No.) from our Customer Service Department; securely pack your Product (save the original shipping car­ton if possible); put the RA No. on the outside of the carton and insure the product. Include a letter explaining the product or prob­lem and a copy of your proof of purchase if you believe the service is covered by warranty.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or per­formance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoy­ment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclu­sion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
No one is authorized to change, modify or extend the terms of this limited warranty. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
