NordicTrack NTEL4255.0 User Manual

USER'S MANUAL
Serial
Number
Decal
As a manufacturer, we are commit­ted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE STORE; please contact Customer Care.
IMPORTANT: You must note the product model number and serial number (see the drawing above) before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri. 6 a.m.–6 p.m. MST Sat. 8 a.m.–4 p.m. MST
ON THE WEB: www.nordictrackservice.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
Model No. NTEL4255.0 Serial No.
Write the serial number in the space above for reference.
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
2
NordicTrack is a registered trademark of ICON IP, Inc.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
The warning decal shown here has been applied in the location shown. If the decal is missing or
illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the loca­tion shown. Note: The decal may not be shown
at actual size.
3
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your elliptical exerciser before using your elliptical ex­erciser. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program, consult your physician. This is especially im­portant for persons over the age of 35 or per­sons with pre-existing health problems.
2. It is the responsibility of the owner to ensure that all users of the elliptical exerciser are adequately informed of all precautions.
3. Your elliptical exerciser is intended for home use only. Do not use your elliptical exerciser in a commercial, rental, or institutional set­ting.
4. Keep your elliptical exerciser indoors, away from moisture and dust. Place your elliptical exerciser on a level surface, with a mat be­neath it to protect the floor or carpet. Make sure that there is enough clearance around your elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used by persons weighing more than 350 lbs. (159 kg).
8. Wear appropriate exercise clothes while ex­ercising; do not wear loose clothes that could become caught on your elliptical exer­ciser. Always wear athletic shoes for foot protection while exercising.
9. Hold the handgrip pulse sensor or the handle­bars when mounting, dismounting, or using your elliptical exerciser.
10. Keep your back straight while using your el­liptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device. Various factors, including the user’s move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
12. When you stop exercising, allow the pedals to slowly come to a stop.
13. If you feel pain or dizziness while exercising, stop immediately and cool down.
14. Use your elliptical exerciser only as de­scribed in this manual.
15. The battery pack contains materials that are considered hazardous to the environment. Proper disposal of the battery is required by federal law.
4
Congratulations for selecting the new NordicTrack
®
ELITE 1300 elliptical exerciser. The ELITE 1300 ellipti­cal exerciser is an incredibly smooth exerciser that moves your feet in a natural elliptical path, minimizing the impact on your knees and ankles. And the ELITE 1300 elliptical exerciser offers an array of features de­signed to help you achieve your fitness goals in the convenience and privacy of your home.
For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before con­tacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Handlebar
Console
Leveling Foot
Leveling Foot
Handgrip Pulse Sensor
Water Bottle Holder*
*No water bottle is included
Wheel
Pedal
Handle
BEFORE YOU BEGIN
5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the in­cluded hex keys, assembly requires an adjustable wrench .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Small
Washer (18)–4
M4 x 16mm
Screw (47)–6
M8 x 38mm Button
Bolt (58)–4
M10 x 25mm Patch
M10 Split
Washer (85)–20
M4 x 19mm
Screw (57)–2
Screw (48)–4
Wave Washer
(88)–4
M8 x 19mm Button
Screw (56)–4
M8 x 55mm Bolt
Set (92)–2
M10 Washer
(67)–14
M8 Nylon
Locknut (72)–4
M10 x 65mm Bolt
Set (94)–2
M8 Washer
(69)–4
M10 Nylon
Locknut (70)–2
M10 x 13mm Button
Screw (54)–14
M10 x 116mm Carriage Bolt (38)–2
M10 x 123mm Button Screw (87)–2
Thrust Washer
(66)–4
6
1.
Attach the Stabilizer (8) to the Frame (1) with two M10 x 116mm Carriage Bolts (38) and two M10 Nylon Locknuts (70). Tighten two Leveling Feet (36) into the underside of the Stabilizer.
2. Have another person hold the Upright (2) in the position shown. Connect the Upper Wire Harness (77) to the Lower Wire Harness (78).
Attach the Upright (2) to the Frame (1) with four M10 x 25mm Patch Screws (48) and four M10 Split Washers (85). Make sure that no wires
are pinched between the Upright and the Frame.
1
1
2
48
85
78
2
1
70
38
8
36
77
85
48
85
To make assembly easier, read the information on page 5 before you begin assembling the elliptical exerciser.
7
3. Attach the Track Frame (4) to the Frame (1) with two M10 x 123mm Button Screws (87) and two M10 Split Washers (85). Finger tighten a Button Screw into the lower hole first, and then finger tighten a Button Screw into the upper hole. Then, tighten both Button Screws. Note: This step may be easier if you raise the Frame a few inches in the location shown by the arrow at the right while you attach the Track Frame.
See the inset drawing, tighten two Leveling Feet (36) into the underside of the Track Frame (4).
85
4
1
87
85
87
3
4
36
4. Apply a small amount of the included grease to the sides of two Wave Washers (88) and two Thrust Washers (66).
Slide a Weld Spacer (89) onto the Left Crank Arm (83). Next, identify the Left Track Arm (12), which is marked with an “L.” Orient the Left Track Arm as shown, and slide it onto the Left Crank Arm. Then, slide a Wave Washer (88) on the end of the Left Crank Arm.
Slide an M8 Small Washer (18) and an Axle Cap (41) onto an M8 x 19mm Button Screw (56). Next, slide a Thrust Washer (66) onto the shoul­der of the Axle Cap. Then, tighten the Button Screw into the end of the Left Crank Arm (83).
Make sure that the Thrust Washer remains on the shoulder of the Axle Cap, and that the Wave Washer (88) remains on the end of the Left Crank Arm.
Repeat this step to attach the Right Track Arm (11) to the right side of the elliptical exerciser.
11
4
83
89
88
41
56
12
18
66
Grease
8
5. Attach a Pedal (21) to the Left Pedal Leg (14) with seven M10 x 13mm Button Screws (54), seven M10 Split Washers (85), and seven M10 Washers (67).
Attach the other Pedal (not shown) to the Right Pedal Leg (not shown) in the same way.
5
21
67
67
85
85
54
54
14
6. Apply a thin film of grease to the barrel of an M10 x 65mm Bolt Set (94). Next, fit the bracket on the Left Pedal Leg (14) onto the bracket on the Left Track Arm (12). Attach the Left Pedal Leg to the Left Track Arm with the Bolt Set.
Attach the Right Pedal Leg (not shown) to the Right Track Arm (not shown) in the same way.
12
94
Grease
14
94
6
9
7. Identify the Left Handlebar (19), which is marked with an “L.” Insert the Left Handlebar into one of the Handlebar Legs (17). Next, turn the Left
Handlebar and the Handlebar Leg so that the wide side of the pivot tube on the Left Handlebar is above the hexagonal holes in the Handlebar Leg. Attach the Left Handlebar
with two M8 x 38mm Button Bolts (58) and two M8 Nylon Locknuts (72). Make sure that the
Nylon Locknuts are inside of the hexagonal holes. Do not tighten the Button Bolts yet.
Assemble the Right Handlebar (20) and the other Handlebar Leg (17) in the same way.
7
8. Apply a small amount of grease to the sides of two Wave Washers (88) and two Thrust Washers (66).
Slide the Left Handlebar (19) onto the Handlebar Axle (16) as shown. Next, slide a Wave Washer (88) onto the end of the Handlebar Axle.
Slide an M8 Small Washer (18) and an Axle Cap (41) onto an M8 x 19mm Button Screw (56). Next, slide a Thrust Washer (66) onto the shoul­der of the Axle Cap. Then, tighten the Button Screw into the end of the Handlebar Axle (16).
Make sure that the Thrust Washer remains on the shoulder of the Axle Cap, and that the Wave Washer (88) remains on the end of the Handlebar Axle.
Assemble the Right Handlebar (20) in the same way. Then, tighten both M8 x 19mm Button Screws (56) at the same time.
8
1
56
18
56
41
41
88
88
16
20
66
18
19
66
19
20
58
58
72
17
17
Hexagonal
Holes
Wide side of
pivot tube
Grease
10
9. Apply a film of grease to the barrel of an M8 x 55mm Bolt Set (92) and to a 7mm Spacer (55). Slide an M8 Washer (69) and the Spacer onto the barrel.
While another person holds the front end of the Left Pedal Leg (14) inside of the bracket on the left Handlebar Leg (17), insert the barrel of the Bolt Set (92) through both parts. Next, slide a 7mm Spacer (55) and an M8 Washer (69) onto the end of the barrel of the Bolt Set. Then, turn the screw of the Bolt Set a few turns into the barrel. Do not overtighten the Bolt Set; the
left Handlebar Leg must be able to pivot freely.
Attach the right Handlebar Leg (not shown) to the Right Pedal Leg (not shown) in the same way.
See step 7. Tighten the four M8 x 38mm Button Screws (58).
10. While another person holds the Display Console (74) and the Control Console (75) near the Upright (2), connect the Pulse Jumper Wire (76) to the console pulse wire, and the Upper Wire Harness (77) to the console wire harness. Insert the excess wires into the Upright.
Set the Consoles (74, 75) on the Upright (2). Attach the Consoles with six M4 x 16mm Screws (47). Make sure that no wires are pinched. Do
not tighten the Screws yet.
14
9
10
2
92
17
92
55
55
69
69
47
47
77
76
75
74
Grease
11
11. Attach the Water Bottle Holder (26) to the Upright (2) with two M4 x 19mm Screws (57).
See step 10. Tighten the six M4 x 16mm Screws (47).
11
2
26
57
12. Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the el­liptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
12
To get the best performance from the chest pulse sen­sor, please read the instructions below.
HOW TO PUT ON THE CHEST PULSE SENSOR
The chest pulse sensor consists of two components: the chest strap and the sensor unit. Follow the steps below to put on the chest pulse sensor.
See the inset drawing above. Insert the tab on one end of the chest strap through the hole in one end of the sensor unit as shown.
Wrap the chest pulse sensor around your chest. Attach the free end of the chest strap to the sensor unit as described above. Adjust the length of the chest strap, if necessary. The chest pulse sensor should be under your clothing, against your skin, and as high under the pectoral mus­cles or breasts as is comfortable. Make sure that the logo is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches and locate the two electrode areas on the inner side. Using a saline solution
such as saliva or contact lens solution, wet both elec­trode areas. Then, return the sensor unit to a position against your chest.
CHEST PULSE SENSOR TROUBLESHOOTING
If the chest pulse sensor does not function prop­erly, or if the displayed heart rate is excessively high or low, try the steps below.
• Make sure that the chest pulse sensor is worn ex­actly as described at the left. If the chest pulse sen­sor does not function when positioned as described, move it slightly lower or higher on your chest.
• Each time you use the chest pulse sensor, use saline solution such as saliva or contact lens solution to wet the two electrode areas on the sensor unit. If heart rate readings do not appear until you begin perspiring, re-wet the electrode areas.
• Make sure that you are within arm’s length of the console. For the console to display heart rate
readings, the user must be within arm’s length of the console.
• The chest pulse sensor is designed to work with people who have normal heart rhythms. Heart rate reading problems may be caused by medical condi­tions such as premature ventricular contractions (pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be af­fected by magnetic interference caused by high power lines or other sources. If it is suspected that magnetic interference may be causing a problem, try relocating your exercise equipment.
• If the chest pulse sensor still does not function prop­erly, test the chest pulse sensor in the following way:
Hold the chest pulse sensor and place your thumbs over the electrode areas as shown.
Chest Strap
Sensor Unit
Tab
Buckle
Electrode Areas
Sensor
Unit
Electrode Areas
Logo
HOW TO USE THE CHEST PULSE SENSOR
13
Next, hold the chest pulse sensor near the console. While holding one thumb stationary, begin tapping the other thumb against the electrode area at a rate of about one tap per second. Check the heart rate reading on the console.
If the chest pulse sensor does not function properly
after you have followed all of the above instructions, replace the battery in the following way:
Locate the battery cover on the back of the sensor unit. Insert a coin into the slot in the cover, turn the cover counterclock­wise, and remove the cover.
Remove the old bat­tery and insert a new CR 2032 battery.
Make sure that the battery is turned so the writing is on top. Reattach the
battery cover and turn it clockwise to close it.
CHEST PULSE SENSOR CARE
• Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the electrode areas are wetted and the chest pulse sen­sor is put on; the chest pulse sensor shuts off when it is removed and the electrode areas are dried. If the chest pulse sensor is not dried after each use, it may remain activated longer than necessary, drain­ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct sun-
light for extended periods of time. Do not expose the chest pulse sensor to temperatures above 122° Fahrenheit (50° Celsius) or below 14° Fahrenheit (-10° Celsius).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest strap may be hand washed and air dried.
CR 2032
Battery
14
HOW TO MOVE AND LEVEL THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical exer­ciser, moving it requires two persons. With the help
of another person, lift the handle on the rear of the el­liptical exerciser until the elliptical exerciser will roll on the front wheels. Carefully move the elliptical exerciser to the desired location and then lower it.
CAUTION: To decrease the risk of injury, bend your legs and keep your back straight. Make sure to use your legs rather than your back to lift the elliptical exerciser. Do not attempt to move the elliptical ex­erciser over an uneven surface.

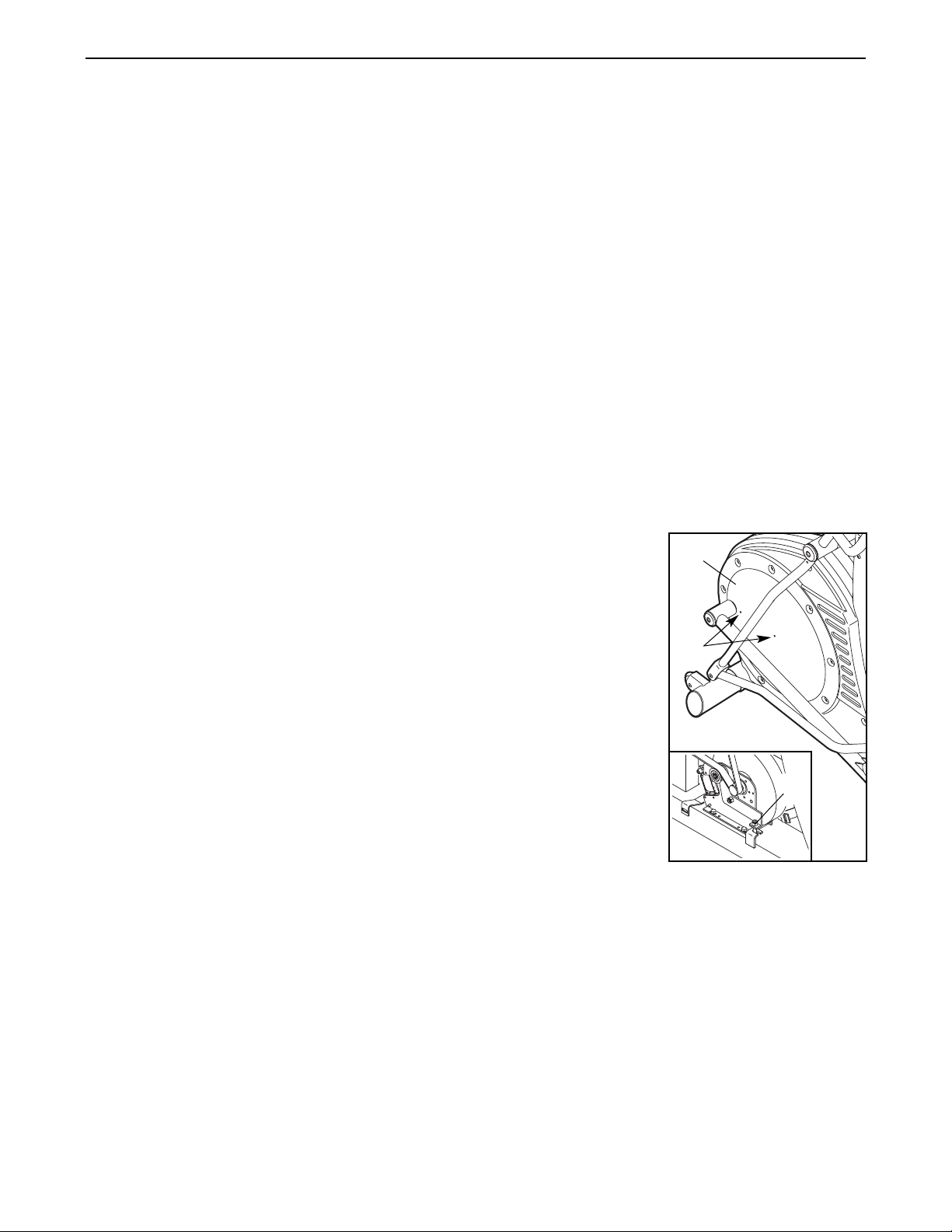

If the elliptical exerciser rocks slightly on your floor, see the inset drawings and turn the leveling feet under the front and rear of the elliptical exerciser until the rocking motion is eliminated.
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars and step onto the pedal that is in the lowest position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.
To dismount the elliptical exerciser, wait until the ped­als come to a complete stop. The elliptical exerciser
does not have a free wheel; the pedals will con­tinue to move until the flywheel stops. When the
pedals are stationary, step off the highest pedal first. Then, step off the lowest pedal.
Lift
Here
Wheel
Leveling
Feet
Leveling
Foot
HOW TO OPERATE THE ELLIPTICAL EXERCISER
15
FEATURES OF THE CONSOLE

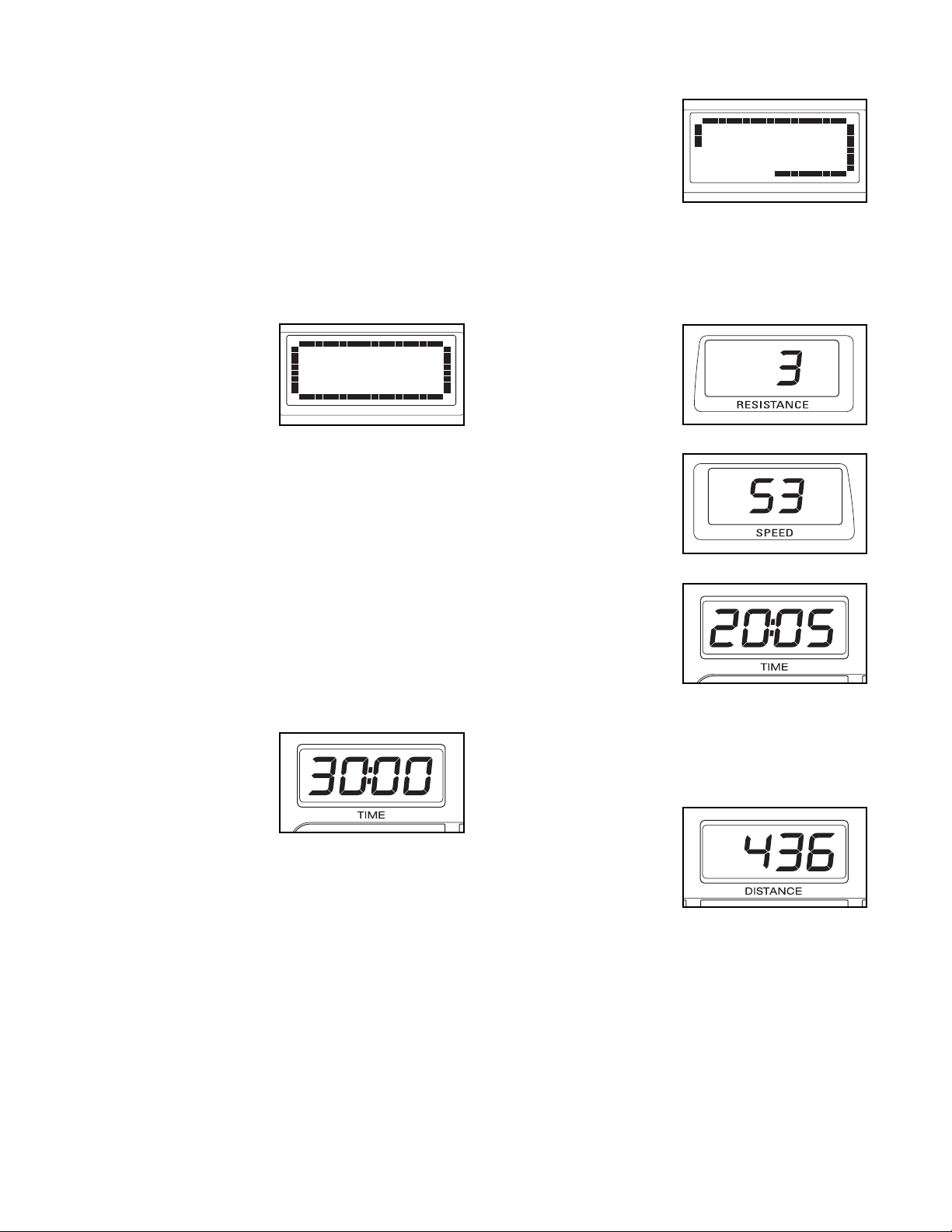

The advanced console offers a selection of features designed to make your workouts more effective. When the manual mode of the console is selected, the resis­tance of the pedals can be changed with the touch of a button. As you pedal, the console will provide continu­ous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor or the chest pulse sensor.
The console also features personal goal programming that allows you to choose a goal for your workout. As you exercise, the console will display feedback until the goal is reached.

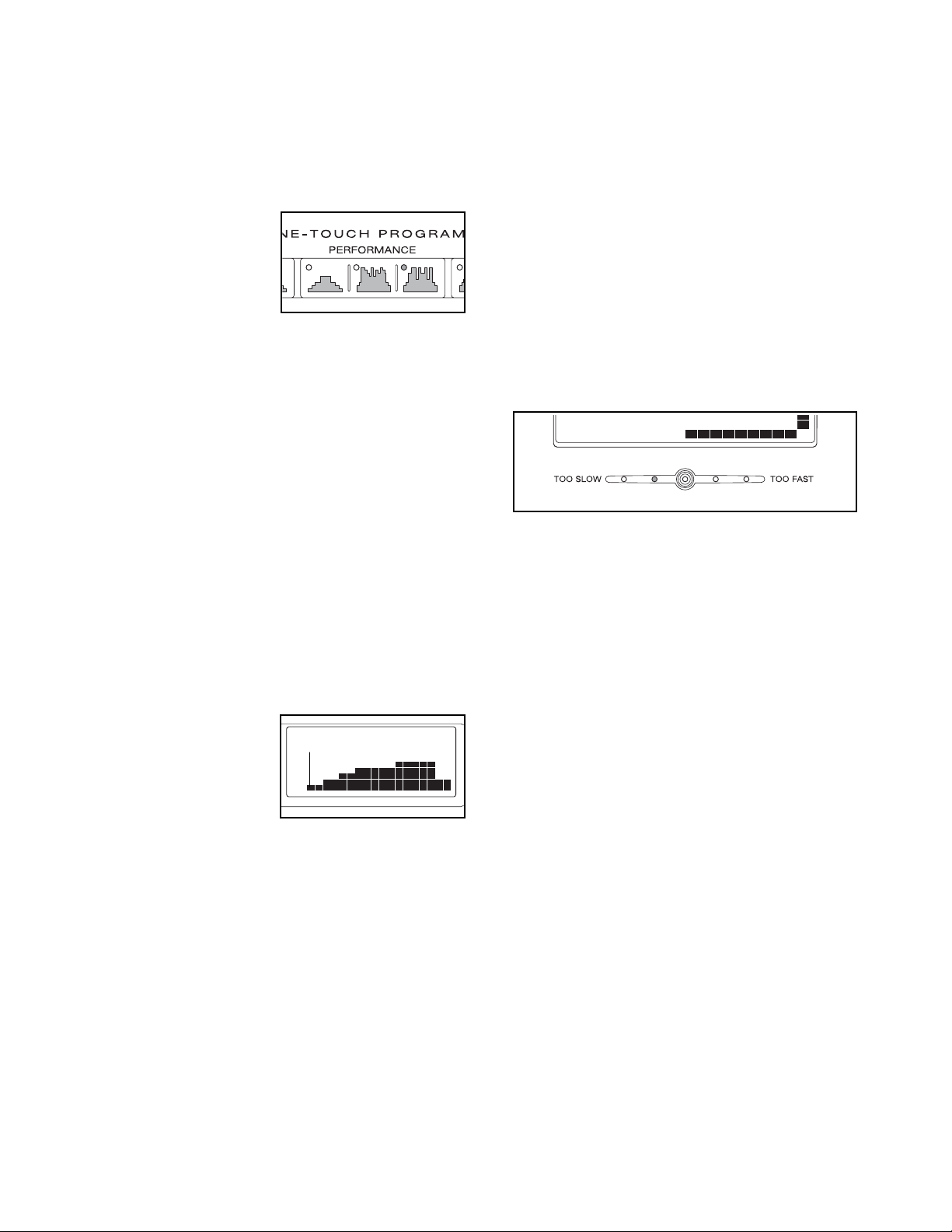

In addition, the console offers nine preset programs. Each program automatically changes the resistance of

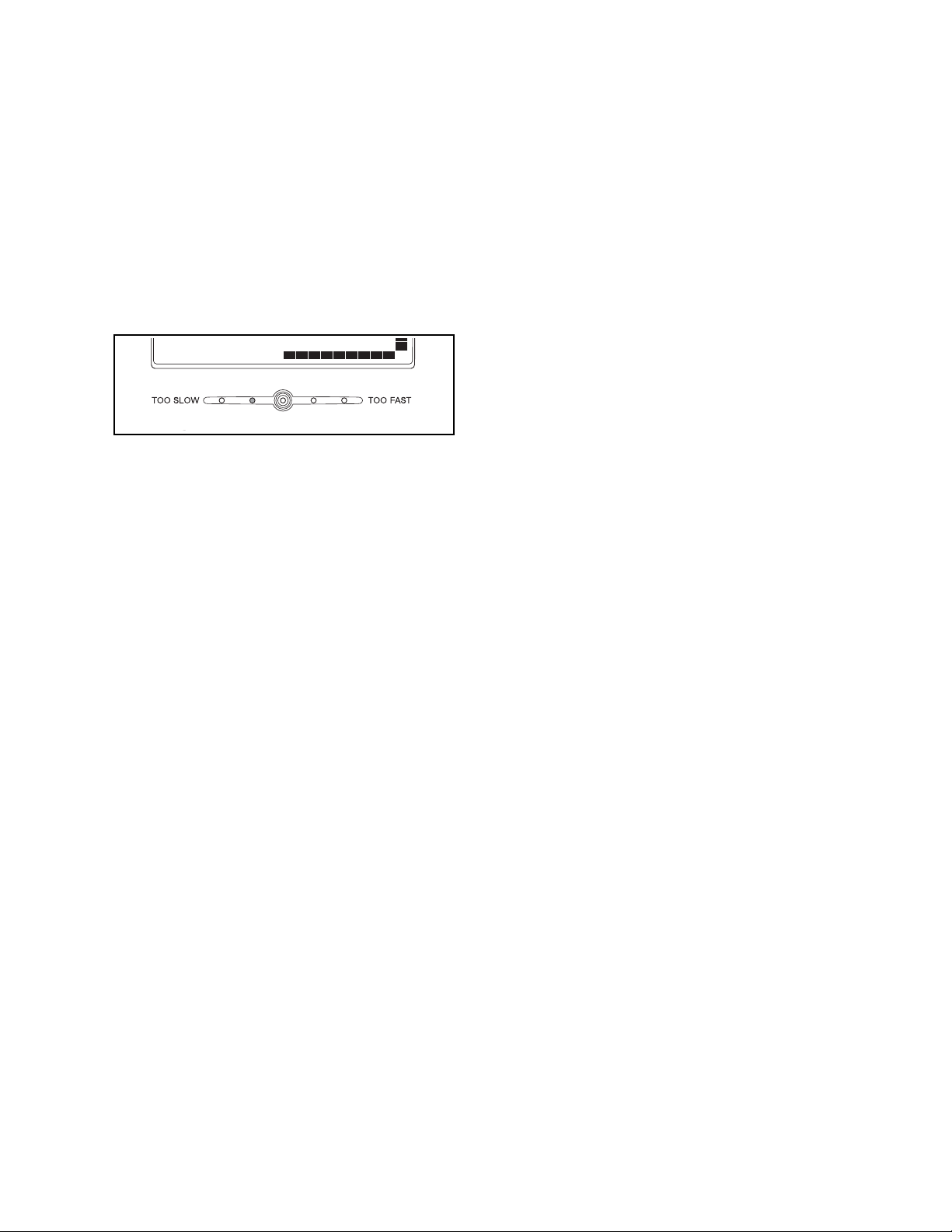

the pedals and prompts you to increase or decrease your pace as it guides you through an effective work­out.

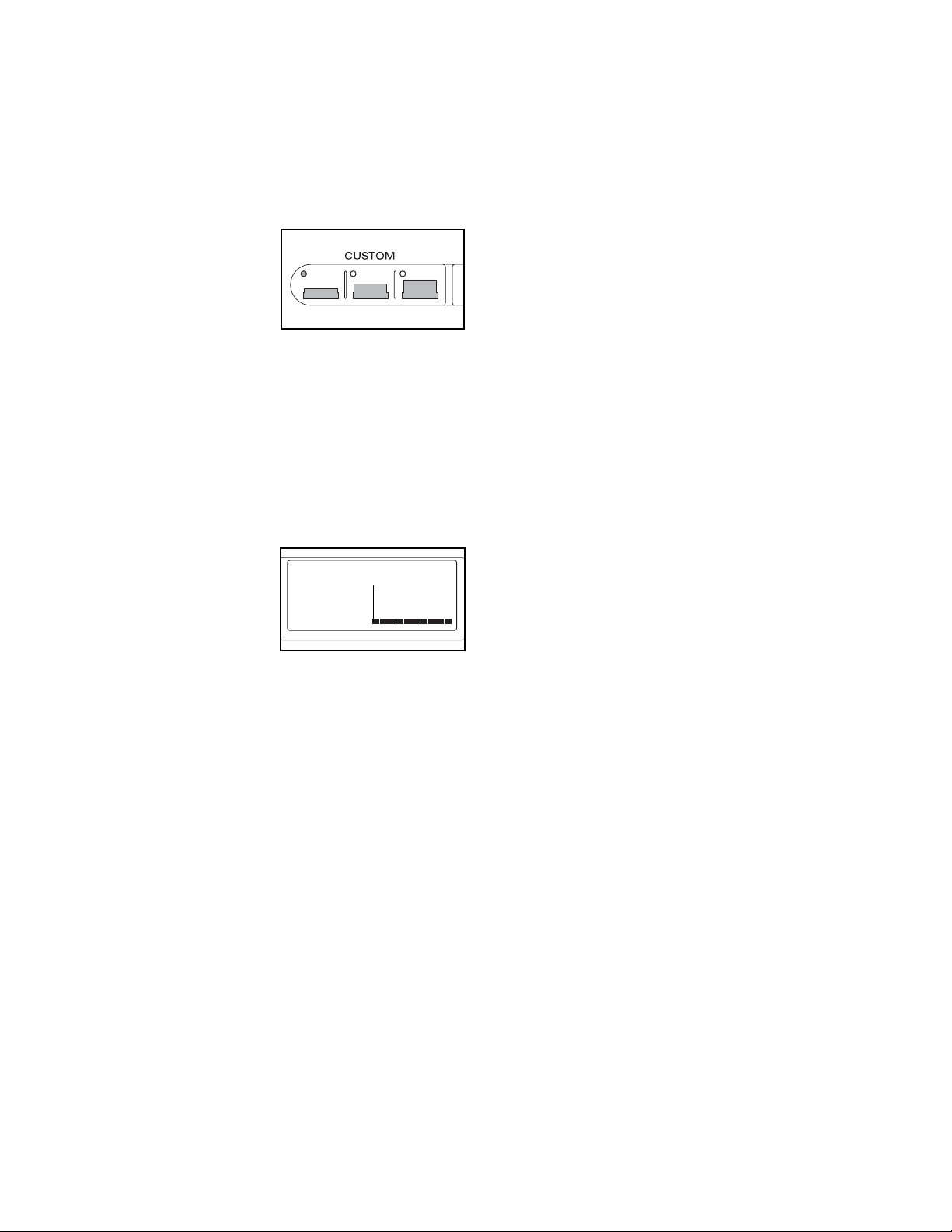

You can even create your own custom workout pro­grams and save them in memory for future use.

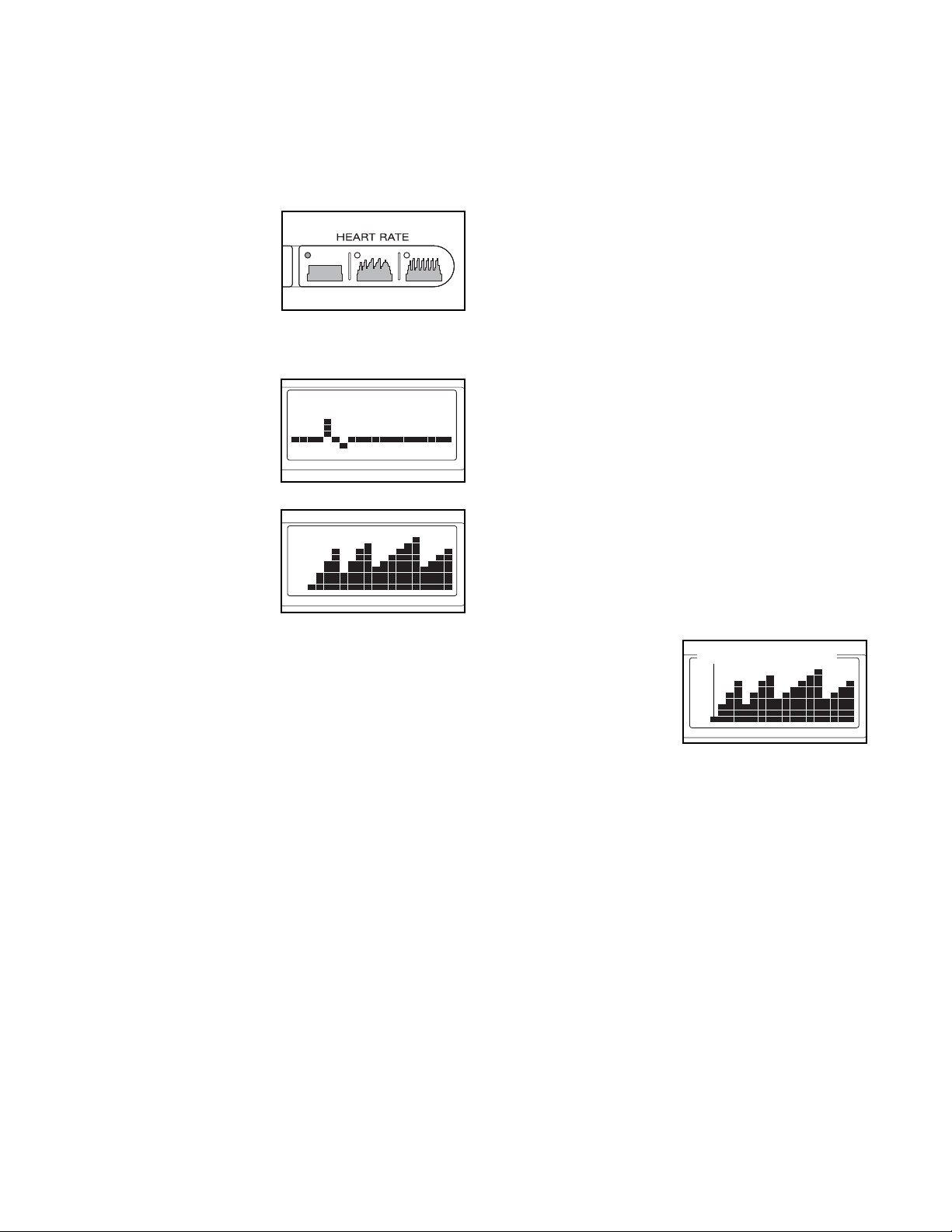

The console also features three heart rate programs that automatically change the resistance of the pedals to keep your heart rate near a target heart rate as you exercise.
To use the manual mode of the console, see page
16. To create and use a custom program, see page
18. To use a preset program, see page 19. To use a
heart rate program, see page 20.
DIAGRAM OF THE CONSOLE
16
HOW TO USE THE MANUAL MODE
1. Begin pedaling to activate the console.
The elliptical exerciser requires no batteries or external power source. Power is supplied by a generator while you are pedaling. To activate
the console, begin pedaling at a moderate pace. After a few seconds, the console displays will light. A tone will then sound and the console will be ready for use.
2. Select the manual mode.
When the power is turned on, the man­ual mode will be selected and a track will appear in the display. If you have selected a program, reselect the manual mode by pressing the Manual button.
3. Set a workout goal if desired.
If you do not wish to set a workout goal, go to step
4.
To set a time, distance, or calorie goal for your workout, press the increase and decrease buttons below the Time, Distance, or Calories display. To set a goal quickly, hold down the increase and de­crease buttons. You can set one goal for each
workout.
For example, if you plan to exercise for 30 minutes, press the increase and decrease buttons below the Time dis­play until the dis­play shows a goal of “30:00.”
Note: To set a pulse goal, see HOW TO USE A HEART RATE PROGRAM on page 20.
4. Begin pedaling and change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the One-touch Resistance buttons if desired. Note: After the One-touch Resistance buttons are pressed, it will take a moment for the pedals to reach the selected resistance level.
5. Monitor your progress with the displays.
The matrix—When
the manual mode is selected, the matrix will show a track representing 1/4 mile. As you exer­cise, the indicators around the track will light in succession until the entire track is lit. The track will then darken and the indicators will again begin to light in succes­sion.
The Resistance display—This dis-
play will show the resistance level of the pedals.
The Speed display—This dis-
play will show your pedaling speed, in revolutions per minute.
The Time display—If no time
goal was set, this display will show the elapsed time. If a time goal was set, the display will show the time remaining in your workout. Note: When a program is selected (except for the first heart rate program), the display will show the time remaining in the program.
The Distance dis­play—If no dis-
tance goal was set, this display will show the distance that you have ped­aled, in total revolu­tions. If a distance goal was set, the display will show the distance still to be pedaled during your workout.
17
The Calories dis­play—If no calorie
goal was set, this display will show the approximate number of calories you have burned. If a calories goal was set, the display will show the number of calories still to be burned during your workout.
The Pulse display—This dis-
play will show your heart rate when you use the handgrip pulse sensor or the chest pulse sensor (see step 6 below).
Note: You can se­lect any of three backlight modes for the displays. The “On” mode keeps the backlight on while the console is on. The “Off” mode turns the backlight off. The “Auto” mode keeps the backlight on only while you are exercising. To change the backlight mode, first hold down the Start button for a few seconds. The current backlight mode will appear in the Calories display. Next, press the One-touch Resistance 1 button to change the backlight mode. Then, press the Start button.
6. Measure your heart rate if desired.
To use the chest pulse sensor, see page 10. To use the handgrip pulse sensor, follow the instruc­tions below. Note: If you wear the chest pulse
sensor and hold the handgrip pulse sensor at the same time, the console will not display your heart rate accurately.
If there are sheets of clear plastic on the metal contacts on the hand­grip pulse sen­sor, peel off the plastic.
Place your hands on the handgrip pulse sensor, with your palms on the contacts. Avoid moving your hands. When your pulse is detected, one or two dashes will appear in the Pulse display and then your heart rate will be shown.
For the most accurate heart rate reading, continue to hold the handgrips for about 30 seconds.
If your heart rate is not shown, make sure that your hands are positioned as described. Avoid moving your hands excessively or squeezing the metal contacts too tightly. For optimal performance, peri­odically clean the metal contacts using a soft cloth;
never use alcohol, abrasives, or chemicals.
7. When you are finished exercising, the console will automatically turn off.
If the pedals are not moved for a few seconds, a series of tones will sound, the Time display will begin to flash, and the console will pause.
If the pedals are not moved for a few minutes, the console will turn off and the displays will be reset.
Contacts
18
HOW TO CREATE AND USE A CUSTOM PROGRAM
1. Turn on the console.
See step 1 on page 16.
2. Select a custom program.
To select a custom program, press one of the three Custom buttons. When a Custom button is pressed, the indica­tor on the button will light.
Note: If the custom program has not yet been defined, see step 3 to create the program. If the program is already defined, see step 4 to use the program.
3. Press the Start button or begin pedaling to start the program.
Refer to the matrix. Each custom pro­gram is divided into 40 one-minute seg­ments. One resis­tance setting and one pace setting can be programmed for each segment. The resis­tance setting for the first segment will be shown in the flashing Current Segment column of the matrix. (The pace settings are not shown in the matrix.) To program a resistance setting and a pace setting for the first segment, simply adjust the resistance of the pedals as desired by pressing the One-touch Resistance buttons and pedal at the desired pace.
When the first segment of the program ends, a se­ries of tones will sound and the current resistance setting and the current pace setting will be saved in memory.
The columns of indicators will then move
one column to the left,
and the resistance setting for the second segment will be shown in the flash­ing Current Segment column. Program a resis­tance setting and a pace setting for the second segment as described above.
Continue programming resistance and pace set­tings for as many segments as desired; custom programs can have up to 40 segments.
4. Press the Start button or begin pedaling to start the program.
The custom program will function in almost the same way as a preset program (see steps 3 and 4 on page 19).
If desired, you can redefine the program while using it. To change the resistance or pace set- ting for the current segment, simply press the One-touch Resistance buttons or change your ped­aling pace. When the current segment ends, the new setting will be saved in memory.
5. Monitor your progress with the displays.
See step 5 on page 16.
6. Measure your heart rate if desired.
See step 6 on page 17.
7. When you are finished exercising, the console will automatically turn off.
See step 7 on page 17.
Current Segment
19
HOW TO USE A PRESET PROGRAM
1. Turn on the console.
See step 1 on page 16.
2. Select a preset program.
To select a preset program, press one of the Aerobic, Performance, or Endurance buttons. When an Aerobic, Performance, or Endurance button is pressed, the indicator on the button will light. When a preset program is se­lected, a profile of the first several resistance set­tings of the program will appear in the matrix, the program time will appear in the Time display, the maximum resistance setting of the program will flash in the Resistance display, and the maximum speed setting of the program will flash in the Speed display for a few seconds.
3. Press the Start button or begin pedaling to start the program.
Each program is divided into either 20 or 30 one­minute segments. One resistance setting and one pace setting are programmed for each segment. Note: The same resistance setting and/or target pace may be programmed for two or more consec­utive segments.
When you start the program, the resis­tance setting for the first segment will be shown in the flash­ing Current Segment column of the matrix. The resistance settings for the next sev­eral segments will be shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash, a se­ries of tones will sound, and the time will flash in the Time display. When the first segment ends,
all
resistance settings will move one column to the left.
The resistance setting for the second segment will then be shown in the flashing Current Segment column and the resistance of the pedals will auto­matically change to the resistance setting for the second segment.
The program will continue until no time remains in the Time display.
4. Use the pace guide to pace your exercise.
Throughout the program, the pace guide will prompt you to increase or decrease your pedaling pace. When one of the “Too Slow” indicators lights, increase your pace; when one of the “Too Fast” in­dicators lights, decrease your pace. When the cen­ter indicator lights, maintain your current pace.
IMPORTANT: The pace guide is intended only to provide a goal. Make sure to pedal at a pace that is comfortable for you.
If you stop pedaling for several seconds, a tone will sound and the program will pause. To restart the program, simply resume pedaling.
5. Monitor your progress with the displays.
See step 5 on page 16.
6. Measure your heart rate if desired.
See step 6 on page 17.
7. When you are finished exercising, the console will automatically turn off.
See step 7 on page 17.
Current Segment
20
HOW TO USE A HEART RATE PROGRAM
1. Turn on the console.
See step 1 on page 16.
2. Select a heart rate program.
To select a heart rate program, press one of the three Heart Rate buttons. When a Heart Rate button is pressed, the indicator on the button will light.
If the first heart rate program is se­lected, a pulse sym-
bol will appear in the matrix.
If the second or third heart rate program is se­lected, a profile of
the first several tar­get heart rate set­tings of the program will appear in the matrix.
3. Enter a target heart rate setting.
If the first heart rate program is selected, the
target heart rate setting for the program will flash in the Pulse display. If desired, press the increase and decrease buttons below the Pulse display to change the target heart rate setting (see EXER- CISE INTENSITY on page 23). Note: The same target heart rate setting will be programmed for all segments.
If the second or third heart rate program is se­lected, the maximum target heart rate setting of
the program will flash in the Pulse display. If de­sired, press the increase and decrease buttons below the Pulse display to change the maximum target heart rate setting (see EXERCISE INTEN- SITY on page 23). Note: If the maximum target heart rate setting is changed, the intensity level of the entire program will change.
4. Put on the chest pulse sensor or hold the hand­grip pulse sensor.
To use a heart rate program, you must wear the chest pulse sensor or use the handgrip pulse sen­sor. If you use the handgrip pulse sensor, it is not necessary to hold the handgrips continuously dur­ing the program; however, you should hold the handgrips frequently for the program to operate properly. Each time you hold the handgrips,
keep your hands on the metal contacts for at least 30 seconds. Note: When you are not holding
the handgrips, the letters “PLS” will flash in the Pulse display instead of your heart rate.
5. Press the Start button to start the program.
The first heart rate program—This program is di-
vided into 100 one-minute segments. The same target heart rate setting is programmed for all seg­ments. Note: For a shorter workout, stop exercising or select a different program before the program ends.
The second and third heart rate programs— These programs are divided into 30 one-minute segments. One target heart rate setting is pro­grammed for each segment. Note: The same tar­get heart rate setting may be programmed for two or more consecutive segments.
The target heart rate setting for the first segment will be shown in the flash­ing Current Segment column of the ma­trix. The target heart rate settings for the next several segments will be shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash, a se­ries of tones will sound, and
all target heart rate
settings will move one column to the left.
The tar­get heart rate setting for the second segment will then be shown in the flashing Current Segment column.
Current Segment
21
Both heart rate programs—As you pedal, the
console will regularly compare your heart rate to the target heart rate setting. If your heart rate is too far below or above the target heart rate setting, the resistance of the pedals will automatically increase or decrease to bring your heart rate closer to the target heart rate setting.
After the first segment ends, the pace guide will prompt you to maintain a constant pedaling pace. When one of the “Too Slow” indicators lights, in­crease your pace; when one of the “Too Fast” indi­cators lights, decrease your pace. When the center indicator lights, maintain your current pace.
IMPORTANT: The target heart rate settings are intended only to provide motivation. Make sure to exercise at a pace that is comfortable for you.
Note: During the program, you can manually over­ride the resistance setting for the current segment, if desired, with the One-touch Resistance buttons. However, when the console compares your heart rate to the target heart rate setting, the resistance of the pedals may automatically increase or de­crease to bring your heart rate closer to the target heart rate setting.
If you stop pedaling for several seconds, a tone will sound and the program will pause. To restart the program, simply resume pedaling.
6. Monitor your progress with the displays.
See step 5 on page 16.
7. When the program is finished, the console will automatically turn off.
See step 7 on page 17.
22
Most problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual.
WEEKLY MAINTENANCE
Inspect and properly tighten all external parts of the el­liptical exerciser. Clean the elliptical exerciser with a small amount of mild multi-purpose cleaner applied to a 100% cotton cloth. When cleaning the elliptical exer­ciser, pay special attention to the track and the wheels. Remove all debris from the track. Clean the pedal cov­ers with a soft nylon brush. Do not use acidic clean-
ers. Never spray any cleaner directly onto the ellip­tical exerciser.
TROUBLESHOOTING
1. SYMPTOM: THE ELLIPTICAL EXERCISER IS NOT LEVEL
If the elliptical exerciser rocks slightly during use, see HOW TO MOVE AND LEVEL THE ELLIPTI­CAL EXERCISER on page 14.
2. SYMPTOM: THE PULSE SENSOR DOES NOT FUNCTION PROPERLY
If the chest pulse sensor does not function properly, see CHEST PULSE SENSOR TROUBLESHOOT­ING on pages 12 and 13.
If the handgrip pulse sensor does not function prop­erly, see step 6 on page 17.
3. SYMPTOM: THE PEDAL DISCS RUB AGAINST THE SIDE SHIELDS
If a pedal disc rubs against a side shield, loosen the side shield mounting screws and move the side shield slightly until the pedal disc stops rubbing. Then, retighten the side shield mounting screws.
4. SYMPTOM: THE PEDAL WHEELS SQUEAK
If the pedal wheels squeak, use a 100% cotton cloth to remove debris from the track and the wheels. If the pedal wheels continue to squeak, apply a light coat of silicone-based lubricant to the track.
5. SYMPTOM: THE CONSOLE TURNS OFF AS SOON AS YOU STOP PEDALING
If the console turns off as soon as you stop pedal­ing, the battery pack may not be charged. The longer you pedal, the longer the battery pack will re­tain a charge. It may be necessary to pedal for a few minutes to charge the battery pack each time you exercise. If the console turns off as soon as you stop pedaling, even after you have pedaled for sev­eral minutes, call the telephone number on the front cover of this manual immediately.
6. SYMPTOM: THE PEDALS SLIP DURING USE
If the pedals slip during use, the drive belt is slip­ping. Follow the instructions below to adjust the ten­sion of the drive belt.
First, remove the two M6 x 16mm Button Screws (49) attaching the left Pedal Disc (5). Without removing the Pedal Disc, pivot it out of the way.
Next, locate the M10 Flange Nut (95). Turn the Flange Nut clock­wise until the ped­als no longer slip during the power stroke.
Reattach the Pedal Disc (5).
MAINTENANCE AND TROUBLESHOOTING
49
5
95
23
These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

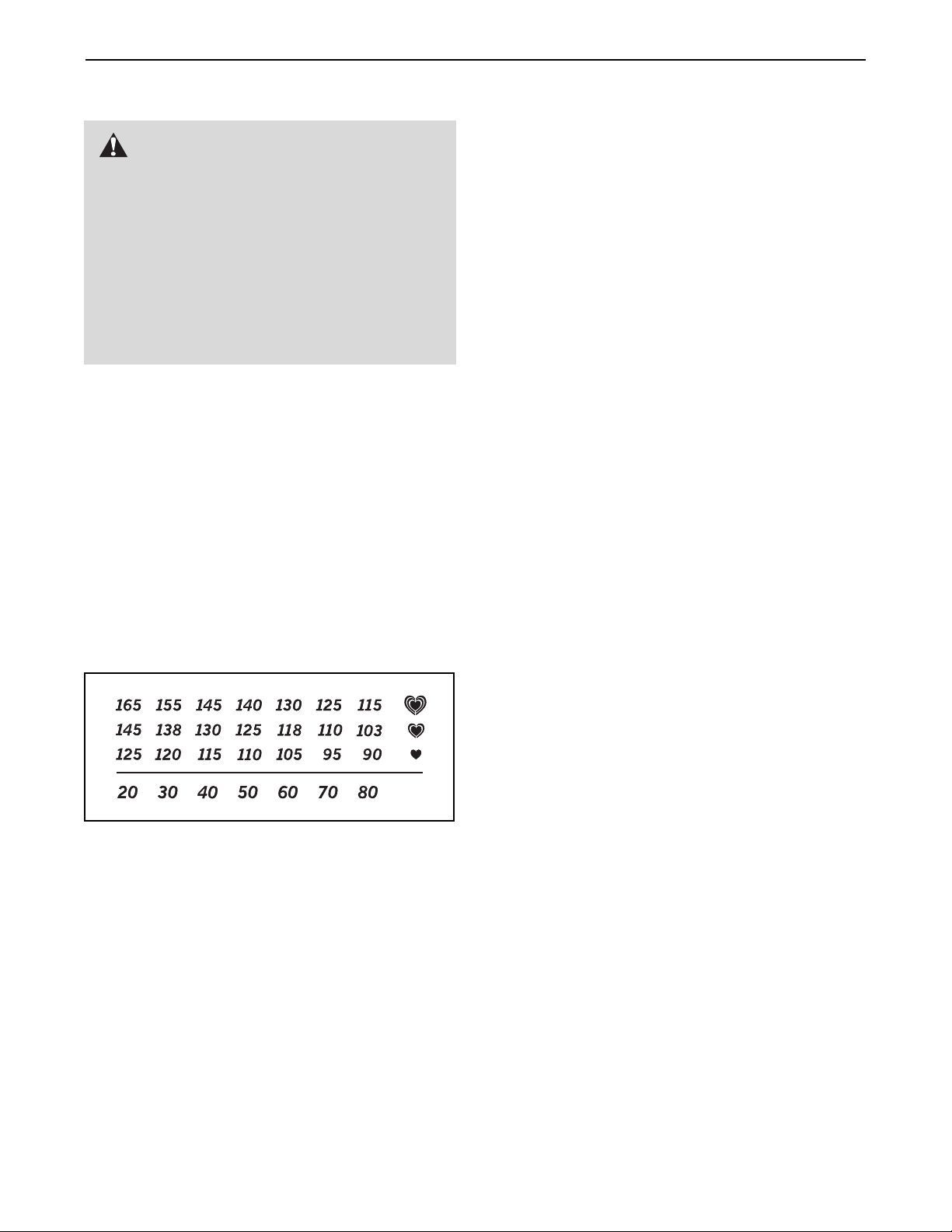

EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper inten­sity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the near­est ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer­cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses
carbohydrate calories
for energy. Only after the first few minutes of exercise does your body begin to use stored
fat calories
for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exer­cise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic ex­ercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 min­utes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of stretch­ing. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months of regular exer­cise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for persons over the age of 35 or persons with pre-exist­ing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is in­tended only as an exercise aid in determining heart rate trends in general.
24
1 1 Frame 2 1 Upright 3 2 Track 4 1 Track Frame 5 2 Pedal Disc 6 1 Left Side Shield 7 1 Right Side Shield 8 1 Stabilizer
9 1 Crank 10 1 Crank Spacer 11 1 Right Track Arm 12 1 Left Track Arm 13 1 Right Pedal Leg 14 1 Left Pedal Leg 15 1 Drive Belt 16 1 Handlebar Axle 17 2 Handlebar Leg 18 4 M8 Small Washer 19 1 Left Handlebar 20 1 Right Handlebar 21 2 Pedal 22 2 Transport Wheel 23 2 Handlebar Foam 24 10 Plastic Insert 25 1 Pulley 26 1 Water Bottle Holder 27 4 6mm Spacer 28 2 Set Screw 29 1 Idler 30 1 Generator 31 4 Wheel 32 1 Control Board 33 2 Pulse Grip 34 10 Bearing Cradle 35 4 Endcap 36 5 Leveling Foot 37 4 M6 Split Washer 38 2 M10 x 116mm Carriage Bolt 39 2 Handlebar Cap 40 4 Ramp Screw 41 4 Axle Cap 42 12 Bearing 43 1 Controller Bracket 44 1 Short Crank Spacer 45 2 Snap Ring 46 4 Wheel Bushing 47 8 M4 x 16mm Screw 48 4 M10 x 25mm Patch Screw 49 8 M6 x 16mm Button Screw 50 2 M8 x 56mm Button Screw
51 4 Crank Screw 52 8 Stand Off 53 2 M6 x 12mm Button Screw 54 14 M10 x 13mm Button Screw 55 4 7mm Spacer 56 4 M8 x 19mm Button Screw 57 2 M4 x 19mm Screw 58 4 M8 x 38mm Button Bolt 59 20 M5 x 16mm Screw 60 4 16mm Spacer 61 2 M8 x 48mm Bolt 62 2 3mm Spacer 63 8 Pedal Bushing 64 4 Long Side Shield Spacer 65 2 Key 66 4 Thrust Washer 67 14 M10 Washer 68 1 Battery Pack 69 12 M8 Washer 70 2 M10 Nylon Locknut 71 1 Tension Bolt 72 15 M8 Nylon Locknut 73 1 Short Side Shield Spacer 74 1 Display Console 75 1 Control Console 76 1 Pulse Jumper Wire 77 1 Upper Wire Harness 78 1 Lower Wire Harness 79 1 Controller Wire Harness 80 1 Ground Wire 81 1 Generator Coil Wire 82 1 Electromagnet Wire 83 1 Left Crank Arm 84 1 Right Crank Arm 85 20 M10 Split Washer 86 4 M8 Split Washer 87 2 M10 x 123mm Button Screw 88 4 Wave Washer 89 3 Weld Spacer 90 4 Small Bearing Cradle 91 12 Small Bearing 92 2 M8 x 55mm Bolt Set 93 2 Wheel Bolt 94 2 M10 x 65mm Bolt Set 95 1 M10 Flange Nut 96 4 M6 Washer
* User’s Manual * Hex Key * Grease Packet
Key No. Qty. Description Key No. Qty. Description
Note: Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts. *These parts are not illustrated.
PART LIST—Model No. NTEL4255.0 R0208A
25
26
74
48
35
34
30
49
1
36
36
32
15
82
81
80
79
78
77
76
42
85
75
68
71
3
3
24
40
40
40
24
4
47
57
2
47
47
47
47
33
33
85
48
85
85
50
46
46
22
72
46
22
46
50
40
36
24
24
24
8
24
42
16
45
45
47
87
43
38
27
29
52
27
27
27
35
35
35
34
52
52
52
47
95
72
70
70
37
37
96
96
69
69
69
69
87
85

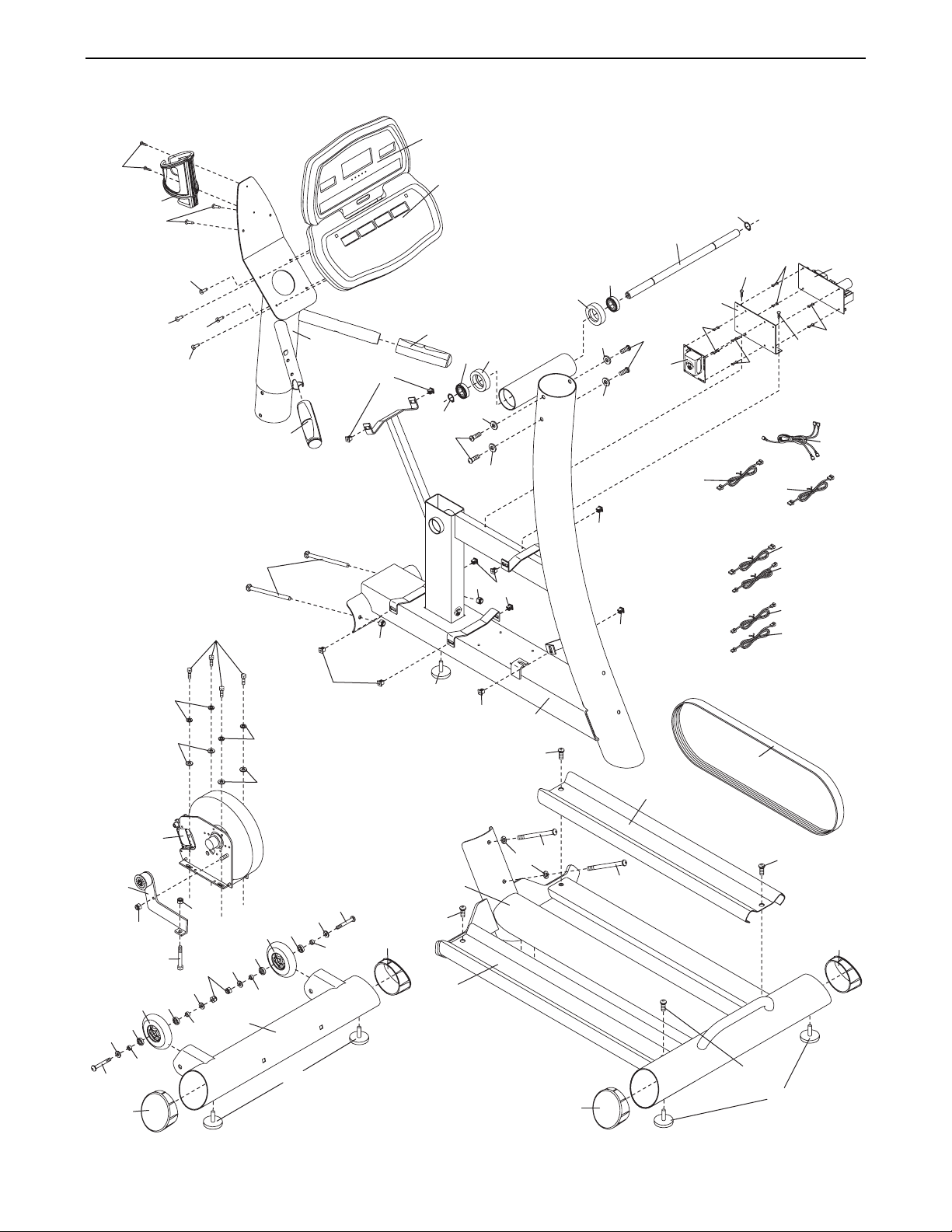

EXPLODED DRAWING A—Model No. NTEL4255.0 R0208A
26
EXPLODED DRAWING B—Model No. NTEL4255.0 R0208A
64
73
64
59
59
5
7
53
59
59
49
49
6
59
5
59
59
53
59
27
EXPLODED DRAWING C—Model No. NTEL4255.0 R0208A
18
56
18
56
41
41
88
66
88
66
92
58
55
42
19
42
69
34
34
65
55
17
61
72
84
89
69
34
34
72
28
42
39
42
92
42
44
89
51
89
10
86
42
28
51
12
34
83
86
23
72
61
65
91
25
34
90
39
20
23
54
42
60
34
66
94
56
18
41
88
21
94
67
85
54
54
34
42
72
56
41
66
42
88
72
9
90
92
72
91
69
18
55
90
91
14
11
63
90
69
55
91
69
72
91
60
21
17
92
91
13
63
31
62
58
69
91
94
93
91
31
63
93
60
69
91
63
69
72
91
31
91
62
91
31
94
60
67
67
85
85
54
54
Part No. 235685 R0208A Printed in China © 2008 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod­ucts used for commercial or rental purposes; or products used as store display models. No other war­ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
Loading...
