QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on
our customer hot line will
provide immediate assistance,
free of charge to you.
CUSTOMER HOT LINE:
1-888-825-2588
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. NTBE04900
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
USERÕS MANUAL
Visit our website at
www.nordictrack.com
new products, prizes,
fitness tips, and much more!
2
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting the Weight Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Table of Contents
The decal shown at the right
has been placed on the weight
rack in the indicated location. If
the decal is missing or illegible,
please call our Customer
Service Department toll-free at
1-888-825-2588, Monday through
Friday, 6 a.m. until 6 p.m.
Mountain Time, to order a free
replacement decal. Apply the
replacement decal in the location
shown.
Warning Decal Placement
NordicTrack is a registered trademark of ICON Health & Fitness, Inc.
3
1. Read all instructions in this manual before
using the weight rack. Use the weight rack
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight rack are adequately informed of all precautions.
3. The weight rack is intended for home use
only. Do not use the weight rack in any commercial, rental, or institutional setting.
4. Use the weight rack only on a level surface.
Cover the floor beneath the weight rack to
protect the floor or carpet.
5. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
6. Inspect and tighten all parts each time you
use the weight rack. Replace any worn parts
immediately.
7. Always exercise with a partner. When you
are performing bench press exercises or
squat exercises, your partner should stand
behind you to catch the barbell if you cannot
complete a repetition.
8. Always make sure there is an equal amount
of weight on each side of your barbell (not
included).
9. Do not place more than 310 pounds, including the barbell, on the weight rests.
10. Always set both short weight rests and both
long weight rests at the same height.
11.
Always secure your weights with weight collars or clips when they are mounted on your
barbell (not included).
12. When performing standing exercises, stand
inside the area that is shaded in the drawing
below.
13. Keep children under 12 and pets away from
the weight rack at all times.
14. Always wear athletic shoes for foot protection while exercising.
Important Precautions
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight rack.
4

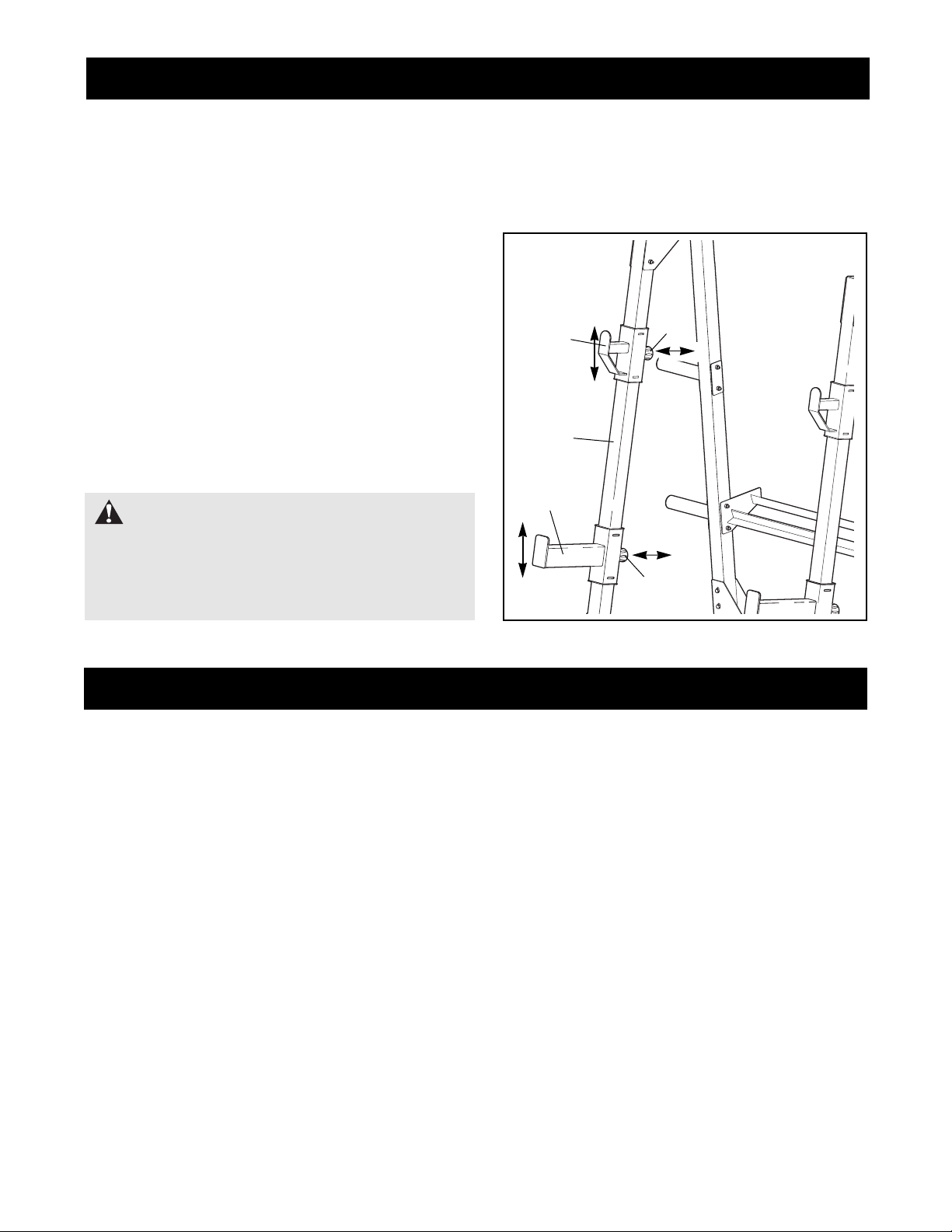

Short Weight Rest
Long Weight
Rest
Weight
Storage Tube
Dumbbell
Storage Rack
Left Side
Note: The terms Òright
sideÓ and Òleft sideÓ are
determined relative to a
person using the rack;
they do not correspond
to right and left on the
drawings in the manual.
Thank you for selecting the versatile NordicTrack
¨
GRT360 weight rack. The NordicTrack¨GRT360 is
designed to be used with your weight set (not included)
to help you develop every major muscle group of the
body. Whether your goal is a shapely figure, dramatic
muscle size and strength, or a healthier cardiovascular
system, the NordicTrack¨GRT360 will help you
achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight rack. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-888-825-2588, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is NTBE04900. The serial number can be
found on a decal attached to the weight rack (see the
front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Before You Begin
Right Side
5
1. Press a 1 1/2Ó x 2 1/2Ó Outer Cap (5) onto each end
of the Right Base (7). Attach the Rear Base (8) to
the Right Base with two 3/8Ó x 3 1/2Ó Bolts (6) and
two 3/8Ó Nylon Locknuts (11). Do not tighten the
Nylon Locknuts yet.
Attach two Lower Support Plates (13) to the Right
Base (7) with two 3/8Ó x 3 1/2Ó Bolts (6) and two
3/8Ó Nylon Locknuts (11). Do not tighten the
Nylon Locknuts yet. Note: Do not confuse the
Lower Support Plates with the Upper Support
Plates (not shown); when the Lower Support
Plates are attached to the Right Base, the edges
with three holes will slant backward slightly.
¥ Assembly requires two people.
¥ Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
¥ Tighten all parts as you assemble them, unless
instructed to do otherwise.
¥ As you assemble the weight rack, make sure all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
¥ Two adjustable wrenches
¥ One rubber mallet
¥ Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Assembly
Make Things Easier
Everything in this manual is designed to ensure
that the weight rack can be assembled
successfully by anyone. However, the weight
rack has many parts, and the assembly
process will take time. Setting aside plenty of
time will make the process go more smoothly.
2. Press a 1 1/2Ó x 2 1/2Ó Outer Cap (5) onto each end
of the Left Base (2). Attach the Rear Base (8) to the
Left Base with two 3/8Ó x 3 1/2Ó Bolts (6) and two
3/8Ó Nylon Locknuts (11). Do not tighten the
Nylon Locknuts yet.
Attach two Lower Support Plates (13) to the Left
Base (2) with two 3/8Ó x 3 1/2Ó Bolts (6) and two
3/8Ó Nylon Locknuts (11). Do not tighten the
Nylon Locknuts yet.
8
6
11
13
These edges
should slant
backward
slightly.
13
6
7
5
11
5
1
8
2
6
13
13
6
11
5
5
11
2
6
3. Attach one of the Front Uprights (1) to the Lower
Support Plates (13) on the Right Base (7) with two
3/8Ó x 3 1/2Ó Bolts (6) and two 3/8Ó Nylon Locknuts
(11). Do not tighten the Nylon Locknuts yet.
Note: The Front Upright will slant backward
slightly.
Be sure that the holes in the Front Upright (1)
line up with the holes in the Support Plates (13).
If they do not line up, turn the Front Upright
over.
Attach the other Front Upright (1) to the Left Base
(2, not shown) in the same manner.
4. Press four Weight Rest Bushings (17) into the top
and bottom of a Short Weight Rest (4) and a Long
Weight Rest (19), as shown. Pull the Adjustment
Knob (12) on the Long Weight Rest and slide the
Long Weight Rest onto one of the Front Uprights
(1). Hold the Long Weight Rest at the desired
height and turn the Adjustment Knob clockwise to
tighten it into one of the adjustment holes in the
Front Upright.
Pull the Adjustment Knob (12) on the Short Weight
Rest (4) and slide the Short Weight Rest onto the
Front Upright (1). Hold the Short Weight Rest at the
desired height and turn the Adjustment Knob clockwise to tighten it into one of the adjustment holes in
the Front Upright.
Attach the other Short Weight Rest (4) and Long
Weight Rest (19) to the other Front Upright (1) in
the same way. Make sure that both Short Weight
Rests and both Long Weight Rests are at the
same height.
5. Press a 2 1/2Ó Square Inner Cap (9) into one of the
Front Uprights (1). Attach two Upper Support Plates
(3) to the Front Upright with two 3/8Ó x 3 1/2Ó Bolts
(6) and two 3/8Ó Nylon Locknuts (11). Do not tight-
en the Nylon Locknuts yet.
Repeat this step with the other Front Upright (1, not
shown).
9
1
3
6
11
3
4
19
17
12
12
Adjustment
Holes
1
17
17
4
5
1
6
7
13
11
3
7
6. Attach a Rear Upright (15) to the Left Base (2) and
the indicated Upper Support Plates (3) with four
3/8Ó x 3 1/2Ó Bolts (6) and four 3/8Ó Nylon Locknuts
(11). Do not tighten the Nylon Locknuts yet.
Attach the other Rear Upright (15) to the Right
Base (7 [not shown]) and the other Upper Support
Plates (3) in the same manner.
Tighten all nylon locknuts used in steps 1
through 6.
11
2
6
11
3
6
15
6
7. Have another person hold the Crossbar (18)
between the lower holes in the Rear Uprights (15),
in the indicated position. Make sure that the
Crossbar is turned exactly as shown.
Press a 2Ó Round Inner Cap (10) into a Weight
Storage Tube (14). Attach the Weight Storage Tube
and one end of the Crossbar (18) to one of the
Rear Uprights (15) using two 3/8Ó x 3 1/2Ó Bolts (6)
and two 3/8Ó Nylon Locknuts (11).
Attach another Weight Storage Tube (14) and the
other end of the Crossbar (18) to the other Rear
Upright (15) in the same way.
8. Press a 2Ó Round Inner Cap (10) into a Weight
Storage Tube (14). Attach the Weight Storage Tube
to one of the Rear Uprights (15) using two 3/8Ó x
3 1/2Ó Bolts (6), a Small Support Plate (16), and two
3/8Ó Nylon Locknuts (11).
Attach the remaining Weight Storage Tube (14) to
the other Rear Upright (15) in the same way.
14
15
18
11
15
10
6
16
14
15
11
10
6
8
9. Make sure all parts are properly tightened
before you use the weight rack.
7
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
The only way to increase the size and strength of
your muscles is to push them close to their maximum
capacity. When you progressively increase the intensity of your exercise, your muscles will continually
adapt and grow. You can tailor the individual exercise
to the proper intensity level in two ways:
¥ by changing the amount of weight used
¥ by changing the number of repetitions or sets per-
formed (A ÒrepetitionÓ is one complete cycle of an
exercise, such as one sit-up. A ÒsetÓ is a series of
repetitions).
The proper amount of weight for each exercise obviously depends upon the individual user. You must
gauge your limits and select the amount of weight that
is right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Many people desire a complete and well-balanced fitness program, and cross training is a very efficient
way to accomplish this. One example of a balanced
program is:
¥ Plan weight training workouts on Monday,
Wednesday, and Friday.
Exercise Guidelines
8
POSITIONING THE WEIGHT RESTS
Before beginning an exercise, loosen the Adjustment
Knobs (12) and move the Short Weight Rests (4) and
Long Weight Rests (19) to the appropriate height for the
exercise. Tighten each Adjustment Knob by snapping it
into a hole in an Upright (1) and turning it clockwise.
The selected height should represent the lowest point
to which you want your barbell to go during the exercise. Perform the exercise as shown on the accompanying exercise poster. Note: Make sure the Adjust-
ment Knobs are tightened into the adjustment holes
in the uprights.
12
12
4
1
19
This section explains how to adjust the weight rack. See the EXERCISE GUIDELINES below, for important information on how to get the most benefit from your exercise program. Also, refer to the accompanying exercise
poster to see the correct form for several exercises. Inspect and tighten all parts each time you use the weight
rack. Replace any worn parts immediately. The weight rack can be cleaned with a damp cloth and a mild, nonabrasive detergent. Do not use solvents.
Adjusting the Weight Rack
WARNING: Always set both Short
Weight Rests (4) and Long Weight Rests (19) at
the same height. When you are performing
standing exercises in the rack, stand inside the
area that is shaded in the drawing on page 3.
9
¥ Plan 20 to 30 minutes of aerobic exercise, such as
cycling, or swimming on Tuesday and Thursday.
¥ Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body, and
develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Specifying the exact length of time for each workout,
as well as the number of repetitions or sets for each
exercise, is a highly individual matter. It is very important to avoid overdoing it during the first few months
of your exercise program. You should progress at
your own pace and be sensitive to your bodyÕs signals. If you experience pain or dizziness at any time
while exercising, stop immediately and begin cooling
down. Find out what is wrong before continuing.
Remember that adequate rest and a proper diet are
important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group
with emphasis on the areas that you want to develop
the most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
You will gain the greatest benefits from exercising by
maintaining proper form. This requires moving
through the full range of motion for each exercise and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise poster accompanying this manual, you will find photographs showing
the correct form for several exercises. A description of
each exercise is also provided, along with a list of the
muscles affected. Refer to the muscle chart on page
10 to find the locations of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
Rest for a short period of time after each set. The
ideal resting periods are:
¥ Rest for three minutes after each set for a muscle
building workout
¥ Rest one minute after each set for a toning workout
¥ Rest 30 seconds after each set for a weight loss
workout
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is very effective for increasing flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List
the date, the exercises performed, the weight used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month.
Remember, the key to achieving the greatest results
is to make exercise a regular and enjoyable part of
your everyday life.
10

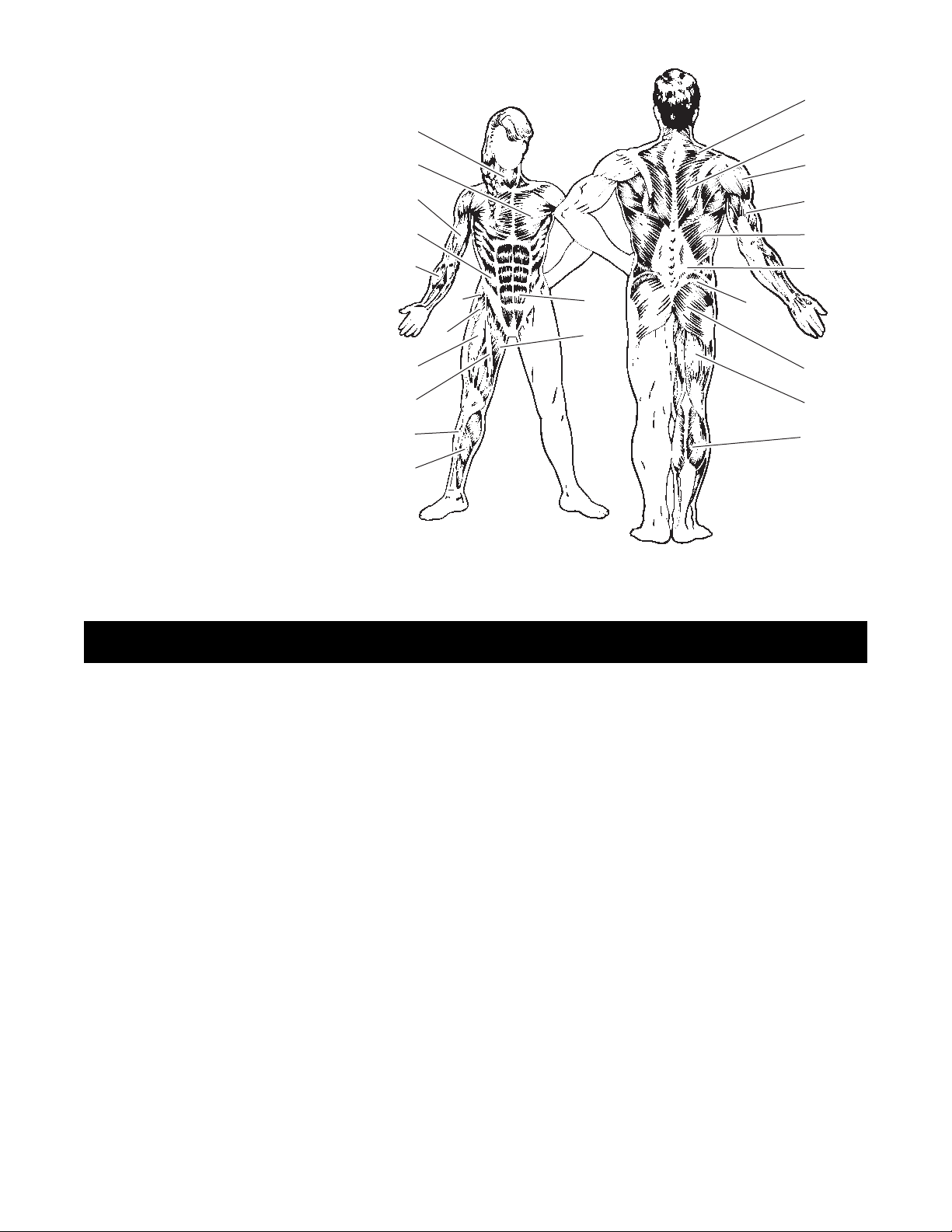

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
N
O
P
Q
R
S
T
U
W
V
M
L
J
G
F
H
I
K
E
C
D
B
A
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the userÕs manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
Part ListÑModel No. NTBE04900 R1000A
1 2 Front Upright
2 1 Left Base
3 4 Upper Support Plate
4 2 Short Weight Rest
5 4 1 1/2Ó x 2 1/2Ó Outer Cap
6 32 3/8Ó x 3 1/2Ó Bolt
7 1 Right Base
8 1 Rear Base
9 2 2 1/2Ó Square Inner Cap
10 4 2Ó Round Inner Cap
11 32 3/8Ó Nylon Locknut
12 4 Adjustment Knob
13 4 Lower Support Plate
14 4 Weight Storage Tube
15 2 Rear Upright
16 2 Small Support Plate
17 8 Weight Rest Bushing
18 1 Crossbar
19 2 Long Weight Rest
# 1 UserÕs Manual
# 1 Exercise Guide
15
16
11
5
2
13
11
6
6
11
5
13
6
5
11
11
6
6
11
11
13
7
5
13
6
1
3
11
11
3
6
6
17
4
12
17
9
12
6
14
6
10
14
6
10
6
17
19
17
19
17
15
16
11
6
14
10
6
6
14
10
6
17
17
4
17
3
9
6
11
11
3
1
6
8
12
12
11
18
11
Exploded DrawingÑModel No. NTBE04900 R1000A
11
Part No. 170226 R1000A Printed in USA © 2000 ICON Health & Fitness, Inc.
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-825-2588, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:
¥ The MODEL NUMBER of the product (NTBE04900)
¥ The NAME of the product (NordicTrack¨GRT360 weight rack)
¥ The SERIAL NUMBER of the product (see the front cover of this manual)
¥ The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING on pages 10 and 11 of this manual).
Ordering Replacement Parts
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON
authorized service center, products used for commercial or rental purposes, or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Limited Warranty
Loading...
