NISE 101
User Manual
79 pgs4.72 Mb0

NEXCOM NISE 101 User Manual

Download
NEXCOM International Co., Ltd.
Industrial Computing Solutions
Fan-less Computer NISE 101
User Manual
NEXCOM International Co., Ltd.
Published May 2010
www.nexcom.com
Contents
Co n t e n t s
Preface
Copyright ............................................................................................. iv
Disclaimer ............................................................................................. iv
Acknowledgements .............................................................................. iv
Regulatory Compliance Statements ....................................................... iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................vii
Installation Recommendations ................................................................vii
Safety Precautions .................................................................................viii
Technical Support and Assistance ........................................................... ix
Conventions Used in this Manual ........................................................... ix
Global Service Contact Information ......................................................... x
Package Contents ..................................................................................xii
Ordering Information ............................................................................xiii
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features .........................................................................................1
Hardware Specifications .......................................................................... 2

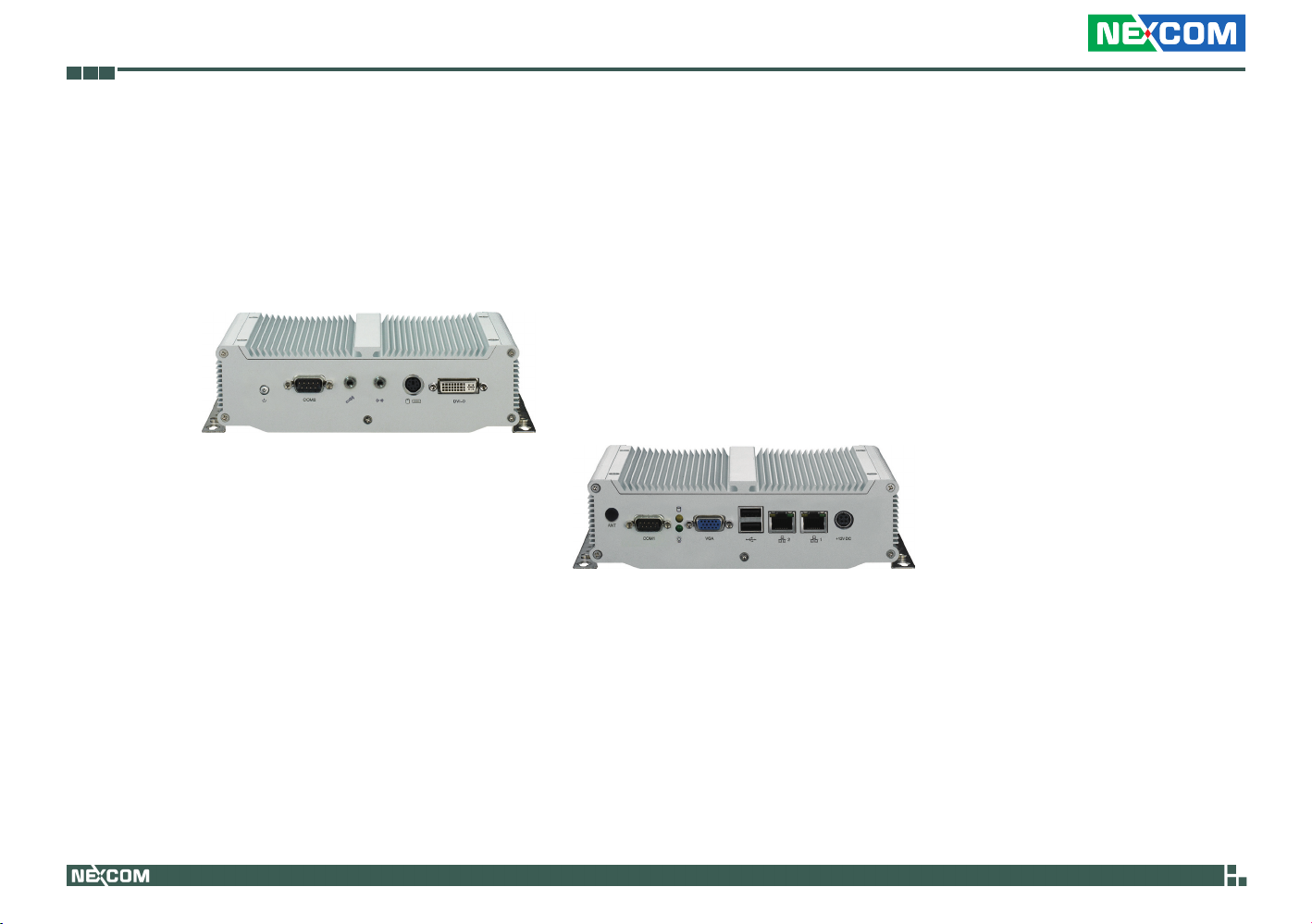

Getting to Know NISE 101 ......................................................................3
Front Panel ...........................................................................................3

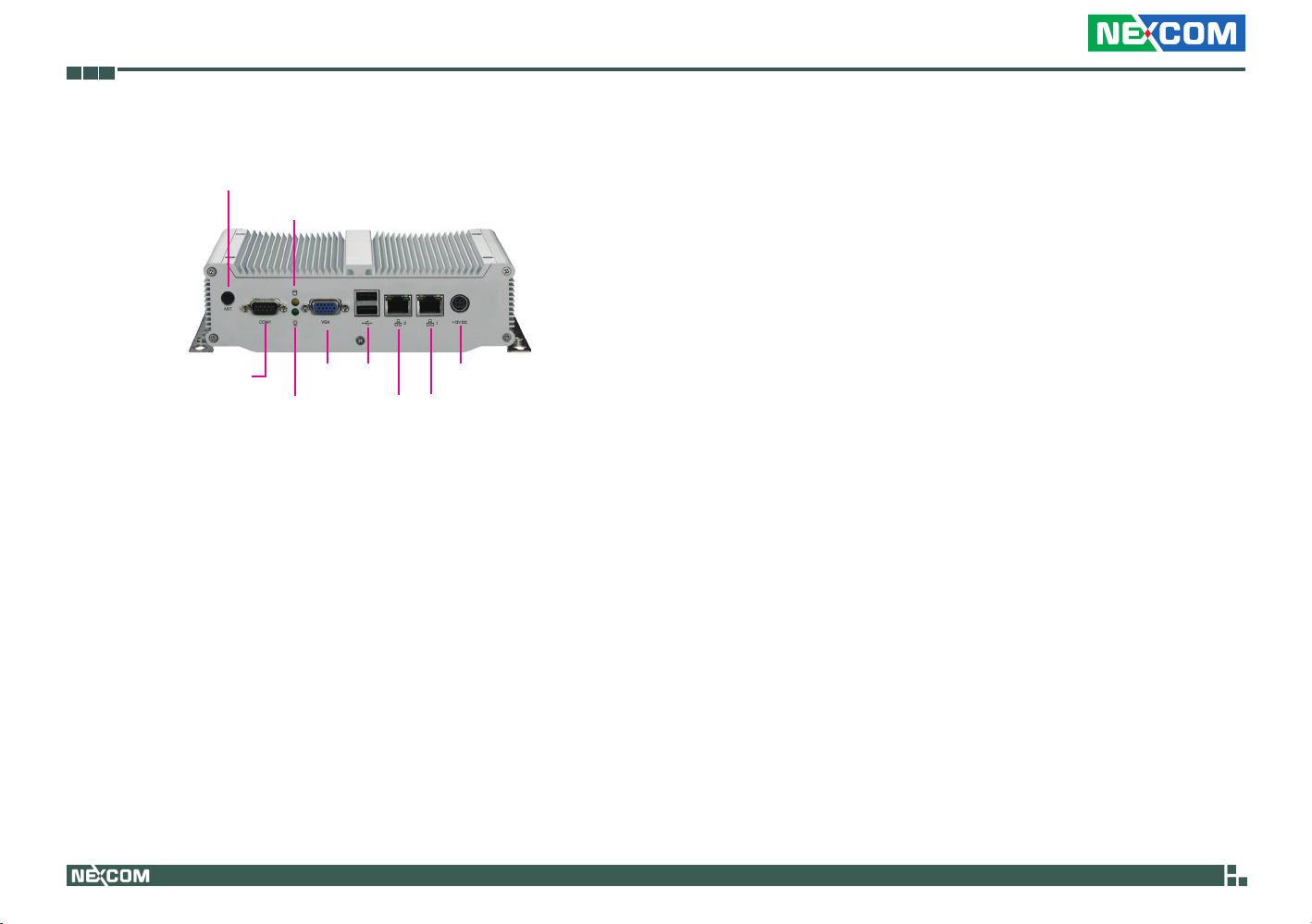

Rear Panel ............................................................................................4

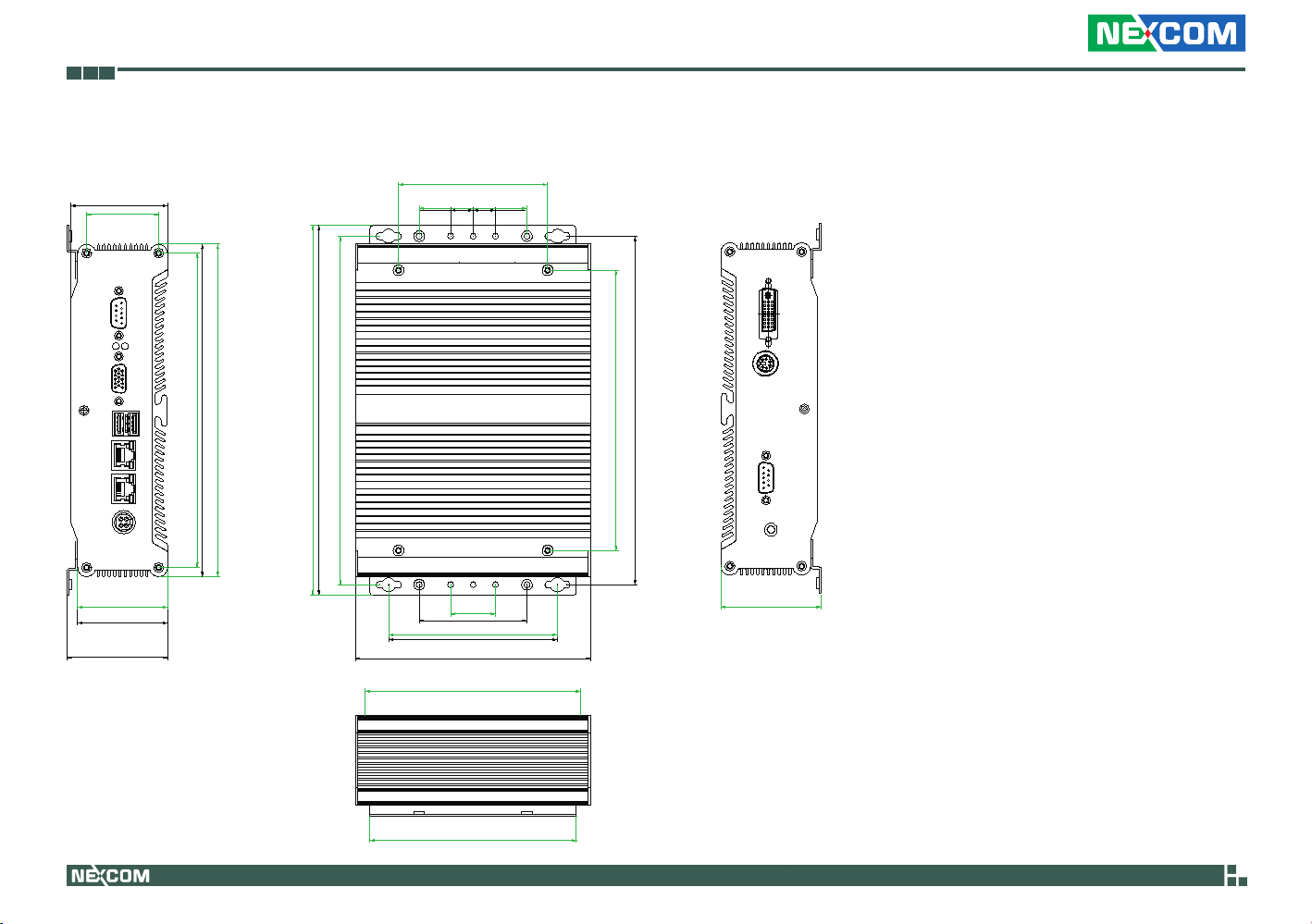

Mechanical Dimensions ...........................................................................5
Chapter 2: Jumpers And Connectors
Before You Begin ....................................................................................6
Precautions .............................................................................................6
Jumper Settings ...................................................................................... 7

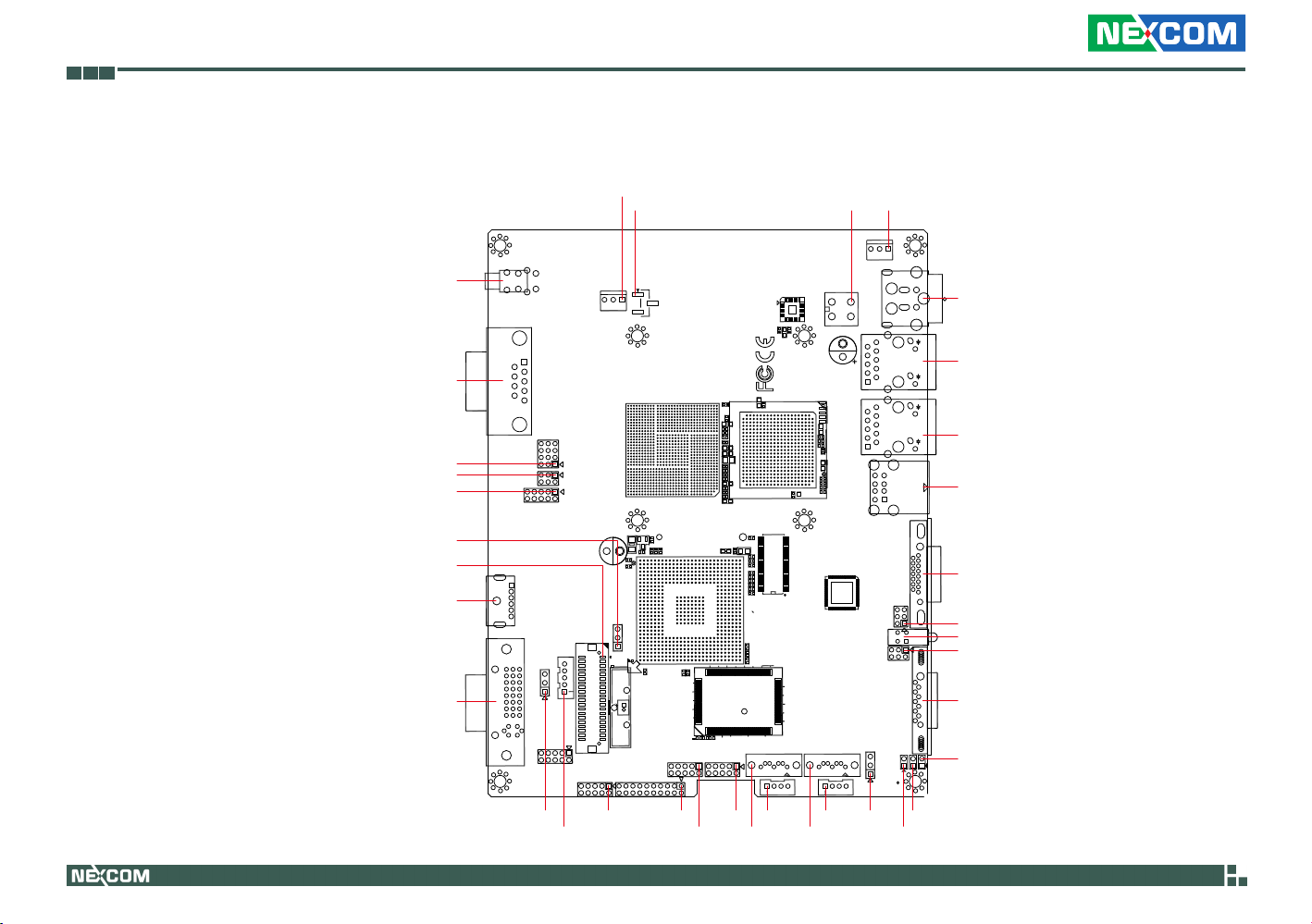

Locations of the Jumpers and Connectors ...............................................8
Jumpers ................................................................................................9
AT/ATX Mode Select ...........................................................................9
Clear CMOS Select .............................................................................9
CF Mode Select ................................................................................10
Input Power Select ...........................................................................10
COM 2 – RS232/422/485 Mode Select (J1) .......................................11
COM 2 – RS232/422/485 Mode Select (J2) .......................................11
Connector Pin Definitions ...................................................................12
External I/O Interface - Front .............................................................12

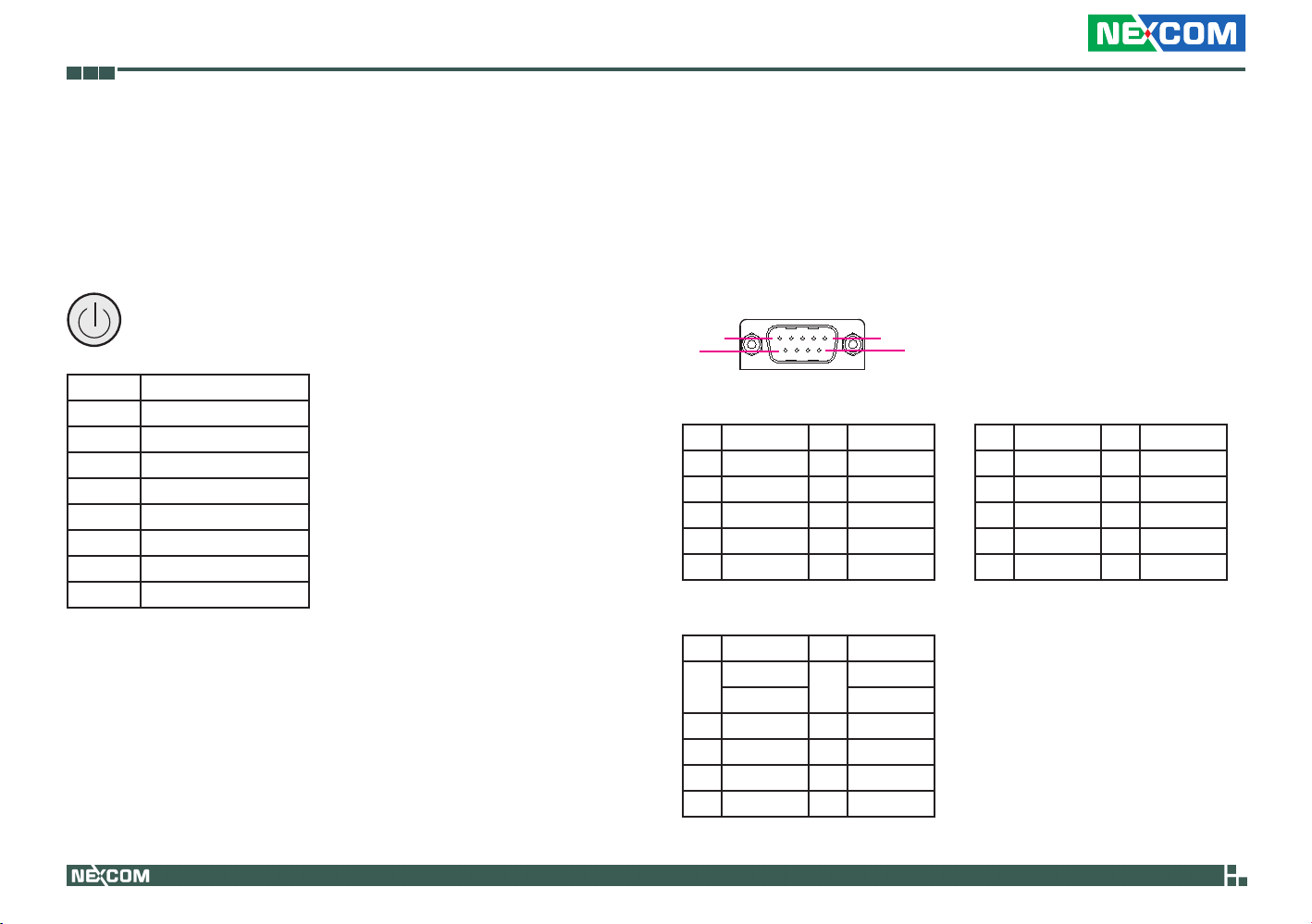

ATX Power On/Off Switch ..............................................................12
RS232/422/485 COM2 Port ............................................................12
Mic-in Jack ..................................................................................... 13
Speaker-out Jack ............................................................................ 13

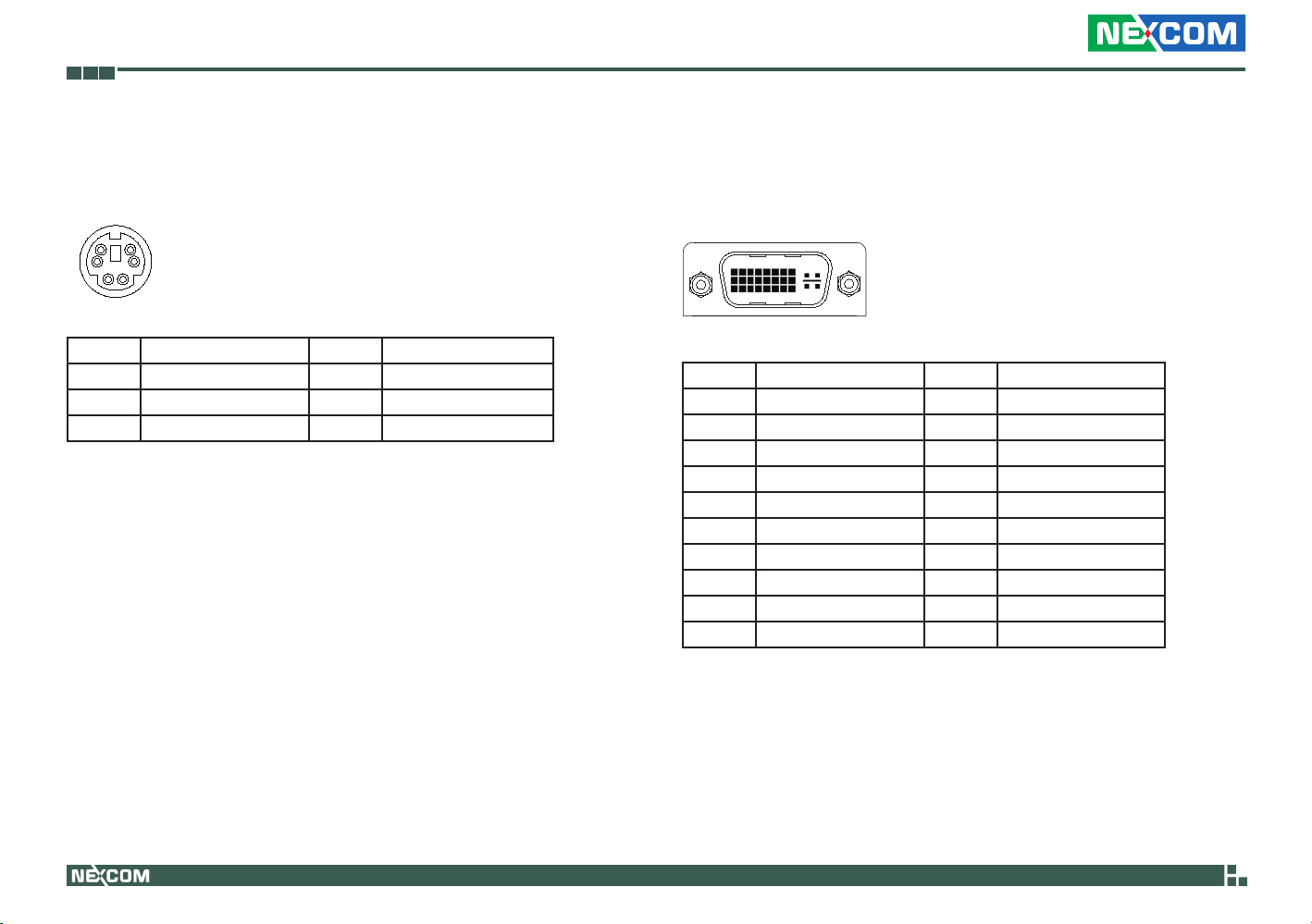

PS/2 Keyboard/Mouse Port .............................................................14
DVI-D Port ......................................................................................14
External I/O Interface - Rear ..............................................................15
RS232 COM1 Port ..........................................................................15
Status Indicators .............................................................................15

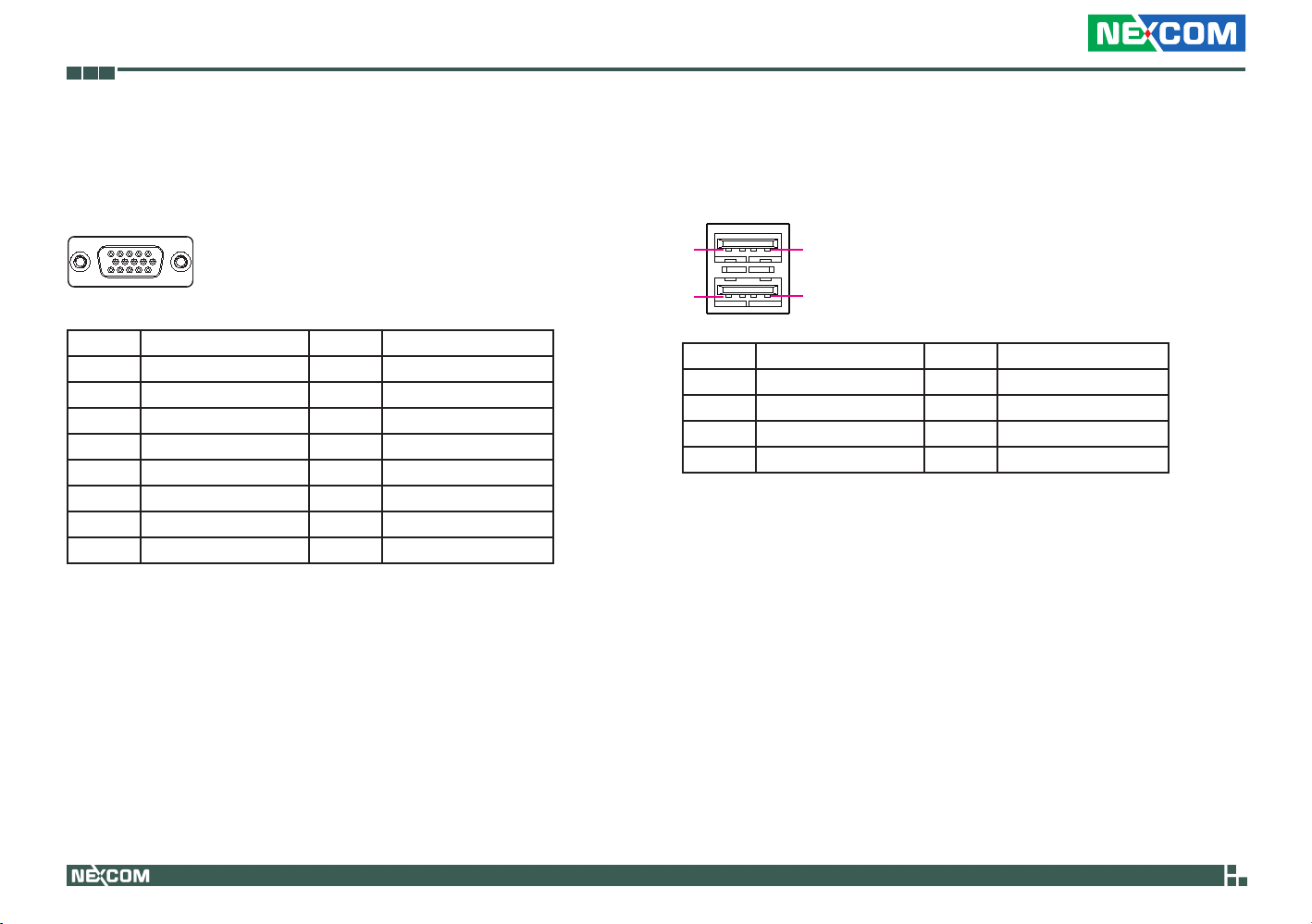

VGA Port .......................................................................................16
ii
NISE 101 User Manual
Contents
USB Ports .......................................................................................16

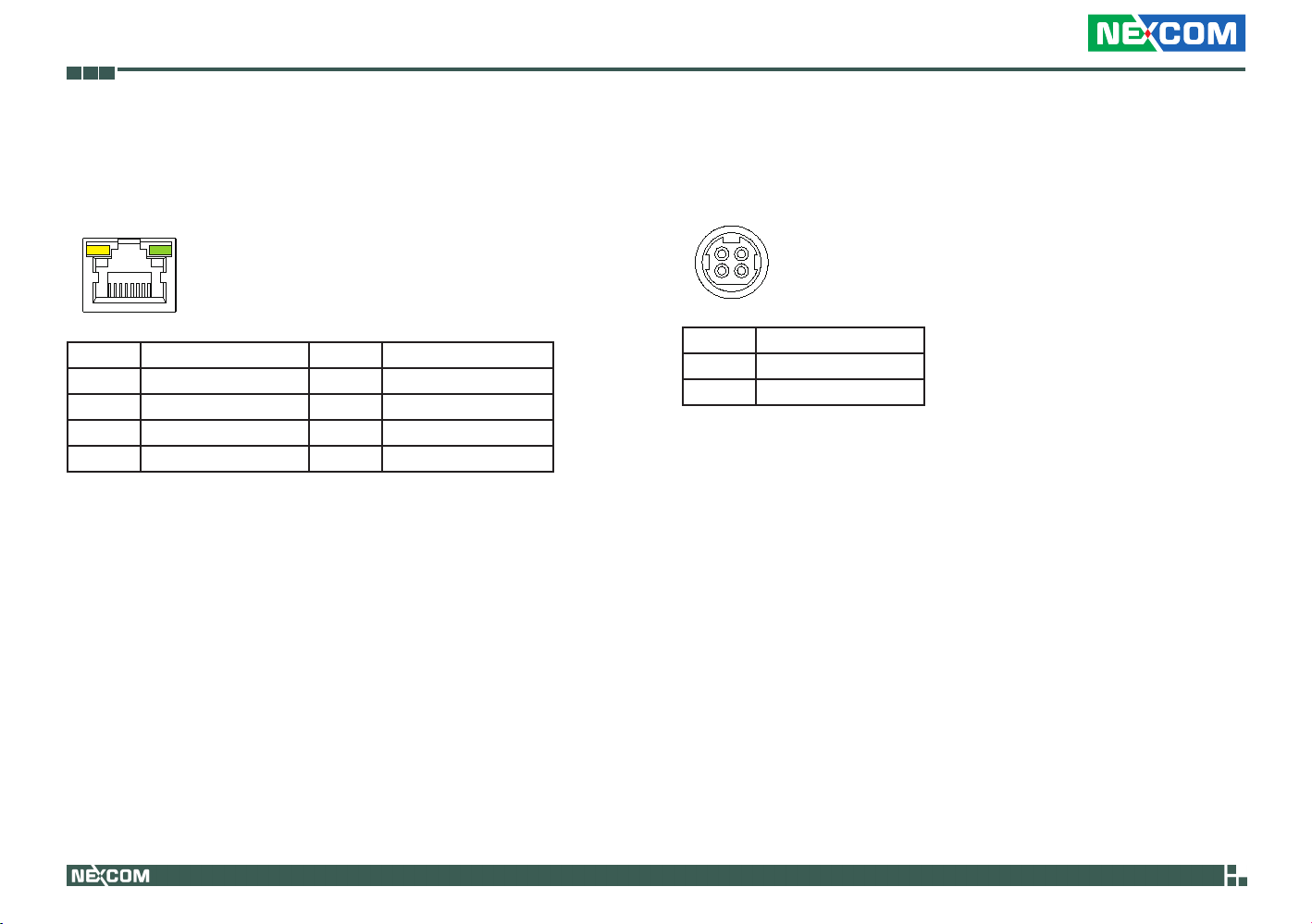

LAN Ports ....................................................................................... 17
+12V DC Input ...............................................................................17
Internal Connectors .......................................................................... 18
Power Button ................................................................................. 18
Reset Button .................................................................................. 18
GPIO Connector ............................................................................. 19
DC Power Connector ..................................................................... 19
5VSB Connector in ATX ..................................................................20
Audio Connector ...........................................................................20
LVDS Backlight Connector .............................................................. 21

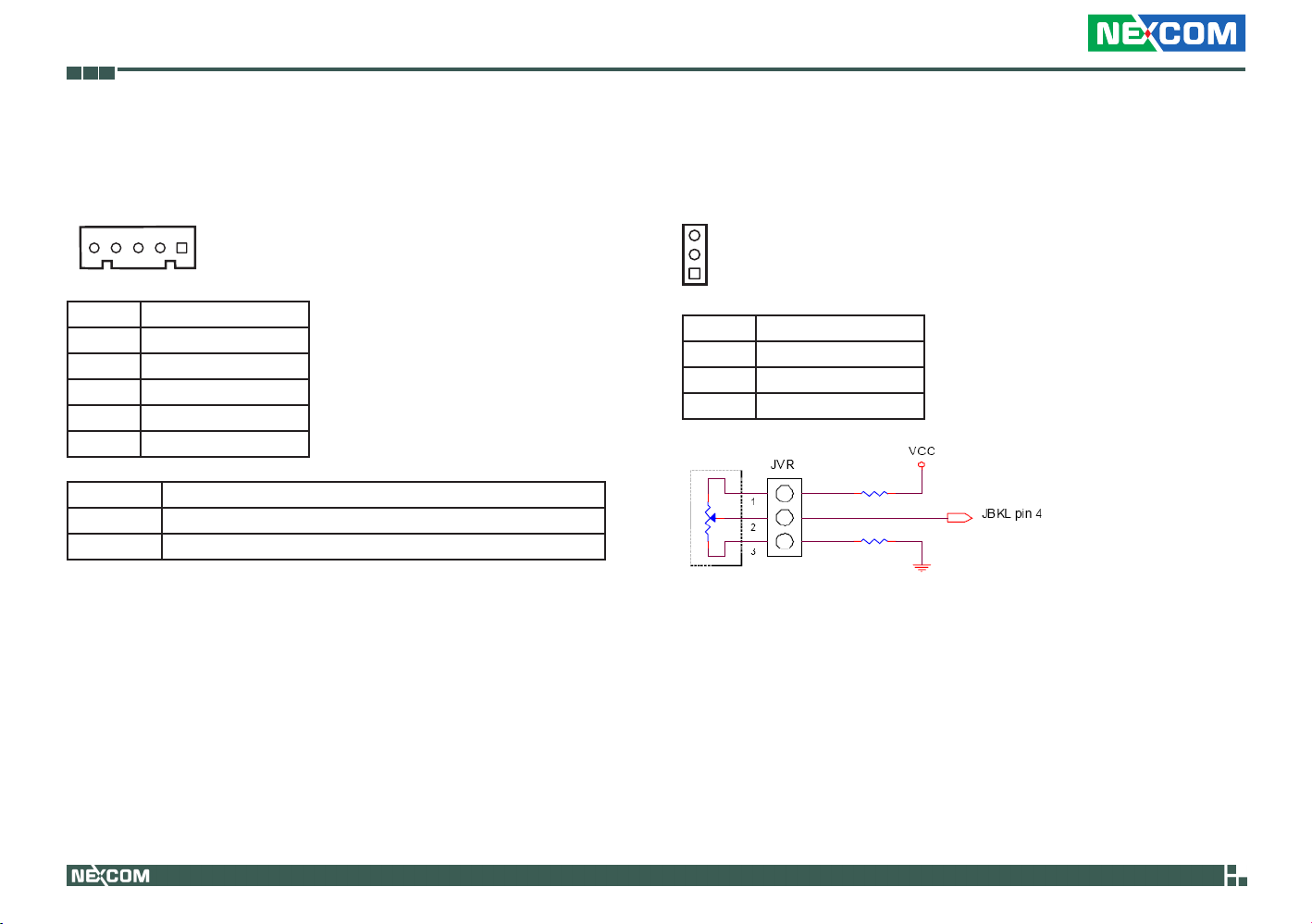

LVDS Backlight Brightness Adjustment Connector ..........................21
USB Connectors .............................................................................22
LVDS Connector (Single 18-bit)....................................................... 22
SATA Power Connectors ................................................................. 23
CPU Fan Connector ........................................................................23
SATA Connectors ...........................................................................24
Chapter 3: System Setup

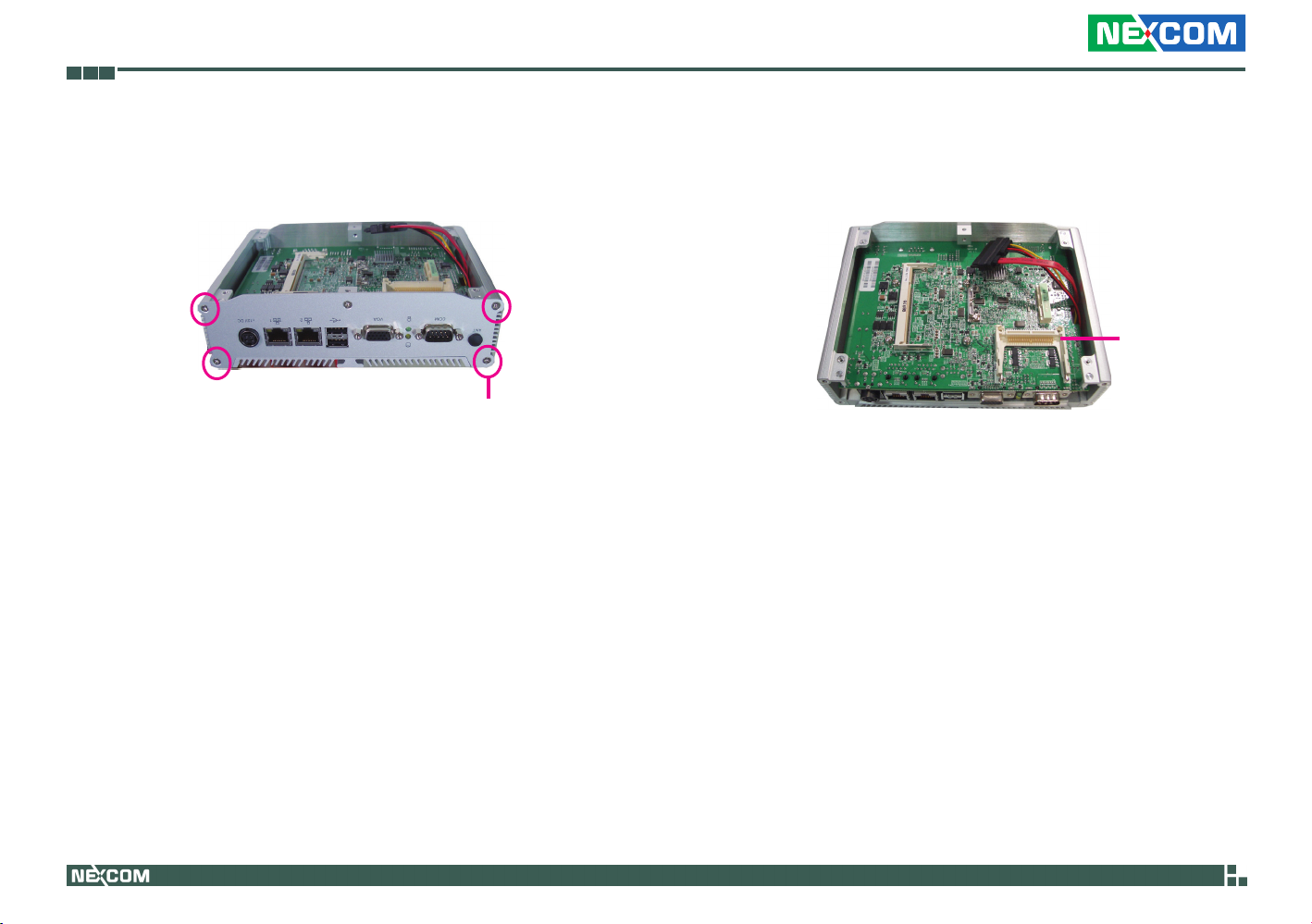

Removing the Chassis Cover ................................................................ 25

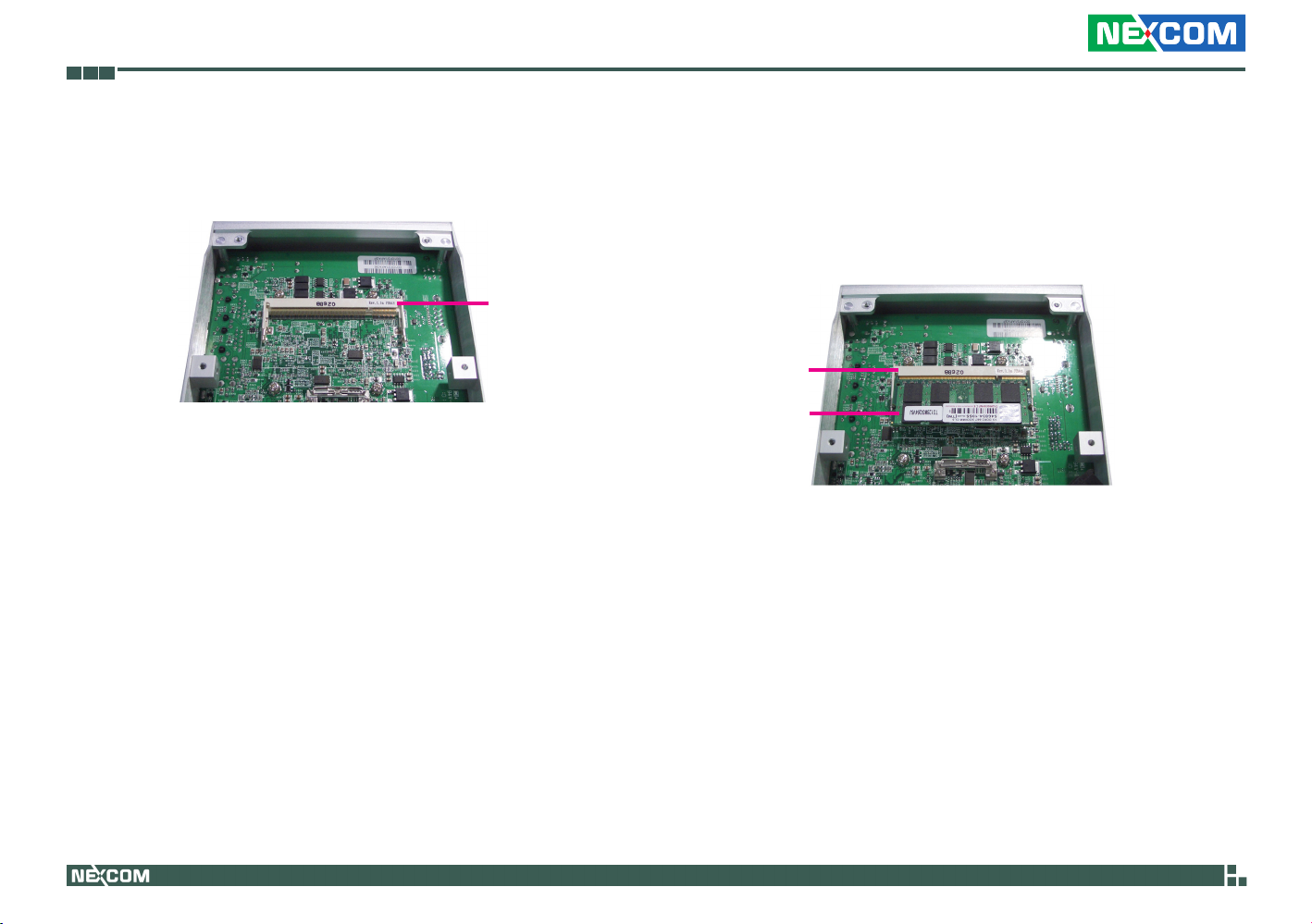

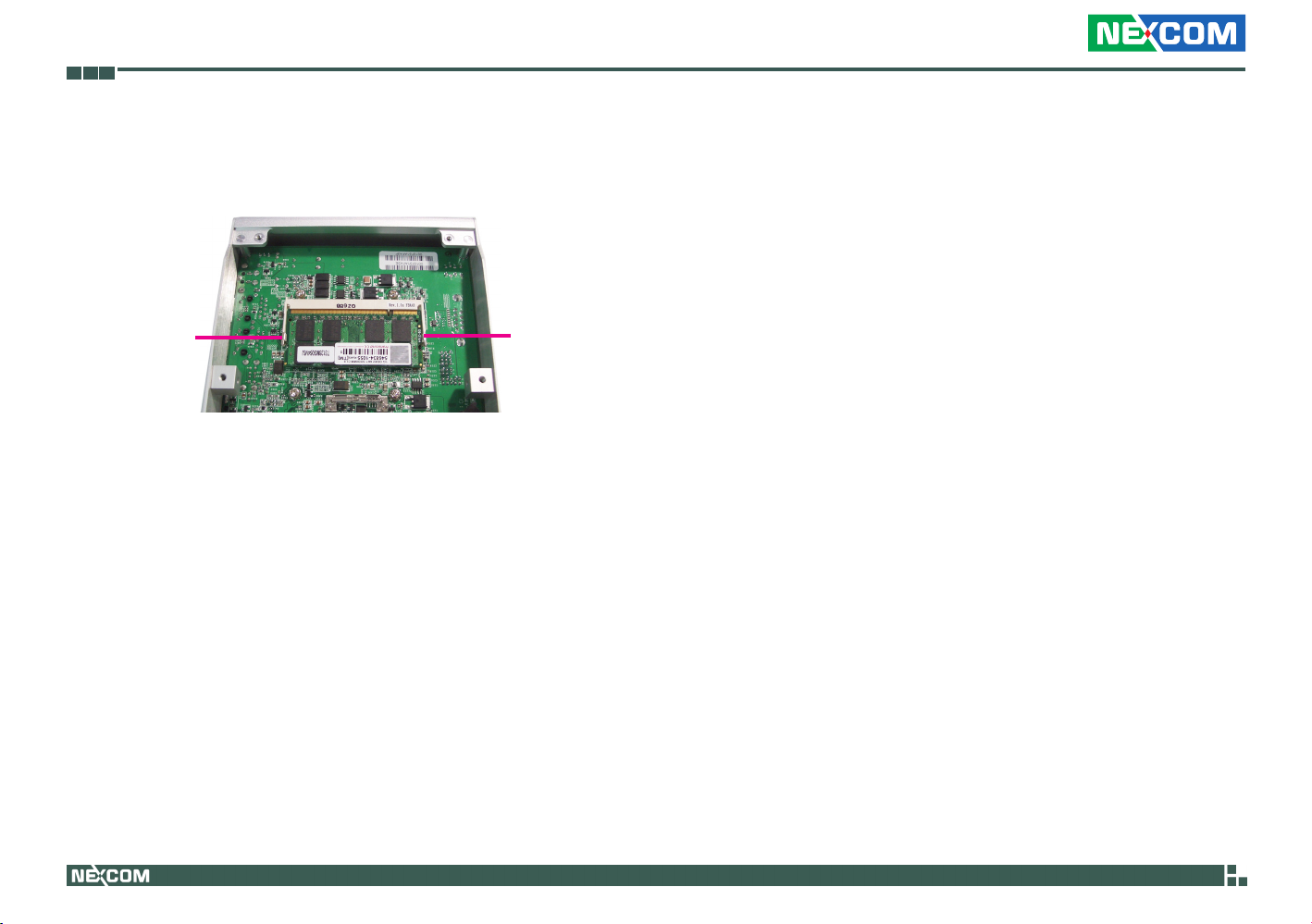

Installing the SODIMM ..........................................................................26
Installing a SATA Hard Drive .................................................................. 28

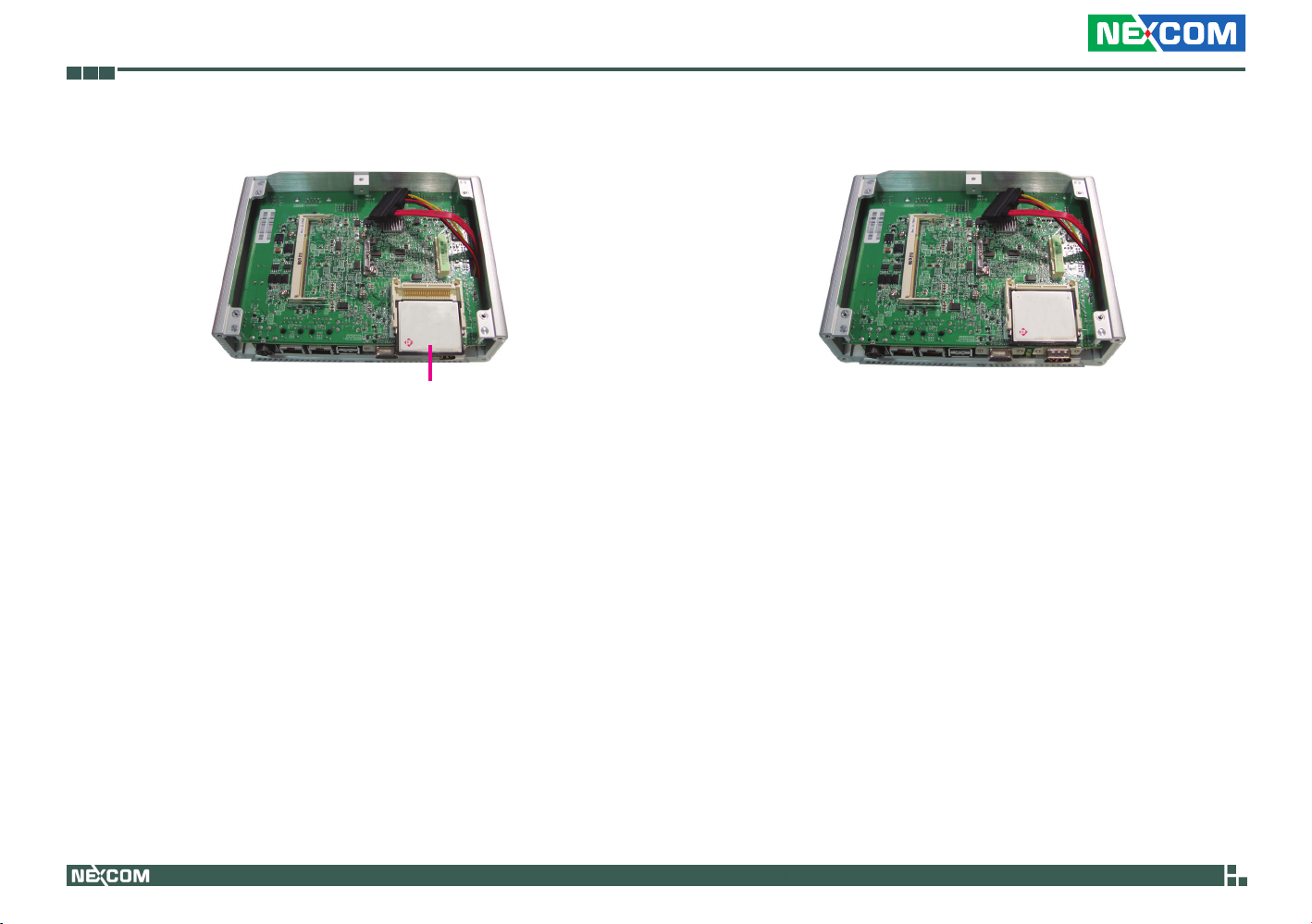

Installing a CompactFlash Card ............................................................. 31
Chapter 4: BIOS Setup
About BIOS Setup .................................................................................33
When to Configure the BIOS .................................................................33
Entering Setup ......................................................................................34
BIOS Main Menu ...................................................................................34
BIOS Setup Utility .................................................................................. 37
Standard CMOS Features ....................................................................37
Advanced BIOS Features .....................................................................40
Advanced Chipset Features .................................................................42
Integrated Peripherals .........................................................................43
Power Management Setup .................................................................49
PnP/PCI Configurations .......................................................................52
PC Health Status .................................................................................53
Load Optimized Defaults.....................................................................53
Set Password ......................................................................................54
Save & Exit Setup ................................................................................54
Exit Without Saving ............................................................................55
Appendix A: Power Consumption
Test Configuration ................................................................................56
Power Consumption Measurement .......................................................57
Appendix B: GPI/O Programming Guide
GPI/O Programming Guide .................................................................... 58
Appendix C: Watchdog Timer Setting
Watchdog Timer Setting ....................................................................... 61
iii
NISE 101 User Manual
Preface
Pr e f a c e
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by con­stantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NISE 101 is a trademark of NEXCOM International Co., Ltd. All other prod­uct names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equip­ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interfer­ence, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable Euro­pean Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NISE 101 User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infra­structure. We are committed to providing green products
and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suf­fix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compli­ant. They will use the usual NEXCOM naming convention.
v
NISE 101 User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
Customers shall enclose the “NEXCOM RMA Service Form” with the ? returned packages.
Customers must collect all the information about the problems encoun- ? tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
Customers can send back the faulty products with or without acces- ? sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the prob­lems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
Customers are responsible for the safe packaging of defective products, ? making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
Any products returned by NEXCOM to other locations besides the cus- ? tomers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
Component fee: NEXCOM will only charge for main components such ? as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
Items will be replaced with NEXCOM products if the original one cannot ? be repaired. Ex: motherboard, power supply, etc.
Replace with 3rd party products if needed. ?
If RMA goods can not be repaired, NEXCOM will return it to the cus- ? tomer without any charge.
Board Level
Component fee: NEXCOM will only charge for main components, such ? as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
If RMA goods can not be repaired, NEXCOM will return it to the cus- ? tomer without any charge.
vi
NISE 101 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are incon­sistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the de­scribed procedures only at an ESD workstation. If no such station is avail­able, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts ▪
specified by the manufacturer. Avoid using the system near water, in direct sunlight, or near a heating ▪
device. The load of the system unit does not solely rely for support from the ▪
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
The computer is provided with a battery-powered real-time clock circuit. ▪ There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-
er. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
A Philips screwdriver• A flat-tipped screwdriver• A grounding strap• An anti-static pad•
Using your fingers can disconnect most of the connections. It is recom­mended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
vii
NISE 101 User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping
it or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40oC storage temperature as this may damage the equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connect-
ing the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electri­cal shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER­IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the ap­propriate safety standards including IEC 60825.
viii
NISE 101 User Manual
Preface
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEX­COM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:
– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning prod­ucts or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
ix
NISE 101 User Manual
Preface
Global Service Contact Information
Headquarters Taiwan
18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw
USA
3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com
France
Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu
Germany
Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu
Italy
Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu
United Kingdom
10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu
x
NISE 101 User Manual
Preface
China-Beijing
Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn
China-Shanghai Office
Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn
China-Nanjing Office
Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn
China-Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn
Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com
xi
NISE 101 User Manual
Preface
Pa c k a g e co n t e n t s
Before continuing, verify that the NISE 101 package that you received is complete. Your package should have all the items listed in the following table.
Item P/N Description Qty
1 60177A0197X00 NISE101 QUICK REFERENCE GUIDE VER:A 1
2 602DCD0260X00 NISE101 CD DRIVER VER:1.0 1
3 50311F0110X00 FLAT HEAD SCREW LONG F3x5 NI NYLOK 4
4 60233MK202X00 PS/2 Cable 1
5 60233POW33X00 DC CORD Cable 1
xii
NISE 101 User Manual
Preface
or d e r i n g in f o r m a t i o n
The following provides ordering information for NISE 101.
Barebone•
NISE 101 (P/N: 10J00010100x0)
- Intel® Atom™ N270 Fanless System
12V, 60W AC/DC power adapter w/o power cord • (P/N: 7400060009X00)
xiii
NISE 101 User Manual
Chapter 1: Product Introduction
Ch a p t e r 1: pr o d u C t In t r o d u C t I o n
Overview
Front
Key Features
Onboard Intel•
®
Intel•
945GSE chipset Dual 10/100/1000 Mbps LAN ports• 2 x USB 2.0 ports• 1 x VGA port• 1 x DVI-D port• 1 x PS/2 port•
®
Atom™ N270 processor, 1.6GHz
Rear
1 x RS232/422/485 and 1 x RS232 ports• Onboard DC to DC power designed to support • +12V DC power input Supports ATX power mode •
1
NISE 101 User Manual
Chapter 1: Product Introduction
Hardware Specifications
CPU
Onboard Intel• 533MHz FSB•
Chipset
®
Intel•
945GSE and ICH7M
Main Memory
One DDR2 SODIMM socket• Single channel• Supports up to 2GB DDR2 400/533 SDRAM, unbuffered, non-ECC•
I/O Interface - Front
ATX Power on/off switch• 1 x RS232/422/485 port• 1 x Mic-in• 1 x Speaker-out• 1 x PS/2 port for keyboard and mouse • 1 x DVI-D port•
I/O Interface - Rear
1 Antenna hole• 1 x RS232 port• HDD Access LED• Power Status LED• 1 x DB15 VGA port• 2 x USB 2.0 ports• 2 x 10/100/1000 Intel LAN ports• +12V DC power input•
®
Atom™ N270 processor, 1.6GHz
Device
1 x 2.5” HDD drive bay• 1 x internal CF card socket• 1 x Mini-PCIe socket•
Power Requirements
DC to DC power designed for onboard support of +12V DC •
Optional external 60W AC/DC lockable power adapter • Power input: 100V to 240V AC 2A 50/60Hz Power output: 12V DC
Dimensions
185mm (W) x 132mm (D) x 54mm (H) (7.28” x 5.2” x 2.13”)•
Construction
Aluminum chassis with fan-less design•
Environment
Operating temperature:• Ambient with airflow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage temperature: -20°C to 80°C•
Relative humidity: 10% to 93% (Non-Condensing)•
Certifications
CE approval•
FCC Class A•
2
NISE 101 User Manual
Chapter 1: Product Introduction
Getting to Know NISE 101

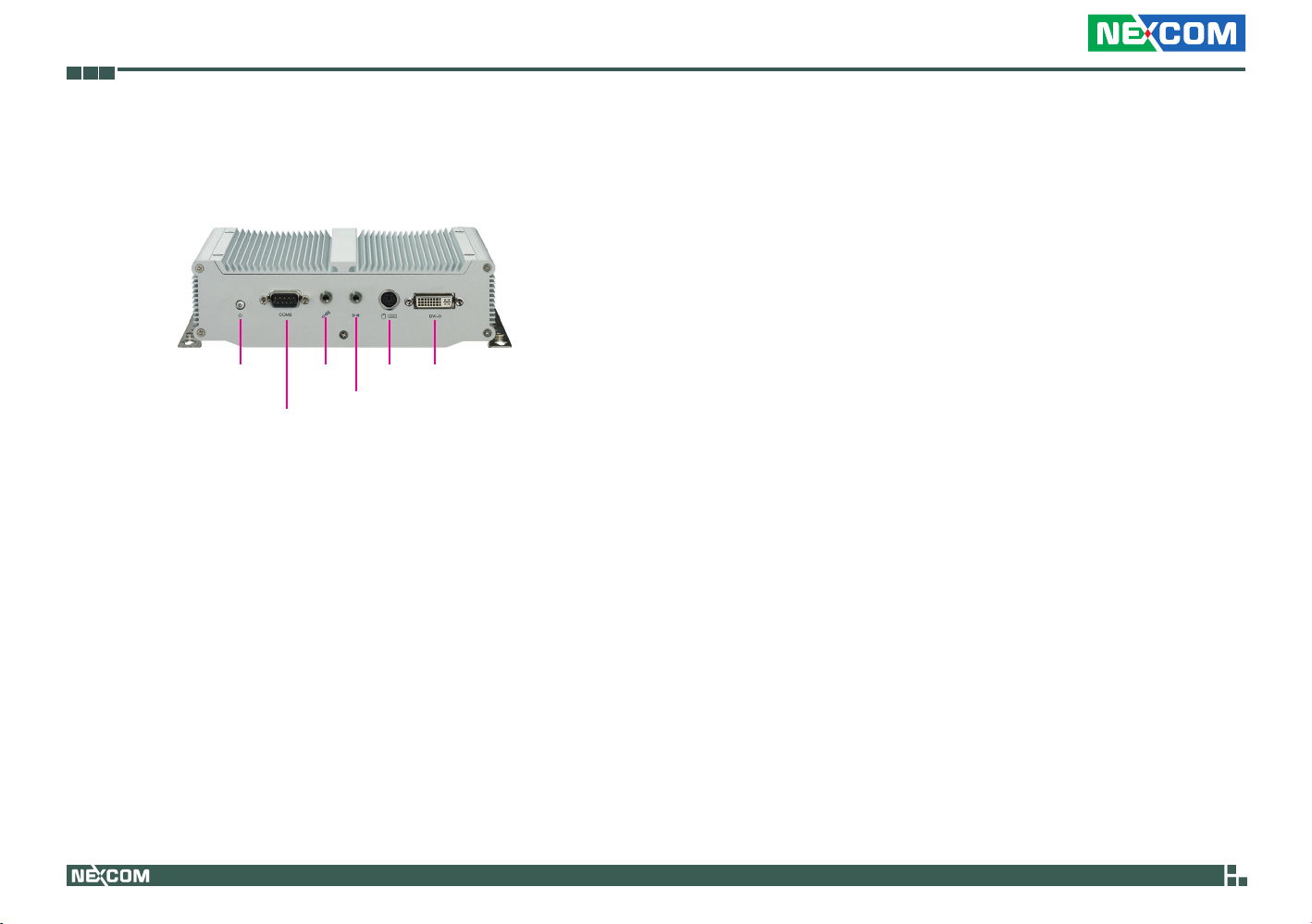

Front Panel
Power switch
(RS232/422/485)
ATX Power On/Off Switch
Press to power-on or power-off the system.
COM Port
The COM port supports RS232/422/485 compatible serial devices.
Mic-in Jack
Used to connect an external microphone.
Speaker-out Jack
Used to connect a headphone or a speaker.
Mic-in PS/2 DVI-D
Speaker-out
COM
PS/2 Port
Used to connect a PS/2 keyboard/mouse device.
DVI-D Port
Used to connect a digital LCD panel.
3
NISE 101 User Manual
Chapter 1: Product Introduction
Rear Panel
Antenna hole
HDD LED
COM
(RS232)
Power LED
COM Port
The COM port supports RS232 compatible serial devices.
HDD Access LED
Indicates the status of the hard drive.
Power Status LED
Indicates the power status of the system.
VGA Port
Used to connect an analog VGA monitor.
USB Ports
Used to connect USB 2.0/1.1 devices.
VGA
USB
LAN
+12V DC
LAN
LAN Ports
Used to connect the system to a local area network.
+12V DC Input
Used to plug a DC power cord.
4
NISE 101 User Manual
Chapter 1: Product Introduction
UNIT:mm
131.0
194.0
50.0
56.0
206.0
94.0
60.0
12.5
12.5
Amphenol Amphenol
54.0
185.0
50.0
56.0
120.0
40.0
175.0
25.0
60.0
83.0
156.0
115.0
194.0
Mechanical Dimensions
5
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
Ch a p t e r 2: Ju m p e r s a n d Co n n e C t o r s
This chapter describes how to set the jumpers and connectors on the motherboard.
Before You Begin
Ensure you have a stable, clean working environment. Dust and dirt can • get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally • damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
A Philips screwdriver • A flat-tipped screwdriver • A set of jewelers Screwdrivers • A grounding strap • An anti-static pad •
Using your fingers can disconnect most of the connections. It is recom-• mended that you do not use needle-nosed pliers to disconnect connec­tions as these can damage the soft metal or plastic parts of the connec­tors.
Before working on internal components, make sure that the power • is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-
tronic components. Humid environment tend to have less static electric-
ity than dry environments. A grounding strap is warranted whenever
danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still con­nected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or your­self:
Always disconnect the unit from the power outlet whenever you are •
working inside the case.
If possible, wear a grounded wrist strap when you are working inside •
the computer case. Alternatively, discharge any static electricity by
touching the bare metal chassis of the unit case, or the bare metal body
of any other grounded appliance.
Hold electronic circuit boards by the edges only. Do not touch the com-com-•
ponents on the board unless it is necessary to do so. Don’t flex or stress
the circuit board.
Leave all components inside the static-proof packaging that they •
shipped with until they are ready for installation.
Use correct screws and do not over tighten screws.•
6
NISE 101 User Manual
Chapter 2: Jumpers and Connectors

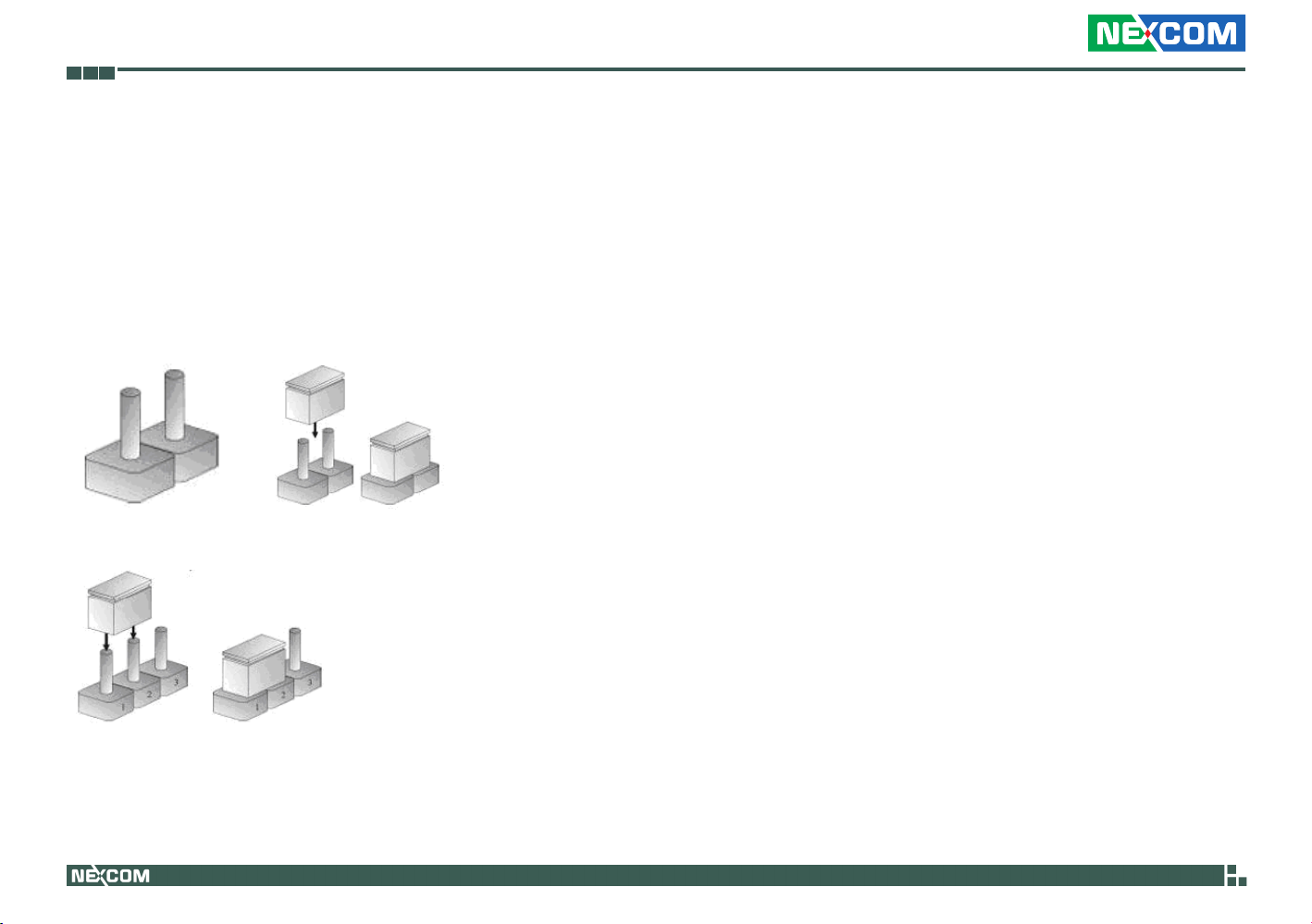

Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 Are Short
7
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
AH
28
20
10
1
A
K
Y
AK
AE
Y
R
K
E
A
1
15
20 253033
AA
Y
W
V
U
T
R
P
N
M
L
K
J
H
G
FED
CBA
20
15
10
5
1
PWR_SB
PWR_5VSEL PWRCON CPU_FAN
BDCJACK1
LAN1
LAN2
USB1
VGA
JTV
LED1
JSPI
COM1
DVI1
KB_MS1
JLVDS
JCOM2
COM2
PWRBTN1
J2
J1
JBAT
PWR_MSEL
JPWRBTNPWR2
RSTBTN1
JCF
SA TA 2
PWR1
SA TA 1
JUSB3JDIOJAUDIO
JUSB2
JVR
JBKL
Locations of the Jumpers and Connectors
The figure on the right is the NISB101 main board used in the NISE 101 system. It shows the locations of the jumpers and connectors.
8
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
Jumpers

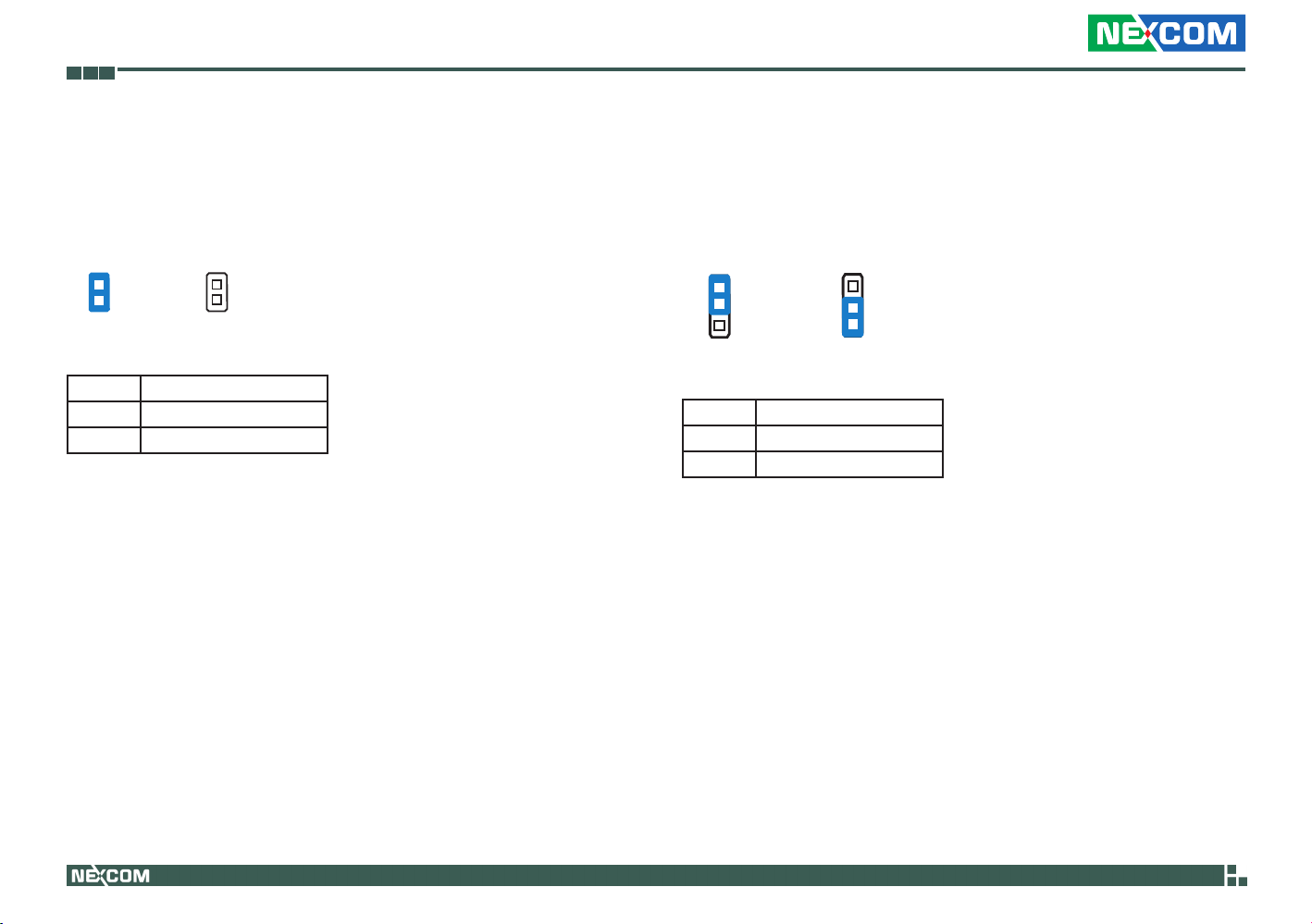

AT/ATX Mode Select
Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: PWR_MSEL
1
2
AT
(default)
Pin Definition
Open ATX Mode
Short AT Mode (default)
1
2
ATX

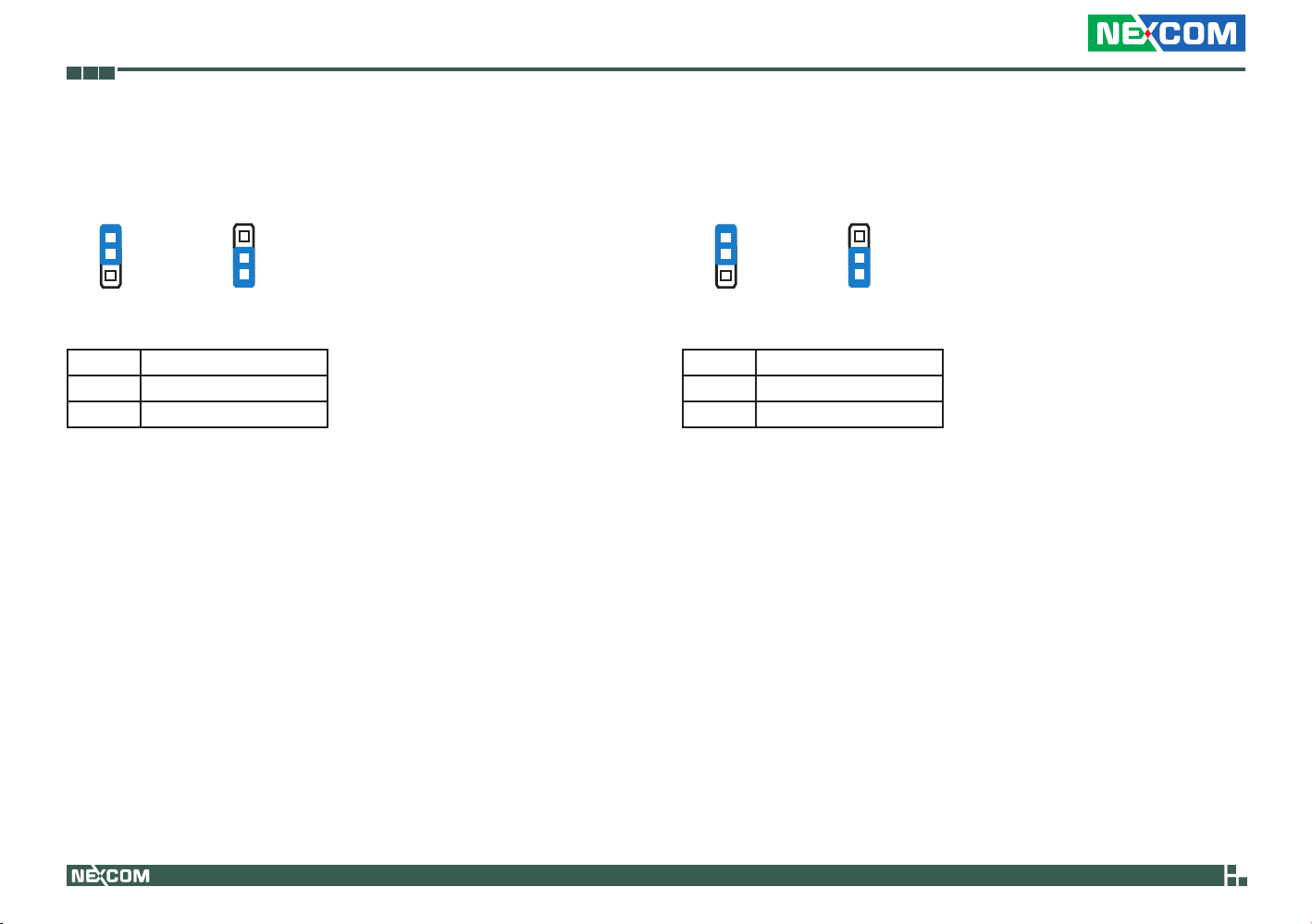

Clear CMOS Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JBAT
1
2 3
Normal
(default)
Pin Definition
1-2 Normal Operation (default)
2-3 Clear CMOS
1 2
3
Clear CMOS
9
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
CF Mode Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JCF
1
2 3
Slave Master
Pin Definition
1-2 Slave
2-3 Master (default)
1 2
3
(default)
Input Power Select
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: PWR_5VSEL
1
2 3
AT
(default)
Pin Definition
1-2 AT (default)
2-3 ATX
1 2
3
ATX
10
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
COM 2 – RS232/422/485 Mode Select
Connector type: 3x4 12-pin header Connector location: J1
10
12
13
Pin Definition
1-2, 4-5, 7-8, 10-11 RS232 (default)
2-3, 5-6, 8-9, 11-12 RS422/485
COM 2 – RS232/422/485 Mode Select
Connector type: 2x3 6-pin header Connector location: J2
12345
6
Pin Definition
1-2 RS232 (default)
3-4 RS422
5-6 RS485
11
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interface - Front
ATX Power On/Off Switch
Connector location: PWRBTN1
Pin Definition
1 GND
2 NC
3 PWRST_R#
4 NC
C1 PLED_N
A1 PLED_P
MH1 NC
MH2 NC

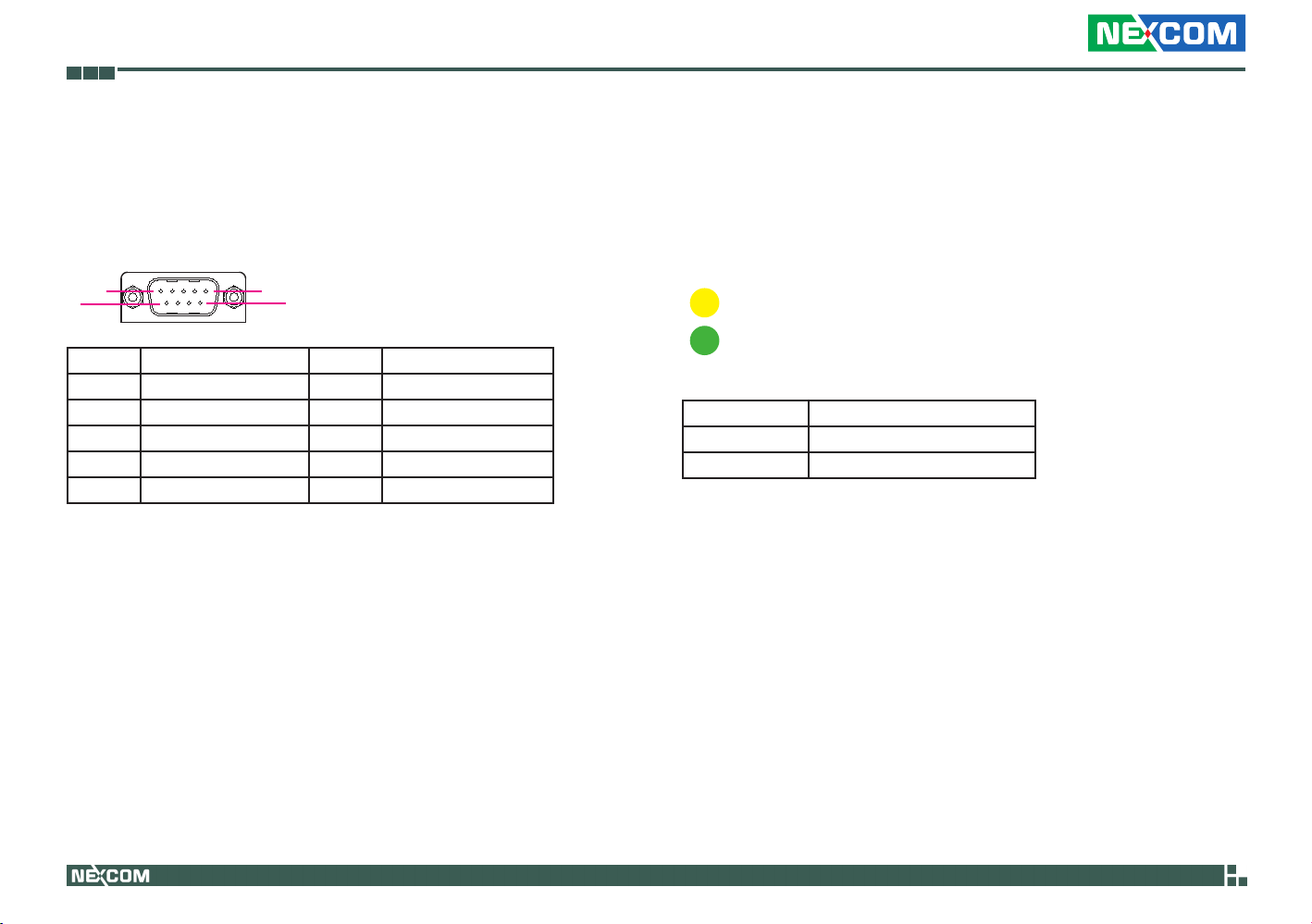

RS232/422/485 COM2 Port
Connector type: DB-9 Connector location: COM2
1 5
9
RS232 Pin Definition
Pin Definition Pin Definition
1 DCD2 2 RXD2
3 TXD2 4 DTR2
5 GND 6 DSR2
7 RTS2 8 CTS2
9 RI2
RS485 Pin Definition
Pin Definition Pin Definition
1 TXD- 2 TXD+
RXD- RXD+
3 Reserved 4 Reserved
5 Reserved 6 Reserved
7 Reserved 8 Reserved
9 Reserved
6
RS422 Pin Definition
Pin Definition Pin Definition
1 TXD- 2 TXD+
3 RXD+ 4 RXD-
5 GND 6 RTS-
7 RTS# 8 CTS+
9 CTS-
12
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
Mic-in Jack
Connector type: 6-pin jack, 25.9x12.6x17.0mm Connector location: JAUDIO
Pin Definition
1 NC
2 MIC_JD
3 NC
4 MIC_OUT
5 GND
6 GND
Speaker-out Jack
Connector type: 5-pin jack Connector location: JAUDIO
Pin Definition
1 GND
2 SPK_Out_R
3 NC
4 NC
5 SPK_Out_L
13
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
PS/2 Keyboard/Mouse Port
Connector type: PS/2, Mini-DIN-6 Connector location: KB_MS1
8 5
Pin Definition Pin Definition
6 3
1
2
1 KBDAT 2 MSDAT
3 GND 4 +5V
5 KBCLK 6 MSCLK
DVI-D Port
Connector type: 20-pin D-Sub Connector location: DVI1
81
2417
Pin Function Pin Function
1 TDC0# 2 +5V
3 TDC0 4 GND
5 NC 6 NC
7 NC 8 NC
9 TDC1# 10 HPDET
11 TDC1 12 DDC_DAT
13 GND 14 DDC_CLK
15 GND 16 GND
17 TDC2# 18 TLC#
19 TDC2 20 TLC
14
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
External I/O Interface - Rear
RS232 COM1 Port
Connector type: DB-9 Connector location: COM1
1 5
9
Pin Definition Pin Definition
1 DCD 6 DSR
2 RxD 7 RTS
3 TxD 8 CTS
4 DTR 9 RI
5 GND
6
Status Indicators
HDD Access LED Power Status LED
HDD
PWR
Status LED Color
HDD Yellow
PWR Green
15
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
VGA Port
Connector type: DB-15 port, 15-pin D-Sub Connector location: VGA
15
1115
Pin Definition Pin Definition
1 RED 9 VCC
2 GREEN 10 GND
3 BLUE 11 NC
4 NC 12 DAT
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 CLK
8 GND
USB Ports
Connector type: Dual USB port, Type A Connector location: USB1
1
5
Pin Definition Pin Definition
1 +5V 5 +5V
2 USB1- 6 USB0-
3 USB1+ 7 USB0+
4 GND 8 GND
4
8
16
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
LAN Ports
Connector type: RJ45 port with LEDs Connector location: LAN1 and LAN2
Act Link
18
Pin Definition Pin Definition
1 Tx+ 5 NC
2 Tx- 6 Rx-
3 Rx+ 7 NC
4 NC 8 NC
+12V DC Input
Connector type: 4-pin power jack, 15x16x17.4mm Connector location: BDCJACK1
1 3
Pin Definition
1-2 DC-IN
3-4 GND
2 4
17
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
Internal Connectors
Power Button
Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: JPWRBTN
2
1
Pin Definition
1 PWR_BT
2 GND
Reset Button
Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: RSTBTN1
2
1
Pin Definition
1 RESET#
2 GND
18
NISE 101 User Manual
Chapter 2: Jumpers and Connectors

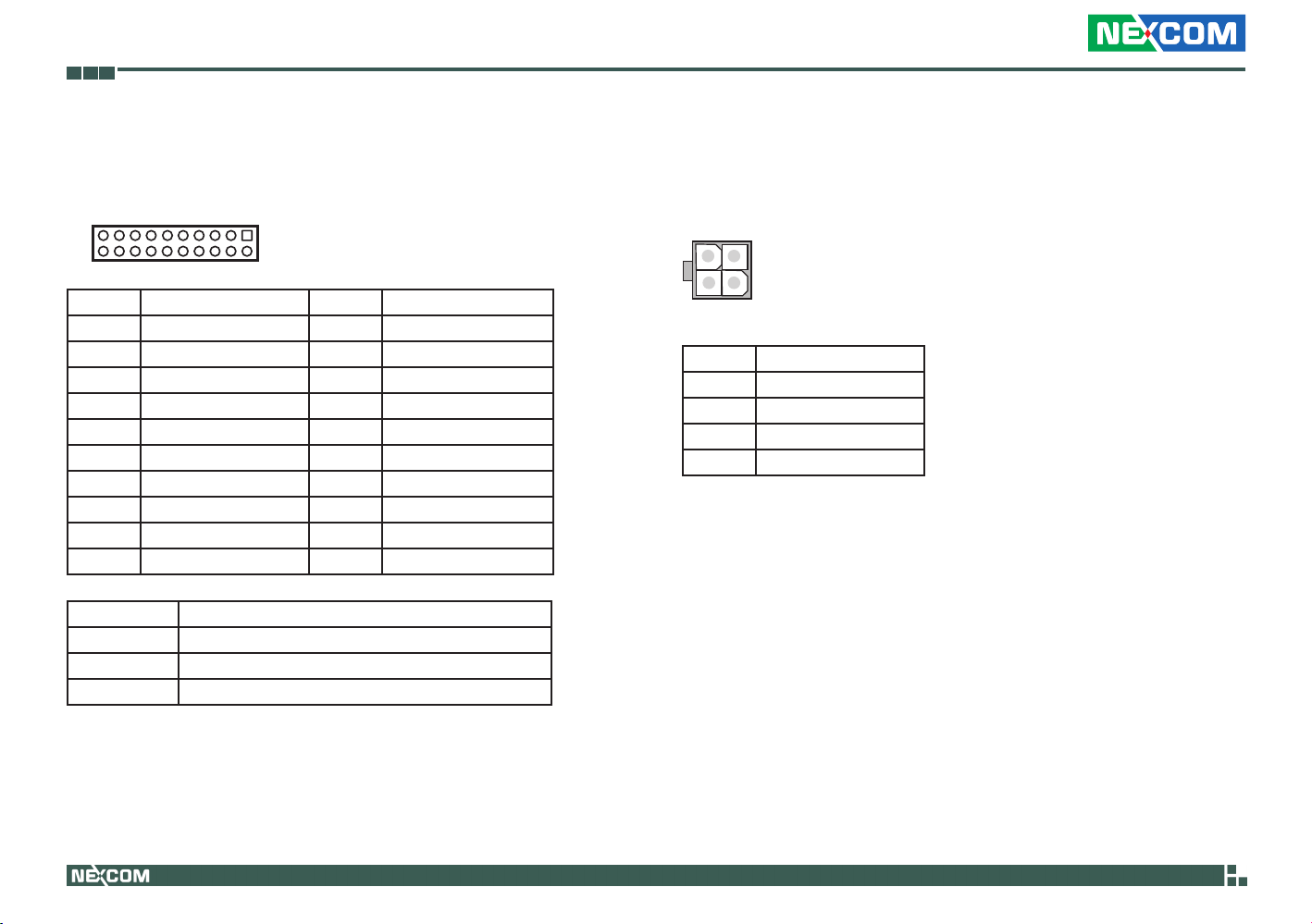

GPIO Connector
Connector type: 2x10 20-pin header, 2.0mm pitch Connector location: JDIO
19 20
Pin Definition Pin Definition
1 DO_GP20 2 DI_GP30
3 DO_GP21 4 DI_GP31
5 DO_GP22 6 DI_GP32
7 DO_GP23 8 DI_GP33
9 DO_GP24 10 DI_GP34
11 DO_GP25 12 DI_GP35
13 DO_GP26 14 DI_GP36
15 DO_GP27 16 DI_GP37
17 SMB_CLK 18 SMB_DATA
19 GND 20 +5V
Signal Definition
GP [20:27] General purpose I/O port 1 bit 0-7
SMB_CLK Data input for I2C input, 5V tolerant
SMB_DATA Data input for I2C serial input, 5V tolerant
1 2
DC Power Connector
Connector type: 2x2, 2.0mm pitch Connector location: PWRCON
1234
Pin Definition
1 GND
2 GND
3 VIN
4 VIN
19
NISE 101 User Manual
Chapter 2: Jumpers and Connectors

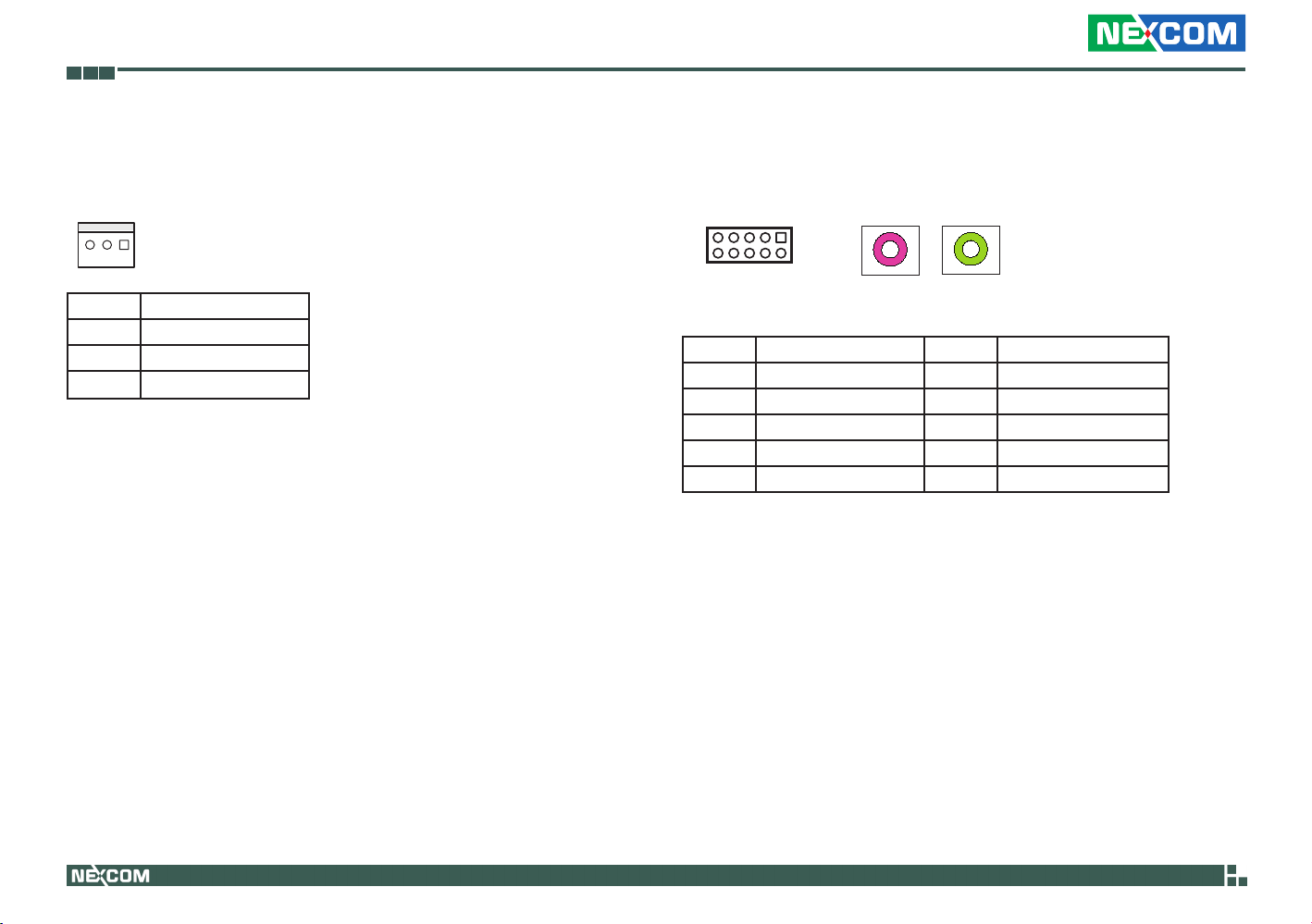

5VSB Connector in ATX
Connector type: 1x3 3-pin wafer, 2.54mm pitch Connector location: PWR_SB
3 1
Pin Definition
1 PSON#
2 GND
3
5VSB
Audio Connector
Connector type: 2x5 10-pin header, 2.54mm pitch (on the main board) Connector location: JAUDIO
9
10
On the Main Board
Pin Definition Pin Definition
1 LIN-OUT-R 2 LIN-OUT-L
3 GND 4 GND
5 LIN-IN-R 6 LIN-IN-L
7 MIC-REF 8 MIC-IN
9 NC 10 NC
1 2
Mic-in Speaker-out
On the Front Panel
20
NISE 101 User Manual
Chapter 2: Jumpers and Connectors
LVDS Backlight Connector
Connector type: 1x5 5-pin wafer, 2.0mm pitch Connector location: JBKL
5 1
Pin Definition
1 +12V
2 GND
3 ENBKL
4 VR
5 +5V
Signal Definition
VR Vadj = 0.75V - 4.25V (Recommended: 4.7KΩ, >1/16W)
ENBKL LCD backlight ON/OFF control signal
LVDS Backlight Brightness Adjustment Connector
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JVR
3
1
Pin Definition
1 +5V
2 VR
3 GND
Variation Resistor
Recommended: 4.7KΩ, >1/16W
21
NISE 101 User Manual
Chapter 2: Jumpers and Connectors

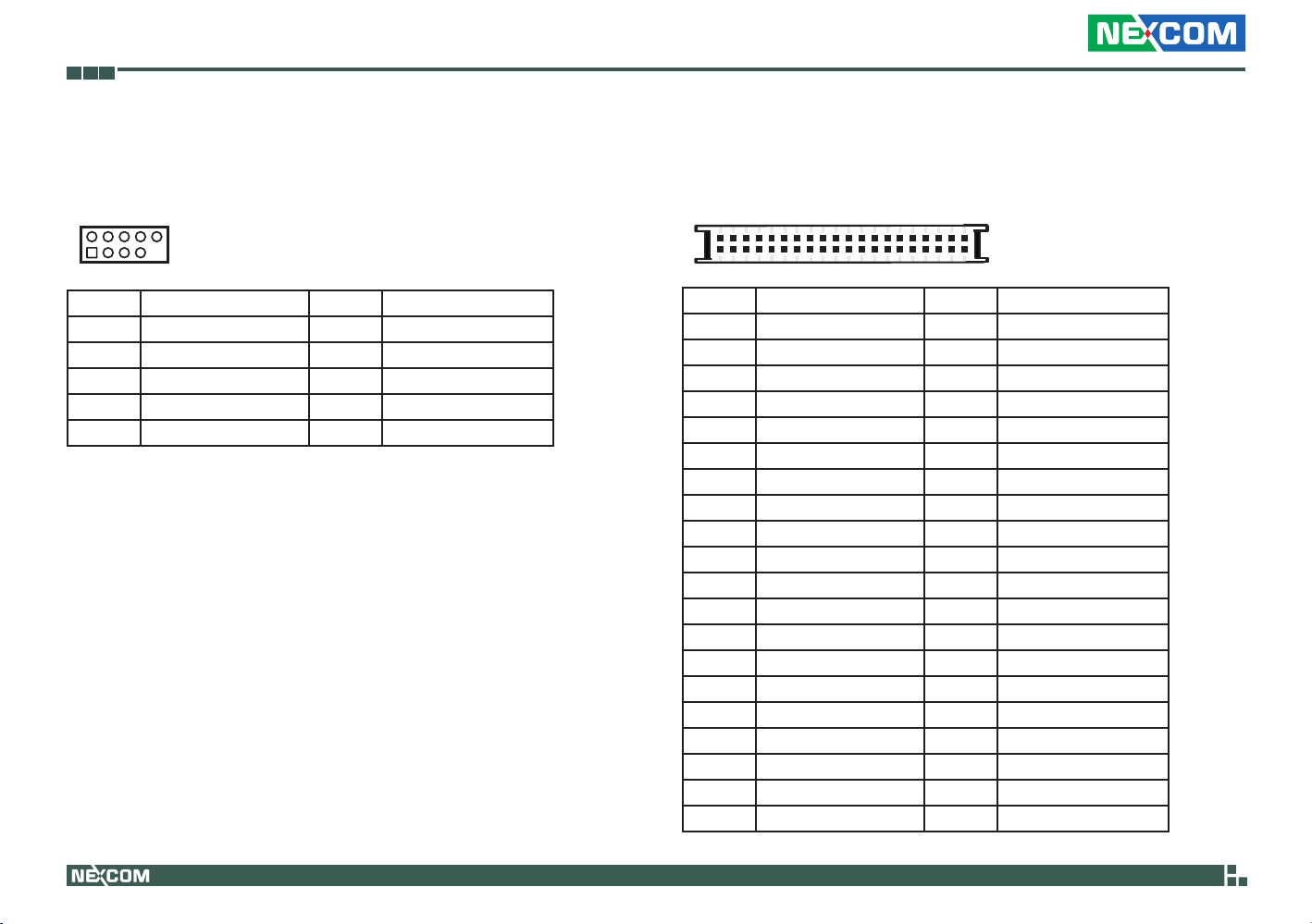

USB Connectors
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JUSB2 and JUSB3
2
1
Pin Definition Pin Definition
1 +5V 2 GND
3 D2-/D4+ 4 GND
5 D2+/D4+ 6 D3+/D5+
7 GND 8 D3-/D5-
9 GND 10 +5V
10
9
LVDS Connector (Single 18-bit)
Connector type: 2.0mm pitch Connector location: JLVDS
1 2
Pin Definition Pin Definition
1 +3.3V 2 +5V
3 +3.3V 4 +5V
5 I2C_CLK1 6 I2C_DAT1
7 GND 8 GND
9 Txout1 10 Txout0
11 Txout1# 12 Txout0#
13 GND 14 GND
15 NC 16 Txout2
17 NC 18 Txout2#
19 GND 20 GND
21 E_Txout1 22 E_Txout0
23 E_Txout1# 24 E_Txout0#
25 GND 26 GND
27 NC 28 E_Txout2
29 NC 30 E_Txout2#
31 GND 32 GND
33 E_Txclk 34 Txclk
35 E_Txclk# 36 Txclk#
37 GND 38 GND
39 +12V 40 +12V
39 40
22
NISE 101 User Manual
Chapter 2: Jumpers and Connectors

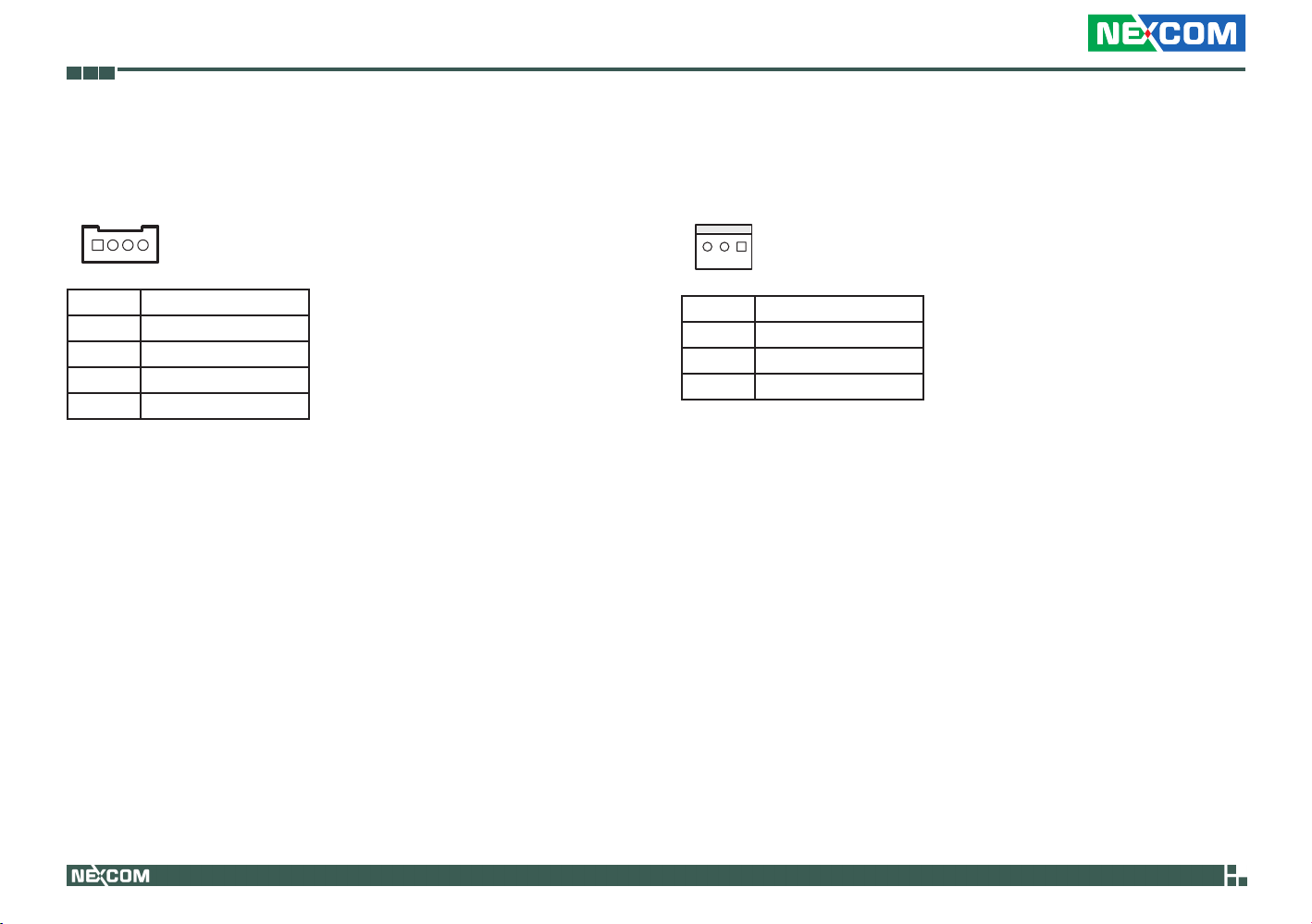

SATA Power Connectors
Connector size: 1x4 4-pin wafer, 2.0mm pitch Connector location: PWR1 and PWR2
1
Pin Definition
1 +12V
2 GND
3 GND
4 5V
4
CPU Fan Connector
Connector size: 1x3 3-pin wafer, 2.54mm pitch Connector location: CPU_FAN
3 1
Pin Definition
1 GND
2 +5V
3 FAN_TAC1
23
NISE 101 User Manual
Chapter 2: Jumpers and Connectors

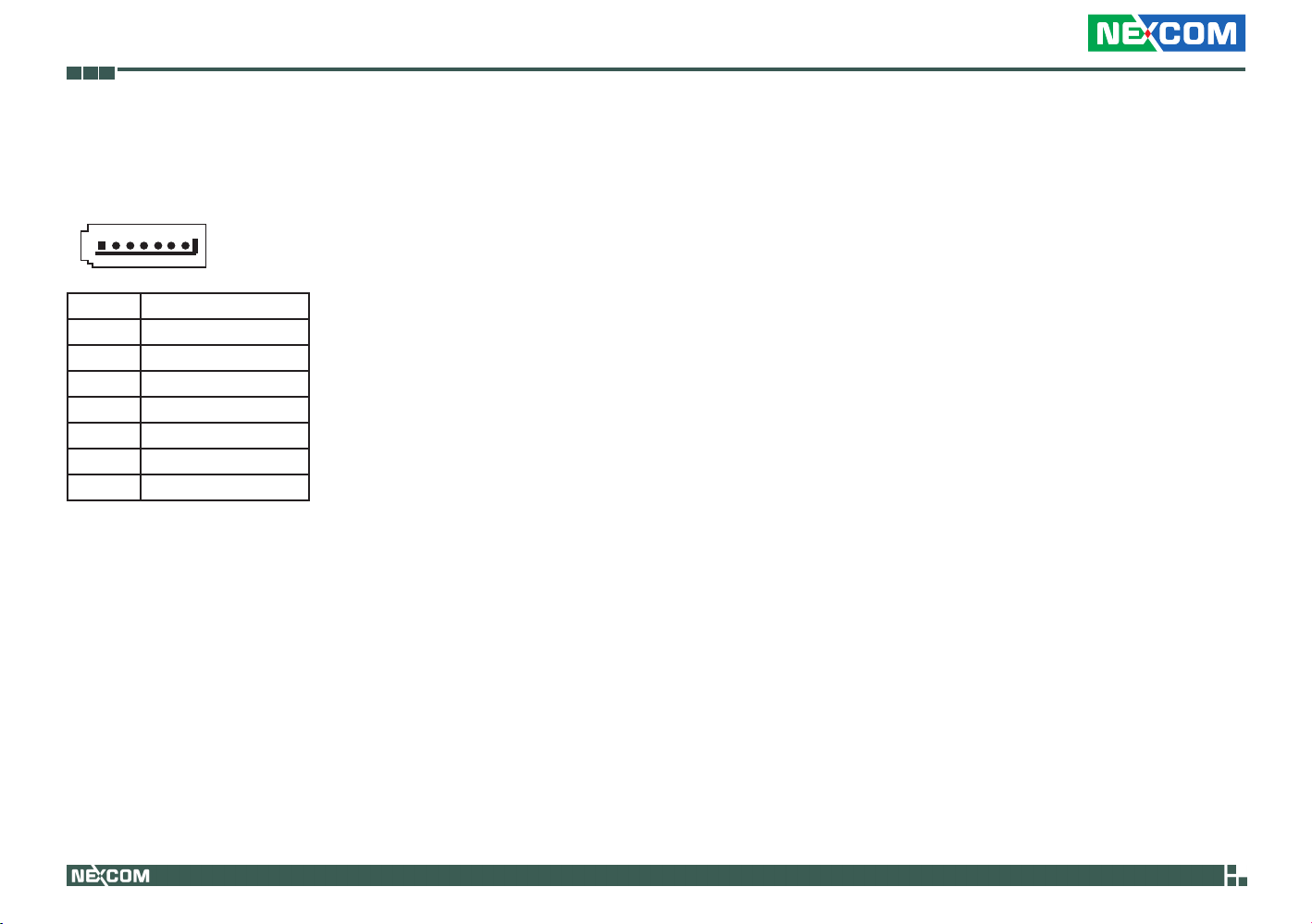

SATA Connectors
Connector size: 7-pin standard Serial ATAII (1.27mm) Connector location: SATA1 and SATA2
1
Pin Definition
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
7
24
NISE 101 User Manual
Chapter 3: System Setup
Ch a p t e r 3: Sy S t e m Se t u p

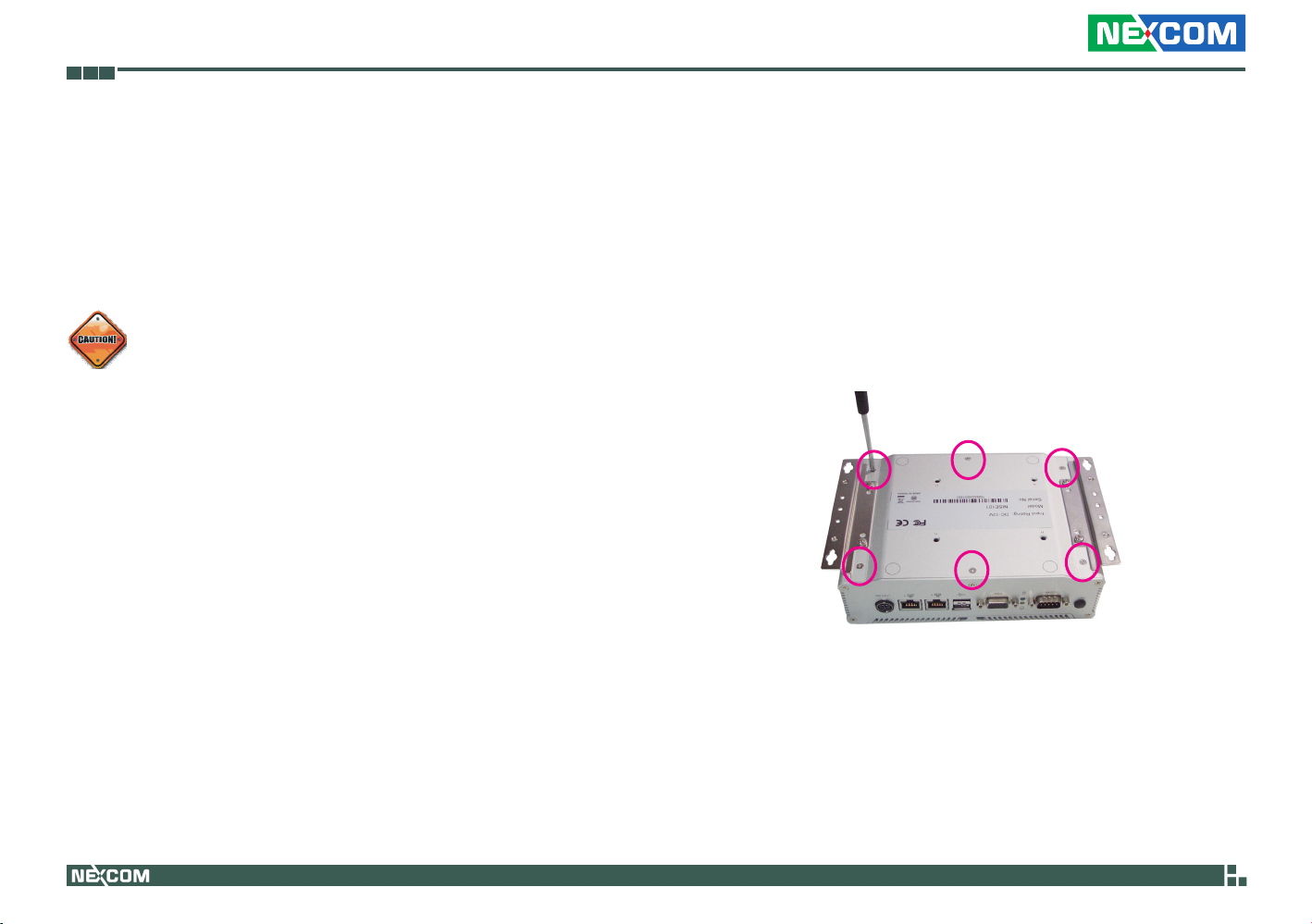

Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.
This chapter will guide you on installing the SODIMM, SATA drive and CompactFlash card. You need to remove the bottom cover to access the SODIMM socket, SATA cables and CompactFlash socket.
1. With the bottom side of the chassis facing up, remove the mounting
screws of the bottom cover and then put them in a safe place for later use.
2. Lift up the cover and remove it from the chassis.
25
NISE 101 User Manual
Chapter 3: System Setup
Installing the SODIMM
1. Locate the SODIMM socket on the board.
SODIMM socket
2. Insert the module into the socket at an approximately 30 degrees
angle. Apply firm even pressure to each end of the module until it slips into the socket. The gold-plated connector on the edge of the module will almost completely disappear inside the socket.
SODIMM
socket
SODIMM
26
NISE 101 User Manual
Chapter 3: System Setup
3. Push the module down until the clips on both sides of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.
Clip
Clip
27
NISE 101 User Manual
Chapter 3: System Setup

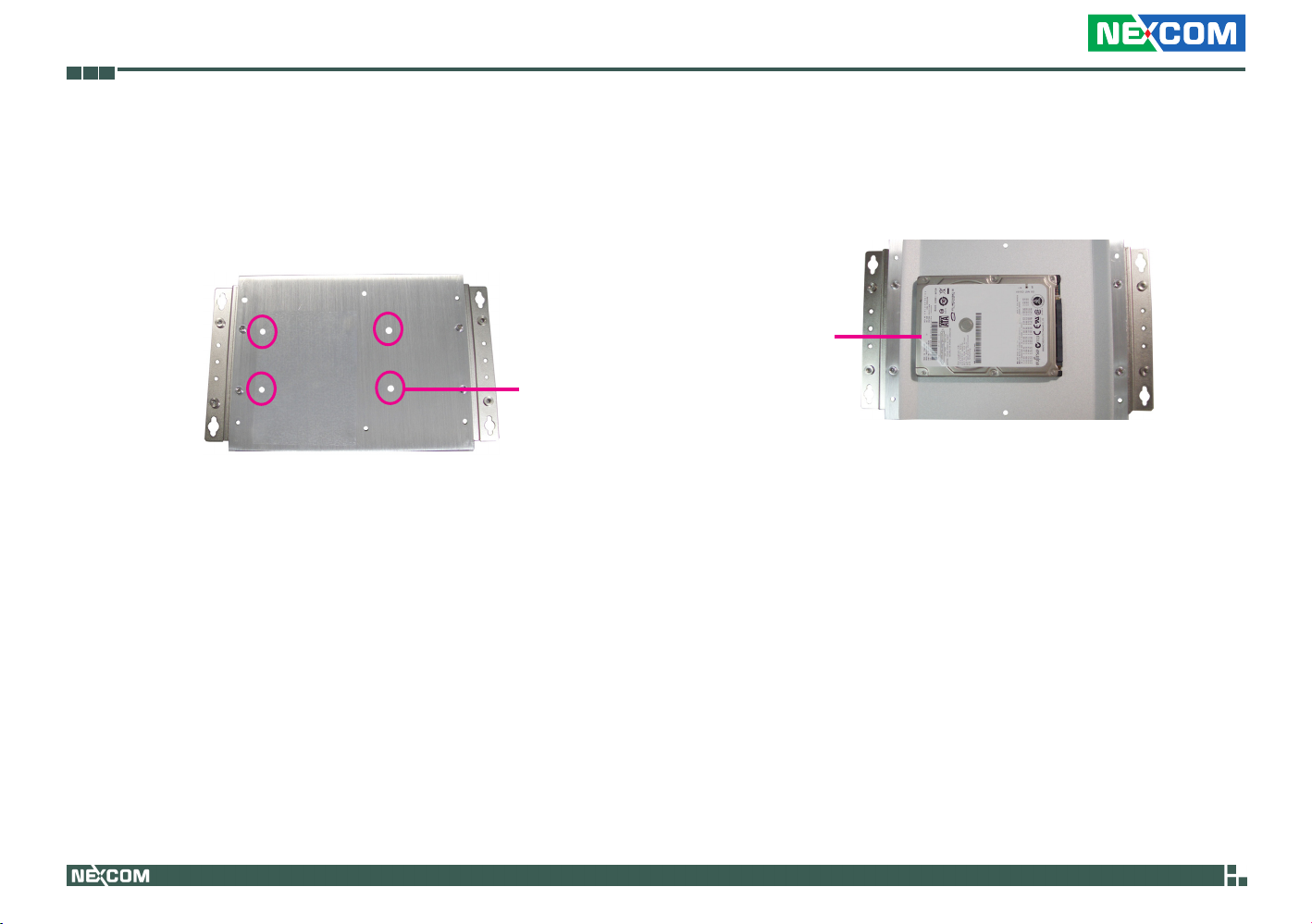

Installing a SATA Hard Drive
1. The inner side of the bottom cover is where you will install the SATA drive.
The 4 mounting holes for the SATA drive are shown below.
Mounting hole
2. Align the mounting holes of the SATA drive to the mounting holes on the cover.
SATA drive
28
NISE 101 User Manual
Chapter 3: System Setup

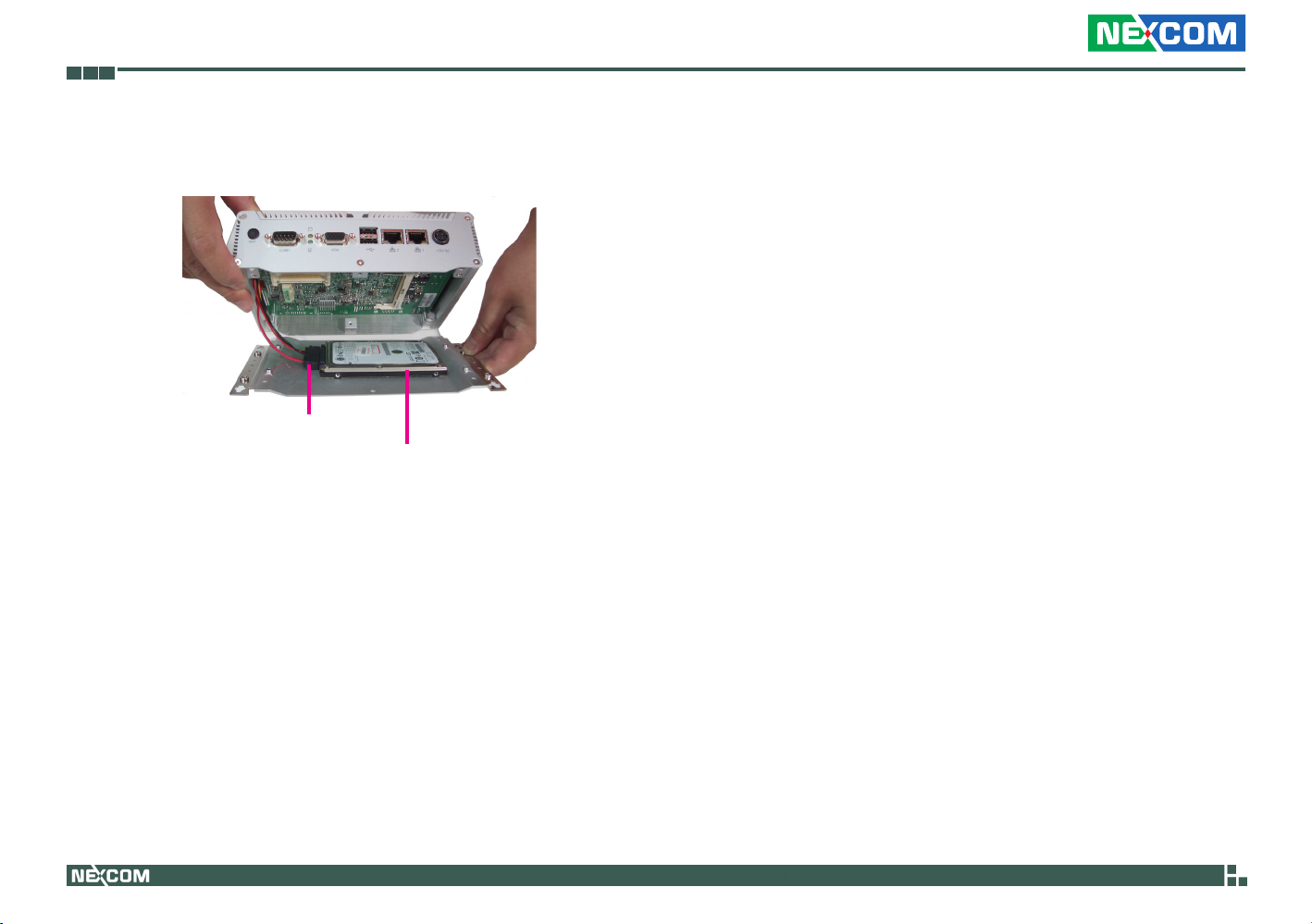

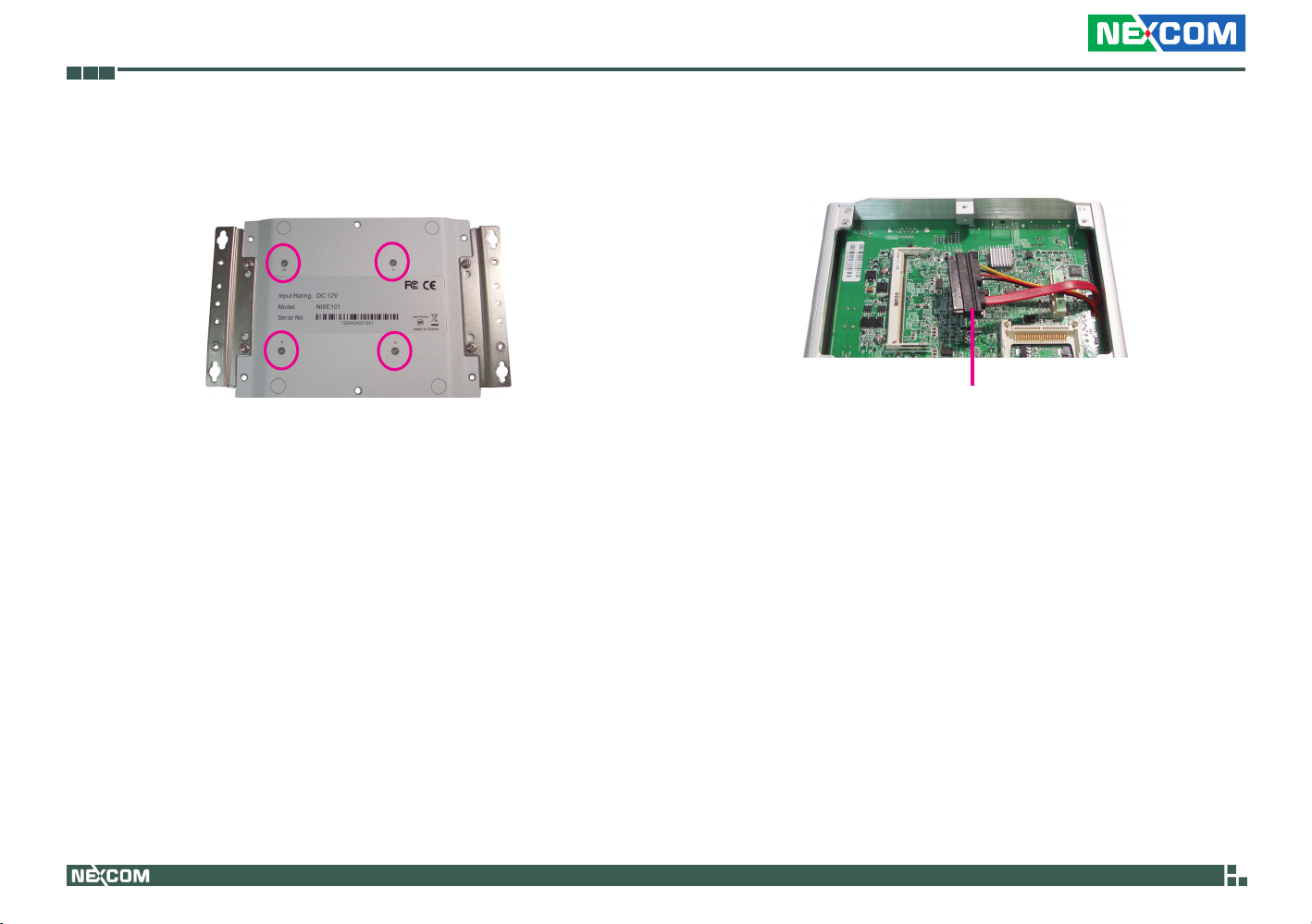

3. While supporting the SATA drive, turn the cover to the other side. This will be the outer side of the cover. Use the provided screws to secure the drive in place.
4. The SATA data/power cable is readily accessible upon removing the chassis cover.
SATA data/power cable
29
NISE 101 User Manual
Chapter 3: System Setup
5. Connect the SATA data/power cable to the connectors on the SATA drive.
SATA data/power cable
SATA drive
30
NISE 101 User Manual
Chapter 3: System Setup
Installing a CompactFlash Card
1. Remove the mounting screws of the rear panel.
2. Locate for the CompactFlash socket on the board.
CompactFlash socket
Mounting hole
31
NISE 101 User Manual
Chapter 3: System Setup
4. Insert the card until it is completely seated in the socket.3. Position the CompactFlash card to the socket.
CompactFlash card
32
NISE 101 User Manual
Chapter 4: BIOS Setup
Ch a p t e r 4: BIOS Se t u p
This chapter describes how to use the BIOS setup program for NISE 101. The BIOS screens in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driv­en utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM­based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
Hard drives, diskette drives, and peripherals • Video display type and display options• Password protection from unauthorized use• Power management features•
The settings made in the setup program intimately affect how the com­puter performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
This program should be executed under the following conditions:
When changing the system configuration•
When a configuration error is detected by the system and you are • prompted to make changes to the Setup program
When resetting the system clock•
When redefining the communication ports to prevent any conflicts•
When making changes to the Power Management configuration•
When changing the password or making other changes to the security • setup
Normally, CMOS setup is needed when the system hardware is not con­sistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
33
NISE 101 User Manual
Chapter 4: BIOS Setup
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
If the error occurs before the display device is initialized, a series of • beeps will be transmitted.
If the error occurs after the display device is initialized, the screen will • display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:
TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:
BIOS Main Menu
Once you enter Award BIOS CMOS Setup Utility, the Main Menu will ap­pear on screen. The main menu allows you to select from eight setup func­tions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Congurations
Esc : Quit F9 : Menu in BIOS F10 : Save & Exit Setup
Time, Date, Hard Disk Type...
PC Health Status
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving
↑ ↓ → ← : Select Item
34
NISE 101 User Manual
Chapter 4: BIOS Setup
The following table lists the available options on the main menu.
Menu Description
Standard CMOS
Use this menu for basic system configuration.
Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
Use this menu to set the advanced features avail­able on the system.
Use this menu to specify your settings for inte­grated peripherals.
Use this menu to specify your settings for power management.
Appears if your system supports Plug and Play and PCI Configuration.
PC Health Status Displays CPU, System Temperature, Fan Speed,
and System Voltages Value.
Load Optimized Defaults
Use this menu to load the BIOS default values, that is, factory settings for optimum system per­formance. While Award has designed the custom BIOS to maximize performance, the factory has the option to change these defaults to meet their needs.
Set Password Enables you to change, set, or disable the supervi-
sor or user password.
Save & Exit Setup Saves CMOS value changes to CMOS and exits
setup
Exit Without Saving Ignores all CMOS value changes and exits setup.
Getting Help
The BIOS Setup program provides descriptions of the options available on the menu.
If you are on the main menu, a description of the highlighted option can • be found at the bottom of the screen.
If you are on the Status Page or Option Page setup menu, a description • of the highlighted option can be found on the right side of the screen under the heading Item Help.
35
NISE 101 User Manual
Chapter 4: BIOS Setup
Using the Control Keys
The table below lists the keys that help you navigate the setup program.
Use This Key To Do This
Up arrow Move to previous item
Down arrow Move to next item
Left arrow Move to the item to the left
Right arrow Move to the item to the right
Esc key Main Menu: Quit without saving changes to CMOS
Status Option Page Setup Menus: Exit current page and return to Main Menu.
Enter Key Select or Accept an Item
PgUp/plus key Increase the numeric value or make changes
PgDn/minus key Decrease the numeric value or make changes
F1 key General help, only for Status Page Setup Menu and
Option Page Setup Menu
Use This Key To Do This
F2/Shift + F2 key Change color from total 16 colors. F2 to select color
forward, (Shift) F2 to select color backward
F5 key Restore the previous CMOS value from CMOS (only
for Option Page Setup Menu)
F6 key Load the default CMOS value from BIOS default
table (only for Option Page Setup Menu)
F7 key Load the Setup default value (only for Option Page
Setup Menu)
F9 Key Menu in BIOS
F10 key Save all the CMOS changes (only for Main Menu)
36
NISE 101 User Manual
Chapter 4: BIOS Setup
BIOS Setup Utility
Standard CMOS Features
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
IDE Channel 0 MasterIDE Channel 0 Slave IDE Channel 2 MasterIDE Channel 2 Slave
Video Halt On
Base Memory Extended Memory Total Memory
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F7: Optimized Defaults
Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to De­cember. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Thu, Apr 8 2010 14 : 44 : 30
[None] [None] [Hitachi HTE722012K9A] [None]
[EGA/VGA] [All, But Keyboard]
640K 2086912K 2087936K
Item Help
Menu Level
Change the day, month, year and century
IDE Channel 0 Master to IDE Channel 2 Slave
To configure the IDE drives, move the cursor to a field then press <En­ter>. The following screen will appear.
Phoenix - AwardBIOS CMOS Setup Utility
IDE Channel 0 Master
IDE HDD Auto-Detection
IDE Channel 0 Master Access Mode
Capacity
Cylinder Head Precomp Landing Zone Sector
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values
[Press Enter]
Auto Auto
0 MB
0 0 0 0 0
F7: Optimized Defaults
Item Help
Menu Level 
To auto-detect the HDD’s size, head... on this channel
IDE HDD Auto-Detection
Detects the parameters of the drive. The parameters will automati­cally be shown on the screen.
IDE Channel 0 Master/Slave and IDE Channel 2 Master/Slave
If you select ”Auto”, the BIOS will auto-detect the HDD & CD-ROM drive at the POST stage and show the IDE for the HDD & CD-ROM drive. If a hard disk has not been installed, select “None”.
37
NISE 101 User Manual
Chapter 4: BIOS Setup
Access Mode
For hard drives larger than 528MB, you would typically select the LBA type. Certain operating systems require that you select CHS or Large. Please check your operating system’s manual or Help desk on which one to select.
Capacity
Displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk checking program.
Cylinder
This field displays the number of cylinders.
Head
This field displays the number of read/write heads.
Precomp
This field displays the number of cylinders at which to change the write timing.
Landing Zone
This field displays the number of cylinders specified as the landing zone for the read/write heads.
Sector
This field displays the number sectors per track.
Video
This field selects the type of video adapter used for the primary system monitor. Although secondary monitors are supported, you do not have to select the type. The default setting is EGA/VGA.
EGA/VGA
Enhanced Graphics Adapter/Video Graphics Array. For EGA, VGA, SVGA and PGA monitor adapters.
CGA 40
Color Graphics Adapter. Power up in 40-column mode.
CGA 80
Color Graphics Adapter. Power up in 80-column mode.
Mono
Monochrome adapter. Includes high resolution monochrome adapt­ers.
Halt On
This field determines whether the system will stop if an error is detected during power up. The default setting is All Errors.
No Errors
The system boot will not stop for any errors detected.
All Errors
The system boot will stop whenever the BIOS detects a non-fatal er­ror.
All, But Keyboard
The system boot will not stop for a keyboard error; it will stop for all other errors.
38
NISE 101 User Manual
Chapter 4: BIOS Setup
Base Memory
Displays the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard or 640K for systems with 640K or more memory installed on the motherboard.
Extended Memory
Displays the amount of extended memory detected during boot-up.
Total Memory
Displays the total memory available in the system.
39
NISE 101 User Manual
Chapter 4: BIOS Setup
Advanced BIOS Features
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Hard Disk Boot Priority
First Boot Device Second Boot Device Third Boot Device Boot Up NumLock Status Security Option APIC Mode
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values
Press Enter USB-FDD USB-CDROM Hard Disk On Setup Enabled
F7: Optimized Defaults
Item Help
Menu Level
Select Hard Disk Boot Device Priority
Hard Disk Boot Priority
This field is used to select the boot sequence of the hard drives. Move the cursor to this field then press <Enter>. Use the Up or Down arrow keys to select a device then press <+> to move it up or <-> to move it down the list.
Phoenix - AwardBIOS CMOS Setup Utility
Hard Disk Boot Priority
1. Ch2 M. : Hitachi HTE722012K9A30
2. Bootable Add-in Cards
↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help
Menu Level 
Use <↑> or <↓> to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.
40
NISE 101 User Manual
Chapter 4: BIOS Setup
First Boot Device, Second Boot Device and Third Boot Device
Select the drive to boot first, second and third in the “First Boot Device” “Second Boot Device” and “Third Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected.
The options are:
Hard Disk CDROM USB-FDD USB-ZIP USB-CDROM LAN Disabled
Boot Up NumLock Status
Selects the power on state of the numeric keypad. By default, the system boots up with NumLock On wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
Security Option
This field determines when the system will prompt for the password ­everytime the system boots or only when you enter the BIOS setup. Set the password in the Set Supervisor/User Password submenu.
System
The system will not boot and access to Setup will be denied unless the correct password is entered at the prompt.
Setup
The system will boot, but access to Setup will be denied unless the correct password is entered at the prompt.
APIC Mode
This field is used to enable or disable the APIC mode.
41
NISE 101 User Manual
Chapter 4: BIOS Setup
Advanced Chipset Features
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
System BIOS Cacheable Video BIOS Cacheable
** VGA Setting ** On-Chip Frame Buffer Size Boot Display Panel Number
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. These items should not be altered unless necessary. The default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered some in­compatibility or that data was being lost while using your system.
Enabled Disabled
8MB CRT 1024x768 18bit
Item Help
Menu Level 
System BIOS Cacheable
When this field is enabled, accesses to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is en­abled. The larger the range of the Cache RAM, the higher the efficiency of the system.
Video BIOS Cacheable
As with caching the system BIOS, enabling the Video BIOS cache will al­low access to video BIOS addresssed at C0000H to C7FFFH to be cached, if the cache controller is also enabled. The larger the range of the Cache RAM, the faster the video performance.
On-Chip Frame Buffer Size
This field is used to select the onboard VGA’s frame buffer size that is shared from the system memory.
Boot Display
Selects the type of display to use when the system boots.
Panel Number
Selects the type of panel that you are using.
42
NISE 101 User Manual
Chapter 4: BIOS Setup
Integrated Peripherals
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
OnChip IDE DeviceOnboard DeviceSuper IO DeviceUSB Device Setting
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Press Enter Press Enter Press Enter Press Enter
F7: Optimized Defaults
Item Help
Menu Level
OnChip IDE Device
Phoenix - AwardBIOS CMOS Setup Utility
OnChip IDE Device
IDE HDD Block Mode IDE DMA Transfer Access On-Chip Primary PCI IDE IDE Primary Master PIO IDE Primary Slave PIO IDE Primary Master UDMA IDE Primary Slave UDMA On-Chip Secondary PCI IDE IDE Secondary Master PIO IDE Secondary Slave PIO IDE Secondary Master UDMA IDE Secondary Slave UDMA
*** On-Chip Serial ATA Setting *** On-Chip Serial ATA x PATA IDE Mode SATA Port
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Enabled Enabled Enabled Auto Auto Auto Auto Enabled Auto Auto Auto Auto
Enhanced Mode Secondary P0, P2 is Primary
IDE HDD Block Mode
Enabled
The IDE HDD uses the block mode. The system BIOS will check the hard disk drive for the maximum block size the system can transfer. The block size will depend on the type of hard disk drive.
Disabled The IDE HDD uses the standard mode.
Item Help
Menu Level
If your IDE hard drive supports block mode select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support
43
IDE DMA Transfer Access
This field is used to enable or disable the DMA transfer function of an IDE hard drive.
NISE 101 User Manual
Chapter 4: BIOS Setup
On-Chip Primary/Secondary PCI IDE
These fields are used to enable or disable the primary or secondary IDE controller. The default is Enabled. Select Disabled if you want to add a different hard drive controller.
IDE Primary Master/Slave PIO and IDE Secondary Master/Slave PIO
PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.
Auto
The BIOS will automatically set the system according to your hard disk drive’s timing.
Mode 0-4
You can select a mode that matches your hard disk drive’s tim­ing. Caution: Do not use the wrong setting or you will have drive errors.
IDE Primary Master/Slave UDMA and IDE Secondary Master/ Slave UDMA
These fields allow you to set the Ultra DMA in use. When Auto is selected, the BIOS will select the best available option after checking your hard drive or CD-ROM.
Auto The BIOS will automatically detect the settings for you.
Disabled The BIOS will not detect these categories.
On-Chip Serial ATA
Disabled
Disables the SATA controller.
Combined Mode
Combines both PATA and SATA drives; allowing a maximum of 2 IDE drives in each channel.
Enhanced Mode Enables both PATA and SATA drives; allowing a maximum of 6 IDE drives.
SATA Only
SATA is operating in legacy mode.
44
NISE 101 User Manual
Chapter 4: BIOS Setup
PATA IDE Mode and SATA Port
The PATA IDE field is used to select the function mode for the IDE connector and its relation to the SATA ports.
Primary IDE serves as Primary Master and Primary Slave channel. SATA 1 and SATA 3 serve as Secondary Master and Secondary Slave channel.
Secondary IDE serves as Secondary Master and Secondary Slave channel. SATA 0 and SATA 2 serve as Primary Master and Primary Slave channel.
45
NISE 101 User Manual
Chapter 4: BIOS Setup
Onboard Device
Phoenix - AwardBIOS CMOS Setup Utility
AC97 Audio Onboard LAN1 Device Onboard LAN2 Device Onboard LAN Boot ROM
↑↓: Move PU/PD/+/-: Change Priority F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Onboard Device
Enabled Enabled Enabled Disabled
Item Help
Menu Level 
AC97 Audio
This field is used to enable or disable the AC97 audio.
Onboard LAN1 Device and Onboard LAN2 Device
These fields are used to enable or disable the onboard LAN control­lers.
Onboard LAN Boot ROM
Enable this field if you wish to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network di­rectly.
If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.
46
NISE 101 User Manual
Chapter 4: BIOS Setup
Super IO Device
Phoenix - AwardBIOS CMOS Setup Utility
Onboard Serial Port 1 Onboard Serial Port 2
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Super IO Device
3F8/IRQ4 2F8/IRQ3
Item Help
Menu Level 
Onboard Serial Port 1 and Onboard Serial Port 2
3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3 Allows you to manually select an I/O address for the serial port.
Disabled Disables the serial port.
USB Device Setting
Phoenix - AwardBIOS CMOS Setup Utility
USB Device Setting
USB 1.0 Controller
USB 2.0 Controller USB Keyboard Function USB Storage Function
*** USB Mass Storage Device Boot Setting ***
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Enabled Enabled Enabled Enabled
Item Help
Menu Level 
[Enable] or [Disable] Universal Host Controller Interface for Universal Serial Bus.
USB 1.0 Controller
This field is used to enable or disable the Universal Host Controller Interface (USB 1.0).
USB 2.0 Controller
This field is used to enable or disable the Enhanced Host Controller Interface (USB 2.0).
47
NISE 101 User Manual
Chapter 4: BIOS Setup
USB Keyboard Function
Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of periph­eral devices.
If a PS/2 keyboard is not available and you need to use a USB key­board to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.
USB Storage Function
Enables or disables the legacy support for USB mass storage.
48
NISE 101 User Manual
Chapter 4: BIOS Setup
Power Management Setup
Power Management Setup lets you control the system power. The system has various power-saving modes — including powering down the hard disk, turning off the video, suspending to RAM, and software power down — that allows the system to automatically resume by certain events.
The power-saving modes can be controlled by timeouts. If the system is inactive for a time, the timeouts begin counting. If inactivity continues and reaches the defined timeout period, the system enters a power saving mode. If any item in the list of Reload Global Timer Events is enabled, then any activity on that item will reset the timeout counters to zero.
If the system is suspended or has been powered down by software, it can be resumed by a wake up call that is generated by incoming traffic to a modem, a LAN card, a PCI card, or a fixed alarm on the system real-time clock.
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
PCI Express PM Function
ACPI Function Video Off Method Video Off In Suspend MODEM Use IRQ Soft-Off by PWR-BTTN Power On by Ring Resume by Alarm x Date (of Month) Alarm x Time (hh:mm:ss) Alarm
Press Enter Enabled DPMS Yes NA Instant-Off Enabled Disabled 0 0 : 0 : 0
Item Help
Menu Level
PCI Express PM Function
Phoenix - AwardBIOS CMOS Setup Utility
PCI Express PM Function
PCI Express PME
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Enabled
PCI Express PME
Enables or disables the PCI Express PME.
Item Help
Menu Level 
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F7: Optimized Defaults
49
NISE 101 User Manual
Chapter 4: BIOS Setup
ACPI Function
By default, the ACPI function is enabled. This function should be enabled only in operating systems that support ACPI.
Video Off Method
This determines the manner in which the monitor is blanked.
V/H SYNC + Blank This selection will cause the system to turn off the vertical and hori­zontal synchronization ports and write blanks to the video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Initializes display power management signaling. Use this option if your video board supports it.
Video Off In Suspend
This field is used to activate the video off feature when the system enters the Suspend mode. The options are Yes and No.
MODEM Use IRQ
This field is used to set an IRQ channel for the modem installed in your system.
Soft-Off by PWR-BTTN
This field allows you to select the method of powering off your system.
Delay 4 Sec.
Regardless of whether the Power Management function is enabled or disabled, if the power button is pushed and released in less than 4 sec, the system enters the Suspend mode. The purpose of this function is to prevent the system from powering off in case you accidentally “hit” or pushed the power button. Push and release again in less than 4 sec to restore. Pushing the power button for more than 4 seconds will power off the system.
Instant-Off
Pressing and then releasing the power button at once will immediately power off your system.
Power On By Ring
Set this field to Enabled to use the modem ring-on function. This will al­low your system to power-on to respond to calls coming from an external modem.
50
NISE 101 User Manual
Chapter 4: BIOS Setup
Resume By Alarm
Enabled When Enabled, you can set the date and time you would like the Soft Power Down (Soft-Off) PC to power-on in the “Date (of Month) Alarm” and “Time (hh:mm:ss) Alarm” fields. However, if the system is being accessed by incoming calls or the network (Resume On Ring/ LAN) prior to the date and time set in these fields, the system will give priority to the incoming calls or network.
Disabled Disables the automatic power-on function. (default)
Date (of Month) Alarm
0
The system will power-on everyday according to the time set in the “Time (hh:mm:ss) Alarm” field.
1-31 Select a date you would like the system to power-on. The system will power-on on the set date, and time set in the “Time (hh:mm:ss) Alarm” field.
Time (hh:mm:ss) Alarm
This is used to set the time you would like the system to power-on. If you want the system to power-on everyday as set in the “Date (of Month) Alarm” field, the time set in this field must be later than the time of the RTC set in the Standard CMOS Features submenu.
51
NISE 101 User Manual
Chapter 4: BIOS Setup
PnP/PCI Configurations
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Congurations
Reset Conguration Data
Resources Controlled By x IRQ Resources
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F7: Optimized Defaults
Reset Configuration Data
Enabled The BIOS will automatically reset the Extended System Configuration Data (ESCD) once. It will then recreate a new set of configuration data.
Disabled
The BIOS will not reset the configuration data.
Disabled
Auto(ESCD) Press Enter
Item Help
Menu Level
Resources Controlled By
The Award Plug and Play BIOS has the capability to automatically config­ure all of the boot and Plug and Play compatible devices.
Auto(ESCD)
The system will automatically detect the settings for you.
Manual
Choose the specific IRQ resources in the “IRQ Resources” field.
IRQ Resources
Set each system interrupt to either PCI Device or Reserved.
Phoenix - AwardBIOS CMOS Setup Utility
IRQ-3 assigned toIRQ-4 assigned toIRQ-5 assigned toIRQ-7 assigned to
IRQ-9 assigned to
IRQ-10 assigned toIRQ-11 assigned toIRQ-12 assigned toIRQ-14 assigned toIRQ-15 assigned to
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F7: Optimized Defaults
IRQ Resources
PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device PCI Device
Item Help
Menu Level 
Legacy ISA for devices compliant with the original PC AT bus
specication. PCI/ISA
PnP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.
52
NISE 101 User Manual
Chapter 4: BIOS Setup
PC Health Status
Phoenix - AwardBIOS CMOS Setup Utility
+5VSB CPU Voltage DDR2 Voltage +5V +12V +1.05V +1.5V +3.3V Voltage Battery CPU Temp Fan 1 Speed
↑↓→←: Move Enter: Select F1: General Help+/-/PU/PD: Value F10: Save ESC: Exit
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
+5VSB to Fan 1 Speed
These fields will show the output voltage, temperature and fan speed of the monitored devices or components.
PC Health Status
4.97V
0.88V
1.84V
4.81V
12.16V
1.04V
1.47V
3.16V
3.08V 29oC 0 RPM
Item Help
Menu Level
Load Optimized Defaults
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Congurations
Esc : Quit F10 : Save & Exit Setup
Load Optimized Defaults (Y/N)? N
Time, Date, Hard Disk Type...
This option opens a dialog box that lets you install optimized defaults for all appropriate items in the whole setup utility. Press the <Y> key and then <Enter> to install the defaults. Press the <N> key and then <Enter> if you do not want to install the defaults. The optimized defaults place demands on the system that may be greater than the performance level of the com­ponents, such as the CPU and the memory.
Fatal errors or instability may occur if you install the optimized defaults when your hardware does not support them. If you only want to install setup defaults for a specific option, select and display that option, and then press the <F7> key.
PC Health Status
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving
↑ ↓ → ← : Select Item
53
NISE 101 User Manual
Chapter 4: BIOS Setup
Set Password
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Congurations
Esc : Quit F10 : Save & Exit Setup
Enter Password:
Time, Date, Hard Disk Type...
The User Password utility sets the password. The main board is shipped with the password disabled. If you want to change the password, you must first enter the current password, then at the prompt enter your new password. The password is case sensitive. You can use up to eight alpha­numeric characters. Press <Enter> after entering the password. At the next prompt, confirm the new password by retyping it and pressing <Enter> again.
To disable the password function, highlight “Set Password” then press <Enter>, instead of typing in a new password. A message appears con­firming that the password has been disabled. If you have set supervisor and user Password, only the supervisor password allows you to enter the BIOS setup program.
Note: If you forgot your password, the only way to solve this problem is to discharge the CMOS memory by turning power off and placing a shunt (jumper cap) on the RTC Clear jumper to short pin 2 and pin 3 for five seconds, then putting the shunt back to pin 1 and pin 2.
PC Health Status
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving
↑ ↓ → ← : Select Item
Save & Exit Setup
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Congurations
Esc : Quit F10 : Save & Exit Setup
SAVE to CMOS and EXIT (Y/N)? Y:
Time, Date, Hard Disk Type...
Selecting this option and pressing <Enter> will save the new setting infor­mation in the CMOS memory and continue with the bootup process.
PC Health Status
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving
↑ ↓ → ← : Select Item
54
NISE 101 User Manual
Chapter 4: BIOS Setup
Exit Without Saving
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Congurations
Esc : Quit F10 : Save & Exit Setup
Quit Without Saving (Y/N)? N:
PC Health Status
Load Optimized Defaults
Set Password
Save & Exit Setup
Exit Without Saving
↑ ↓ → ← : Select Item
Time, Date, Hard Disk Type...
Selecting this option and pressing <Enter> will exit the Setup utility with­out recording any new values or changing old ones.
55
NISE 101 User Manual
Appendix A: Power Consumption
Ap p e n d i x A: po w e r Co n s u m p t i o n
Test Configuration
System Configuration Sys#1
Chassis CHASSIS NISE101 VER:B
CPU Intel® Atom™ N270 1.6G/533M/2.5W
Memory APACER SODIMM 1G
HDD HITACHI 2.5 SATA HDD 80G
Power Supply FSP060-1AD101C 12V/60W
Keyboard LEMEL B-5201-P
Mouse GENIUS EASY MOUSE PS/2
56
NISE 101 User Manual
Appendix A: Power Consumption
Power Consumption Measurement
Test Equipment
PROVA CM-07 AC/DC CLAMP METER
Test Procedure
1. Power up the DUT and then boot Windows XP.
2. Enter the standby mode (HDD power down).
3. Measure the power consumption and record it.
4. Run the Burn-in test program to apply 100% full loading.
5. Measure the power consumption and record it.
Test Data
Sys #1
+12V
Full-Loading Mode 1.85A
Total 22.2W
Standby Mode 0.75A
Total 9W
57
NISE 101 User Manual
Appendix B: GPI/O Programming Guide
Ap p e n d i x B: Gpi/O pr O G r A m m i n G G u i d e
The NISB101 onboard GPIO function is carried out by the ITE IT8712F I/O chip. The board uses the IT8712F’s GP20~27 and GP30~37 pins to support 16-channel GPIO interface. The default setup is 8 output channel and 8 input channel.
The I/O decode address are:
Output port: 0x281 Bit[7:0] = GP27~GP20
Input port: 0x281 Bit[7:0] = GP37~GP30
Pin Description Pin Description
1 GPO20 2 GPI30
3 GPO21 4 GPI31
5 GPO22 6 GPI32
7 GPO23 8 GPI33
9 GPO24 10 GPI34
11 GPO25 12 GPI35
13 GPO26 14 GPI36
15 GPO27 16 GPI37
17 Clock 18 Data
19 GND 20 5V
58
NISE 101 User Manual
Appendix B: GPI/O Programming Guide
Sample Code
#define IO_INDEX_PORT 0x2E
#define IO_DATA_PORT 0x2F
#define UNLOCK_DATA1 0x87
#define UNLOCK_DATA2 0x01
#define UNLOCK_DATA3 0x55
#define UNLOCK_DATA4 0x55
#define LOCK_DATA 0x02
#define CHIP_ID1 0x20
#define CHIP_ID2 0x21
#define DEVICE_REGISTER 0x07
#define GPIO_DEVICE_7 0x07 //GPIO Port
#define IO_BASE_ADDR_H 0x62
#define IO_BASE_ADDR_L 0x63
#define GPIO1_POLARITY 0x0B0
#define GPIO2_POLARITY 0x0B1
#define GPIO3_POLARITY 0x0B2
#define GPIO4_POLARITY 0x0B3
#define GPIO5_POLARITY 0x0B4
#define GPIO6_POLARITY 0x0B5
#define GPIO1_INTERNAL_UP 0x0B8
#define GPIO2_INTERNAL_UP 0x0B9
#define GPIO3_INTERNAL_UP 0x0BA
#define GPIO4_INTERNAL_UP 0x0BB
#define GPIO5_INTERNAL_UP 0x0BC
#define GPIO6_INTERNAL_UP 0x0BD
#define GPIO1_DIRECTION 0x0C8
#define GPIO2_DIRECTION 0x0C9
#define GPIO3_DIRECTION 0x0CA
#define GPIO4_DIRECTION 0x0CB
#define GPIO5_DIRECTION 0x0CC
#define GPIO6_DIRECTION 0x0CD
#define GPIO_20 0x01 // Digit Output
#define GPIO_21 0x02 // Digit Output
#define GPIO_22 0x04 // Digit Output
#define GPIO_23 0x08 // Digit Output
#define GPIO_24 0x10 // Digit Output
#define GPIO_25 0x20 // Digit Output
#define GPIO_26 0x40 // Digit Output
#define GPIO_27 0x80 // Digit Output
#define GPIO_30 0x01 // Digit Input
#define GPIO_31 0x02 // Digit Input
#define GPIO_32 0x04 // Digit Input
#define GPIO_33 0x08 // Digit Input
#define GPIO_34 0x10 // Digit Input
#define GPIO_35 0x20 // Digit Input
#define GPIO_36 0x40 // Digit Input
59
NISE 101 User Manual
Appendix B: GPI/O Programming Guide
#define GPIO_37 0x80 // Digit Input
#define _ON_ 0x01
#define _OFF_ 0x00
#define _HIGH_ 0x01
#define _LOW_ 0x02
unsigned int Port_Addr;
unsigned char ReadAByte(unsigned int port_no)
{ return (inportb(port_no));
}
void WriteAByte(unsigned int port_no, unsigned char data)
{ outportb(port_no, data);
}
void Delay_T(int loop_cnt)
{ int i,j;
for (i=0 ; i< loop_cnt; i++)
for (j=0; j< 1000; j++) ;
}
60
NISE 101 User Manual
Appendix C: Watchdog Timer Setting
Ap p e n d i x C: WA t C h d o g ti m e r Se t t i n g
The NISB101’s onboard watchdog timer uses an 8-bit counter; therefore it has 256 resolution and the time range is from 1 to 255 seconds with a resolution of per second or 1 to 255 minutes with a resolution of per minute.
When the timer is setting and time-out occurs, it will trigger the hardware reset signal and a system reset will happen.
The NISB101’s onboard watchdog timer function is carried out by the ITE IT8712F I/O chip. If you want to use this function in your program, you have to know how to read/write the IT8712F configuration register. The onboard IT8712F I/O chip’s decode address is 02Eh, its index port and data port is 02Fh. The read/write register methods are write register number to index port, then read/write data from/to data port.
The following describes how to program the IT8712F register and the procedure of using watchdog function.
To program the IT8712F register:
1. Unlock the IT8712F I/O chip and enter the configuration mode.
2. Select Logical Device.
3. Select the register number.
4. Read/Write data from/to register.
5. Lock the IT8712F I/O chip and exit from the configuration mode.
To Unlock/Lock IT8712F and Enter/Exit the configuration mode is to write a specific value to I/O Port 02Eh.
Unlock IT8712F: contiue write value 87h, 01h, 55h, 55h to I/O port 02Eh. Lock IT8712F: write value 02h to I/O port 02Fh.
Program watchdog procedure:
1. Unlock the IT8712F I/O chip and enter the configuration mode.
write unlock value (87h,01h,55h,55h) to port 02Eh
ex: outportb(0x2E, 0x87); outportb(0x2E, 0x01); outportb(0x2E, 0x55); outportb(0x2E, 0x55);
2. Select the logical device to 7
write value (07h) to register number 07h
ex: outportb(0x02E, 0x07); outportb(0x02F, 0x07);
61
NISE 101 User Manual
Appendix C: Watchdog Timer Setting
3. Set watchdog timer time-out output as KRST pin (72h).
Register number 72h bit 6 40h : KRST enable (bit 6 = 1) 00h : KRST disable (bit 6 = 0)
ex: outportb(0x02E, 0x072); outportb(0x02F, (inportb(0x2F) | 40h));
4. Set watchdog timer count mode (second or minute) to register (72h).
Register number 72h bit 7 80h : second mode (bit 7 = 1) 00h : minute mode (bit 7 = 0)
ex: outportb(0x02E, 0x072); outportb(0x02F, (inportb(0x2F) | 80h));
5. Write time-out value (01h ~ FFh) to timer register (73h).
Register number 73h 00h : Time-out Disable 01h : Time-out occurs after 1 second or minute 02h : Time-out occurs after 2 seconds or minutes 03h : Time-out occurs after 3 seconds or minutes 04h : Time-out occurs after 4 seconds or minutes 05h : Time-out occurs after 5 seconds or minutes FFh : Time-out occurs after 255 seconds or minutes
6. Lock the IT8712F I/O chip, exit the configuration mode
write lock value (02h) to port 02Eh
ex: outportb(0x02E, 0x02);
The following shows two examples of programming the watchdog timer with 10 seconds time interval in both Micro-assembly and C language.
Demo Porgram 1 (assember language): ;;==================================================== ;; Title : NISB101 WatchDog Timer Demo Program (10 seconds) ;; Date : 02/18/2009 ;;==================================================== .model small .code CONFIG_PORT DW 02EH UNLOCK_KEY DB 087h,001h,055h,055h LOCK_KEY DB 002H ;;--------------------------------------------------­;; Main Program start ;;--------------------------------------------------­WatchDog PROC call Enter_Config_Mode ;; Enter SuperIO Chip config mode mov cl, 7 ;; Enter Logic Device 7 call Set_Logic_Device
write register number 73h to port 02Eh write time-out value to port 02Fh
ex: outportb(0x02E, 0x73); /* register 73 (Watchdog Timer) */ outportb(0x02F, 0x0A); /* time-out value 0A == 10 seconds */
;; Set Watchdog Timer Output as KRST Pin (72H,Bit6) 1 = enable, 0 = dis­able mov cl, 072h ;; Register 72h call Superio_Get_Reg
62
NISE 101 User Manual
Appendix C: Watchdog Timer Setting
or al, 040h ;; bit6=1 enable, bit6=0 disable call Superio_Set_Reg ;; KRST as WDT output pin
;; Watchdog Timer time-out value select (72H,Bit7) 1 = second, 0 = minute mov cl, 072h ;; Register 72h call Superio_Get_Reg or al, 080h ;; bit7=1 second, bit7=0 minute call Superio_Set_Reg ;; Set to second mode
;; Set Watchdog Timer Time-out value = 0AH (10 seconds) mov cl, 073h ;; Register 73H mov al, 0Ah ;; 01h ~ FFh == 01 ~ 255 seconds call Superio_Set_Reg
call Exit_Config_Mode ;; Exit SuperIO Chip config mode
mov ah,4ch ;; Retuen to DOS int 21h ret WatchDog ENDP ;;---------------------------------------------------
;;--------------------------------------------------­;; Enter ITE8712 I/O Chip Config mode ;;--------------------------------------------------­Enter_Config_Mode Proc mov si, offset cs:UNLOCK_KEY mov dx, CONFIG_PORT mov cx, 4 @@: mov al, byte ptr cs:[si]
out dx, al inc si loop short @B ret Enter_Config_Mode Endp
;;--------------------------------------------------­;; exit ITE8712 I/O Chip config mode ;;--------------------------------------------------­Exit_Config_Mode Proc mov dx, CONFIG_PORT mov al, LOCK_KEY out dx, al jmp $+2 jmp $+2 inc dx mov al, LOCK_KEY out dx, al ret Exit_Config_Mode Endp ;;---------------------------------------------------
;;--------------------------------------------------­;; Select ITE8712 I/O Chip Logic Device ;;Input : CL - logic device to set ;;--------------------------------------------------­Set_Logic_Device proc push ax push cx xchg al,cl mov cl,07h
63
NISE 101 User Manual
Appendix C: Watchdog Timer Setting
call Superio_Set_Reg pop cx pop ax ret Set_Logic_Device endp ;;---------------------------------------------------
;;--------------------------------------------------­;; Write data to ITE8712 I/O Chip Register ;; Input : CL - register index ;; AL - Value to write ;;--------------------------------------------------­Superio_Set_Reg proc push ax mov dx, CONFIG_PORT mov al,cl out dx,al jmp $+2 jmp $+2 pop ax inc dx out dx,al jmp $+2 jmp $+2 ret Superio_Set_Reg endp ;;---------------------------------------------------
;;--------------------------------------------------­;; Read data from ITE8712 I/O Chip Register ;; Input : CL - register index
;; Output : AL - Value read ;;--------------------------------------------------­Superio_Get_Reg proc Near mov al, cl mov dx, CONFIG_PORT out dx, al jmp $+2 jmp $+2 inc dx in al, dx jmp $+2 jmp $+2
ret Superio_Get_Reg endp
end watchdog
Demo program 2 (C language): //==================================================== // Title : NISB101 WatchDog Timer Test Utility // Date : 02/18/2009 // Compiler : Borland C ++ //====================================================
#include <stdio.h> #include <string.h> #include <stdlib.h> #include <conio.h>
64
NISE 101 User Manual
Appendix C: Watchdog Timer Setting
#define IO_INDEX_PORT 0x2E #define IO_DATA_PORT 0x2F #define UNLOCK_DATA1 0x87 #define UNLOCK_DATA2 0x01 #define UNLOCK_DATA3 0x55 #define UNLOCK_DATA4 0x55 #define LOCK_DATA 0x02 #define DEVICE_REGISTER 0x07 #define SECOND_MODE 0 #define MINUTE_MODE 1
void EnterConfigMode() { outportb(IO_INDEX_PORT, UNLOCK_DATA1); outportb(IO_INDEX_PORT, UNLOCK_DATA2); outportb(IO_INDEX_PORT, UNLOCK_DATA3); outportb(IO_INDEX_PORT, UNLOCK_DATA4); }
void ExitConfigMode() { outportb(IO_INDEX_PORT, LOCK_DATA); }
void SelectDevice(unsigned char device) { outportb(IO_INDEX_PORT, DEVICE_REGISTER); outportb(IO_DATA_PORT, device); }
unsigned char ReadAData(short int reg) { outportb(IO_INDEX_PORT, reg); return (inportb(IO_DATA_PORT)); }
void WriteAData(unsigned char reg, unsigned char data) { outportb(IO_INDEX_PORT, reg); outportb(IO_DATA_PORT, data); }
void SetWatchDogTime(int time_mode, unsigned char time_val) { unsigned char data;
EnterConfigMode(); SelectDevice(7); //Set Register 72 bit6 = 1, KRST as WDT output pin WriteAData(0x72, 0x40); //Set Register 72 bit7 = 1, WDT time-out value mode as second //Set Watchdog Count Mode (bit7=1:second, bit=0:minute) data = ReadAData(0x72); if (time_mode == SECOND_MODE) data = data | 0x80; else data = data & 0x7F; WriteAData(0x72, data); //Set Register 73 //Set Watch-Dog Timer 1~ 256 steps WriteAData(0x73, time_val);
65
NISE 101 User Manual
Appendix C: Watchdog Timer Setting
ExitConfigMode(); }
void main(int argc, char* argv[]) { int time_value=0,time_mode=SECOND_MODE; char *ptr;
printf(“ITE-8712 Superio internal WatchDog Timer Test Utility Version 1.0 \n”); if (argc == 1) { printf(“\n Syntax: 945GSWDT step [mode] \n”); printf(“ step range : 1 ~ 255 steps (1 ~ 255 seconds or minutes) \n”); printf(“ mode : sec or min \n”); return ; } if (argc > 1) { ptr = argv[1]; time_value = atoi(ptr); } if (argc > 2) { ptr = argv[2]; if (strcmp(“min”,ptr)==0 || strcmp(“MIN”,ptr)==0) time_mode = MINUTE_MODE; else time_mode = SECOND_MODE; } if (time_value > 0 && time_value < 256) {
SetWatchDogTime(time_mode, (unsigned char) time_value); printf(“Watch Dog reset Timer set up : %03d %s “,time_value,(time_ mode==SECOND_MODE)?”Second”:”Minute”); } }
66
NISE 101 User Manual
