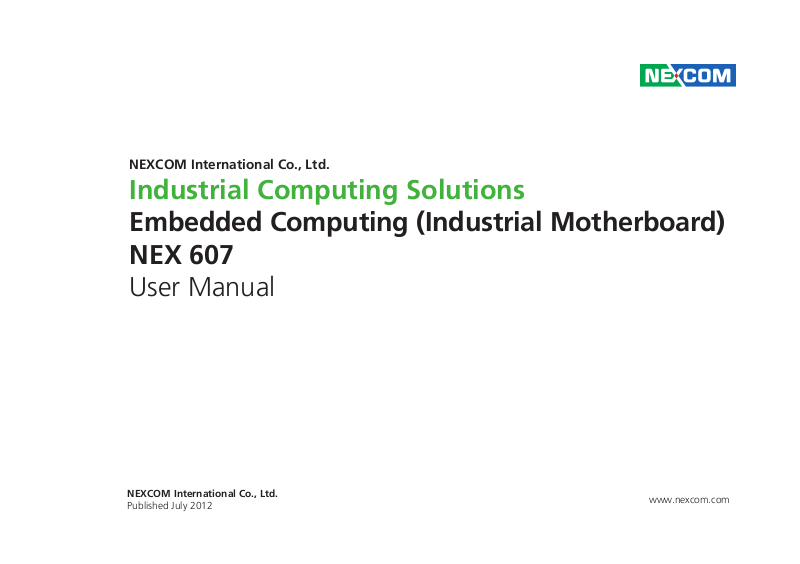

NEXCOM NEX 607 User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Embedded Computing (Industrial Motherboard) NEX 607

User Manual

NEXCOM International Co., Ltd.

Published July 2012

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiv

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NEX 607 ..........................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

CMOS Clear Select ..............................................................................8

ME Clear Select ...................................................................................8

LVDS1 Power Select ............................................................................ 9

LVDS1 CCFL Mode Select ....................................................................9

LVDS1 CCFL/PWN Mode Select ......................................................... 10

LVDS1 CCFL Power Select ................................................................. 10

LVDS2 Power Select .......................................................................... 11

LVDS2 CCFL/PWN Mode Select ......................................................... 11

LVDS2 CCFL Mode Select ..................................................................12

LVDS2 CCFL Power Select ................................................................. 12

Auto Button Select ...........................................................................13

RS-232 RI Power Select ..................................................................... 13

Connector Pin Definitions .....................................................................14

External I/O Interfaces ........................................................................ 14

COM 1 Port ...................................................................................14

COM 2 Port ...................................................................................14

HDMI ............................................................................................. 15

VGA and DVI-D Ports .....................................................................16

LAN1 and USB0/1 Ports .................................................................. 17

LAN2 and USB2/3 Ports .................................................................. 17

Audio Connectors .......................................................................... 18

Internal Connectors ........................................................................... 19

ii

NEX 607 User Manual

Keyboard and Mouse Connector ....................................................19

COM2 Connector (RS232) ..............................................................19

COM3 Connector (RS232) ..............................................................20

COM4 Connector (RS232) ..............................................................21

SMBus Connector ..........................................................................21

JTAG ..............................................................................................22

ATX Power Input Connector ...........................................................22

CPU FAN Connector .......................................................................23

SATA Power Connectors .................................................................23

GPIO Connector ............................................................................. 24

USB 1 Connector ...........................................................................24

USB 2 Connector ...........................................................................25

USB 3 Connector ...........................................................................25

LCD Panel A Connector ..................................................................26

LVDS Backlight Connector .............................................................. 27

SPI Programming Header ................................................................27

SIM Card Connector ......................................................................28

LVDS A Connector .........................................................................28

LVDS B Connector .......................................................................... 29

LVDS Backlight Connector .............................................................. 29

CIR Pin Header ............................................................................... 30

SATA0 Connector ...........................................................................30

SATA1 Connector ...........................................................................31

SATA2 Connector ...........................................................................31

SATA3 Connector ...........................................................................32

SYSTEM FAN Connector .................................................................32

CIR Pin Header ............................................................................... 33

Speaker-out Connector ..................................................................33

Line-in Connector ..........................................................................34

Mini-PCIe Slot ................................................................................35

PCIe x16 Slot ..................................................................................36

Block Diagram

Board Dimensions ...........................................................................39

.................................................................................38

Chapter 3: BIOS Setup

About BIOS Setup ................................................................................. 40

When to Configure the BIOS .................................................................40

Default Configuration ........................................................................... 41

Entering Setup ...................................................................................... 41

Legends ................................................................................................ 41

BIOS Setup Utility .................................................................................. 43

Main .................................................................................................43

Advanced ......................................................................................... 44

Chipset ..............................................................................................52

Boot .................................................................................................. 56

Security .............................................................................................57

Save & Exit ........................................................................................57

Appendix A: Watchdog Timer 58

WDT Programming Guide .....................................................................58

Appendix B: GPI/O Programming Guide 59

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NEX 607 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NEX 607 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NEX 607 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NEX 607 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NEX 607 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NEX 607 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NEX 607 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NEX 607 User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 http://www.nexcom.com.tw

USA NEXCOM USA

3758 Spinnaker Court Fremont, CA, 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France NEXCOM France

La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0)1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 http://www.nexcom.eu

Germany NEXCOM GmbH

Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

xi

NEX 607 User Manual

Preface

China NEXCOM China

2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Office

Hall C, Block 17, Tian Xing Cui Lang Building, No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 http://www.nexcom.cn

China-Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 http://www.nexcom.cn

China-Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China TEL: +86-755-833 7203 FAX: +86-755-833 7213 http://www.nexcom.cn

xii

NEX 607 User Manual

Preface

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xiii

NEX 607 User Manual

Preface

Package Contents

Before continuing, verify that the NEX 607 package that you received is complete. Your package should have all the items listed in the following table.

Item Part number Name Description Qty

1 20G00060700X0 ASSY NEX607 1 2 50222A0539X00 NEX607 I/O PANEL VER:A NORTHERN QUEEN 158.75x44.45x4.40mm SUS t=0.2mm 1 3 60177A0274X00 (N)NEX607 QUICK REFERENCE GUIDE VER:A KRAMER 1 4 60233ATA48X00 SATA CABLE BEST SATA CON 7P 180D TO 180D CONNECTOR L:250mm 28AWG 1 5 60233POW22X00 POWER CABLE EDI:302204040181-RS 4P 5.08mmx2 TO 2x2 4.2mm L:180+-10mm 1 6 60233PW149X00 SATA POWER CABLE EDI:354204040201-RS AMP 4PIN PIT:2.54mm TO SATA 15P L:200mm 1 7 60233USB48X00 USB CABLE EDI:262082080401-RS DUAL PORT USB CON TO HOUSING 2x4PIN 2.0mm L:400+-10mm 1

xiv

NEX 607 User Manual

Preface

Ordering Information

The following information below provides ordering information for NEX 607.

NEX 607 (P/N: 10G00060700X0) RoHS Compliant

Mini ITX, Intel® 2nd generation Intel® Core™ processor family with VGA/48-bit LVDS/HDMI/DVI-D/2x Gigabit LAN/10 x USB / 4x SATA / TPM (Option) / Second 48 Bit LVDS. (Option).

NEX 607 CPU Cooler (P/N: 5050300544X00) Optional

Part Number Name Qty

5050300544X00 (N)Intel PGA989 CPU COOLER COOLJAG:JACDD01C-5 1

xv

NEX 607 User Manual

Chapter 1: Product Introduction

Overview

Key Features

▪ 2nd generation Intel® Core™ processor family

▪ Intel® QM67 chipset

▪ Two 204-pin SO-DIMM socket supports up to 8 GB DDR3 1066/1333

MHz SDRAM

▪ Display: VGA & DVI-D & HDMI & LVDS (2x DF13 20-pin 18/24/36/48-bit

support)

▪ 1x Mini-PCIe

▪ 1x PCIex16 slot

▪ 2x Intel Gigabit Ethernet

▪ 4x SATA with RAID 0,1,5,10 function.

▪ 10x USB, 4-in/4-out GPIO, Mic-in, Line-out

▪ Serial port: 3 x RS232, 1x RS232/422/485 port

▪ Support AT/ATX mode and Single +12 Vdc input

▪ TPM (option)

▪ Second 48 Bit LVDS support (option)

1

NEX 607 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ 2nd generation Intel® Core™ processor

Main Memory

▪ Two 204-pin SO-DIMM socket supports up to 8 GB DDR3 1066/1333MHz

SDRAM

Chipset

▪ Intel® QM67 chipset

BIOS

▪ AMI BIOS ▪ Plug & Play support ▪ Advanced Power Management ▪ Advanced Configuration & Power Interface

On-board LAN

▪ 2x Realtek® PCI Express Gigabit Ethernet ▪ Support Boot From LAN (PXE) ▪ 2x RJ45 with LED

Display

▪ 2nd generation Intel® Core™ processor integrated Intel® HD Graphics

3000 engine, Intel® HD Graphics integrates high-performance graphics and media processing right on the processor, delivers sophisticated graphics for large display applications, dual independent display support.

▪ Analog VGA interface

– 1x VGA connector – Resolution up to 2048x1536 75Hz

▪ DVI interface

– 1x DVI-I connector – Resolution up to 1920x1200

▪ HDMI interface

– 1x HDMI connector

▪ LVDS1 interface

– 48bit LVDS interface, 2xDF13 20-pin LVDS connector for internal

connection – LVDS2 interface (option, Through SDVO w/CH7308) – 48bit LVDS interface, 2xDF13 20-pin LVDS connector for internal

connection

▪ CCFL interface

– 2x CCFL for LCD Panel Backlight Inverter

Audio

▪ Realtek ALC886 CODEC for High Definition ▪ 1x Phone Jack for mic-in ▪ 1x Phone Jack for line-out ▪ 1x 4 2.0 pitch pin header for line-in ▪ 1x 5 pin 2.0 pitch pin header for speaker-out

Expansion

▪ 1x Mini-PCIe ▪ 1x PCIe x16

2

NEX 607 User Manual

Chapter 1: Product Introduction

I/O Interface

▪ Serial port: 4 port

– COM1: RS232 DB-9 male connector on edge I/O – COM2: RS232/422/485 DB-9 male connector on edge I/O – COM3,4:RS232 2x5/2.54mm Box header

▪ USB 2.0: 10 ports

– 4 ports edge connector

– 6 ports by 2.0mm pin connector ▪ 8 GPIO lines via header (GPI 0~3 and GPO0~3) TTL Level (0/5 V) ▪ On-board Power LED and HDD Active LED Pin Header ▪ 1x 4-pin fan connector (for CPU) ▪ 1x 3-pin fan connector (for System) ▪ 1x Keyboard/Mouse pin header ▪ On board Buzzer/ SMBus2.0/ Reset SW/ On &Off switch button

Edge I/O Interface

▪ 1x DVI/VGA connector ▪ 1x HDMI connector ▪ 2x dual stack USB and RJ45 connector ▪ 1x dual stack serial port connector ▪ 1x Mic-in and Line out phone Jack

Watchdog Timer

▪ Watchdog timeout can be programmed by software from 1 second to

255 seconds, and from 1 minute to 255 minutes (Tolerance 15% under

room temperature 25°C)

System Monitor

▪ Monitoring of 4 voltages and 2 temperatures and 2 Fans speed detection ▪ 4 Voltage (Vcore, +12V , +3.3V , 5V) ▪ 2 Temperatures (CPU, System) ▪ 2 Fan Speed detection

On-board RTC

▪ On-chip RTC with battery backup ▪ 1x External Li-Ion battery

Power Input

▪ Support AT and ATX mode

Power Requirements

▪ Power requirement: +12V DC Input ▪ One 4-pin power connector

Dimensions

▪ Mini-ITX M/B form factor. ▪ 170mm (L) x 170mm (W)

Environment

▪ Operating temperatures: 0°C to 60°C ▪ Storage temperature: -20°C to 85°C ▪ Relative humidity: Operating 10% to 90%, non-condensing

Storage

▪ 4x SATA port with RAID 0,1,5,10 function

Certifications

▪ CE approval ▪ FCC Class A

3

NEX 607 User Manual

Chapter 1: Product Introduction

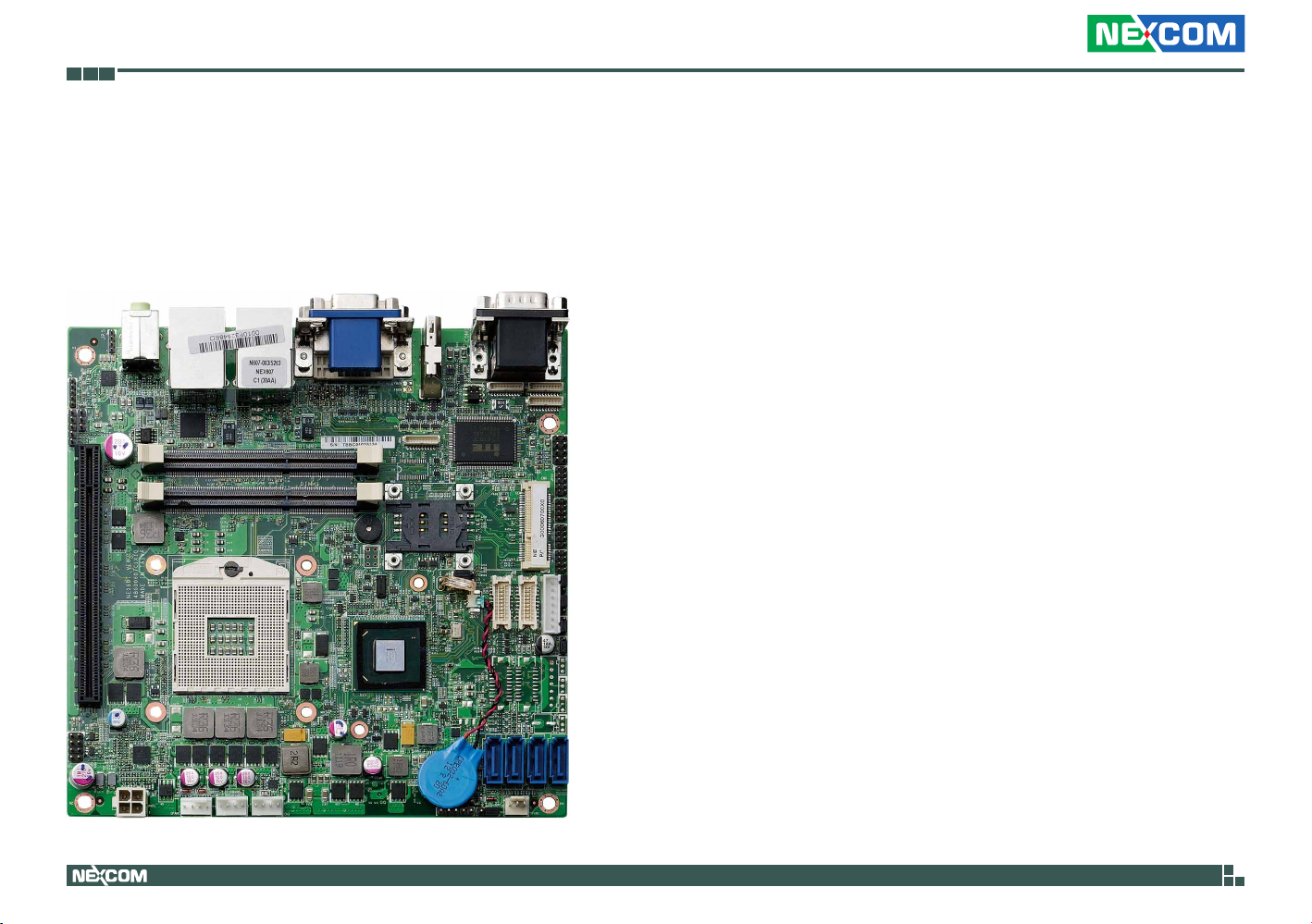

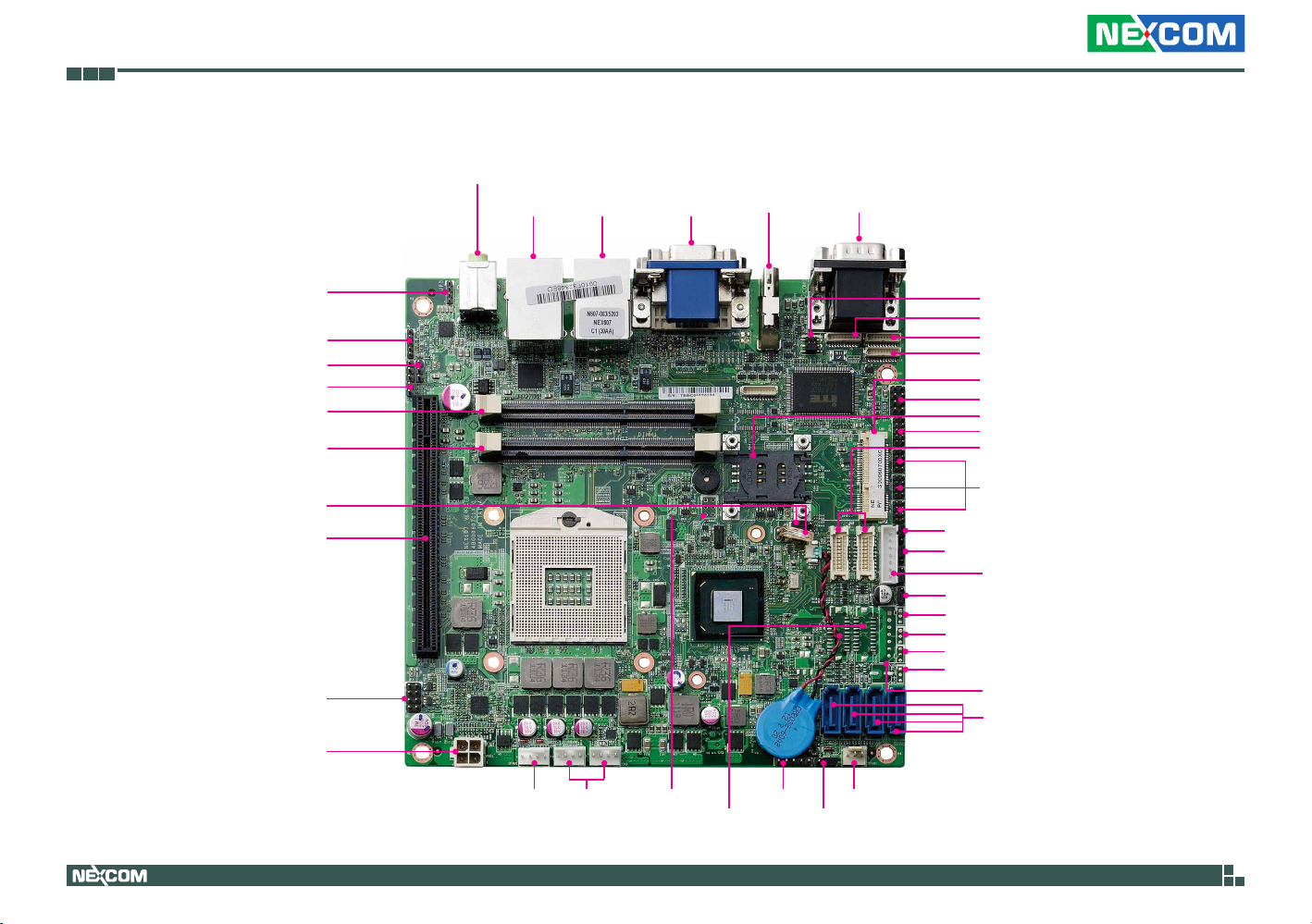

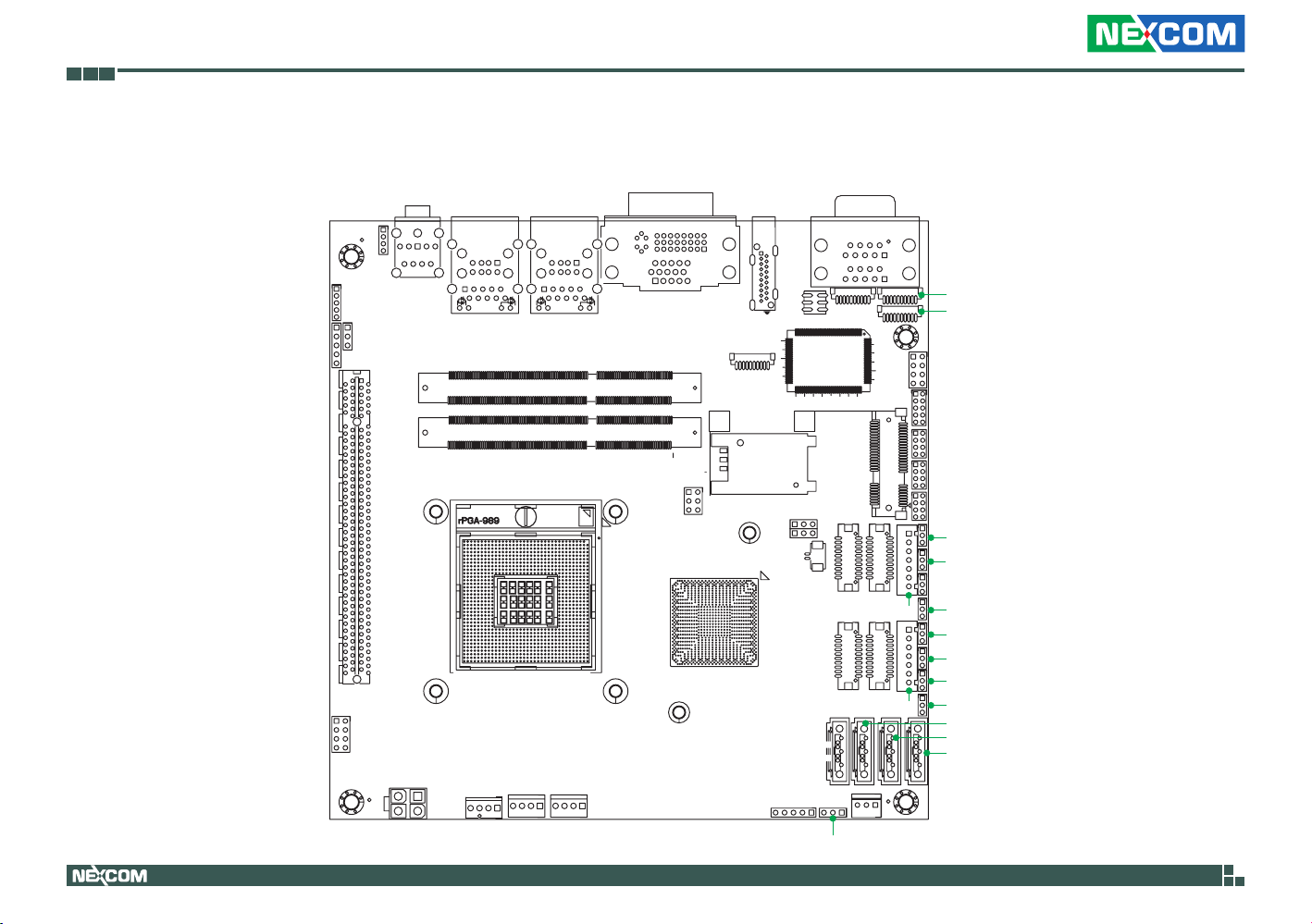

Knowing Your NEX 607

Audio Connectors

VGA/DVI HDMI COM1 A/ COM1 BLAN1/USBLAN2/USB

Line-in

Speaker-out

SMBus

JTAG

DIMM2

DIMM1

ME Clear/CMOS Clear

PCIe x16

CIR

Power Input

CPU FAN

SATA Power

SPI

LVDS

(optional)

RS-232 RI PWR Select COM4

COM2 COM3

Mini-PCIe KB/MS

SIM Card GPIO LCD Panel

USB

LVDS1 Power Select LVDS1 CCFL/PWN Mode Select

LVDS Backlight Panel

LVDS1 CCFL Power Select LVDS2 Power Select (optional) LVDS2 CCFL/PWN Mode Select (optional)

LVDS2 CCFL Mode Select (optional) LVDS2 CCFL Power Select (optional)

LVDS Backlight Panel (optional)

SATA Power

System FANCIR

Auto Button Select

4

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NEX 607 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep

small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow

require only a few simple tools, including the following:

– A Philips screwdriver

– A flat-tipped screwdriver

– A set of jewelers screwdrivers

– A grounding strap

– An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect

connections as these can damage the soft metal or plastic parts of the

connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching

a metal object. Static electricity can damage many of the electronic

components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

5

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

6

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

CON1 CON2 CN4 J2 COM1

1

JP5

2

H1

4

1

JP1

5

1

J1

3

JP2

A2

B1 A1

B2

5

JP4

A82

B81

B82

A81

1

2

CB5

JP3

8

7

H2

22

CN1

PWR1

3

4

5

4

25

8

91817

10

G/R

19

20

203

204

203

204

AKAL

AJ

AM

ANAPARAT

1

CFAN1

4

2

1

5

Y

21 22

CN2 CN3

1

4

4 1

8

91817

10

G/R

19 20 21 22

4 1

5

Y

DIMM2

717273

74

DIMM1

717273

74

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

EDCABKJHGFRPNMLYWVUTAAAEADACABAFAHAG

1

24

16

8

35

30

1

2

1

2

1

JP6

5

2

571

U15

17

9

1

39

34

10

MH6

CN5 CN6

2

6

JBIOS1

403942413436353837323330

182019141316

1012118436

44464548

29 3124232625282722219

1517

49

4743

A B C D F H K M P T V Y AB AD AF AH AK AM AP AT AV AY BB BD BF BH

18

C233

14

9

5

21

5

6

J5

JP13

38

39

U23

1

64

65

MH4

JP8

1

E G J L N R U W AA AC AE AG AJ AL AN AR AU AW BA BC BE BG BJ

CN8

JP7

MH3

21

15

3

20

CN9

2

20

CN10

1

7

3

1

102

1192

1

20 19

CN13

10

110

10

128

103

52

16 18

2

20

CN12

JVIN1

2

JVIN2

17

15

10

6

1

J3

1

J4

1

H3

R489

2

1

JP9

7

1

JP10

51

10

9

1

JUSB1

7

1

JUSB2

15 17

7

2

1

JUSB3

7

1

JP11

1

JM1

1

19

7

3

1

JM3

3

1

17

1

JP12

1

JM4

1

19

JM5

CB140

13

JM6 CN11

17

CN14 CN16

H4

1

SFAN1

JMODE1

7

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

CMOS Clear Select

Connector type: 1x3 3-pin header Connector location: JBIOS1

1 3 1 3

Pin Status Settings

1-2 On Normal 2-3 On Clear BIOS

1-2 On: default

ME Clear Select

Connector type: 1x3 3-pin header Connector location: JP8

Pin Status Settings

1-2 On Normal 2-3 On Clear ME Setting

1-2 On: default

8

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

LVDS1 Power Select

Connector type: 1x3 3-pin header Connector location: JP11

1 3

Pin Status Settings

1-2 On VCC5 2-3 On VCC3

1-2 On: default

LVDS1 CCFL Mode Select

Connector type: 1x3 3-pin header Connector location: JM5

1 3

Pin Status Settings

1-2 On Negative 2-3 On Positive

2-3 On: default

9

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

LVDS1 CCFL/PWN Mode Select

Connector type: 1x3 3-pin header Connector location: JM1

1 3

Pin Status Settings

1-2 On PWN Mode 2-3 On CCFL Mode

2-3 On: default

LVDS1 CCFL Power Select

Connector type: 1x3 3-pin header Connector location: JM3

1 3

Pin Status Settings

1-2 On VCC3 2-3 On VCC5

2-3 On: default

10

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

LVDS2 Power Select

Connector type: 1x3 3-pin header Connector location: JP12

1 3

Pin Status Settings

1-2 On VCC5 2-3 On VCC3

1-2 On: default

LVDS2 CCFL/PWN Mode Select

Connector type: 1x3 3-pin header Connector location: JM4

1 3

Pin Status Settings

1-2 On PWN Mode 2-3 On CCFL Mode

2-3 On: default

11

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

LVDS2 CCFL Mode Select

Connector type: 1x3 3-pin header Connector location: JM5

1 3

Pin Status Settings

1-2 On Negative 2-3 On Positive

2-3 On: default

LVDS2 CCFL Power Select

Connector type: 1x3 3-pin header Connector location: JM6

1 3

Pin Status Settings

1-2 On VCC3 2-3 On VCC5

2-3 On: default

12

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

15

26

Auto Button Select

Connector type: 1x3 3-pin header Connector location: JMODE1

1 3

Pin Status Settings

1-2 On AT Mode 2-3 On ATX Mode

2-3 On: default

RS-232 RI Power Select

Connector type: 2x3 6-pin header Connector location: JP13

Pin Settings Pin Settings

1 COM2_RI# 2 VCC5 3 COM2_RI# 4 +12V 5 COM2_RI# 6 COM_RI#2

5-6 On: default

13

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

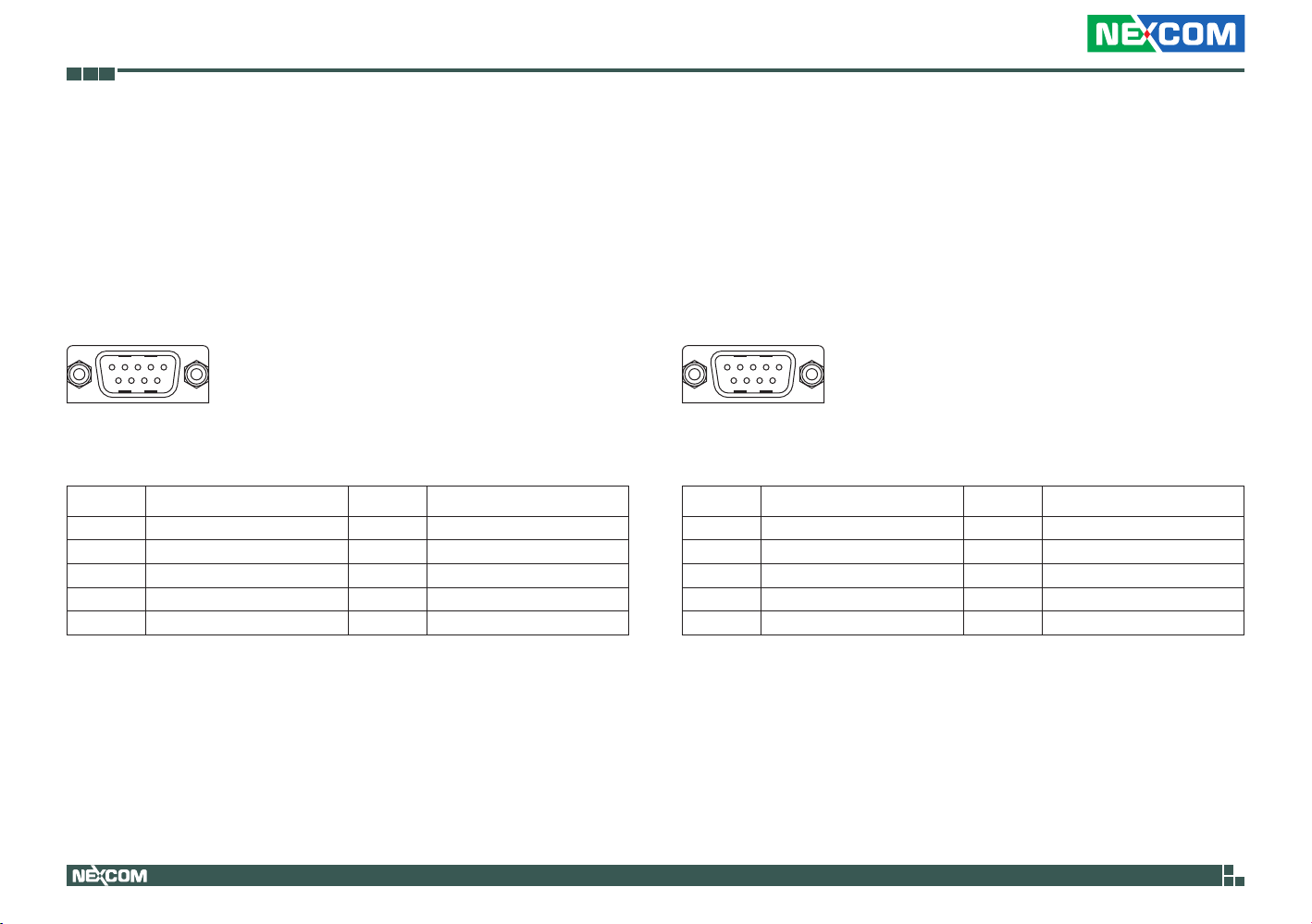

COM 1 Port

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1A

Pin Definition Pin Definition

1 COM_DCD#1 2 COM_RXD1 3 COM_TXD1 4 COM_DTR#1 5 GND 6 COM_DSR#1 7 COM_RTS#1 8 COM_CTS#1 9 COM_RI#1

COM 2 Port

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1B

Pin Definition Pin Definition

10 COM_DCD#2 11 COM_RXD2 12 COM_TXD2 13 COM_DTR#2 14 GND 15 COM_DSR#2 16 COM_RTS#2 17 COM_CTS#2 18 COM_RI#2

14

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

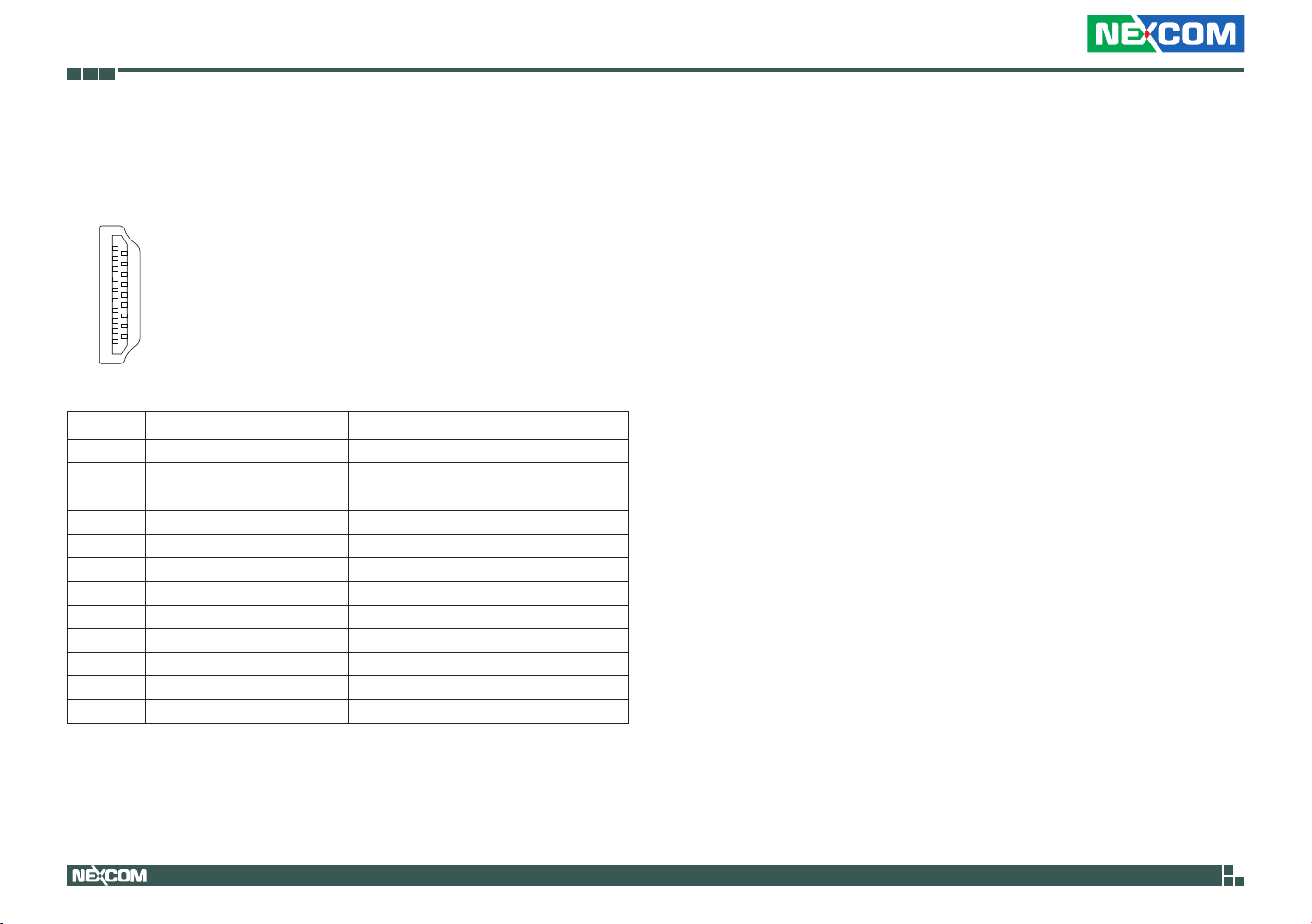

HDMI

Connector type: HDMI port Connector location: J2

Pin Definition Pin Definition

1 HDMI_DATA2_P 2 GND 3 HDMI_DATA2_N 4 HDMI_DATA1_P 5 GND 6 HDMI_DATA1_N 7 HDMI_DATA0_P 8 GND

9 HDMI_DATA0_N 10 HDMI_CLK_P 11 GND 12 HDMI_CLK_N 13 NC 14 NC 15 HDMI_CTRL_CLK 16 HDMI_CTRL_DATA 17 GND 18 HDMI_VCC5 19 DPD_HPD MH1 GND

MH2 GND MH3 GND MH4 GND

15

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

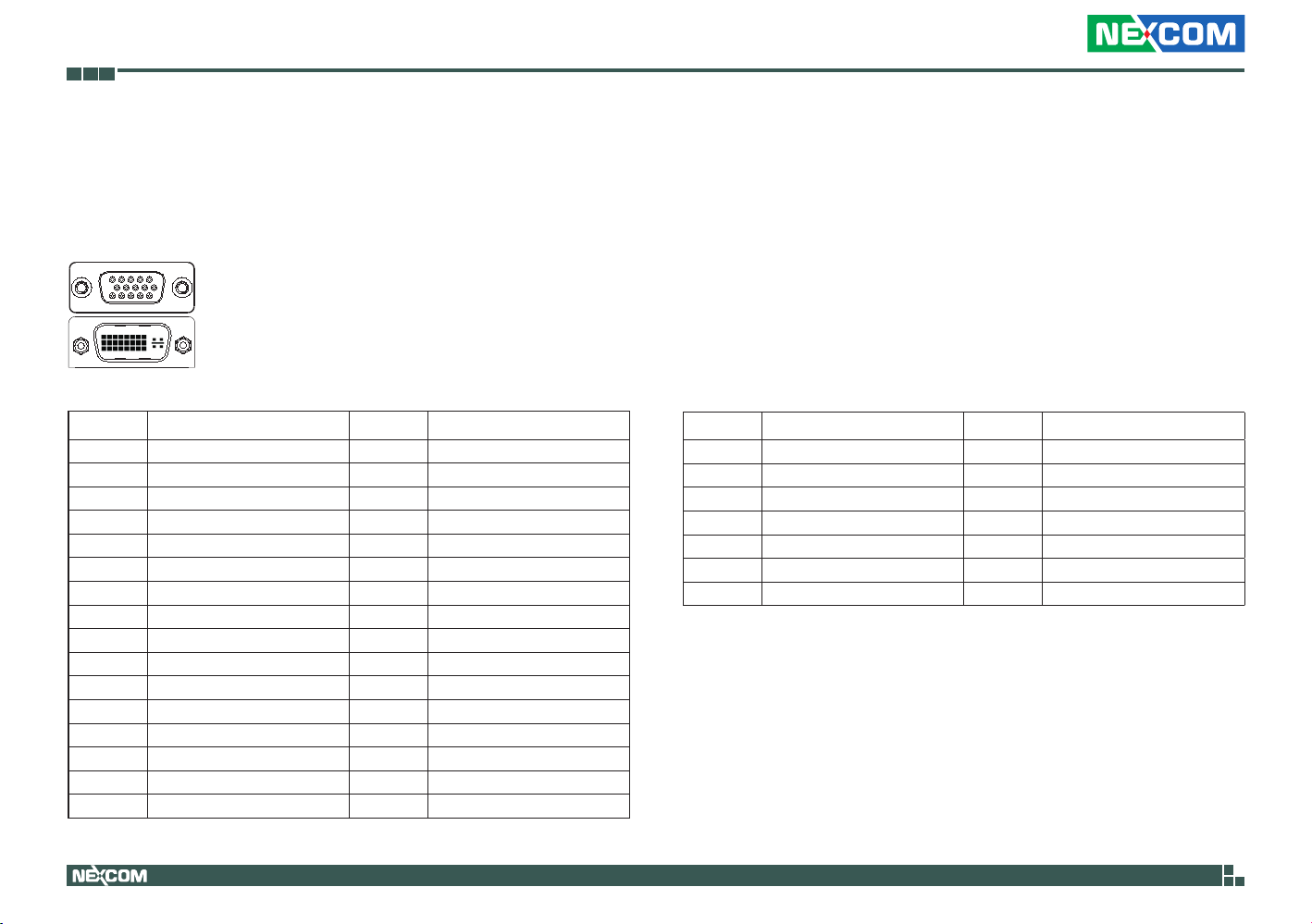

VGA and DVI-D Ports

Connector type: DB-15 port, 15-pin D-Sub (VGA) 24-pin D-Sub, 2.0mm-M-180 (DVI) Connector location: CN4

Pin Definition Pin Definition

1 DVI_DATA2_N 2 DVI_DATA2_P 3 GND 4 NC 5 NC 6 DVI_CTRL_CLK 7 DVI_CTRL_DATA 8 NC

9 DVI_DATA1_N 10 DVI_DATA1_P 11 GND 12 NC 13 NC 14 DVI_PWR_S 15 GND 16 DVI_HPDET 17 DVI_DATA0_N 18 DVI_DATA0_P 19 GND 20 NC 21 NC 22 NC 23 DVI_CLK_P 24 DVI_CLK_N C1 NC C2 NC C3 NC C4 NC

C5A GND C5B GND

25 CRT_RED 26 CRT_GREEN

16

Pin Definition Pin Definition

27 CRT_BLUE 28 GND 29 GND 30 GND 31 GND 32 GND 33 VCC (VCC5) 34 GND 35 GND 36 DDC_DATA_VGA 37 HSYNC_VGA 38 VSYNC_VGA 39 DDC_CLK_VGA

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

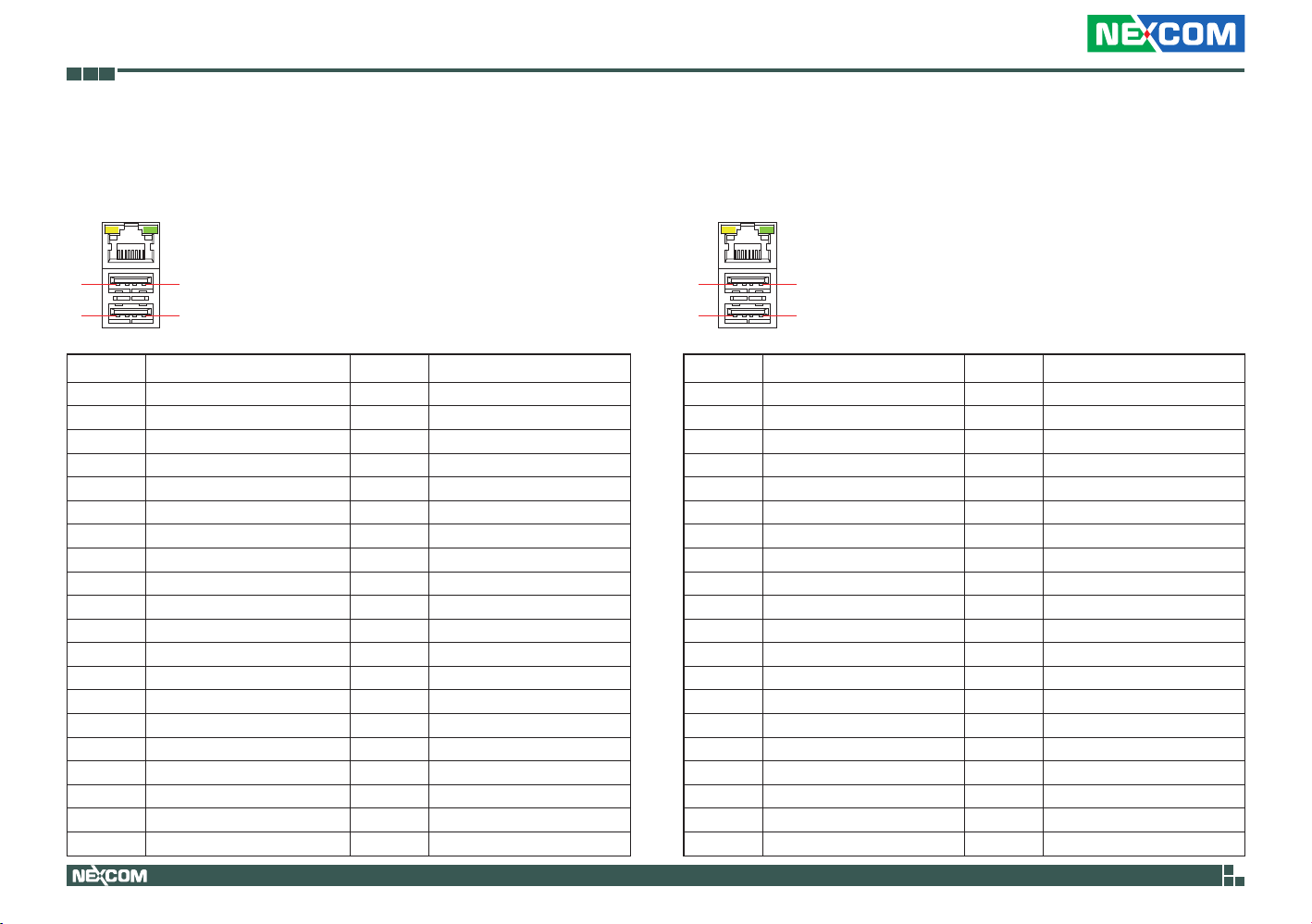

LAN1 and USB0/1 Ports

Connector type: RJ45 port with LEDs (LAN1)

Dual USB port, Type A (USB0/1)

Connector location: CON1

LAN1

1 4

5 8

USB0/1

Pin Definition Pin Definition

1 P5V_USB_P01 2 USB_0N 3 USB_0P 4 GND 5 USB3_RX0_N 6 USB3_RX0_P 7 GND 8 USB3_TX0_N

9 USB3_TX0_P 10 P5V_USB_P01 11 USB_1N 12 USB_1P 13 GND 14 USB3_RX1_N 15 USB3_RX1_P 16 GND 17 USB3_TX1_N 18 USB3_TX1_P 19 LAN2_1.9V 20 LAN2_MDI0P 21 LAN2_MDI0N 22 LAN2_MDI1P 23 LAN2_MDI1N 24 LAN2_MDI2P 25 LAN2_MDI2N 26 LAN2_MDI3P 27 LAN2_MDI3N 28 GND 29 LAN2_LED1P 30 LAN2_LED_ACT# 31 LAN2_LED_LINK100# 32 LAN2_LED_LINK1G#

MH1 Chassis_GND MH2 Chassis_GND MH3 Chassis_GND MH4 Chassis_GND MH5 Chassis_GND MH6 Chassis_GND MH7 Chassis_GND MH8 Chassis_GND

LAN2 and USB2/3 Ports

Connector type: RJ45 port with LEDs (LAN2) Dual USB port, Type A (USB2/3) Connector location: CON2

LAN2

1 4

5 8

USB2/3

Pin Definition Pin Definition

1 P5V_USB_P23 2 USB_2N 3 USB_2P 4 GND 5 USB3_RX2_N 6 USB3_RX2_P 7 GND 8 USB3_TX2_N

9 USB3_TX2_P 10 P5V_USB_P23 11 USB_3N 12 USB_3P 13 GND 14 USB3_RX3_N 15 USB3_RX3_P 16 GND 17 USB3_TX3_N 18 USB3_TX3_P 19 VCT_LAN 20 LAN1_MDI0P 21 LAN1_MDI0N 22 LAN1_MDI1P 23 LAN1_MDI1N 24 LAN1_MDI2P 25 LAN1_MDI2N 26 LAN1_MDI3P 27 LAN1_MDI3N 28 GND 29 LAN1_LED1P 30 LAN1_LED_ACT# 31 LAN1_LED_LINK100# 32 LAN1_LED_LINK1G#

MH1 Chassis_GND MH2 Chassis_GND MH3 Chassis_GND MH4 Chassis_GND MH5 Chassis_GND MH6 Chassis_GND MH7 Chassis_GND MH8 Chassis_GND

17

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

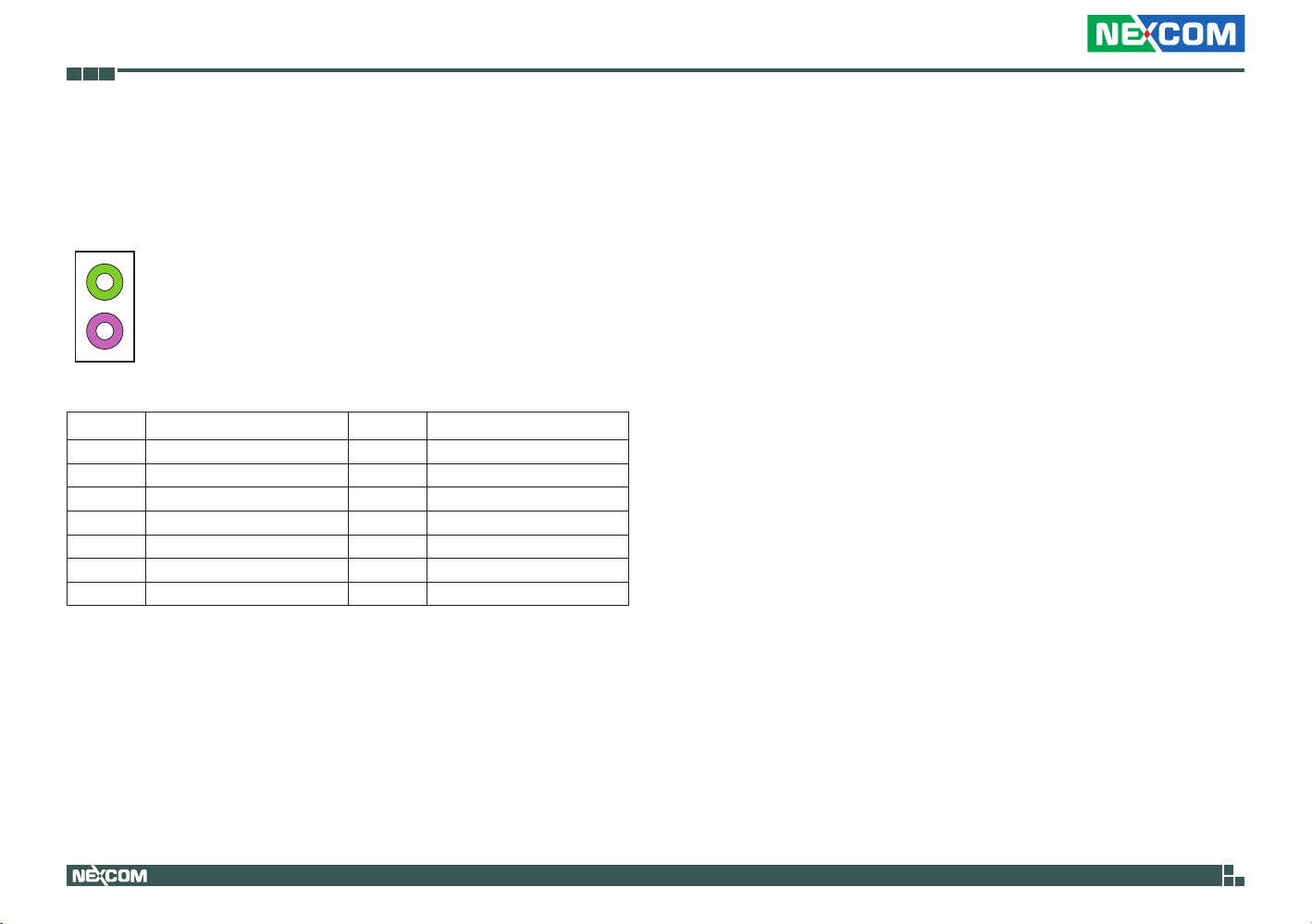

Audio Connectors

Connector type: 2x 3.5mm TRS Connector location: CN1

Line-out

Mic-in

Pin Definition Pin Definition

1 AGND 2 MIC_OUT-L 3 MIC_JD 4 AGND

5 MIC_OUT-R MH1 Chassis_GND MH2 Chassis_GND MH3 Chassis_GND MH4 Chassis_GND 22 LINE_OUT_LC

23 MIC_JD 24 AGND 25 LINE_OUT_RC MH1 NC

18

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

17

28

10 1

Internal Connectors

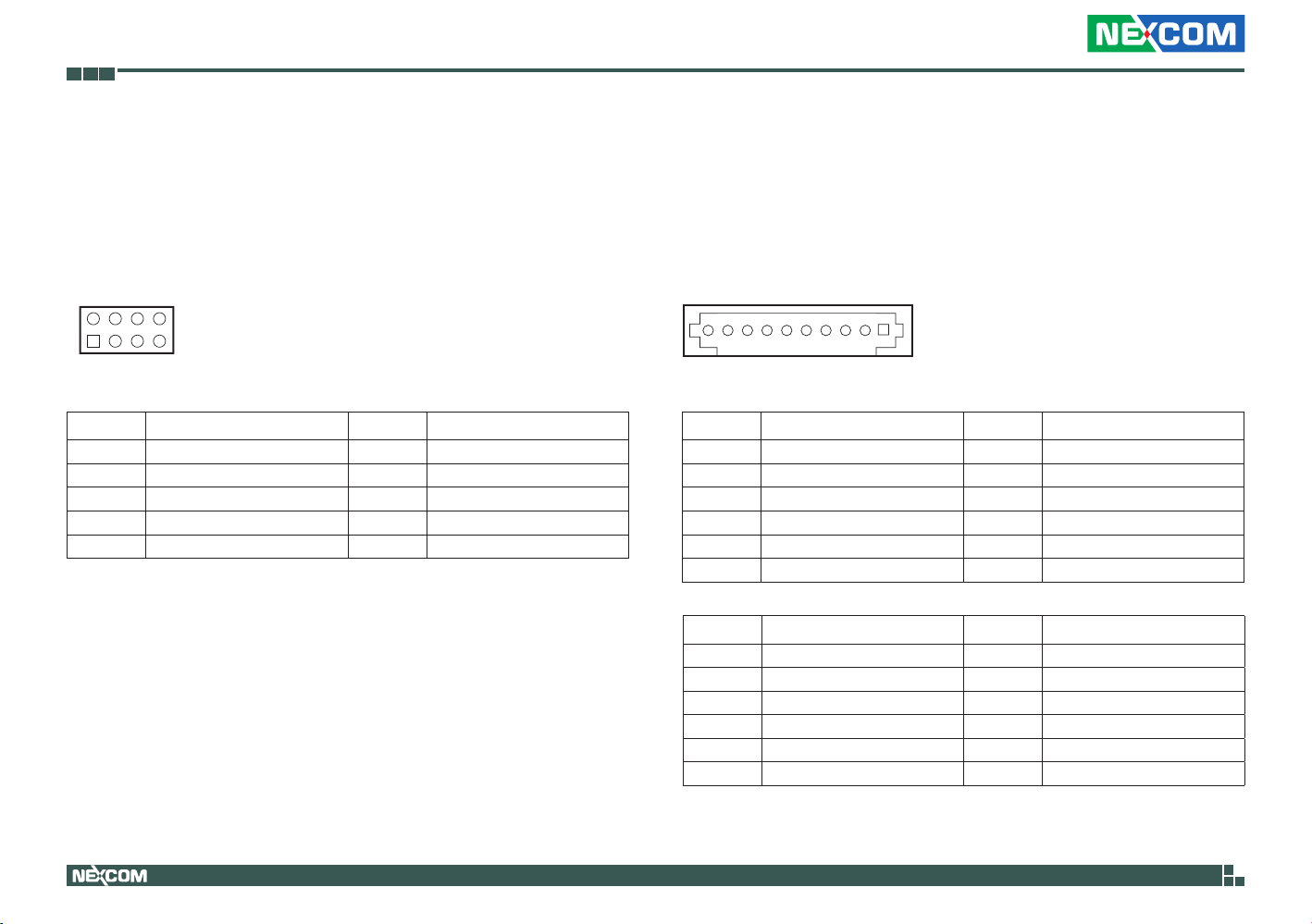

Keyboard and Mouse Connector

Connector type: 2x4 8-pin header Connector location: JP9

COM2 Connector (RS232)

Connector type: 1x10 10-pin header Connector location: J3

Pin Definition Pin Definition

1 5V_KB 2 5V_KB

3 KDAT_R 4 MDAT_R

5 KCLK_R 6 MCLK_R

7 KBMS_GND 8 KBMS_GND

9 NC

Pin Definition Pin Definition

1 COM_DCD#2 2 COM_RXD2 3 COM_TXD2 4 COM_DTR#2 5 GND 6 COM_DSR#2 7 COM_RTS#2 8 COM_CTS#2 9 COM_RI#2 10 GND

MH1 GND MH2 GND

RS422 Pin Defintion

Pin Definition Pin Definition

1 TXD- 2 TXD+ 3 RXD+ 4 RXD- 5 GND 6 RTS- 7 RTS+ 8 CTS+ 9 CTS-

MH1 GND MH2 GND

19

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

10 1

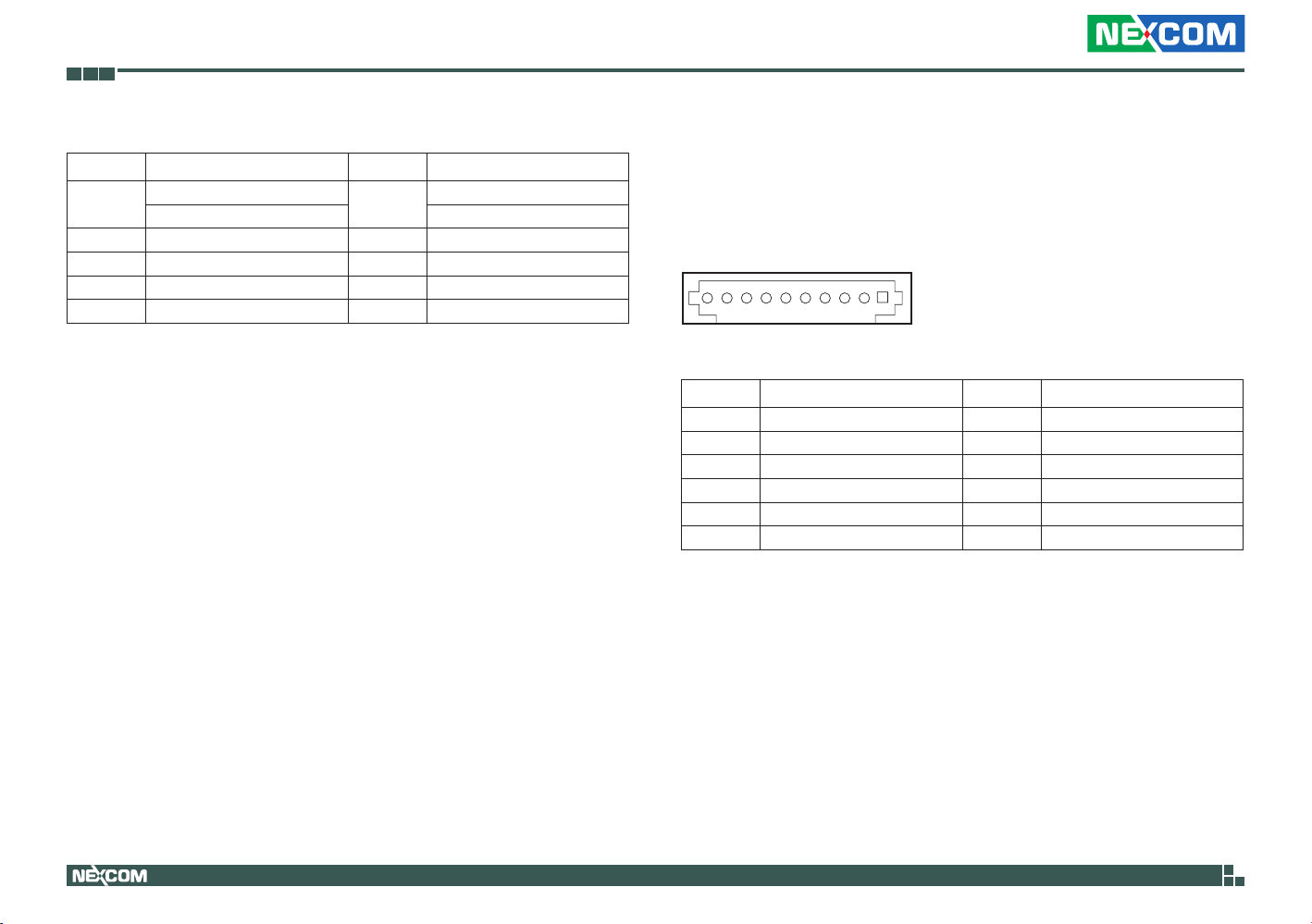

RS485 Pin Defintion

Pin Definition Pin Definition

1

TXD-

TXD+ RXD+

2

3 Reserve 4 Reserve

5 Reserve 6 Reserve

7 Reserve 8 Reserve

9 Reserve

TXD+

COM3 Connector (RS232)

Connector type: 1x10 10-pin header Connector location: J4

Pin Definition Pin Definition

1 COM_DCD#3 2 COM_RXD3 3 COM_TXD3 4 COM_DTR#3 5 GND 6 COM_DSR#3 7 COM_RTS#3 8 COM_CTS#3 9 COM_RI#3 10 GND

MH1 GND MH2 GND

20

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

10 1

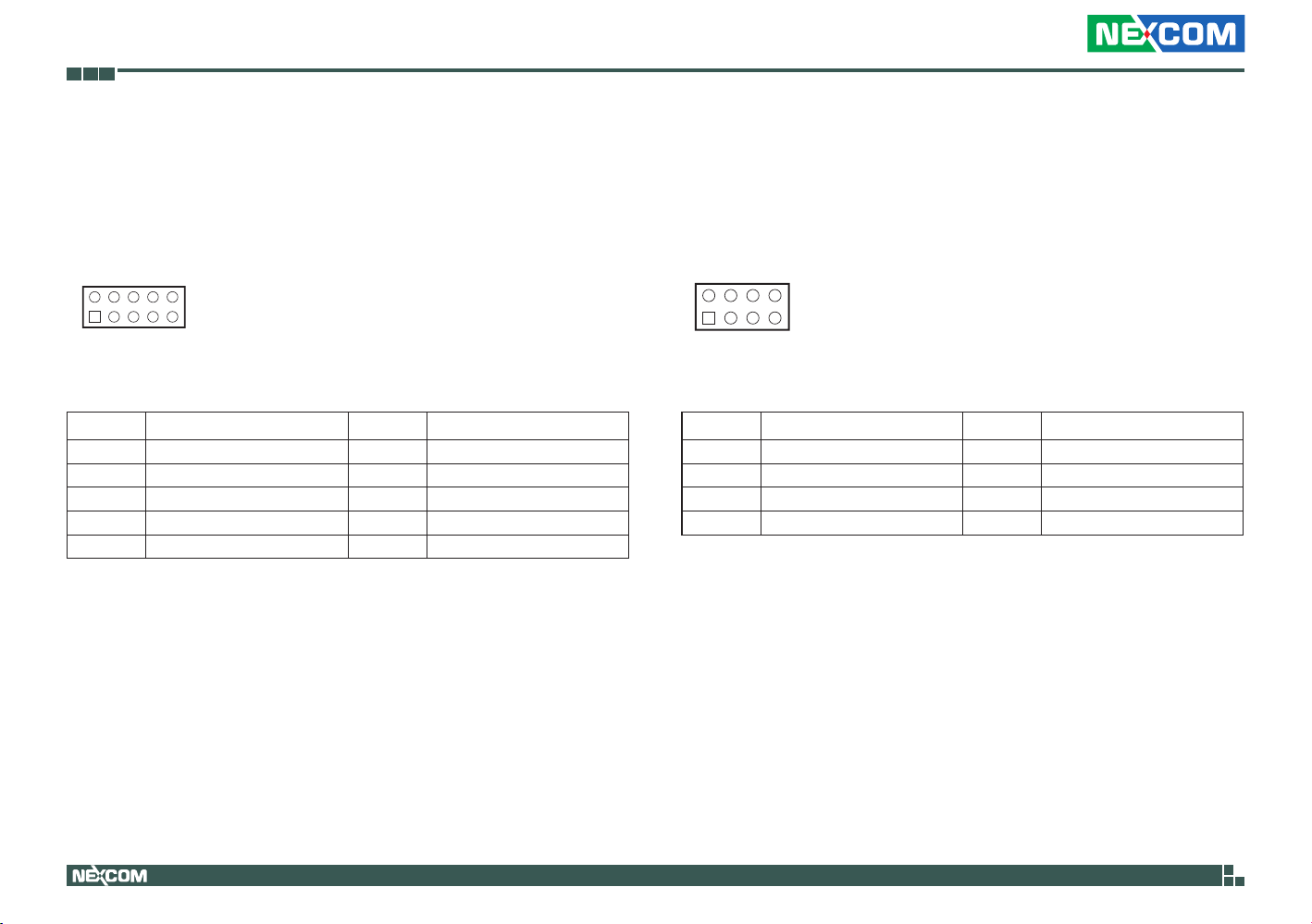

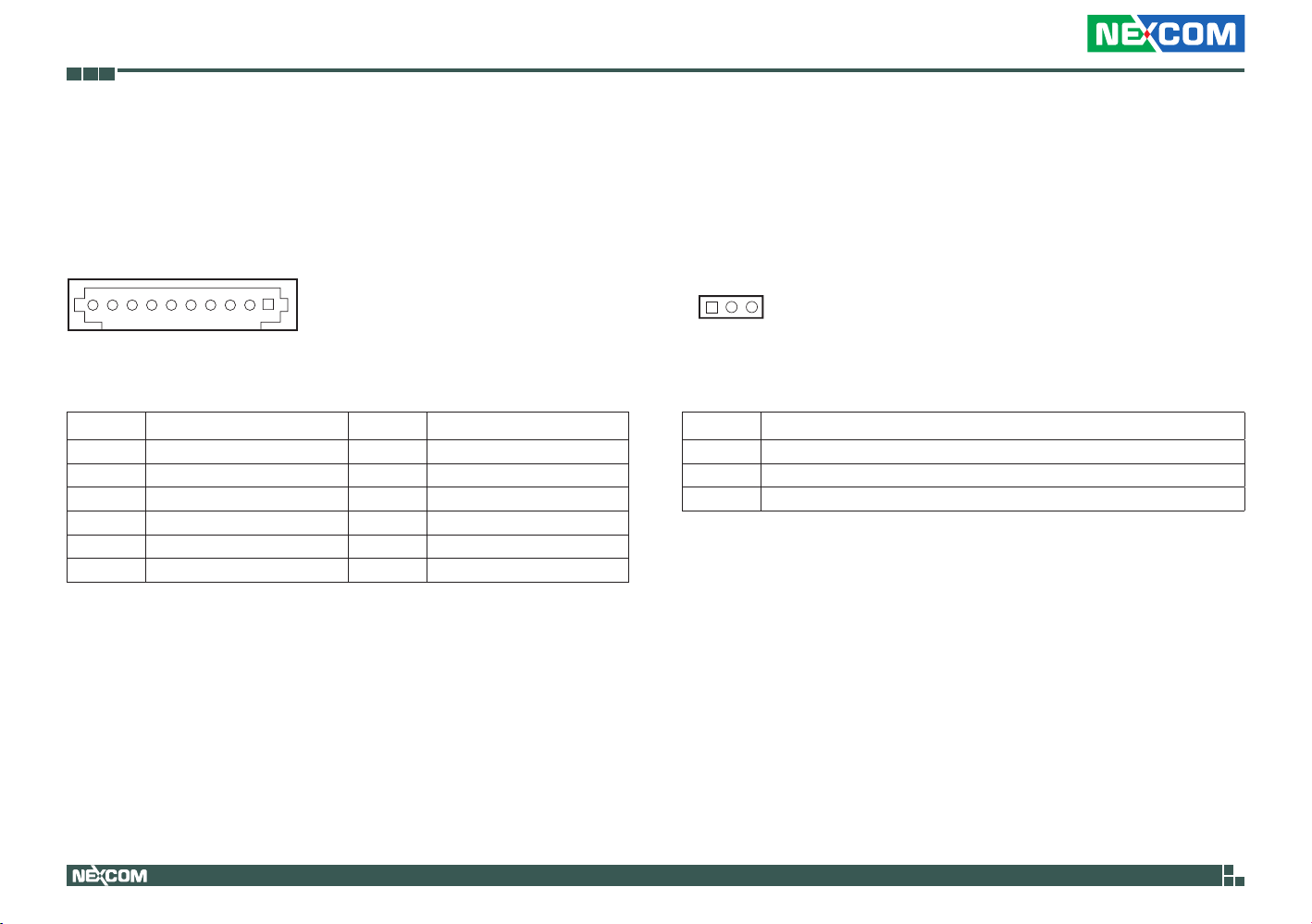

COM4 Connector (RS232)

Connector type: 1x10 10-pin header Connector location: J5

Pin Definition Pin Definition

1 COM_DCD#4 2 COM_RXD4

3 COM_TXD4 4 COM_DTR#4

5 GND 6 COM_DSR#4

7 COM_RTS#4 8 COM_CTS#4

9 COM_RI#4 10 GND MH1 GND MH2 GND

SMBus Connector

Connector type: 1x3 3-pin header Connector location: J1

1 3

Pin Definition

1 PCH_SMB_CLK 2 PCH_SMB_DATA 3 GND

21

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

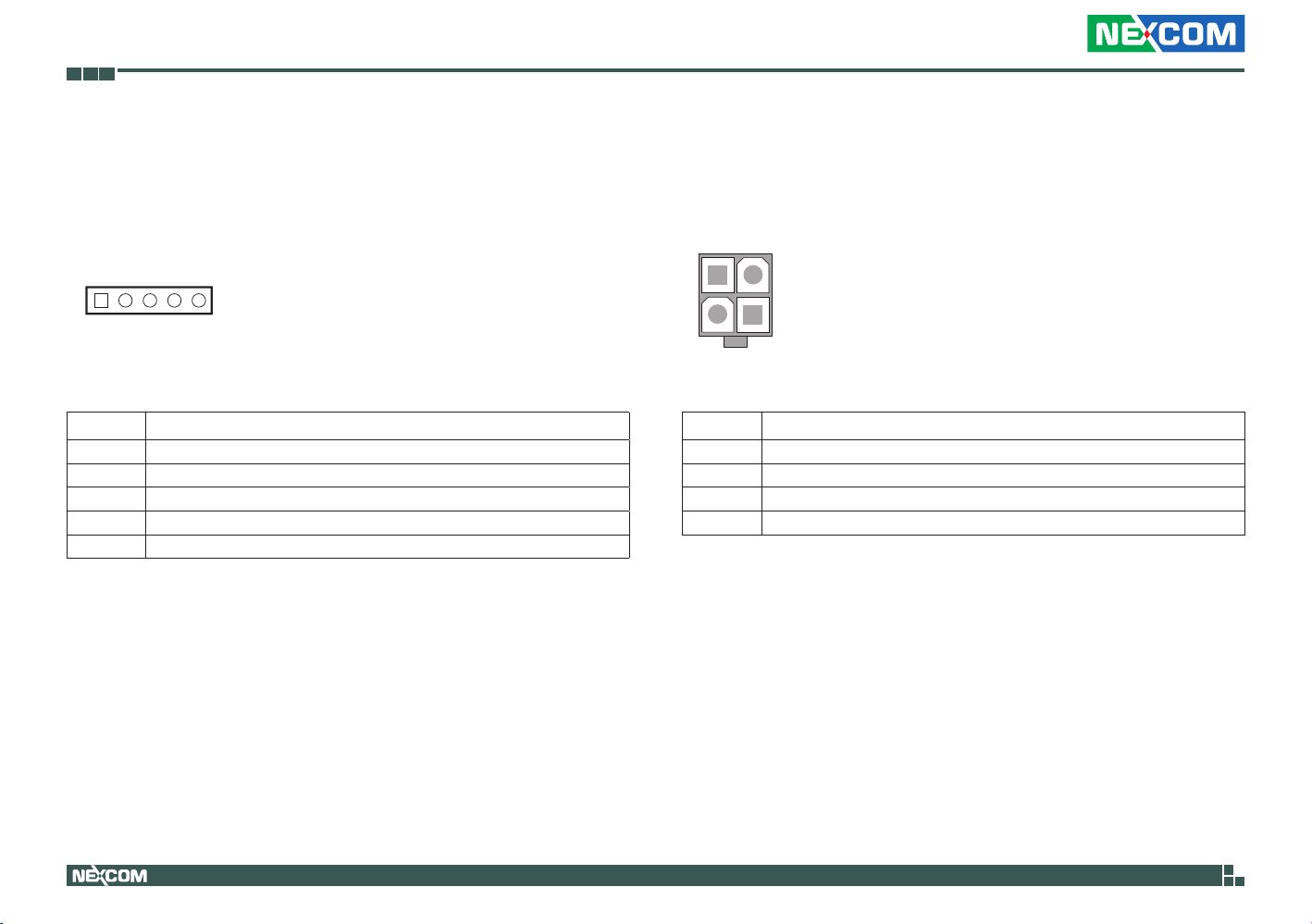

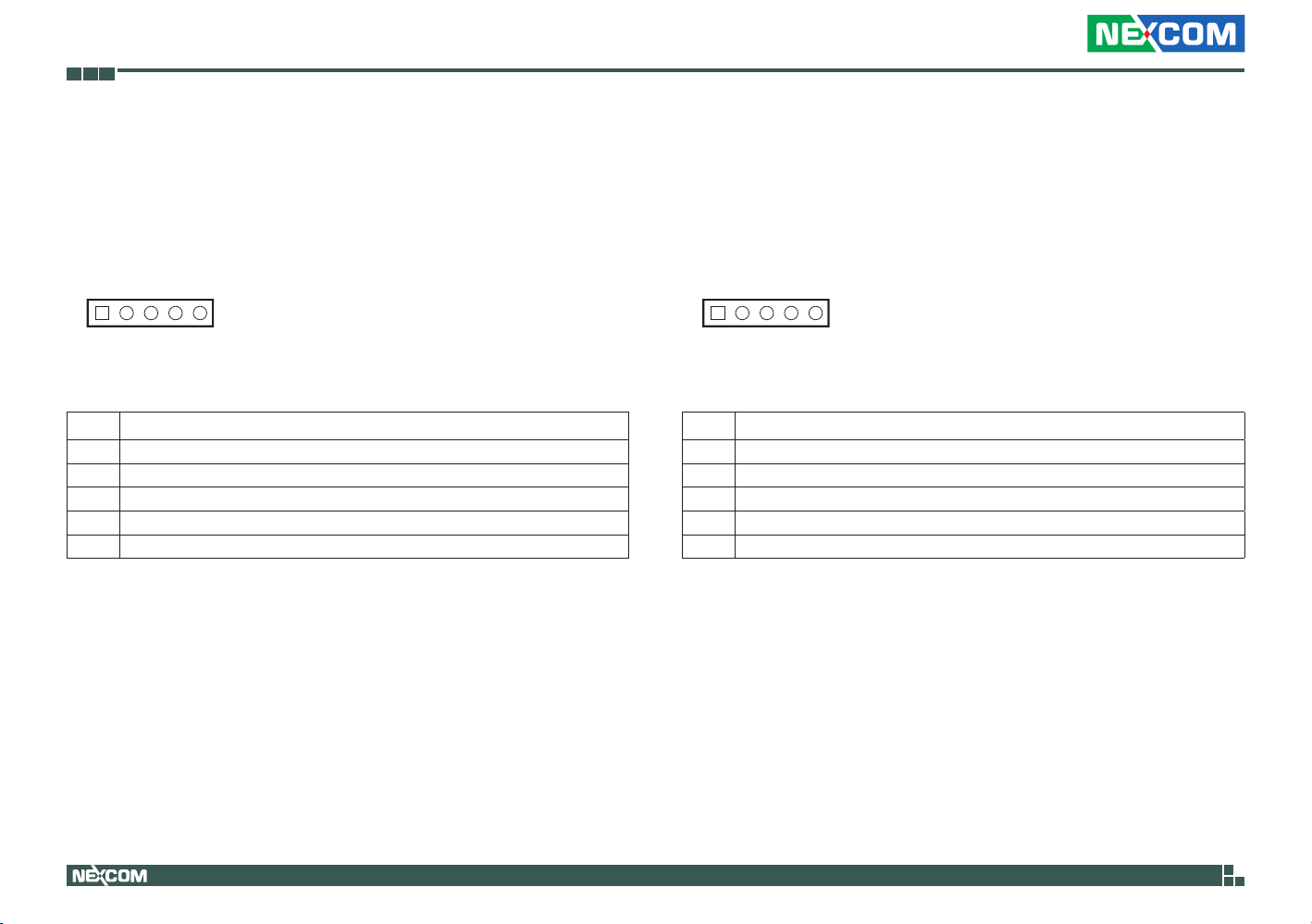

JTAG

Connector type: 1x5 5-pin header Connector location: JP2

1 5

Pin Definition

1 P_TRST

2 P_TCK

3 TDI

4 P_TDO

5 P_TMS

ATX Power Input Connector

Connector type: 2x2 Aux power connector Connector location: PWR1

1 2

3 4

Pin Definition

1 GND 2 GND 3 +12V 4 +12V

22

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

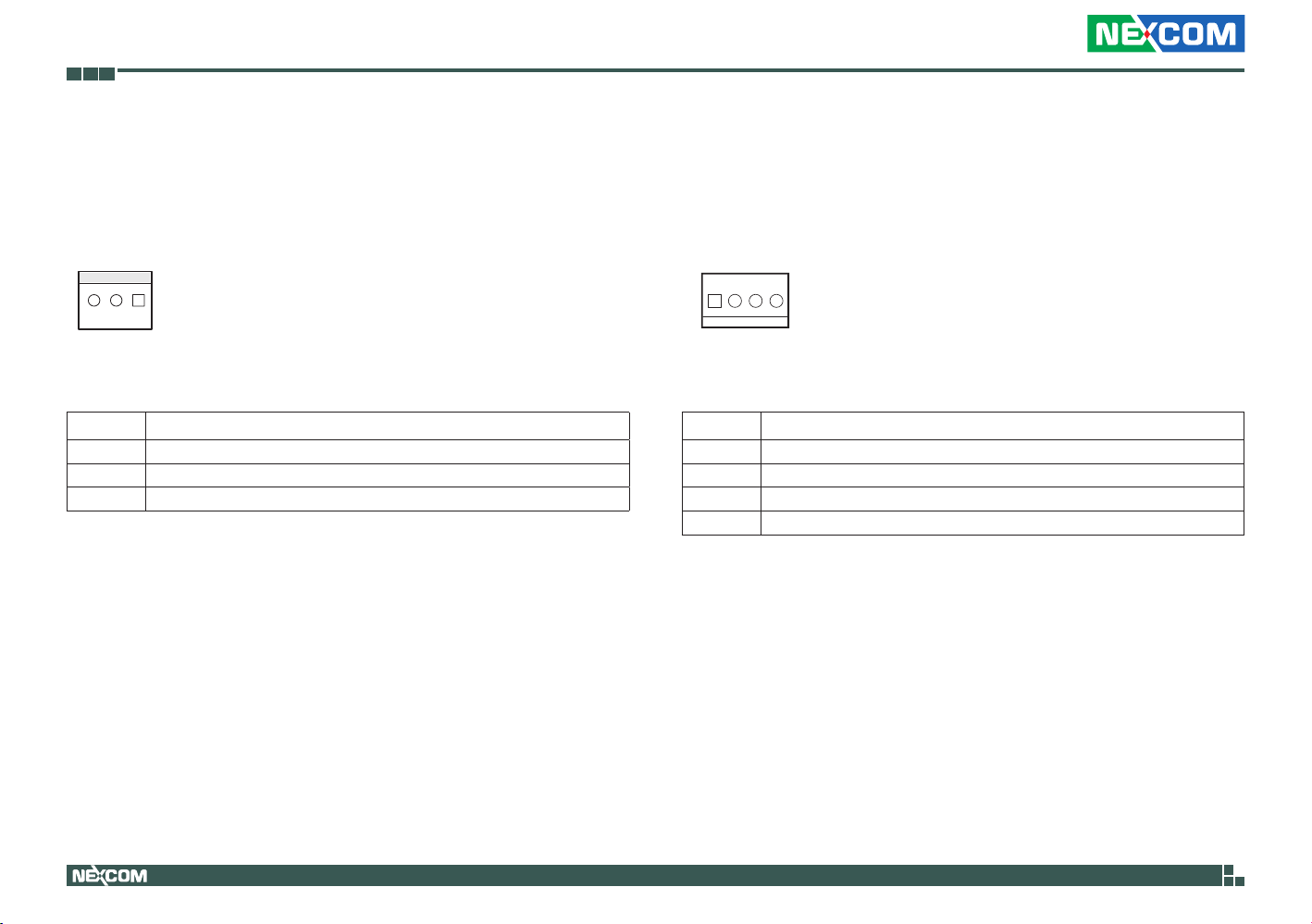

CPU FAN Connector

Connector type: 1x3 3-pin Wafer Connector location: CFAN1

13

Pin Definition

1 GND

2 +12V

3 CPUFANIN

SATA Power Connectors

Connector type: 1x4 4-pin Wafer Connector location: CN2 and CN3

1 4

Pin Definition

1 +12V 2 GND 3 GND 4 VCC5

23

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

17

28

GPIO Connector

Connector type: 2x5 10-pin header Connector location: JP10

2 10

1 9

Pin Definition Pin Definition

1 VCC5O 2 GND

3 SIO_GPO24 4 SIO_GPI20

5 SIO_GPO25 6 SIO_GPI21

7 SIO_GPO26 8 SIO_GPI22

9 SIO_GPO27 10 SIO_GPI23

USB 1 Connector

Connector type: 2x4 8-pin header Connector location: JUSB1

Pin Definition Pin Definition

1 P5V_USB_P45 2 GND 3 USB4- 4 USB5+ 5 USB4+ 6 USB57 GND 8 P5V_USB_P45

24

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

17

28

17

28

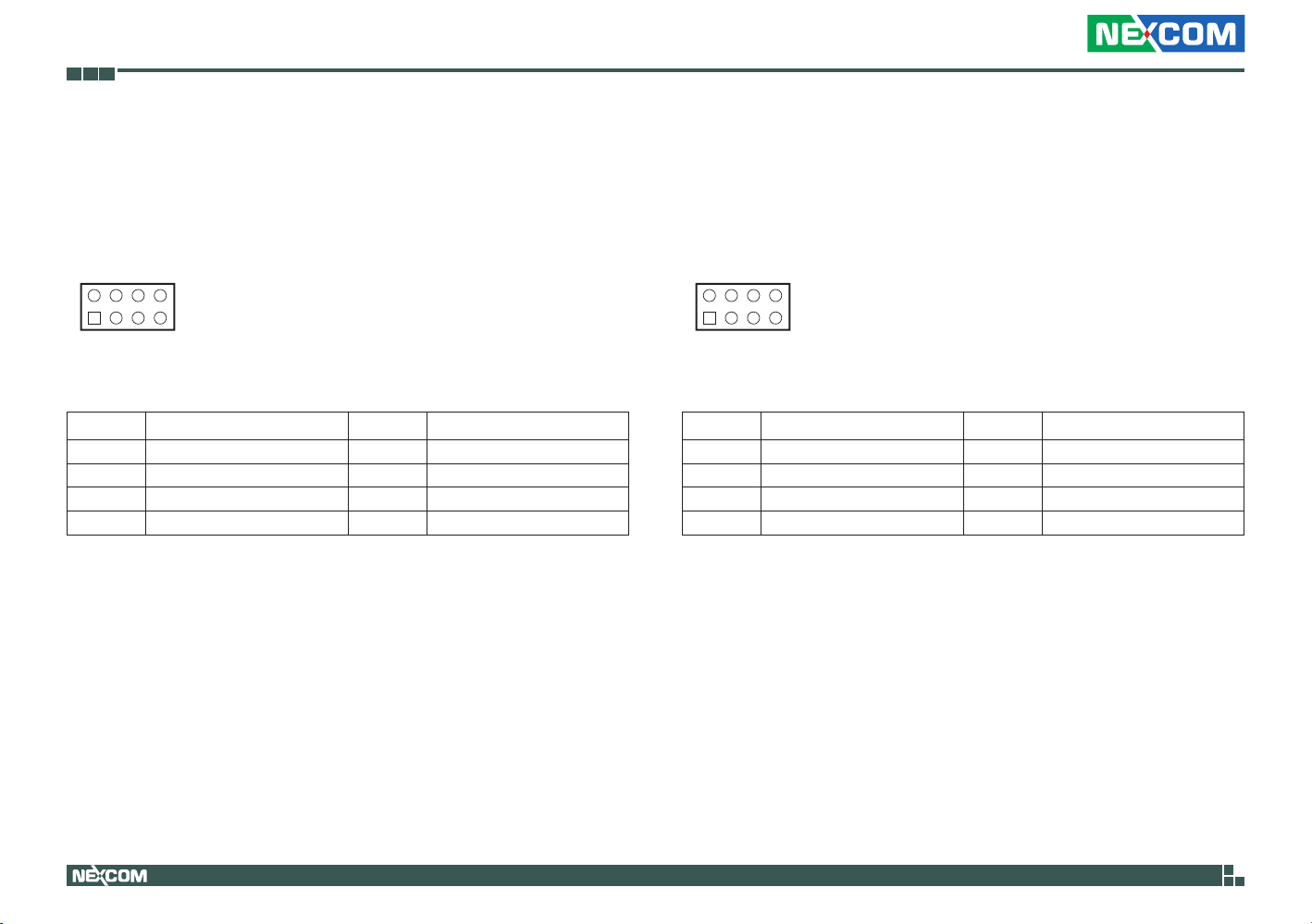

USB 2 Connector

Connector type: 2x4 8-pin header Connector location: JUSB2

Pin Definition Pin Definition

1 P5V_USB_P67 2 GND

3 USB6- 4 USB7+

5 USB6+ 6 USB7-

7 GND 8 P5V_USB_P67

USB 3 Connector

Connector type: 2x4 8-pin header Connector location: JUSB3

Pin Definition Pin Definition

1 P5V_USB_P89 2 GND 3 USB8- 4 USB9+ 5 USB8+ 6 USB97 GND 8 P5V_USB_P89

25

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

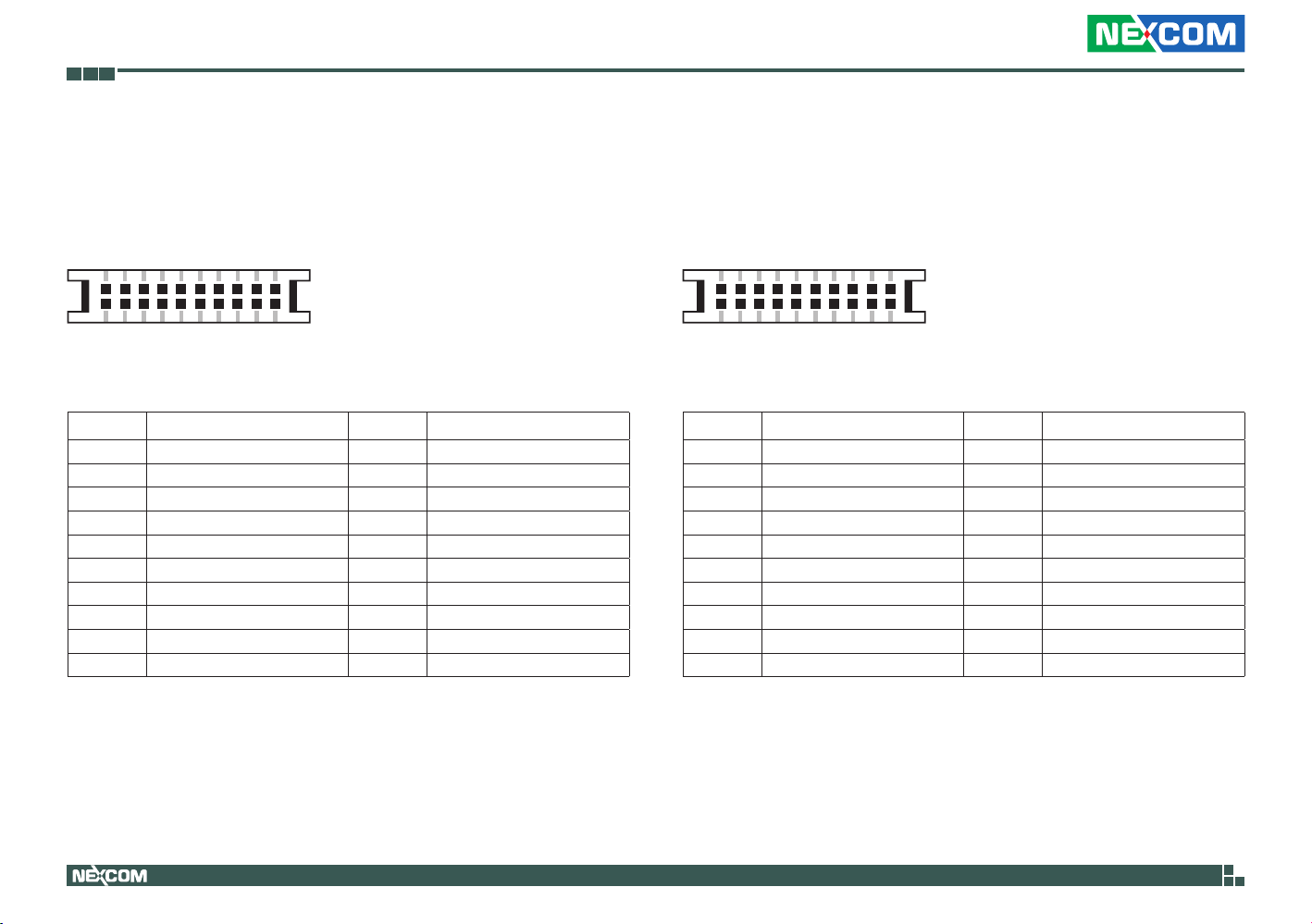

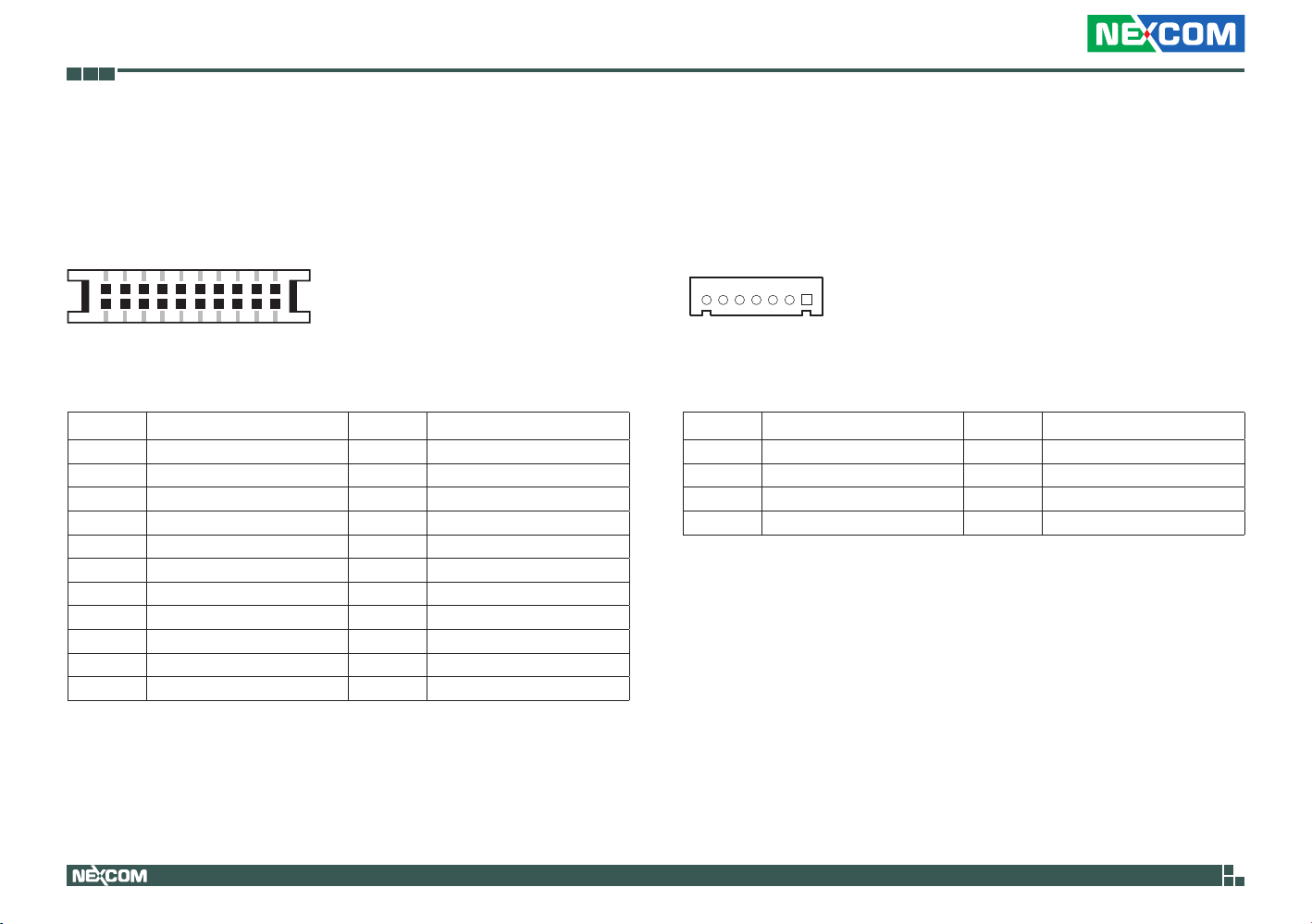

LCD Panel A Connector

Connector type: 2x10 20-pin header Connector location: CN9

1 19 2 20

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA

3 VCC_LCD1 4 LVDSA_DATA0

5 LVDSA_DATA3 6 LVDSA_DATA#0

7 LVDSA_DATA#3 8 VCC_LCD1

9 GND 10 LVDSA_DATA1

11 LVDSA_CLK 12 LVDSA_DATA#1 13 LVDSA_CLK# 14 GND 15 GND 16 V_INV1 17 LVDSA_DATA2 18 V_INV1 19 LVDSA_DATA#2 20 LCD_GND1

LCD Panel A Connector

Connector type: 2x10 20-pin header Connector location: CN12

1 19 2 20

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 VCC_LCD1 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA#0 7 LVDSB_DATA#3 8 VCC_LCD1

9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA#1 13 LVDSB_CLK# 14 GND 15 GND 16 V_INV1 17 LVDSB_DATA2 18 V_INV1 19 LVDSB_DATA#2 20 LCD_GND1

26

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

15

26

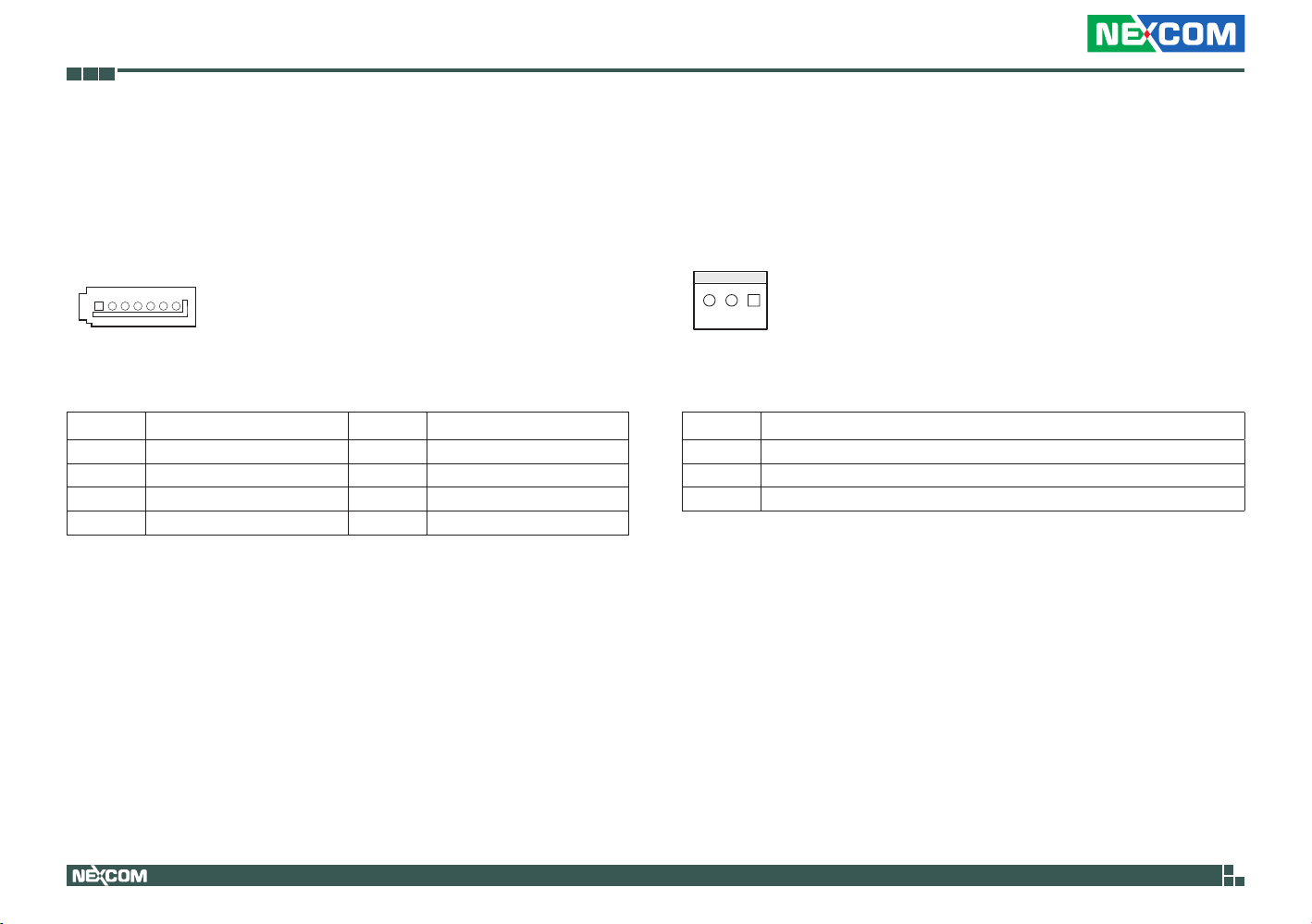

LVDS Backlight Connector

Connector type: 1x7 JST, 7-pin header Connector location: JINV1

7 1

Pin Definition Pin Definition

1 VCC5 2 V_INV1 3 V_INV1 4 GFPDE_CCFL1 5 GND 6 GND 7 L_BKLT_EN

SPI Programming Header

Connector type: 2x3 6-pin header Connector location: JP6

Pin Definition Pin Definition

1 VSPI 2 GND

3 SPI_CS#0 4 BIOS_SPI_CLK

5 BIOS_SPI_SO 6 BIOS_SPI_SI

27

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

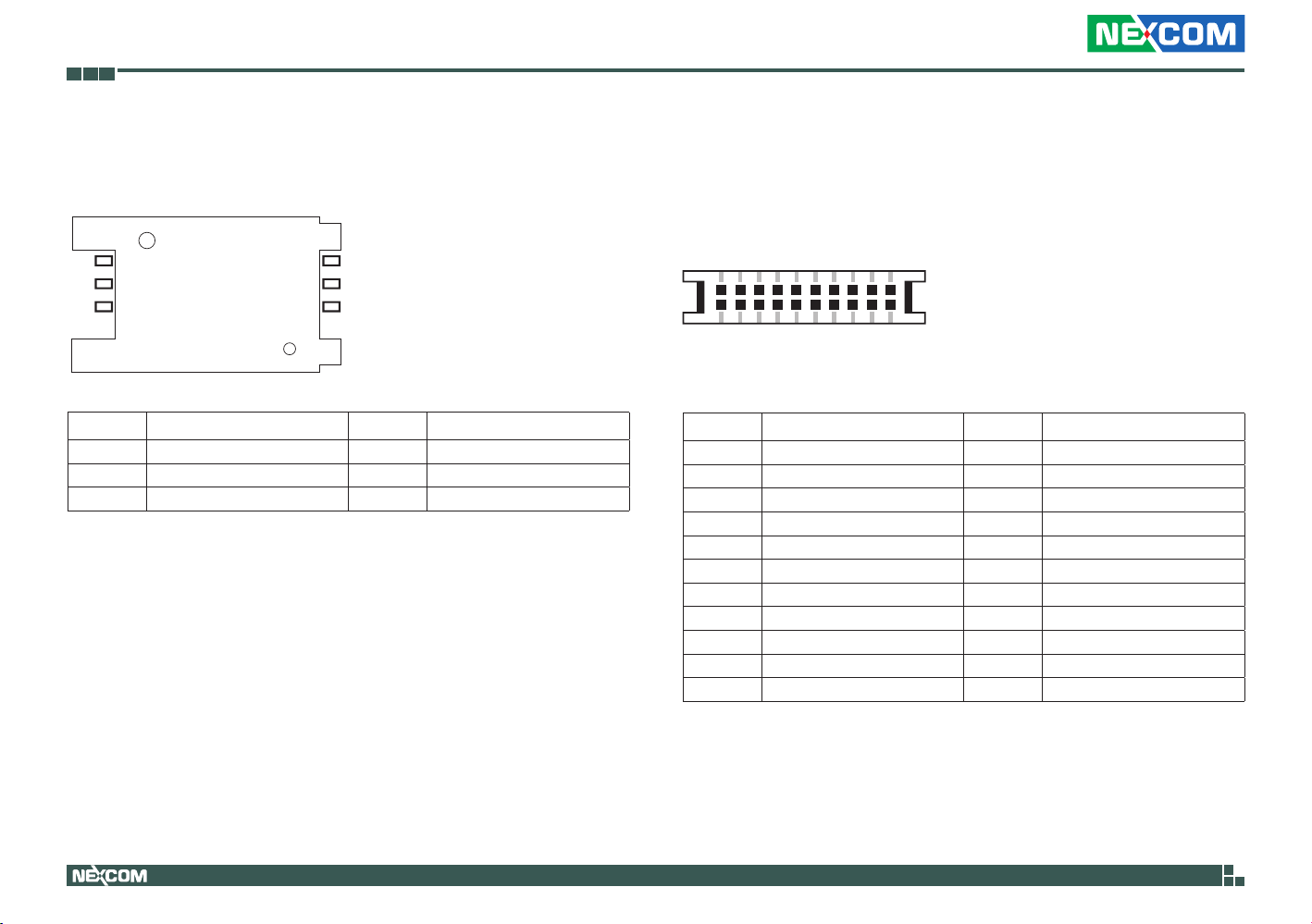

SIM Card Connector

Connector location: CN5

C3 C2 C1

Pin Definition Pin Definition

C1 UIM_PWR C2 UIM_RESET C3 UIM_CLK C5 GND C6 UIM_VPP C7 UIM_DATA

C7 C6 C8

LVDS A Connector

Connector type: 2x10 20-pin header Connector location: CN10

1 19 2 20

Pin Definition Pin Definition

1 NC 2 NC

3 VCC_LCD2 4 LVDSA_TXL4P

5 LVDSA_TXL7P 6 LVDSA_TXL4N

7 LVDSA_ TXL7N 8 VCC_LCD2

9 LCD_GND2 10 LVDSA_TXL5P 11 LVDSA_CLK2P 12 LVDSA_TXL5N 13 LVDSA_CLK2N 14 GND 15 LCD_GND2 16 V_INV2 17 LVDSA_TXL6P 18 V_INV2 19 LVDSA_TXL6N 20 LCD_GND2

MH1 LCD_GND2 MH2 LCD_GND2

28

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

LVDS B Connector

Connector type: 2x10 20-pin header Connector location: CN13

1 19 2 20

Pin Definition Pin Definition

1 NC 2 NC 3 VCC_LCD2 4 LVDSA_TXL4P 5 LVDSA_TXL7P 6 LVDSA_TXL4N 7 LVDSA_ TXL7N 8 VCC_LCD2

9 LCD_GND2 10 LVDSA_TXL5P 11 LVDSA_CLK2P 12 LVDSA_TXL5N 13 LVDSA_CLK2N 14 GND 15 LCD_GND2 16 V_INV2 17 LVDSA_TXL6P 18 V_INV2 19 LVDSA_TXL6N 20 LCD_GND2

MH1 LCD_GND2 MH2 LCD_GND2

LVDS Backlight Connector

Connector type: 1x7 JST, 7-pin header Connector location: JINV2

7 1

Pin Definition Pin Definition

1 VCC5 2 V_INV2 3 V_INV2 4 GFPDE_CCFL2 5 GND 6 GND 7 L_BKLT_EN2

29

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

17

28

CIR Pin Header

Connector type: 2x4 8-pin header Connector location: JP3

Pin Definition Pin Definition

1 SATA_LED_P 2 PWR_LED_P

3 SATA_LED# 4 GND

5 GND 6 BTN_A#

7 RST_BTN# 8 GND

SATA0 Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN16

1 7

Pin Definition Pin Definition

1 GND 2 SATA_TXP0 3 SATA_TXN0 4 GND 5 SATA_RXN0 6 SATA_RXP0 7 GND

30

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

SATA1 Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN8

1 7

Pin Definition Pin Definition

1 GND 2 SATA_TXP1

3 SATA_TXN1 4 GND

5 SATA_RXN1 6 SATA_RXP1

7 GND

SATA2 Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN11

1 7

Pin Definition Pin Definition

1 GND 2 SATA_TXP2 3 SATA_TXN2 4 GND 5 SATA_RXN2 6 SATA_RXP2 7 GND

31

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

SATA3 Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN14

1 7

Pin Definition Pin Definition

1 GND 2 SATA_TXP3

3 SATA_TXN3 4 GND

5 SATA_RXN3 6 SATA_RXP3

7 GND

SYSTEM FAN Connector

Connector type: 1x3 3-pin Wafer Connector location: SFAN1

13

Pin Definition

1 GND 2 +12V 3 SYSFANIN

32

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

CIR Pin Header

Connector type: 1x5 5-pin header Connector location: JP7

1 5

Pin Definition

1 VCC5 2 CIRRX 3 IRRX 4 GND 5 IRTX

Speaker-out Connector

Connector type: 1x5 5-pin header Connector location: JP1

1 5

Pin Definition

1 OUT-LR+ 2 OUT-LR3 SPKR_GND 4 OUT-RR+ 5 OUT-RR-

33

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

14

Line-in Connector

Connector type: 1x4 4-pin header Connector location: JP5

Pin Definition

1 LINEIN_L 2 LINEINGND 3 LINEIN_JD 4 LINEIN_R

34

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Slot

Connector location: CN6

1 2

51 52

Pin Definition Pin Definition

1 PCIE_WAKE# 2 3VSB_MINI1

3 NC 4 GND

5 NC 6 P1V5_MINI1

7 CLKREQ# 8 UIM_PWR

9 GND 10 UIM_DATA 11 REFCLK- 12 UIM_CLK 13 REFCLK+ 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 DISABLE# 21 GND 22 PERST# 23 PERn0 24 3VSB_MINI1 25 PERp0 26 GND

35

Pin Definition Pin Definition

27 GND 28 P1V5_MINI1 29 GND 30 SMB_CLK 31 PETn0 32 SMB_DATA 33 PETp0 34 GND 35 GND 36 USB_D37 GND 38 USB_D+ 39 3VSB_MINI1 40 GND 41 3VSB_MINI1 42 LED_WWAN# 43 GND 44 LED_WLAN# 45 NC 46 LED_WPAN# 47 NC 48 P1V5_MINI1 49 NC 50 GND 51 NC 52 3VSB_MINI1

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

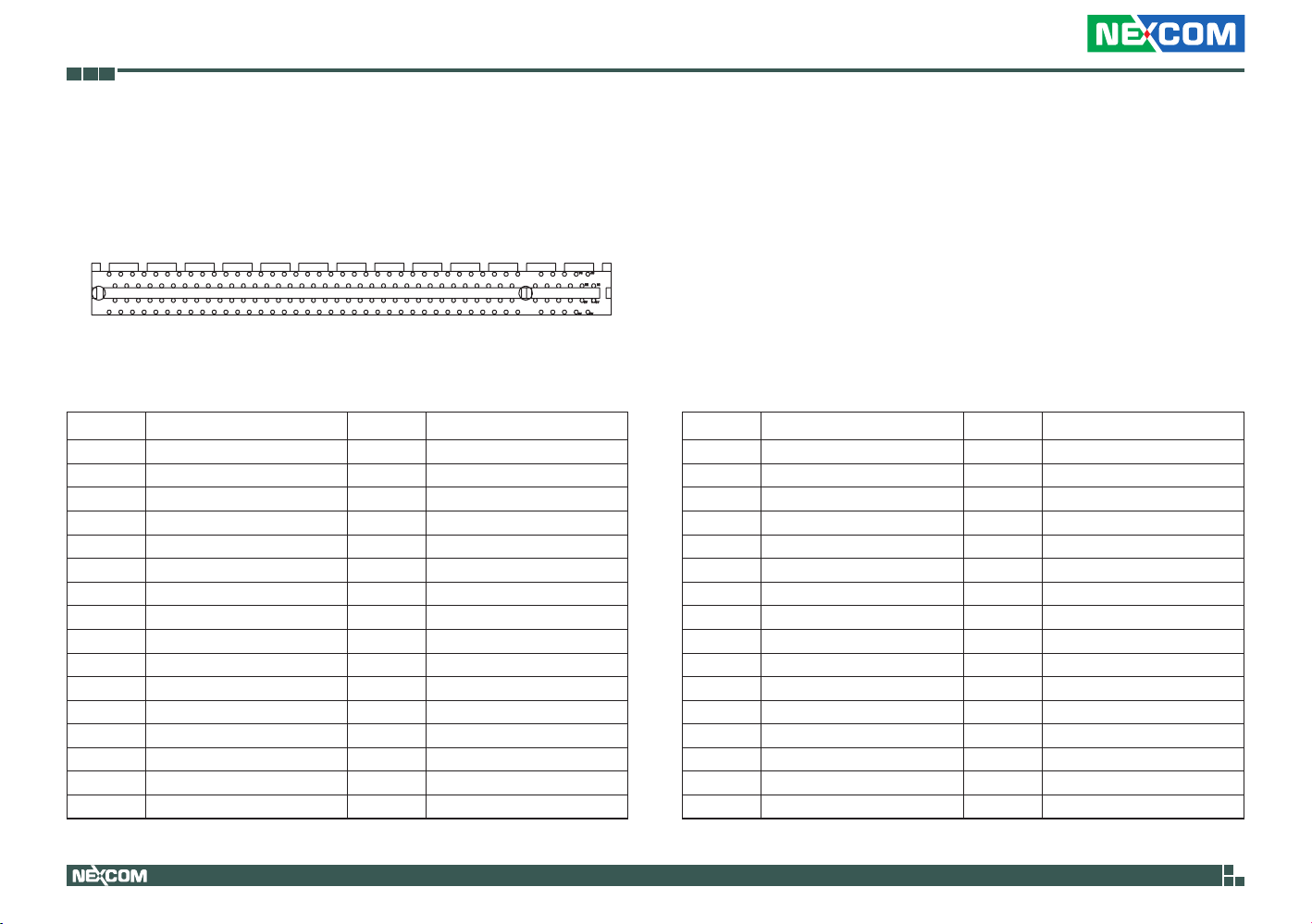

PCIe x16 Slot

Connector location: JP4

B82 B81

A81 A82

Pin Definition Pin Definition

A1 NC A2 +12V A3 +12V A4 GND A5 NC A6 NC A7 NC A8 NC

A9 VCC3 A10 VCC3 A11 PE_RESEET# A12 GND A13 REFCLK_P A14 REFCLK_N A15 GND A16 RXP0 A17 RXN0 A18 GND A19 Reserved A20 GND A21 RXP1 A22 RXN1 A23 GND A24 GND A25 RXP2 A26 RXN2 A27 GND A28 GND A29 RXP3 A30 RXN3 A31 GND A32 Reserved

B2 B1

A1 A2

Pin Definition Pin Definition

B1 +12V B2 +12V B3 Reserved B4 GND B5 SMBus clock B6 SMBus data B7 GND B8 +3.3 volt power

B9 NC B10 3.3VSB B11 WAKE# B12 Reserved B13 GND B14 TXP0 B15 TXN0 B16 GND B17 PRSNT2#_1 B18 GND B19 TXP1 B20 TXN1 B21 GND B22 GND B23 TXP2 B24 TXN2 B25 GND B26 GND B27 TXP3 B28 TXN3 B29 GND B30 Reserved B31 PRSNT2#_2 B32 GND

36

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A33 Reserved A34 GND A35 RXP4 A36 RXN4 A37 GND A38 GND A39 RXP5 A40 RXN5 A41 GND A42 GND A43 RXP6 A44 RXN6 A45 GND A46 GND A47 RXP7 A48 RXN7 A49 GND A50 Reserved A51 GND A52 RXP8 A53 RXN8 A54 GND A55 GND A56 RXP9 A57 RXN9 A58 GND A59 GND A60 RXP10 A61 RXN10 A62 GND A63 GND A64 RXP11 A65 RXN11 A66 GND A67 GND A68 RXP12 A69 RXN12 A70 GND A71 GND A72 RXP13 A73 RXN13 A74 GND A75 GND A76 RXP14 A77 RXN14 A78 GND A79 GND A80 RXP15

Pin Definition Pin Definition

B33 TXP4 B34 TXN4 B35 GND B36 GND B37 TXP5 B38 TXN5 B39 GND B40 GND B41 TXP6 B42 TXN6 B43 GND B44 GND B45 TXP7 B46 TXN7 B47 GND B48 PRSNT2#_3 B49 GND B50 TXP8 B51 TXN8 B52 GND B53 GND B54 TXP9 B55 TXN9 B56 GND B57 GND B58 TXP10 B59 TXN10 B60 GND B61 GND B62 TXP11 B63 TXN11 B64 GND B65 GND B66 TXP12 B67 TXN12 B68 GND B69 GND B70 TXP13 B71 TXN13 B72 GND B73 GND B74 TXP14 B75 TXN14 B76 GND B77 GND B78 TXP15 B79 TXN15 B80 GND B81 PRSNT2#_4 B82 NC

37

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

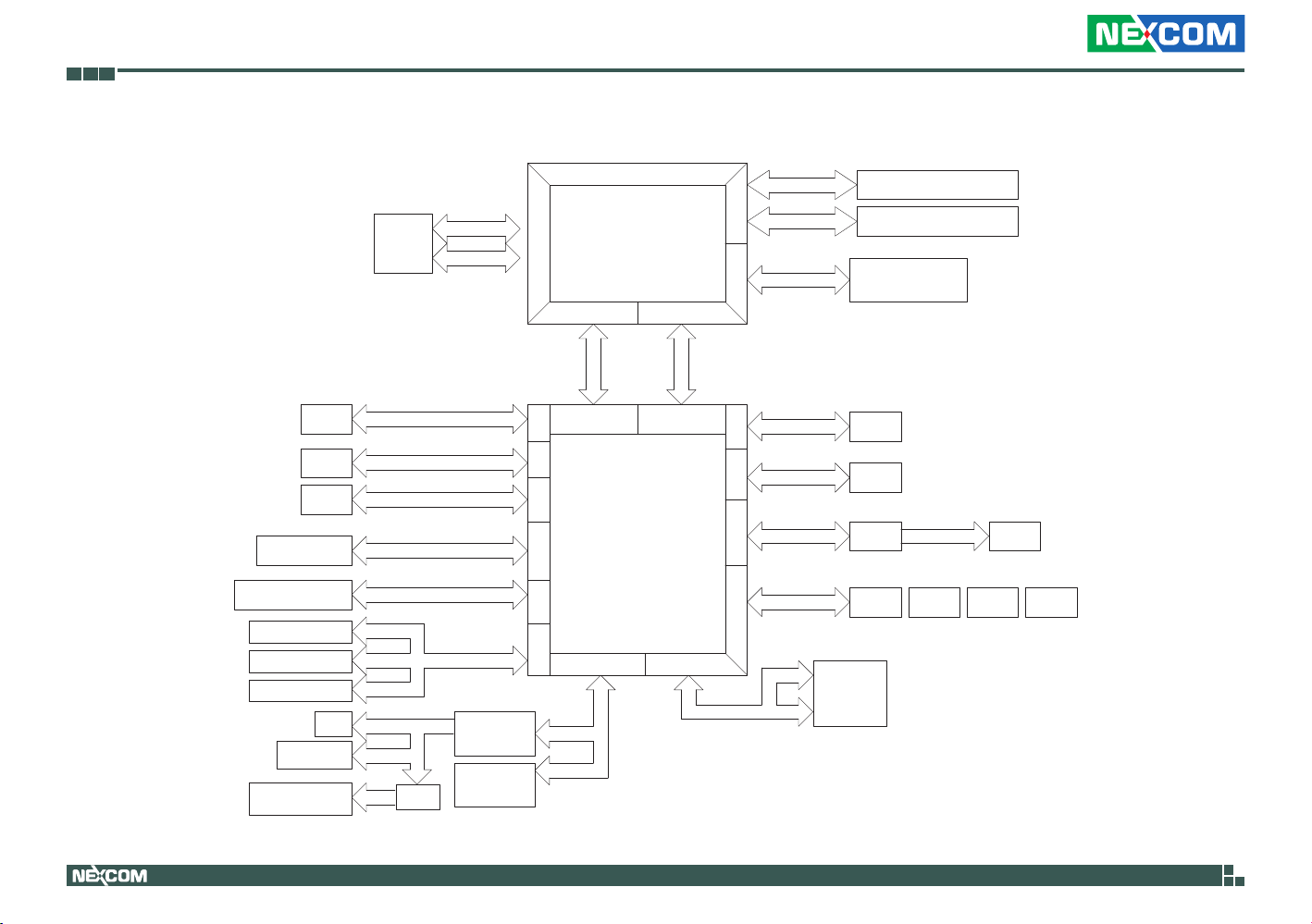

Block Diagram

VGA

ALC888

LVDS1

USB 2.0 (0~3)

USB 2.0 Pin header

MiniPCI-E

WG82579LM Port 6

82574L

COM3 / COM4

(Box Header)

COM2

RS232/RS422/RS485

Port 1

Port 5

COM1

IMVP 7

PORT:0-3

PORT:4-9

SP338E

Vcore

VCOREG

VGA BUS

HDA BUS

LVDS BUS

USB2.0/3.0 BUS

USB2.0 BUS

PCI-E*1 BUS PORT

Super I/O IT-8783F

TPM

SLB9635TT1.2

Sandy Bridge

37.5 x 37.5 mm rPGA Socket(rPGA989B)

Flexible Display Interface

VGA

Cougar Point

HDA

LVDS

USB 2.0/3.0

25 x 25 mm FCBGA(Mobile only)

USB 2.0

PCI-E *1

LPC BUS

LPC

QM67

DDR3 Channel A

DDR3 Channel B

DDR3 CH APCIex16

SATA BUS

DMIFDI

DMI(X4)

DMIFDI

SPI

PORT D

DISPLAY

PORT C

SDVO

PORT B

SATA

PORT D

PORT C

SDVO PORT B

SATA BUS

DDR3 1066/1333 MHz DIMM1

DDR3 1066/1333 MHz DIMM2

PCI-E x16 SLOT

HDMI

DVI-D

CH7308

SATA0 SATA1 SATA2 SATA3

BIOS

iAMT

SPI ROM

LVDS BUS

LVDS2

38

NEX 607 User Manual

Chapter 2: Jumpers and Connectors

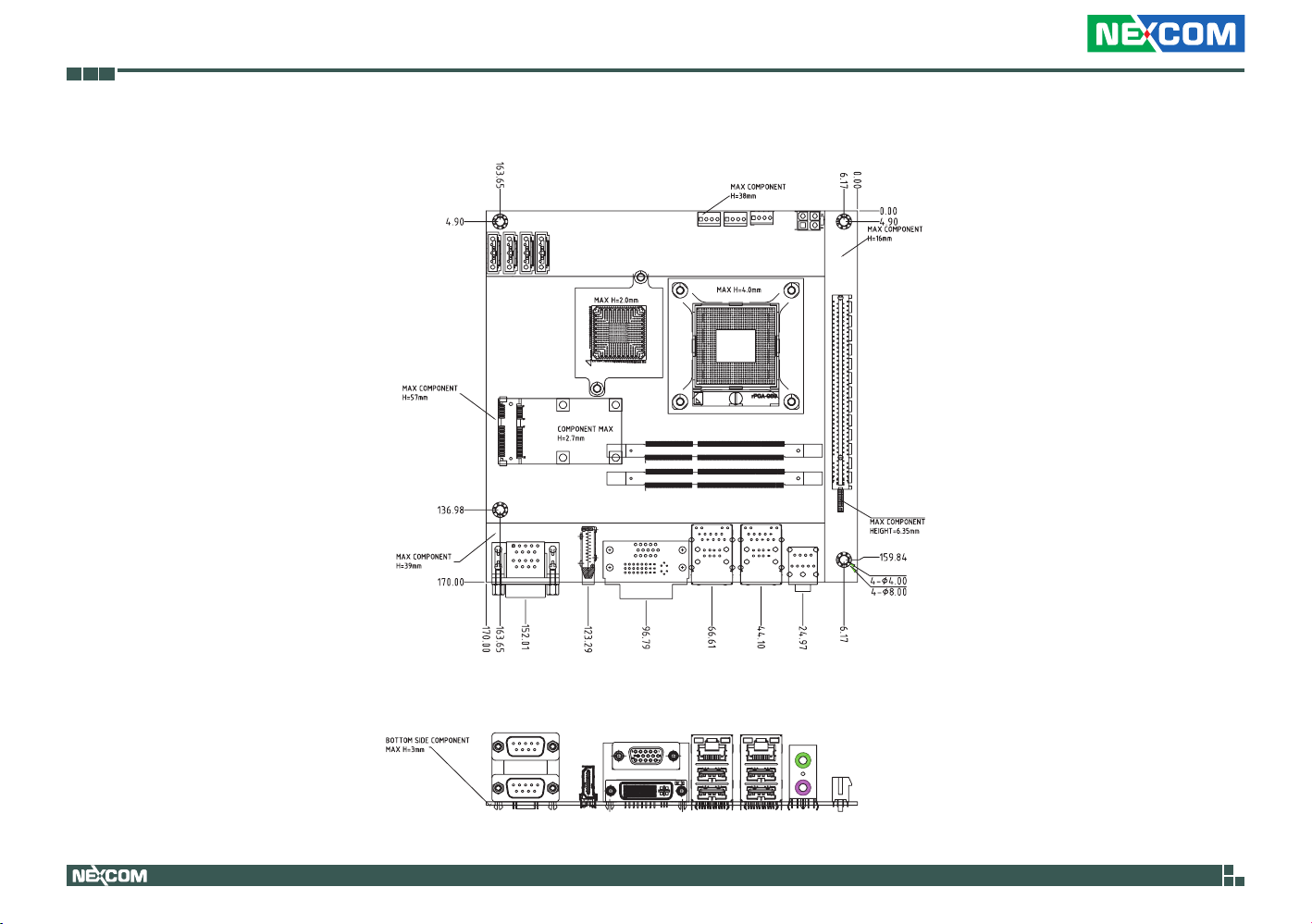

Board Dimensions

39

NEX 607 User Manual

Chapter 3: BIOS Setup

This chapter describes how to use the BIOS setup program for the NEX 607. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

40

NEX 607 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

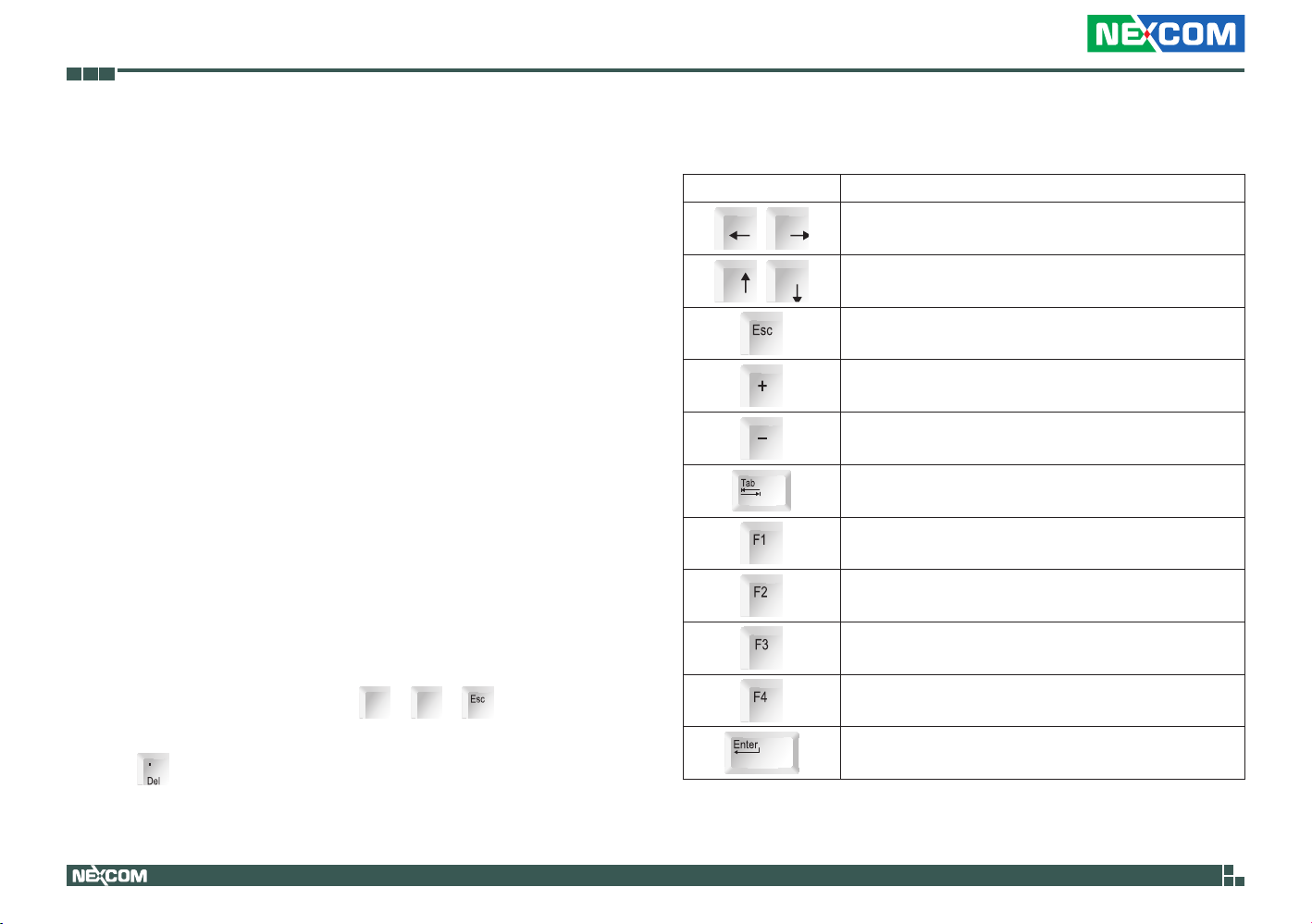

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

TO ENTER SETUP BEFORE BOOT PRESS

Press the

key to enter Setup:

Ctrl

+

Alt

+

41

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NEX 607 User Manual

Chapter 3: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

42

NEX 607 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Boot SecurityMain

BIOS Information BIOS Vendor Core Version Compliency Project Version Build Date and Time

******* Memory Information ****** Memory Frequency Total Memory DIMM#1 DIMM#2

ME Firmware Information ME FW Version ME Firmware Mode ME Firmware SKU

System Date

System Time

American Hegatrends

4.6.4.0 UEFI 2.1 N607-006 06/01/2012 13:18:45

1333 MHz 2048 MB (DDR3) 2048 MB (DDR3) Not Present

7.1.13.1088 Normal Mode 5MB

[Fri 06/01/2012] [15:03:56]

Save & Exit

Set the Date, Use Tab to switch between Data elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

43

NEX 607 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Chipset Boot SecurityMain

Legacy OpROM Support

Launch LAN1 PXE OpROM

Launch LAN2 PXE OpROM

 ACPI Settings  CPU Conguration  SATA Conguration  AMT Conguration  USB Conguration  Super IO Conguration  H/W Monitor  Sandybridge PPM Conguration

[Disabled]

Save & Exit

Enable or Disable Boot Option for Legacy Network Devices-LAN1.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Launch LAN1/2 PXE OpROM

Enables or disables boot option for legacy network devices connected to LAN1 and LAN2.

44

NEX 607 User Manual

Chapter 3: BIOS Setup

ACPI Settings

This section is used to configure ACPI settings.

Advanced

Enable ACPI Auto Conguration

Enable Hibernation ACPI Sleep State

[Disabled]

[Enabled] [S3 (Suspend to RAM)]

Enable ACPI Auto Configuration

Enables or disables BIOS ACPI auto configuration.

Enables or Disables BIOS ACPI

Auto Conguration.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Intel(R) Celeron(R) CPU B810 @ 1.60GHz EMT64 Processor Speed Processor Stepping Microcode Revision Processor Core Intel HT Technology

Hardware Prefetcher

Intel Virtualization Technology

Supported 1600 MHz 206a7 25 2 Not Supported

[Enabled]

[Disabled]

Hardware Prefetcher

Enables or disables the MLC streamer prefetcher.

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for othe OS (OS not optimized for Hyper-Threading Technology).

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled, S1 (CPU Stop Clock) and S3 (Suspend to RAM).

Intel® Virtualization Technology

Enables or disables Intel® Virtualization Technology.

45

NEX 607 User Manual

Chapter 3: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Advanced

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve Serial ATA Port 2 Software Preserve Serial ATA Port 3 Software Preserve Serial ATA Port 4 Software Preserve Serial ATA Port 5 Software Preserve

[Enabled]

[IDE]

Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown Empty Unknown

SATA Controller(s)

Enables or disables SATA device.

Enable/Disable SATA Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode Selection

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Serial ATA Port 0 – 5

Displays information on the SATA devices detected.

46

NEX 607 User Manual

Chapter 3: BIOS Setup

AMT Configuration

This section is used to configure Active Management Technology (AMT) options.

Advanced

Intel AMT

Intel AMT Setup Prompt Intel AMT SPI Protected

[Enabled]

[Enabled] [Disabled]

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel® AMT

Enables or disables Intel® Active Management Technology.

Intel® AMT Setup Prompt

Enables or disables Intel® AMT setup prompt at startup.

Intel® AMT SPI Protected

Enables or disables Intel® AMT SPI write protect

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support

EHCI Hand-off

[Enabeld]

[Disabled]

Enables Legacy USB support. AUTO option disables legacy Support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

EHCI Hand-Off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

47

NEX 607 User Manual

Chapter 3: BIOS Setup

Super IO Configuration

This section is used to configure the serial ports.

Advanced

Super IO Conguration

Super IO Chip



Serial Port 0 Conguration



Serial Port 1 Conguration



Serial Port 2 Conguration



Serial Port 3 Conguration



Serial Port 4 Conguration

IT8783F

Super IO Chip

Displays the Super I/O chip used on the board.

Set Parameters of Serial Port O (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 0 Configuration

This section is used to configure serial port 0.

Advanced

Serial Port 0 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[IO=3F8h; IRQ=4;]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

48

NEX 607 User Manual

Chapter 3: BIOS Setup

Serial Port 1 Configuration

This section is used to configure serial port 1.

Advanced

Serial Port 1 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port Mode Onboard Serial Port Max Baud Rate

[Enabled]

IO=2F8h; IRQ=3;

[IO=2F8h; IRQ=3;] [RS232] [115200 bps]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 2 Configuration

This section is used to configure serial port 2.

Advanced

Serial Port 2 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3E8h; IRQ=10;

[IO=3E8h; IRQ=10;]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port Mode

Select this to change the serial port mode to RS232, RS422 or RS485.

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

49

NEX 607 User Manual

Chapter 3: BIOS Setup

Serial Port 3 Configuration

This section is used to configure serial port 3.

Advanced

Serial Port 3 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=2E8h; IRQ=11;

[IO=2E8h; IRQ=11;]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 4 Configuration

This section is used to configure serial port 4.

Advanced

Serial Port 4 Conguration

Serial Port

Device Settings

Device Mode

[Enabled]

IO=2F0h; IRQ=7;

[IrDA 1.0 (HP SIR) ...]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

Change Settings

Selects an optimal setting for the Super IO device.

50

NEX 607 User Manual

Chapter 3: BIOS Setup

H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

PC Health Status

CPU core temperature System temperature Fan1 Speed Fan2 Speed Vcore

3.3V 5V 12V

: +38C : +26C : 6250 RPM : N/A : +1.120V : +3.376V : +5.068V : +12.144V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Core Temperature

Detects and displays the current CPU temperature.

Fan2 Speed

Detects and displays Fan2 speed.

Vcore

Detects and displays the Vcore CPU voltage.

3.3V

Detects and displays 3.3V voltage.

5V

Detects and displays 5V voltage.

12V

Detects and displays 12V voltage.

System Temperature

Detects and displays the current system temperature.

Fan1 Speed

Detects and displays Fan1 speed.

51

NEX 607 User Manual

Chapter 3: BIOS Setup

Sandybridge PPM Configuration

This section is used to configure the Processor Power Management (PPM) configuration.

Advanced

Parallel Port Conguration

EIST

CPU C3 Report CPU C6 report CPU C7 report

[Disabled]

[Disabled] [Disabled] [Disabled]

Enable/Disable Parallel Intel SpeedStep

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

EIST

Enables or disables Intel® SpeedStep.

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Advanced Chipset Boot SecurityMain

►System Agent (SA) Conguration

►PCH-IO Conguration

Save & Exit

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU C3 Report

Enables or disables C3 report to the operating system.

CPU C6 Report

Enables or disables C6 report to the operating system.

CPU C7 Report

Enables or disables C7 report to the operating system.

System Agent (SA) Configuration

System Agent (SA) parameters

PCH-IO Configuration

PCH-IO parameters

52

NEX 607 User Manual

Chapter 3: BIOS Setup

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) configuration.

Chipset

►Intel IGFX Conguration

►NB PCIe Conguration

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel® IGFX Configuration

This section is used to configure the Intel® IGFX configuration.

Chipset

Intel IGFX Configuration

IGFX VBIOS Version IGfx Frequency

Graphics Turbo IMON Current

Primary Display Internal Graphics Aperture Size DVMT Pre-Allocated DVMT Total Gfx Mem

******* LVDS Configuration *******

Primary IGFX Boot Display Secondary IGFX Boot Display LVDS1 Panel Type LVDS1 Backlight Control LVDS1 Backlight Active LFP Panel Color Depth

2119 650 MHz

31

[Auto] [Auto] [256MB] [256M] [256M]

[CRT] [Disabled] [1024x768 LVDS] [Positive] [100%] [No LVDS] [24 Bit]

Graphics turbo IMON current values supported (14-31)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Graphics Turbo IMON Current

Graphics turbo IMON current values supported (14-31).

Intel IGFX Configuration

Selects the Graphic chip setting of Intel IGFX Configuration.

NB PCIe Configuration

Configures the NB PCI Express settings.

Primary Display

Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable GFx.

Internal Graphics

Keep IGD enabled based on the setup options.

53

NEX 607 User Manual

Chapter 3: BIOS Setup

Aperture Size

Select the Aperture size.

DVMT Pre-Allocated

Select DVMT 5.0 pre-allocated (fixed) graphics memory size used by the internal graphics device.

DVMT Total Gfx Mem

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.

Primary IGFX Boot Display

Select the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

Secondary IGFX Boot Display

Select the secondary display device.

LVDS1 Panel Type

Select the LCD panel used by the internal graphics device.

LVDS1 Backlight Control

Configures LVDS1 backlight control settings.

LVDS1 Backlight

Configures LVDS1 backlight brightness.

Active LFP

Select the Active LFP configuration.

NB PCIe Configuration

This section is used to configure Northbridge PCI Express settings.

Chipset

NB PCIe Conguration

PEGO

PEGO - Gen X

Always Enable PEG

Not Present

[Auto]

[Disabled]

Congure PEG0 B0:D1:F0

Gen1-Gen2

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PEG0 – Gen X

Configure PEG0 B0:D1:F0 Gen1-Gen2

Always Enable PEG

Enables or disables the PEG slot.

Panel Color Depth

Select the LFP Panel Color Depth.

54

NEX 607 User Manual

Chapter 3: BIOS Setup

PCH-IO Configuration

This section is used to configure PCH-IO configuration..

Chipset

PCH LAN Controller

Wake on LAN Enable Azalia

SLP_S4 Assertion Width Restore AC Power Loss

►PCI Express Conguration

[Enabled]

[Disabled] [Enabled]

[4-5 Seconds] [Power Off]

Enable/Disable onboard NIC.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH LAN Controller

Enables or disables onboard NIC.

Azalia

Control Detection of the Azalia device.

Disabled - Azalia will be unconditionally disabled. Enabled - Azalia will be unconditionally disabled. Auto - Azalia will be enabled if present, disabled otherwise.

SLP_S4 Assertion Width

Select a minimum assertion width of the SLP_S4# signal.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

Wake on LAN Enable

Enables or disables integrated LAN to wake the system.

55

NEX 607 User Manual

Chapter 3: BIOS Setup

PCI Express Configuration

This section is used to configure PCI Express configuration..

Chipset

►PCI Express Root Port 1

►PCI Express Root Port 5

PCIE Port 6 is assigned to LAN

PCI Express Root Port 1 Settings.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI Express Root Port 1

Settings for PCI Express root port 1.

PCI Express Root Port 5

Settings for PCI Express root port 2.

Boot

This section is used to configure the boot features.

Boot

Quiet Boot

Boot Option Priorities

[Disabled]

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Enables or disables Quiet Boot option

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

56

NEX 607 User Manual

Chapter 3: BIOS Setup

Security

Advanced Chipset Boot SecurityMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be 3 to 20 characters long.

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Save & Exit

Set Setup Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save & Exit

Advanced Chipset Boot SecurityMain

Save Changes and Reset

Discard Changes and Reset

Load Optimized Defaults

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Load Optimized Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save & Exit

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

57

NEX 607 User Manual

Appendix A: Watchdog Timer

WDT Programming Guide

#define SUPERIO_PORT 0x2E #define WDT_SET 0x72 #define WDT_VALUE 0x73

void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x01); outportb(SUPERIO_PORT, 0x55); outportb(SUPERIO_PORT, 0x55);

# Set LDN outportb(SUPERIO_PORT, 0x07); outportb(SUPERIO_PORT+1 ,0x07);

# Set WDT setting outportb(SUPERIO_PORT, WDT_SET); outportb(SUPERIO_PORT+1, 0xC0); # Use the second # Use the minute, change value to 0x40 # Set WDT sec/min outportb(SUPERIO_PORT, WDT_VALUE); outportb(SUPERIO_PORT+1, 0x05); #Set 5 seconds

58

NEX 607 User Manual

Appendix B: GPI/O Programming Guide

GPI/O (General Purpose Input/Output) pins are provided for custom system design. This appendix provides definitions and its default setting for the ten GPI/O pins in the NEX 607 series. The pin definition is shown in the following table:

Pin No. GPI/O mode PowerOn

Default

1 VCC - - 2 GND - -

3 GPO0 Low A04h (Bit4) 4 GPI0 High A04h (Bit0)

5 GPO1 Low A04h (Bit5) 6 GPI1 High A04h (Bit1)

7 GPO2 Low A04h (Bit6) 8 GPI2 High A04h (Bit2)

9 GPO3 Low A04h (Bit7) 10 GPI3 High A04h (Bit3)

Control the GPO pin (3/5/7/9) level from I/O port A04h bit (4/5/6/7). The bit is Set/Clear indicated output High/Low

Address Pin No. GPI/O mode PowerOn

Default

59

Address

NEX 607 User Manual

Appendix B: GPI/O Programming Guide

GPIO programming sample code

#define GPIO_PORT 0xA04 #define GPO0 (0x01 << 4) #define GPO1 (0x01 << 5) #define GPO2 (0x01 << 6) #define GPO3 (0x01 << 7)

#define GPO0_HI outportb(GPIO_PORT, GPO0) #define GPO0_LO outportb(GPIO_PORT, 0x00) #define GPO1_HI outportb(GPIO_PORT, GPO1) #define GPO1_LO outportb(GPIO_PORT, 0x00) #define GPO2_HI outportb(GPIO_PORT, GPO2) #define GPO2_LO outportb(GPIO_PORT, 0x00) #define GPO3_HI outportb(GPIO_PORT, GPO3) #define GPO3_LO outportb(GPIO_PORT, 0x00) void main(void) { GPO0_HI; GPO1_LO; GPO2_HI; GPO3_LO; }

60

NEX 607 User Manual
