NEXCOM NEX 608 User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Embedded Computing (Industrial Motherboard) NEX 608

User Manual

NEXCOM International Co., Ltd.

Published May 2011

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer Acknowledgements Regulatory Compliance Statements Declaration of Conformity RoHS Compliance Warranty and RMA Safety Information Installation Recommendations Safety Precautions Technical Support and Assistance Conventions Used in this Manual Global Service Contact Information Package Contents Ordering Information

............................................................................................. iv

.............................................................................. iv

....................................................... iv

...................................................................... iv

................................................................................... v

................................................................................ vi

................................................................................vii

................................................................vii

.................................................................................viii

........................................................... ix

......................................................... x

..................................................................................xii

............................................................................xiii

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features Hardware Specifications Getting to Know NEX 608

.......................................................................................1

..........................................................................2

......................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions Jumper Settings Locations of the Jumpers and Connectors Jumpers

Power Type Select LVDS Backlight Power Select COM4 RS232 RI# Power Select RTC Clear CF Card Master/Slave Select

Connectors Pin Definitions

External I/O Interface

.............................................................................................5

...................................................................................... 6

...............................................7

..................................................................................................8

...............................................................................8

............................................................... 8

...........................................................9

........................................................................................... 9

.............................................................10

....................................................................11

........................................................................11

PS/2 Keyboard and PS/2 Mouse Ports COM2 and COM3 Ports (RS232) COM1 and VGA Ports LAN1 and LAN2 Ports LAN3 and USB0/1 Ports AC’97 Phone Jacks

..................................................................12

...............................................................13

......................................................................13

...........................................11

..................................................11

ii

NEX 608 User Manual

Contents

Internal Connectors .......................................................................... 14

System Fan1 and System Fan2 Connectors System Thermal 1/2 Connector LVDS Panel Backlight Connector External Keyboard/Mouse Connector GPIO Connector USB4 and USB5 Connectors Line-in Connector Reset Button Connector Power Button Connector External GPO Indicated LED Connector IrDA Connector SMBus Connector External Link LEDs External Activity LEDs External Buzzer Connector Power LED Connector IDE and SATA LED Connector CPU Fan Connector COM4 Connector LVDS Channel A Connector IDE Connector PCI Slot

........................................................................................25

CompactFlash Socket Touch Board Power Connector NISKIG120 Power Board Connector SATA Power Connector Power Input Port Power Output Connector Parallel Connector SATA Ports

..........................................................................16

........................................................................17

...........................................................................19

........................................................................19

........................................................................ 20

...................................................................20

..................................................................21

.....................................................................22

........................................................................23

.............................................................................24

...................................................................27

..........................................................................29

.......................................................................30

...................................................................................31

....................................................14

..................................................15

.........................................................16

...............................................................17

.............................................................18

...........................................................21

....................................................... 22

.........................................................23

..................................................... 28

................................................................ 29

.............................................................30

...................................14

...........................................15

........................................18

............................................. 28

Chapter 3: BIOS Setup

About BIOS Setup .................................................................................32

When to Configure the BIOS Entering Setup Legends BIOS Setup Utility

Main Advanced Boot Chipset PCIPnP Security Exit

...................................................................................................51

......................................................................................33

................................................................................................33

.................................................................................. 34

................................................................................................ 34

......................................................................................... 35

................................................................................................. 43

............................................................................................46

.............................................................................................49

............................................................................................50

.................................................................32

Appendix A: Watchdog Timer

WDT Programming Guide .....................................................................52

W83627 Watchdog Programming Guide

..............................................52

Appendix B: GPI/O Programming Guide

GPIO Programming Sample Code ..........................................................53

Appendix C: Brightness Control Programming Sample Code

Brightness Control Programming Sample Code .....................................54

iii

NEX 608 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NEX 608 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NEX 608 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NEX 608 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

NEX 608 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

NEX 608 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect the equipment from an AC power outlet prior to install-

ing a component inside the chassis.

4. To prevent electrostatic build-up, leave the board in its anti-static bag

until you are ready to install it.

5. Keep the board away from humidity.

6. Put the board on a stable surface. Dropping it or letting it fall may

cause damage.

7. Do not leave the board in either an unconditioned environment or in

a above 60oC storage temperature as this may damage the board.

8. Wear an antistatic wrist strap.

9. Do all preparation work on a static-free surface.

10. Hold the board only by its edges. Be careful not to touch any of the

components, contacts or connections.

11. All cautions and warnings on the board should be noted.

12. Use the correct mounting screws and do not over tighten the screws.

13. Keep the original packaging and the anti-static bag; in case the board has to be returned for repair or replacement.

viii

NEX 608 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

ix

NEX 608 User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

18F, No. 716, Chung-Cheng Rd. Chung-Ho City, Taipei County 235, Taiwan, R.O.C. Tel: +886-2-8228-0606 Fax: +886-2-8228-0501 http://www.nexcom.com.tw

USA

3758 Spinnaker Court, Fremont, CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France

Z.I. des Amandiers, 17, Rue des entrepreneurs 78420 Carrières sur Seine, France Tel: +33 (0)1 71 51 10 20 Fax: +33 (0)1 71 51 10 21 http://www.nexcom.eu

Germany

Leopoldstrase Business Centre, Leopoldstrase 244 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy

Via Gaudenzio Ferrari 29, 21047 Saronno (VA) Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom

10 Vincent Avenue, Crownhill Business Centre Milton Keynes, Buckinghamshire, MK8 0AB United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

x

NEX 608 User Manual

Preface

China-Beijing

Room 301, Block E, Power Creative Building, No. 1 Shangdi East Rd. Haidian Dist., Beijing, 100085, China Tel: +86-10-5885-6655 Fax: +86-10-5885-1066 http://www.nexcom.cn

China-Shanghai Ofﬁce

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd. Shanghai, 200063, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Ofﬁce

Room 1206, Hongde Building, No. 20 Yunnan Rd. Nanjing, 210018, China Tel: +86-25-8324-9606 Fax: +86-25-8324-9685 http://www.nexcom.cn

China-Shenzhen Ofﬁce

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, China 518040 TEL: +86-755-833 27203 FAX: +86-755-833 27213 http://www.nexcom.cn

Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku Tokyo, Japan 108-0014 Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xi

NEX 608 User Manual

Preface

Package contents

Before continuing, verify that the NEX 608 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 60233PRT16X00 PRINT CABLE BEST PRINT 25 to 2.0mm 26PIN L:150mm 1

2 60233SIO23X00 CABLE EDI:12221001211-RS COM PORT 9PIN to HOUSING 10PIN PIT:2.0mm L:120mm 1

3 60233ATA23X00 SATA CABLE BEST:148-0707-380 Standard L:250mm 1

4 60233IDE27X00 IDE CABLE EDI:12224403512-RS 44P to 44P PIT:2.0mm L:350mm+-10mm 1

NEX 608 Optional Fan Kit

Item Part Number Name Description Qty

1 10G00060803X0 CPU HEATSINK + Thermal Pad + Sponge 1

xii

NEX 608 User Manual

Preface

Ordering infOrmatiOn

The following provides ordering information for NEX 608.

• NEX608(P/N:10G00060804X0)RoHSCompliant

Mini-ITX, Intel® Atom™ Dual Core D525 processor, 1x DDR3 SODIMM, 3x GbE, 4x COM, 1x Mini PCIe, 1x PCI, DC24V input

xiii

NEX 608 User Manual

Chapter 1: Product Introduction

Chapter 1: produCt IntroduCtIon

Overview

Key Features

• Onboard Intel® Atom™ Dual Core D525 Processor

• 1x DDR3 SODIMM, up to 2GB

• Dual display: VGA and LVDS (18/24-bit)

• 3x Gigabit Ethernet LAN

• SATA RAID 0/1

• 4x COMs, 6x USB 2.0, 1x LPT

• Single DC 24V power input

1

NEX 608 User Manual

Chapter 1: Product Introduction

Hardware Speciﬁcations

CPU

• Onboard Intel® Atom™ Dual Core D525 (1.8GHz, 1M Cache) processor

Platform Control Hub

• Intel® NH82801HBM (ICH8M)

Main Memory

• 1x 204-pin DDR3 SODIMM socket

• Supports up to 2GB DDR3 800MHz memory; non-ECC and unbuffered

Onboard LAN

• 3x Realtek RTL8111L Gigabit Ethernet LAN controllers

• Supports boot from LAN and Wake on LAN

• 3x RJ45 ports with LED

Onboard Audio

• Realtek ALC888 High Definition CODEC

• 1x Line-out phone jack

• 1x Mic-in phone jack

Display

• Intel® D525 integrated graphic engine

- Supports DirectX 9, with Intel Clear Video Technology on MPEG2 hardware acceleration

• Analog VGA interface

- 1x DB15 VGA port

- Supports up to 2048x1563 @ 60Hz resolution

• LVDS interface

- Supports single 18/24-bit LVDS channel

Edge I/O

• 1x PS/2 mouse port

• 1x PS/2 keyboard port

• 3x DB9 RS232 COM ports (COM1/2/4)

• 1x DB15 VGA port

• 3x LAN ports

• 2x USB 2.0 ports

• 1x Line-out jack

• 1x Mic-in jack

Internal I/O

• 1x RS232/422/485 COM connector (COM3)

• 3x 10-pin USB connectors (1 port supports USB DOM)

• 8x GPIO 10-pin connector, GPI 0~3 and GPO 0~3, with TTL Level (0/5 V)

• 1x connector for power LED and HDD active LED

• 1x 26-pin parallel connector

• 1x 3-pin fan connector for CPU

• 1x mini-din connector for PS2 keyboard and mouse

• Onboard buzzer / SMBus 2.0 / reset

Watchdog Timer

• Watchdog timeout is programmable by software from 1 sec to 255 sec and from 1 min to 255 minutes (Tolerance 15% under 25°C room temperature)

2

NEX 608 User Manual

Chapter 1: Product Introduction

Storage

• 2x SATA connectors (from ICH8M)

• 2x SATA connectors (from Silicon Image 3132 SATA RAID controller

- Supports RAID 0 and RAID 1

Expansion

• 1x Mini PCIe socket

• 1x PCI32 slot

Power Input

• Supports AT and ATX modes (default: ATX)

Power Requirements

• Power requirement: +24V DC input

• One 4-pin power connector

Onboard RTC

• On-chip RTC with battery backup

• 1x External Li-Ion battery

System Monitor

• Monitors voltages, temperatures and fan speeds

- 4 voltages (Vcore, +12V, +3.3V, +5V)

- 2 temperatures (for CPU and 2 external temperature sensors)

- 2 fan speeds

Dimensions

• Mini-ITX form factor

• 170mm (L) x 170mm (W)

BIOS

• AMI BIOS

• Plug & Play support

• Advanced Power Management

• Advanced Configuration & Power Interface

• 8Mbits SPI ROM

Environment

• Operating temperature: 0°C to 60°C

• Storage temperature: -20°C to 85°C

• Relative Humidity

Operating: 10% - 90%, non-condensing Non-operating: 5% - 95%, non-condensing

Operating Systems

• Microsoft

Windows XP Professional for Embedded Systems Windows Embedded Standard 2009 Windows 7 Professional for Embedded Systems Windows Embedded Standard 7

• Linux

Fedora Core 12 Ubuntu 10.10

Certiﬁcations

• CE approval

• FCC Class A

3

NEX 608 User Manual

Chapter 1: Product Introduction

Getting to Know NEX 608

IDE/SATA LED

Touch Board Power

SODIMM

LVDS

IDE

LVDS Panel Backlight

Intel® Atom

TM

D525

NISKIG120 Power Board

System Fan 2

CPU Fan

System Thermal 1/2

External GPO Indicated LED

Power Input

COM4

Power LED

Power

Reset

Parallel

PS/2 KB/MS

COM2/COM3

IrDA

USB5

KB/MS

COM1/VGA

LAN1/LAN2

Line-out/Mic-in

LAN3/USB

SMBus

CF

Buzzer

System Fan 1 SATA Power

PCI

®

Intel

ICH8M

SATA

GPIO USB4 LAN3 Act LED LAN3 Link LED LAN2 Act LED LAN2 Link LED

LAN1 Link LED

LAN1 Act LED

4

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Chapter 2: Jumpers and ConneCtors

This chapter describes how to set the jumpers and connectors on the NEX 608 motherboard.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

5

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

6

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the locations of the jumpers and connectors.

JP17

JP15

SODIMM

J10/RT1

CON3

JP10

CN1

CN2

FAN1

JP8

CON2

CN4

JP9

CN5

J3

J6

J7

J8

CN7

COM1

J15

CN6

J13

JP11

LAN1

CON4

CN8

JP1

IDE1

JP4

J5 CON1

CN3

J9 J11

J12 J14 JP12 JP13 JP14 JP18

JP20

JP19

7

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

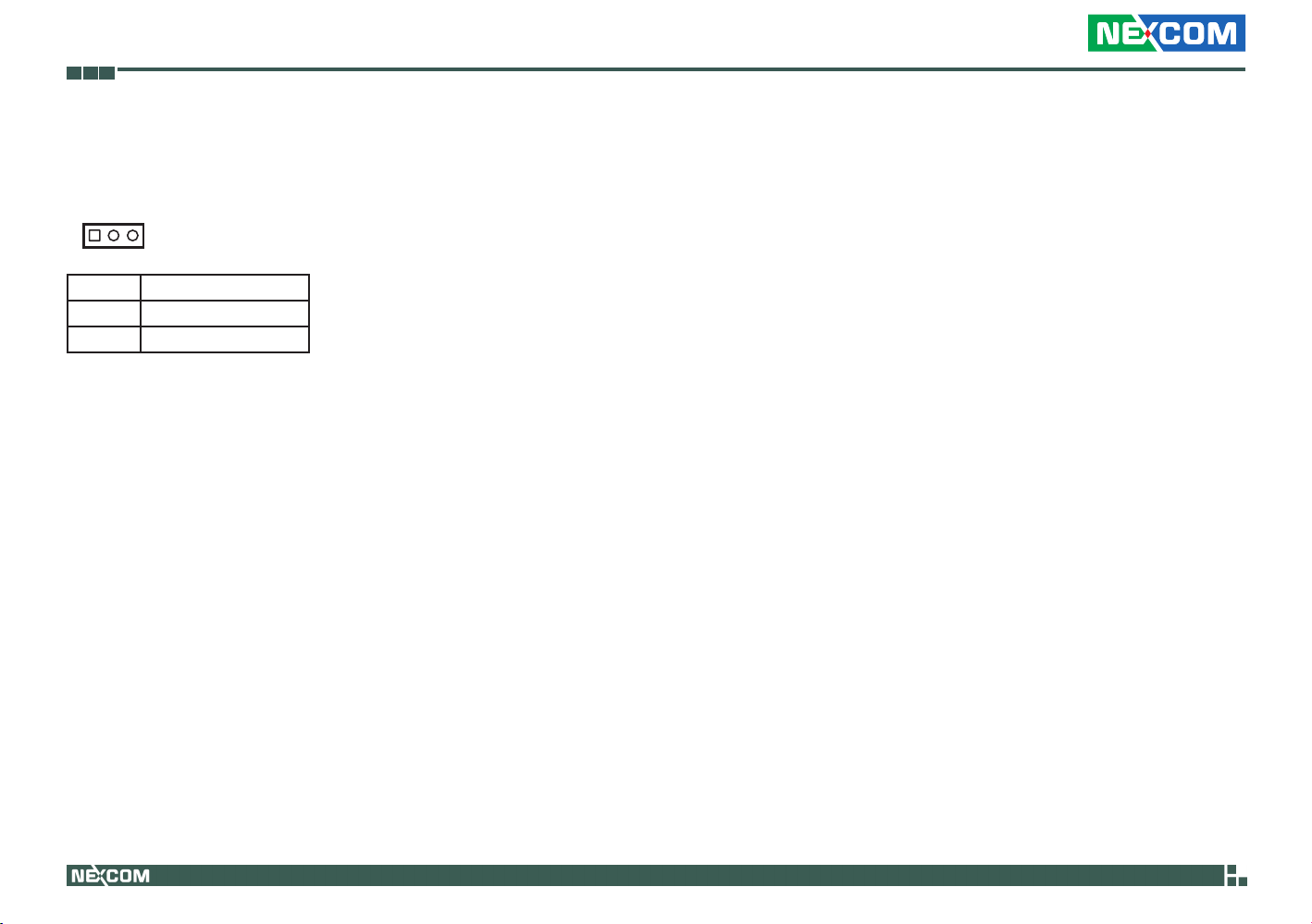

Power Type Select

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP7

1

Pin Deﬁnition

1-2 On AT

2-3 On ATX

2-3 On: default

3

LVDS Backlight Power Select

Connector size: 1x3 3-pin header, 2.54 mm pitch Connector location: JP2

1

Pin Deﬁnition

1-2 On +3.3V

2-3 On +5V

1-2 On: default

3

8

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

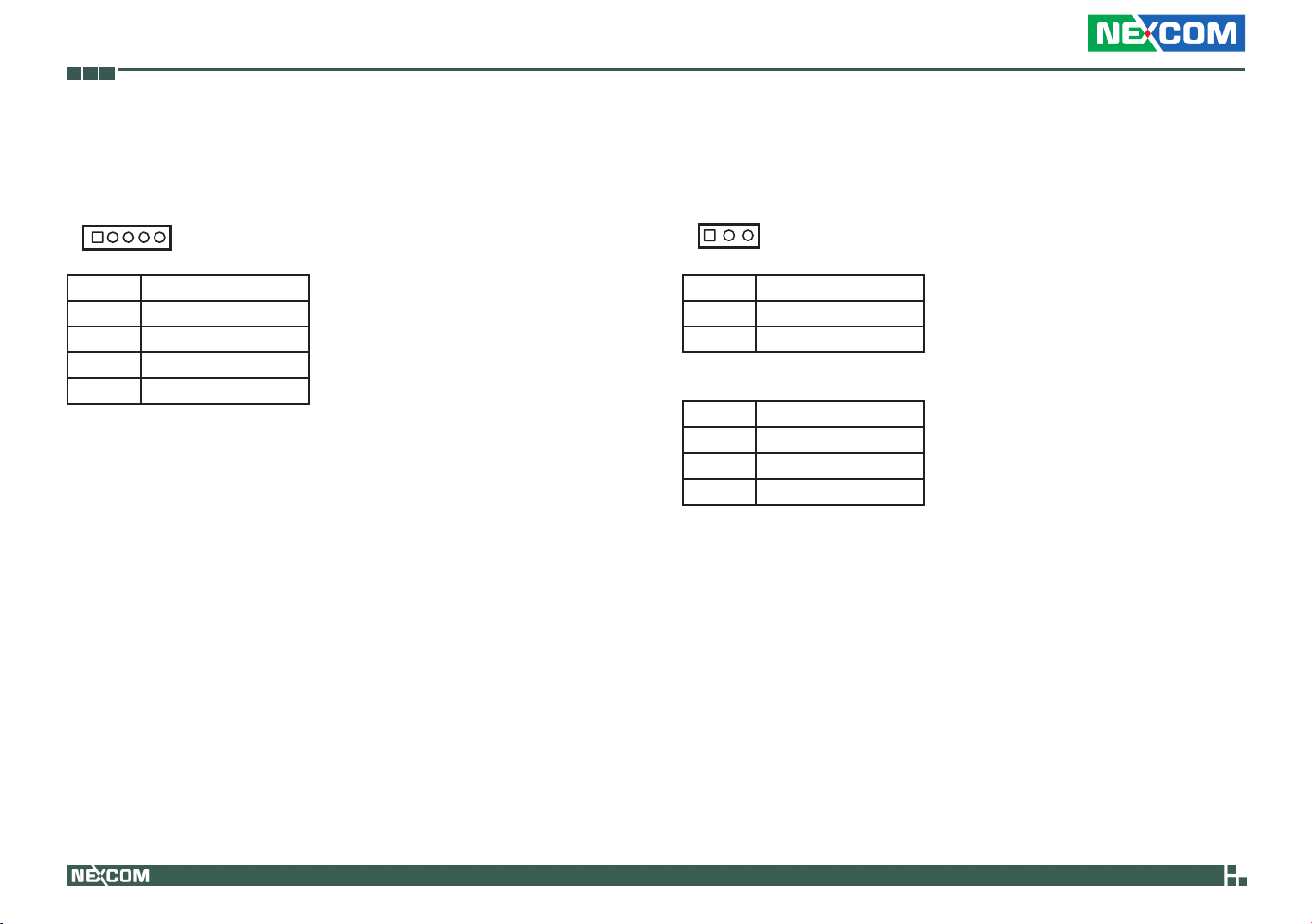

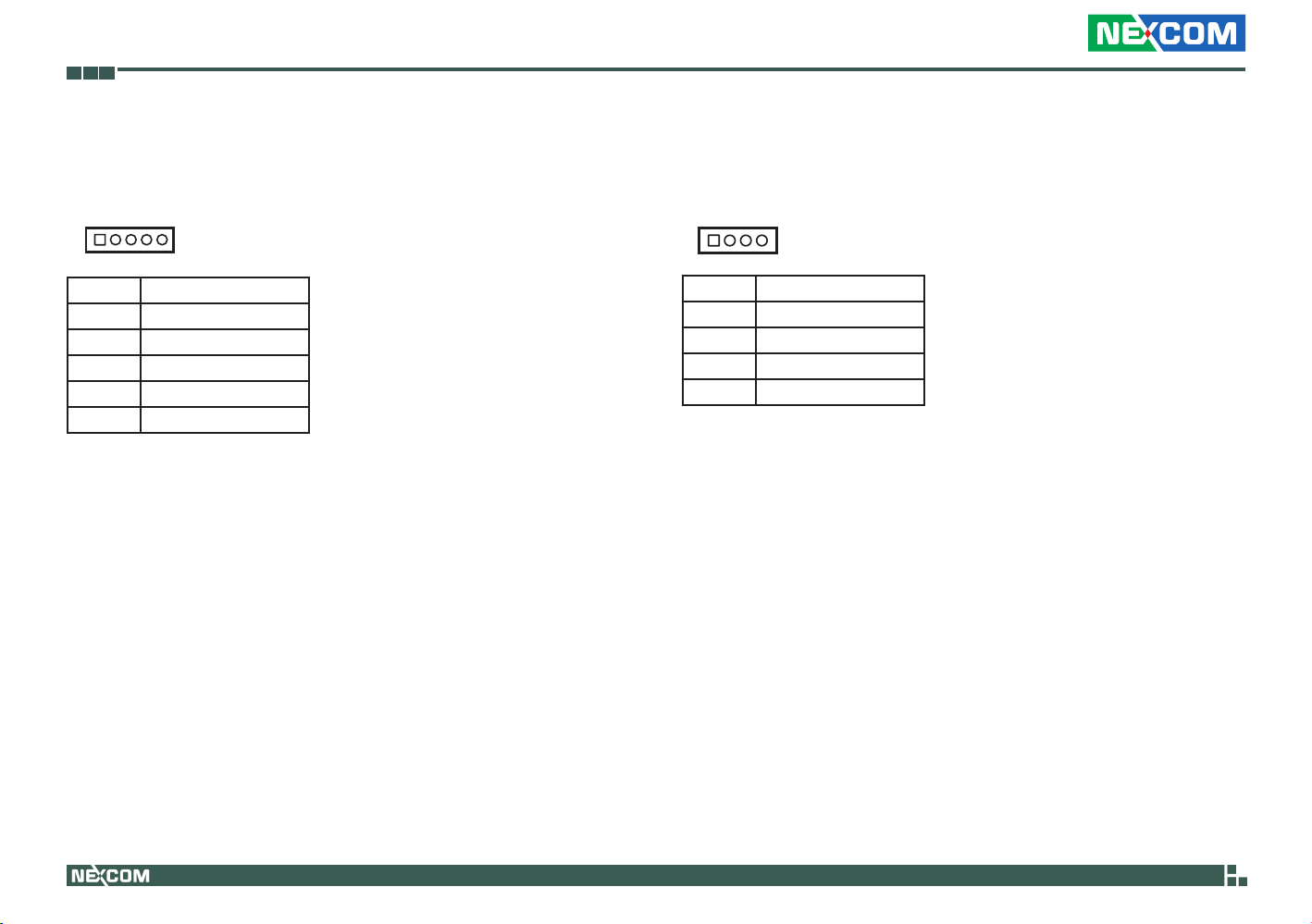

COM4 RS232 RI# Power Select

Connector size: 1x5 5-pin header, 2.54 mm pitch Connector location: JP16

1 5

Pin Deﬁnition

1-2 On +5V

2-3 On +12V

4-5 On Enable

5 Disable

4-5 On: default

RTC Clear

Connector size: 1x3 3-pin header, 2.0 mm pitch Connector location: JP6

1

Pin Settings

1-2 On Normal

2-3 On CMOS Clear

1-2 On: default

Pin Deﬁnition

3

1 NA

2 VCC3P3RTC

3 BATT_GND

9

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

CF Card Master/Slave Select

Connector size: 1x3 3-pin header, 2.0 mm pitch Connector location: JP5

1

Pin Deﬁnition

1-2 On Master

2-3 On Slave

1-2 On: default

3

10

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Deﬁnitions

External I/O Interfaces

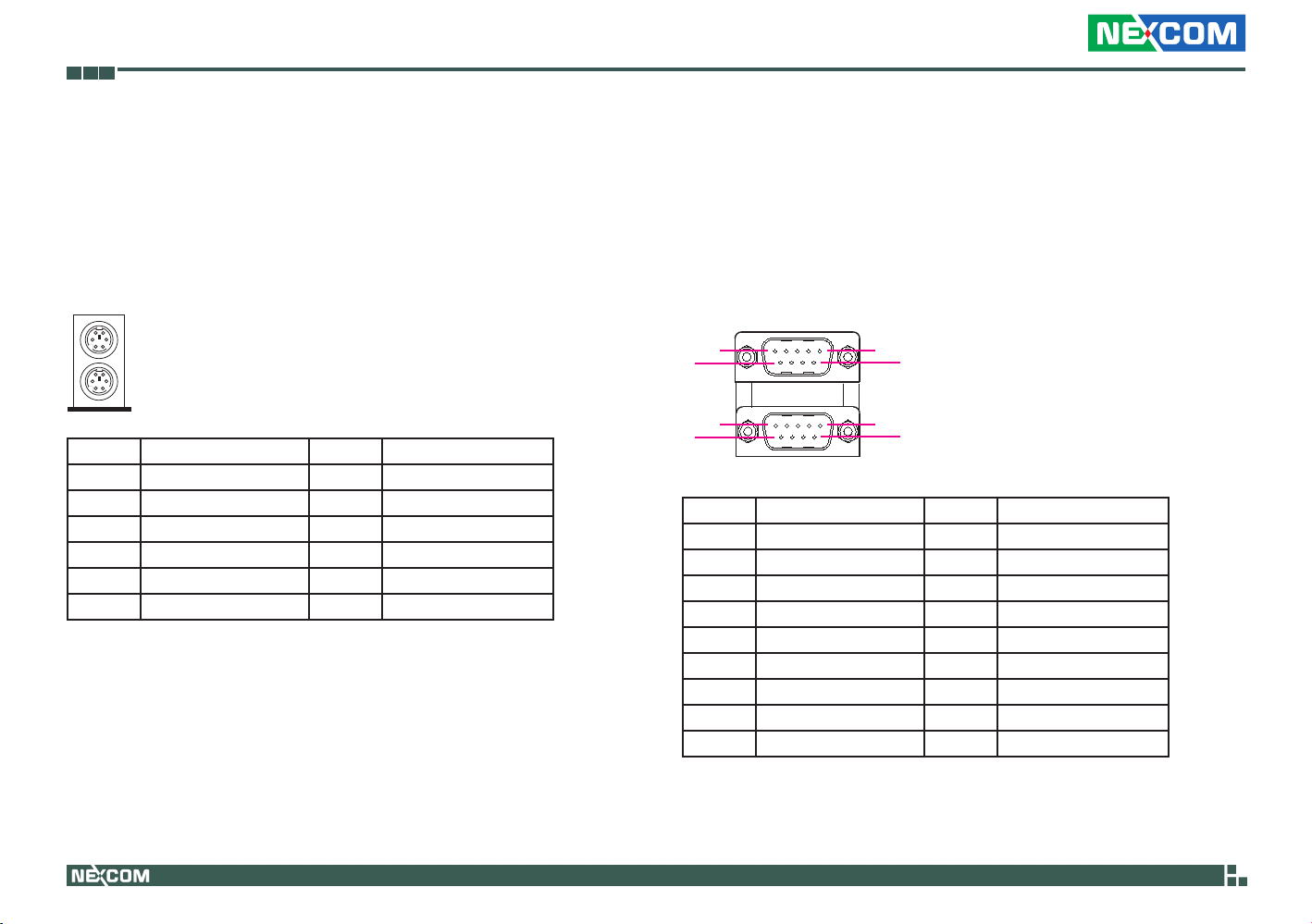

PS/2 Keyboard and PS/2 Mouse Ports

Connector size: PS/2, Mini-DIN-6 Connector location: CN7

PS/2 Mouse

PS/2 Keyboard

Pin Deﬁnition Pin Deﬁnition

1 Keyboard Data 7 Mouse Data

2 NC 8 NC

3 GND 9 GND

4 +5VSB 10 +5VSB

5 Keyboard Clock 11 Mouse Clock

6 NC 12 NC

COM2 and COM3 Ports (RS232)

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1

COM2

1 5

9

1 5

9

COM1

Pin Deﬁnition Pin Deﬁnition

1 DCD2 10 DCD1

2 RXD2 11 RXD1

3 TXD2 12 TXD1

4 DTR2 13 DTR1

5 GND 14 GND

6 DSR2 15 DSR1

7 RTS2 16 RTS1

8 CTS2 17 CTS1

9 RI2 18 RI1

6

11

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

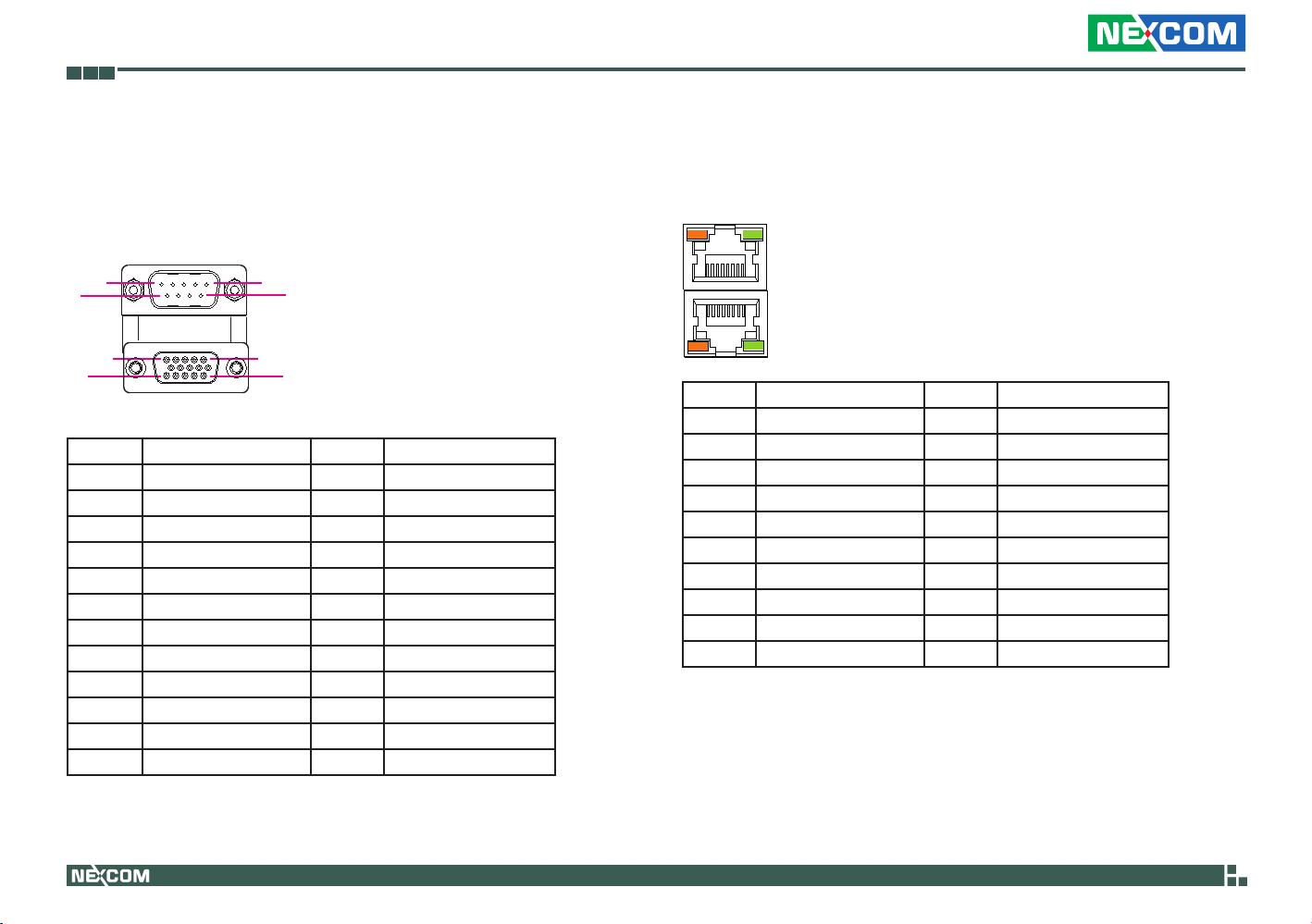

COM1 and VGA Ports

Connector type: DB-9 port, 9-pin D-Sub (COM1) DB-15 port, 15-pin D-Sub (VGA) Connector location: CN6

COM1

1 5

9

5

15

VGA

Pin Deﬁnition Pin Deﬁnition

1 Analog RED 13 HSYNC

2 Analog GREEN 14 VSYNC

3 Analog BLUE 15 DDCCLK

4 NC 16 DCD

5 GND 17 RXD

6 GND 18 TXD

7 GND 19 DTR

8 GND 20 GND

9 +5V 21 DSR

10 GND 22 RTS

11 NC 23 CTS

12 DDCDAT 24 RI

6

1

11

LAN1 and LAN2 Ports

Connector type: RJ45 port with LEDs Connector location: LAN1

LAN2

LAN1

Pin Deﬁnition Pin Deﬁnition

1 +5V 11 MDI1+

2 Data 3- 12 MDI2+

3 Data 3+ 13 MDI2-

4 GND 14 MDI1-

5 +5V 15 MDI3+

6 Data 2- 16 MDI3-

7 Data 2+ 17 +3.3VSB

8 GND 18 ACTIVITY LED

9 MDI0+ 19 +3.3VSB

10 MDI0- 20 LINK LED

12

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

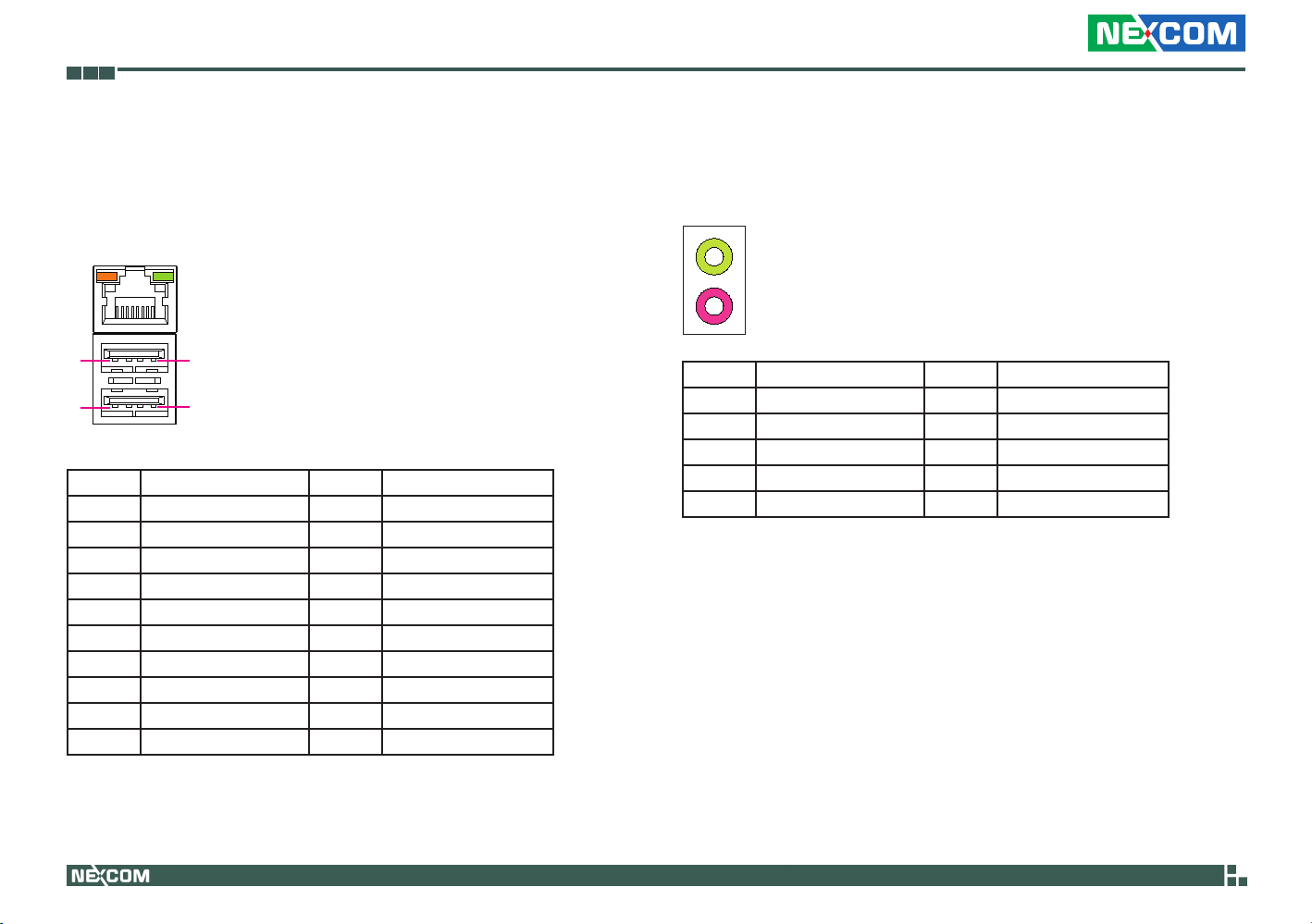

LAN3 and USB0/1 Ports

Connector type: RJ45 port with LEDs (LAN3) Dual USB port, Type A (USB0/1) Connector location: CON4

LAN3

1

5

USB0/1

Pin Deﬁnition Pin Deﬁnition

1 +5V 11 MDI1+

2 Data 1- 12 MDI2+

3 Data 1+ 13 MDI2-

4 GND 14 MDI1-

5 +5V 15 MDI3+

6 Data 0- 16 MDI3-

7 Data 0+ 17 +3.3VSB

8 GND 18 ACTIVITY LED

9 MDI0+ 19 +3.3VSB

10 MDI0- 20 LINK LED

4

8

AC’97 Phone Jacks

Connector type: 1x2 Ear Phone jack Connector location: CN8

Line-out

Mic-in

Pin Deﬁnition Pin Deﬁnition

1 GND 22 LINE-OUT-RIGHT

2 MIC1-IN 23 NC

3 NC 24 NC

4 NC 25 LINE-OUT-LEFT

5 MIC2-IN

13

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

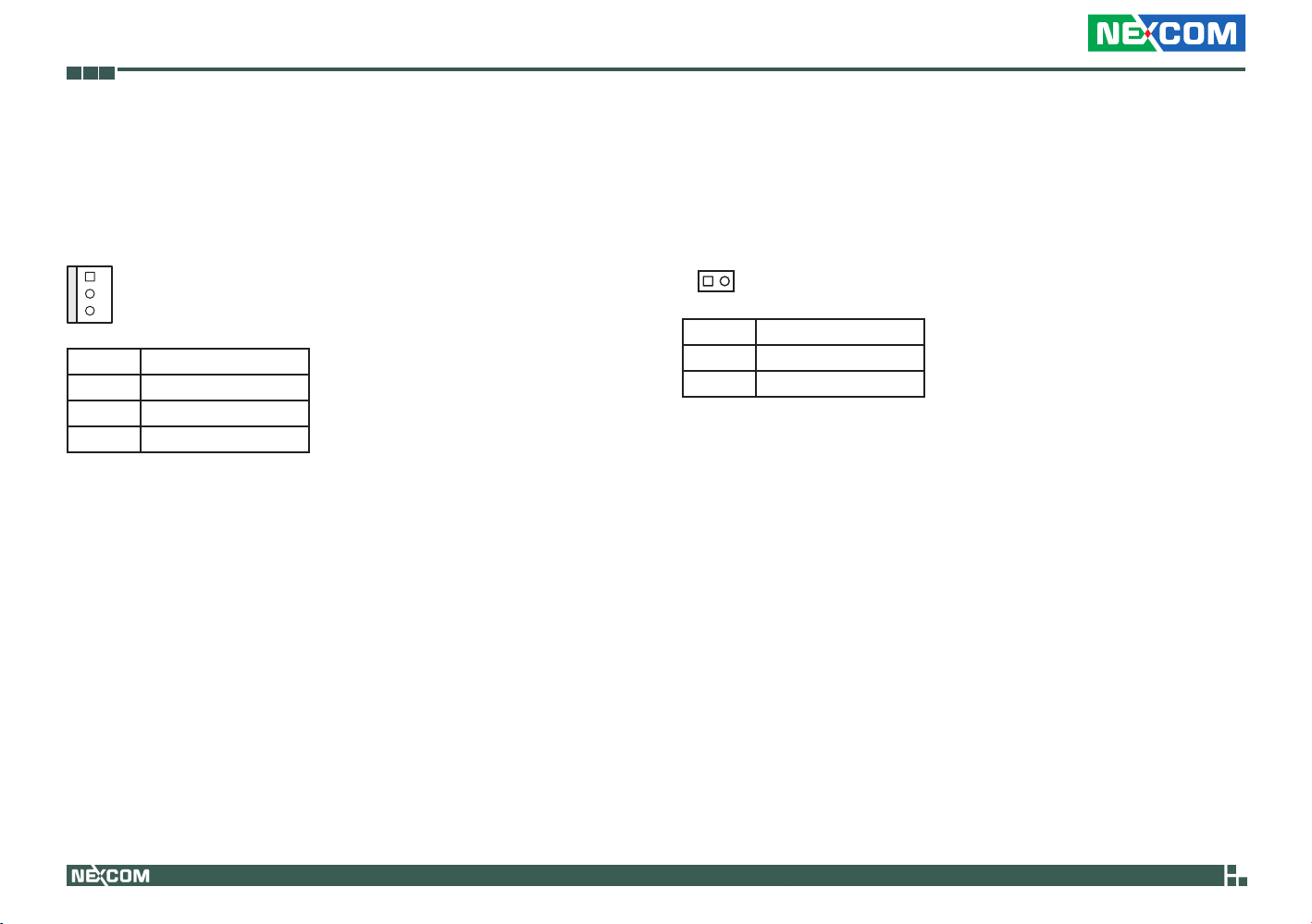

System Fan1 and System Fan2 Connectors

Connector size: 1x3, 3-pin Wafer, 2.54 mm pitch Connector location: J5 (Fan1) and J8 (Fan2)

1

3

Pin Deﬁnition

1 GND

2 +12V

3 SENSE

System Thermal 1/2 Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: J10/RT1

1

2

Pin Deﬁnition

1 Thermal Pin

2 Thermal GND

14

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

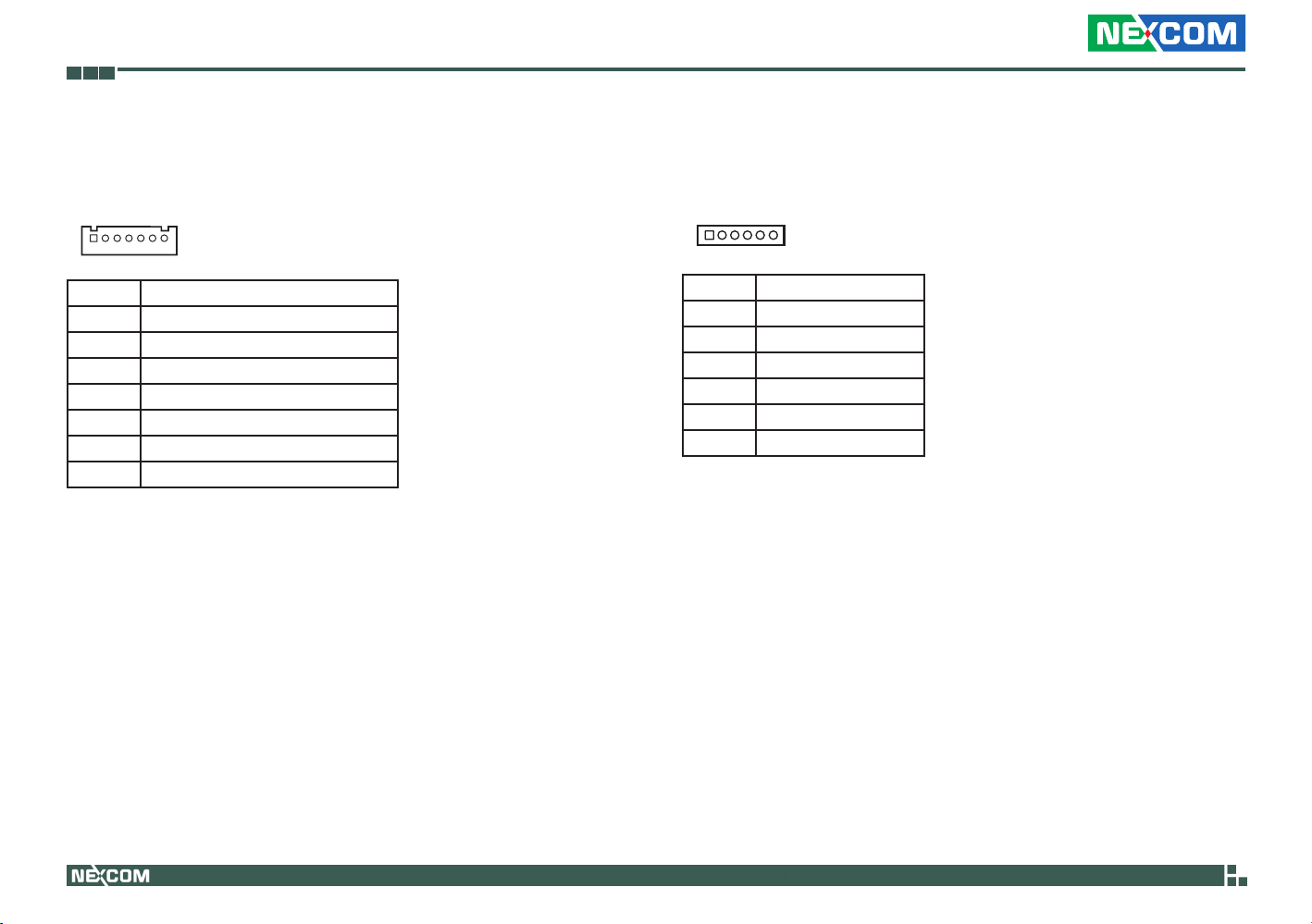

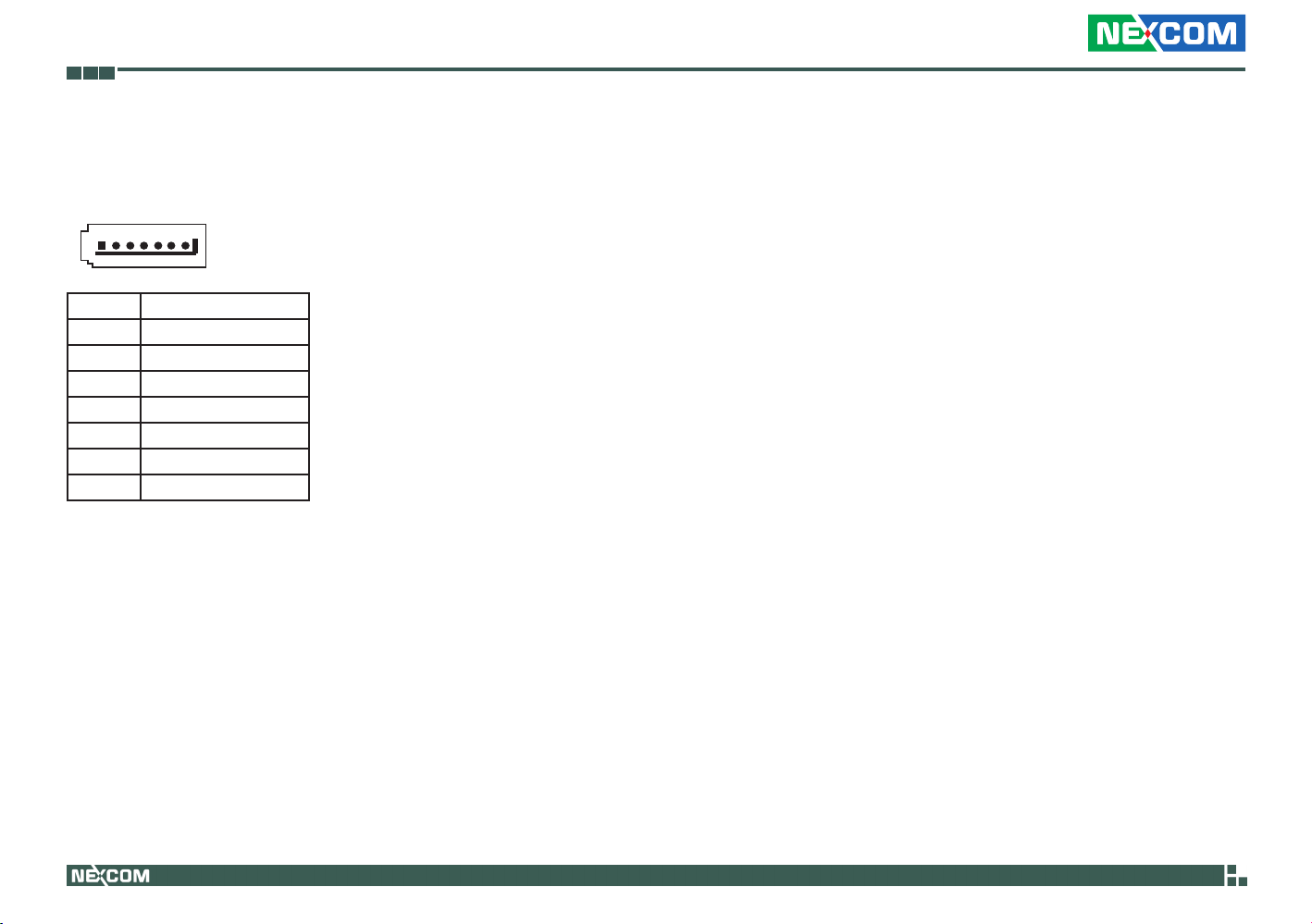

LVDS Panel Backlight Connector

Connector type: 1x7 JST, 7-pin header, 2.5 mm pitch Connector location: J6

1

Pin Deﬁnition

1 +5V

2 +12V

3 +12V

4 Panel Backlight Brightness Control

5 GND

6 GND

7 Panel Backlight Enable

7

External Keyboard/Mouse Connector

Connector type: 1x6 6-pin header, 2.54 mm pitch Connector location: J13

1

Pin Deﬁnition

1 +5V

2 Mouse Clock

3 Mouse Data

4 Keyboard Data

5 Keyboard Clock

6 GND

6

15

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

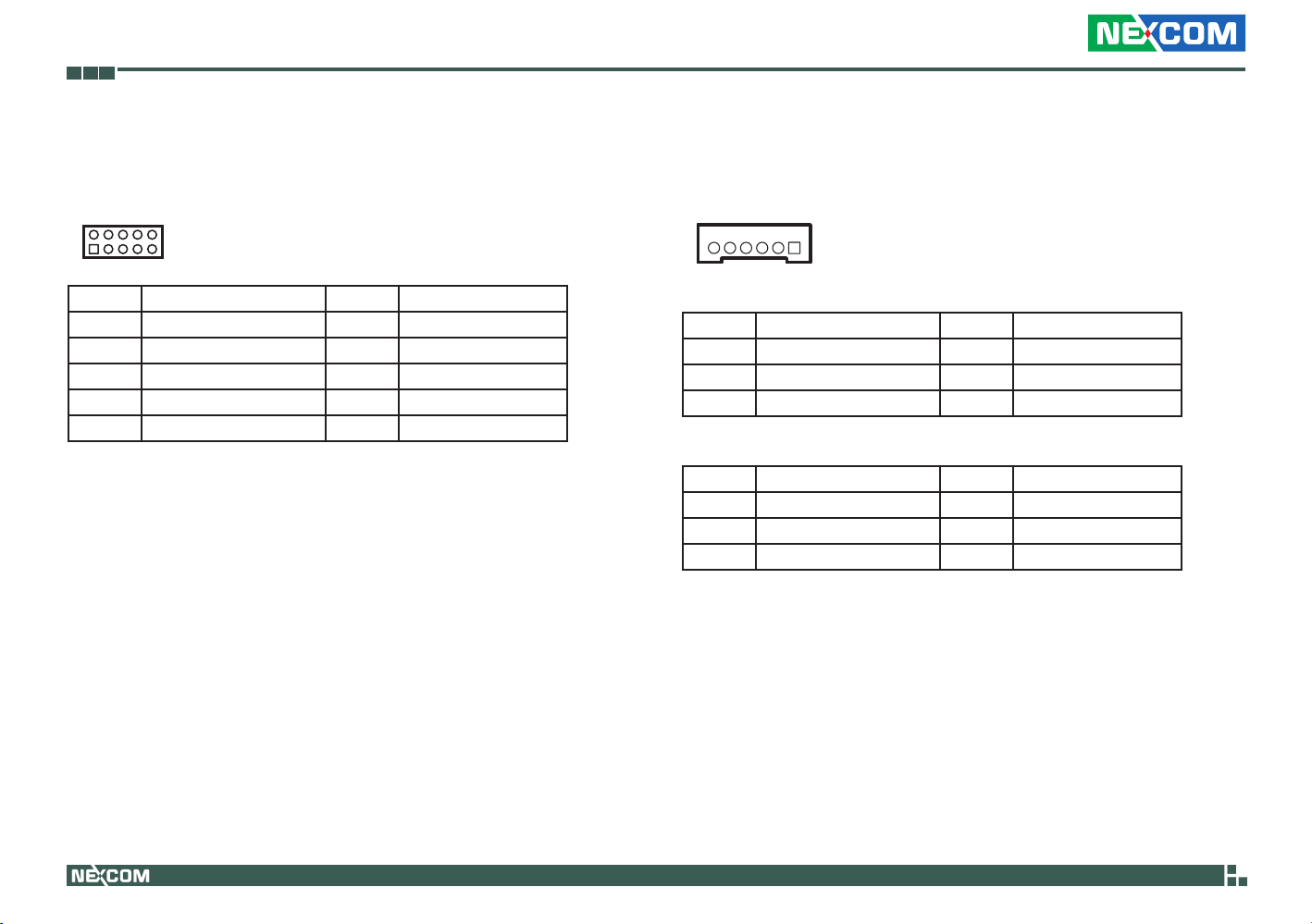

GPIO Connector

Connector type: 2x5 10-pin header, 2.0 mm pitch Connector location: J12

2 1

Pin Deﬁnition Pin Deﬁnition

1 +5V 6 GP25(Pin59)_output2

2 GND 7 GP22(Pin56)_Input3

3 GP20(Pin52)_Input1 8 GP26(Pin60)_output3

4 GP24(Pin58)_output1 9 GP23(Pin57)_Input4

5 GP21(Pin54)_Input2 10 GP27(Pin61)_output4

10

9

USB4 and USB5 Connectors

Connector type: 1x6 6-pin boxed header, JST-2.0mm-M-180 Connector location: J14 (USB4) and J15 (USB5)

6

1

J14

Pin Deﬁnition Pin Deﬁnition

1 +5V 4 Data 3-

2 Data 2- 5 Data 3+

3 Data 2+ 6 GND

J15

Pin Deﬁnition Pin Deﬁnition

1 +5V 4 Data 5-

2 Data 4- 5 Data 5+

3 Data 4+ 6 GND

16

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

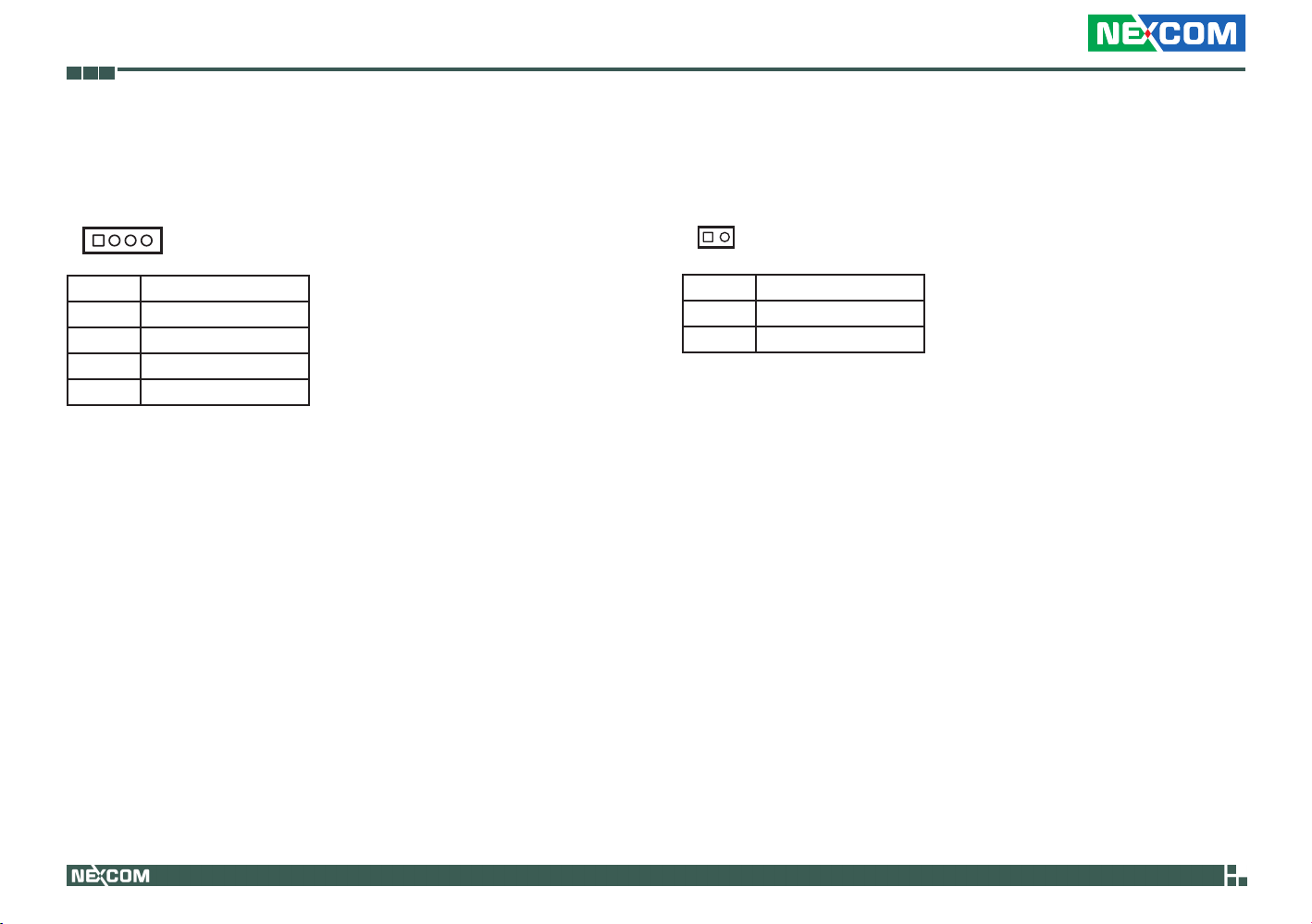

Line-in Connector

Connector type: 1x4 4-pin header, 2.54 mm pitch Connector location: J16

1 4

Pin Deﬁnition

1 LINE-IN-RIGHT

2 NC

3 GND

4 LINE-IN-LEFT

Reset Button Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP9

1

2

Pin Deﬁnition

1 RESET

2 GND

17

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Power Button Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP10

1

2

Pin Deﬁnition

1 Power ON

2 GND

External GPO Indicated LED Connector

Connector type: 2x2 4-pin header, 2.0 mm pitch Connector location: JP8

3

1

4

2

Pin Deﬁnition

1 GP25(Pin59)_output2

2 GND

3 GP24(Pin58)_output1

4 GND

18

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

IrDA Connector

Connector type: 1x5 5-pin header, 2.54 mm pitch Connector location: JP11

1

Pin Deﬁnition

1 +5V

2 CIRRX

3 IRRX

4 GND

5 IRTX

5

SMBus Connector

Connector type: 1x4 4-pin header, 2.54 mm pitch Connector location: JP1

1 4

Pin Deﬁnition

1 +3.3V

2 SMB_CLOCK

3 SMB_DATA

4 GND

19

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

External Link LEDs

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP20 (LAN1), JP18 (LAN2) and JP13 (LAN3)

1

2

Pin Deﬁnition

1 +3.3VSB

2 LINK LED

External Activity LEDs

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP19 (LAN1), JP14 (LAN2) and JP12 (LAN3)

1

2

Pin Deﬁnition

1 +3.3VSB

2 ACTIVITY LED

20

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

External Buzzer Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP4

1

2

Pin Deﬁnition

1 SPEAKER

2 +5V

Power LED Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP15

1

2

Pin Deﬁnition

1 +5V

2 GND

21

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

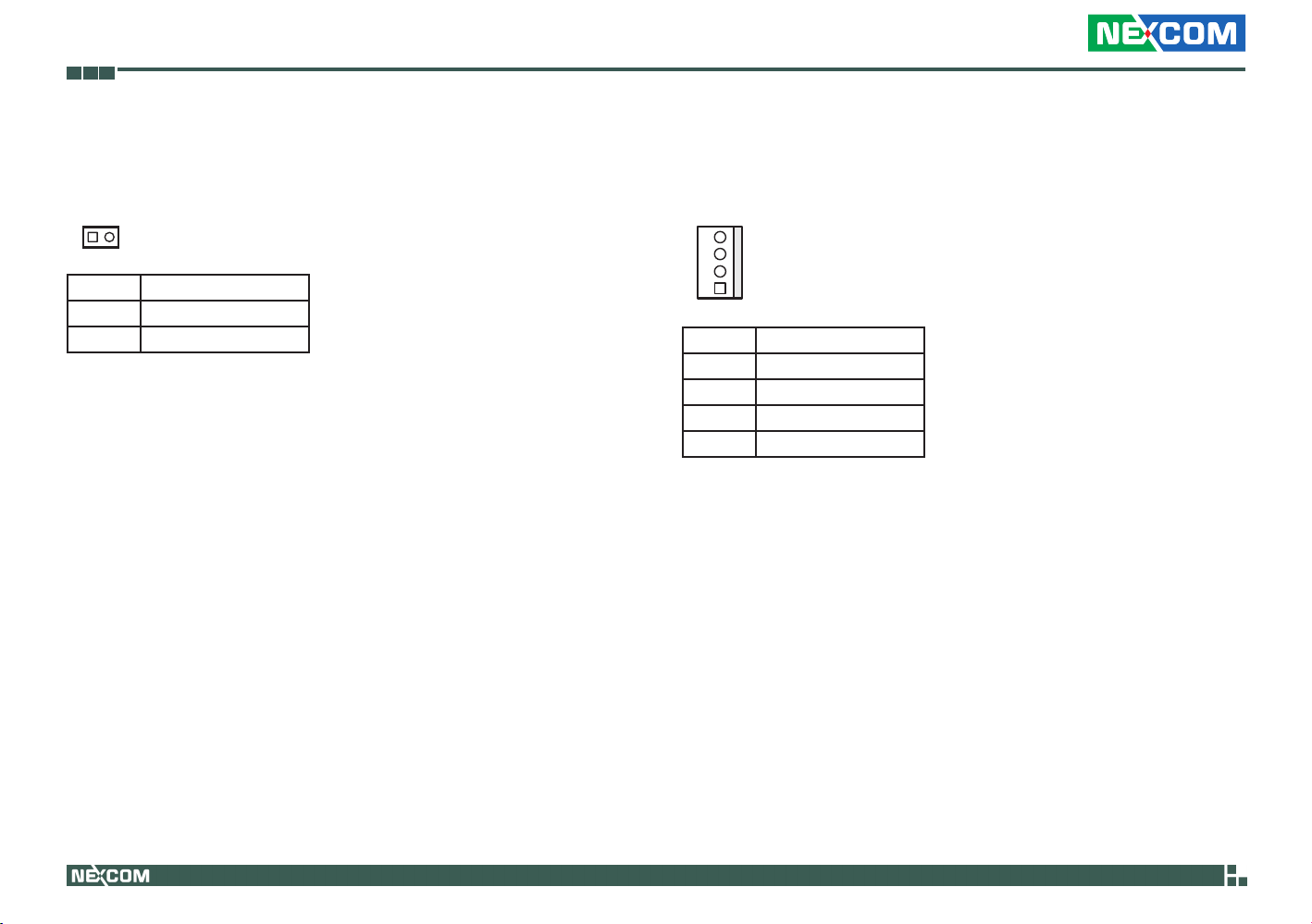

IDE and SATA LED Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP17

1

2

Pin Deﬁnition

1 +5V

2 IDE LED

CPU Fan Connector

Connector type: 1x4, 4-pin Wafer, 2.54 mm pitch Connector location: FAN1

4

1

Pin Deﬁnition

1 GND

2 +12V

3 SENSE

4 NC

22

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

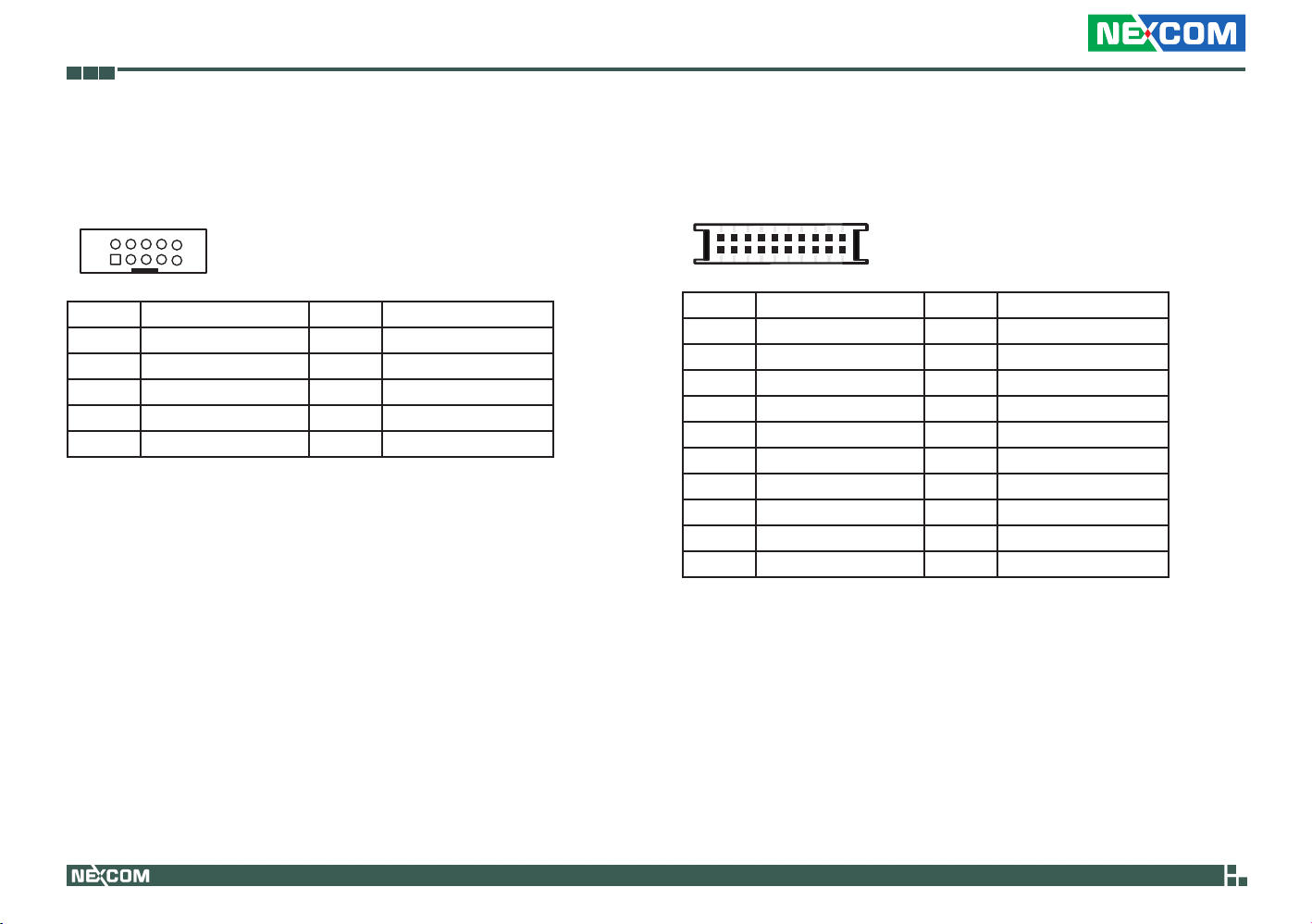

COM4 Connector

Connector type: 2x5 10-pin boxed header, 2.0 mm Connector location: CN4

2 1

Pin Deﬁnition Pin Deﬁnition

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI 10 NC

10

9

LVDS Channel A Connector

Connector type: 2x10 20-pin, 2.00mm pitch Connector location: CN1

1 2

Pin Deﬁnition Pin Deﬁnition

1 DDCPCLK 11 RXCLK+

2 DDCPDATA 12 RX1-

3 VDD 13 RXCLK-

4 RX0+ 14 GND

5 RX3+ 15 GND

6 RX0- 16 BACKLIGHT

7 RX3- 17 RX2+

8 VDD 18 BACKLIGHT

9 GND 19 RX2-

10 RX1+ 20 GND

19 20

23

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

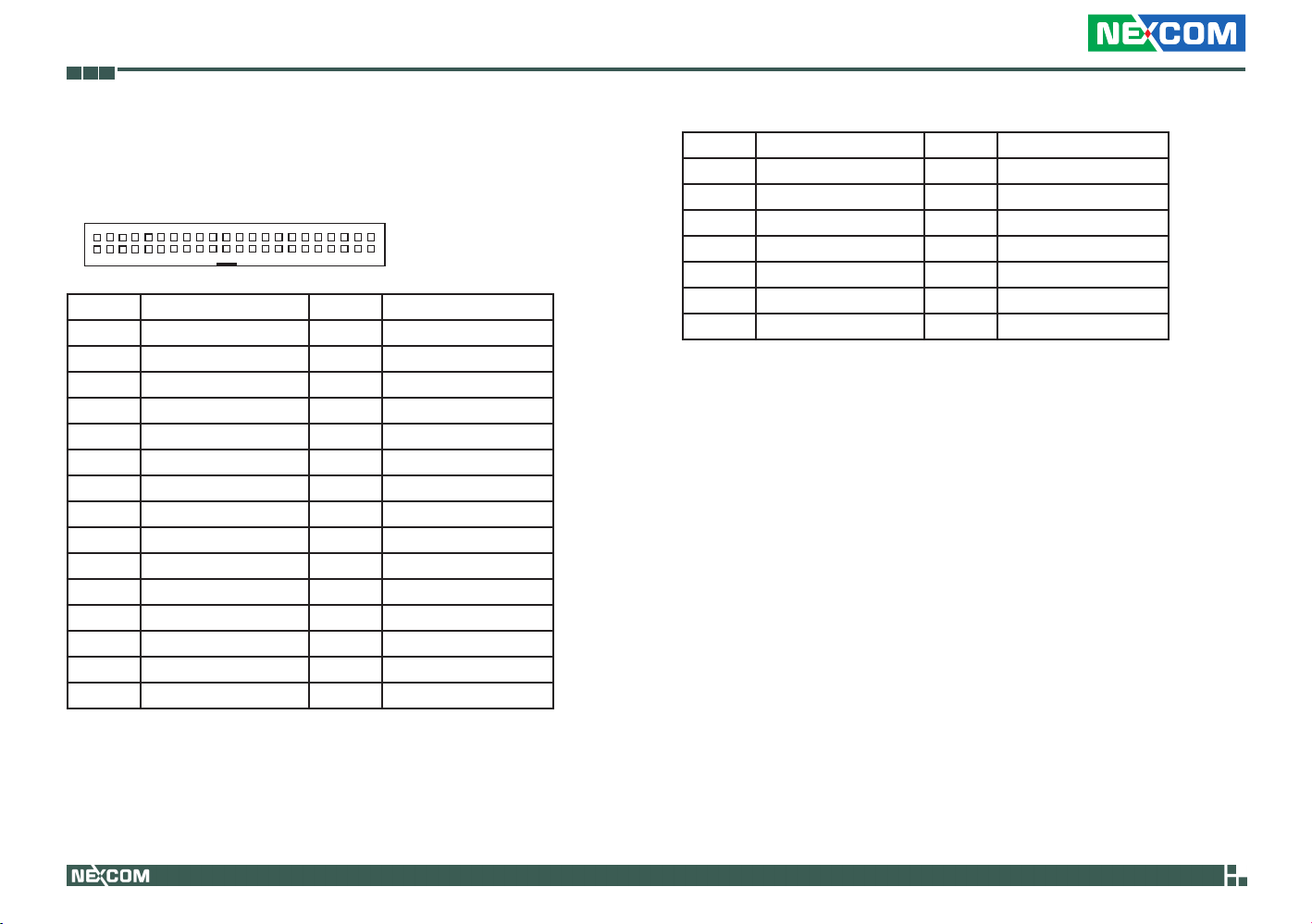

IDE Connector

Connector size: 2x22 44-pin header, 2.0 mm pitch Connector location: CN2

2 1

Pin Deﬁnition Pin Deﬁnition

1 Reset# 23 IOW#

2 GND 24 GND

3 Data 7 25 IOR#

4 Data 8 26 GND

5 Data 6 27 IOCHRDY

6 Data 9 28 GND

7 Data 5 29 DMA ACK#

8 Data 10 30 GND

9 Data 4 31 Interrupt

10 Data 11 32 NC

11 Data 3 33 Disk Address 1

12 Data 12 34 DMA66 Detect

13 Data 2 35 Disk Address 0

14 Data 13 36 Disk Address 2

15 Data 1 37 HDCCS1#

44

43

Pin Deﬁnition Pin Deﬁnition

16 Data 14 38 HDCCS3#

17 Data 0 39 HDD Active #

18 Data 15 40 GND

19 GND 41 +5V

20 NC 42 +5V

21 DMA REQ 43 GND

22 GND 44 NC

24

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

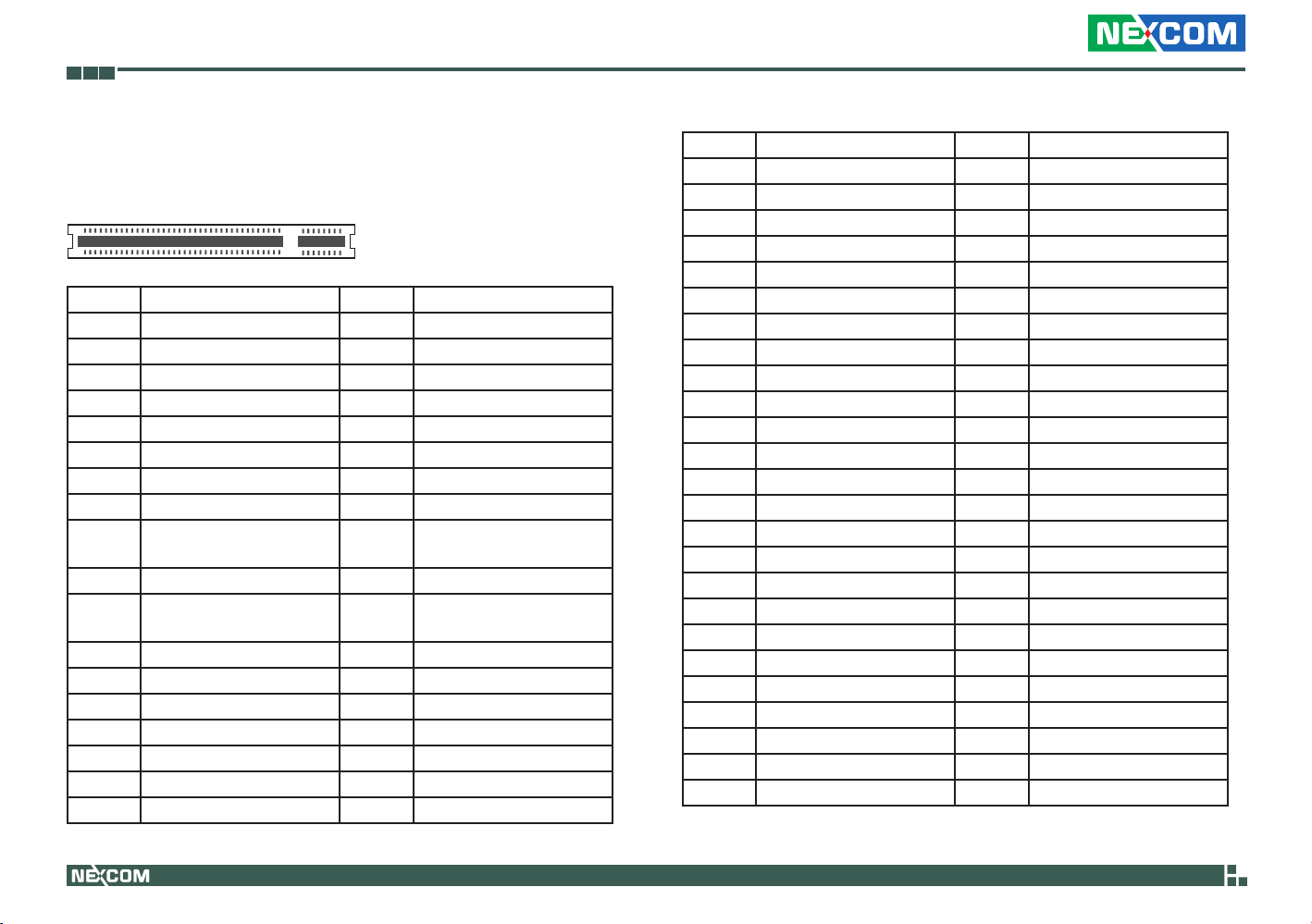

PCI Slot

Connector size: 2x62 3.3V slot Connector location: CN3

Pin Deﬁnition Pin Deﬁnition

A1 GND B1 -12V

A2 +12V B2 GND

A3 +5V B3 GND

A4 +5V B4 NC

A5 +5V B5 +5V

A6 Interrupt A# B6 +5V

A7 Interrupt C# B7 Interrupt B#

A8 +5V B8 Interrupt D#

A9 NC B9 Connector capacitance 10pf

to Ground

A10 +5V B10 Request#1

A11 NC B11 Connector capacitance 10pf

to Ground

A12 GND B12 GND

A13 GND B13 GND

A14 Grant#1 B14 Clock1

A15 Reset# B15 GND

A16 +5V B16 Clock0

A17 Grant#0 B17 GND

A18 GND B18 Request#0

Pin Deﬁnition Pin Deﬁnition

A19 Power Management Event# B19 +5V

A20 Address and Data 30 B20 Address and Data 31

A21 +3.3V B21 Address and Data 29

A22 Address and Data 28 B22 GND

A23 Address and Data 26 B23 Address and Data 27

A24 GND B24 Address and Data 25

A25 Address and Data 24 B25 +3.3V

A26 Initialization Device Select B26 Command & Byte Enable#3

A27 +3.3V B27 Address and Data 23

A28 Address and Data 22 B28 GND

A29 Address and Data 20 B29 Address and Data 21

A30 GND B30 Address and Data 19

A31 Address and Data 18 B31 +3.3V

A32 Address and Data 16 B32 Address and Data 17

A33 +3.3V B33 Command & Byte Enable#2

A34 Frame# B34 GND

A35 GND B35 Initiator Ready#

A36 Target Ready# B36 +3.3V

A37 GND B37 Device Select#

A38 Stop# B38 GND

A39 +3.3V B39 Lock#

A40 +5V B40 Parity Error#

A41 +5V B41 +3.3V

A42 GND B42 System Error#

A43 Parity B43 +3.3V

25

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

Pin Deﬁnition Pin Deﬁnition

A44 Address and Data 15 B44 Command & Byte Enable#1

A45 +3.3V B45 Address and Data 14

A46 Address and Data 13 B46 GND

A47 Address and Data 11 B47 Address and Data 12

A48 GND B48 Address and Data 10

A49 Address and Data 9 B49 GND

A50 Connector Key B50 Connector Key

A51 Connector Key B51 Connector Key

Pin Definition Pin Definition

A52 Command & Byte Enable#0 B52 Address and Data 8

A53 +3.3V B53 Address and Data 7

A54 Address and Data 6 B54 +3.3V

A55 Address and Data 4 B55 Address and Data 5

A56 GND B56 Address and Data 3

A57 Address and Data 2 B57 GND

A58 Address and Data 0 B58 Address and Data 1

A59 +5V B59 +5V

A60 +5V B60 +5V

A61 +5V B61 +5V

A62 +5V B62 +5V

26

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

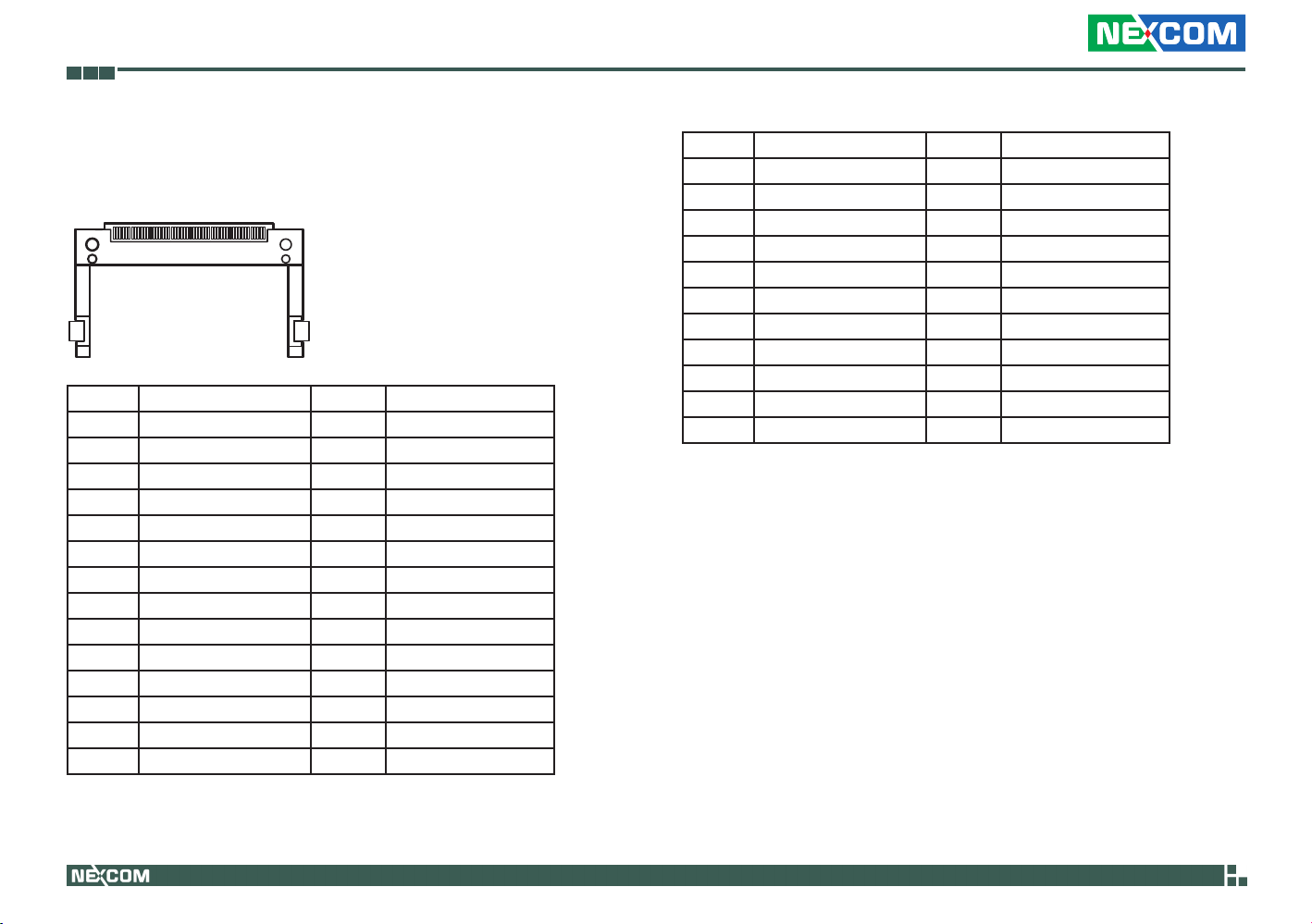

CompactFlash Socket

Connector type: 1x50, 50-pin CompactFlash Type 2 socket Connector location: IDE1

Pin Description Pin Description

1 GND 26 GND

2 Data 3 27 Data 11

3 Data 4 28 Data 12

4 Data 5 29 Data 13

5 Data 6 30 Data 14

6 Data 7 31 Data 15

7 HDCCS1# 32 HDCCS3#

8 GND 33 N/C

9 GND 34 IOR#

10 GND 35 IOW#

11 GND 36 +5V

12 GND 37 Interrupt

13 +5V 38 +5V

14 GND 39 Pull down 1K to GND

Pin Description Pin Description

15 GND 40 NC

16 GND 41 Reset#

17 GND 42 IOCHRDY

18 Disk Address 2 43 DMA REQ

19 Disk Address 1 44 DMA ACK#

20 Disk Address 0 45 HDD Active#

21 Data 0 46 DMA66 Dectec

22 Data 1 47 Data 8

23 Data 2 48 Data 9

24 NC 49 Data 10

25 GND 50 GND

27

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

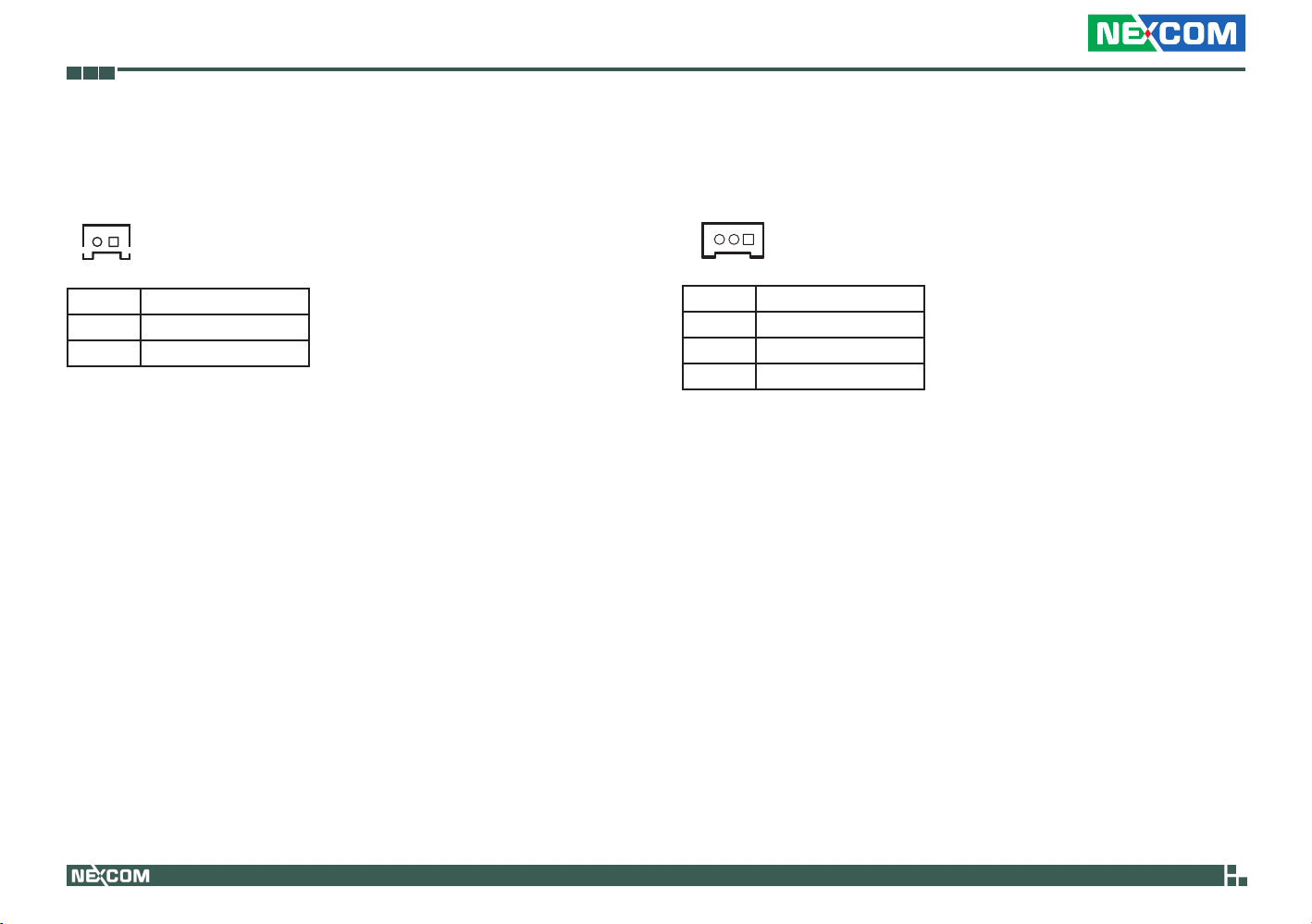

Touch Board Power Connector

Connector type: 1x2, 2-pin header, JST 2.0 mm pitch Connector location: J3

2 1

Pin Deﬁnition

1 +5V

2 GND

NISKIG120 Power Board Connector

Connector type: 1x3, 3-pin boxed header, JST 2.0 mm pitch Connector location: J7

3 1

Pin Deﬁnition

1 GND

2 I_PWRBTN#

3 SLP_S3#

28

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

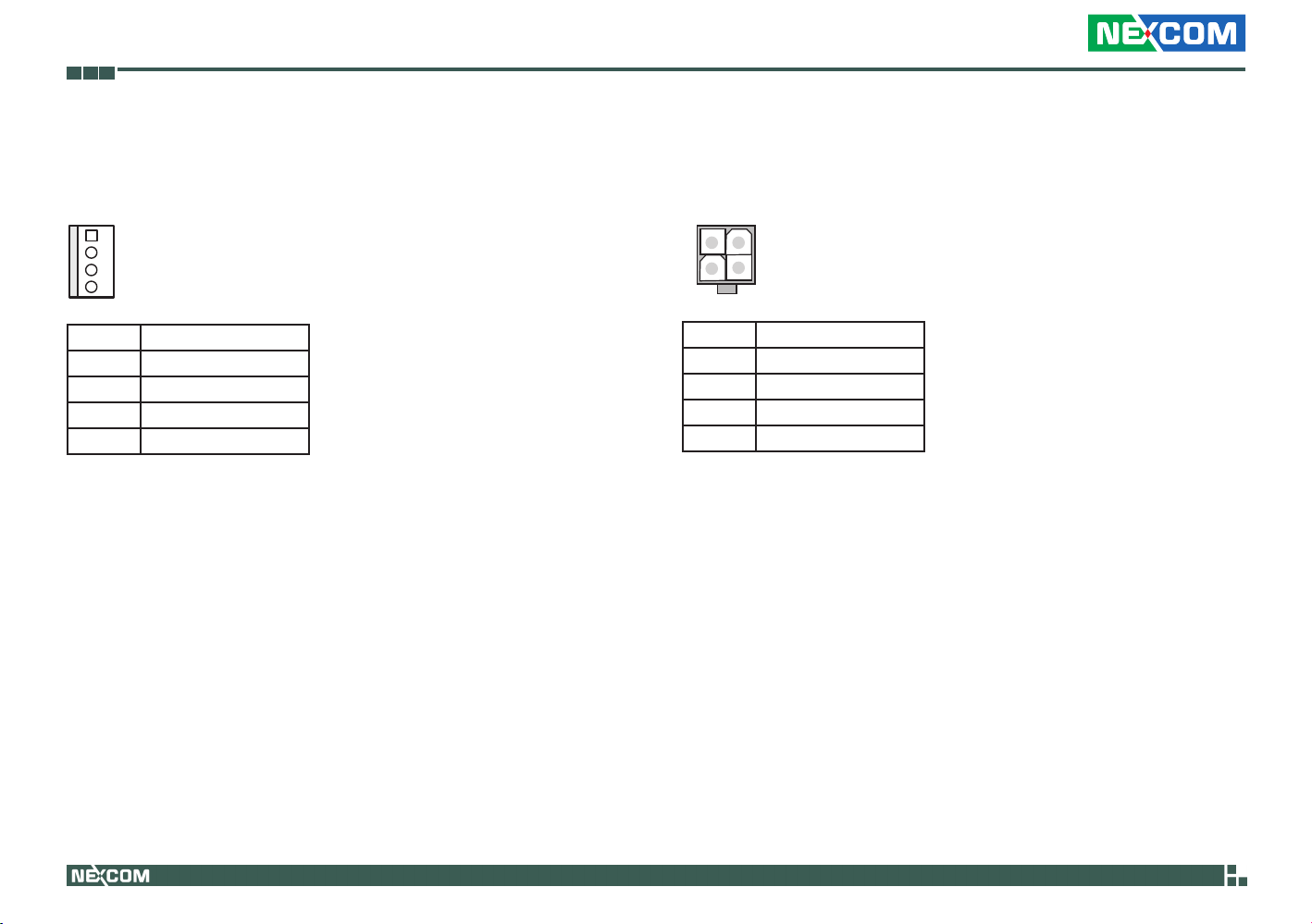

SATA Power Connector

Connector size: 1x4, 4-pin Wafer, 2.54 mm pitch Connector location: CON1

1

4

Pin Deﬁnition

1 +12V

2 GND

3 GND

4 +5V

Power Input Port

Connector type: 2x2, 4-pin, 3.96mm Connector location: CON2

2

4

1

3

Pin Deﬁnition

1 GND

2 GND

3 +24V

4 +24V

29

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

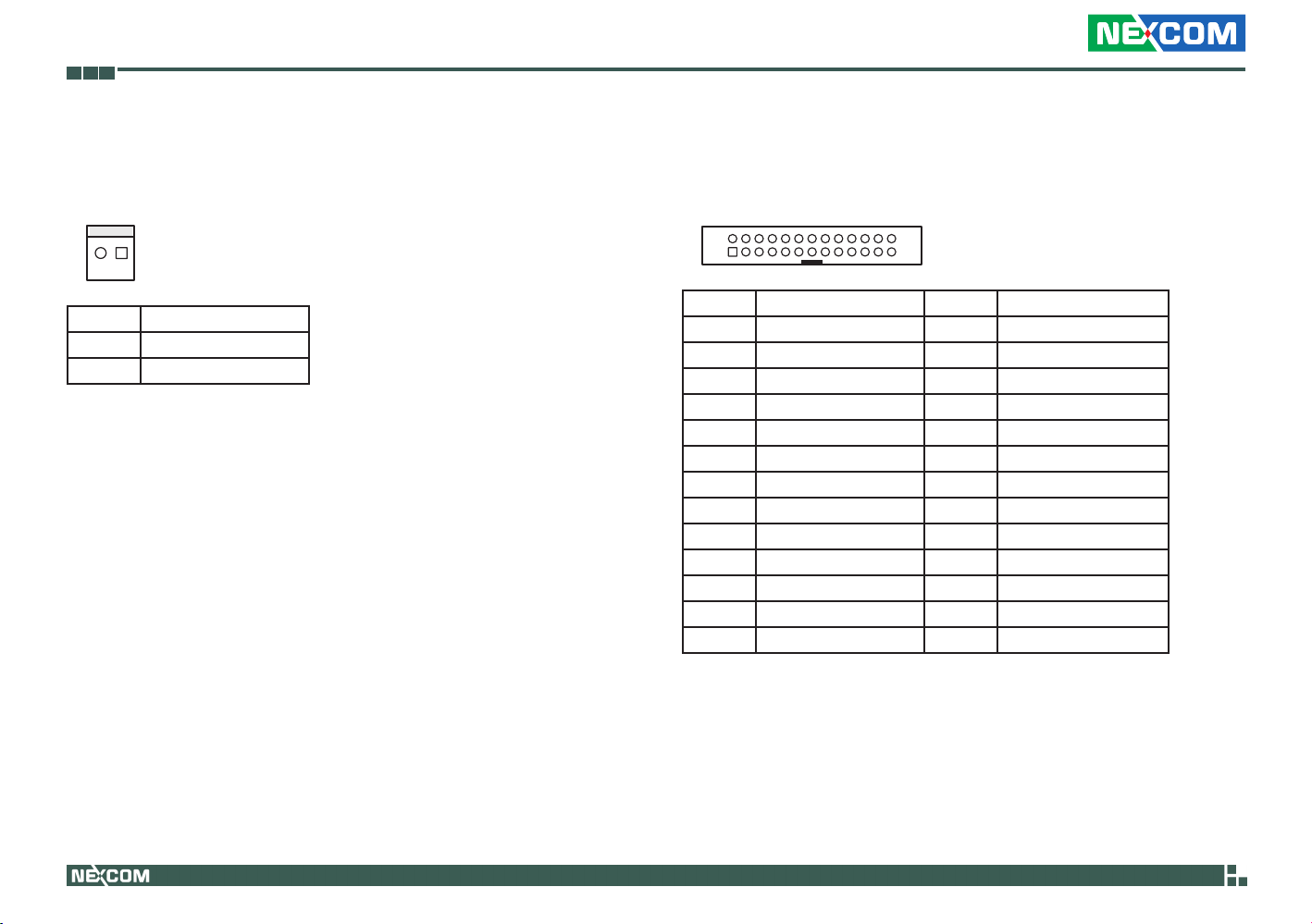

Power Output Connector

Connector size: 1x2, 2-pin Wafer, 2.54 mm pitch Connector location: CON3

12

Pin Deﬁnition

1 +24V

2 GND

Parallel Connector

Connector size: 2x13, 26-pin box header, 2.0 mm pitch Connector location: CN5

14

1

Pin Deﬁnition Pin Deﬁnition

1 Line Print Strobe 14 Auto Feed#

2 Parallel Data 0 15 Error#

3 Parallel Data 1 16 Initialize#

4 Parallel Data 2 17 Select Input#

5 Parallel Data 3 18 GND

6 Parallel Data 4 19 GND

7 Parallel Data 5 20 GND

8 Parallel Data 6 21 GND

9 Parallel Data 7 22 GND

10 Acknowledge# 23 GND

11 Busy 24 GND

12 Paper empty 25 GND

13 Select 26 NC

26 13

30

NEX 608 User Manual

Chapter 2: Jumpers and Connectors

SATA Ports

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J1, J2, J9 and J11

1

Pin Deﬁnition

1 GND

2 SATA_TX_P

3 SATA_TX_N

4 GND

5 SATA_RX_P

6 SATA_RX_N

7 GND

7

31

NEX 608 User Manual

Chapter 3: BIOS Setup

This chapter describes how to use the BIOS setup program for NEX 608. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

32

NEX 608 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields.

<Esc> Exits to the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field.

<F1> Displays General Help.

<F10> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub-

menu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

33

NEX 608 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Boot Chipset PCIPnPMain

System Overview

AMIBIOS

Version : 08.00.15 Build Date : 02/11/11 ID : N608A006

Processor

Intel(R) Atom(TM) CPU D525 Speed : 1800MHz

System Memory

Size : 2039MB

System Time

System Date

BIOS SETUP UTILITY

@ 1.80GHz

[14:06:01]

[Tue 04/19/2011]

Use [ENTER], [TAB] or [SHIFT-TAB] to

select a eld.

Use [+] or [-] to

congure system Time.

← → Select Screen ↑↓ Select Item

+- Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

ExitSecurity

Processor

Displays the detected processor information.

System Memory

Displays the detected system memory information.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

AMI BIOS

Displays the detected BIOS information.

34

NEX 608 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Settings

WARNING: Setting wrong values in below sections

u

u u u u

Onboard LAN Boot ROM HyperThreading Technology

may cause system to malfunction.

IDE Conguration

USB Conguration ACPI Conguration SuperIO Conguration Hardware Health Conguration

IDE Conﬁguration

BIOS SETUP UTILITY

[Disabled] [Disabled]

Congure the IDE devices(s).

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

ExitSecurityAdvanced Boot Chipset PCIPnPMain

ACPI Conﬁguration

This section is used to configure the Advanced ACPI configuration.

Super IO Conﬁguration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Hardware Health Conﬁguration

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Onboard LAN Boot ROM

Enable this field if you wish to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly. If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.

HyperThreading Technology

Enable this field for Windows XP and Linux which are optimized for Hyper-Threading technology. Select disabled for other OSes not optimized for Hyper-Threading technology.

This section is used to configure the IDE drives.

USB Conﬁguration

This section is used to configure USB devices.

35

NEX 608 User Manual

Chapter 3: BIOS Setup

IDE Conﬁguration

This section is used to configure the IDE drives.

Advanced

IDE Conguration

ATA/IDE Conguration [Enhanced]

Congure SATA as [IDE]

u

Primary IDE Master : [Not Detected]

u

Primary IDE Slave : [Not Detected]

u

Secondary IDE Master : [Not Detected]

u

Secondary IDE Slave : [Not Detected]

u

Third IDE Master : [Not Detected]

u

Third IDE Slave : [Not Detected]

IDE Detect Time Out (Sec) [35]

BIOS SETUP UTILITY

Disabled Compatible Enhanced

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

ATA/IDE Conﬁguration

This field is used to configure the IDE drives. The options are Disabled, Compatible and Enhanced.

Conﬁgure SATA As

Primary IDE Master to Third IDE Slave

When you enter the BIOS Setup Utility, the BIOS will auto detect the existing IDE devices then displays the status of the detected devices. To configure an IDE drive, move the cursor to a field then press <Enter>.

Advanced

Primary IDE Master

Device :Not Detected

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

BIOS SETUP UTILITY

[Auto]

[Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select the type of device connected to the system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

IDE This option configures the Serial ATA drives as Parallel ATA physi-

cal storage device.

AHCI This option configures the Serial ATA drives to use AHCI (Ad-

vanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

36

NEX 608 User Manual

Chapter 3: BIOS Setup

Type

Selects the type of IDE drive connected to the system.

LBA/Large Mode

Auto The LBA mode will automatically be enabled, that is, if the

LBA mode was not previously disabled.

Disabled Disables the LBA mode.

Block (Multi-Sector Transfer)

Auto Data transfer to and from the device occurs multiple sectors at

a time.

Disabled Data transfer to and from the device occurs one sector at a

time.

PIO Mode

Selects the data transfer mode. PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

DMA Mode

Selects the DMA mode.

Auto Automatically detects the DMA mode. SWDMAn SingleWord DMAn. MWDMAn MultiWord DMAn. UDMAn Ultra DMAn.

S.M.A.R.T.

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. SMART is supported in ATA/33 or later hard drives. The options are Auto (default), Enabled and Disabled.

32Bit Data Transfer

Enables or disables 32-bit data transfer.

IDE Detect Time Out (Sec)

Selects the time out value for detecting ATA/ATAPI devices.

Auto The BIOS will automatically set the system according to your

hard disk drive’s timing.

Mode 0-4 You can select a mode that matches your hard disk drive’s

timing. Caution: Do not use the wrong setting or you will have drive errors.

37

NEX 608 User Manual

Chapter 3: BIOS Setup

USB Conﬁguration

This section is used to configure USB devices.

Advanced

USB Conguration

Module Version - 2.24.3-13.4

USB Devices Enabled:

1 Keyboard

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [HiSpeed] BIOS EHCI Hand-Off [Enabled] Hotplug USB FDD Support [Auto]

u

USB Mass Storage Device Conguration

BIOS SETUP UTILITY

Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

USB 2.0 Controller Mode

Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).

BIOS EHCI Hand-Off

Enable this field when using operating systems without the EHCI handoff support.

Hotplug USB FDD Support

Creates a dummy device that will be associated with the hot pluged FDD later. Selecting Auto will create a dummy device only if there is no USB FDD present.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

38

NEX 608 User Manual

Chapter 3: BIOS Setup

USB Mass Storage Device Conﬁguration

Configures the USB mass storage class devices.

Advanced

USB Mass Storage Device Conguration

USB Mass Storage Reset Delay [20 Sec]

Device #1 USB Hotplug FDD

Emulation Type [Auto]

BIOS SETUP UTILITY

Number of seconds POST waits for the USB mass storage device after start unit command.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

USB Mass Storage Reset Delay

Selects the number of seconds POST waits for the USB mass storage device after the start unit command.

Device #1

Displays the connected device.

Emulation Type

Auto USB devices that are less than 530MB will be emulated as

a floppy drive and the remaining as hard drives.

Forced FDD Forces an HDD formatted drive to boot as FDD (e.g. ZIP

drive)

ACPI Conﬁguration

This section is used to configure the ACPI configuration.

Advanced

ACPI Settings

Suspend mode [S1 (POS)]

ACPI APIC Support [Enabled]

BIOS SETUP UTILITY

Select the ACPI state used for System Suspend.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Suspend Mode

This field is used to select the type of Suspend mode.

S1 (POS) Enables the Power On Suspend function. S3 (STR) Enables the Suspend to RAM function.

ACPI APIC Support

Enables or disables the ACPI APIC function. It includes the ACPI APIC table pointer to RSDT pointer list.

39

NEX 608 User Manual

Chapter 3: BIOS Setup

Super IO Conﬁguration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Congure Ite8783 Super IO Chipset

Parallel Port Address [378]

Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7] Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port3 Address [3E8] Serial Port3 IRQ [10] Serial Port3 Frequency Mode [RS232] Serial Port4 Address [2E8] Serial Port4 IRQ [11] Serial Port4 Mode [Normal]

BIOS SETUP UTILITY

Allows BIOS to select

Parallel Port Base

Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Parallel Port Address

Selects the parallel port base address. The options are Disabled, 378, 278 and 3BC.

Parallel Port IRQ

Selects an IRQ for the parallel port. The options are IRQ5 and IRQ7.

Serial Port1 Address to Serial Port4 Address

Selects the serial port base address. The options are Disabled, 3F8, 3E8 and 2E8.

Serial Port1 IRQ to Serial Port4 IRQ

Selects an IRQ for the onboard serial port. The options are 3, 4, 10 and

11.

Parallel Port Mode

Selects the parallel port mode. The options are Normal, EPP, ECP and EPP+ECP.

40

NEX 608 User Manual

Chapter 3: BIOS Setup

Serial Port3 Frequency Mode

Advanced

Congure Ite8783 Super IO Chipset

Parallel Port Address [378] Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7] Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port3 Address [3E8] Serial Port3 IRQ [10]

Serial Port3 Frequency Mode [RS232]

Serial Port4 Address [2E8] Serial Port4 IRQ [11] Serial Port4 Mode [Normal]

BIOS SETUP UTILITY

Options

RS232

RS422 RS485

Allows BIOS to select

Parallel Port Base

Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

This field is used to select the frequency mode of serial port 3. The options are RS232, RS422 and RS485.

Serial Port4 Mode

Selects the mode of Serial Port4. The options are Normal, IrDA and ASK IR.

41

NEX 608 User Manual

Chapter 3: BIOS Setup

Hardware Health Conﬁguration

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Advanced

Hardware Health Conguration

H/W Health Function [Enabled]

FAN Mode Setting [Full On Mode]

CPU Temperature : 42oC/107oF System Temperature : N/A System2 Temperature : 25oC/77oF

Fan1 Speed : N/A Fan2 Speed : N/A Fan3 Speed : 6553 RPM

CPU Core : 1.136 V +3.30V : 3.296 V +12.0V : 12.038 V +5.00V : 5.173 V

BIOS SETUP UTILITY

Enables Hardware Health Monitoring Device.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

H/W Health Function

Enables or disables the hardware monitoring function.

Fan Mode Setting

Fan1 Speed to Fan3 Speed

Detects and displays the speed of the cooling fans.

CPU Core to +5.00V

Detects and displays the output voltages.

Configures the fan mode. The options are Full On Mode, Automatic Mode and PWM Manual Mode.

CPU Temperature to System2 Temperature

Detects and displays the current temperature of the CPU and the internal temperature of the system.

42

NEX 608 User Manual

Chapter 3: BIOS Setup

Boot

BIOS SETUP UTILITY

Boot Settings

u

Boot Settings Conguration

u

Boot Device Priority

u

Removable Drives

Congure settings during system boot.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Boot Settings Conﬁguration

This section is used to configure settings during system boot.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

Removable Drives

This section is used to select the boot priority sequence of the removable drives.

ExitSecurityAdvanced Boot Chipset PCIPnPMain

Boot Settings Conﬁguration

This section is used to configure settings during system boot.

BIOS SETUP UTILITY

Boot

Boot Settings Conguration

Quick Boot

Quiet Boot Bootup Num-Lock PS/2 Mouse Support System Keyboard Hit ‘DEL’ Message Display Interrupt 19 Capture

[Enabled]

[Disabled] [On] [Enabled]

[Present]

[Enabled] [Disabled]

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Quick Boot

When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

43

NEX 608 User Manual

Chapter 3: BIOS Setup

Bootup Num-Lock

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

PS/2 Mouse Support

The options are Auto, Enabled and Disabled.

System Keyboard

Detects the presence or absence of the system keyboard.

Hit ‘DEL’ Message Display

When enabled, the system displays the “Press DEL to run Setup” message during POST.

Interrupt 19 Capture

When enabled, it allows the optional ROM to trap interrupt 19.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

BIOS SETUP UTILITY

Boot

Boot Device Priority

1st Boot Device

2nd Boot Device 3rd Boot Device

[USB:USB Hotplug FD]

Species the boot sequence from the available devices.

A device enclosed in parenthesis has been disabled in the corresponding type menu.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

1st Boot Device to 3rd Boot Device

Selects the drive to boot first, second and third in the “1st Boot Device”, “2nd Boot Device” and “3rd Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected.

44

NEX 608 User Manual

Chapter 3: BIOS Setup

Removable Drives

This section is used to select the boot priority sequence of the hard drives.

Boot

BIOS SETUP UTILITY

Removable Drives

1st Drive [USB:USB Hotplug FD]

Species the boot sequence from the available devices.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

45

NEX 608 User Manual

Chapter 3: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

Advanced Chipset Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

u

North Bridge Conguration

u

South Bridge Conguration

Congure North Bridge features.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

ExitSecurityAdvanced Boot Chipset PCIPnPMain

North Bridge Conﬁguration

This section is used to configure the north bridge features.

BIOS SETUP UTILITY

North Bridge Chipset Conguration

PCI MMIO Allocation: 4GB to 3072MB

Initiate Graphic Adapter [IGD]

Internal Graphics Mode Select [Enabled, 8MB]

DVMT Mode Select [DVMT Mode] DVMT/FIXED Memory [256MB]

Boot Display Device [CRT + LVDS] Flat Panel Type [1024x768 18bit] Flat Panel Control [100%]

Chipset

Select the amount of system memory used by the internal graphics device.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Initiate Graphic Adapter

Selects the graphics controller to use as the primary boot device.

Internal Graphics Mode Select

Selects the amount of system memory used by the internal graphics device.

46

NEX 608 User Manual

Chapter 3: BIOS Setup

DVMT Mode Select

The options are Fixed mode and DVMT mode.

DVMT/Fixed Memory

This field is used to select the graphics memory size used by DVMT/Fixed mode.

Boot Display Device

This field is used to select the type of display to use when the system boots.

Flat Panel Type

Selects the type of flat panel connected to the system.

Flat Panel Control

Selects the flat panel type.

South Bridge Conﬁguration

This section is used to configure the south bridge features.

BIOS SETUP UTILITY

South Bridge Chipset Conguration

USB Functions [8 USB Ports]

USB 2.0 Controller [Enabled] HDA Controller [Enabled] SMBUS Controller [Enabled]

Restore on AC Power Loss [Power Off] Power Type [ATX]

PCIE Ports Conguration

PCIE Port 0 [Auto] PCIE Port 1 [Auto] PCIE Port 2 [Auto] PCIE Port 3 [Auto] PCIE Port 4 [Auto]

Chipset

Disabled

2 USB Ports

4 USB Ports 6 USB Ports 8 USB Ports

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

USB Functions

Enables or disables the selected USB ports. The options are 2 USB Ports, 4 USB Ports, 6 USB Ports, 8 USB Ports and Disabled.

USB 2.0 Controller

This field is used to enable or disable the Enhanced Host Controller Interface (USB 2.0).

HDA Controller

Enables or disables the onboard audio.

47

NEX 608 User Manual

Chapter 3: BIOS Setup

SMBUS Controller

Enables or disables the SMBUS.

Restore On AC Power Loss

Power Off When power returns after an AC power failure, the system’s

power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system

will automatically power-on.

Last State When power returns after an AC power failure, the system

will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Power Type

Selects the type of power used.

PCIE Port 0 to PCIE Port 4

Enables or disables the PCIE port.

48

NEX 608 User Manual

Chapter 3: BIOS Setup

PCIPnP

This section is used to configure settings for PCI/PnP devices.

Setting incorrect field values may cause the system to malfunction.

BIOS SETUP UTILITY

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

Plug & Play O/S [No]

PCI Latency Timer [64]

IRQ3 [Reserved] IRQ4 [Reserved] IRQ5 [Reserved] IRQ7 [Reserved] IRQ9 [Available] IRQ10 [Reserved] IRQ11 [Reserved] IRQ14 [Available] IRQ15 [Available]

NO: let the BIOS congure all the devices in the system. YES: lets the operating system congure Plug and Play (PnP) devices not required for boot if your system has a Plug and Play operating system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Plug & Play O/S

Yes Configures Plug and Play (PnP) devices that are not required to boot in

a Plug and Play supported operating system.

No The BIOS configures all the devices in the system.

ExitSecurityAdvanced Boot Chipset PCIPnPMain

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

IRQ3 to IRQ15

Available The specified IRQ is available for PCI/PnP devices. Reserved The specified IRQ is reserved for Legacy ISA devices.

49

NEX 608 User Manual

Chapter 3: BIOS Setup

Security

BIOS SETUP UTILITY

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Password

Change User Password

Install or Change the password.

← → Select Screen ↑↓ Select Item

Enter Change F1 General Help F10 Save and Exit ESC Exit

Change Supervisor Password

This field is used to set or change the supervisor password.

To set a new password:

1. Select the Change Supervisor Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

ExitSecurityAdvanced Boot Chipset PCIPnPMain

To clear the password, select Change Supervisor Password then press <Enter>. The Password Uninstalled dialog box will appear.

If you forgot the password, you can clear the password by erasing the CMOS RTC (Real Time Clock) RAM using the RTC Clear jumper. Refer to chapter 2 for more information.

Change User Password

This field is used to set or change the user password.

To set a new password:

1. Select the Change User Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

50

NEX 608 User Manual

Chapter 3: BIOS Setup

Exit

BIOS SETUP UTILITY

Exit Options

Save Changes and Exit

Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

Exit system setup after saving the changes.

F10 key can be used for this operation.

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

ExitSecurityAdvanced Boot Chipset PCIPnPMain

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Load Optimal Defaults

Loads the optimal default values from the BIOS ROM.

Load Failsafe Defaults

Loads the fail-safe default values from the BIOS ROM.

51

NEX 608 User Manual

Appendix A: Watchdog Timer

Appendix A: WAtchdog timer

WDT Programming Guide

NEX 608 Watchdog Function Configuration Sequence Description:

Start

Step 1

See “SetupWDT” procedure #Setup Watchdog Timer Environment

Step 2

See “TimeBaseWDT” procedure #Initial Watchdog Timer Users can select second or minute

Step 3

See “TimeCountWDT” procedure #Set Watchdog Timer Time-out Value Users can set time-out value

Step 4

See ExitSetup procedure #Exit Setup Environment

W83627 Watchdog Programming Guide

#define SUPERIO_PORT 0x2E #define WDT_SET 0xF5 #define WDT_VALUE 0xF6

void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x87);

# Set LDN outportb(SUPERIO_PORT,0x07); outportb(SUPERIO_PORT+1 ,0x08);

# Set WDT setting outportb(WDT_SET,0x04); # Use the second to come down # If choose the Minute, change value to 0x0C # Set WDT sec/min outportb(WDT_VALUE,0x05); #Set 5 seconds }

End

52

NEX 608 User Manual

Appendix B: GPIO Programming Sample Code

Appendix B: GpiO prOGrAmminG SAmple COde

GPIO Programming Sample Code

#define GPIO_PORT 0x50F #define GPO1 (1<<3) #define GPO2 (1<<4)

void main(void) { #Set GPO to be low outportb(GPIO_PORT, (inportb(GPIO_PORT) & (~GPO1) & (~GPO2) )); # Set GPO to be high outportb(GPIO_PORT, (inportb(GPIO_PORT) | GPO1 |GPO2 )); }

53

NEX 608 User Manual

Appendix C: Brightness Control Programming Sample Code

Appendix C: Brightness Control progrAmming sAmple Code

Brightness Control Programming Sample Code

#define SUPERIO_PORT 0x2E #define GPIO_LEVEL 0xF1 #define GPO31 (0x01 << 1) #define GPO34 (0x01 << 4) #define GPO35 (0x01 << 5)

#define Set_100 { outportb(SUPERIO_PORT, GPIO_LEVEL); outportb(SUPERIO_PORT+1, 0x7D); } #define Set_80 { outportb(SUPERIO_PORT, GPIO_LEVEL); outportb(SUPERIO_PORT+1, 0x6F); } #define Set_60 { outportb(SUPERIO_PORT, GPIO_LEVEL); outportb(SUPERIO_PORT+1, 0x5F); } #define Set_40 { outportb(SUPERIO_PORT, GPIO_LEVEL); outportb(SUPERIO_PORT+1, 0x7F); }

void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x87);

# Set LDN outportb(SUPERIO_PORT,0x07); outportb(SUPERIO_PORT+1 ,0x09); Set_80; # Choose one of Set_100, Set_80, Set_60, Set_40 . }

54

NEX 608 User Manual
