NEXCOM NEX 609 User Manual

NEXCOM International Co., Ltd.

IoT Automation Solutions

Embedded Computing (Industrial Motherboard) NEX 609

User Manual

NEXCOM International Co., Ltd.

Published February 2015

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NEX 609 ..........................................................................4

Edge I/O View......................................................................................5

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................6

Precautions ............................................................................................6

Jumper Settings ......................................................................................7

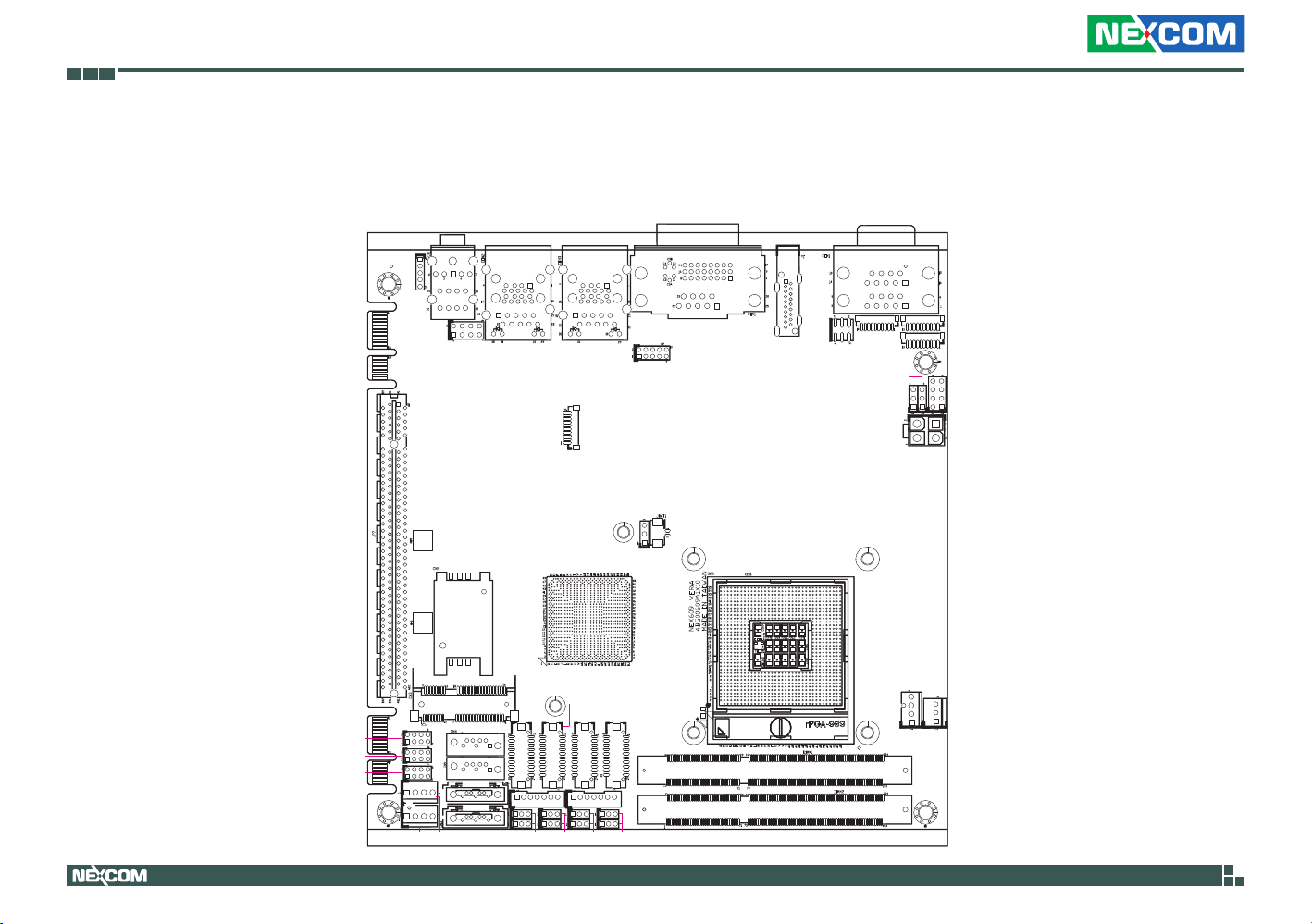

Locations of the Jumpers and Connectors ............................................... 8

Jumpers .................................................................................................. 9

CMOS Clear Select ..............................................................................9

ME Clear Select ...................................................................................9

LVDS1 Power Select .......................................................................... 10

LVDS1 Dimming Polarity Select .........................................................10

LVDS1 CCFL/PWN Mode Select ......................................................... 11

LVDS1 Dimming Voltage Select .........................................................11

LVDS2 Power Select (optional) ...........................................................12

LVDS2 CCFL/PWN Mode Select (optional) ..........................................12

LVDS2 Dimming Polarity Select (optional) ........................................... 13

LVDS2 CCFL Dimming Voltage Select (optional) .................................13

AT/ATX Mode Select .........................................................................14

Connector Pin Definitions .....................................................................15

External Serial Port Connectors .......................................................... 15

COM1 and COM2 Connectors ....................................................... 15

COM6 Connector ..........................................................................16

Internal Connectors ........................................................................... 17

ATX Power Input Connector ...........................................................17

CPU FAN Connector .......................................................................17

SYSTEM FAN Connector .................................................................18

Power On/Off/Reset & PWR/HDD LED Pin Header ...........................18

ii

NEX 609 User Manual

Content

RS232 Box Header Connector COM2 ............................................. 19

RS232 Box Header Connector COM3 ............................................. 19

RS232 Box Header Connector COM4 ............................................. 20

GPIO .............................................................................................. 20

USB 1 Connector ...........................................................................21

USB 2 Connector ...........................................................................21

USB 3 Connector ...........................................................................22

Speaker-out Connector ..................................................................22

SATA Power Connectors .................................................................23

LVDS Power Connector ..................................................................23

LVDS1 Connector A .......................................................................24

LVDS1 Connector B ........................................................................ 24

LVDS Power Connector (optional) ................................................... 25

LVDS2 Connector A (optional) ........................................................ 25

LVDS2 Connector B (optional) ........................................................26

Keyboard and Mouse Pin Header ...................................................26

COM1B RI/5V/12V Supply Power Selection ..................................... 27

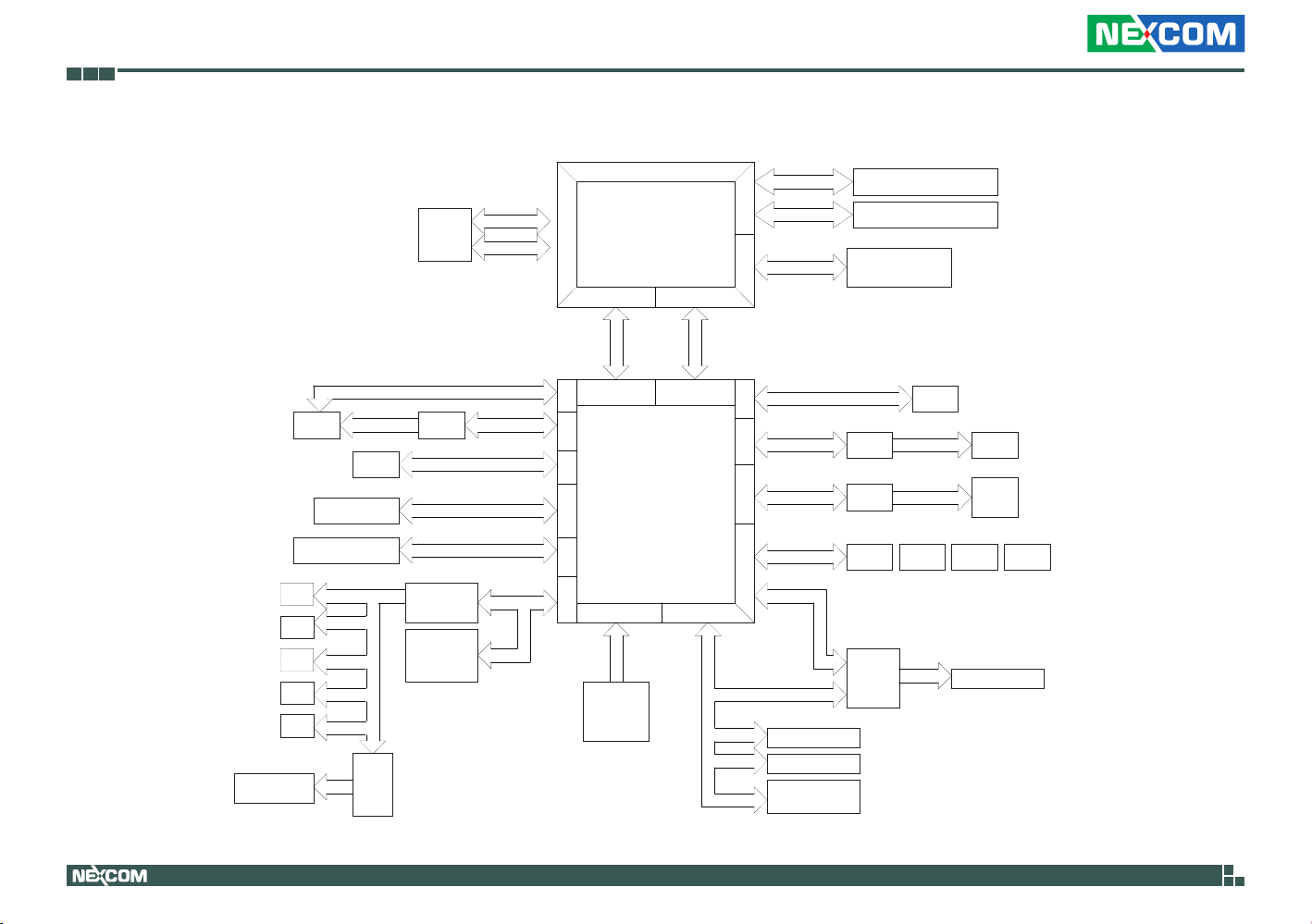

Block Diagram

.................................................................................28

Chapter 3: BIOS Setup

About BIOS Setup ................................................................................. 29

When to Configure the BIOS .................................................................29

Default Configuration ........................................................................... 30

Entering Setup ...................................................................................... 30

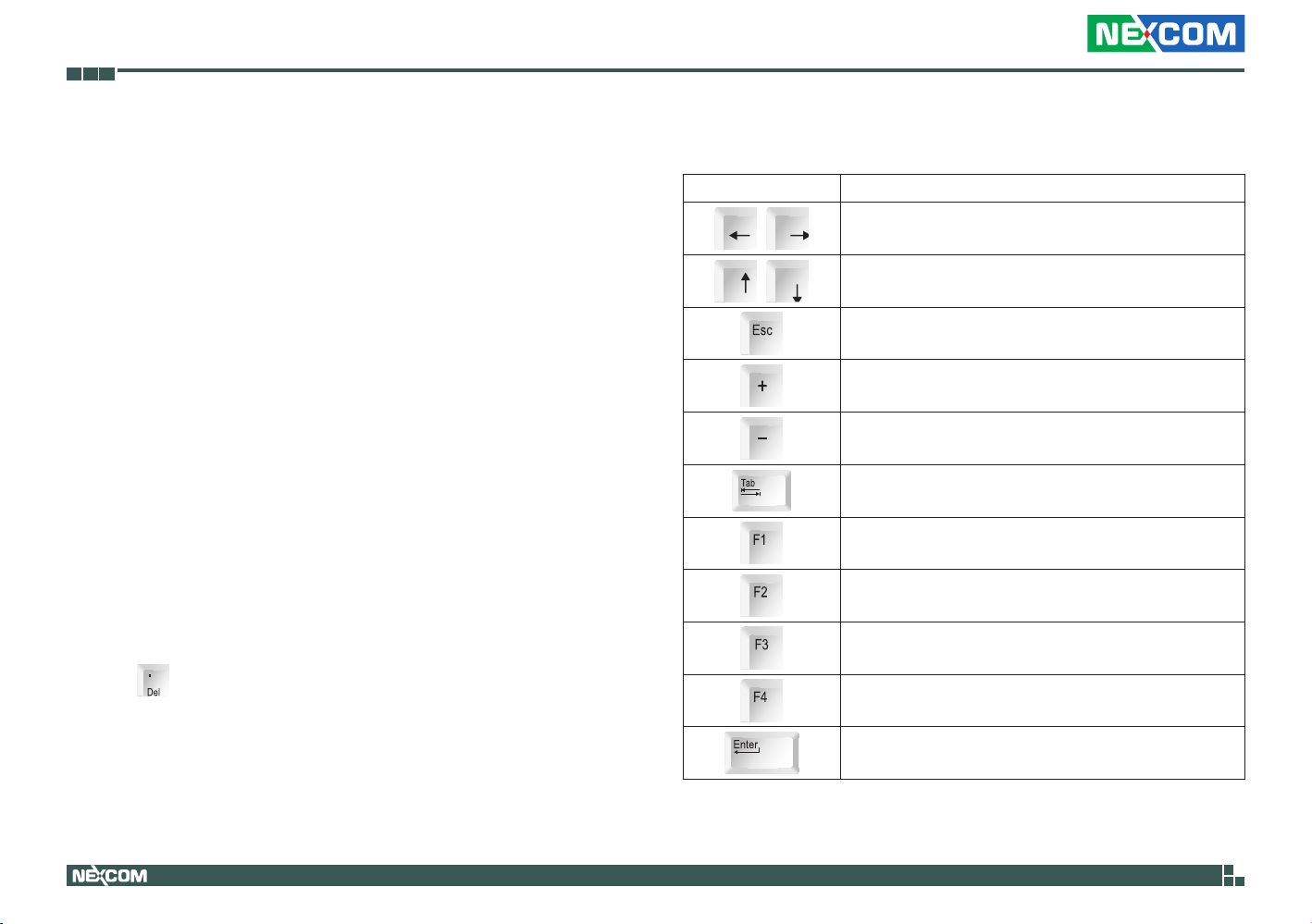

Legends ................................................................................................ 30

BIOS Setup Utility .................................................................................. 32

Main .................................................................................................32

Advanced ......................................................................................... 33

Chipset ..............................................................................................43

Boot .................................................................................................. 46

Security .............................................................................................47

Save & Exit ........................................................................................47

iii

NEX 609 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NEX 609 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NEX 609 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

This publication, including all photographs, illustrations and software, is protected under international copyright

laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NEX 609 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NEX 609 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NEX 609 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NEX 609 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NEX 609 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NEX 609 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected]

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: [email protected] www.nexcom.cn

xi

NEX 609 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

xii

NEX 609 User Manual

Preface

Package Contents

Before continuing, verify that the NEX 609 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 602DCD0634X00 (N)NEX609 DVD Driver VER:1.1 JCL 1

2 60233USB48X00 USB CABLE EDI:262082080401-RS

3 60233PW149X00 SATA Power Cable EDI:354204040201-RS AMP 4PIN PIT:2.54mm TO SATA 15P L:200mm 1 4 60233POW22X00 Power Cable EDI:302204040181-RS 4P 5.08mmx2 TO 2x2 4.2mm L:180+-10mm 1

5 60233ATA48X00 SATA Cable BEST

6 60177A0303X00 (N)NEX609 Quick Reference Guide VER:A KRAMER 1 7 50222A0562X00 NEX609 I/O Panel VER:A Northern Queen 158.75x44.45x4.40mm SUS t=0.2mm 1 8 20G00060900X0 ASSY NEX609 1

DUAL PORT USB CON TO HOUSING 2x4PIN 2.0mm L:400+-10mm

SATA CON 7P 180D TO 180D Connector L:250mm 28AWG

1

xiii

NEX 609 User Manual

Preface

Ordering Information

The following information below provides ordering information for NEX 609.

NEX 609 (P/N: 10G00060900X0) RoHS Compliant

Mini ITX, Intel® 3rd generation Intel® Core™ processor family with DVI-I/ HDMI / Two 48-bit LVDS interface/ 2x Gigabit LAN/ 10x USB/ 6x COMs/ TPM (optional)/ MSATA/ Dual 12 & 24 Power input)

CPU Cooler for NEX 609 (P/N: 5050300544X00)

Optional CPU cooler for NEX 609 rPGA 988 socket

DVI Cable for NEX 609 (P/N: 60233DVI18X00)

Optional Y cable for DVI-I & VGA output connector

xiv

NEX 609 User Manual

Chapter 1: Product Introduction

Overview

Key Features

▪ 3rd generation Intel® Core™ processor family

®

HM76 chipset (QM77 option)

▪ Intel

▪ Two 204-pin SO-DIMM socket supports up to 16GB DDR3

▪ 1333/ 1600 MHz SDRAM

▪ Display: DVI-I/ HDMI/ Dual 48bit LVDS (Option LVDS2)

▪ 1x Mini-PCIe support mSATA or 3G/ SIM, and optionl TPM

▪ 4x SATA with RAID 0,1,5,10 (optional)

®

▪ 2x Intel

▪ 10x USB, 4-in/ 4-out GPIO, Mic-in, Line-out

▪ Serial port: 5x RS232, 1x RS232/422/485 port

▪ Support AT/ ATX mode and Dual +12VDC/ +24VDC input

▪ 1x PCIe x16 slot 2x PCIe x1 on edge golden finger

Gbe Ethernet

1

NEX 609 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ 3rd generation Intel® Core™ processor

Main Memory

▪ Two 204-pin SO-DIMM socket supports up to 16 GB DDR3 1333/1600MHz

SDRAM

Chipset

▪ Intel® HM76/ QM77 chipset (optional)

BIOS

▪ AMI BIOS ▪ Plug & Play support ▪ Advanced Power Management ▪ Advanced Configuration & Power Interface

On-board LAN

▪ 2x Realtek® PCI Express Gigabit Ethernet ▪ Support Boot From LAN (PXE) ▪ 2x RJ45 with LED

Display

▪ 3rd generation Intel® Core™ processor integrated Intel® HD Graphics 4000

engine, Intel

®

HD Graphics integrates high-performance graphics and media processing right on the processor, delivers sophisticated graphics for large display applications, three independent display support.

▪ DVI-I interface: Analog VGA support

▪ HDMI interface:

– Resolution: Up to 2560 x 1600 @60Hz for 1st display port Up to 1920 x 1600 @60Hz for 2nd display port Up to 1920 x 1200 @60Hz for 3rd display port – LVDS1 interface: 48bit LVDS interface, 2xDF13 20-pin LVDS connector for internal

connection LVDS2 interface (optional, through SDVO w/ CH7308) 48bit LVDS interface, 2xDF13 20-pin LVDS connector for internal

connection – CCFL interface 2x CCFL for LCD Panel Backlight Inverter with Analog & PWM dimming control

Audio

▪ Realtek ALC886 CODEC for High Definition 1x Phone Jack for mic-in 1x Phone Jack for line-out 1x Phone Jack for line-in 1x 5 pin 2.0 pitch pin header for speaker-out

Expansion

▪ 1x Mini-PCIe

▪ 1x PCIe x16

▪ 2x PCIe x1 golden finger

2

NEX 609 User Manual

Chapter 1: Product Introduction

I/O Interface

▪ Serial port: 6 port

– COM1, 6: RS232 DB-9 male connector on edge I/O – COM2: RS232/422/485 DB-9 male connector on edge I/O – COM3, 4, 5: RS232 1x 6 2.0mm JST connector

▪ USB 2.0/ 3.0: 10 ports

– USB 3.0 x4 ports edge connector

– USB 2.0 x6 ports by 2.0mm pin connector ▪ 8 GPIO lines via header (GPI 0 ~ 3 and GPO0 ~ 3) TTL Level (0/ 5 V) ▪ Onboard Power LED and HDD Active LED Pin Header ▪ 1x 4-pin fan connector (for CPU) ▪ 1x 3-pin fan connector (for System) ▪ 1x Keyboard/Mouse pin header ▪ On board Buzzer/ SMBus2.0/ Reset SW/ On & Off switch button

Edge I/O Interface

▪ 1x dual stack DB9 male + DB9 male for COM1 & COM2 ▪ 1x HDMI ▪ 1x DVI-I + DB9 male for COM6 ▪ 2x RJ45 + dual stack USB ▪ 1x Line-Out/ Mic-in/ Line-in

Watchdog Timer

▪ Watchdog timeout can be programmed by software from 1 second to

255 seconds, and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

System Monitor

▪ Monitoring of 4 voltages and 2 temperatures and 2 fan speed detection ▪ 4 Voltage (Vcore, +12V , +3.3V , 5V) ▪ 2 Temperatures (CPU, System) ▪ 2 fan speed detection

On-board RTC

▪ On-chip RTC with battery backup ▪ 1x External Li-Ion battery

Power Input

▪ Support AT and ATX mode

Power Requirements

▪ Power requirement: Dual +12V & 24V DC Input ▪ One 4-pin power connector

Dimensions

▪ Mini-ITX M/B form factor ▪ 170mm (L) x 170mm (W)

Environment

▪ Operating temperatures: 0°C to 60°C ▪ Storage temperature: -20°C to 85°C ▪ Relative humidity: Operating 10% to 90%, non-condensing

Storage

▪ 4x SATA port with RAID 0,1,5,10 function (optional)

Certifications

▪ CE approval ▪ FCC Class A

3

NEX 609 User Manual

Chapter 1: Product Introduction

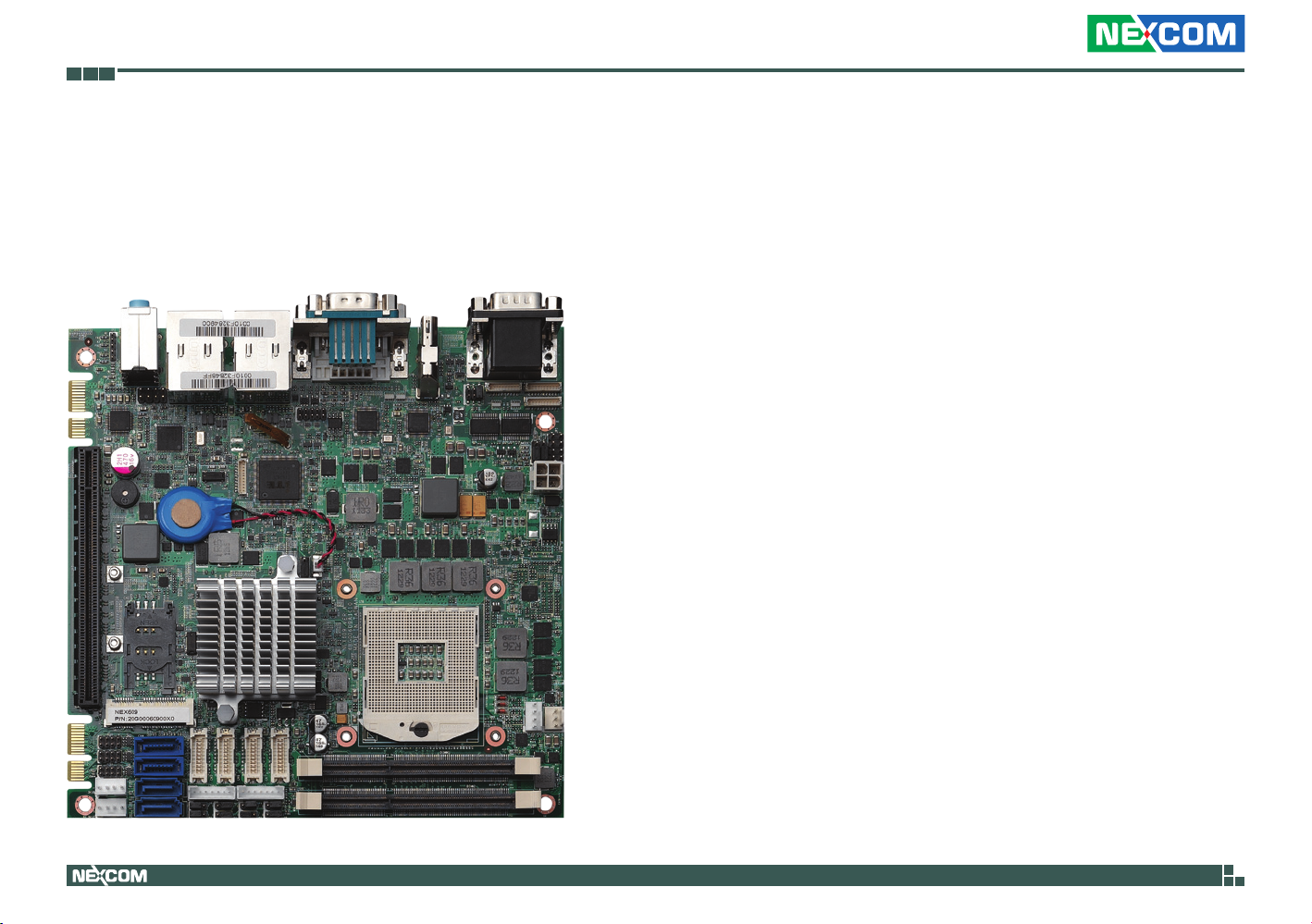

Knowing Your NEX 609

Speaker-out

KB/MS

GPIO

LAN1/ USBLAN2/ USBAudio Connectors

COM6/ DVI HDMI COM1/ COM2

COM2 COM3 COM4 COM1B RI /5V/12V Supply Power Selection

Power On/Off/Reset & PWR/HDD LED

Power Input

ME Clear

AT/ATX Mode Select

PCIe x16

LVDS Power (optional)

LVDS Power

USB

SATA Power

1

3 5

6

2

4

1: LVDS1 Power Select 2: LVDS1 CCFL/PWM Mode Select

3: LVDS1 Dimming Voltage Select 4: LVDS1 Dimming Polarity Select

7 8

5: LVDS2 Power Select (optional) 6: LVDS2 CCFL / PWM Mode Select (optional)

7: LVDS2 Dimming Voltage Select (optional) 8: LVDS2 Dimming Polarity Select (optional)

4

CMOS Clear

LVDS1 A (optional) LVDS1 B (optional) LVDS2 A (optional) LVDS2 B (optional)

System Fan

CPU Fan

DIMM1

DIMM2

NEX 609 User Manual

Chapter 1: Product Introduction

Edge I/O View

COM6COM1 LAN1

DVI-ICOM2 HDMI

LAN2 Line-in

Line-out

USB 3.0 Mic-in

5

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NEX 609 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

6

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

7

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

JP1

JP3

JP4

CON1

JP2

COM1: COM1A COM2: COM1B

J2

JP6

JMODE1

J3

J4

JP5

JUSB1

JUSB2

JUSB3

JDB1

JBIOS1

CN6

JM1 JM4

CN8CN7

JP9

JM2

JM5 JM6

CN5

JINV1 JINV2

CN10CN12

JP8 JM3

8

PWR1

CFAN1

SFAN1

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

CMOS Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JBIOS1

1 3 1 3

Pin Status Settings

1-2 Short Normal 2-3 Short Clear BIOS Setting

1-2 On: default

ME Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP6

Pin Status Settings

1-2 Short Normal 2-3 Short Clear ME Setting

1-2 On: default

9

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

LVDS1 Power Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP8

1 3

Pin Status Settings

1-2 Short VCC5 2-3 Short VCC3

2-3 On: default

LVDS1 Dimming Polarity Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JM4

1 3

Pin Status Settings

1-2 Short Negative 2-3 Short Positive

2-3 On: default

10

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

LVDS1 CCFL/PWN Mode Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JM3

1 3

Pin Status Settings

1-2 Short PWN Mode 2-3 Short CCFL Mode

2-3 On: default

LVDS1 Dimming Voltage Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JM1

1 3

Pin Status Settings

1-2 Short VCC3 2-3 Short VCC5

2-3 On: default

11

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

LVDS2 Power Select (optional)

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP9

1 3

Pin Status Settings

1-2 Short VCC5 2-3 Short VCC3

1-2 On: default

LVDS2 CCFL/PWN Mode Select (optional)

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JM5

1 3

Pin Status Settings

1-2 Short PWN Mode 2-3 Short CCFL Mode

2-3 On: default

12

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

LVDS2 Dimming Polarity Select (optional)

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JM6

1 3

Pin Status Settings

1-2 Short Negative 2-3 Short Positive

2-3 On: default

LVDS2 CCFL Dimming Voltage Select (optional)

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JM2

1 3

Pin Status Settings

1-2 Short VCC3 2-3 Short VCC5

1-2 On: default

13

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

AT/ATX Mode Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JMODE1

1 3

Pin Status Settings

1-2 Short AT Mode 2-3 Short ATX Mode

2-3 On: default

14

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External Serial Port Connectors

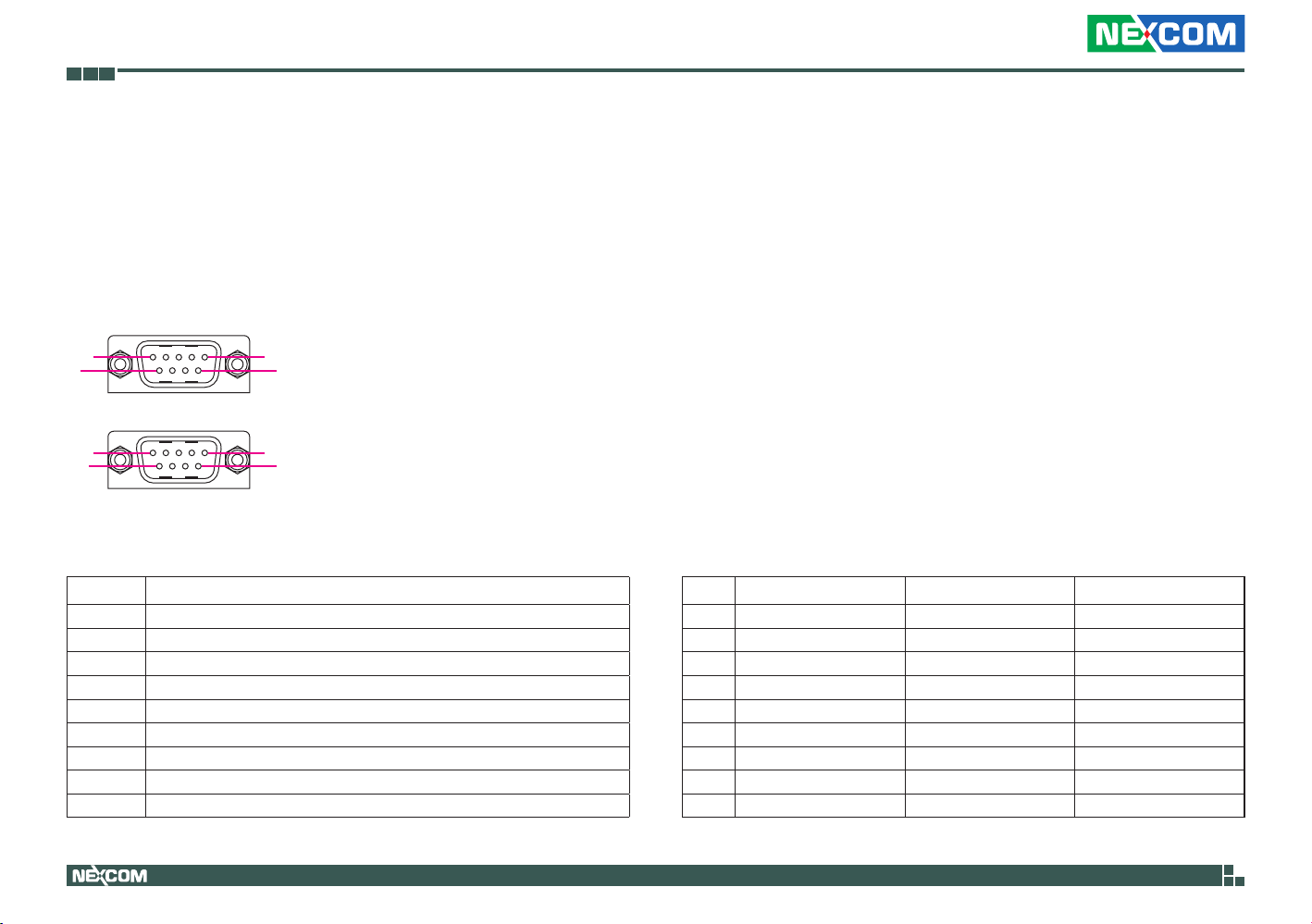

COM1 and COM2 Connectors

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1A (COM1) and COM1B (COM2)

COM1

6

15

1

10

COM2

5

14

9

18

COM1: RS-232 Connector

Pin Definition

1 COM_DCD#1 2 COM_RXD1 3 COM_TXD1 4 COM_DTR#1 5 GND 6 COM_DSR#1 7 COM_RTS#1 8 COM_CTS#1 9 COM_RI#1

COM2: RS-232/RS-422/RS-485 Connector

Pin RS232 RS422 RS485

10 COM_DCD#2 TX- DATA11 COM_RXD2 TX+ DATA +

12 COM_TXD2 RX+ NC 13 COM_DTR#2 RX- NC 14 GND GND GND 15 COM_DSR#2 RTS- NC 16 COM_RTS#2 RTS+ NC 17 COM_CTS#2 CTS+ NC 18 COM_RI#2 CTS- NC

15

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

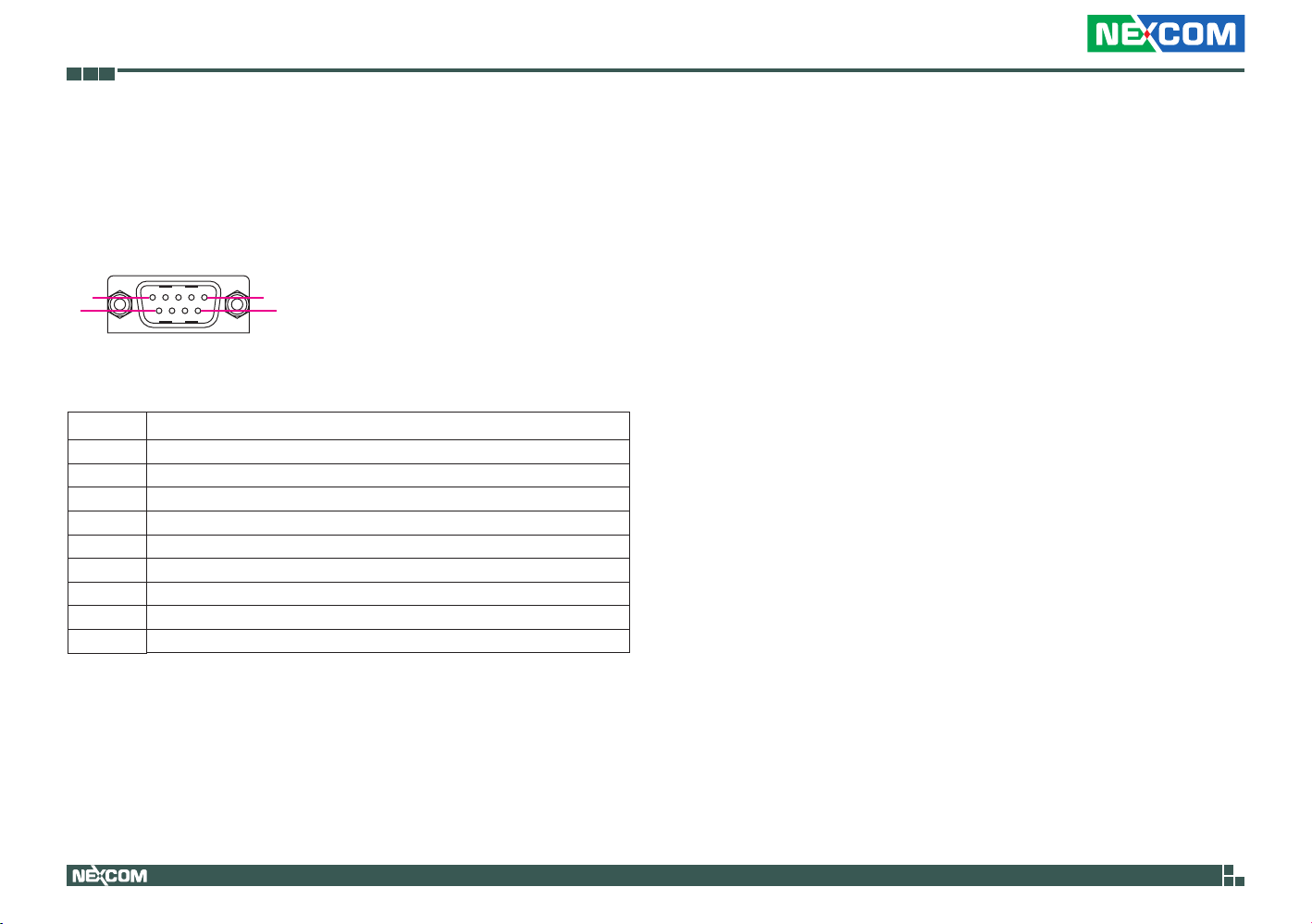

COM6 Connector

Connector type: DB-9 port, 9-pin D-Sub Connector location: CON1

1

6

5

9

Pin Definition

1 COM_DCD#6 2 COM_RXD6 3 COM_TXD6 4 COM_DTR#6 5 GND 6 COM_DSR#6 7 COM_RTS#6 8 COM_CTS#6 9 COM_RI#6

16

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

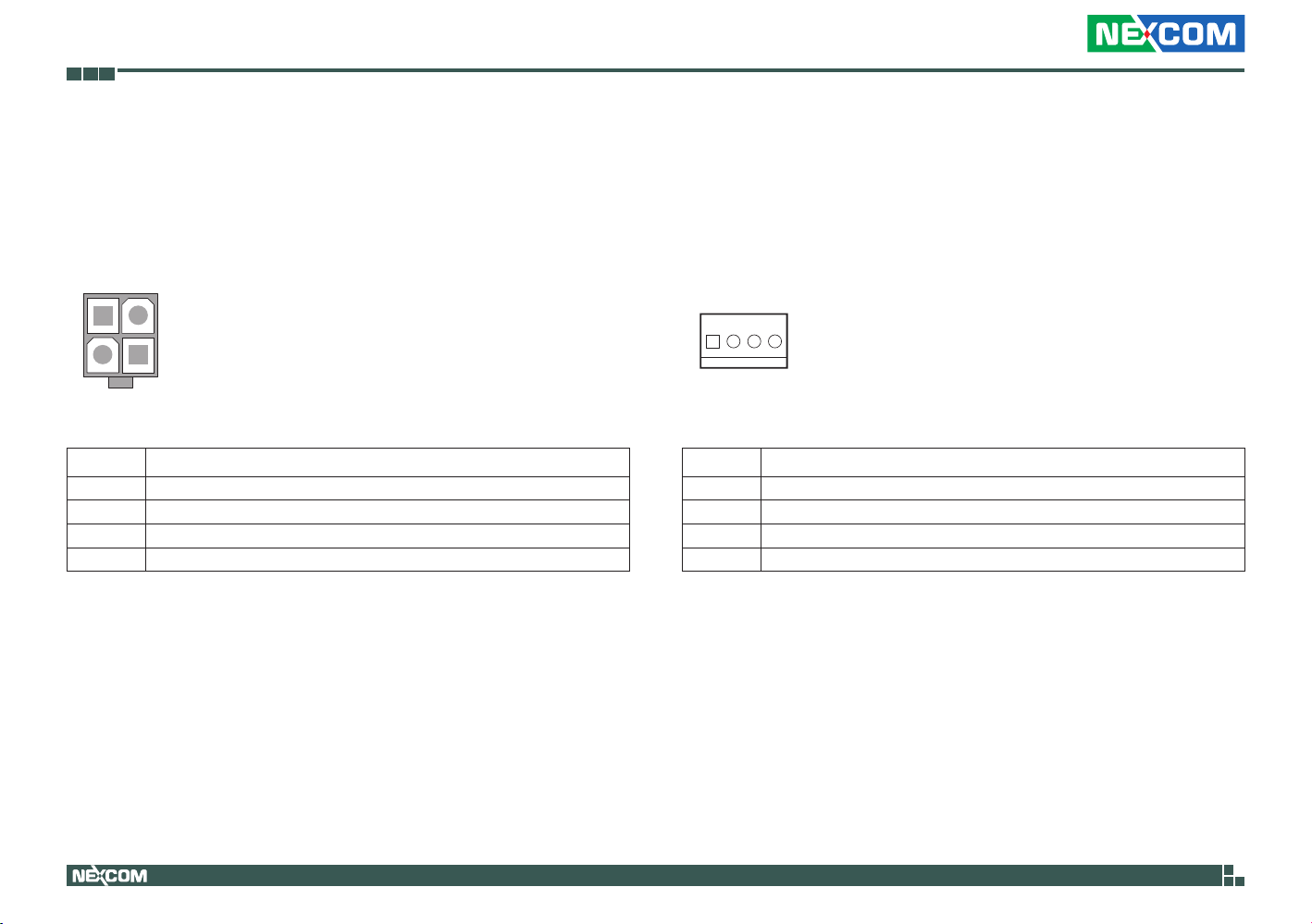

ATX Power Input Connector

Connector type: 2x2 Aux power connector Connector location: PWR1

1 2

3 4

Pin Definition

1 GND 2 GND 3 +12V / 24V 4 +12V / 24V

CPU FAN Connector

Connector type: 1x4 4-pin Wafer Connector location: CFAN1

1 4

Pin Definition

1 GND 2 12V 3 CPUFANIN 4 CPUFANOUT

17

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

17

28

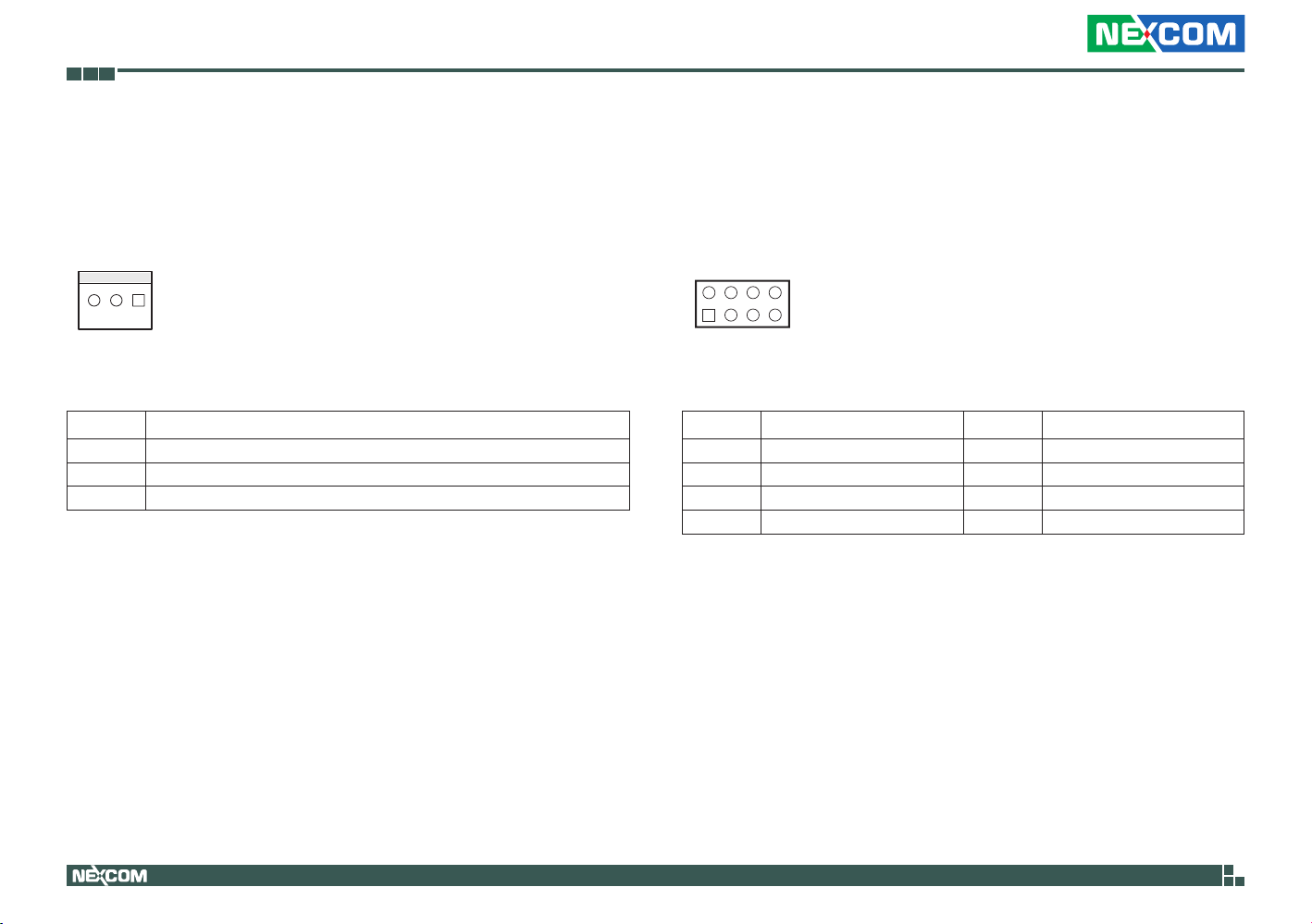

SYSTEM FAN Connector

Connector type: 1x3 3-pin Wafer Connector location: SFAN1

13

Pin Definition

1 GND 2 12V 3 SYSFANIN

Power On/Off/Reset & PWR/HDD LED Pin Header

Connector type: 2x4 8-pin header, 2.54mm pitch Connector location: JP5

Pin Definition Pin Definition

1 SATA_LED_P 2 PWR_LED_P 3 SATA_LED# 4 GND 5 GND 6 BTN_A# 7 RST_BTN# 8 GND

18

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

10 1

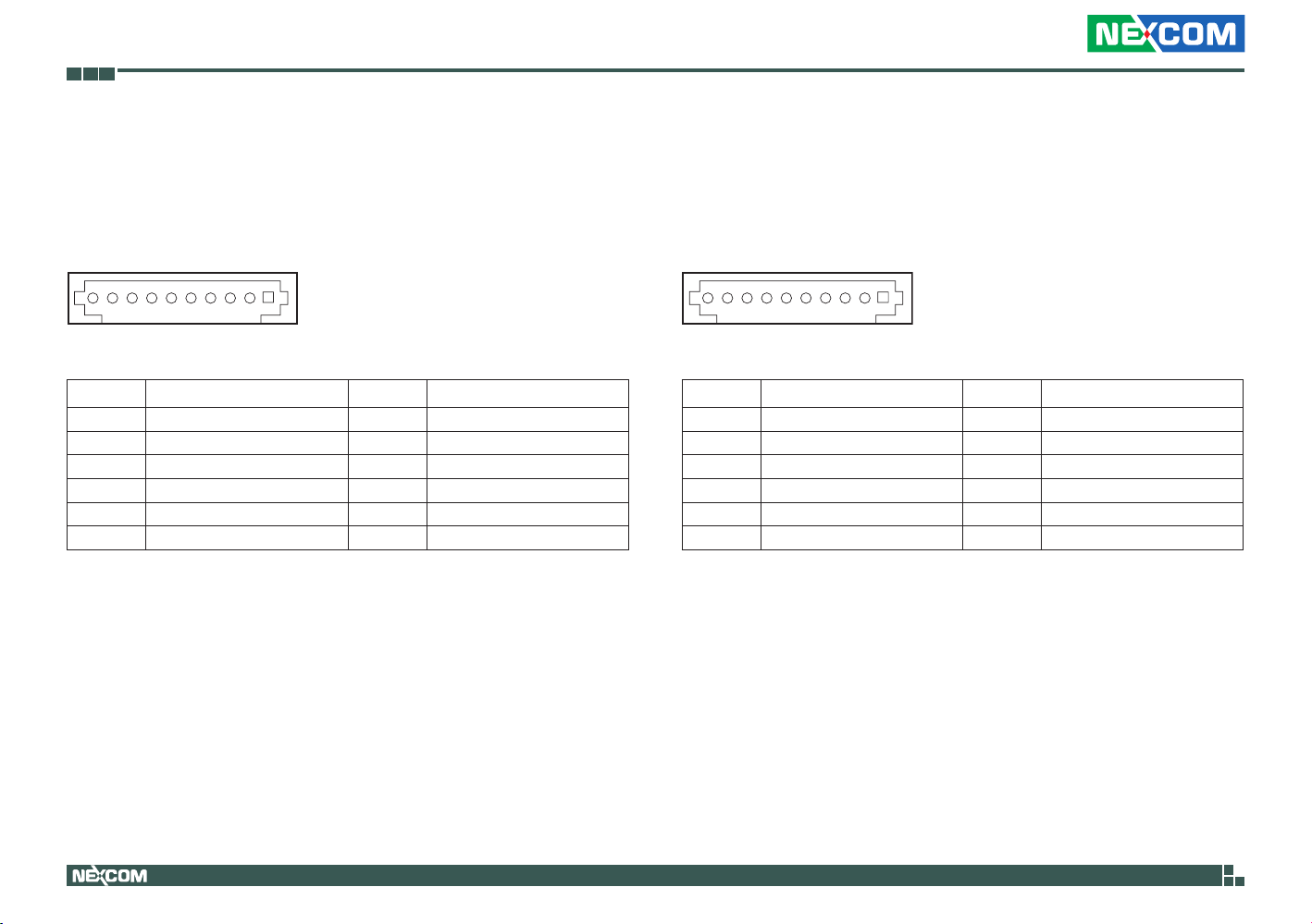

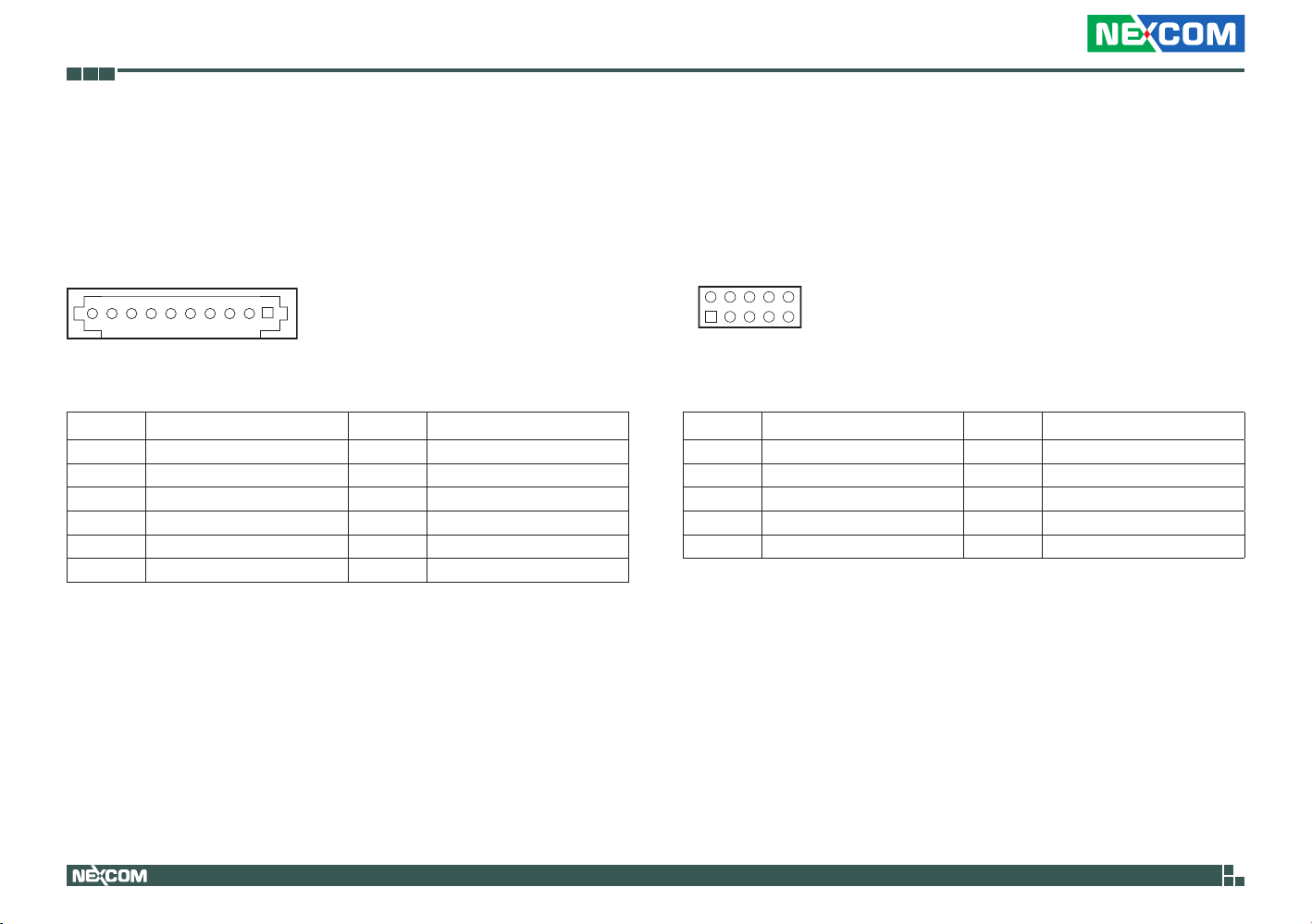

RS232 Box Header Connector COM2

Connector type: 1x10 10-pin Wafer, 1.0mm pitch Connector location: J2

Pin Definition Pin Definition

1 COM_DCD#5 2 COM_RXD5 3 COM_TXD5 4 COM_DTR#5 5 GND 6 COM_DSR#5 7 COM_RTS#5 8 COM_CTS#5 9 COM_RI#5 10 GND

MH1 GND MH2 GND

RS232 Box Header Connector COM3

Connector type: 1x10 10-pin Wafer, 1.0mm pitch Connector location: J3

Pin Definition Pin Definition

1 COM_DCD#3 2 COM_RXD3 3 COM_TXD3 4 COM_DTR#3 5 GND 6 COM_DSR#3 7 COM_RTS#3 8 COM_CTS#3 9 COM_RI#3 10 GND

MH1 GND MH2 GND

19

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

10 1

RS232 Box Header Connector COM4

Connector type: 1x10 10-pin Wafer, 1.0mm pitch Connector location: J4

Pin Definition Pin Definition

1 COM_DCD#4 2 COM_RXD4 4 COM_TXD4 4 COM_DTR#4 5 GND 6 COM_DSR#4 7 COM_RTS#4 8 COM_CTS#4 9 COM_RI#4 10 GND

MH1 GND MH2 GND

GPIO

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JP4

2 10

1 9

Pin Definition Pin Definition

1 VCC5O 2 GND 3 SIO_GPO24 4 SIO_GPI20 5 SIO_GPO25 6 SIO_GPI21 7 SIO_GPO26 8 SIO_GPI22 9 SIO_GPO27 10 SIO_GPI23

20

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

17

28

17

28

USB 1 Connector

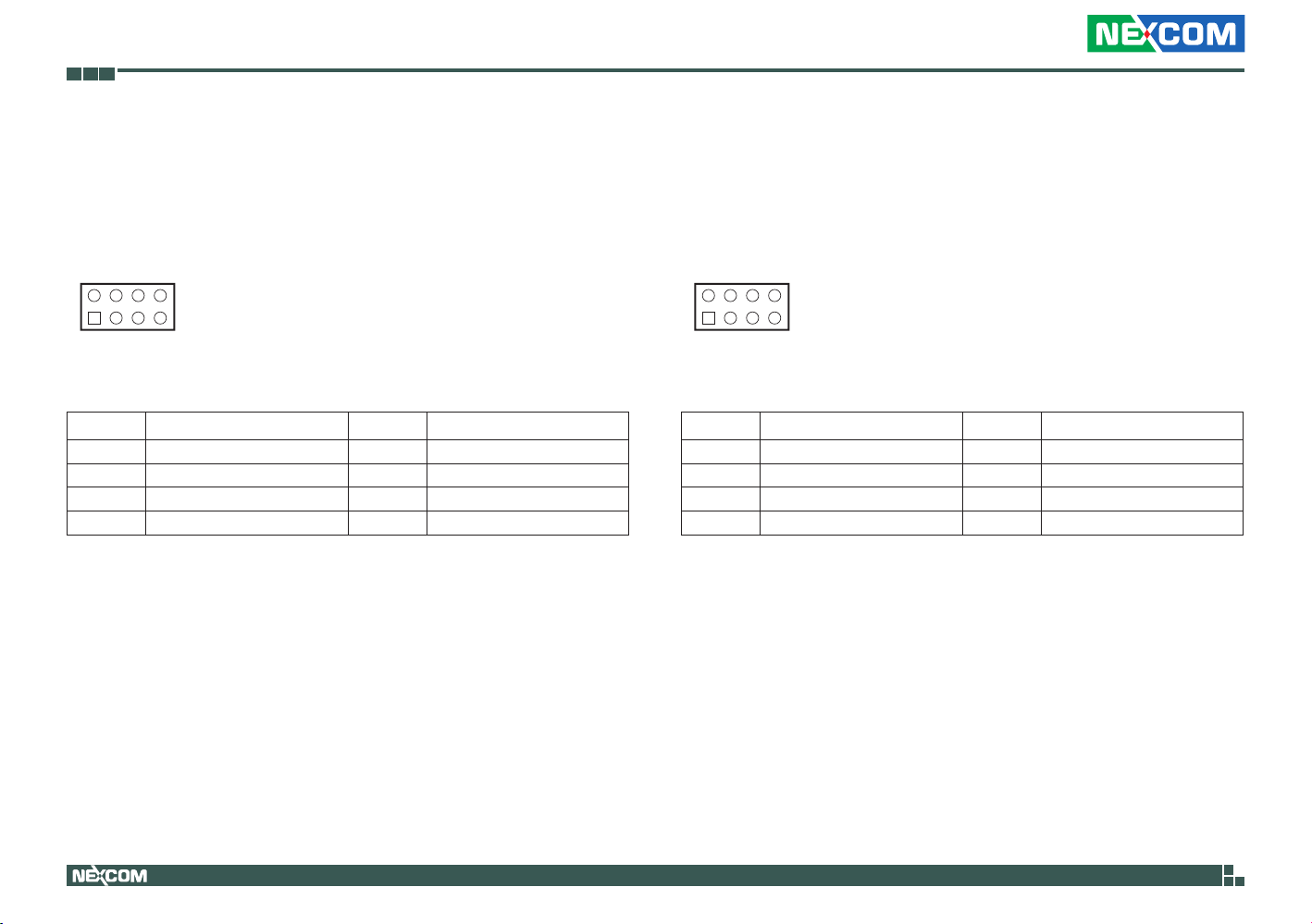

Connector type: 2x4 8-pin header, 2.0mm pitch Connector location: JUSB1

Pin Definition Pin Definition

1 VCC5 2 GND 4 USB4- 4 USB5+ 5 USB4+ 6 USB57 GND 8 VCC5

USB 2 Connector

Connector type: 2x4 8-pin header, 2.0mm pitch Connector location: JUSB2

Pin Definition Pin Definition

1 VCC5 2 GND 4 USB6- 4 USB7+ 5 USB6+ 6 USB77 GND 8 VCC5

21

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

17

28

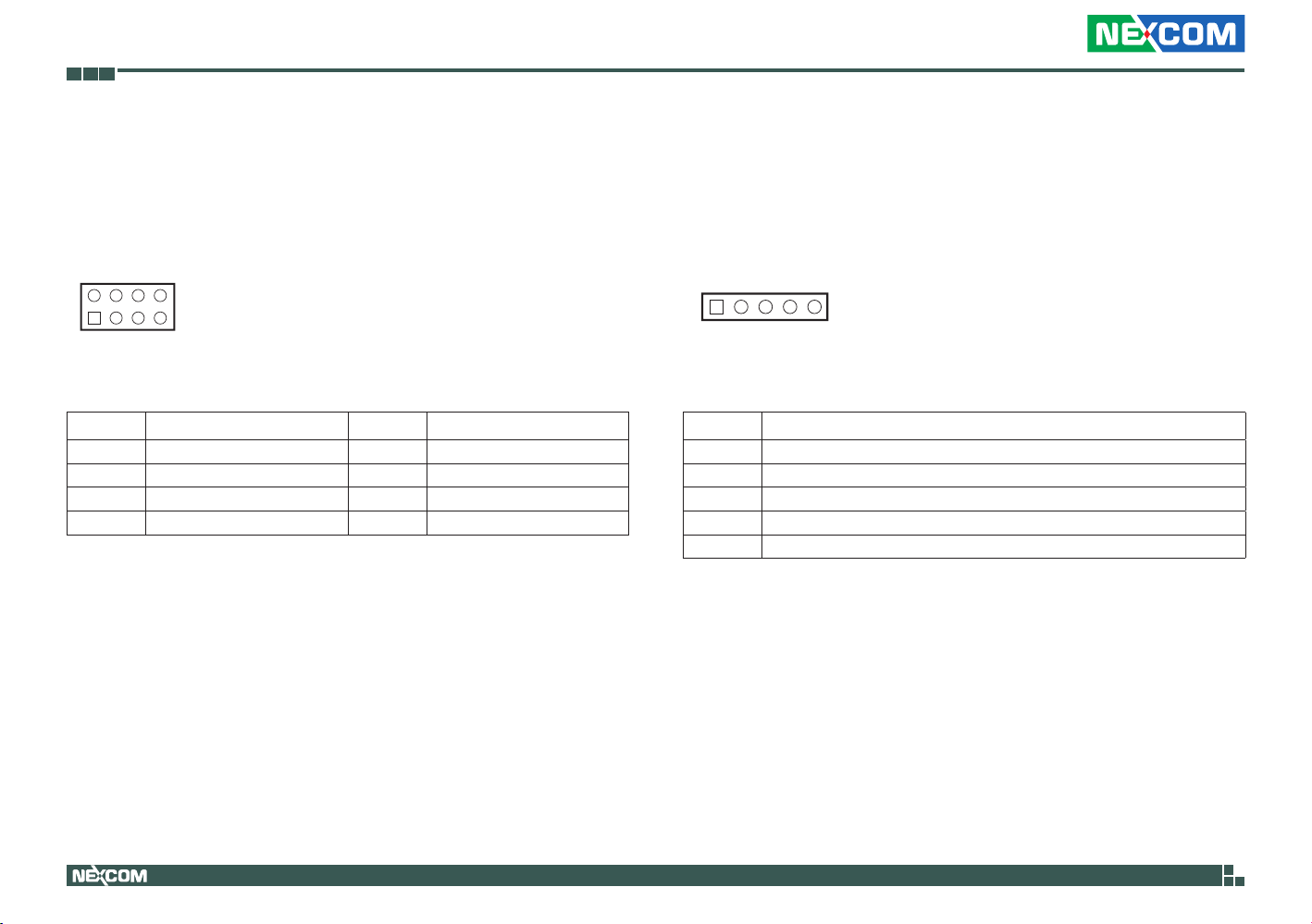

USB 3 Connector

Connector type: 2x4 8-pin header, 2.0mm pitch Connector location: JUSB3

Pin Definition Pin Definition

1 VCC5 2 GND 4 USB8- 4 USB9+ 5 USB8+ 6 USB97 GND 8 VCC5

Speaker-out Connector

Connector type: 1x5 5-pin header, 2.0mm pitch Connector location: JP1

1 5

Pin Definition

1 OUT-LR+ 2 OUT-LR3 SPKR_GND 4 OUT-RR+ 5 OUT-RR

22

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

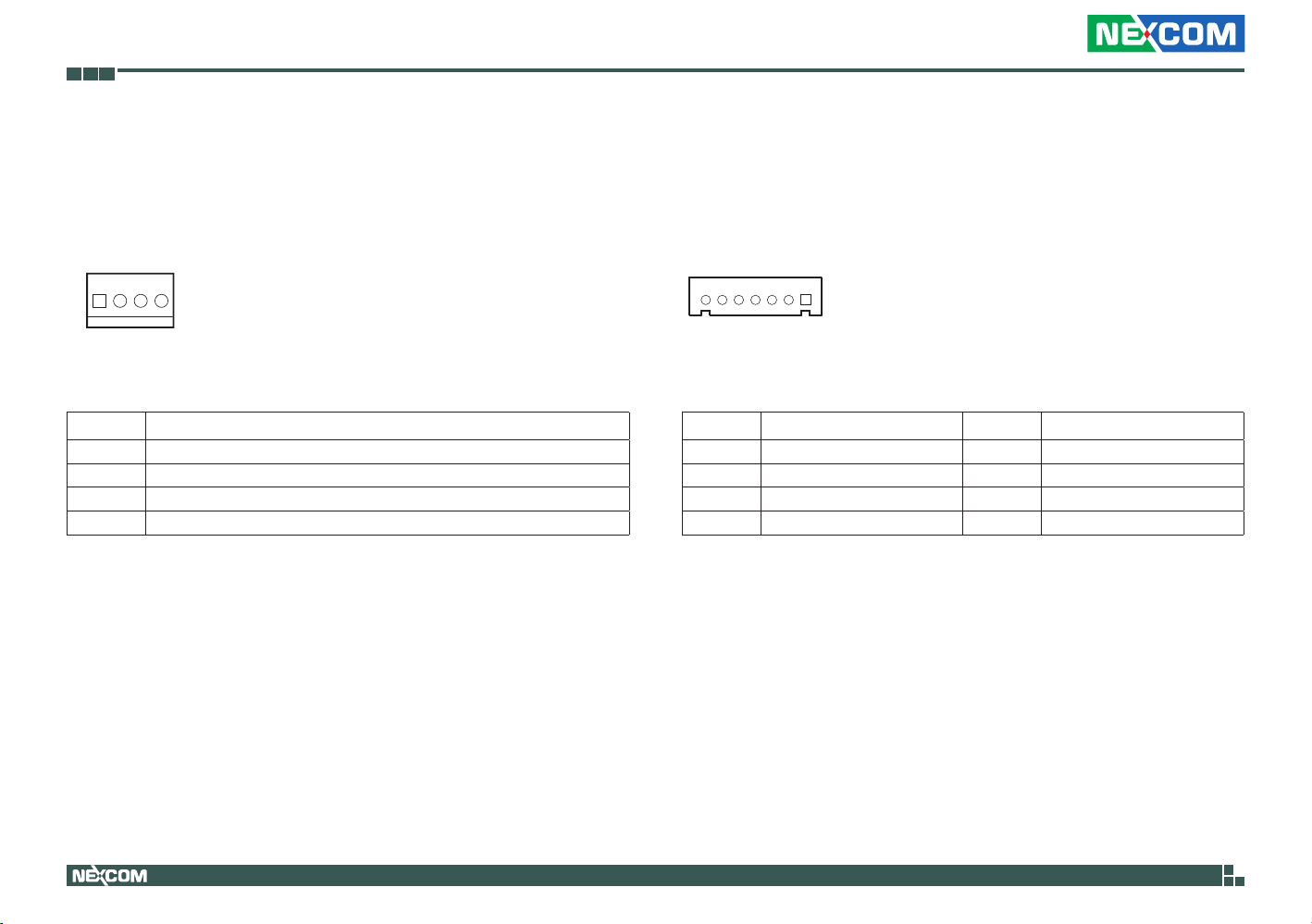

SATA Power Connectors

Connector type: 1x4 4-pin Wafer, 2.5mm pitch Connector location: CN10 and CN12

1 4

Pin Definition

1 +12V 2 GND 3 GND 4 VCC5

LVDS Power Connector

Connector type: 1x7 JST, 7-pin header, 2.5mm pitch Connector location: JINV1

7 1

Pin Definition Pin Definition

1 VCC5 2 12V 3 12V 4 Brightness Control 5 GND 6 GND 7 Backlight Enable

23

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

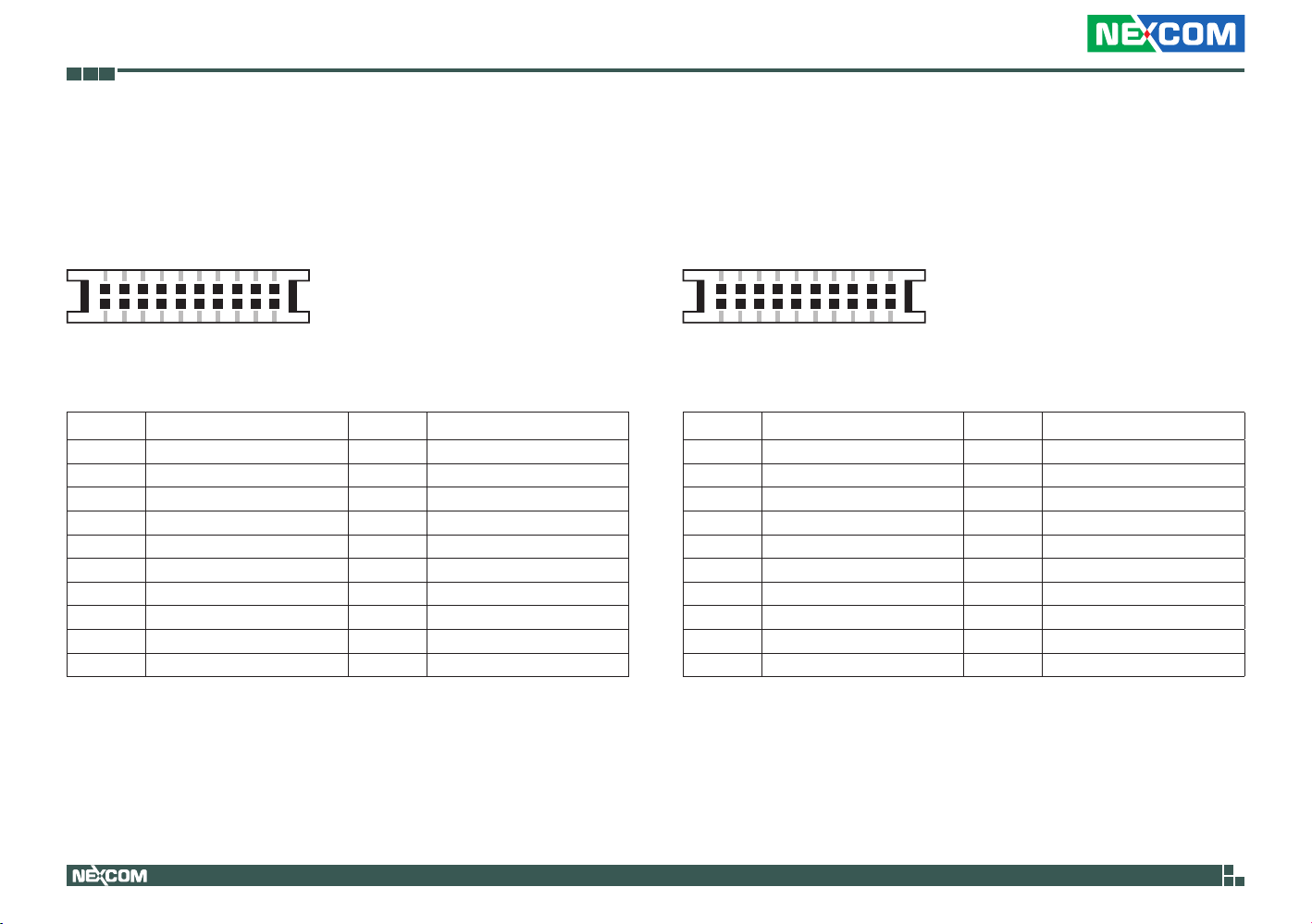

LVDS1 Connector A

Connector type: 2x10 20-pin header Connector location: CN6

1 19 2 20

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 VCC_LCD1 4 LVDSA_DATA0 5 LVDSA_DATA3 6 LVDSA_DATA#0 7 LVDSA_DATA#3 8 VCC_LCD1

9 GND 10 LVDSA_DATA1 11 LVDSA_CLK 12 LVDSA_DATA#1 13 LVDSA_CLK# 14 GND 15 GND 16 12V 17 LVDSA_DATA2 18 12V 19 LVDSA_DATA#2 20 LCD_GND1

LVDS1 Connector B

Connector type: 2x10 20-pin header Connector location: CN5

1 19 2 20

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 VCC_LCD1 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA#0 7 LVDSB_DATA#3 8 VCC_LCD1

9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA#1 13 LVDSB_CLK# 14 GND 15 GND 16 12V 17 LVDSB_DATA2 18 12V 19 LVDSB_DATA#2 20 LCD_GND1

24

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

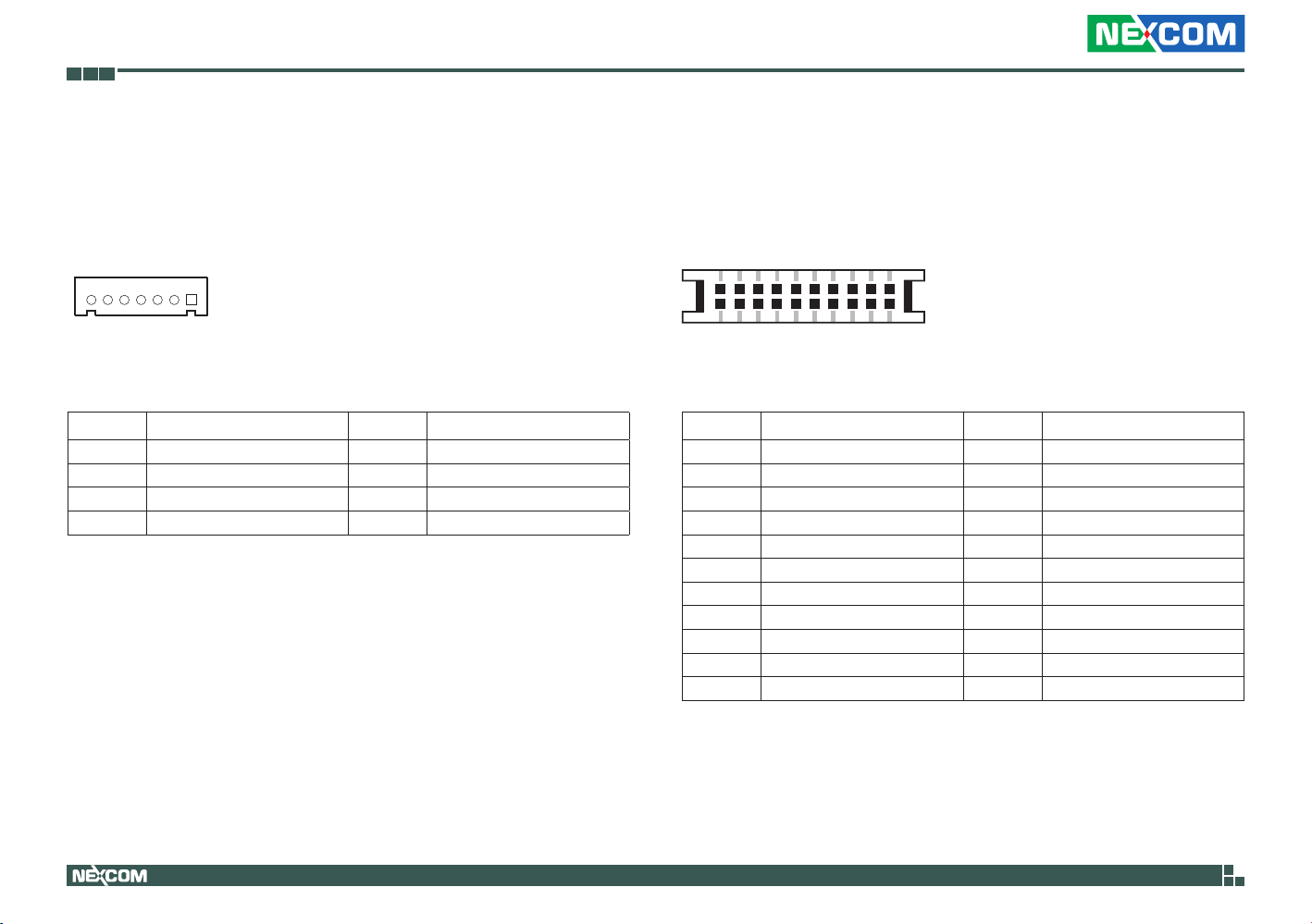

LVDS Power Connector (optional)

Connector type: 1x7 JST, 7-pin header, 2.5mm pitch Connector location: JINV2

7 1

Pin Definition Pin Definition

1 VCC5 2 12V 3 12V 4 Brightness Control 5 GND 6 GND 7 Backlight Enable

LVDS2 Connector A (optional)

Connector type: 2x10 20-pin header Connector location: CN7

1 19 2 20

Pin Definition Pin Definition

1 NC 2 NC

3 VCC_LCD2 4 LVDSA_TXL0P

5 LVDSA_TXL3P 6 LVDSA_TXL0N

7 LVDSA_ TXL3N 8 VCC_LCD2

9 LCD_GND2 10 LVDSA_TXL1P

11 LVDSA_CLK1P 12 LVDSA_TXL1N 13 LVDSA_CLK1N 14 GND 15 LCD_GND2 16 12V 17 LVDSA_TXL2P 18 12V 19 LVDSA_TXL2N 20 LCD_GND2

MH1 LCD_GND2 MH2 LCD_GND2

25

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

17

28

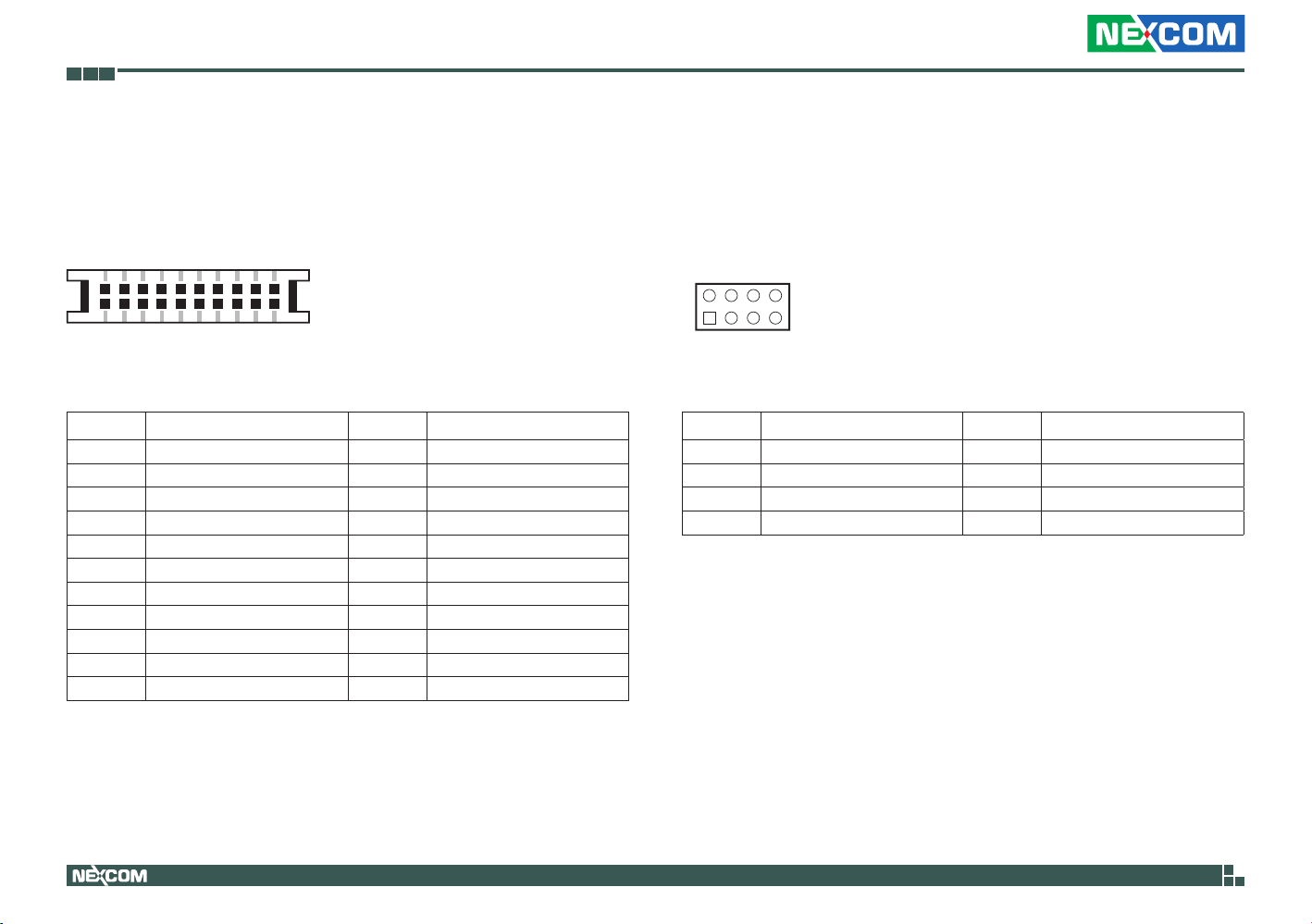

LVDS2 Connector B (optional)

Connector type: 2x10 20-pin header Connector location: CN8

1 19 2 20

Pin Definition Pin Definition

1 NC 2 NC 3 VCC_LCD2 4 LVDSA_TXL4P 5 LVDSA_TXL7P 6 LVDSA_TXL4N 7 LVDSA_ TXL7N 8 VCC_LCD2

9 LCD_GND2 10 LVDSA_TXL5P 11 LVDSA_CLK2P 12 LVDSA_TXL5N 13 LVDSA_CLK2N 14 GND 15 LCD_GND2 16 12V 17 LVDSA_TXL6P 18 12V 19 LVDSA_TXL6N 20 LCD_GND2

MH1 LCD_GND2 MH2 LCD_GND2

Keyboard and Mouse Pin Header

Connector type: 2x4 8-pin header Connector location: JP3

Pin Definition Pin Definition

1 VCC5 2 VCC5 3 KDAT_R 4 MDAT_R 5 KCLK_R 6 MCLK_R 7 KBMS_GND 8 KBMS_GND

26

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

15

26

COM1B RI/5V/12V Supply Power Selection

Connector type: 2x3 6-pin header Connector location: JP2

Pin Definition Pin Definition

1 COM2_RI# 2 VCC5

3 COM2_RI# 4 12V

5 COM2_RI# 6 COM_RI#2

27

NEX 609 User Manual

Chapter 2: Jumpers and Connectors

Block Diagram

DDR3 Channel A

DDR3 1066/1333 MHz DIMM1

COM1

COM2

COM3

COM4

COM5

COM2 RS232/RS422/RS485

DVI-I

LVDS1

USB 3.0 (0~3)

USB 2.0 Pin header

SP338E

LVDS BUS

IMVP 7

PS161

PORT:0-3

PORT:4-9

Super I/O

IT-8783F

TPM

SLB9635TT1.2

Option

Vcore

VCOREG

VGA BUS

PORT D

LVDS BUS

USB2.0/3.0 BUS

USB2.0 BUS

LPC BUS

Ivy Bridge

37.5 x 37.5 mm rPGA Socket(rPGA989B)

FDI

Flexible Display Interface

FDI

VGA

Panther Point

DISPLAY

PORT D

LVDS

QM77/HM76

USB 2.0/3.0

25 x 25 mm FCBGA(Mobile only)

USB 2.0

LPC

SPI

BIOS

iAMT

SPI ROM

DMI

PCI-E *1

DMI(X4)

PCI-E*1 BUS PORT

DDR3 Channel B

DDR3 CH APCIex16

SATA BUS

HDA

PORT C

DISPLAY

PORT C

SDVO PORT B

SDVO

PORT B

SATA0/1/2/3 BUS

SATA

SATA4 BUS

WG82579LM

82574L

PCIE x1 (Gold Finger*2)

DDR3 1066/1333 MHz DIMM2

PCI-E x16 SLOT

HDA BUS

PS161

CH7308

SATA0 SATA1 SATA2 SATA3

CBTL02042

Port 6

Port 5

Port 2/3

ALC888

LVDS BUS

HDMI

LVDS2

Option

MiniPCI-E Port 1

28

NEX 609 User Manual

Chapter 3: BIOS Setup

This chapter describes how to use the BIOS setup program for the NEX 609. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

29

NEX 609 User Manual

Chapter 3: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Press the

key to enter Setup:

30

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NEX 609 User Manual

Chapter 3: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

31

NEX 609 User Manual

Chapter 3: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Boot SecurityMain

BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Memory Information Memory Frequency Total Memory DIMM#2 DIMM#1

ME Firmware Information ME FW Version ME Firmware Mode ME Firmware SKU

System Date

System Time

American Megatrends

4.6.5.3 UEFI 2.3; PI 1.2 N609-007 06/01/2012 13:18:45

1600 MHz 4096 MB (DDR3) 4096 MB (DDR3) Not Present

8.0.3.1427 Normal Mode

1.5MB

[Thu 12/27/2012] [14:33:54]

Save & Exit

Set the Date. Use Tab to switch between Date elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

32

NEX 609 User Manual

Chapter 3: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Chipset Boot SecurityMain

 ACPI Settings

 Trusted Computing  CPU Conguration  SATA Conguration  Intel TXT(LT) Conguration  AMT Conguration  USB Conguration  Super IO Conguration  Smart Fan Function  H/W Monitor  CPU PPM Conguration

Save & Exit

System ACPI parameters.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

ACPI Settings

This section is used to configure ACPI settings.

Advanced

ACPI Settings

Enable Hibernation

ACPI Sleep State

[Enabled]

[S3 only (Suspend to . . .]

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable Hibernation

Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled, S1 only (CPU Stop Clock) and S3 only (Suspend to RAM).

33

NEX 609 User Manual

Chapter 3: BIOS Setup

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

Conguration

Security Device Support

Current Status Information SUPPORT TURNED OFF

[Disable]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Intel(R) Core(TM) i7-3610QE CPU @ 2.30GHz CPU Signature Microcode Patch CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit

Hyper-threading

Active Processor Cores Intel Virtualization Technology

306a9 12 2300 MHz 4 Supported Supported Supported Supported

[Enabled]

[All] [Disabled]

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hyper-Threading

This field is used to enable or disable hyper-threading.

Active Processors Cores

Select the number of cores to enable in each processor package. The options are All, 1, 2 and 3.

Intel® Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

34

NEX 609 User Manual

Chapter 3: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Advanced

SATA Controller(s) SATA Mode Selection

Serial ATA Port 0 Software Preserve

Port 0

Spin Up Device

Serial ATA Port 1 Software Preserve

Port 1 Spin Up Device

Serial ATA Port 2 Software Preserve

Port 2 Spin Up Device

Serial ATA Port 3 Software Preserve

Port 3 Spin Up Device

[Enabled] [AHCI]

Empty Unknown

[Enabled]

[Disabled]

Empty Unknown

[Enabled] [Disabled]

Empty Unknown

[Enabled] [Disabled]

Empty Unknown

[Enabled] [Disabled]

SATA Controller(s)

Enables or disables SATA device.

Enable or Disable SATA Port

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode Selection

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Port 0 to Port 3

Enables or disables SATA port 0 to port 3.

Spin Up Device

Enables or disables staggered spin up on devices connected to Serial ATA port 0 to port 3.

35

NEX 609 User Manual

Chapter 3: BIOS Setup

Intel® TXT(LT) Configuration

This section displays the configuration status of Intel® Trusted Execution Technology Configuration.

Advanced

Intel Trusted Execution Technology Conguration

Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extensions (SMX) Enabled

Intel TXT(LT) Support [Disabled]

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

AMT Configuration

This section is used to configure Active Management Technology (AMT) options.

Advanced

Intel AMT

BIOS Hotkey Pressed MEBx Selection Screen

[Enabled]

[Disabled] [Disabled]

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel® AMT

Enables or disables Intel® Active Management Technology.

BIOS Hotkey Pressed

Enables or disables BIOS hotkey press.

MEBx Selection Screen

Enables or disables MEBx selection screen.

36

NEX 609 User Manual

Chapter 3: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support

USB3.0 Support

[Enabeld]

[Enabled]

Enables Legacy USB support. AUTO option disables legacy Support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

Super IO Configuration

This section is used to configure the serial ports.

Advanced

Super IO Conguration

Super IO Chip



Serial Port 0 Conguration



Serial Port 1 Conguration



Serial Port 2 Conguration



Serial Port 3 Conguration



Serial Port 4 Conguration



Serial Port 5 Conguration

IT8783F

Super IO Chip

Displays the Super I/O chip used on the board.

Set Parameters of Serial Port O (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

USB3.0 Support

Enables or disables USB 3.0 controller support.

37

NEX 609 User Manual

Chapter 3: BIOS Setup

Serial Port 0 Configuration

This section is used to configure serial port 0.

Advanced

Serial Port 0 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port Max Baud Rate

[Enabled]

IO=3F8h; IRQ=4;

[IO=3F8h; IRQ=4;] [115200 bps]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 1 Configuration

This section is used to configure serial port 1.

Advanced

Serial Port 1 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port 1 Mode Onboard Serial Port Max Baud Rate

[Enabled]

IO=2F8h; IRQ=3;

[IO=2F8h; IRQ=3;] [RS232] [115200 bps]

Serial Port

Enables or disables the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

Onboard Serial Port 1 Mode

Select this to change the serial port mode to RS232, RS422, RS485 or RS485 AUTO.

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

38

NEX 609 User Manual

Chapter 3: BIOS Setup

Serial Port 2 Configuration

This section is used to configure serial port 2.

Advanced

Serial Port 2 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port Max Baud Rate

[Enabled]

IO=3E8h; IRQ=10;

[IO=3E8h; IRQ=10;] [115200 bps]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 3 Configuration

This section is used to configure serial port 3.

Advanced

Serial Port 3 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port Max Baud Rate

[Enabled]

IO=2E8h; IRQ=11;

[IO=2E8h; IRQ=11;] [115200 bps]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

39

NEX 609 User Manual

Chapter 3: BIOS Setup

Serial Port 4 Configuration

This section is used to configure serial port 4.

Advanced

Serial Port 4 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port Max Baud Rate

[Enabled]

IO=2F0h; IRQ=6;

[IO=2F0h; IRQ=6;] [115200 bps]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 5 Configuration

This section is used to configure serial port 5.

Advanced

Serial Port 5 Conguration

Serial Port

Device Settings

Change Settings Onboard Serial Port Max Baud Rate

[Enabled]

IO=2E0h; IRQ=7;

[IO=2E0h; IRQ=7;] [115200 bps]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

Change Settings

Selects an optimal setting for the Super IO device.

Onboard Serial Port Max Baud Rate

Select this to change the max baud rate of the serial port.

40

NEX 609 User Manual

Chapter 3: BIOS Setup

Smart Fan Function

This section is used to configure the fan’s function.

Advanced

Pc Health Status

Smart Fan Mode

[Full on Mode]

Smart Fan Mode

Configures the fan’s operating mode.

Smart Fan Mode Select

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

PC Health Status

CPU temperature System temperature Fan1 Speed Fan2 Speed Vcore

3.3V 5V 12V

: +52C : +30C : 6750 RPM : N/A : +0.816 V : +3.296 V : +5.017 V : +11.932 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Temperature

Detects and displays the current CPU temperature.

System Temperature

Detects and displays the current system temperature.

Fan1 Speed

Detects and displays Fan1 speed.

41

NEX 609 User Manual

Chapter 3: BIOS Setup

Fan2 Speed

Detects and displays Fan2 speed.

Vcore

Detects and displays the Vcore CPU voltage.

3.3V

Detects and displays 3.3V voltage.

5V

Detects and displays 5V voltage.

12V

Detects and displays 12V voltage.

CPU PPM Configuration

This section is used to configure the Processor Power Management (PPM) configuration.

Advanced

CPU PPM Conguration

EIST

CPU C3 Report CPU C6 report CPU C7 report

[Disabled]

[Disabled] [Disabled] [Disabled]

Enable/Disable Intel SpeedStep

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

EIST

Enables or disables Intel® SpeedStep.

CPU C3 Report

Enables or disables C3 report to the operating system.

CPU C6 Report

Enables or disables C6 report to the operating system.

CPU C7 Report

Enables or disables C7 report to the operating system.

42

NEX 609 User Manual

Chapter 3: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Advanced Chipset Boot SecurityMain

► PCH-IO Conguration

► System Agent (SA) Conguration

System Agent (SA) Configuration

System Agent (SA) parameters.

PCH-IO Configuration

PCH-IO parameters.

Save & Exit

PCH Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH-IO Configuration

This section is used to configure PCH-IO configuration.

Chipset

► USB Conguration

► PCH Azalia Conguration

LAN2 Controller PCH LAN Controller Wake on LAN

Restore AC Power Loss RTC RAM Lock

[Enabled] [Enabled] [Enabled]

[Power Off] [Enabled]

USB Conguration settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

LAN2 Controller

Enables or disables onboard LAN 2 controller.

PCH LAN Controller

Enables or disables onboard NIC.

Wake on LAN

Enables or disables integrated LAN to wake the system.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

RTC RAM Lock

Enables or disables RTC RAM lock.

43

NEX 609 User Manual

Chapter 3: BIOS Setup

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) configuration.

Chipset

VT-d

► Graphics Conguration ► NB PCIe Conguration

Check to enable VT-d function on MCH.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

VT-d

Enables or disables VT-d function on MCH.

Graphics Configuration

Configures the graphic chip settings.

NB PCIe Configuration

Configures the NB PCI Express settings.

Graphics Configuration

This section is used to configure the Intel® IGFX configuration.

Chipset

Graphics Configuration

Primary Display

Internal Graphics DVMT Total Gfx Mem LCD Control

►

[Auto]

[Auto] [256M]

Select which of IGFX/PEG/ PCI Graphics device should be Primary Display Or select SG for Switchable Gfx.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Primary Display

Select which of IGFX/PEG/PCI graphics device should be primary display or select SG for switchable GFx.

Internal Graphics

Keep IGD enabled based on the setup options. The options are Auto, Disabled and Enabled.

DVMT Total Gfx Mem

Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device. The options are 128M, 256M and MAX.

44

NEX 609 User Manual

Chapter 3: BIOS Setup

LCD Control

This section is used to configure the LCD functions.

Chipset

LCD Control

Primary IGFX Boot Display

Secondary IGFX Boot Display LVDS1 Panel Type LVDS2 Panel Type Active LFP LVDS1 Panel Color Depth LVDS1 Backlight LVDS2 Backlight

[CRT]

[Disabled] [800x600 LVDS] [1280x1024 ] [Int-LVDS] [18 Bit] [100%] [100%]

Select the video device which will be activated during POST. This has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Primary IGFX Boot Display

Select the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

LVDS1 Panel Type

Select the LCD panel used by the LVDS1 by selecting the appropriate setup item.

LVDS2 Panel Type

Select the LCD panel used by the LVDS2 by selecting the appropriate setup item.

Active LFP

Select the Active LFP configuration.

No LVDS VBIOS does not enable LVDS. Int-LVDS VBIOS enables LVDS driver by Integrated encoder.

LVDS1 Panel Color Depth

Select the Panel Color Depth for LVDS1.

LVDS1 Backlight

Adjusts the brightness of LVDS1 backlight.

LVDS2 Backlight

Adjusts the brightness of LVDS2 backlight.

Secondary IGFX Boot Display

Select the secondary display device.

45

NEX 609 User Manual

Chapter 3: BIOS Setup

NB PCIe Configuration

This section is used to configure Northbridge PCI Express settings.

Chipset

NB PCIe Conguration

PEGO

PEGO - Gen X

Enable PEG

Not Present

[Auto]

[Enabled]

Congure PEG0 B0:D1:F0

Gen1-Gen3. IVB maximum Gen3, SNB maximum Gen2.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PEG0 – Gen X

Configure PEG0 B0:D1:F0 Gen1-Gen3. IVB maximum Gen3, SNB maximum Gen2. The options are Auto, Gen1, Gen2 and Gen3.

Boot

This section is used to configure the boot features.

Boot

Quiet Boot

Launch PXE OpROM policy

Boot Option Priorities

[Disabled]

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Enables or disables Quiet Boot option

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable PEG

Enables or disables the PEG slot.

Launch PXE OpROM Policy

Controls the execution of UEFI and legacy PXE OpROM.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

46

NEX 609 User Manual

Chapter 3: BIOS Setup

Security

Advanced Chipset Boot SecurityMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save & Exit

Advanced Chipset Boot SecurityMain

Save Changes and Reset

Discard Changes and Reset

Restore Defaults

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save & Exit

Reset the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

47

NEX 609 User Manual
