NEXCOM NDiS B842 User Manual

NEXCOM International Co., Ltd.

Multi-Media Solutions

Digital Signage Platform NDiS B862/B842

User Manual

NEXCOM International Co., Ltd.

Published March 2014

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Physical Features .....................................................................................1

NDiS B862 ........................................................................................... 1

NDiS B842 ........................................................................................... 2

NDiS B862 Hardware Specifications.........................................................3

NDiS B842 Hardware Specifications.........................................................4

Mechanical Dimensions ...........................................................................5

NDiS B862 ........................................................................................... 5

NDiS B842 ........................................................................................... 6

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................7

Precautions ............................................................................................7

Locations of the Jumpers and Connectors for NDiS B862 ........................8

Locations of the Jumpers and Connectors for NDiS B842 ........................9

Jumper Settings ....................................................................................10

Jumpers ................................................................................................ 11

RTC Control Connector .....................................................................11

Connector Pin Definitions .....................................................................12

External I/O Interfaces ........................................................................ 12

USB3.0 Port ...................................................................................12

HDMI Connectors ..........................................................................12

LAN and Dual USB2.0 Ports ............................................................ 13

LAN and Dual USB3.0 Ports ............................................................ 14

Dual RS232 Connector ................................................................... 15

S/PDIF Connector ...........................................................................15

Dual RS232 Connector ................................................................... 16

Internal Connectors ........................................................................... 17

SATA Data & Power Connectors .....................................................17

USB2.0 Connectors ........................................................................ 17

RS232 Connectors .........................................................................18

8051 Download Connector ............................................................ 18

RTC Battery Connector ...................................................................19

Power-in Connector .......................................................................19

MCU Debug Port ...........................................................................20

Power IC Debug Connector ............................................................20

ii

NDiS B862/B842 User Manual

Content

Port 80 Connector .........................................................................21

GPIO .............................................................................................. 21

Mini-PCIe Connector ...................................................................... 22

Mini-PCIe Connector ...................................................................... 23

SIM Card Slot .................................................................................24

Chapter 3: System Setup

Removing the Chassis Cover ................................................................25

Installing a SO-DIMM ............................................................................ 26

Installing the CPU .................................................................................27

Installing a 2.5” HDD Storage ...............................................................31

Installing a Wireless LAN Module ..........................................................35

Installing a TV Tuner Module ................................................................. 39

Installing a 3G Module .......................................................................... 43

Removing the Fan Modules ................................................................... 47

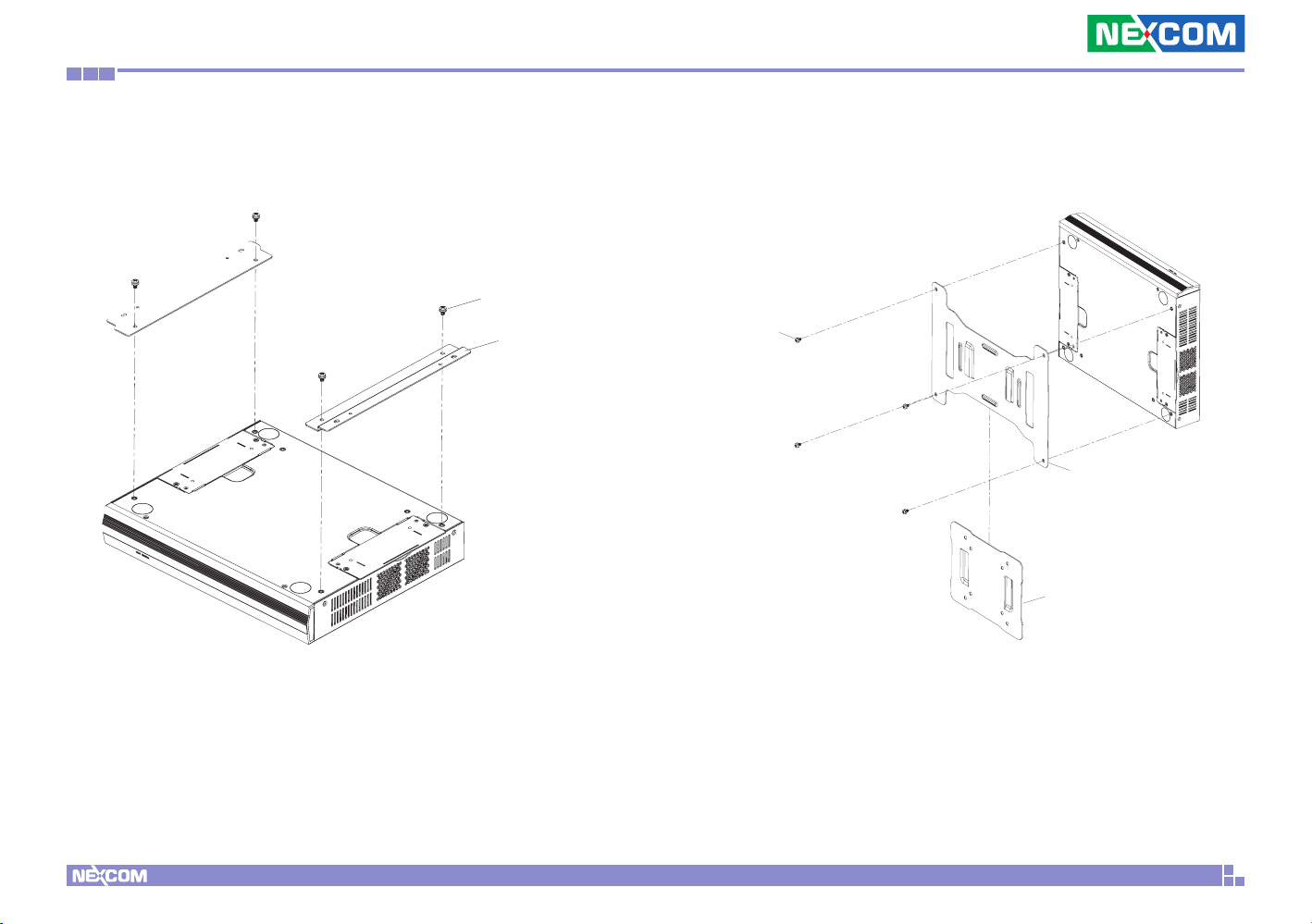

Wall Mount Installation .........................................................................48

VESA Mount Installation (Optional) .......................................................48

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 49

When to Configure the BIOS .................................................................49

Default Configuration ........................................................................... 50

Entering Setup ...................................................................................... 50

Legends ................................................................................................ 50

BIOS Setup Utility .................................................................................. 52

Main .................................................................................................52

Advanced .......................................................................................... 53

Boot .................................................................................................. 60

Security .............................................................................................61

Save & Exit ........................................................................................61

Appendix A: Watchdog Timer................................62

Appendix B: Supported Eyefinity Modes..............64

Appendix C: Video Driver Installation and Settings

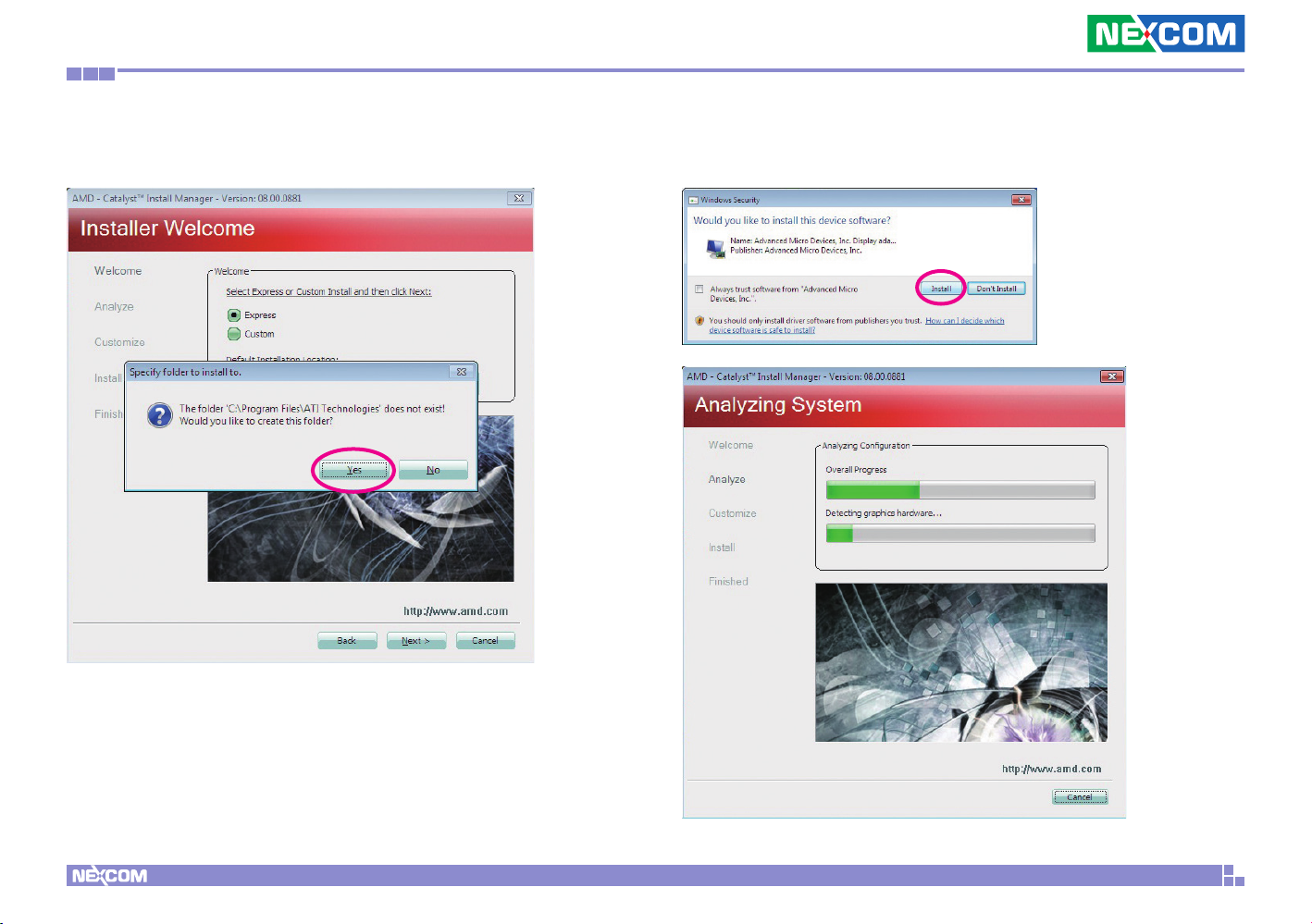

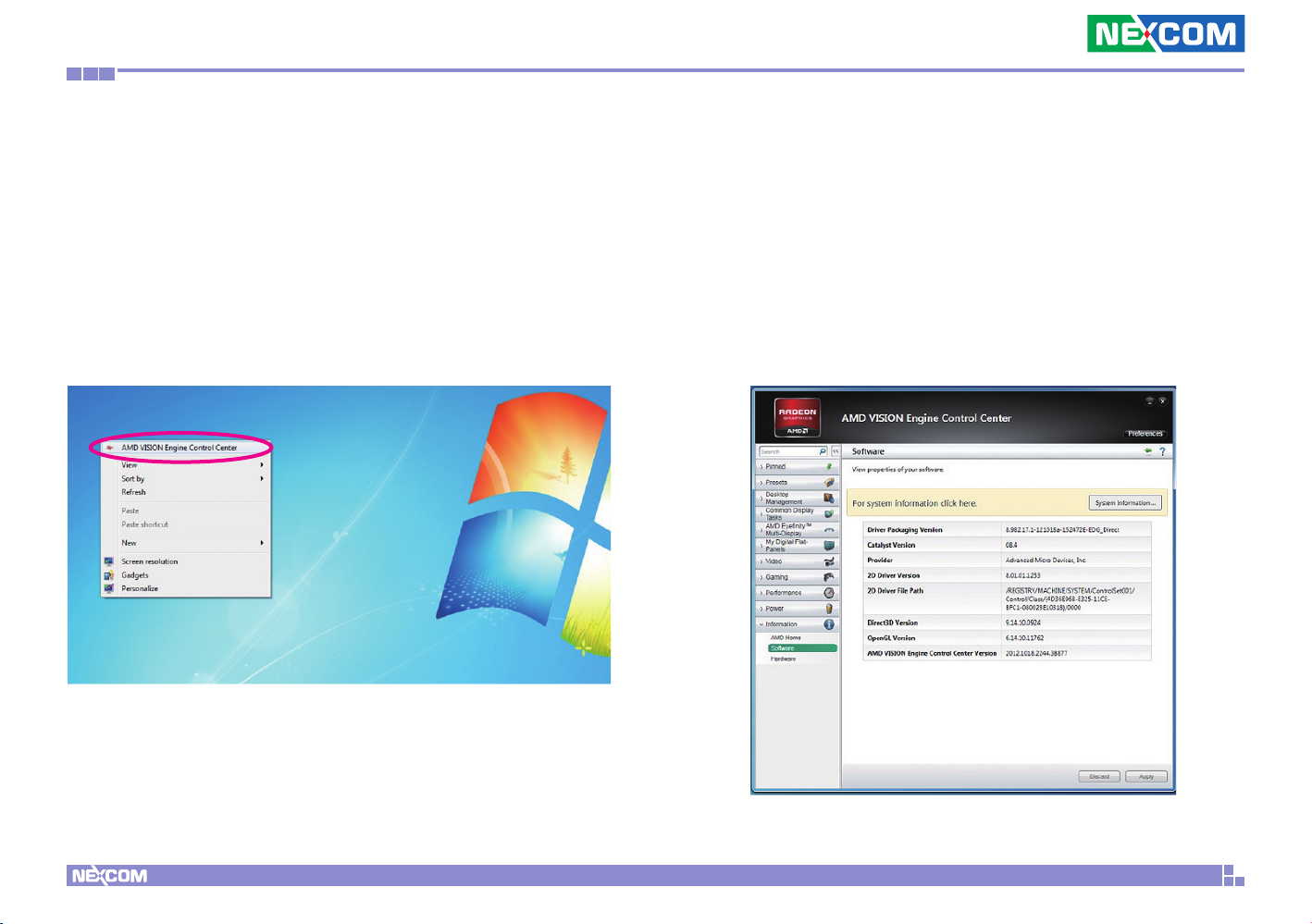

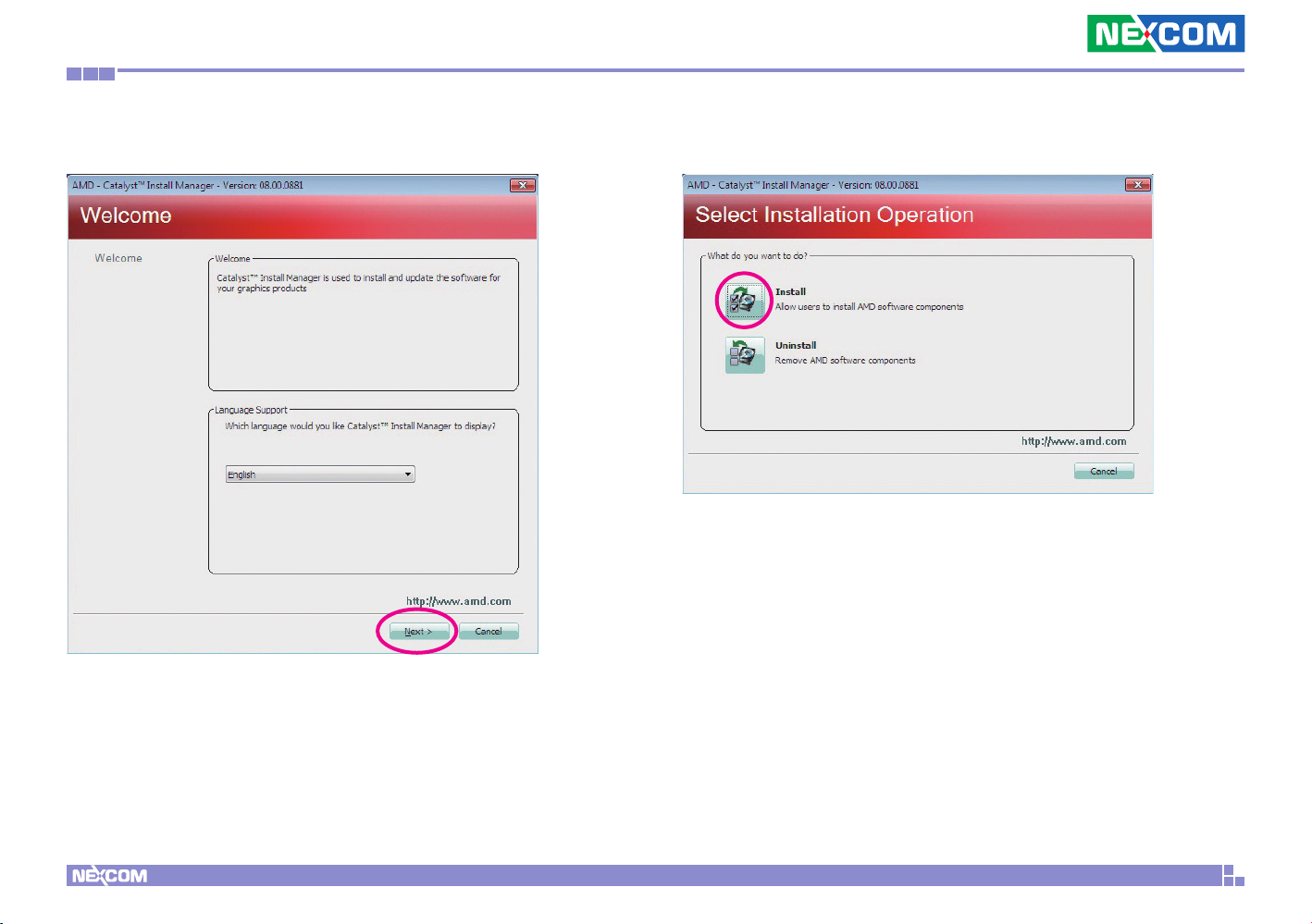

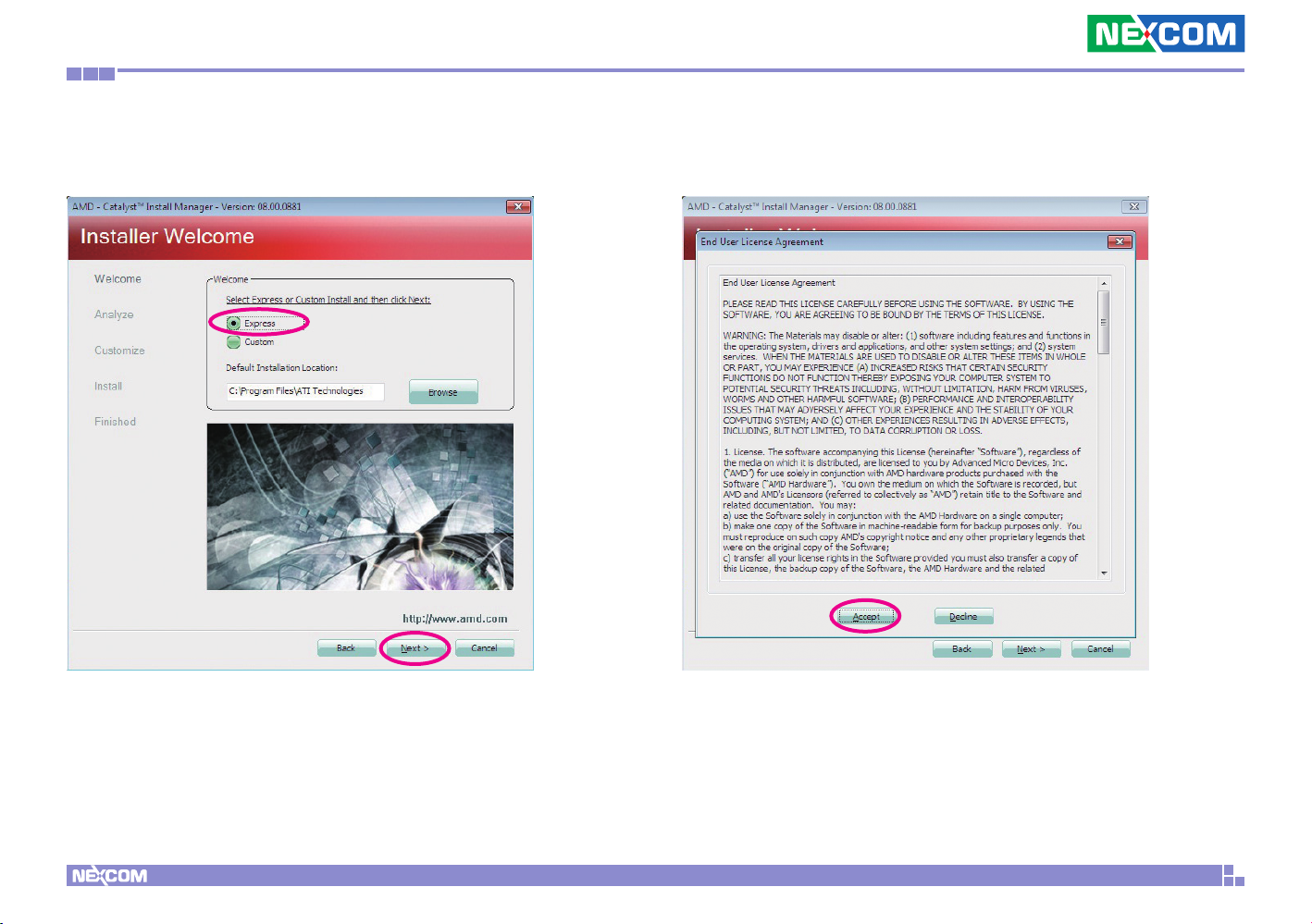

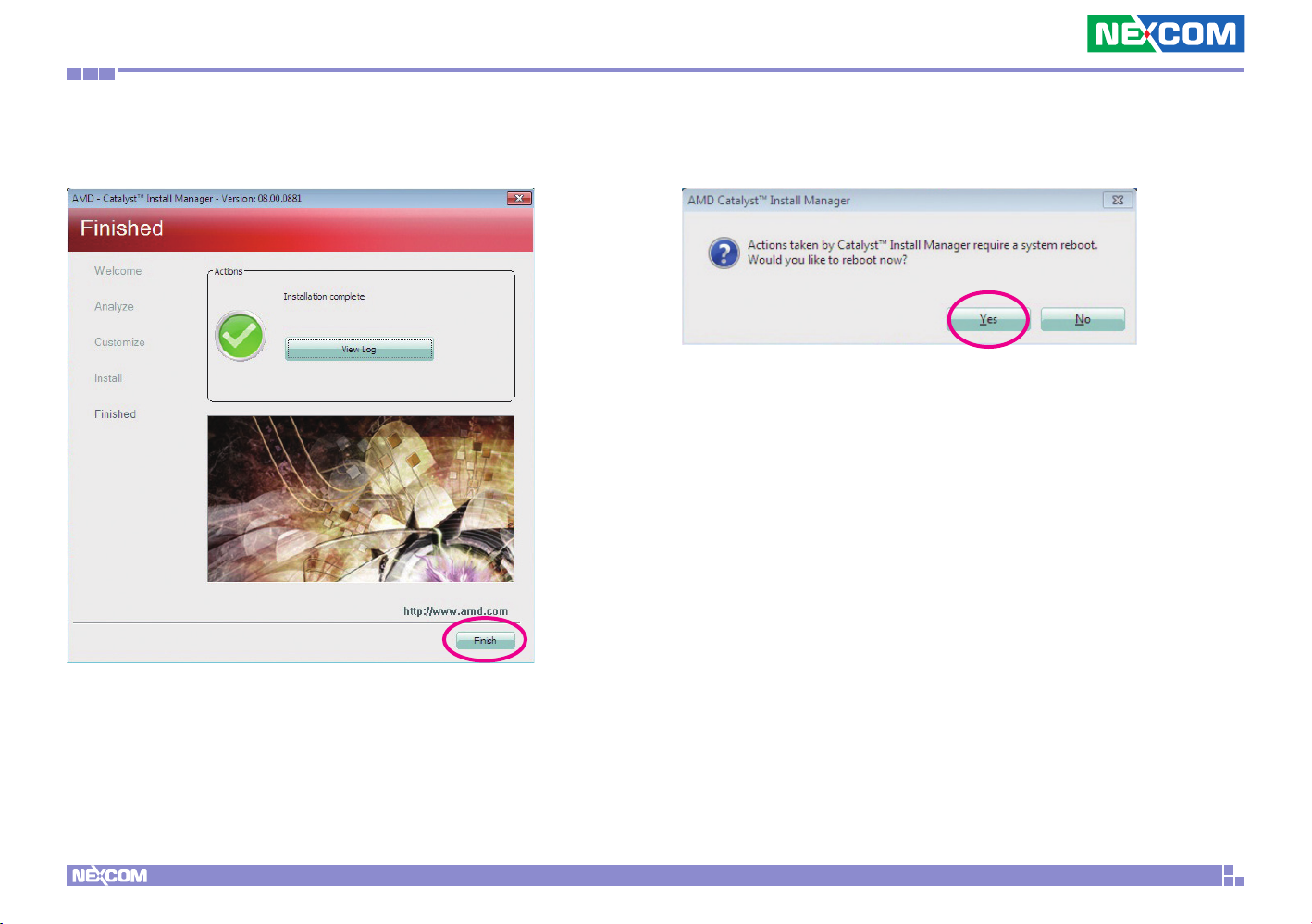

Installing the Video Driver .....................................................................71

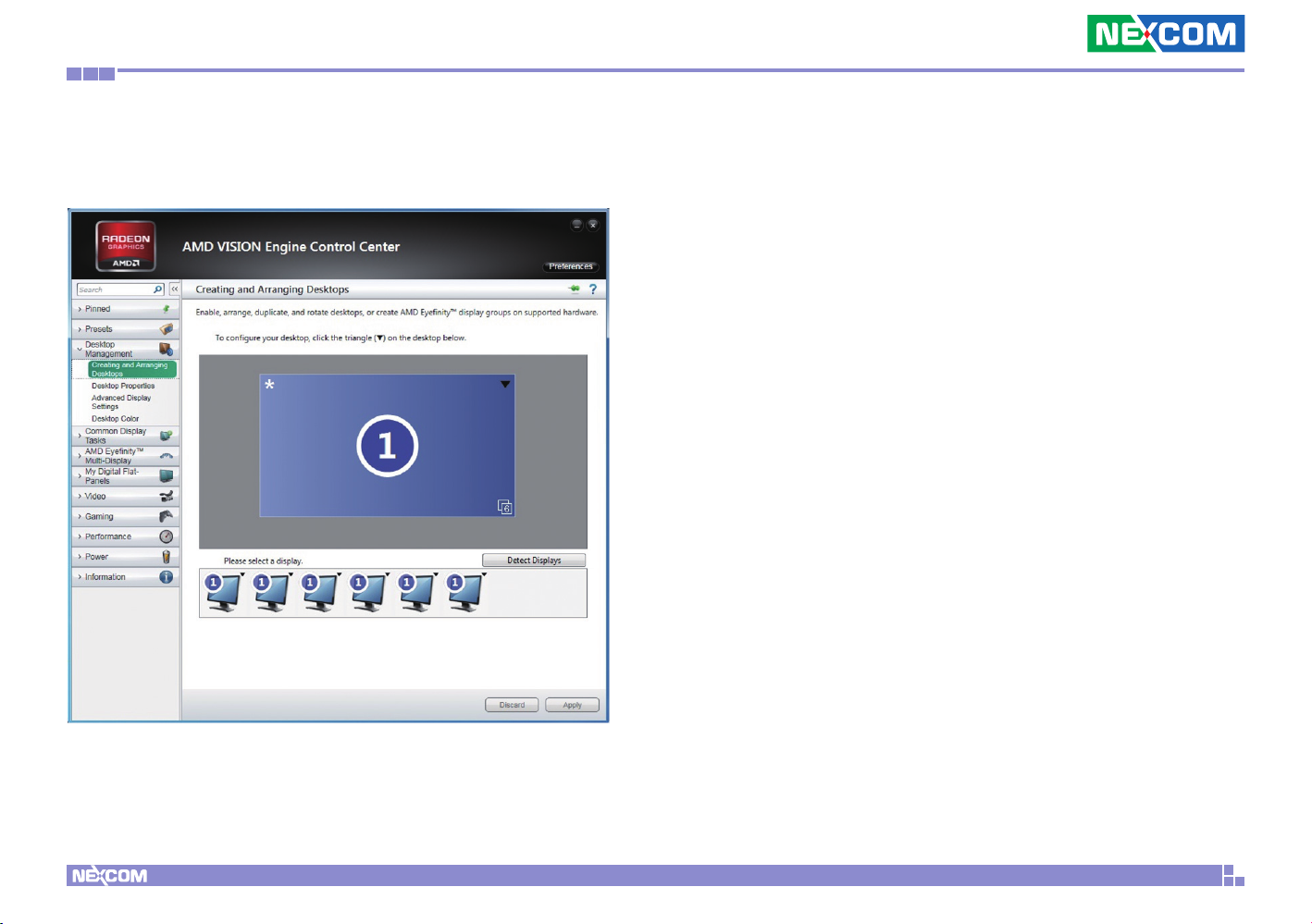

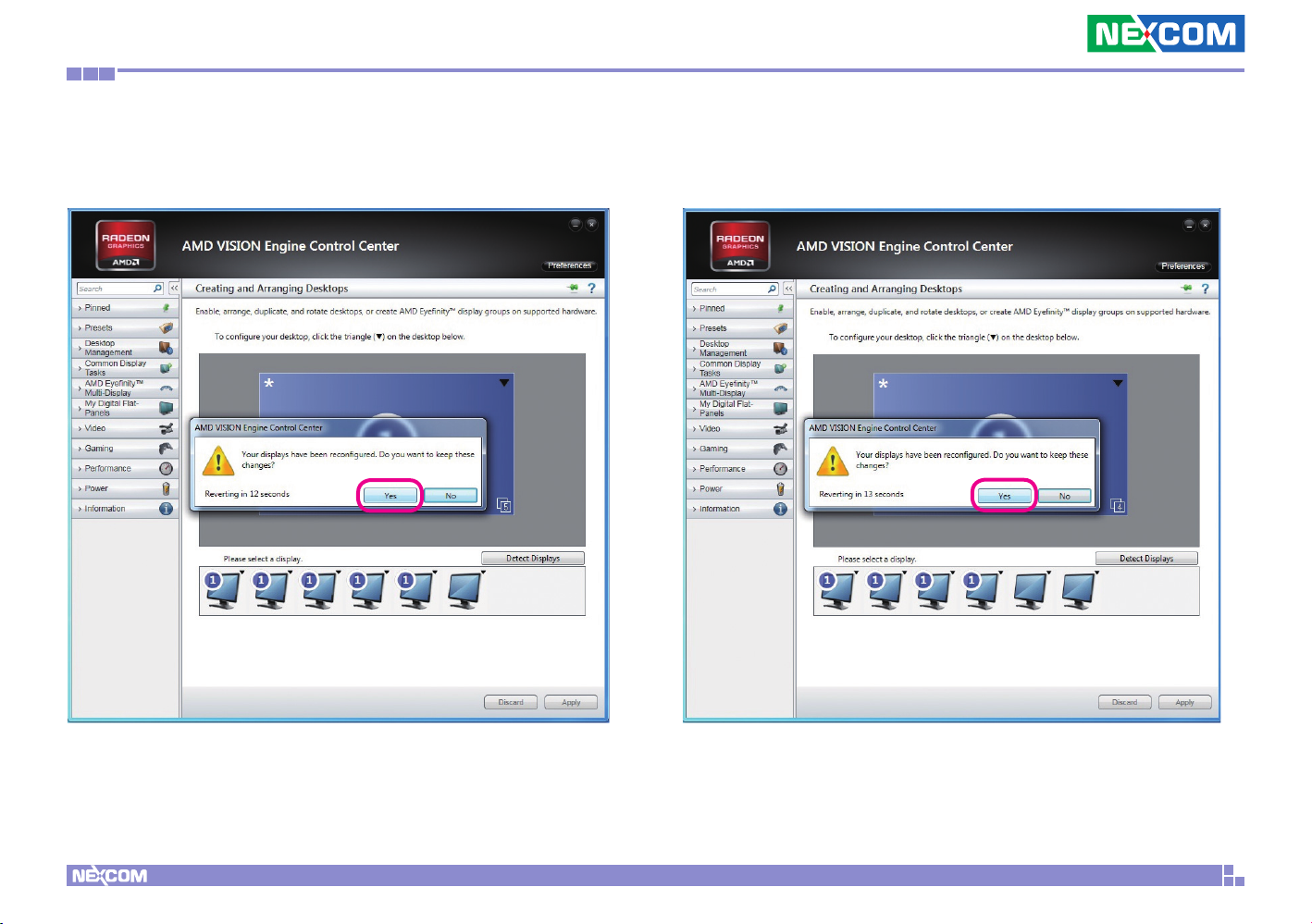

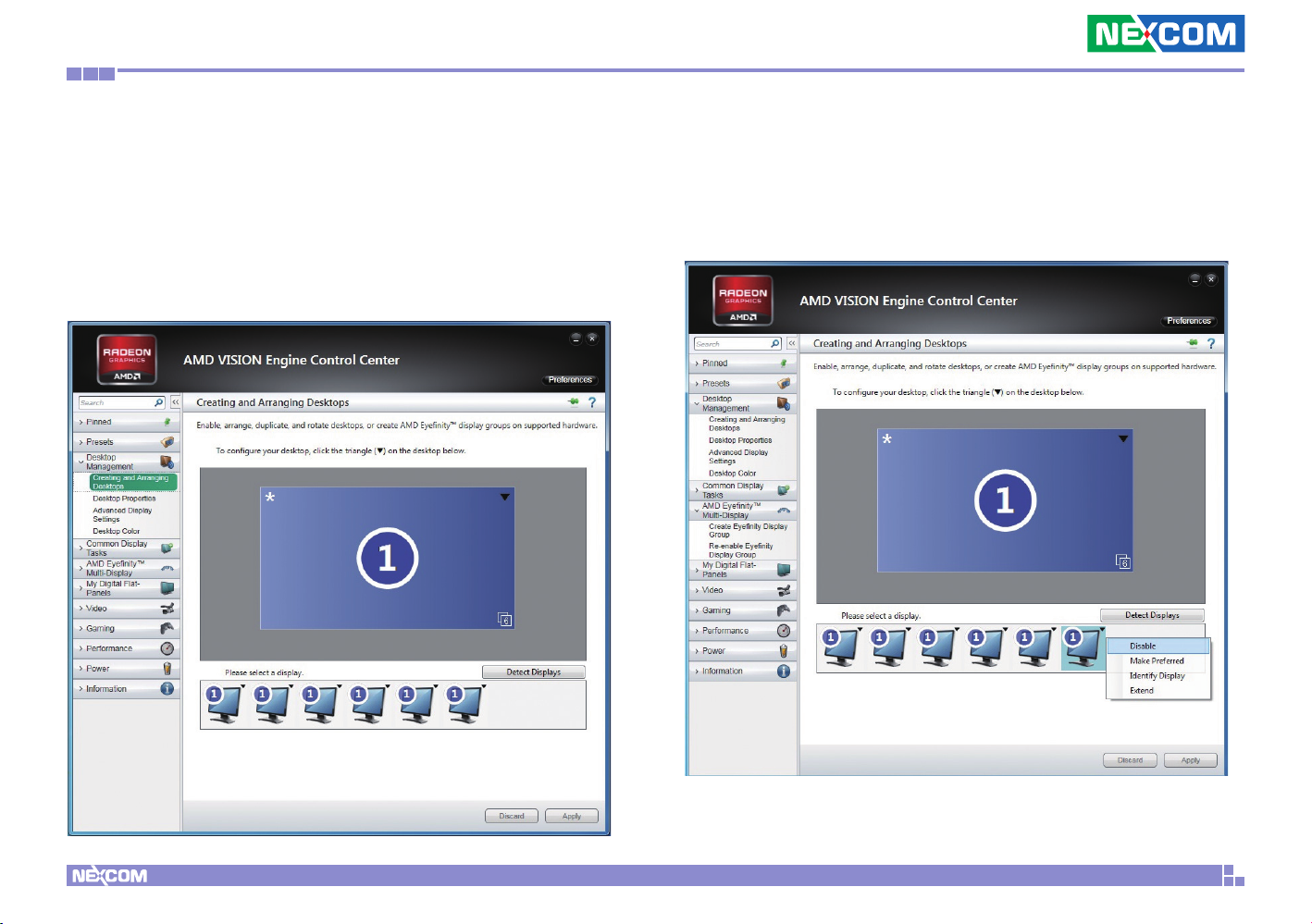

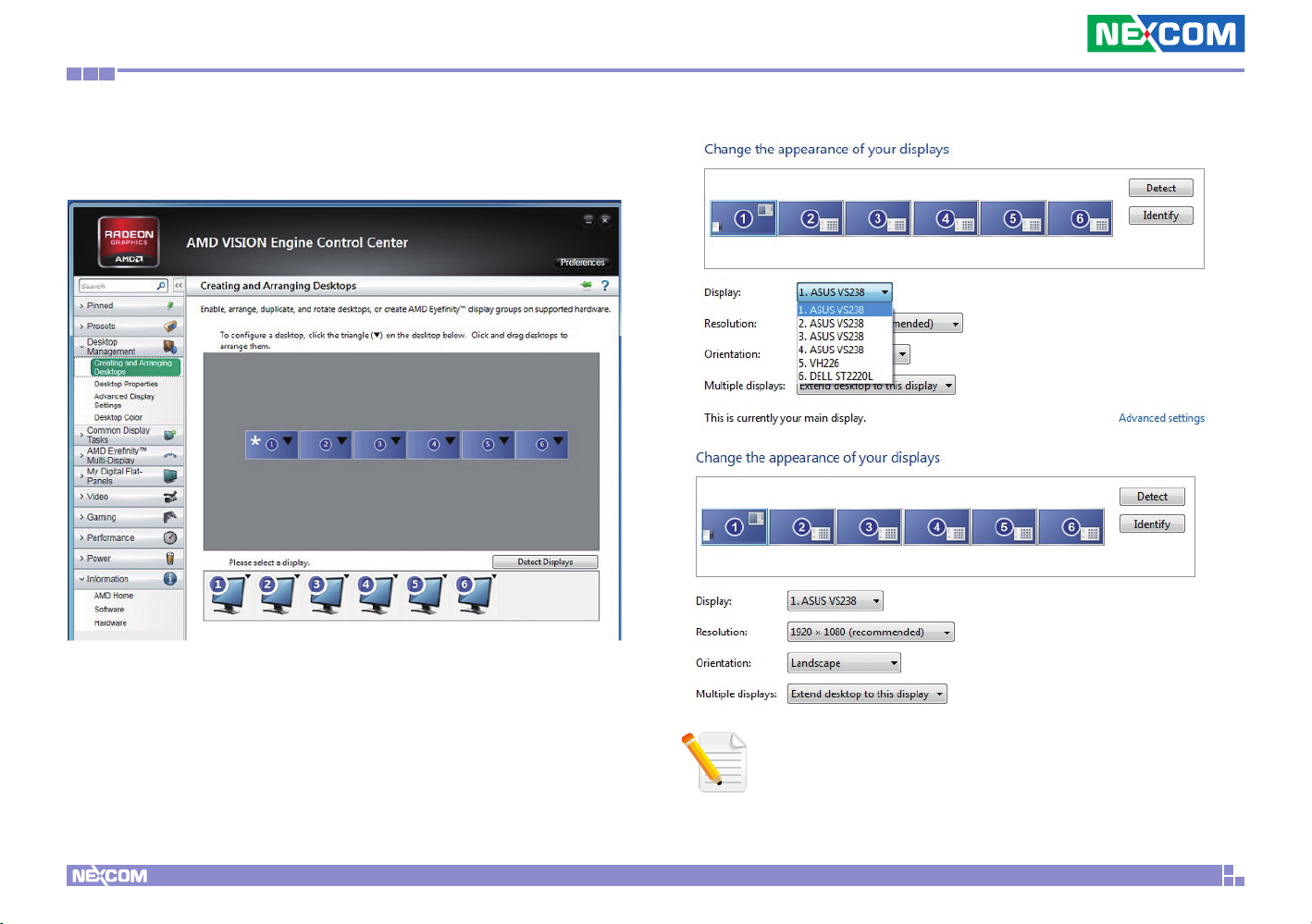

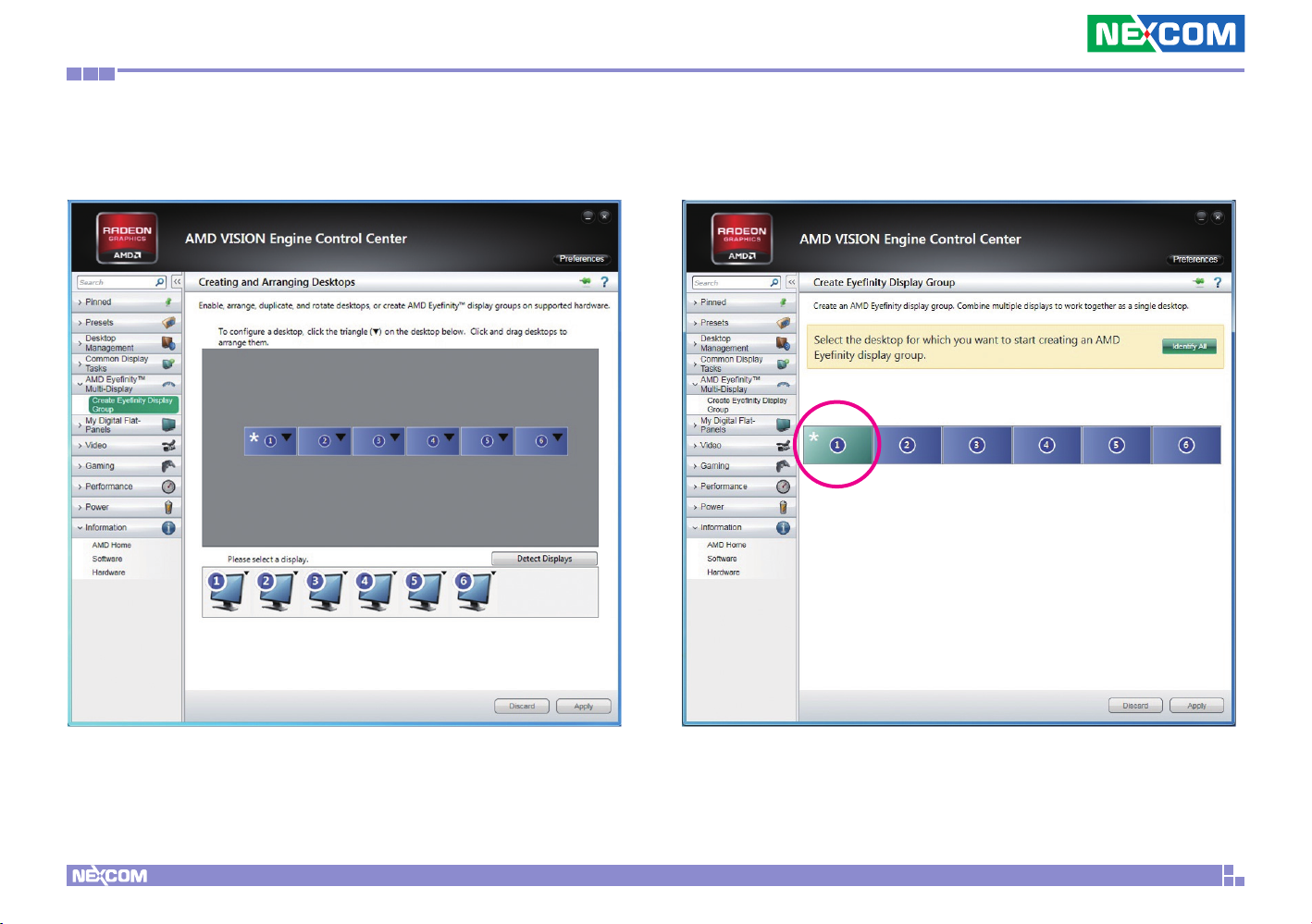

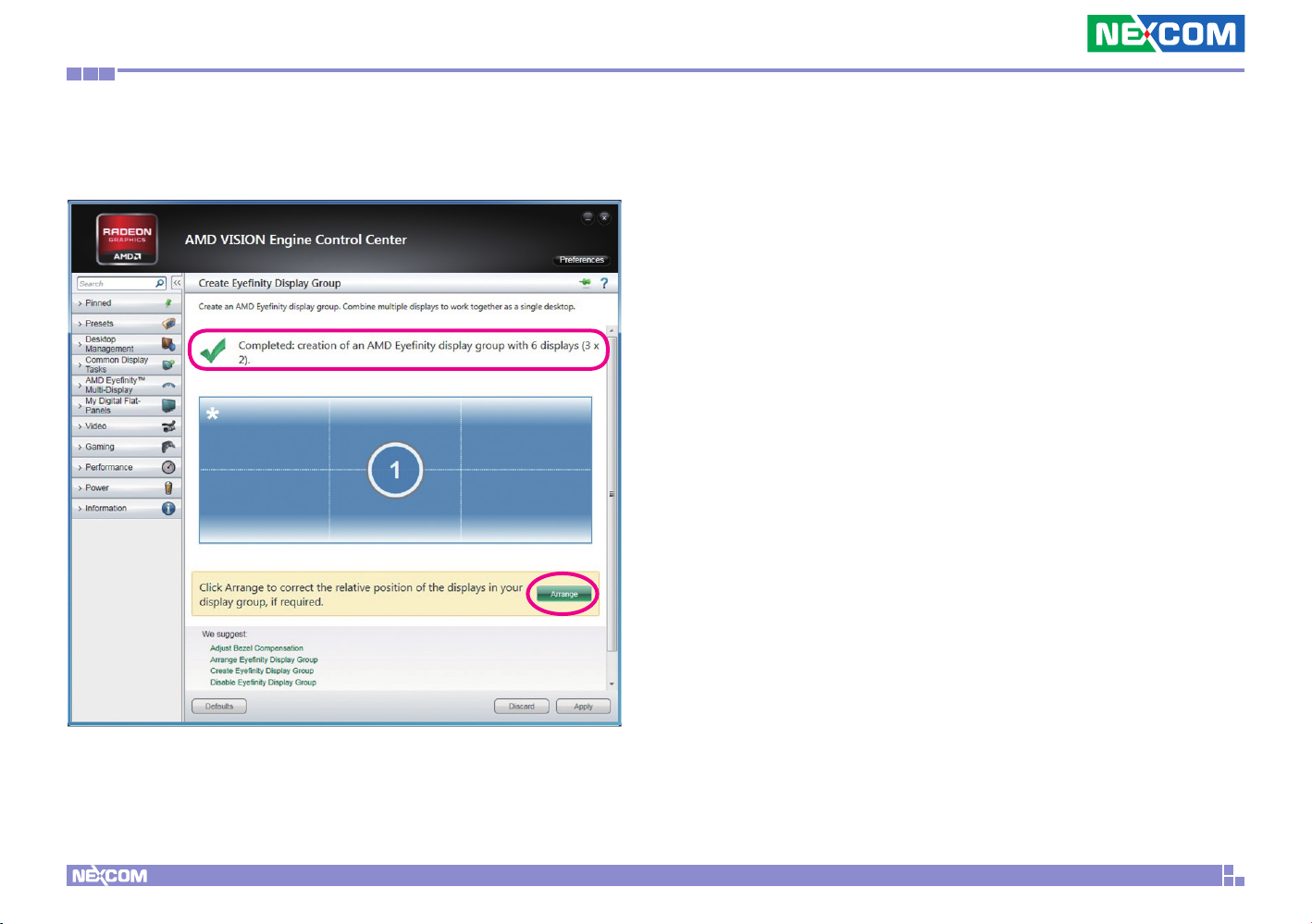

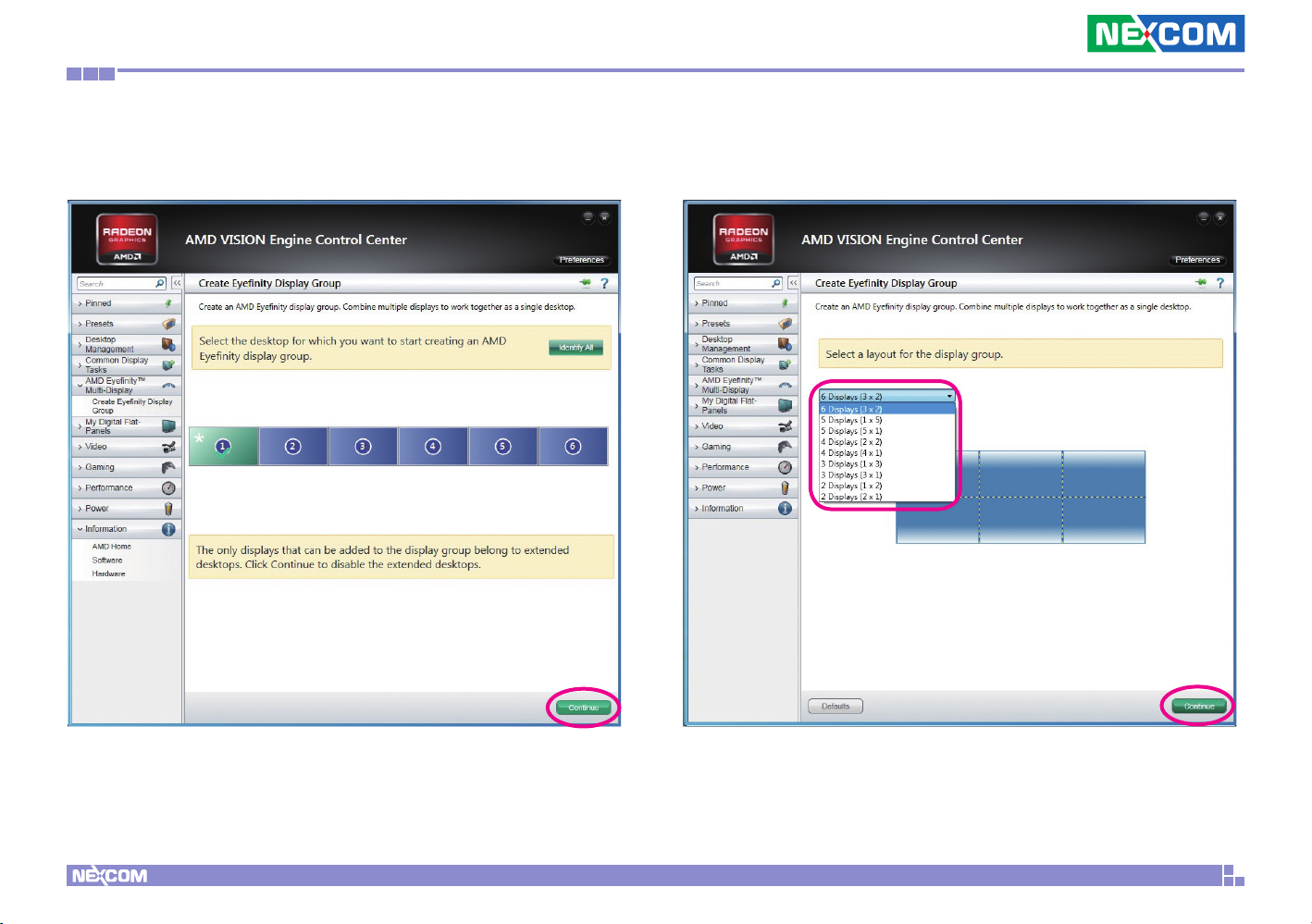

Create Eyefinity Display Group Setting ..................................................76

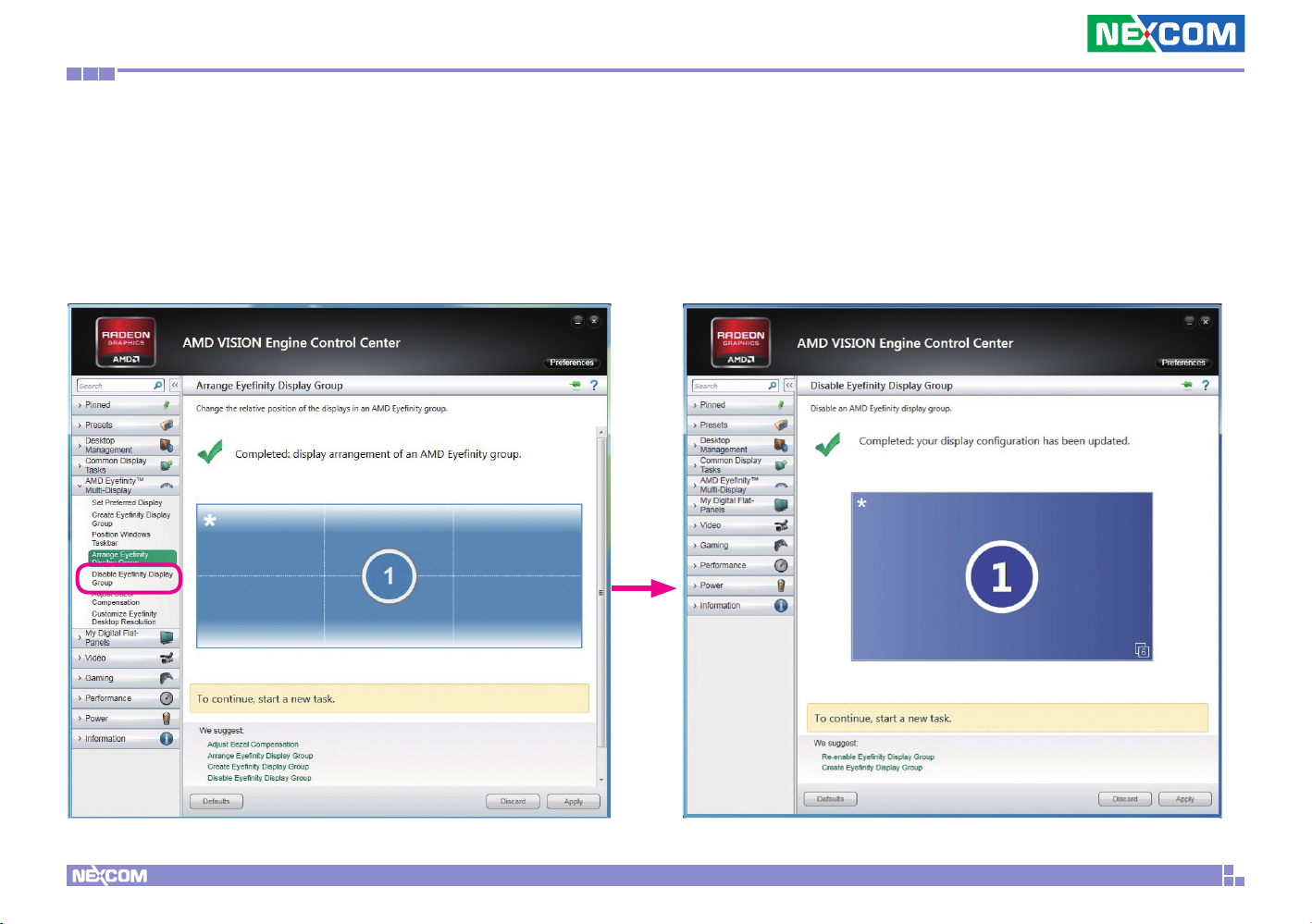

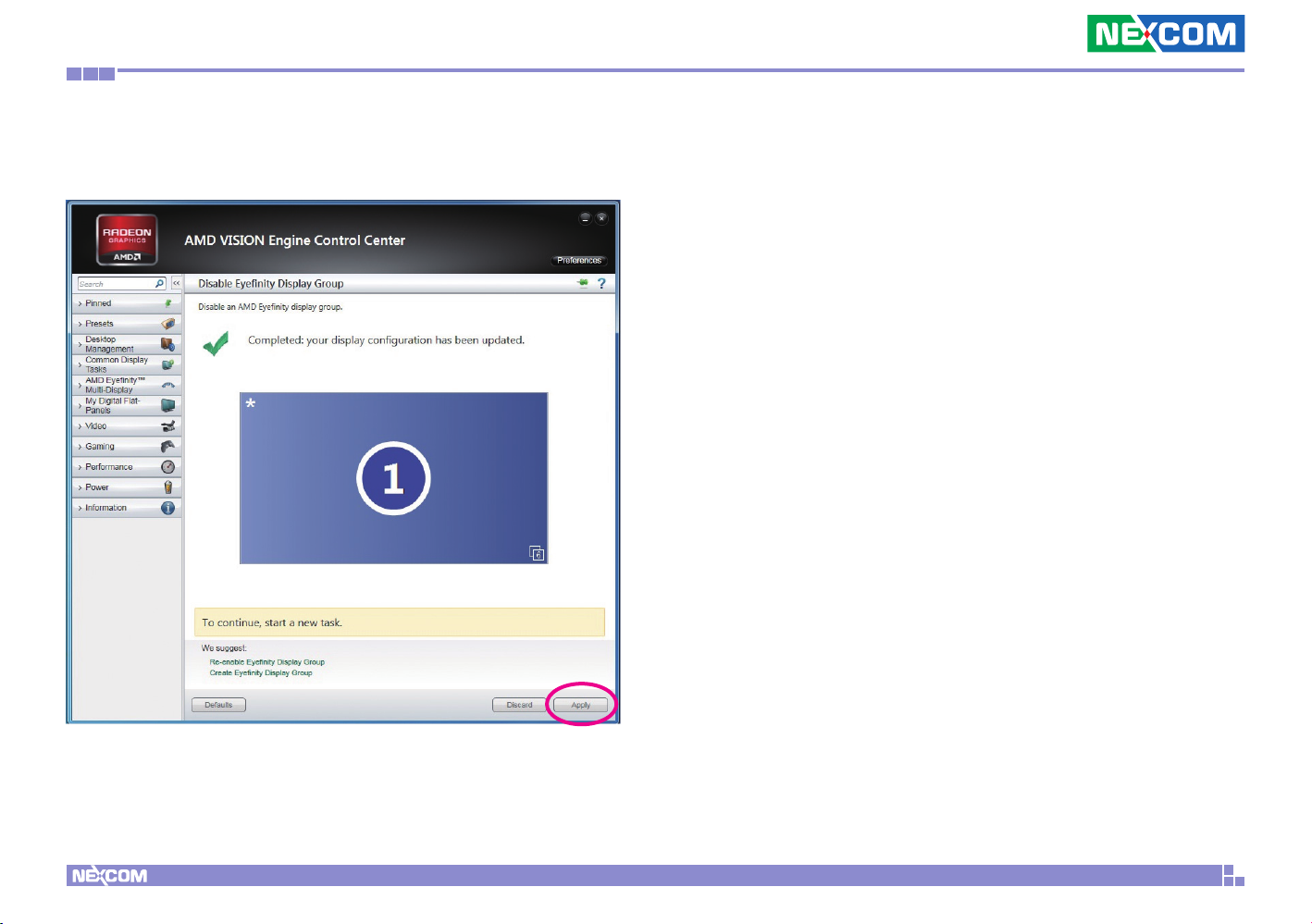

Disable Eyefinity Display Group Setting .................................................83

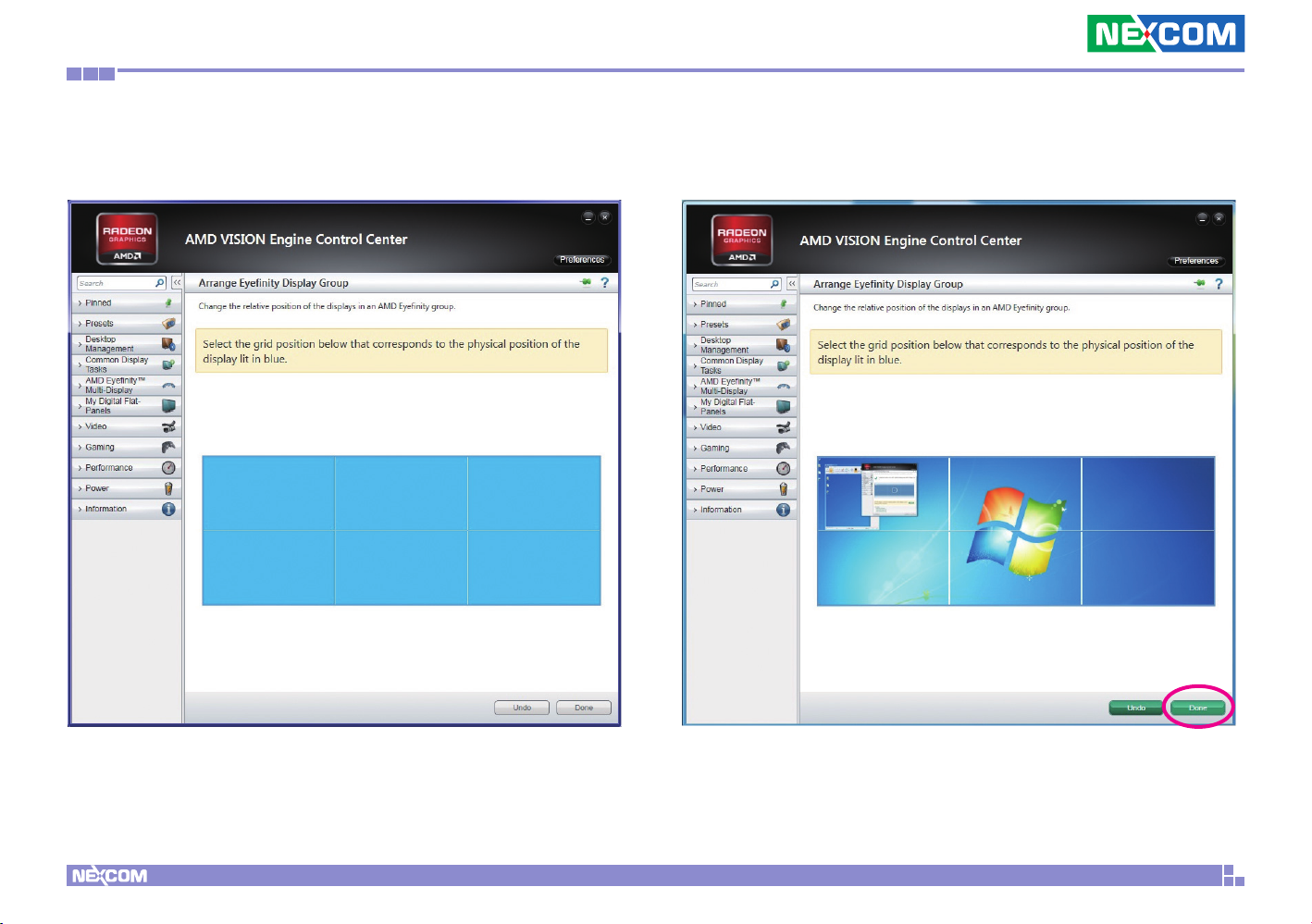

Changing the Display Group to Another Layout ....................................85

Appendix D: Display Continuity Installation

Configuration Flow Chart (Embedded 32-bit OS) ............................. 100

Embedded 32-bit Windows Instructions ....................................... 100

Configuration Flow Chart (Embedded 64-bit OS) ............................. 104

Embedded 64-bit Windows Instructions ....................................... 104

Appendix E:

HDTV Support Setting (Digital Flat-Panel)..........106

iii

NDiS B862/B842 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS B862 and NDiS B842 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NDiS B862/B842 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NDiS B862/B842 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NDiS B862/B842 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NDiS B862/B842 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NDiS B862/B842 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NDiS B862/B842 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NDiS B862/B842 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: [email protected] www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: [email protected]

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: [email protected] www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: [email protected] www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: [email protected] www.nexcom.cn

xi

NDiS B862/B842 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: [email protected] www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: [email protected] www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: [email protected] www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: [email protected] www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: [email protected] www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: [email protected] www.nexcomitalia.it

xii

NDiS B862/B842 User Manual

Preface

Package Contents

Before continuing, verify that the NDiS B862/B842 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 50311F0100X00

(H)Round Head Screw w/Spring+Flat Washer

Long FEI:P3x6L 2 50311F0119X00 (H)I Head Bolts Screw Long FEI:I3*12.5ISO NIGP I3x12.5 AXISx8.5mm SCREWx4mm 4 3 5044440031X00 Rubber Foot Kang Yang:RF20-5-4P 19.8x18x5.0mm 4 4 5044440090X00 (H)Thermal Pad Apus:3A2015001001500 15x10x1.5mm XR-PE 1

5 5044440201X00

NSC2107 SY Damper Kitagawa:SYD-1412-

ALS37ABK 6 5060600171X00 (H)2.5 HDD Mylar E-Lin 96.2x70x0.1mm 1 7 5060900409X00 NDiS B862 Bracket HDD Damper Panadvance 135x75x7.5 SPCC T=1.0mm Nickel Plating 1 8 5060900410X00 NDiS B862 Bracket HDD Panadvance 135x75x1 SPCC T=1.0mm Nickel Plating 1 9 6023309086X00 RJ45 to COM Cable ST:MD-5101162 DB9P/F TO RJ45 L:200mm 2

10 60233AT104X00 7P+15P SATA Cable ST:MD-6101056

11 602DCD0653X00 NDiS B862 DVD Driver Manual VER:1.0 JCL 1 12 7400096004X00 Power Adapter FSP:FSP096-DMBD1 96W 12V/8A 1

P3x6 iso/SW6x0.5 NI 4

4.7(inside diameter)x14.5(outside diameter)x8(H)mm BLACK

SATA 7+15P TO SATA L:150mm &PW 4P PH:2.54mm MALE L:150mm

4

1

xiii

NDiS B862/B842 User Manual

Preface

Ordering Information

The following provides ordering information for NDiS B862 and NDiS B842.

▪ NDiS B862 (P/N: 10W00B86200X0)

AMD R-series Dual/ Quad processors, AMD Hudson-M3 A70M chipset AMD Radeon

▪ NDiS B842 (P/N: 10W00B84200X0)

AMD R-series Dual/ Quad processors, AMD Hudson-M3 A70M chipset AMD Radeon

▪ VESA Mount (P/N:10W00VESA01X0) (Optional)

NDiS-VESA-02 KIT, for NDiS B862/B842/165 Chassis

TM

E6760 GPU

TM

E6760 GPU

xiv

NDiS B862/B842 User Manual

Chapter 1: Product Introduction

Physical Features

NDiS B862

Front Panel

Rear Panel

Antenna AntennaAntenna LAN LAN RS232

HDD LEDPower LED

Power Switch

12V

DC-in

HDMI1 ~ HDMI6Reset

USB2.0 USB3.0 SPDIF Line-out

1

Line-in

NDiS B862/B842 User Manual

Chapter 1: Product Introduction

NDiS B842

Front Panel

Rear Panel

Antenna AntennaAntenna LAN LAN RS232

HDD LEDPower LED

Power Switch

12V

DC-in

HDMI1 ~ HDMI4Reset

USB2.0 USB3.0 SPDIF Line-out

Line-in

2

NDiS B862/B842 User Manual

Chapter 1: Product Introduction

NDiS B862 Hardware Specifications

CPU Support

▪ AMD R-series Dual/ Quad processors

Chipset

▪ AMD Hudson-M3 A70M Fusion Controller Hub ▪ AMD Radeon™ E6760 GPU

Main Memory

▪ 2x 204-pin SO-DIMM sockets, supports DDR3 1600/1333MHz non-ECC,

un-buffered memory up to 16GB (single socket max. 8GB)

I/O Interface-Front

▪ 1x HDD LED ▪ 1x Power LED

I/O Interface-Rear

▪ +12V DC-in ▪ 2x RJ45 for RS-232 ▪ 2x USB3.0 ▪ 2x USB2.0 ▪ 2x RJ45 with LEDs for 10/100/1000Mbps Ethernet ▪ 1x Line-in, 1x Line-out ▪ 1x SPDIF ▪ 6x HDMI ▪ 3x antenna hole for Wi-Fi and TV tuner ▪ 1x Power switch with LED ▪ 1x Reset switch

Storage Device

▪ 1x SATA 2.5” HDD ▪ 1x SATA DOM

Expansion

▪ 1x Mini-PCIe for optional WLAN module ▪ 1x Mini-PCIe for optional TV tuner module

Dimensions

▪ 280mm (W) x 230mm (D) x 44mm (H) (11.0” x 9.0” x 1.7”)

w/o mounting bracket

Power Supply

▪ External 120W AC/ DC adapter ▪ Input: 100~240VAC ▪ Output: +12VDC

Environment

▪ Operating temperature: ambient with air flow from 0°C to 45°C ▪ Storage temperature: -20°C to 80°C ▪ Humidity: 10 to 90% (non-condensing)

Certification

▪ CE approval ▪ FCC Class A

Operating System

▪ Windows 7 / WES7

3

NDiS B862/B842 User Manual

Chapter 1: Product Introduction

NDiS B842 Hardware Specifications

CPU Support

▪ AMD R-series Dual/ Quad processors

Chipset

▪ AMD Hudson-M3 A70M Fusion Controller Hub ▪ AMD Radeon™ E6760 GPU

Main Memory

▪ 2x 204-pin SO-DIMM sockets, supports DDR3 1600/1333MHz non-ECC,

un-buffered memory up to 16GB (single socket max. 8GB)

I/O Interface-Front

▪ 1x HDD LED ▪ 1x Power LED

I/O Interface-Rear

▪ +12V DC-in ▪ 2x RJ45 for RS-232 ▪ 2x USB3.0 ▪ 2x USB2.0 ▪ 2x RJ45 with LEDs for 10/100/1000Mbps Ethernet ▪ 1x Line-in, 1x Line-out ▪ 1x SPDIF ▪ 4x HDMI ▪ 3x antenna hole for Wi-Fi and TV tuner ▪ 1x Power switch with LED ▪ 1x Reset switch

Storage Device

▪ 1x SATA 2.5” HDD ▪ 1x SATA DOM

Expansion

▪ 1x Mini-PCIe for optional WLAN module ▪ 1x Mini-PCIe for optional TV tuner module

Dimensions

▪ 280mm (W) x 230mm (D) x 44mm (H) (11.0” x 9.0” x 1.7”)

w/o mounting bracket

Power Supply

▪ External 120W AC/ DC adapter ▪ Input: 100~240VAC ▪ Output: +12VDC

Environment

▪ Operating temperature: ambient with air flow from 0°C to 40°C ▪ Storage temperature: -20°C to 80°C ▪ Humidity: 10 to 90% (non-condensing)

Certification

▪ CE approval ▪ FCC Class A

Operating System

▪ Windows 7 / WES7

4

NDiS B862/B842 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

NDiS B862

280

230

44

5

NDiS B862/B842 User Manual

Chapter 1: Product Introduction

NDiS B842

280

230

44

6

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NDiS B862 and NDiS B842 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

7

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for NDiS B862

The figure below is the main board used in the NDiS B862. It shows the locations of the jumpers and connectors.

CN16 CN15

CN17

J8 J7

CN12CN13

CN19

CN18

CN14

CN1

CON1

SW1

CN8 CN7 CN6 CN5 CN4

CN9

8

CON2 CON3

LAN1

CN2

CN3

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

CN16 CN15

Locations of the Jumpers and Connectors for NDiS B842

The figure below is the main board used in the NDiS B842. It shows the locations of the jumpers and connectors. Both NDiS B862 and NDiS B842 share the same connectors except that NDiS B862 features 6 HDMIs while NDiS B842 features four HDMIs.

CON1

CN17

CN1

SW1

CN9

CN8 CN7 CN6

J8 J7

CN12CN13

CN18

CN19

CON2 CON3

LAN1

CN14

CN2

CN3

9

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

10

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Control Connector

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP10

1 3

Pin Settings

1-2 On Normal mode 2-3 On Clear CMOS

Pin Settings

1 VRTC_3V 2 VCC_RTC 3 RTC_SHD

11

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

USB3.0 Port

Connector type: DC-JACK-4P-90 Connector location: CN1

1 2 3 4

Pin Definition

1 +12V 2 +12V 3 GND 4 GND 5 EGND

HDMI Connectors

Connector type: HDMI port Connector location: CN9, CN8, CN7, CN6, CN5 and CN4 (NDiS B862) CN9, CN8, CN7 and CN6 (NDiS B842)

18

2

Pin Definition Pin Definition

1 TMDS DATA2+ 2 GND 3 TMDS DATA2- 4 TMDS DATA1+ 5 GND 6 TMDS DATA17 TMDS DATA0+ 8 GND

9 TMDS DATA0- 10 TMDS CLOCK+ 11 GND 12 TMDS CLOCK13 CEC 14 NC 15 SCL 16 SDA 17 DDC 18 +5V 19 HOT PLUG DETECT

19

1

12

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

LAN and Dual USB2.0 Ports

Connector type: RJ45 port with LEDs Dual USB 2.0 ports, Type A Connector location: CON2

17

5

1

USB LAN

10

8

4

Pin Definition Pin Definition

1 +5V_1 2 D-_1 3 D+_1 4 GND 5 +5V_2 6 D-_2 7 D+_2 8 GND

Pin Definition Pin Definition

9 TCT 10 TD1+

11 TD1- 12 TD2+ 13 TD2- 14 TD3+ 15 TD3- 16 TD4+ 17 TD4- 18 TCTG 19 LVCC 20 SPDLED 21 ACTLED 22 LILED

13

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

LAN and Dual USB3.0 Ports

Connector type: RJ45 port with LEDs Dual USB 3.0 ports, Type A Connector location: CON3

10

USB

27

18

9

1

14

5

20

13

4

Pin Definition Pin Definition

1 VBUS1 2 D13 D1+ 4 GND 5 STDA_SSRX1- 6 STDA_SSRX1+ 7 GND 8 STDA_SST1-

9 STDA_SST1+ 10 VBUS2 11 D2- 12 D2+ 13 GND 14 STDA_SSRX215 STDA_SSRX2+ 16 GND 17 STDA_SSTX2- 18 STDA_SSTX2+

LAN

Pin Definition Pin Definition

19 VCT 20 MDX1+ 21 MDX1- 22 MDX2+ 23 MDX2- 24 MDX3+ 25 MDX3- 26 MDX4+ 27 MDX4- 28 GND 29 GND 30 LED 31 LED 32 LED

14

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Dual RS232 Connector

Connector type: RJ45 Connector location: LAN1A and LAN1B

LAN1A

Pin Definition Pin Definition

A1 RTS A3 TXD A4 GND A6 RXD A8 CTS

LAN1B

Pin Definition Pin Definition

B1 RTS B3 TXD B4 GND B6 RXD B8 CTS

S/PDIF Connector

Connector type: S/PDIF Connector Connector location: CN2

Pin Definition

1 SPDIF_OUT 2 SPD_3V3 3 GND

15

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Dual RS232 Connector

Connector type: 2x 3.5mm TRS Connector location: CN3

Line-in

Line-out

LAN1A

Pin Definition Pin Definition

1 GND 22 LINE IN L

2 LINE OUT L 23 GND

3 GND 24 LINE IN JD

4 LINE OUT JD 25 LINE IN R

5 LINE OUT R

16

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

SATA Data & Power Connectors

Connector type: Standard Serial ATAIII 7P (1.27mm, SATA-M-180) 1x4 4-pin header, 2.54mm pitch Connector location: CN12 & CN13 (Data), CN15 & CN16 (Power)

1

CN12 & CN13

Pin Definition

1 GND

2 SATA_TXP

3 SATA_TXN

4 GND

5 SATA_RXP

6 SATA_RXN

7 GND

CN15 & CN16

Pin Definition

1 +12V

2 GND

3 GND

4 +5V

7

14

1 4

USB2.0 Connectors

Connector type: 1x4 4-pin header JST, 2.0mm pitch Connector location: J7 & J8

14

Pin Definition

1 +5V 2 D3 D+ 4 GND

17

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

15

RS232 Connectors

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: CN18 & CN19

2 1

Pin Definition Pin Definition

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI 10 GND

10 9

8051 Download Connector

Connector type: 1x5 5-pin header, 2.54mm pitch Connector location: JP6, JP8, JP9 and JP4 (JP4 N/A in NDiS B842)

Pin Definition

1 +V3.3ALW 2 C2D 3 MRST 4 C2CK 5 GND

18

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

12

34

RTC Battery Connector

Connector type: 1x2 2-pin header JST, 1.25mm pitch Connector location: J3

1

Pin Definition

MH1 GND MH2 GND

2

1 GND

2 VBAT1

Power-in Connector

Connector type: 2x2 4-pin header AUX Connector location: CON1

Pin Definition

1 GND 2 GND 3 +12V 4 +12V

19

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

MCU Debug Port

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP7, JP5, JP2 and JP3

1 3

Pin Definition

1 GND

2 RXD

3 TXD

Power IC Debug Connector

Connector type: 1x3 3-pin header Wafer, 1.0mm pitch Connector location: J6

1

Pin Definition

1 GND 2 SMB_SDA 3 SMB_SCL

3

20

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

19

21

Port 80 Connector

Connector type: 1x10 10-pin header JST, 1.0mm pitch Connector location: J2

10

Pin Definition Pin Definition

1 VCC3_S 2 VCC3_S

3 LPC_AD0 4 LPC_AD1

5 LPC_AD2 6 LPC_AD3

7 LPC_FRAME# 8 LPC_CLK0

9 SIO_RST# 10 GND

1

GPIO

Connector type: 2x5 10-pin header, 2.54mm pitch Connector location: JP11

0

Pin Definition Pin Definition

1 GP_IN0 2 GP_OUT0 3 GP_IN1 4 GP_OUT1 5 GP_IN2 6 GP_OUT2 7 GP_IN3 8 GP_OUT3 9 GND 10 GND

21

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Connector

Connector location: CN10

12

51 52

Pin Definition Pin Definition

1 PCIE_WAKE# 27 GND

2 +3.3B_MINI 28 D15VS

3 NC 29 GND

4 GND 30 SMB_CLK

5 NC 31 mPCIE_TX_N

6 D15VS 32 SMB_DATA

7 CLKREQ# 33 mPCIE_TX_P

8 UIM_PWR 34 GND

9 GND 35 GND 10 UIM_DATA 36 USB_IN 11 MC_PCIE_CLK_N 37 GND 12 UIM_CLK 38 USB_IP 13 MC_PCIE_CLK_P 39 +3.3B_MINI

22

Pin Definition Pin Definition

14 UIM_RESET 40 GND 15 GND 41 +3.3B_MINI 16 UIM_VPP 42 NC 17 NC 43 GND 18 GND 44 LED_WLAN# 19 NC 45 NC 20 MINICARD1_DIS# 46 NC 21 GND 47 NC 22 WLAN_RESET# 48 D15VS 23 mPCIE_RX_N 49 NC 24 +3.3B_MINI 50 GND 25 mPCIE_RX_P 51 PRE-DEC 26 GND 52 +3.3B_MINI

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Connector

Connector location: CN11

12

51 52

Pin Definition Pin Definition

1 PCIE_WAKE# 27 GND

2 +3.3B_MINI 28 D15VS

3 NC 29 GND

4 GND 30 SMB_CLK

5 NC 31 mPCIE_TX_N

6 D15VS 32 SMB_DATA

7 CLKREQ# 33 mPCIE_TX_P

8 NC 34 GND

9 GND 35 GND 10 NC 36 USB_IN 11 MC_PCIE_CLK_N 37 GND 12 NC 38 USB_IP 13 MC_PCIE_CLK_P 39 +3.3B_MINI

23

Pin Definition Pin Definition

14 NC 40 GND 15 GND 41 +3.3B_MINI 16 NC 42 NC 17 NC 43 GND 18 GND 44 LED_WLAN# 19 NC 45 NC 20 MINICARD1_DIS# 46 NC 21 GND 47 NC 22 WLAN_RESET# 48 D15VS 23 mPCIE_RX_N 49 NC 24 +3.3B_MINI 50 GND 25 mPCIE_RX_P 51 PRE-DEC 26 GND 52 +3.3B_MINI

NDiS B862/B842 User Manual

Chapter 2: Jumpers and Connectors

SIM Card Slot

Connector location: CN14

C3 C2 C1

C7 C6 C5

Pin Definition Pin Definition

C1 UIM_PWR2 C5 GND C2 UIM_RST2 C6 NC C3 UIM_CLK2 C7 UIM_DAT2

24

NDiS B862/B842 User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

1. The screws on the sides and the rear are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.

is off and disconnected from the power sources to prevent electric shock or system damage.

Right side

Left side

Rear

2. Once all the screws are removed, from the front, push the cover forward to remove it.

25

NDiS B862/B842 User Manual

Chapter 3: System Setup

Installing a SO-DIMM

1. With the top cover removed, locate the DIMM1 and DIMM2 slots, then release the locks on slots.

SO-DIMM slots

2. Release the lock on the SO-DIMM slots.

3. Insert the module into the slot at an 90 degree angle. Apply firm even pressure to each end of the module until it slips into the slot.

4. While pushing the SO-DIMM into the position, the lock will close

automatically.

Lock

26

NDiS B862/B842 User Manual

Chapter 3: System Setup

Installing the CPU

1. With the top cover removed, loosen the mounting screws that secure the heat sink to the chassis.

2. Now remove the heat sink to access the CPU socket.

27

CPU socket

NDiS B862/B842 User Manual

Chapter 3: System Setup

3. Use a screwdriver to turn the screw to its unlocked position.

Locked Unlocked

4. Position the CPU above the socket. The gold triangular mark on the CPU must align with the white triangular mark on the mainboard.

White triangular

Gold triangular

Handle the CPU by its edges and avoid touching the pins.

28

NDiS B862/B842 User Manual

Chapter 3: System Setup

CAUTION!

5. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force. Use a screwdriver to turn the screw to its locked position.

CAUTION!CAUTION!

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

6. Attach the thermal pad onto the CPU.

29

NDiS B862/B842 User Manual

Chapter 3: System Setup

7. Align the mounting screws on the heat sink with the mounting holes on the board then tighten the screws to secure the heat sink in place.

Mounting hole

30

Mounting screw

NDiS B862/B842 User Manual

Chapter 3: System Setup

CAUTION!

Installing a 2.5” HDD Storage

The system is equipped with a 2.5” HDD drive bay. To install a HDD, please follow the instructions below.

CAUTION!CAUTION!

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

1. Stick the Mylar onto the bottom of the HDD bracket. 2. Place the HDD bracket on a firm surface, then put the HDD onto the

bracket. Make sure the connector side of the HDD is facing the direction circled in the diagram below.

Connector side

31

NDiS B862/B842 User Manual

Chapter 3: System Setup

3. Turn the bracket over and align the mounting holes on the bracket to the mounting holes on the HDD, then tighten 4 screws into the holes.

4. Once secured, slide the provided dampers into the damper opening on the mounting bracket as depicted in the diagram below.

Damper

32

NDiS B862/B842 User Manual

Chapter 3: System Setup

5. Locate the copper standoffs on the motherboard.

Copper stando

6. Place the HDD bracket’s base on top of the copper standoffs with the mounting holes aligned.

Copper stando

7. Similarly, put the HDD bracket on top of the base with the holes aligned.

8. Fasten screws into the holes to secure it.

Screw

33

NDiS B862/B842 User Manual

Chapter 3: System Setup

9. Connect the SATA data and power cables to the connector on the HDD. 10. Connect the SATA data and power cables to the connectors CN12 and

CN15 respectively.

SATA power

SATA data/power cable

SATA data

34

NDiS B862/B842 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

1. Remove the antenna hole covers at the rear of the chassis.

2. Locate the mini-PCIe connector (CN11) on the mainboard. If the HDD is installed, please remove it to locate the connector.

Antenna hole covers

Mini-PCIe connector (CN11)

35

NDiS B862/B842 User Manual

Chapter 3: System Setup

angle until the gold-plated connector on the edge of the module completely disappears inside the slot. Then secure it with screws.

4. Insert the 2 rings (ring 1 then ring 2) into the Wi-Fi antenna jacks.3. Insert the wireless LAN module into the mini-PCIe slot at a 45 degree

Screw

Ring1

Ring2

36

NDiS B862/B842 User Manual

Chapter 3: System Setup

5. Attach the RF cables onto the WLAN module and mount the Wi-Fi antenna jacks to the antenna holes then tighten the rings.

Antenna jack

RF cable

Antenna jack

37

NDiS B862/B842 User Manual

Chapter 3: System Setup

6. Replace the heatsink and the top cover, then connect the external

antennas to the Wi-Fi antenna jacks.

Antenna

38

NDiS B862/B842 User Manual

Chapter 3: System Setup

Installing a TV Tuner Module

1. Remove the antenna hole cover at the rear of the chassis.

Antenna hole cover

2. Locate the mini-PCIe connector (CN11) on the mainboard. If the HDD is installed, please remove it to locate the connector.

Mini-PCIe connector (CN11)

39

NDiS B862/B842 User Manual

Chapter 3: System Setup

until the gold-plated connector on the edge of the module completely disappears inside the slot. Then secure it with screws.

Screw

4. Insert the 2 rings (ring 1 then ring 2) into the antenna jack.3. Insert the TV tuner module into the mini-PCIe slot at a 45 degree angle

40

NDiS B862/B842 User Manual

Chapter 3: System Setup

5. Attach the RF cable onto the TV tuner module.

6. Wire the cable to the rear of the chassis and mount the antenna jack to

the antenna hole then tighten the rings.

RF cable

Antenna jack

41

NDiS B862/B842 User Manual

Chapter 3: System Setup

7. Replace the heatsink and the top cover, then connect the external antenna to the antenna jack.

Antenna

42

NDiS B862/B842 User Manual

Chapter 3: System Setup

Installing a 3G Module

1. Remove the antenna hole cover at the rear of the chassis.

Antenna hole cover

2. Locate the mini-PCIe connector (CN10) on the mainboard. If the HDD is installed, please remove it to locate the connector.

Mini-PCIe connector (CN10)

43

NDiS B862/B842 User Manual

Chapter 3: System Setup

until the gold-plated connector on the edge of the module completely disappears inside the slot. Then secure it with screws.

Screw

4. Insert the 2 rings (ring 1 then ring 2) into the antenna jacks.3. Insert the 3G module into the mini-PCIe slot at a 45 degree angle

Ring1

Ring2

44

NDiS B862/B842 User Manual

Chapter 3: System Setup

5. Attach the RF cables onto the 3G module and mount the antenna jacks to the antenna holes then tighten the rings.

RF cable Antenna jack

Antenna jack

45

NDiS B862/B842 User Manual

Chapter 3: System Setup

6. Replace the heatsink and the top cover, then connect the external antennas to the Wi-Fi antenna jacks.

Antenna

46

NDiS B862/B842 User Manual

Chapter 3: System Setup

Removing the Fan Modules

1. Loosen the screws holding the wall mount bracket.

Screw

2. Remove the wall mount brackets to locate the fan modules’ cover and loosen the screws on the cover.

Screw

3. Remove the fan modules.

47

NDiS B862/B842 User Manual

Chapter 3: System Setup

Wall Mount Installation VESA Mount Installation (Optional)

Screw (#6 - 32)

Wall mount bracket

Screw (#6 - 32)

VESA mount bracket (for system)

VESA mount bracket (for VESA arm)

48

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for the NDiS B862 and NDiS B842. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

49

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub¬menus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

Press the

key to enter Setup:

50

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub¬menu

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

51

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Boot Security Save & ExitMain

BIOS Information Production Name BIOS Vendor BIOS Version Build Date and Time

Memory Information Total Memory

System Date

System Time

NDiS-B862 American Megatrends D862-066 02/25/2013 10:10:16

1600 Mhz 8192 MB (DDR3)

[Mon 04/19/2013] [17:48:10]

Set the Date. Use Tab to switch between Data elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

52

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Boot Security Save & ExitMain

RTC Wake Settings

CPU Conguration

South Bridge

IDE Conguration USB Conguration NCT6106D Super IO Conguration

NCT6106D HW Monitor

Enable system to wake using RTC alarm

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

RTC Wake Settings

This section is used to configure RTC Wake settings.

Main

Wake system with Fixed Time [Disabled]

Advanced Chipset PCIPnP Security

Exit

Enable or disable System wake on alarm event. When enabled, System will wake on the

hr::min::sec specied

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Wake System with Fixed Time

Enables or disables system wake on alarm event. When enabled, system will wake on the hr::min::sec specified.

53

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to view CPU information.

Main

CPU Conguration

Module Version: 4.6.5.1 TrinityPI 016 AGESA Version: 1.0.0.6

Node 0 Information

Advanced Chipset PCIPnP Security

Exit

View Memory Information related to Node 0

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Node 0 Information

Displays CPU information.

Main

Socket0: AMD R-464L APU with Radeon(tm) HD Graphics Quad Core Running @ 2331 MHz 450 mV Max Speed:2300 MHZ Intended Speed:2300 MHZ Min Speed:900 MHZ Microcode Patch Level: 600110f

------------- Cache per Core --------------

L1 Instruction Cache: 64 KB/2-way L1 Data Cache: 16 KB/4-way L2 Cache: 2048 KB/16-way No L3 Cache Present

Advanced Chipset PCIPnP Security

Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

54

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

South Bridge

This section is used to configure the South Bridge functions.

Advanced Boot Security Save & ExitMain

AMD Reference code Version :

SB SATA Conguration

SB HD Azalia Conguration SB Debug Conguration

Not Present

Options for SATA Conguration

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SB SATA Configuration

Advanced Boot Security Save & ExitMain

OnChip SATA Channel

OnChip SATA Type OnChip IDE mode SATA IDE Combined Mode

[Enabled]

[AHCI] [Legacy mode] [Enabled]

OnChip SATA Channel

Enables or disables Serial ATA.

OnChip SATA Type

Configures the SATA type as AHCI or Legacy IDE.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

OnChip IDE Mode

Configures the IDE mode as Legacy or Native.

SATA IDE Combined Mode

Enables or disables SATA IDE combined mode.

55

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

SB HD Azalia Configuration SB Debug Configuration

Advanced Boot Security Save & ExitMain

HD Audio Azalia Device

HD Onboard PIN Cong

Azalia Front Panel

SDIN0 Pin Cong SDIN1 Pin Cong SDIN2 Pin Cong SDIN3 Pin Cong

Azalia Snoop

[Enabled]

[Enabled] [Auto] [Azalia] [Azalia] [Azalia] [GPIO] [Disabled]

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

HD Audio Azalia Device

Enables or disables the HD Audio Azalia Device function.

HD Onboard PIN Config

Enables or disables HD onboard PIN configuration.

Azalia Front Panel

Enables or disables Azalia Front Panel.

SDIN0 Pin Config to SDIN3 Pin Config

Configures the SDIN0 to SDIN3 as GPIO or Azalia.

Advanced Boot Security Save & ExitMain

Restore on AC Power Loss

[Power On]

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore on AC Power Loss

Power Off When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system will automatically power-on.

Azalia Snoop

Enables or disables Azalia Snoop.

56

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

IDE Configuration

This section displays SATA information on Port0 and Port1.

Advanced Boot Security Save & ExitMain

IDE Conguration

SATA Port0 SATA Port1

Not Present Not Present

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Devices: 1 Keyboard, 1 Mouse

Legacy USB Support

USB3.0 Support

[Enabled]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled Enables Legacy USB. Disabled Keeps USB devices available only for EFI applications.

USB 3.0 Support

Enables or disables the USB 3.0 controller.

57

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the serial port.

Advanced

NCT6106D Super IO Conguration

NCT6106D Super IO Chip



Serial Port 0 Conguration



Serial Port 1 Conguration



Serial Port 2 Conguration



Serial Port 3 Conguration

NCT6106D

NCT6106D Super IO Chip

Displays the Super I/O chip used on the board.

Set Parameters of Serial Port 0 (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 0 Configuration

This section is used to configure serial port 0.

Advanced

Serial Port 0 Conguration

Serial Port

Device Settings

Change Settings

[Enabled]

IO=3F8h; IRQ=4;

[Auto]

Serial Port

Enables or disables the serial port.

Enable or Disable Serial Port (COM)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Change Settings

Selects an optimal setting for the Super IO device.

58

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

CpuFan Speed

Detects and displays the current CPU fan speed.

Advanced

PC Health Status

System Temperature CPU Core Temperature SysFan Speed CpuFAN Speed VCORE 12V 5V

: +51.0 C : +66.125 C : 5094 RPM : 5075 RPM : +1.112 V : +12.096 V : +5.040 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Temperature

Detects and displays the current system temperature.

CPU Core Temperature

Detects and displays the current CPU core temperature.

VCORE

Detects and displays the Vcore CPU voltage.

12V

Detects and displays 12V voltage.

5V

Detects and displays 5V voltage.

SysFan Speed

Detects and displays the current SysFan speed.

59

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

Boot

This section is used to configure the boot features.

Advanced

Boot Configuration

Bootup NumLock State

Launch PXE OpROM policy

Boot Option Priorities

Boot

Security

[On]

[Do not launch]

Save & ExitMain

Controls the execution of UEFI and Legacy PXE OpROM

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Launch PXE OpROM Policy

Controls the execution of UEFI and legacy PXE OpROM. The options are Do not launch and Legacy only.

60

NDiS B862/B842 User Manual

Chapter 4: BIOS Setup

Security

Advanced Boot Security Save & ExitMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user’s password.

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save & Exit

Advanced Boot

Save Changes and Exit

Discard Changes and Exit

Restore Defaults

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Security

Save & ExitMain

Save & Exit

Exit the system after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

61

NDiS B862/B842 User Manual

Appendix A: Watchdog Timer

CR F0h. Watchdog Timer I(WDT1) and KBC P20 Control Mode Register

Location: Address F0h Attribute: Read/Write Power Well: VCC Reset by: LRESET# or PWROK Default: 00h Size: 8 bits

Bit Read/Write Description

7-5 Reserved.

Watchdog Timer I count mode is 1000 times faster. 0: Disable.

4 R / W

3 R / W

2 R / W

1 R / W

0 Reversed

1: Enable. (If bit-3 is 0, the count mode is 1/1000 seconds mode.) (If bit-3 is 1, the count mode is 1/1000 minutes mode.)

Select Watchdog Timer I count mode. 0: Second Mode. 1: Minute Mode.

Enable the rising edge of a KBC reset (P20) to issue a timeout event. 0: Disable. 1: Enable.

Disable / Enable the Watchdog Timer I output low pulse to the KBRST# pin (PIN59) 0: Disable. 1: Enable.

CR F1h. Watchdog Timer I(WDT1) Counter Register

Location: Address F1h Attribute: Read/Write Power Well: VCC Reset by: LRESET# or PWROK Default: 04h Size: 8 bits

Bit Read/Write Description

Watch Dog Timer I Time-out value. Writing a non-zero value to this register causes the counter to load the value into the Watch Dog Counter and start counting down. If CR F2h, bits 7 and 6 are set, any Mouse Interrupt or Keyboard Interrupt event causes the previously-loaded, non-zero value to be reloaded to the Watch Dog Counter and the count down

7-0 R / W

resumes. Reading this register returns the current value in the Watch Dog Counter, not the Watch Dog Timer Timeout value. 00h: Time-out Disable 01h: Time-out occurs after 5.03x107 CLKIN cycle time, by analogy. (5.03x107 x (1/48MHz) = 1.046s)

62

NDiS B862/B842 User Manual

Appendix A: Watchdog Timer

CR F2h. Watchdog Timer I(WDT1) Control & Status Register

Location: Address F2h Attribute: Read/Write Power Well: VCC Reset by: LRESET# or PWROK Default: 00h Size: 8 bits

Bit Read/Write Description

Mouse interrupt reset enables watch-dog timer reload

7 R / W

6 R / W

5 Write “1” Only Trigger Watchdog Timer I event. This bit is self-clearing.

4

3-0 R / W These bits select the IRQ resource for the Watchdog Timer I

R / W

Write “0” Clear

0: Watchdog Timer I is not affected by mouse interrupt. 1: Watchdog Timer I is reset by mouse interrupt.

Keyboard interrupt reset enables watch-dog timer reload 0: Watchdog Timer I is not affected by keyboard interrupt. 1: Watchdog Timer I is reset by keyboard interrupt.

Watchdog Timer I status bit 0: Watchdog Timer I is running. 1: Watchdog Timer I issues time-out event.

63

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number of displays Grid Configuration Whistler - CSP

(DID#6743)

6 6 x 1 Landscape No

6 6 x 1 Portrait No

6 1 x 6 Landscape No

6 1 x 6 Portrait No

5 5 x 1 Landscape Ye s

5 5 x 1 Portrait Ye s

5 1 x 5 Landscape Ye s

5 1 x 5 Portrait Ye s

4 4 x 1 Landscape Ye s

4 4 x 1 Portrait No

4 1 x 4 Landscape No

4 1 x 4 Portrait Ye s

6 2 x 3 Landscape No

Number of displays Grid Configuration Whistler - CSP

(DID#6743)

6 2 x 3 Portrait Ye s

6 3 x 2 Landscape Ye s

6 3 x 2 Portrait No

4 2 x 2 Landscape Ye s

4 2 x 2 Portrait Ye s

3 3 x 1 Landscape Ye s

3 3 x 1 Portrait Ye s

3 1 x 3 Landscape Ye s

3 1 x 3 Portrait Ye s

2 2 x 1 Landscape Ye s

2 2 x 1 Portrait Ye s

2 1 x 2 Landscape Ye s

2 1 x 2 Portrait Ye s

64

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number

Configuration Diagram Other Display Setting Supported Mode Name

of

Display

6 3x2 Landscape N/A NDiS B862

6 2x3 Portrait N/A NDiS B862

5 5x1 Landscape Extended or Disable NDiS B862

5 5x1 Portrait Extended or Disable NDiS B862

65

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number

Configuration Diagram Other Display Setting Supported Mode Name

of

Display

5 1x5 Landscape Extended or Disable NDiS B862

5 1x5 Portrait Extended or Disable NDiS B862

66

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number

Configuration Diagram Other Display Setting Supported Mode Name

of

Display

4 4x1 Landscape

Extended or Disable NDiS B862/B842

4 1x4 Portrait Extended or Disable NDiS B862/B842

4 2x2 Landscape Extended or Disable NDiS B862/B842

67

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number

Configuration Diagram Other Display Setting Supported Mode Name

of

Display

4 2x2 Portrait Extended or Disable NDiS B862/B842

3 3x1 Landscape Extended or Disable NDiS B862/B842

3 3x1 Portrait

Extended or Disable NDiS B862/B842

3 1x3 Landscape Extended or Disable NDiS B862/B842

68

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number

Configuration Diagram Other Display Setting Supported Mode Name

of

Display

3 1x3 Portrait

Extended or Disable NDiS B862/B842

2 2x1 Landscape Extended or Disable NDiS B862/B842

2 2x1 Portrait Extended or Disable NDiS B862/B842

2 1x2 Landscape Extended or Disable NDiS B862/B842

69

NDiS B862/B842 User Manual

Appendix B: Supported Eyefinity Modes

Number

Configuration Diagram Other Display Setting Supported Mode Name

of

Display

2 1x2 Portrait

Extended or Disable NDiS B862/B842

70

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

Installing the Video Driver

1. Go to the folder 8.982.17.1-121018a-1524772e-edg_direct. 2. Double click on Setup to start the installation.

71

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

3. Click Next on the welcome screen. 4. Click on Install.

72

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

5. Select Express and confirm the installation location, then click Next. 6. Confirm the contents of the license agreement and click Accept.

73

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

7. Click Yes to create the installation directory. 8. During installation, when prompted with the Windows Security window, click Install to continue.

74

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

9. Click Finish to complete the installation. 10. Click Yes to reboot the computer, or No to continue using the

computer.

75

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

Create Eyefinity Display Group Setting

Video Wall Settings

(The following example configures a 3x2 video wall)

1. Right click on the desktop, and select “AMD VISION Engine control

center”.

Note: After completing Video Wall Settings, please proceed to configure Display Continuity to prevent the Video Wall Settings being disabled in the event of an error in System reset or display. For information on Display Continuity settings, please refer to Appendix D on page 91.

Note: “AMD VISION Engine Control Center” only supports 1 set of video wall setting.

76

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

2. Go to Desktop Management→Creating and Arranging Desktops,

and confirm that the six displays are detected and connected.

77

Note: When the EDID shows errors or incomplete configuration, please refer to the settings in Appendix E as a reference guide.

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

3. Go to AMD EyefinityTM Multi-Display→Create Eyefinity Display

Group.

4. Choose the displays for the AMD EyefinityTM display group. Display 1 is chosen in the example below.

78

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

5. Click Continue. 6. In the drop down list, select a desired layout that the display group will use. 6 Displays (3x2) is chosen in the example below.

79

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

7. Once completed, you will see a message indicating the display group is

created. To arrange the position of the displays, click Arrange.

80

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

8. On the blue grid below, select the position corresponding to the physical position of the display.

9. Click Done once complete.

81

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

10. Click Apply to finish the configuration.

82

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

Disable Eyefinity Display Group Setting

1. Select AMD EyefinityTM Multi-Display→Disable Eyefinity Display Group. After disabling, the display group will return to 6 clone mode

displays.

83

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

2. Go to Desktop Management→Creating and Arranging Desktops, to view the 6 clone mode displays.

84

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

Changing the Display Group to Another Layout

Note: The following example changes 3 x 2 video wall to 2 x 2 video wall.

1. Disable the display group first, refer to page 83 for the procedures.

2. After disabling the display group, go to

Desktop Management→Creating and Arranging Desktops

3. In the Please Select a Display box, select any of the two displays, and click on the triangular mark on the upper right hand corner of the displays, then choose Disable or Extend.

Note: If two displays are configured as Extend, up to 2 Extend modes can be configured for 1 Video Wall.

85

NDiS B862/B842 User Manual

Appendix C: Video Driver Installation and Settings

4. After selecting Disable, click Yes when prompted and repeat step 3 to disable the other display.

5. Click Yes to confirm disabling the other display after repeating step 3.

86

NDiS B862/B842 User Manual
