NEXCOM NEX 613 User Manual

NEXCOM International Co., Ltd.
Industrial Computing Solutions
Embedded Computing (Industrial Motherboard) NEX 613
User Manual
NEXCOM International Co., Ltd.
Published September 2013
www.nexcom.com
Content
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer .............................................................................................. iv
Acknowledgements ............................................................................... iv
Regulatory Compliance Statements ........................................................ iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................viii
Installation Recommendations ...............................................................viii
Safety Precautions .................................................................................. ix
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi
Package Contents ................................................................................. xiii
Ordering Information ............................................................................xiv
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features ...........................................................................................1
Hardware Specifications ..........................................................................2
Knowing Your NEX 613 ..........................................................................4

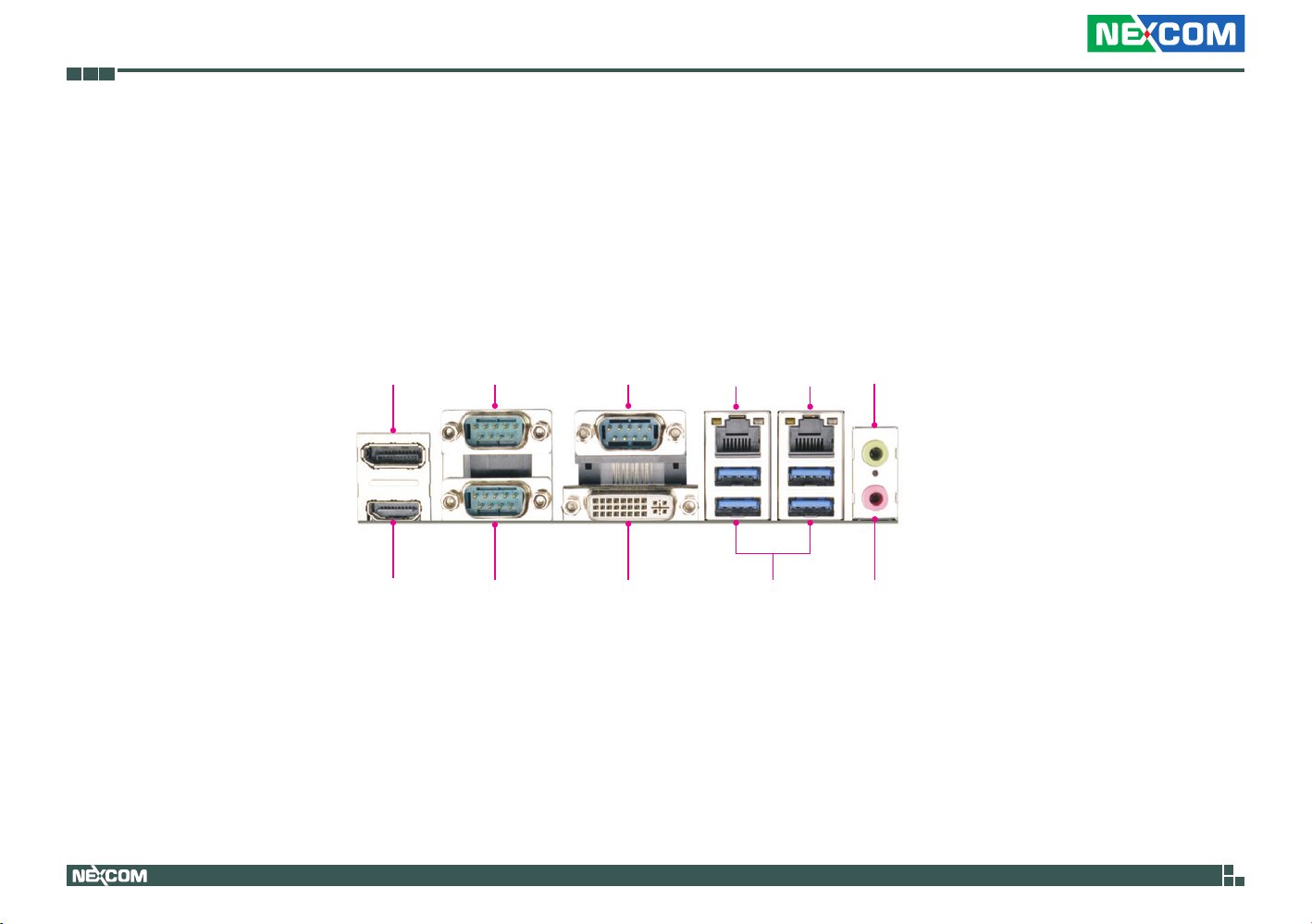

Edge I/O View......................................................................................5
Chapter 2: Jumpers and Connectors
Before You Begin ....................................................................................6
Precautions ............................................................................................6
Jumper Settings ......................................................................................7

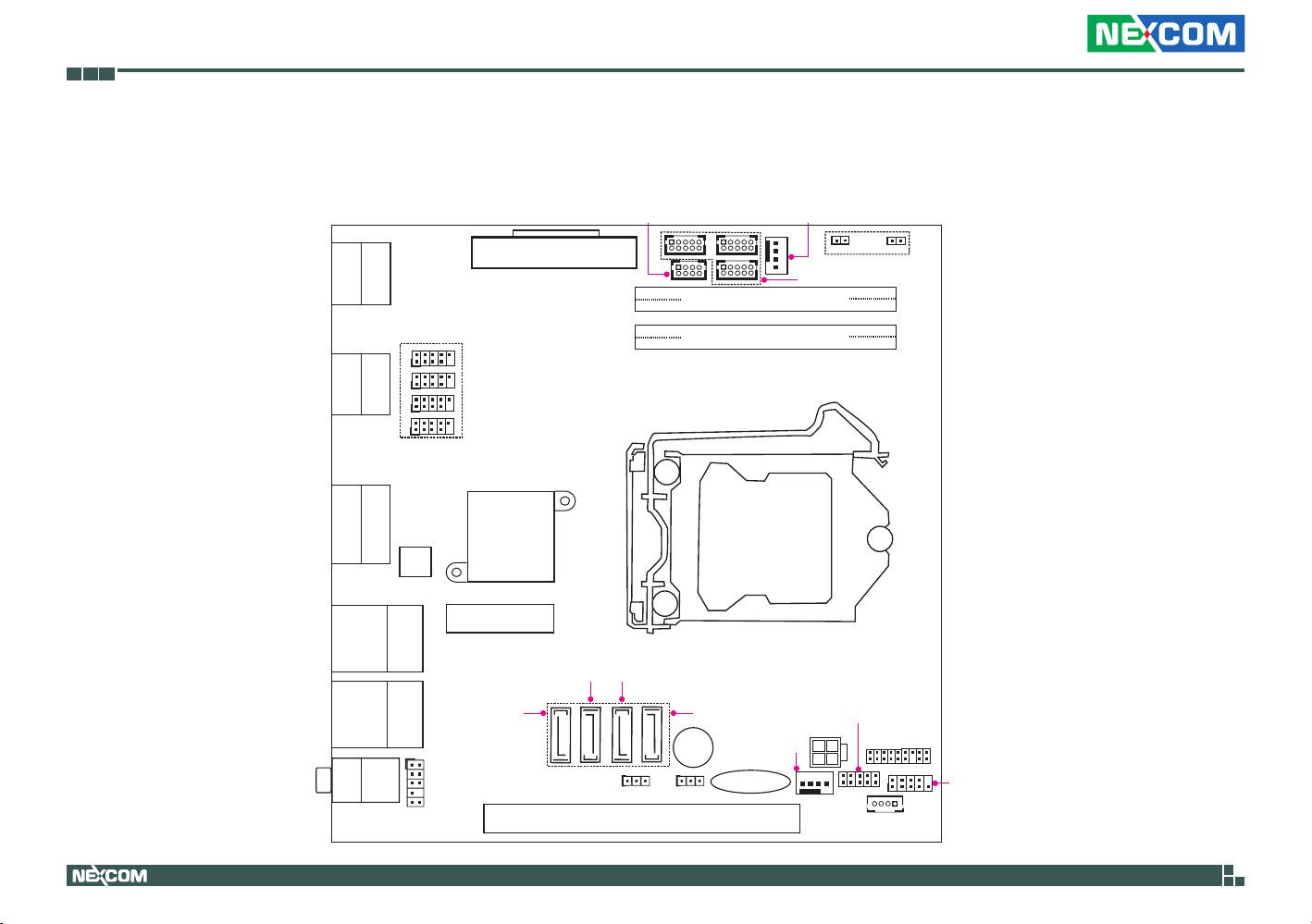

Locations of the Jumpers and Connectors ............................................... 8
Jumpers .................................................................................................. 9
CMOS Clear Select ..............................................................................9
ATX/AT Mode Jumper ..........................................................................9

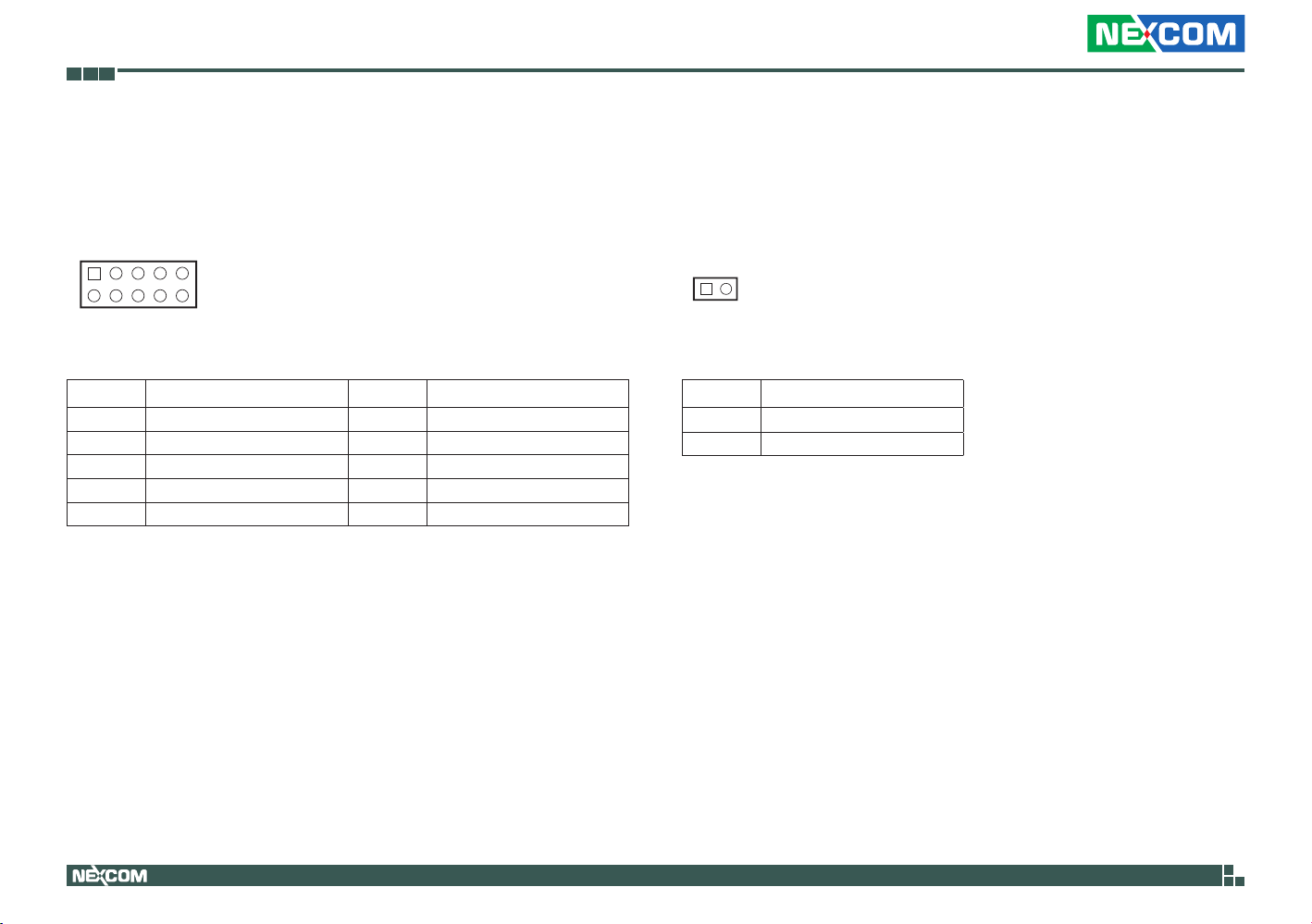

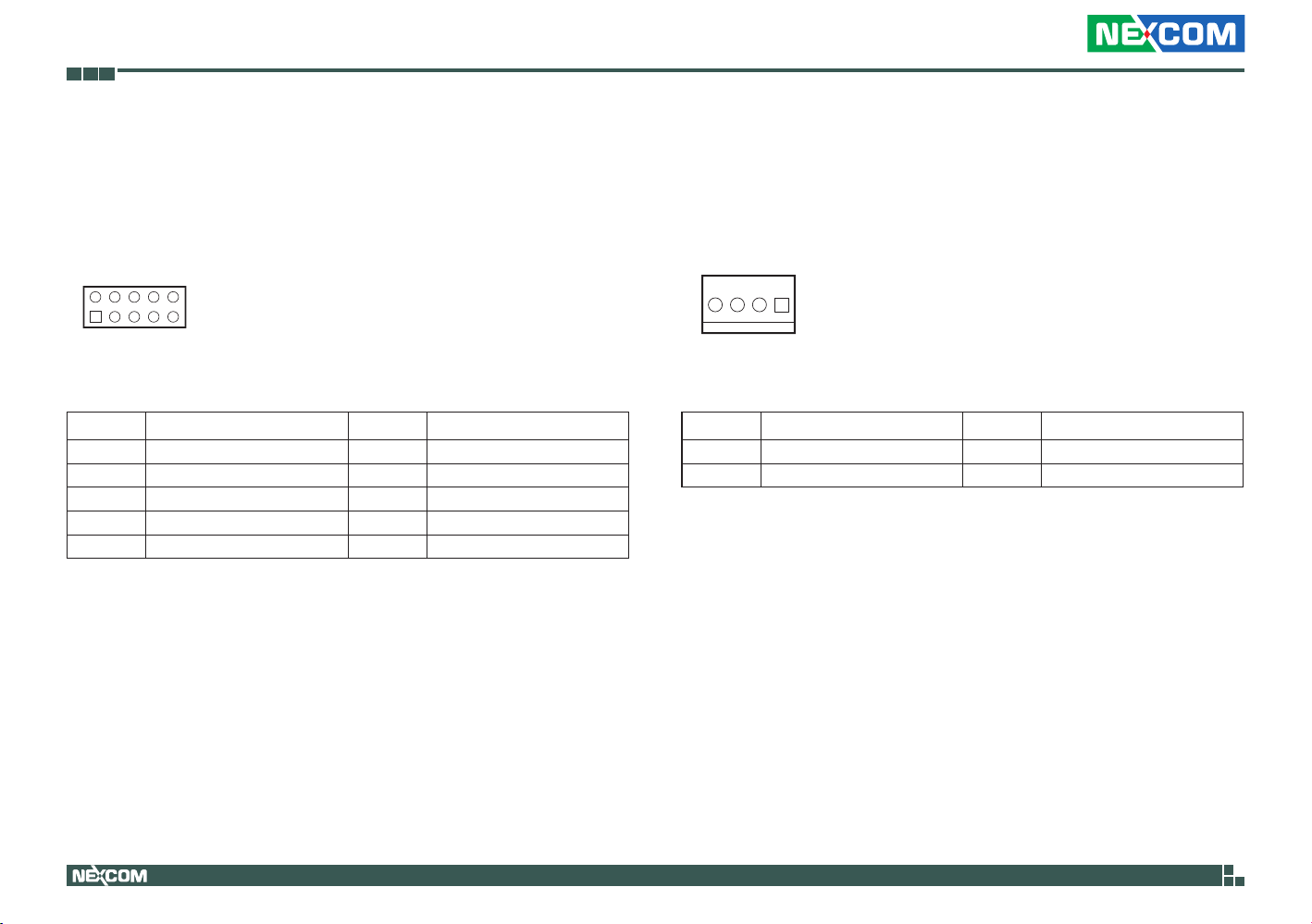

Connector Pin Definitions .....................................................................10
Internal Connectors ........................................................................... 10
System Panel Header ...................................................................... 10
PS2 Keyboard and Mouse Pin Header .............................................10
COM4/COM5/COM6: RS-232 Port 4 Pin Headers ........................... 11
Chassis Intrusion Pin Headers .........................................................11
Digital Input/Output Pin Headers .................................................... 12
4-Pin Chassis Fan Connector ..........................................................12
USB2.0 Connectors ........................................................................ 13
Front Panel Audio Header ..............................................................13
Block Diagram
.................................................................................14
Chapter 3: BIOS Setup
About BIOS Setup ................................................................................. 15
When to Configure the BIOS .................................................................15
ii
NEX 613 User Manual
Content
Default Configuration ........................................................................... 16
Entering Setup ...................................................................................... 16

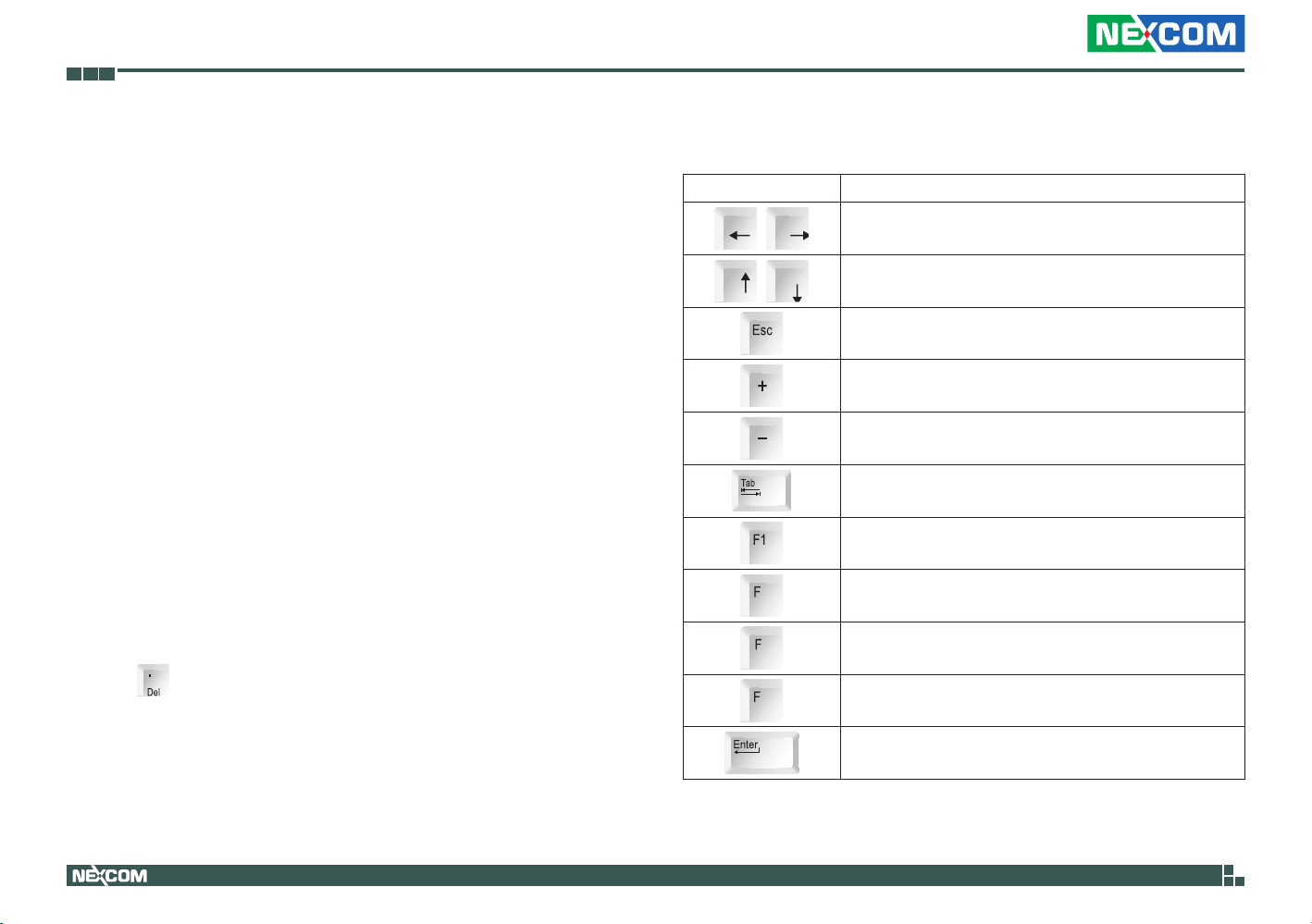

Legends ................................................................................................ 16
BIOS Setup Utility .................................................................................. 18
Main .................................................................................................18
Advanced ......................................................................................... 19
H/W Monitor .................................................................................... 28
Boot .................................................................................................. 29
Security .............................................................................................30
Exit .................................................................................................... 31
iii
NEX 613 User Manual
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NEX 613 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NEX 613 User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.
v
NEX 613 User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
vi
NEX 613 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
vii
NEX 613 User Manual
Preface
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully.
▪ Do not place the unit on an unstable surface, cart, or stand.
▪ Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
▪ A Philips screwdriver
▪ A flat-tipped screwdriver
▪ A grounding strap
▪ An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
NEX 613 User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
7. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
9. Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work
according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.
15. Do not place heavy objects on the equipment.
16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
ix
NEX 613 User Manual
Preface
CAUTION!
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
x
NEX 613 User Manual
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive,Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com
Asia
Taiwan Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn
Shanghai Office
Room 1505, Greenland He Chuang Bldg., No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn
Nanjing Office
Hall C, Block 17, Tian Xing Cui Lang Bldg., No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 Email: sales@nexcom.cn www.nexcom.cn
Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn
Wuhan Office
1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn
xi
NEX 613 User Manual
Preface
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn
Europe
France NEXCOM France
La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 Email: sales.fr@nexcom.eu www.nexcom.eu
Germany
NEXCOM GmbH Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 Email: sales.de@nexcom.eu www.nexcom.eu
Italy
NEXCOM ITALIA S.r.l Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu
xii
NEX 613 User Manual
Preface
Package Contents
Before continuing, verify that the NEX 613 package that you received is complete. Your package should have all the items listed in the following table.
Item Part Number Name Description Qty
1 20G00061300X0 ASSY NEX613-DB 1 2 6011100A41X00 NEX 600 Series Inner Box VER:A 303x265x85mm B FLUTE 1 3 6011101ABBX00 NEX 600 Series Outside Carton VER:A 530x305x430mm AB FLUTE 14KG 1 4 6013300092X00 NEX 600 Series EPE 270x255x60mm WHITE 1 5 6012200052X00 PE Zipper Bag #8 170x240mm,W/China RoHS SYMBOL 1 6 60177A0322X00 (N)NEX613 Quick Reference Guide VER:A KRAMER 1 7 602DCD0701X00 (N)NEX613 DVD Driver VER:1.0 1
xiii
NEX 613 User Manual
Preface
Ordering Information
The following information below provides ordering information for NEX 613.
NEX 613-20PBK (P/N: 10G00061300X0)
Bulk-Packed 20x pcs Mini-ITX, LGA1150 of 4th Generation Intel® Core™ i7/i5/i3/ Pentium®/ Celeron® processors, Q87 with 2x DDR3/ SO-DIMM, HDMI/ DP/ DVI-I, PCIe x16/ mPCIe, 4x SATA3.0, 4x USB 3.0/ 8x USB 2.0, 2x GbE, 7x COM, mSATA, and ATX Power Input.
xiv
NEX 613 User Manual
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview
Key Features
▪ 4th Generation Intel® Core™ processor family
®
Q87 Chipset
▪ Intel
▪ 2x 204-pin SO-DIMM support DDR3 1333/1600Mhz up to 16GB system
memory
▪ Support DisplayPort/ HDMI/ DVI-I three displays
®
▪ 2x Intel
8x GPIO
▪ 1x PCIe x16 (Gen. 3.0), 1x mPCIe
▪ Support AT/ ATX mode by ATX Power Input
GbE, 4x SATA3.0, 1x mSATA, 12x USB3.0/ 2.0, 7x COM,
1
NEX 613 User Manual
Chapter 1: Product Introduction
Hardware Specifications
CPU Support
▪ Socket LGA1150, 4th generation Intel® Core™ i7/i5/i3/ Pentium®/
Celeron
®
processors
Main Memory
▪ 2x 204-pin SO-DIMM support DDR3 1333/1600Mhz up to 16GB system
memory
Chipset
▪ Intel® Q87 Platform Controller Hub
BIOS
▪ AMI BIOS UEFI ▪ Plug and play support
On-board LAN
▪ 1x Intel® I217LM PHY for AMT 9.0 ▪ 1x Intel
®
I210 PCI Express Gigabit Ethernet ▪ Support boot from LAN (PXE) ▪ 2x RJ45 with LEDs
Display
▪ 4th generation Intel® Core™ socket LGA1150 processors integrated ▪ HD 4600 graphics engine ▪ 1x HDMI ▪ 1x DisplayPort
Expansion
▪ 1x PCIex16 (Gen. 3.0) ▪ 1x mPCIe
I/O Interface
▪ Serial port: 7 ports COM1/2/3: RS232/422/485 with DB9 male connector on edge I/O COM4/5/6/7: RS232 2x 5/ 2.54mm box header
▪ USB 2.0/ 3.0: 12 ports 4x USB 3.0 ports by edge connectors 8x USB 2.0 ports by 2x 5-pin header pitch 2.54mm
▪ GPIO: Support 4x GPI and 4x GPO with TTL level (0/5V)
▪ Onboard Power LED and HDD Active LED Pin Header
▪ 1x 4-pin fan connector (for CPU)
▪ 1x 4-pin fan connector (for System)
▪ 1x 18-pin header for TPM
▪ 1x Keyboard/ Mouse pin header
▪ Onboard Buzzer/ SMBus2.0/ reset SW/ On & Off switch button
Edge I/O Interfaces
▪ 1x DisplayPort + HDMI
▪ 2x stack DB9 connector for COM1 & COM2
▪ 1x DB9 male connector for COM3 + DVI-I connector
▪ 2x RJ45 with dual stack USB 3.0 (blue)
▪ Line-out/ MIC-in phone jack
Watchdog Timer
▪ Watchdog timeout can be programmable by Software from 1 second to
255 seconds and from 1 minute to 255 minutes
(Tolerance 15% under room temperature 25°C)
2
NEX 613 User Manual
Chapter 1: Product Introduction
Storage
▪ 4x SATA3.0 ports with RAID 0,1,5,10 function
On-board RTC
▪ On-chip RTC with battery backup ▪ 1x External Li-Ion battery
Power Input
▪ Support AT and ATX mode
Power Requirements
▪ Power requirement: ATX Input, jumper AT/ ATX (default) mode ▪ Onboard 2x 12-pins standard ATX version 2.0 power connector
Dimensions
▪ Mini-ITX M/B form factor ▪ 170mm (L) x 170mm (W)
Environment
▪ Operating temperatures: 0°C to 60°C ▪ Storage temperature: -20°C to 85°C ▪ Relative humidity: operating 10% to 90%, non-condensing
Certifications
▪ CE approval ▪ FCC Class A
3
NEX 613 User Manual
Chapter 1: Product Introduction

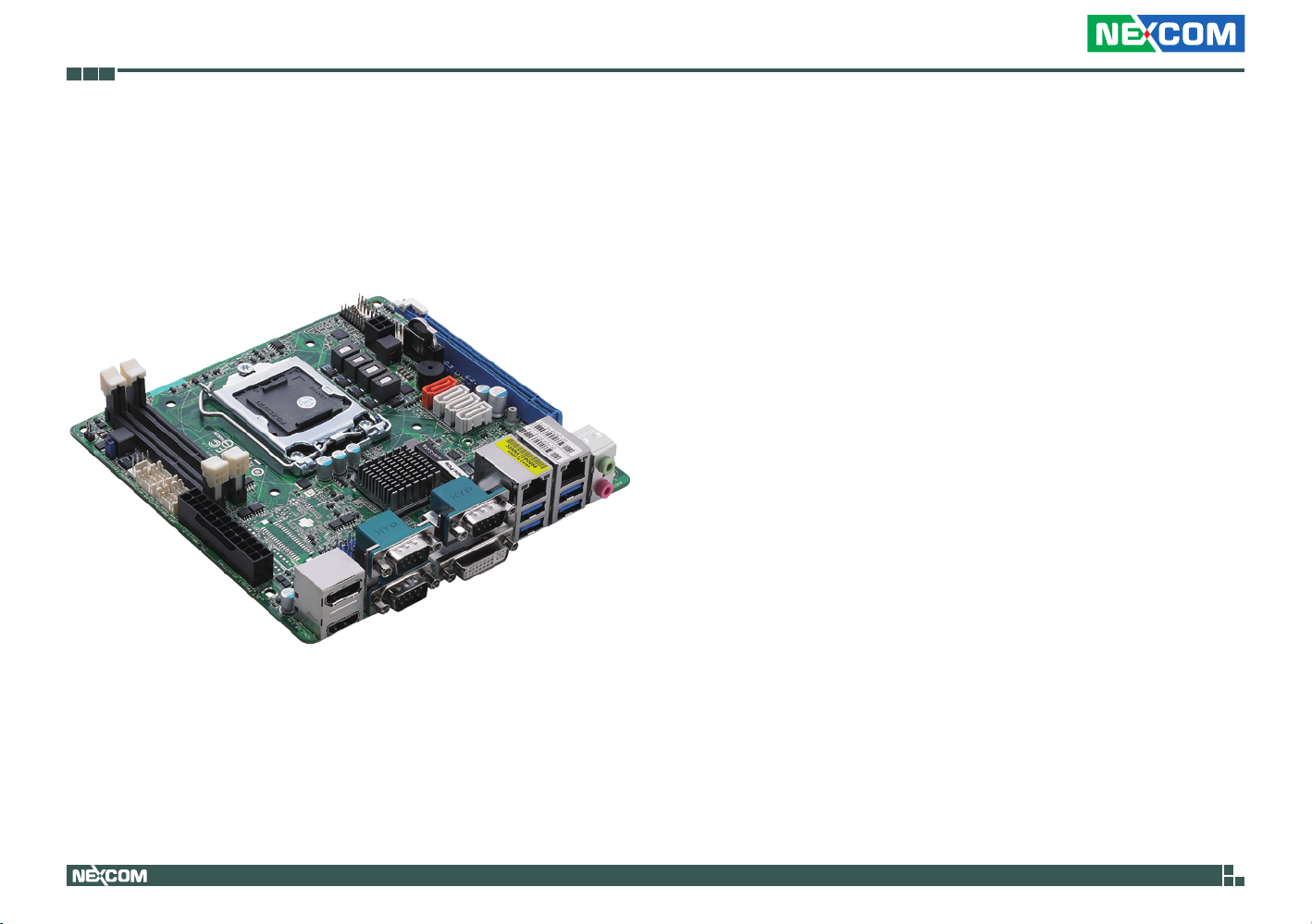

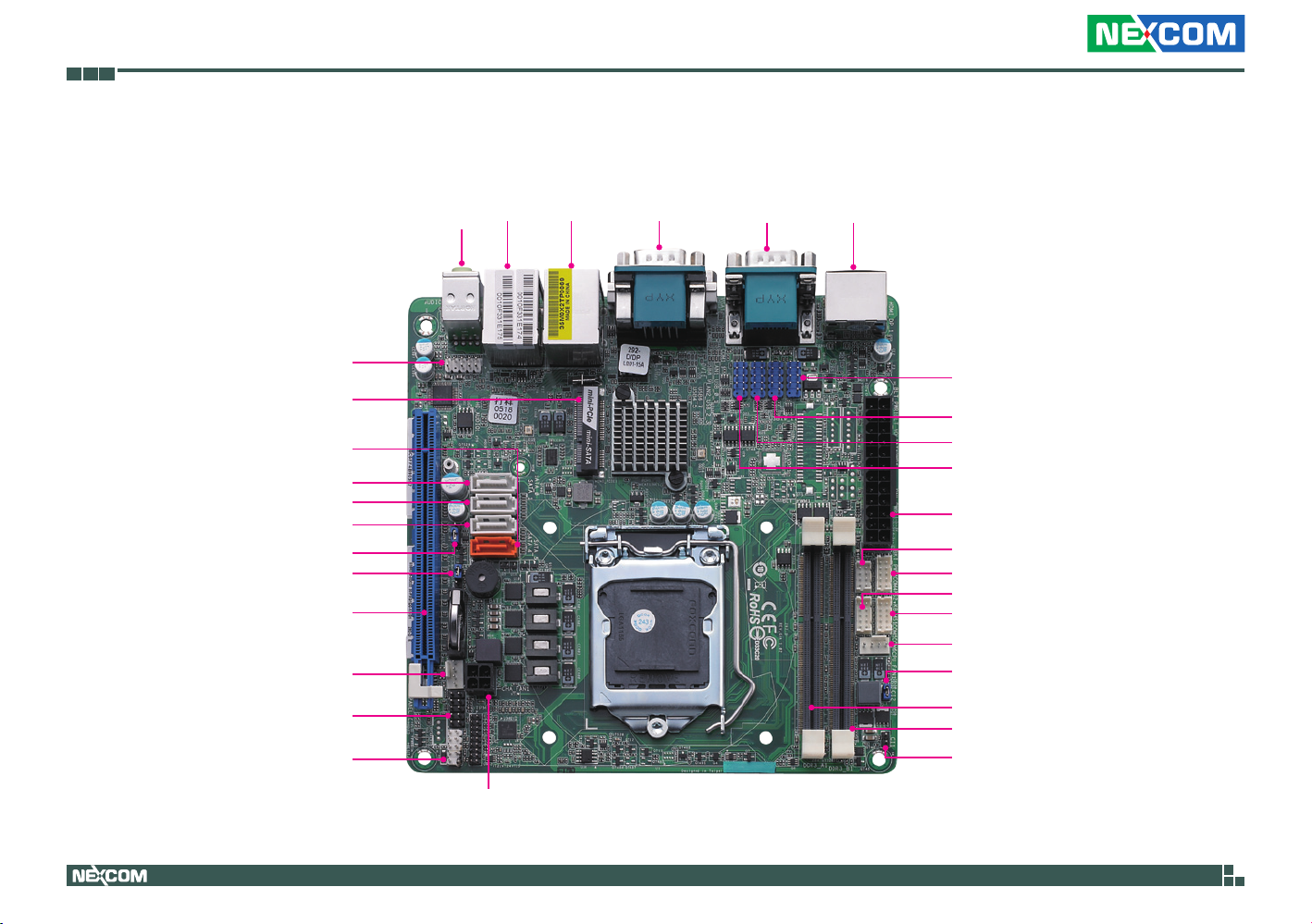

Knowing Your NEX 613
Front Panel Audio
mini-PCIe/mini-SATA
SATA 5
SATA 0 SATA 1
SATA 4
AT/ATX Mode Select
CMOS Clear
PCIe x16
System Fan
DI/O
System Panel Header
Audio Connectors
LAN2
USB2/3
LAN1
USB0/1
COM3
DVI
COM1 COM2
DisplayPort
HDMI
USB10/11
USB8/9
USB6/7
USB4/5
ATX PWR
PS2 KB/MS
COM4 COM5 COM6
CPU FAN
Chassis Intrusion
DIMM A DIMM B
Chassis Intrusion
Power Input
4
NEX 613 User Manual
Chapter 1: Product Introduction
Edge I/O View
HDMI
COM1 COM3DisplayPort
COM2
DVI-I
LAN1 LAN2
USB 3.0
5
Line-out
Mic-in
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors
This chapter describes how to set the jumpers and connectors on the NEX 613 motherboard.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
6
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
1
3
2
7
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors
The figure below shows the location of the jumpers and connectors.
HDMI1
COM2
DVI1
USB3.0 T: USB0 B: USB1
USB3.0 T: USB2 B: USB3
iM Ic n
:mottoB
DISPLAY1*
COM1
COM3
BIOS Chip
LAN1
LAN2
T :po
uO t
eniL
1
1
1
1
mini-PCIe/mini-SATA
1
HD _A UD I O1
USB10_11
USB8_9
USB6_7
USB4_5
SA TA _0
ATXPWR1
SA TA _1 SA TA _4
PWR_JP1
PCIE 1
PS2_KB_MS1
1
COM41COM6
1
DDR3_B1
DDR3_A1
SA TA _5
BUZZ1
1
CLRCOMOS1
1
1
CHA_FAN1
CMOS
Battery
CPU_FAN1
COM5
CON1
1
1
CI2CI1
JGP101
1
1
1
SPEAKER1
PLED PWRBTN
HDLED RESET
P
1
PANEL1
8
NEX 613 User Manual
Chapter 2: Jumpers and Connectors

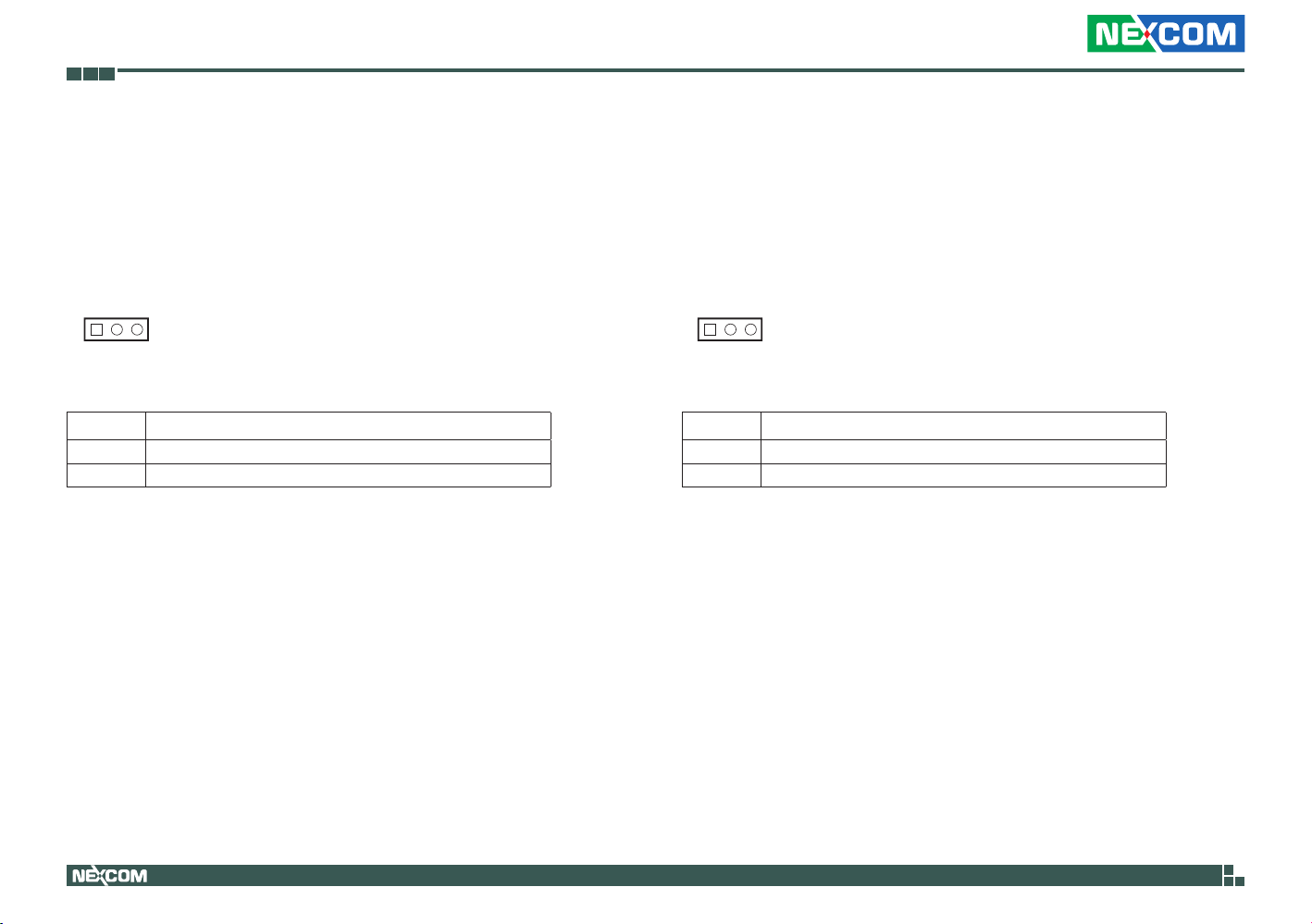

Jumpers
CMOS Clear Select
Connector type: 1x3 3-pin header Connector location: CLRCOMOS1
1 3 1 3
Pin Settings
1-2 Normal 2-3 Clear CMOS
ATX/AT Mode Jumper
Connector type: 1x3 3-pin header Connector location: PWR_JP1
Pin Settings
1-2 AT Mode 2-3 ATX Mode
9
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
15
61
Connector Pin Definitions
Internal Connectors

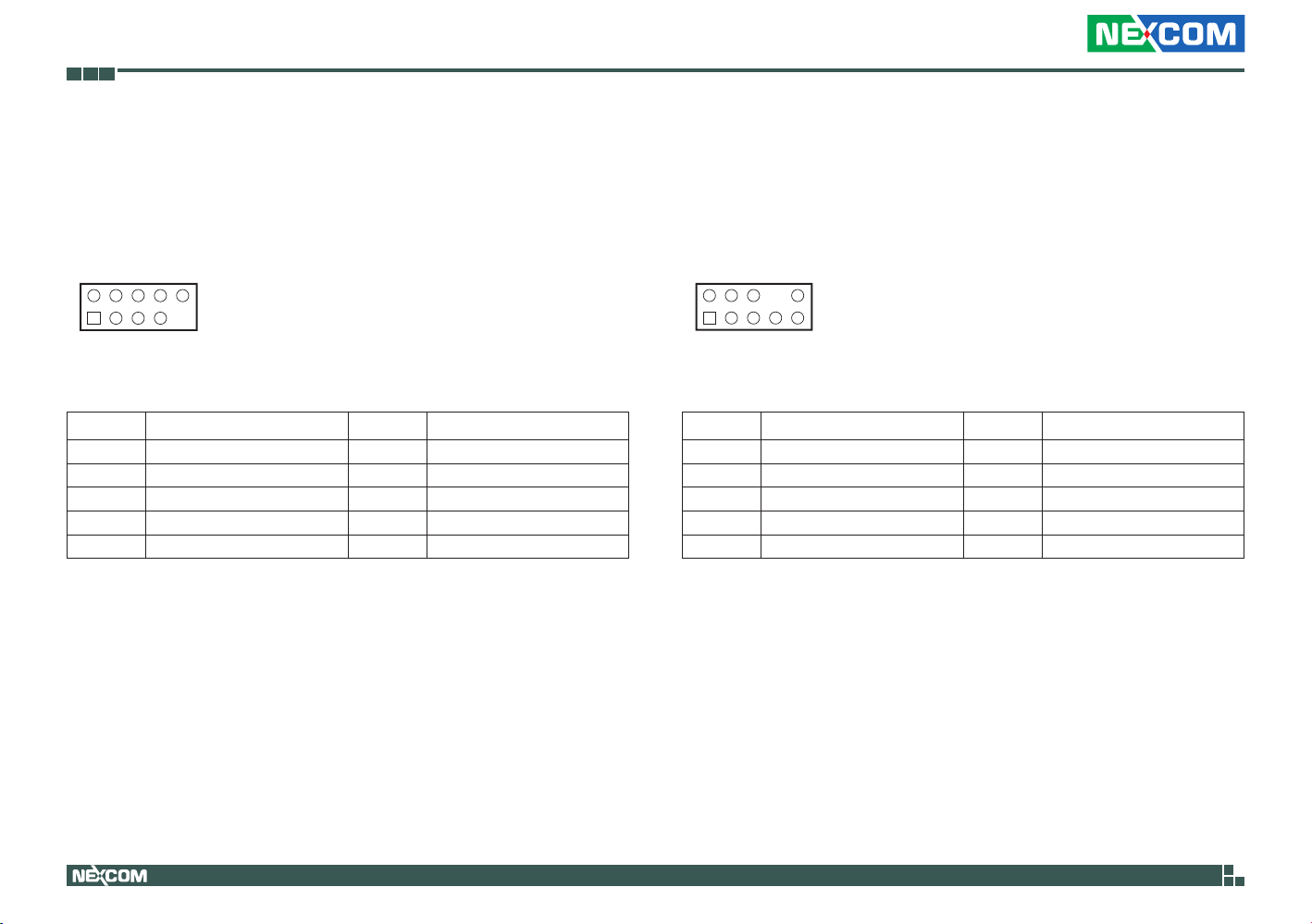

System Panel Header
Connector type: 2x5 10-pin header Connector location: ANEL11
0
Pin Definition Pin Definition
1 HDLED+ 2 HDLED­3 GND 4 RESET# 5 GND 6 PLED+ 7 PLED- 8 PWRBTN# 9 GND 10
PS2 Keyboard and Mouse Pin Header
Connector type: 2x4 8-pin header Connector location: PS2_KB_MS1
1
Pin Definition Pin Definition
1 KBCLK 2 +5V 3 KBDATA 4 +5V 5 MSDATA 6 GND 7 MSCLK 8 GND
10
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
21
19
12
COM4/COM5/COM6: RS-232 Port 4 Pin Headers
Connector type: 2x5 10-pin header Connector location: COM4, COM5 and COM6
0
Pin Definition Pin Definition
1 DDCD#1 2 RRXD1 3 TTXD1 4 DDTR#1 5 GND 6 DDSR#1 7 RRTS#1 8 CCTS#1 9 COM PWR 10 NC
Chassis Intrusion Pin Headers
Connector type: 1x2 2-pin header Connector location: CI1 and CI2
Pin Definition
1 Signal 2 GND
11
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
Digital Input/Output Pin Headers
Connector type: 2x5 10-pin header Connector location: JGP101
2 10
1 9
Pin Definition Pin Definition
1 Digital Output 0 2 Digital Input 0 3 Digital Output 1 4 Digital Input 1 5 Digital Output 2 6 Digital Input 2 7 Digital Output 3 8 Digital Input 3 9 JGPIO_PWR1 10 GND
4-Pin Chassis Fan Connector
Connector type: 1x4 4-pin header Connector location: CPU_FAN1 and CHA_FAN1
4 1
Pin Definition Pin Definition
1 GND 2 +12V 3 CPU_FAN_SPEED 4 FAN_SPEED_CONTROL
12
NEX 613 User Manual
Chapter 2: Jumpers and Connectors
15
15

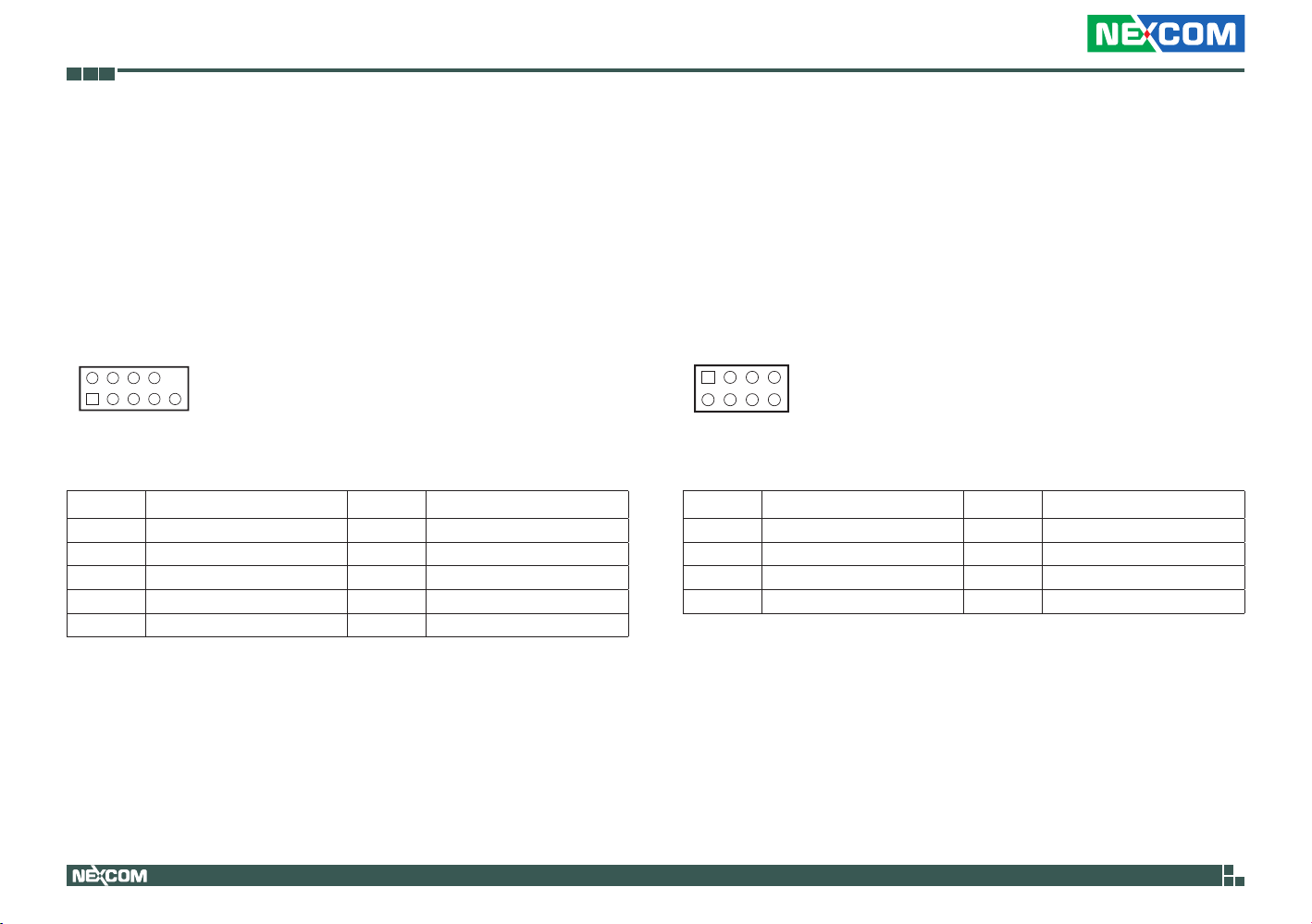

USB2.0 Connectors
Connector type: 2x5 10-pin header Connector location: USB4_5, USB6_7, USB8_9 and USB10_11
106
Pin Definition Pin Definition
1 PWR 2 ­3 + 4 GND 5 6 PWR 7 - 8 + 9 GND 10 NC
Front Panel Audio Header
Connector type: 2x5 10-pin header Connector location: HD_AUDIO1
106
Pin Definition Pin Definition
1 MIC2_L 2 MIC2_R 3 OUT2_R 4 J_SENSE 5 OUT2_L 6 GND 7 PRESENCE# 8 MIC_RET 9 10 OUT_RET
13
NEX 613 User Manual
Chapter 2: Jumpers and Connectors

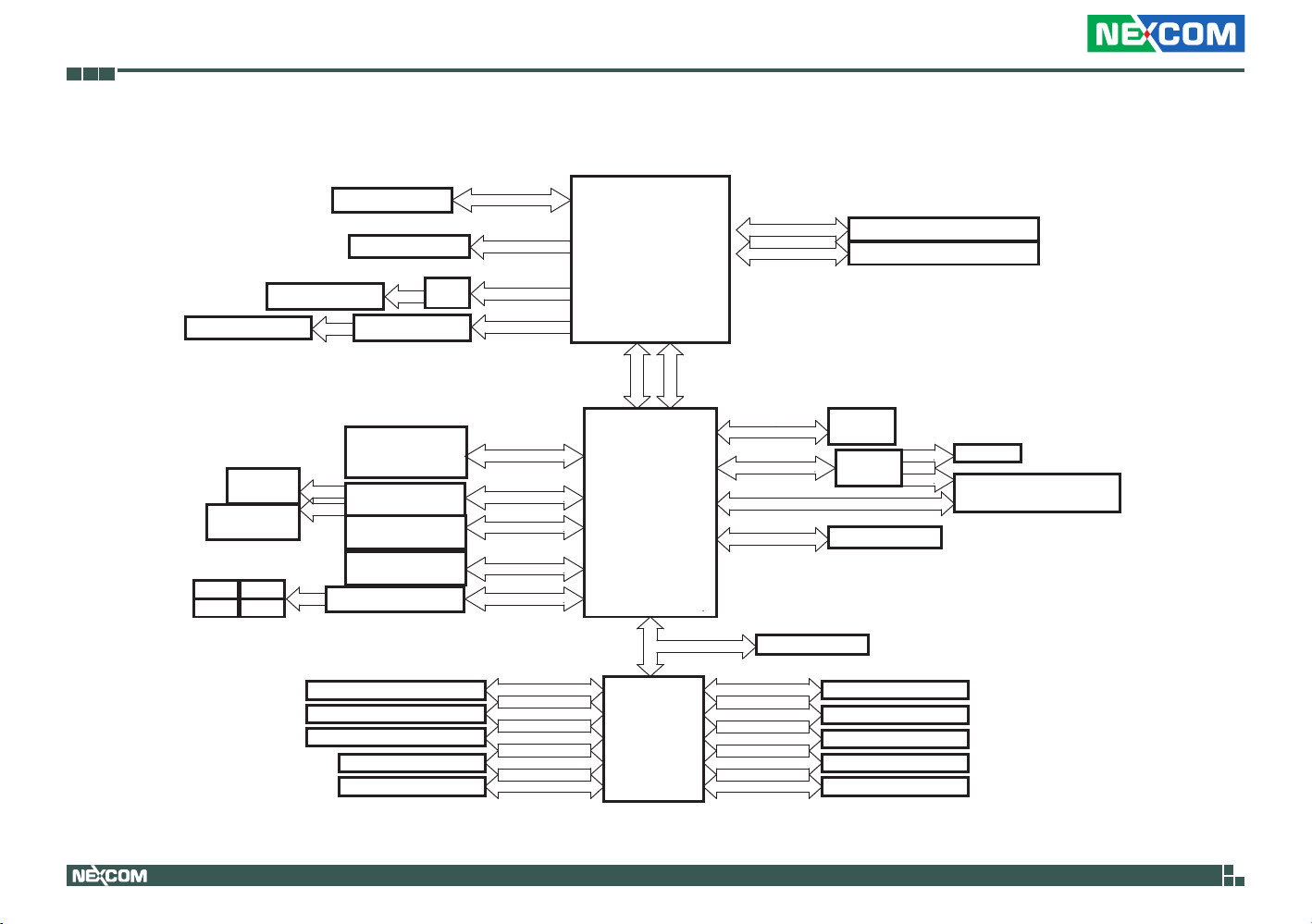

Block Diagram
DVI-I Connector
Line_Out MIC_In
Audio Amplifier ALC109(3W/3W)
USB3_2USB3_1
USB3_4USB3_3
PCI-E X16 SLOT
DP Connector
HDMI Connector
High-Speed USB
Internal Header
Realtek ALC 662
Intel I217LM
10/100/1000
Intel I210
10/100/1000
(Onbard USB 3.0)
COM port (RS232/422/485)
COM port (RS232/422/485)
COM port (RS232/422/485)
PS2 KB/MS Header
DGIO Header
DVI Signal
8 ports
Level Shifter
PCI_E BUS
100MHz
DIGITAL PORT C
DIGITAL PORT D
DIGITAL PORT B
480Mb/s
24MHz
PCIE x1
100MHz
PCIE x1
100MHz
Port A (Rear I/O)
Port B (Rear I/O)
Port C (Rear I/O)
KB/MS
GPIO x 8
Intel Processor
HASWELL
INTEL LGA1150 Pin Socket
FDI LINK
DMI
INTEL
Lynx Point
Q87
PCH
LPC BUS
33MHz
SIO
Nuvoton NCT6627UD
128-bit Dual-Channel Memory x 2 Slots (SO-DIMM)
Channel A
Channel B
SATA3 BUS
Flexible PCIe x1
USB2.0
SPI
TPM Header
Port D (Internal)
Port (Internal)
Port E (Internal)
Port F (Internal)
G
FAN
DDR3 1333/1600
DDR3 1333/1600
SATA3_1
SATA3_2
SATA3_3
PI2DBS6212ZHE
(SATA Switch)
SPI FLASH
COM port(RS232)
64Mb
COM port(RS232)
COM port(RS232)
COM port(RS232)
CPU FAN/ CHA FAN
SATA3_4
mini-PCIe/m-SATA X1
(Full Size)
14
NEX 613 User Manual
Chapter 3: BIOS Setup
Chapter 3: BIOS Setup
This chapter describes how to use the BIOS setup program for the NEX 613. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals
▪ Video display type and display options
▪ Password protection from unauthorized use
▪ Power management features
The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
▪ This program should be executed under the following conditions:
▪ When changing the system configuration
▪ When a configuration error is detected by the system and you are
prompted to make changes to the setup program
▪ When resetting the system clock
▪ When redefining the communication ports to prevent any conflicts
▪ When making changes to the Power Management configuration
▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
15
NEX 613 User Manual
Chapter 3: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of beeps
will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup.
Legends
Key Function
7
9
Moves the highlight left or right to select a menu.
Moves the highlight up or down between sub-menu or fields.
Exits the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted field.
Scrolls backward through the values or options of the highlighted field.
Selects a field.
Displays General Help.
Load previous values.
Load optimized default values.
Press the
key to enter Setup:
16
10
Saves and exits the Setup program.
Press <Enter> to enter the highlighted sub-menu
NEX 613 User Manual
Chapter 3: BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .
17
NEX 613 User Manual
Chapter 3: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
UEFI Version Processor Type Processor Speed Microcode Update Cache Size
Total Memory
DDR3_A1 DDR3_B1
System Date
System Time
H/W Monitor
: NEX 613 : Intel(R) Core(TM) i5-4670S CPU @ 3.10GHz : 3100MHz : 306C3/7 : 6144KB
: 4096 MB with 256MB Shared Memory and 2MB GTT memory Single-Channel Memory Mode
: 4096MB(DDR3-1333) : None
[Fri 06/28/2013] [19:34:05]
Boot
Security
Exit
Set the Date. Use Tab to switch between Date elements.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
18
NEX 613 User Manual
Chapter 3: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunction.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
CPU Conguration
Chipset Conguration Storage Conguration Intel(R) Rapid Start Technology Intel(R) Smart Connect Technology AMT Conguration Super IO Conguration ACPI Conguration USB Conguration Voltage Conguration
H/W Monitor
Boot
SecurityMain
UEFI Update Utility
Instant Flash
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
Exit
CPU Conguration Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
19
NEX 613 User Manual
Chapter 3: BIOS Setup
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel(R) Core(TM) i5-4670S CPU @ 3.10GHz Max CPU Speed Min CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit
Active Processor Cores
CPU C States Support Enhanced Halt State(C1E) CPU C3 State Support CPU C6 State Support CPU C7 State Support Package C State Support
Intel SpeedStep Technology Intel Turbo Boost Technology CPU Thermal Throttling No-Execute Memory Protection Intel Virtualization Technology Hardware Prefetcher Adjacent Cache Line Prefetch
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
3100 MHz 800 MHz 4 Not Supported Supported Supported Supported
[All]
[Auto] [Auto] [Auto] [Auto] [Auto] [Auto]
[Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled] [Enabled]
Select the number of cores to enable in each processor package.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Active Processors Cores
Select the number of cores to enable in each processor package.
CPU C States Support
Enable CPU C States Support for power saving. It is recommended to keep C3, C6 and C7 all enabled for better power saving.
Enhanced Halt State (C1E)
Enable Enhanced Halt State (C1E) for lower power consumption.
CPU C3 State Support
Used to enable or disable CPU C3 (ACPI C2) report to OS.
CPU C6 State Support
Used to enable or disable CPU C6 (ACPI C6) report to OS.
CPU C7 State Support
Used to enable or disable CPU C7 (ACPI C7) report to OS.
Package C State Support
Selected option will program into C State package limit register.
Intel® SpeedStep Technology
Enables or disables Intel® SpeedStep.
Intel® Turbo Boost Technology
Enables or disables Intel® Turbo Boost.
CPU Thermal Throttling
Enables or disables internal thermal control of the CPU to prevent overheating.
No-Execute Memory Protection
Enables or disables No-Execute Memory Protection, enabling it will prevent data pages from being used by malicious software.
Intel® Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
Hardware Prefetcher
Turns on or off the MLC streamer prefetcher.
Adjacent Cache Line Prefetch
Enables or disables the adjacent cache line prefetch.
20
NEX 613 User Manual
Chapter 3: BIOS Setup
Chipset Configuration
This section is used to configure the chipset features.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
VT-d Capability
DRAM Frequency
Primary Graphics Adapter VT-d PCIE1 Link Speed
Share Memory IGPU Multi-Monitor Render Standby
Onboard HD Audio Front Panel Onboard HDMI HD Audio Onboard LAN1 Onboard LAN2
Deep Sleep Restore on AC/Power Loss
Active LVDS Panel Type Selection Primary IGFX Boot Display
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
Supported
[Auto]
[PCI Express] [Disabled] [Auto]
[Auto] [Disabled] [Enabled]
[Enabled] [Auto] [Enabled] [Enabled] [Enabled]
[Disabled] [Power Off]
[Enabled] [1440x900/24-bit/2-c. . . ] [VBIOS Default]
If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
DRAM Frequency
Select Auto to automatically set DRAM frequency.
Primary Graphics Adapter
Selects which primary graphics adapter to boot the system.
VT-d
Enables or disables Intel® VT-d technology.
PCIE1 Link Speed
Configures the PCIE1 link speed.
Share Memory
Configures the amount of memory shared to the onboard graphics.
IGPU Multi-Monitor
Enables or disables the onboard graphics.
Render Standby
Enables or disables render standby of onboard graphics.
Onboard HD Audio
Enables or disables the onboard HD audio, setting auto will automatically disable the onboard HD audio when an external sound card is installed.
Front Panel
Enables or disables the onboard HD audio front panel.
Onboard HDMI HD Audio
Enables or disables the onboard HDMI HD audio.
Onboard LAN1 to LAN2
Enables or disables onboard LAN1 and LAN2.
Deep Sleep
Enables or disables deep sleep (S4/S5). Deep sleep for mobile platforms is supported in DC only, and supported in AC only for desktop platforms.
Restore on AC/Power Loss
Power Off When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.
Power On When power returns after an AC power failure, the system will automatically power-on.
Active LVDS
Enables or disables LVDS.
Panel Type Select
Selects the panel type used by the onboard graphics by selecting the appropriate setup item.
Primary IGFX Boot Display
Select the video device which will be activated during POST. Has no effect if external graphics is present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.
21
NEX 613 User Manual
Chapter 3: BIOS Setup
Storage Configuration
This section is used to configure the storage features.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
SATA Controller(s)
SATA Mode Selection SATA Aggressive Link Power Mgmt Dynamic Storage Accelerator Hard Disk S.M.A.R.T
SATA_0 : Not Detected
SATA_1 : Not Detected
SATA_4 : Not Detected
SATA_5 : Not Detected
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[AHCI] [Disabled] [Enabled] [Disabled]
Enable/disable the SATA controllers.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
SATA Controller(s)
Enables or disables the SATA controller.
SATA Mode Selection
Configures the SATA as IDE, AHCI or RAID mode.
IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. RAID This option allows you to create RAID or Intel Matrix Storage configuration on Serial ATA devices. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.
SATA Aggressive Link Power Management
Enables or disables the SATA aggressive link power management.
Dynamic Storage Accelerator
Enables or disables dynamic storage accelerator, enabling it will increase HDD and SSD I/O performance.
Hard Disk S.M.A.R.T
Enables or disables hard disk S.M.A.R.T feature.
22
NEX 613 User Manual
Chapter 3: BIOS Setup
Intel® Rapid Start Technology Intel® Smart Connect Technology
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel(R) Rapid Start Technology
[Disabled]
Intel(R) Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds.
Intel(R) Smart Connect Technology
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
[Enabled]
Intel(R) Smart Connect Technology automatically updates your email and social networks, such as Twitter, Facebook, etc. while the computer is in sleep mode.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
Intel® Rapid Start Technology
Enables or disables Intel® Rapid Start Technology. Intel® Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
Intel® Smart Connect Technology
Enables or disables Intel® Smart Connect Technology. Intel® Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.
23
NEX 613 User Manual
Chapter 3: BIOS Setup
Intel® AMT Technology
This section is used to configure the AMT function.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Intel AMT
BIOS Hotkey Pressed MEBx Selection Screen
Hide Un-Cong ME Conrm Prompt
MEBx Debug Message Output
Un-Congure ME
Amt Wait Timer Disable ME ASF Activate Remote Assistance Process
USB Congure
PET Progress
AMT CIRA Timeout
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[Disabled] [Disabled] [Disabled] [Disabled] [Disabled] 0 [Disabled] [Enabled] [Disabled] [Enabled] [Enabled]
0
Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires
additional rmware in the SPI
device
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Intel® AMT
Enables or disables Intel® Active Management Technology.
BIOS Hotkey Pressed
Enables or disables BIOS hotkey pressed.
Hide Un-Configure ME Confirm Prompt
Hide Un-Configure ME without password confirmation prompt.
MEBx Debug Message Output
Enables or disables MEBx debug message output.
Un-Configure ME
Enables or disables Un-configure ME without password.
AMT Wait Timer
Set timer to wait before sending ASF_GET_BOOT_OPTIONS.
Disable ME
Set ME to Soft Temporary Disabled.
ASF
Enables or disables alert specification format.
Activate Remote Assistance Process
Enables or disables Trigger CIRA boot.
USB Configure
Enables or disables USB configure function.
PET Progress
Enables or disables PET Events progress to receive PET event.
MEBx Selection Screen
Enables or disables MEBx selection screen.
24
NEX 613 User Manual
Chapter 3: BIOS Setup
Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Super IO Conguration
COM1 Conguration
COM2 Conguration
COM3 Conguration
COM4 Conguration
COM5 Conguration
COM6 Conguration
WDT Timeout Reset
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
[Disabled]
Set Parameters of COM1
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
COM1 to COM6 Configuration
Configures the parameters of COM1 to COM6.
WDT Timeout Reset
Enables or disables the Watchdog Timer timeout to reset the system.
ACPI Settings
This section is used to configure ACPI settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Suspend to RAM
Check Ready Bit ACPI HPET Table
PS/2 Keyboard Power On PCI Devices Power On Wake From Onboard LAN 2 RTC Alarm Power On USB Keyboard/Remote Power On USB Mouse Power On
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
[Auto]
[Enabled] [Enabled]
[Disabled] [Disabled] [Disabled] [By OS] [Disabled] [Disabled]
Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Suspend to RAM
Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving.
Check Ready Bit
Enables or disables Check Ready Bit.
ACPI HPET Table
Enables or disables ACPI HPET Table.
25
NEX 613 User Manual
Chapter 3: BIOS Setup
PS/2 Keyboard Power On
Enables or disables PS/2 keyboard to turn on the system from the power­soft-off mode.
PCI Devices Power On
Enables or disables PCI devices to turn on the system from the power-soft­off mode.
Wake From Onboard LAN 2
Enables or disables wake up from onboard LAN 2.
RTC Alarm Power On
Enables or disables real time clock (RTC) to power on the system.
USB Keyboard/Remote Power On
Enables or disables USB Keyboard/Remote to power on the system.
USB Mouse Power On
Enables or disables USB mouse to power on the system.
USB Configuration
This section is used to configure the USB.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
USB Controller
Intel USB3.0 Mode Legacy USB Support Legacy USB 3.0 Support
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[Smart Auto] [Enabled] [Enabled]
USB Controller
Enables or disables all the USB ports.
Intel® USB3.0 Mode
Enables or disables USB 3.0 mode.
Enable or disable all the USB ports.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Legacy USB Support
Enabled Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disabled Keeps USB devices available only for EFI applications.
Legacy USB 3.0 Support
Enables or disables legacy support for USB 3.0 devices.
26
NEX 613 User Manual
Chapter 3: BIOS Setup
Voltage Configuration
This section is used to configure the DRAM voltage.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
DRAM Voltage
[1.50V]
1.35V/1.50V
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
DRAM Voltage
Selects the DRAM voltage value.
27
NEX 613 User Manual
Chapter 3: BIOS Setup
H/W Monitor
This section is used to monitor hardware status such as temperature, fan speed and voltages.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Hardware Health Event Monitoring
CPU Temperature M/B Temperature
CPU_FAN1 Speed CHA_FAN1 Speed
Vcore + 3.30V + 5.00V + 12.00V
CPU_FAN1 Setting
CHA_FAN1 Setting Over Temperature Protection Case Open Feature
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
H/W Monitor
Boot
: 54 °C : 29 °C
: N/A : 2163 RPM
: +1.776 V : +3.376 V : +5.088 V : +11.985 V
[Full On]
[Full On] [Disabled] [Disabled]
SecurityMain
CPU Temperature
Detects and displays the current CPU temperature.
Exit
Quiet Fan Function Control
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
CHA_FAN1 Speed
Detects and displays CHA_FAN1 speed.
Vcore
Detects and displays the Vcore CPU voltage.
+ 3.30V
Detects and displays 3.3V voltage.
+ 5.00V
Detects and displays 5V voltage.
+ 12.00V
Detects and displays 12V voltage.
CPU_FAN1 Setting
Configures the speed of the CPU fan.
CHA_FAN1 Setting
Configures the speed of the chassis fan.
Over Temperature Protection
Enables or disables Over Temperature Protection.
Case Open Feature
Enables or disables the case open detection feature.
M/B Temperature
Detects and displays the current motherboard temperature.
CPU_FAN1 Speed
Detects and displays CPU_FAN1 speed.
28
NEX 613 User Manual
Chapter 3: BIOS Setup
Boot
This section is used to configure the boot features.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Boot Option Priorities
Fast Boot
Boot From Onboard LAN
Setup Prompt Timeout Bootup Num-Lock Boot Beep Full Screen Logo
CSM(Compatibility Support Module)
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
H/W Monitor
Boot
[Disabled]
[Disabled]
1 [On] [Disabled] [Disabled]
SecurityMain
Fast Boot
Fast boot minimizes your computer’s boot time. The options are Disabled, Fast and Ultra Fast. In fast mode you may not boot from an USB storage device. Ultra Fast mode is only supported by Windows 8 and the VBIOS must support UEFI GOP if you are using an external graphics card.
Exit
Fast Boot minimizes your computer’s boot time. In fast mode you may not boot from an USB storage device. Ultra Fast mode is only supported by Windows 8 and the VBIOS must support UEFI GOP if you are using an external graphics card. Please notice that Ultra Fast mode will boot so fast that the only way to enter
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535(0XFFFF) means indefinite waiting.
Bootup Num-Lock
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
Boot Beep
Enables or disables beep sound during system boot, a buzzer is needed.
Full Screen Logo
Enables or disables the display of OEM logo.
CSM (Compatibility Support Module)
Configuration for CSM, please disable CSM when Fast Boot is enabled.
Boot From Onboard LAN
Enables or disables Boot From Onboard LAN.
29
NEX 613 User Manual
Chapter 3: BIOS Setup
Compatibility Support Module (CSM) Configuration
This section is used to configure the compatibility support module features.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
CSM
Launch PXE OpROM policy Launch Storage OpROM policy Launch Video OpROM policy
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[Legacy only] [Legacy only] [Legacy only]
Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 8 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Discard Changes F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
CSM
Enables or disables CSM. Enabled to launch the Compatibility Support Module. Please do not disable unless a WHCK test is running. If Windows 8 64-bit is used and all the devices support UEFI, CSM may be disabled for faster boot speed.
Launch PXE OpROM Policy
Enables or disables the boot option for legacy network devices.
Launch Storage OpROM Policy
Enables or disables the boot option for legacy storage devices.
Launch Video OpROM Policy
Enables or disables the boot option for legacy video devices.
Security
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Supervisor Password User Password
Supervisor Password
User Password
System Mode state Secure Boot state
Secure Boot
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
H/W Monitor
SecurityMain
Boot
Not Installed Not Installed
Setup Disabled
[Disabled]
Administrator Password
Select this to reconfigure the administrator’s password.
User Password
Select this to reconfigure the user’s password.
Secure Boot
Enables or disables Secure Boot.
Exit
Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
30
NEX 613 User Manual
Chapter 3: BIOS Setup
Exit
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Save Changes and Exit
Discard Changes and Exit Discard Changes Load UEFI Defaults
Launch EFI Shell from lesystem device
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.
H/W Monitor
Boot
SecurityMain
Exit
Exit system setup after saving the changes.
F10 key can be used for this operation.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Option F1: General Help F7: Previous Values F9: Load UEFI Defaults F10: Save and Exit ESC: Exit
Save Changes and Exit
To save the changes and exit, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
Discard Changes and Exit
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.
Discard Changes
To discard all the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
Load UEFI Defaults
To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
31
