NEXCOM NDiS OPS-M50 User Manual

NEXCOM International Co., Ltd.

Multi-Media Solutions

Digital Signage Platform NDiS OPS-M50

User Manual

NEXCOM International Co., Ltd.

Published March 2014

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Safety Information ................................................................................vii

Package Contents

Ordering Information

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Physical Features .....................................................................................2

Front panel ...........................................................................................2

Rear panel ............................................................................................ 2

System Specifications .............................................................................. 3

Mechanical Dimensions ...........................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ...................................................................................5

Precautions ............................................................................................6

Jumper Settings ......................................................................................7

Locations of the Jumpers and Connectors ............................................... 8

External Connectors Pin Definitions ......................................................... 9

LED HDD/PWR ..................................................................................... 9

VGA Connector .................................................................................. 10

RS232 Port .........................................................................................10

LAN connector ...................................................................................11

USB Port ............................................................................................. 11

Line-out connector .............................................................................12

Internal Connectors Pin Definitions .......................................................13

Clear CMOS Selection.........................................................................13

Serial-ATA ..........................................................................................13

GPIO Connector .................................................................................14

USB Connector ................................................................................... 14

High Speed Board-to-Board Connector ...............................................15

High Speed Board-to-Board Connector ...............................................17

Mini-PCIe ...........................................................................................19

Battery connector ............................................................................... 19

JAE TX24/TX25 Plug ...........................................................................20

ii

NDiS OPS-M50 User Manual

Contents

Chapter 3: System Setup

Removing the Chassis Cover .................................................................21

Installing a SO-DIMM ............................................................................ 22

Installing a SATA Half Slim Storage ........................................................23

Installing a Wireless LAN Module ..........................................................26

Installing a TV Tuner Module ................................................................. 31

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 36

When to Configure the BIOS .................................................................36

Default Configuration .......................................................................... 37

Entering Setup ...................................................................................... 37

Legends ................................................................................................ 37

Scroll Bar .............................................................................................38

BIOS Setup Utility .................................................................................. 38

Main .................................................................................................... 39

Advanced .............................................................................................40

CPU Configuration ................................................................................42

System Agent (SA) Configuration .......................................................... 43

INTEL IGFx Configuration ......................................................................44

SATA Configuration ..............................................................................45

PCH-IO Configuration ........................................................................... 46

Anti-Thefts Configuration .....................................................................47

AMT Configuration ............................................................................... 48

USB Configuration ................................................................................ 49

H/W Monitor ........................................................................................50

Super IO Configuration ........................................................................ 51

H/W Monitor 2 .....................................................................................52

Boot ....................................................................................................53

Security .................................................................................................54

Save & Exit ............................................................................................ 55

Chapter 5: AMT Settings

Enable Intel® AMT in the AMI BIOS ...................................................... 56

Configure the Intel® ME Setup .............................................................57

Unconfigure AMT/ME ...........................................................................75

Appendix A: Watchdog Timer

Appendix B: GPI/O Programming Guide

iii

NDiS OPS-M50 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS OPS-M50 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section describes how to keep the system CE compliant.

Declaration of Conformity

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NDiS OPS-M50 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NDiS OPS-M50 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

NDiS OPS-M50 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

NDiS OPS-M50 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

o

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

viii

NDiS OPS-M50 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing

CAUTION!CAUTION!

data.

Note: Provides additional information to complete a task easily.

ix

NDiS OPS-M50 User Manual

Preface

Global Service Contact InformationGlobal Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., Zhonghe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

x

NDiS OPS-M50 User Manual

Preface

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire, MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xi

NDiS OPS-M50 User Manual

Preface

PaCkage Contents

Before continuing, verify that the NDiS OPS-M50 package that you received is complete. Your NDiS OPS-M50 package should have all the items listed in the following table.

Item P/N Name Specification Qty

1 50311F0142X00 I HEAD SCREW LONG FEI:I1.6x3 ISO I M1.6x3L ISO BLACK 2 2 601110A087X00 NDiSOPS INNER BOX YI GIA 254x205x80mm 1 3 601111A185X00 NDiSOPS OUTSIDE CARTON VER:A YI GIA 424x267x236mm 1 4 6012200049X00 ASG110 PE BAG:24x38cm 240x380x0.08mm 1 5 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1 6 6013300343X00 NDiSOPS EPE SENTENEL 200x75x73mm 1 7 602DCD0511X00 NDiSOPS CD DRIVER MANUAL VER:1.0 JCL 1

xii

NDiS OPS-M50 User Manual

Preface

ordering information

The following provides ordering information for NDiS OPS-M50.

• NDiS OPS-M50 (P/N: 10W000OPS00X0)

NEXCOM ICES-267S COM Express Card

Onboard Intel

®

Intel

QM67/ HM65 PCH

®

Core™ i5-2515E Dual Core processor

xiii

NDiS OPS-M50 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt introduCtion

Overview

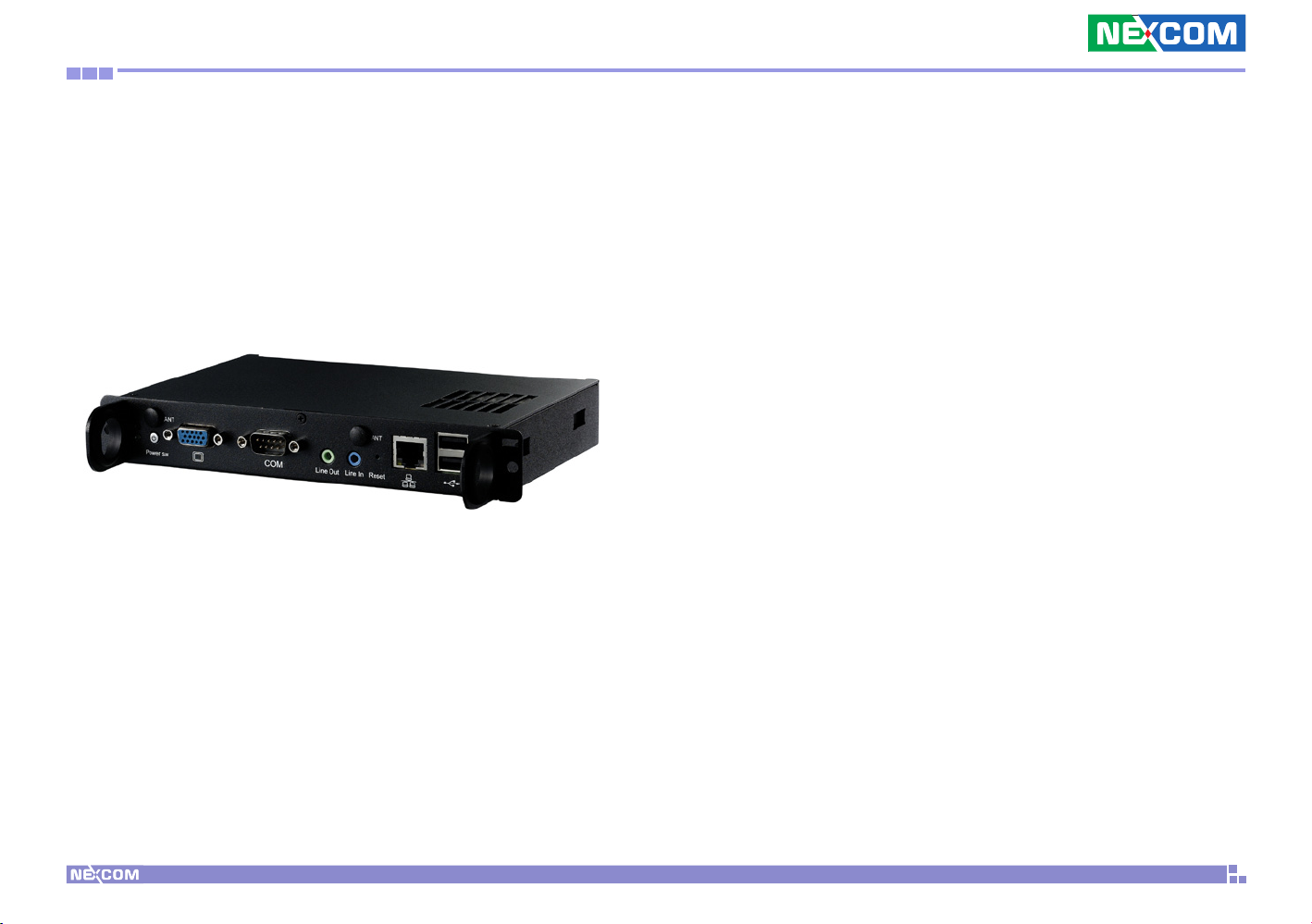

• NDiS OPS-M50 is specifically designed to be compliant with OPS (Open

Pluggable Standard).

• NDiS OPS-M50 provides COM Express architecture slot with optional

COM Express Type II module scalability, slide in 2.5” SATA Slim SSD for storage.

• NDiS OPS-M50 operates on high performance Intel® Core™ i5-2515E

Dual Core processor.

• NDiS OPS-M50 is powerful media player for digital signage applications

demonstrate high impact contents in compact size and perfect match with panel.

Key Features

• Embedded Intel® Core™ i5-2515E Dual Core processor

• Intel® HD integrated graphics 3000

• Designed compliant with open pluggable standard

• COM Express architecture, easy scalability

• Slot-in integration, easy maintenance

• Supports TMDS, UART, and USB2.0 via JAE 80-pin connector

• TV tuner/ WLAN support

1

NDiS OPS-M50 User Manual

Chapter 1: Product Introduction

Physical Features

Front panel

HDD

Power

LED

Power

Button

Line InMIC In

Out

Rear panel

USBCOM

HDMIVGA Line

2

NDiS OPS-M50 User Manual

Chapter 1: Product Introduction

System Specifications

COM Express Board

• NEXCOM ICES-267S COM Express Card

CPU Support

• Onboard Intel

Chipset

®

• Intel

QM67/ HM65 PCH

Graphics Graphics

®

• Intel

HD graphics 3000

Main Memory

• 1 x 204 pin SO-DIMM socket, support DDR3 800 / 1066 / 1333MHz

(Single channel) with un-buffered and non-ECC SDRAM up to 4GB

I/O Interface-Front

• 1 x Power status LED (Green)

• 1 x HDD status LED (Red)

• 1 x Power button

• 1 x Reset button

• 1 x DB9 for RS-232

• 2 x USB port

• 1 x Audio Line-in

• 1 x Audio Line-out

• 1 x VGA port (DB15)

• 1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet

®

Core™ i5-2515E Dual Core processor

• 2 x Antenna hole for Wi-Fi or TV tuner module

I/O Interface-Rear

• Standard connector type: JAE TX25 Plug Connector

• Power input: 12V~19V

• 1 x TMDS / 1 x UART / 3 x USB Port

• Audio: Line-out L/R

• Control signals: power status / PS_ON / PB_DET / CEC / SYS_FAN

Storage

• 1 x 22pin SATA right angle connector for slide in 2.5” SATA slim SSD

Dimensions

• 200mm (W) x 119mm (D) x 30mm (H) (7.8” x 4.7” x 1.1”)

Power Supply

• DC power +12V~19V from docking board

• Input: +12V DC connector for test used

Expansion

• 2 x Mini-PCIe for optional WLAN/ TV tuner module

• Support wake on WLAN feature

Environment

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -20°C to +80°C

• Humidity: 10 to 90% (Non-condensing)

Certification

• CE approval

• FCC Class A

3

NDiS OPS-M50 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

4

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all NDiS OPS-M50 series.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

- A Philips screwdriver

- A flat-tipped screwdriver

- A set of jewelers Screwdrivers

- A grounding strap

- An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the poweris off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electricity

▪ than dry environments. A grounding strap is warranted whenever

danger of static electricity exists.

5

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

6

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

3

2

1

3

2

7

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

NDiB OPS-M50

The figure on the right is the NDiB OPS-M50 motherboard which is the motherboard used in the NDiS OPS-M50 system. It shows the locations of the jumpers and connectors.

8

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

External Connectors Pin Definitions

This section provides descriptions, illustrations and pin definitions of the external connectors.

Connector Specification

LED HDD/PWR

LED

C2

C1

LED No. Function Description

C1 Power LED (Green) C2 HDD LED (Red)

ATX Power Switch

SW1 (push button with LED and without lock)

Status LED Color

Standby Red

Operation Blue

9

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

VGA Connector

CON3

Pin Definition Pin Definition

1 RED 2 GREEN 3 BLUE 4 NC 5 Gnd 6 Gnd 7 Gnd 8 Gnd

9 VCC (VCC5) 10 Gnd 11 NC 12 DDC Data 13 HSYNC 14 VSYNC 15 DDC Clock

RS232 Port

J1 / Standard DB9 Connector

1

5

96

Pin Definition Pin Definition

1 DCD 2 RXD

3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI

10

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

LAN connector

CON2

Pin Definition Pin Definition

1 TCT 2 MDI3-

3 MDI3+ 4 MDI2-

5 MDI2+ 6 MDI1-

7 MDI1+ 8 MDI0-

9 MDI0+ 10 TCTG

11 V3_3M 12 LED_ACT# 13 LED_1000# 14 LED_100#

USB Port

USB1

Pin Definition Pin Definition

1 VCC (VCC5) 2 DATA1-

3 DATA1+ 4 GND

5 VCC (VCC5) 6 DATA7 DATA+ 8 GND

11

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Line-out connector

CN2

Pin Definition Pin Definition

1 LINE2_OUT_R_FB 2 LINE2_OUT_JD

3 AUDGND 4 LINE2_OUT_L_FB

5 AUDGND 6 AUDGND

Line-out connector

CN3

Pin Definition Pin Definition

1 LINE1_IN_R3 2 LINE_JD 3 AUDGND 4 LINE1_IN_L3 5 AUDGND 6 AUDGND

12

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors Pin Definitions

This section provides descriptions, illustrations and pin definitions of the internal connectors.

Clear CMOS Selection

CLR_CMOS

1

Jumper Status

1-2 Normal Operation (default) 2-3 Clear CMOS

Serial-ATA

SATA 1

Pin Definition Pin Definition

S1 GND S2 TX+ S3 TX- S4 GND S5 RX- S6 RX+ S7 GND P1 NC P2 NC P3 NC P4 GND P5 GND P6 GND P7 VCC5 P8 VCC5

P9 VCC5 P10 GND P11 NC P12 GND P13 NC P14 NC P15 NC

13

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

GPIO Connector

CN4

Pin Definition Pin Definition

1 G_I_1 2 G_I_2 3 G_I_3 4 G_I_4 5 G_O_1 6 G_O_2 7 G_O_3 8 G_O_4 9 GND 10 GND

USB Connector

J3

Pin Definition Pin Definition

1 VCC5 2 USB_5N 3 USB_5P 4 GND

MH1 GND MH2 GND

14

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

High Speed Board-to-Board Connector

COM Express Row A and Row B Connector size: 2 x 110 = 220 pins

Row A Row B Row A Row B

A1 GND B1 GND A56 NC B56 NC

A2 GBE0_MDI3- B2 GBE0_ACT# A57 GND B57 NC

A3 GBE0_MDI3+ B3 LPC_FRAME# A58 NC B58 NC

A4 NC B4 LPC_AD0 A59 NC B59 NC

A5 NC B5 LPC_AD1 A60 GND B60 GND

A6 GBE0_MDI2- B6 LPC_AD2 A61 NC B61 NC

A7 GBE0_MDI2+ B7 LPC_AD3 A62 NC B62 NC

A8 GBE0_LINK# B8 NC A63 GPI1 B63 GPO3

A9 GBE0_MDI1- B9 NC A64 NC B64 NC

A10 GBE0_MDI1+ B10 LPC_CLK A65 NC B65 NC

A11 GND B11 GND A66 GND B66 NC

A12 GBE0_MDI0- B12 PWRBTN# A67 NC B67 NC

A13 GBE0_MDI0+ B13 SMB_CK A68 PCIE_TX0+ B68 PCIE_RX0+

A14 GBE0_CTREF B14 SMB_DAT A69 PCIE_TX0- B69 PCIE_RX0-

A15 SUS_S3# B15 SMB_ALERT# A70 GND B70 GND

A16 SATA0_TX+ B16 NC A71 LVDS_A0+ B71 NC

A17 SATA0_TX- B17 NC A72 LVDS_A0- B72 NC

A18 SUS_S4# B18 SUS_STAT# A73 LVDS_A1+ B73 NC

A19 SATA0_RX+ B19 NC A74 LVDS_A1+ B74 NC

A20 SATA0_RX- B20 NC A75 LVDS_A2+ B75 NC

15

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Row A Row B Row A Row B

A21 GND B21 GND A76 LVDS_A2+ B76 NC

A22 NC B22 NC A77 LVDS_VDD_EN B77 NC

A23 NC B23 NC A78 LVDS_A3+ B78 NC

A24 SUS_S5# B24 PWR_OK A79 LVDS_A3+ B79 LVDS_BKLT_EN

A25 NC B25 NC A80 GND B80 GND

A26 NC B26 NC A81 LVDS_A_CK+ B81 NC

A27 BATLOW# B27 NC A82 LVDS_A_CK- B82 NC

A28 ATA_ACT# B28 NC A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL

A29 AC_SYNC B29 NC A84 LVDS_I2C_DAT B84 VCC_5V_SBY

A30 AC_RST# B30 AC_SDIN0 A85 NC B85 VCC_5V_SBY

A31 GND B31 GND A86 NC B86 VCC_5V_SBY

A32 AC_BITCLK B32 SPKR A87 NC B87 VCC_5V_SBY

A33 AC_SDOUT B33 I2C_CK A88 PCIE0_CK_REF+ B88 RSVD

A34 NC B34 I2C_DAT A89 PCIE0_CK_REF- B89 NC

A35 NC B35 THRM# A90 GND B90 GND

A36 USB6- B36 NC A91 RSVD B91 NC

A37 USB6+ B37 NC A92 RSVD B92 NC

A38 USB_6_7_OC# B38 USB_4_5_OC# A93 NC B93 NC

A39 USB4- B39 USB5- A94 RSVD B94 NC

A40 USB4+ B40 USB5+ A95 RSVD B95 NC

Row A Row B Row A Row B

A41 GND B41 GND A96 GND B96 NC

A42 USB2- B42 USB3- A97 VCC_12V B97 NC

A43 USB2+ B43 USB3+ A98 VCC_12V B98 NC

A44 USB_2_3_OC# B44 USB_0_1_OC# A99 VCC_12V B99 NC

A45 USB0- B45 USB1- A100 GND B100 GND

A46 USB0+ B46 USB1+ A101 VCC_12V B101 VCC_12V

A47 VCC_RTC B47 NC A102 VCC_12V B102 VCC_12V

A48 NC B48 NC A103 VCC_12V B103 VCC_12V

A49 NC B49 SYS_RESET# A104 VCC_12V B104 VCC_12V

A50 NC B50 CB_RESET# A105 VCC_12V B105 VCC_12V

A51 GND B51 GND A106 VCC_12V B106 VCC_12V

A52 NC B52 NC A107 VCC_12V B107 VCC_12V

A53 NC B53 NC A108 VCC_12V B108 VCC_12V

A54 NC B54 NC A109 VCC_12V B109 VCC_12V

A55 NC B55 NC A110 GND B110 GND

16

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

High Speed Board-to-Board Connector

COM Express Row C and Row D Connector size: 2 x 110 = 220 pins

Row C Row D Row C Row D

C1 GND D1 GND C56 NC D56 SDVOB_GREEN-

C2 IDE_D7 D2 IDE_D5 C57 NC D57 NC

C3 IDE_D6 D3 IDE_D10 C58 NC D58 SDVOB_BLUE+

C4 IDE_D3 D4 IDE_D11 C59 NC D59 SDVOB_BLUE-

C5 IDE_D15 D5 IDE_D12 C60 GND D60 GND

C6 IDE_D8 D6 IDE_D4 C61 NC D61 SDVO_CLK+

C7 IDE_D9 D7 IDE_D0 C62 NC D62 SDVO_CLK-

C8 IDE_D2 D8 IDE_REQ C63 NC D63 NC

C9 IDE_D13 D9 IDE_IOW# C64 NC D64 NC

C10 IDE_D1 D10 IDE_ACK# C65 NC D65 NC

C11 GND D11 GND C66 NC D66 NC

C12 IDE_D14 D12 IDE_IRQ C67 NC D67 GND

C13 IDE_IORDY D13 IDE_A0 C68 NC D68 NC

C14 IDE_IOR# D14 IDE_A1 C69 NC D69 NC

C15 NC D15 IDE_A2 C70 GND D70 GND

C16 NC D16 IDE_CS1# C71 NC D71 NC

C17 NC D17 IDE_CS3# C72 NC D72 NC

C18 NC D18 IDE_RESET# C73 NC D73 SDVO_CLK

C19 NC D19 NC C74 NC D74 NC

C20 PCI_GNT0# D20 NC C75 NC D75 NC

17

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Row C Row D Row C Row D

C21 GND D21 GND C76 GND D76 GND

C22 PCI_REQ0# D22 PCI_AD1 C77 NC D77 IDE_CBLID#

C23 PCI_RESET# D23 PCI_AD3 C78 NC D78 NC

C24 PCI_AD0 D24 PCI_AD5 C79 NC D79 NC

C25 PCI_AD2 D25 PCI_AD7 C80 GND D80 GND

C26 PCI_AD4 D26 PCI_C/BE0# C81 NC D81 NC

C27 PCI_AD6 D27 PCI_AD9 C82 NC D82 NC

C28 PCI_AD8 D28 PCI_AD11 C83 NC D83 NC

C29 PCI_AD10 D29 PCI_AD13 C84 GND D84 GND

C30 PCI_AD12 D30 PCI_AD15 C85 NC D85 NC

C31 GND D31 GND C86 NC D86 NC

C32 PCI_AD14 D32 PCI_PAR C87 GND D87 GND

C33 PCI_C/BE1# D33 PCI_SERR# C88 NC D88 NC

C34 PCI_PERR# D34 PCI_STOP# C89 NC D89 NC

C35 PCI_LOCK# D35 PCI_TRDY# C90 GND D90 GND

C36 PCI_DEVSEL# D36 PCI_FRAME# C91 NC D91 NC

C37 PCI_IRDY# D37 PCI_AD16 C92 NC D92 NC

C38 PCI_C/BE2# D38 PCI_AD18 C93 GND D93 GND

C39 PCI_AD17 D39 PCI_AD20 C94 NC D94 NC

C40 PCI_AD19 D40 PCI_AD22 C95 PEG_RX13- D95 PEG_TX13-

Row C Row D Row C Row D

C41 GND D41 GND C96 GND D96 GND

C42 PCI_AD21 D42 PCI_AD24 C97 RSVD D97 PEG_ENABLE#

C43 PCI_AD23 D43 PCI_AD26 C98 PEG_RX14+ D98 PEG_TX14+

C44 PCI_C/BE3# D44 PCI_AD28 C99 PEG_RX14- D99 PEG_TX14-

C45 PCI_AD25 D45 PCI_AD30 C100 GND D100 GND

C46 PCI_AD27 D46 PCI_IRQC# C101 PEG_RX15+ D101 PEG_TX15+

C47 PCI_AD29 D47 PCI_IRQD# C102 PEG_RX15- D102 PEG_TX15-

C48 PCI_AD31 D48 PCI_CLKRUN# C103 GND D103 GND

C49 PCI_IRQA# D49 PCI_M66EN C104 VCC_12V D104 VCC_12V

C50 PCI_IRQB# D50 PCI_CLK C105 VCC_12V D105 VCC_12V

C51 GND D51 GND C106 VCC_12V D106 VCC_12V

C52 PEG_RX0+ D52 PEG_TX0+ C107 VCC_12V D107 VCC_12V

C53 PEG_RX0- D53 PEG_TX0- C108 VCC_12V D108 VCC_12V

C54 TYPE0# D54 PEG_LANE_RV# C109 VCC_12V D109 VCC_12V

C55 PEG_RX1+ D55 PEG_TX1+ C110 GND D110 GND

18

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe

CN5 / CN6

Pin Definition Pin Definition Pin Definition Pin Definition

1 WAKE# 2 +V3.3A_MIN 27 GND 28 +V1.5S_MIN 3 NC 4 GND 29 GND 30 SMB_CLK 5 NC 6 +V1.5S_MIN 31 PETn0 32 SMB_DATA 7 CLKREQ# 8 NC 33 PETp0 34 GND

9 GND 10 NC 35 GND 36 USB_D11 REFCLK- 12 NC 37 NC 38 USB_D+ 13 REFCLK+ 14 NC 39 +V3.3A_MIN 40 GND 15 GND 16 NC 41 +V3.3A_MIN 42 LED_WWAN# 17 NC 18 GND 43 NC 44 LED_WLAN# 19 NC 20 DISABLE# 45 NC 46 LED_WPAN# 21 GND 22 PERST# 47 NC 48 +V1.5S_MIN 23 PERn0 24 +V3.3A_MIN 49 NC 50 GND 25 PERp0 26 GND 51 NC 52 +V3.3A_MIN

Battery connector

J5

Pin Definition Pin Definition

1 GND 2 Z0902

MH1 GND MH2 GND

19

NDiS OPS-M50 User Manual

Chapter 2: Jumpers and Connectors

JAE TX24/TX25 Plug

J2

Pin Definition Pin Definition Pin Definition Pin Definition

1 DDP_3N 21 TMDS0+ 41 RSVD 61 USB_PP2 2 DDP_3P 22 GND 42 RSVD 62 GND 3 GND 23 TMDS1- 43 RSVD 63 USB_PN1 4 DDP_2N 24 TMDS1+ 44 RSVD 64 USB_PP1 5 DDP_2P 25 GND 45 RSVD 65 GND 6 GND 26 TMDS2- 46 RSVD 66 USB_PN0 7 DDP_1N 27 TMDS2+ 47 RSVD 67 USB_PP0

8 DDP_1P 28 GND 48 RSVD 68 GND

9 GND 29 DVI_DDC_DATA 49 RSVD 69 AZ_LINEOUT_L 10 DDP_0N 30 DVI_DDC_CLK 50 SYS_FAN 70 AZ_LINEOUT_R 11 DDP_0P 31 DVI_HPD 51 UART_RXD 71 CEC 12 GND 32 GND 52 UART_TXD 72 PB_DET 13 DDP_AUXN 33 +12V~+19V 53 GND 73 PS_ON# 14 DDP_AUXP 34 +12V~+19V 54 StdA_SSRX- 74 PWR_STATUS 15 DDP_HPD 35 +12V~+19V 55 StdA_SSRX+ 75 GND 16 GND 36 +12V~+19V 56 GND 76 GND 17 TMDS_CLK- 37 +12V~+19V 57 StdA_SSTX- 77 GND 18 TMDS_CLK+ 38 +12V~+19V 58 StdA_SSTX+ 78 GND 19 GND 39 +12V~+19V 59 GND 79 GND 20 TMDS0- 40 +12V~+19V 60 USB_PN2 80 GND

20

NDiS OPS-M50 User Manual

Chapter 3: System Setup

CAUTION!

ChaPter 3: system setuP

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is

CAUTION!CAUTION!

1. The screws on the bottom of cover are used to secure the cover to the

off and disconnected from the power source to prevent electric shock or system damage.

chassis. Remove these screws and put them in a safe place for later use.

21

NDiS OPS-M50 User Manual

Chapter 3: System Setup

Installing a SO-DIMM

1. Remove the top cover of chassis. Then loosen the mounting screws and remove the heat sink and locate for the SO-DIMM socket on the CPU board.

22

SO-DIMM

Sockets

NDiS OPS-M50 User Manual

Chapter 3: System Setup

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

Ejector

Tab

3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

Key

21

Notch

NDiS OPS-M50 User Manual

Chapter 3: System Setup

4. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

5. Align the mounting holes of the heat sink with the mounting studs on the board then use the provided mounting screws to secure the heat sink in place.

22

NDiS OPS-M50 User Manual

Chapter 3: System Setup

Installing a SATA Half Slim Storage

1. Remove bottom cover and locate for the SATA Half Slim Storage coneector on the board.

Mounting Screw

23

SATA

Connector

NDiS OPS-M50 User Manual

Chapter 3: System Setup

3. Locate for the SATA connector and the SATA power connector on the SATA Half Slim Storage device. Slide the SATA Half Slim Storage device onto the SATA connector.

SATA Data Connector

SATA Power Connector

4. Use the provided screws to secure the SATA Half Slim Storage device in place.

Mounting Screw

24

NDiS OPS-M50 User Manual

Chapter 3: System Setup

5. Align the screw holes of the cover with the screw holes on the bottom

plate then use the provided mounting screws to secure the cover in place.

25

NDiS OPS-M50 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

1. Remove the top cover of chassis. Then loosen the mounting screws and remove the heat sink.

26

NDiS OPS-M50 User Manual

Chapter 3: System Setup

2. Insert the 2 rings (ring 1 then ring 2) into the WiFi antenna jack. 3. Now mount the WiFi antenna jack to the WiFi antenna hole located at

the rear panel of the chassis then tighten the rings.

Ring2 Ring1

27

NDiS OPS-M50 User Manual

Chapter 3: System Setup

4. Remove bottom cover and locate for the Half Mini PCI Express slot on the board.

Mounting Screw

28

Mini PCI

Express Slot

NDiS OPS-M50 User Manual

Chapter 3: System Setup

5. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

6. Push the module down then secure it with mounting screws and attach one end of the RF cable onto the WiFi module.

29

Mounting

Screw

Attached RF Cable to

the Module

NDiS OPS-M50 User Manual

Chapter 3: System Setup

7. Align the screw holes of the cover with the screw holes on the bottom plate then use the provided mounting screws to secure the cover in place.

8. Align the mounting holes of the heat sink with the mounting studs on the board then use the provided mounting screws to secure the heat sink and top cover in place. Now connect an external antenna to the WiFi antenna jack.

30

Antenna

NDiS OPS-M50 User Manual

Chapter 3: System Setup

Installing a TV Tuner Module

1. Remove the top cover of chassis. Then loosen the mounting screws and remove the heat sink.

31

NDiS OPS-M50 User Manual

Chapter 3: System Setup

2. Insert the 2 rings (ring 1 then ring 2) into the WiFi antenna jack. 3. Now mount the WiFi antenna jack to the WiFi antenna hole located at the rear panel of the chassis then tighten the rings.

Ring2 Ring1

32

NDiS OPS-M50 User Manual

Chapter 3: System Setup

4. Remove bottom cover and locate for the Half Mini PCI Express slot on the

board.

Mounting Screw

33

Mini PCI

Express Slot

NDiS OPS-M50 User Manual

Chapter 3: System Setup

5. Insert the TV Tuner module into the Mini PCI Express slot at a 45

degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

6. Push the module down then secure it with mounting screws and attach one end of the RF cable onto the TV Tuner module.

34

Mounting

Screw

Attached RF Cable to

the Module

NDiS OPS-M50 User Manual

Chapter 3: System Setup

7. Align the screw holes of the cover with the screw holes on the bottom plate then use the provided mounting screws to secure the cover in place.

8. Align the mounting holes of the heat sink with the mounting studs on the board then use the provided mounting screws to secure the heat sink and top cover in place. Now connect an external antenna to the WiFi antenna jack.

35

Antenna

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

ChaPter 4: Bios setuP

This chapter describes how to use the BIOS setup program for NDiS OPS-M50 Series. The BIOS screens in this chapter are for reference only and may change if the BIOS is updated in the future. To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom. com.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driv en utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals.

▪ Video display type and display options.

▪ Password protection from unauthorized use.

▪ Power management features.

The settings made in the setup program intimately affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration.

▪ When a configuration error is detected by the system and you are

▪ prompted to make changes to the Setup program

▪ When resetting the system clock.

▪ When redefining the communication ports to prevent any conflicts.

▪ When making changes to the Power Management configuration.

▪ When changing the password or making other changes to the security

setup.

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

36

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

If the error occurs before the display device is initialized, a series of beeps will be transmitted.

If the error occurs after the display device is initialized, the screen will display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a menu.

Up and Down arrows

<Esc> Exits to the BIOS Setup Utility.

+ (plus key)

- (minus key)

<F1> Displays General Help. <F2> Previous Value <F3> Load optimized default setting <F4> Saves and exits the Setup program. <Enter> Press <Enter> to enter the highlighted sub menu.

Moves the highlight up or down between submenus or fields.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

TO ENTER SETUP BEFORE BOOT

PRESS <CTRL-ALT-ESC>

Press the <Del>or<F2> key to enter Setup

37

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

38

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Boot SecurityMain

BIOS Information BIOS Vendor Production Name Bios Version Build Date and Time

******* Memory Informaiton ******* Memory Frequency Total Memory

ME Firmware Information ME FW Version ME Firwmare Mode ME Firmware SKU

System Date

System Time

American Megatrends i267S*NDiS-OPS Series i267B042 13/06/2012 11:32:53

1333Mhz 2048 MB (DDR3)

7.0.3.1184 Normal Mode 5MB

[Thu 02/06/2011] [23:21:03]

Save & Exit

Set the Date. Use Tab to Switch between Data elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information

Displays the detected BIOS information.

Memory Information

Displays the detected system memory information.

ME Firmware Information

Displays the detected ME Firmware information.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

39

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunc tion.

Advanced



CPU Conguration



System Agent (SA) Conguration



SATA Conguration



PCH-IO Conguration



Anti-Theft conguration AMT Conguration



USB Conguration



H/W Monitor



Super IO Conguration



H/W Monitor2

Boot SecurityMain

Save & Exit

CPU Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Configuration

This section is used to configure the CPU. It will also display detected CPU information.

System Agent (SA) Configuration

System Agent (SA) Parameters

SATA Configuration

This section is used to configure the SATA drives.

PCH-IO Configuration

PCH-IO parameters

Thermal Configuration

Configures the intelligent power sharing function.

Anti-Thefts Configuration

Configures the Intel® Anti-Theft Technology function.

AMT Configuration

Configures the AMT function.

USB Configuration

Configures the USB devices.

40

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

H/W Monitor

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

41

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU. It will also display detected CPU information.

Main

CPU Conguration

Intel(R) Core(TM) i5-2515E CPU @ 2.50GHz EMT64 Processor Speed Processor Setpping Microcode Revision Processor Cores Intel HT technology

Hyper-threading

Hardware Prefectcher Intel Virtualization Technology

Advanced Chipset Boot Security

Supported 2500 MHz 206a7 15 2 Supported

[Enabled]

[Enabled] [Disabled]

Save & Exit

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread poer enabled core is enabled.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hyper-Threading

Enable this field for Windows XP and Linux which are optimized for HyperThreading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher.

Intel Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

42

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) Configuration function.

Chipset

VT-d

Intel IGFX Conguration

[Disabled]

Enable/Disable SA Thermal Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

VT-d

Check to enable VT-d function on MCH.

Intel IGFx Configuration

Selects the Graphic chip setting of Intel IGFx Configuration.

43

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

INTEL IGFx Configuration

This section is used to configure the Intel IGFX Configuration.

Chipset

Intel IGFX Conguration

Primary IGFX Boot Display Secondary IGFX Boot Display

[VBIOS Default] [Disabled]

Graphics turbo IMOON current values supported (14-31)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Primary IGFx Boot Display

Select the vedio devoce which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primery display.

Secondary IGFx Boot Display

Select secondary display device.

44

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Main

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve

Advanced Chipset Boot Security

[Enabled]

[IDE]

InnoLite SATA (16.0G SUPPORTED Empty Unknown

Save & Exit

Determines how SATA controller(s) operate.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode

IDE Mode

This option configures the Serial ATA drives as Parallel ATA storage devices.

AHCI Mode

This option allows the Serial ATA devices to use AHCI (Ad vanced Host Controller Interface).

RAID Mode

This option allows you to create RAID or Intel Matrix Stor age configuration on Serial ATA devices.

Please set SATA Mode to IDE Mode before installing Windows XP. Setting AHCI mode could not initial Windows XP installation.

45

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

PCH-IO Configuration

This section is used to configure the PCH-IO Configuration.

Chipset

PCH LAN Controller

Wake on LAN Enable Azalia Azalia internal HDMI code

Restore AC Power Loss

[Enabled]

[Disabled] [Auto] [Disabled]

[Power On]

Enable/Disable onboard NIC.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH LAN Controller

Enables or disables onboard NIC.

Wake on LAN Enable

Enables or disables integrated LAN to wake the system.

Azalia

Control Detection of the Azalia device.

Disabled - Azalia will be unconditionally disabled.

Enabled - Azalia will be unconditionally disabled.

Auto - Azalia will be enabled if present, disabled otherwise.

Azalia internal HDMI codec

Enables or disables internal HDMI codec for Azalia.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

46

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Anti-Thefts Configuration

Configures the Intel® Anti-Theft Technology function.

Main

Intel Anti-Theft conguration

Anti-Theft Anti-Theft Recovery

Enter AT Suspend Mode

Advanced Chipset Boot Security

[Disabled] 3

[Disabled]

Save & Exit

Request that platform enter AT Suspend Mode

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Anti-Theft

Enables or disables Intel® Anti-Theft Technology function in BIOS.

Enter AT Suspend Mode

Enables or disables the request that platform enter AT suspend mode.

47

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

AMT Configuration

This section is used to configure the AMT function.

Main

Intel AMT

Intel AMT Setup Prompt BIOS Hotkey Pressed MEBx Selection Screen

Advanced Chipset Boot Security

[Enabled]

[Enabled] [Disabled] [Disabled]

Save & Exit

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this reuqires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel AMT

Enables or disables the Intel® Active Management Technology BIOS Extension function.

Intel AMT Setup Prompt

Enables or disables Intel AMT Setup prompt to wait for hot-key to enter setup.

BIOS Hokey Pressed

Enables or disables BIOS hotkey press.

MEBx Selection Screen

Enables or disables MEBx selection screen

48

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Main

USB Conguration

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support

EHCI Hand-off

Advanced Chipset Boot Security

[Enabled]

[Disabled]

Save & Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled - Enables legacy USB.

Auto - Disables support for legacy when no USB devices are connect ed.

Disabled - Keeps USB devices available only for EFI applications.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

49

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

H/W Monitor

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Main

Pc Health Status

CPU temperaure Vcore 5V

3.3V

Advanced Chipset Boot Security

: +56 C : +1.054 V : +4.940 V : +3.294 V

Save & Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Temperature

Detects and displays the CPU temperature of the system.

Vcore to 3.3V

Detects and displays the output voltages.

50

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Main

Super IO Conguration

Super IO Chip

Serial Port 0 Conguration

Serial Port 1 Conguration

Advanced Chipset Boot Security

IT8728

Save & Exit

Set Parameters of Serial Port 0 (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 0 Configuration to Serial Port 1 Configuration

Selects the IO/IRQ setting of the I/O devices.

51

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

H/W Monitor 2

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Main

Pc Health Status

System temperature 1 System temperature 2 Fan1 Speed 12V

Advanced Chipset Boot Security

: +56 C : +47 C : 4753 RPM : +12.294 V

Save & Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Temperature 1 to System Temperature 2

Detects and displays the internal temperature of the system.

Fan1 Speed

Detects and displays the current system fan speed in RPM.

12V

Detects and displays the output voltages.

52

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Boot

Advanced Boot SecurityMain

Boot Conguration

Bootup Numlock State

Launch PXE OpRom

Boot Option Priorities

Boot Option #1

Hard Drive BBS Priorities

Save & Exit

Select the Keyboard NumLock

[On]

[Disabled]

[SATA: InnoLite SATA..]

state

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Bootup Numlock State

Enables or disables the boot option for legacy network devices.

Launch PXE OpROM

Enables or disables the boot option for legacy network devices.

Boot Option #1

Selects the boot sequence of the hard drives.

Hard Drive BBS Priorities

Sets the order of the legacy devices in this group.

53

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Security

Advanced Boot SecurityMain

Password Description

If ONLY the Adm;inistrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on passowrd and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password msut be 3 to 20 characters long.

Administrator Password

User Password

Save & Exit

Set Setup Administrator Passwrod

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

54

NDiS OPS-M50 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Boot SecurityMain

Save Changes and Reset Discard Changes and Reset

Load Optimized Defaults

Save & Exit

Restore/Load Default values for all the setup options.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Load Optimized Default

To restore / lead default all values for all the setup options. Confirm by selecting Yes to apply optimized default settings.

55

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

ChaPter 5: amt settings

Enable Intel® AMT in the AMI BIOS

1. In the Advanced menu, select AMT Configuration. 2. In the AMT field, select Enabled.

Advanced



CPU Conguration



System Agent (SA) Conguration



SATA Conguration



PCH-IO Conguration



Anti-Theft conguration

AMT Conguration



USB Conguration



H/W Monitor



Super IO Conguration



H/W Monitor2

Boot SecurityMain

Save & Exit

AMT Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel AMT

Intel AMT Setup Prompt BIOS Hotkey Pressed MEBx Selection Screen

56

Main

Advanced Chipset Boot Security

[Enabled]

[Enabled] [Disabled] [Disabled]

Save & Exit

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this reuqires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

Configure the Intel® ME Setup

1. When the system reboots, the following message will be displayed. Press <Ctrl-P> as soon as the message is displayed; as this message will be displayed for only a few seconds.

Intel(R) ME Firmware version 6.0.3.1195 Press <CTRL-ALT F1> to enter Remote Assistance Press <CTRL-P> to enter Intel(R) ME Setup

2. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME Password and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

Intel(R) ME Password

*****

[ESC] : Exit

[ENTER] : Submit

57

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

3. Enter a new password in the space provided under Intel(R) ME New Password and then press Enter. The new password must be based on the following rules to create a strong password security.

▪ Password length - at least 8 characters and not longer than 32. ▪ Password complexity - the password must include the following.

- At least one digit character (0, 1, ...9)

- At least one 7-bit ASCII non alpha-numeric character (e.g. !, $, ;)

but excluding : , and ” characters

- At least one lowercase letter (‘a’, ‘b’...’z’) and at least one

uppercase letter (‘A’, ‘B’...’Z’)

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

Intel(R) ME New Password

4. You will be asked to verify the password. Enter the same new password in the space provided under Verify Password and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

Verify Password

[ESC] : Exit

[ENTER] : Submit

[ESC] : Exit

[ENTER] : Submit

58

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

5. Select Intel(R) ME General Settings and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings 

Intel(R) AMT Conguration  Exit

↑↓] : Select

[ESC] : Exit

[

[ENTER] : Access

6. Select Intel(R) ME State Control and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control

Change ME Password Password Policy Network Setup  Activate Network Access Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[*] DISABLED

[*] ENABLED

[ENTER] : Access

59

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

7. Select Network Setup and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy

Network Setup 

Activate Network Access Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

8. In the Intel(R) Network Setup menu, select Intel(R) ME Network Name Settings then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) NETWORK SETUP ]

Intel(R) ME Network Name Settings 

TCP/IP Settings  Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

60

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

9. In the Intel(R) ME Network Name Settings menu, select Host Name and then press Enter. Enter the computer’s host name (for example: QM57) and then press Enter.

Select Previous Menu and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.9.1195

[ INTEL(R) ME NETWORK NAME SETTINGS ]

Host Name

Domain Name Shared/Dedicated FQDN Dynamic DNS Update Previous Menu

[ESC] : Exit

[↑↓] : Select

Computer host name

QM57

[ENTER] : Access

10. In the Network Setup menu, select TCP/IP Settings and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) NETWORK SETUP ]

Intel(R) ME Network Name Settings 

TCP/IP Settings 

Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

61

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

11. In the TCP/IP Settings menu, select Wired LAN IPV4 Configuration and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ TCP/IP SETTINGS ]

Wired LAN IPV4 Conguration 

Wired LAN IPV6 Conguration  Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

12. Select DHCP Mode and then press Enter. Select Enabled or Disabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode

Previous Menu

[ESC] : Exit

[↑↓] : Select

[*] DISABLED

[*] ENABLED

[ENTER] : Access

62

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

13. A list of options in the Wired LAN IPV4 Configuration menu will appear. Select IPV4 Address and then press Enter. Enter an IP Address then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.9.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode

IPV4 Address

Subnet Mask Address Default Gateway Address Preferred DNS Address Alternate DNS Address Previous Menu

IP address (e.g. 123.123.123.100)

14. Select Subnet Mask Address and then press Enter. Enter the subnet mask address and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode IPV4 Address

Subnet Mask Address

Default Gateway Address Preferred DNS Address Alternate DNS Address Previous Menu

[ESC] : Exit

[↑↓] : Select

Subnet mask (e.g. 255.255.255.0)

[ENTER] : Access

63

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

15. Select Default Gateway Address and then press Enter.

Enter the default gateway address and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode IPV4 Address Subnet Mask Address

Default Gateway Address

Preferred DNS Address Alternate DNS Address Previous Menu

[ESC] : Exit

[↑↓] : Select

Default Gateway Address

[ENTER] : Access

16. Select Previous Menu and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) NETWORK SETUP ]

Intel(R) ME Network Name Settings  TCP/IP Settings 

Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

64

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

17. Select Previous Menu until you return to the Intel(R) ME Platform Configuration menu. Select Activate Network Access and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy Network Setup 

Activate Network Access

Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

18. Type Y and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy Network Setup  Activate Network Access Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

Activates the current network settings and opens the ME network interface Continue: (Y/N)

[ENTER] : Access

[Caution]

65

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

19. In the Intel(R) ME Platform Configuration menu, select Unconfigure Network Access and then press Enter. Clear all network settings.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy Network Setup 

Uncongure Network Access

Remote Setup and Conguration  FW Update Settings  Set PRTC

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

20. In the Intel(R) ME Platform Configuration menu, select Power Control and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Change ME Password Password Policy Network Setup  Uncongure Network Access Remote Setup and Conguration  FW Update Settings  Set PRTC

Power Control 

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

66

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

21. In the Intel(R) ME Power Control menu, select Intel(R) ME ON in Host Sleep States and then press Enter. Select Mobile: ON in S0 and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME POWER CONTROL ]

Intel(R) ME ON in Host Sleep States

Idle Timeout Previous Menu

[ESC]=Exit

[*] Mobile: ON in S0

[*] Mobile: ON in S0, ME Wake in S3, S4-5 (AC only)

[↑↓]=Select

[ENTER]=Access

22. Select Previous Menu and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Password Policy Network Setup  Uncongure Network Access Remote Setup and Conguration  FW Update Settings  Set PRTC Power Control 

Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

67

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

23. Select Previous Menu until you return to the Main Menu. Select Intel(R) AMT Configuration.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings 

Intel(R) AMT Conguration 

Exit

↑↓]=Select

[ESC]=Exit

[

[ENTER]=Access

24. The message below will appear.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

↑↓]=Select

[ESC]=Exit

Update network settings in the General Settings menu

[

[ENTER]=Access

68

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

25. In the Intel(R) AMT Configuration menu, select SOL/IDER and then

press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) AMT CONFIGURATION ]

Manageability Feature Selection

SOL/IDER

KVM Conguration Previous Menu

[ESC]=Exit

[↑↓]=Select

[ENTER]=Access

26. In the SOL/IDER menu, select Username & Password and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ SOL/IDER ]

Username & Password

SOL IDER Legacy Redirection Mode Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

69

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

27. In the SOL/IDER menu, select SOL and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ SOL/IDER ]

Username & Password

SOL

IDER Legacy Redirection Mode Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

28. In the SOL/IDER menu, select IDER and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ SOL/IDER ]

Username & Password SOL

IDER

Legacy Redirection Mode Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

70

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

29. In the SOL/IDER menu, select Legacy Redirection Mode and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.31195

[ SOL/IDER ]

Username & Password SOL IDER

Legacy Redirection Mode

Previous Menu

[ESC]=Exit

Redirection Mode must be enabled when using

[↑↓]=Select

a legacy SMB Redirection Console

[ENTER]=Access

30. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.31195

[ SOL/IDER ]

Username & Password SOL IDER

Legacy Redirection Mode

Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

71

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

31. Select Previous Menu until you return to the Intel(R) AMT

Configuration menu. Select KVM Configuration and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) AMT CONFIGURATION ]

Manageability Feature Selection SOL/IDER

KVM Conguration

Previous Menu

[ESC]=Exit

[↑↓]=Select

[ENTER]=Access

32. In the KVM Configuration menu, select KVM Feature Selection and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection

User Opt-in Opt-in Congurable from remote IT Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

72

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

33. In the KVM Configuration menu, select User Opt-in and then press Enter. Select User Consent is required for KVM Session and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection

User Opt-in

Opt-in Congurable from remote IT Previous Menu

[ESC]=Exit

[*] User Consent is not required for KVM Session

[*] User Consent is required for KVM Session

[↑↓]=Select

[ENTER]=Access

34. In the KVM Configuration menu, select Opt-in Configurable from Remote IT and then press Enter.

Select Enable Remote Control of KVM Opt-in Policy and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection User Opt-in

Opt-in Congurable from remote IT

Previous Menu

[ESC]=Exit

[*] Disable Remote Control of KVM Opt-in Policy

[*] Enable Remote Control of KVM Opt-in Policy

[↑↓]=Select

[ENTER]=Access

73

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

35. Select Previous Menu.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection User Opt-in Opt-in Congurable from remote IT

Previous Menu

[ESC]=Exit

[↑↓]=Select

[ENTER]=Access

36. Select Previous Menu until you return to the Main Menu. Select Exit and then press Enter. The following message will be displayed on the screen. [CONFIRM EXIT] Are you sure you want to exit? (Y/N): Press Y.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration 

Exit

↑↓] : Select

[ESC] : Exit

[

[ CONFIRM EXIT ]

Are you sure you want to exit? (Y/N):

[ENTER] : Access

74

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

Unconfigure AMT/ME

1. In the Advanced menu, select AMT Configuration. 2. In the Unconfigure AMT/ME field, select Enabled. Clear all ME settings.

Advanced



CPU Conguration



System Agent (SA) Conguration



SATA Conguration



PCH-IO Conguration



Anti-Theft conguration

AMT Conguration



USB Conguration



H/W Monitor



Super IO Conguration



H/W Monitor2

Boot SecurityMain

Save & Exit

AMT Conguration Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Main

Intel AMT Intel AMT Setup Prompt BIOS Hotkey Pressed MEBx Selection Screen

Un Congure ME

Advanced Chipset Boot Security

[Enabled] [Enabled] [Disabled] [Disabled]

[Enabled]

Save & Exit

OEMFlag Bit 15: Un-Congure

ME Without password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

75

NDiS OPS-M50 User Manual

Chapter 5: AMT Settings

3. The message below will appear. Type Y.

Found uncongure of Intel(R) ME Continue with unconguration (Y/N)

76

NDiS OPS-M50 User Manual

Appendix A: Watchdog Timer

aPPendix a: WatChdog timer

NDiS OPS-M50 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments.

Watchdog Timer Control Register (Index=71h, Default=00h)

Bit Description

7 WDT is reset upon a CIR interrupt. 6 WDT is reset upon a KBC (mouse) interrupt. 5 WDT is reset upon a KBC (keyboard) interrupt. 4 WDT is reset upon a read or a write to the Game Port base address.

3-2 Reserved

1 Force Time-out. This bit is self-clearing.

WDT Status

0 1: WDT value reaches 0.

0: WDT value is not 0.

77

NDiS OPS-M50 User Manual

Appendix A: Watchdog Timer

Watchdog Timer Configuration Register (Index=72h, Default=001s0000b)

Bit Description

WDT Time-out value select 1

7

1: Second

0:Minute

WDT output through KRST (pulse) Enable

1: Enable

6

0: Disable WDT Time-Out Value Extra Select

1: 64ms x WDT Timer-out value (default=4s)

5

0: Determined by WDT Time-out value select 1 (bit 7 of this register) WDT Output through PWEGD Enable

1: Enable

4

0: Disable

During LRESET# this bit is selected by JP2 power-on strapping option.

Interrupt level Select for WDT.

3-0

Watch Dog Timer Time-out value (LSB) Register (Index=73h, default=38h)

Bit Description

WDT Time-out value 7-0

7-0

Watch Dog Timer Time-out value (MSB) Register (Index=74h, default=00h)

Bit Description

WDT Time-out value 15-8

7-0

78

NDiS OPS-M50 User Manual

Appendix B: GPI/O Programming Guide

aPPendix B: gPi/o Programming guide

This appendix provides definitions for the GPI/O pins in NDiS OPS-M50. GPI/O (General Purpose Input/Output) pins are provided for custom system design. The pin programmed as input mode (GPI) or output mode (GPO) depends on the configuration.

GPIO Configuration

Address: A06

DATA Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

GPIO mapping GPO4 GPO3 GPO2 GPO1 GPI4 GPI3 GPI2 GPI1

Example:

Output data (1010) through GPO

Step 1 : At Debug mode Step 2 : Set Data at address A06

C:\debug

-o A06 50

Read data from GPI

Step 1 : At Debug mode Step 2 : Read Data at A06 (Input data is 1010)

C:\debug

-i A06

-5F

79

NDiS OPS-M50 User Manual

NEXCOM NDiS OPS-M50 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
