NEXCOM NDiS B533 User Manual

NEXCOM International Co., Ltd.
Multi-Media Solutions
Digital Signage Platform NDiS B533
User Manual
NEXCOM International Co., Ltd.
Published March 2014
www.nexcom.com
Content
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer .............................................................................................. iv
Acknowledgements ............................................................................... iv
Regulatory Compliance Statements ........................................................ iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................viii
Installation Recommendations ...............................................................viii
Safety Precautions .................................................................................. ix
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi
Package Contents ................................................................................. xiii
Ordering Information ............................................................................xiv
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features ...........................................................................................1
Physical Features .....................................................................................2
Front Panel ..........................................................................................2
Rear Panel ...........................................................................................2
Hardware Specifications ..........................................................................3
Mechanical Dimensions ...........................................................................4
Chapter 2: Jumpers and Connectors
Before You Begin ....................................................................................5
Precautions ............................................................................................5
Locations of the Jumpers and Connectors for NDiB B533 ........................ 6
NDiB B533 ...........................................................................................6
Jumper Settings ......................................................................................7
Jumpers .................................................................................................. 8
RTC Clear Jump ................................................................................... 8

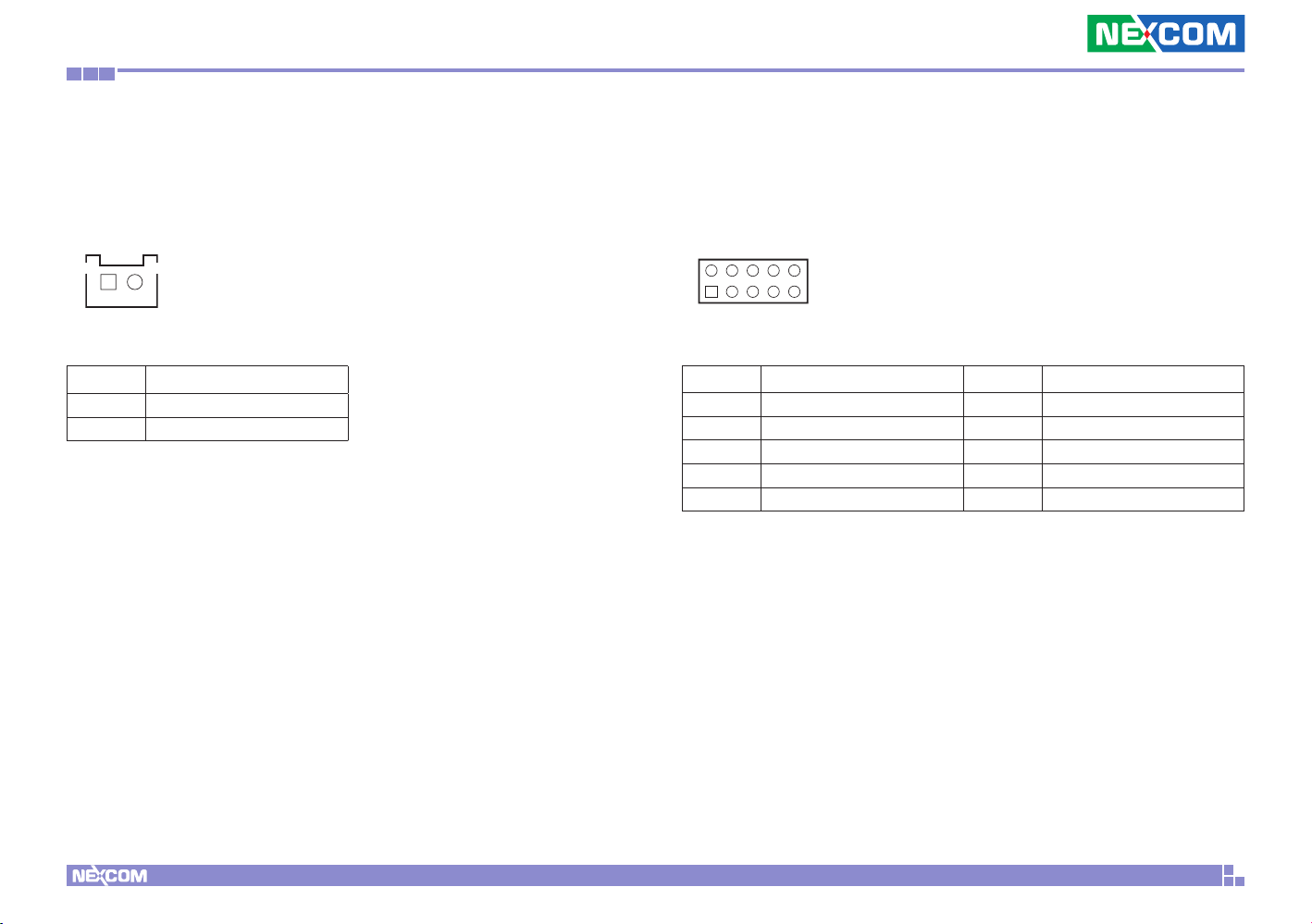

Connector Pin Definitions .......................................................................9
External I/O Interfaces - Front Panel .....................................................9
Power Button ................................................................................... 9
LED Connector ................................................................................. 9
Reset Button ..................................................................................10

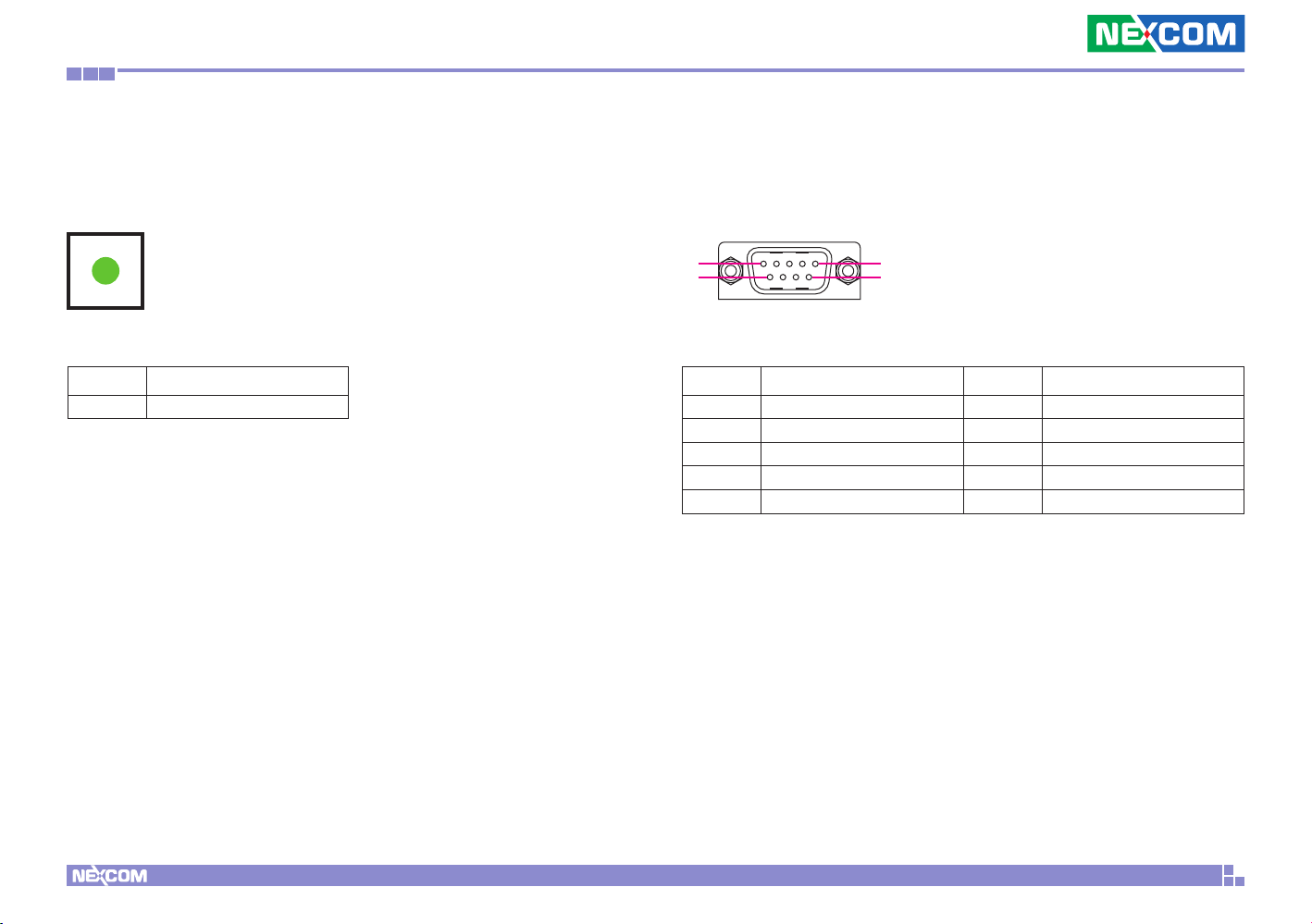

COM1 and COM2 Connectors ....................................................... 10
USB 3.0 Ports ................................................................................. 11
External I/O Interfaces - Rear Panel.....................................................12

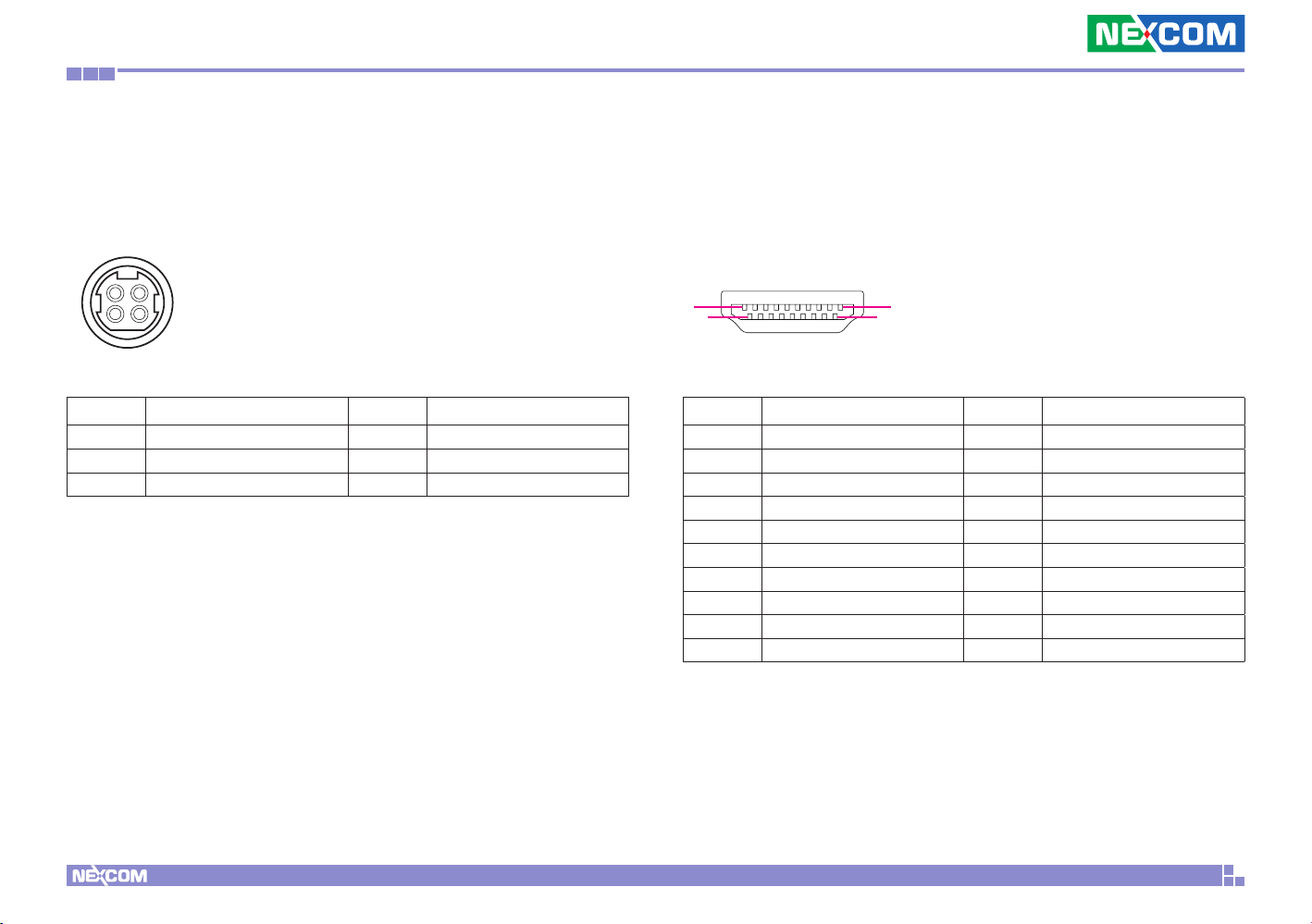

DC Jack Connector ........................................................................12
HDMI ............................................................................................. 12
USB 3.0 Ports ................................................................................. 13
LAN Connectors ............................................................................. 13

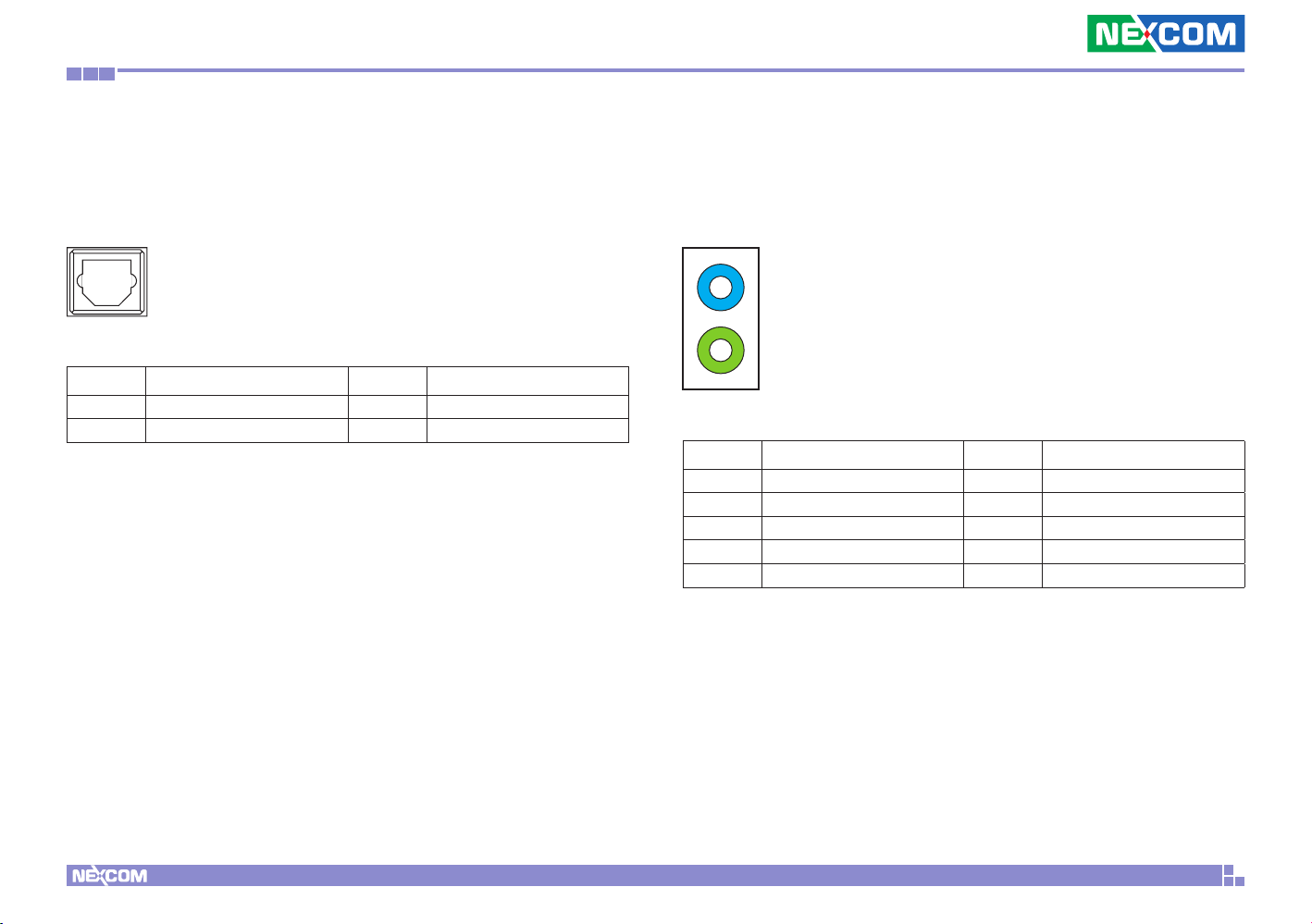

S/PDIF Connector ...........................................................................14
Audio Connectors .......................................................................... 14
Internal Connectors ........................................................................... 15
USB Connectors ............................................................................. 15
SIM Card Slot .................................................................................15
Debug 80 Port Connector ..............................................................16
ii
NDiS B533 User Manual
Content
SATA Connector .............................................................................16

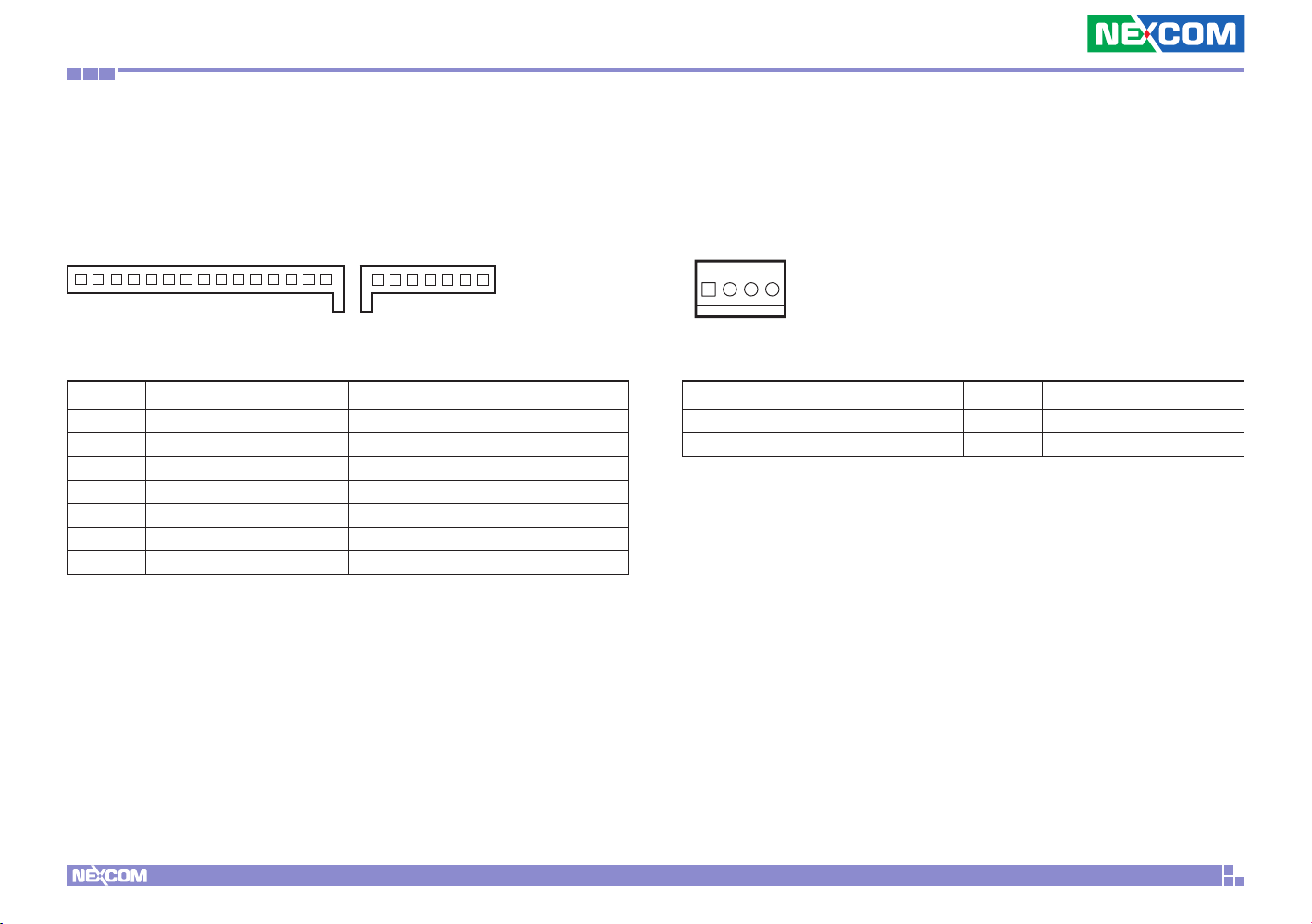

SATA Connector (7-pin and 15-pin) ................................................17
SATA DOM Power Connector .........................................................17
Battery Connector .......................................................................... 18
GPIO .............................................................................................. 18
FAN Connectors .............................................................................19
DC-in Power Connector .................................................................19
Mini-PCIe Connector ...................................................................... 20
Mini-PCIe Connector ...................................................................... 21
Chapter 3: System Setup
Removing the Chassis Cover ................................................................22

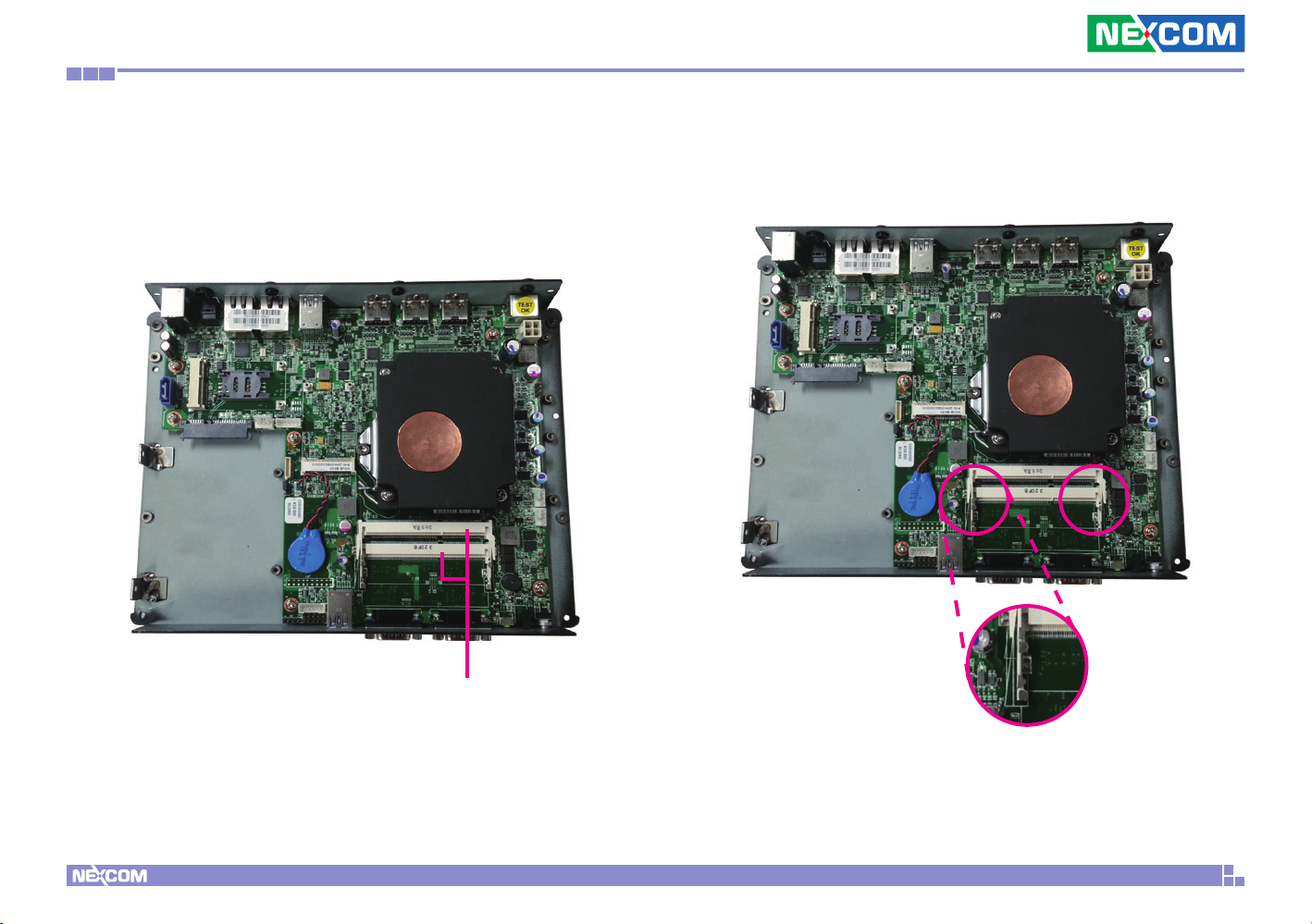

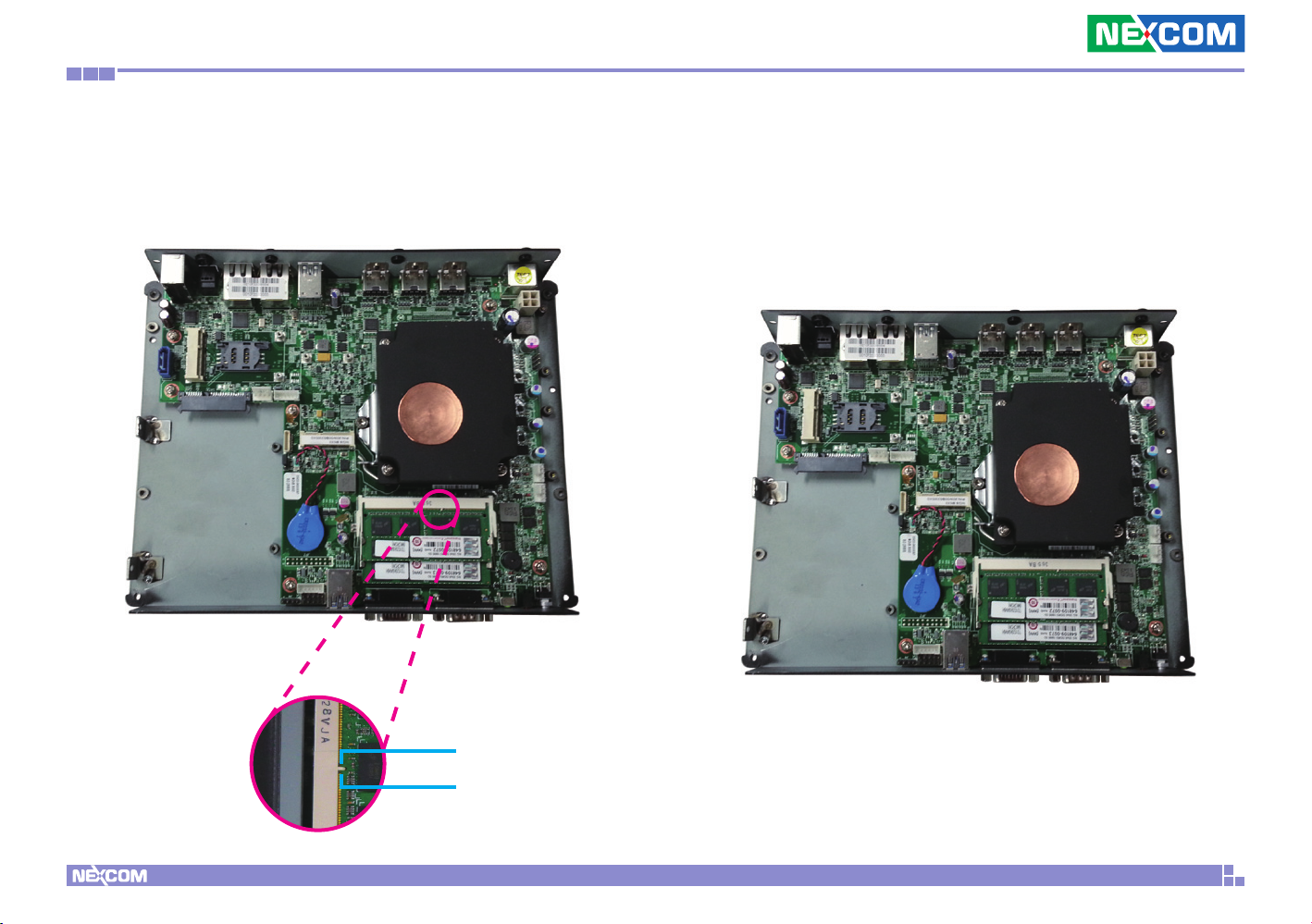

Installing a SO-DIMM ............................................................................ 23

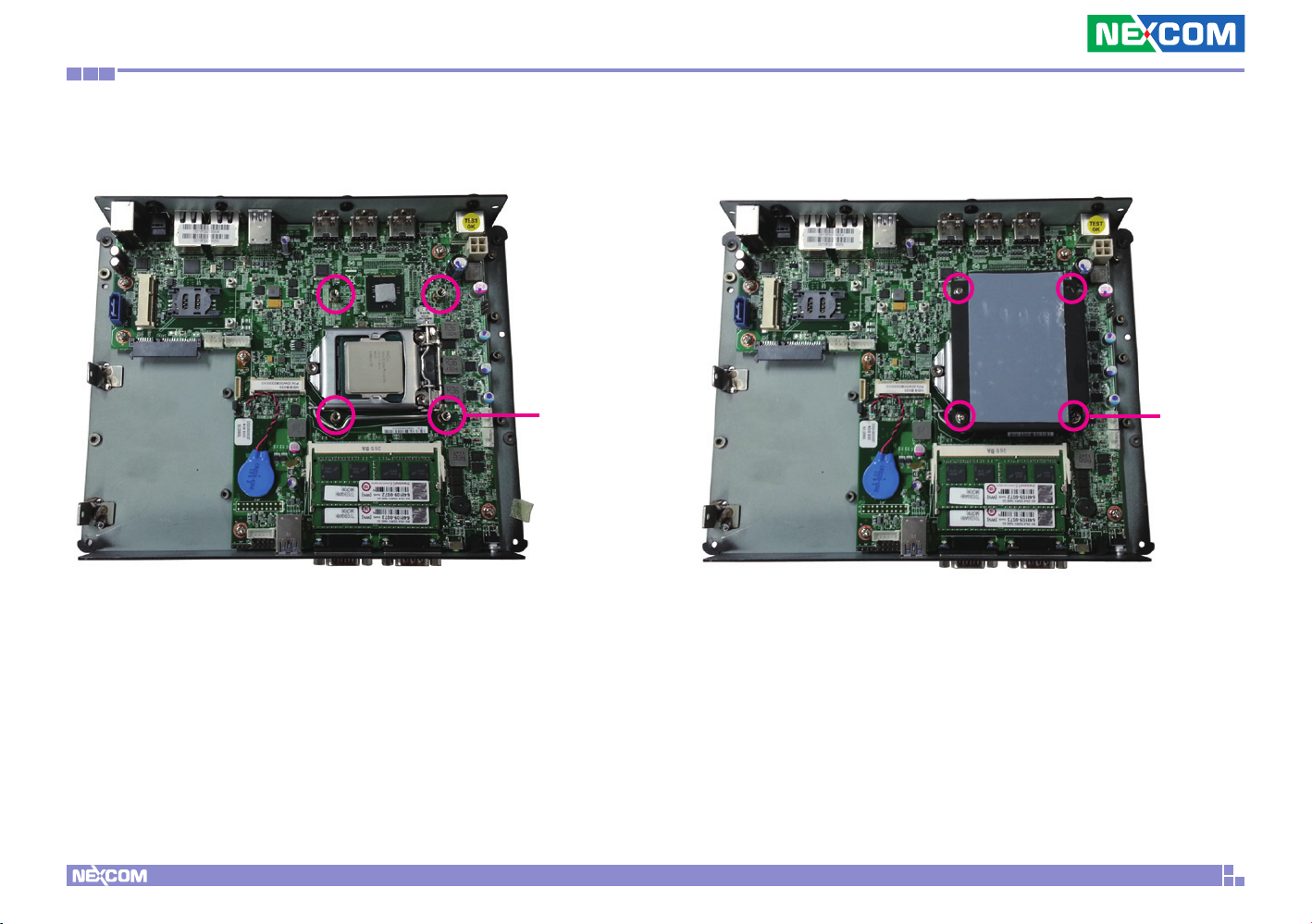

Installing the CPU .................................................................................25

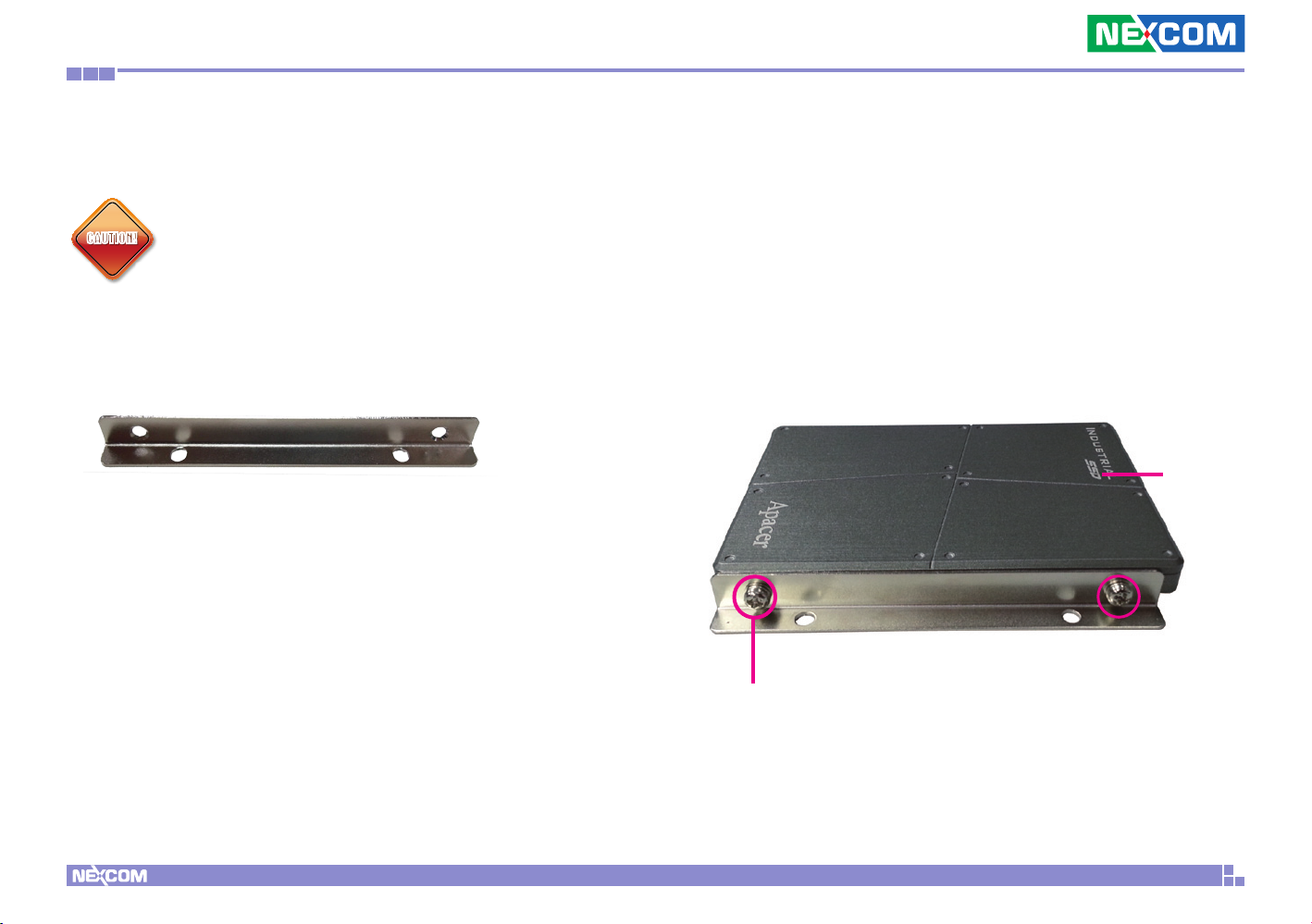

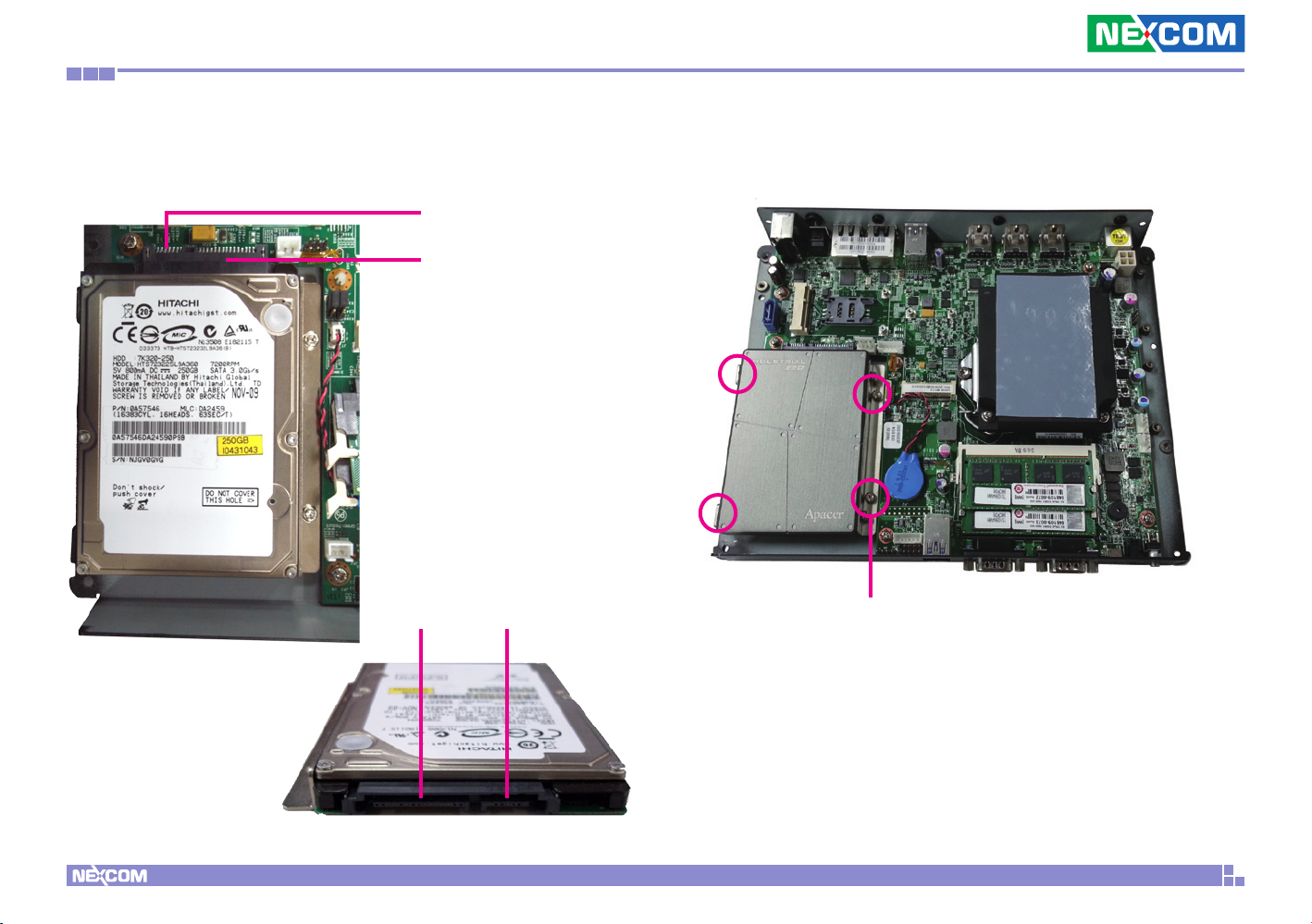

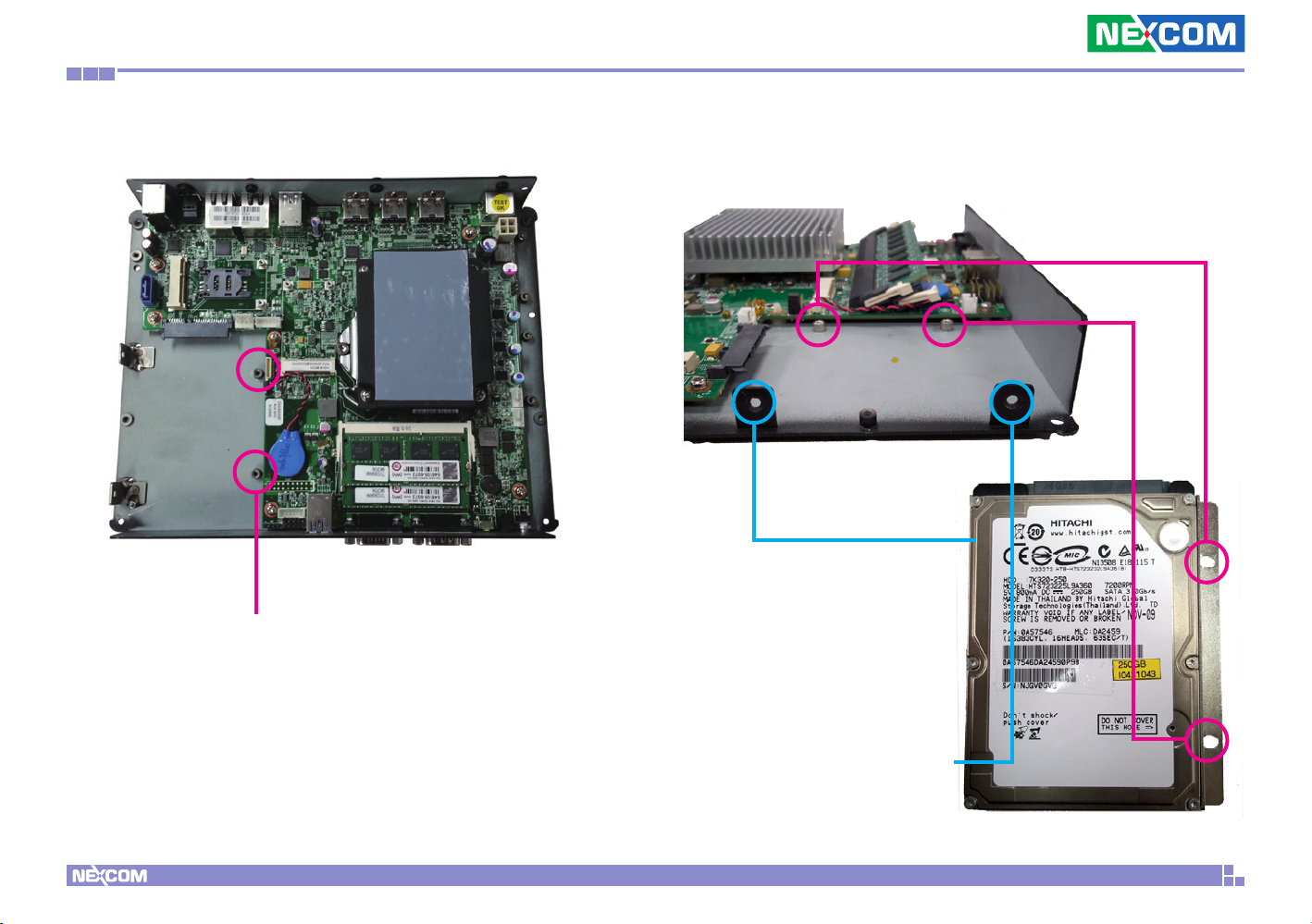

Installing a SATA Hard Drive ..................................................................28

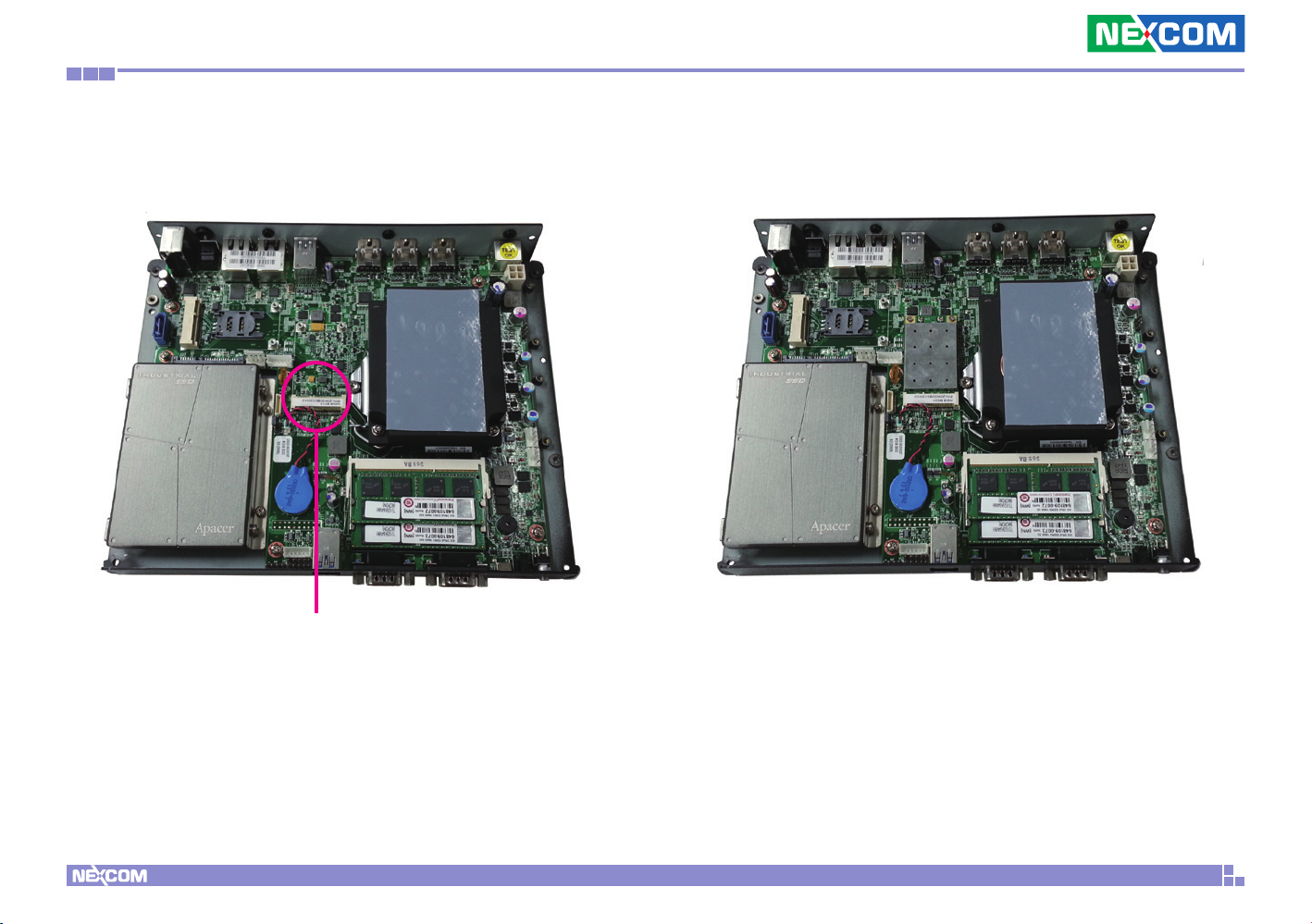

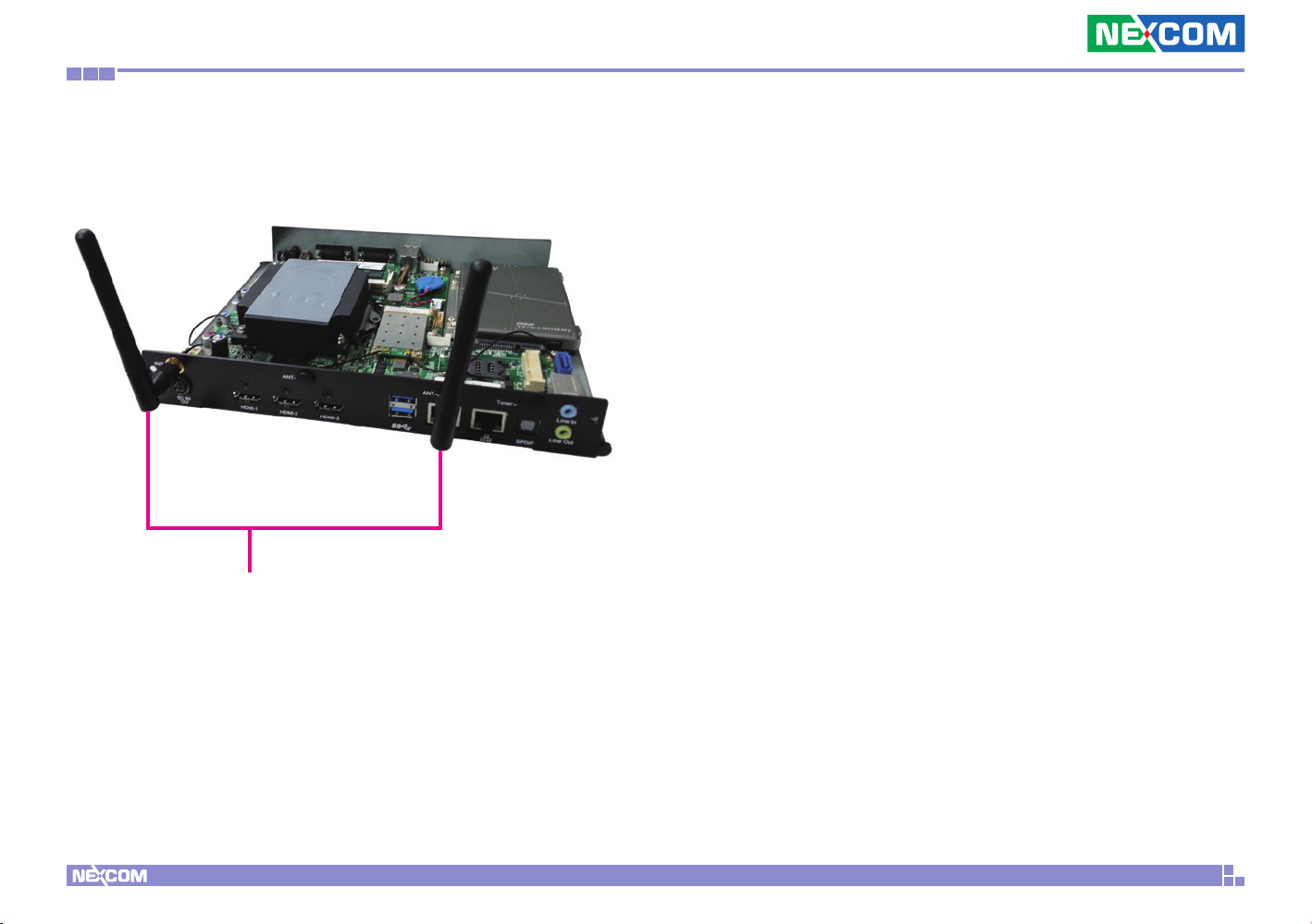

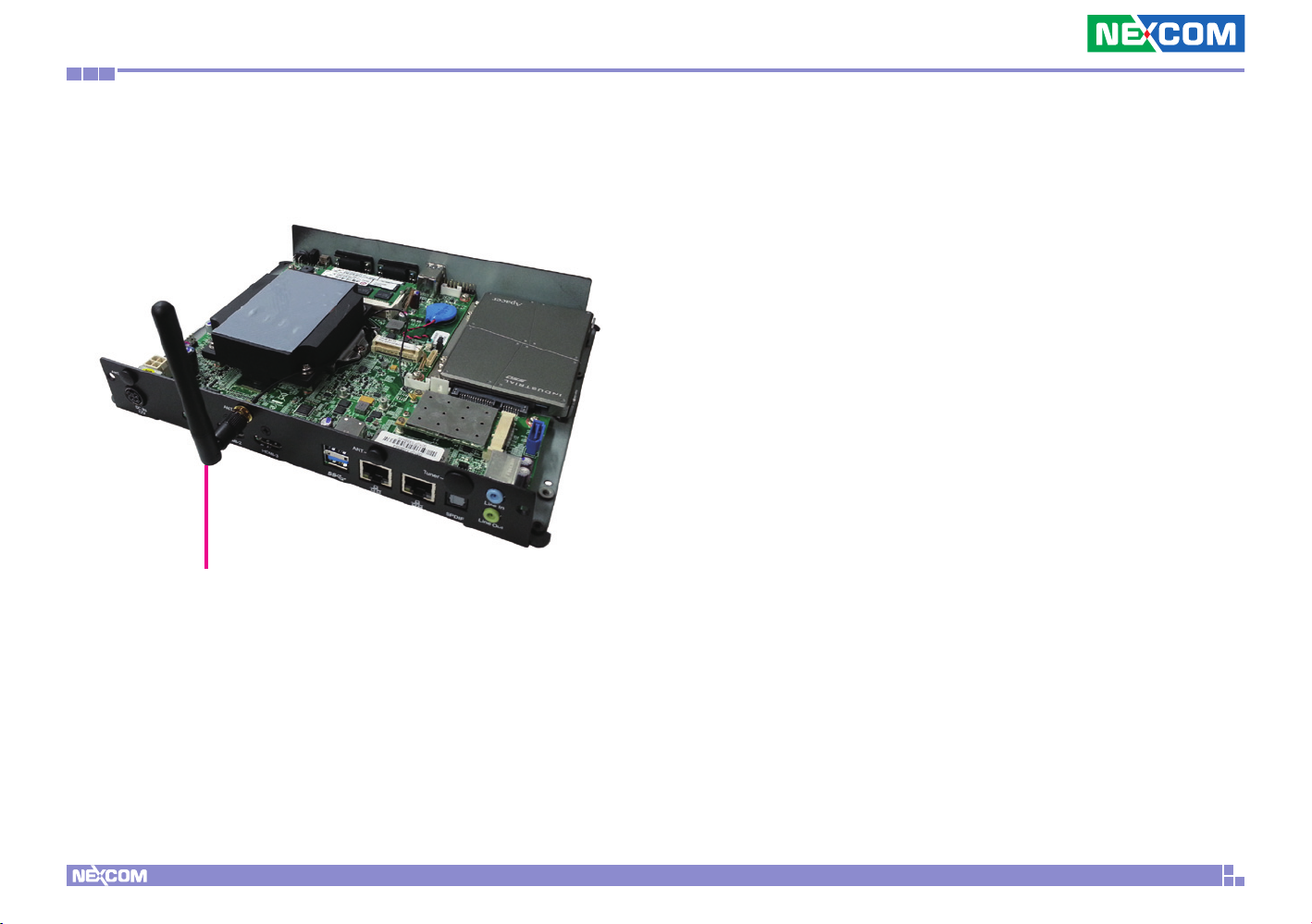

Installing a Wireless LAN Module ..........................................................31
Installing a TV Tuner Module ................................................................. 33
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................. 35
When to Configure the BIOS .................................................................35
Default Configuration ........................................................................... 36
Entering Setup ...................................................................................... 36

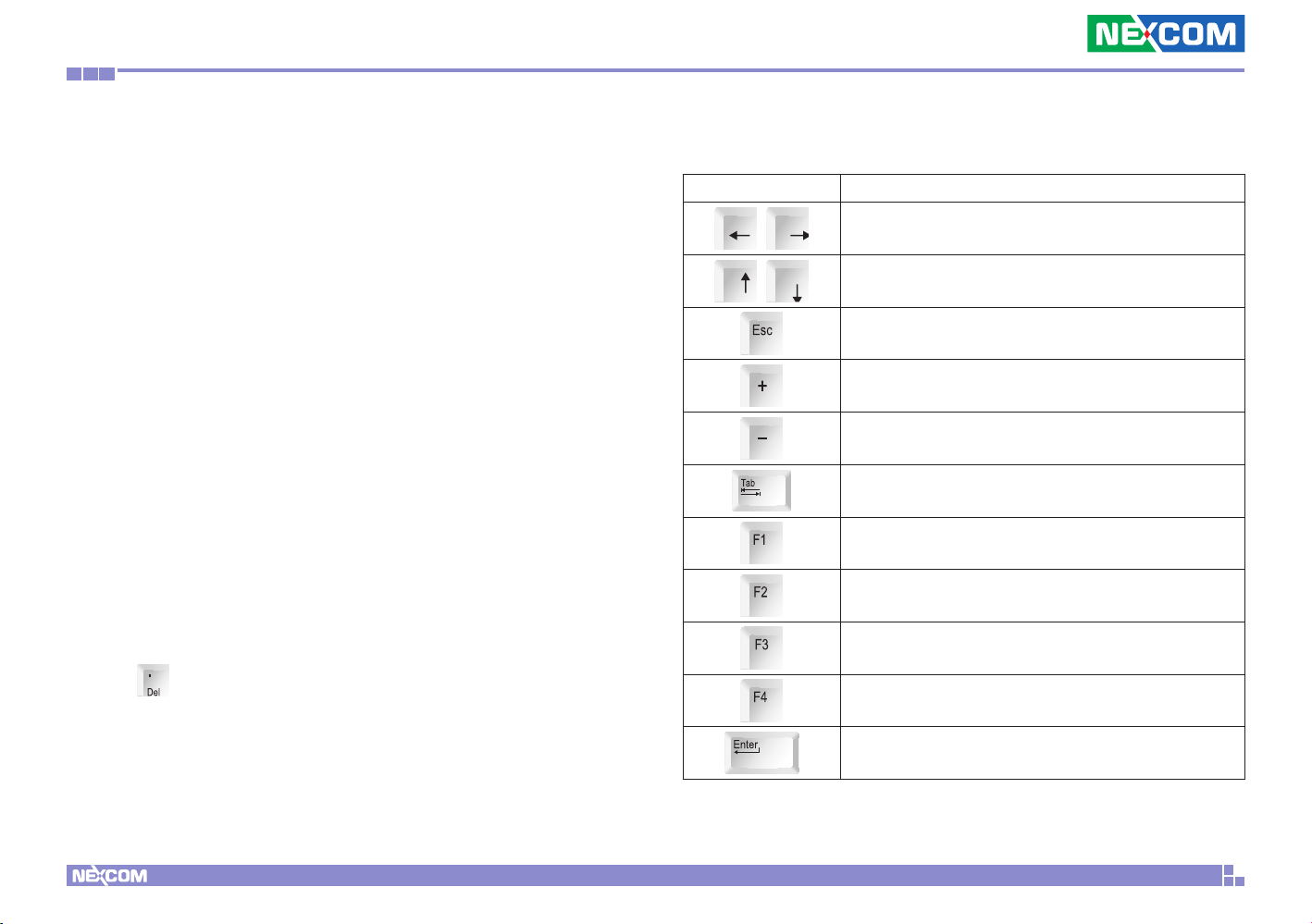

Legends ................................................................................................ 36
BIOS Setup Utility .................................................................................. 38
Main .................................................................................................38
Advanced .......................................................................................... 39
Boot .................................................................................................. 48
Security .............................................................................................48
Save & Exit ........................................................................................49
Appendix A: Watchdog Timer................................50
Appendix B: GPI/O Programming Guide...............52
GPIO Configuration ........................................................................... 52
Appendix C: Triple Display Settings......................53
iii
NDiS B533 User Manual
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NDiS B533 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NDiS B533 User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green
products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.
v
NDiS B533 User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
vi
NDiS B533 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
vii
NDiS B533 User Manual
Preface
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully.
▪ Do not place the unit on an unstable surface, cart, or stand.
▪ Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
▪ A Philips screwdriver
▪ A flat-tipped screwdriver
▪ A grounding strap
▪ An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
NDiS B533 User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
7. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
9. Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work
according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.
15. Do not place heavy objects on the equipment.
16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
ix
NDiS B533 User Manual
Preface
CAUTION!
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
x
NDiS B533 User Manual
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., Zhonghe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com
Asia
Taiwan Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn
Shanghai Office
Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn
xi
NDiS B533 User Manual
Preface
Shenzhen Office
Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn
Wuhan Office
1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn
Europe
Italy NEXCOM ITALIA S.r.l
Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire, MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu
xii
NDiS B533 User Manual
Preface
Package Contents
Before continuing, verify that the NDiS B533 package that you received is complete. Your package should have all the items listed in the following table.
Item Part Number Name Description Qty
1 50222A0438X00 NDiS 166 HDD-Bracket VER:A CHYUAN-JYH 95x9.8x8.0mm 0.8T SPCC+NI 1 2 5044440031X00 Rubber Foot Kang Yang:RF20-5-4P 19.8x18x5.0mm 4 3 5060900226X00 Mini PCIe Bracket CHYUAN-JYH 29x30x2.1mm SPCC t=1.0mm NI 1 4 50311F0294X00 I Head Screw Long FEI:I2x4 NYLOK NIGP I2x4 NI NYLOK 4 5 50311F0295X00 Flat Head Screw Long FEI:F2x4 NYLOK NIGP F2x4 NIGP NYLOK 1 6 7400080005X00 Power Adapter w/C6 Socket L.T.E.:LTE90E-S2-210 80W 12V/6.67A MINI DIN 4PIN Male Plug 1 7 50222A0591X00 NDiS B532 Wall-Mount-Bracket VER:A JAN YU 190x53.7x1.5T(mm) SPCC+NI 2 8 50311F0100X00 Round Head Screw w/Spring+Flat Washer Long FEI:P3x6L P3x6 iso/SW6x0.5 NI 4
9 50311F0016X00 Flat Head Screw Long FEI:F3x4ISO F3x4L BLACK 2 10 50311F0185X00 Round Head Screw w/Spring+Flat Washer Long FEI 6#32X8L_W/SPRING+FLAT 4 11 5044440479X00 Thermal Pad E-LIN 80x50x0.5mm S3S 1 12 5044440192X00 Thermal Pad EAPUS:XR-Pe 10x10x1.5mm K=11 w/mk 1 13 5060200082X00 Thermal Pad NDiS B533 VER:A EAPUS 25x25x0.2mm 1
xiii
NDiS B533 User Manual
Preface
Ordering Information
The following information below provides ordering information for NDiS B533.
NDiS B533 (P/N: 10W00B53300X0)
- 4th generation Intel® Core™ processor (up to 35W) fanless system
®
- Intel
Q87 chipset
NDiS B533F (P/N: 10W00B53301X0)
- 4th generation Intel® Core™ processor (up to 45W) system
®
- Intel
Q87 chipset
xiv
NDiS B533 User Manual
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview
NDiS B533 is a powerful digital signage player which is built around the superb technology of 4th generation Intel and Q87 integrated graphics controller. The digital signage player can offer impressive system performance and full HD videos. With support for smooth 1080P video playback on three independent displays, the 1080P signage player can fully satisfy customer’s expectation and therefore be used in applications such as advertising, hospitality, brand promotion and digital menu board.
®
Core™ processor family series
Key Features
▪ 4th Generation Intel® Core™ processor
®
integrated HD 4600 graphic engine
▪ Intel
▪ Compact and slim design
▪ 3 independent display
▪ USB 3.0, dual GbE LAN support
▪ WLAN/ TV tuner support
▪ DirectX 11.1 support
1
NDiS B533 User Manual
Chapter 1: Product Introduction
Physical Features
Front Panel Rear Panel
Power
HDD
Button
LED
Line-in
COM2
USB 3.0
COM1 Power
LED
Reset
HDMI1
12V
DC in
HDMI0 HDMI2
2
LAN LAN
USB 3.0 S/PDIF
Line-out
NDiS B533 User Manual
Chapter 1: Product Introduction
Hardware Specifications
CPU Support
▪ 4th generation Intel® Core™ LGA socket type processor
Chipset
▪ Intel® Q87
®
integrated HD 4600 graphic engine
▪ Intel
Main Memory
▪ 2x 204-pin SO-DIMM sockets, supports DDR3 1600/1333MHz non-ECC,
un-buffered memory up to 16GB (single socket max. 8GB)
I/O Interface-Front
▪ 1x power status LED ▪ 1x HDD status LED ▪ 1x power switch ▪ 1x reset switch ▪ 2x USB 3.0 ▪ 2x DB9 for RS-232
I/O Interface-Rear
▪ +12V DC-in ▪ 3x HDMI ▪ 2x USB3.0 ▪ 2x RJ45 with LED for 10/100/1000Mbs Ethernet ▪ 1x SPDIF ▪ 1x Line-in/ 1x Line-out ▪ 3x antenna hole for Wi-Fi and TV tuner
Storage
▪ 1x SATA 2.5” HDD ▪ 1x SATA DOM
Expansion
▪ 1x Mini-PCIe for optional WLAN module ▪ 1x Mini-PCIe for optional TV tuner module
Data Protection
▪ 1x Wafer onboard for TPM module (ver. 1.2), support Intel Trusted
Execution Technology
Construction
▪ Top cover made by aluminum for main heat exchange ▪ Chassis made by steel in black
Dimensions
▪ 294 mm (W) x 198 mm (D) x 52 mm(H) (11.6” x 7.8” x 2.0”)
w/o mounting bracket
Power Supply
▪ 1x External 80W AC/ DC adapter Input: 100~240VAC Output: +12VDC
Environment
▪ Operating temperature: 0°C to 40°C
▪ Storage temperature: -20°C to 80°C
▪ Humidity: 10 to 90% (non-condensing)
Certification
▪ CE approval
▪ FCC Class A
Operating System
▪ Windows 7 / Windows 8
3
NDiS B533 User Manual
Chapter 1: Product Introduction
Mechanical Dimensions
198.00
294.00
4
52.00
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors
This chapter describes how to set the jumpers and connectors on the NDiS B533 motherboard.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
5
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for NDiB B533
NDiB B533
The figure below is the top view of the NDiB B533, which is the mainboard used in the NDiS B533. It shows the locations of the jumpers and connectors.
JP1
SW2
LED1
SW1
J1 J2
DIMM1
J3
USB1
JP2
FAN1
FAN2
CON1
CN11
DIMM2
JP3
J5
J6
CN1
J8
CN2
USB2
CN9CN8CN7
6
SATA1
CN5
CN4
CON3CON2
CN10
CN3
CN6
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
1
3
2
7
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Jumpers

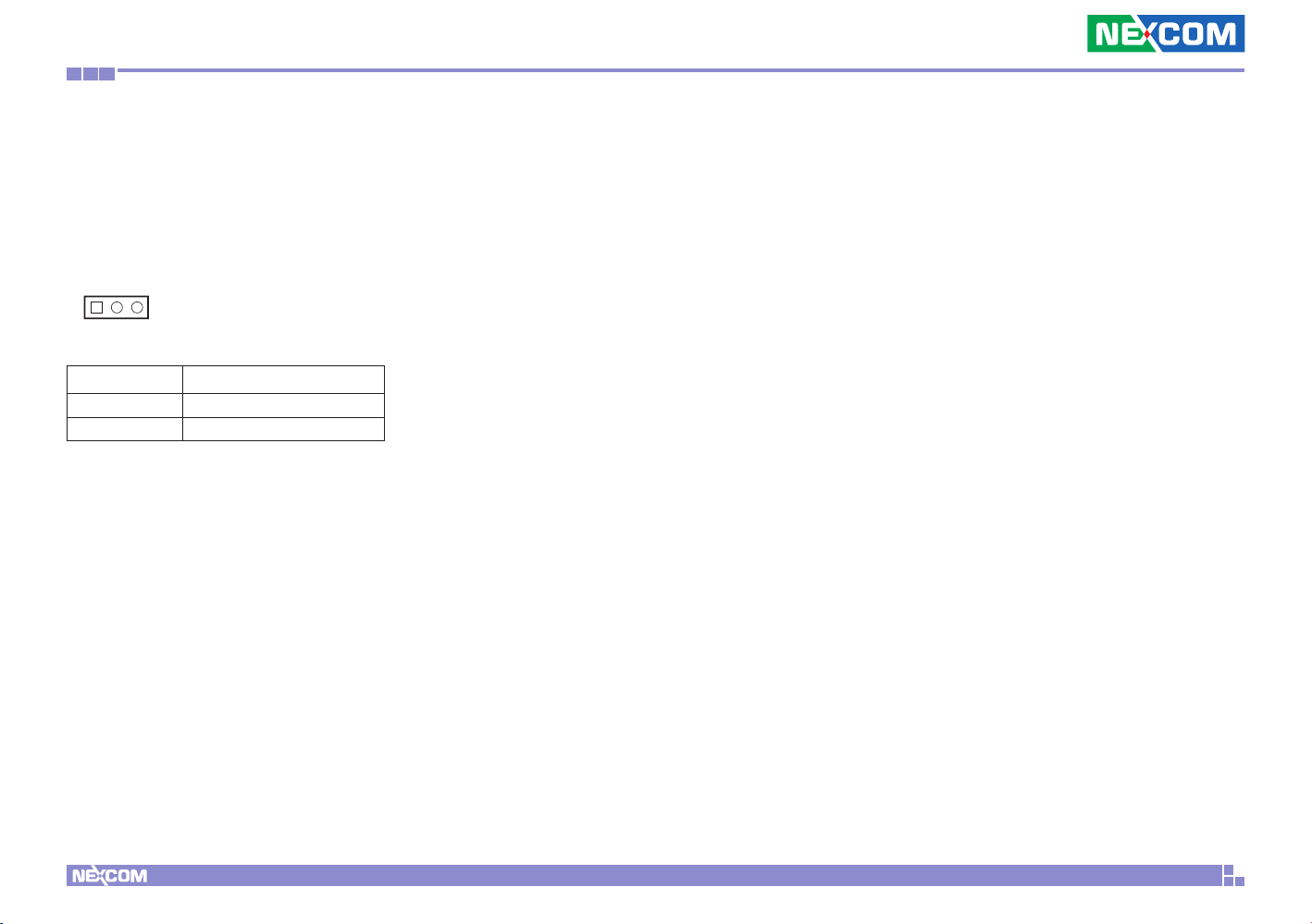

RTC Clear Jump
Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP3
1 3
Pin Settings
1-3 On Normal 2-3 On Clear CMOS
1-2 On: default
8
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interfaces - Front Panel

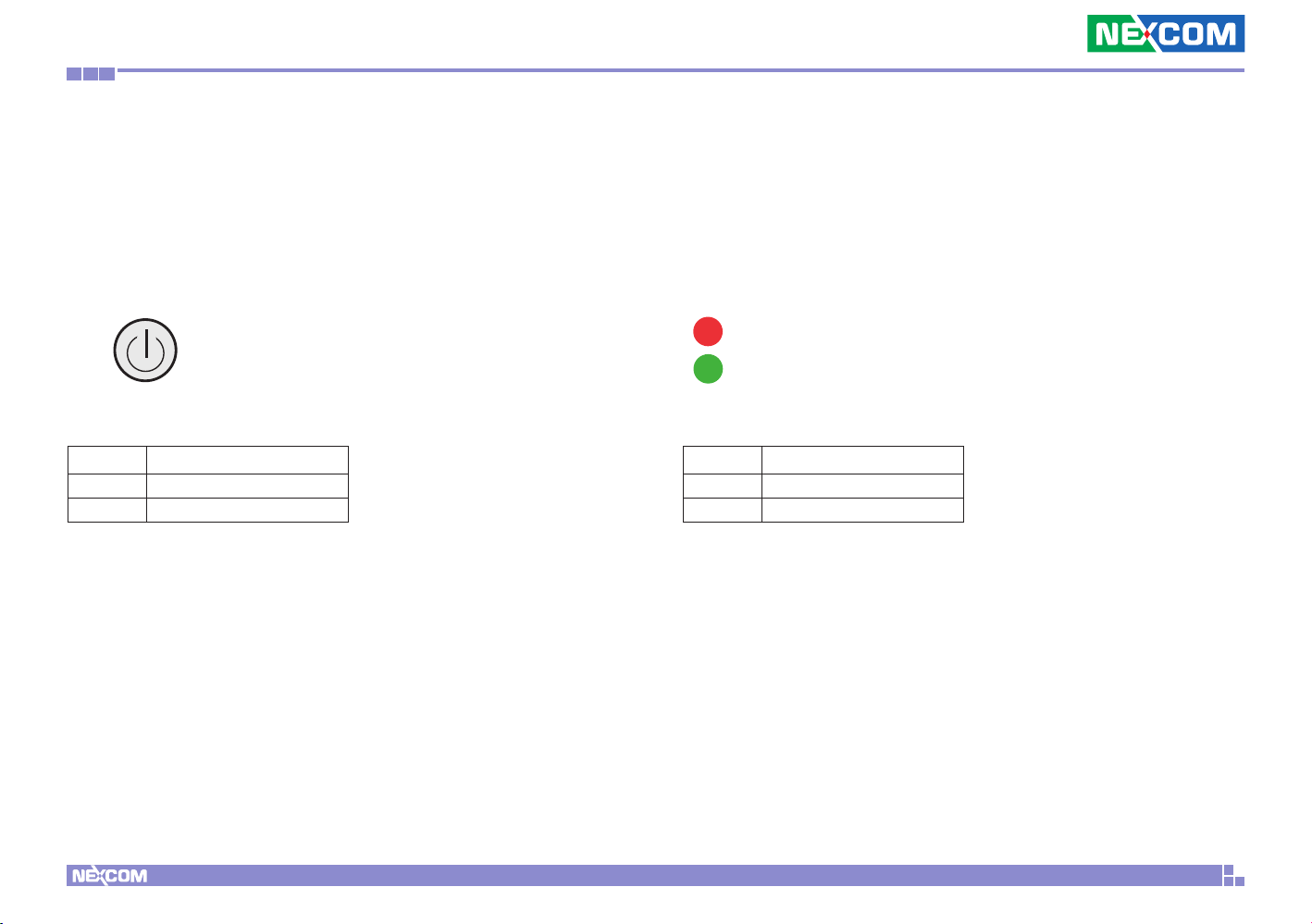

Power Button
Connector location: SW2
Power LED Definition
ON Blue
OFF Red
LED Connector
Connector location: LED1
HDD
Power
LEDs LED Definition
HDD Red
Power Green
9
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Reset Button
Connector location: SW1
Pin Definition
1-2 System Reset
COM1 and COM2 Connectors
Connector type: DB-9 port Connector location: J1 and J2
1 5 6
Pin Definition Pin Definition
1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI
9
10
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

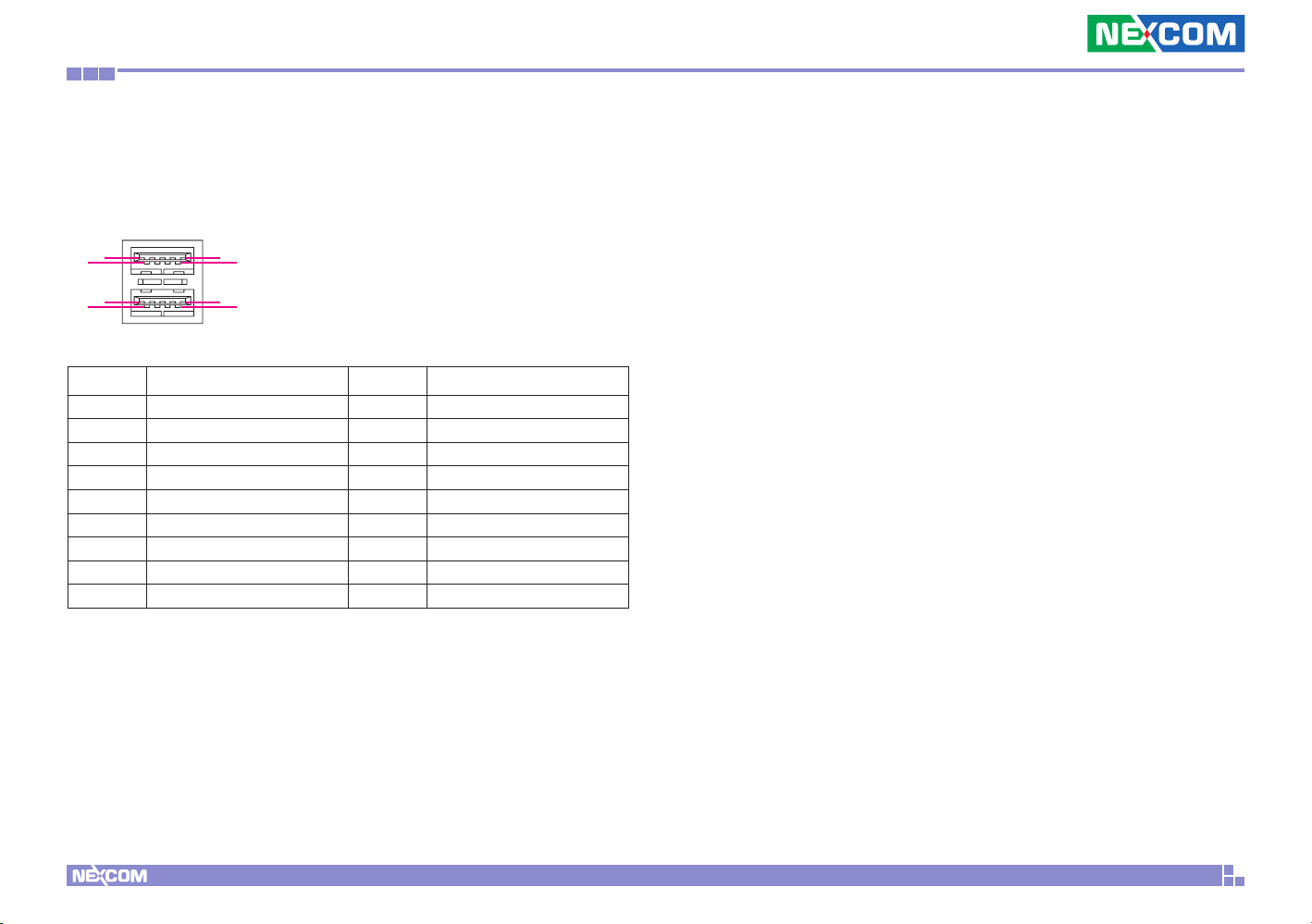

USB 3.0 Ports
Connector type: Dual USB 3.0 ports Connector location: USB1
9
1
10 13
5
4
1418
Pin Definition Pin Definition
1 VCC 2 USB0_N 3 USB0_P 4 GND 5 USB3_RX0_N 6 USB3_RX0_P 7 GND 8 USB3_TX0_N
9 USB3_TX0_P 10 VCC 11 USB1_N 12 USB1_P 13 GND 14 USB3_RX1_N 15 USB3_RX1_P 16 GND 17 USB3_TX1_N 18 USB3_TX1_P
11
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
External I/O Interfaces - Rear Panel
DC Jack Connector
Connector location: CN11
HDMI
Connector type: HDMI port Connector location: CN7, CN8 and CN9
1 2 3 4
Pin Definition Pin Definition
1 12V DC_IN 2 12V DC_IN
3 GND 4 GND
5 GND
1
2 18
19
Pin Definition Pin Definition
1 HDMI_D2+ 2 GND 3 HDMI_D2- 4 HDMI_D1+ 5 GND 6 HDMI_D1­7 HDMI_D0+ 8 GND
9 HDMI_D0- 10 HDMI_CLK+ 11 GND 12 HDMI_CLK­13 NC 14 NC 15 HDMI_DDC_SCL 16 HDMI_DDC_SDA 17 GND 18 VCC5 19 HDMI_HPD
12
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

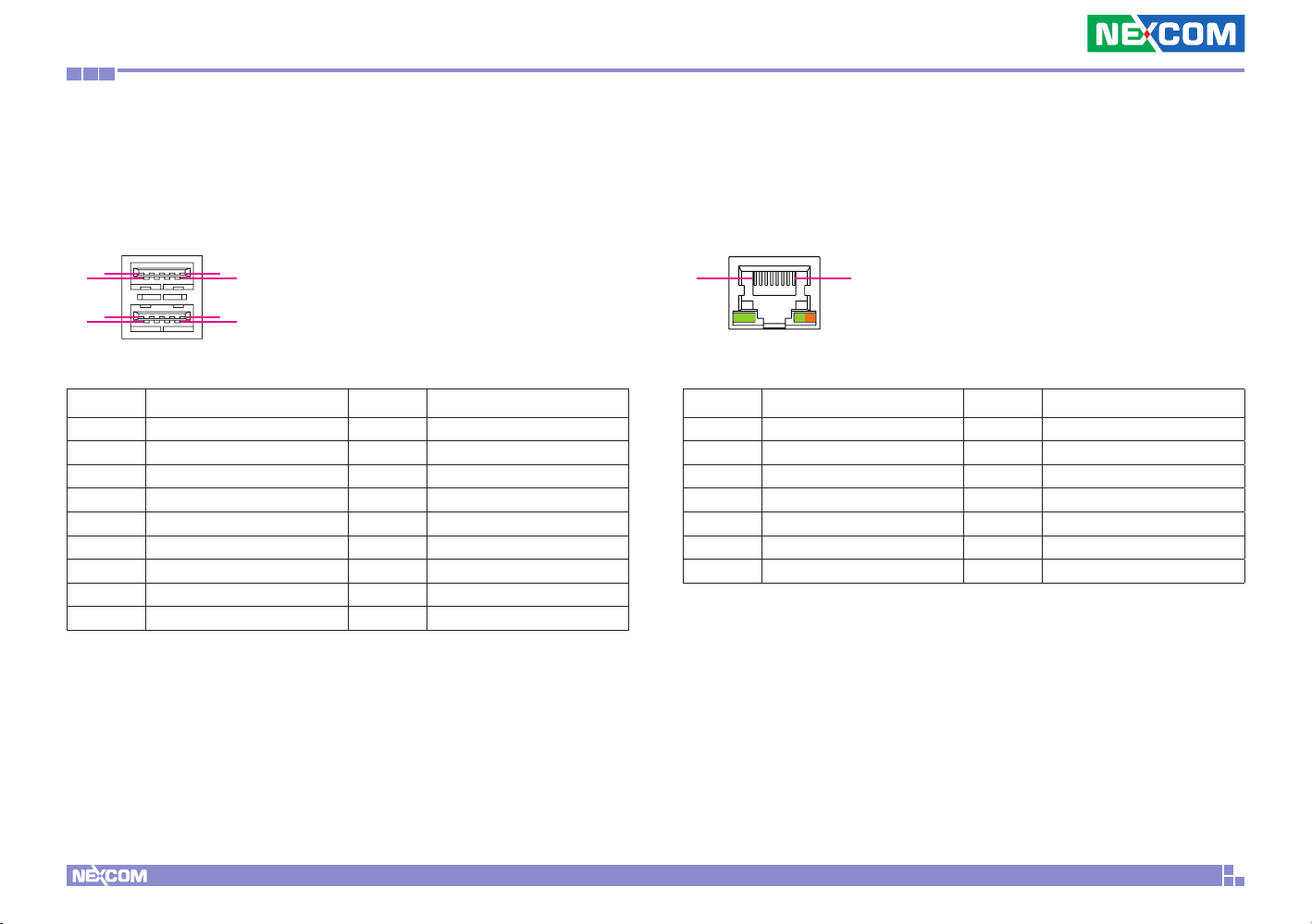

USB 3.0 Ports
Connector type: Dual USB 3.0 ports Connector location: USB2
9
1
10 13
Pin Definition Pin Definition
1 VCC 2 USB0_N 3 USB0_P 4 GND 5 USB3_RX0_N 6 USB3_RX0_P 7 GND 8 USB3_TX0_N
9 USB3_TX0_P 10 VCC 11 USB1_N 12 USB1_P 13 GND 14 USB3_RX1_N 15 USB3_RX1_P 16 GND 17 USB3_TX1_N 18 USB3_TX1_P
5
4
1418
LAN Connectors
Connector type: RJ45 port with LEDs Connector location: CON2 and CON3
1
ACT Link
Pin Definition Pin Definition
1 TCT 2 TD4­3 TD4+ 4 TD3­5 TD3+ 6 TD2­7 TD2+ 8 TD1-
9 TD1+ 10 TCTG 11 Left_LED+ 12 Left_LED­13 Right_LED+ 14 Right_LED-
8
13
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
S/PDIF Connector
Connector type: S/PDIF Connector Connector location: CN10
Pin Definition Pin Definition
1 GND 2 VCC 3 SPDIF OUT
Audio Connectors
Connector type: 2x 3.5mm TRS Connector location: CN6
Line-in
Line-out
Pin Definition Pin Definition
1 GND 2 FRONT-L
3 GND 4 FRONT-JD
5 FRONT-R N/A N/A 22 LINE-L 23 GND 24 LINE-JD 25 LINE-R
14
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
16
Internal Connectors

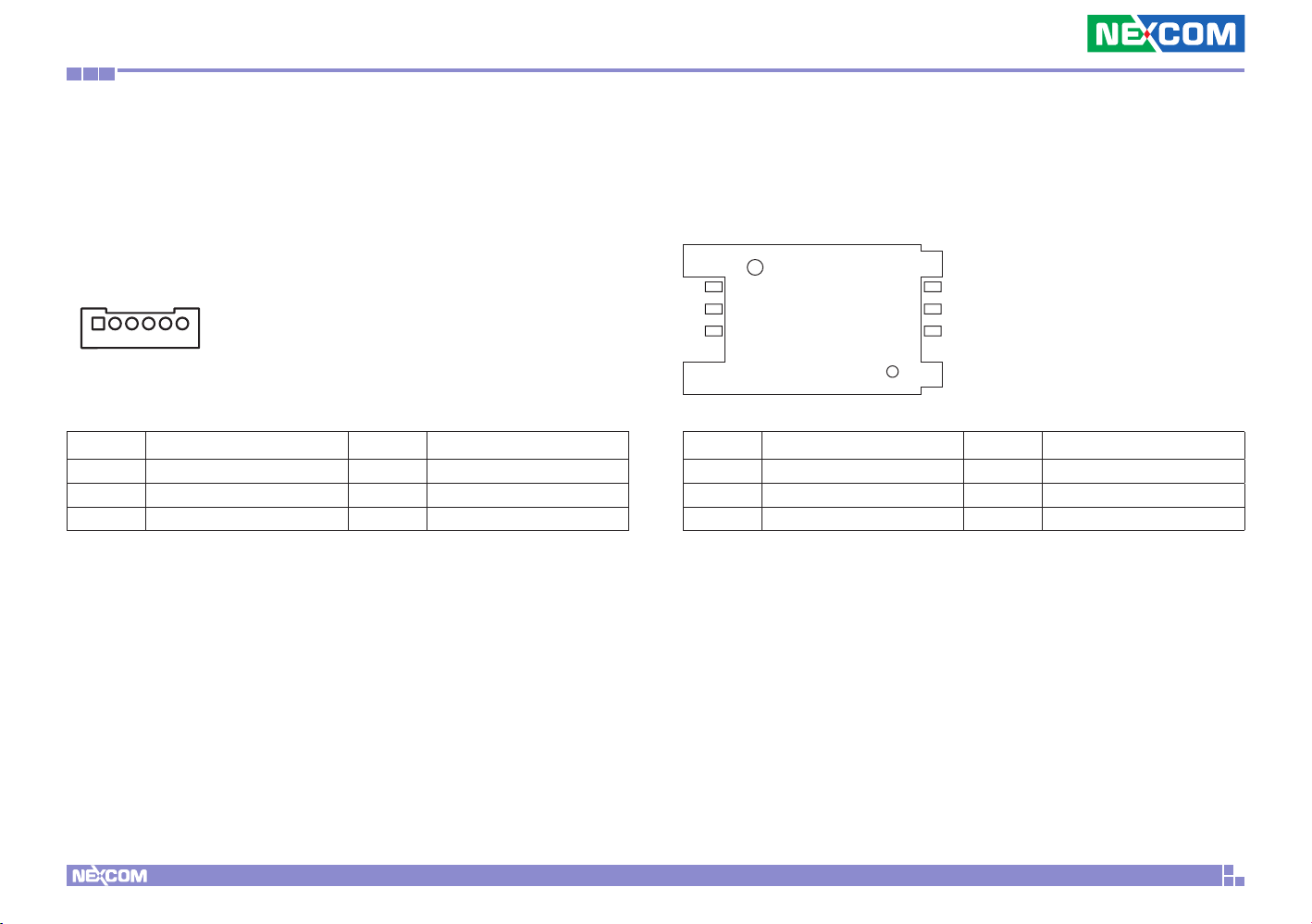

USB Connectors
Connector type: 1x6 6-pin header JST, 2.0mm pitch Connector location: J3 and J8
Pin Definition Pin Definition
1 VCC 2 USB0_N 3 USB0_P 4 USB1_N 5 USB1_P 6 GND
SIM Card Slot
Connector location: CN4
C3 C2 C1
Pin Definition Pin Definition
C1 UIM_PWR C5 GND C2 UIM_RST C6 NC C3 UIM_CLK C7 UIM_DAT
C7 C6 C5
15
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

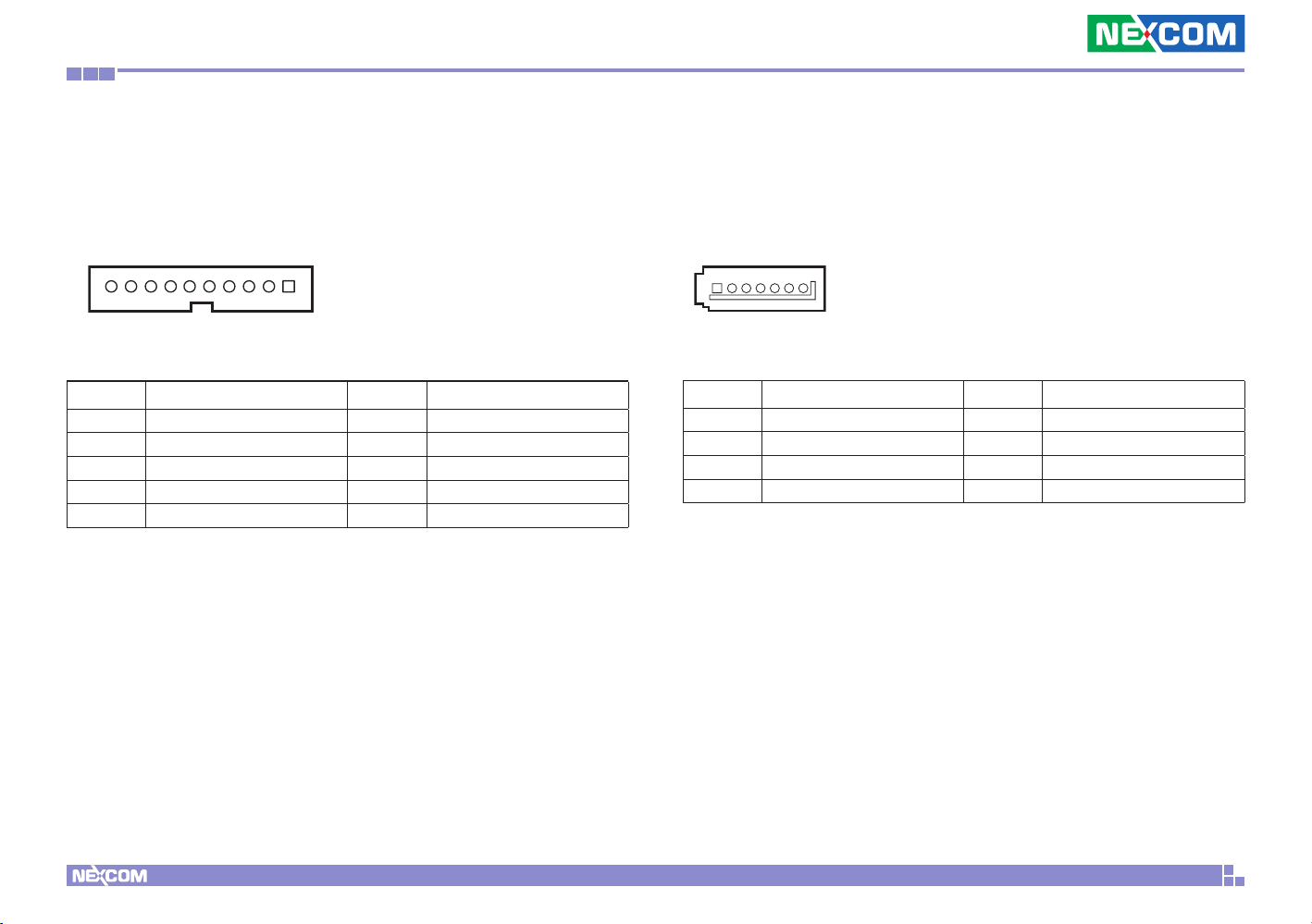

Debug 80 Port Connector
Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J6
110
Pin Definition Pin Definition
1 GND 2 PCIRST# 3 33M_CLK 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 3.3V 10 3.3V
SATA Connector
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN3
1 7
Pin Definition Pin Definition
1 GND 2 SATA_TXP
3 SATA_TXN 4 GND
5 SATA_RXN 6 SATA_RXP
7 GND
16
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
SATA Connector (7-pin and 15-pin)
Connector type: Standard Serial ATAII 7P and 15P Connector location: SATA1
S1P15
Pin Definition Pin Definition
S1 GND S2 SATA_TXP S3 SATA_TXN S4 GND S5 SATA_RXN S6 SATA_RXP
S7 GND P1-3 NC P4-6 GND P7-9 VCC5 P10,12 GND
P11 NC P13-15 VCC12
SATA DOM Power Connector
Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: CN2
14
Pin Definition Pin Definition
1 +12V 2 GND 3 GND 4 +5V
17
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
19
21
Battery Connector
Connector type: 1x2 2-pin header JST, 1.25mm pitch Connector location: J5
1 2
Pin Definition
1 GND 2 3V
GPIO
Connector type: 2x5 10-pin header Connector location: JP1
0
Pin Definition Pin Definition
1 GPI1 2 GPO1 3 GPI2 4 GPO2 5 GPI3 6 GPO3 7 GPI4 8 GPO4 9 GND 10 VCC5
18
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
12
34

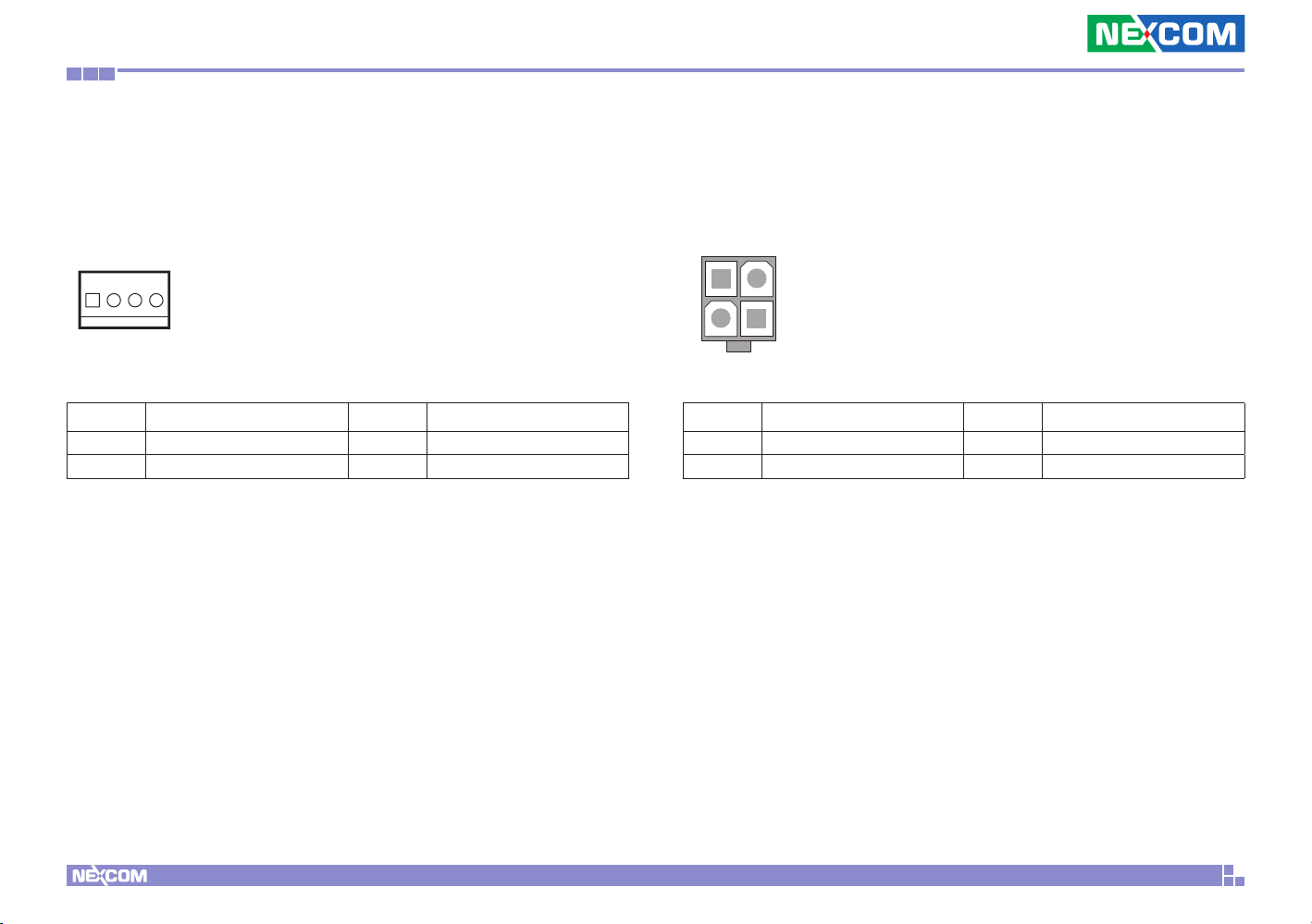

FAN Connectors
Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: FAN1 and FAN2
14
Pin Definition Pin Definition
1 GND 2 VCC 3 SPEED 4 CONTROL
DC-in Power Connector
Connector type: 2x2 4-pin header Connector location: CON1
Pin Definition Pin Definition
1 GND 2 GND 3 12V DC_IN 4 12V DC_IN
19
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors
Mini-PCIe Connector
Connector location: CN1
12
51 52
Pin Definition Pin Definition
1 WAKE# 2 3.3VSB 3 NC 4 GND 5 NC 6 1.5V 7 CLK_REQ# 8 NC
9 GND 10 NC 11 PCIE_CLK# 12 NC 13 PCIE_CLK 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 WLAN_DIS# 21 GND 22 RESET# 23 PCIE_RX_N 24 3.3VSB 25 PCIE_RX_P 26 GND
20
Pin Definition Pin Definition
27 GND 28 1.5V 29 GND 30 SMBCLK 31 PCIE_TX_N 32 SMBDAT 33 PCIE_TX_P 34 GND 35 GND 36 USB_N 37 GND 38 USB_P 39 3.3VSB 40 GND 41 3.3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 1.5V 49 NC 50 GND 51 NC 52 3.3VSB
NDiS B533 User Manual
Chapter 2: Jumpers and Connectors

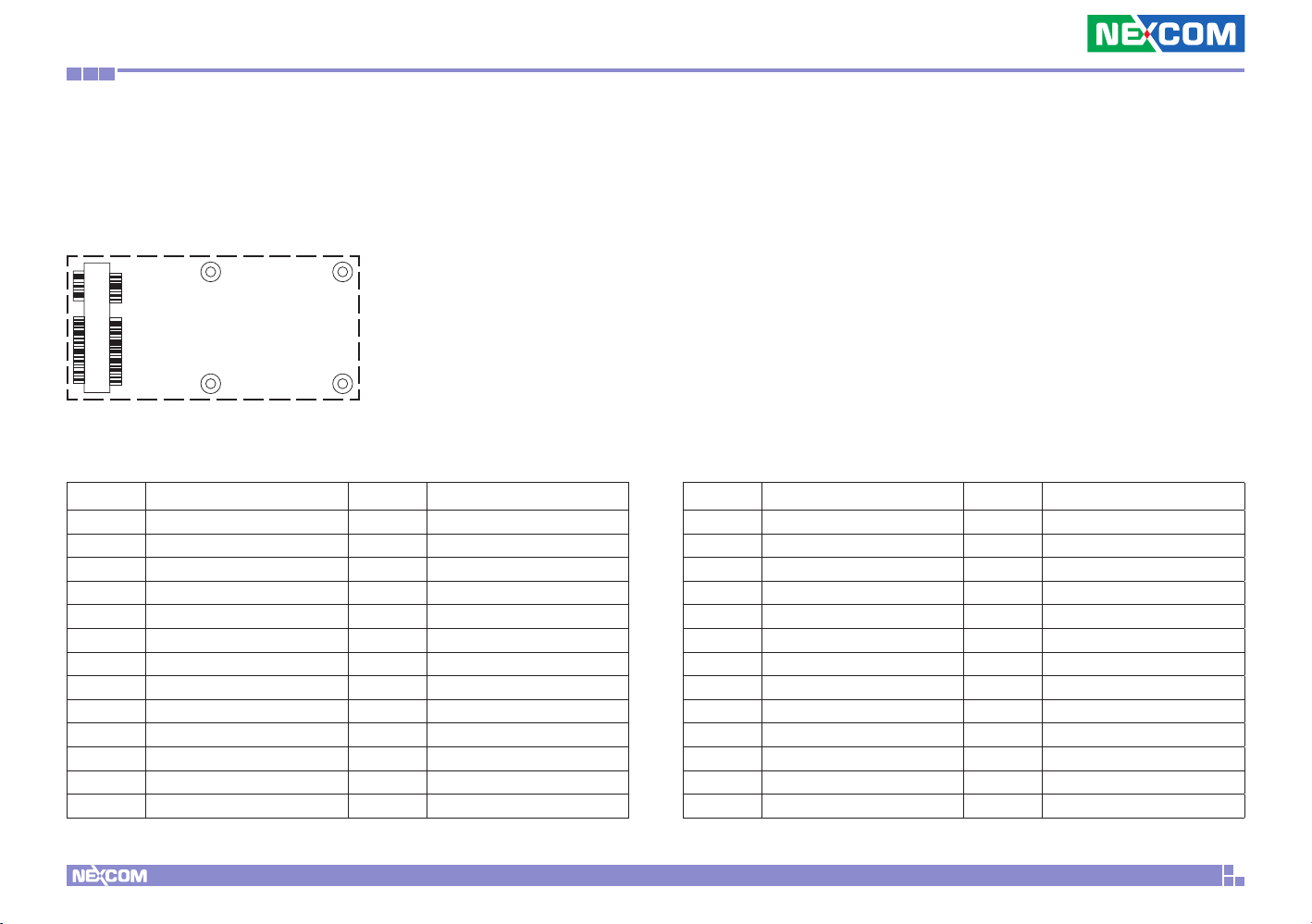

Mini-PCIe Connector
Connector location: CN5
12
51 52
Pin Definition Pin Definition
1 WAKE# 2 3.3VSB
3 NC 4 GND
5 NC 6 1.5V
7 CLK_REQ# 8 UIM_PWR
9 GND 10 UIM_DAT 11 PCIE_CLK# 12 UIM_CLK 13 PCIE_CLK 14 UIM_RST 15 GND 16 NC 17 NC 18 GND 19 NC 20 WLAN_DIS# 21 GND 22 RESET# 23 PCIE_RX_N 24 3.3VSB 25 PCIE_RX_P 26 GND
21
Pin Definition Pin Definition
27 GND 28 1.5V 29 GND 30 SMBCLK 31 PCIE_TX_N 32 SMBDAT 33 PCIE_TX_P 34 GND 35 GND 36 USB_N 37 GND 38 USB_P 39 3.3VSB 40 GND 41 3.3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 1.5V 49 NC 50 GND 51 NC 52 3.3VSB
NDiS B533 User Manual
Chapter 3: System Setup
CAUTION!
Chapter 3: System Setup

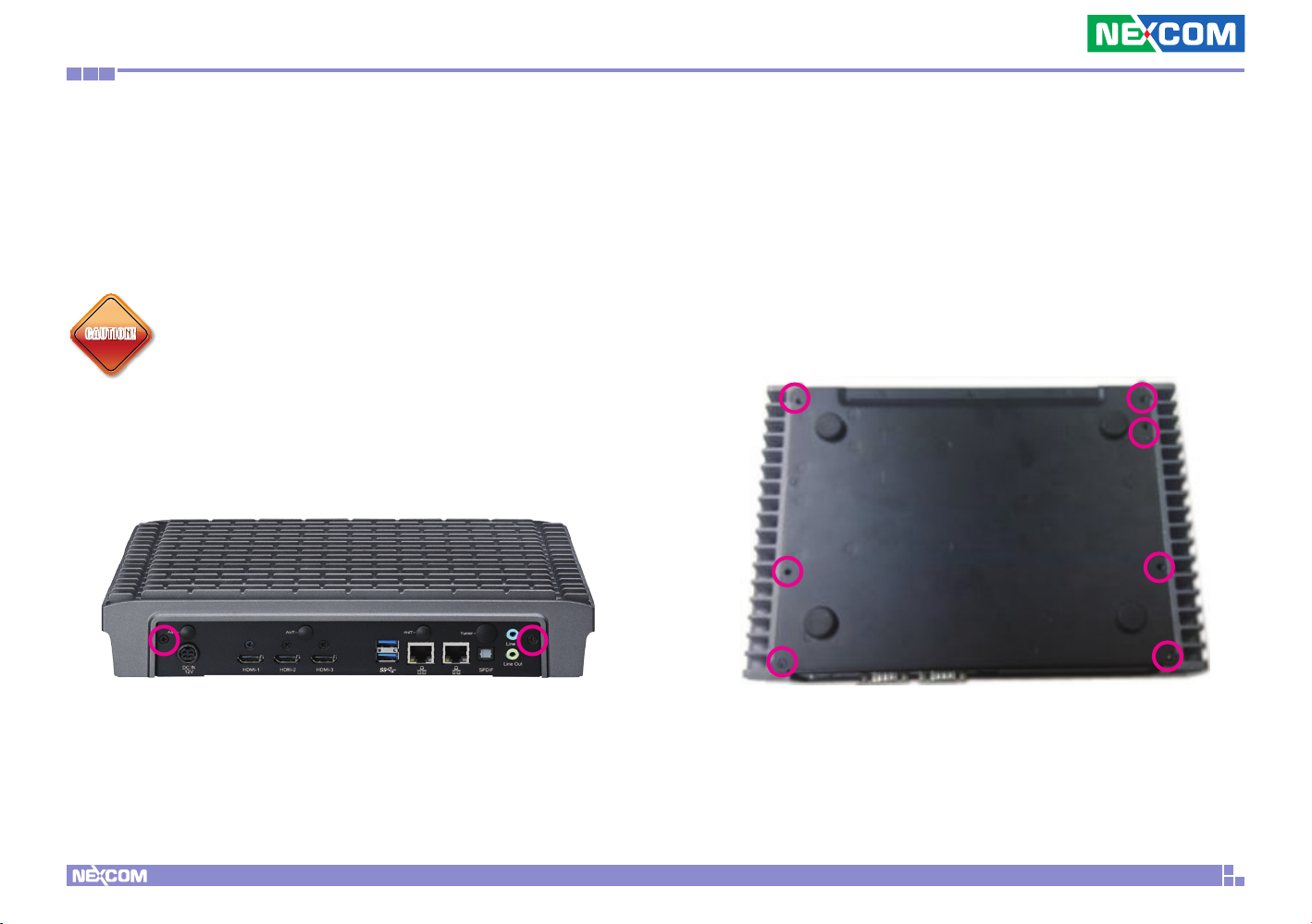

Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power
CAUTION!CAUTION!
1. The screws on the back and bottom are used to secure the cover to the chassis. Remove these screws and put them in a safe place for later use.
is off and disconnected from the power sources to prevent electric shock or system damage.
22
NDiS B533 User Manual
Chapter 3: System Setup
Installing a SO-DIMM
1. Locate the DIMM socket on the board.
2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.
DIMM sockets
23
NDiS B533 User Manual
Chapter 3: System Setup
3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.
4. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.
The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.
Key
Notch
24
NDiS B533 User Manual
Chapter 3: System Setup
CAUTION!

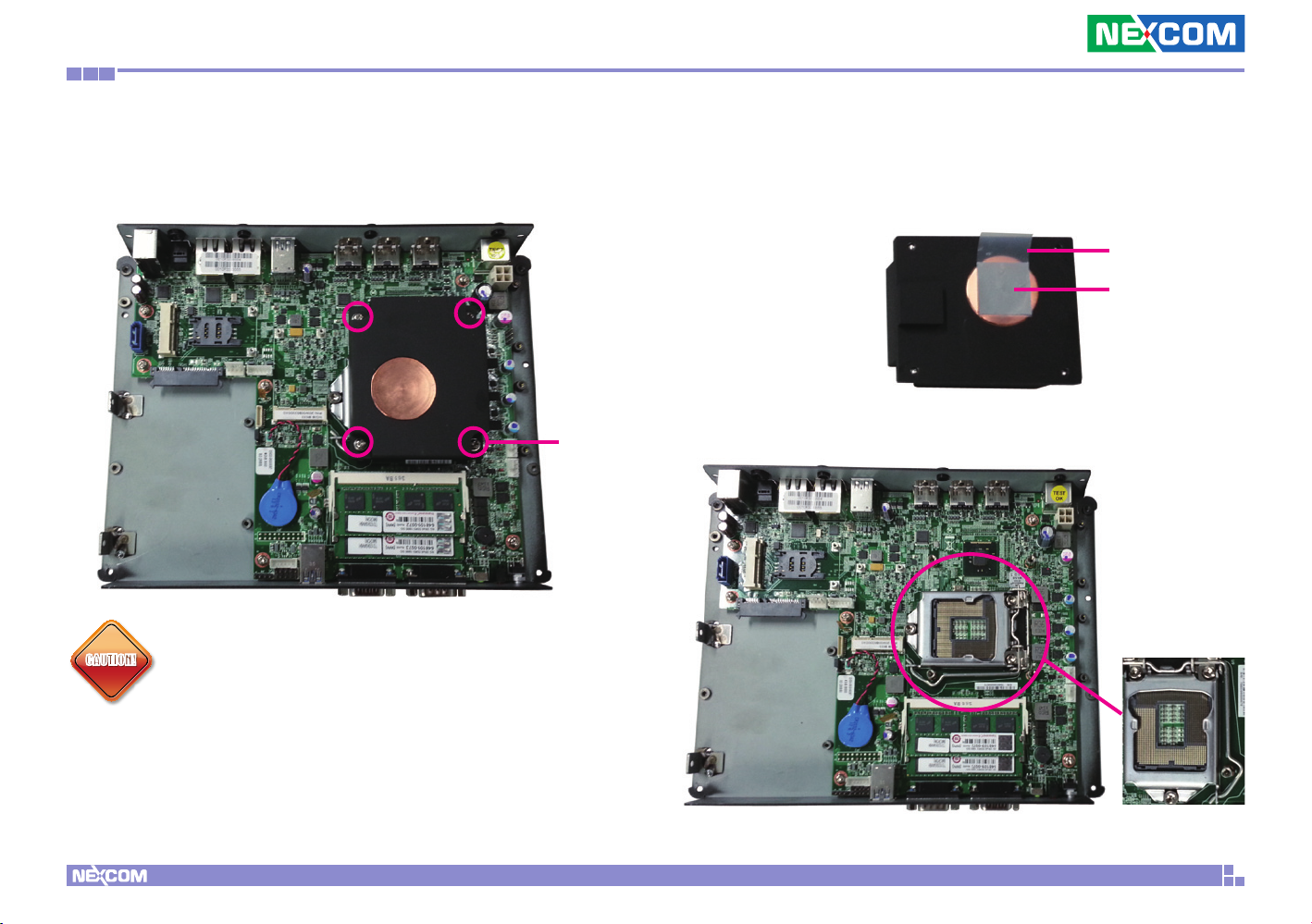

Installing the CPU
1. Loosen the mounting screws that secure the heat sink to the chassis.
Mounting Screw
▪ Make sure all power cables are unplugged before you install
CAUTION!CAUTION!
the CPU.
▪ The CPU socket must not come in contact with anything
other than the CPU. Avoid unnecessary exposure.
2. Now remove the heat sink to access the CPU socket, and remove the protective film on the thermal pad. Make sure this film is removed before reinstalling the heat sink. The thermal pad can only be used once and cannot be used repeatedly.
Protective lm
Thermal pad
Bottom Side of the Heat Sink
3. The CPU socket is readily accessible after you have removed the heatsink.
25
CPU socket
NDiS B533 User Manual
Chapter 3: System Setup
CAUTION!

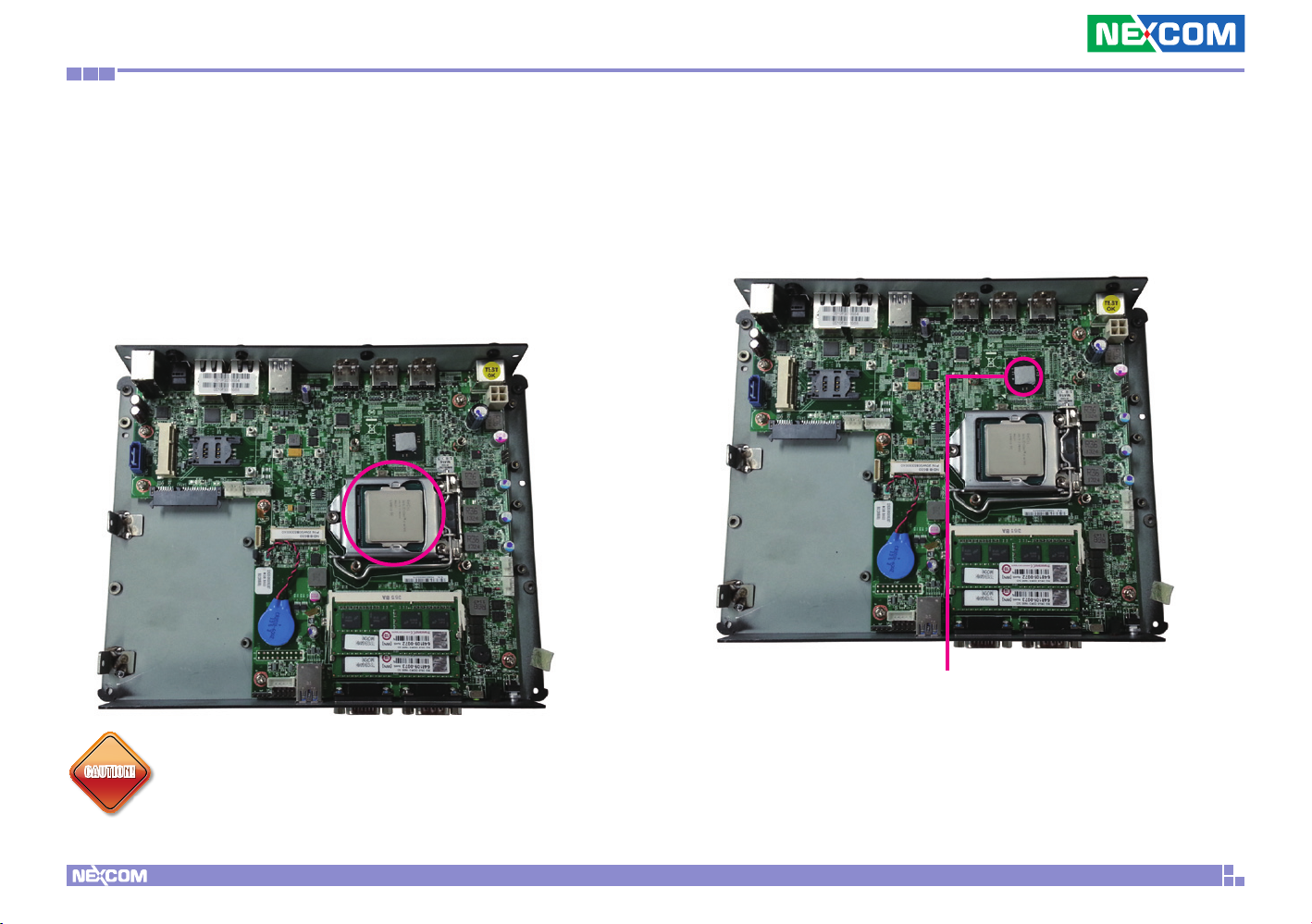

4. Press down the lever that is attached to the CPU socket. While holding the lever down, pull it sideways to disengage the lever from the hook. Fully open the lever.
5. Lift the load plate to open. The load plate is the metal cover that protects the CPU socket.
6. Place the CPU in the socket with the CPU cutouts matching the socket notches.
7. Close the load plate.
8. Push down the socket lever while pushing it toward the center of the CPU socket to lock the load plate.
9. Attach the thermal pad onto the chipset.
CAUTION!CAUTION!
Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.
26
Thermal Pad
NDiS B533 User Manual
Chapter 3: System Setup
8. Align the mounting screws of the heat sink with the mounting holes on the board then tighten the screws to secure the heat sink in place.
Mounting hole
27
Mounting Screw
NDiS B533 User Manual
Chapter 3: System Setup
CAUTION!
Installing a SATA Hard Drive
CAUTION!CAUTION!
Please correctly follow the below instructions and noted items to avoid making unnecessary damages.
1. The drive bracket included in the package is used to hold a SATA hard
drive.
2. Place the SATA hard drive onto the drive bracket. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bracket. Then secure the SATA drive with screws.
SATA Hard Drive
Mounting Screw
28
NDiS B533 User Manual
Chapter 3: System Setup
4. Secure the SATA Drive with the provided mounting screw.
Mounting Studs
5. The mounting holes on the drive bracket and chassis are used to secure hard drive to the chassis.
29
NDiS B533 User Manual
Chapter 3: System Setup
6. Locate the SATA connector and the SATA power connector on the SATA drive.
SATA Data Connector
SATA Power Connector
SATA Power Connector
SATA Data Connector
7. Align the mounting holes of the drive bracket with the mounting studs on the board then use the provided mounting screws to secure the hard drive in place.
Mounting Screw
30
NDiS B533 User Manual
Chapter 3: System Setup

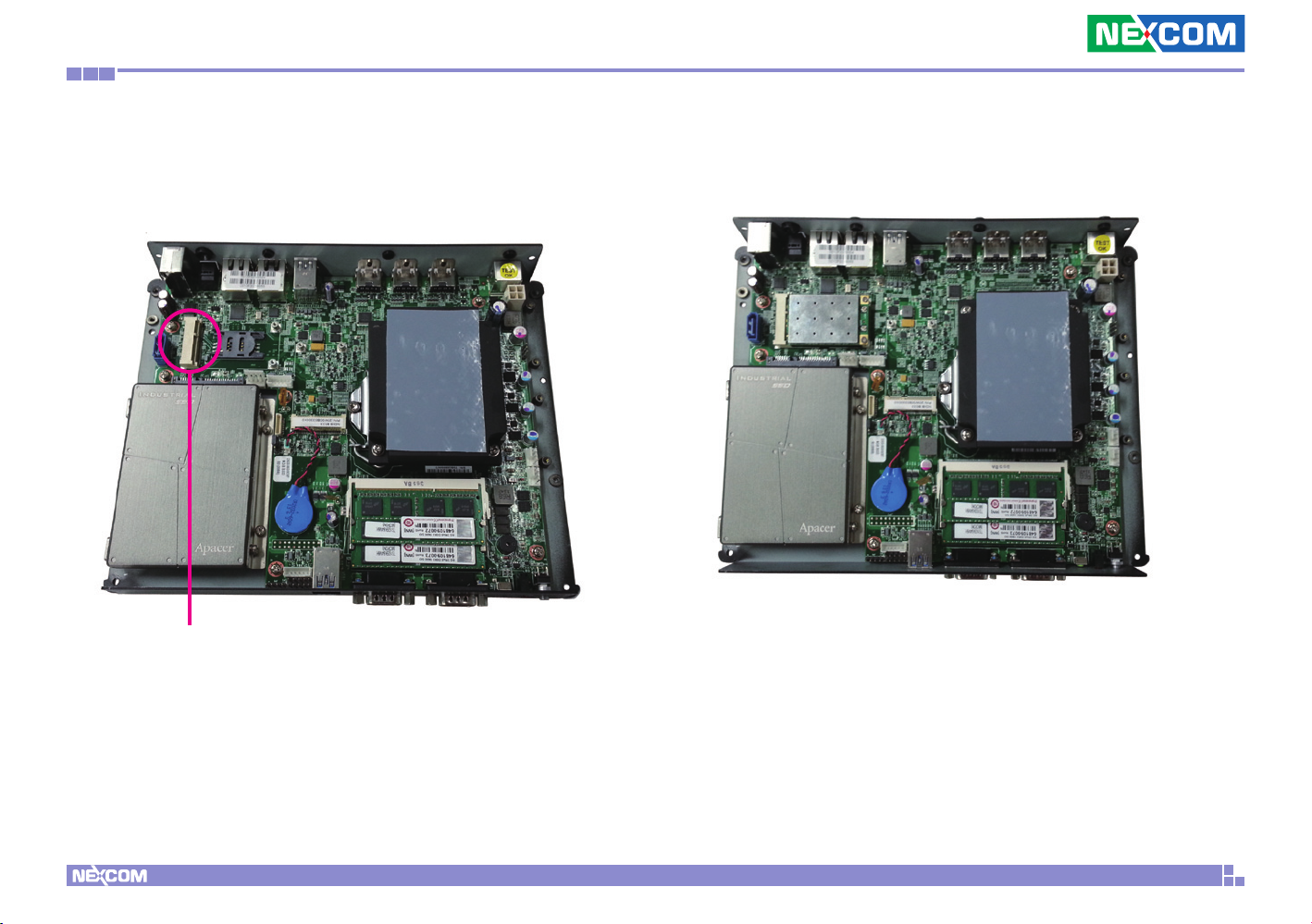

Installing a Wireless LAN Module
1. Locate the Mini PCI Express slot on the board.
Mini PCI Express Slot
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.
3. Push the module down then secure it with mounting screws.
31
NDiS B533 User Manual
Chapter 3: System Setup
3. Attach the RF cables onto the Wi-Fi module, then mount the antenna jacks to the antenna holes located at the rear panel of the chassis. Then connect the external antennas to the antenna jacks.
Antenna
32
NDiS B533 User Manual
Chapter 3: System Setup
Installing a TV Tuner Module
1. Locate the Mini PCI Express slot on the board.
Mini PCI Express Slot
2. Insert the TV module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.
3. Push the module down then secure it with mounting screws.
33
NDiS B533 User Manual
Chapter 3: System Setup
3. Attach the RF cables onto the TV tuner module, then mount the antenna jacks to the antenna holes located at the rear panel of the chassis. Then connect the external antennas to the antenna jacks.
Antenna
34
NDiS B533 User Manual
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for the NDiS B533. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals
▪ Video display type and display options
▪ Password protection from unauthorized use
▪ Power management features
The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
▪ This program should be executed under the following conditions:
▪ When changing the system configuration
▪ When a configuration error is detected by the system and you are
prompted to make changes to the setup program
▪ When resetting the system clock
▪ When redefining the communication ports to prevent any conflicts
▪ When making changes to the Power Management configuration
▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
35
NDiS B533 User Manual
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of beeps
will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup.
Legends
Key Function
Moves the highlight left or right to select a menu.
Moves the highlight up or down between sub¬menus or fields.
Exits the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted field.
Scrolls backward through the values or options of the highlighted field.
Selects a field.
Displays General Help.
Load previous values.
Load optimized default values.
Press the
key to enter Setup:
36
Saves and exits the Setup program.
Press <Enter> to enter the highlighted sub¬menu
NDiS B533 User Manual
Chapter 4: BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .
37
NDiS B533 User Manual
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
BIOS Information BIOS Vendor Project Version Build Date and Time
Memory Information Memory Frequency Total Memory DIMM#0 DIMM#1
Processor Information Brand String Frequency Processor ID Stepping GT Info
IGFX VBIOS Version ME FW Version ME Firmware SKU
System Date
System Time
American Megatrends NDiS-B533 09/10/2013 11:23:11
1600 Mhz 8192 MB (DDR3) 4096 MB (DDR3) 4096 MB (DDR3)
Intel(R) Core(TM) i7-477 2700 MHz 306c3 C0 GT2 (700 MHz)
2173
9.0.3.1347 5MB
[Fri 10/18/2013] [14:46:01]
Set the Time. Use Tab to switch between Time elements.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
38
NDiS B533 User Manual
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunction.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
RTC Wake Settings
ACPI Settings
CPU Conguration SATA Conguration Power Conguration BIOS Security Conguration Graphics Conguration AMT Conguration USB Conguration Super IO Conguration
H/W Monitor
Enable system to wake using RTC alarm
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
RTC Wake Settings
This section is used to configure RTC Wake settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main
Wake system with Fixed Time [Disabled]
Advanced Chipset PCIPnP Security
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Exit
Enable or disable System wake on alarm event. When enabled, System will wake on the
hr::min::sec specied
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Wake System with Fixed Time
Enables or disables system wake on alarm event. When enabled, system will wake on the hr::min::sec specified.
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
39
NDiS B533 User Manual
Chapter 4: BIOS Setup
ACPI Settings
This section is used to configure ACPI Settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main
ACPI Settings
Enable ACPI Auto Configuration [Disabled]
Enable Hibernation [Enabled] ACPI Sleep State [S3 only(Suspend to...)]
Advanced Chipset PCIPnP Security
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Exit
Enables or Disables BIOS ACPI
Auto Conguration
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable ACPI Auto Configuration
Enables or disables BIOS ACPI auto configuration.
Enable Hibernation
Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Main
CPU Conguration
Intel(R) Core(TM) i7-4770TE CPU @ 2.30GHz CPU Signature 306c3 Processor Family 6 Microcode Patch 12 FSB Speed 100 MHz CPU Speed 2700 MHz Processor Cores 2 Intel HT Technology Supported Intel VT-x Technology Supported Intel SMX Technology Supported EIST Technology Supported
Hyper-threading [Enabled]
Intel Virtualization Technology [Enabled] EIST [Enabled] Turbo Mode [Enabled] CPU C states [Enabled] Enhanced C1 state [Enabled] CPU C3 Report [Enabled] CPU C6 report [Enabled] C6 Latency [Short] CPU C7 report [CPU C7s] C7 Latency [Long]
Advanced Chipset PCIPnP Security
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Exit
Enabled for Windows XP and Linux (OS optimized for Hyper­Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Hyper-Threading
This field is used to enable or disable hyper-threading.
Intel® Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).
EIST
Enables or disables Intel® SpeedStep.
40
NDiS B533 User Manual
Chapter 4: BIOS Setup
Turbo Mode
Enables or disables turbo mode.
CPU C states
Enable CPU C States Support for power saving. It is recommended to keep C3, C6 and C7 all enabled for better power saving.
Enhanced C1 State
Enables or disables Enhanced C1 state.
CPU C3 Report
Enables or disables C3 report to the operating system.
CPU C6 Report
Enables or disables C6 report to the operating system.
C6 Latency
Configures the latency for C6. The options are Short and Long.
CPU C7 Report
Enables or disables C7 report to the operating system.
C7 Latency
Configures the latency for C7. The options are Short and Long.
41
NDiS B533 User Manual
Chapter 4: BIOS Setup
SATA Configuration
This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
SATA Controller(s)
SATA Mode Selection
Serial ATA Port 0 Software Preserve
Port 0 Spin Up Device
Serial ATA Port 1 Software Preserve
Port 1 Spin Up Device
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[AHCI]
Empty Unknown
[Enabled] [Disabled]
Empty Unknown
[Enabled] [Disabled]
Enable or disable SATA Device.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
SATA Controller(s)
Enables or disables the SATA controller.
SATA Mode Selection
Configures the SATA as IDE or AHCI mode.
IDE This option configures the Serial ATA drives as Parallel ATA physical storage device.
AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.
Port 0 and Port 1
Enables or disables Serial ATA port 0 to port 2.
Spin Up Device
Enables or disables staggered spin up on devices connected to Serial ATA port 0 to port 2.
42
NDiS B533 User Manual
Chapter 4: BIOS Setup
Power Configuration
This section is used to configure power state settings.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
Restore AC Power Loss
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Power Off]
Select AC power state when power is re-applied after a power failure.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Restore on AC Power Loss
Power Off When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.
Power On When power returns after an AC power failure, the system will automatically power-on.
BIOS Security Configuration
This section is used to configure BIOS security.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
BIOS Security Conguration
BIOS Lock
RTC RAM Lock
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Disabled]
[Disabled]
BIOS Lock
Enables or disables BIOS lock enable (BLE) bit.
RTC RAM Lock
Enables or disables RTC RAM lock.
Enable or disable BIOS lock enable (BLE) bit.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
43
NDiS B533 User Manual
Chapter 4: BIOS Setup
Graphics Configuration
This section is used to configure the graphics parameters.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
Primary IGFX Boot Display
Secondary IGFX Boot Display
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[HDMI1]
[HDMI2]
Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Primary IGFX Boot Display
Select the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display. The options are VBIOS Default, HDM1, HDMI2 and HDMI3.
Secondary IGFX Boot Display
Select the secondary display device, the options are Disabled, HDMI1, HDMI2 and HDMI3.
AMT Configuration
This section is used to configure Active Management Technology (AMT) options.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
Intel AMT
BIOS Hotkey Pressed MEBx Selection Screen
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Enabled]
[Disabled] [Disabled]
Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this requires
additional rmware in the SPI
device
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Intel® AMT
Enables or disables Intel® Active Management Technology.
BIOS Hotkey Pressed
Enables or disables BIOS hotkey press.
MEBx Selection Screen
Enables or disables MEBx selection screen.
44
NDiS B533 User Manual
Chapter 4: BIOS Setup
USB Configuration
This section is used to configure the USB.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
USB Conguration
USB Module Version
USB Devices: 2 Keyboards, 2 Hubs
Legacy USB Support
USB3.0 Support XHCI Hand-off EHCI Hand-off USB Mass Storage Driver Support
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
8.10.27
[Enabled]
[Enabled] [Enabled] [Disabled] [Enabled]
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Legacy USB Support
Enabled Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disabled Keeps USB devices available only for EFI applications.
XHCI Hand-off
This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.
EHCI Hand-off
This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.
USB Mass Storage Driver Support
Enables or disables USB mass storage driver support.
USB 3.0 Support
Enables or disables the USB 3.0 controller.
45
NDiS B533 User Manual
Chapter 4: BIOS Setup
Super IO Configuration
This section is used to configure serial ports 0 and 1.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Super IO Conguration
Super IO Chip
Serial Port 0 Conguration
Serial Port 1 Conguration
IT8728
Set Parameters of Serial Port 0 (COMA)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
46
NDiS B533 User Manual
Chapter 4: BIOS Setup
H/W Monitor
This section is used to monitor hardware status such as temperature, fan speed and voltages.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
PC Health Status
FAN Setting
System temperature1 System temperature2 CPU Core Temperature(DTS) CPU FAN Speed System FAN Speed CPU:VCORE +12V +5V +3.3V
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
[Always Full Speed]
: +24 C : +24 C : +62 C : N/A : N/A : +1.752 V : +12.201 V : +4.830 V : +3.192 V
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
FAN Setting
Selects the speed of the fan, the options are Always Full Speed and Enable Smart Fan.
CPU FAN Speed
Detects and displays the current CPU fan speed.
System FAN Speed
Detects and displays the current system fan speed.
CPU:VCORE
Detects and displays the Vcore CPU voltage.
+12V
Detects and displays 12V voltage.
+5V
Detects and displays 5V voltage.
+3.3V
Detects and displays 3.3V voltage.
System Temperature1 to System Temperature2
Detects and displays the internal temperature of the system.
Core CPU Temperature(DTS)
Detects and displays the current CPU temperature.
47
NDiS B533 User Manual
Chapter 4: BIOS Setup
Boot
This section is used to configure the boot features.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Launch PXE OpROM policy
Boot Option Priorities
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Launch PXE OpROM Policy
Controls the execution of UEFI and legacy PXE OpROM.
Boot Option Priorities
Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.
Boot
Security
[Do not launch]
Save & ExitMain
Controls the execution of UEFI and Legacy PXE OpROM
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Security
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot Security Save & ExitMain
Password Description
If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Administrator Password
Select this to reconfigure the administrator’s password.
User Password
Select this to reconfigure the user’s password.
Set Administrator Password
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
48
NDiS B533 User Manual
Chapter 4: BIOS Setup
Save & Exit
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced Boot
Save Changes and Reset Discard Changes and Reset
Restore Defaults
Save as User Defaults
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.
Security
Save & ExitMain
Save & Exit
Reset the system after saving the changes.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Save Changes and Reset
To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.
Discard Changes and Reset
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.
Restore Defaults
To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
Save as User Defaults
To use the current configurations as user default settings for the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
49
NDiS B533 User Manual
Appendix A: Watchdog Timer
Appendix A: Watchdog Timer
NDiS B533 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments.
Watchdog Timer Control Register (Index=71h, Default=00h)
Bit Description
7 WDT is reset upon a CIR interrupt.
6 WDT is reset upon a KBC (mouse) interrupt.
5 WDT is reset upon a KBC (keyboard) interrupt.
4 WDT is reset upon a read or a write to the Game Port base address.
3-2 Reserved
1 Force Time-out. This bit is self-clearing.
WDT Status
0 1: WDT value reaches 0.
0: WDT value is not 0.
50
NDiS B533 User Manual
Appendix A: Watchdog Timer
Watchdog Timer Configuration Register (Index=72h, Default=001s0000b)
Bit Description
7 WDT Time-out value select 1
1: Second 0: Minute
6 WDT output through KRST (pulse) Enable
1: Enable 0: Disable
5 WDT Time-Out Value Extra Select
1: 64ms x WDT Timer-out value (default=4s) 0: Determined by WDT Time-out value select 1 (bit 7 of this register)
4 WDT Output through PWEGD Enable
1: Enable 0: Disable
During LRESET# this bit is selected by JP2 power-on strapping option.
3-0 Interrupt level Select for WDT.
Watch Dog Timer Time-out value (LSB) Register (Index=73h, default=38h)
Bit Description
7-0 WDT Time-out value select 7-0
Watch Dog Timer Time-out value (MSB) Register (Index=74h, default=00h)
Bit Description
7-0 WDT Time-out value select 15-8
51
NDiS B533 User Manual
Appendix B: GPI/O Programming Guide
Appendix B: GPI/O Programming Guide
GPIO Configuration
Address: A02
DATA Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
GPIO mapping GPI4 GPI3 GPI2 GPI1 X X X GPO4
Address: A00
DATA Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 10
GPIO
mapping
X X X GPO3 X GPO2 GPO1 X GPI3
Example:
Output data (1010) through GPO
Step1: At Debug mode Step2: Set Data at address A02 and A00
C:\debug
-o A02 F1
-o A00 ED
Read data from GPI
Step1: At Debug mode Step2: Read Data at A02 (Input data is 1010)
C:\debug
-i A02
-AF
52
NDiS B533 User Manual
Appendix C: Triple Display Settings
Appendix C: Triple Display Settings

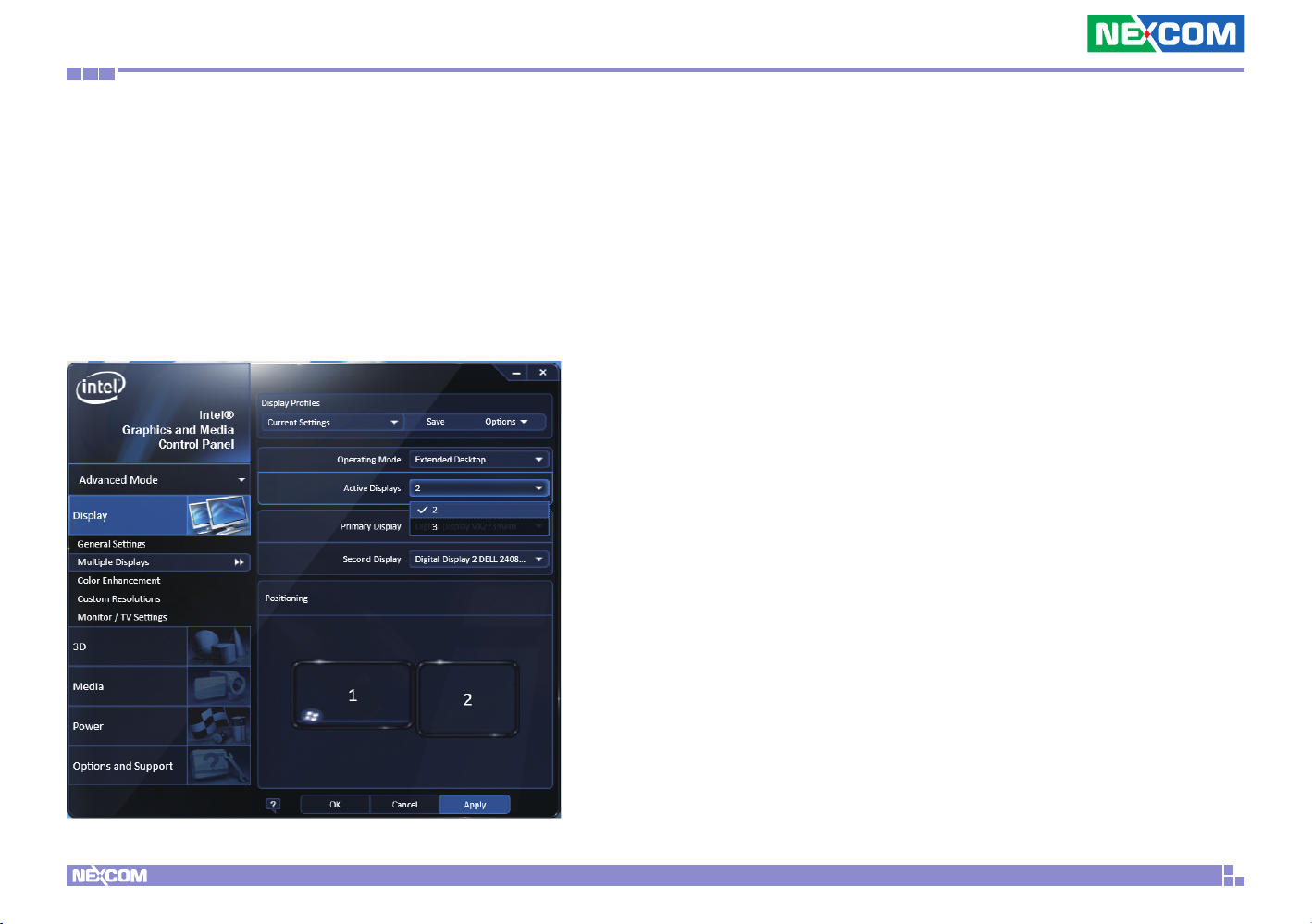

NDiS B533 is capable of driving three displays from DisplayPort, HDMI, and DVI simultaneously. However, the default setting of Active Display in
®
Intel
Graphic and Media Control Panel is two. To use triple displays, please
change it to three in Active Display.
53
