NEXCOM NDiS 166 User Manual

NEXCOM International Co., Ltd.

Multi-Media Solutions

Digital Signage Platform NDiS 166

User Manual

NEXCOM International Co., Ltd.

Published August 2014

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Safety Information ................................................................................vii

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Physical Features .....................................................................................2

Hardware Specifications ..........................................................................3

System .................................................................................................... 3

Main Board .............................................................................................5

Mechanical Dimensions ...........................................................................7

Chapter 2: Jumpers and Connectors

Before You Begin ...................................................................................8

Precautions ............................................................................................9

Jumper Settings ....................................................................................10

Locations of the Jumpers and Connectors ............................................. 11

External Connectors Pin Definitions ....................................................... 12

Power Input Connector ....................................................................12

ATX Power Switch ............................................................................12

HDMI Type A Connector ................................................................... 13

VGA Connector ................................................................................ 13

DVI-I Connector ...............................................................................14

S/PDIF Connector .............................................................................14

Audio Jack .......................................................................................15

LAN connector .................................................................................15

USB Port ........................................................................................... 16

RS232 Port ....................................................................................... 16

LED HDD/PWR ................................................................................. 17

Internal Connectors Pin Definitions .......................................................18

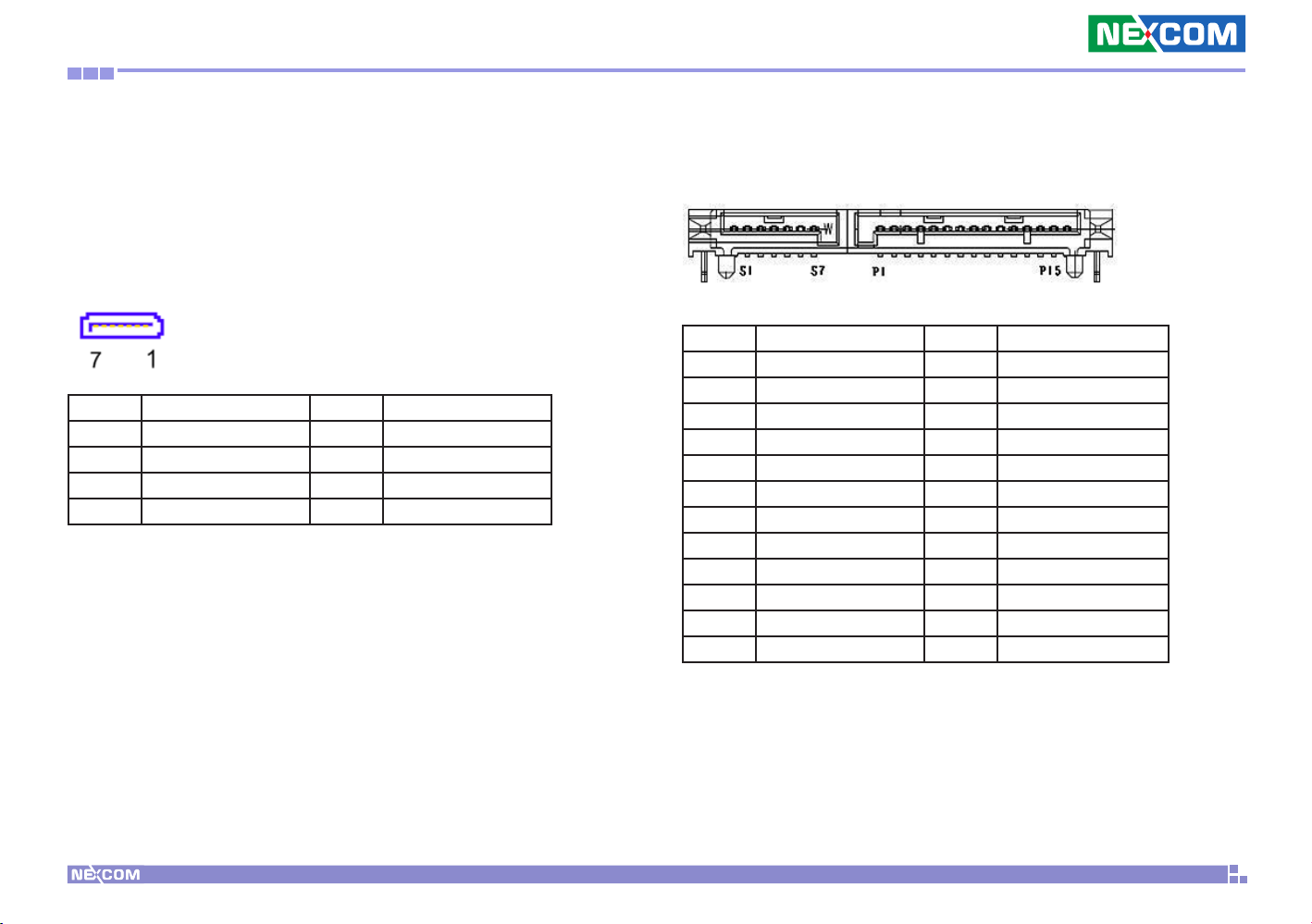

Serial-ATA ........................................................................................18

USB Connector ................................................................................. 19

Serial-ATA DOM Power .....................................................................19

Mini-PCIe .........................................................................................20

IRDA Connector ..............................................................................20

FAN Connector .................................................................................21

Reset Connector ............................................................................... 21

CMOS Clear Select ........................................................................... 21

ME Clear Select ................................................................................ 21

GPIO ................................................................................................22

Chapter 3: System Setup

Removing the Chassis Cover .................................................................23

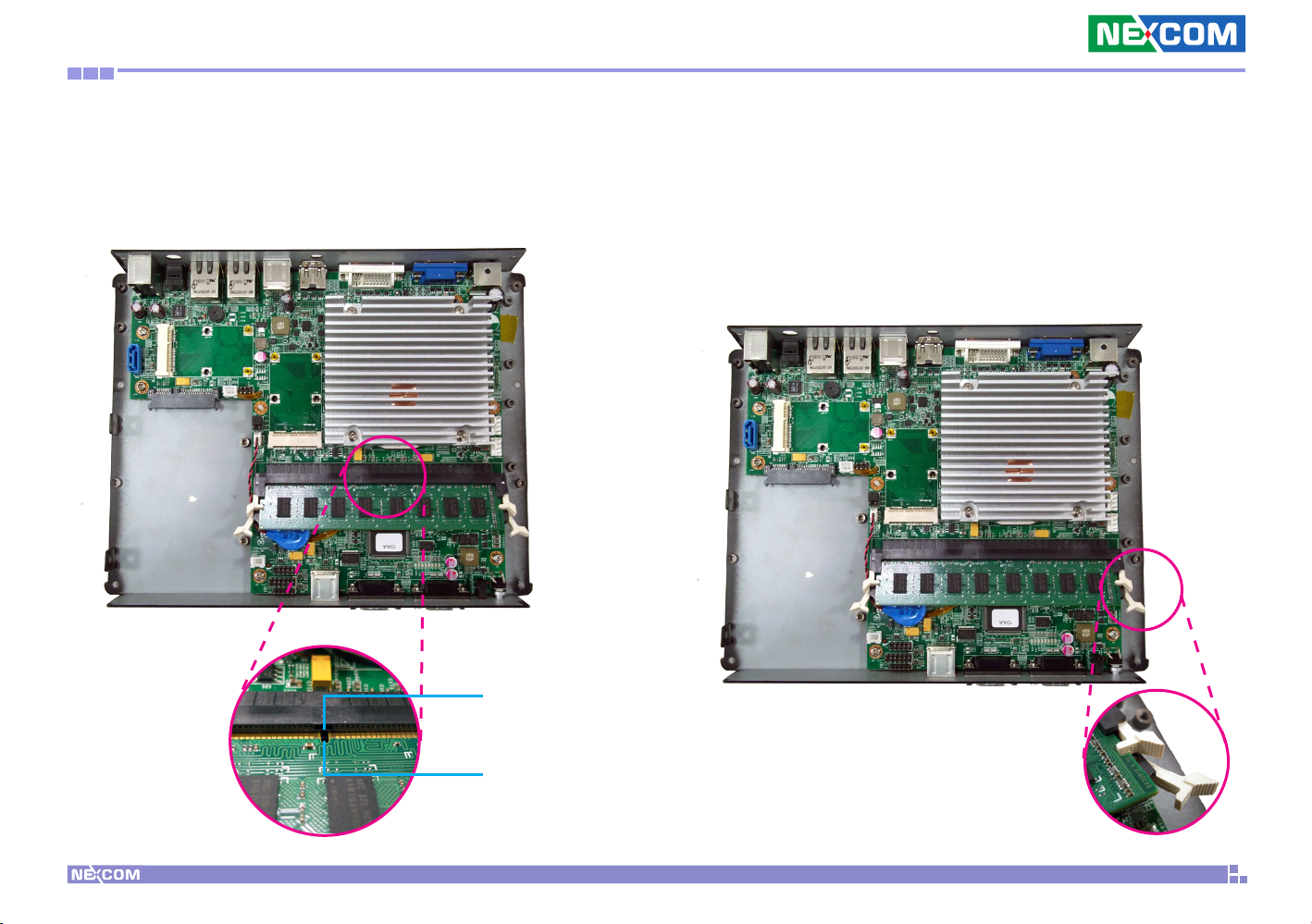

Installing a DIMM ..................................................................................24

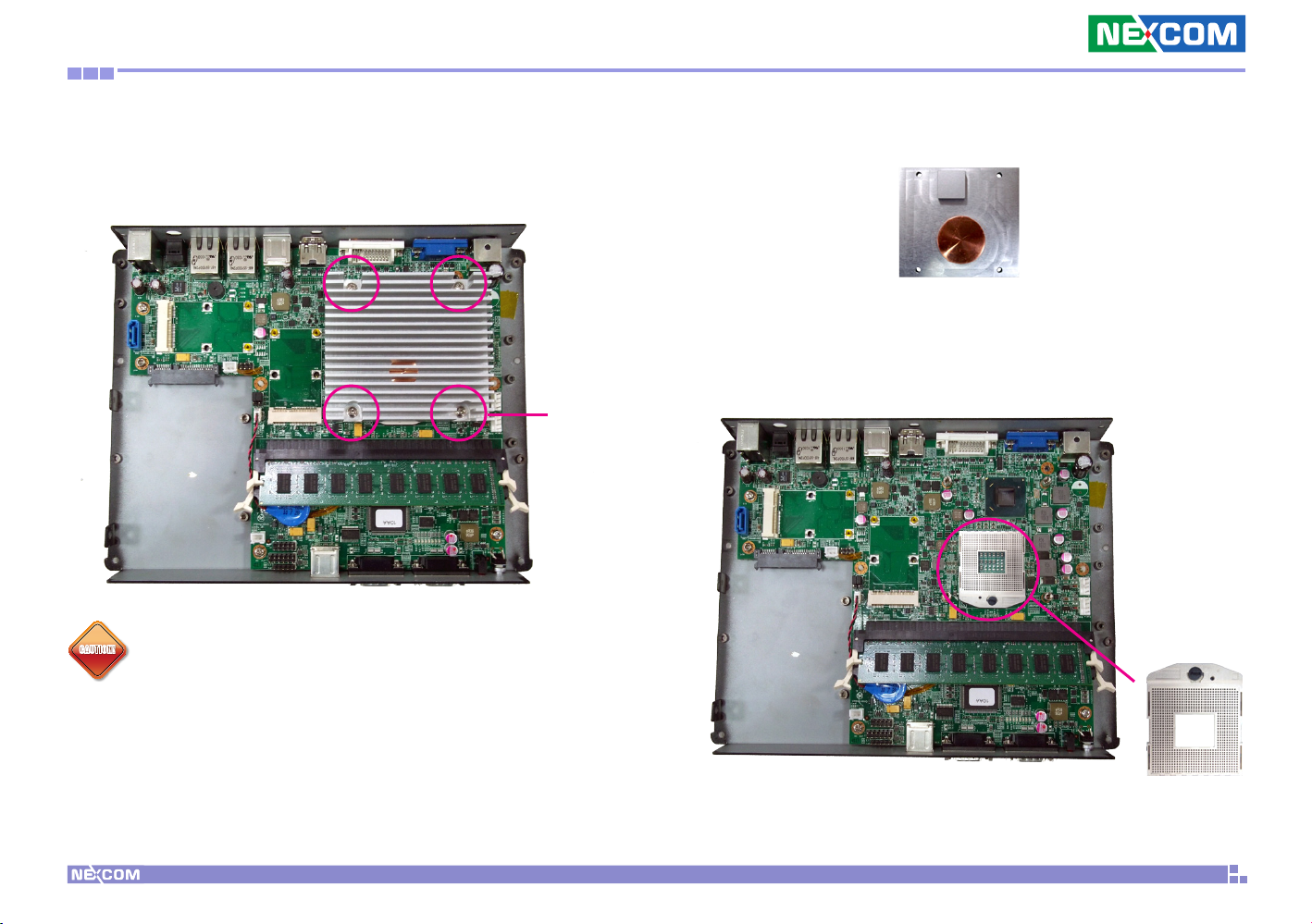

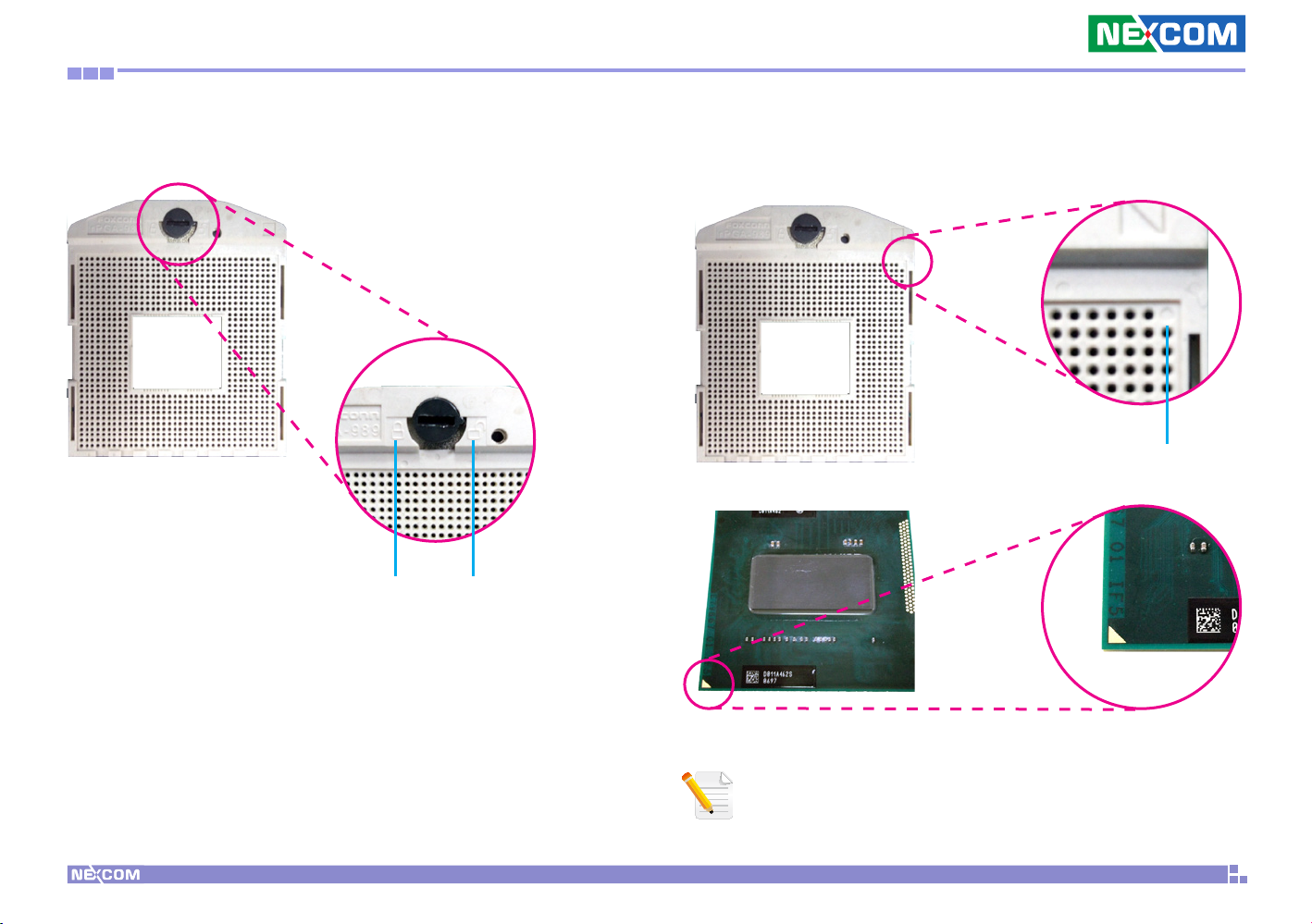

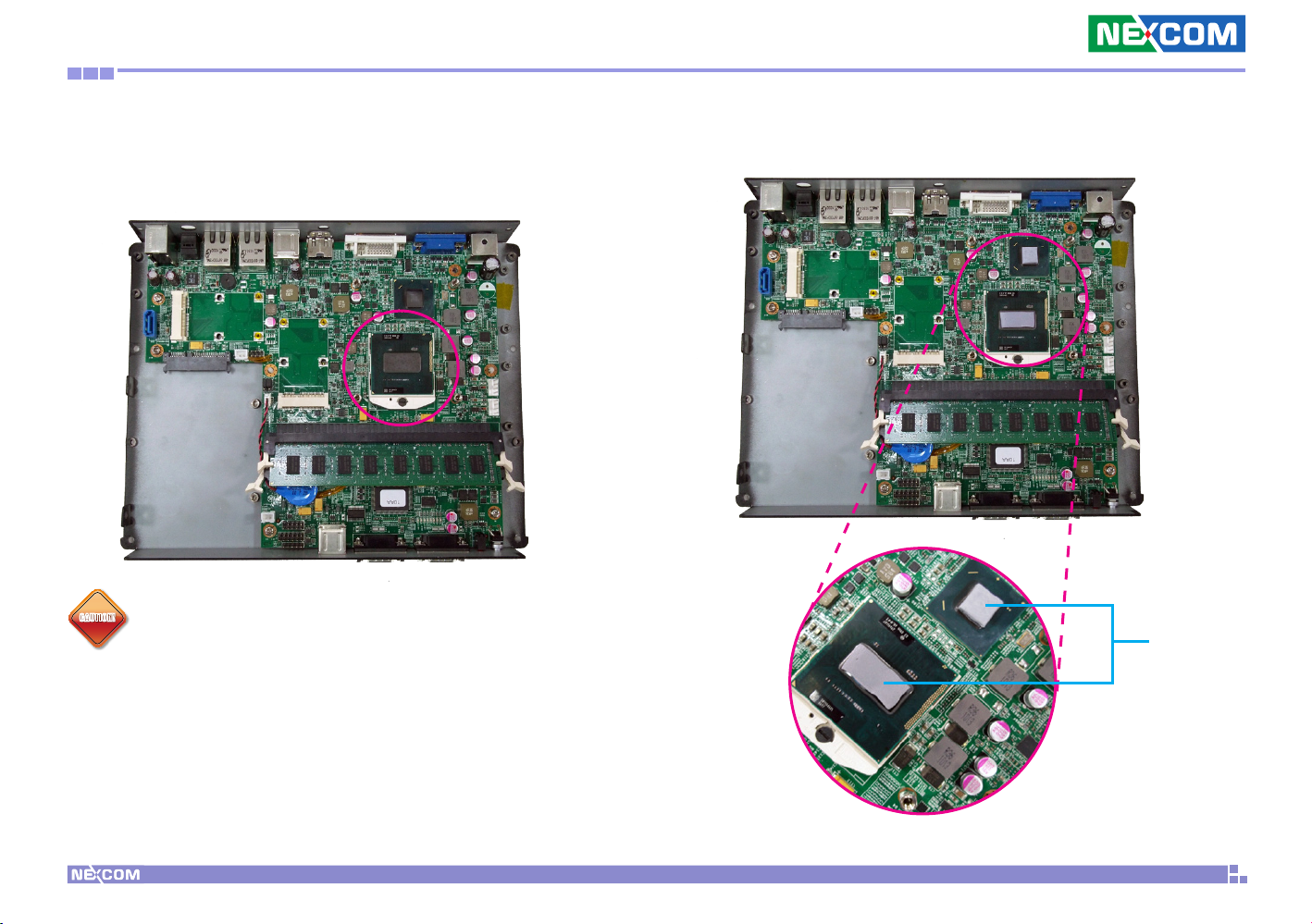

Installing the CPU .................................................................................26

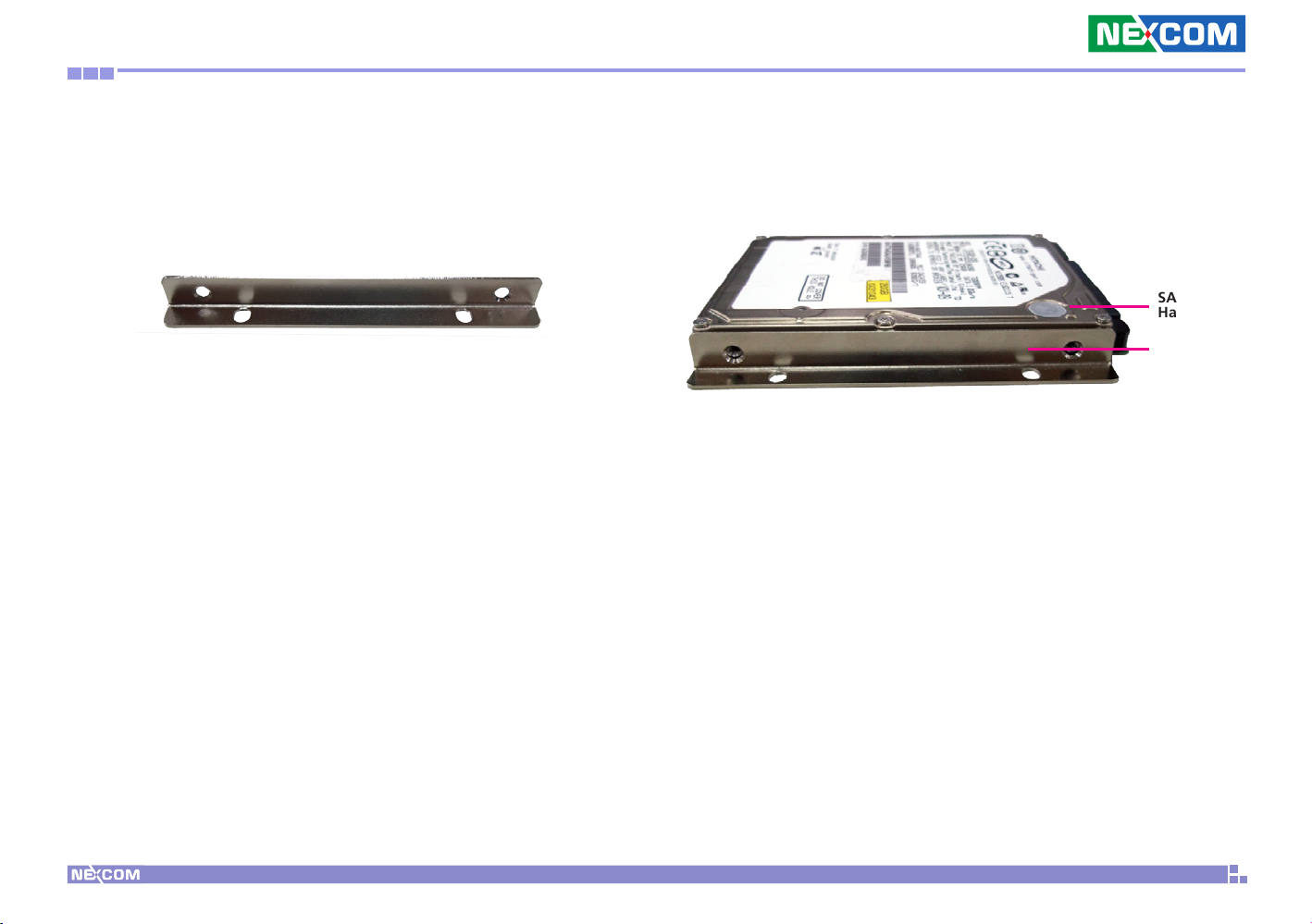

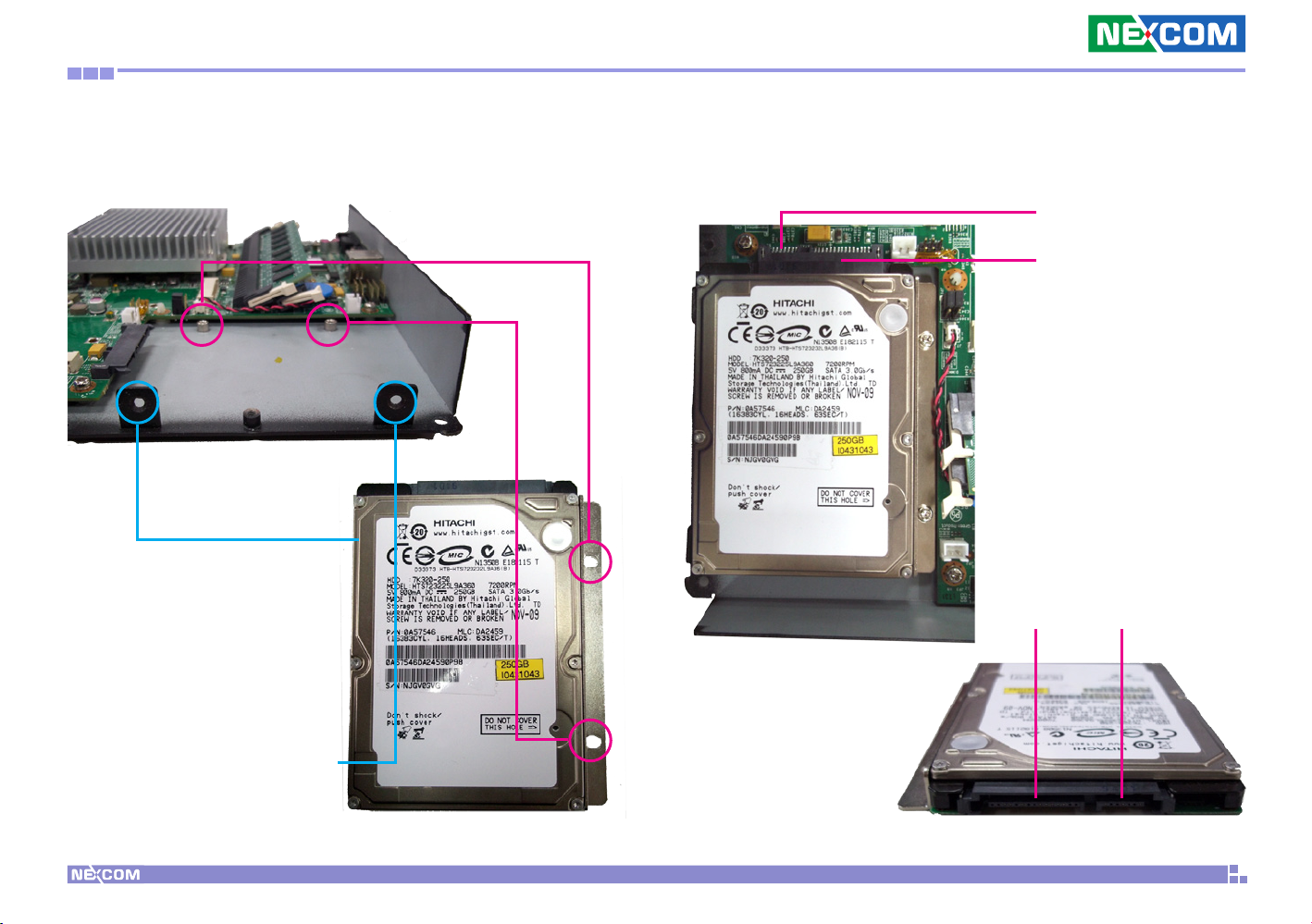

Installing a SATA Hard Drive ..................................................................30

ii

NDiS 166 User Manual

Contents

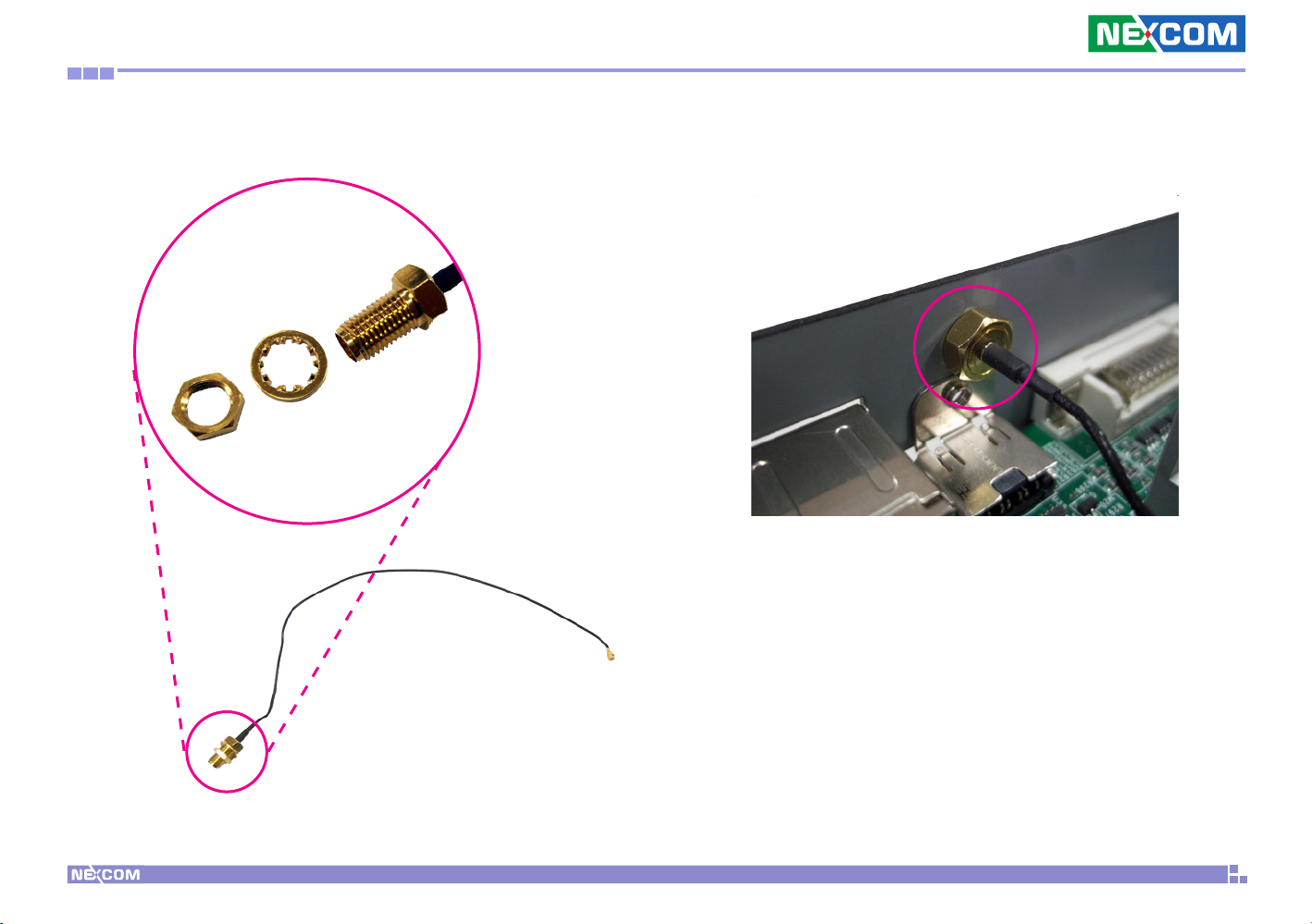

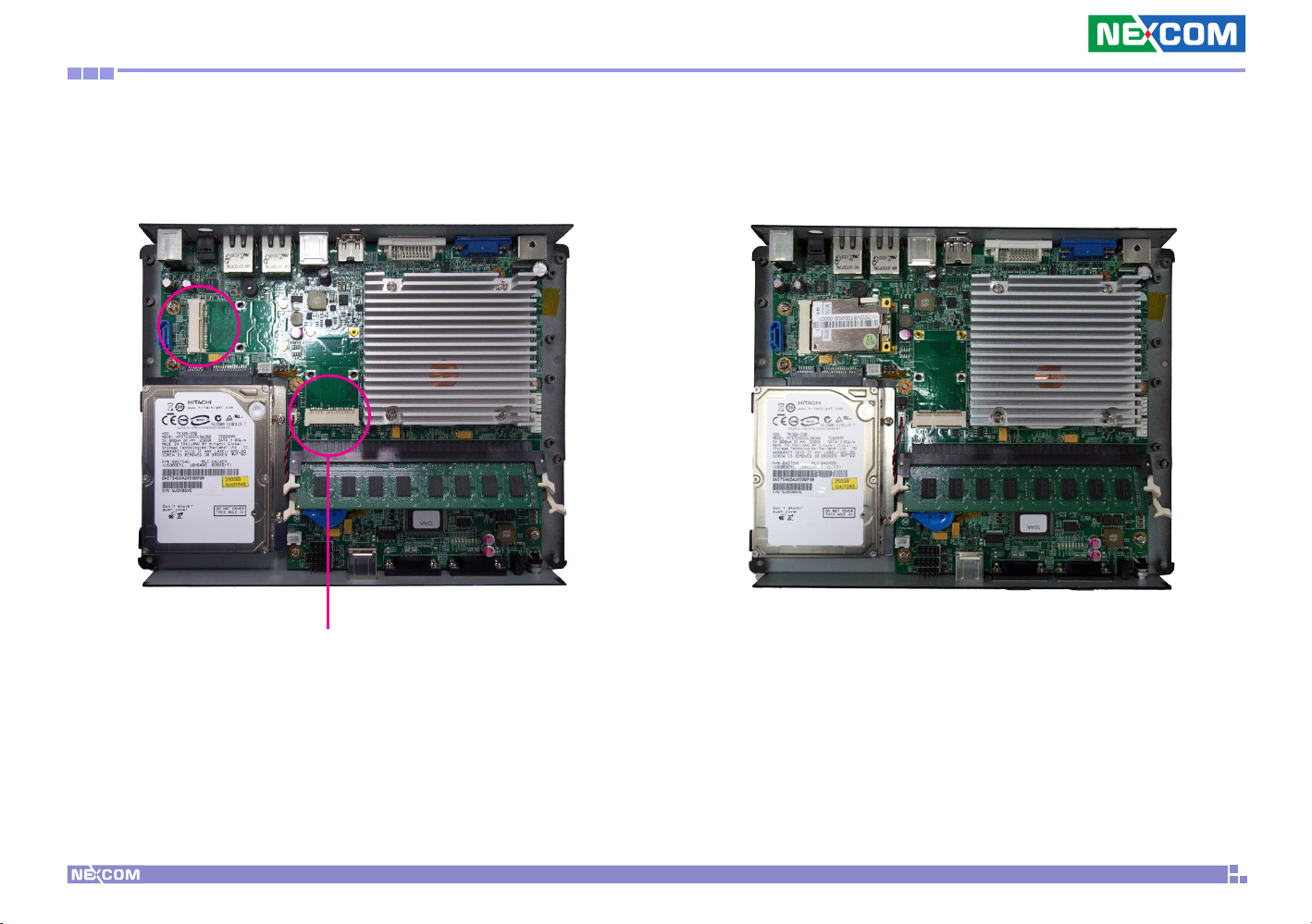

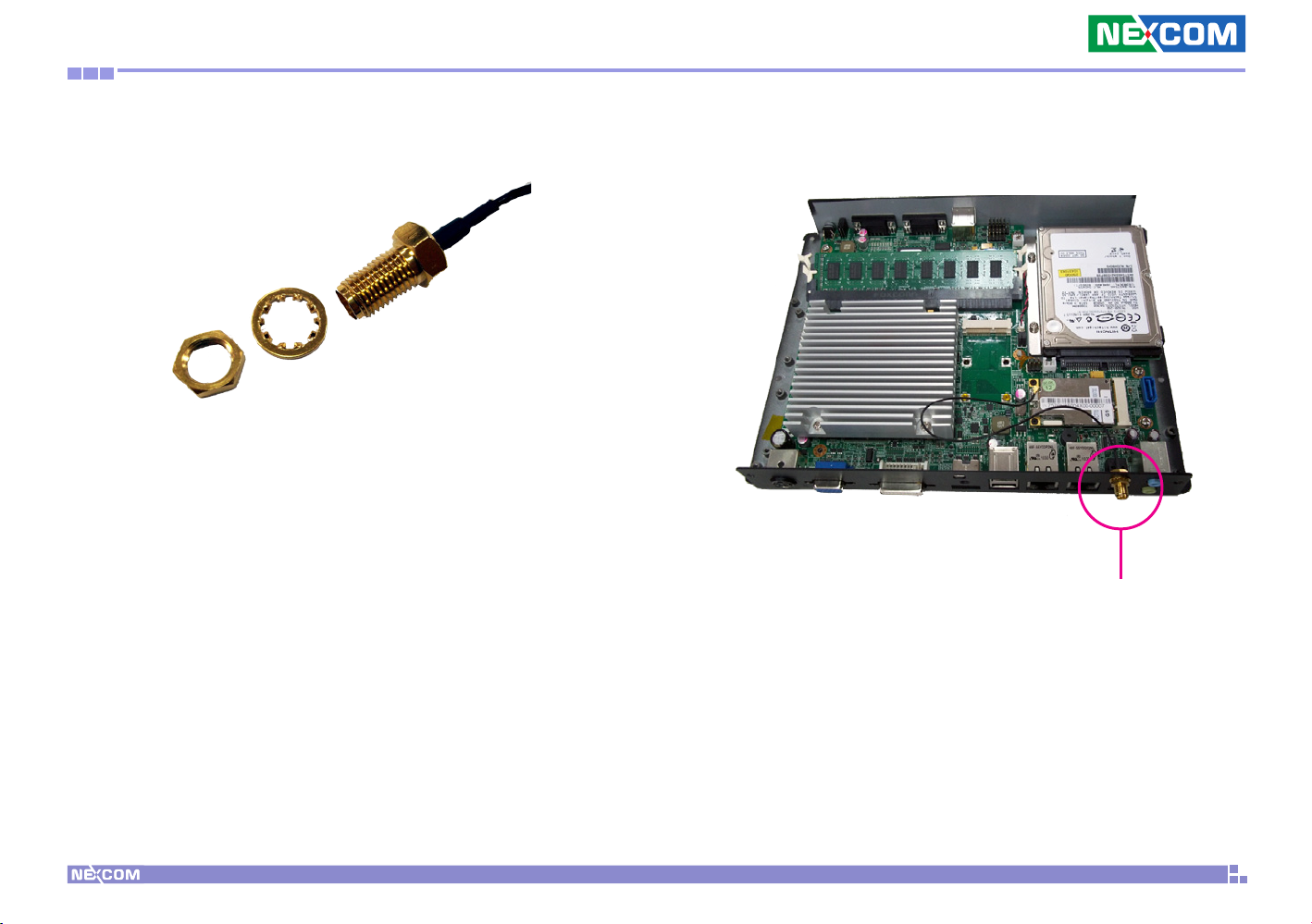

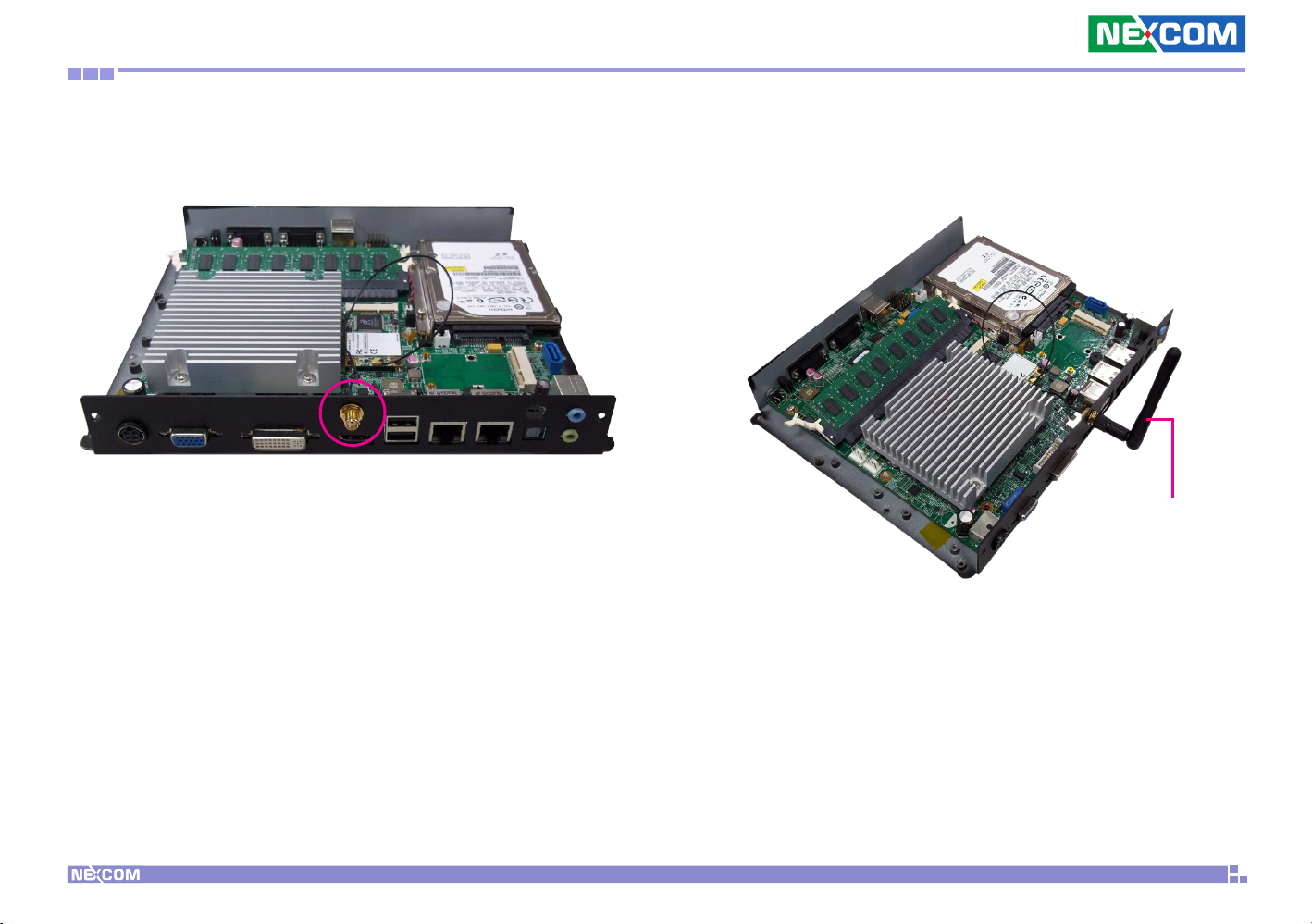

Installing a Wireless LAN Module ..........................................................34

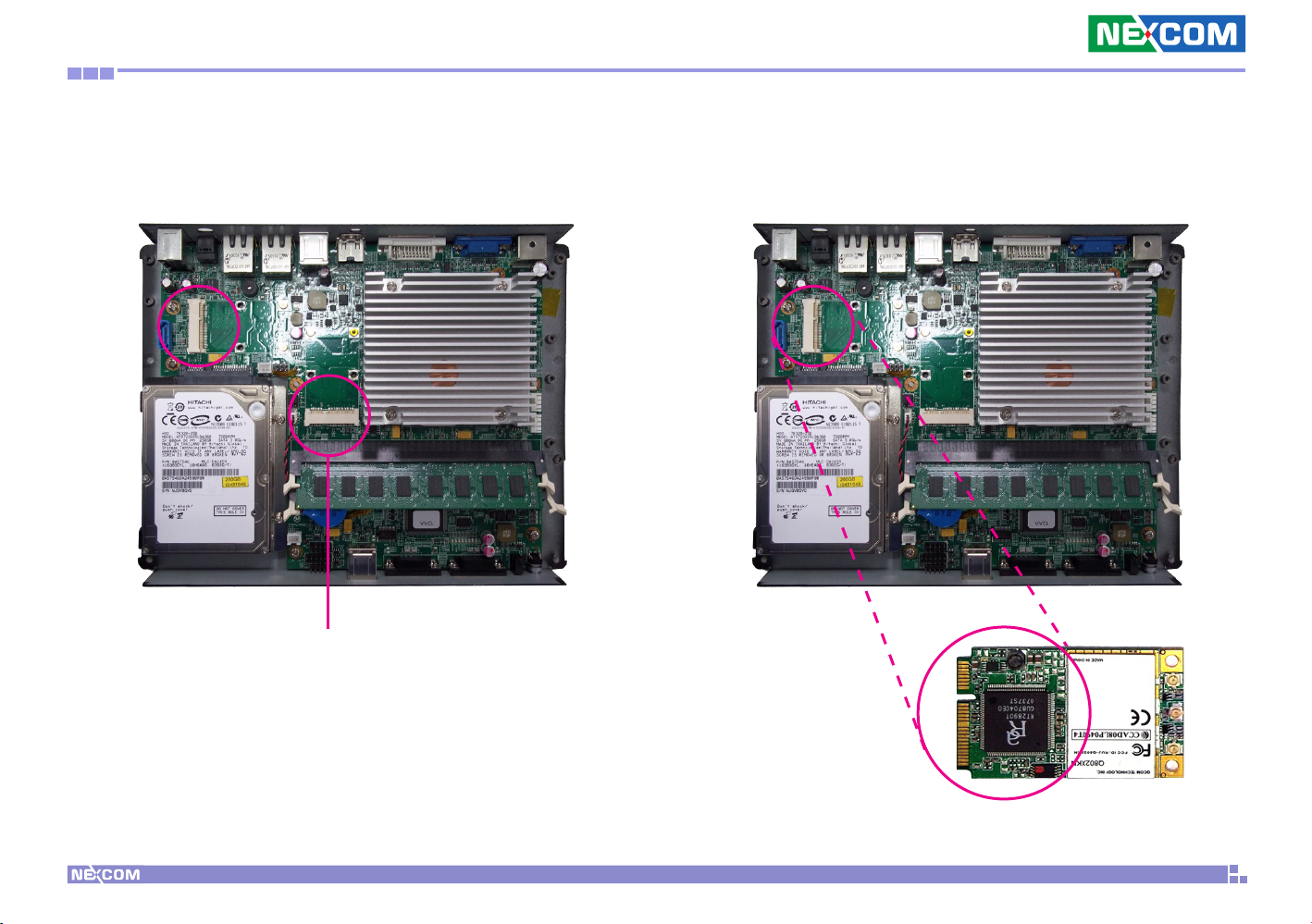

Installing a TV Tuner Module ................................................................. 38

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 42

When to Configure the BIOS .................................................................42

Default Configuration .......................................................................... 43

Entering Setup ...................................................................................... 43

Legends ................................................................................................ 43

Scroll Bar .............................................................................................44

BIOS Setup Utility .................................................................................. 44

Main .................................................................................................... 45

Advanced .............................................................................................46

CPU Configuration ................................................................................48

SATA Configuration ..............................................................................49

Anti-Thefts Configuration .....................................................................50

AMT Configuration ............................................................................... 51

USB Configuration ................................................................................ 52

Super IO Configuration ........................................................................ 53

H/W Monitor ........................................................................................54

Chipset ................................................................................................. 55

System Agent (SA) Configuration .......................................................... 56

INTEL IGFX Configuration ...................................................................... 57

PCH-IO Configuration ........................................................................... 58

Boot ....................................................................................................59

Security .................................................................................................60

Save & Exit ............................................................................................ 61

Appendix A: Watchdog Timer.....................................83

Appendix B: GPI/O Programming Guide....................85

Chapter 5: AMT Settings

Enable Intel® AMT in the AMI BIOS ...................................................... 62

Configure the Intel® ME Setup .............................................................63

Unconfigure AMT/ME ...........................................................................81

iii

NDiS 166 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS 166 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NDiS 166 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NDiS 166 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

NDiS 166 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

NDiS 166 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

o

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

viii

NDiS 166 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

ix

NDiS 166 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

x

NDiS 166 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

xi

NDiS 166 User Manual

Preface

Package Contents

Before continuing, verify that the NDiS 166 package that you received is complete. Your NDiS 166 package should have all the items listed in the following table.

Item P/N Name Specification Qty

1 5044440080X00 Gasket for Intel CPU KGS:C-4505(35x35x1)+G4000 35x35x 1.1mm 1

2 7400080005X00 Power Adapter w/C6 Socket L.T.E.:LTE90E-S2-210 80W 12V/6.67A Mini DIN 4-Pin Male Plug 1

3 50311F0100X00 Round Head Screw w/Spring+Flat Washer Long x4 P3x6 iso/SW6x0.5 NI 1

4 602DCD0306X00 (N)NDiS 166 Manual Driver CD 1

xii

NDiS 166 User Manual

Preface

Ordering Information

The following provides ordering information for NDiS 166.

• NDiS 166 (P/N: TBD)

- Intel® Core™ i5/i7 series processors

- Intel® QM67

- Intel® Integrated Graphics

xiii

NDiS 166 User Manual

Chapter 1: Product Introduction

Overview

NDiS 166 is specially designed to be mounted behind the large-size display device such as LCD TV or PDP. NDiS 166 supports dual display output by DVI, HDMI or VGA. The NDiS 166 operates on Intel® Core™ i5/i7 series processors with QM67 integrated graphics controller. NDiS 166 can smoothly playback dual Full HD video. NDiS 166 is ideal as advanced digital signage player for advertising, hospitality, brand promotion and digital menu board application.

Key Features

▪ 2nd Generation Intel® Core™ i5/i7 Series Platform ▪ Compact and Fan-Less Design ▪ Up to 16GB with un-buffered and Non-ECC DDR3 1066/1333 MHz

SDRAM

▪ Intel® Integrated Graphics Engine ▪ Dual Independent Display Supported ▪ Intel WG82579LM Gigabit Ethernet controller ▪ Two Mini-PCIe

1

NDiS 166 User Manual

Chapter 1: Product Introduction

Physical Features

Front panel

USB COM

HDD LED

Power

LED

Power

Button

Side panel

12V DC-in

VGA

DVI-D HDMI

USB

LAN

S/PDIF

Line-in

Line-out

2

NDiS 166 User Manual

Chapter 1: Product Introduction

Hardware Specifications

System

Processor

▪ Quad Core: Intel® CoreTM i7-2710QE processor 2.1 GHz, 45W (system

with cooler)

▪ Dual Core: Intel® CoreTM i5-2510E processor 2.5 GHz, 35W (fanless) ▪ FSB

- 1066/1333 MHz

Chipset

▪ Intel® QM67 PCH

Main Memory

▪ Two 240-pin 25°angled DDR3 DIMM sockets ▪ DDR3 1066/1333 MHz SDRAM with un-buffered and Non-ECC memory

module

▪ Support up to 16GB memory

▪ Analog CRT

- DB15 connector

- Integrated 300MHz DAC

- Analog monitor supports up to QXGA

- Supports CRT Hot-Plug

▪ DVI

- External DVI-D interface

- TMDS transmitter via SDVO interface

▪ HDMI

Integrated HDMI (iHDMI)

- Video support for CEA modes 480i/p, 576i/p, 720p, 1080i/p and PC modes though dot clock

- Intel HD Audio support

- Integrated Intel HD Audio codec

- Dolby* AC3 compress, Dolby* Digital, Dolby* DTS (full support)

- PCM audio support

▪ Dual Display

- Dual independent display: CRT+HDMI

- Dual independent display: DVI+HDMI

- Dual independent display: DVI+CRT

Graphics

▪ Graphics chip

- Intel HD integrated graphic

- Intel® Dynamic Video Memory Technology

- Image Rotate by driver support

3

NDiS 166 User Manual

Chapter 1: Product Introduction

Network

▪ Intel® WG82579LM GbE controller ▪ Intel® 82574 GbE Controller ▪ PXE LAN boot ROM for Ethernet Boot up. ▪ Support WOL ▪ 2 x RJ45 connector with LEDs ▪ Support Intel® Active Management Technology 7.0 support

Storage

▪ One JST 2.54mm 4-pin power connector for SATA device ▪ One 7-pin SATA connector ▪ One SATA + Power 90° connector ▪ One 2.5” HDD drive bay

Audio

▪ Audio 1

- ALC 888 HD codec

- Speaker-out with amplifying feature (1W, 8ohm)

- One audio jack for analog input (programmable as analog output)

- One SPDIF for digital output

▪ Audio 2

- HDMI for PCM audio output

I/O Interfaces

▪ Serial

- DB9 COM 1 (RS232) connector at the front panel

- DB9 COM 2 (RS232) connector at the front panel

▪ USB

- USB 2.0 ports 1~2 at the rear panel

- USB 2.0 ports 3~4 at the front panel

- USB 2.0 Port 5~6 reserved, JST

- USB 2.0 Port 7 to mini-PCIe

- USB 2.0 Port 8 to mini-PCIe

▪ GPIO

- 8 GPIO lines (GPI 0~3 and GPO 0~3); TTL Level (0/5V)

- 2x6 pin header, 2.54mm

▪ Others

- OnBoard buzzer

- RTC reset: 1x3 pin header, 2.54mm

- IR interface: 1x5 pin header, 2.54mm

- Reset: 1x2 pin header, 2.54mm

4

NDiS 166 User Manual

Chapter 1: Product Introduction

Power Supply

▪ Onboard DC to DC

- Power range design: +12V +/-10% DC input

- 4-pin Mini-DIN power jack

- ATX power mode

- Supports wake up alarm

- Supports WOL

- Support power on after failure

- Support soft off

▪ External adapter

- +12V DC output 96W

RTC Battery

▪ On chip RTC with battery back up / One External Li-ion Battery ▪ RTC tolerance less than 2sec (24 hours) under 25°C environment

BIOS

▪ AMI system BIOS ▪ SPI 6416Mbits flash ROM ▪ Support Intel AMT 7.0

System Management

▪ Monitoring

- Super IO built-in function (IT8728F)

- Monitoring of 5 voltages, 3 temperature 4 voltage (For +3.3V, +5V, +12V, Vcore) 3 Temperatures (CPU, two external Temperature Sensor) Two FAN 3-pin connectors

▪ Watchdog

- Watchdog timeout is programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes

- Tolerance: 15% under room temperature 25°C

Operating System Support

▪ Microsoft

- XP / Vista / Windows 7 / WES2009 / WES7

Main Board

External I/O

▪ Front I/O

- Two USB 2.0 ports

- Two RS232 COM ports

- Power Button

- One power LED (green)

- One HDD LED (red)

- On/Off switch

5

NDiS 166 User Manual

Chapter 1: Product Introduction

▪ Rear I/O

- One audio-out port

- One audio-in port

- One SPDIF port

- Two USB 2.0 ports

- Two RJ45 Gigabit LAN ports

- One HDMI port

- One DVI-D port

- One VGA port

- +12V DC-in jack

Physical Characteristics

▪ Dimensions (W x D x H)

- 250mm x 194mm x 40mm (without bracket)

▪ Color

- Black

▪ Mounting

- Wall mount bracket

- VESA mount

▪ Cooling system

- Fanless

Environment

▪ Operating temperature: 100% CPU loading and component thermal

profile: 0 ~ 40 °C

▪ Storage temperature: -40°C ~ 80°C ▪ Relative humidity (non-condensing): 95%

Certificate

▪ CE ▪ FCC Class A

Expansion

▪ Two Mini-PCIe slots ▪ Supports Wireless LAN module & DVB-T TV-tuner module ▪ Support wake on WLAN feature

6

NDiS 166 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

Line Out

Line In

SPDIF

HDMI

DVI

12V

DC IN

194

250

COM1 COM2 Power

7

HDD

Power

SW

40

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all NDiS 166 series.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

- A Philips screwdriver

- A flat-tipped screwdriver

- A set of jewelers Screwdrivers

- A grounding strap

- An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the poweris off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electricity

▪ than dry environments. A grounding strap is warranted whenever

danger of static electricity exists.

8

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

9

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

3

2

1

3

2

10

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

NDiB 166

The figure on the right is the NDiB 166 motherboard which is the motherboard used in the NDiS 166 system. It shows the locations of the jumpers and connectors.

11

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

External Connectors Pin Definitions

This section provides descriptions, illustrations and pin definitions of the external connectors.

Connector Specification

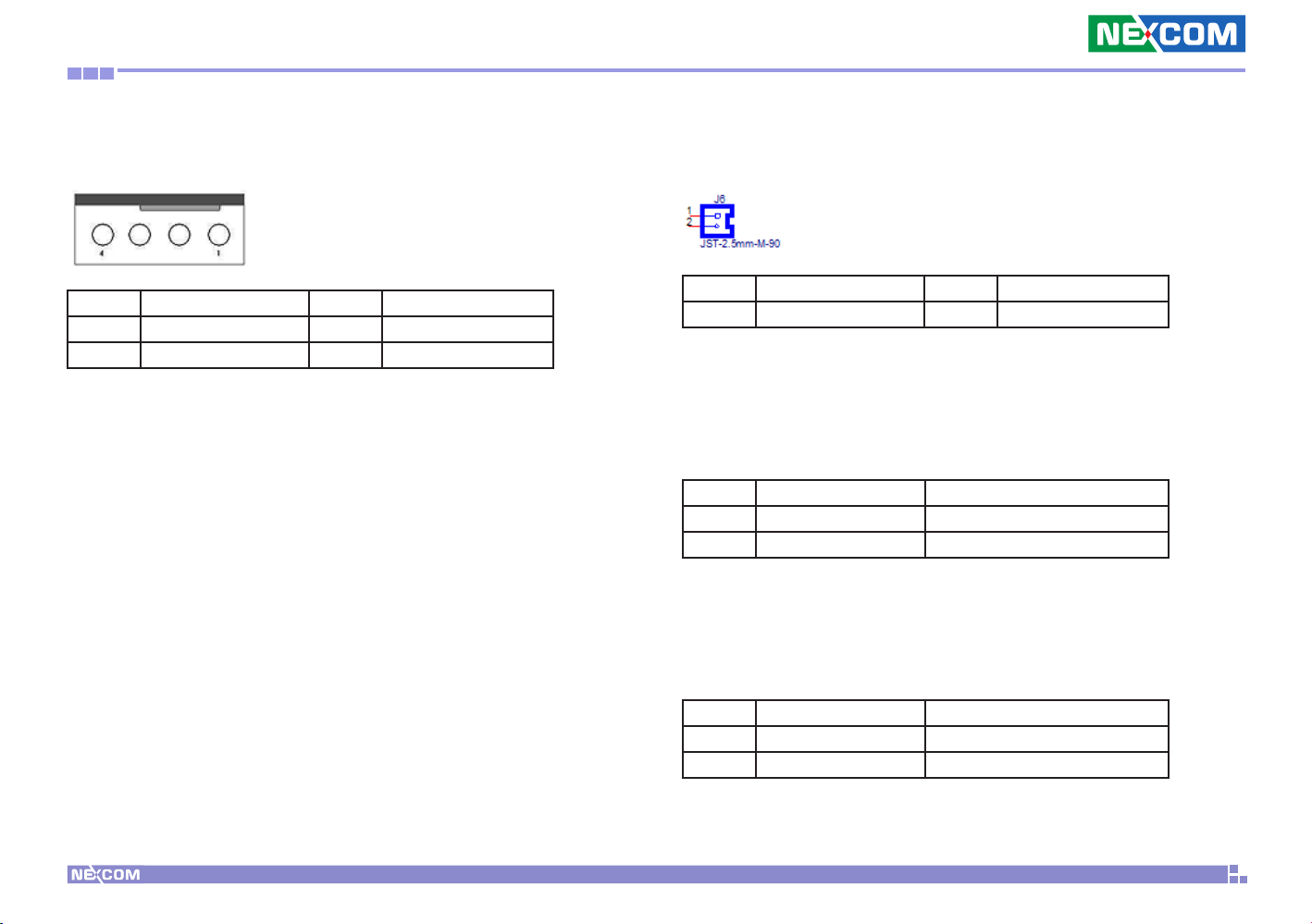

Power Input Connector

CN1 (4-pin power jack with lock)

1

3 4

Pin Definition

1 DC-IN (+12VSB)

2 DC-IN (+12VSB)

3 GND

4 GND

2

ATX Power Switch

SW1 (push button with LED and without lock)

Status LED Color

Standby Red

Operation Blue

12

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

HDMI Type A Connector

J6

Pin Definition Pin Definition

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2– 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1–

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0– 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock–

13 CEC 14 NC

15 SCL 16 SDA

17 DDC/CEC/HEC Ground 18 Power (VCC5)

19 Hot Plug Detect

VGA Connector

VGA1

Pin Definition Pin Definition

1 RED 2 GREEN

3 BLUE 4 NC

5 Gnd 6 Gnd

7 Gnd 8 Gnd

9 VCC (VCC5) 10 Gnd

11 NC 12 DDC Data

13 HSYNC 14 VSYNC

15 DDC Clock

13

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

DVI-I Connector

CON1

Pin Definition Pin Definition

1 TMDS DATA2- 2 TMDS DATA2+

3 TMDS DATA 2/4 Shield 4 TMDS Data 4-

5 TMDS Data 4+ 6 DDC clock

7 DDC data 8

9 TMDS Data 1- 10 TMDS Data 1+

11 TMDS Data 1/3 shield 12 TMDS Data 3-

13 TMDS Data 3+ 14 Power (VCC5)

15 Ground 16 Hot plug detect

17 TMDS data 0- 18 TMDS data 0+

19 TMDS data 0/5 shield 20 TMDS data 5-

21 TMDS data 5+ 22 TMDS clock shield

23 TMDS clock+ 24 TMDS clock-

C1 C2

C3 C4

C5 Analog ground

S/PDIF Connector

CN4

Pin Definition Pin Definition

1 GND 2 VCC (VCC3)

3 S/PDIF OUT

14

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

Audio Jack

CN5

Pin Definition Pin Definition

1 GND 2 FRONT_LCI

3 GND 4 FRONT-JD

5 FRONT_RCI

22 LINE1-LP

23 GND 24 LINE1-JD

25 LINE1-RP

LAN connector

CON2 / CON3

Pin Definition Pin Definition

1 TCT 2 MDI3-

3 MDI3+ 4 MDI2-

5 MDI2+ 6 MDI1-

7 MDI1+ 8 MDI0-

9 MDI0+ 10 TCTG

11 V3_3M 12 LED_ACT#

13 LED_1000# 14 LED_100#

15

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

USB Port

USB1 / USB2

Pin Definition Pin Definition

1 VCC (VCC5) 2 DATA1-

3 DATA1+ 4 GND

5 VCC (VCC5) 6 DATA -

7 DATA+ 8 GND

RS232 Port

COM1 (J1) / COM2 (J2)

Standard DB9 Connector

Pin Definition Pin Definition

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI

16

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

LED HDD/PWR

LED

T1

B1

LED No. Function Description

T1 HDD LED (Red)

B1 Power LED (Green)

17

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors Pin Definitions

This section provides descriptions, illustrations and pin definitions of the internal connectors.

Serial-ATA

CN6

Pin Definition Pin Definition

1 GND 2 SATA_TXP0 -

3 SATA_TXN0 4 GND

5 SATA_RXN0 6 SATA_RXP0

7 GND

Serial-ATA

SATA 1

Pin Definition Pin Definition

S1 GND S2 TX+

S3 TX- S4 GND

S5 RX- S6 RX+

S7 GND

P1 NC P2 NC

P3 NC P4 GND

P5 GND P6 GND

P7 VCC5 P8 VCC5

P9 VCC5 P10 GND

P11 NC P12 GND

P13 NC P14 NC

P15 NC

18

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

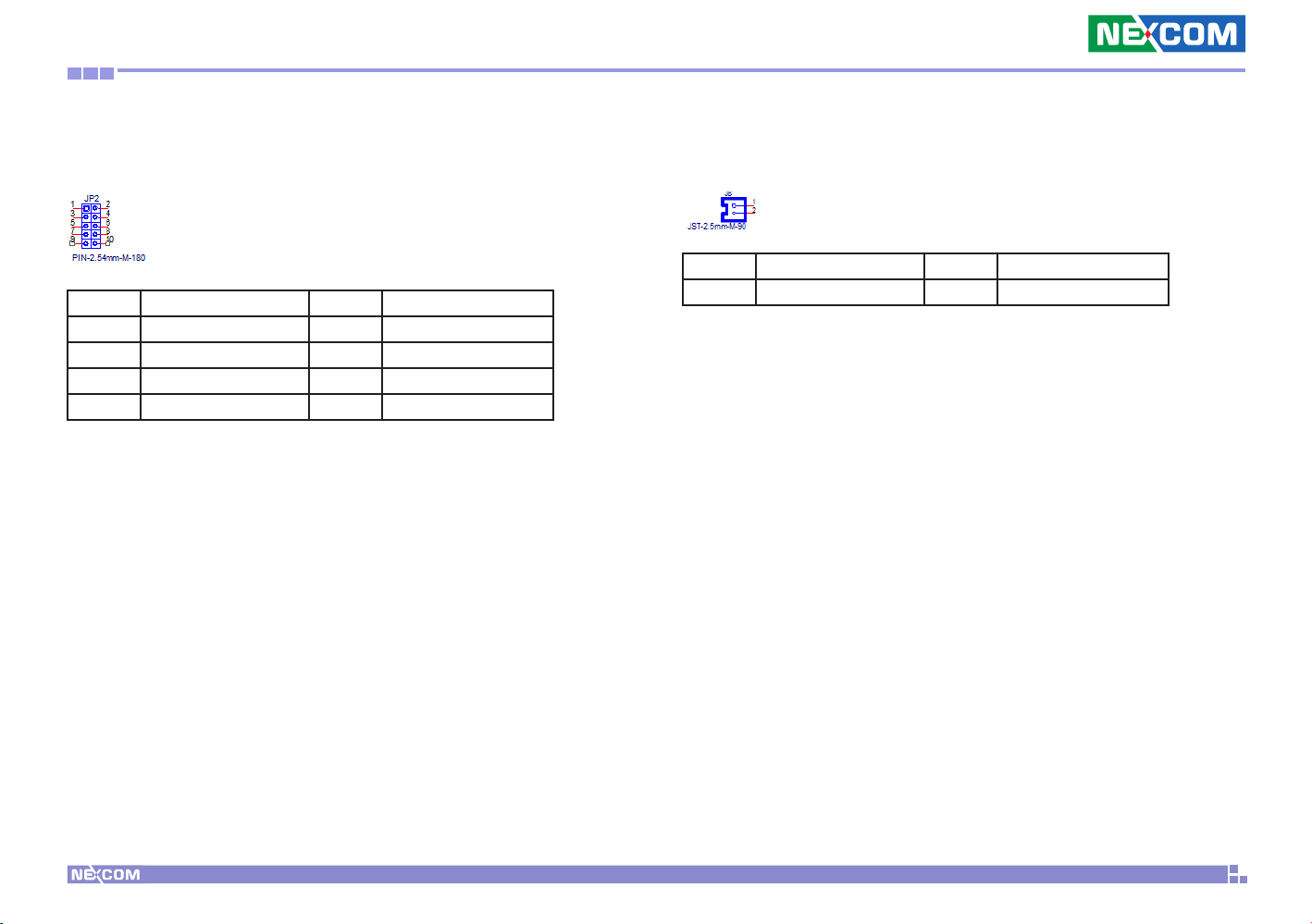

USB Connector

JP2

Pin Definition Pin Definition

1 VCC (VCC5) 2 VCC (VCC5)

3 DATA- 4 DATA1-

5 DATA+ 6 DATA1+

7 GND 8 GND

Serial-ATA DOM Power

J8

Pin Definition Pin Definition

1 VCC5 2 GND

19

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

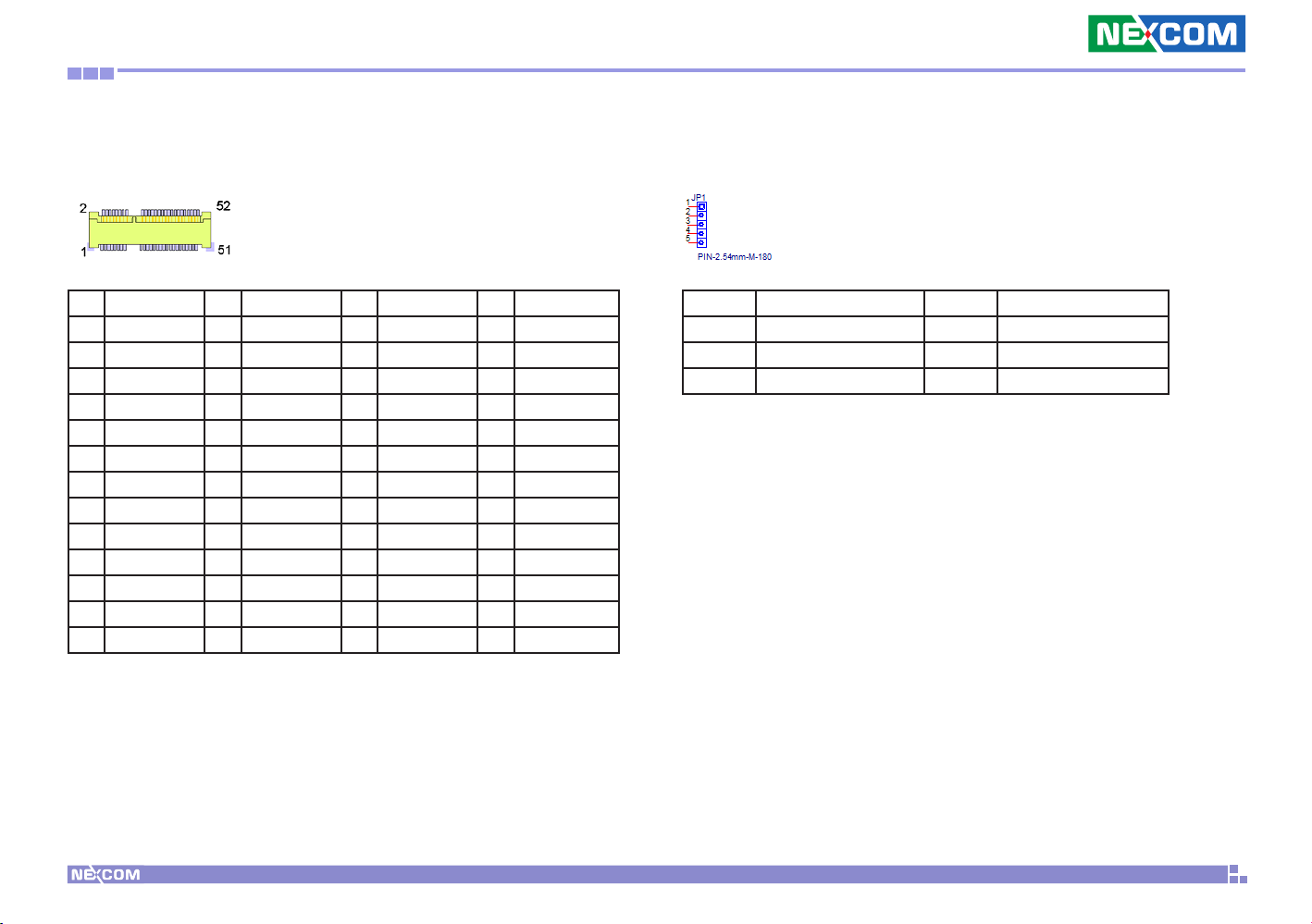

Mini-PCIe

CN2 / CN3

Pin Definition Pin Definition Pin Definition Pin Definition

1 WAKE# 2 +V3.3A_MIN 27 GND 28 +V1.5S_MIN

3 NC 4 GND 29 GND 30 SMB_CLK

5 NC 6 +V1.5S_MIN 31 PETn0 32 SMB_DATA

7 CLKREQ# 8 NC 33 PETp0 34 GND

9 GND 10 NC 35 GND 36 USB_D-

11 REFCLK- 12 NC 37 NC 38 USB_D+

13 REFCLK+ 14 NC 39 +V3.3A_MIN 40 GND

15 GND 16 NC 41 +V3.3A_MIN 42 LED_WWAN#

17 NC 18 GND 43 NC 44 LED_WLAN#

19 NC 20 DISABLE# 45 NC 46 LED_WPAN#

21 GND 22 PERST# 47 NC 48 +V1.5S_MIN

23 PERn0 24 +V3.3A_MIN 49 NC 50 GND

25 PERp0 26 GND 51 NC 52 +V3.3A_MIN

IRDA Connector

JP1

Pin Definition Pin Definition

1 VCC (VCC5) 2 CIRRX

3 IRRX 4 GND

5 IRTX

20

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

FAN Connector

FAN1 / FAN2

Pin Definition Pin Definition

1 GND 2 +12V/Speed Control

3 FAN_TAC 4 FAN_CTL

Reset Connector

J6

Pin Definition Pin Definition

1 RESET# 2 GND

CMOS Clear Select

JP6

Pin No. Status Function Description

1-2 (*) Short Normal

2-3 Short* Clear BIOS

ME Clear Select

JP4

Pin No. Status Function Description

1-2 (*) Short Normal

2-3 Short* Clear ME

21

NDiS 166 User Manual

Chapter 2: Jumpers and Connectors

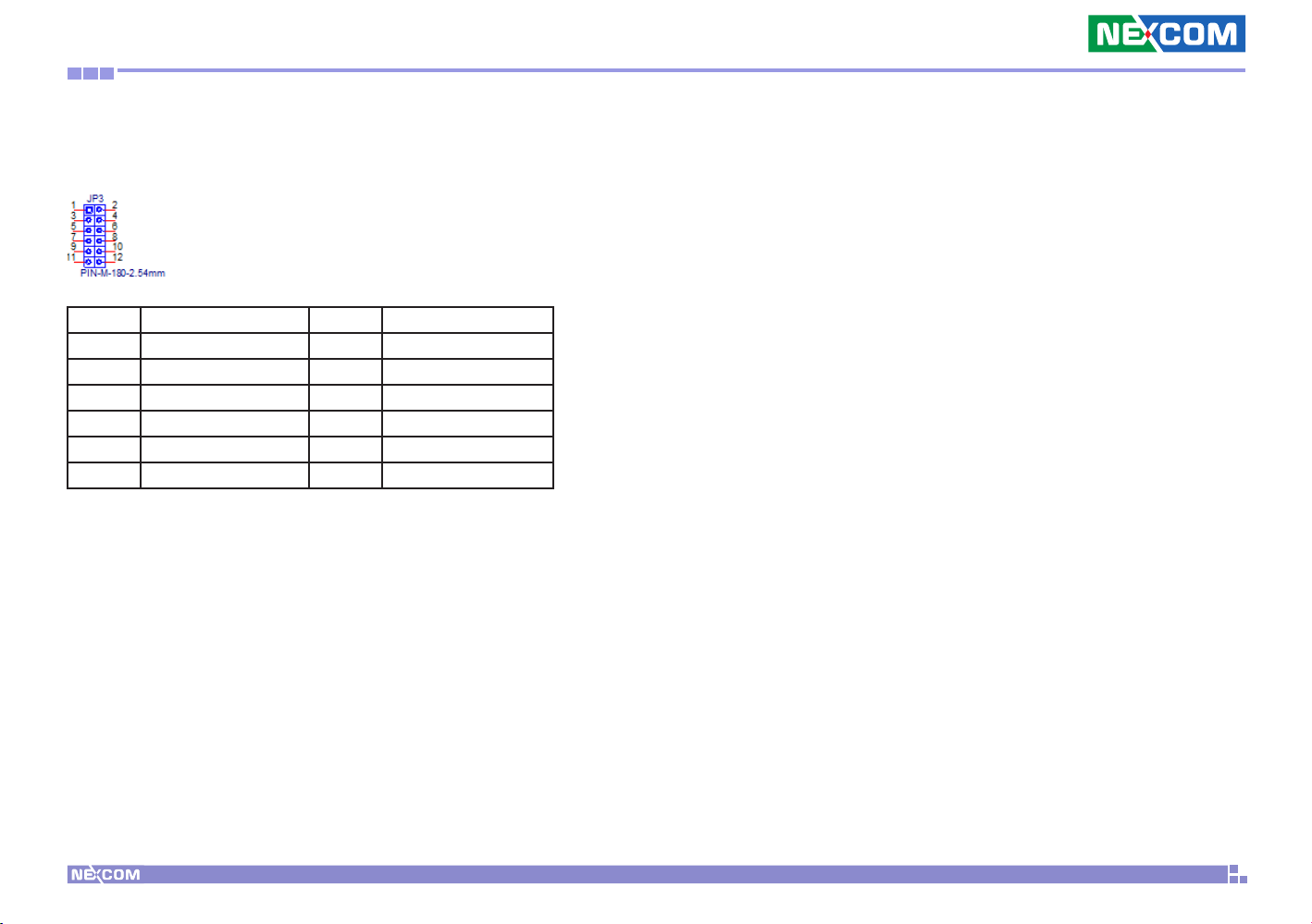

GPIO

JP3

Pin Definition Pin Definition

1 GPI1 2 GPI2

3 GPI3 4 GPI4

5 GPO1 6 GPO2

7 GPO3 8 GPO4

9 VCC3 10 VCC3

11 GND 12 GND

22

NDiS 166 User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is

CAUTION!CAUTION!

1. The screws on the bottom of cover are used to secure the cover to the

off and disconnected from the power source to prevent electric shock or system damage.

chassis. Remove these screws and put them in a safe place for later use.

23

NDiS 166 User Manual

Chapter 3: System Setup

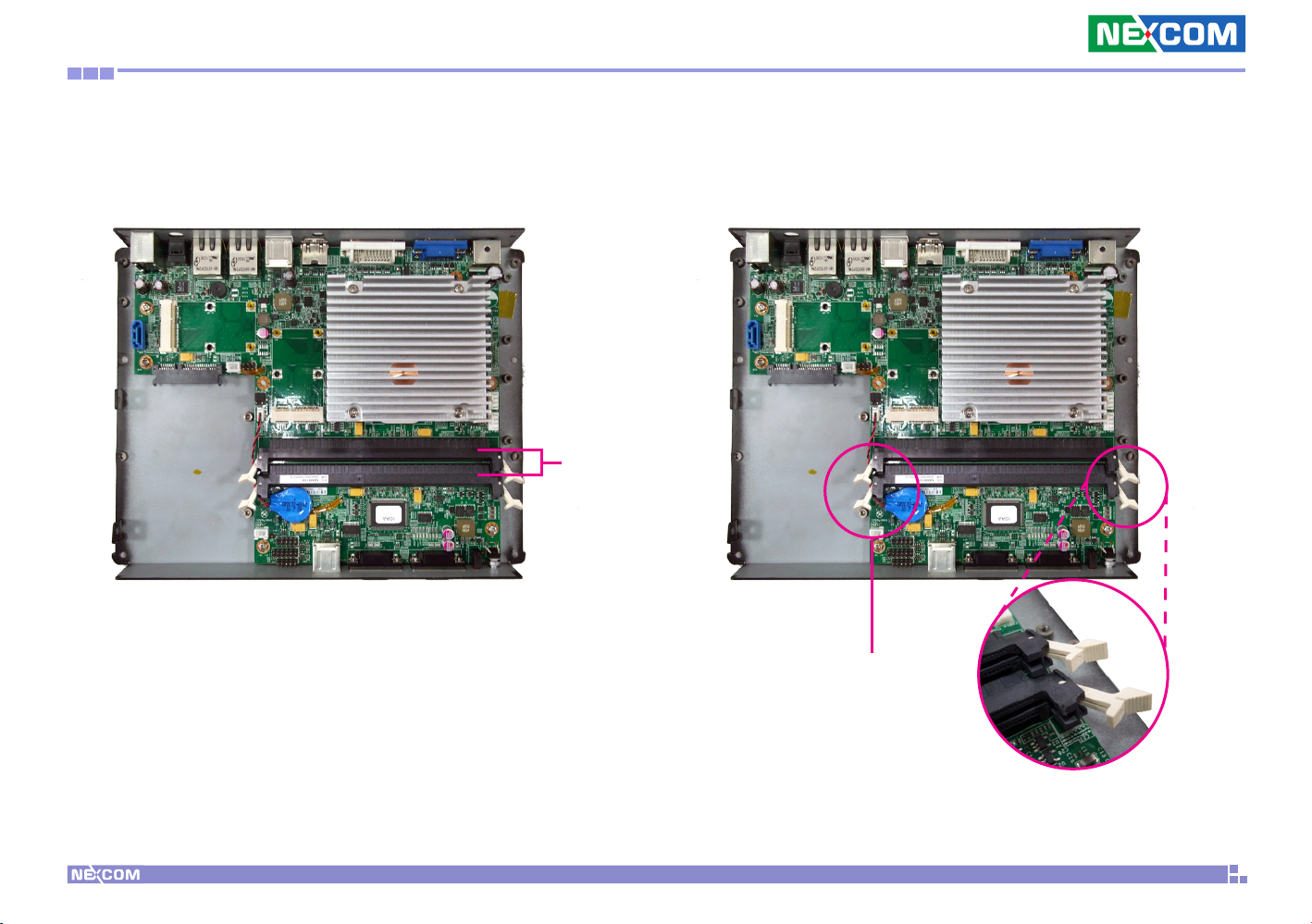

Installing a DIMM

1. Locate for the DIMM socket on the board.

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

DIMM sockets

Ejector tab

24

NDiS 166 User Manual

Chapter 3: System Setup

3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

4. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Key

Notch

25

NDiS 166 User Manual

Chapter 3: System Setup

CAUTION!

Installing the CPU

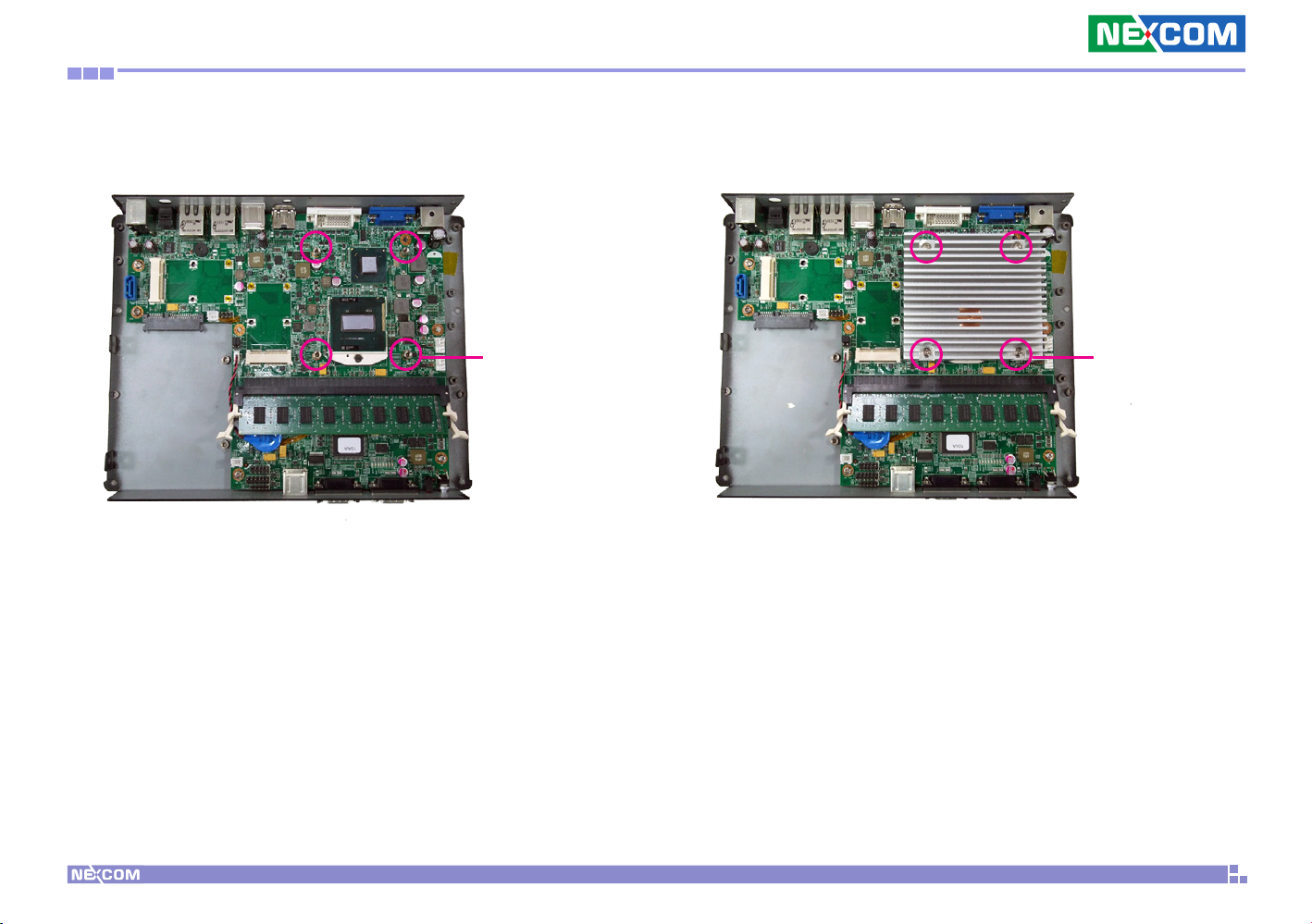

1. Loosen the mounting screws that secure the heat sink to the chassis.

Mounting screw

▪ Make sure all power cables are unplugged before you install

CAUTION!CAUTION!

the CPU.

2. Now remove the heat sink to access the CPU socket.

Bottom Side of the Heat Sink

3. The CPU socket is readily accessible after you have removed the heatsink.

▪ The CPU socket must not come in contact with anything other

than the CPU. Avoid unnecessary exposure.

26

CPU socket

NDiS 166 User Manual

Chapter 3: System Setup

4. Use a screwdriver to turn the screw to its unlocked position.

Locked Unocked

5. Position the CPU above the socket. The gold triangular mark on the CPU must align with pin 1 of the CPU socket.

Pin1

27

Gold Triangular Mark

Handle the CPU by its edges and avoid touching the pins.

NDiS 166 User Manual

Chapter 3: System Setup

CAUTION!

6. Insert the CPU into the socket until it is seated in place. The CPU will fitin only one orientation and can easily be inserted without exerting any force. Use a screwdriver to turn the screw to its locked position.

CAUTION!CAUTION!

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

7. Attach the thermal pad onto the CPU.

Thermal Pad

28

NDiS 166 User Manual

Chapter 3: System Setup

8. Align the mounting screws of the heat sink with the mounting holes on the board then tighten the screws to secure the heat sink in place.

Mounting hole Mounting Screw

29

NDiS 166 User Manual

Chapter 3: System Setup

Installing a SATA Hard Drive

1. The drive bracket included in the package is used to hold a SATA hard drive.

2. Place the SATA hard drive onto the drive bracket. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bracket.

SATA Hard Drive

Drive Bracket

30

NDiS 166 User Manual

Chapter 3: System Setup

3. Use the provided screws to secure the SATA drive in place. 4. Secure the SATA Drive with the provided mounting screw.

Mounting Screw

31

Mounting Studs

NDiS 166 User Manual

Chapter 3: System Setup

5. The mounting holes on the drive bracket and chassis are used to secure hard drive to the chassis.

6. Locate for the SATA connector and the SATA power connector on the SATA drive.

SATA Data Connector

SATA Power Connector

SATA Data Connector

32

NDiS 166 User Manual

Chapter 3: System Setup

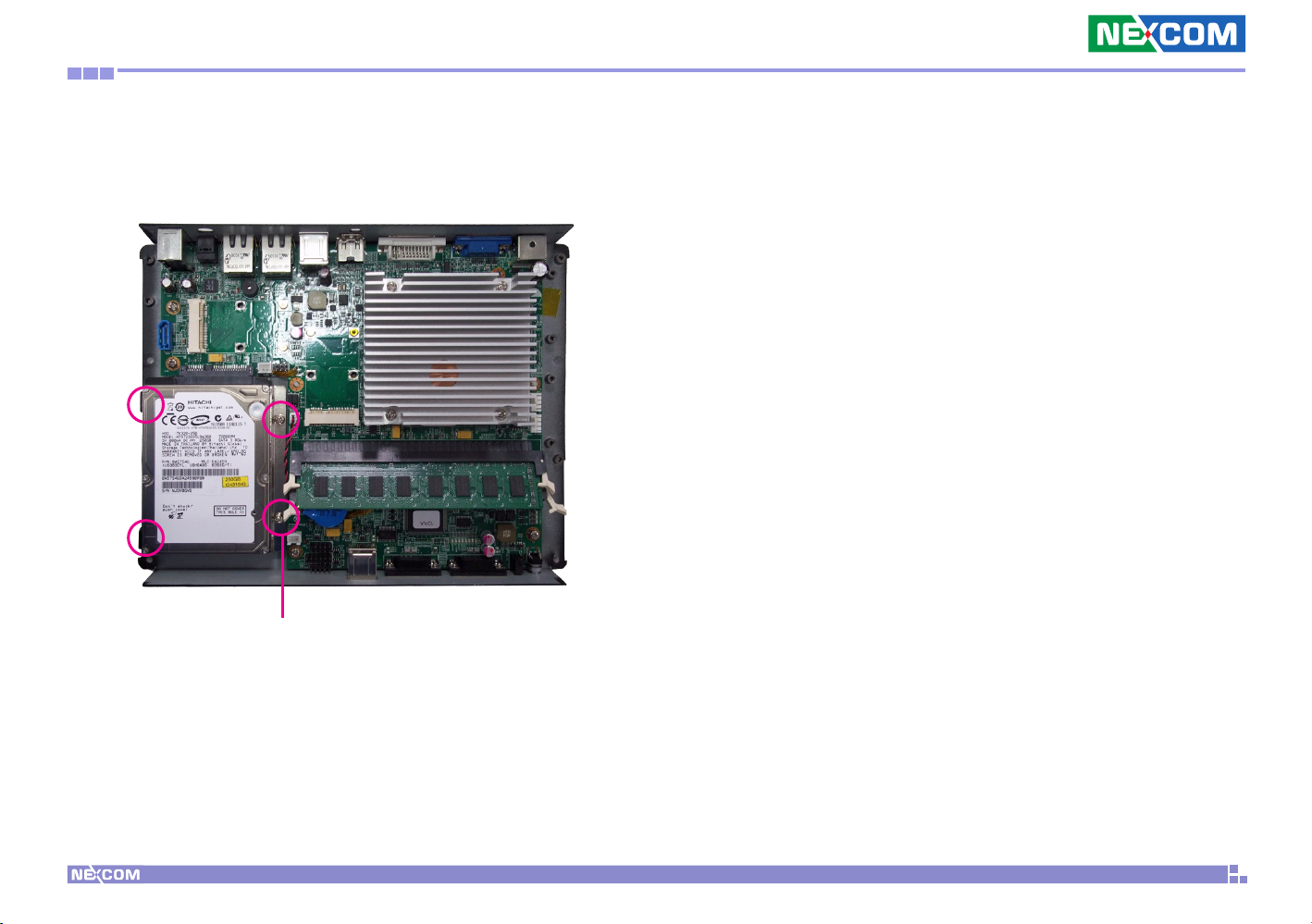

7. Align the mounting holes of the drive bracket with the mounting studs on the board then use the provided mounting screws to secure the hard drive in place.

Mounting Screw

33

NDiS 166 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

1. Locate for the Mini PCI Express slot on the board.

Mini PCI Express Slot

2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

34

Wireless LAN Module

NDiS 166 User Manual

Chapter 3: System Setup

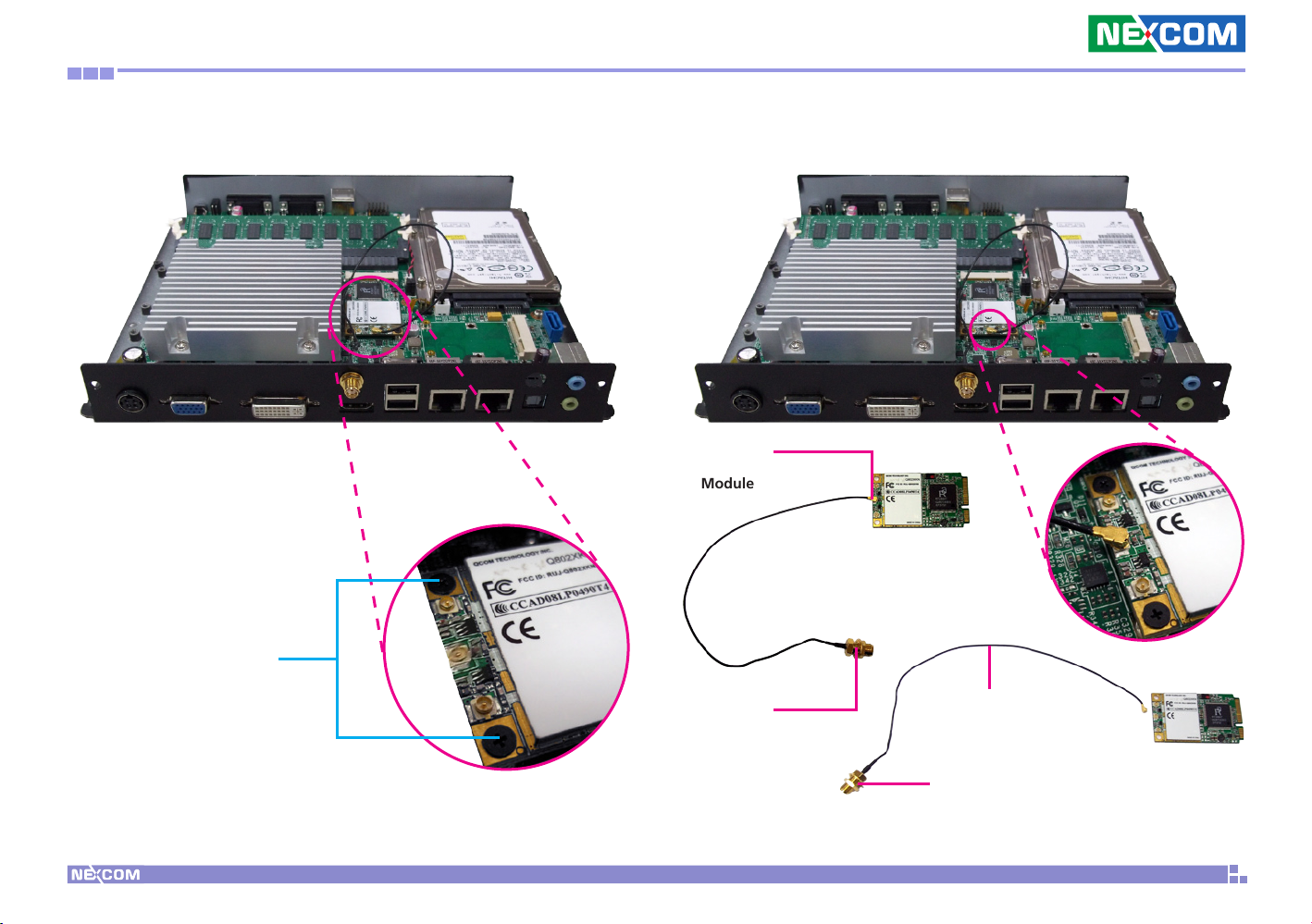

3. Push the module down then secure it with mounting screws. 4. Attach one end of the RF cable onto the WiFi module.

RF Cable Attached to the Module

Mounting Screw

Mount to the Antenna Mounting hole

35

RF Cable

WiFi Antenna Jack

NDiS 166 User Manual

Chapter 3: System Setup

5. Insert the 2 rings (ring 1 then ring 2) into the WiFi antenna jack.

Ring1

Ring2

6. Now mount the WiFi antenna jack to the WiFi antenna hole located at the rear panel of the chassis then tighten the rings.

36

NDiS 166 User Manual

Chapter 3: System Setup

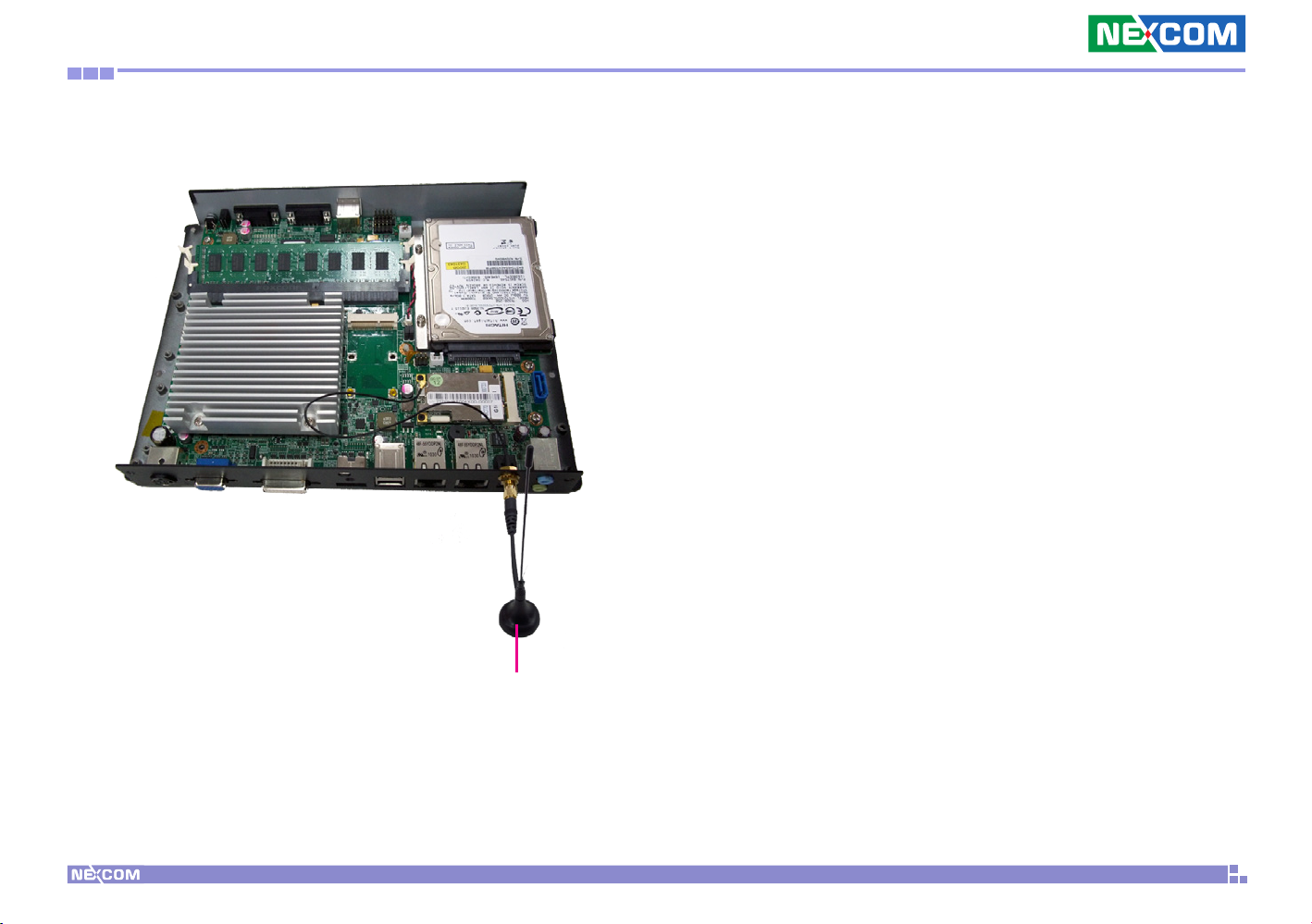

7. The photo below shows the WiFi antenna jack attached at the rear panel of the chassis.

8. Now connect an external antenna to the WiFi antenna jack.

Antenna

37

NDiS 166 User Manual

Chapter 3: System Setup

Installing a TV Tuner Module

1. Locate for the Mini PCI Express slot on the board.

Mini PCI Express Slot

2. Insert the TV Tuner module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

38

NDiS 166 User Manual

Chapter 3: System Setup

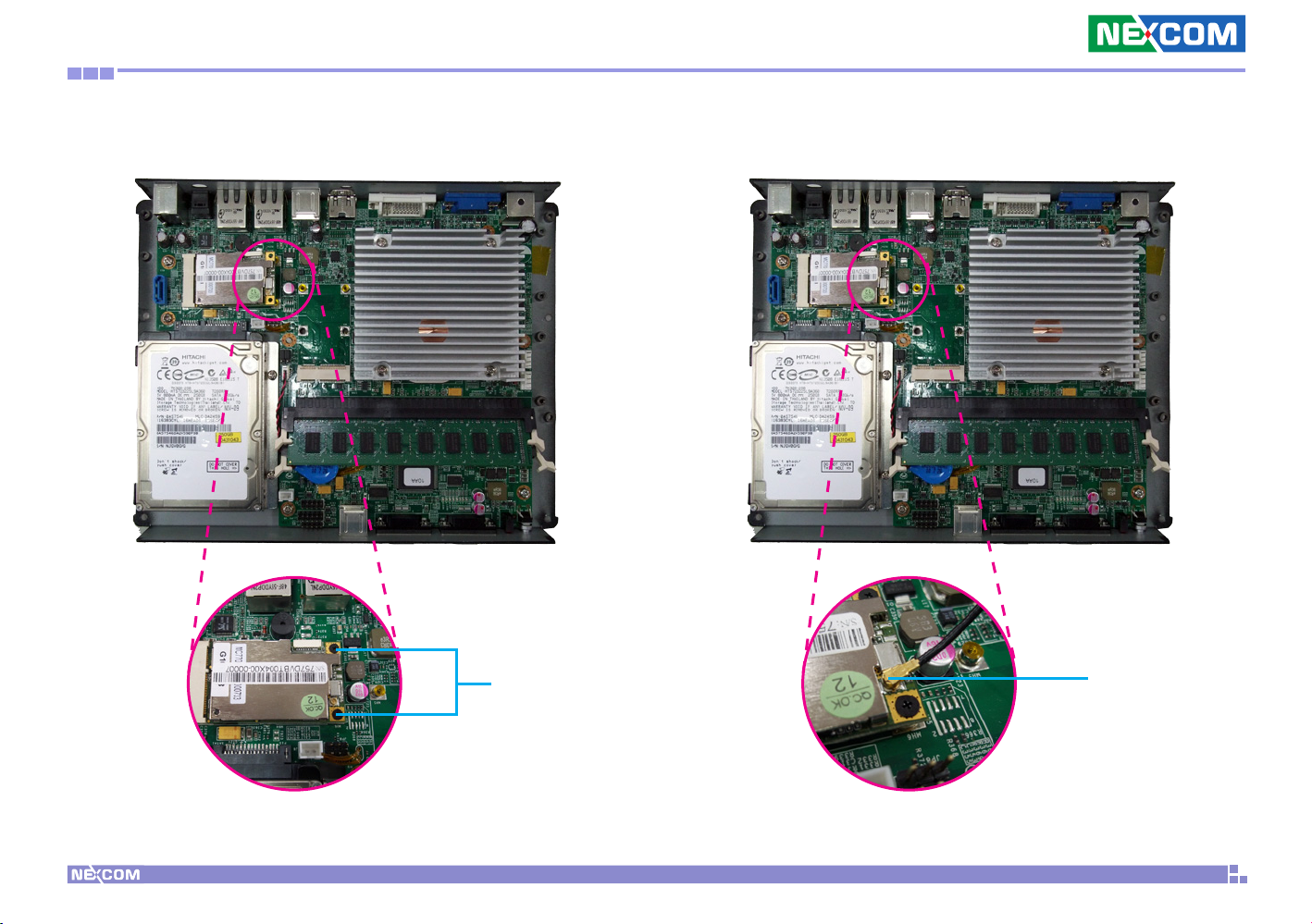

3. Push the module down then secure it with mounting screws. 4. Attach one end of the RF cable onto the module.

Mounting Screw

39

RF cable attached to the module

NDiS 166 User Manual

Chapter 3: System Setup

5. Insert the 2 rings (ring 1 then ring 2) into the TV antenna jack.

Ring1

Ring2

6. Now mount the TV antenna jack to the TV antenna hole located at the front panel of the chassis then tighten the rings.

TV Antenna Jack

40

NDiS 166 User Manual

Chapter 3: System Setup

7. Connect an external TV antenna to the TV antenna jack.

TV Antenna Jack

41

NDiS 166 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for NDiS 166 Series. The BIOS screens in this chapter are for reference only and may change if the BIOS is updated in the future. To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driv en utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals.

▪ Video display type and display options.

▪ Password protection from unauthorized use.

▪ Power management features.

The settings made in the setup program intimately affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration.

▪ When a configuration error is detected by the system and you are

▪ prompted to make changes to the Setup program

▪ When resetting the system clock.

▪ When redefining the communication ports to prevent any conflicts.

▪ When making changes to the Power Management configuration.

▪ When changing the password or making other changes to the security

setup.

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

42

NDiS 166 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

If the error occurs before the display device is initialized, a series of beeps will be transmitted.

If the error occurs after the display device is initialized, the screen will display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

Legends

Key Function

Right and Left arrows

Up and Down arrows

<Esc> Exits to the BIOS Setup Utility.

+ (plus key)

- (minus key)

<F1> Displays General Help.

<F2> Previous Value

<F3> Load optimized default setting

<F4> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub menu.

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or fields.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

TO ENTER SETUP BEFORE BOOT

PRESS <CTRL-ALT-ESC>

Press the <Del>or<F2> key to enter Setup

43

NDiS 166 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

44

NDiS 166 User Manual

Chapter 4: BIOS Setup

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Boot SecurityMain

BIOS Information BIOS Vendor Core Version Compliency Bios Version Build Date and Time

******* Memory Informaiton ******* Memory Frequency Total Memory DIMM#0 DIMM#1 DIMM#2 DIMM#3

ME Firmware Information ME FW Version ME Firwmare Mode ME Firmware SKU

System Date

System Time

American Megatrends

4.6.4.0 UEFI 2.1 D166T016 11/09/2010 10:03:47

1067Mhz 2048 MB (DDR3) Not Present Not Present 2048 MB (DDR3) Not Present

7.0.0.1401 Normal Mode 5MB

[Thu /06/2011] [11:26:01]

Save & Exit

Set the Date. Use Tab to Switch between Data elements.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BIOS Information

Displays the detected BIOS information.

Memory Information

Displays the detected system memory information.

ME Firmware Information

Displays the detected ME Firmware information.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

45

NDiS 166 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunc tion.

Advanced



CPU Conguration



SATA Comguration



Anti-Theft conguration AMT Conguration



USB Conguration



Super IO Conguration



H/W Monitor

Chipset Boot SecurityMain

Save & Exit

Enable or Disable Boot Option for Legacy Network Devices.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

CPU Configuration

This section is used to configure the CPU. It will also display detected CPU information.

SATA Configuration

This section is used to configure the SATA drives.

Thermal Configuration

Configures the intelligent power sharing function.

Anti-Thefts Configuration

Configures the Intel® Anti-Theft Technology function.

AMT Configuration

Configures the AMT function.

USB Configuration

Configures the USB devices.

46

NDiS 166 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

H/W Monitor

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

47

NDiS 166 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU. It will also display detected CPU information.

Main

CPU Conguration

Genuine Intel(R) CPU 0 @ 2.00GHz EMT64 Processor Speed Processor Setpping Microcode Revision Processor Cores Intel HT technology

Hyper-threading

Hardware Prefectcher Intel Virtualization Technology

Advanced Chipset Boot Security

Supported 2000 MHz 206a2 26 4 Supported

[Enabled]

[Enabled] [Disabled]

Save & Exit

Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread poer enabled core is enabled.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Hyper-Threading

Enable this field for Windows XP and Linux which are optimized for HyperThreading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher.

Intel Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

48

NDiS 166 User Manual

Chapter 4: BIOS Setup

SATA Configuration

This section is used to configure the SATA drives.

Main

SATA Controller(s)

SATA Mode Selection

Serial ATA Port 0 Software Preserve Serial ATA Port 1 Software Preserve

Advanced Chipset Boot Security

[Enabled]

[IDE]

Hitachi HTS723 (250.0 SUPPORTED Empty Unknown

Save & Exit

Determines how SATA controller(s) operate.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SATA Mode

IDE Mode

This option configures the Serial ATA drives as Parallel ATA storage devices.

AHCI Mode

This option allows the Serial ATA devices to use AHCI (Ad vanced Host Controller Interface).

RAID Mode

This option allows you to create RAID or Intel Matrix Stor age configuration on Serial ATA devices.

Please set SATA Mode to IDE Mode before installing Windows XP. Setting AHCI mode could not initial Windows XP installation.

49

NDiS 166 User Manual

Chapter 4: BIOS Setup

Anti-Thefts Configuration

Configures the Intel® Anti-Theft Technology function.

Main

Intel Anti-Theft conguration

Anti-Theft Anti-Theft Recovery

Enter AT Suspend Mode

Advanced Chipset Boot Security

[Disabled] 3

[Disabled]

Save & Exit

Request that platform enter AT Suspend Mode

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Anti-Theft

Enables or disables Intel® Anti-Theft Technology function in BIOS.

Enter AT Suspend Mode

Enables or disables the request that platform enter AT suspend mode.

50

NDiS 166 User Manual

Chapter 4: BIOS Setup

AMT Configuration

This section is used to configure the AMT function.

Main

Intel AMT

Intel AMT Setup Prompt BIOS Hotkey Pressed MEBx Selection Screen

Advanced Chipset Boot Security

[Enabled]

[Enabled] [Disabled] [Disabled]

Save & Exit

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this reuqires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Intel AMT

Enables or disables the Intel® Active Management Technology BIOS Extension function.

Intel AMT Setup Prompt

Enables or disables Intel AMT Setup prompt to wait for hot-key to enter setup.

BIOS Hokey Pressed

Enables or disables BIOS hotkey press.

MEBx Selection Screen

Enables or disables MEBx selection screen

51

NDiS 166 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Main

USB Conguration

USB Devices: 1 Keyboard, 2 Hubs

Legacy USB Support

EHCI Hand-off

Advanced Chipset Boot Security

[Enabled]

[Disabled]

Save & Exit

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enabled - Enables legacy USB.

Auto - Disables support for legacy when no USB devices are connect ed.

Disabled - Keeps USB devices available only for EFI applications.

EHCI Hand-off

This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

52

NDiS 166 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Main

Super IO Conguration

Super IO Chip

Serial Port 0 Conguration

Serial Port 1 Conguration Parallel Port Conguration

Advanced Chipset Boot Security

IT8728

Save & Exit

Set Parameters of Serial Port 0 (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Serial Port 0 Configuration to Serial Port 1 Configuration

Selects the IO/IRQ setting of the I/O devices.

Parallel Port Configuration

Configures the parallel port.

53

NDiS 166 User Manual

Chapter 4: BIOS Setup

H/W Monitor

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Main

Pc Health Status System temperaure1 System temperaure2 CPU temperaure Fan1 Speed Fan2 Speed Vcore 12V 5V

3.3V

Advanced Chipset Boot Security

+21 C +22 C +65 C 14062 RPM N/A +1.020 V +11.980 V +5.000 V +3.283 V

Save & Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Temperature 1 to System Temperature 3

Detects and displays the internal temperature of the system.

Fan1 Speed to Fan2 Speed

Detects and displays the current system fan and CPU fan speed in RPM (Revolutions Per Minute).

Vcore to 3.3V

Detects and displays the output voltages.

54

NDiS 166 User Manual

Chapter 4: BIOS Setup

Chipset

Advanced Chipset Boot SecurityMain



System Agent (SA) Conguration



PCH-IO Conguration

Save & Exit

System Agent (SA) Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Agent (SA) Configuration

System Agent (SA) Parameters

PCH-IO Configuration

PCH-IO parameters

55

NDiS 166 User Manual

Chapter 4: BIOS Setup

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) Configuration function.

Chipset

VT-d

Intel IGFX Conguration

[Disabled]

Enable/Disable SA Thermal Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Thermal Device

Check to enable VT-d function on MCH.

Intel IGFX Configuration

Selects the Graphic chip setting of Intel IGFX Configuration.

56

NDiS 166 User Manual

Chapter 4: BIOS Setup

INTEL IGFX Configuration

This section is used to configure the Intel IGFX Configuration.

Chipset

Intel IGFX Conguration

Primary IGFX Boot Display Secondary IGFX Boot Display

[VBIOS Default] [Disabled]

Graphics turbo IMOON current values supported (14-31)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Primary IGFX Boot Display

Select the vedio devoce which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primery display.

Secondary IGFX Boot Display

Select secondary display device.

57

NDiS 166 User Manual

Chapter 4: BIOS Setup

PCH-IO Configuration

This section is used to configure the PCH-IO Configuration.

Chipset

PCH LAN Controller

Wake on LAN Enable Azalia Azalia internal HDMI code

Restore AC Power Loss

[Enabled]

[Disabled] [Auto] [Disabled]

[Power On]

Enable/Disable onboard NIC.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH LAN Controller

Enables or disables onboard NIC.

Wake on LAN Enable

Enables or disables integrated LAN to wake the system.

Azalia

Control Detection of the Azalia device.

Disabled - Azalia will be unconditionally disabled.

Enabled - Azalia will be unconditionally disabled.

Auto - Azalia will be enabled if present, disabled otherwise.

Azalia internal HDMI codec

Enables or disables internal HDMI codec for Azalia.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

58

NDiS 166 User Manual

Chapter 4: BIOS Setup

Boot

Advanced Chipset Boot SecurityMain

Quiet Boot

Boot Option Priorities

Boot Option #1 Boot Option #2

Hard Drive BBS Priorities

Save & Exit

[Disabled]

[SATA: Hitachi HTS7...] [Built-in EFI Shell]

Enables or disables Quiet Boot option

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Quiet Boot

Enables or disables the quiet boot function.

Boot Option #1 and Boot Option #2

Selects the boot sequence of the hard drives.

Hard Drive BBS Priorities

Sets the order of the legacy devices in this group.

59

NDiS 166 User Manual

Chapter 4: BIOS Setup

Security

Advanced Chipset Boot SecurityMain

Password Description

If ONLY the Adm;inistrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on passowrd and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password msut be 3 to 20 characters long.

Administrator Password

User Password

Save & Exit

Set Setup Administrator Passwrod

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

60

NDiS 166 User Manual

Chapter 4: BIOS Setup

Save & Exit

Advanced Chipset Boot SecurityMain

Save Changes and Reset Discard Changes and Reset

Load Optimized Defaults

Save & Exit

Restore/Load Default values for all the setup options.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Load Optimized Default

To restore / lead default all values for all the setup options. Confirm by selecting Yes to apply optimized default settings.

61

NDiS 166 User Manual

Chapter 5: AMT Settings

Enable Intel® AMT in the AMI BIOS

1. In the Advanced menu, select AMT Configuration. 2. In the AMT field, select Enabled.

Advanced

Legacy OpROM Support

Lanuch PXE OpROM Lanuch Storage OpROM



ACPI Settings



CPU Conguration



SATA Comguration



Thermal conguration



Anti-Theft conguration



AMT Conguration



USB Conguration



Super IO Conguration



H/W Monitor

Chipset Boot SecurityMain

[Disabled] [Enabled]

Save & Exit

Enable or Disable Intel® Active Management Technology

conguration

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Main

Intel AMT

Intel AMT Setup Prompt BIOS Hotkey Pressed MEBx Selection Screen Verbose Mebx Output

Hide Un-Congure ME Conrmation

MEBx Debug Message Output

Un-Congure ME

Intel AMT Password Write Enabled Amt Wait Timer ASF Activate Remote Assistance Process

USB Congure

PET Progress Intel AMT SPI Protected

AMT CIRA Timeout

WatchDog

OS Timer BIOS Timer

Advanced Chipset Boot Security

[Enabled]

[Enabled] [Disabled] [Disabled] [Enabled] [Disabled] [Disabled] [Disabled] [Enabled] 0 [Enabled] [Disabled] [Enabled] [Enabled] [Disabled]

0

[Disabled]

0 0

Save & Exit

Enable/Disable Intel (R) Active Management Technology BIOS Extension. Note : iAMT H/W is always enabled. This option just controls the BIOS extension execution. If enabled, this reuqires

additional rmware in the SPI

device

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

62

NDiS 166 User Manual

Chapter 5: AMT Settings

Configure the Intel® ME Setup

1. When the system reboots, the following message will be displayed. Press <Ctrl-P> as soon as the message is displayed; as this message will be displayed for only a few seconds.

Intel(R) ME Firmware version 6.0.3.1195 Press <CTRL-ALT F1> to enter Remote Assistance Press <CTRL-P> to enter Intel(R) ME Setup

2. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME Password and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

Intel(R) ME Password

*****

[ESC] : Exit

[ENTER] : Submit

63

NDiS 166 User Manual

Chapter 5: AMT Settings

3. Enter a new password in the space provided under Intel(R) ME New Password and then press Enter. The new password must be based on the following rules to create a strong password security.

▪ Password length - at least 8 characters and not longer than 32. ▪ Password complexity - the password must include the following.

- At least one digit character (0, 1, ...9)

- At least one 7-bit ASCII non alpha-numeric character (e.g. !, $, ;)

but excluding : , and ” characters

- At least one lowercase letter (‘a’, ‘b’...’z’) and at least one

uppercase letter (‘A’, ‘B’...’Z’)

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

Intel(R) ME New Password

4. You will be asked to verify the password. Enter the same new password in the space provided under Verify Password and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

Verify Password

[ESC] : Exit

[ENTER] : Submit

[ESC] : Exit

[ENTER] : Submit

64

NDiS 166 User Manual

Chapter 5: AMT Settings

5. Select Intel(R) ME General Settings and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings 

Intel(R) AMT Conguration  Exit

↑↓] : Select

[ESC] : Exit

[

[ENTER] : Access

6. Select Intel(R) ME State Control and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control

Change ME Password Password Policy Network Setup  Activate Network Access Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[*] DISABLED

[*] ENABLED

[ENTER] : Access

65

NDiS 166 User Manual

Chapter 5: AMT Settings

7. Select Network Setup and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy

Network Setup 

Activate Network Access Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

8. In the Intel(R) Network Setup menu, select Intel(R) ME Network Name Settings then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) NETWORK SETUP ]

Intel(R) ME Network Name Settings 

TCP/IP Settings  Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

66

NDiS 166 User Manual

Chapter 5: AMT Settings

9. In the Intel(R) ME Network Name Settings menu, select Host Name and then press Enter. Enter the computer’s host name (for example: QM57) and then press Enter.

Select Previous Menu and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.9.1195

[ INTEL(R) ME NETWORK NAME SETTINGS ]

Host Name

Domain Name Shared/Dedicated FQDN Dynamic DNS Update Previous Menu

[ESC] : Exit

[↑↓] : Select

Computer host name

QM57

[ENTER] : Access

10. In the Network Setup menu, select TCP/IP Settings and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) NETWORK SETUP ]

Intel(R) ME Network Name Settings 

TCP/IP Settings 

Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

67

NDiS 166 User Manual

Chapter 5: AMT Settings

11. In the TCP/IP Settings menu, select Wired LAN IPV4 Configuration and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ TCP/IP SETTINGS ]

Wired LAN IPV4 Conguration 

Wired LAN IPV6 Conguration  Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

12. Select DHCP Mode and then press Enter. Select Enabled or Disabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode

Previous Menu

[ESC] : Exit

[↑↓] : Select

[*] DISABLED

[*] ENABLED

[ENTER] : Access

68

NDiS 166 User Manual

Chapter 5: AMT Settings

13. A list of options in the Wired LAN IPV4 Configuration menu will appear. Select IPV4 Address and then press Enter. Enter an IP Address then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.9.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode

IPV4 Address

Subnet Mask Address Default Gateway Address Preferred DNS Address Alternate DNS Address Previous Menu

IP address (e.g. 123.123.123.100)

14. Select Subnet Mask Address and then press Enter. Enter the subnet mask address and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode IPV4 Address

Subnet Mask Address

Default Gateway Address Preferred DNS Address Alternate DNS Address Previous Menu

[ESC] : Exit

[↑↓] : Select

Subnet mask (e.g. 255.255.255.0)

[ENTER] : Access

69

NDiS 166 User Manual

Chapter 5: AMT Settings

15. Select Default Gateway Address and then press Enter.

Enter the default gateway address and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ WIRED LAN IPV4 CONFIGURATION ]

DHCP Mode IPV4 Address Subnet Mask Address

Default Gateway Address

Preferred DNS Address Alternate DNS Address Previous Menu

[ESC] : Exit

[↑↓] : Select

Default Gateway Address

[ENTER] : Access

16. Select Previous Menu and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) NETWORK SETUP ]

Intel(R) ME Network Name Settings  TCP/IP Settings 

Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

70

NDiS 166 User Manual

Chapter 5: AMT Settings

17. Select Previous Menu until you return to the Intel(R) ME Platform Configuration menu. Select Activate Network Access and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy Network Setup 

Activate Network Access

Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

18. Type Y and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy Network Setup  Activate Network Access Uncongure Network Access Remote Setup and Conguration  FW Update Settings 

[ESC] : Exit

[↑↓] : Select

[Caution]

Activates the current network settings and opens the ME network interface Continue: (Y/N)

[ENTER] : Access

71

NDiS 166 User Manual

Chapter 5: AMT Settings

19. In the Intel(R) ME Platform Configuration menu, select Unconfigure Network Access and then press Enter. Clear all network settings.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Intel(R) ME State Control Change ME Password Password Policy Network Setup 

Uncongure Network Access

Remote Setup and Conguration  FW Update Settings  Set PRTC

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

20. In the Intel(R) ME Platform Configuration menu, select Power Control and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Change ME Password Password Policy Network Setup  Uncongure Network Access Remote Setup and Conguration  FW Update Settings  Set PRTC

Power Control 

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

72

NDiS 166 User Manual

Chapter 5: AMT Settings

21. In the Intel(R) ME Power Control menu, select Intel(R) ME ON in Host Sleep States and then press Enter. Select Mobile: ON in S0 and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME POWER CONTROL ]

Intel(R) ME ON in Host Sleep States

Idle Timeout Previous Menu

[ESC]=Exit

[*] Mobile: ON in S0

[*] Mobile: ON in S0, ME Wake in S3, S4-5 (AC only)

[↑↓]=Select

[ENTER]=Access

22. Select Previous Menu and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) ME PLATFORM CONFIGURATION ]

Password Policy Network Setup  Uncongure Network Access Remote Setup and Conguration  FW Update Settings  Set PRTC Power Control 

Previous Menu

[ESC] : Exit

[↑↓] : Select

[ENTER] : Access

73

NDiS 166 User Manual

Chapter 5: AMT Settings

23. Select Previous Menu until you return to the Main Menu. Select Intel(R) AMT Configuration.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings 

Intel(R) AMT Conguration 

Exit

↑↓]=Select

[ESC]=Exit

[

[ENTER]=Access

24. The message below will appear.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration  Exit

↑↓]=Select

[ESC]=Exit

Update network settings in the General Settings menu

[

[ENTER]=Access

74

NDiS 166 User Manual

Chapter 5: AMT Settings

25. In the Intel(R) AMT Configuration menu, select SOL/IDER and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) AMT CONFIGURATION ]

Manageability Feature Selection

SOL/IDER

KVM Conguration Previous Menu

[ESC]=Exit

[↑↓]=Select

[ENTER]=Access

26. In the SOL/IDER menu, select Username & Password and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ SOL/IDER ]

Username & Password

SOL IDER Legacy Redirection Mode Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

75

NDiS 166 User Manual

Chapter 5: AMT Settings

27. In the SOL/IDER menu, select SOL and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ SOL/IDER ]

Username & Password

SOL

IDER Legacy Redirection Mode Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

28. In the SOL/IDER menu, select IDER and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ SOL/IDER ]

Username & Password SOL

IDER

Legacy Redirection Mode Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

76

NDiS 166 User Manual

Chapter 5: AMT Settings

29. In the SOL/IDER menu, select Legacy Redirection Mode and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.31195

[ SOL/IDER ]

Username & Password SOL IDER

Legacy Redirection Mode

Previous Menu

[ESC]=Exit

Redirection Mode must be enabled when using

[↑↓]=Select

a legacy SMB Redirection Console

[ENTER]=Access

30. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.31195

[ SOL/IDER ]

Username & Password SOL IDER

Legacy Redirection Mode

Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

77

NDiS 166 User Manual

Chapter 5: AMT Settings

31. Select Previous Menu until you return to the Intel(R) AMT Configuration menu. Select KVM Configuration and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ INTEL(R) AMT CONFIGURATION ]

Manageability Feature Selection SOL/IDER

KVM Conguration

Previous Menu

[ESC]=Exit

[↑↓]=Select

[ENTER]=Access

32. In the KVM Configuration menu, select KVM Feature Selection and then press Enter. Select Enabled and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection

User Opt-in Opt-in Congurable from remote IT Previous Menu

[ESC]=Exit

[↑↓]=Select

[*] DISABLED

[*] ENABLED

[ENTER]=Access

78

NDiS 166 User Manual

Chapter 5: AMT Settings

33. In the KVM Configuration menu, select User Opt-in and then press Enter. Select User Consent is required for KVM Session and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection

User Opt-in

Opt-in Congurable from remote IT Previous Menu

[ESC]=Exit

[*] User Consent is not required for KVM Session

[*] User Consent is required for KVM Session

[↑↓]=Select

[ENTER]=Access

34. In the KVM Configuration menu, select Opt-in Configurable from Remote IT and then press Enter.

Select Enable Remote Control of KVM Opt-in Policy and then press Enter.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

KVM Feature Selection User Opt-in

Opt-in Congurable from remote IT

Previous Menu

[ESC]=Exit

[*] Disable Remote Control of KVM Opt-in Policy

[*] Enable Remote Control of KVM Opt-in Policy

[↑↓]=Select

[ENTER]=Access

79

NDiS 166 User Manual

Chapter 5: AMT Settings

35. Select Previous Menu.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ KVM CONFIGURATION ]

[ESC]=Exit

KVM Feature Selection User Opt-in Opt-in Congurable from remote IT

Previous Menu

[↑↓]=Select

[ENTER]=Access

36. Select Previous Menu until you return to the Main Menu. Select Exit and then press Enter. The following message will be displayed on the screen. [CONFIRM EXIT] Are you sure you want to exit? (Y/N): Press Y.

Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195

[ MAIN MENU ]

Intel(R) ME General Settings  Intel(R) AMT Conguration 

Exit

↑↓] : Select

[ESC] : Exit

[

[ CONFIRM EXIT ]

Are you sure you want to exit? (Y/N):

[ENTER] : Access

80

NDiS 166 User Manual

Chapter 5: AMT Settings

Unconfigure AMT/ME

1. In the Advanced menu, select AMT Configuration. 2. In the Unconfigure AMT/ME field, select Enabled. Clear all ME settings.

Advanced

Legacy OpROM Support

Lanuch PXE OpROM

Lanuch Storage OpROM



ACPI Settings



CPU Conguration



SATA Comguration



Thermal conguration



Anti-Theft conguration



AMT Conguration



USB Conguration



Super IO Conguration



H/W Monitor

Chipset Boot SecurityMain

[Disabled]

[Enabled]

Save & Exit

Enable or Disable Boot Option for Legacy Network Devices.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Main

Intel AMT Intel AMT Setup Prompt BIOS Hotkey Pressed MEBx Selection Screen Verbose Mebx Output

Hide Un-Congure ME Conrmation

MEBx Debug Message Output

Un-Congure ME

Intel AMT Password Write Enabled Amt Wait Timer ASF Activate Remote Assistance Process

USB Congure

PET Progress Intel AMT SPI Protected

AMT CIRA Timeout

WatchDog

OS Timer BIOS Timer

Advanced Chipset Boot Security

[Enabled] [Enabled] [Disabled] [Disabled] [Enabled] [Disabled] [Disabled]

[Disabled]

[Enabled] 0 [Enabled] [Disabled] [Enabled] [Enabled] [Disabled]

0

[Disabled]

0 0

Save & Exit

OEMFlag Bit 15: Un-Congure

ME Without password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

81

NDiS 166 User Manual

Chapter 5: AMT Settings

3. The message below will appear. Type Y.

Found uncongure of Intel(R) ME Continue with unconguration (Y/N)

82

NDiS 166 User Manual

Appendix A: Watchdog Timer

NDiS 166 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments.

Watchdog Timer Control Register (Index=71h, Default=00h)

Bit Description

7 WDT is reset upon a CIR interrupt.

6 WDT is reset upon a KBC (mouse) interrupt.

5 WDT is reset upon a KBC (keyboard) interrupt.

4 WDT is reset upon a read or a write to the Game Port base address.

3-2 Reserved

1 Force Time-out. This bit is self-clearing.

WDT Status

0 1: WDT value reaches 0.

0: WDT value is not 0.

83

NDiS 166 User Manual

Appendix A: Watchdog Timer

Watchdog Timer Configuration Register (Index=72h, Default=001s0000b)

Bit Description

WDT Time-out value select 1

7

1: Second

0:Minute

WDT output through KRST (pulse) Enable

1: Enable

6

0: Disable

WDT Time-Out Value Extra Select

1: 64ms x WDT Timer-out value (default=4s)

5

0: Determined by WDT Time-out value select 1 (bit 7 of this register)

WDT Output through PWEGD Enable

1: Enable

4

0: Disable

During LRESET# this bit is selected by JP2 power-on strapping option.

Interrupt level Select for WDT.

3-0

Watch Dog Timer Time-out value (LSB) Register (Index=73h, default=38h)

Bit Description

7-0 WDT Time-out value 7-0

Watch Dog Timer Time-out value (MSB) Register (Index=74h, default=00h)

Bit Description

7-0 WDT Time-out value 15-8

84

NDiS 166 User Manual

Appendix B: GPI/O Programming Guide

This appendix provides definitions for the GPI/O pins in NDiS 166. GPI/O (General Purpose Input/Output) pins are provided for custom system design. The pin programmed as input mode (GPI) or output mode (GPO) depends on the configuration.

GPIO Configuration

Address: A02

DATA Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0

GPIO mapping GPI4 GPI3 GPI2 GPI1 X X X GPO4

Address: A00

DATA Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 10

GPIO

mapping

X X X GPO3 X GPO2 GPO1 X GPI 3

Example:

Output data (1010) through GPO

Setp1: At Debug mode Setp2: Set Data at address A02 and A00

C:\debug

-o A02 F1

-o A00 ED

Read data from GPI

Setp1: At Debug mode Setp2: Read Data at A02 (Input data is 1010)

C:\debug

-i A02

-AF

85

NDiS 166 User Manual

NEXCOM NDiS 166 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
