NEXCOM NDiS 163 User Manual

NEXCOM International Co., Ltd.
Multi-Media Solutions
Digital Signage Platform NDiS 163/163F
User Manual
NEXCOM International Co., Ltd.
Published March 2014
www.nexcom.com
Contents
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer ............................................................................................. iv
Acknowledgements .............................................................................. iv
Regulatory Compliance Statements ....................................................... iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................vii
Installation Recommendations ................................................................vii
Safety Precautions .................................................................................viii
Technical Support and Assistance ........................................................... ix
Conventions Used in this Manual ........................................................... ix
Global Service Contact Information ......................................................... x
Package Contents ..................................................................................xii
Ordering Information ............................................................................xiii
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features ...........................................................................................1
Physical Features .....................................................................................1
Hardware Specifications ..........................................................................2
System .................................................................................................2
Main Board ...........................................................................................4
Mechanical Dimensions ...........................................................................6
Chapter 2: Jumpers And Connectors
Before You Begin ....................................................................................7
Precautions .............................................................................................7

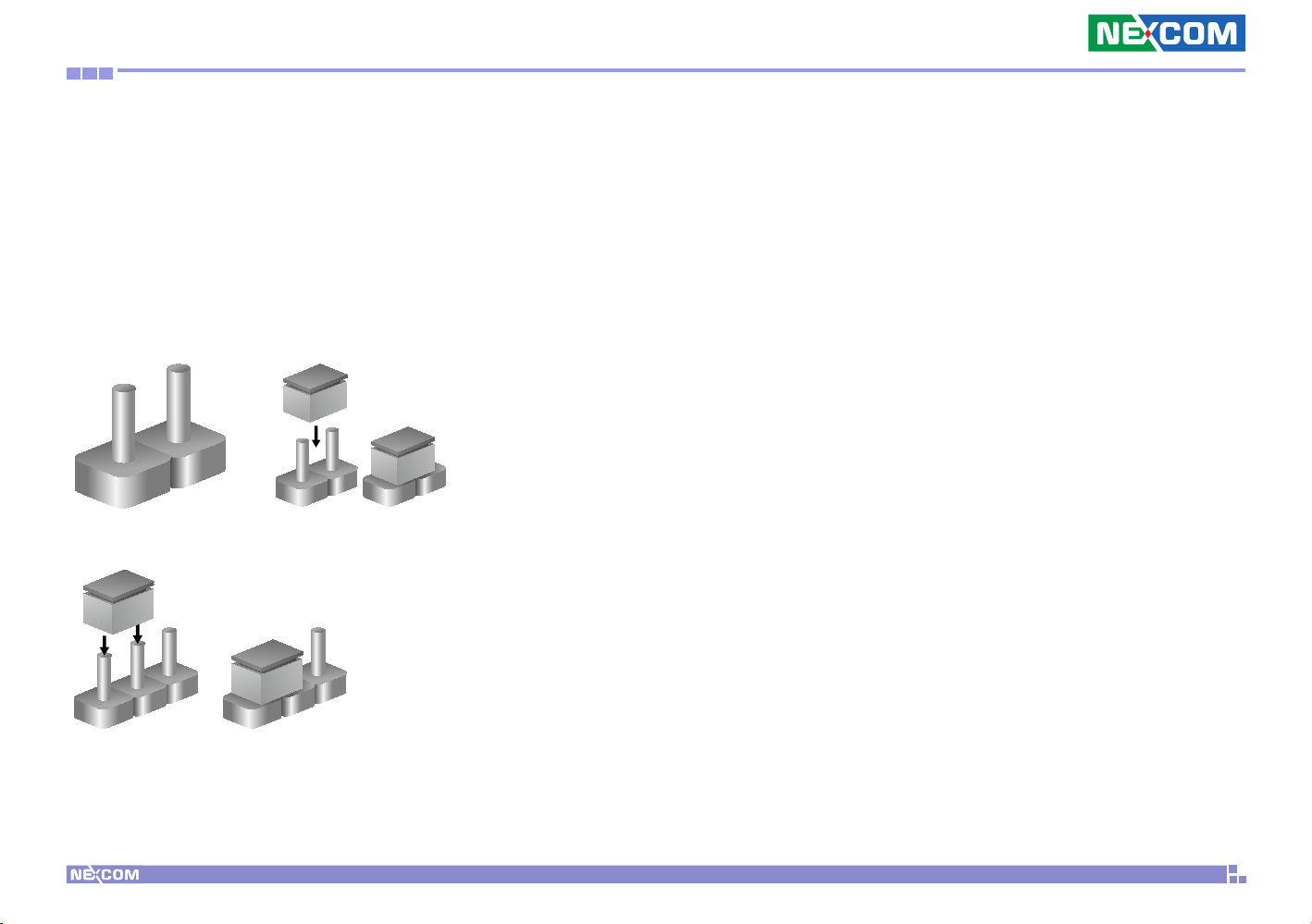

Jumper Settings ......................................................................................8

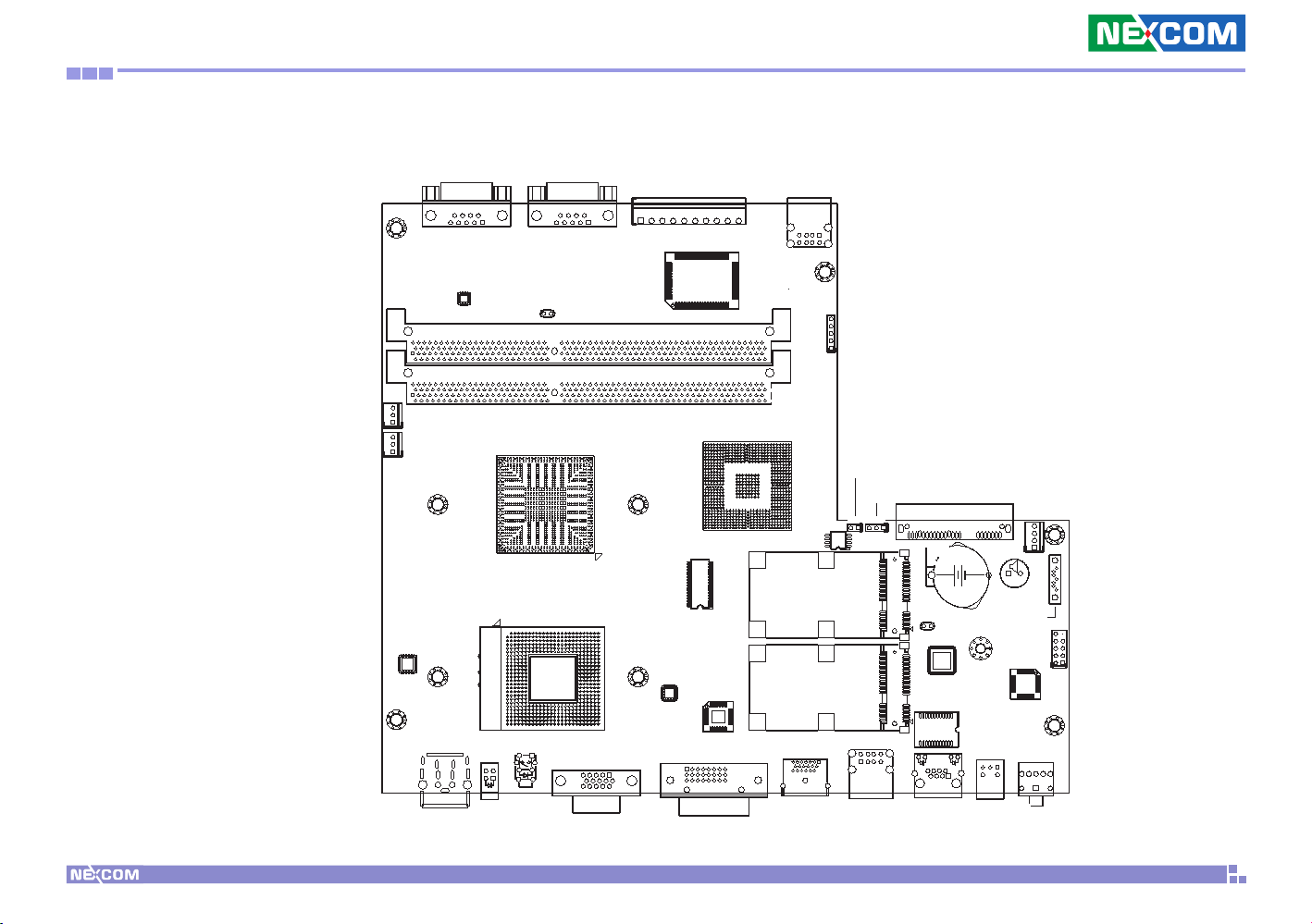

Locations of the Jumpers and Connectors ............................................... 9
NDiB 163 .............................................................................................. 9
External Connectors Pin Definitions ....................................................10
Power Input Connector CN1 ............................................................10
ATX Power Switch SW1 ....................................................................10
HDMI Type A Connector J6 ............................................................... 11
VGA Connector VGA1 .....................................................................11

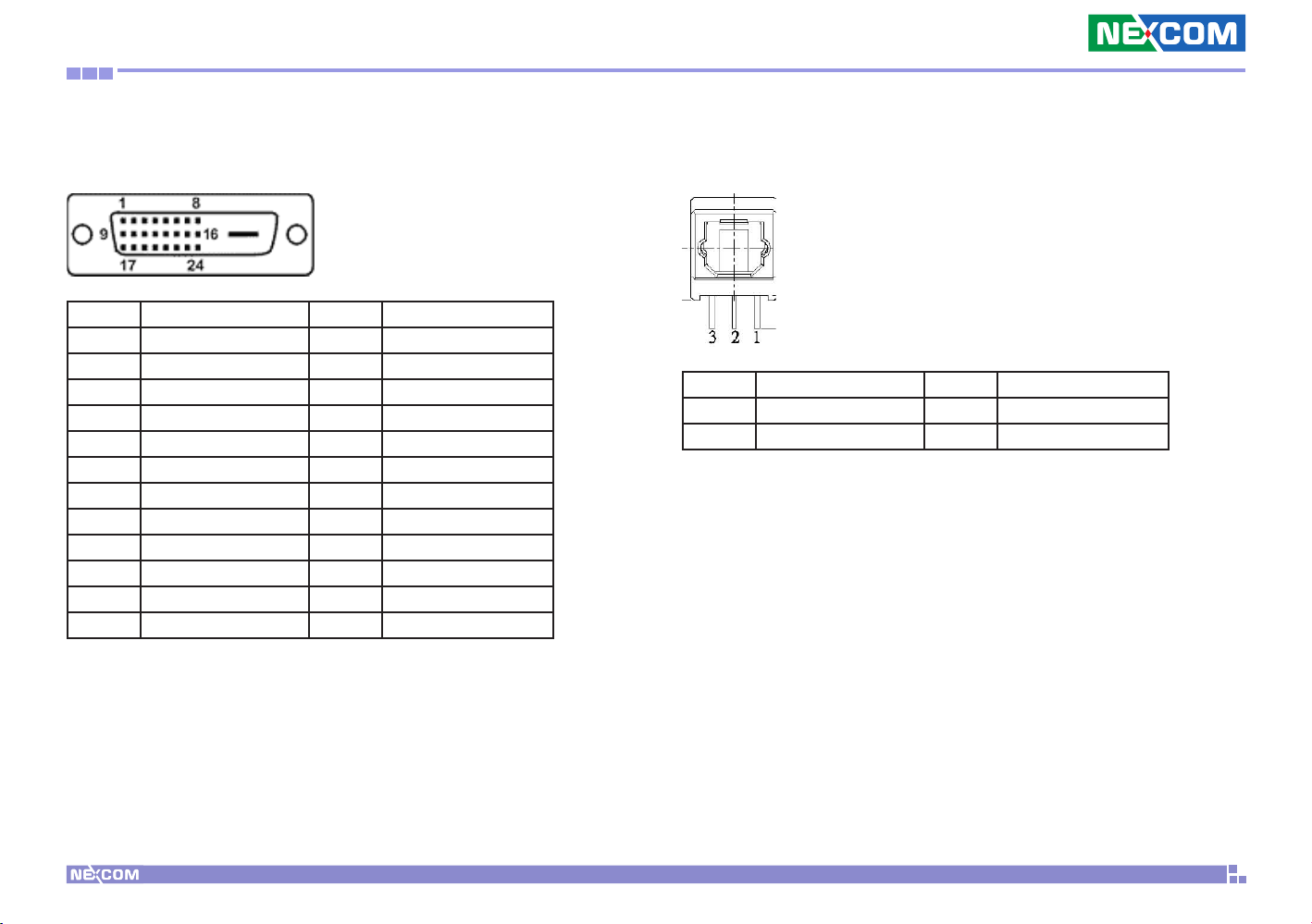

DVI-D Connector CN3 ...................................................................... 12
S/PDIF Connector CN6 ...................................................................... 12
Speaker-out Connector CN7 .............................................................13
LAN Connector LAN1 ....................................................................... 13
USB Port USB1 / USB2 ......................................................................14
GPIO Connector CN2 .......................................................................14
RS232 Port COM1 (J5) / COM2 (J3) ..................................................15
PWR LED LED1 .................................................................................15
Internal Connectors Pin Definitions ..................................................... 16
SATAII Connector J9 .........................................................................16
SATA Power Connector J8 ................................................................16
SATAII Connector SATA1 ..................................................................17
uDOC Connector JP4 .......................................................................17
ii
NDiS 163 User Manual
Contents

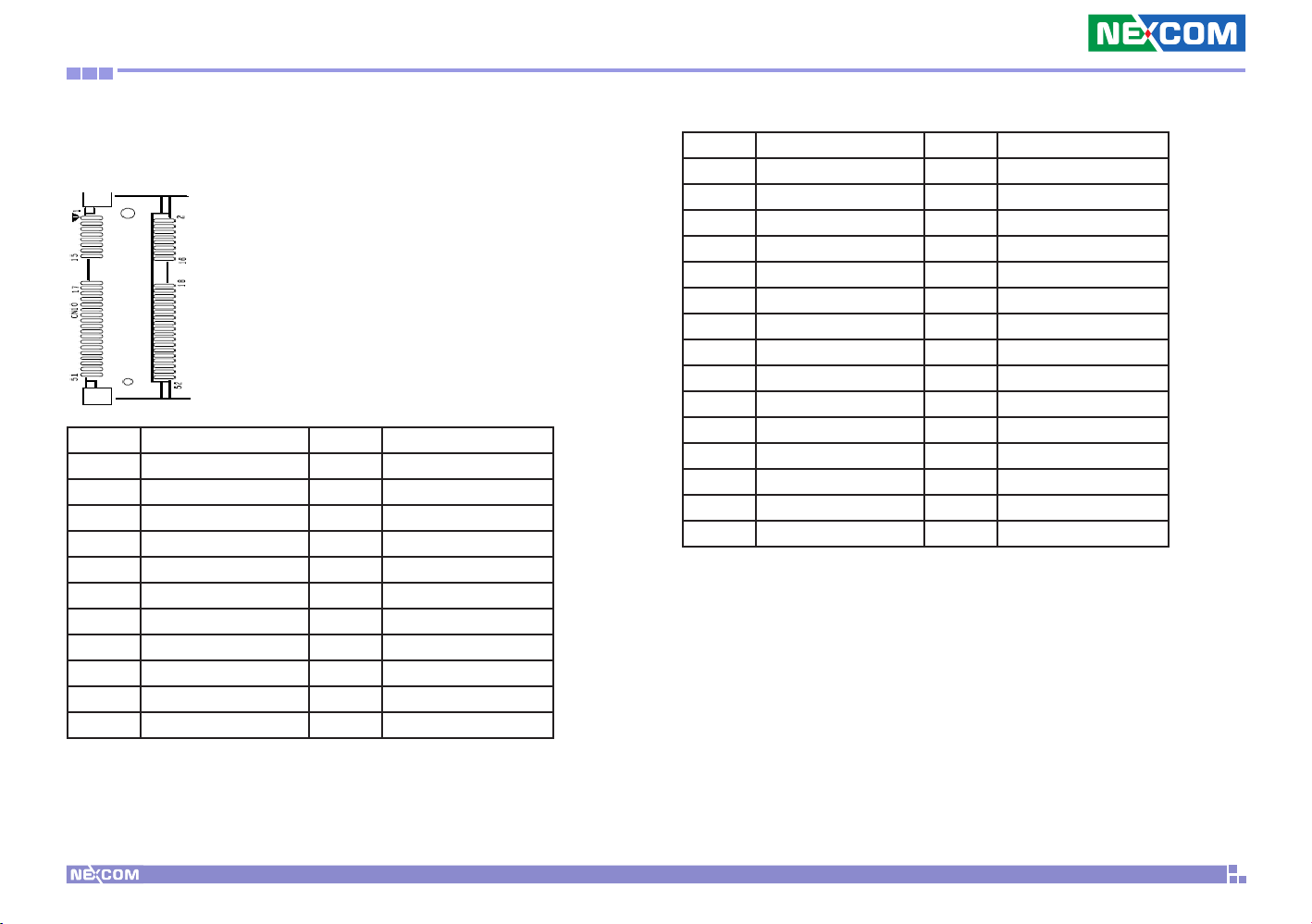

Mini PCIe Connector CN4 ................................................................18
Mini PCIe Connector CN5 ................................................................19
H/W Reset JP2 .................................................................................. 20
RTC Clear JP3 ................................................................................... 20
IRDA Connector JP1 .........................................................................21
CPU Fan Connector J1 / J2 ...............................................................21
Chapter 3: System Setup
Removing the Chassis Cover ................................................................22
Installing a DIMM ..................................................................................23

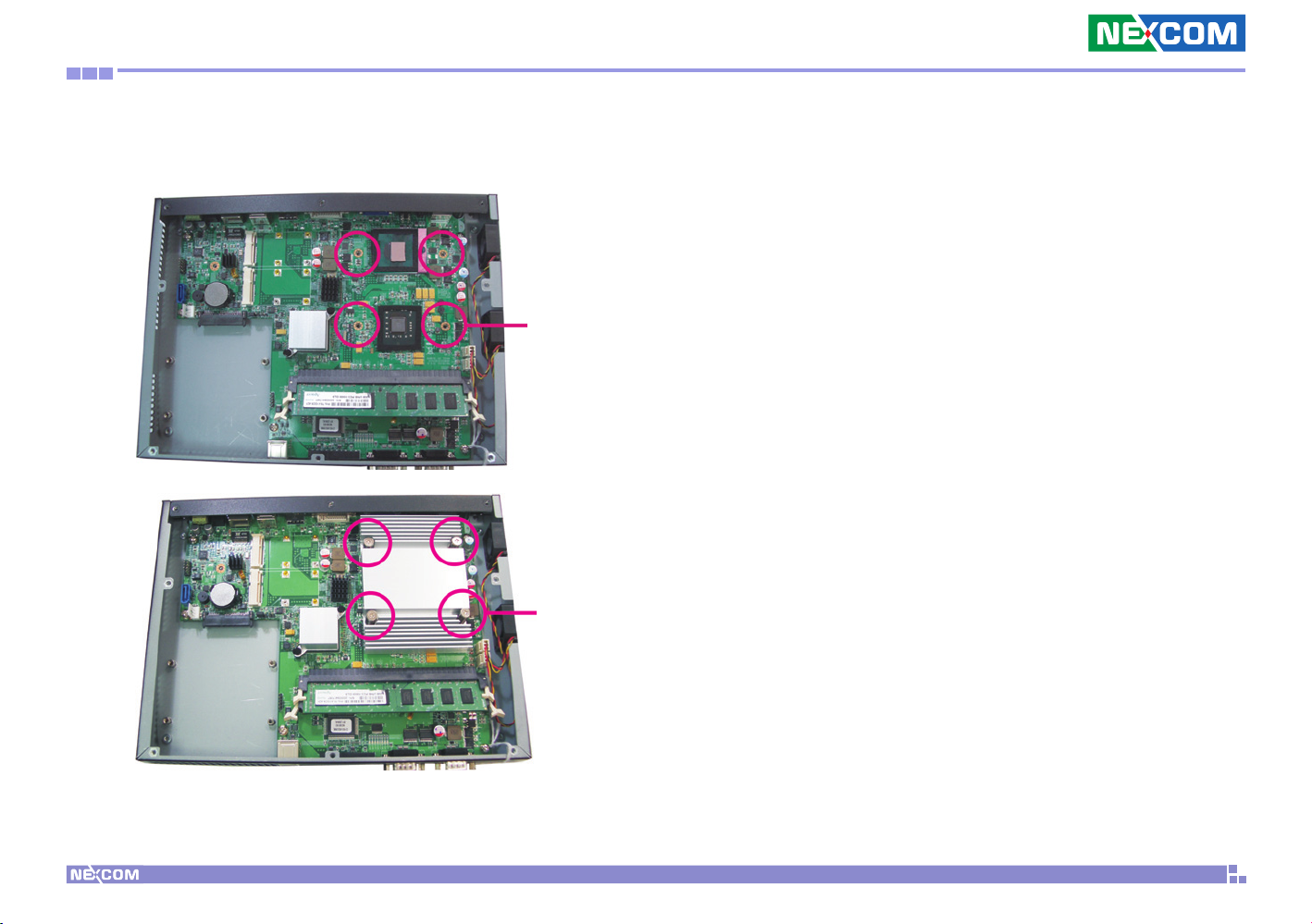

Installing the CPU .................................................................................25
Installing the uDOC Module .................................................................. 29
Installing a Wireless LAN Module ..........................................................31
Installing a TV Tuner Module ................................................................. 35

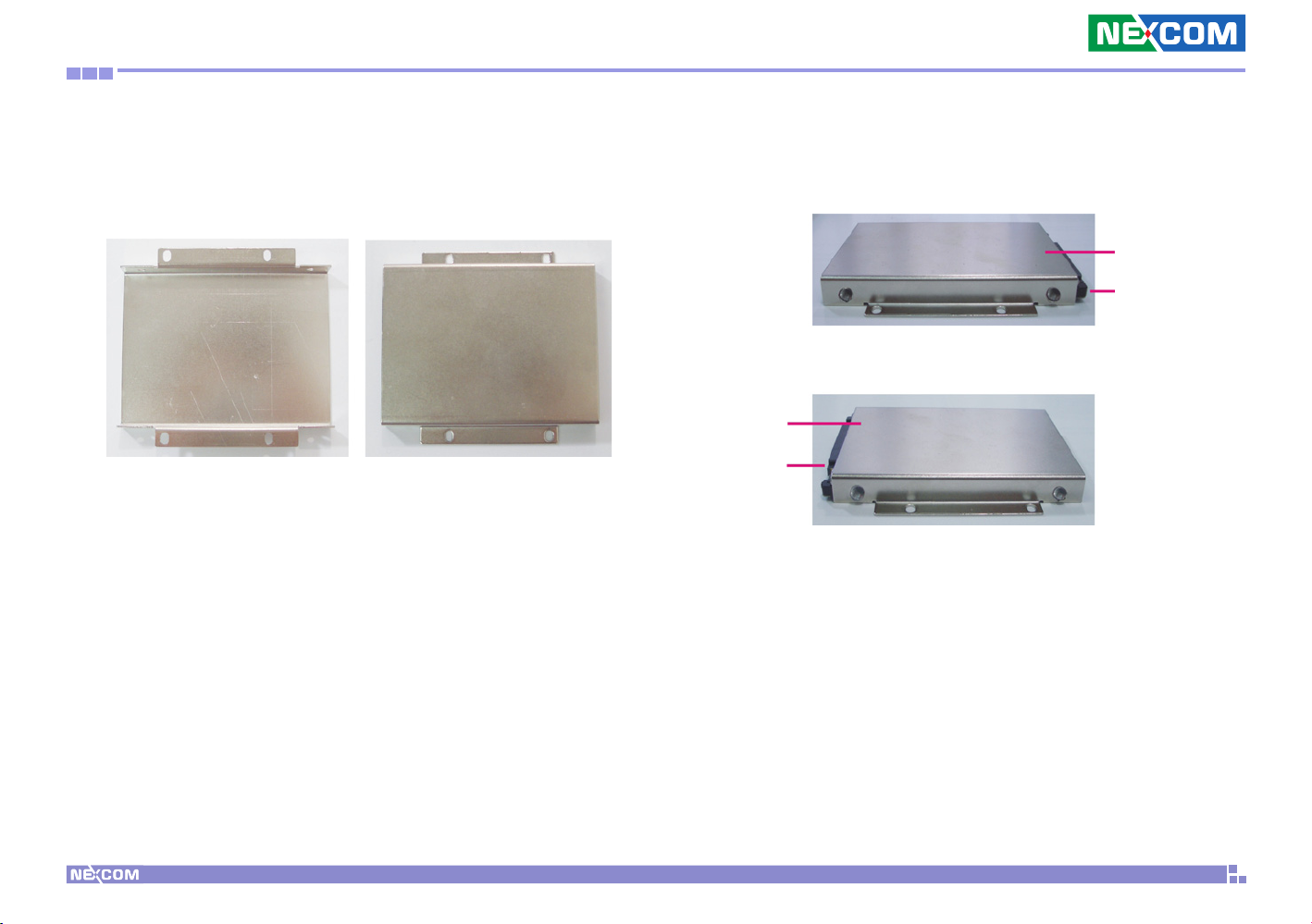

Installing a SATA Hard Drive ..................................................................39
Appendix A: Watchdog Timer
Watchdog Timer ...................................................................................43
Appendix B: GPI/O Programming Guide
GPI/O Programming Guide ....................................................................45
Appendix C: Power Consumption
Power Consumption .............................................................................46
iii
NDiS 163 User Manual
Preface
PrefaCe
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by con­stantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NDiS 163 is a trademark of NEXCOM International Co., Ltd. All other prod­uct names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equip­ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interfer­ence, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable Euro­pean Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NDiS 163 User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green
products and services, which are compliant with Euro­pean Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the intro­duction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compli­ant. They will use the usual NEXCOM naming convention.
v
NDiS 163 User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
? Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
? Customers must collect all the information about the problems encoun-
tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
? Customers can send back the faulty products with or without acces-
sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the prob­lems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
? Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
? Any products returned by NEXCOM to other locations besides the cus-
tomers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
? Component fee: NEXCOM will only charge for main components such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
? Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
? Replace with 3rd party products if needed.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
Board Level
? Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
vi
NDiS 163 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are incon­sistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the de­scribed procedures only at an ESD workstation. If no such station is avail­able, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-
er. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recom­mended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
vii
NDiS 163 User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping
it or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40 equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connect-
ing the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
o
C storage temperature as this may damage the
12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electri­cal shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER­IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the ap­propriate safety standards including IEC 60825.
viii
NDiS 163 User Manual
Preface
CAUTION!
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEX­COM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:
– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning prod­ucts or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
ix
NDiS 163 User Manual
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., Zhonghe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com
Asia
Taiwan Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn
Shanghai Office
Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn
x
NDiS 163 User Manual
Preface
Shenzhen Office
Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn
Wuhan Office
1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn
Europe
Italy NEXCOM ITALIA S.r.l
Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire, MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu
xi
NDiS 163 User Manual
Preface
PaCkage Contents
Before continuing, verify that the NDiS 163 package that you received is complete. Your NDiS 163 package should have all the items listed in the following table.
Item P/N Name Specification Qty
1 5044440080X00 GASKET FOR INTEL CPU KGS:C-4505(35x35x1)+G4000 35x35x 1.1mm 1
2 7400080005X00 POWER ADAPTER L.T.E.:LTE90E-S2-210 80W 12V/6.67A MINI DIN 4P 1
3 50311F0100X00 ROUND HEAD SCREW W/SPRING+FLAT WASHER LONG x4 P3x6 iso/SW6x0.5 NI 1
4 602DCD0251X00 NDiS163 MANUAL DRIVER CD VER:3.0 1
xii
NDiS 163 User Manual
Preface
ordering information
The following provides ordering information for NDiS 163/163F.
• NDiS 163 (P/N:10W00016300X0)
®
- Intel
- Intel
Core™ 2 Duo, Celeron® family processors
®
GM45 / Intel® ICH9-M
• NDiS 163F (P/N:10W00016301X0)
®
- Intel
- Intel
Core™ 2 Duo, Celeron® family processors
®
GM45 / Intel® ICH9-M
xiii
NDiS 163 User Manual
Chapter 1: Product Introduction
ChaPter 1: ProduCt introduCtion
Overview
The NDiS 163/163F features Intel® Core™ 2 Duo, Celeron® family proces­sors with 1066/667MHz as T9400, P8600, and Celeron GM45 integrated graphics solution. Furthermore, NDiS 163 supports dual display via DVI, HDMI, and CRT with dual independent audio output.
®
M 575 based on
Key Features
• Intel® Core™ 2 Duo processor T9400 2.53GHz (system with cooler) / Core™ 2 Duo mobile processor P8600 2.40GHz, Celeron cessor 2.0 GHz (fan-less system)
• Up to 8GB with unbuffered and non-ECC DDR3 800/1066MHz SDRAM
®
• Intel
GMA 4500MHD Integrated Graphics Engine
• Dual independent display supported
• One Intel
®
82567 Gigabit Ethernet controller
• Two Mini-PCIe
®
M 575 pro-

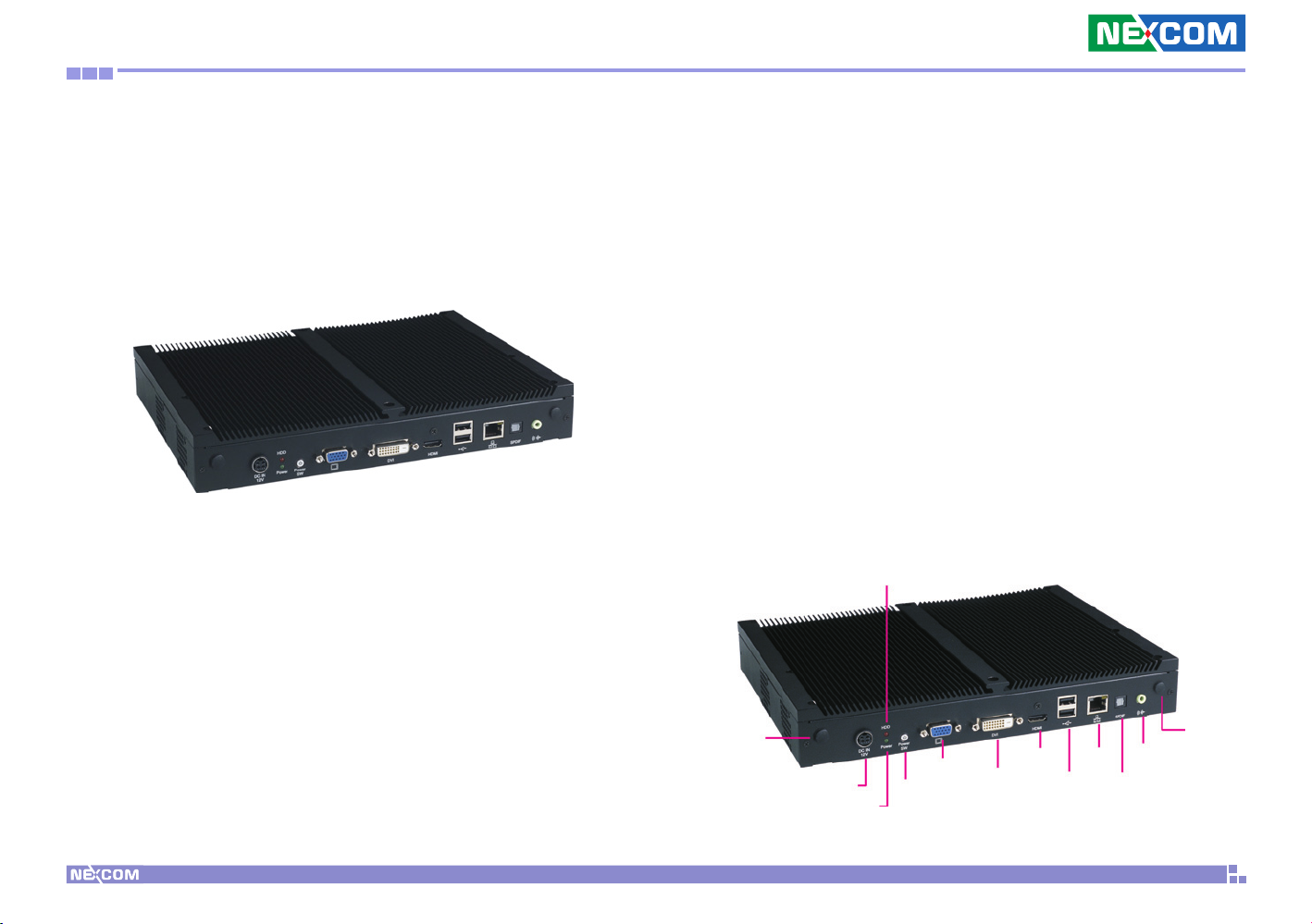

Physical Features
Front panel
HDD LED
WiFi
TV antenna
hole
12V DC-in
Power LED
Power button
VGA
DVI-D
HDMI
USB
LAN
Line-out
S/PDIF
antenna hole
1
NDiS 163 User Manual
Chapter 1: Product Introduction
Side panel
USB
GPIO Terminal Port (4 in, 4 out)
Hardware Specifications
System
Processor
®
• High-End: Intel cooler)
• Mainstream: Intel
• Entry: Intel
• FSB
- 667/800/1066 MHz
Chipset
• Northbridge: Intel
• Southbridge: Intel
CoreTM2 Duo T9400, 2.53GHz, 35W (system with
®
®
CoreTM2 Duo P8600, 2.4GHz, 25W (fanless)
Celeron® M 575, 2GHz (fanless)
®
GM45
®
ICH9M
COM
COM
Main Memory
o
• Two 240-pin 25
angled DDR3 DIMM sockets
• Supports DDR3 800/1066MHz SDRAM with unbuffered and non-ECC memory module
• Supports up to 8GB memory
Graphics
• Graphics chip
- Intel Gen 5.0 integrated graphics engine
- Intel
®
Dynamic Video Memory Technology (Intel® DVMT 5.0), shared
system memory up to maximum of 352MB
- Image Rotate via the supported driver
• Analog CRT
- DB15 connector
- Integrated 300MHz DAC
- Analog monitor supports up to QXGA
- Supports CRT Hot-Plug
• DVI
- External DVI-D interface
- TMDS transmitter via SDVO interface
• HDMI
Integrated HDMI (iHDMI)
- Video support for CEA modes 480i/p, 576i/p, 720p, 1080i/p and PC modes
- Intel HD Audio
- Integrated Intel HD Audio codec
- Dolby* AC3 compress, Dolby* Digital, Dolby* DTS (full support)
PCM audio supported
• Dual Display
- Dual independent display: CRT+HDMI
- Dual independent display: DVI+HDMI
- Dual independent display: DVI+CRT
2
NDiS 163 User Manual
Chapter 1: Product Introduction
Network
• Intel 82574 Gigabit Ethernet controller
• PXE LAN boot ROM for Ethernet boot up
• Supports WOL
• One RJ45 connector with LEDs
Storage
• One JST 2.54mm 4-pin power connector for SATA power
• One 7-pin SATA connector
o
• One SATA+Power 90
connector
• One 2.5” HDD drive bay
Audio
• Audio 1
- ALC888 HD Codec
- Speaker-out with amplifying feature (1W, 8ohm)
- SPDIF
• Audio 2
- Combined with HDMI
I/O Interfaces
• Serial
- DB9 COM 1 (RS232) connector at the front panel
- DB9 COM 2 (RS232) connector at the front panel
• USB
- USB 2.0 ports 1~2 at the rear panel
- USB 2.0 ports 3~4 at the front panel
- USB 2.0 port 5 - 2x5 pin header, 2.54mm supports uDOC
- USB 2.0 port 6 supports mini-PCIe
- USB 2.0 port 7 supports mini-PCIe
• GPIO
- 8 GPIO lines via header (GPI 0~3 and GPO 0~3); TTL Level (0/5V)
- 1x10-pin terminal port at the front panel
• Others
- Onboard buzzer
- CMOS status select: 1x3 pin header, 2.54mm
- IR interface: 1x5 pin header, 2.54mm
- Reset: 1x2 pin header, 2.54mm
Power Supply
• Onboard DC to DC
- Power range design: +12V +/-10% DC input
- 4-pin Mini-DIN power jack
- ATX power mode
- Supports wake up alarm
- Supports WOL
• External adapter
- +12V DC output 96W
RTC Battery
• On chip RTC with battery backup / One external Li-ion battery
• RTC tolerance less than 2 sec (24 hours) under 25
o
C environment
BIOS
• Award system BIOS
• SPI 8Mbit flash ROM
3
NDiS 163 User Manual
Chapter 1: Product Introduction
System Management
• Monitoring
- Derived from Super IO to support system monitor
- Monitors 4 voltages, 3 temperatures and 2 fan speeds 4 voltages (+3.3V, +5V, +12V, Vcore) 3 temperatures (CPU and two external temperature sensors) 2 3-pin fan connectors
• Watchdog
- Watchdog timeout is programmable by software from 1 second to 255 seconds and from 1 minute to 255 minutes
- Tolerance: 15% under room temperature 25°C
Media Format
• Macromedia Director
• Video: MPEG player 1, 2, 4, Windows
®
MX & Shockwave® 8.5, Flash® Power Point® 2003
®
Media HD, Div x, QuickTime® 7
HD
• Streaming: MMS, ASF
• Sound: Wave, WMA, MP3
• Images: BMP, GIF, JPEG
• HTML and all inferred functionalities
• DVD-video playback, TV tuner and DirectX based input feeds
Operating Systems
• Microsoft
- XP, Vista; Embedded XP
• Linux
- Fedora 7/8/9
Main Board
External I/O
• Front I/O
- Two USB 2.0 ports
- Two RS232 COM ports
- One GPIO port
• Rear I/O
- One audio-out port
- One SPDIF port
- Two USB 2.0 ports
- One GbE RJ45 port
- One HDMI port
- One DVI-D port
- One VGA port
- On/Off switch
- One power LED (green)
- One HDD LED (red)
- +12V DC-in jack
Physical Characteristics
• Dimensions (W x D x H)
- 280mm x 210mm x 40.4mm (without bracket)
• Color
- Black
• Mounting
- Wall mount bracket
• Cooling system
- NDiS 163: without CPU fan
- NDiS 163F: with CPU fan
4
NDiS 163 User Manual
Chapter 1: Product Introduction
Expansion
• Two Mini-PCIe slots
• Supports Wireless LAN module & DVB-T TV-tuner module
Environment
• Operating temperature: 100% CPU loading and component thermal
profile: 0 ~ 40 °C
• Storage temperature: -40°C ~ 80°C
• Relative humidity (non-condensing): 95%
Vibration
Non-operating (X-Y-Z): Sine vibration (HDD/CF)
• Sine wave vibration test - Acceleration: 1g rms
- Frequency: 5 – 500 Hz
- Test axis: X,Y,Z axis
- Test time: 10 minutes per axis
- Total test time: 30 minutes
Operating (X-Y-Z): Random vibration (CF)
• Random vibration test (operating) - Acceleration: 2g rms
- Frequency: 5 – 500 Hz
- Test axis: X,Y,Z axis
- Test time: 1 hour per axis
- Total test time: 3 hours
Operating (X-Y-Z): Random vibration (HDD)
• Random vibration test (operating) - Acceleration: 0.3 g rms
- Frequency: 5 – 500 Hz
- Test axis: X,Y,Z axis
- Test time: 1 hour per axis
- Total test time: 3 hours
Shock
• 50g peak acceleration (11 msec. duration) - CF
• 20g peak acceleration (11 msec. duration) - HDD
Certificate
• CE
• FCC Class A
5
