NEXCOM NDiS 127 User Manual

NEXCOM International Co., Ltd.

Multi-Media Solutions

Digital Signage Platform NDiS 127

User Manual

NEXCOM International Co., Ltd.

Published March 2014

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Safety Information ................................................................................vii

Package Contents

Ordering Information

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Physical Features .....................................................................................2

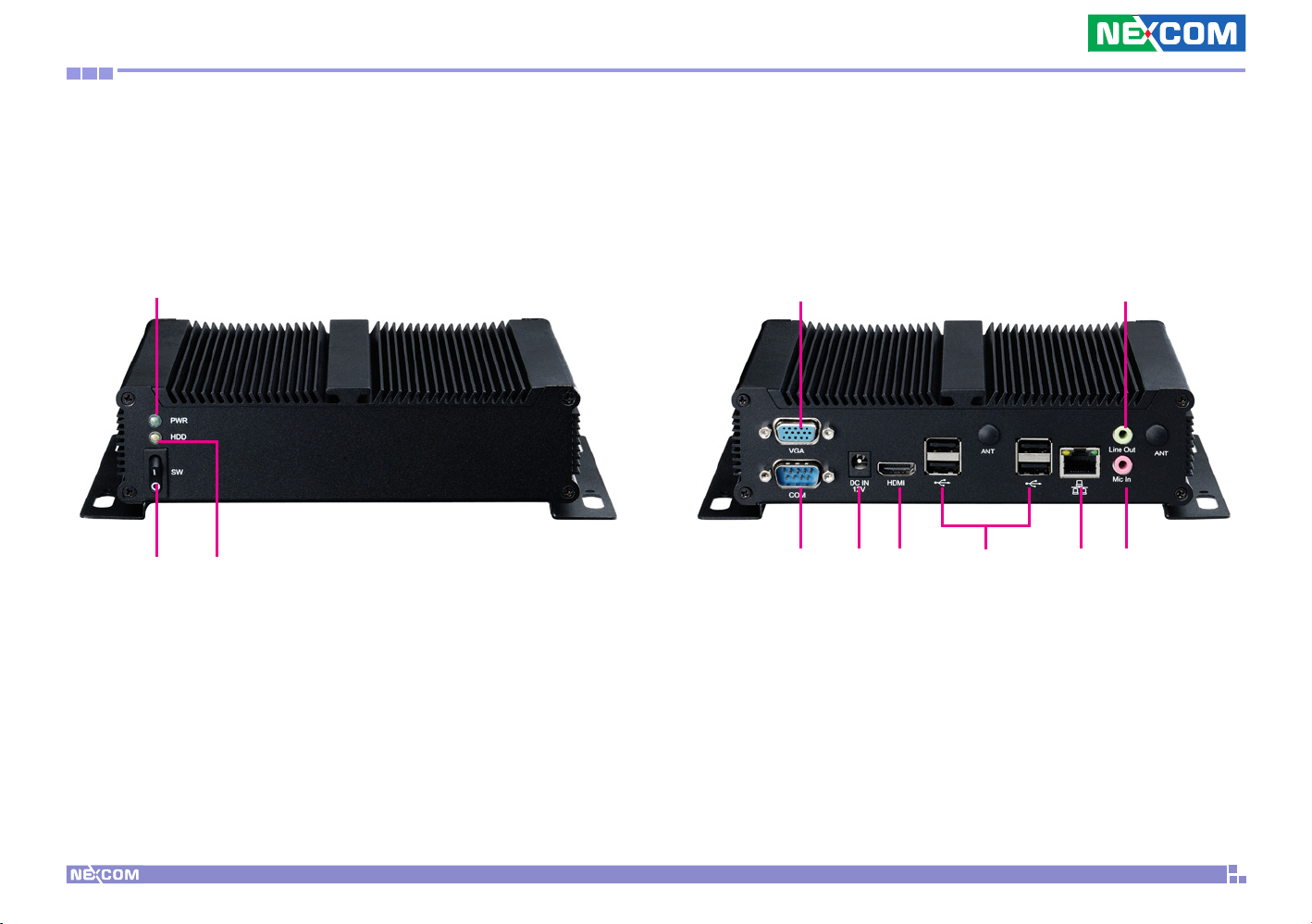

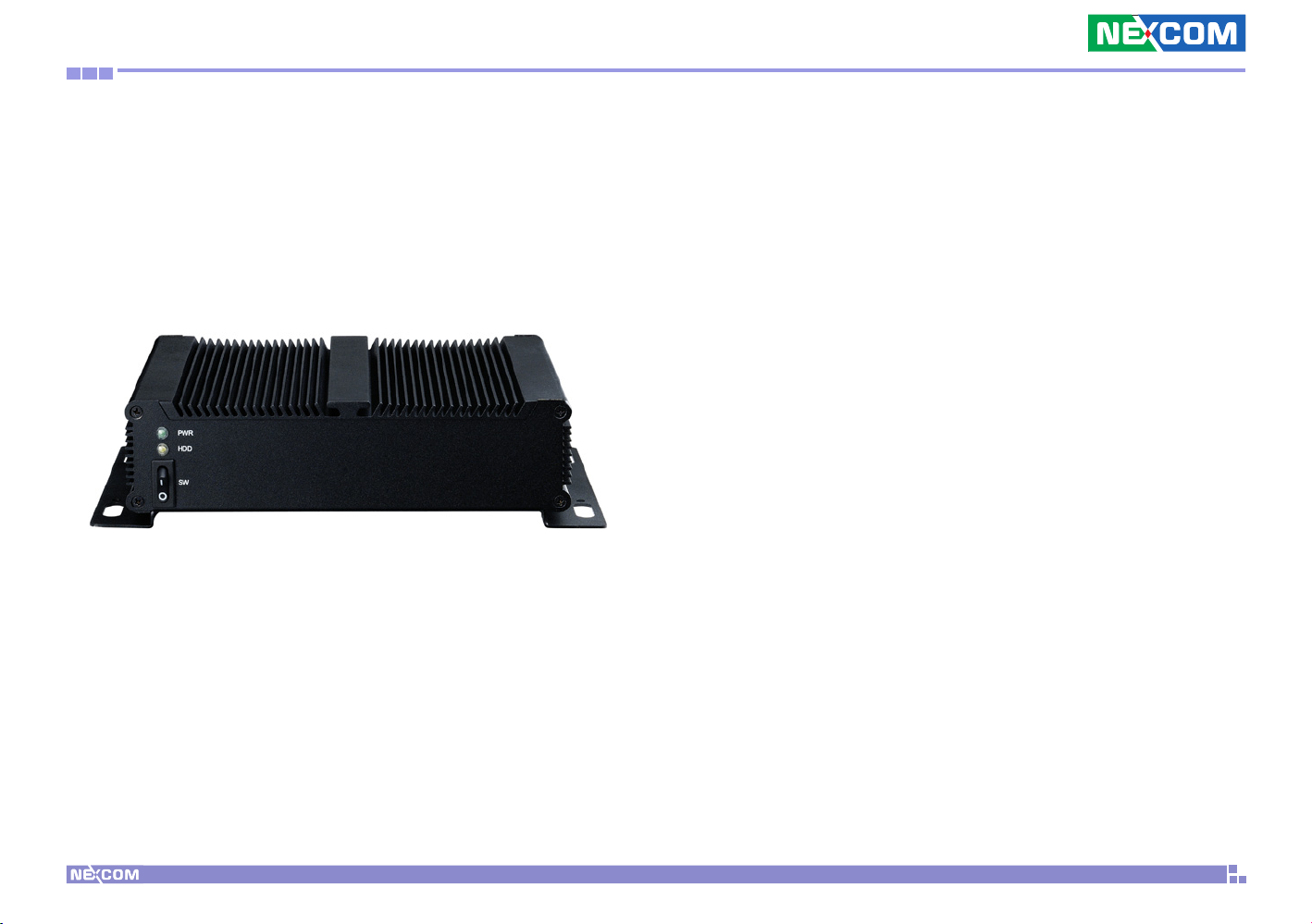

Front panel ...........................................................................................2

Rear panel ............................................................................................ 2

System Specifications .............................................................................. 3

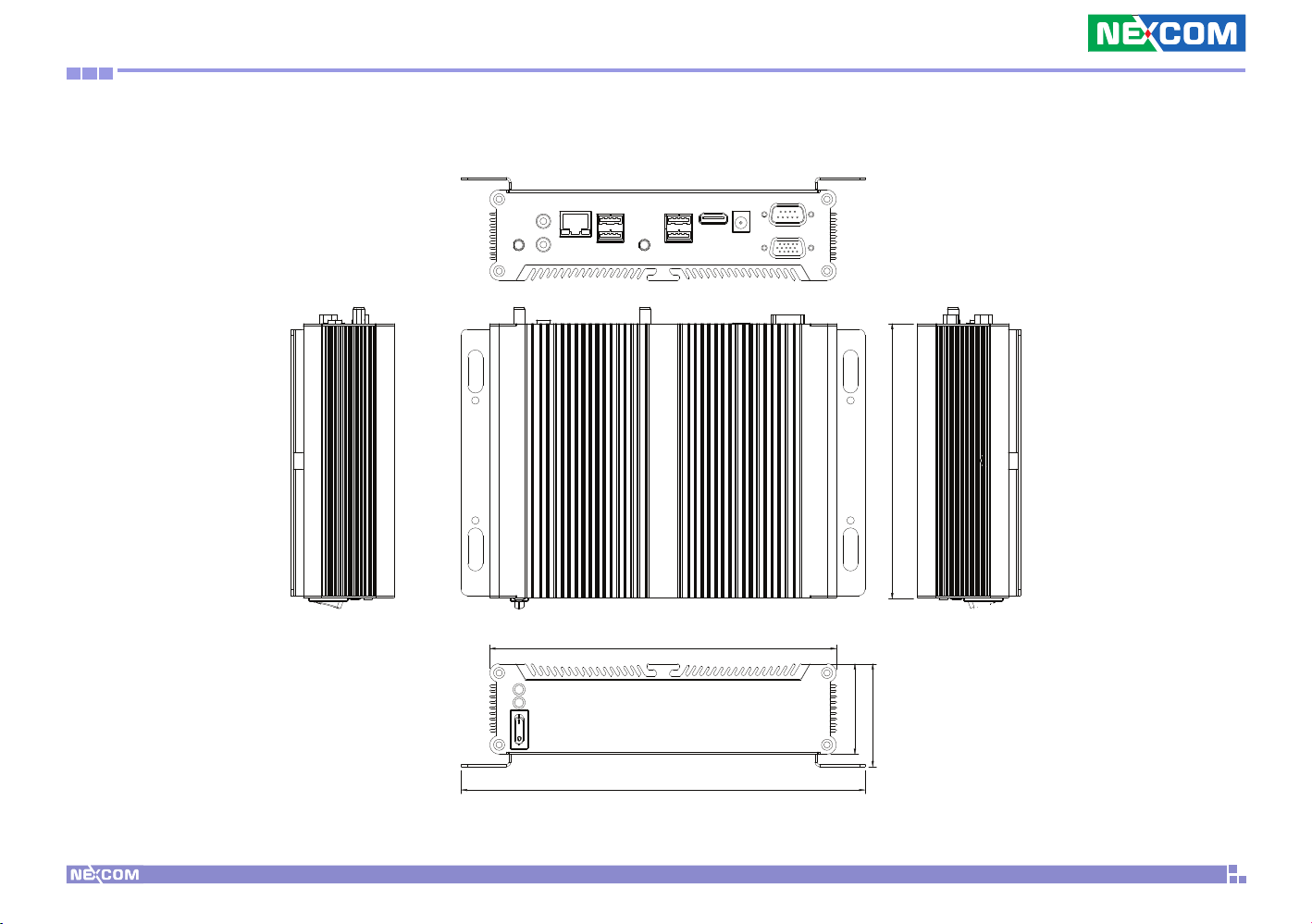

Mechanical Dimensions ...........................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ...................................................................................5

Precautions ............................................................................................6

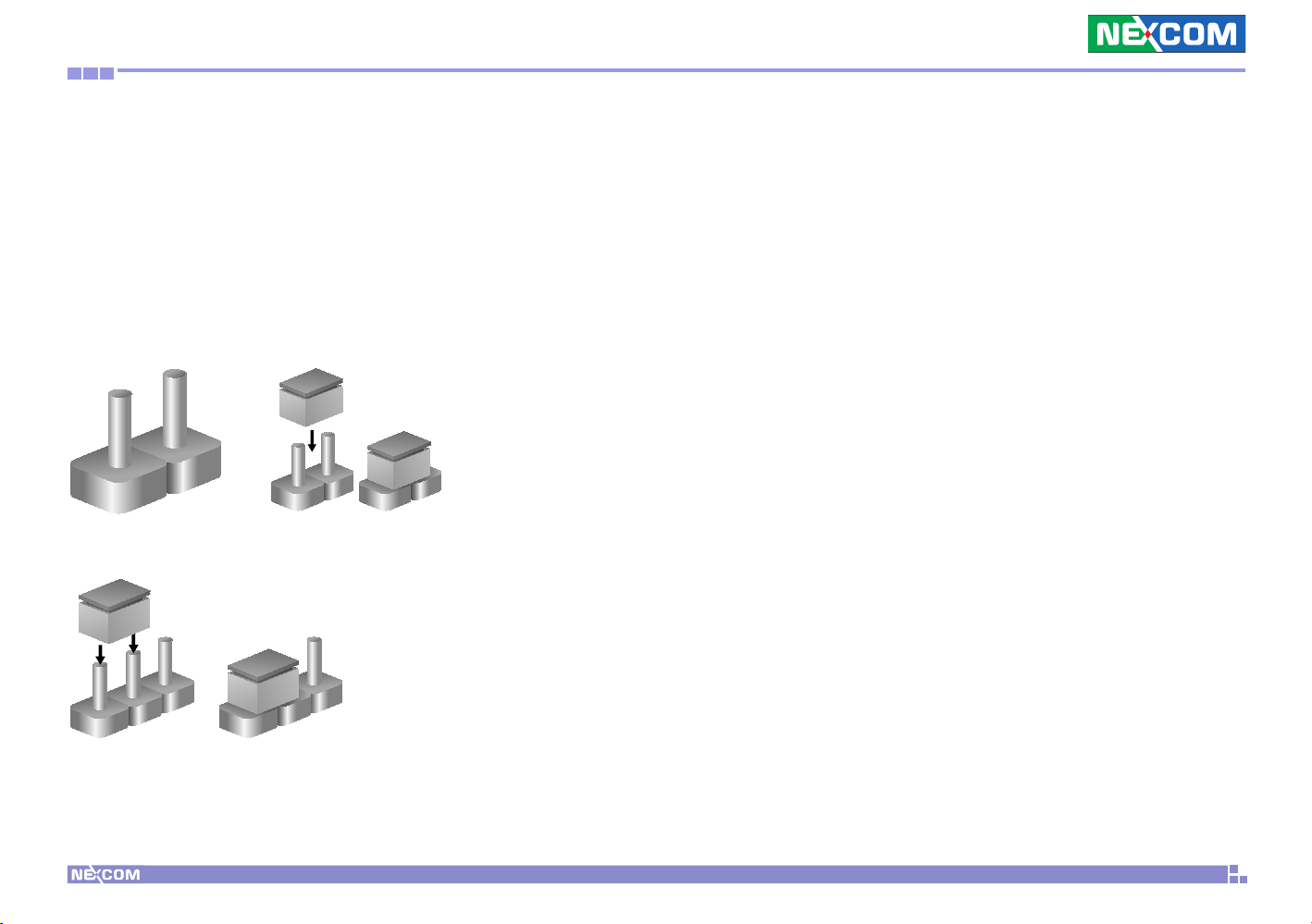

Jumper Settings ......................................................................................7

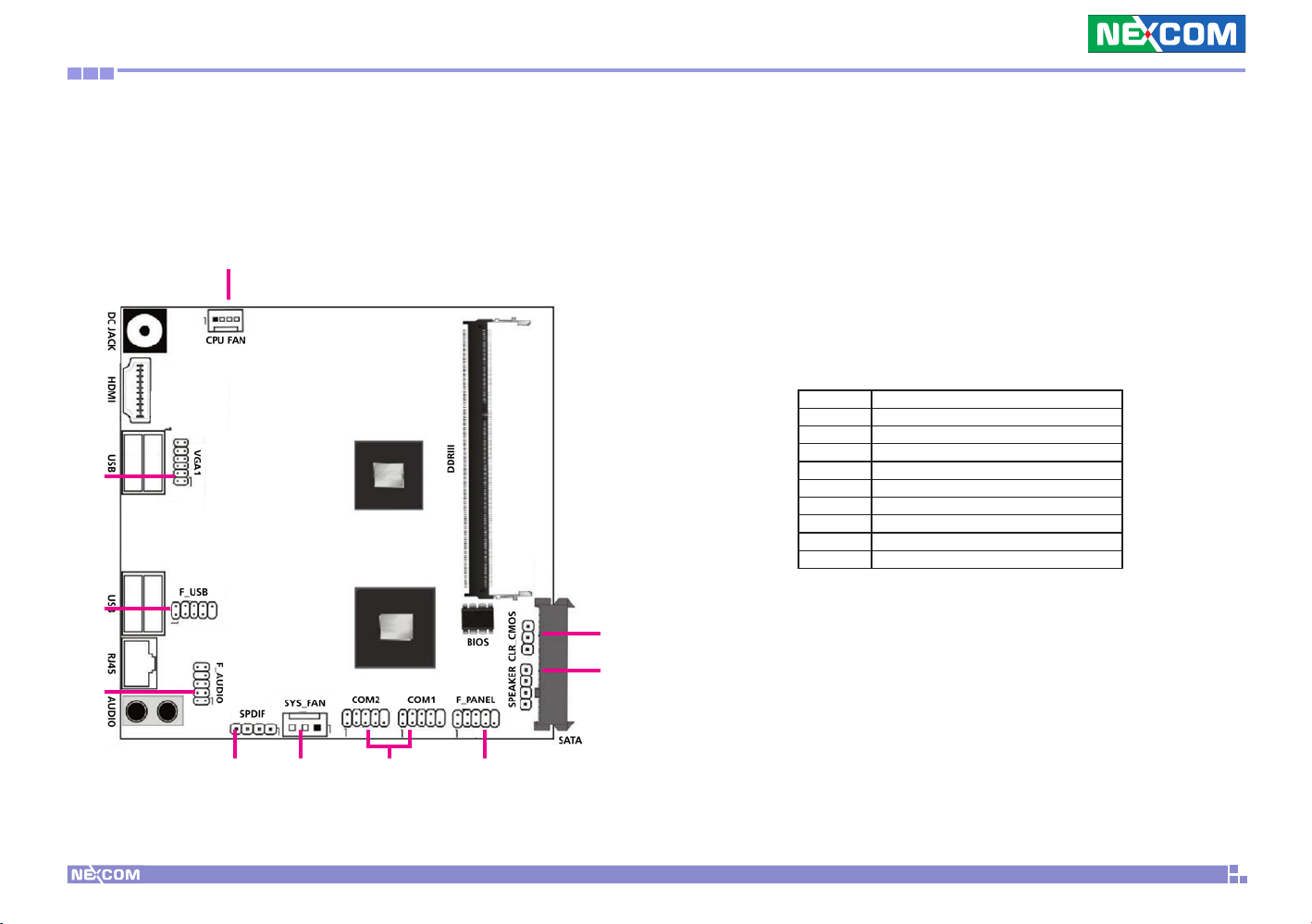

Locations of the Jumpers and Connectors ............................................... 8

External Connectors Pin Definitions ......................................................... 9

12V System Power Connector...............................................................9

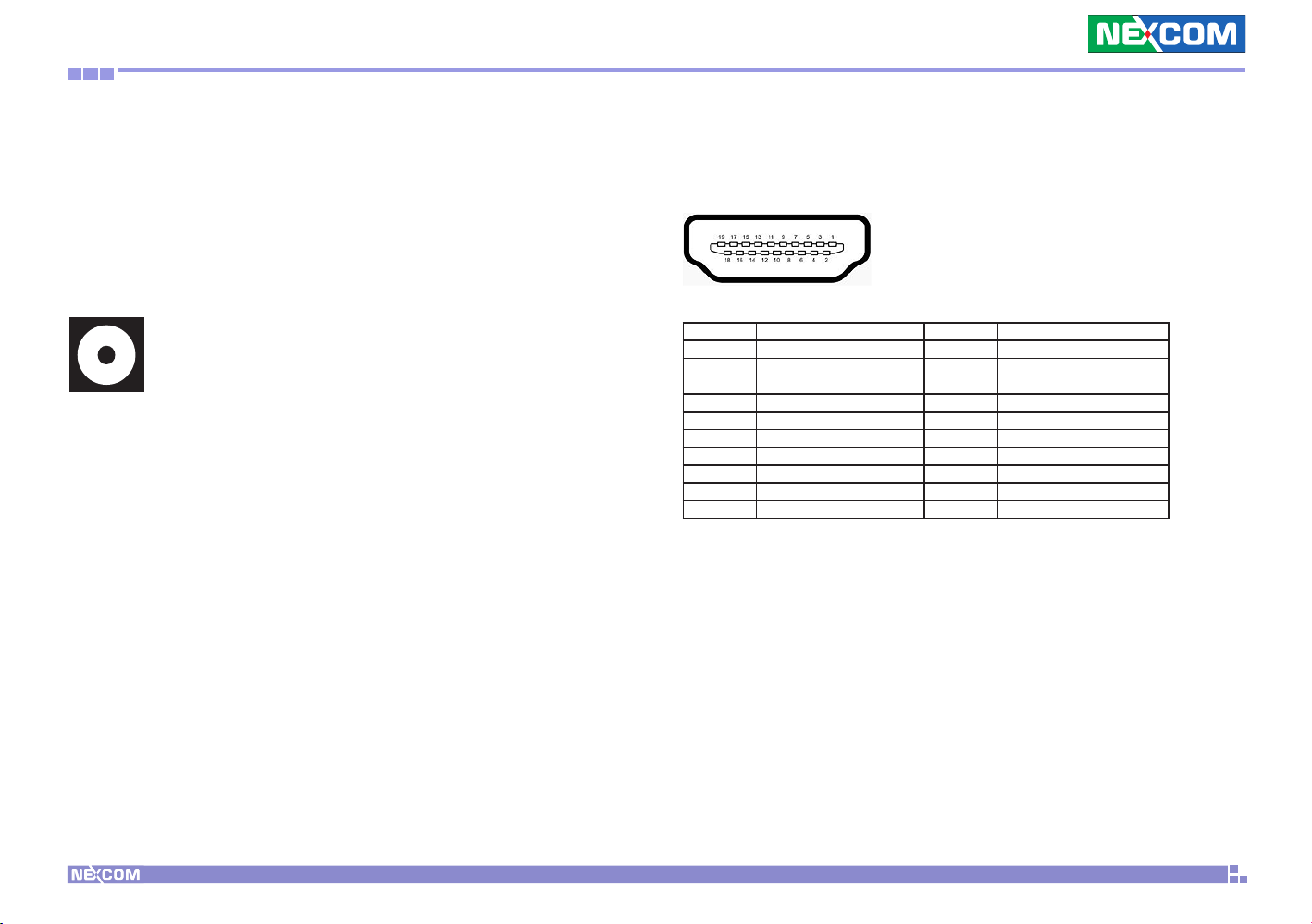

HDMI Type A Connector ....................................................................... 9

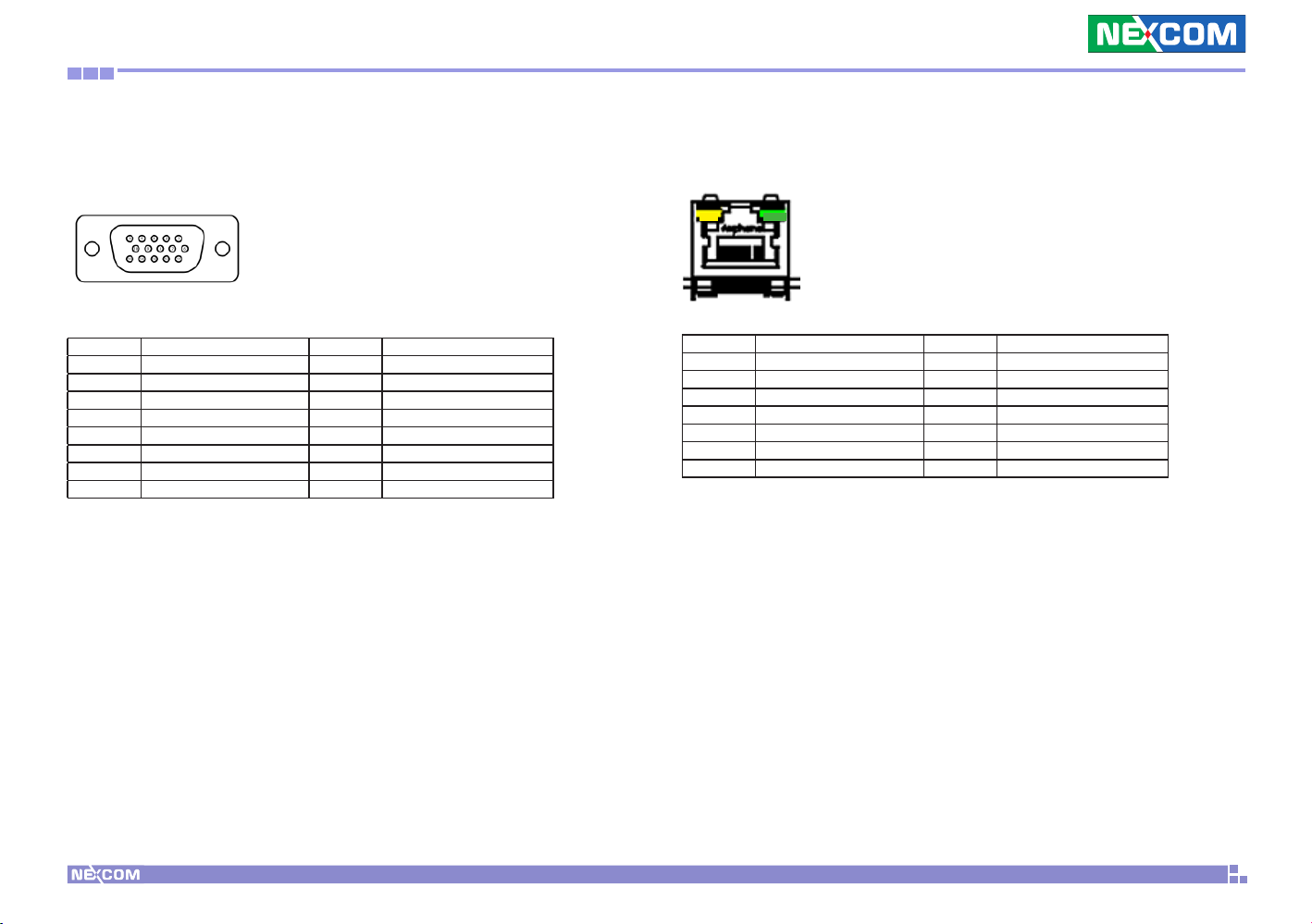

VGA Connector .................................................................................. 10

LAN connector ...................................................................................10

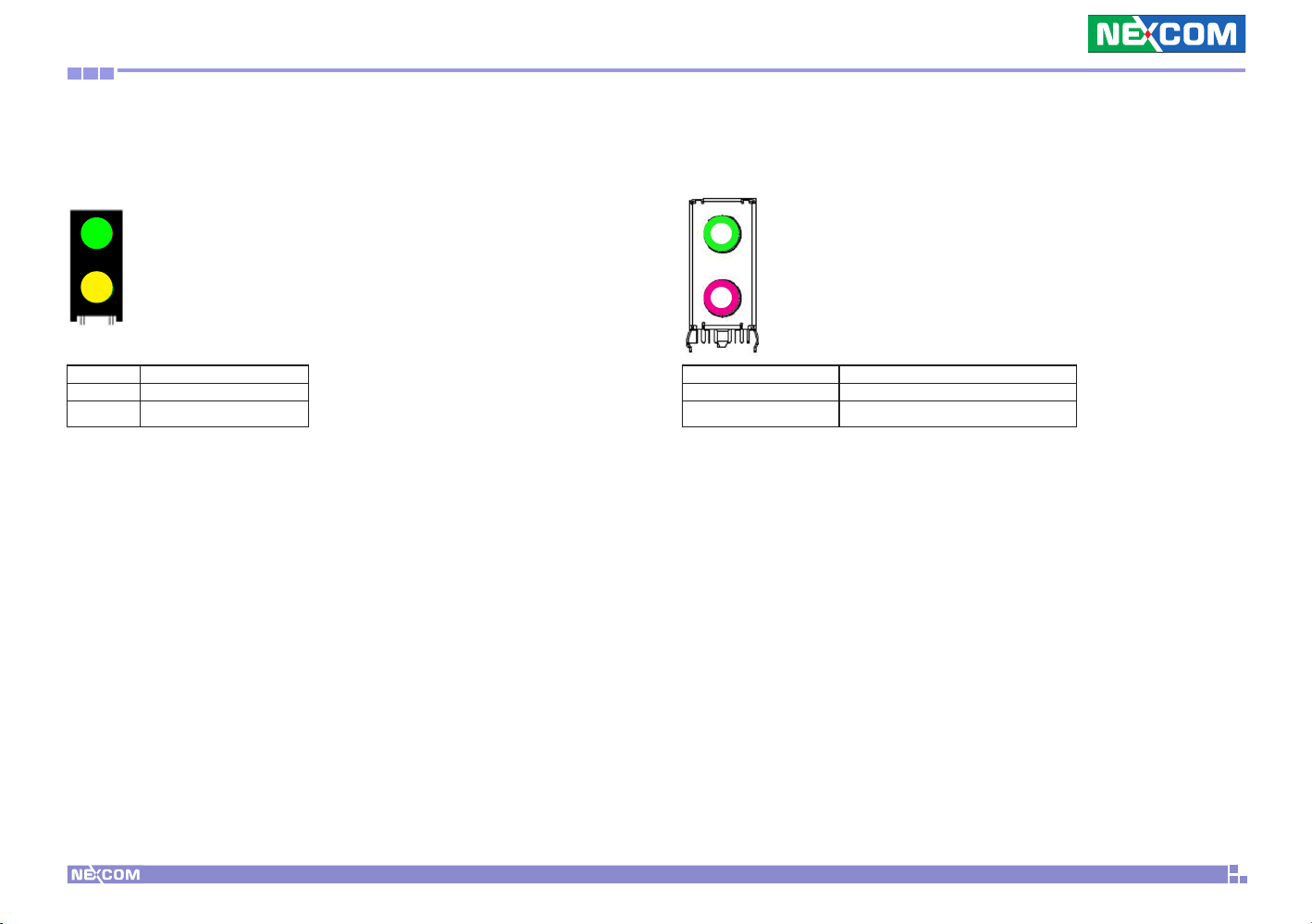

LED HDD/PWR ................................................................................... 11

Audio Jack .......................................................................................... 11

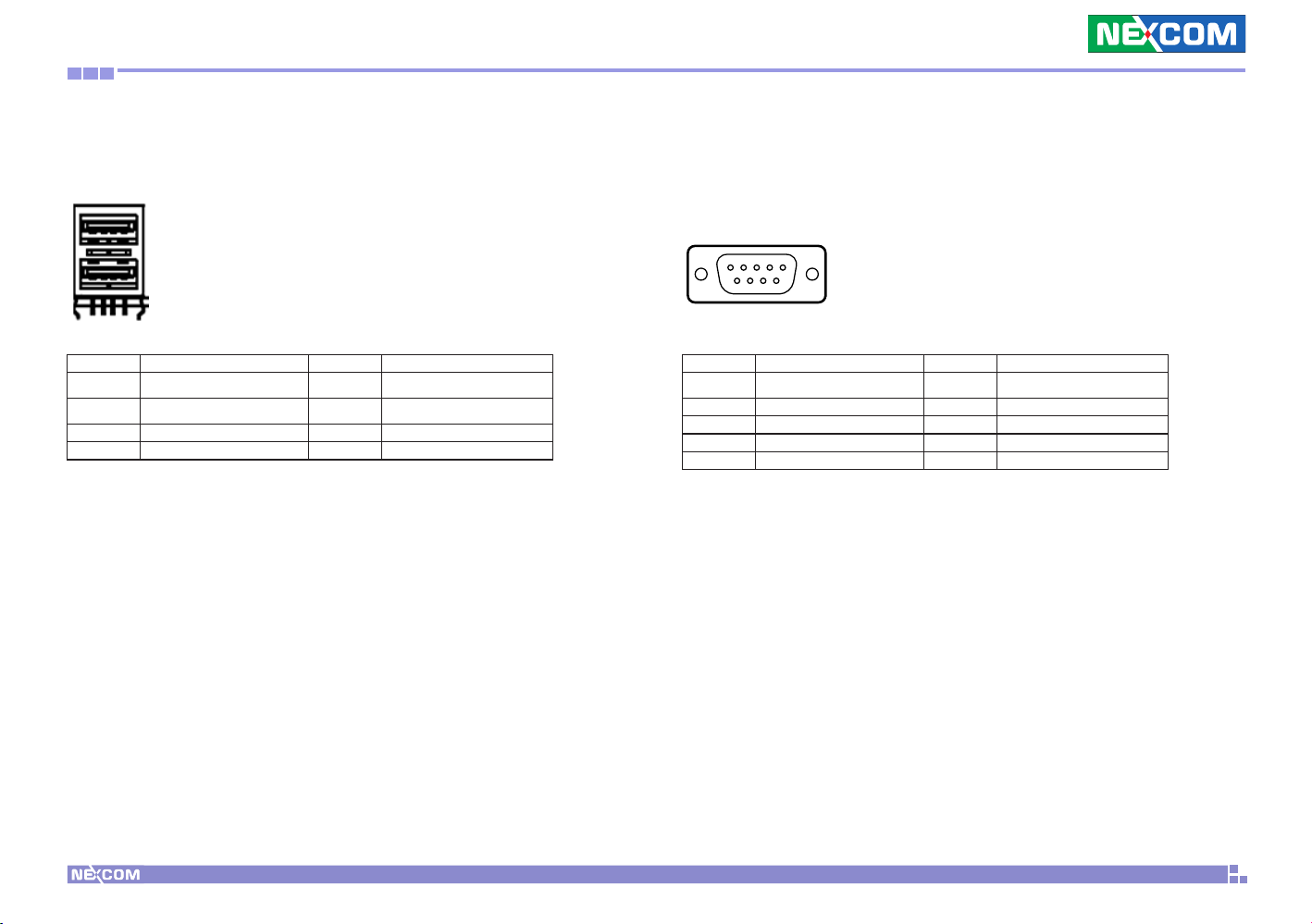

USB Port ............................................................................................. 12

RS232 Port .........................................................................................12

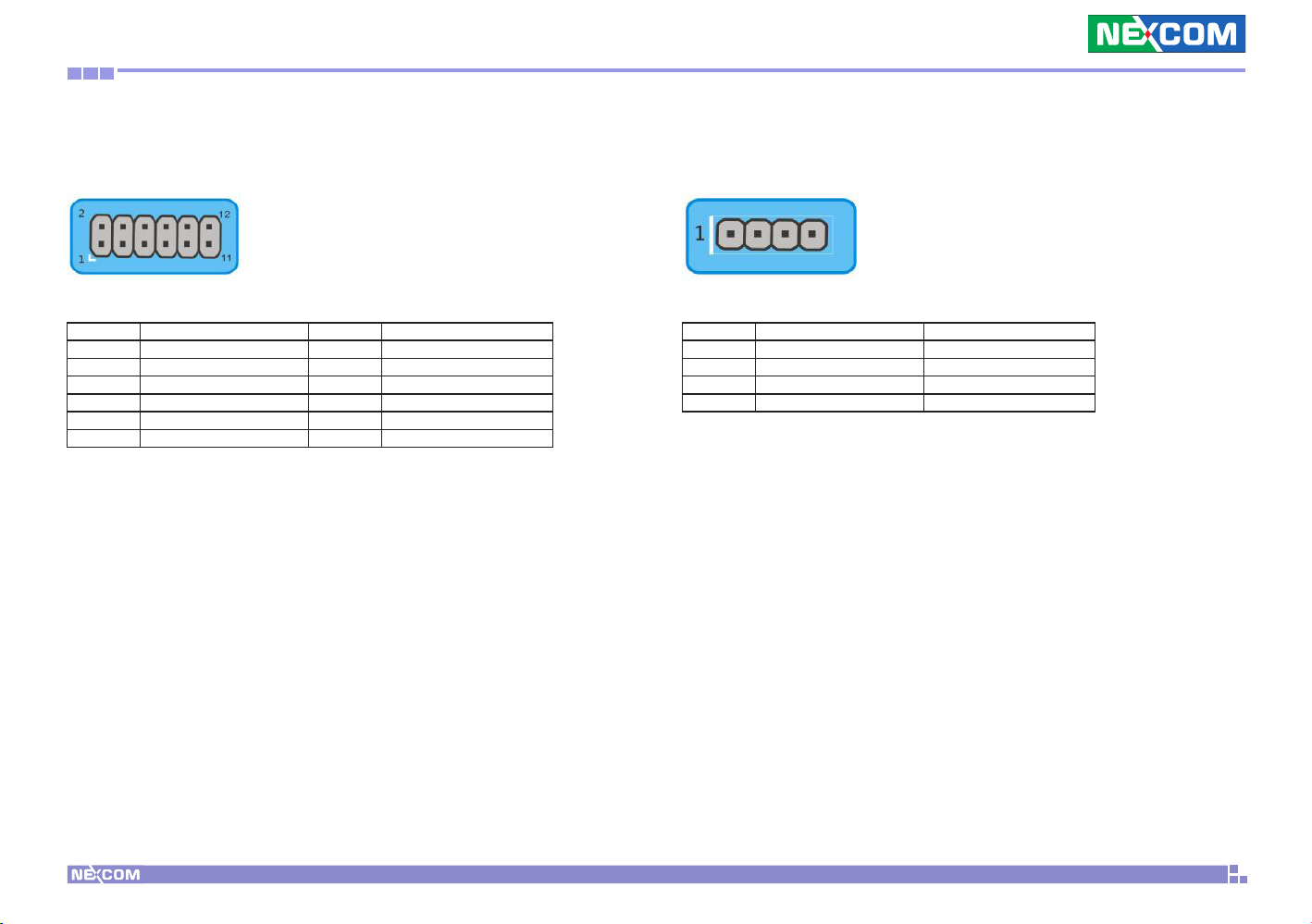

Internal Connectors Pin Definitions .......................................................13

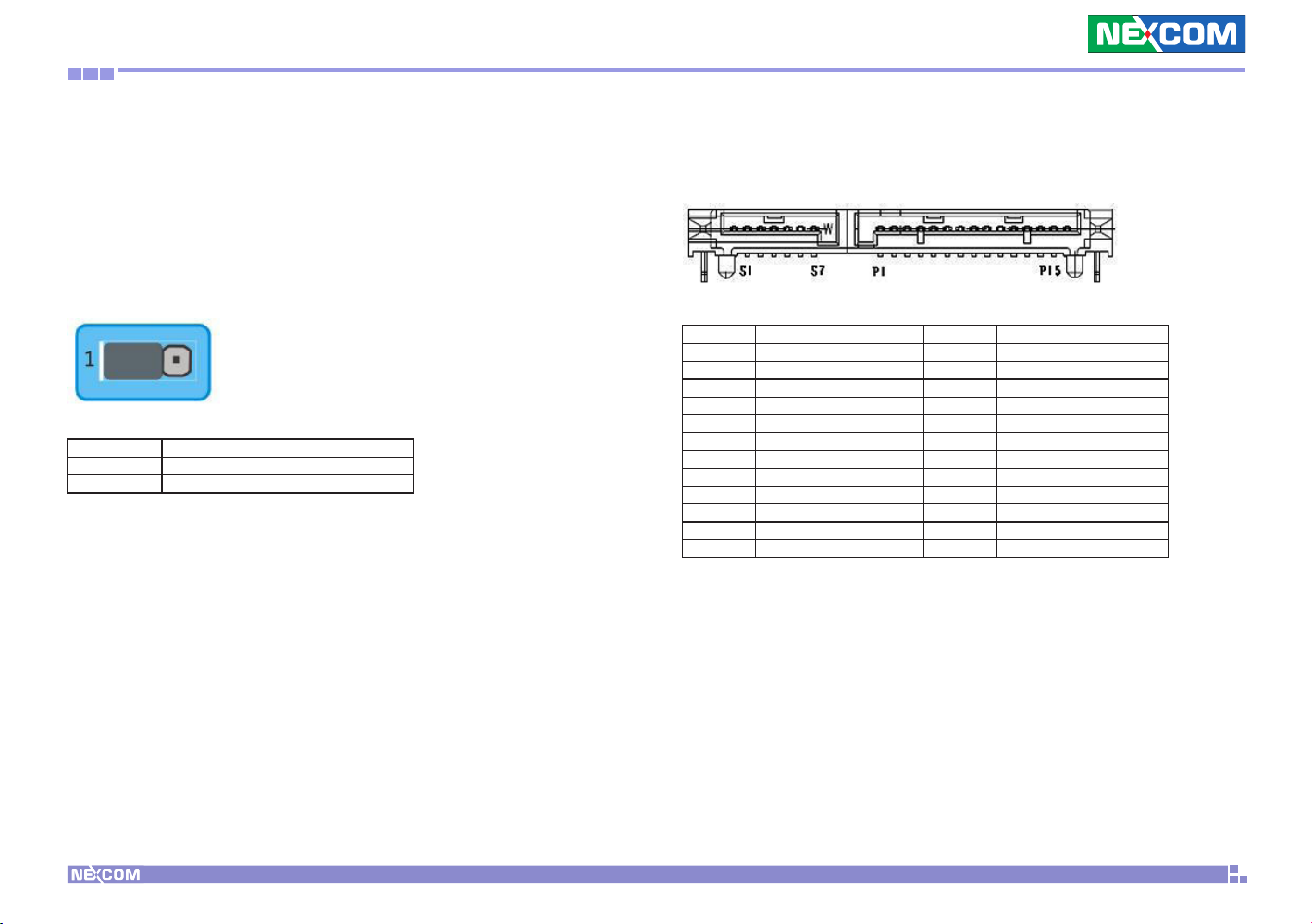

Clear CMOS Selection.........................................................................13

Serial-ATA ..........................................................................................13

Front Panel Audio Pin Header .............................................................14

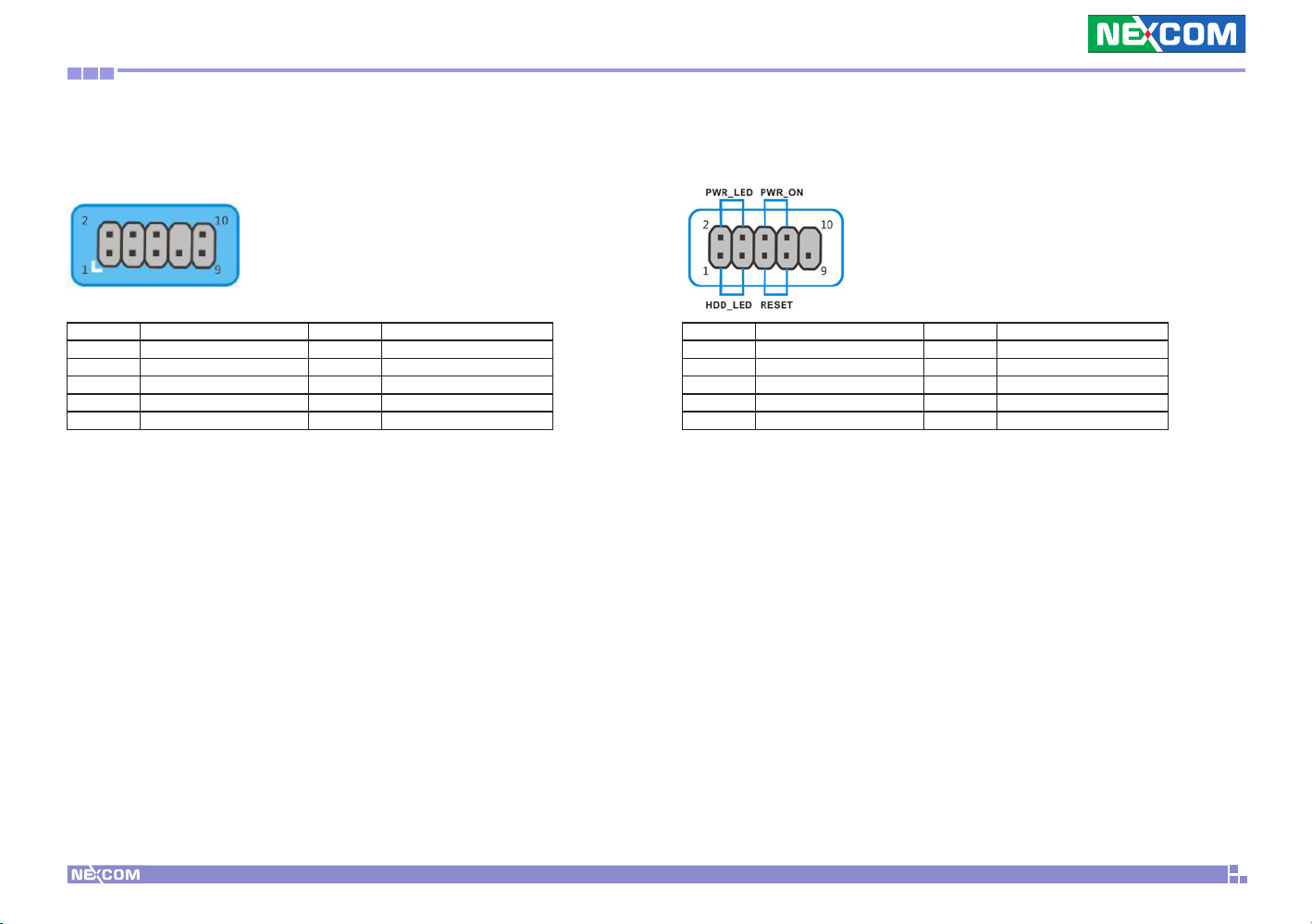

Front Panel LED / Switch Pin Header ....................................................14

VGA Pin Header .................................................................................15

Speaker Pin Header ............................................................................15

FAN Header ........................................................................................16

USB Port Header ................................................................................. 16

COM Header ...................................................................................... 17

SPDIF Header ...................................................................................... 17

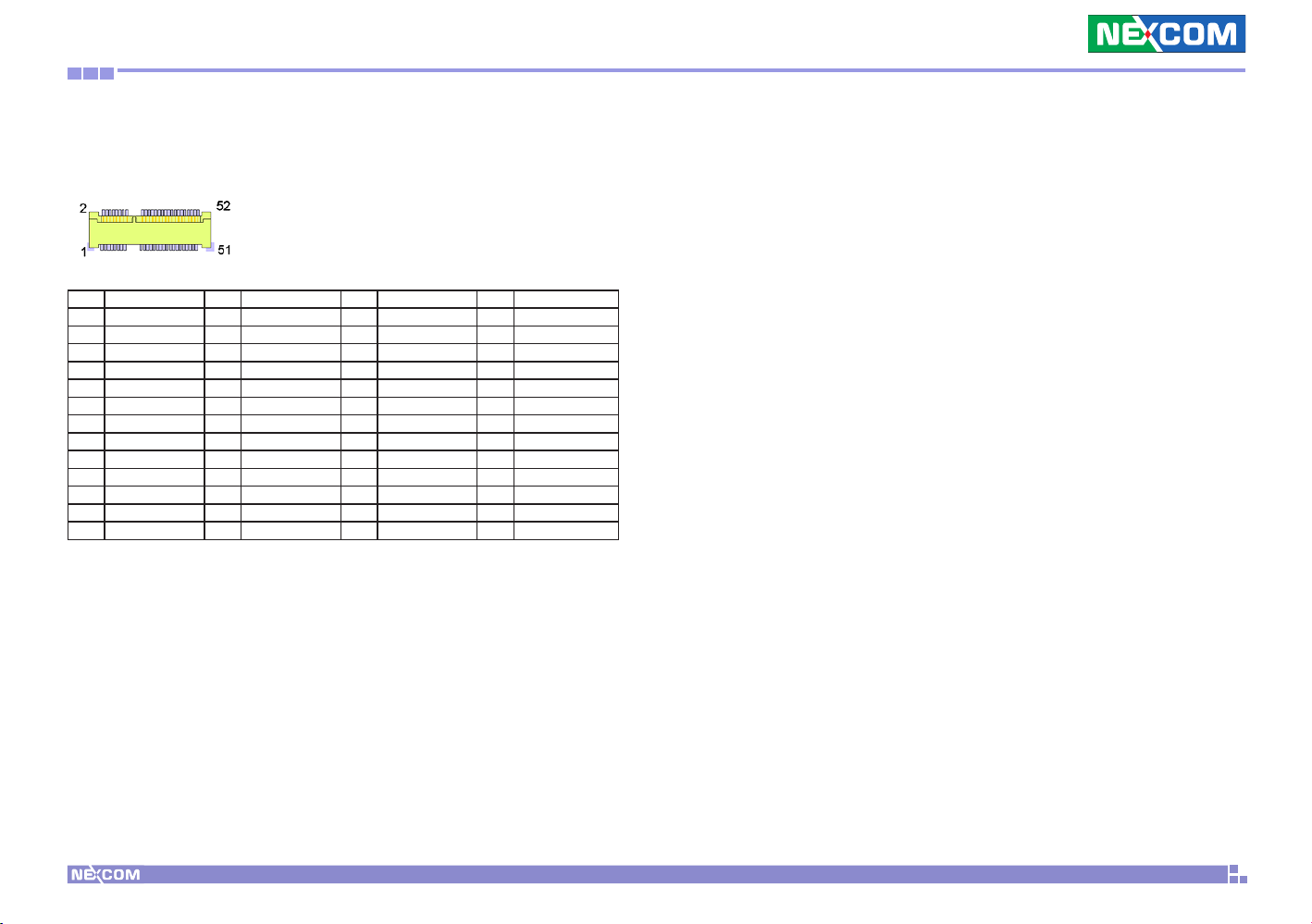

Mini-PCIe ...........................................................................................18

ii

NDiS 127 User Manual

Contents

Chapter 3: System Setup

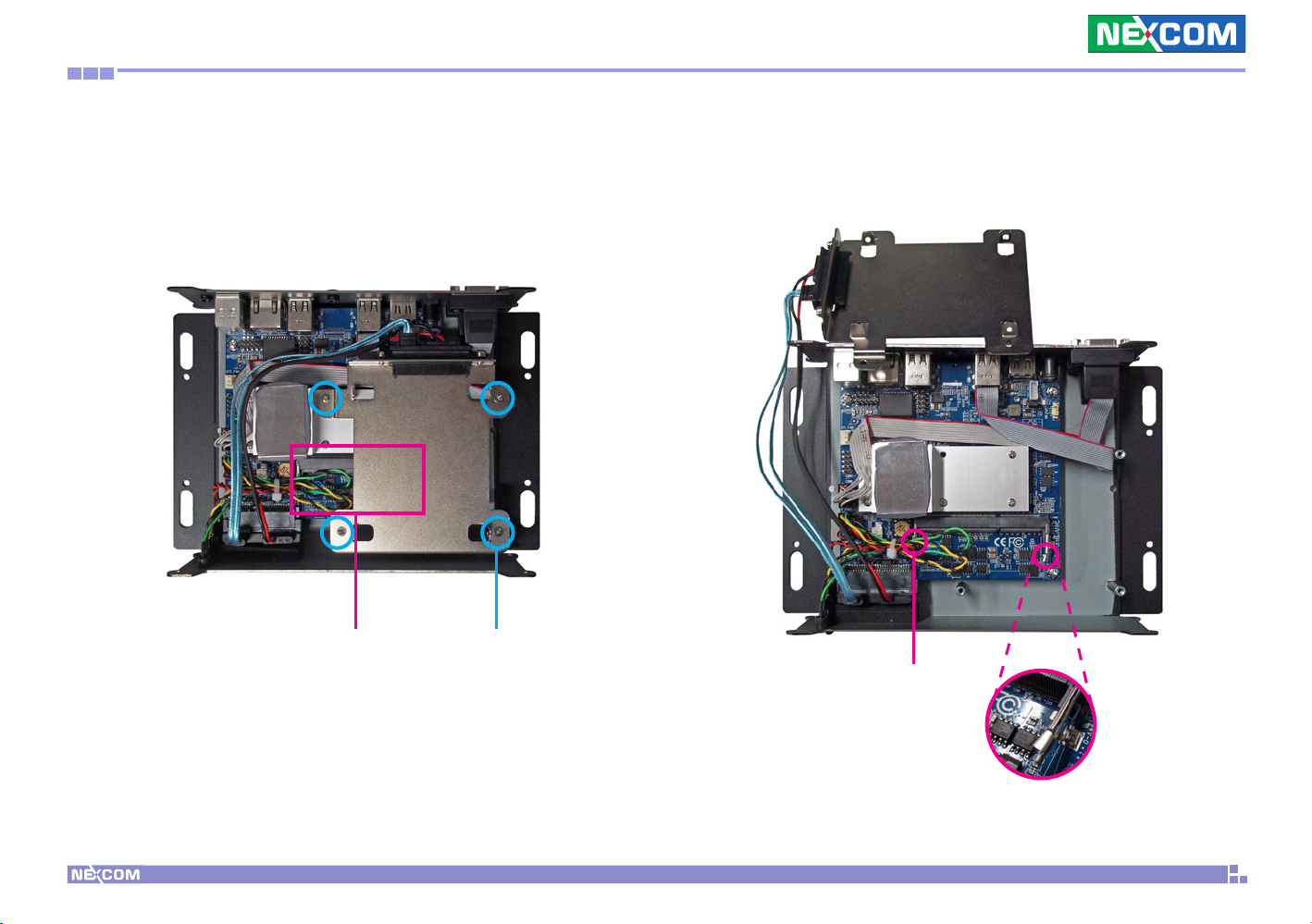

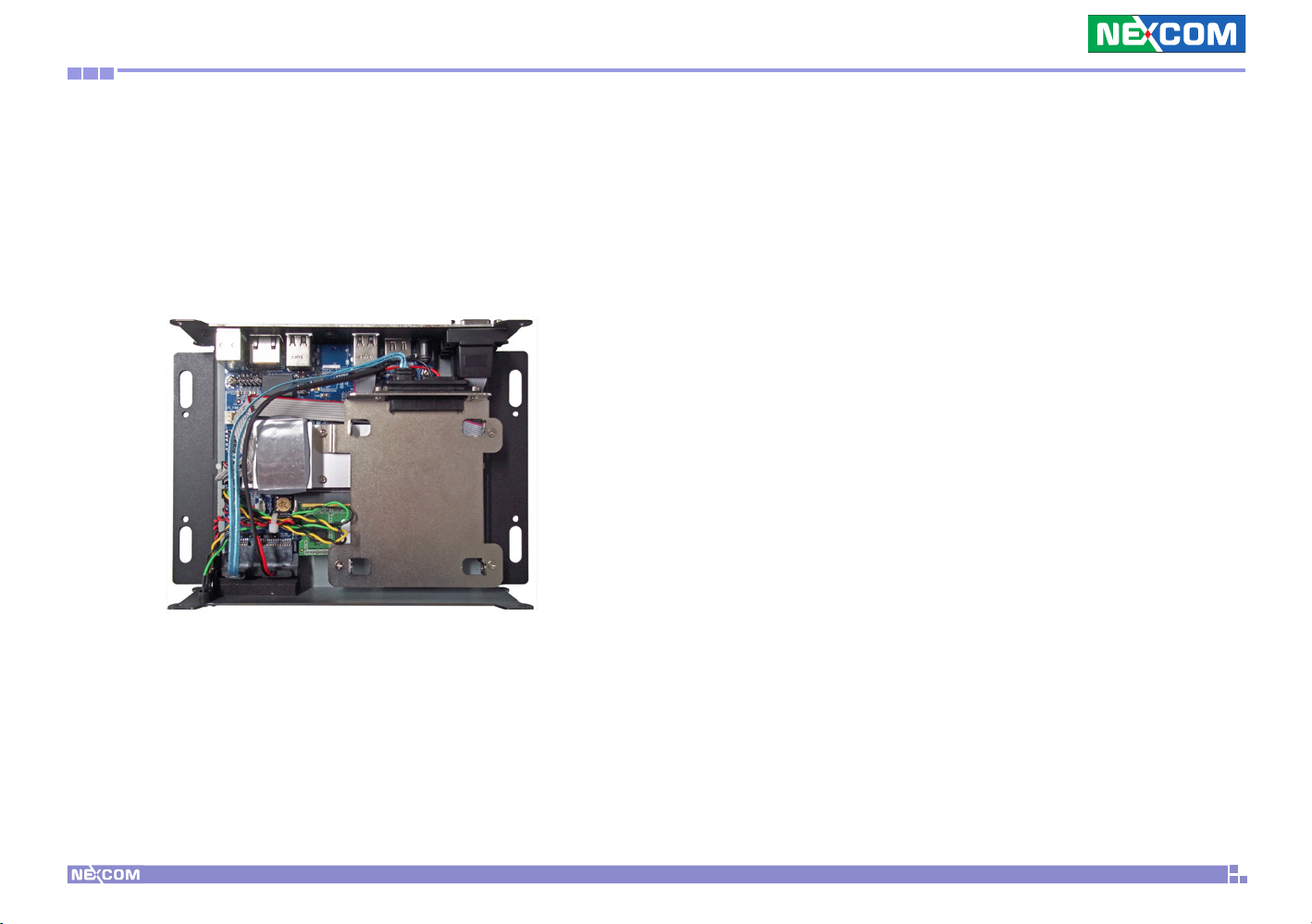

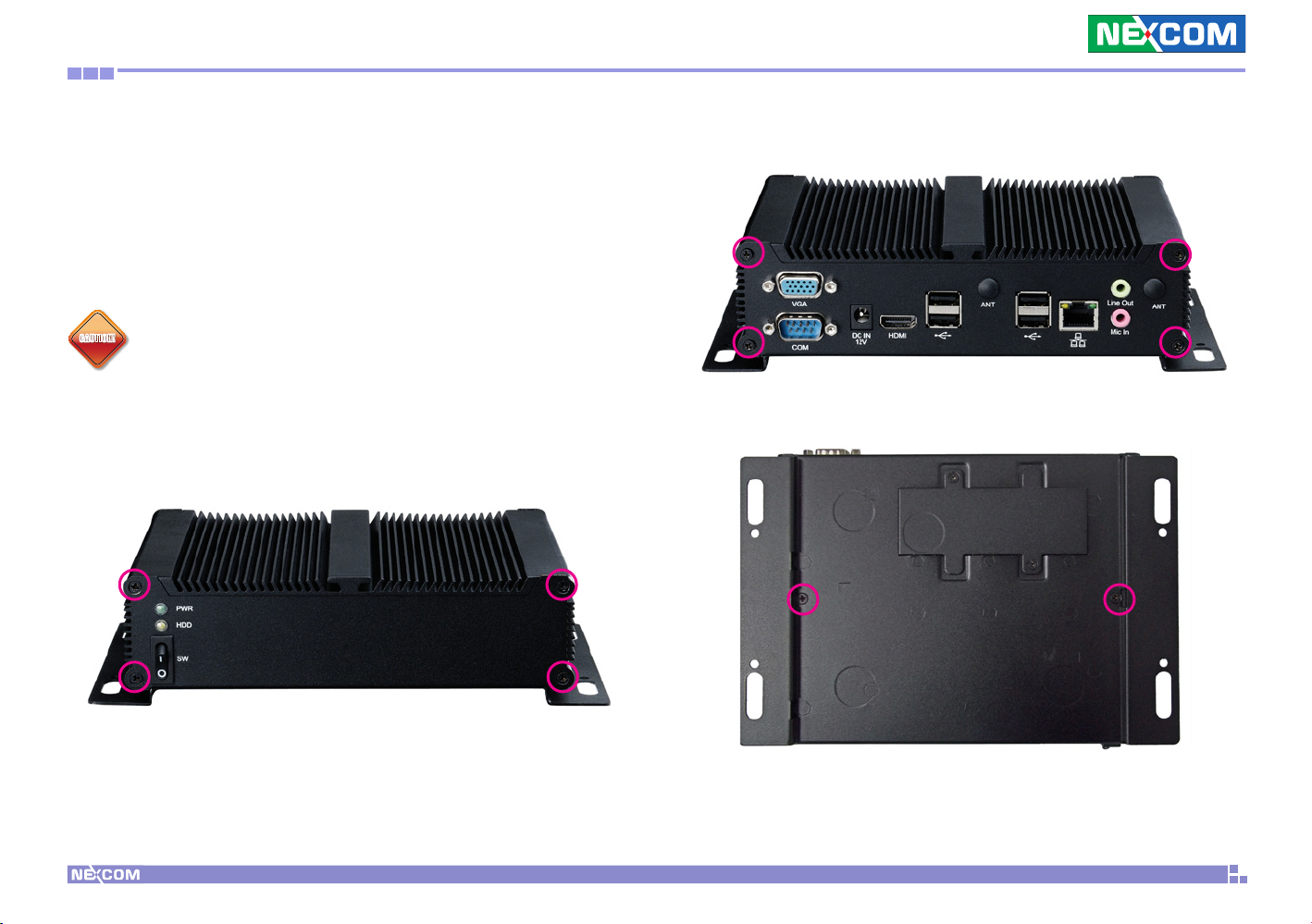

Removing the Chassis Cover .................................................................19

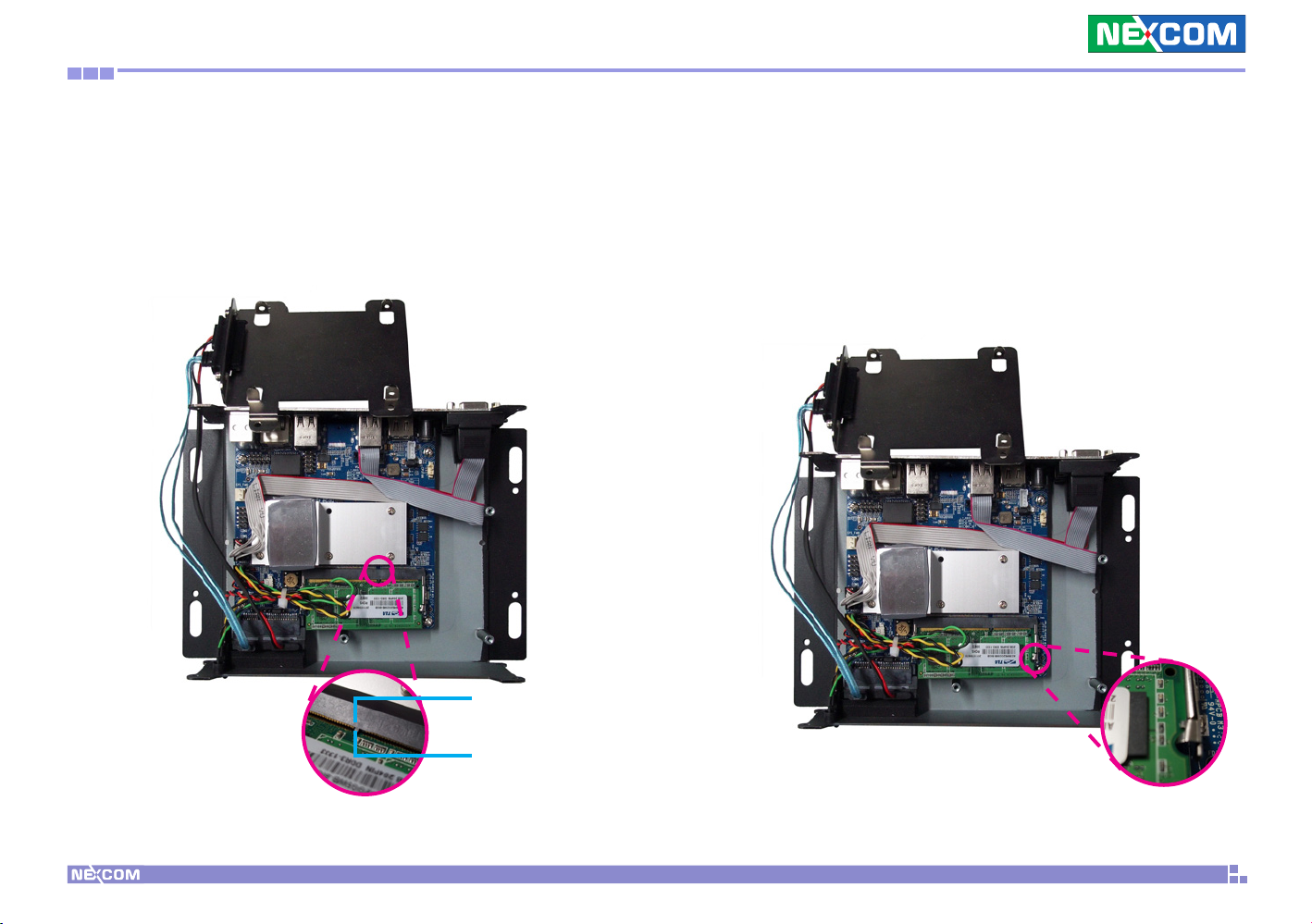

Installing a SO-DIMM ............................................................................ 20

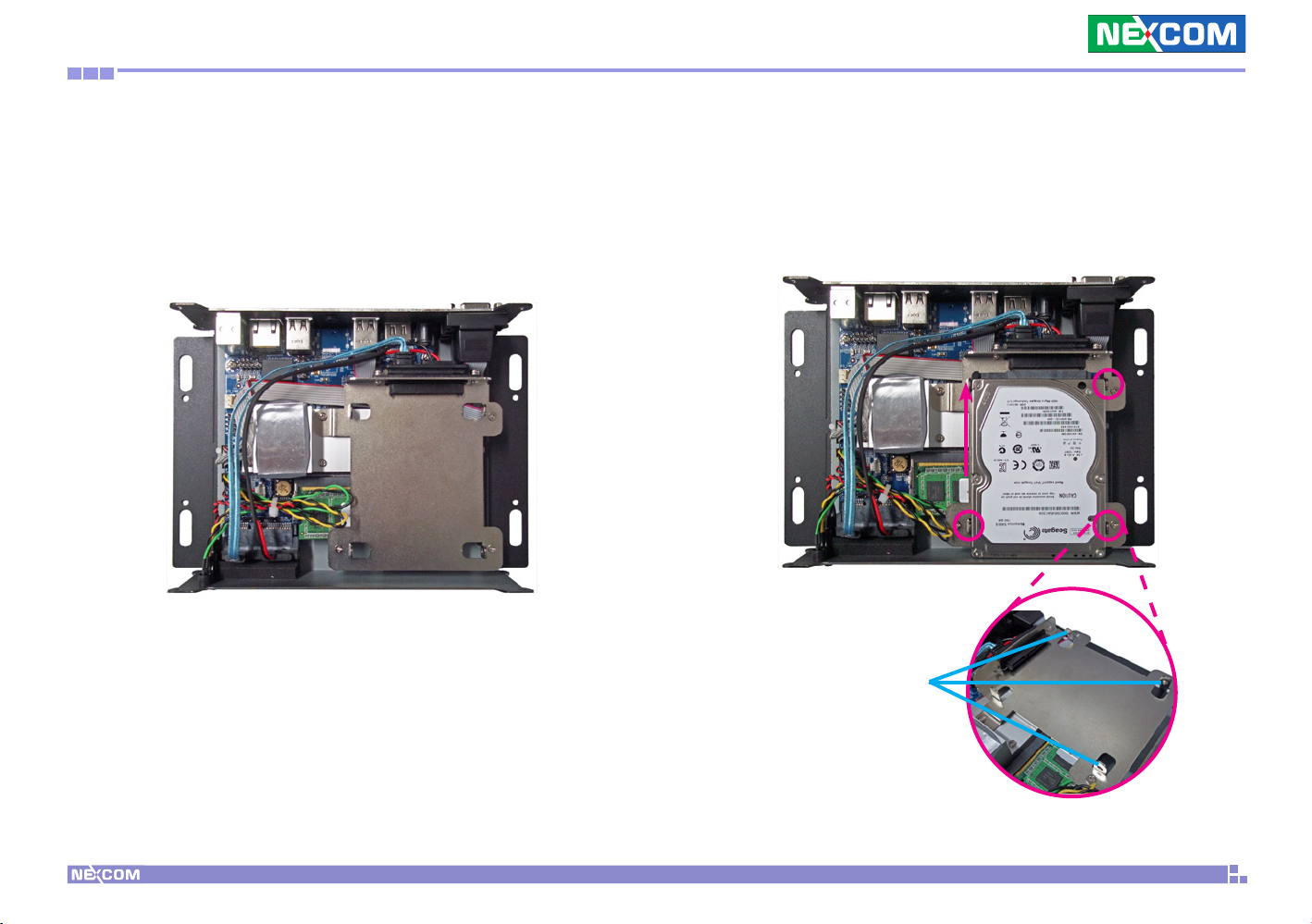

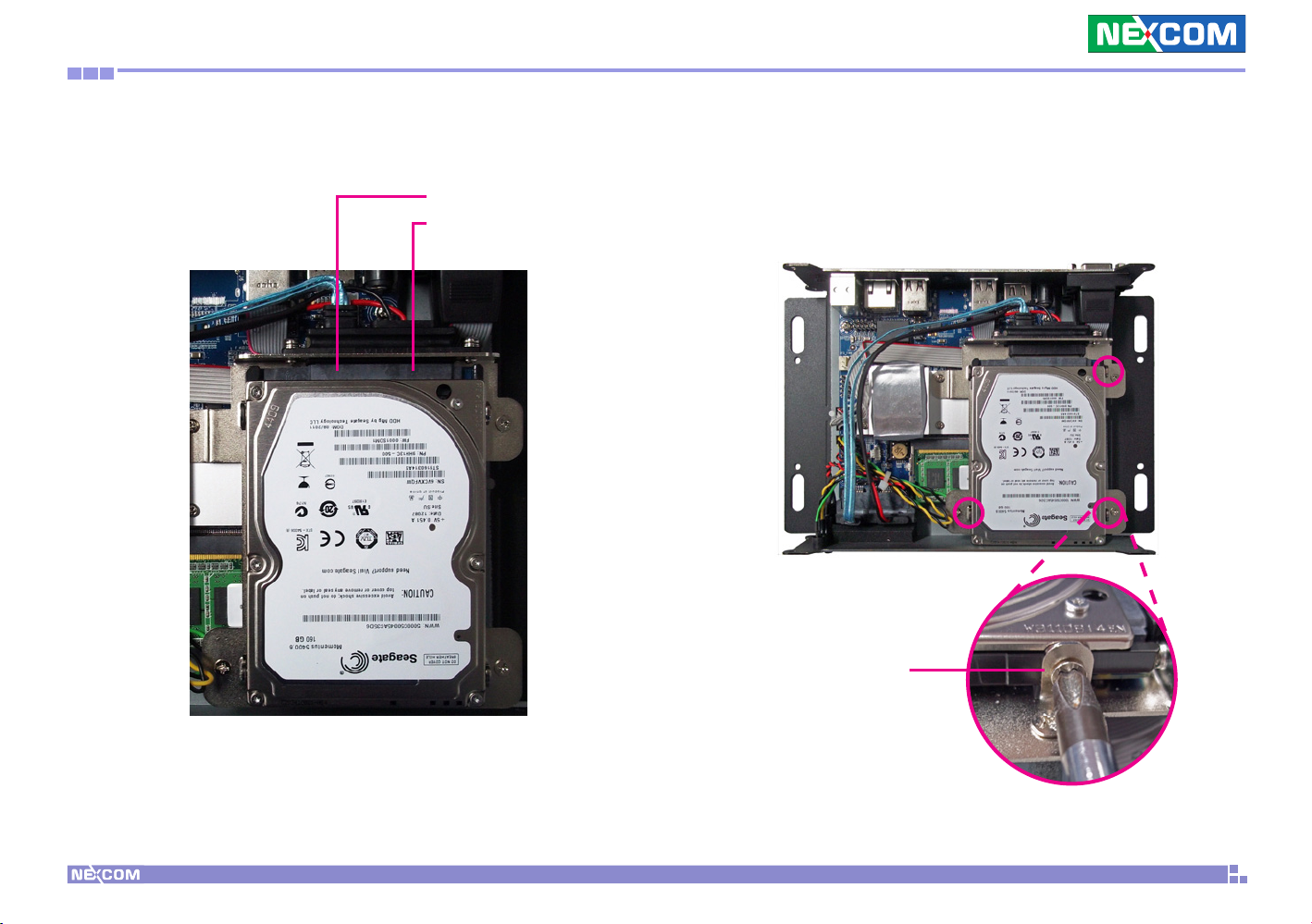

Installing a SATA Hard Drive ..................................................................23

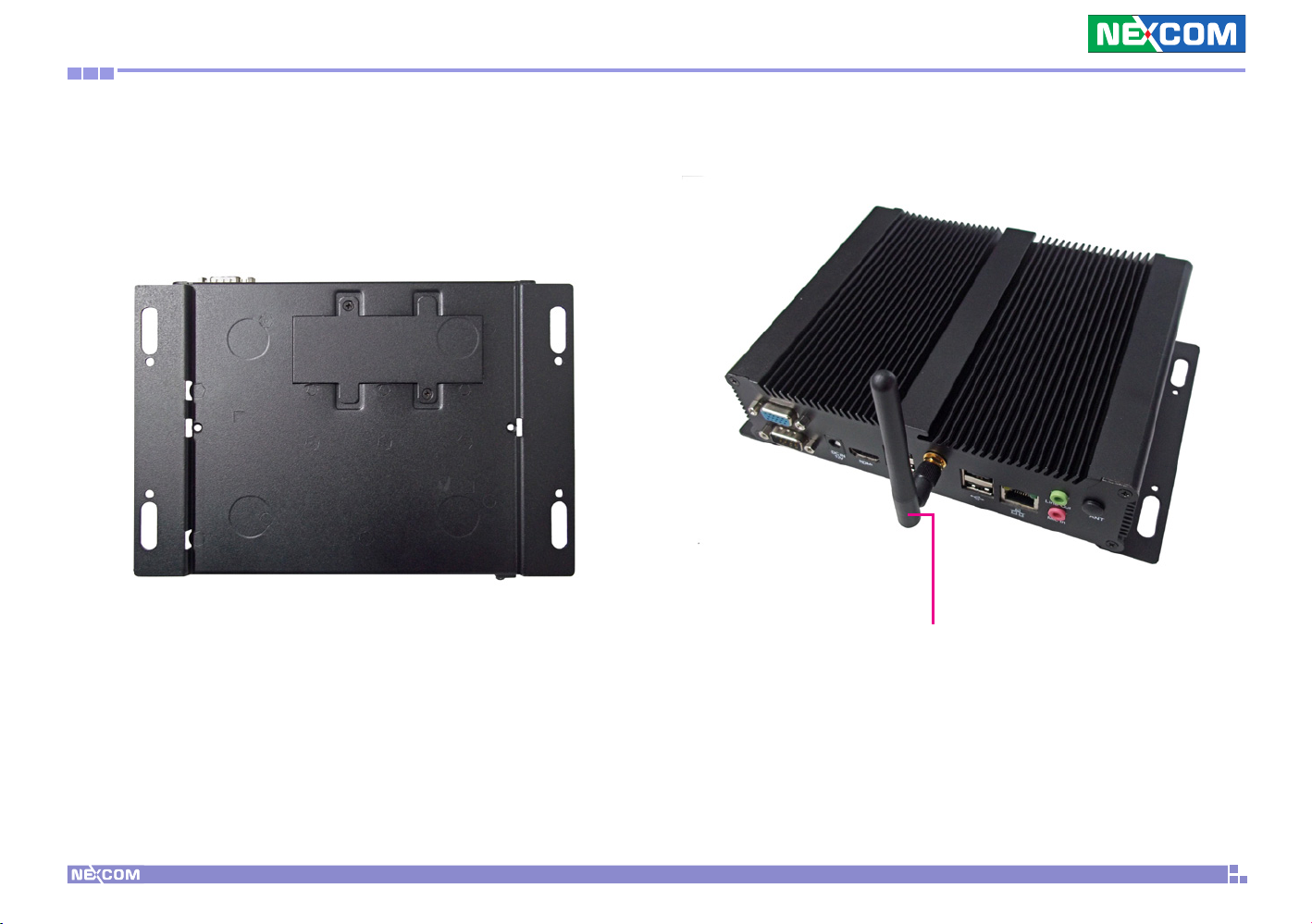

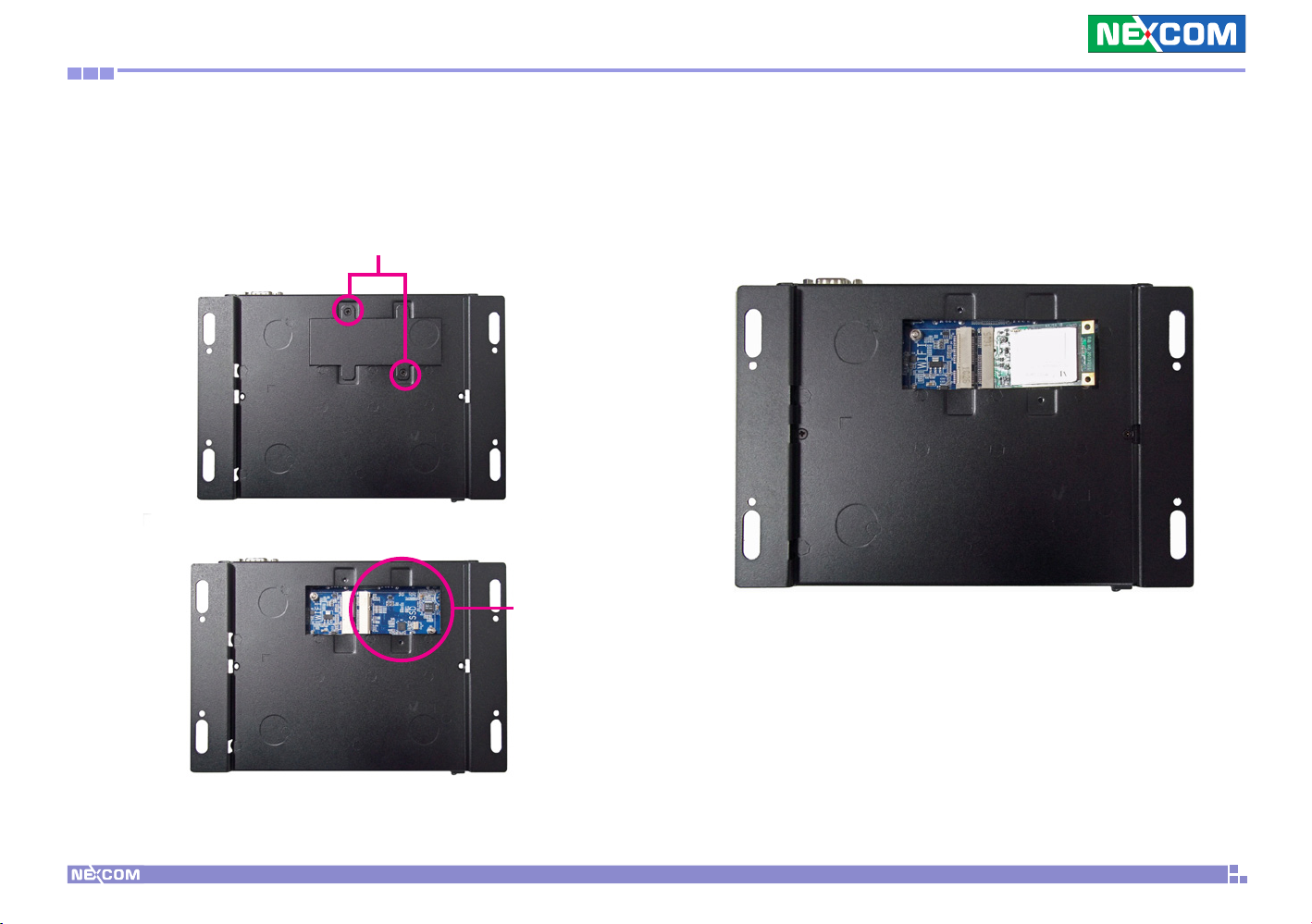

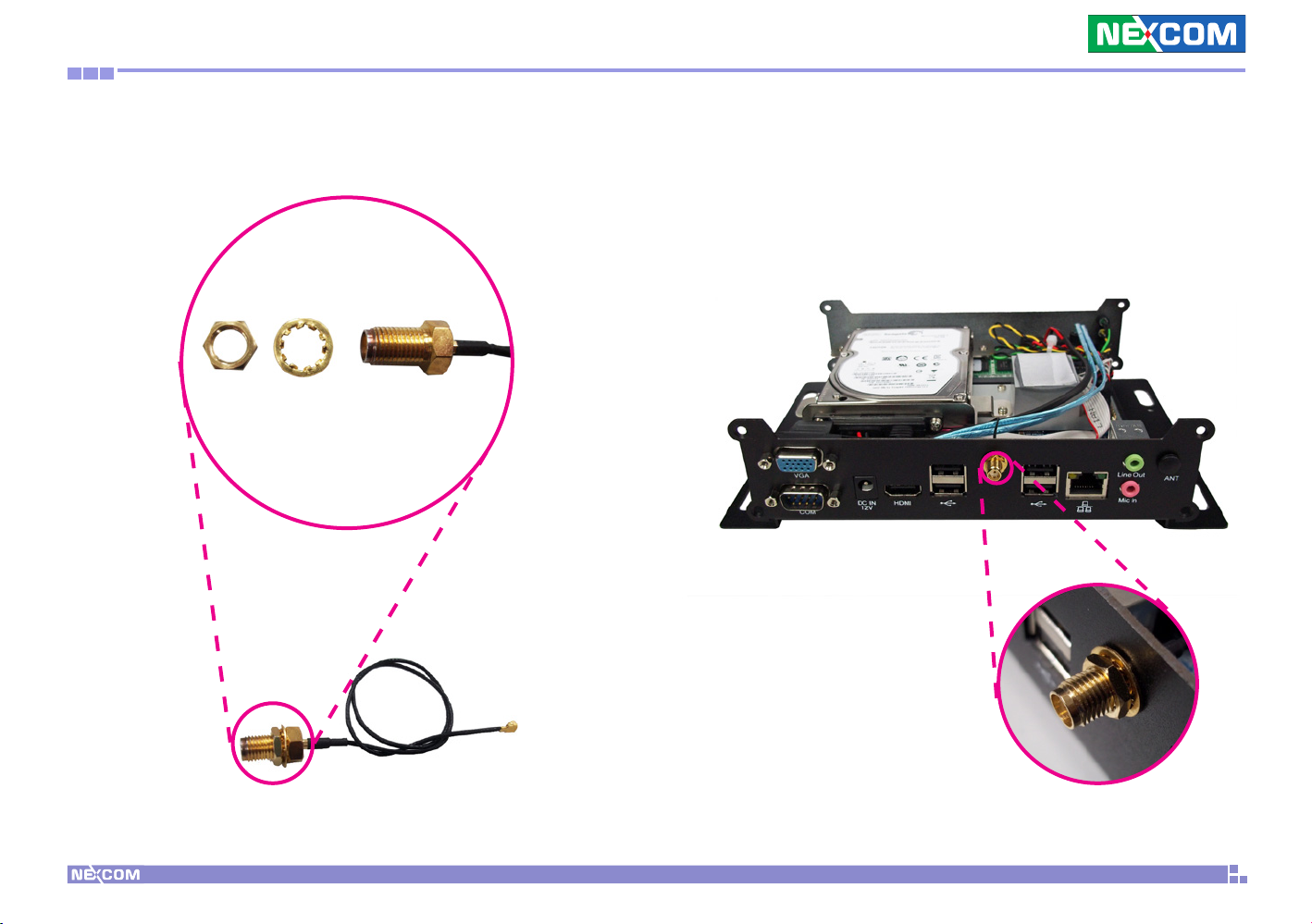

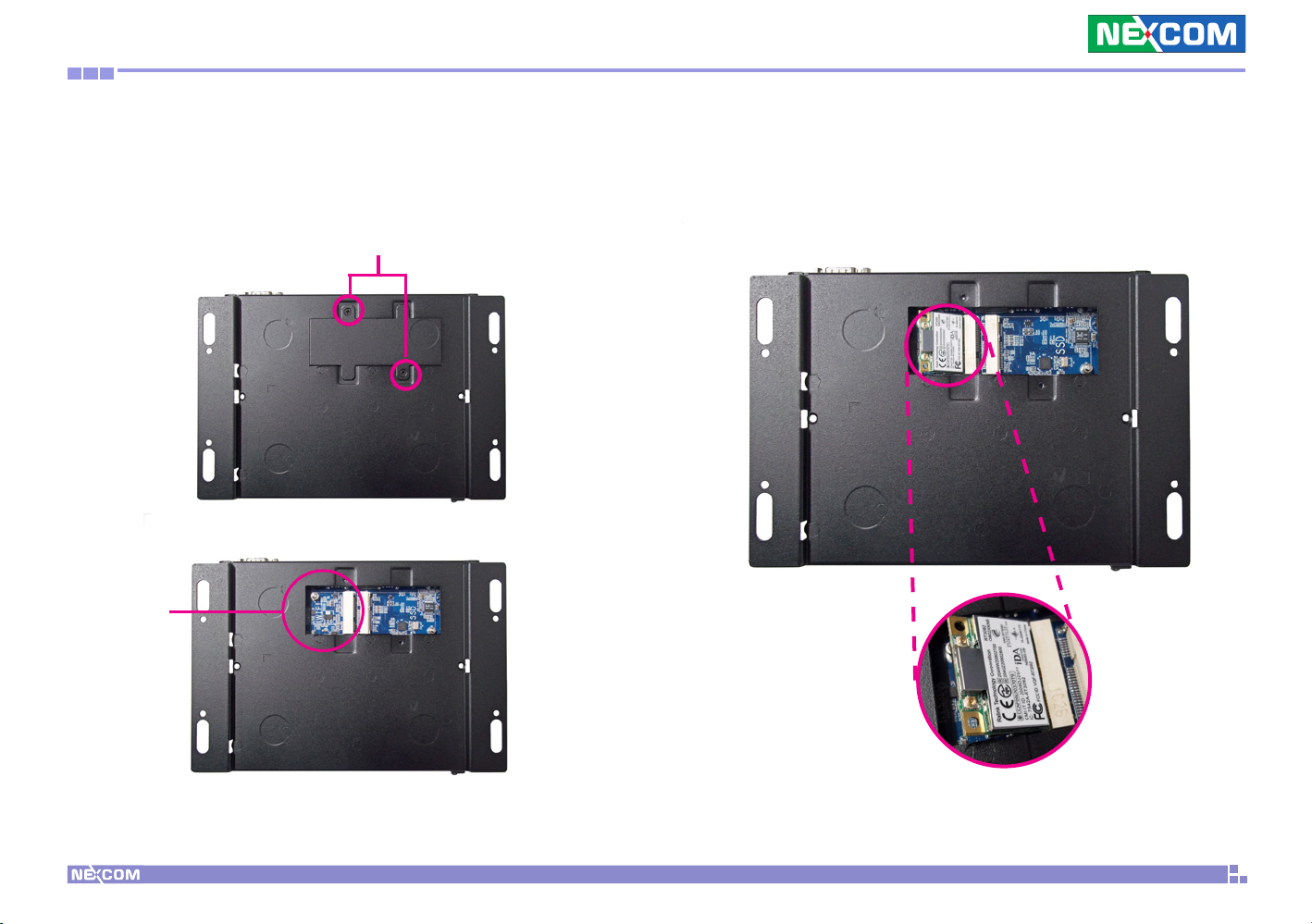

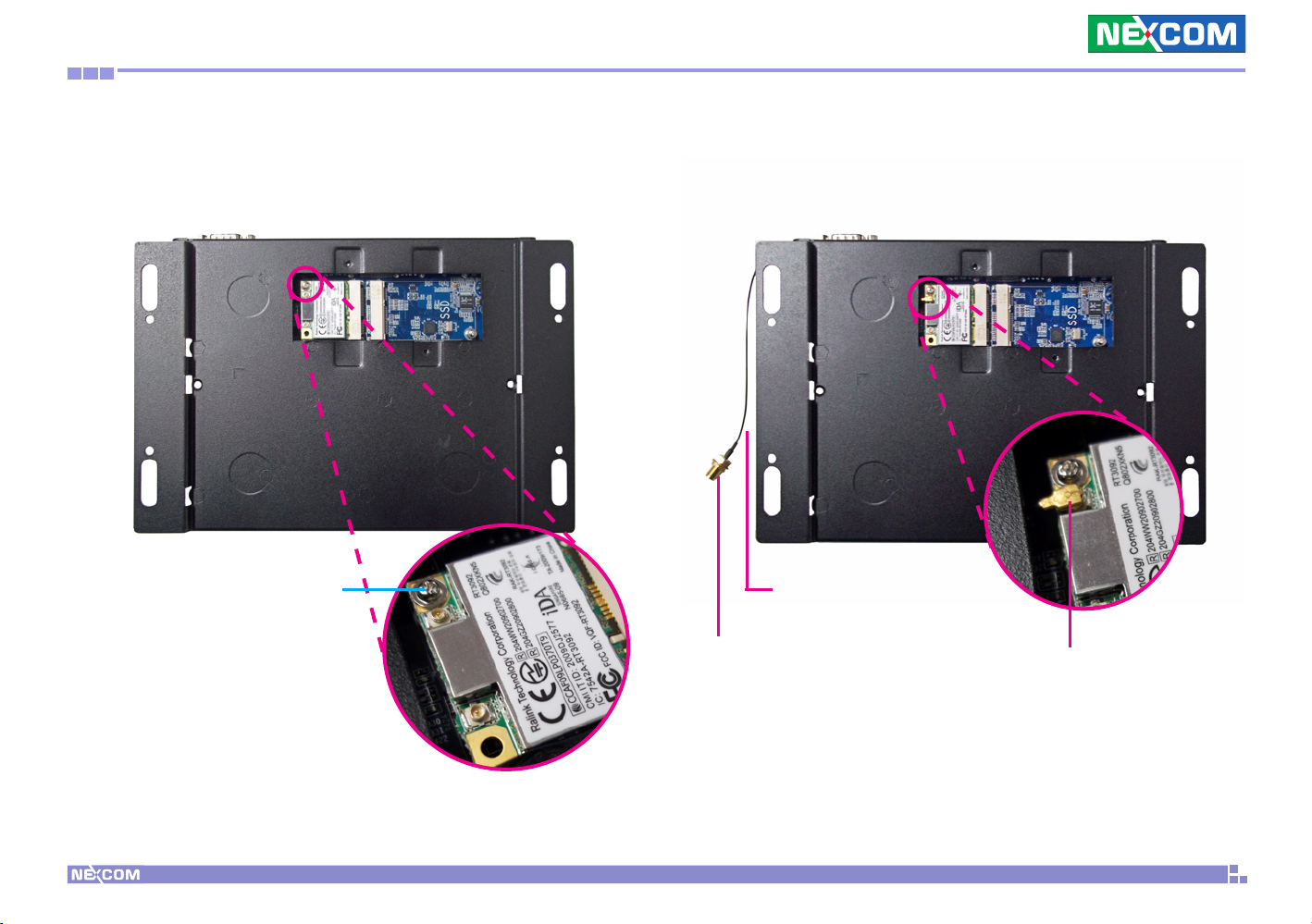

Installing a Wireless LAN Module ..........................................................25

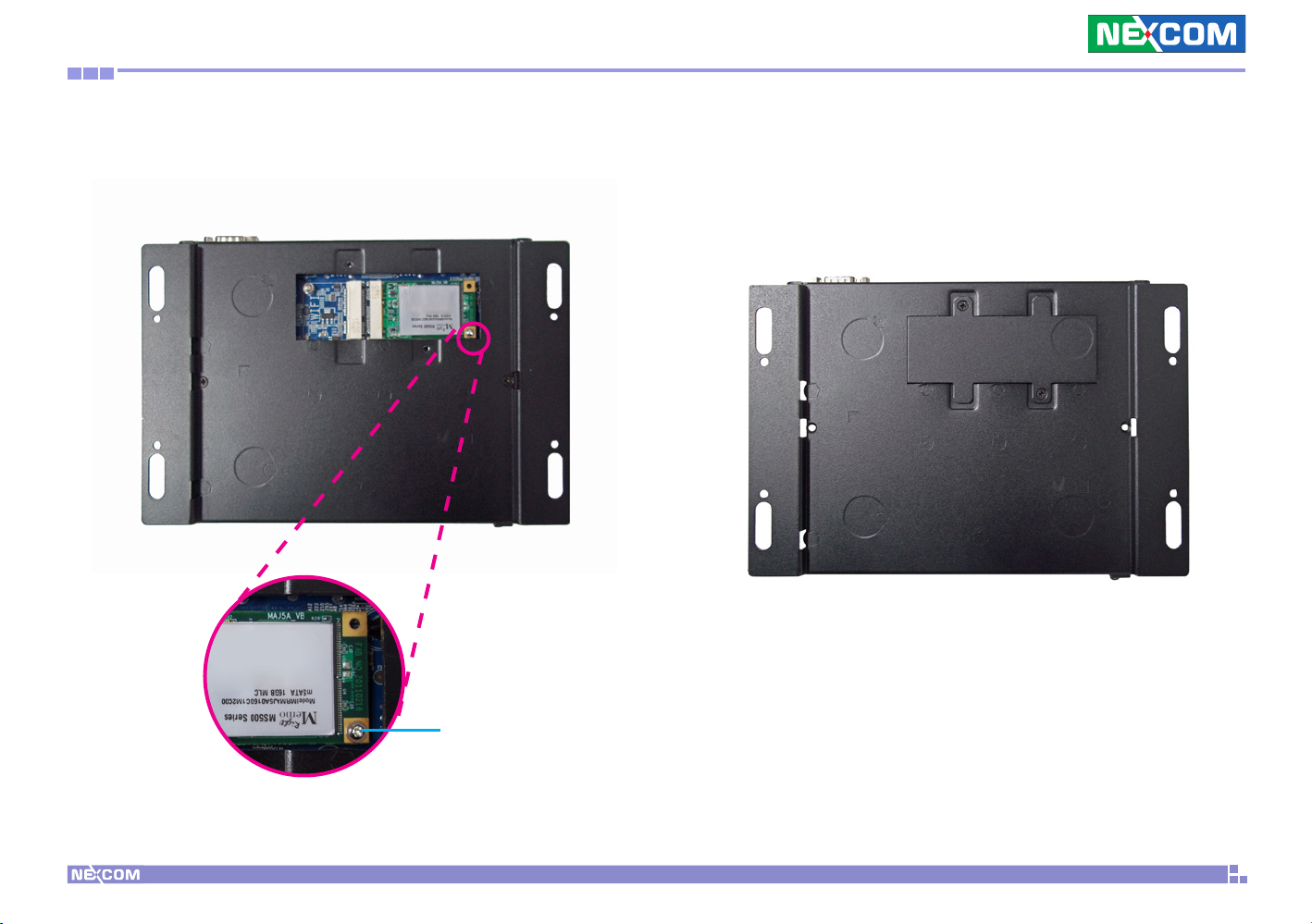

Installing a mSATA Storage Module .......................................................29

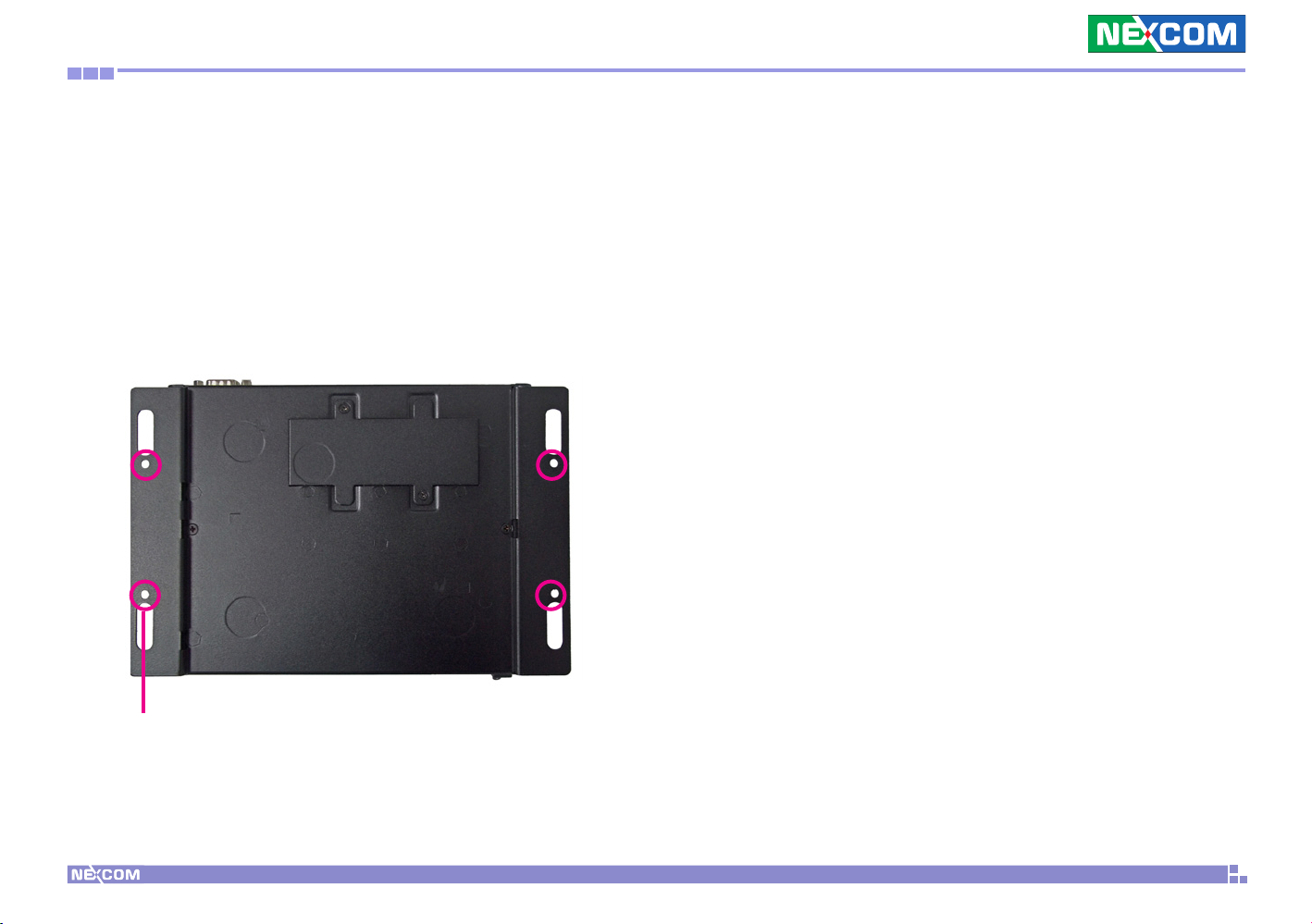

Installing Wallmount Brackets ...............................................................20

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................ 21

When to Configure the BIOS ................................................................21

Default Configuration ........................................................................... 21

Entering Setup ..................................................................................... 21

Legends ................................................................................................ 21

BIOS Setup Utility .................................................................................. 22

Main ..................................................................................................... 22

Advanced .............................................................................................23

PCI Subsystem Setting ........................................................................25

ACPI Settings ...................................................................................... 26

S5 RTC Wake Settings ........................................................................27

CPU Configuration .............................................................................28

USB Configuration .............................................................................. 29

Super IO Configuration ....................................................................... 30

PC Health Status ................................................................................. 31

Magic Control .......................................................................................32

Chipset ................................................................................................. 33

North Bridge Configuration ................................................................34

South Bridge Configuration ................................................................ 35

AMD Power Express Configuration .....................................................36

Boot .....................................................................................................37

Security .................................................................................................38

Exit .......................................................................................................39

Appendix A: Watchdog Timer

Introduction ........................................................................................40

Example Programs ..............................................................................40

iii

NDiS 127 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NDiS 127 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section describes how to keep the system CE compliant.

Declaration of Conformity

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NDiS 127 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NDiS 127 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

NDiS 127 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

NDiS 127 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

o

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

viii

NDiS 127 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing

CAUTION!CAUTION!

data.

Note: Provides additional information to complete a task easily.

ix

NDiS 127 User Manual

Preface

Global Service Contact InformationGlobal Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., Zhonghe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

x

NDiS 127 User Manual

Preface

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire, MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xi

NDiS 127 User Manual

Preface

PaCkage Contents

Before continuing, verify that the NDiS 127 package that you received is complete. Your NDiS 127 package should have all the items listed in the following

table.

Item P/N Name Specification Qty

1 602DCD0431X00 NDiS127 CD DRIVER MANUAL VER:1.0 JCL 1 2 6012200053X00 PE ZIPPER BAG #3 100x70mm,W/China RoHS SYMBOL 1 3 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1 4 601111A156X00 CARTON FOR NDiS126 YI GIA 316x212x120mm(INSIDE) B FLUTE 1 5 6013300311X00 EPE FOR NDiS126 SENTENEL 316x212x74mm 2 6 6012200049X00 ASG110 PE BAG 24x38cm 240x380x0.08mm 1 7 6014600665X00 (N)Input Rating Label For NDiS127 JAYRAY 120x40mm HTLSMI50 1 8 5044440031X00 RUBBER FOOT KANG YANG:RF20-5-4P 19.8x18x5.0mm 4 9 7400050001X00 POWER ADAPTER L.T.E.:LTE50E-S2-208 50W 12V/4.17A 1

xii

NDiS 127 User Manual

Preface

ordering information

The following provides ordering information for NDiS 127.

• NDiS 127 (P/N: 10W00012700X0)

AMD G-series Dual Core processor T56N 1.65GHz

AMD Radeon™ HD6320 GPU in processor AMD A55E Controller Hub

xiii

NDiS 127 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt introduCtion

Overview

• Powered by AMD G-series T56N Dual Core Accelerated Processing Unit,

NDiS 127 can play rich multimedia contents but consumes little power.

• Integrated with AMD Radeon™ HD6320 Graphic Processing Unit

in APU, NDiS 127 supports 1080P video playback and DirectX 11 to demonstrate high impactcontents through dual displays.

• NDiS 127 is housed in a maintenance-free fanless chassis with compact

size. NDiS 127 is designed to fulfill small form factors, low cost, high reliability and low power requirement in digital signage application.

Key Features

• AMD G-series T56N 1.65GHz Dual Core APU

• Integrated AMD Radeon™ HD6320 GPU

• Fanless and compact design

• Low power consumption

• 1 x Mini-PCIe slot for TV tuner/ WLAN support

• 1 x Mini-PCIe slot for mSATA support

• 4 x USB ports

• DirectX 11 support

1

NDiS 127 User Manual

Chapter 1: Product Introduction

Physical Features

Front panel

Power

LED

Power

Button

HDD

LED

Rear panel

VGA Line Out

12V

COM

HDMI

DC-in

USB

LAN MIC In

2

NDiS 127 User Manual

Chapter 1: Product Introduction

System Specifications

CPU Support

• AMD G-series Dual Core processor T56N 1.65GHz onboard

Chipset

• AMD A55E Controller Hub

Graphics

• AMD Radeon™ HD6320 GPU in processor

Main Memory

• 1 x 200pin SO-DIMM socket, support DDR3 800/ 1066/ 1333MHz

SDRAM with un-buffered and Non-ECC memory module up to 4GB

I/O Interface-Front

• ATX power on switch

• 1 x HDD status LED (yellow)

• 1 x power status LED (green)

I/O Interface-Rear

• +12V DC-in

• 1 x DB9 for RS-232

• 4 x USB

• 1 x RJ45 Gigabit LAN connector with LED

• 1 x Line-out/ 1x Mic-in

• 1 x HDMI

• 1 x DB15 VGA

• 2 x antenna hole for Wi-Fi or TV tuner module

Storage

• 1 x SATA 2.5” HDD

Dimensions

• 185mm (W) x 147mm (D) x 48.4mm (H) (7.1”x 5.7”x 1.9”) w/o wall mount bracket

Power Supply

• 1 x External 50W AC/ DC power adapter

• Input: 100~240VAC

• Output: +12VDC

Expansion

• 1 x Full Mini-PCIe for mSATA storage

• 1 x Half Mini-PCIe for WiFi / 3G / TV Tuner

Environment

• Operating Temperature: 0°C to +40°C

• Storage Temperature: -20°C to +80°C

• Humidity: 10 to 90% (Non-condensing)

Certification

• CE approval

• FCC Class A

3

NDiS 127 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

147

185

215.4

4

48.4

55

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all NDiS 127 series.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

- A Philips screwdriver

- A flat-tipped screwdriver

- A set of jewelers Screwdrivers

- A grounding strap

- An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the poweris off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electricity

▪ than dry environments. A grounding strap is warranted whenever

danger of static electricity exists.

5

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

6

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

3

2

1

3

2

7

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

NDiB 127

The figure on the right is the NDiB 127 motherboard which is the motherboard used in the NDiS 127 system. It shows the locations of the jumpers and connectors.

J

A VGA B F_USB C F_AUDIO1 D SPDIF

A

E SYS_FAN

F COM1 / COM2 G F_PANEL H SPEAKER

I CLR_CMOS

J CPU_FAN

B

C

D E F G

H

I

8

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

External Connectors Pin Definitions

This section provides descriptions, illustrations and pin definitions of the external connectors.

Connector Specification

12V System Power Connector

JP1

Warming Notice: This DC Jack is support 12V only, the inside diameter is 2mm, before you use, please well know about it in advance. And if you use others like 19V, it will damage the boards.

HDMI Type A Connector

HDMI

Pin Definition Pin Definition

1 TMDS Data2+ 2 TMDS Data2 Shield 3 TMDS Data2– 4 TMDS Data1+ 5 TMDS Data1 Shield 6 TMDS Data1– 7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0– 10 TMDS Clock+ 11 TMDS Clock Shield 12 TMDS Clock– 13 CEC 14 NC 15 SCL 16 SDA 17 DDC/CEC/HEC Ground 18 Power (VCC5) 19 Hot Plug Detect

9

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

VGA Connector

VGA

Pin Definition Pin Definition

1 RED 2 GREEN 3 BLUE 4 NC 5 Gnd 6 Gnd 7 Gnd 8 Gnd

9 VCC (VCC5) 10 Gnd 11 NC 12 DDC Data 13 HSYNC 14 VSYNC 15 DDC Clock

LAN connector

J2

Pin Definition Pin Definition

1 TCT 2 MDI33 MDI3+ 4 MDI25 MDI2+ 6 MDI17 MDI1+ 8 MDI0-

9 MDI0+ 10 TCTG 11 V3_3M 12 LED_ACT# 13 LED_1000# 14 LED_100#

10

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

LED HDD/PWR

LED

T1

B1

LED No. Function Description

T1 Power LED (Green) B1 Power LED (Yellow)

Audio Jack

Audio

Connector Function Description

Green Line Out

Pink Mic-IN

11

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

USB Port

USB1 / USB2

Pin Definition Pin Definition

1 VCC (VCC5) 2 DATA1-

3 DATA1+ 4 GND

5 VCC (VCC5) 6 DATA7 DATA+ 8 GND

RS232 Port

COM

Standard DB9 Connector

1

5

96

Pin Definition Pin Definition

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI

12

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors Pin Definitions

This section provides descriptions, illustrations and pin definitions of the internal connectors.

Clear CMOS Selection

CLR_CMOS

Jumper Status

1-2 Normal Operation (default) 2-3 Clear CMOS

Serial-ATA

SATA 1

Pin Definition Pin Definition

S1 GND S2 TX+ S3 TX- S4 GND S5 RX- S6 RX+ S7 GND P1 NC P2 NC P3 NC P4 GND P5 GND P6 GND P7 VCC5 P8 VCC5 P9 VCC5 P10 GND

P11 NC P12 GND P13 NC P14 NC P15 NC

13

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

Front Panel Audio Pin Header

F_Audio

Pin Definition Pin Definition

1 MIC IN_L 2 AGND 3 MIC2_R 4 NC 5 OUT2_R 6 MIC_JD 7 J_SEN 8 / 9 OUT_L 10 OUT_JD

Front Panel LED / Switch Pin Header

F_Panel

Pin Definition Pin Definition

1 HDD_LED+ 2 PWR_LED+

3 HDD_LED- 4 PWR_LED-

5 RESET 6 PWR_ON

7 RESET 8 PWR_ON

9 / 10 /

14

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

VGA Pin Header

VGA1

Pin Definition Pin Definition

1 VGA_ERD 2 DDC_DATA 3 GND 4 H-SYNC 5 VGA_GREEN 6 V-SYNC 7 GND 8 DDC_CLK 9 VGA_BLUE 10 5V

11 GND 12 GND

Warming Notice: Please well know about it, VGA cable have 1 Pin with Red colour, It is Pin

1. VGA cable Pin1 must connect to motherboard Pin1, if you connector wrong, it will damage or burn the VGA Cable.

Speaker Pin Header

Speaker

Pin Definition Explanation

1 5V VCC

2 / Empty

3 / Empty

4 SPEAKER Horn

15

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

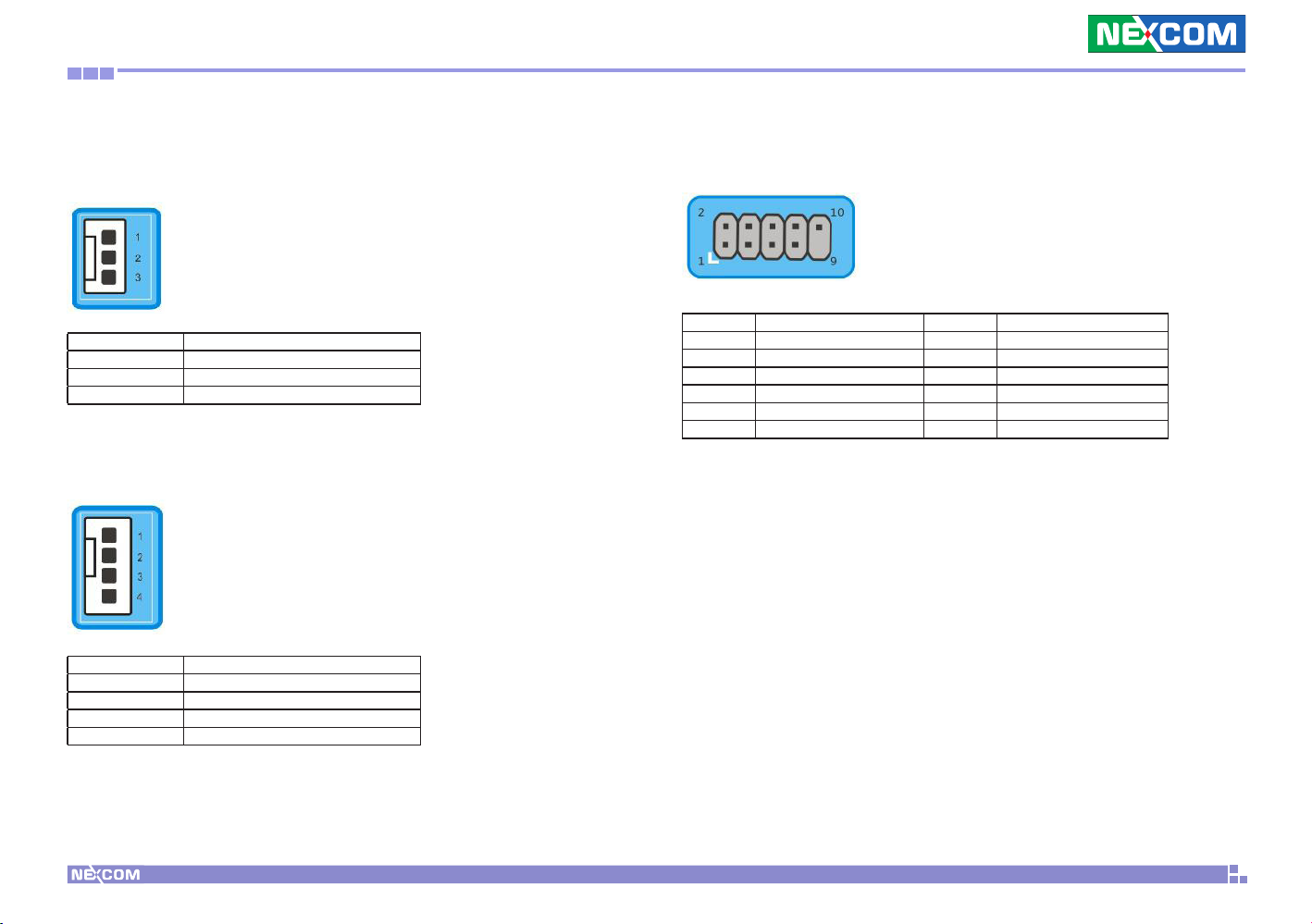

FAN Header

SYS_FAN

Pin Definition

1 GND 2 +12V 3 SIO_SYSFAN_SIO_TACH

CPU_FAN

Pin Definition

1 GND 2 +12V 3 SIO_CPUFAN_SIO_PWM 4 FAN Control

USB Port Header

F_USB

Pin Definition Pin Definition

1 VGA_ERD 2 DDC_DATA

3 GND 4 H-SYNC

5 VGA_GREEN 6 V-SYNC

7 GND 8 DDC_CLK

9 VGA_BLUE 10 5V 11 GND 12 GND

16

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

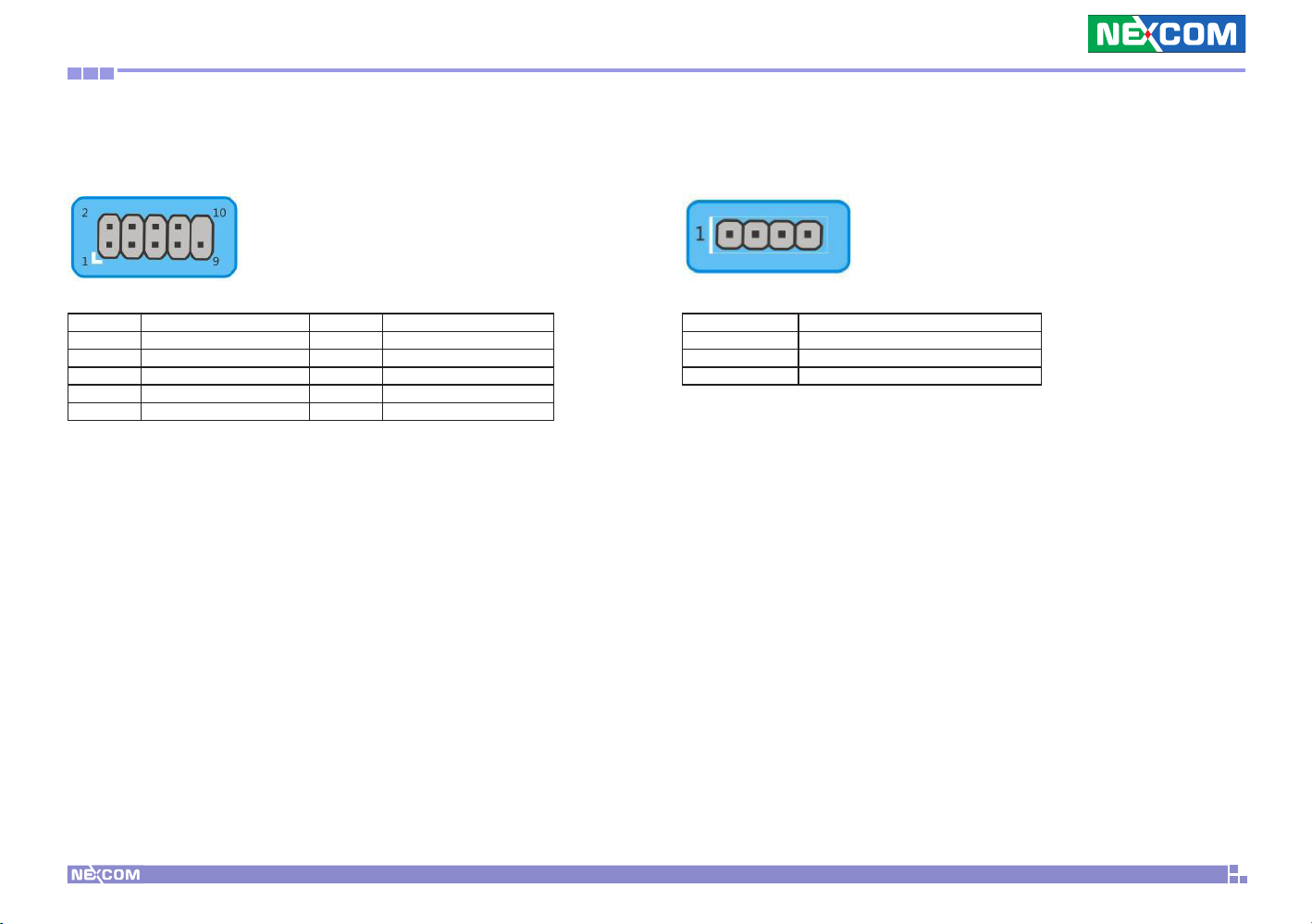

COM Header

COM1 / COM2

Pin Definition Pin Definition

1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI

SPDIF Header

SPDIF

Pin Definition

1 SPDIF_OUT

2-3 GND

4 SPDIF_IN

17

NDiS 127 User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe

CN1 / CN2

Pin Definition Pin Definition Pin Definition Pin Definition

1 WAKE# 2 +V3.3A_MIN 27 GND 28 +V1.5S_MIN 3 NC 4 GND 29 GND 30 SMB_CLK 5 NC 6 +V1.5S_MIN 31 PETn0 32 SMB_DATA 7 CLKREQ# 8 NC 33 PETp0 34 GND

9 GND 10 NC 35 GND 36 USB_D11 REFCLK- 12 NC 37 NC 38 USB_D+ 13 REFCLK+ 14 NC 39 +V3.3A_MIN 40 GND 15 GND 16 NC 41 +V3.3A_MIN 42 LED_WWAN# 17 NC 18 GND 43 NC 44 LED_WLAN# 19 NC 20 DISABLE# 45 NC 46 LED_WPAN# 21 GND 22 PERST# 47 NC 48 +V1.5S_MIN 23 PERn0 24 +V3.3A_MIN 49 NC 50 GND 25 PERp0 26 GND 51 NC 52 +V3.3A_MIN

18

NDiS 127 User Manual

Chapter 3: System Setup

CAUTION!

ChaPter 3: system setuP

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is

CAUTION!CAUTION!

1. The screws on the bottom of cover are used to secure the cover to the

off and disconnected from the power source to prevent electric shock or system damage.

chassis. Remove these screws and put them in a safe place for later use.

19

NDiS 127 User Manual

Chapter 3: System Setup

Installing a SO-DIMM

1. Loosen the mounting screws and remove the HDD bracket. Locate for the SO-DIMM socket on the board.

SO-DIMM Sockets

Mounting Screws

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

Ejector Tab

20

NDiS 127 User Manual

Chapter 3: System Setup

3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

4. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips down into the socket. The contact fingers on the edge of the module will almost completely disappear inside the socket.

The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Key

Notch

21

NDiS 127 User Manual

Chapter 3: System Setup

5. Align the mounting holes of the HDD bracket with the mounting studs on the board then use the provided mounting screws to secure the HDD bracket in place.

22

NDiS 127 User Manual

Chapter 3: System Setup

Installing a SATA Hard Drive

1. The drive bracket included in the chassis is used to hold a SATA hard

drive. Disassembly HDD bracket from system to install SATA Hard Drive.

2. Place and slide the SATA hard drive onto the drive bracket. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bracket.

23

Mounting Screw Holes

NDiS 127 User Manual

Chapter 3: System Setup

3. Locate for the SATA connector and the SATA power connector on the SATA drive.

SATA Data Connector

SATA Power Connector

4. Use the provided screws to secure the SATA drive in place.

Mounting Screw

24

NDiS 127 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

1. Remove bottom cover and locate for the Half Mini PCI Express slot on the board.

Mounting Screw

Mini PCI

Express Slot

For WiFi

2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

25

Wireless LAN Module

NDiS 127 User Manual

Chapter 3: System Setup

3. Push the module down then secure it with mounting screws. 4. Attach one end of the RF cable onto the WiFi module.

Mounting Screw

26

WiFi

Antenna

Jack

RF Cable

RF Cable Attached to the Module

NDiS 127 User Manual

Chapter 3: System Setup

5. Insert the 2 rings (ring 1 then ring 2) into the WiFi antenna jack. 6. Now mount the WiFi antenna jack to the WiFi antenna hole located at the rear panel of the chassis then tighten the rings.

Ring2 Ring1

27

NDiS 127 User Manual

Chapter 3: System Setup

7. Align the screw holes of the cover with the screw holes on the bottom

plate then use the provided mounting screws to secure the cover in place.

8. Now connect an external antenna to the WiFi antenna jack.

Antenna

28

NDiS 127 User Manual

Chapter 3: System Setup

Installing a mSATA Storage Module

1. Remove bottom cover and locate for the Half Mini PCI Express slot on the

board.

Mounting Screw

Mini PCI Express Slot For SSD

2. Insert the mSATA storage module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

29

NDiS 127 User Manual

Chapter 3: System Setup

3. Push the module down then secure it with mounting screws.

4. Align the screw holes of the cover with the screw holes on the bottom plate then use the provided mounting screws to secure the cover in place.

Mounting Screw

19

NDiS 127 User Manual

Chapter 3: System Setup

Installing Wallmount Brackets

The wallmount brackets provide a convenient and economical way of mounting the system on the wall.

Mount the system on the wall by fastening screws through the brackets mounting holes.

Fasten screws to

mount the system

to the wall

20

NDiS 127 User Manual

Chapter 4: BIOS Setup

ChaPter 4: Bios setuP

This chapter describes how to use the BIOS setup program for NDiS 127. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

21

NDiS 127 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series ofbeeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and waits for the following message during the POST:

TO ENTER SETUP BEFORE BOOT

PRESS <CTRL-ALT-ESC>

Press the <Del> key to enter Setup:

Legends

Key Function Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields. <Esc> Exits to the BIOS Setup Utility. + (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options

of the highlighted field. Tab Selects a field. <F1> Displays General Help. <F10> Saves and exits the Setup program. <Enter> Press <Enter> to enter the highlighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

21

NDiS 127 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Message: NDiS127 4MB Ver:1.00 2012-02-17 12:00:52 101

BIOS Information Project Version Build Date & Time

Memory Information Total Memory

System Language

System Time

System Date

Access Level

AAFX7 1000 x64 2012-02-17 12:00:52

2048MB (DDR3)

[English]

[18:05:47]

[Tue 10/05/2010]

Administrator

Chipset Boot

Save & ExitAdvanced Magic Control

SecurityMain

Set the Date. Use Tab to

switch between data elements.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

System Memory

This section displays general system memory size. The BIOS automatically detects the information in this section.

System Language

This section is used to choose the system default languages.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

22

NDiS 127 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Legacy OpROM Support

Launch PXE OpROM

Launch Storage OpROM

PCI Subsystem Setting ACPI Settings S5 RTC Wake Settings

CPU Conguration USB Conguration Super IO Conguration

H/W Monitor

Chipset Boot

[Disabled]

[Enabled]

Save & ExitAdvanced Magic Control

SecurityMain

Enable or Disable Boot

Option for Legacy Network

Devices.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Launch PXE OpROM

This section is used to enable or disable boot option for legacy network devices.

Launch Storage OpROM

This section is used to enable or disable boot option for legacy storage devices.

PCI Sub System Setting

This section is used to configure PCI, PCI-X and PCI Express settings.

ACPI Settings

Enables or disables the System ACPI parameters.

S5 RTC Wake Settings

This section is used to Enables or disables system to wake from S5 state using RTC alarm.

CPU Configuration

This section is used to view detailed CPU specifications and configure the CPU.

USB Configuration

This section is used to enable or disable the USB controller.

23

NDiS 127 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

H/W Monitor

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

24

NDiS 127 User Manual

Chapter 4: BIOS Setup

PCI Subsystem Setting

This section is used to configure PCI, PCI-X and PCI Express settings.

Advanced

PCI Bus Driver Version

PCI ROM Priority

PCI Common Settings

PCI Latency Timer VGA Palette Snoop PERR# Generation SERR# Generation

PCI Express Device Settings

Relaxed Ordering Extended Tag No Snoop Maximum Payload Maximum Read Request

PCI Express Link Settings

ASPM support Extended Synch

PCI ROM Priority

In Case of multiple Option ROMs (Legacy and EFI Compatible), specifies what PCI Option ROM to launch.

PCI Common Settings

•PCILatencyTimer Value to be programmed into PCI latency Timer Register.

V 2.03.00

[Legacy ROM]

[32 PCI Bus Clocks] [Enabled] [Disabled] [Disabled]

[Disabled] [Disabled] [Enabled] [Auto] [Auto]

[Disabled] [Disabled]

In Case of multiple Option

ROMs (Legacy and EFI Com-

patible), species what PCI

Option ROM to launch.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

•PERR#Generation This section is used to enable or disable PCI Device to generate PERR#

•SERR#Generation This section is used to enable or disable PCI Device to generate SERR#

PCI Express Device Setting

•RelaxedOrdering This section is used to enable or disable PCI Express Device relaxed

ordering

•Extended Tag If ENABLED allows device to use 8-bit Tag field as a requester.

•No Snoop This section is used to enable or disable PCI Express No Snoop option.

•Maximum Payload This section is used to set maximum payload of PCI Express Device or

allow system BIOS to select the value.

•Maximum Read Request Set maximum read request size of PCI Express Device or allow system

BIOS to select the value.

•ASPMSupport Set the ASPM level: Force L0 - FOrce all links to L0 State ; Auto - BIOS

auto configure ; DISABLE - Disables ASPM.

•VGAPaletteSnoop This section is used to enable or disable VGA Palette Registers Snooping.

•ExtendedSynch Allows generation of extend synchronization patterns.

25

NDiS 127 User Manual

Chapter 4: BIOS Setup

ACPI Settings

Enables or disables the System ACPI parameters.

Advanced

Enable ACPI Auto Conguration

Enable Hibernation ACPI Sleep State Lock Legacy Resources S3 Video Repost

[Disabled]

[Enabled] [S3 (Suspend to RAM)] [Disabled] [Disabled]

Select the highest ACPI sleep

state the system will enter

when the SUSPEND button

is pressed.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Enable ACPI Auto Configuration

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Enable Hibernation

This section is used to enable or disable system ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Lock Legacy Resources

This section is used to enable or disable lock of legacy resources.

S3 Video Repost

Enable or Disable S3 Video Repost.

26

NDiS 127 User Manual

Chapter 4: BIOS Setup

S5 RTC Wake Settings

This section is used to Enables or disables system to wake from S5 state using RTC alarm.

Advanced

Wake system with Fixed Time

Wake system with Dynamic Time

[Disabled]

Select the highest ACPI sleep

state the system will enter

when the SUSPEND button

is pressed.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Wake system with Fixed Time

This section is used to enable or disable system wake on alarm event. When enabled, system will wake on the HR:MIN:SEC specified .

Wake system with Dynamic Time

This section is used to enable or disable system wake on alarm event. When enabled, system will wake on thecurrent time + Increase minute(s).

27

NDiS 127 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to view detailed CPU specifications and configure the CPU.

Advanced

CPU Conguration

Limit CPUID Maximum

PSS Support PSTATE Adjustment PPC Adjustment NX Mode SVM Mode C6 Mode Node 0 Information

[Disabled]

[Enabled] [PState 0] [PState 0] [Enabled] [Enabled] [Disabled]

Select the highest ACPI sleep

state the system will enter

when the SUSPEND button

is pressed.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Limit CPUID Maximum

Disabled for Windows XP.

Wake system with Dynamic Time

This section is used to enable or disable the generation of ACPI_PPC, _PPS and _PCT objects.

PSTATE Adjustment

This section is used to adjust startup P-state level.

PPC Adjustment

This section is used to adjust _PPC object.

NX Mode

This section is used to enable or disable the NO-execute page protection Function.

SVM Mode

This section is used to enable or disable the CPU virtualization function.

C6 Mode

This section is used to enable or disable the C6.

Node 0 Information

View memory information related to node 0.

28

NDiS 127 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to enable or disable the USB controller.

Advanced

USB Conguration

USB Devices: 1 Keyboard

Legacy USB Support

EHCI Hand-off

USB hardware delays and time outs: USB transfer time-out Device reset time-out Device power-up delay

[Enabled]

[Disabled]

[Auto] [Auto] [Auto]

Enables legacy USB support.

Auto option disables legacy

support if no USB devices are

connected. DISABLE option

will keep USB devices avail-

able only for EFI applications

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Legacy USB Support

Enables legacy USB support. Auto option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications

EHCI Hand-off

This section is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

USB transfer time-out

The time-out value for control, Bulk, and Interrupt transfers.

Device reset time-out

USB mass storage device start unit command time-out.

Device power-up delay

Maximum time the device will take before it properly reports it self to the Host Controller. ‘Auto’ uses default value; for a Root port it is 100 ms, for a Hub port the delay is taken form Hub descriptor.

29

NDiS 127 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Super IO Conguration

Super IO Chip

Serial Port 0 Conguration

Serial Port 1 Conguration

ITE IT8718F

Set Parameters of Serial Port

0 (COMA)

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Serial Port 0 / 1 Configuration

Selects the IO/IRQ setting of the I/O devices.

30

NDiS 127 User Manual

Chapter 4: BIOS Setup

PC Health Status

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Advanced

Pc Health Status

CPU Temperature System Temperature System FAN Speed Core(V) +1.1(V) DIMM(V)

: +50 C : +52 C : N/A : +1.328 V : +1.136 V : +1.616 V

Set Parameters of Serial Port

0 (COMA)

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

CPU Temperature

Detects and displays the current temperature of the CPU temperature of the system.

System Temperature

Detects and displays the current temperature of the system temperature of the system.

System Fan Speed

Detects and displays the system Fan Speed.

Core(V) / +1.1(V) / DIMM(V) Voltage

The system voltage is monitored.

31

NDiS 127 User Manual

Chapter 4: BIOS Setup

Magic Control

Watch Dog Control

RTC Alarm Setting

RTC Alarm Control Onboard LAN Controller PCIE Slot WiFi Slot Restore on AC Power Loss HD Audio Azalia Device

OnChip SATA Channel

SATA Port0

SATA Port1

OHCI HC (Bus O Dev 18 FN O) USB PORT (J5_U)

Watch Dog Control This section is used to enable or disable the Watch Dog Function.

RTC Alarm Control This function is for setting the Date, Hour, Minute, and Second for your computer to boot up. During Disabled, you cannot use this function. During Enabled, Choose the Date, Hour, Minute, and Second.

Chipset Boot

[Disabled]

[Disabled] [Enabled] [Enabled] [Enabled] [Power On] [Enabled]

[Enabled] [Enabled]

WDC WD1600BEV...

[Enabled]

Not Present

[Enabled] [Enabled]

Save & ExitAdvanced Magic Control

SecurityMain

Watch Dog Function Enable/

Disable

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

PCIE Slot This section is used to enable or disable the PCIE Slot Function.

WiFi Slot This section is used to enable or disable the WiFi Slot Function.

Restore on AC Power Loss

Power Off When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system will automatically power-on.

Last State When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

HD Audio Azalia Device

Enable or disable the HD Audio Azalia Device function.

Onboard LAN Controller This section is used to enable or disable the Watch Dog Function.

SATA Port

Enable or disable the SATA Port function.

32

NDiS 127 User Manual

Chapter 4: BIOS Setup

Chipset

North Bridge

South Bridge

AMD Power Express Conguration

Chipset Boot

SecurityMain

Save & ExitAdvanced Magic Control

North Bridge Parameters

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

North Bridge

The North Bridge configuration menu configures the North Bridge parameters.

South Bridge

The South Bridge configuration menu configures the South Bridge parameters.

AMD Power Express Configuration

The AMD Power Express configuration menu configures the AMD Power Express configuration parameters.

33

NDiS 127 User Manual

Chapter 4: BIOS Setup

North Bridge Configuration

North Bridge Conguration

IOMMU Mode

Memory Clock

Memory Information

Memory Clock: 1066MHz Total Memory: 2048 MB (DDR3)

GFX Conguration Memory Conguration

Chipset

[Disabled]

[Auto]

IOMMU is supported on

LINUX based system to

convert 32bit I/O to 64bit

MMIO

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

IOMMU Mode

IOMMU is supported on LINUX based system to convert 32bit I/O to 64bit MMIO.

Memory Clock

This Option Allows User to select different memory clock. Default value is 400MHz.

GFX Configuration

The GFX configuration menu configures the GFX parameters.

•PSPPPolicy This Option Allows User to select different PCIe Speed Power Policy.

Memory Configuration

The Memory configuration menu configures the Memory parameters.

•IntegratedGraphics This Option Allows User to enable Integrate Graphic controller.

•BankInterleaving This Option Allows User to enable Bank Interleaving function.

34

NDiS 127 User Manual

Chapter 4: BIOS Setup

South Bridge Configuration

SB CIM Version :

SB SATA Conguration

SB USB Conguration

Chipset

1.1.0.5

Options for SATA Congura-

tion

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

SB SATA Configuration

This Option Allows User to select different SATA settings.

•OnChipSATAChannel This field is used to enable or disable the OnChip SATA channel.

•OnChipSATAType This Option Allows User to setup OnChip SATA Type.

•OnChipIDEMode This Option Allows User to setup OnChip IDE Mode.

SB USB Configuration

The USB configuration menu configures the USB Port parameters.

•USBDevicewakeupformS3orS4 This Option Allows User to enable USB deivce wkeup from S3 or S4.

35

NDiS 127 User Manual

Chapter 4: BIOS Setup

AMD Power Express Configuration

AMD Power Express Conguration

Special Graphics Features

Chipset

[Disabled]

Enable one of the special

AMD graphics feature (if sup-

ported) such as PowrXpress:

Discrete Gfx primary Inte-

grated Gfx primary due to

inter dependency the primary

Display menu will not be

available if any on e of these

are enabled

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Special Graphics Features

This Option Allows User to enable one of the special AMD graphics feature (if supported) such as PowrXpress: Discrete Gfx primary Integrated Gfx primary due to inter dependency the primary Display menu will not be available if any on e of these are enabled.

36

NDiS 127 User Manual

Chapter 4: BIOS Setup

Boot

Boot Conguration

Setup Prompt Timeout

Bootup Numlock State

QuietBoot

CSM16 Module Version

GateA20 Active Option ROM messages Interrupt 19 Capture

Boot Option Priorities

Boot Option #1

Hard Drive BBS Priorities

Set Prompt Time out

Number of second to wait for setup activation key. 65535(0XFFFF) means indefinite waiting.

Bootup Numlock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Boot

Chipset

3

[On]

[Enabled]

07.63

[Upon request] [Force BIOS] [Disabled]

[SATA: WDC:WD16...]

SecurityMain

Save & ExitAdvanced Magic Control

Number of second to wait

for setup activation key.

65535(0XFFFF) means inde-

nite waiting.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Quiet Boot When enabled, the BIOS will display the OEM logo instead of POST message during POST.

GateA20 Active This option is iseful when any RT code is executed above 1MB. UPON REQUEST - GA20 can be disabled using BIOS services. ALWAYS - Do not allow disabling GA20.

Option ROM messages Set display mode for Option ROM.

Interrupt 19 Capture When enabled, it will allows option ROMs to trap Int 19.

BootOption#1 Use the boot options to select the available devices the system boots from.

Hard Drive BBS priorities Use the Hard Disk Drive BBS priorities options to set the order of the legacy devices in this group.

37

NDiS 127 User Manual

Chapter 4: BIOS Setup

Security

Password Description If ONLY the administrator’s password is set, then this only limits access to setup and is only asked for when entering Setup. IF ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter setup. In Setup the user will have Administrator rights. The password must be 3 to 20 characters long.

Administrator Password

User Password

Chipset Boot

Change Supervisor Password

This field is used to set or change the supervisor password. To set a new

Save & ExitAdvanced Magic Control

SecurityMain

Set Setup Administrator

Password

password:

1. Select the Change Supervisor Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

To clear the password, select Change Supervisor Password then press <Enter>.

The Password Un-installed dialog box will appear.

Change User Password

This field is used to set or change the user password. To set a new password:

1. Select the Change User Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

38

NDiS 127 User Manual

Chapter 4: BIOS Setup

Exit

Main

Save Changes and Exit Discard Change and Exit Save Changes and Reset Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

SATA: WDC WD1600BEVT-00A23T0

Launch EFI Shell form lesystem device

Chipset Boot

Security

Save & ExitAdvanced Magic Control

Attempts to launch EFI Shell

application (Shellx64.e)

from one of the available

le system devices.

← → Select Screen ↑↓ Select Item

+- Change Opt.

F1 General Help

F7 Previous Values

F10 Save and Exit

ESC Exit

Save Changes and Exit To save the changes and exit the Setup utility, select this field then press<Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.

Discard Changes and Exit To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Save Changes and Reset Reset the system after saving changes.

Discard Changes and Reset Reset system setup without saving any changes.

Save Changes To save the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to save all changes made.

Discard Changes To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Restore Defaults Restore / Load the default values from the BIOS ROM.

Launch EFI Shell from filesystem device Attempts to launch EFI Shell application (Shellx64.efi)from one of the available file system devices.

39

NDiS 127 User Manual

Appendix A: Watchdog Timer

aPPendix a: WatChdog timer

Example ProgramsIntroduction

NDiS 127 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments. The watchdog timer provides the following functions for user programming:

•Timercanbesetfrom1to255secondsor1to255minutes.

•Generatesaninterruptorresetssignalifthesoftwarefailstoresetthe

•Timeraftertime-out.

Before using Watch Dog Timer, it must enter Watch Dog Timer programming mode first (STARTPROG). After the operation of the Watch Dog Timer, it will need to exit the WDT (ENDPROG).

WDT program need to follow these steps:

1. Enter WDT programming mode

2. Set the mode of WDT ; Start the WDT ; ON / OFF WDT

3. Exit WDT programming mode

#define INDEXP 0x2e

#define DATAP 0x2f

//Super I/O Watchdog

#define STARTPROG {

outportb(INDEXP,0x87);

outportb(INDEXP,0x01);

outportb(INDEXP,0x55);

}

#define ENDPROG{outportb(INDEXP,0x07);

outportb(DATAP,0x02);

outportb(INDEXP,0x02);

outportb(DATAP,0x02);

}

#define SELEDEV(x) { outportb(INDEXP,7); outportb(DATAP,x); }

#define WRITEREG(reg,val) {

40

NDiS 127 User Manual

Appendix A: Watchdog Timer

outportb(INDEXP,reg);

outportb(DATAP,val); }

//1.Initialize Watchdog device

short SIOWTD_Setup(short irq)

{

//Start programming Watchdog

STARTPROG

//Activate the Watchdog Device

SELEDEV(7) //Select Logical device7

WRITEREG(0x30,0x01) //Activate the device

//end programming watchdog

ENDPROG

return 0;

}

//2.start Watchdog to count

short SIOWTD_Enable(short time,short unit)

/*unit=0:second,=1:minutes */

STARTPROG

SELEDEV(7) //logical device 7

/ /lect Watchdog Timer clock

switch(unit)

{

case 0:

//BIT7=1,secondes;BIT6=1 enable,BIT6=0 disable

WRITEREG(0x72,0xC0)

break;

case 1:

//BIT7=0,minutes BIT6=1 enable,BIT6=0 disable

WRITEREG(0x72,0x40)

break;

default:

break;

}

WRITEREG(0x73,time) //t timeout value

{

if(time<1 || time>255) return -1;

if(unit<0 || unit>1) return -1;

//start programming watchdog

//end programming watchdog

ENDPROG

return 0;

}

41
