User Manual

Gigabit Ethernet Smart Managed Plus Switches

Models

GS105Ev2

GS105PE

GS108Ev3

GS108PEv3

GS116Ev2

GS305E

GS308E

JGS516PE

JGS524Ev2

JGS524PE

NETGEAR, Inc.

350 E. Plumeria DriveFebruary 2019 San Jose, CA 95134, USA202-11700-05

Gigabit Ethernet Smart Managed Plus Switches

Support

Thank you for purchasing this NETGEAR product. You can visit https://www.netgear.com/support/ to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources.

Compliance and Conformity

For regulatory compliance information including the EU Declaration of Conformity, visit https://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

Do not use this device outdoors. If you connect cables or devices that are outdoors to this device, see http://kb.netgear.com/000057103 for safety and warranty information.

Trademarks

Revision History

Number

February 2019202-11700-05

October 2018202-11700-04

CommentsPublish DatePublication Part

Added new models GS305E and GS308E

•

Added the chapter Hardware on page 7 and information about status LEDs

• for each model in Status LEDs on page 9.

Added technical specifications for each model in Technical Specifications on

• page 77.

Added a note to Manage Access Control on page 64 to state that models GS108Ev3 and GS108PEv3 do not support access control.

(Continued)

Number

Gigabit Ethernet Smart Managed Plus Switches

CommentsPublish DatePublication Part

October 2018202-11700-03

•

Changed the manual name from ProSAFE Gigabit Web Managed (Plus)

Switches User Manual to Gigabit Ethernet Smart Managed Plus Switches User

Manual.

Added Safety Instructions and Warnings on page 12.

•

Revised Configure the Switch on page 16.

•

Revised Access a Switch That Is Connected to a Network on page 17.

•

Revised Install the ProSAFE Plus Utility on page 19.

•

Added Use the NETGEAR Switch Discovery Tool to Access the Switch on page

•

21.

Added Use the NETGEAR Insight Mobile App to Discover the Switch on page

•

22.

Added Change the Language on page 23, including Change the Language

• of the Local Browser Interface on page 24 and Change the Language for the

Local Browser Interface by Installing Another Firmware Version on page 24.

Added Manage Access Control on page 64 including Add Devices to the

• Access Control Table on page 64 and Remove Devices From the Access

Control Table on page 65.

Added PoE Considerations for Switches That Support PoE on page 69.

•

Added PoE Troubleshooting Suggestions on page 73.

•

Removed references to the resource CD.

•

Made multiple minor changes.

•

March 2017202-11700-02

Made corrections to Specify a Port PVID for an 802.1Q-Based VLAN on page

36.

First publication.August 2016202-11700-01

Chapter 1 Hardware

Supported Switch Models...................................................................8

Status LEDs............................................................................................9

Models GS105Ev2, GS108Ev3, GS116Ev2, GS305E, and GS308E

LEDs...................................................................................................9

Model GS105PE LEDs......................................................................9

Models GS108PEv3 LEDs.............................................................10

Model JGS524Ev2 LEDs................................................................11

Models JGS516PE and JGS524PE LEDs.....................................11

Safety Instructions and Warnings.....................................................12

Chapter 2 Get Started

Configure the Switch..........................................................................16

Access the Switch Using a Web Browser.........................................16

Access a Switch That Is Connected to a Network......................17

Access a Switch That Is Off-Network...........................................18

Access the Switch With the ProSAFE Plus Utility............................18

Install the ProSAFE Plus Utility......................................................19

Access and Configure the Switch Using the ProSAFE Plus

Utility................................................................................................19

Use the NETGEAR Switch Discovery Tool to Access the Switch....21

Use the NETGEAR Insight Mobile App to Discover the Switch....22

Change the Switch Password............................................................22

Change the Language.......................................................................23

Change the Language of the Local Browser Interface..............24

Change the Language for the Local Browser Interface by Installing

Another Firmware Version............................................................24

Chapter 3 Use VLANS for Traffic Segmentation

VLAN Overview...................................................................................28

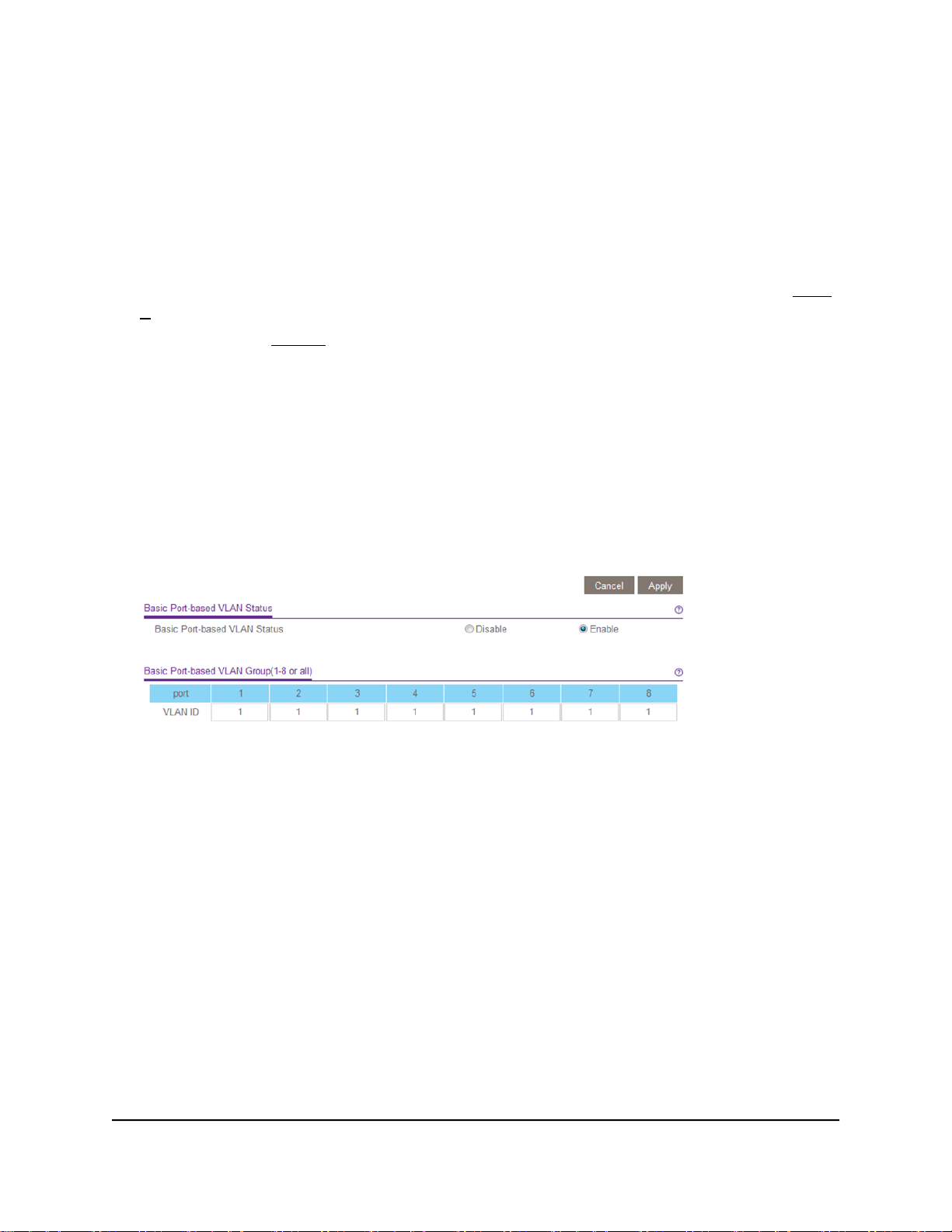

Create Basic Port-Based VLANs........................................................28

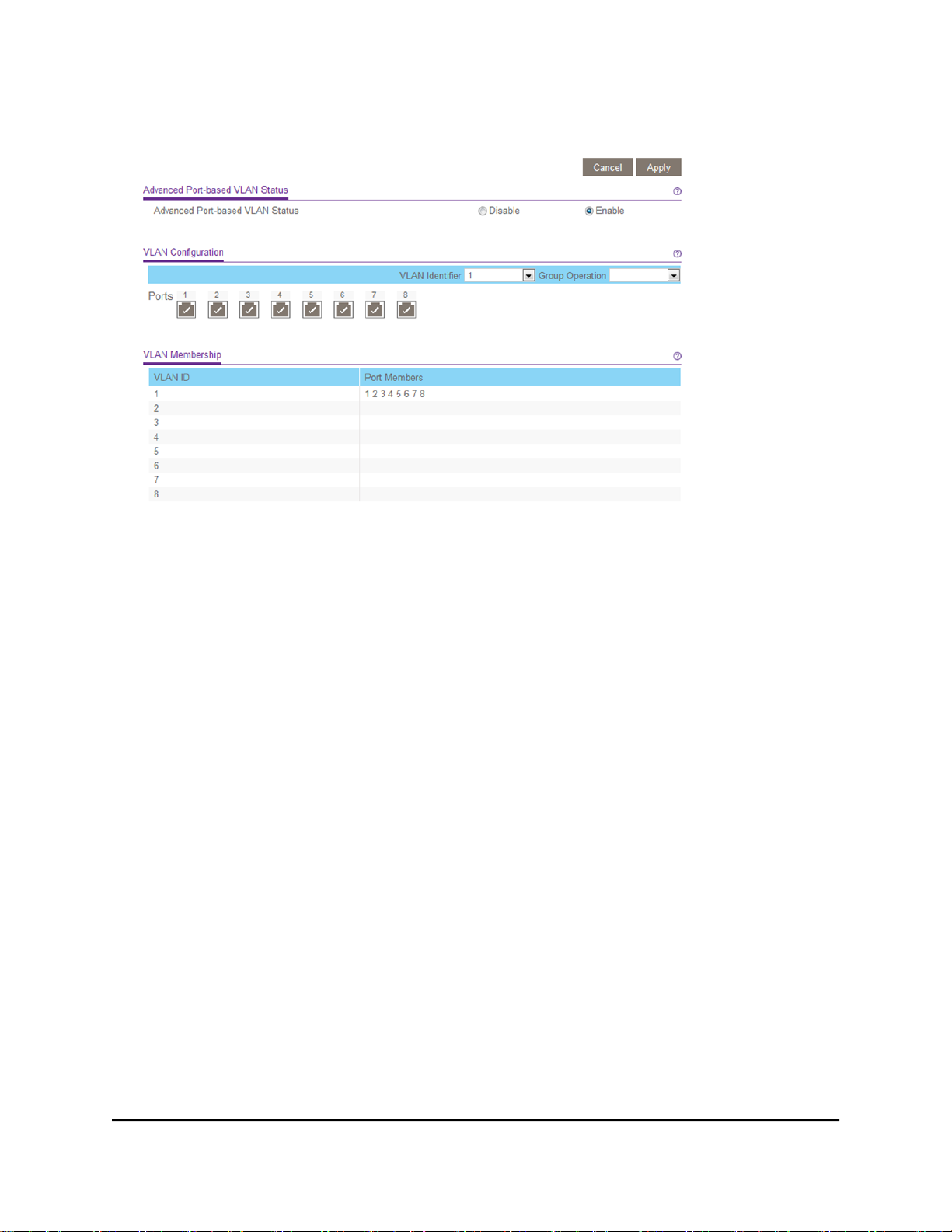

Assign Ports to Multiple Port-Based VLANs....................................30

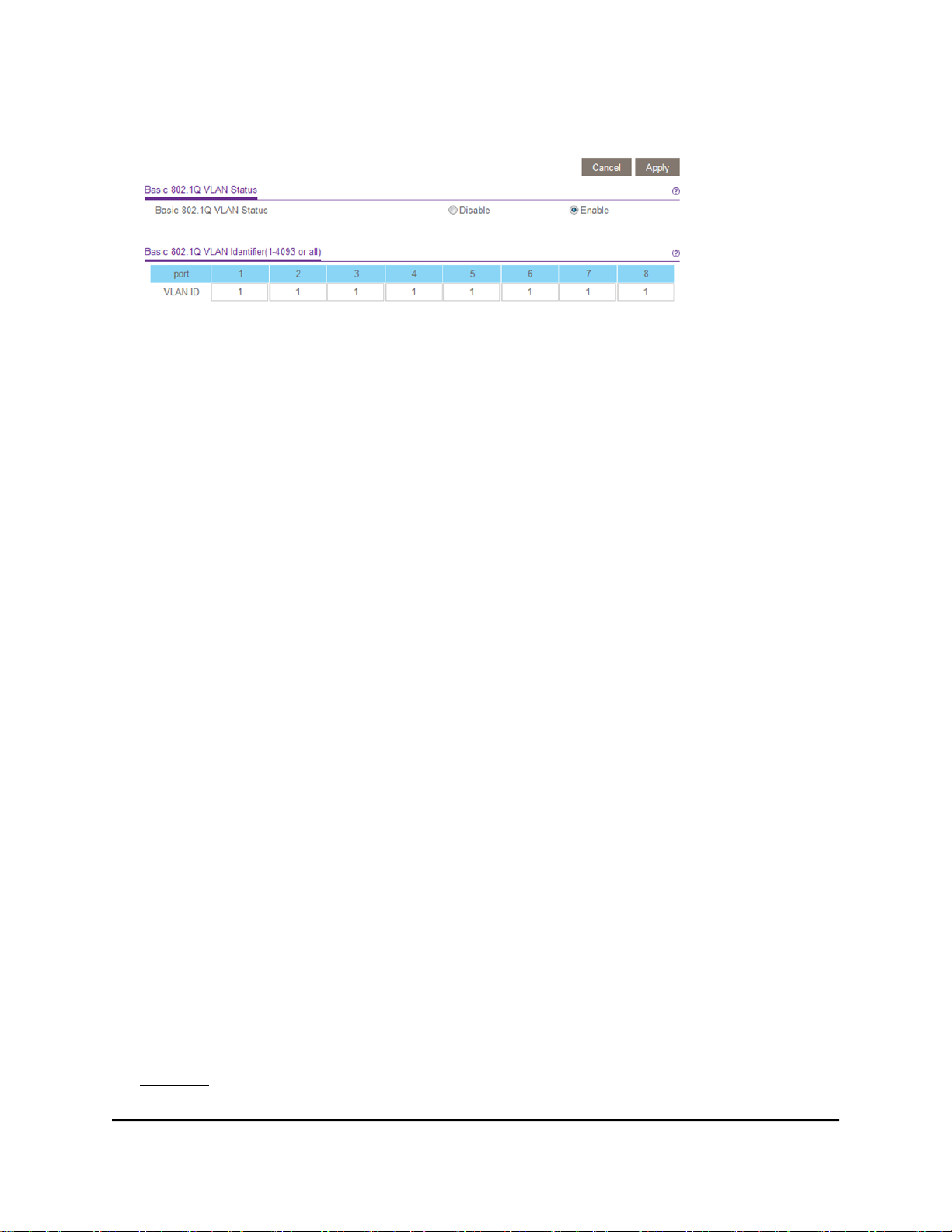

Create 802.1Q-Based VLANs in a Basic Configuration.................32

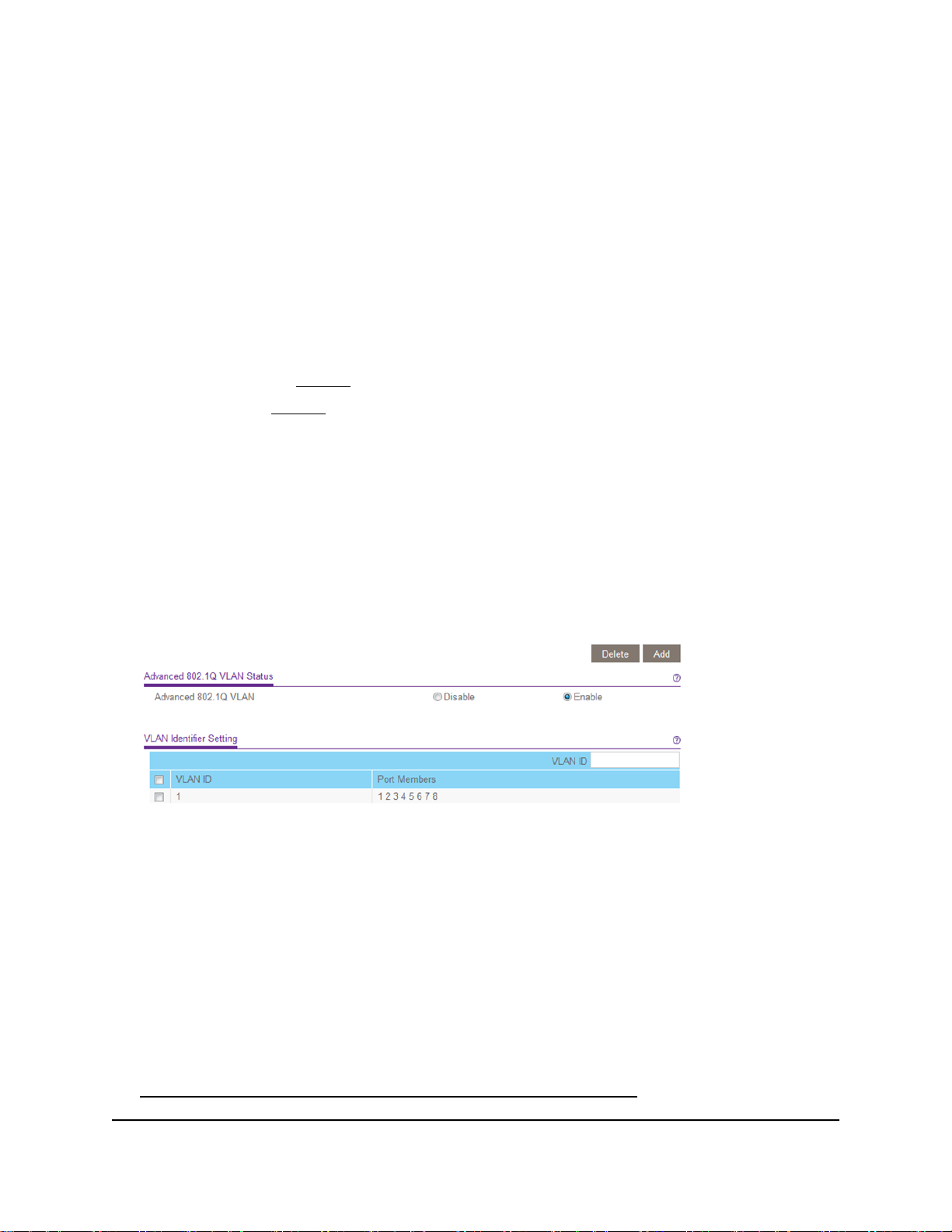

Create 802.1Q-Based VLANs in an Advanced Configuration......33

Add Tagged or Untagged Ports to an 802.1Q-Based VLAN........35

Gigabit Ethernet Smart Managed Plus Switches

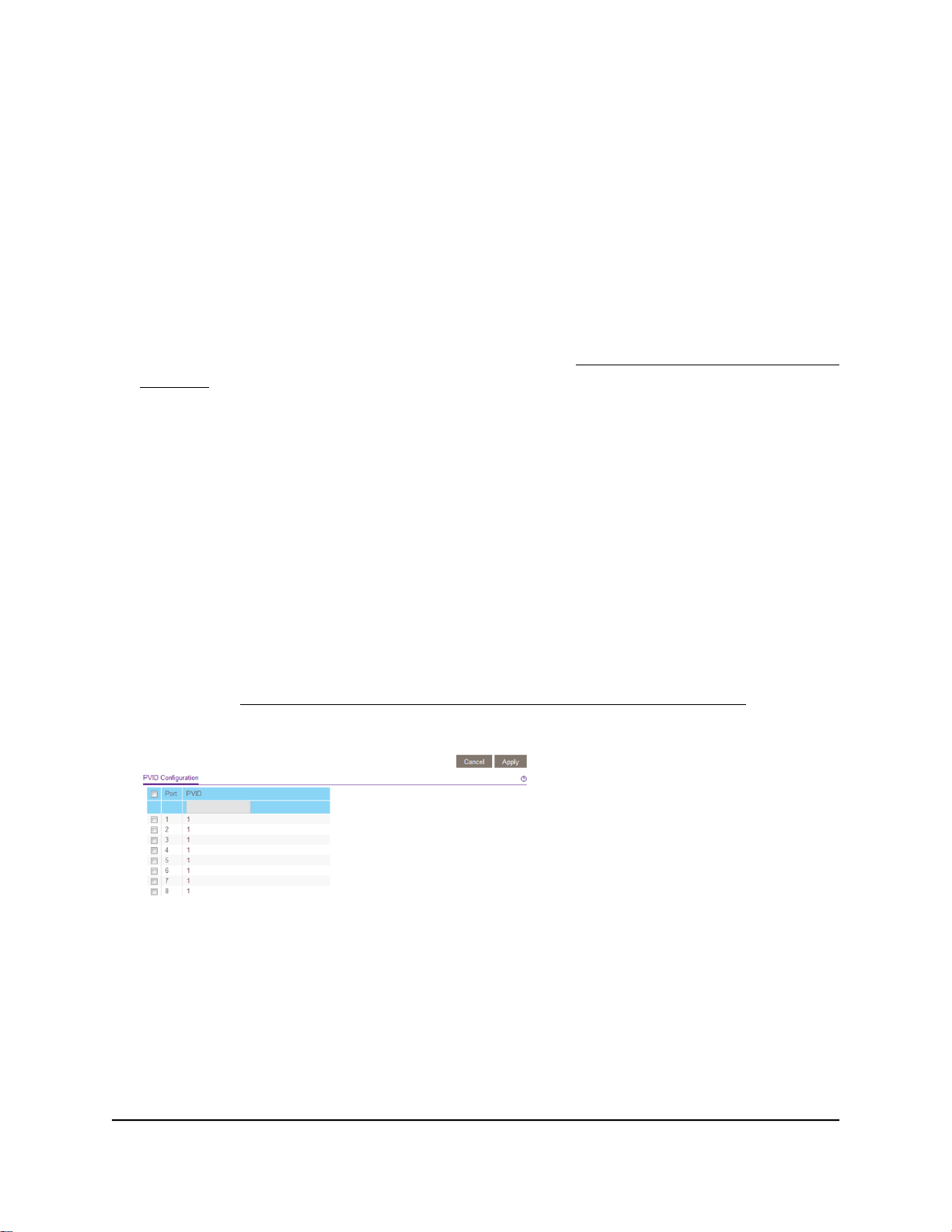

Specify a Port PVID for an 802.1Q-Based VLAN.............................36

Chapter 4 Optimize Performance With Quality of Service

Enable 802.1p/DSCP-Based Quality of Service..............................39

Configure Port-Based Quality of Service.........................................40

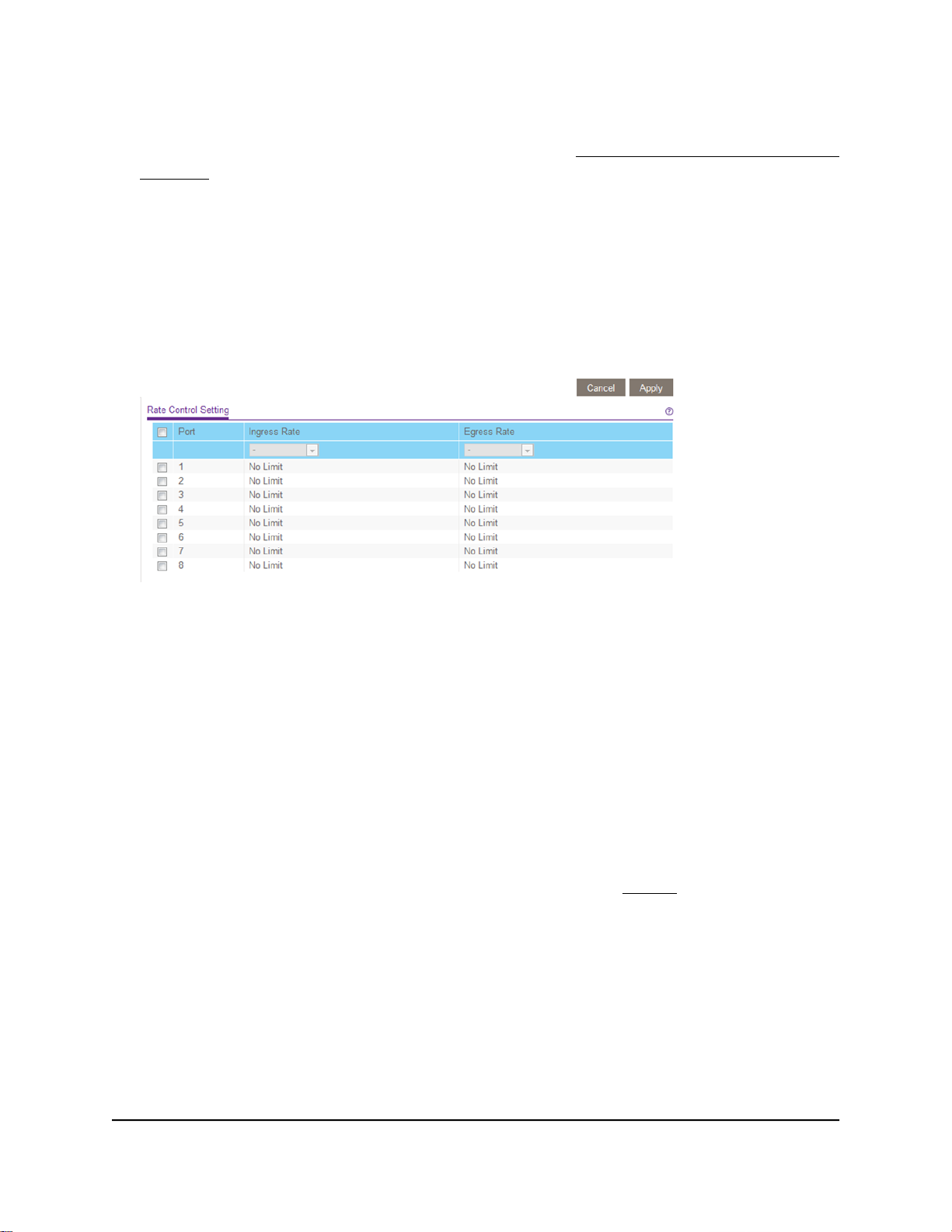

Set Up Rate Limiting...........................................................................41

Set Up Broadcast Filtering.................................................................42

Chapter 5 Manage Network Settings

Specify IP Address Settings for the Switch......................................46

Use Browser-Based Access to Specify the Switch IP Address...46

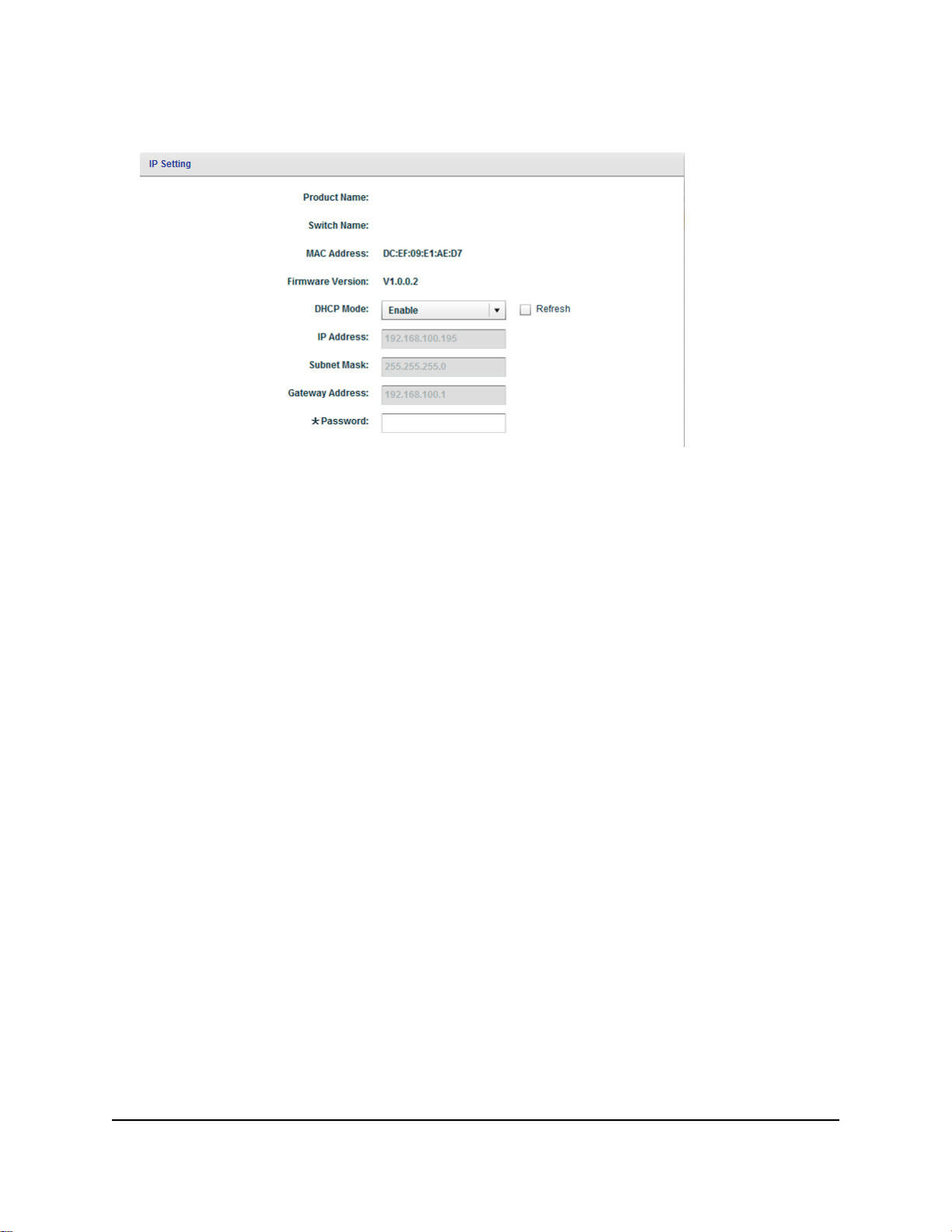

Use the ProSAFE Plus Utility to Specify the Switch IP Address.47

Manage Multicast Traffic With IGMP Snooping..............................48

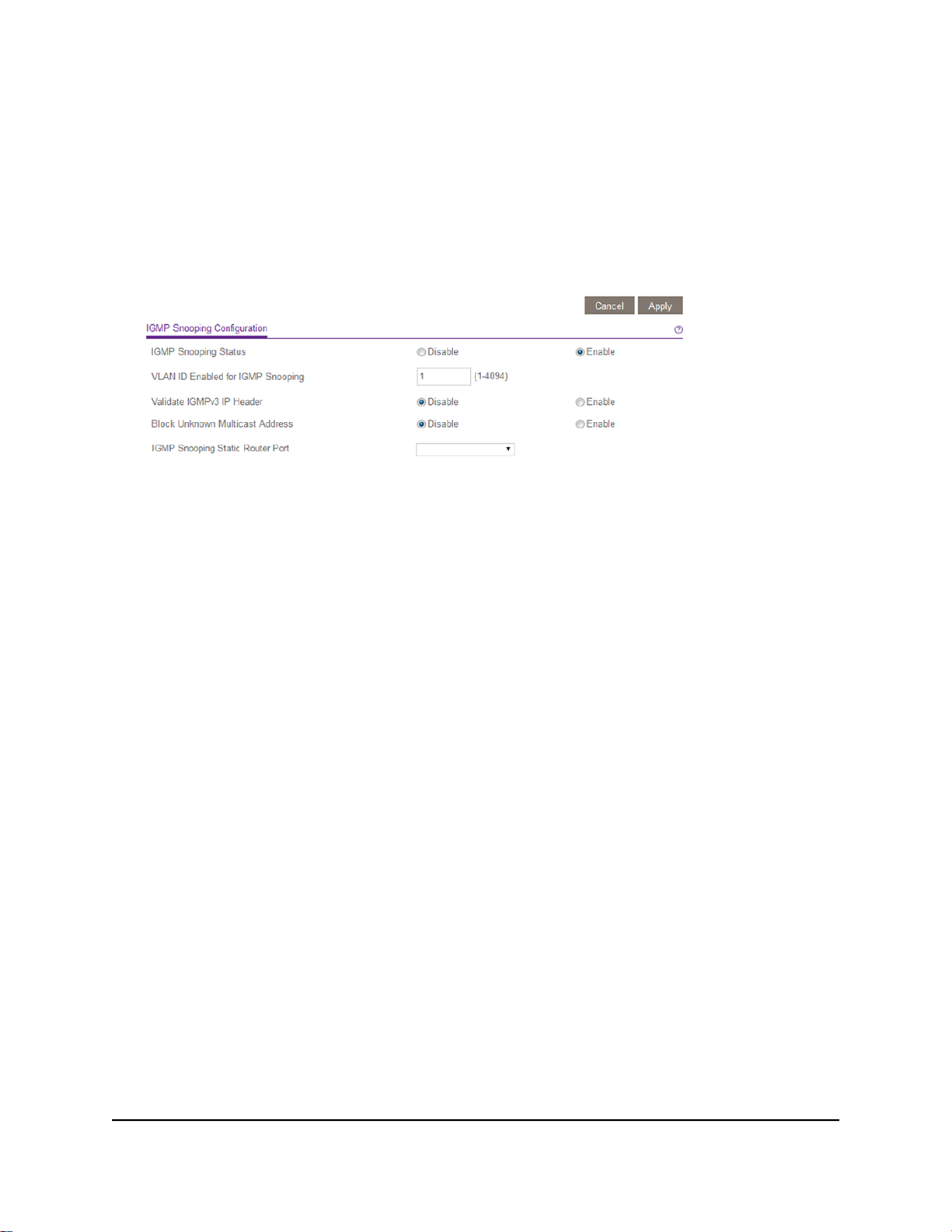

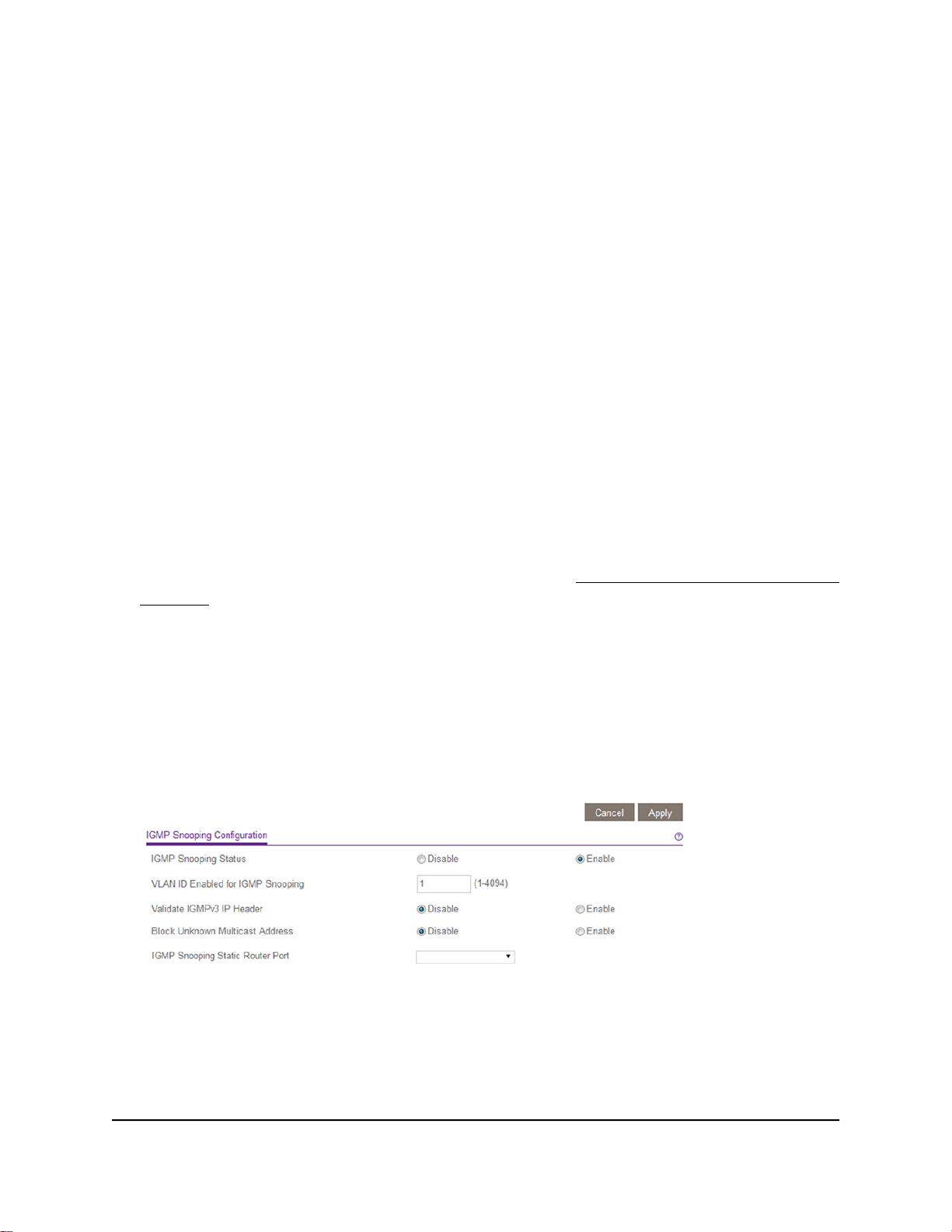

Customize IGMP Snooping...........................................................49

Specify a VLAN for IGMP Snooping.............................................50

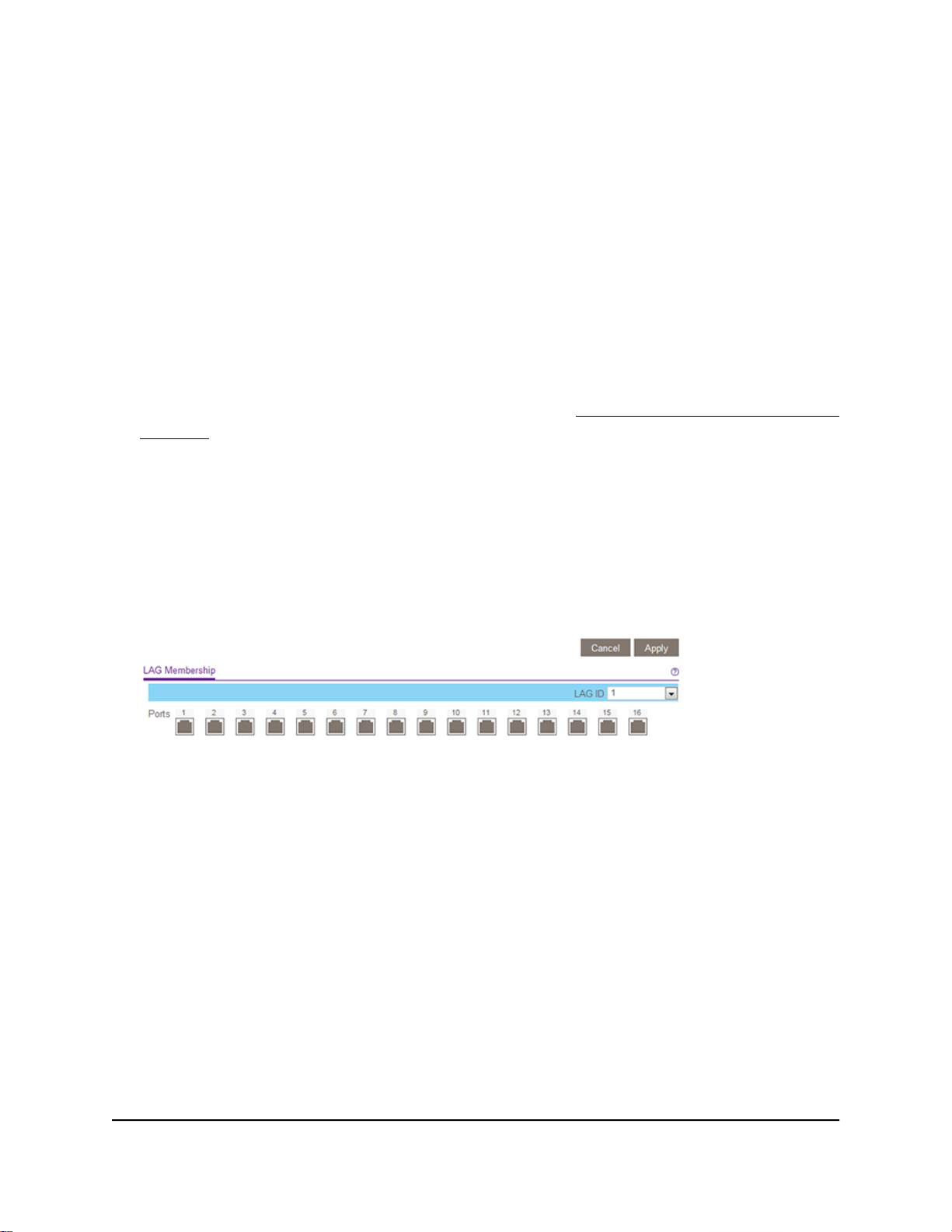

Set Up Link Aggregation Groups.....................................................51

Chapter 6 Manage and Monitor the Switch

Manage Flow Control........................................................................55

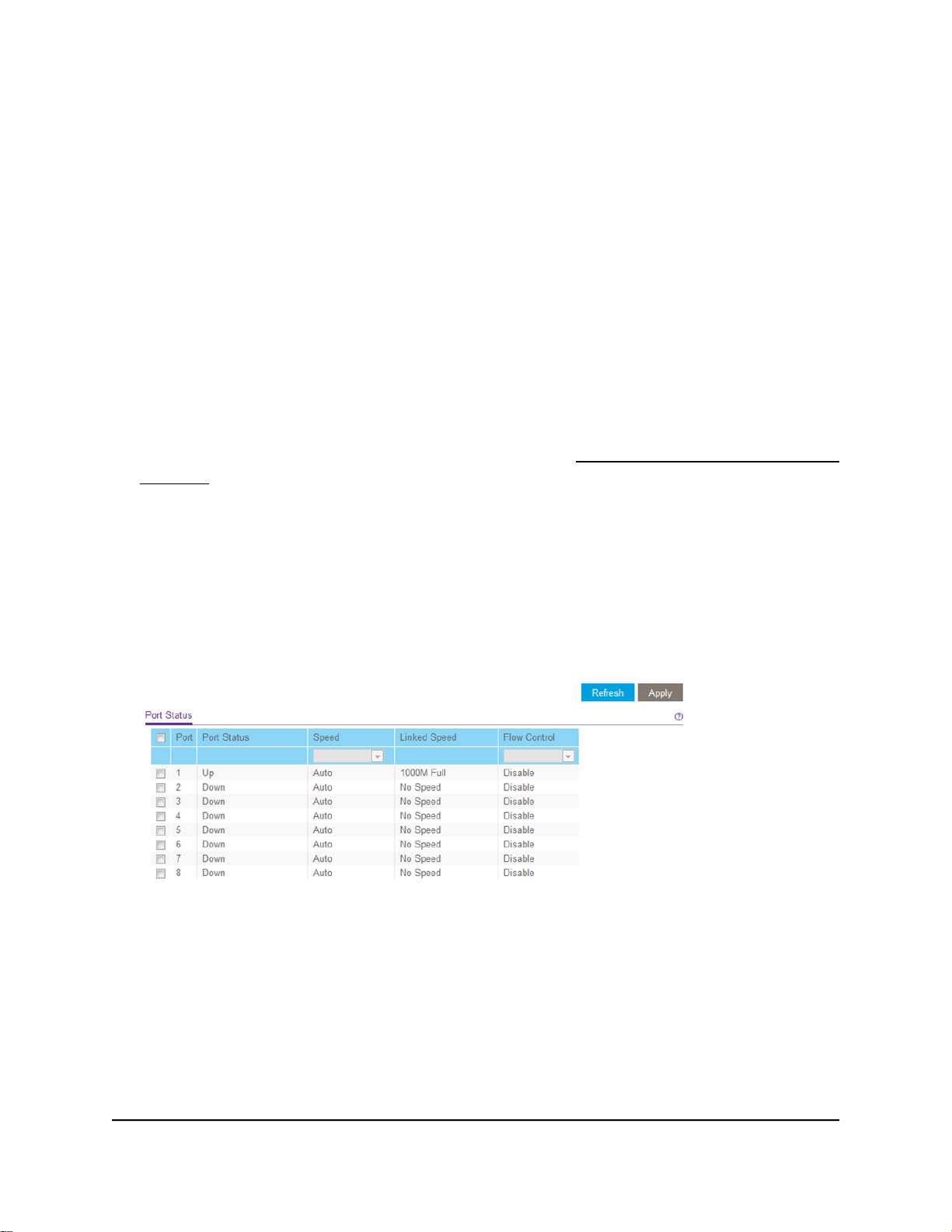

Manage the Port Speed and the Port Status...................................56

Enable Loop Detection......................................................................57

Manage Power Saving Options........................................................58

Download and Update the Firmware..............................................59

Reboot the Switch...............................................................................61

Save the Switch Configuration..........................................................61

Restore a Saved Switch Configuration.............................................62

Restore Factory Default Settings......................................................63

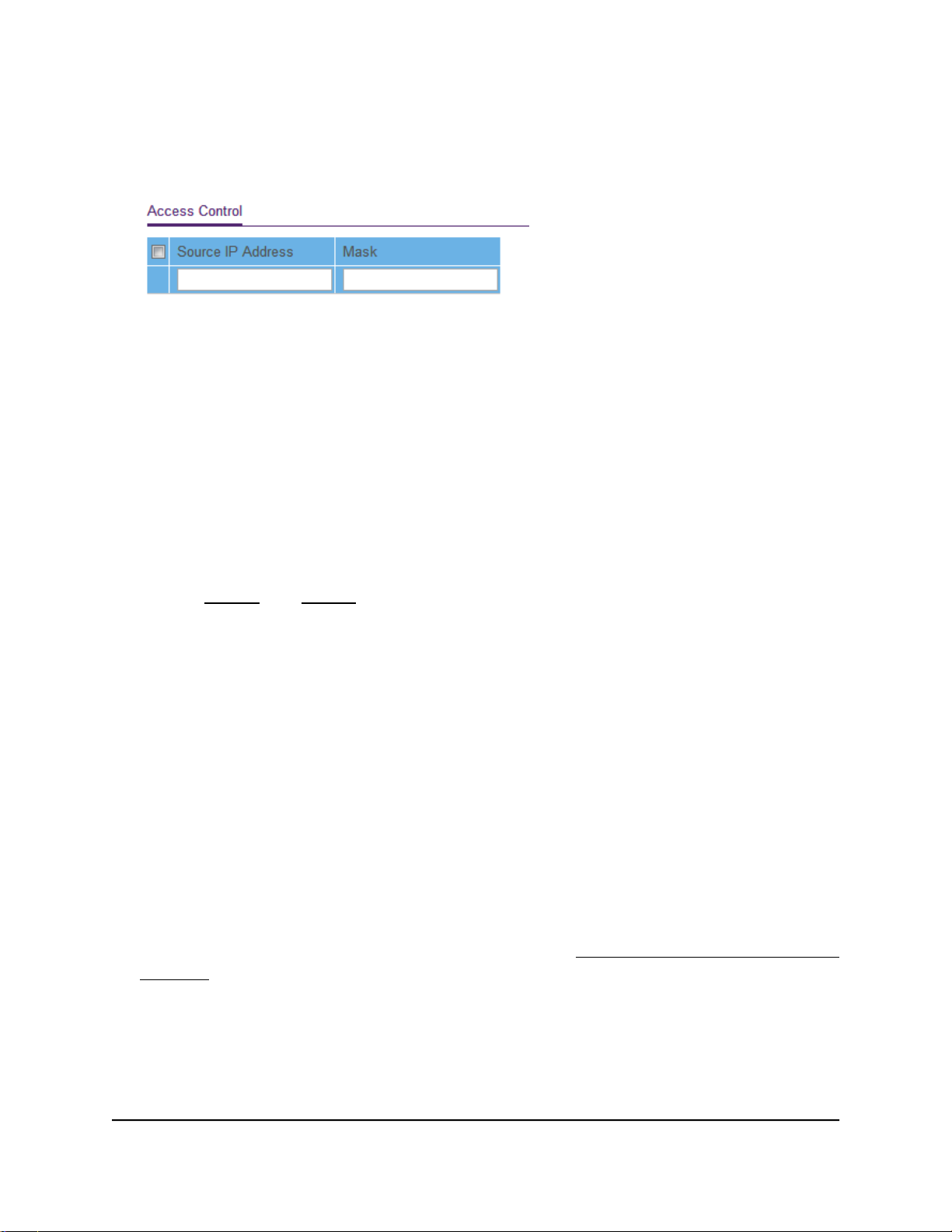

Manage Access Control.....................................................................64

Add Devices to the Access Control Table..................................64

Remove Devices From the Access Control Table......................65

Enable Port Mirroring.........................................................................66

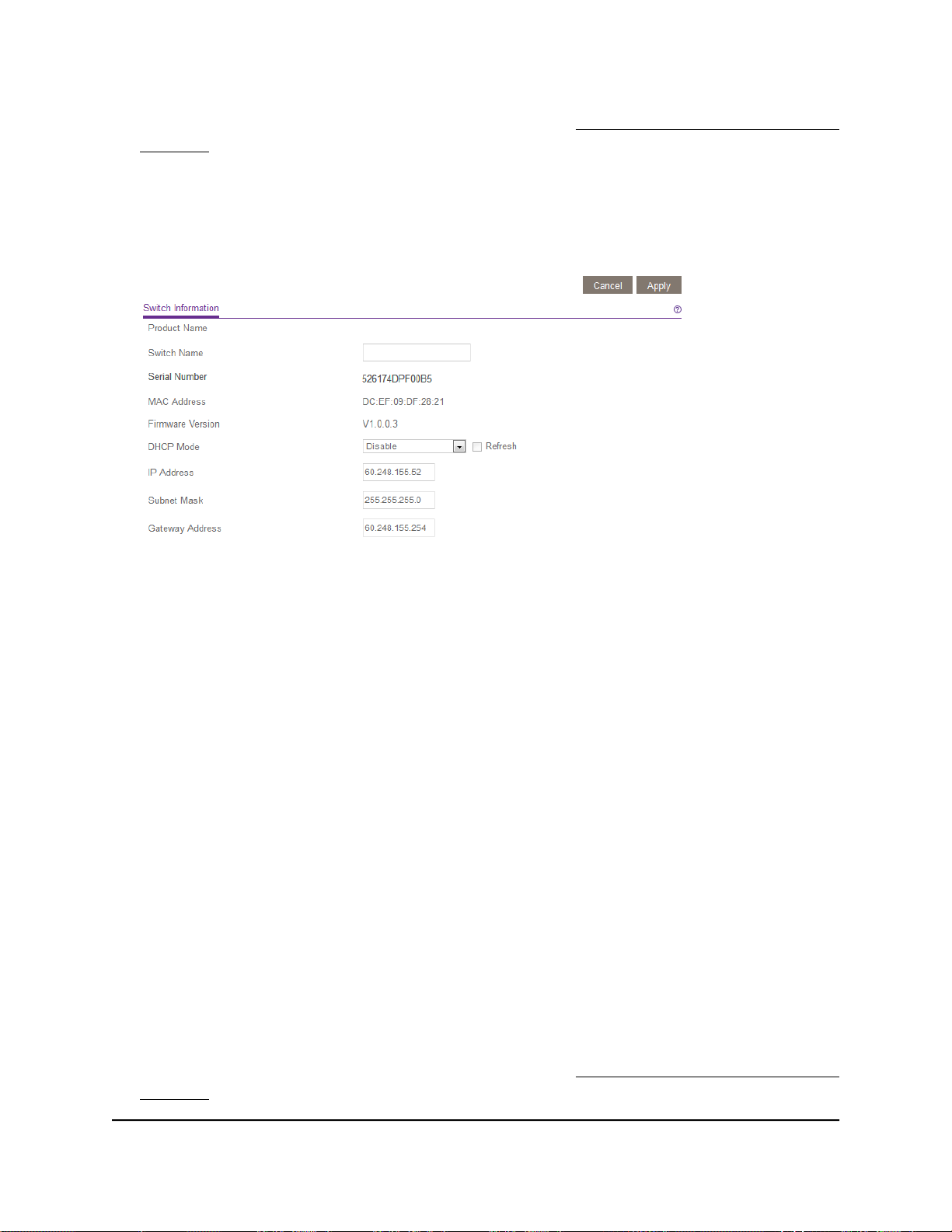

View Switch Information or Change the Switch Device Name.....67

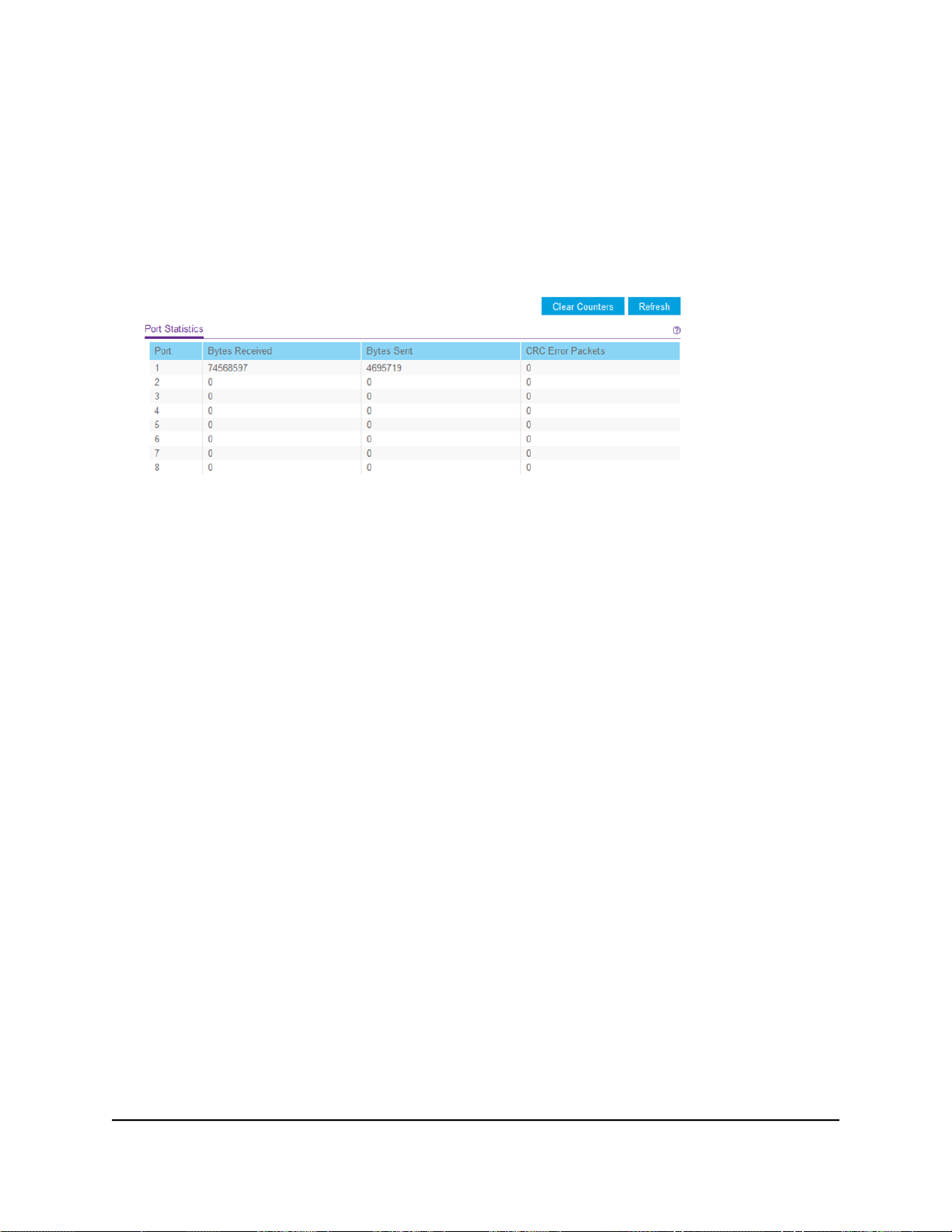

View or Clear the Port Statistics........................................................68

PoE Considerations for Switches That Support PoE......................69

Chapter 7 Diagnostics and Troubleshooting

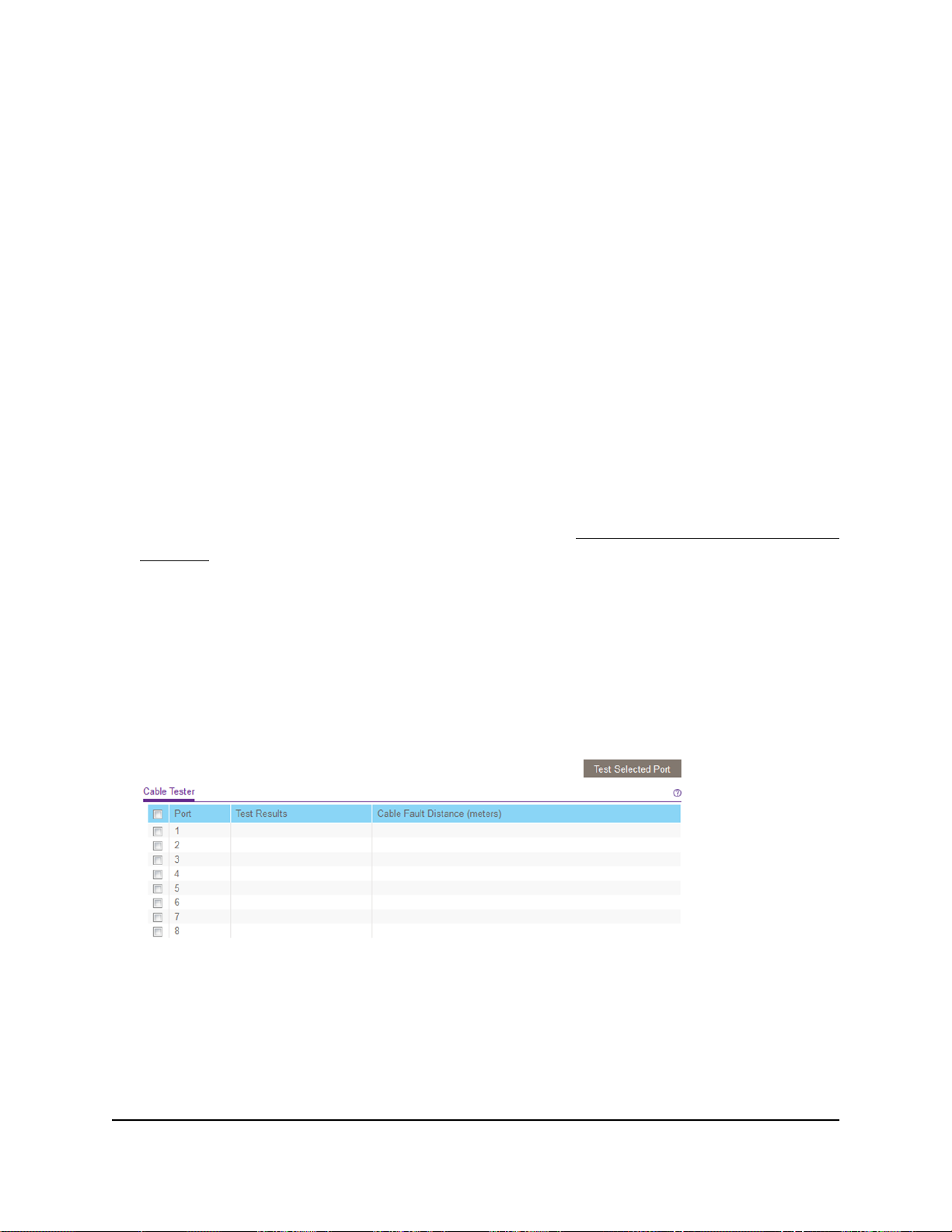

Test Cable Connections.....................................................................72

Resolve a Subnet Conflict to Access the Switch.............................73

PoE Troubleshooting Suggestions...................................................73

Appendix A Factory Default Settings and Technical Specifications

Factory Default Settings.....................................................................76

Technical Specifications.....................................................................77

Model GS105Ev2 Technical Specifications................................77

Gigabit Ethernet Smart Managed Plus Switches

Model GS105PE Technical Specifications..................................77

Model GS108Ev3 Technical Specifications................................78

Model GS108PEv3Technical Specifications...............................79

Model GS116Ev2 Technical Specifications................................80

Model GS305E Technical Specifications....................................80

Model GS308E Technical Specifications....................................81

Models JGS516PE and JGS524PE Technical Specifications....82

Model JGS524Ev2 Technical Specifications..............................83

Hardware

This user manual is for the NETGEAR Gigabit Ethernet Smart Managed Plus Switches.

For a list of switch models that are supported by this manual, see Supported Switch Models on page 8.

This chapter covers the following topics:

• Supported Switch Models

• Status LEDs

• Safety Instructions and Warnings

Note: This user manual complements the installation guide that came with your switch. You can also download the installation guide by visiting netgear.com/support/download/.

Note: For more information about the topics covered in this manual, visit the support website at netgear.com/support.

Note: Firmware updates with new features and bug fixes are made available from time to time at netgear.com/support/download/. You can check for and download new

firmware manually. If the features or behavior of your product does not match what is described in this guide, see the latest firmware release notes for your switch model.

Gigabit Ethernet Smart Managed Plus Switches

Supported Switch Models

The Gigabit Ethernet Smart Managed Plus Switches User Manual describes the switch models that are listed in the following table.

Table 1. Supported switch models

NameModel

5-Port Gigabit Ethernet Smart Managed Plus SwitchGS105Ev2

5-Port Gigabit Ethernet PD-Powered/PoE Pass-thru Smart Managed Plus SwitchGS105PE

8-Port Gigabit Ethernet Smart Managed Plus SwitchGS108Ev3

8-Port Gigabit Ethernet Smart Managed Plus Switch with 4-Port PoEGS108PEv3

16-Port Gigabit Smart Managed Plus SwitchGS116Ev2

5-Port Gigabit Ethernet Smart Managed Plus SOHO SwitchGS305E

8-Port Gigabit Ethernet Smart Managed Plus SOHO SwitchGS308E

16-Port Gigabit Smart Managed Plus Switch With PoEJGS516PE

24-Port Gigabit Smart Managed Plus Switch With PoEJGS524Ev2

24-Port Gigabit Smart Managed Plus SwitchJGS524PE

Note: Smart Managed Plus Switches used to be called Web Managed (Plus) Switches.

User Manual8Hardware

Gigabit Ethernet Smart Managed Plus Switches

Status LEDs

This section describes the status LEDs for each switch model.

For information about the front panel and ports for your switch model, see the installation guide for you model, which you can download by visiting netgear.com/support/download/.

Models GS105Ev2, GS108Ev3, GS116Ev2, GS305E, and GS308E LEDs

This section describes the LED designations of models GS105Ev2, GS108Ev3, GS116Ev2, GS305E, and GS308E.

Table 2. Model GS105Ev2, GS108Ev3, GS116Ev2, GS305E, and GS308E LEDs on the front panel

DescriptionLEDs

Power LED

Right port LEDsLeft port LEDs

The switch is powered on and operating normally.Solid green

Power is not supplied to the switch.Off

Combined, these RJ-45 port LEDs indicate link, speed, and activity.

A valid 1 Gbps port link is established.Solid greenSolid green

The port is transmitting or receiving packets at 1 Gbps.Blinking greenBlinking green

A valid 100 Mbps port link is established.OffSolid green

The port is transmitting or receiving packets 100 Mbps.OffBlinking green

A valid 10 Mbps port link is established.Solid greenOff

The port is transmitting or receiving packets 10 Mbps.Blinking greenOff

No port link is established.OffOff

Model GS105PE LEDs

This section describes the LED designations of model GS105PE.

Ports 1 and 2 are PoE ports that can deliver PoE. Ports 3 and 4 are regular Ethernet ports. Port 5 is a PoE PD port that must receive power from a PoE switch.

User Manual9Hardware

Gigabit Ethernet Smart Managed Plus Switches

Table 3. Model GS105PE LEDs on the front panel

DescriptionLED

Power LED

Left LEDs (link, speed, and activity) for all ports

Right LEDs for PoE PSD ports 1 and 2

Right LED for PoE PD port 5

Solid green. The switch is powered on, is operating normally, and PoE pass-through is enabled.

Blinking green. PoE pass-through is disabled.

Off. Power is not supplied to the switch.

Solid green. A valid 1 Gbps port link is established.

Blinking green. The port is transmitting or receiving packets at 1 Gbps.

Solid yellow. A valid 10 Mbps or 100 Mbps port link is established.

Blinking yellow. The port is transmitting or receiving packets at 10 Mbps or

100 Mbps.

Off. No port link is established.

Off. The port is not delivering PoE power.

Solid green. The port is delivering PoE power.

Blinking green. A PoE fault occurred.

Off. The port is not receiving PoE power.

Solid green. The port is receiving PoE+ (802.3at) power from a PSE.

Solid yellow. The port is receiving PoE (802.3af) power from a PSE.

Models GS108PEv3 LEDs

This section describes the LED designations of model GS108PEv3.

Ports 1 through 4 are PoE ports. Ports 5 through 8 are regular Ethernet ports.

Table 4. Model GS108PEv3 LEDs on the front panel

DescriptionLED

Power LED

PoE Max LED

Solid green. The switch is powered on and operating normally.

Off. Power is not supplied to the switch.

Off. Sufficient (more than 7W of) PoE power is available.

Solid yellow. Less than 7W of PoE power is available.

Blinking yellow. At least once during the previous two minutes, less than 7W of PoE

power was available.

User Manual10Hardware

Gigabit Ethernet Smart Managed Plus Switches

Table 4. Model GS108PEv3 LEDs on the front panel (Continued)

DescriptionLED

Port link, speed, and activity LEDs for all ports

Port PoE status LEDs for PoE ports only

Solid green. A valid 1 Gbps port link is established.

Blinking green. The port is transmitting or receiving packets at 1 Gbps.

Solid yellow. A valid 10 Mbps or 100 Mbps port link is established.

Blinking yellow. The port is transmitting or receiving packets at 10 Mbps or

100 Mbps.

Off. No port link is established.

Off. The port is not delivering PoE power.

Solid green. The port is delivering PoE power.

Solid yellow. A PoE fault occurred.

Model JGS524Ev2 LEDs

This section describes the LED designations of model JGS524Ev2. The port LEDs are located to the left of the ports, that is, not above or below the ports.

Table 5. Model JGS524Ev2 LEDs on the front panel

DescriptionLEDs

Power LED

Port speed LEDs

Port Link/ACT LEDs

Solid green. The switch is powered on and operating normally.

Off. Power is not supplied to the switch.

Solid green. A valid 1 Gbps port link is established.

Solid yellow. A valid 100 Mbps port link is established.

Off. A valid 10 Mbps port link is established.

Blinking green. The port is transmitting or receiving packets.

Off. No port link is established.

Models JGS516PE and JGS524PE LEDs

This section describes the LED designations of models JGS516PE and JGS524PE. The port LEDs are located to the left of the ports, that is, not above or below the ports.

On model JGS516PE, ports 1 through 8 are PoE ports. Ports 9 through 16 are regular Ethernet ports.

On model JGS524PE, ports 1 though 12 are PoE ports. Ports 13 through 24 are regular Ethernet ports.

User Manual11Hardware

Gigabit Ethernet Smart Managed Plus Switches

Table 6. Model JGS516PE and JGS524PE LEDs on the front panel

DescriptionLED

Power LED

Fan LED

PoE Max LED

Port link, speed, and activity LEDs for all ports

Port PoE status LEDs for PoE ports only

Solid green. The switch is powered on and operating normally.

Off. Power is not supplied to the switch.

Off. The fan is operating normally.

Solid yellow. A problem occurred with the fan.

Off. Sufficient (more than 7W of) PoE power is available.

Solid yellow. Less than 7W of PoE power is available.

Blinking yellow. At least once during the previous two minutes, less than 7W of PoE

power was available.

Solid green. A valid 1 Gbps port link is established.

Blinking green. The port is transmitting or receiving packets at 1 Gbps.

Solid yellow. A valid 10 Mbps or 100 Mbps port link is established.

Blinking yellow. The port is transmitting or receiving packets at 10 Mbps or

100 Mbps.

Off. No port link is established.

Off. The port is not delivering PoE power.

Solid green. The port is delivering PoE power.

Solid yellow. A PoE fault occurred.

Safety Instructions and Warnings

Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage.

To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following precautions:

This product is designed for indoor use only in a temperature-controlled and

• humidity-controlled environment. For more information, see the environmental specifications in the appendix or the data sheet. Any device that is located outdoors and connected to this product must be properly grounded and surge protected. Failure to follow these guidelines can result in damage to your NETGEAR product, which might not be covered by NETGEAR’s warranty, to the extent permissible by applicable law.

User Manual12Hardware

Gigabit Ethernet Smart Managed Plus Switches

Observe and follow service markings:

•

- Do not service any product except as explained in your system documentation.

Some devices should never be opened.

If applicable to your device, opening or removing covers that are marked with the triangular symbol with a lightning bolt can expose you to electrical shock. We recommend that only a trained technician services components inside these compartments.

If any of the following conditions occur, unplug the product from the electrical outlet

• and replace the part or contact your trained service provider:

- Depending on your device, the power adapter, power adapter cable, power

cable, extension cable, or plug is damaged.

An object fell into the product.

- The product was exposed to water.

- The product was dropped or damaged.

The product does not operate correctly when you follow the operating instructions.

Keep your system away from radiators and heat sources. Also, do not block cooling

• vents.

Do not spill food or liquids on your system components, and never operate the

• product in a wet environment. If the system gets wet, see the appropriate section in your troubleshooting guide, or contact your trained service provider.

Do not push any objects into the openings of your system. Doing so can cause fire

• or electric shock by shorting out interior components.

Use the product only with approved equipment.

•

If applicable to your device, allow the product to cool before removing covers or

• touching internal components.

Operate the product only from the type of external power source indicated on the

• electrical ratings label. If you are not sure of the type of power source required, consult your service provider or local power company.

To avoid damaging your system, if your device uses a power supply with a voltage

• selector, be sure that the selector is set to match the power at your location:

115V, 60 Hz in most of North and South America and some Far Eastern countries such as South Korea and Taiwan

- 100V, 50 Hz in eastern Japan and 100V, 60 Hz in western Japan

230V, 50 Hz in most of Europe, the Middle East, and the Far East

User Manual13Hardware

Gigabit Ethernet Smart Managed Plus Switches

Be sure that attached devices are electrically rated to operate with the power available

• in your location.

Depending on your device, use only a supplied power adapter or approved power

• cable:

If your device uses a power adapter:

If you were not provided with a power adapter, contact your local NETGEAR reseller.

The power adapter must be rated for the product and for the voltage and current marked on the product electrical ratings label.

If your device uses a power cable:

If you were not provided with a power cable for your system or for any AC-powered option intended for your system, purchase a power cable approved for your country.

The power cable must be rated for the product and for the voltage and current marked on the product electrical ratings label. The voltage and current rating of the cable must be greater than the ratings marked on the product.

To help prevent electric shock, plug the system and peripheral power cables into

• properly grounded electrical outlets.

If applicable to your device, the peripheral power cables are equipped with

• three-prong plugs to help ensure proper grounding. Do not use adapter plugs or

remove the grounding prong from a cable. If you must use an extension cable, use a three-wire cable with properly grounded plugs.

Observe extension cable and power strip ratings. Make sure that the total ampere

• rating of all products plugged into the extension cable or power strip does not

exceed 80 percent of the ampere ratings limit for the extension cable or power strip.

To help protect your system from sudden, transient increases and decreases in

• electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).

Position system cables, power adapter cables, or power cables carefully. Route

• cables so that they cannot be stepped on or tripped over. Be sure that nothing rests on any cables.

Do not modify power adapters, power adapter cables, power cables or plugs. Consult

• a licensed electrician or your power company for site modifications.

Always follow your local and national wiring rules.

•

User Manual14Hardware

Get Started

This chapter describes how you can access the switch in your network, change the switch password, change the language, and register your product.

The chapter covers the following topics:

• Configure the Switch

• Access the Switch Using a Web Browser

• Access the Switch With the ProSAFE Plus Utility

• Use the NETGEAR Switch Discovery Tool to Access the Switch

• Use the NETGEAR Insight Mobile App to Discover the Switch

• Change the Switch Password

• Change the Language

• Register Your Product

Gigabit Ethernet Smart Managed Plus Switches

Configure the Switch

Gigabit Ethernet Smart Managed Plus Switches are plug-and-play, so they can be used without any configuration. Just connect power, connect to your network and to your other devices, and you’re done.

For easiest access, we recommend that you cable the switch to a network with a router or DHCP server that assigns IP addresses and power on the switch. However, it is also possible to configure the switch connected directly only to the computer that you are using to configure it, and not connected to the network (off-network).

You can configure and manage advanced features of the switch either by using your computer’s web browser and accessing the switch at its IP address or by installing the ProSAFE®Plus Utility on your Windows-based computer.

If you use a Mac or a 64-bit Windows-based computer, you can use the NETGEAR Switch Discovery Tool to discover the switch in your network and access the local browser–based management interface of the switch.

You can also use the NETGEAR Insight mobile app on your smartphone to discover the switch in your network.

For more information, see the following sections:

Access the Switch Using a Web Browser on page 16

•

Access the Switch With the ProSAFE Plus Utility on page 18

•

Use the NETGEAR Switch Discovery Tool to Access the Switch on page 21

•

Use the NETGEAR Insight Mobile App to Discover the Switch on page 22

•

Access the Switch Using a Web Browser

This manual describes the local browser–based management interface, referred to as the local browser interface.

You can access and configure the switch directly through its local browser interface by entering the IP address of the switch in the address bar of a browser. When you use the local browser interface, the simplest way to configure the switch is not connected to your network (off-network). You can also configure the switch with it connected to your network, router, or modem, (on-network) but you must be able to determine the IP address of the switch if your network uses DHCP.

User Manual16Get Started

Gigabit Ethernet Smart Managed Plus Switches

Access a Switch That Is Connected to a Network

By default, the DHCP client of the switch is enabled. To access the switch, use the IP address that the DHCP server assigned to the switch.

To determine the IP address of the switch, do one of the following:

If you use a Windows-based computer, use the ProSAFE® Plus Utility to detect the

• IP address (see Access the Switch With the ProSAFE Plus Utility on page 18). You

can also access and configure the switch from the utility.

If you use a Mac or a 64-bit Windows-based computer, use the NETGEAR Switch

• Discovery Tool to detect the IP address (see Use the NETGEAR Switch Discovery Tool to Access the Switch on page 21).

If you use an iOS or Android smartphone, use the NETGEAR Insight mobile app to

• detect the IP address (see Use the NETGEAR Insight Mobile App to Discover the Switch on page 22).

Access the DHCP server.

•

Use an IP scanner utility.

•

To use your web browser to configure a switch that is connected to a network:

1. Cable the switch to a network with a router or DHCP server that manages IP addresses.

2. Power on the switch. The DHCP server assigns the switch an IP address.

3. Connect your computer to the same network as the switch.

Determine the IP address of the switch. By default, the DHCP client of the switch is enabled. Use the IP address that the

DHCP server assigned to the switch.

Open a web browser, and enter the IP address of the switch. The login window opens.

6. Enter the switch password. The default password is password. The password is case-sensitive.

Click the Login button. You can now configure additional options for the switch through the local browser

interface.

For information about setting up a fixed (static) IP address for the switch, see Specify IP Address Settings for the Switch on page 46.

User Manual17Get Started

Gigabit Ethernet Smart Managed Plus Switches

Access a Switch That Is Off-Network

To use your web browser to configure a switch that is not connected to a network:

Record your computer’s TCP/IP configuration settings, and then configure the computer with a static IP address of 192.168.0.210 and 255.255.255.0 as the subnet mask.

Note: If you are unsure how to do this, visit the support website at netgear.com/support and search for Static IP address on computer.

2. Plug the switch into a power outlet and then connect your computer to the switch using an Ethernet cable.

You can connect the Ethernet cable to any port on the switch.

Open a web browser, and enter http://192.168.0.239. This is the default address of the switch.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

Click the Login button. You can now configure additional options for the switch through the local browser

interface.

For information about setting up a fixed (static) IP address for the switch, see Specify IP Address Settings for the Switch on page 46.

After you complete the configuration of the switch, reconfigure the computer that you used for this process to its original TCP/IP settings.

You can now connect your switch to your network using an Ethernet cable.

Access the Switch With the ProSAFE Plus Utility

The ProSAFE Plus Utility runs on Windows-based computers. You can install the latest utility to select additional options to manage and customize the switch for your network. Visit netgear.com/support/product/PCU to download the latest utility.

User Manual18Get Started

Gigabit Ethernet Smart Managed Plus Switches

Install the ProSAFE Plus Utility

Note: The ProSAFE Plus Utility requires WinPcap and Adobe Air. If WinPcap and Adobe Air are not detected during the ProSAFE Plus Utility installation, you are prompted to

allow them to be installed.

To install the ProSAFE Plus Utility:

1. Visit netgear.com/support/product/PCU.

Select and download the latest version of the utility to your computer.

Unzip the downloaded file to extract the utility installation file.

4. Install the utility on your computer.

If prompted, allow WinPcap and Adobe Air to be installed.

Note: We recommend that you reboot your computer after installing the ProSAFE Plus Utility.

Access and Configure the Switch Using the ProSAFE Plus Utility

For easiest access, we recommend that you cable the switch to a network with a router or DHCP server that assigns IP addresses, power on the switch, and then use a computer that is connected to the same network as the switch.

Note: You can also access and configure the switch directly using a web browser. See Access the Switch Using a Web Browser on page 16.

To access and configure the switch using the ProSAFE Plus Utility:

1. Cable the switch to a network with a router or DHCP server that manages IP addresses.

2. Power on the switch. The DHCP server assigns the switch an IP address.

3. Connect your computer to the same network as the switch. You can use a WiFi or wired connection. The computer and the switch must be on

the same Layer 2 network.

User Manual19Get Started

Gigabit Ethernet Smart Managed Plus Switches

Note: You can use the ProSAFE Plus Utility to upgrade the firmware on the switch.

In that situation, do not use a WiFi connection to the switch but use only a direct wired connection over an Ethernet cable. That is, configure a computer with an IP address in the same subnet as the switch and connect directly to the switch using an Ethernet cable before you start the firmware upgrade using the ProSAFE Plus Utility.

Double-click the ProSAFE Plus Utility icon. The configuration home page displays a list of Smart Managed Plus switches that

the utility discovers on the local network.

Note: To use the ProSAFE Plus Utility, you must configure your computer’s security software to allow broadcast UDP packets to go through UDP remote and source (local and destination) ports 63321 through 63324. To allow this traffic, you can create a rule in your computer’s security software, or temporarily disable the firewall, Internet security, antivirus programs, or all of these on the computer that you use to configure the switch. If you temporarily disable any security services, be sure to reenable those services once configuration is complete.

Select the Smart Managed Plus switch that you want to configure. If you do not see the switch, click the REFRESH button.

Click the APPLY button. The login window displays.

7. Enter the switch password. The default password is password. The password is case-sensitive.

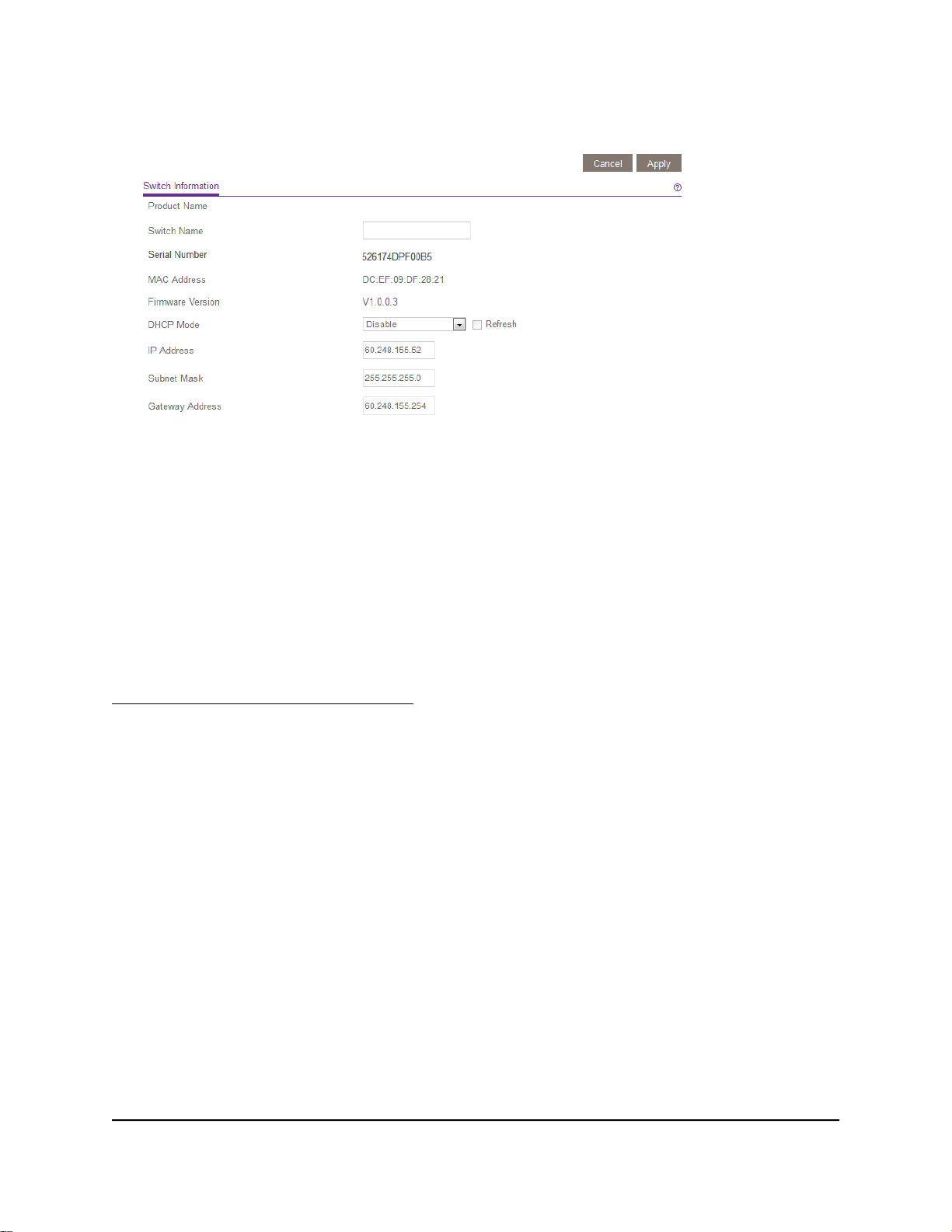

The Switch Information page displays.

Use the utility to configure the switch settings.

When you are finished with the configuration, return the computer’s firewall, Internet security, and antivirus programs to their usual settings.

For a description of ProSAFE Plus Utility features, see the ProSAFE Plus Utility User

Manual.

You can access the user manual through a link on the Help tab of the utility or you can download it by visiting netgear.com/support/download/.

User Manual20Get Started

Gigabit Ethernet Smart Managed Plus Switches

Use the NETGEAR Switch Discovery Tool to Access the Switch

Depending on your model switch, the NETGEAR Switch Discovery Tool lets you discover the switch in your network and access the local browser interface of the switch from a Mac or a 64-bit Windows-based computer.

To install the NETGEAR Switch Discovery Tool, discover the switch in your network, and access the local browser interface of the switch:

1. Download the Switch Discovery Tool by visiting netgear.com/support/product/netgear-switch-discovery-tool.aspx.

Depending on the computer that you are using, download either the Mac version or the version for a 64-bit Windows-based computer.

Temporarily disable the firewall, Internet security, antivirus programs, or all of these on the computer that you use to configure the switch.

Unzip the Switch Discovery Tool files, double-click the .exe or .dmg file (for example,

NETGEAR+Switch+Discovery+Tool+Setup+1.2.101.exe or NetgearSDT-V1.2.101.dmg), and install the program on your computer.

The installation process places a NETGEAR Switch Discovery Tool icon on your desktop.

4. Reenable the security services on your computer.

5. Power on the switch. The DHCP server assigns the switch an IP address.

6. Connect your computer to the same network as the switch. You can use a WiFi or wired connection. The computer and the switch must be on

the same Layer 2 network.

7. Open the Switch Discovery Tool. To open the program, double-click the NETGEAR Switch Discovery Tool icon on

your desktop.

The initial page displays a menu and a button.

From the Choose a connection menu, select the network connection that allows the Switch Discovery Tool to access the switch.

User Manual21Get Started

Gigabit Ethernet Smart Managed Plus Switches

Click the Start Searching button. The Switch Discovery Tool displays a list of Smart Managed Plus Switches that it

discovers on the selected network.

For each switch, the tool displays the IP address.

10.

To access the local browser interface of the switch, click the ADMIN PAGE button. The login page of the local browser interface opens.

11. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Use the NETGEAR Insight Mobile App to Discover the Switch

If the switch is connected to a WiFi router or access point, the NETGEAR Insight mobile app lets you discover the switch in your network.

To use the NETGEAR Insight mobile app to discover the switch in your network:

On your iOS or Android mobile device, go to the app store, search for NETGEAR Insight, and download and install the app.

Connect your mobile device to the WiFi network of the WiFi router or access point to which the switch is connected.

3. Open the NETGEAR Insight mobile app.

Select LOG IN to log in to your existing NETGEAR account or tap the CREATE NETGEAR ACCOUNT button to create a new account.

After you log in to your account, the IP address of the switch displays in the device list.

Write down the IP address for future use.

Change the Switch Password

The default password to access the switch is password. We recommend that you change this password to a more secure password. The ideal password contains no dictionary

words from any language and contains uppercase and lowercase letters, numbers, and symbols. It can be up to 20 characters.

User Manual22Get Started

Gigabit Ethernet Smart Managed Plus Switches

To change the password:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select Maintenance > Change Password. The Change Password page displays.

In the Old Password field, type the current password for the switch.

Type the new password in the New Password field and in the Re-type New Password field.

Click the Apply button. Your settings are saved. Keep the new password in a secure location so that you can

access the switch in the future.

Change the Language

For most switches, you can select the language for the local browser interface by selecting another language from the language menu at the upper right of the page in the local browser interface.

However, for models GS108Ev3, GS108PEv3, GS305E, and GS308E you must download and install a firmware version in the desired language.

User Manual23Get Started

Gigabit Ethernet Smart Managed Plus Switches

Change the Language of the Local Browser Interface

By default, the language of the local browser interface is set to Auto so that the switch can automatically detect the language. However, you can set the language to a specific one.

To change the language of the local browser interface:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

From the Language menu, select a language.

Click the APPLY button. A pop-up warning window opens.

Click the YES button. Your settings are saved and the language changes.

Change the Language for the Local Browser Interface by Installing Another Firmware Version

For models GS108Ev3, GS108PEv3, GS305E, and GS308E you must download and install a firmware version in the desired language.

To change the language for the local browser interface of model GS108Ev3, GS108PEv3, GS305E, and GS308E:

1. Visit netgear.com/support/download/.

In the Enter a Product Name/Model Number field, start typing the model number, and select the model from the menu that displays after you start typing.

The available firmware versions displays. The language is included in the firmware name.

User Manual24Get Started

Gigabit Ethernet Smart Managed Plus Switches

Select and download the desired firmware version to your computer.

Unzip the downloaded file to extract the firmware image.

5. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

6. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. The login window opens.

8. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Maintenance > Firmware Upgrade. The Firmware Upgrade page displays.

The firmware upgrade method depends on the current firmware and boot loader versions on your switch.

10.

If the page displays the Enter Loader Mode button, click the Enter Loader Mode button.

The switch reboots and enters into the loader mode. The Firmware Upgrade page that displays varies, depending on the firmware boot loader version that is already on your switch.

11.

Click the Browse button and locate and select the firmware image that you downloaded and unzipped.

12.

Click the Apply button.

WARNING: To avoid the risk of corrupting the firmware, do not interrupt the

upgrade. For example, do not turn off the switch or disconnect it.

When the upgrade is complete, your switch restarts, and the local browser interface uses the language of the firmware that you installed. The upgrade process typically takes about three minutes.

User Manual25Get Started

Gigabit Ethernet Smart Managed Plus Switches

Register Your Product

We recommend that you use the NETGEAR Insight mobile app to register your product (see Use the NETGEAR Insight Mobile App to Discover the Switch on page 22).

Registering your product allows you to receive email alerts and streamlines the technical support process. However, you can also register your product through the local browser interface.

To register your product through the local browser interface:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection.

Note: You must access the switch while connected to the network (on-network) to register the switch.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select Help > Registration. The Product Registration page displays.

Click the Register button.

7. Follow the onscreen process to register your product.

User Manual26Get Started

Use VLANS for Traffic Segmentation

This chapter covers the following topics:

• VLAN Overview

• Create Basic Port-Based VLANs

• Assign Ports to Multiple Port-Based VLANs

• Create 802.1Q-Based VLANs in a Basic Configuration

• Create 802.1Q-Based VLANs in an Advanced Configuration

• Add Tagged or Untagged Ports to an 802.1Q-Based VLAN

• Specify a Port PVID for an 802.1Q-Based VLAN

Gigabit Ethernet Smart Managed Plus Switches

VLAN Overview

Virtual LANs (VLANs) are made up of networked devices that are grouped logically into separate networks. You can group ports on a switch to create a virtual network made up of the devices connected to the ports.

Ports can be grouped in VLANs using port-based or 802.1Q criteria:

Port-based VLANs. Assign ports to virtual networks. Ports with the same VLAN ID

• are placed in the same VLAN. This feature provides an easy way to partition a network into private subnetworks.

802.1Q VLANs. Create virtual networks using the IEEE 802.1Q standard. 802.1Q

• uses a VLAN tagging system to determine which VLAN an Ethernet frame belongs to. You can configure ports to be a part of a VLAN. When a port receives data tagged for a VLAN, the data is discarded unless the port is a member of that VLAN. This technique is useful for communicating with devices outside your local network as well as receiving data from other ports that are not in the VLAN. However, for you to be able to use an 802.1Q VLAN, you must know the VLAN ID.

Create Basic Port-Based VLANs

A port-based VLAN configuration lets you assign ports on the switch to a VLAN. The number of VLANs is limited to the number of ports on the switch. In a basic port-based VLAN configuration, ports with the same VLAN ID are placed into the same VLAN.

You can also assign ports to multiple VLANs (see Assign Ports to Multiple Port-Based VLANs on page 30).

By default, all ports are members of VLAN 1.

To create basic port-based VLANs:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password.

Segmentation

User Manual28Use VLANS for Traffic

Gigabit Ethernet Smart Managed Plus Switches

The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select VLAN. The Basic Port-based VLAN Status page displays.

If this is the first time that you are accessing this page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step

7. Otherwise, see Step 9.

A pop-up window opens, informing you that the current VLAN settings will be lost.

Click the OK button. The pop-up window closes.

Click the Apply button. Your settings are saved.

The Basic Port-based VLAN Group table displays.

The previous figure is an example. Your switch might provide more or fewer ports.

Under each port to be added to a VLAN, enter the ID of the VLAN. You can enter a VLAN ID from 1 to the maximum number of ports that your switch

supports. If all the VLANs share an uplink to the Internet or servers, enter all in the

VLAN ID field for the port that you want to use for the uplink.

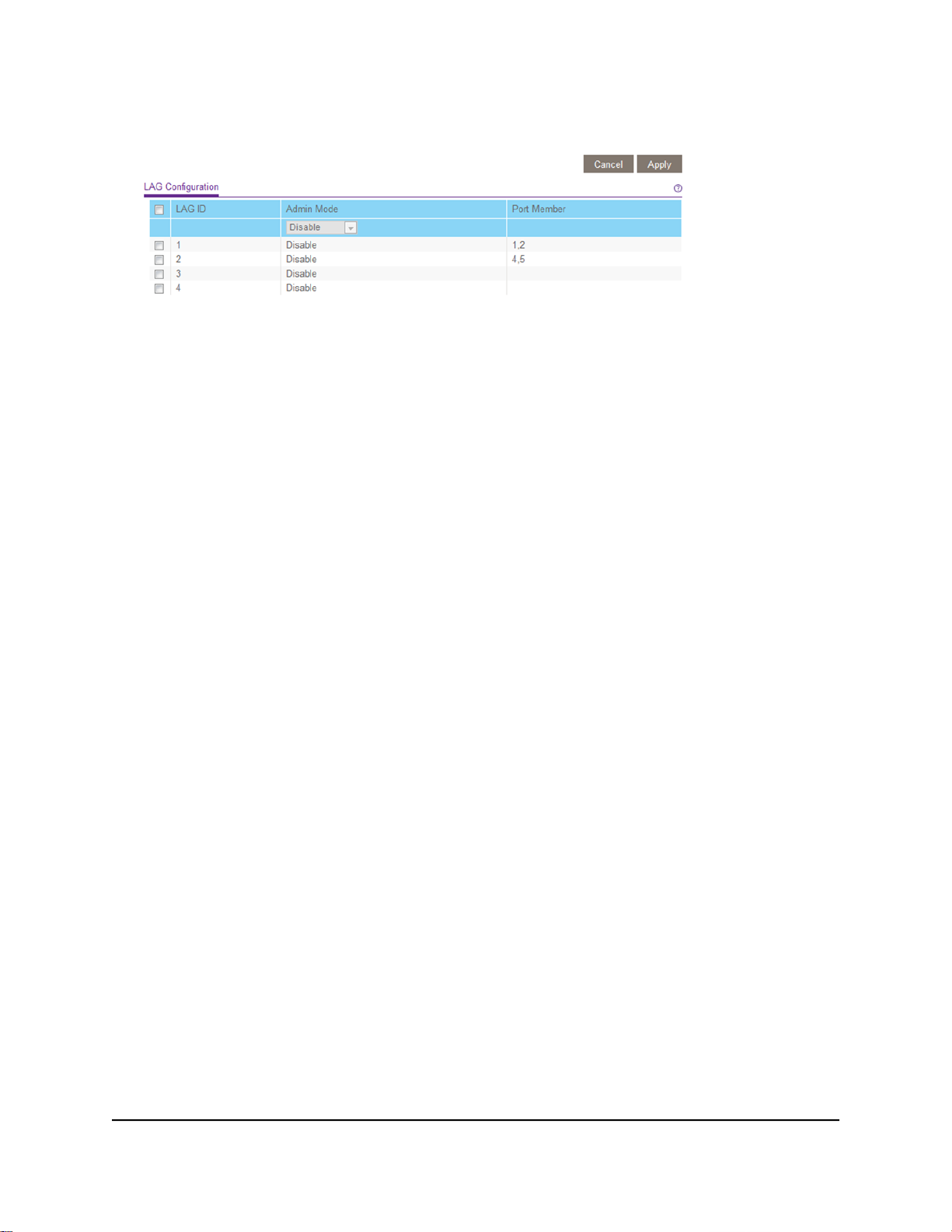

Note: If ports are members of the same LAG, you must assign them to the same

VLAN.

10.

Click the Apply button. Your settings are saved.

Segmentation

User Manual29Use VLANS for Traffic

Gigabit Ethernet Smart Managed Plus Switches

Assign Ports to Multiple Port-Based VLANs

A port-based VLAN configuration lets you assign ports on the switch to a VLAN. The number of VLANs is limited to the number of ports on the switch. In an advanced port-based VLAN configuration, you can assign a single port to multiple VLANs.

By default, all ports are members of VLAN 1.

To assign ports to multiple port-based VLANs:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select VLAN. The Basic Port-based VLAN Status page displays.

If this is the first time that you are accessing this page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step

7. Otherwise, see Step 9.

A pop-up window opens, informing you that the current VLAN settings will be lost.

Click the OK button. The pop-up window closes.

Click the Apply button. Your settings are saved.

Segmentation

User Manual30Use VLANS for Traffic

Gigabit Ethernet Smart Managed Plus Switches

The VLAN Configuration and VLAN Membership sections display.

The previous figure is an example. Your switch might provide more or fewer ports.

In the VLAN Identifier menu, select the VLAN.

10.

Select the ports that you want to add to the VLAN by doing the following: a.

(Optional) In the Group Operation menu, select either Select All or Remove All. All ports are either added to the VLAN or removed from the VLAN.

b. Select or remove individual ports by selecting the check boxes that are associated

with the port numbers.

Note: If ports are members of the same LAG, you must assign them to the same VLAN.

Click the Apply button. Your settings are saved. In the VLAN Membership table, the ports display as members of the VLAN.

11.

To select ports for another VLAN, repeat Step 9 and Step 10.

Segmentation

User Manual31Use VLANS for Traffic

Gigabit Ethernet Smart Managed Plus Switches

Create 802.1Q-Based VLANs in a Basic Configuration

A 802.1Q-based VLAN configuration lets you assign ports on the switch to a VLAN with an ID number in the range of 1–4093. By default, all ports are members of VLAN 1.

In an advanced 802.1Q-based VLAN configuration, you can set up VLANs to which you can add tagged or untagged ports and you can use port VLAN ID (PVID). For more information, Create 802.1Q-Based VLANs in an Advanced Configuration on page 33.

To create 802.1Q-based VLANs in a basic configuration:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select VLAN > 802.1Q. The Basic 802.1Q VLAN Status page displays.

If this is the first time that you are accessing the Basic 802.1Q VLAN Status page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step 7.

Otherwise, see Step 9.

A pop-up window opens, informing you that the current VLAN settings will be lost.

Click the OK button. The pop-up window closes.

Click the Apply button. Your settings are saved.

Segmentation

User Manual32Use VLANS for Traffic

Gigabit Ethernet Smart Managed Plus Switches

The Basic 802.1Q VLAN Identifier table displays.

The previous figure is an example. Your switch might provide more or fewer ports.

Under each port to be added to a VLAN, enter the ID of the VLAN. You can enter a VLAN ID from 1 to 4093. If all the VLANs share an uplink to the

Internet or servers, enter all in the VLAN ID field for the port that you want to use for the uplink.

Note: If ports are members of the same LAG, you must assign them to the same VLAN.

10.

Click the Apply button. Your settings are saved.

Create 802.1Q-Based VLANs in an Advanced Configuration

In an advanced 802.1Q-based VLAN configuration, you can assign ports on the switch to a VLAN with an ID number in the range of 1–4093 and you can add tagged or untagged ports to a VLAN. In addition, you can use port VLAN IDs (PVIDs). By default, all ports are untagged members of VLAN 1.

To create 802.1Q-based VLANs in an advanced configuration:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

User Manual33Use VLANS for Traffic

Segmentation

Gigabit Ethernet Smart Managed Plus Switches

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select VLAN > 802.1Q > Advanced > VLAN Configuration. The Advanced 802.1Q VLAN Status page displays.

If this is the first time that you are accessing the Advanced 802.1Q VLAN Status page or if you are changing the VLAN assignment method, select the Enable radio button and continue with Step 7.

Otherwise, see Step 9.

A pop-up window opens, informing you that the current VLAN settings will be lost.

Click the OK button. The pop-up window closes.

Click the Apply button. Your settings are saved.

The VLAN Identifier Setting table displays.

The previous figure is an example. Your switch might provide more or fewer ports, all of which are members of VLAN 1 by default.

In the VLAN ID field, enter a VLAN ID. You can enter a VLAN ID from 1 to 4093.

10.

Click the Add button. The new VLAN is added to the VLAN Identifier Setting table.

After you create a new VLAN ID, use the VLAN membership option to add ports to the VLAN. (Select VLAN > 802.1Q > Advanced > VLAN Membership. See also Add Tagged or Untagged Ports to an 802.1Q-Based VLAN on page 35.)

User Manual34Use VLANS for Traffic

Segmentation

Gigabit Ethernet Smart Managed Plus Switches

Note: To delete a VLAN, select the check box for the VLAN and click the Delete

button.

Add Tagged or Untagged Ports to an

802.1Q-Based VLAN

After you define a VLAN ID using the advanced 802.1Q VLAN option (see Create

802.1Q-Based VLANs in an Advanced Configuration on page 33), you must add ports

to the VLAN.

While you add ports to a VLAN, you can specify whether the ports must be tagged or untagged. Port tagging allows a port to be associated with a particular VLAN and allows the VLAN ID tag to be added to data packets that are sent through the port. The tag identifies the VLAN that must receive the data.

By default, all ports are untagged.

To add tagged or untagged ports to an 802.1Q-based VLAN:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select VLAN > 802.1Q > Advanced > VLAN Configuration. The Advanced 802.1Q VLAN Status page displays. The menu on the left displays

more options.

Select VLAN Membership.

Segmentation

User Manual35Use VLANS for Traffic

Gigabit Ethernet Smart Managed Plus Switches

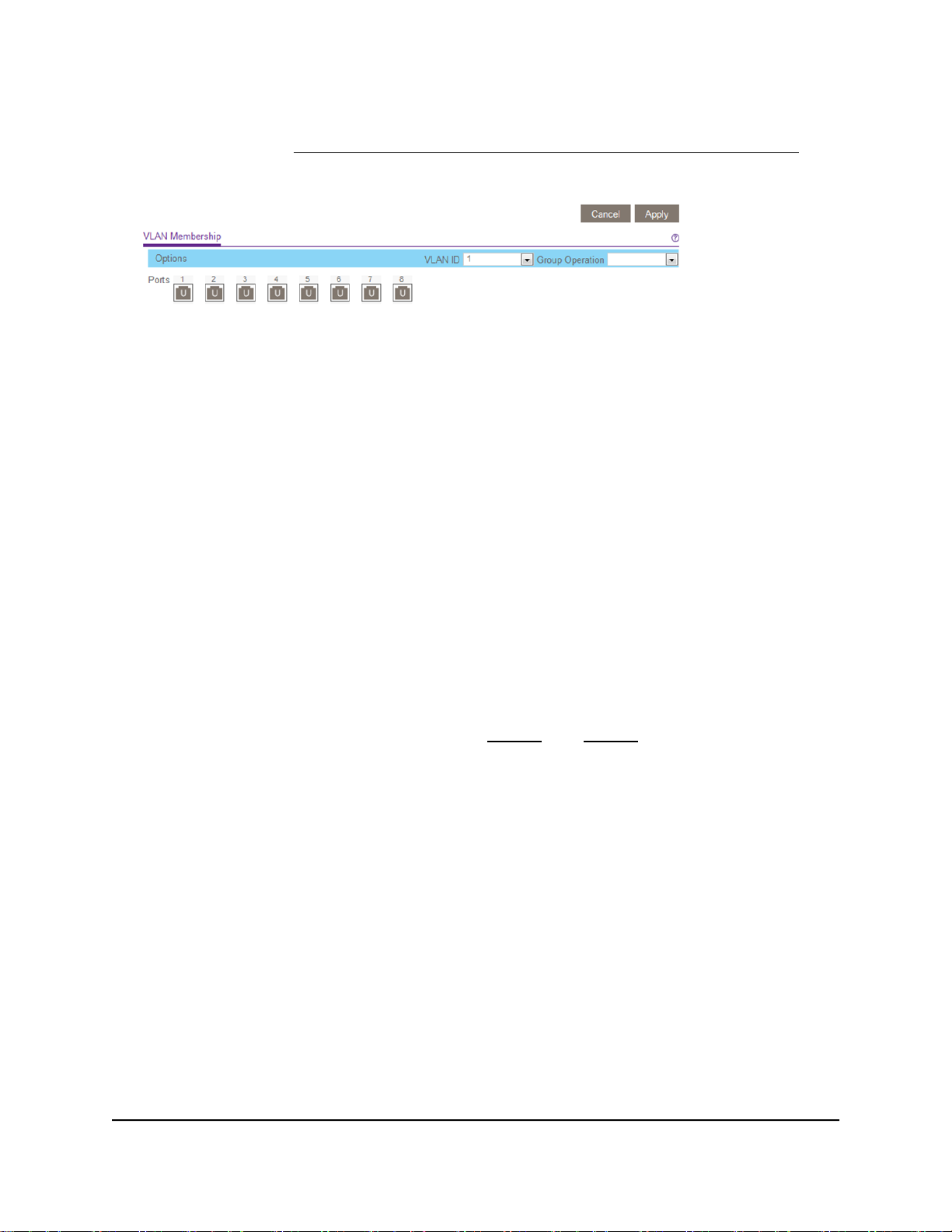

You can select VLAN Membership only if you already enabled the advanced 802.1Q VLAN option (see Create 802.1Q-Based VLANs in an Advanced Configuration on page 33).

The previous figure is an example. Your switch might provide more or fewer ports.

In the VLAN ID menu, select the VLAN.

Select the ports that you want to add to the VLAN by doing the following: a.

(Optional) In the Group Operation menu, select Untag All, Tag all, or Remove all. All ports are either added to the VLAN (tagged or untagged) or removed from the VLAN.

b. Select individual ports and assign them as tagged (T) or untagged (U) ports or

remove individual ports by selecting the check boxes that are associated with the port numbers. By default, all ports are untagged.

Click the Apply button. Your settings are saved. In the VLAN Membership table, the ports display as members of the VLAN.

To select ports for another VLAN, repeat Step 7 and Step 8.

10.

To verify your selections, select VLAN > 802.1Q > Advanced > VLAN Configuration. The Advanced 802.1Q VLAN Status page displays. In the VLAN Identifier Setting

table, the ports display next to the VLAN or VLANs to which they were added.

Specify a Port PVID for an 802.1Q-Based VLAN

A default port VLAN ID (PVID) is a VLAN ID tag that the switch assigns to data packets it receives that are not already addressed (tagged) for a particular VLAN. For example, if you connected a computer on port 6 and you want it to be a part of VLAN 2, configure port 6 to automatically add a PVID of 2 to all data received from the computer. This step

User Manual36Use VLANS for Traffic

Segmentation

Gigabit Ethernet Smart Managed Plus Switches

ensures that the data from the computer on port 6 can be seen only by other members of VLAN 2. You can assign only one PVID to a port.

To assign a PVID to one or more ports:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select VLAN > 802.1Q > Advanced > VLAN Configuration. The Advanced 802.1Q VLAN Status page displays. The menu on the left displays

more options.

Select Port PVID. You can select Port PVID only if you already enabled the advanced 802.1Q VLAN

option (see Create 802.1Q-Based VLANs in an Advanced Configuration on page

33).

The previous figure is an example. Your switch might provide more or fewer ports.

7. Select one or more ports.

8. Enter the PVID. You can enter a PVID only for a VLAN that already exists.

Click the Apply button. Your settings are saved.

Segmentation

User Manual37Use VLANS for Traffic

Optimize Performance With Quality of Service

This chapter covers the following topics:

• Enable 802.1p/DSCP-Based Quality of Service

• Configure Port-Based Quality of Service

• Set Up Rate Limiting

• Set Up Broadcast Filtering

Gigabit Ethernet Smart Managed Plus Switches

Enable 802.1p/DSCP-Based Quality of Service

Note: 802.1p-based QoS is available on all models. DSCP-based QoS is available on models GS105Ev2, GS105PEv2, GS108Ev3, GS108PEv3, GS305E, and GS308E only.

802.1p/DSCP-based priority uses a field in the data packet header that identifies the

class of data in the packet (for example, voice or video). When 802.1p/DSCP-based priority is used, the switch reads information in the packet header to determine the priority to assign to the packet. The switch reads both 802.1p tag information and DSCP/ToS tag information. If an ingress packet contains both an 802.1p tag and a DSCP/ToS tag, the switch gives precedence to the 802.1p tag.

All ports on the switch check the packet header and transmit the packet with a priority determined by the packet content.

To enable 802.1p/DSCP-based QoS:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select QoS. The Quality of Service page displays.

Select the 802.1p/DSCP-based radio button. A pop-up window opens, informing you that the current QoS settings will be lost.

Click the OK button. The pop-up window closes.

Click the Apply button.

User Manual39Optimize Performance With

Quality of Service

Gigabit Ethernet Smart Managed Plus Switches

Your settings are saved.

Configure Port-Based Quality of Service

You can assign a priority to all data passing through a particular port. Data with a higher priority is transmitted faster. If packets arrive at several ports at the same time, the ports configured as higher priority transmit their packets first. You must determine which ports will carry delay-sensitive data.

To configure port-based QoS:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select QoS. The Quality of Service page displays.

If this is the first time that you are setting up port-based QoS, select the Port-based radio button and continue with the next step.

Otherwise, see Step 9.

A pop-up window opens, informing you that the current QoS settings will be lost.

Click the OK button. The pop-up window closes.

Click the Apply button.

Quality of Service

User Manual40Optimize Performance With

Gigabit Ethernet Smart Managed Plus Switches

Your settings are saved and the Port Priority table displays.

The previous figure is an example. Your switch might provide more or fewer ports. The 802.1p/DSCP-based radio button is not supported on all models and therefore might not show on the page.

To set the port priority for one or more ports, do the following: a. Select one or more ports.

In the Priority menu, select the priority.

Click the Apply button. Your settings are saved. The same priority is applied to all ports that you selected.

10.

To set a different port priority for one or more other ports, repeat Step 9.

Set Up Rate Limiting

You can limit the rate at which the switch accepts incoming data and the rate that it retransmits outgoing data. The rate choices vary depending on the switch model.

Rate limiting can be set for a port in addition to other QoS settings. If the port rate limit is set, the switch restricts the acceptance or retransmission of data to the values configured.

To set up rate limiting:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

User Manual41Optimize Performance With

Quality of Service

Gigabit Ethernet Smart Managed Plus Switches

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select QoS > Rate Limit.

The previous figure is an example. Your switch might provide more or fewer ports.

Set the ingress (incoming) and egress (outgoing) traffic rates by doing the following: a. Select one or more ports.

In the Ingress Rate menu, select the maximum rate. You can set a rate from 512 Kbit/s to 512 Mbit/s. By default, no limit is set.

In the Egress Rate menu, select the maximum rate. You can set a rate from 512 Kbit/s to 512 Mbit/s. By default, no limit is set.

Click the Apply button. Your settings are saved.

To set different rates for one or more other ports, repeat Step 6.

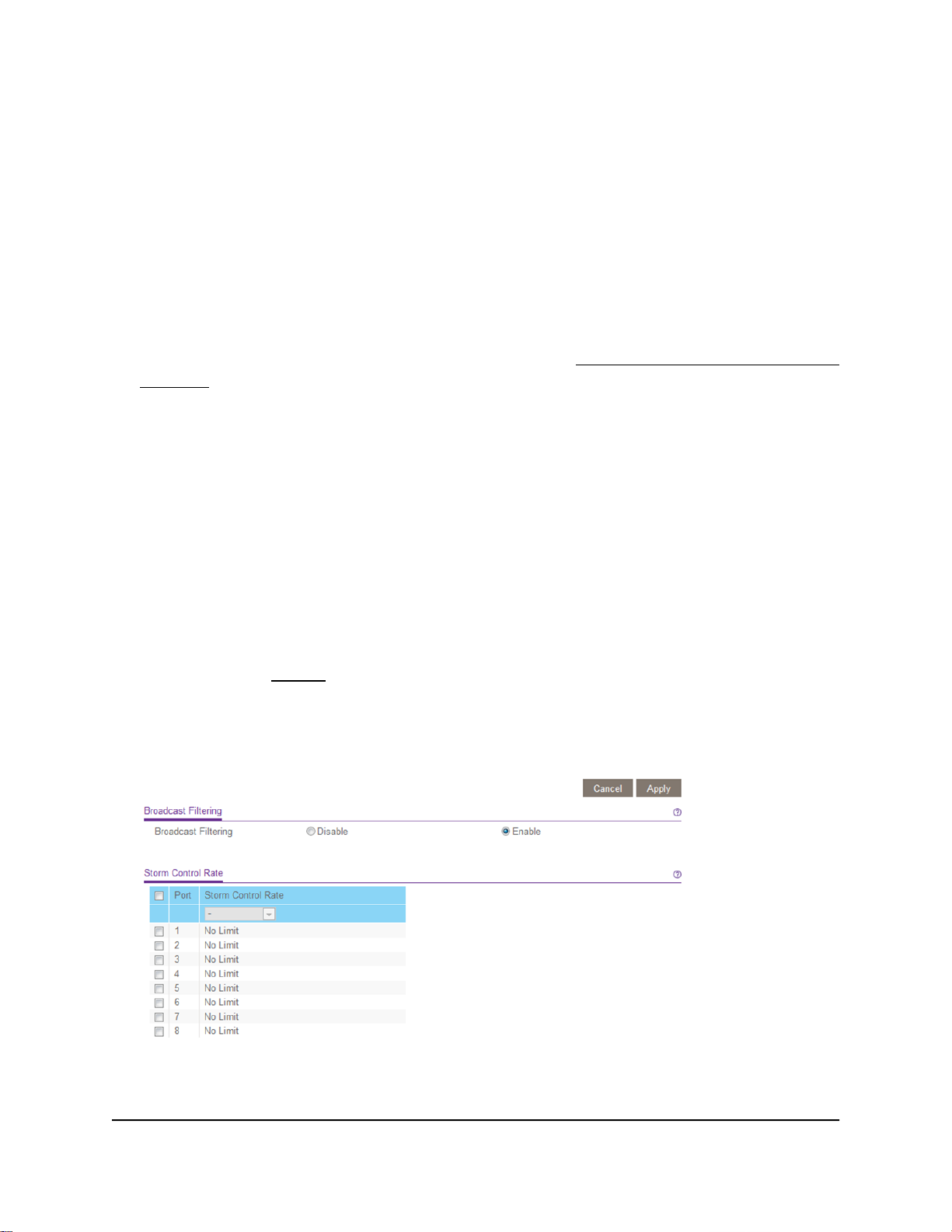

Set Up Broadcast Filtering

You can configure the switch to block broadcast storms (massive transmission of broadcast packets forwarded to every port on the same VLAN). If they are not blocked, broadcast storm packets can delay or halt the transmission of other data. Some switches allow you to select a storm control rate for each port. Others assign a predetermined storm control rate for all ports on the switch.

Quality of Service

User Manual42Optimize Performance With

Gigabit Ethernet Smart Managed Plus Switches

If broadcast traffic on any port exceeds the threshold that you set, the switch temporarily blocks (discards) the broadcast traffic.

To set up broadcast filtering:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select QoS > Broadcast Filtering. The Broadcast Filtering page displays.

If this is the first time that you are setting up broadcast filtering, select the Enable radio button and continue with the next step.

Otherwise, see Step 8.

Click the Apply button. Your settings are saved and the Storm Control Rate table displays.

The previous figure is an example. Your switch might provide more or fewer ports.

User Manual43Optimize Performance With

Quality of Service

Gigabit Ethernet Smart Managed Plus Switches

Set the storm control rate by doing the following: a. Select one or more ports.

In the Storm Control Rate menu, select the maximum rate. You can set a rate from 512 Kbit/s to 512 Mbit/s. By default, no limit is set.

Click the Apply button. Your settings are saved.

To set a different rate for one or more other ports, repeat Step 8.

Quality of Service

User Manual44Optimize Performance With

Manage Network Settings

This chapter covers the following topics:

• Specify IP Address Settings for the Switch

• Manage Multicast Traffic With IGMP Snooping

• Set Up Link Aggregation Groups

Gigabit Ethernet Smart Managed Plus Switches

Specify IP Address Settings for the Switch

By default, the switch IP address works as follows:

If you cable the switch to a network with a DHCP server before you power on the

• switch, the DHCP server assigns an IP address to the switch when the switch is powered on.

If you power on the switch when it is not connected to a network with a DHCP server,

• the switch uses its default IP address, which is 192.168.0.239. You can disable the DHCP mode in the switch and enter static IP address and subnet mask values for the switch as well as the address of the gateway device used by the switch.

Use Browser-Based Access to Specify the Switch IP Address

To specify IP address settings for the switch:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

User Manual46Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

In the DHCP Mode menu, select Disable.

The IP Address, Subnet Mask, and Gateway Address fields are enabled.

6. Enter the IP address, subnet mask, and gateway address.

Click the Apply button. Your settings are saved.

Use the ProSAFE Plus Utility to Specify the Switch IP Address

The ProSAFE Plus Utility runs on Windows-based computers. You can install the utility to select additional options to manage and customize the switch for your network. Visit netgear.com/support/product/PCU to download the utility.

To specify IP address settings for the switch:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

Double-click the ProSAFE Plus Utility icon. The Switch Selection page displays a list of Smart Managed Plus Switches that the

utility discovers on the local network.

3. Select the switch. If you do not see the switch, click the REFRESH button.

User Manual47Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

Click the IP SETTING button.

Note: To navigate to this page, select Network, select the switch, and click the IP SETTING button.

In the DHCP Mode menu, select Disable. The IP Address, Subnet Mask, and Gateway Address fields are enabled.

Enter the IP address, subnet mask, and if available, the gateway address.

7. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Click the APPLY button. Your settings are saved.

Manage Multicast Traffic With IGMP Snooping

Internet Group Management Protocol (IGMP) snooping allows a switch to forward multicast traffic intelligently on the switch. Multicast IP traffic is traffic that is destined to a host group. Host groups are identified by class D IP addresses, which range from

224.0.0.0 to 239.255.255.255. Based on the IGMP query and report messages, the

switch forwards traffic only to the ports that request the multicast traffic. This feature

User Manual48Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

prevents the switch from broadcasting the traffic to all ports and possibly affecting network performance.

The switch maintains a map that shows which links need which IP multicast streams. The switch forwards multicast traffic only to the links that requested them and cuts multicast traffic from links that do not contain a multicast listener. Essentially, IGMP snooping helps optimize multicast performance at Layer 2 and is especially useful for bandwidth-intensive IP multicast applications such as IPTV.

Customize IGMP Snooping

By default, IGMP snooping is enabled. You can customize the settings for your network.

To customize IGMP snooping:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Multicast.

Make sure that the IGMP Snooping Status Enable radio button is selected. By default, the Enable radio button is selected.

In the VLAN ID Enabled for IGMP Snooping field, enter a VLAN ID between 1 and

4094.

User Manual49Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

By default, the VLAN ID is 1.

You can specify a VLAN for IGMP snooping only if you enabled port-based or

802.1Q-based VLANs (see Use VLANS for Traffic Segmentation on page 27).

IGMP snooping functions only on the VLAN that is specified in the VLAN ID Enabled for IGMP Snooping field.

(Optional) Select the Validate IGMPv3 IP header Enable radio button. Some network devices might not conform to the IGMPv3 standard. When the Validate

IGMPv3 IP header option is enabled, IGMP messages are required to include TTL = 1, ToS Byte = 0xC0 (Internetwork Control), and the router alert IP option (9404) must be set. Otherwise, the packets are ignored.

(Optional) Select the Block Unknown MultiCast Address Enable radio button. When this feature is enabled, multicast packets are forwarded only to the ports that

are in the multicast group learned from IGMP snooping. All unknown multicast packets are dropped.

10.

(Optional, for some models only) Select an option from the IGMP Snooping Static Router Port menu.

You can select a port to be the dedicated IGMP snooping static router port if no IGMP query exists in the network for the switch to discover the router port dynamically. After a port is selected as the static router port, all IGMP Join and Leave reports are forwarded to the port.

11.

Click the Apply button. Your settings are saved.

Specify a VLAN for IGMP Snooping

You can specify a VLAN for IGMP snooping only if you enabled port-based or

802.1Q-based VLANs (see Use VLANS for Traffic Segmentation on page 27).

To specify a VLAN for IGMP snooping:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

User Manual50Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Multicast.

Make sure that the IGMP Snooping Status Enable radio button is selected. By default, the Enable radio button is selected.

In the VLAN ID Enabled for IGMP Snooping field, enter the ID of the VLAN. By default, if you enable IGMP snooping, snooping occurs on VLAN 1. However, you

can enable snooping on any VLAN:

For port-based VLANs, you can enter a VLAN ID from 1 to the maximum number

•

of ports that the switch supports.

For 802.1Q-based VLANs, you can enter a VLAN ID from 1 to 4094.

•

Click the Apply button. Your settings are saved.

Set Up Link Aggregation Groups

Note: Static link aggregation (port trunking) is supported on models GS116E, JGS516PE, JGS524E, and JGS524PE.

Link aggregation groups (LAGs) allow you to combine multiple Ethernet links into a single logical link. Network devices treat the aggregation as if it were a single link, which increases fault tolerance and load sharing.

The number of LAGs that the switch supports depends on the model.

Configure LAG membership before you enable the LAG.

User Manual51Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

Note: The switch does not support IEEE 802.3ad Link Aggregation or Link Aggregation

Control Protocol (LACP) groups but supports manual static LAGs only.

You must set up LAG membership before you can enable LAGs.

To specify LAG membership and enable a LAG:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > LAG > LAG Membership.

The previous figure is an example. Your switch might provide more or fewer ports.

In the LAG ID menu, select the LAG ID. The number of LAGs that the switch supports depends on the model.

Select the ports for the LAG by selecting the check boxes that are associated with the port numbers.

A LAG consists of at least two ports.

Click the Apply button. Your settings are saved.

User Manual52Manage Network Settings

Gigabit Ethernet Smart Managed Plus Switches

Select System > LAG > LAG Configuration.

10.

Select the ID of the LAG for which you just set up the port membership.

11.

In the Admin Mode menu, select Enable.

12.

Click the Apply button. Your settings are saved.

User Manual53Manage Network Settings

Manage and Monitor the Switch

This chapter covers the following topics:

• Manage Flow Control

• Manage the Port Speed and the Port Status

• Enable Loop Detection

• Manage Power Saving Options

• Download and Update the Firmware

• Reboot the Switch

• Save the Switch Configuration

• Restore a Saved Switch Configuration

• Restore Factory Default Settings

• Manage Access Control

• Enable Port Mirroring

• View Switch Information or Change the Switch Device Name

• View or Clear the Port Statistics

• PoE Considerations for Switches That Support PoE

Gigabit Ethernet Smart Managed Plus Switches

Manage Flow Control

Flow control works by pausing a port if the port becomes oversubscribed and dropping all traffic for small bursts of time during the congestion condition. You can enable or disable IEEE 802.3x flow control. By default, flow control is disabled.

To manage flow control:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Management > Port Status.

The previous figure is an example. Your switch might provide more or fewer ports.

6. Select one or more ports.

In the Flow Control menu, select Enable or Disable.

Click the Apply button. Your settings are saved.

User Manual55Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

Manage the Port Speed and the Port Status

By default, the port speed on all ports is set automatically after the switch determines the speed using autonegotiation with the link partner. You can select a specific port speed setting for each port, or disable a port by shutting it down manually.

To manage the port speed and the port status:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Management > Port Status.

The previous figure is an example. Your switch might provide more or fewer ports.

6. Select one or more ports.

In the Speed menu, select one of the following options:

Auto. The port speed is set automatically after the switch determines the speed

•

using autonegotiation with the link partner. This is the default setting.

Disable. The port is shut down.

•

User Manual56Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

10M Half. The port is forced to function at 10 Mbps with half duplex.

•

10M Full. The port is forced to function at 10 Mbps with full duplex.

•

100M Half. The port is forced to function at 100 Mbps with half duplex.

•

100M Full. The port is forced to function at 100 Mbps with full duplex.

•

To configure more ports, repeat this procedure from Step 6 on.

Click the Apply button. Your settings are saved.

Enable Loop Detection

If loop detection is enabled and the switch detects a loop, the LED or both LEDs of a port blink at a constant speed.

To enable loop detection:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Management > Loop Detection. The Loop Detection page displays.

Select the Enable radio button.

Click the Apply button. Your settings are saved.

User Manual57Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

Manage Power Saving Options

Note: Power saving options are available on models GS105Ev2, GS105PE, GS116Ev2, JGS516PE, JGS524Ev2, and JGS524PE.

Depending on the power saving options that your switch model provides, you can manage the IEEE 802.3az Energy Efficient Ethernet (EEE) function, cable length power saving, or link-down power saving, or a combination of these features:

Short Cable Power Saving. Dynamically detects and adjusts power that is required

• for the detected cable length.

Link-Down Power Saving. Reduces the power consumption considerably when

• the network cable is disconnected. When the network cable is reconnected, the switch detects an incoming signal and restores normal power.

EEE. Combines the Energy Efficient Ethernet (EEE) 802.3 MAC sublayer with the

• 100BASE-TX and 1000BASE-T physical layers to support operation in Low Power Idle (LPI) mode. When LPI mode is enabled, systems on both sides of the link can disable portions of their functionality and save power during periods of low link utilization.

To manage the power saving options:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

User Manual58Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

Select System > Management > Power Saving Mode.

Select the Enable button to enable the power saving mode. By default, the Disable radio button is selected.

Click the Apply button. Your settings are saved.

Download and Update the Firmware

You can manually check for the latest firmware version for your switch by visiting netgear.com/support/download/.

Note: Instead of using the local browser interface, you can use the ProSAFE Plus Utility to update the firmware on the switch. In that situation, do not use a WiFi connection to

the switch but use only a direct wired connection over an Ethernet cable. That is, configure a computer with an IP address in the same subnet as the switch and connect directly to the switch using an Ethernet cable before you start the firmware update using the ProSAFE Plus Utility.

To download and update the firmware using the local browser interface:

1. Visit netgear.com/support/download/.

In the Enter a Product Name/Model Number field, start typing the model number, and select the model from the menu that displays after you start typing.

The available firmware versions displays.

Select and download the firmware version and release notes to your computer.

Read the release notes to find out if you must reconfigure the switch after upgrading.

Unzip the downloaded file to extract the firmware image.

6. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

User Manual59Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

7. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

9. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

10.

Select System > Maintenance > Firmware Update. The Firmware Update page displays.

The firmware update method depends on the current firmware and boot loader versions on your switch.

11.

If the page displays the Enter Loader Mode button, click the Enter Loader Mode button.

The switch reboots and enters into the loader mode. The Firmware Upgrade page that displays varies, depending on the firmware boot loader version that is already on your switch.

Follow either Step 12 or Step 13, depending on which prompts you are presented with.

12.

If you are prompted to update the firmware from a file, click the Browse button and locate and select the new firmware image file.

13.

If you are prompted to provide both the TFTP server IP address and the image file name, do the following:

Complete the TFTP Server IP address field.

Note: This method requires that TFTP server software is installed on your computer to use the assigned TFTP server address from the TFTP server software application. If TFTP server software is not installed on your computer or if you are unsure how to do this, we recommend that you use the ProSAFE Plus Utility to update the firmware. For more information, see the ProSAFE Plus Utility User Manual, which you can download by visiting netgear.com/support/download/.

Complete the Image File Name field.

c. Make sure that the TFTP server launches the TFTP server application.

14.

Click the Apply button.

User Manual60Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

WARNING: To avoid the risk of corrupting the firmware, do not interrupt the update.

For example, do not turn off the switch or disconnect it.

When the update is complete, your switch restarts. The update process typically takes about three minutes.

Reboot the Switch

You can reboot the switch remotely.

To reboot the switch:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Maintenance > Device Reboot. The Device Reboot page displays.

6. Select the check box.

Click the Apply button. The switch reboots.

Save the Switch Configuration

You can save the switch configuration as a file. We recommend that you save the configuration. Then you can quickly restore the switch configuration if you change the settings and then decide to return the switch to its previous settings.

User Manual61Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

To save the switch configuration:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Maintenance > Save Configuration. The Save Configuration page displays.

Click the Save button. A pop-up window opens. Depending on the settings of your browser, you can select

a location to save the switch configuration file (a .cfg file).

Follow the directions of your browser to save the switch configuration.

Restore a Saved Switch Configuration

You can restore switch configuration that you saved.

To restore the switch configuration that you saved:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password.

User Manual62Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Maintenance > Restore Configuration. The Restore Configuration page displays.

Click the Browse button and locate and select the saved configuration file (a .cfg file).

Click the Apply button. The saved configuration is restored to the switch.

Restore Factory Default Settings

You can return the switch to its factory settings.

CAUTION: This process erases all settings that you configured on the switch.

To restore factory settings:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Maintenance > Factory Default. The Factory Default page displays.

6. Select the check box.

Click the Apply button.

User Manual63Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

The switch returns to its factory settings. The switch reboots to load the restored configuration.

Manage Access Control

Access control allows you to control which devices can access the switch over a web browser for management purposes. By default, access control is disabled. By adding one or more devices to the Access Control table, access control is enabled and only devices in the table are allowed to access the switch over a web browser.

Note: Models GS108Ev3, GS108PEv3, and GS308E do not support access control.

For more information, see the following sections:

Add Devices to the Access Control Table on page 64

•

Remove Devices From the Access Control Table on page 65

•

Add Devices to the Access Control Table

Be sure that you use a valid subnet mask when you add a device or a range of devices to the Access Control table.

CAUTION: Add the IP address and subnet mask for the device from which you are

accessing the switch to the Access Control table before you add any other devices to the table. Otherwise, you are locked out from the local browser interface of the switch.

To add devices to the Access Control table:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

User Manual64Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

The Switch Information page displays.

Select System > Maintenance > Access Control.

For a device or range of devices that must be able to access the switch, configure the following settings:

Source IP Address. Enter the IP address of the device or range of devices that

•

must be allowed to access the switch over a web browser.

Mask. Enter the subnet mask that is associated with the IP address.

•

Click the Add button. The device or range of devices is added to the table and your settings are saved.

Access control is now enabled.

Repeat Step 6 and Step 7 for each device or range of devices that you want to add to the Access Control table.

Remove Devices From the Access Control Table

You can remove a device from the Access Control table. If you remove all devices from the table, access control is disabled.

To remove devices from the Access Control table:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

User Manual65Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

Select System > Maintenance > Access Control.

6. Select one or more devices. To select all devices in the table, select the check box in the table heading.

Click the Delete button. The devices are removed from the table and your settings are saved. If you removed

all devices from the table, access control is disabled.

Enable Port Mirroring

Port mirroring lets you mirror the incoming (ingress) and outgoing (egress) traffic of one or more ports (the source ports) to a single predefined destination port.

To enable port mirroring:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

User Manual66Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

Select System > Monitoring > Mirroring.

The previous figure is an example. Your switch might provide more or fewer ports.

In the Destination Port menu, select the destination port. You can select a single destination port only. You cannot select a destination port

that is a member of a LAG.

7. In the Source Port section, select one or more source ports by selecting the check boxes that are associated with the port numbers.

You can select more than one source port. You cannot select a source port that is a member of a LAG.

In the Mirroring menu, select Enable. By default, mirroring is disabled.

Click the Apply button. Your settings are saved.

View Switch Information or Change the Switch Device Name

You can view the switch product name (model), serial number, MAC address, firmware version, DHCP mode, and other network information.

You can also change the switch device name.

To view information about the switch or change the switch device name:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch.

User Manual67Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

If you do not know the IP address of the switch, see Access the Switch Using a Web Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

To navigate to this page, select System > Management > Switch Information.

To change the switch device name, do the following: a.

In the Switch Name field, enter a name of up to 20 characters.

Click the Apply button. Your settings are saved.

View or Clear the Port Statistics

For each switch port, you can view the bytes received, bytes sent, and cyclic redundancy check (CRC) error packets.

To view or clear the port statistics:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

User Manual68Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Monitoring > Port Statistics.

The previous figure is an example. Your switch might provide more or fewer ports.

To clear the port statistics, click the Clear Counters button. All statistics counters change to 0.

PoE Considerations for Switches That Support PoE

A switch that supports Power over Ethernet (PoE) prioritizes the PoE power that it supplies in ascending port order (that is, from the lowest-numbered port to the highest-numbered port), up to its total power budget. If the power requirements for the attached powered devices (PDs) exceed the total power budget of the switch, the PD on the highest-numbered port is disabled to make sure that the PDs that are connected to the higher-priority, lower numbered ports are supported first.

Just because a PD is listed as an 802.3at PoE powered device does not necessarily mean that it requires the maximum power limit of the specification. Many PDs require less power, allowing all PoE ports to be active simultaneously.

The following table describes the PoE classes and the PoE power that a switch allocates.

User Manual69Manage and Monitor the Switch

Gigabit Ethernet Smart Managed Plus Switches

Table 7. PoE classes and PoE power allocations

Class DescriptionStandardDevice Class

Minimum Power Allocated to the Powered Device

Range of Power Delivered to the Powered Device

0.44W–12.95W0.44WDefault power (full)PoE and PoE+0

0.44W–3.84W4.0WVery low powerPoE and PoE+1

3.84W–6.49W7.0WLow powerPoE and PoE+2

6.49W–12.95W15.4WMid powerPoE and PoE+3

12.95W–25.5W30.0WHigh powerPoE+ only4

User Manual70Manage and Monitor the Switch

Diagnostics and Troubleshooting

This chapter covers the following topics:

• Test Cable Connections

• Resolve a Subnet Conflict to Access the Switch

• PoE Troubleshooting Suggestions

Gigabit Ethernet Smart Managed Plus Switches

Test Cable Connections

You can use the cable diagnostic feature to easily find out the health status of network cables. If any problems exist, this feature helps quickly locate the point where the cabling fails, allowing connectivity issues to be fixed much faster, potentially saving technicians hours of troubleshooting.

If an error is detected, the distance at which the fault is detected is stated in meters. (This is the distance from the port.)

To test cable connections:

1. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection, or connect directly to a switch that

is off-network using an Ethernet cable.

2. Launch a web browser.

In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see Access the Switch Using a Web

Browser on page 16.

The login window opens.

4. Enter the switch password. The default password is password. The password is case-sensitive.

The Switch Information page displays.

Select System > Monitoring > Cable Tester.

The previous figure is an example. Your switch might provide more or fewer ports.

6. Select one or more check boxes.

Depending on the model, click the Test Selected Port or TEST button. The switch tests the cable connection for the selected ports and displays the results.

This process might take up to a few minutes.

User Manual72Diagnostics and

Troubleshooting

Gigabit Ethernet Smart Managed Plus Switches

Resolve a Subnet Conflict to Access the Switch

If you power on the switch before you connect it to a network that includes a DHCP server, the switch uses its own default IP address of 192.168.0.239. This subnet might be different from the subnet used in your network. You might see the following message if you try to use the ProSAFE Plus Utility to access the switch:

The switch and manager IP address are not in the same subnet.

To resolve this subnet conflict:

1. Disconnect the Ethernet cable between the switch and your network.

2. Shut down power to the switch.

3. Reconnect the Ethernet cable between the switch and your network.

4. Reapply power to the switch. The switch powers on. The network DHCP server discovers the switch and assigns

it an IP address that is in the correct subnet for the network.

PoE Troubleshooting Suggestions

Here are some tips for correcting Power over Ethernet (PoE) problems that might occur on switches that support PoE:

Make sure that the PoE Max LED is off. If the PoE Max LED is solid amber, disconnect

• one or more PoE devices to prevent PoE oversubscription.

Make sure that the Ethernet cables are plugged in correctly. For each powered

• device (PD) that is connected to the switch, the associated PoE port LED on the switch

lights solid green. If the associated PoE port LED lights solid amber, a PoE fault occurred and PoE halted because of one of the conditions that are listed in the following table.

Troubleshooting

User Manual73Diagnostics and

Gigabit Ethernet Smart Managed Plus Switches

Table 8. PoE fault conditions and possible solutions

Possible SolutionPoE Fault Condition

A PoE-related short circuit occurred on the port.

The PoE power demand of the PD exceeded the maximum level that the

switch permits. The maximum level is 15.4W for a PoE connection or

30W for a PoE+ connection.

The PoE current on the port exceeded the classification limit of the PD.

The PoE voltage of the port is outside the range that the switch permits.

The problem is most likely with the

attached PD. Check the condition

of the PD or restart the PD by

disconnecting and reconnecting

the PD.

Restart the switch to see if the

condition resolves itself.

Troubleshooting

User Manual74Diagnostics and

Factory Default Settings and Technical Specifications

This appendix contains the following sections:

• Factory Default Settings

• Technical Specifications

Gigabit Ethernet Smart Managed Plus Switches

Factory Default Settings

You can return the switch to its factory settings. Use the end of a paper clip or some other similar object to press and hold the Factory Defaults button on the front panel

of the switch for at least two seconds. The switch resets and returns to the factory settings that are shown in the following table.

Table 9. Factory default settings

SettingFeature

passwordSwitch password

192.168.0.239 (if the switch is not connected to a network with a DHCP server)IP address

255.255.255.0Subnet mask

EnabledDHCP mode

EnabledIGMP snooping

None configuredLAGs

Disabled. If enabled, by default, all ports are members of VLAN 1.VLANs

Enabled802.1p/DSCP-based QoS

DisabledPort-based QoS

DisabledRate limiting

DisabledBroadcast filtering

DisabledLoop detection

AutonegotiationPort speed

DisabledFlow control

DisabledPort mirroring

Technical Specifications

User Manual76Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Technical Specifications

This section describes the technical specifications for each switch model.

Model GS105Ev2 Technical Specifications

The following table shows the technical specifications for model GS105Ev2.

Table 10. Model GS105Ev2 technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

5Ethernet ports

12V, 1.0A DC inputPower input

2.6W maximumPower consumption

3.7 in. x 3.9 in. x 1.06 in. (94 mm x 100 mm x 27 mm)Dimensions (W x D x H)

0.56 lb (0.252 kg)Weight

32º to 122ºF (0° to 50°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

Electromagnetic compliance

KC Class B, FCC part 15 Class B, C-Tick Class B, CE Class B, VCCI Class B, CCC, CAN ICES-3 (B)/NMB-3(B)

CE mark, CB, CCCSafety agency approvals

Model GS105PE Technical Specifications

The following table shows the technical specifications for model GS105PE.

Table 11. Model GS105PE technical specifications

Technical Specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

5Ethernet ports

User Manual77Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Table 11. Model GS105PE technical specifications (Continued)

DescriptionFeature

37V–57V DC input, 600mA maximum @ 42.5VPower input

21.95W maximumPower consumption

6.22 in. x 3.93 in. x 1.06 in. (158 mm x 100 mm x 27 mm)Dimensions (W x D x H)

1.04 lb (0.47 kg)Weight

32º to 122ºF (0° to 50°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

Electromagnetic compliance

CE Class B, FCC part 15 Class B, VCCI Class B, C-Tick Class B, CAN ICES-3 (B)/NMB-3(B)

CE markSafety agency approvals

Model GS108Ev3 Technical Specifications

The following table shows the technical specifications for model GS108Ev3.

Table 12. Model GS108Ev3 technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

8Ethernet ports

12V, 0.5A DC inputPower input

4.45W maximumPower consumption

Technical Specifications

6.2 in. x 4 in. x 1.14 in. (158 mm x 101 mm x 29 mm)Dimensions (W x D x H)

1.12 lb (0.508 kg)Weight

32º to 104ºF (0° to 40°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

User Manual78Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Table 12. Model GS108Ev3 technical specifications (Continued)

DescriptionFeature

CE Class B, FCC Class B, VCCI Class B, RCM Class B, EAC, KCC, CCCElectromagnetic

compliance

CE mark, CB, CCC, EACSafety agency approvals

Model GS108PEv3Technical Specifications

The following table shows the technical specifications for model GS108PEv3.

Table 13. Model GS108PEv3 technical specifications

DescriptionFeature

Power budget

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

8, of which ports 1–4 are PoE portsEthernet ports

48V, 1.25A DC inputPower input

53W maximum for all PoE ports (1–4)

15.4W maximum for each individual PoE port

60W maximumPower consumption

6.2 in. x 4 in. x 1.14 in. (158 mm x 101 mm x 29 mm)Dimensions (W x D x H)

1.19 lb (0.538 kg)Weight

32º to 104ºF (0° to 40°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

Technical Specifications

User Manual79Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Model GS116Ev2 Technical Specifications

The following table shows the technical specifications for model GS116Ev2.

Table 14. Model GS116Ev2 technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

16Ethernet ports

12V, 1.0A DC inputPower input

10W maximumPower consumption

11.30 in. x 3.98 in. x 1.02 in. (286 mm x 101 mm x 26 mm)Dimensions (W x D x H)

1.86 lb (0.84 kg)Weight

32º to 104ºF (0° to 40°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

Model GS305E Technical Specifications

The following table shows the technical specifications for model GS305E.

Table 15. Model GS305E technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

5Ethernet ports

12V, 1.0A DC inputPower input

2.6W maximumPower consumption

Technical Specifications

3.7 in. x 3.9 in. x 1.06 in. (94 mm x 100 mm x 27 mm)Dimensions (W x D x H)

0.56 lb (0.255 kg)Weight

32º to 122ºF (0° to 50°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

User Manual80Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Table 15. Model GS305E technical specifications (Continued)

DescriptionFeature

Electromagnetic compliance

KC Class B, FCC part 15 Class B, C-Tick Class B, CE Class B, VCCI Class B, CCC, CAN ICES-3 (B)/NMB-3(B)

CE mark, CB, CCCSafety agency approvals

Model GS308E Technical Specifications

The following table shows the technical specifications for model GS308E.

Table 16. Model GS308E technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

8Ethernet ports

12V, 0.5A DC inputPower input

4.45W maximumPower consumption

compliance

6.2 in. x 4 in. x 1.14 in. (158 mm x 101 mm x 29 mm)Dimensions (W x D x H)

1.07 lb (0.484 kg)Weight

32º to 122ºF (0° to 50°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

CE Class B, FCC Class B, VCCI Class B, RCM Class B, EAC, KCC, CCCElectromagnetic

CE mark, CB, CCC, EACSafety agency approvals

Technical Specifications

User Manual81Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Models JGS516PE and JGS524PE Technical Specifications

The following table shows the technical specifications for models JGS516PE and JGS524PE.

Table 17. Models JGS516PE and JGS524PE technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

Ethernet ports

Power input

Power budget

Power consumption

Weight

Electromagnetic compliance

JGS516PE: 16, of which ports 1–8 are PoE ports JGS524PE: 24, of which ports 1–12 are PoE ports

JGS516PE: 100–240 VAC, 50–60Hz, 1.5A maximum JGS524PE: 100–240 VAC, 50–60Hz, 2.5A maximum

JGS516PE: 15.4W per port for ports 1–8. The maximum power budget for model JGS516PE is 85W. JGS524PE: 15.4W per port for ports 1–12. The maximum power budget for model JGS524PE is 100W.

JGS516PE: 110W maximum with PoE JGS524PE: 123W maximum with PoE

12.91 in. x 6.65 in. x 1.7 in. (328 mm x 169 mm x 43 mm)Dimensions (W x D x H)

JGS516PE: 3.58 lb (1.621 kg) JGS524PE: 4.04 lb (1.828 kg)

32º to 122ºF (0° to 50°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

KC Class A, CCC Class A, FCC part 15 Class A, CE Class A, RCM Class A, VCCI Class A, EAC

UL/cUL, CE, CCC, EAC, RCM, MSIP, VCCISafety agency approvals

Technical Specifications

User Manual82Factory Default Settings and

Gigabit Ethernet Smart Managed Plus Switches

Model JGS524Ev2 Technical Specifications

The following table shows the technical specifications for model JGS524Ev2.

Table 18. Model JGS524Ev2 technical specifications

DescriptionFeature

RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-TNetwork interface

Category 5e (Cat 5e) or higher-rated Ethernet cableNetwork cable

24Ethernet ports

100–240 VAC 50–60 Hz, 1.0A maximum inputPower input

13.8W maximumPower consumption

12.91 in. x 6.65 in. x 1.7 in. (328 mm x 169 mm x 43 mm)Dimensions (W x D x H)

Electromagnetic compliance

3.24 lb (1.47 kg)Weight

32º to 122ºF (0° to 50°C)Operating temperature

10–90% maximum relative humidity, noncondensingOperating humidity

KC Class A, CCC Class A, FCC part 15 Class A, RCM Class A, CE Class A, VCCI Class A, EAC

UL/cUL, CE, CCC, EAC, RCM, MSIP, VCCISafety agency approvals

Technical Specifications

User Manual83Factory Default Settings and

Netgear GS308E User manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Hardware

Supported Switch Models

Status LEDs

Models GS105Ev2, GS108Ev3, GS116Ev2, GS305E, and GS308E LEDs

Model GS105PE LEDs

Models GS108PEv3 LEDs

Model JGS524Ev2 LEDs

Models JGS516PE and JGS524PE LEDs

Safety Instructions and Warnings

Get Started

Configure the Switch

Access the Switch Using a Web Browser

Access a Switch That Is Connected to a Network

Access a Switch That Is Off-Network

Access the Switch With the ProSAFE Plus Utility

Install the ProSAFE Plus Utility

Access and Configure the Switch Using the ProSAFE Plus Utility

Use the NETGEAR Switch Discovery Tool to Access the Switch

Use the NETGEAR Insight Mobile App to Discover the Switch

Change the Switch Password

Change the Language

Change the Language of the Local Browser Interface

Change the Language for the Local Browser Interface by Installing Another Firmware Version

Register Your Product

Use VLANS for Traffic Segmentation

VLAN Overview

Create Basic Port-Based VLANs

Assign Ports to Multiple Port-Based VLANs

Create 802.1Q-Based VLANs in a Basic Configuration

Create 802.1Q-Based VLANs in an Advanced Configuration

Specify a Port PVID for an 802.1Q-Based VLAN

Optimize Performance With Quality of Service

Enable 802.1p/DSCP-Based Quality of Service

Configure Port-Based Quality of Service

Set Up Rate Limiting

Set Up Broadcast Filtering

Manage Network Settings

Specify IP Address Settings for the Switch

Use Browser-Based Access to Specify the Switch IP Address

Use the ProSAFE Plus Utility to Specify the Switch IP Address

Manage Multicast Traffic With IGMP Snooping

Customize IGMP Snooping

Specify a VLAN for IGMP Snooping

Set Up Link Aggregation Groups

Manage and Monitor the Switch

Manage Flow Control

Manage the Port Speed and the Port Status

Enable Loop Detection

Manage Power Saving Options

Download and Update the Firmware

Reboot the Switch

Save the Switch Configuration

Restore a Saved Switch Configuration

Restore Factory Default Settings

Manage Access Control

Add Devices to the Access Control Table

Remove Devices From the Access Control Table

Enable Port Mirroring

View Switch Information or Change the Switch Device Name

View or Clear the Port Statistics

PoE Considerations for Switches That Support PoE

Diagnostics and Troubleshooting

Test Cable Connections

Resolve a Subnet Conflict to Access the Switch

PoE Troubleshooting Suggestions

Factory Default Settings

Technical Specifications

Model GS105Ev2 Technical Specifications

Model GS105PE Technical Specifications

Model GS108Ev3 Technical Specifications

Model GS108PEv3Technical Specifications

Model GS116Ev2 Technical Specifications

Model GS305E Technical Specifications

Model GS308E Technical Specifications

Models JGS516PE and JGS524PE Technical Specifications
