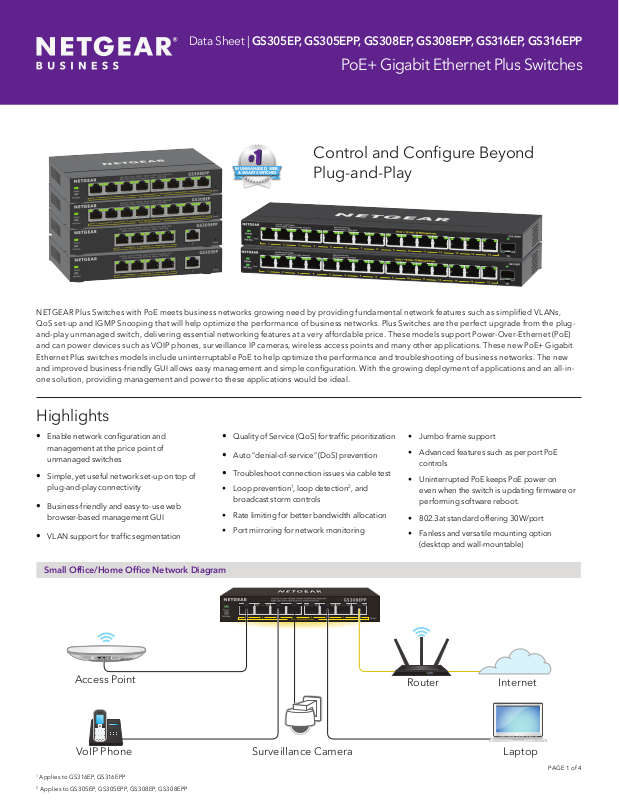

NETGEAR GS305EPP, GS308EP, GS308EPP, GS316EP, GS316EPP Datasheet

Data Sheet | GS305EP, GS305EPP, GS308EP, GS308EPP, GS316EP, GS316EPP
PoE+ Gigabit Ethernet Plus Switches
Control and Congure Beyond
IN UNMANAGED, WEB,
& SMART SWITCHES
NETGEAR Plus Switches with PoE meets business net works growing need by providing fundamental network features such as simplied VL ANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfec t upgrade from the plug­and-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple conguration. With the growing deployment of applications and an all-in­one solution, providing management and power to these applications would be ideal.
Plug-and-Play
Highlights
Enable network conguration and
management at the price point of unmanaged switches
Simple, yet useful network set-up on top of
plug-and-play connectivity
Business-friendly and easy-to-use web
browser-based management GUI
VLAN suppor t for trafc segmentation
Small Ofce/Home Ofce Network Diagram
Access Point
Qualit y of Service (QoS) for traf c prioritization
Auto “denial-of-service” (DoS) prevention
Troubleshoot connection issues via cable test
• Loop prevention1, loop detec tion2, and broadcast storm controls
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Jumbo frame suppor t
• Advanced features such as per port PoE controls
• Uninterrupted PoE keeps PoE power on even when the switch is updating rmware or performing soft ware reboot.
• 802.3at standard offering 30W/por t
• Fanless and versatile mounting option (desktop and wall-mountable)
InternetRouter
VoIP Phone Laptop
1
Appli es to GS316EP, GS316EPP
2
Appli es to GS3 05EP, GS305EPP, GS308EP, GS308EPP
Surveillance Camera
PAGE 1 of 4
Data Sheet | GS305EP, GS305EPP, GS308EP, GS308EPP, GS316EP, GS316EPP
PoE+ Gigabit Ethernet Plus Switches
Technical Specications
Features GS305EP GS305EPP GS308EP GS308EPP GS316EP GS316EPP
10/100/1000 RJ45 Copper Ports (Auto Uplink) 5 5 8 8 16 16
Enclosure Metal Metal Metal Metal Metal Metal
Connector Type Metal Metal Metal Metal Metal Metal
PoE
# of PoE ports 4 4 8 8 15 15
# PoE+ 802.3at Ports 4 4 8 8 15 15
SFP ports 0 0 0 0 1 1
Total PoE/PoE+ Budget 63W 120W 62W 123W 180W 231W
Advanced PoE Controls Yes Yes
PoE Scheduling No No No No Yes Ye s
Uninterrupted PoE Yes Yes Yes Yes Yes Yes
Performance Specication
Forwarding modes Store-and-forward
Bandwidth 10Gbps 10Gbps 16Gbps 16Gbps 28Gbps 28Gbps
Max MAC entries
Buffer Size
Energy Efcient Ethernet (IEEE 802.3az) compliant
Priority queuing WRR WRR WRR WRR WRR WRR
Jumbo frame support 9,216 bytes 9,216 bytes 9,216 bytes 9,216 bytes 10,000 bytes 10,000 bytes
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) 0 0 0 0 0 0
Mean Time Between Failures (MTBF) @ 25° C
L2 Services - VLANS
VLAN (# Supported) 64 64 64 64 64 64
IEEE 802.1Q VLAN Tagging Yes Yes Yes Yes Yes Yes
Port-based VLANs Yes Yes Yes Yes Yes Yes
L2 Services - Availability
Link Aggregation/Port Trunking Yes Yes Yes Yes Yes Yes
Number of Static Manual LAGs and # of members 2/4 2/4 2/4 2/4 8/8 8/8
L2 Services - Multicast Filtering
IGMP snooping (v1, v2, and v3) Yes Yes Yes Yes Yes Yes
Block unknown multicast Yes Yes Yes Yes Yes Yes
Supported Multicast groups 128 128 128 128 128 128
L3 Services - DHCP
DHCP client Yes Yes Yes Yes Yes Yes
4K 4K 4K 4K 4K 4K
192KB 192KB 192KB 192KB 192KB 192KB
Yes Yes Yes Yes Yes Yes
1,164,104
hours
853,770
hours
859,126
hours
842,428
hours
784,742
hours
570,435
hours
PAGE 2 of 4
Data Sheet | GS305EP, GS305EPP, GS308EP, GS308EPP, GS316EP, GS316EPP
PoE+ Gigabit Ethernet Plus Switches
Technical Specications
Quality of Service GS305EP GS305EPP GS308EP GS308EPP GS316EP GS316EPP
Rate Limiting Yes Yes Yes Yes Yes Yes
DSCP Yes Yes Yes Yes Yes Yes
IEEE 802.1p COS Yes Yes Yes Yes Yes Yes
Port-based VLAN Yes Yes Yes Yes Yes Yes
TOS Yes Yes Yes Yes Yes Yes
WRR (Weighted Round Robin) Yes Yes Yes Yes Yes Yes
Strict Priority queue technology No No No No No No
IEEE Network Protocols
• IEEE 802.3 Ethernet
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3u 100BASE-T
• EEE 802.1p Class of Service
Management
System Password Yes Ye s Ye s Ye s Ye s Ye s
Web browserbased management GUI Yes Yes Yes Yes Yes Yes
PC Utility No No No No No No
Port Mirroring Yes Yes Yes Yes Yes Yes
Max number of source ports allowed (one-to-one port mirroring)
Many-to-one Port Mirroring Yes Yes Yes Yes Yes Yes
Cable Test Utility Yes Yes Yes Yes Yes Yes
FW Upgrade Thru Plus Utility (TFTP) No No No No No No
Cong download (to Switch) thru Plus Utility No No No No No No
Cong upload (to server) Yes Ye s Ye s Ye s Ye s Ye s
LEDs
Per port Speed, Link, Activity, PoE
Per device Power, System, PoE Max
Physical Specications
Dimensions (W x D x H)
Weight
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3x Full-duplex Flow Control
• IEEE 802.3af PoE
• IEEE 802.3at PoE+
1 1 1 1 1 1
158 x 101 x 27
mm
(6.2 x 4.0 x
1.1 in)
0.39 kg (0.86 lb)
158 x 101 x 27
mm
(6.2 x 4.0 x
1.1 in)
0.40 kg
(0.88 lb)
158 x 101 x 27
mm
(6.2 x 4.0 x
1.1 in)
0.49 kg
(1.08 lb)
158 x 101 x 27
mm
(6.2 x 4.0 x
1.1 in)
0.49 kg
(1.08 lb)
286 x 102 x 27
mm
(11.26 x 4.02 x
1.06 in)
0.883 kg (1.95 lb)
286 x 102 x 27
mm
(11.26 x 4.02 x
1.06 in)
0.883 kg (1.95 lb)
PAGE 3 of 4
Data Sheet | GS305EP, GS305EPP, GS308EP, GS308EPP, GS316EP, GS316EPP
PoE+ Gigabit Ethernet Plus Switches
Technical Specications
Environmental Specications
Operating
Operating temperature 32° to 104°F (0° to 40°C)
Humidity (relative) 90% maximum relative humidity (RH), non-condensing
Altitude 10,000 ft (3,000 m) maximum
Storage
Storage temperature – 4° to 158°F (–20° to 70°C)
Humidity (relative) 95% maximum relative humidity (RH), non-condensing
Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
CE mark, commercial
FCC Part 15 class B
CE/EN55032/24
Certications
Warranty and Support
Hardware Warranty (All Except China/India) 5-year warranty
China/India 1-year warranty
External Power Adapter Warranty 2-year warranty
Technical Support (online, phone) 90 days free of Technical Support with registration
ProSUPPORT OnCall 24x7 Service Plans
Package Contents
VCCI
ACMA
CSA safety
KC
BSMI
Category S1: PMB0S11-10000S PMB0S31-10000S PMB0S51-10000S
NETGEAR Plus Switch
Power adapter (power cable varies by region)
All Models
*
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodied hardware, fans and internal power supplies –not
software or external power supplies, and requires produc t regis tration at ht tps://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/ about /warrant y for details. Intended for indoor use only.
NETGE AR #1 in US Market Share according to NPD data for Unmanaged and Smart Switches, September 2019. NETGE AR #1 in Europe Market Share according to Context data for
Unmanaged and Smar t Switches, September 2019.
NETGE AR and the NETGEAR Logo are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identication purposes
only and may be trademarks of their respective holder(s). Information is subjec t to change without notice. ©NETGEAR, Inc. All Rights reserved.
NETGE AR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA, 1-888-NETGEAR (638- 4327), E-mail: info@NETGEAR.com, ww w.NETGEAR.com
Wall installation kit
Rubber feet
Installation guide
D-GS305EP/GS305EPP/GS308EP/GS308EPP/GS316EP/GS316EPP-26Jan21
