Installation Guide

ProSafe 5-Port Gigabit Switch GS105v4

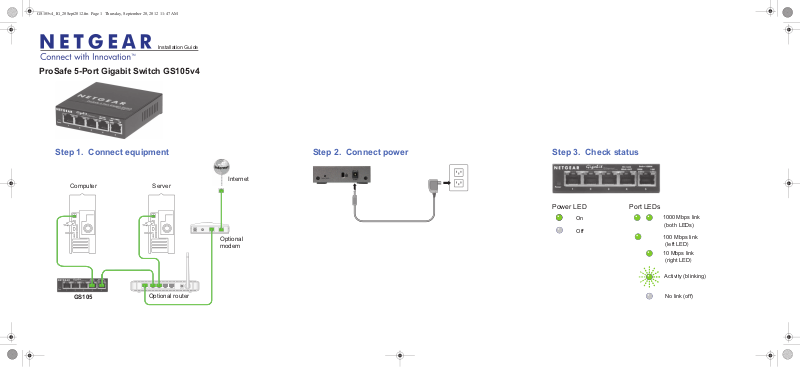

Step 1. Connect equipment

Computer Server

GS105

Optional router

Internet

Optional
modem

Step 2. Connect power

Step 3. Check status

Power LED

On

Off

Port LEDs

1000 Mbps link

(both LEDs)

100 Mbps link

(left LED)

10 Mbps link

(right LED)

Activity (blinking)

No link (off)

September 2012

This symbol appears in accordance with the European Union Directive 2002/96 on the Waste
Electrical and Electronic Equipment (the WEEE directive). If you dispose of this product in the
European Union, treat and recycle it in accordance with your jurisdiction’s laws that implement the
WEEE directive.

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of
NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to
change without notice. Other brand and product names are registered trademarks or trademarks of their
respective holders. © NETGEAR, Inc. All rights reserved.

For indoor use only in all EU countries and Switzerland.

For the complete EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

Statement of Conditions: In the interest of improving internal design, operational function, and/or reliability,
NETGEAR reserves the right to make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.

Specifications

Specification Description

Network interface RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-T

Network cable Category 5e (Cat 5e) or better Ethernet cable

Ports 5

Power adapter 12V @ 1.0A DC input

Power consumption 4W max

Weight 0.264 Kg (0.58 lbs)

Dimensions
(W x D x H)

99 mm x 102 mm x 27 mm

3.9 in. x 4.0 in. x 1.1 in.

Operating
temperature

0–50° C (32–122° F)

Operating humidity 10%–90% relative humidity, noncondensing

Electromagnetic
compliance

CE Class B, FCC Class B, VCCI Class B, C-Tick Class B

Safety agency
approvals

CE mark, CB

Technical Support

After installing your device, locate the serial number on the label of your product and
use it to register your product at https://my.netgear.com.

You must register your product before you can use NETGEAR telephone support.
NETGEAR recommends registering your product through the NETGEAR web site.
For product updates and web support, visit http://support.netgear.com.
