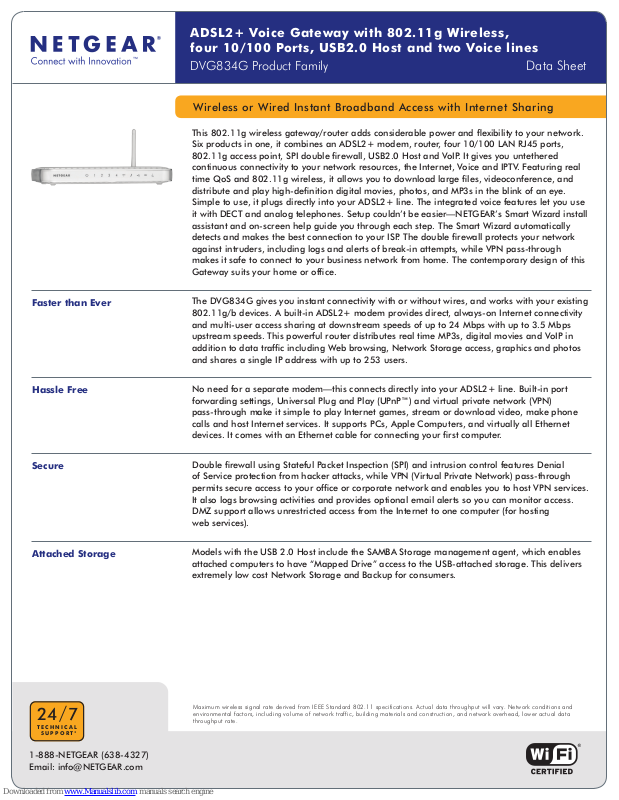

NETGEAR DVG834G Datasheet

ADSL2+ Voice Gateway with 802.11g Wireless,

24/7

TECHNICAL

SUPPORT *

four 10/100 Ports, USB2.0 Host and two Voice lines

DVG834G Product Family

Data Sheet

Wireless or Wired Instant Broadband Access with Internet Sharing

This 802.11g wireless gateway/router adds considerable power and flexibility to your network.
Six products in one, it combines an ADSL2+ modem, router, four 10/100 LAN RJ45 ports,

802.11g access point, SPI double firewall, USB2.0 Host and VoIP. It gives you untethered
continuous connectivity to your network resources, the Internet, Voice and IPTV. Featuring real
time QoS and 802.11g wireless, it allows you to download large files, videoconference, and
distribute and play high-definition digital movies, photos, and MP3s in the blink of an eye.
Simple to use, it plugs directly into your ADSL2+ line. The integrated voice features let you use
it with DECT and analog telephones. Setup couldn’t be easier—NETGEAR’s Smart Wizard install
assistant and on-screen help guide you through each step. The Smart Wizard automatically
detects and makes the best connection to your ISP. The double firewall protects your network
against intruders, including logs and alerts of break-in attempts, while VPN pass-through
makes it safe to connect to your business network from home. The contemporary design of this
Gateway suits your home or office.

Faster than Ever

The DVG834G gives you instant connectivity with or without wires, and works with your existing

802.11g/b devices. A built-in ADSL2+ modem provides direct, always-on Internet connectivity
and multi-user access sharing at downstream speeds of up to 24 Mbps with up to 3.5 Mbps
upstream speeds. This powerful router distributes real time MP3s, digital movies and VoIP in
addition to data traffic including Web browsing, Network Storage access, graphics and photos
and shares a single IP address with up to 253 users.

Hassle Free

Secure

Attached Storage

No need for a separate modem—this connects directly into your ADSL2+ line. Built-in port
forwarding settings, Universal Plug and Play (UPnP™) and virtual private network (VPN)
pass-through make it simple to play Internet games, stream or download video, make phone
calls and host Internet services. It supports PCs, Apple Computers, and virtually all Ethernet
devices. It comes with an Ethernet cable for connecting your first computer.

Double firewall using Stateful Packet Inspection (SPI) and intrusion control features Denial
of Service protection from hacker attacks, while VPN (Virtual Private Network) pass-through
permits secure access to your office or corporate network and enables you to host VPN services.
It also logs browsing activities and provides optional email alerts so you can monitor access.
DMZ support allows unrestricted access from the Internet to one computer (for hosting
web services).

Models with the USB 2.0 Host include the SAMBA Storage management agent, which enables
attached computers to have “Mapped Drive” access to the USB-attached storage. This delivers
extremely low cost Network Storage and Backup for consumers.

Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data
throughput rate.

1-888-NETGEAR (638-4327)
Email: [e-mail]

ADSL2+ Voice Gateway with 802.11g Wireless, four 10/100 Ports, USB2.0 Host and two Voice lines DVG834G

Connects to
DSL line
(without filter
or with filter
where needed)

Connects to
Ethernet
Switch or a
desktop PC
with Network
Card (FA311)

Connects
to power

Laptop PCs connect with
Wireless-G Laptop Card
(WG511/WG511T) or
Wireless-G USB 2.0
Adapter (WG111)

Desktop PCs connect
with Wireless-G PCI
Card (WG311/WG311T)
or Wireless-G USB 2.0
Adapter (WG111)

DECT handset

VoIP ­delivered
analog
phone
line
connects
to analog
phone or
DECT base

System Requirements

ADSL2/2+ Internet service –

2.4 GHz 802.11g WiFi adapter or –
Ethernet adapter for each computer

Microsoft Windows Vista, XP, 2000, –
and other operating systems running
a TCP/IP network

Microsoft –

®

Internet Explorer 5.0

or higher
VISTA Ready –

Physical Interfaces

LAN: Four 10/100 Mbps auto-sensing –
MDIX, Auto Uplink™ RJ-45 ports

WAN Port: ADSL2+ Annex A, B, M or L –
Wireless: 802.11g in the 2.4 GHz band –
USB 2.0 Host –
FXS for analog phones (2 lines) –

Security

Intrusion logging and reporting –
DoS Detection –
VPN NAT traversal (VPN pass-through) –

for IPSec, PPTP and L2TP VPNs

VoIP Voice Features

Attached IP telephony devices –
Call hold, transfer, forwarding, return, –

conference, redial, Caller ID
Codecs: G.711, G723.1, G.726, G729a –
G.168 Echo Cancellation –
G.711 fax pass through –
Power fallure transfer to PSTN –
SIP Pass-Thru (for VoIP calls) –
Speed dial, anonymous –

call suppression
T.38 Fax relay –

Power

Adapter: 12V DC, 1.5A –

ON/OFF Power Switch –
Input Power: 18W –

Physical Specifications

Dimensions: 223 x 153 x 31 mm –
(8.8 x 6.0 x 1.2 in)

Weight: 0.5 kg (1.06 lb) –

Environmental Specifications

Operating temperature: 0º to 40º C –
Operating humidity: 90% maximum –

Warranty

US: NETGEAR 1-year warranty –
Rest of world: 2-years –

Package Contents

ADSL2+ Gateway (DVG834G, –
DVG834GB, DVG834GU or
DVG834GBU)

Power adapter, Ethernet cable –
Phone cable, Vertical stand –
Setup CD –

Compliances

CE, UL, FCC 15, A-TICK, C-TICK, WiFi –

DSL Forum Compliant

TR-059, TR-069 –
TR-104, TR-106, TR-111 –

Network Management

Local administration interface: –
Web-based GUI with protected
user name and password

Command line Interface –
Remote Web Management –
UPnP –

LEDs (TR-068 Compliant)

Internet –
LAN 1,2,3 & 4 –

Power –
USB –
ADSL Down / Upstream active (1 LED) –
Voice lines active –
Wireless –

Application Layer

Routing / Switching

DHCP, DNS (proxy & dynamic) –
TFTP (for VoIP configuration data) –
HTTP, IPCP, IRC –
NNTP, NTP, RTP, RTSP –
Selectable RFC 3263 DNS server –
SMTP, TELNET –

Network/Internet Layer

ARP, Disable, Enable NAT/PAT –
IGMP, IGMP Proxy & IGMP Snooping –
IP (IPv4) –
IP Fragmentation & Reassembly –
IPoE, IP QoS, IPSec Pass-Through –
NAT/PAT, RARP, Static Routing –

WIFI

802.1x –
Disable SSID broadcast –
MAC address Access Control –
Multiple SSIDs, WDS, WEP 64/128 bit –
WMM-QoS, WPA, WPA-PSK, WPA2, –

WPA2-PSK, WPS with pin & pushbutton

DVG834G Product Family Summary

Model DSL Annex(s) USB Port

DVG834G A,L,M No

DVG834GB B,L,M No

DVG834GU A,L,M Yes

DVG834GBU B,L,M Yes
