Digital Entertainer Model
EVA700 User Manual
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
202-10126-01 May 2006
© 2006 by NETGEAR, Inc. All rights reserved.
Trademarks
NETGEAR is a trademark of Netgear, Inc. Intel, the Intel logo, Intel Viiv , the Intel Viiv logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.Microsoft, Windows, and Windows Media Player are trademarks or registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the NETGEAR Digital Entertainer EVA700 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.
Voluntary Control Council for Interference (VCCI) Statement
This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas.
When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling.
SOFTWARE LICENSE AGREEMENT
1.This Software License Agreement (the “Agreement”) is a legal agreement between you (either an individual or an entity) (“You”) and NETGEAR, Inc. (“NETGEAR”) regarding the use of NETGEAR’s software provided with the NETGEAR Digital Entertainer EVA700 (inside the NETGEAR Digital Entertainer EVA700, any accompanying CDs, and any accompanying documentation; together, the “Software”). BEFORE YOU USE THIS SOFTWARE, CAREFULLY READ THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU ARE NOT AUTHORIZED TO SIGN, THEN DO NOT DOWNLOAD, INSTALL OR USE THE SOFTWARE, BECAUSE BY DOING SO, YOU ARE AGREEING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, DO NOT DOWNLOAD, INSTALL OR USE THIS SOFTWARE, AND DESTROY OR RETURN ALL COPIES IN YOUR POSSESSION.
2.Subject to the restrictions set forth below, NETGEAR grants You a nonexclusive, personal, nontransferable, perpetual (subject to Section 5) license to install and use 1 copy of the provided version of the Software in object code format, for internal and personal purposes only, on 1 computer. The Software is “in use” on a computer when it is loaded into the temporary memory or installed into the permanent memory of a computer. The license granted hereunder shall not be effective until You have paid all fees in full. Except for the license rights granted above, NETGEAR and NETGEAR’s licensors retain all right, title and interest in and to the Software, including all intellectual property rights therein. YOU MAY NOT (AND MAY NOT ALLOW A THIRD PARTY TO) (a) RENT, LEASE, SUBLICENSE, SELL, ASSIGN, LOAN, USE FOR TIMESHARING OR SERVICE BUREAU PURPOSES OR OTHERWISE TRANSFER THE SOFTWARE OR ANY OF YOUR RIGHTS AND
ii
Publication Version 1.0, May 2006
OBLIGATIONS UNDER THIS AGREEMENT; (b) reverse engineer, decompile, disassemble or attempt to reconstruct, identify or discover any source code, underlying ideas, underlying user interface techniques or algorithms of the Software by any means whatsoever, except to the extent the foregoing restrictions are expressly prohibited by applicable law; (c) remove or destroy any copyright notices or other proprietary markings; (d) attempt to circumvent any use restrictions; (e) modify or adapt the Software, merge the Software into another program or create derivative works based on the Software; (f) use, copy or distribute the Software without NETGEAR’s written authorization, excepting 1 copy for archival or backup purposes only; or (g) use the Software or the NETGEAR Digital Entertainer EVA700 for commercial use. YOU MAY NOT (AND MAY NOT ALLOW A THIRD PARTY TO) COPY, REPRODUCE, CAPTURE, STORE, RETRANSMIT, DISTRIBUTE, OR BURN TO CD (OR ANY OTHER FORMAT) ANY COPYRIGHTED CONTENT (INCLUDING BUT NOT LIMITED TO MUSICAL AND MUSIC-RELATED) THAT YOU ACCESS OR RECEIVE THROUGH USE OF THE SOFTWARE. YOU ASSUME ALL RISK AND LIABILITY, CIVIL AND CRIMINAL, FOR ANY SUCH PROHIBITED USE OF COPYRIGHTED CONTENT.
3.THIS AGREEMENT SHALL BE EFFECTIVE UPON INSTALLATION OF THE SOFTWARE AND SHALL TERMINATE UPON THE EARLIER OF: (A) YOUR FAILURE TO COMPLY WITH ANY TERM OF THIS AGREEMENT OR (B) RETURN, DESTRUCTION OR DELETION OF ALL COPIES OF THE SOFTWARE IN YOUR POSSESSION. NETGEAR’s rights and your obligations shall survive any termination of this Agreement. Upon termination of this Agreement, You shall certify in writing to NETGEAR or such NETGEAR licensor that all copies of the Software have been destroyed or deleted from any of your computer libraries or storage devices.
4.NETGEAR warrants that the Software will perform substantially in accordance with the documentation accompanying the Software for a period of 90 days after your initial receipt of the Software. NETGEAR’s entire liability and your exclusive remedy for breach of this warranty shall be repair or replacement of the Software. This limited warranty shall be void if failure of the Software has resulted from any accident, abuse, misuse or misapplication by You. EXCEPT AS SET FORTH ABOVE, THE SOFTWARE IS PROVIDED ON AN “AS IS” BASIS. YOU ASSUME ALL RESPONSIBILITY FOR SELECTION OF THE SOFTWARE TO ACHIEVE YOUR INTENDED RESULTS AND FOR THE INSTALLATION OF, USE OF AND RESULTS OBTAINED FROM THE SOFTWARE. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, NETGEAR DISCLAIMS ALL WARRANTIES, EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, NONINFRINGEMENT, QUALITY, ACCURACY, FITNESS FOR A PARTICULAR PURPOSE, AND FITNESS FOR YOUR PURPOSE WITH RESPECT TO THE SOFTWARE AND THE ACCOMPANYING WRITTEN MATERIALS. THERE IS NO WARRANTY AGAINST INTERFERENCE WITH THE ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. NETGEAR DOES NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE SOFTWARE WILL MEET YOUR REQUIREMENTS, BE UNINTERRUPTED OR ERROR-FREE, OR THAT ALL DEFECTS IN THE SOFTWARE WILL OR CAN BE CORRECTED.
5.In the event that a claim alleging infringement or misappropriation of an intellectual property right arises concerning the Software, NETGEAR in its sole discretion may elect to defend or settle such claim. NETGEAR, in the event of such claim, may also in its sole discretion, elect to terminate this Agreement and all rights to use the Software and require the return and/or destruction of the Software, with a refund of the fees paid for use of the Software less a reasonable allowance for use and shipping. THE FOREGOING ARE NETGEAR’S SOLE EXCLUSIVE OBLIGATIONS, AND YOUR SOLE AND EXCLUSIVE REMEDIES, WITH RESPECT TO INFRINGEMENT AND/OR MISAPPROPRIATION OF ANY INTELLECTUAL PROPERTY RIGHT.
6.UNDER NO CIRCUMSTANCES WILL NETGEAR OR ITS LICENSORS BE LIABLE FOR ANY CONSEQUENTIAL, SPECIAL, INDIRECT, INCIDENTAL OR PUNITIVE DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, INTERRUPTION, LOSS OF BUSINESS INFORMATION, LOSS OF DATA OR OTHER SUCH PECUNIARY LOSS), WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, PRODUCT LIABILITY OR OTHERWISE, ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE, EVEN IF NETGEAR AND/OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL NETGEAR’S AND ITS LICENSORS’ AGGREGATE LIABILITY FOR DAMAGES ARISING OUT OF THIS AGREEMENT EXCEED THE FEES PAID BY YOU FOR THE
iii
Publication Version 1.0, May 2006
SOFTWARE. THE FOREGOING LIMITATIONS ARE INDEPENDENT OF THE EXCLUSIVE REMEDY PROVIDED IN SECTION 6 ABOVE AND SHALL APPLY NOTWITHSTANDING ANY FAILURE OF SUCH EXCLUSIVE REMEDY OR OF ITS ESSENTIAL PURPOSE. THE FOREGOING EXCLUSIONS AND LIMITATIONS OF LIABILITY AND DAMAGES SHALL NOT APPLY TO CONSEQUENTIAL DAMAGES FOR PERSONAL INJURY.
7.You may not export or re-export the Software without: (a) the prior written consent of NETGEAR, (b) complying with applicable export control laws, including, but not limited to, restrictions and regulations of the Department of Commerce or other United States agency or authority, and (c) obtaining any necessary permits and licenses. In any event, You may not transfer or authorize the transfer of the Software to a prohibited territory or country or otherwise in violation of any applicable restrictions or regulations.
8.The Software and documentation are considered “commercial computer software” and “commercial computer software documentation,” respectively, pursuant to DFAR Section 227.7202 and FAR Section 12.212, as applicable. Use, duplication or disclosure of the Software and documentation by the U.S. Government is subject to the restrictions set forth in DFAR Section 227.7202 for military agencies and FAR Section 12.212 for civilian agencies. THIS AGREEMENT IS GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA, U.S.A., WITHOUT REFERENCE TO ITS CONFLICT OF LAWS PRINCIPLES. THIS AGREEMENT WILL NOT BE GOVERNED BY THE U.N. CONVENTION ON CONTRACTS FOR THE INTERNATIONAL SALES OF GOODS. ANY DISPUTE BETWEEN YOU AND NETGEAR ARISING UNDER THIS AGREEMENT SHALL BE SUBJECT TO THE EXCLUSIVE JURISDICTION OF THE COURTS OF THE STATE OF CALIFORNIA. This Agreement is the entire agreement between You and NETGEAR regarding the subject matter herein and supersedes any other communications with respect to the Software. If any provision of this Agreement is held invalid or unenforceable, the remainder of this Agreement will continue in full force and effect. Failure to prosecute a party’s rights with respect to a default hereunder will not constitute a waiver of the right to enforce rights with respect to the same or any other breach.
9.Should you have any questions relating to this Agreement, or if you desire to contact NETGEAR for any reason, please call 1-888-NETGEAR.
Customer Support
Refer to the Support Information Card that shipped with your NETGEAR Digital Entertainer EVA700.
World Wide Web
NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com.
A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.
iv
Publication Version 1.0, May 2006
Product and Publication Details
Model Number: |
EVA700 |
Publication Date: |
May 2006 |
Product Family: |
media player |
Product Name: |
NETGEAR Digital Entertainer EVA700 |
Home or Business Product: |
Home |
Language: |
English |
Publication Part Number: |
202-10126-01 |
Publication Version Number |
1.0 |
v
Publication Version 1.0, May 2006
vi
Publication Version 1.0, May 2006
Contents
About This Manual |
|
Conventions, Formats, and Scope ................................................................................... |
ix |
How to Print the PDF of This Manual ................................................................................ |
x |
Chapter 1 |
|
Installing Your Digital Entertainer |
|
Package Contents .......................................................................................................... |
1-1 |
Front Panel ..................................................................................................................... |
1-2 |
Rear Panel ...................................................................................................................... |
1-2 |
Remote Control .............................................................................................................. |
1-4 |
Connecting the Digital Entertainer .................................................................................. |
1-7 |
Windows XP Computer Without Intel® Viiv™ Technology ............................................. |
1-8 |
Installing Software .................................................................................................... |
1-8 |
Setting up the Digital Entertainer ........................................................................... |
1-10 |
Chapter 2 |
|
Intel® Viiv™ Technology |
|
Updating the Intel® Viiv™ Software .............................................................................. |
2-1 |
Set up your device on the network with Intel® Viiv™ Settings ....................................... |
2-2 |
Wired Ethernet Network Cable Setup ...................................................................... |
2-4 |
Wireless Setup ......................................................................................................... |
2-4 |
Completing the Setup ..................................................................................................... |
2-6 |
Setting up the Intel® Viiv™ Media Library ............................................................... |
2-8 |
Completing your wireless setup if you do not have an Intel® Viiv™ technology verified |
|
router ...................................................................................................................... |
2-10 |
Navigating to the Intel® Viiv™ settings screen ............................................................. |
2-14 |
Intel® Viiv™ settings screen menu selections .............................................................. |
2-14 |
Chapter 3 |
|
Videos, Pictures, and Music |
|
Media Files and Formats ................................................................................................ |
3-1 |
Watching Videos ............................................................................................................. |
3-2 |
vii
Publication Version 1.0, May 2006
Viewing Photos ............................................................................................................... |
3-2 |
Playing Music ................................................................................................................. |
3-3 |
Playing Music from the Internet ...................................................................................... |
3-4 |
Chapter 4 |
|
Media Library and Digital Entertainer Settings |
|
Windows Media Connect Software ................................................................................. |
4-1 |
Media Player Setup Menu .............................................................................................. |
4-2 |
Advanced ................................................................................................................. |
4-3 |
IP Config .................................................................................................................. |
4-4 |
WiFi Setup ................................................................................................................ |
4-5 |
Wireless Networks ................................................................................................... |
4-6 |
Firmware .................................................................................................................. |
4-7 |
Restoring Factory Settings ....................................................................................... |
4-8 |
Chapter 5 |
|
Troubleshooting |
|
No Television Display or Poor Display ............................................................................ |
5-1 |
Connecting to the Digital Entertainer .............................................................................. |
5-2 |
Windows Media Connect Firewall Conflict ..................................................................... |
5-3 |
Physical Connectivity ...................................................................................................... |
5-3 |
Ethernet Link ............................................................................................................ |
5-3 |
Wireless Link ............................................................................................................ |
5-4 |
IP Address ...................................................................................................................... |
5-4 |
Connecting to a Server ................................................................................................... |
5-5 |
Playing Media ................................................................................................................. |
5-6 |
Appendix A |
|
Technical Specifications |
|
Technical Specifications ................................................................................................. |
A-1 |
Appendix B |
|
Related Documents............................................................................................................... |
B1 |
viii
Publication Version 1.0, May 2006
About This Manual
The Digital Entertainer Model EVA700 User Manual describes how to install, configure, and troubleshoot the NETGEAR® digital entertainer. The information in this manual is intended for readers with basic to intermediate computer and Internet skills.
Conventions, Formats, and Scope
The conventions, formats, and scope of this manual are described in the following sections.
• Typographical conventions. This manual uses the following typographical conventions.
Italics |
Emphasis, books, CDs, URL names |
|
|
Bold |
User input |
|
|
Monospace |
Screen text, file and server names, extensions, commands, IP |
|
addresses |
• Formats. This manual uses the following formats to highlight special messages.
Note: This format is used to highlight information of importance or special interest.
Tip: This format is used to highlight a procedure that will save time or resources.
Warning: Ignoring this type of note may result in a malfunction or damage to the equipment.
ix
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
Danger: This is a safety warning. Failure to take heed of this notice may result in personal injury or death.
•Scope. This manual is written for the digital entertainer according to these specifications.
Product version |
NETGEAR Digital Entertainer EVA700 |
|
|
Manual publication date |
May 2006 |
|
|
Product updates are available on the NETGEAR website at
http://kbserver.netgear.com/products/EVA700.asp.
How to Print the PDF of This Manual
A printed manual ships with this product. This manual is also provided in PDF format on the NETGEAR CD. You can print a chapter, or the full manual, according to your needs. Your computer must have the free Adobe Acrobat Reader installed in order to view and print PDF files. The Acrobat Reader is available on the Adobe website at http://www.adobe.com.
•Printing a chapter. Use the PDF of This Chapter link at the top left of any page.
–Click the PDF of This Chapter link at the top right of any page in the chapter that you want to print. The PDF version of the chapter you were viewing opens in a browser window.
–Click the print icon in the upper left of the window.
Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and toner by selecting this feature.
•Printing the full manual. Use the Complete PDF Manual link at the top left of any page.
–Click the Complete PDF Manual link at the top left of any page in the manual. The PDF version of the manual opens in a browser window.
x
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
–Click the print icon in the upper left of the window.
Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and toner by selecting this feature.
xi
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
xii
v1.0, May 2006
Chapter 1
Installing Your Digital Entertainer
This chapter describes how to install the NETGEAR Digital Entertainer EVA700. For information about product features, see the NETGEAR website at http://www.netgear.com.
Package Contents
The product package should contain the following items:
•NETGEAR Digital Entertainer EVA700.
•Remote control (2AA batteries included).
•Power cable, localized to country of sale.
•Category 5 (CAT5) Ethernet cable.
•Composite Video cable and Audio cable.
•NETGEAR CD, including:
–Media server software.
–This manual.
–The Installation Guide.
–Application Notes and other helpful information.
•Warranty and Support Information card.
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the digital entertainer for repair.
1-1
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
Front Panel
The front panel of the digital entertainer has an LED that shows when it is turned on. It also has a USB port and a jack to connect headphones.
~ Í? Ë Öa Ë7 ÄÖ? Ë ÍjÁÍ? jÁË 7 Èåå
USB port |
|
|
Power |
|
|
||||
headphones |
|
|
|
LED |
|
|
|||
Figure 1-1
Rear Panel
The rear panel of the digital entertainer is shown in the following illustration:
|
S/PDIF |
|
Composite Video |
|
|||
wireless |
|
|
|
|
|
Stereo Audio |
wireless |
antenna |
|
|
|
|
|
|
antenna |
|
.Ê+ Ë ?Þ ? |
¬ Ä ÍjË7 aj |
- |
Öa |
|
|
|
~ Í? Ë Öa Ë7 ÄÖ? Ë ÍjÁÍ? jÁË 7 Èåå |
ÖÍ |
|
|
||||
|
|
|
|
|
|
+ ÝjÁ |
|
.W?Áw |
|
|
|
|
|
Í jÁ jÍ |
|
|
|
|
|
|
|
.¬jja Ê 0 |
|
|
|
|
|
|
2¬ |
-jÄjÍ |
|
. - |
. 7 aj |
: |
¬M |
|
¬Á |
|
¤åå Ô|å7Iyå Éå ã±Ëå| Ë ?Þ± |
|
¬ j ÍË7 aj |
|
|
|
|||
|
|
|
|
|
|
|
Reset |
SCART |
S-Video |
|
|
Component Video |
Power |
||
|
|
Ethernet |
|||||
port with LEDs
Figure 1-2
1-2 |
Installing Your Digital Entertainer |
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
The table below describes the connections on the rear panel when viewed from left to right.
Table 1-1. Rear Panel Connectors
Connector |
Description |
|
|
Wireless antennas |
The digital entertainer includes two wireless antennas. |
SCART |
This cable is widely used in Europe and Australia. |
|
Though this cable is not included in the package, the |
|
digital entertainer is compatible with this cable. |
|
|
S/PDIF |
This cable does not ship with the product, and you will |
(Sony/Philips Digital Interface) |
need to change the digital entertainer settings in order to |
port |
use it. |
Composite Video and Stereo |
The composite video is included, and is compatible with |
Audio |
most televisions in the United States. |
S-Video |
The audio cable is included, and is compatible with most |
|
televisions in the United States. |
Component video ports |
This cable is not included, but the digital entertainer is |
|
compatible with it. |
Ethernet port |
10/100 Mbps Ethernet port for connecting the digital |
|
entertainer to a wired local area network (LAN). |
Reset button |
This button resets the digital entertainer. |
|
|
Power |
The digital entertainer includes an internal power supply |
|
and universal power adapter. |
|
|
Installing Your Digital Entertainer |
1-3 |
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
Remote Control
Use the remote control to navigate menus, and to select and to watch videos, listen to music, or view photos on your television.
Figure 1-3
The table below describes the remote control buttons.
Table 1-1. Remote control buttons
Button Description
Power. Turn the digital entertainer off and on.
Back. Go back to the previous screen.
Navigation. Use these buttons to navigate the menu selections. When playing a video, you can use the left and right buttons to seek:
• The left button seeks backward by single percentage points in the currently playing stream.
•The right button seeks forward by single percentage points in the currently playing stream.
1-4 |
Installing Your Digital Entertainer |
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
Table 1-1. Remote control buttons
Button Description
Play/Pause. Press Play to play each file in sequence in a list of songs or videos.
Stop. Stop the media that is currently playing.
Rewind. Rewind to the beginning of the media that is currently playing.
Previous. Go to the previous item on a list.
Fast forward. Advance toward the end of the media that is currently playing.
Next. Go to the next item on a list.
Select and Play. Press OK to play an individual song or video, and then stop.
Home. Display the Home menu.
Information. Display media information.
Volume. Increase or decrease volume
Page up and Page down. Scroll up or down.
|
|
Mute. Mute or unmute the sound. |
|
|
|
|
|
|
Music |
Music menu. Display the Music menu. |
|
|
|
|
|
|
Video |
Video menu. Display the Video menu to select movies and video clips. |
|
|
|
|
|
|
|
|
|
Installing Your Digital Entertainer |
1-5 |
||
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
Table 1-1. Remote control buttons
Button |
Description |
|
|
Pics |
Picture menu. Display the Picture menu to select photographs to view. |
|
|
Menu |
Settings menu. Display the Settings menu. |
|
|
0-9 |
Numbers. Use this for numeric entry, choosing presets, and searching. |
|
When you are playing audio or video media, you can seek in 10% |
|
increments (such as 10% or 20%) in the currently playing stream. |
|
|
Caps Lock |
Caps Lock. Toggle Caps Lock on or off. |
|
|
TV Mode |
TV Output Mode. Change the output mode (such as NTSC or PAL). |
|
|
Repeat |
Repeat. Repeat a track or the entire media selection. When you are viewing |
|
a slideshow Repeat rotates the photo by 90 degrees. To use this feature the |
|
digital entertainer must be connected to a server that supports it, such as |
|
Windows Media Connect. |
|
|
Zoom |
Zoom. Change the zoom setting for video. |
|
|
1-6 |
Installing Your Digital Entertainer |
v1.0, May 2006
Digital Entertainer Model EVA700 User Manual
Connecting the Digital Entertainer
If you are using a Windows XP computer without Intel® Viiv™ technology, connect the digital entertainer first, and install the software as explained in “Windows XP Computer Without Intel® Viiv™ Technology” on page 1-8.

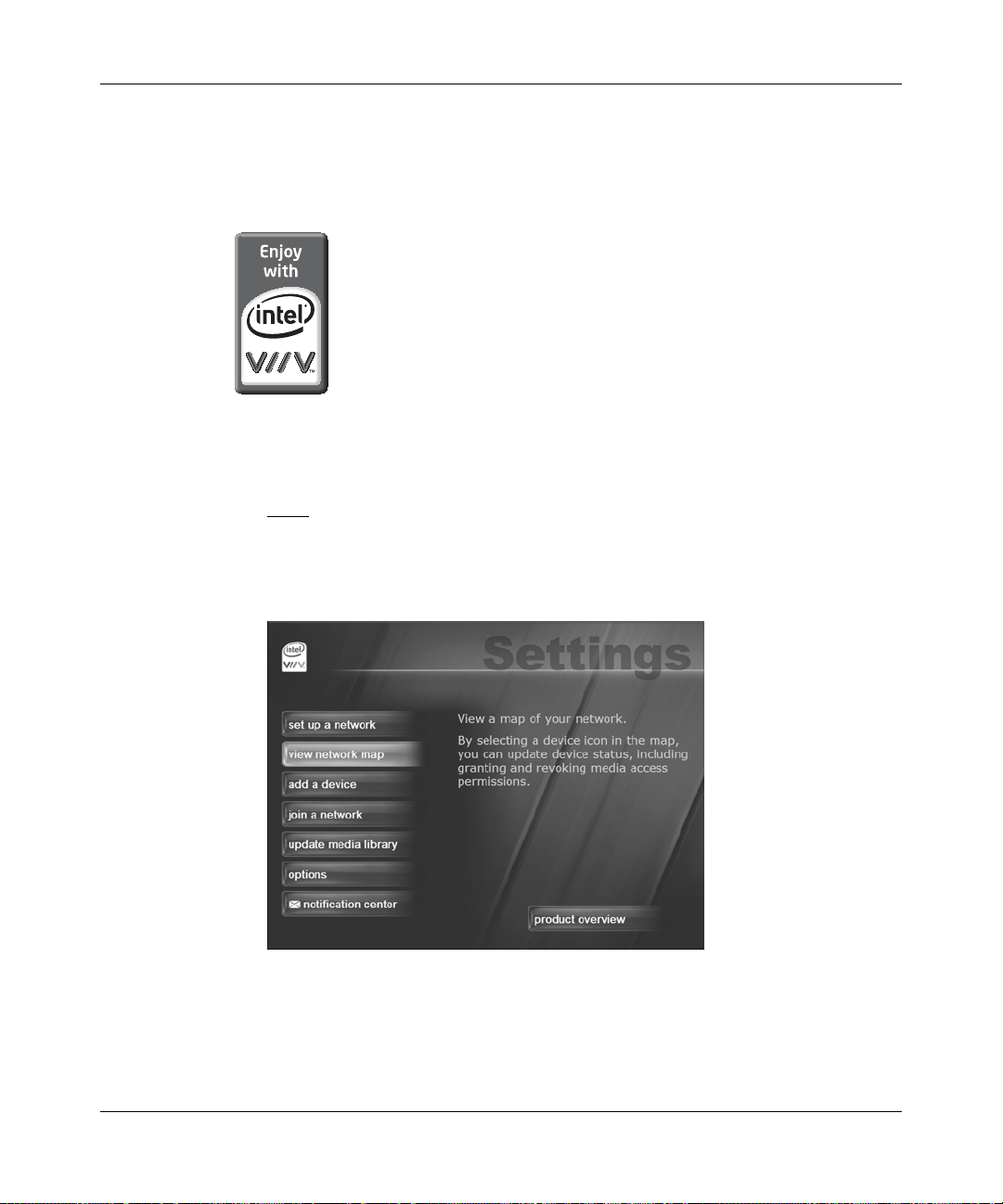

If you are using an Intel® Viiv™ technology, then you must update the software before you connect the digital entertainer. See Chapter 2, “Intel® Viiv™ Technology”.
The digital entertainer is compatible with the following types of video and audio cables:
•Video cable and Audio cable: These two cables are included, and are compatible with most televisions in the U.S.
•SCART: This cable is often used in Europe and Australia, and is not included in the package. However, if you have a SCART cable the digital entertainer recognizes it, and you can continue to use these instructions.
•S-Video, or Component Video: These cables are not included in the package, and you will need to change the digital entertainer settings in order to use them.
The rear view of the digital entertainer is shown below:
|
S/PDIF |
|
Composite Video |
|
||
|
Coaxial |
|
|
|
Stereo Audio |
|
|
(audio) |
|
|
|
|
|
|
.Ê+ Ë ?Þ ? |
¬ Ä ÍjË7 aj |
Öa |
|
|
|
~ Í? Ë Öa Ë7 ÄÖ? Ë ÍjÁÍ? jÁË 7 Èåå |
- ÖÍ |
|
|
|||
|
|
|
|
|
+ ÝjÁ |
|
.W?Áw |
|
|
|
|
Í jÁ jÍ |
|
|
|
|
|
|
.¬jja Ê 0 |
|
|
|
|
|
2¬ |
-jÄjÍ |
|
. - |
. 7 aj |
: |
¬M |
¬Á |
|
¤åå Ô|å7Iyå Éå ã±Ëå| Ë ?Þ± |
|
¬ j ÍË7 aj |
|
|
|
||
SCART |
S-Video |
|
|
Component Video |
Ethernet port with LEDs |
|
|
|
|
|
|
|
|
Figure 1-4
Follow these steps to connect the digital entertainer.
1.Connect the digital entertainer to your television set and audio equipment. If you use a digital a/v receiver, use S/PDIF coaxial cable to connect it.
2.Connect the digital entertainer to the router with an Ethernet cable.
Installing Your Digital Entertainer |
1-7 |
v1.0, May 2006
Loading...
