NEC XV29 Plus User Manual

78408751
Printed in Thailand

Itasca, Illinois 60143-1248
1250 N. Arlington Heights Road, Suite 500

NEC Technologies, Inc.

1993 by NEC Technologies, Inc.
NEC is registered trademark of NEC Corporation.
MultiSync is a registered trademark of NEC Technologies, Inc. in the U.S.A.

XV29 Plus

©

MultiSync

MultiSync© XV29 Plus

MultiSync

Multimedia Monitor

User's Manual

©

NEC Technologies

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER. NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may
have sufficient magnitude to cause electric shock. Therefore, it is danger­ous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the opera­tion and maintenance of this unit has been included. Therefore, it should
be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT'S POLARIZED PLUG
WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS
THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE
CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

DOC compliance Notice

This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.

WARNING

This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

Warnings and Safety Precaution

The NEC MultiSync Multimedia monitor XV29 Plus is designed and manu­factured to provide long, trouble-free service. No maintenance other
than cleaning is required. Use a soft cloth and if necessary, mild deter­gent. Do not use commercial spray cleaners which may damage the
surface. In case of damage, arrange for repairs at an authorized NEC
Service Center.

For operating safety and to avoid damage to the unit, read carefully
and observe the following instructions.

To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build­up. Do not cover rear vents or install in a closed cabinet or shelves.
A cabinet or shelves in which the unit is placed must be maintained
below

40°C.

2. Do not use the power cord polarized plug with extension cords or
outlets unless the prongs can be completely inserted.

3. Do not expose unit to rain or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the
power cord.

5. Unplug unit during electrical storms or if unit will not be used over a
long period.

6. Do not open the cabinet which has potentially dangerous high volt­age components inside. If the unit is damaged in this way the war­ranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. NEC is not liable for any
bodily harm or damage caused if unqualified persons attempt ser­vice or open the back cover. Refer all service to authorized NEC Ser­vice Centers.

To avoid damage and prolong operating life:

1. Use only with 120V/220-240V 50/60Hz AC power supply. Continued
operation at line voltages other than 120V/220-240 Volts

AC will

shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when moving and do not drop.

3. Locate set away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In
case of accident, unplug the unit and have it serviced by an autho­rized NEC Service Center.

5. Unplug unit before cleaning. Use only a soft cloth and mild detergent.
Commercial household sprays and cleaners may damage the CRT
surface and cabinet.

6. Stacking of units, one top of another, may result in damage to the
units. Stacking is not recommended.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES D’ELECTRO-

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE PAS
EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE PAS
UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE
PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND.
NE PAS OUVRIR LE COFFRET, DES COMPOSANTS HAUTE TENSION SE
TROUVENT A L’INTERIEUR. LAISSER A UN PERSONNEL QUALIFIE LE SOIN DE
REPARER CET APPAREIL.

CUTION, NE PAS DEPOSER LE COUVERCLE, IL
N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR
DE CET APPAREIL. NE CONFIER LES TRAVAUX
D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence
d’une tension dangereuse, non isolée se trouvant à l’intérieur de
l’appareil. Elle est d’une intensité suffisante pour constituer un
risque d’électrocution. Eviter le contact avec les pièces à
l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence
d’importantes instructions concernant l’entretien et le
fonctionnement de cet appareil. Par conséquent, elles doivent
être lues attentivement afin d’éviter des problèmes.

AVERTISSEMENT

DOC avis de conformation

Cet appareil numérigue de la classe A respecte toutes les exigences du
Réglement sur le Matériel Brouilleur du Canada.

Mises en garde et précautions de sécurité

Le moniteur MultiSync Multimédia XV29 Plus de NEC est conçu et fabriqué
pour assurer une longue durée de service sans problèmes. Aucun entretien
à l’exception du nettoyage n’est nécessaire. Utiliser un chiffon doux et un
détergent doux, si nécessaire. Ne pas utiliser des aérosols de nettoyage du
commerce qui risquent d’endommager la surface de cet appareil. Si
l’appareil est endommagé, confier les travaux de réparation à un centre
de service agréé NEC.

Pour un fonctionnement sûr et afin d’éviter d’endommager l’appareil, lire
attentivement et respecter les instructions suivantes.

Afin d’éviter tout risque d’électrocution et d’incendie:

1. Réserver un espace libre suffisant pour la ventilation afin d’éviter une
accumulation de chaleur interne. Ne pas couvrir les trous d’aération
arrière ou installer l’appareil dans un coffret fermé ou sur une étagère.
Si l’appareil est posé sur un coffret ou une étagère, la température doit
être maintenue en dessous de 40°C.

2. Ne pas utiliser la fiche polarisée du cordon d’alimentation avec des
prolongateurs ou des prises de courant, sauf si les lames peuvent être
insérées à fond.

3. Ne pas exposer à la pluie ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas modifier le
cordon d’alimentation.

5. Débrancher l’appareil pendant les tempêtes ou si l’appareil n’est pas
utilisé pendant une longue période.

6. Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à
l’intérieur. Si l’appareil est endommagé de cette manière, la garantie
devient caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer de réparer ou entretenir l’appareil soi-même. NEC ne saura
être tenu pour responsable pour toute blessure ou dommage causé par
des personnes non qualifiées qui essayent de réparer ou d’ouvrir le
couvercle arrière. Confier toute réparation à un centre de service agréé
NEC.

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 120 V/220-240V 50/60 Hz CA. Le
fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 120/
220-240 Volts CA réduit sa durée de vie et risque de provoquer un
incendie.

2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le
faire tomber.

3.

Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques pénètrent à
l’intérieur de l’appareil. En cas d’accident, débrancher l’appareil et le
confier à un centre de service agréé NEC.

5. Débrancher l’appareil avant le nettoyage. Utiliser seulement un chiffon
doux et un détergent doux.
Des aérosols et produits de nettoyage disponibles dans le commerce
risquent d’endommager l’écran et le coffret.

6.Ne pas empiler les unités les unes sur les autres, afin

endommager.

d’éviter de les

LIMITED WARRANTY

NEC Multimedia Monitor Products

NEC Technologies, Inc.(hereafter NECTECH)warrants this product to be free from
defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

Parts and labor are warranted for (1) One Year and CRT’s for (1) One year from the
date of the first customer purchase.

WHO IS PROTECTED

This warranty may be enforced only by the first purchaser.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or
workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A. Canada, and Mexico by
NECTECH or which is not purchased in the U.S.A. Canada, and Mexico from an
authorized NECTECH dealer.
If you are uncertain as to whether a dealer is authorized, please contact NECTECH
at 800-836-0655. Any questions or problems you have with our XP29Plus/
XM29Plus, contact NECTECH at 800-836-0655.

2. Any product on which the serial number has been defaced, modified or removed.

3. Damage, deterioration or malfunction resulting from:

• Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature,

unauthorized product modification, or failure to follow instructions supplied with
the product.

•Repair or attempted repair by anyone not authorized by NECTECH.

•Any shipment of the product (claims must be presented to the carrier).

•Removal or installation of the product.

•Any other cause which does not relate to a product defect.

•Burns or residual images upon the phosphor of the tubes.

4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any
accessories used in connection with the product.

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

We will pay labor and material expenses for covered items, but we will not pay for the
following:

1. Removal or installation charges.

2. Costs of initial technical adjustments(set-up), including adjustment of user
controls. These costs are the responsibility of the NECTECH dealer from whom the
product was purchased.

3. Payment of shipping charges.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the
product, or ship it prepaid to any authorized NECTECH service center.

2. Whenever warranty service is required, the original dated invoice (or a copy) must
be presented as proof of warranty coverage, and should be included in any shipment

of the product. Please also include in any mailing, your name, address and a
description of the problem(s). Failure to comply with NECTECH Service
Procedures may cause a delay in repairing the unit.

3. For the name of the nearest NECTECH authorized service center, call NECTECH
at 800-836-0655.

LIMITATION OF IMPLIED WARRANTIES

All implied warranties, including warranties of merchantability and fitness for a
particular purpose, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

NECTECH’s liability for any defective product is limited to the repair or replacement
of the product at our option. NECTECH shall not be liable for:

1. Damage to other property caused by any defects in this product, damages based
upon inconvenience, loss of use of the product, loss of time, commercial loss; or

2. Any other damages whether incidental, consequential or otherwise. Some states do
not allow limitation on how long an implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.

HOW STATE LAW RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.

FOR MORE INFORMATION, TELEPHONE [phone]

NEC TECHNOLOGIES, INC.
1250 N. Arlington Heights Road, Suite 500
Itasca. Illinois 60143-1248

NOTE: All products returned to NECTECH for service MUST have prior approval.
To get approval, call NEC Technologies at 800-836-0655.

CONTENTS

1. Introduction

Introduction to the MultiSync XV29 Plus ................................................................................. 1

Feature Highlights ...................................................................................................................... 1

2. Part Names and Functions

Front View / Rear View ............................................................................................................. 3

Terminal Board ........................................................................................................................... 5

Remote Control Unit ................................................................................................................. 7

Battery Installation and Replacement / Remote Control Cautions / Operating Range ................

Functions of DIP SW ................................................................................................................. 13

3. Installation

Wiring Diagram ........................................................................................................................ 15

Connecting Your PC or Macintosh Computer .................................................................... 17

Connecting Your VCR or Laser Disc Player .......................................................................... 18

Connecting Your Document Camera.................................................................................. 18

D-Sub 15 Pin RGB Signal Composition .................................................................................. 19

4. Operation

Power/General Controls/Degaussing ................................................................................... 21

Using OSM Controls ................................................................................................................. 22

Direct Control Screen ............................................................................................................. 23

Accessing OSM........................................................................................................................ 26

OSM Menus .............................................................................................................................. 26

11

Visual Controls Group ............................................................................................................. 26

H-position/H-width/Pin-cushion Controls Group .................................................................. 27

V-position/V-height/V-linearity Controls Group ................................................................... 27

Keystone/Tilt/Rotation/Scan Select Controls Group ........................................................... 28

RGB Controls Group ................................................................................................................29

OSM Location/OSM Turn Off Time Control ........................................................................... 29

Source Information .................................................................................................................. 30

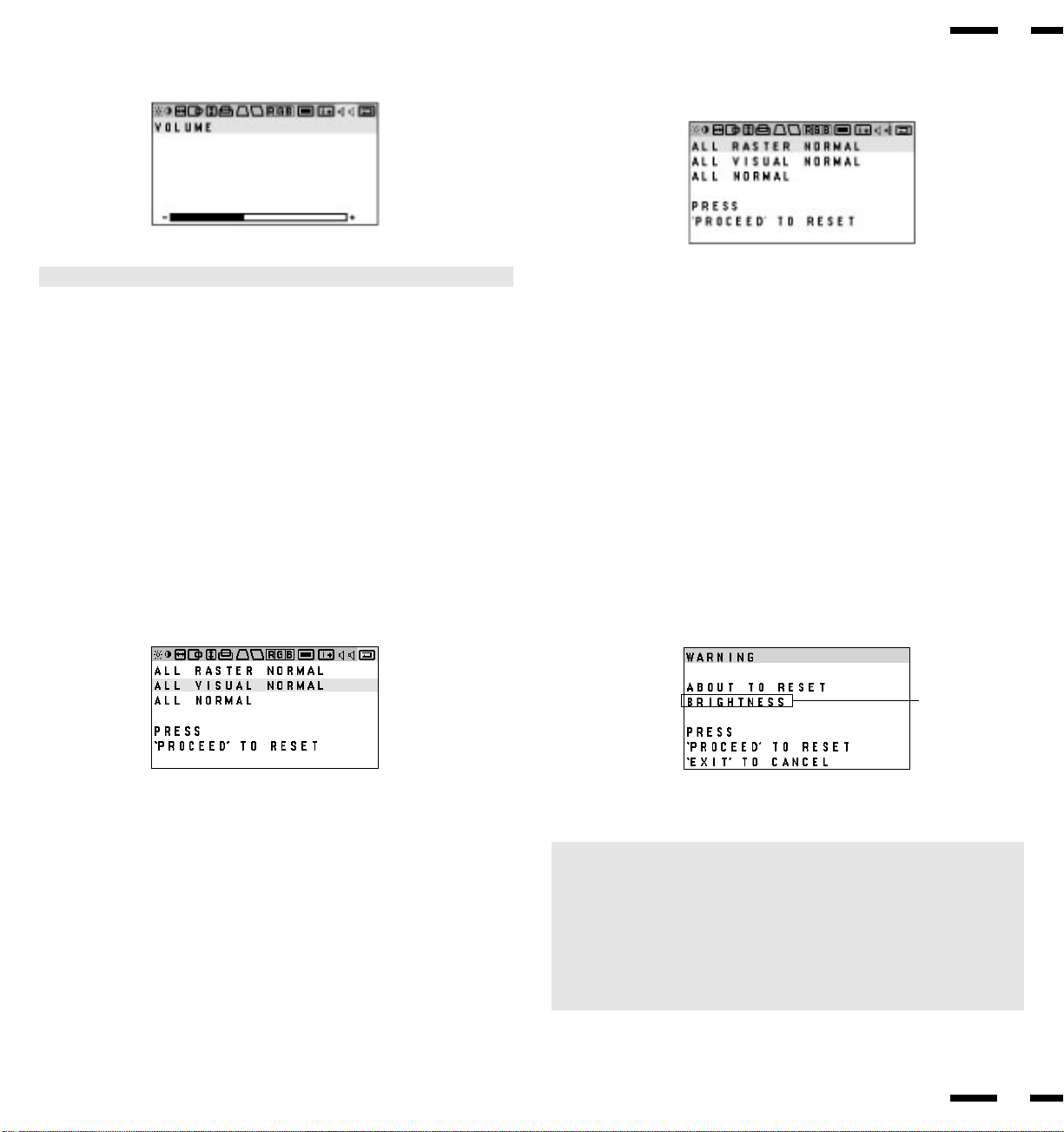

Volume Control ....................................................................................................................... 31

Reset Control ........................................................................................................................... 31

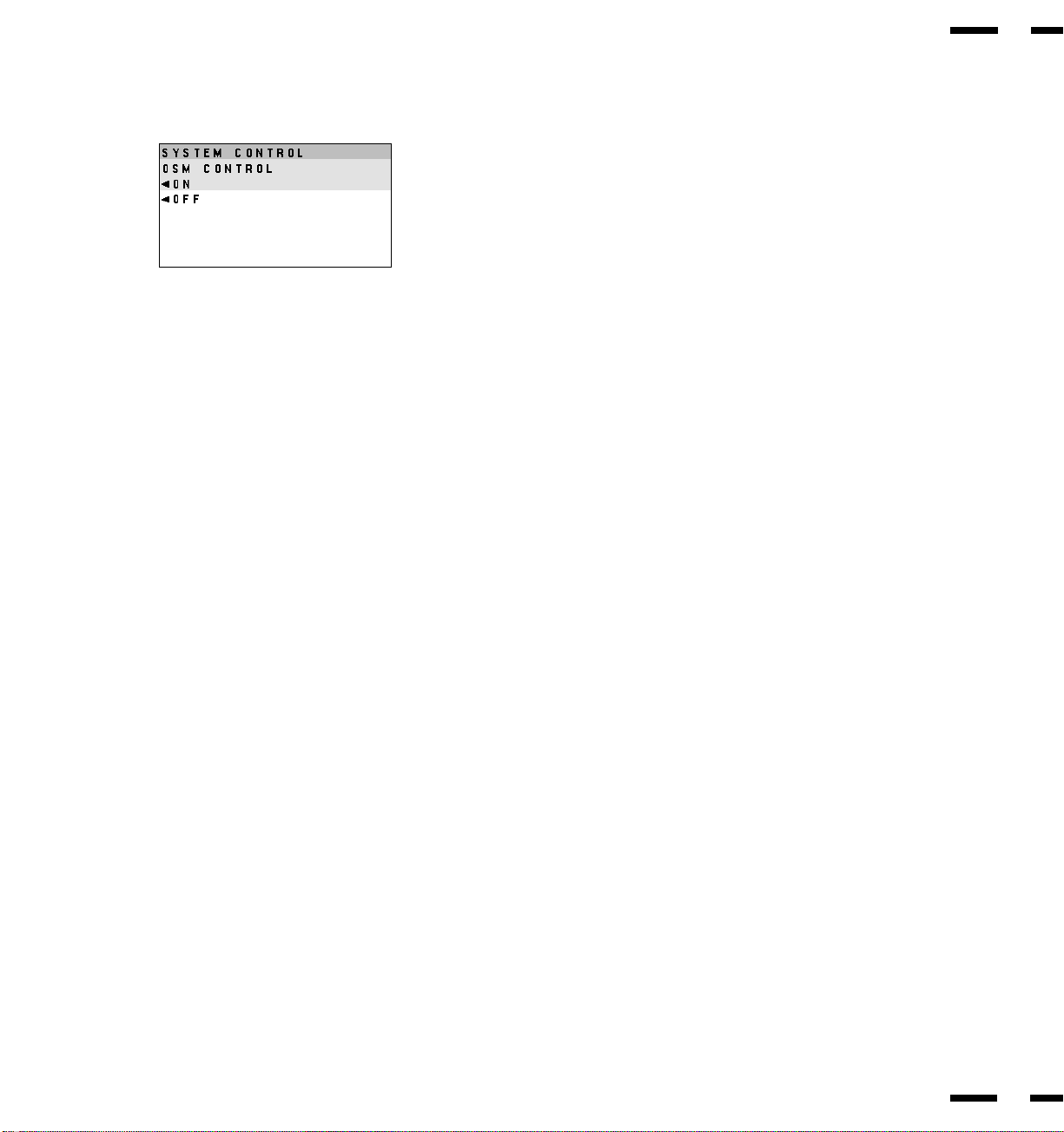

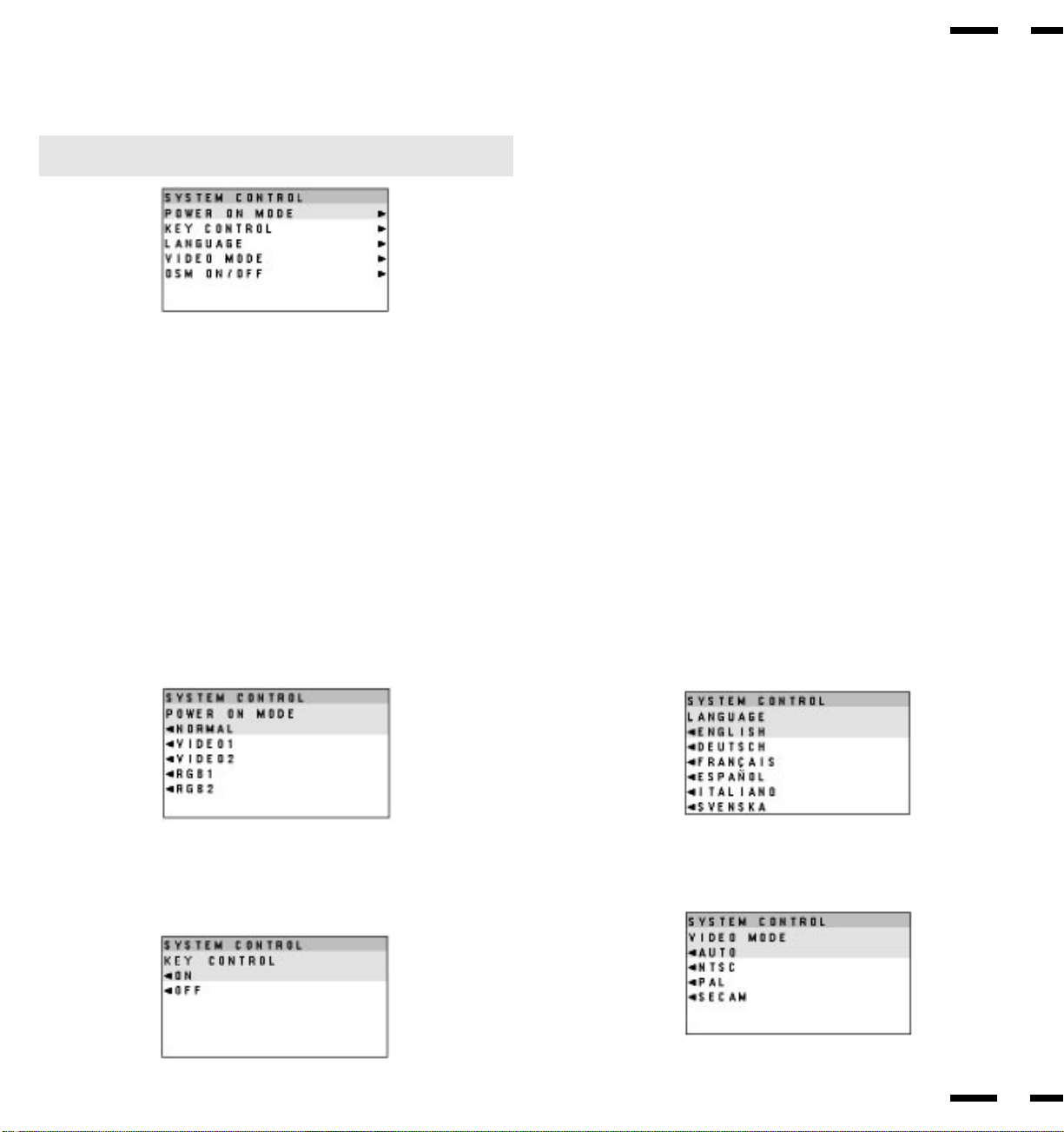

OSM System Control Menu .................................................................................................... 33

5. Troubleshooting ............................................................................................................. 37

6. Specifications ................................................................................................................ 39

7. Timing Charts

Input Signal Reference Chart ................................................................................................ 45

Typical Input Signal Timing ..................................................................................................... 49

Signal Identification for Raster Preset .................................................................................... 53

8. Service and Support ..................................................................................................... 55

OSM and IPM are trademarks of NEC Technologies, Inc.
IBM PC/AT, PS/2, VGA, S-VGA, 8514/A and XGA are registered
trademarks of International Business Machines Corporation.
Apple and Macintosh are registered trademarks of Apple Computer,
Inc.
Microsoft is a registered trademark of Microsoft Corporation. Windows is
a trademark of Microsoft Corporation.

Introduction

Introduction to the MultiSync XV29 Plus Monitor

This section introduces you to your new MultiSync XV29 Plus monitor,
provides a list of materials that comes with your monitor and describes
the features and controls.

The features you’ll enjoy include:

•Simple controls

Let you make all necessary adjustments and selections with one
button simplicity from the remote control.

•29” CRT(27” viewable image size)

• True displayable 8002600 resolution

• On-screen menus

Plain English and clear instructions with graphic icons show you

1

exactly how to adjust your screen image.

• Flexible inputs
Connect up to four different inputs at once and switch among them
with a touch of a button to seamlessly integrate information from a
computer and VCR into one presentation.

• Attractive cabinets
A sleek, sophisticated cabinet design complements your
presentation environment and enhances the professionalism of your
presentations.

• Microsoft Plug and Play compatibility
The only monitors in their class to include this standard that
automatically optimizes display settings.

• Supports most IBM VGA, S-VGA, XGA, Macintosh or any other RGB
signals within a horizontal frequency range or 15.5 to 50 kHz and a
vertical frequency range of 55 to 90 Hz. This includes NTSC, PAL,
SECAM, and M-NTSC standard video signals.

• The supplied RGB cable allows hookup to IBM-PC compatible directly.

• Front bezel controls

• Power supply at 120/22-240 Vac

Contents of the Package

The following lists all of the items included in your MultiSync multimedia
monitor package. Please save the original box and packing materials
for future transportation or shipment of this monitor.

1. MultiSync XV29 Plus (XV-2940) multimedia monitor

2. Power cord

3. Wireless remote control unit and two AA batteries

4. RGB (15-Pin Mini D-Sub To 15-pin Mini D-Sub Connector)

5. User' s manual

6. Quick set up card

7. Registration card : Please fill out and return the registration card as
soon as possible.

RGB2 VIDEO2SL (MONO) R

POWER

ON

OFFDEGAUSS

RGB 2RGB 1VIDEO 2VIDEO 1

POSITION/CONTROL PROCEED

EXIT

SCAN

NORMALSIDE PINHEIGHTWIDTH

NORMAL

BRIGHT

CONTRAST

MUTE

VOLUME

MULTIMEDIA MONITOR
RD-346E

79645721

POWER

POWER
/STANDBY

SOURCE SELECTVOLUME

PROCEED EXIT

AUDIO

2

Part Names and Functions

3

RGB2 VIDEO2SL (MONO) R

AUDIO

PROCEED EXIT

RGB2 VIDEO2SL (MONO) R

Rear ViewFront View

11

12345678910

POWER

POWER

/STANDBY

SOURCE SELECTVOLUME

AC-IN

VIDEO1

L

AUDIO1

R

(

)

MONO

IN


L

RGB

R

(

)

MONO

AUDIO IN

RGB1

MONITOR

R

L

OUT

DIP SW

ON
1
2

POWER

POWER
/STANDBY

SOURCE SELECTVOLUME

PROCEED EXIT

AUDIO

3
456

Terminal Board

1 POWER

Press to turn the main power on and off when the AC power is supplied.

2 POWER/STANDBY

When this indicator is green, the monitor is on; when the indicator is amber,
it is in standing by.

3 Remote Sensor Window

Receives infrared signal from the handheld remote control.

4 SOURCE SELECT ( )

Press to select VIDEO 1, VIDEO 2, RGB 1 or RGB 2 video source. When
you are in the OSM mode, this button works as the down button.

NOTE: S-VIDEO IN terminals will take preference over VIDEO IN terminals
when the video source is connected to each terminal and VIDEO 1 or 2 selected.

5 VOLUME ( / +)

Used to increase the volume. When you are in the OSM mode, this button
works as the plus button.

6 VOLUME ( / –)

Used to decrease the volume. When you are in the OSM mode, this button
works as the minus button.

7 EXIT

Press to exit the OSM mode. The OSM screen disappears.

8 PROCEED

Press to access OSM. The OSM screen is displayed.

9 VIDEO 2

VIDEO 2 IN (RCA type)........ Connect a VCR or laser disk player here to

display the video.

S-VIDEO 2 IN........................ Here is where you connect S-Video input

from an external source like a VCR.

AUDIO R IN .......................... This is your right channel audio input for

stereo sound coming from video 2 or RGB 2
input, or audio system.

AUDIO L IN (MONO)........... This is your left channel audio input for

stereo sound coming from video 2 or RGB 2
input, or audio system. It also serves as the
mono audio input.

10 RGB 2 Input(D-Sub mini 15 pin)

Connect your PC or other RGB equipment such as IBM or compatible
computers.

11 Remote Control Holder

Place remote control unit here when not in use.

4

Terminal Board

5

12 13

AC-IN

VIDEO1

AUDIO1

R

IN



RGB

OUT

R

R

DIP SW

AUDIO IN

MONITOR

14 16 15 17

12 AC Input

Connect the supplied power cord' s three-pin plug here.

13 VIDEO 1

VIDEO 1 IN (RCA type)........ Connect a VCR or laser disk player here to

display the video.

S-VIDEO 1 IN ........................ Here is where you connect S-Video input

from an external source like a VCR.

AUDIO R IN .......................... This is your right channel audio input for

stereo sound.

L

(

)

MONO

L

(

)

MONO

RGB 1

L

ON
1
2
3
4 56

15 MONITOR OUT (R/L)

Connect additional external speakers here to listen to audio coming from
your computer, Video or S-Video audio inputs (R/L).

16 DIP SWITCH

This switch sets Sync. Control, Power Management, Remote Control ON/
OFF and OSM system Control ON/OFF. See page xx for more details.

17 RGB 1 Input(D-Sub mini 15 pin)

Connect your PC or other RGB equipment such as IBM or compatible
computers.

AUDIO L IN (MONO)........... This is your left channel audio input for

stereo sound coming from video equipment
or audio system. It also serves as the mono
audio input.

14 RGB AUDIO

AUDIO R IN .......................... This is where you connect RGB right audio

output from a computer or another RGB
source.

AUDIO L IN(MONO)............ This is where you connect RGB left audio

output from a computer or another RGB
source.

6

Remote Control Unit

2

POSITION/ CONTROL PROCEED

4

BRIGHT

NORMAL

CONTRAST

MULTIMEDIA MONITOR
RD-346E

OFFDEGAUSS

MUTE

POWER

NORMALSIDE PINHEIGHTWIDTH

VOLUME

ON

RGB 2RGB 1VIDEO 2VIDEO 1

EXIT

SCAN

79645721

7

NOTE: When not in use the remote control unit is conveniently stowed in the
holder on the rear panel.

1 POWER ON/OFF

Press POWER ON to turn the monitor on when the POWER/STANDBY
indicator is lit red.
Press POWER OFF to turn the monitor off and the monitor will go into the
standby condition.

2 DEGAUSS

Press to demagnetize the picture tube in the manual operation. See also page 21.

1
3
5

6

3 Input Select

VIDEO 1........ Press to select an NTSC, PAL, SECAM or M-NTSC

compatible video source from a VCR, laser disc player,
document camera, or an S-Video source from a VCR
connected to the VIDEO 1 IN terminal.

VIDEO 2........ Press to select an NTSC, PAL, SECAM or M-NTSC

compatible video source from a VCR, laser disc player,
document camera, or an S-Video source from a VCR
connected to the VIDEO 2 IN terminal.

RGB 1 ............ Press to select an RGB video source from a computer

connected to the RGB 1 IN terminal.

RGB 2 ............ Press to select an RGB video source from a computer, NEC

scan converter or document camera connected to the RGB 2
IN terminal.

OSM Control

4 POSITION/CONTROL

POSITION

(▲▼

§ ©

).. Adjusts the vertical position of the image up and

down, and the horizontal position of the image from
left to right.

CONTROL ( + / – ) .... Moves the bar in the + or - direction to increase or

decrease the adjustment in an OSM menu.

CONTROL (▲/▼) ..... Select one of the controls in an OSM menu. Press s

to select a higher item in the menu; press t to select a
lower item in the menu.

5 PROCEED

Press to access OSM. When an adjustment item is selected, a press of this
button returns to its icon selection screen.

6 EXIT

Press to exit the OSM mode.

NOTE: The direct keys such as BRIGHT, CONTRAST, WIDTH, HEIGHT, SIDE
PIN can access each control while in the OSM mode.

8

12
13

9

Raster Control

7 WIDTH (+ / –)

Adjusts the horizontal size of the image.

8 HEIGHT (+ / –)

Adjusts the vertical size of the image.

9 SIDE PIN (+ / –)

Adjusts the curvature of the edges of the left and right side of the display
image either inward or outward. The image should be adjusted to attain a
straight line on the left and right sides.

POWER

OFFDEGAUSS

ON

RGB 2RGB 1VIDEO 2VIDEO 1

POSITION/ CONTROL PROCEED

EXIT

SCAN

7
8

CONTRAST

BRIGHT

MULTIMEDIA MONITOR
RD-346E

NORMAL

MUTE

NORMALSIDE PINHEIGHTWIDTH

VOLUME

79645721

9

10
11

14
16

15

10 SCAN SELECT

Each time this key is pressed, the picture size switches from OVER SCAN
for large size to UNDER SCAN for small size and vice versa. Normally
select OVER SCAN for video display and UNDER SCAN for RGB display.

11 NORMAL

This key resets the raster adjustment settings of user changeable memory and
recalls the factory preset data.

Visual Control

12 BRIGHT (▲/▼)

Adjusts the overall image and screen brightness.
Press and hold s for a brighter picture.
Press and hold t for a darker picture.

13 CONTRAST (▲/▼)

Adjusts the image brightness in relation to the background.
Press and hold ▲ for higher contrast.
Press and hold ▼ for lower contrast.

NOTE: The VISUAL CONTROL storing operation is effective only for one input
(VIDEO1, VIDEO 2, RGB 1 or RGB 2).

14 NORMAL

This key resets the visual control settings and recalls the factory preset data.

NOTE: The brightness and contrast adjustment level are factory preset at the
optimum position.

15 MUTE

Press to cancel sound ; press again to restore sound.

NOTE: The other ways to restore sound are to press POWER OFF, then ON or to
press VOLUME keys on the remote control unit.

16 VOLUME (▲/▼)

Adjusts the volume.
Press and hold ▲ to increase sound.
Press and hold ▼ to decrease sound.

10

Battery Installation and Replacement

The remote control is powered by two 1.5V AA batteries.

11

Press down on the battery compartment
grip and slide the compartment in the
direction of the arrow.

2. Install the two new batteries, making sure
that their polarity matches the (+) (–)
diagrams inside the battery compartment.
Incorrect polarity could damage the
remote control unit.

3. Close the battery compartment cover.1. Turn the remote control unit upside down.

Remote Control Cautions

• Do not drop or mishandle the remote control unit.

• Do not get the remote control unit wet. If the remote gets wet, wipe it dry
immediately.

• Avoid heat and humidity.

• When not using the remote control unit for a long period, remove the
batteries.

• Do not use new and old batteries together, or use different types of
batteries together.

• Do not take apart the batteries, heat them, or throw them into a fire.

Operating Range

• The infrared signal operates by line-of-sight up to a distance of
approximately 22 feet/7 m and within a 60 degree angle of the remote
sensor of the monitor.

• The monitor will not function if there are objects between the remote
control and the sensor or if strong light falls on the sensor. Weak batteries
will also prevent the remote control from properly operating the monitor.

RGB2 VIDEO2SL (MONO) R

POWER

POWER
/STANDBY

SOURCE SELECTVOLUME

PROCEED EXIT

AUDIO

30˚

30˚

POWER

OFFDEGAUSS

ON

RGB 2RGB 1VIDEO 2VIDEO 1

POSITION/CONTROL PROCEED

EXIT

SCAN

NORMALSIDE PINHEIGHTWIDTH

NORMAL

CONTRAST

MUTE

VOLUME

BRIGHT

MULTIMEDIA MONITOR
RD-346E

79645721

12

Functions of DIP SW

The drawing below shows the original factory settings of DIP Switch.

ON

1
2
3

ONOFF

4 56

13

Set the No. 1 pin to the ON/SHORT position when sync on green signals are
necessary for synchronization with an external component.
When a composite signal is present, the picture may be distorted. If this
happens, set the No.2 pin to the OFF/OPEN position.

Pin No. 2 (Remote ON/OFF)

When this switch is set to ON/SHORT, the monitor can be controlled by the
wireless remote control.

Functions and Settings of DIP SW

This DIP switch is used for Sync. Control, Intelligent Power Manager,
wireless control, and OSM control. To change a switch setting use a pointed
object, such as a pen or pencil, to push the switch to the desired position.
Set all the pin except No. 2 to the OFF/OPEN position during normal
operation.
The pins nos 5 and 6 are not used.

Pin No 1 (Sync. Control)

The No. 1 pin sets Sync. Control.
Set the No. 1 pin to the OFF/OPEN position during normal operation. The
monitor automatically determines if the input signal is separate sync,
composite sync or sync on green signal in this order.

Pin No. 4 (Intelligent Power Manager)

This function saves power.

When Intelligent Power Manager (IPM™) control is on, by using the
monitor’ s horizontal and vertical SYNC signals, the monitor can be
prompted into the different IPM modes. The following is the description of
the LED indicator for the IPM power saving modes:

Pin No. 3 (OSM System Control Menu ON/OFF)

When this switch is set to ON/SHORT, the system control menu is displayed.
In this menu the following features are enabled:
Power on mode set(POWER ON MODE)
Front control key on/off(KEY CONTROL)
Language selection(LANGUAGE)
Video mode(auto/manual) selection(VIDEO MODE)
OSM on/off(OSM ON/OFF)
For the setting procedures to set the items, see page 39.

Mode

On
Standby
Standby

Suspend

Off

Power Off

NOTE: The Intelligent Power Manager works only for the RGB input. If selecting
the VIDEO input, or when connecting to no signal source, the Intelligent Power
Manager does not work.

LED Indicator

Green
Red (Steady)
Amber(Blinking quickly)

Amber(Blinking moderately)

Amber(Blinking slowly)

No Light

Power Saving

None
None
Minimum

(Quickest recovery)

Moderate

(EPA<8 watts, Moderate recovery)

Maximum

(EPA<8 watts, Slowest recovery)

No Power Used (Fully Off)

14

Installation

Wiring Diagram

RGB2 VIDEO2SL (MONO) R

15

POWER

POWER

/STANDBY

SOURCE SELECTVOLUME

PROCEED EXIT

AUDIO

Signal cable (supplied) to D-Sub
Mini 15-pin input

VCR, Laser disc player or
Document camera, Video
copy stand or Multimedia
application

RGB2 VIDEO2SL (MONO) R

AUDIO

To VIDEO IN R, L, inputs

AC Outlet 120V/220–240V

AC-IN

VIDEO1

AUDIO1

R

IN



RGB

R

AUDIO IN
MONITOR

R

OUT

DIP SW

VCR or Laserdisc player

IBM XGA/SuperVGA/VGA or
Compatibles

L

(

)

MONO

L

(

)

MONO

RGB 1

L

ON
1
2
3
4 56

To Video in R, L, inputs

Signal cable (supplied) to
D-Sub Mini 15-pin input

IBM XGA/SuperVGA/VGA or
Compatibles

LINE or AUX input (L&R)

Stereo amp

16

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your MultiSync XV29 Plus
will enable you to display your computer's screen image. All of these
following display standards are supported:

VGA 6402480 for graphics, VGA 6402400 for graphics, VGA 6402350
for graphics, VGA 7202400 for text, VGA 7202350 for text, SuperVGA
8002600, and XGA 10242768 standards above 60 Hz such as Macintosh
at 6402480, 8322624 and 10242768.

To connect to a PC, Macintosh or computer equipped with a XGA/
SuperVGA/VGA adapter or compatible graphics adapter, simply:

1. Turn off the power to your monitor and computer.

2. If your PC does not support Super XGA/VGA/VGA you will need to
install an XGA/SuperVGA/VGA graphics board. Consult your
computer's owner's manual for your XGA/SuperVGA/VGA
configuration. If you need to install a new board, see the manual that
comes with your new graphics board for installation instructions.

17

3. Use the supplied RGB cable to connect your computer to the monitor. For
Macintosh, use a commercially avalable adapter between the D-Sub mini
15-pin connector of the supplied RGB cable and the D-Sub 15-pin
connector of your Macintosh.

4. Turn on the monitor and the computer.

NOTE: Refer to your computer's owner's manual for more information about your
computer's video output requirements and any special identification or
configuring your monitor's image and monitor may require.

Connecting Your VCR or Laser Disc Player

Using a common RCA cable and RCA audio cables (not provided) to
connect your VCR or laser disc player to your MultiSync XV29 Plus
monitor. To make these connections, simply:

1. Turn off the power to your monitor and VCR or laser disc player.

2. Connect one end of your RCA video cable to the video output connector
on the back of your VCR or laser disc player, connect the other end to the
VIDEO 1 or 2 input terminal(RCA-type) of the monitor. Use standard
RCA audio patch cords to connect the audio from your VCR or laser disc
player to your monitor (if your VCR or laser disc player has this
capability). Be careful to keep your right and left channel connections
correct for stereo sound.

3. Turn on the monitor and the VCR or laser disc player.

NOTE: Refer to your VCR or laser disc player owner's manual for more
information about your equipment's video output requirements.

NOTE: S-VIDEO IN terminals will take preference over VIDEO IN terminals
when a component is connected to each terminal and VIDEO 1 or 2 selected.

Connecting Your Document Camera

You can connect your MultiSync XV29 Plus monitor to a document camera.
To do so, simply:

1. Turn off the power to your monitor and document camera.

2. Use a standard video cable to connect your document camera to the
VIDEO 1 or 2 input terminal(RCA-type) of the monitor.

3. Turn on the monitor and the document camera.

NOTE: Refer to your document camera's owner's manual for more information
about your camera's video output requirements .

18

D-Sub 15 Pin RGB Signal Composition

Pin Assignments and Signal Levels for 15 pin RGB

2

1

34

5

9

10

13

1415

D-SUB 15pin RGB Input Connector

Pin No.

1
2

3
12
13
14
15

4

5

6

7

8
11
10

9

Signal to be connected (D-SUB 15 pin)

RED
GREEN or Sync Green
BLUE
No Connection
H. or Composite sync
V.SYNC
No Connection
GND
GND
GND
GND
GND
GND
No Connection
No Connection

6

8

7

12

11

19

20

Operation

Power

This section describes how to select a computer or video source and how to
adjust the picture and sound.

General Controls

Before you turn on your MultiSync XV29 Plus monitor ensure that the
computer or video source is turned on.
To adjust:

1. Turn On The Monitor
The power button is on the front panel of the monitor. By turning this
switch on, the POWER/STANDBY indicator will turn to green and the
monitor will become ready to use. OSM is also usable from the front
bezel.
After you press the POWER OFF button SOURCE SELECT on the
remote control, the monitor will go into its standby mode and the
POWER/STANDBY indicator will glow red.

2. Select The Computer Or Video Source
Press the “VIDEO 1” or “VIDEO 2” (VCR, document camera, or laser
disc player), or “RGB 1” or ” RGB 2”(computer) button on the remote
control to display the image. Or press the button on the front panel to

21

select your video source: “VIDEO 1”, “VIDEO 2”, “RGB 1”, or “RGB
2”.

NOTE 1: In the U.S.A. the standard video signal format is NTSC, therefore make
sure that the AUTO or NTSC is selected on OSM system control menu. See page

40.

NOTE 2: Select the over scan mode for VIDEO display.

3. Adjust The Raster or The Picture Control.
You can adjust the raster such as the horizontal size, vertical size or side
pincushion correction, and the brightness and contrast of the image with
the remote control.

4. Turning Off The monitor.
Press the POWER OFF button on the remote control or press the POWER
button on the front panel.

Degaussing

The earth's magnetic field and other magnetic sources can magnetize a color
picture tube causing patches of impure colors. This monitor automatically
demagnetizes the picture tube for 5 seconds each time the monitor is
switched on. Sometimes during transportation a severe magnetic field can be
encountered which may require demagnetizing to clear the problem. Also, if
powered on for extended periods of time, magnetic fields can be produced by

the CRT itself, causing color impurities. In these cases, use the DEGAUSS
key once to demagnetize the picture tube. Pressing this key once
demagnetizes the picture tube for 5 seconds.
CAUTION: Please allow a minimum of 30 minutes to elapse between uses
of the DEGAUSS key, when not switching from mode to mode. Do not hold
the key down continuously to avoid decreasing the life of the degauss
circuitry.

Using OSM Controls

NEC's new OSM, or On-Screen Manager, System offers the ultimate form of
monitor controls. Keys on the remote control unit or front bezel allow you to
easily navigate through menus and adjust controls.
OSM controls include extended controls such as Brightness, Contrast, Size,
Position, Pin cushion, Keystone, Vertical Linearity, Scan Select and other
OSM utilities. Adjustments are saved instantly. The currently addressed
control can be reset to factory settings by pressing the NORMAL key.

OSM keys on the remote control unit function as follows:
PROCEED : accesses the OSM controls. When an adjustment item is

selected, a press of this button returns to its icon
selection screen.

EXIT : exits the OSM controls.

POSITION CONTROL up/down

: selects one of the control items.

POSITION CONTROL – /+

: increase or decrease the settings level.
: selects a group icon at top of the OSM screen when any

one of them is highlighted without any specific control
selected.

NORMAL (RASTER/VISUAL)

: resets the currently selected control to the factory

setting.

-when a specific group icon is highlighted, this key
resets all the specific controls settings or all the settings.

-when a specific control is selected: this key resets the
selected adjustments.

NOTE: The NORMAL function is not valid in the OSM Turn Off Time, Language
Select menus, and Volume Control.

22

Direct Control Screen

You can adjust the raster, visual and sound using the direct key on the remote
control.
To switch to another control screen, press any one of the other keys.
* To end the OSM display, press EXIT.
* If no key operation is made within 3 seconds, the OSM display will

disappear.

a. POSITION/CONTROL

Press © to move the image right. Press § to move the image left.

Press ▲ to move the image up. Press ▼ to move the image down.

b. WIDTH

Press to adjust the horizontal size of the image.

23

c. HEIGHT

Press to adjust the vertical size of the image.

d. SIDE PIN

Press to adjust the curvature of the edges of the left and right side of the
display image either inward or outward. The image should be adjusted to
attain a straight line on the left and right sides.

e. SCAN

Press to select the scan mode: over scan and under scan.

f. NORMAL (raster)

Press to reset all the stored adjustment raster data and recall the factory
preset data. When a specific control is selected, this key resets the
selected raster adjustments.

g. BRIGHT

Press to adjust the brightness of video display.

h. CONTRAST

Press to adjust the contrast of video display.

24

i. NORMAL( visual)

Press to reset all the stored adjustment visual data and recall the factory
preset data. When a specific control is selected, this key resets the
selected visual adjustments.

25

j. MUTE

Press to turn off the sound for a short period of time; press again to restore
the sound.

k. VOLUME

Press ▲ to increase the sound: press ▼ to decrease the sound.

NOTE: When pressing a key that does not correspond to the function currently in
use, the following message will be displayed on the monitor.

Accessing OSM

Press the PROCEED key on the remote control or front bezel.
To turn off OSM
Press the EXIT key on the remote control or front bezel.

RGB 2RGB 1VIDEO 2VIDEO 1

POSITION/ CONTROL PROCEED

EXIT

OSM Menus

On-Screen Manager' s menu of Controls gives you an overview of the
selection of controls available.

PROCEED

EXIT

POWER

/STANDBY

NO) R

PROCEED EXIT

DIO

SOURCE SELECTVOLUME

POWER

Visual Controls Group

The visual controls allow you to adjust the picture controls such as
brightness, contrast, color, tint, and sharpness.

BRIGHTNESS :
CONTRAST :
SHARPNESS :
COLOR :
TINT :

NOTE: The color, tint and sharpness controls are not available for RGB input, and
the tint is not available for PAL input.

NOTE: Pressing the visual NORMAL key resets all the visual controls to the
factory settings when only the visual controls group icon is highlighted.

Pressing + or - increases or decreases the image brightness level.
Pressing + or - increases or decreases the image contrast level.
Pressing + or - increases or decreases the image sharpness level.
Pressing + or - increases or decreases the image color saturation level
Pressing + or - increases or decreases the red and green values.

26

H-position/H-width/Pin-cushion Controls Group

The H-position/H-width/Pin-cushion Controls allow you to adjust the horizontal
position, horizontal size and pin-cushion of the image.

27

V-position/V-height/V-linearity Controls Group

The V-position/V-height/V-linearity Controls allow you to adjust the vertical
position, vertical size and vertical linearity of the image.

H-POSITION : Pressing + or - moves the image horizontally right or left.
H-WIDTH : Pressing + or - decreases or increases the horizontal size of

the image (wider or narrower).

PIN-CUSHION : Pressing + or - decreases or increases the curvature of the

sides either inward or outward.

PIN-BALANCE : Pressing + or - increases or decreases the curvature of the

sides to right or to left.

PIN-CORNER : Pressing + or - decreases or increases the curvature of the four

corners inward outward.

NOTE: The V-LINEARITY controls allow you to adjust the spacing of the
areas on the screen. The object of this control is to ensure that a one-inch
circle is a true one-inch circle where ever it is drawn on the screen.

• draw equally spaced horizontal lines using a drawing application that has a
ruler.

•use the V-LINEARITY 1 and 2 controls to adjust the spacing between
the lines near the top and the bottom of your screen.

V-POSITION : Pressing + or - moves the image vertically up or down.
V-HEIGHT : Pressing + or - increases or decreases the vertical size of the

image (taller or shorter).

V-LINEARITY 1 : Pressing + increases the spacing between the lines near the

top and decreases the lines near the bottom at the same time;
pressing - increases the spacing between the lines near the
bottom and decreases the lines near the top at the same time.

V-LINEARITY 2 : Pressing + or - increases or decreases the spacing between

the lines near the top of your screen and near the bottom of
your screen at the same time.

Keystone/Tilt/Rotation/Scan Select Controls Group

The Keystone/Tilt/Rotation/Scan Select Controls allow you to adjust the raster
rotation or angle of the sides of your display and to select either Under Scan
(for RGB display) or Over Scan (for VIDEO display).

KEYSTONE (trapezoidal) :Pressing + or - decreases or increases the bottom of

the screen to be the same as the top.

TILT : Pressing + or - increases or decreases the tilt of your

display.

ROTATION (raster rotation)

SCAN SELECT : Pressing + or - selects the over scan mode or the

: Pressing + or - rotates the entire display clockwise or

counter clockwise.

under scan mode.

28

RGB Controls Group

The RGB Controls allow you to adjust the white balance for RGB input.

Pressing the PROCEED key proceeds to the RGB gain and bias adjustment.
This adjustment allows you to adjust the white balance.

R, B-GAIN : Pressing + or - increases or decreases the gain level for each

color.

R, G, B-BIAS : Pressing + or - increases or decreases the bias level for each

color.

29

OSM Location/OSM Turn Off Time Control

You can choose where you would like OSM image to appear on your screen.
Selecting OSM location allows you to manually adjust the OSM menu left,
right, up, or down. The OSM menu will stay on as long as it is in use. In the
OSM Turn Off Time submenu, you can select how long the monitor waits after
the last touch of a key to shut off the OSM menu. The preset choices are 5,
10, 30, and 120 seconds. Note that 30 seconds is the factory preset.

OSM H-POSI : Pressing + or - moves the OSM menu right or left.
OSM V-POSI : Pressing + or - moves menu up or down.
OSM TURN OFF TIME : Pressing + or - selects the preset time in increasing or

decreasing order.

Source Information

Source Information provides you information about the current resolution
display and technical data including the horizontal and vertical frequency.

NOTE: These adjustments are for RGB mode only.

H-FREQ : indicates the horizontal frequency of the current input signal.
V-FREQ : indicates the vertical frequency of the current input signal.
H-POL : indicates the polarity of the horizontal sync. signal.
V-POL : indicates the polarity of the vertical sync. signal.
NEG : indicates the polarity is negative.
POS : indicates the polarity is positive.

30

Volume Control

The Volume control allows you to adjust the volume.

VOLUME : Pressing + or - increases or decreases the volume.

NOTE: When you mutes the sound, the MUTE display appears.

31

Reset Control

The Reset control allows you to return image parameters to factory presets.

All Raster Settings

The above warning statement will appear to confirm that you do want to reset
all raster settings. If you want to reset all raster settings, press PROCEED.

The following items can be reset:
H-POSI, H-WIDTH, PIN-CUSHION, PIN-BALANCE, PIN-CORNER, V-POSI,
V-HEIGHT, V-LIN1, V-LIN2, KEYSTONE, TILT and ROTATION.

All Visual Settings

The above warning statement will appear to confirm that you do want to reset
all visual settings. If you want to reset all visual settings, press PROCEED.
The following items can be reset:
BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS, R-GAIN, B­GAIN, R-BIAS, G-BIAS, and B-BIAS.

Specific Item Settings

Specific adjustment
item to be reset.

The above warning statement will appear to confirm that you do want to reset
individual settings.

NOTE:

• In addition to OSM controls, adjustments can be directly accessed with the
remote control keys. When adjusting with the remote control keys, the on­screen display for the related adjustment appears instead of the OSM
menu.

• When OSM ON/OFF is set at OFF in the System Control menu, OSM
controls are not available while the remote control direct access is
possible.

32

OSM System Control Menu

The OSM System control menu allows you to set a various conditions of the
monitor.

NOTE: This control is available only when No. 3 pin of the DIP switch is set at
the ON position. The DIP switch is located on the back cabinet.

OSM keys on the remote control unit function as follows:
POSITION CONTROL up/down : highlights one of the control items in the System

control menus.

POSITION CONTROL + : proceeds to the selected menu choice.
POSITION CONTROL - : exits the current control and returns to its

original System control menus.

EXIT : exits the OSM controls.

33

OSM windows have the following elements:
Right-oriented delta symbol: indicates further choices are available. Use the

up or down keys to highlight the item. Pressing +
proceeds to the selected control screen.

Left-oriented delta symbol : indicates that you can exit the current control.

Pressing - returns you to its original System
control menus.

POWER ON MODE

This control allows you to set the monitor to default to any one of its inputs
each time the monitor is turned on.

KEY CONTROL

This control allows you to disable the keys on the front panel such as
PROCEED, EXIT, SOURCE SELECT, VOLUME, ▼, -, and +. If you
accidentally hit any one of the buttons, it does not affect the monitor.

LANGUAGE

OSM menus are available in six languages: English, German, French, Spanish,
Italian, and Swedish.

VIDEO MODE

This control allows you to select the NTSC, PAL, or SECAM video standard.
Normally select AUTO.

34

OSM ON/OFF

This control allows you to enable the OSM control.
The OSM control is available when ON is selected. When the OSM does not
appear, the visual and raster controls are available with the remote control.

35

36

Troubleshooting

Before arranging for service by the NEC Service Center, check the following to be sure repairs are needed.

37

Problem

No Picture or Sound

Sound OK; poor picture
with VIDEO signal input.

Sound OK; poor picture with
RGB signal input.

Picture OK; poor or no sound.

Poor sound from external speakers
or stereo system speakers

Remote control does not work.

Possible Cause

Power cord unplugged.
Power outlet inactive.
Power of external equipment is not ON.
External equipment has been incorrectly connected.
Incorrect input selection.

Improper control setting.
Local interference.
Cable interconnections.

Improper control setting.
Incorrect 15 PIN connector pin connections.

Cable interconnections.
Volume is not adjusted.
Poor audio connections from external source.
Improper control settings.
MUTE key is ON.

Cable interconnections.
Improper volume setting.

Weak batteries.
Obstacle between Remote Control and Sensor
Window.
You are not within the effective operating range.

Incorrect setting of No. 2 pin of the DIP SW.

Correction

Plug in power cord.
Be sure wall switch is on and outlet has power.
Switch to ON or connect to an active AC outlet.
Correct all connections.
Select correct RGB1, RGB 2, VIDEO 1 or VIDEO 2 source.

Adjust picture controls as needed.
Try another location for the monitor.
Be sure all connections are secure.

Adjust picture controls as needed.
Check pin assignments and connections.

Be sure all connections are secure.
Adjust volume.
Correct audio connections.
Adjust volume controls.
Press again to restore sound.

Secure all cable connections.
Check volume controls of all components.

Install new batteries.
Point remote control directly at Sensor Window.

Use the remote control unit within 30° left and right
of center (at a distance of within 22ft).
Set Pin no. 2 of DIP SW to ON/OPEN.

POWER/STANDBY indicator is
blinking

Horizontal and/or vertical sync signal is not present
when the Intelligent Power Manager control is on.

Check the input signal.

38

Specifications

Picture tube 27 inch Visual size; 29 inch CRT size (Diagonal), Type M68LLR696X02

RGB Input Terminals

Video Input Terminals 1.0Vp-p, 75 Ohms unbalanced (RCA-Jack), Composite video signal, Sync-negative.

VIDEO 1/2 Y : 1.0Vp-p, 75 Ohms unbalanced, Sync-negative.
S-VIDEO (Video 1/2) C : 0.28Vp-p, 75 Ohms unbalanced, Color burst level.

108 degree deflection
Stripe trio pitch Ph 0.74 mm at center, Ph 0.90 mm at corner/Pv 0.64 mm
Invar mask, Medium-short persistence phosphor
Anti-static electricity coating
Optical filter coating
Dynamic focus

RGB 1,2

: Mini D-SUB 15pin
: Video : 0.7Vp-p/75 Ohms (Positive)
: Sync. : Separate Sync. TTL level

Horizontal Sync. (Positive/Negative)

Vertical Sync. (Positive/Negative)
: Composite Sync. TTL Level (Positive/Negative)
: Composite Sync. On Green Video 0.3Vp-p (Negative)

39

Audio Input Terminals Left (Mono) : 0.5 Vrms, high impedance (Pin-Jack)

VIDEO 1, 2 / RGB Right : 0.5Vrms, high impedance (Pin-Jack)

Monitor Output Terminal Left : 0.5 ± 0.1 Vrms, less than 22 K Ohms (Pin-Jack)

Right : 0.5 ± 0.1 Vrms, less than 22 K Ohms (Pin-Jack)

SOUND Output

Internal 5W+5W (THD 10%) at 8 Ohm

Speaker Oval type 9 X 5.0 cm

8 Ohm, 2pcs.

Display Colors Analog Input: Unlimited colors
Synchronization Range Horizontal: XV29 Plus; 15.7/31 KHz to 50 KH (Automatically)

Vertical:50 Hz to 90 Hz (Automatically)

40

Maximum Resolution RGB 800(H)2600(V) pixels

VIDEO Horizontal: 600 lines /S-VIDEO Horizontal : 600 lines

Video Bandwidth RGB:30 MHz at-3dB

VIDEO: 5 MHz at-3dB

Display Area RGB : 95% Scan (Typically)

VIDEO: 7% Overscan

Retrace Time Horizontal: 15.75kHz; 10µsec, 31kHz<fH<66kHz; 3.6µsec, 66kHz<fH; 2.7µsec

Vertical: 0.4 msec

Current Rating AC 120 V/220-240 V, 50/60 Hz
Power Consumption XV29 Plus(XV-2940): 3.3 A (maximum)
Dimensions 25.7(W)222.8(H)219.5(D) inches / 625(W)2578(H)2495(D) mm
Weight 97 lbs/ 44.0 kg
Environmental Considerations Operating Temperature : 0 to 40

Humidity : 0 to 90%
Altitude : 0 to 10,000 feet

Storage Temperature : -10 to 50

Humidity : 0 to 95%
Altitude : 0 to 45,000 feet

41

Regulations : UL Approved (UL 1950)

CSA certified
Meets FCC class A requirements
Meets DHHS requirements
Meets RED ACT

All specifications are subject to change without notice.

42

Dimensions

43

25.7 (652)

22.5 (572)

6

0.24 (6)

19.5 (495)

unit=inch (mm)

44

Timing Charts

Input Signal Reference Chart

Separate Sync.

HORIZONTAL

45

VIDEO

CD E

Composite Sync.

VERTICAL

HORIZONTAL

B

QR

P

C

B

A

VIDEO

O

VIDEO

DE

A

S

Sync. Polarity: Positive / Negative

VERTICAL

VIDEO

QR

P

O

S

Sync. Polarity: Positive / Negative

46

Composite Sync. & Video (Sync. on Green)

47

HORIZONTAL

B

C

VIDEO

D

A

E

VERTICAL

P

Recommended Sync Signal Timing

Horizontal Duty should be 3 to 30%.
Horizontal sync width should exceed 0.9 µsec.
Horizontal back porch should exceed 2.0 µsec at sync on green and 1.2 µsec at others except when at 15KHz.
Horizontal blanking should exceed: 15.75; 10µsec, 31KHz< fH<66KHz: 3.6 µsec, 66KHz<fH: 2.7 µsec.
Vertical Duty should be 0.2 to 10%.
Vertical sync width should exceed 40 µsec or 2 horizontal lines.
Vertical sync width plus back porch should exceed 0.4 msec.
Interlaced signals are not recommended.
Interlaced signals with composite sync may not be displayed.

PQ

O

VIDEO

R

S

Sync. Polarity: Negative

48

Typical Input Signal Timing

49

Resolution

Horizontal Frequency

(A) Horizontal Period

(B) Horizontal Pulse Width

(C) Horizontal Back Porch

(D) Horizontal Active Area

(E) Hrizontal Front Porch

640~ 350

31.469KHz

31.778µsec

3.813µsec

1.589µsec

26.058µsec

0.318µsec

VGA Compatible

720~ 400

31.469KHz

31.778µsec

3.813µsec

1.589µsec

26.058µsec

0.318µsec

640~ 480

31.469KHz

31.778µsec

3.813µsec

1.589µsec

26.058µsec

0.318µsec

720~ 350

39.444KHz

25.352µsec

3.042µsec

1.522µsec

20.282µsec

0.508µsec

XGA-2 Compatible

720~ 400

39.444KHz

25.352µsec

3.042µsec

1.522µsec

20.282µsec

0.508µsec

640~ 480

39.375KHz

25.397µsec

3.048µsec

1.524µsec

20.317µsec

0.508µsec

Mac U , Quadra,
or LC Compatible

640~ 480

35.000KHz

28.570µsec

2.120µsec

3.170µsec

22.810µsec

0.180µsec

VESA
640~ 480
at 72Hz

Resolution

Horizontal Frequency

(A) Horizontal Period

(B) Horizontal Pulse Width

(C) Horizontal Back Porch

(D) Horizontal Active Area

(E) Horizontal Front Porch

*VGA, XGA, XGA-2, and 8514/A are the trademarks of International Business Machines Corporation.
*Macintosh II, Quadra, and LC are the trademarks of Apple Computer Inc.
*VESA is the trademark of a non-profit organization, Video Electronics Standards Association.

640~ 480

37.860KHz

26.413µsec

1.270µsec

4.063µsec

20.317µsec

0.762µsec

VESA
800~ 600
at 56Hz

800~ 600

35.156KHz

28.444µsec

2.000µsec

3.556µsec

22.222µsec

0.667µsec

VESA
800~ 600
at 60Hz

800~ 600

37.879KHz

26.400µsec

3.200µsec

2.200µsec

20.000µsec

1.000µsec

VESA
800~ 600
at 72Hz

800~ 600

48.077KHz

20.800µsec

2.400µsec

1.280µsec

16.000µsec

1.120µsec

MAC U
&
Quadra

832~ 624

49.725KHz

20.111µsec

1.117µsec

3.910µsec

14.524µsec

0.559µsec

8514/A & XGA
Interlaced
Compartible

1024~ 768

35.587KHz

28.100µsec

3.910µsec

1.247µsec

22.760µsec

0.178µsec

VESA
1024~ 768
at 60Hz

1024~ 768

48.363KHz

20.677µsec

2.092µsec

2.462µsec

15.754µsec

0.369µsec

50

51

Resolution

Vertical Frequency

(O)Vertical Period

(P) Vertical Pulse Width

(Q)Vertical Back Porch

(R) Vertical Active Area

(S) Vertical Front Porch

640~ 350

70.080Hz

14.268msec

0.064msec

1.716msec

11.504msec

0.985msec

VGA Compatible

720~ 400

70.080Hz

14.268msec

0.064msec

0.890msec

13.156msec

0.159msec

640~ 480

59.940Hz

16.683msec

0.064msec

0.793msec

15.762msec

0.064msec

720~ 350

87.850Hz

11.383msec

0.051msec

1.496msec

8.873msec

0.963msec

XGA-2 Compatible

720~ 400

87.850Hz

11.383msec

0.051msec

0.862msec

10.141msec

0.329msec

640~ 480

75.000Hz

13.333msec

0.051msec

0.813msec

12.190msec

0.279msec

Mac U , Quadra,
or LC Compatible

640~ 480

66.667Hz

15.000msec

0.090msec

1.110msec

13.710msec

0.090msec

Resolution

Vertical Frequency

(O)Vertical Period

(P) Vertical Pulse Width

(Q)Vertical Back Porch

(R) Vertical Active Area

(S) Vertical Front Porch

VESA
640~ 480
at 72Hz

640~ 480

72.809Hz

13.735msec

0.079msec

0.740msec

12.678msec

0.238msec

VESA
800~ 600
at 56Hz

800~ 600

56.250Hz

17.778msec

0.057msec

0.626msec

17.067msec

0.028msec

VESA
800~ 600
at 60Hz

800~ 600

60.317Hz

16.579msec

0.106msec

0.607msec

15.840msec

0.026msec

VESA
800~ 600
at 72Hz

800~ 600

72.187Hz

13.853msec

0.125msec

0.478msec

12.480msec

0.770msec

MAC U
&
Quadra

832~ 624

74.550Hz

13.414msec

0.060msec

0.784msec

12.549msec

0.020msec

8514/A & XGA
Interlaced
Compartible

1024~ 768

86.960Hz

11.499msec

0.112msec

0.577/0.563msec

10.824msec

0.000/0.014msec

VESA
1024~ 768
at 60Hz

1024~ 768

60.000Hz

16.667msec

0.124msec

0.600msec

15.880msec

0.062msec

52

Signal Identification for Raster Preset

53

Mode

MODE1
(15.0–28.0KHz)

MODE2
(28.0–34.4KHz)

MODE3
(34.4–36.5KHz)

MODE4
(36.5–41.5KHz)

Mode

MODE5
(41.5–45.0KHz)
MODE6
(45.0–49.0KHz)

MODE7
(49.0–51.0KHz)

NOTE:
“( )” or “-” =ignored =Factory preset signal
L=NEG.SYNC
H=POS.SYNC
Factory : 8 preset
User: 23 preset
Note that U09 is not used.

Polarity

Hor Ver

––

NEG

POS

NEG

––
––
––
––
––

(NEG)

NEG

POS

––

Polarity

Hor Ver

––
––
––

NEG

(NEG)

POS

––
––

(NEG)

(NEG)
––
––

––

NEG
NEG
POS

––
––
––
––
––

POS

––

––
––
––

POS

––
––

––
––

State

Hor Ver

––

H
H

H
––
––
––
––
––

H

H
––

State

Hor Ver

––
––
––

H

H
––
––

H
––
––

––

H
H
H
H

L
––
––
––

H
H
H

L

H

L

H
H
H

L

H
H

L

Frequency

Hor

Frequency

Hor

Ver

FV≤62
FV≥81

FV : 63-80

Ver

Factory

preset

F00

F01
F02
F02
F02
F02
F02
F03
F03
F04
F05
F05
F05

Factory

preset

F05
F06
F06
F06
F06
F06
F06
F07
F07
F07

User

preset

U00
U00
U01
U02
U03
U04
U05
U06
U07
U08
U10
U11
U12
U13

User

preset

U14
U15
U16
U17
U18
U19
U20
U21
U22
U23

Timing name

NTSC/ M-NTSC
RGB 15KHz
PAL/ SECAM
VESA I-Standard 6402480 (31.5KHz/ 60Hz)
IBM 6402350 (31.5KHz/ 71Hz)
IBM 6402400 (31.5KHz/ 71Hz)
–––
–––
VESA 8002600 (35.1KHz/ 56Hz)
VESA I-Standard 10242768 (35.5KHz/ 87Hz)
MAC 6402480 (35KHz/ 67Hz)
VESA 6402480 (37.5KHz/ 75Hz)
VESA 8002600 (37.9KHz/ 60Hz)
–––

Timing name

REUTER 6402480 (38.4KHz/ 72Hz)
VESA 6402480 (43.3KHz/ 85Hz)
–––
VESA 10242768 (48.4KHz/ 60Hz)
VESA 8002600 (46.9KHz/ 75Hz)
–––
REUTER 8002600 (48.1KHz/ 72Hz)
H-98 11202750 (50.0KHz/ 60.1Hz)
–––
MAC 8322624 (49.7KHz/ 75Hz)

54

55

Service and Support Policies

NEC Technologies is committed to providing the highest quality service and support for your
MultiSync presentation monitor. A customer service group that is dedicated to the support of
this product line is available to provide a single point of contact for technical support, trouble
shooting, service and repair issues.

Please address all questions concerning the following subjects to the phone number listed
below:

For technical support or any questions concerning the operation of this product.

To arrange for on-site repair service during the warranty period or after its expiration.

For the location of your nearest authorized NEC service center.

To report a DOA product and verify its status for return authorization.

1-800-836-0655

Due to the size and weight of large screen presentation monitor products, it is preferable to
solve problems on-site rather than to incur the expense and risk of damage in return shipping.
NECís service policies and procedures make it as effortless as possible for you to receive factory
authorized and trained service at your location.

On-site Service/Repair Policy

NEC offers on-site service and repair for all of our MultiSync presentation monitor products of 29''
and larger screen size. Warranty repair is provided by our service-authorized Visual Systems
Division Dealers and network of factory-trained independent service providers. If you are
experiencing a problem with your monitor, please contact the authorized NEC Visual Systems
Division dealer from which it was purchased. If this is a reseller who is unable to provide service,
call NEC directly at 1-800-836-0655.

DOA Policy

A product is considered DOA if it fails to function according to current published specifications
because of defects in NECTECH factory materials and/or workmanship during the first 30 days
from the date of purchase by the end user. After the 30 day period any defective product will
be considered a warranty repair.

A product is NOT considered DOA if it is functional but the box is damaged or it is missing
contents such as manuals, cables, etc.

NECTECH reserves the right to repair rather than replace any product.

Eligibility/Return for Exchange Procedure

If a product is suspected of being DOA, customers must call NECTECH VSD Technical Support.
A representative will assist in making the product fully functional or verify it as a DOA.

VSD Technical Support 1-800-836-0655
NEC technical support will provide a procedure for repair instead of exchange.

If the product is determined to be DOA, the Technical Support Representative will request the
following information in order to issue a Material Return Authorization (MRA) number:

Product model number
Serial number
A complete description of the problem

If approved, an MRA number and return address will be issued. All product to be returned must
be shipped freight pre-paid in its original carton to a designated NECTECH facility. The
customer assumes the risk of loss. The defective product must be received by NECTECH within
21 calendar days from the date the MRA was issued.

Any questions concerning service and repair policies or procedures can also be addressed in
writing to:

NEC Technologies
Visual Systems Division
Customer Service
1250 North Arlington Heights Road
Itasca, Illinois 60143

56
