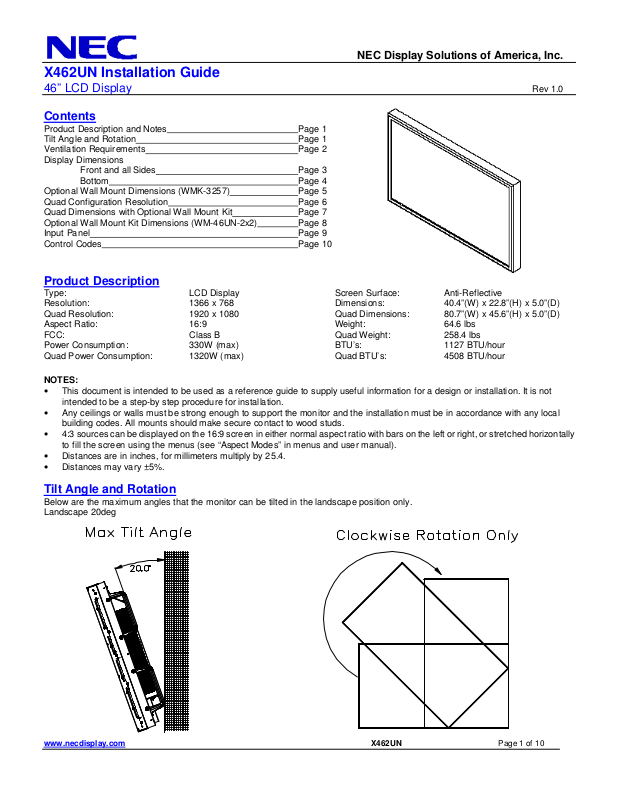

NEC X462UN User Manual

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Contents

Product Description and Notes Page 1
Tilt Angle and Rotation Page 1
Ventilation Requirements Page 2
Display Dimensions
Front and all Sides Page 3

Bottom Page 4
Optional Wall Mount Dimensions (WMK-3257) Page 5
Quad Configuration Resolution Page 6
Quad Dimensions with Optional Wall Mount Kit Page 7
Optional Wall Mount Kit Dimensions (WM-46UN-2x2) Page 8
Input Panel Page 9
Control Codes Page 10

Product Description

Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1366 x 768 Dimensions: 40.4”(W) x 22.8”(H) x 5.0”(D)
Quad Resolution: 1920 x 1080 Quad Dimensions: 80.7”(W) x 45.6”(H) x 5.0”(D)
Aspect Ratio: 16:9 Weight: 64.6 lbs
FCC: Class B Quad Weight: 258.4 lbs
Power Consumption: 330W (max) BTU’s: 1127 BTU/hour
Quad Power Consumption: 1320W (max) Quad BTU’s: 4508 BTU/hour

NOTES:

• This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

• Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

• 4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

• Distances are in inches, for millimeters multiply by 25.4.

• Distances may vary ±5%.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg

Rev 1.0

www.necdisplay.com X462UN Page 1 of 10

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

NOTE:

• The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and
recommendations.

Rev 1.0

www.necdisplay.com X462UN Page 2 of 10

X462UN Installation Guide

46” LCD Display

Display dimensions

Note

:

This product is not symmetrical.

NEC Display Solutions of America, Inc.

Rev 1.0

9.16

www.necdisplay.com X462UN Page 3 of 10

X462UN Installation Guide

46” LCD Display

Display dimensions (cont.)

NEC Display Solutions of America, Inc.

Rev 1.0

RATING
LABEL

www.necdisplay.com X462UN Page 4 of 10

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Dimensions with Optional Wall Mount Kit (WMK-3257)

RATI NG
LABEL

www.necdisplay.com X462UN Page 5 of 10

Rev 1.0

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Quad Configuration Resolution

1366 x 768

1366 x 768

Note: 1920x1080 is the maximum input resolution while using Tile Matrix.

www.necdisplay.com X462UN Page 6 of 10

1366 x 768

1366 x 768

Rev 1.0

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Quad Dimensions with Optional Wall Mount Kit (WM-46UN-2x2)

Rev 1.0

RATING LABEL

RATING LABEL

RATING LABEL

RATING LABEL

www.necdisplay.com X462UN Page 7 of 10

X462UN Installation Guide

46” LCD Display

Optional Wall Mount Kit Dimensions (WM-46UN-2x2)

NEC Display Solutions of America, Inc.

Rev 1.0

www.necdisplay.com X462UN Page 8 of 10

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Input Panel (Bottom)

Input Panel (Side)

www.necdisplay.com X462UN Page 9 of 10

Rev 1.0

NEC Display Solutions of America, Inc.

X462UN Installation Guide

46” LCD Display

Control Codes

Function Code Data

POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D
OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D
RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D
DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D
HDMI__________ 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 34 03 76 0D
VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D
DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D
S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D
TV (Analog) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 39 03 7B 0D
TV (Digital) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 41 03 03 0D
Option 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 44 03 06 0D
DisplayPort 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 46 03 04 0D
AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D
OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D
PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D
HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D
STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D
CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D
SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D
FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D
WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D
ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D
AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D
FILM MODE OFF 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D
AUTO 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D

NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C LAN
Communication: Asynchronous Communication speed: Auto setting (10/100Mbps)
Baud Rate: 9600 bps Certified standard: IEEE802.3 (10BASE-T)
Data Length: 8 bits IEEE802.3u (100BASE-TX, Auto-Negotiation)
Parity: None
Stop Bit: 1 bit
Communication Code: Hex

PC Control Connector (D-Sub 9P)

NOTE:

If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These
connections are not required. The only connections required are pins 2 (TxD), 3 (RxD) and 5 (GND).

www.necdisplay.com X462UN Page 10 of 10

Transmit Data+
Transmit Data­Receive Data+

Not Used
Not Used
Receive Data­Not Used
Not Used

Rev 1.0
