NEC X462S Installation and Setup Guide

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

Contents:

Product Description and Notes Page 1
Tilt Angle and Rotation
Ventilation Requirements
Display Dimensions
Display Dimensions

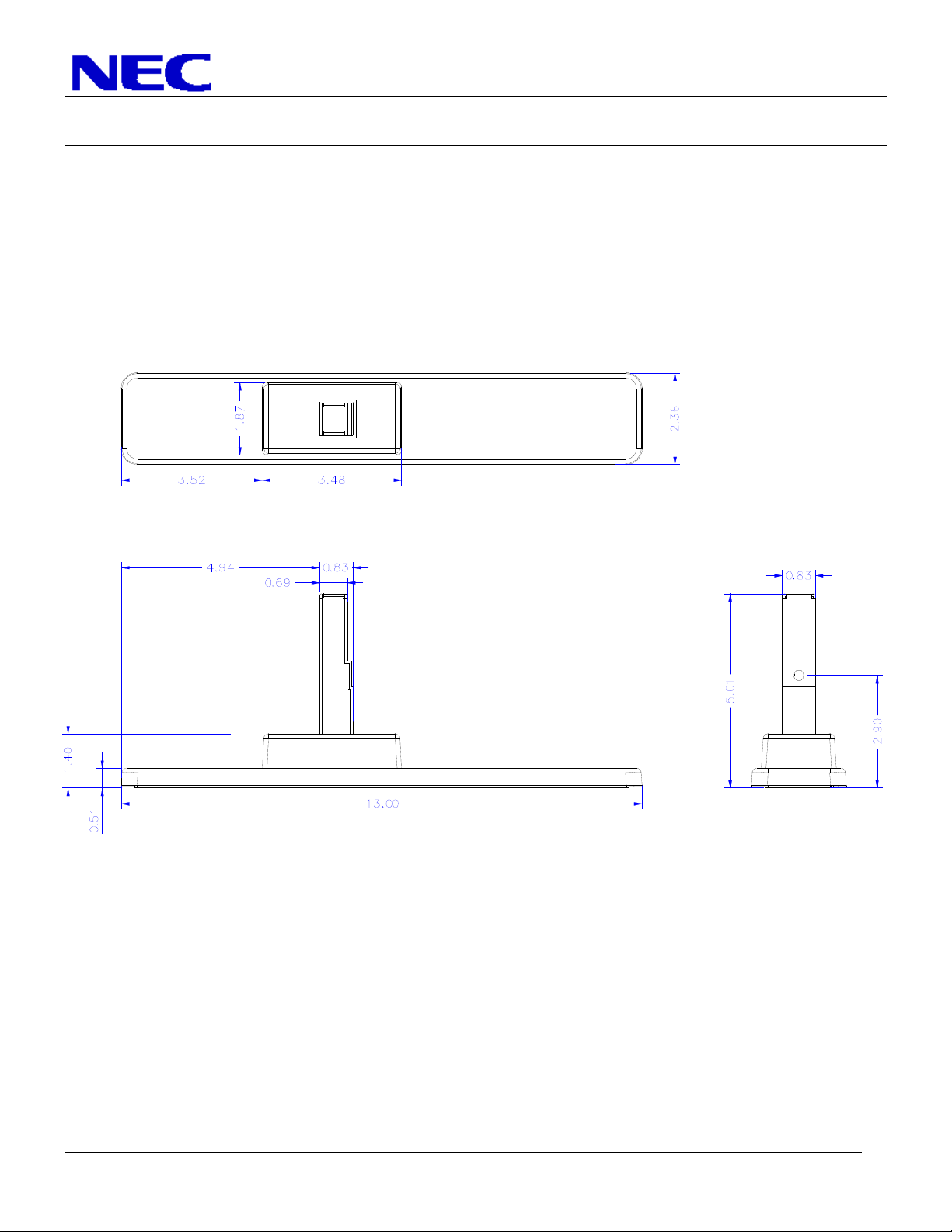

Optional Table Top Stand Dimensions
Dimensions of Optional Wall Mount (WMK-4655S)

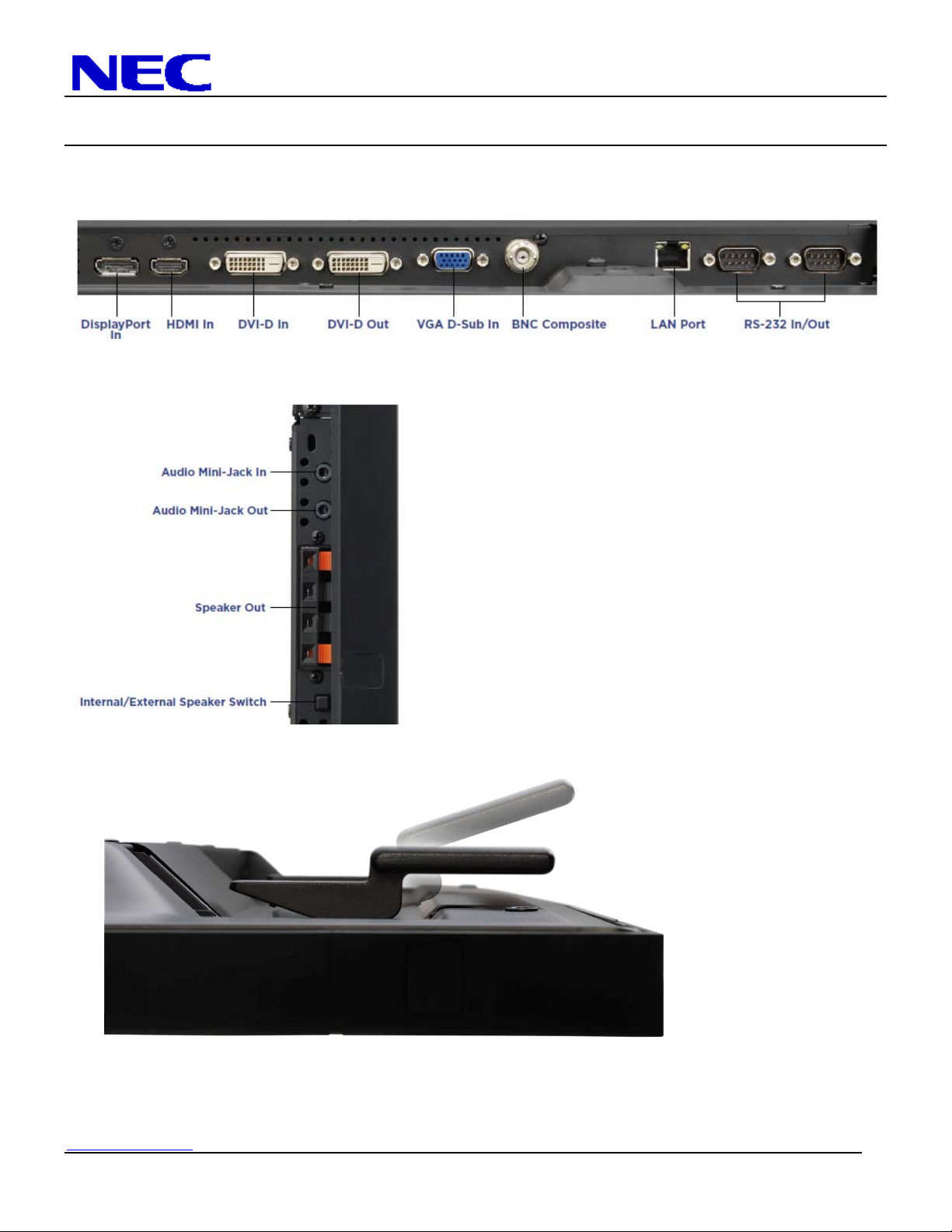

Input Terminals
Control Codes

Product Description

Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1920 x 1080 Dimensions without stand: 41.7”(W) x 24.1”(H) x 1.8”(D)
Aspect Ratio: 16:9 Dimensions with stand: 41.7”(W) x 25.6”(H) x 13.0” (D)
FCC: Class B Weight without stand: 45.6 lbs / 20.7 kg
Power Consumption: 110W (typ) Weight with stand: 49.6 lbs / 22.5 kg
BTU’s: 375.34 BTU/hour Built-In Speaker

NOTES:

 This document is intended to be use d as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

 Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

 4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

 Distances are in inches, for millimeters multiply by 25.4.

Tilt Angle and Rotation

Monitor may be angled and rotated from normal landscape and portrait orientation to both face up and face down positioning. When
orientated in face up or face down position, operating temperature for the unit changes. Rotate only clockwise for portrait orientation.

 Operating Temperatures:

o Landscape: 5-40° Celsius; 41-104° Fahrenheit Face Up: 5-35° Celsius; 41-95° Fahrenheit
o Portrait: 5-40° Celsius; 41-104° Fahrenheit Face Down: 5-35° Celsius; 41-95° Fahrenheit

www.necdisplay.com X462S Page 1 of 8

Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

Ventilation Recommendations:

Dimensions below are minimum recommended for proper ventilation when the unit is in a recessed area.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other
means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.

www.necdisplay.com X462S Page 2 of 8

NEC Display Solutions of America, Inc.

X462S Installation Guide

46” LCD Display Rev 1.0

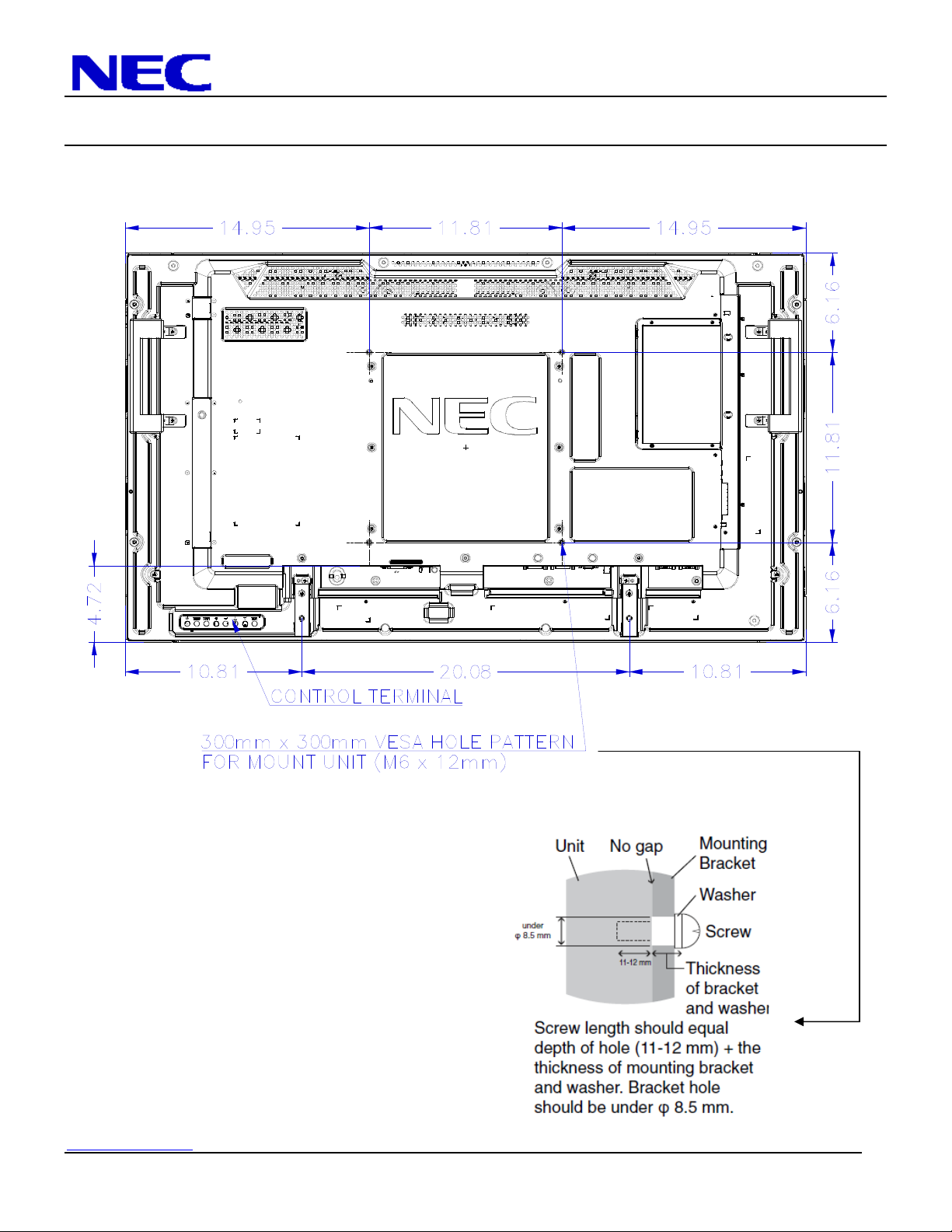

Display dimensions:

Note: When handle is set to ‘carrying’ mode (out), overall depth is 2.47”. When in ‘thin’ mode (in), overall depth is 1.70”

www.necdisplay.com X462S Page 3 of 8
